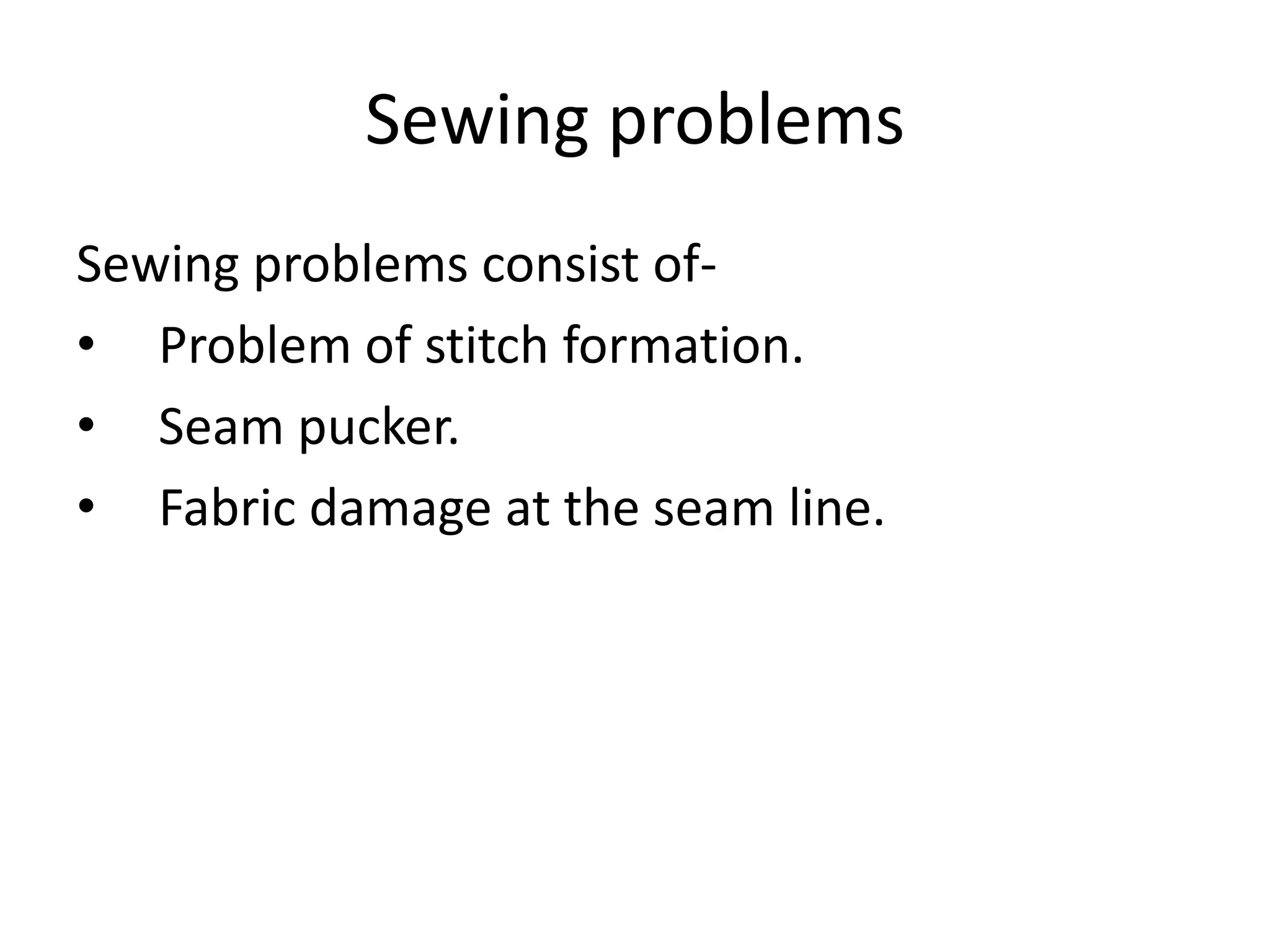

Sewing problems consist of issues with stitch formation, seam pucker, and fabric damage at the seam line. Problems with stitch formation include slipped stitches, staggered stitches, unbalanced stitches, variable stitch density, and frequent thread breakage. These issues are caused by improper needle size/tension, thread size, and machine adjustments. Seam pucker is caused by unequal fabric stretch, shrinkage differences between fabrics, excessive thread tension, and thread/fabric properties. Fabric damage occurs from mechanical damage or heat damage by the needle, which can be addressed by selecting the proper needle size/shape and machine settings.
My name's Asif Rayhan Chowdhury.I am a student of Shanto-Mariam University of Creative Technology at Apparel Manufacturing Management and Technology Department.Iwant to explore Different Types Of Industrial Sewing Machine & Their Uses.
A presentation on the technology of thread and seams, including thread and needle types, sizing conventions, seam and stitch types, and trouble shooting.
My name's Asif Rayhan Chowdhury.I am a student of Shanto-Mariam University of Creative Technology at Apparel Manufacturing Management and Technology Department.Iwant to explore Different Types Of Industrial Sewing Machine & Their Uses.
A presentation on the technology of thread and seams, including thread and needle types, sizing conventions, seam and stitch types, and trouble shooting.
This slide about sewing problem. Generally a lot of way sewing problem occurred. From this slide you guys can learn about some sewing problem & how it's occurred .
Fabrics and sewing defects of woven apparel By Engr. Aqs Zilanisaranzilani
In the textile industry, woven fabric is produced by interlacing warp and weft yarn. Faulty woven fabrics hamper the total quality of woven garments such as shirts, pants, trousers, jackets etc.
In order to get the correct appearance and good performance of seams, various considering factors, such as, stitch, seam, feed system, needle, thread, etc. Have to be correctly selected and adjusted. The sewing defects or problems that may arise during sewing, sewing defects such as Problems of stitch formation, Puckering problems, and Fabric defects along the sewing line etc.
It’s My think As a textile engineer-
We should know about the Fabrics and sewing defects of woven apparel produced during woven apparel fabric manufacturing. As its importance, this presentation has shown those Fabrics and sewing defects of woven apparel with their images, Causes and Remedies.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Using recycled concrete aggregates (RCA) for pavements is crucial to achieving sustainability. Implementing RCA for new pavement can minimize carbon footprint, conserve natural resources, reduce harmful emissions, and lower life cycle costs. Compared to natural aggregate (NA), RCA pavement has fewer comprehensive studies and sustainability assessments.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
CW RADAR, FMCW RADAR, FMCW ALTIMETER, AND THEIR PARAMETERSveerababupersonal22
It consists of cw radar and fmcw radar ,range measurement,if amplifier and fmcw altimeterThe CW radar operates using continuous wave transmission, while the FMCW radar employs frequency-modulated continuous wave technology. Range measurement is a crucial aspect of radar systems, providing information about the distance to a target. The IF amplifier plays a key role in signal processing, amplifying intermediate frequency signals for further analysis. The FMCW altimeter utilizes frequency-modulated continuous wave technology to accurately measure altitude above a reference point.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
We have compiled the most important slides from each speaker's presentation. This year’s compilation, available for free, captures the key insights and contributions shared during the DfMAy 2024 conference.
2. 1. Problems of stitch formation
a) Slipped stitch: If the upper thread in continuous stitches can not
pick the lower thread i.e. binding miss during stitch formation is
called slipped stitch.
Causes:
– Loop size or needle is small.
– Needle deflection or bending.
– Tension variation in lopper and needle thread.
– Hook or lopper or needle is not able to hold the thread loop in
proper time.
Remedies:
– Timing of (hook or lopper) with needle should be adjusted properly.
– Adjust needle and thread size.
– Adjust tension property.
– Change of thread.
3.
4. Continued……..
b) Staggered stitch: If the stitches produced by needle are not parallel
with the seam line, staggered stitches formed.
Causes:
Needle vibration or deflection.
wrong needle point.
Not proper adjust of needle size and thread size.
Faulty movement controlling of fabric into the feed mechanism.
Remedies:
• Needle size should be increased.
• Change of needle or thread size.
• Change of feed mechanism.
5.
6. Continued……..
c) Un balanced Stitch: If the interlacement of the needle thread and
bobbin thread does not takes place at the middle of two layers of
the fabric then unbalanced stitch is produced.
Causes:
Incorrect tension of sewing thread.
Incorrect passage of thread through the guide.
Due to insufficient lubrication, (uneven) tension variation increased.
Remedies:
• Adjust thread tension.
• Correct the passage of thread.
• Use good quality of thread.
7.
8. Continued……..
d) Variable stitch density: If the no. of stitch
varied in the seam line per unit
length, then variable stitch density
occurred.
Causes:
• Insufficient pressure of pressure foot,
causing uneven feeding.
• Feed mechanism is not working properly.
• Improper unwinding of thread.
• Twisting of needle in the bottom of thread
package.
• Fraying of thread in the needle.
• More tension in the thread.
• Becoming of more heating of thread and
hook.
• Use of low quality of thread.
Remedies:
• Uses of improved feed
mechanism.
• Increase of pressure of presser
foot.
• Proper threading of sewing
thread.
• Thread can be changed.
• Proper use of lubricant.
• Use of good needle.
• Finer thread can be used.
• Tension in thread must be
adjusted.
9. Continued……..
e) Frequent thread breakage:
Causes:
• Improper unwinding of thread from package.
• Higher thread tension.
• Excess needle heating.
• Lower quality of thread.
Remedies:
Reduce tension in tension in tension disc.
Reduce thread tension.
Use of strong yarn.
Change the needle if required.
Use coarser needle.
Use of high quality needle.
Use lubricant.
Use needle cooler.
Confirm oil supply.
Change of thread.
10. Problems of seam pucker
Pucker is a wrinkled appearance along with sewing line.
a) Unequal stretch on fabric:
Causes :
• If two or more plies fabrics are sewn together, one ply will be feed more than
other and seam pucker create due to uneven stretch.
Remedies:
• Improved feed mechanism of sewing m/c.
• Skilled operator and fabric handling would be special process.
b) Fabric dimension instability:
Causes:
• When two or more layers of fabric are sewn together and one layer shrinks more
than after washing differential seam pucker is formed.
Remedies::
• Shrinkage difference must be less than 2 %.
• We should test shrinkage of two types of fabric before sewing.
11.
12. Continued………
c) Extension in sewing thread:
Causes:
• While sewing threads are subjected to tension and for tension thread will be
extended and after sewing when thread get chance of relaxation then seam
pucker formed.
Remedies:
• Tension of the thread should be kept as low as possible.
• By changing the sewing threads.
d) Sewing thread shrinkage:
Causes:
• After sewing, if the sewing threads shrinks due to wash or iron, then seam pucker
occurred.
Remedies:
• Shrinkage of sewing thread must be equal to the fabric shrinkage.
• Before sewing, the shrinkage property of both thread and fabric should be
known.
13. Continued……..
e) Fabric construction:
Causes:
• In a compact fabric high EPI and PPI, while sewing of such fabrics, the
threads are displaced around the needle and because of lack of space,
pucker may be seen along the holes created by the needles.
Remedies:
• Very difficult to overcome this type of problem but to reduce the
problems following steps should be taken:
– By using fine / thin needle and fine / thin thread.
– Reduction of stitch density.
– Change the fabric if possible.
14. 3. Fabric damage at the seam line
Causes:
• This type of fault is mainly due to needle specially bent or damaged
needle.
• For this fabric damage, sewing strength becomes low and due to
more fabric damage, fabric may be tear off at the sewing line.
• Fabric may be damaged with new and good needle if needle size
and needle selection is wrong.
• This fault is visible after washing and wear.
Two types of fabric damage can be occurred with needle at the seam line:
• Mechanical damage.
• Needle heating damage.
15. Continued……….
a) Mechanical damage: To minimize the damage, the following steps are taken:
• Needle size and point should be properly selected.
• M/c speed should be reduced.
• Application of lubricant.
• Test the sew ability before sewing of fabric.
b) Needle heating damage:
• The temperature in needle due to friction between needle and fabric is
up to 300 – 350°C.
In this temp, needle or fabric both may be damaged.
We can solve the problem by-
Less speed of machine, proper needle size and shape, short length of
sewing, cool air use, lubrication.
