Self-inflating tires automatically inflate or deflate tires based on road conditions to maintain optimal tire pressure. There are several systems for self-inflating tires that use valves, pressure sensors, air sources, and relief vents. They detect low pressure and inflate tires back to the proper level. Future systems aim to make the entire process intelligent and more efficient. However, self-inflating tires are currently more expensive and complex than conventional tires.

1. By:By:
J.John Vineethkar,J.John Vineethkar,
vineeth6870@gmail.comvineeth6870@gmail.com
33rdrd
BTech. MECHANICAL.BTech. MECHANICAL.
SELF INFLATING TIRES

2. INTRODUCTION

3. What Is It…What Is It…
 The Self inflaTing TireS iS deSigned To
inflaTe or deflaTe TireS auTomaTically.
 TireS need more air while driving on
hard SurfaceS aT high SpeedS and leSS air
for driving on SofT SurfaceS Such aS Soil
or Sand.
The driver of The vehicle will SelecT an
appropriaTe Tire preSSure from inSide The
vehicle
meaningS :
 inflaTe : To fill (SomeThing) wiTh air or gaS So
aS To make iT Swell.
 deflaTe : To releaSe conTained air or gaS
from

4. INFLATING TYRES
Tires-inflation systems Job:
 deTecT when The air preSSure in a
parTicular Tire haS dropped.
 noTify The driver of The problem.
 inflaTe ThaT Tire back To The proper
level.

5. Types Of Self Inflating TiresTypes Of Self Inflating Tires
SystemSystem
cTiS (cenTral Tire inflaTion SySTem )
TmS (Tire mainTenance SySTem )
mTiS( meriTor Tire inflaTion SySTem)

6. Common elements of inflation systems:
 They use valve To isolaTeThey use valve To isolaTe
individual Tires To prevenT airflow.individual Tires To prevenT airflow.
 They have a meThod for sensing TheThey have a meThod for sensing The
Tire pressures.Tire pressures.
 They have an air source.They have an air source.
 There's a way To geT The air fromThere's a way To geT The air from
The air source To The Tires.The air source To The Tires.
 There's a pressure relief venT ToThere's a pressure relief venT To
venT air from The TirevenT air from The Tire ..

7. CTIS an inside look:CTIS an inside look:

8.  a wheel valve is presenT which isolaTe The
Tire from The sysTem when iT's noT in use.
 an elecTronic conTrol uniT (ecu), The brain
of The sysTem is mounTed behind The
passenger seaT.
 an operaTor conTrol panel leT cusTomize
Tire pressure model.
 cTis includes a speed sensor provide
informaTion abouT currenT speed & in Turn
cTis mainTain The opTimum Tire pressure.
 cTis gives prioriTy To The brakes since The
brakes & The Tire share air from The same
compressor.

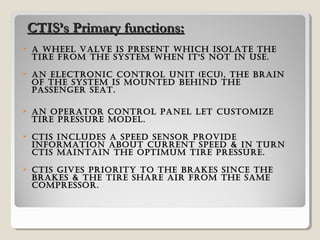

CTIS’s Primary functions:CTIS’s Primary functions:

9. CTIS a closer look (At the wheel):CTIS a closer look (At the wheel):

10. Tire Maintenance System (TMS)Tire Maintenance System (TMS)::
>Tire hose assembly.
 The roTary JoinT.
 The manifold.
Tms’s primary componenTs:
iT also has a elecTronic conTrol uniT ThaT
runs The enTire sysTem.

11. Meritor Tire Inflation System (MTIS)Meritor Tire Inflation System (MTIS)::

12. Wheel-end assembly:Wheel-end assembly:

13. Controls:Controls:

14. Air enters into the tires

15. Future of Self Inflating Tires:Future of Self Inflating Tires:
 TIPM (TIre InTellIgenT Pressure
ManageMenT)
 enTIre sysTeM
 CyCloId aIrPuMP sysTeM.

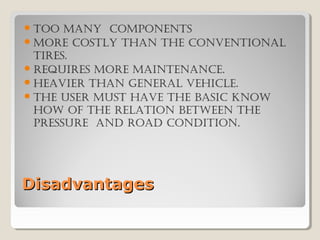

16. DisadvantagesDisadvantages
Too many componenTs
more cosTly Than The convenTional
Tires.
requires more mainTenance.
heavier Than general vehicle.
The user musT have The basic know
how of The relaTion beTween The
pressure and road condiTion.

17. ConclusionConclusion
self inflaTing Tires are going
To be used in The bicycles and
moTorcycles along wiTh The
four or more wheelers
Through ouT The world and
an era will definiTely come
soon when There will be
only self inflaTing Tires in
pracTice.
