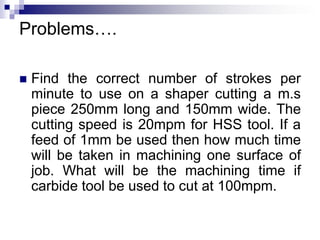

Here are the steps to solve this problem:
1) Cutting speed given = 20 m/min
2) Length of workpiece = 250 mm
3) Width of workpiece = 150 mm
4) Total material to be removed = Length x Width = 250 x 150 = 37,500 mm^3
5) Volume removed per stroke = Length of stroke x Feed per stroke
Assume length of stroke = 200 mm (typical for a shaper)
Feed per stroke = ?
6) Number of strokes required = Total material / Volume per stroke
7) Volume per stroke = Length of stroke x Feed
= 200 x Feed
8) Number of strokes = Total material / Volume per
A tool that has a single point for cutting purpose is called single point cutting tool. It is generally used in the lathe machine, shaper machine etc. It is used to remove the materials from the workpiece.
A tool that has a single point for cutting purpose is called single point cutting tool. It is generally used in the lathe machine, shaper machine etc. It is used to remove the materials from the workpiece.
Whole lathe machine in brief which any one can understand easily and quickly.
A Perfect ppt to get knowledge about lathe machine, its parts, operations etc.
AI and Machine Learning Demystified by Carol Smith at Midwest UX 2017Carol Smith
What is machine learning? Is UX relevant in the age of artificial intelligence (AI)? How can I take advantage of cognitive computing? Get answers to these questions and learn about the implications for your work in this session. Carol will help you understand at a basic level how these systems are built and what is required to get insights from them. Carol will present examples of how machine learning is already being used and explore the ethical challenges inherent in creating AI. You will walk away with an awareness of the weaknesses of AI and the knowledge of how these systems work.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Forklift Classes Overview by Intella PartsIntella Parts
Discover the different forklift classes and their specific applications. Learn how to choose the right forklift for your needs to ensure safety, efficiency, and compliance in your operations.
For more technical information, visit our website https://intellaparts.com
Democratizing Fuzzing at Scale by Abhishek Aryaabh.arya
Presented at NUS: Fuzzing and Software Security Summer School 2024
This keynote talks about the democratization of fuzzing at scale, highlighting the collaboration between open source communities, academia, and industry to advance the field of fuzzing. It delves into the history of fuzzing, the development of scalable fuzzing platforms, and the empowerment of community-driven research. The talk will further discuss recent advancements leveraging AI/ML and offer insights into the future evolution of the fuzzing landscape.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.

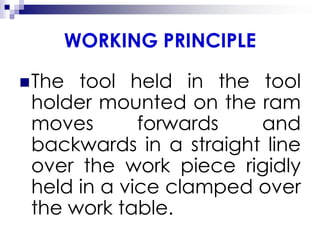

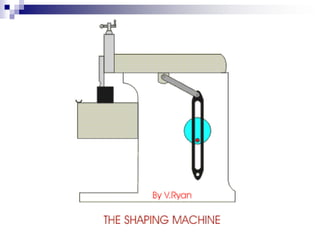

2. WORKING PRINCIPLE
The tool held in the tool
holder mounted on the ram
moves forwards and
backwards in a straight line
over the work piece rigidly
held in a vice clamped over
the work table.

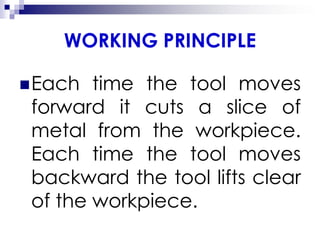

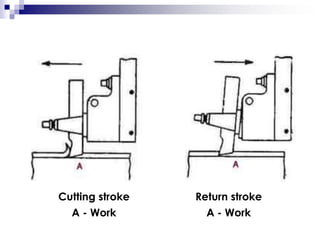

3. WORKING PRINCIPLE
Each time the tool moves
forward it cuts a slice of
metal from the workpiece.
Each time the tool moves
backward the tool lifts clear
of the workpiece.

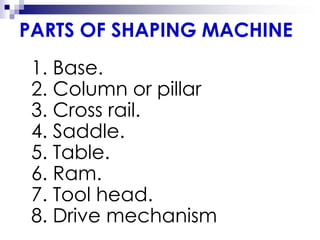

6. PARTS OF SHAPING MACHINE
1. Base.
2. Column or pillar
3. Cross rail.
4. Saddle.
5. Table.
6. Ram.
7. Tool head.
8. Drive mechanism

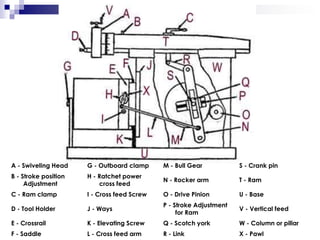

7. A - Swiveling Head G - Outboard clamp M - Bull Gear S - Crank pin
B - Stroke position
Adjustment
H - Ratchet power
cross feed
N - Rocker arm T - Ram
C - Ram clamp I - Cross feed Screw O - Drive Pinion U - Base
D - Tool Holder J - Ways
P - Stroke Adjustment
for Ram
V - Vertical feed
E - Crossrail K - Elevating Screw Q - Scotch york W - Column or pillar
F - Saddle L - Cross feed arm R - Link X - Pawl

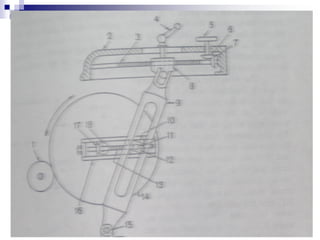

8.

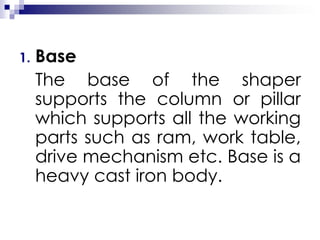

9. 1. Base
The base of the shaper
supports the column or pillar
which supports all the working
parts such as ram, work table,
drive mechanism etc. Base is a
heavy cast iron body.

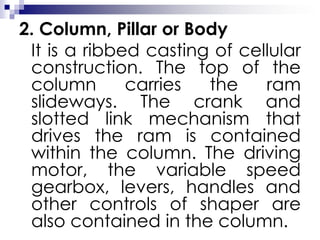

10. 2. Column, Pillar or Body
It is a ribbed casting of cellular
construction. The top of the
column carries the ram
slideways. The crank and
slotted link mechanism that
drives the ram is contained
within the column. The driving
motor, the variable speed
gearbox, levers, handles and
other controls of shaper are
also contained in the column.

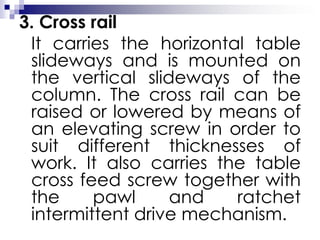

11. 3. Cross rail
It carries the horizontal table
slideways and is mounted on
the vertical slideways of the
column. The cross rail can be
raised or lowered by means of
an elevating screw in order to
suit different thicknesses of
work. It also carries the table
cross feed screw together with
the pawl and ratchet
intermittent drive mechanism.

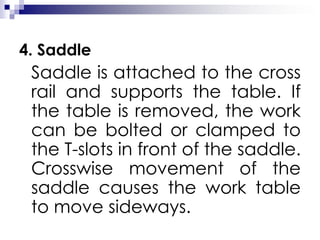

12. 4. Saddle
Saddle is attached to the cross
rail and supports the table. If
the table is removed, the work
can be bolted or clamped to
the T-slots in front of the saddle.
Crosswise movement of the
saddle causes the work table
to move sideways.

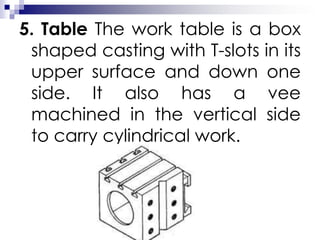

13. 5. Table The work table is a box
shaped casting with T-slots in its
upper surface and down one
side. It also has a vee
machined in the vertical side
to carry cylindrical work.

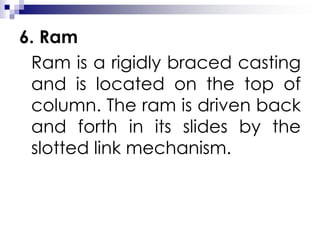

14. 6. Ram
Ram is a rigidly braced casting
and is located on the top of
column. The ram is driven back
and forth in its slides by the
slotted link mechanism.

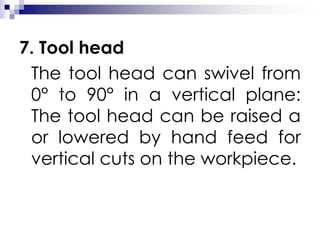

15. 7. Tool head
The tool head can swivel from
0° to 90° in a vertical plane:
The tool head can be raised a
or lowered by hand feed for
vertical cuts on the workpiece.

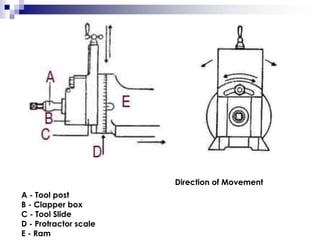

16. Direction of Movement
A - Tool post
B - Clapper box
C - Tool Slide
D - Protractor scale
E - Ram

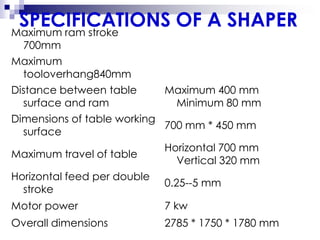

17. SPECIFICATIONS OF A SHAPERMaximum ram stroke
700mm
Maximum
tooloverhang840mm
Distance between table
surface and ram
Maximum 400 mm
Minimum 80 mm
Dimensions of table working
surface
700 mm * 450 mm
Maximum travel of table
Horizontal 700 mm
Vertical 320 mm
Horizontal feed per double
stroke
0.25--5 mm
Motor power 7 kw
Overall dimensions 2785 * 1750 * 1780 mm

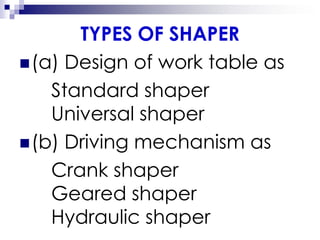

18. TYPES OF SHAPER
(a) Design of work table as
Standard shaper
Universal shaper
(b) Driving mechanism as
Crank shaper
Geared shaper
Hydraulic shaper

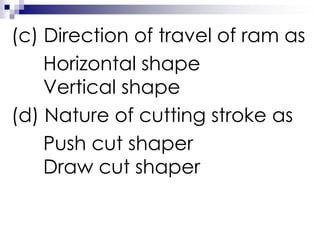

19. (c) Direction of travel of ram as
Horizontal shape
Vertical shape
(d) Nature of cutting stroke as
Push cut shaper
Draw cut shaper

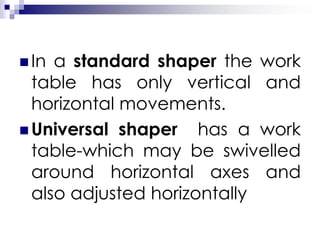

20. In a standard shaper the work
table has only vertical and
horizontal movements.
Universal shaper has a work
table-which may be swivelled
around horizontal axes and
also adjusted horizontally

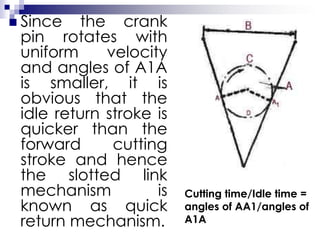

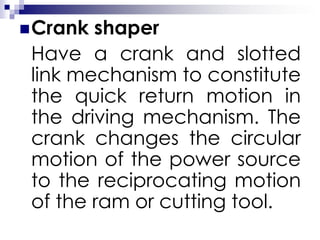

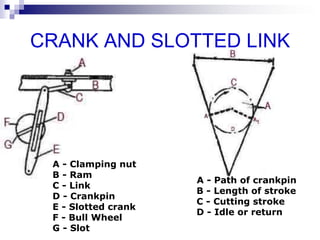

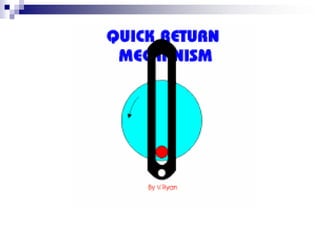

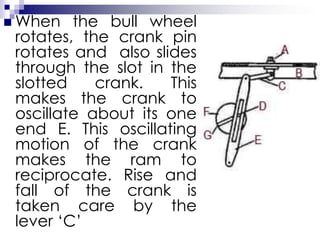

21. Crank shaper
Have a crank and slotted
link mechanism to constitute
the quick return motion in
the driving mechanism. The
crank changes the circular
motion of the power source
to the reciprocating motion
of the ram or cutting tool.

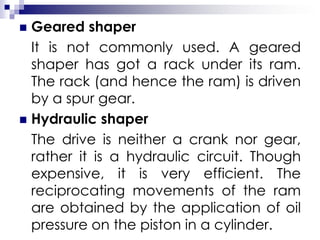

22. Geared shaper
It is not commonly used. A geared
shaper has got a rack under its ram.
The rack (and hence the ram) is driven
by a spur gear.

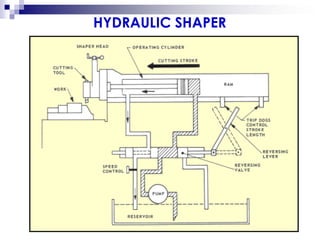

Hydraulic shaper
The drive is neither a crank nor gear,
rather it is a hydraulic circuit. Though
expensive, it is very efficient. The
reciprocating movements of the ram
are obtained by the application of oil
pressure on the piston in a cylinder.

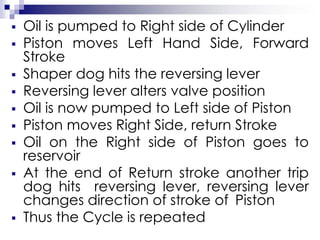

24. Oil is pumped to Right side of Cylinder
Piston moves Left Hand Side, Forward
Stroke
Shaper dog hits the reversing lever
Reversing lever alters valve position
Oil is now pumped to Left side of Piston
Piston moves Right Side, return Stroke
Oil on the Right side of Piston goes to
reservoir
At the end of Return stroke another trip
dog hits reversing lever, reversing lever
changes direction of stroke of Piston
Thus the Cycle is repeated

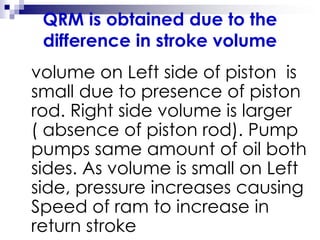

25. QRM is obtained due to the
difference in stroke volume
volume on Left side of piston is
small due to presence of piston
rod. Right side volume is larger
( absence of piston rod). Pump
pumps same amount of oil both
sides. As volume is small on Left
side, pressure increases causing
Speed of ram to increase in
return stroke

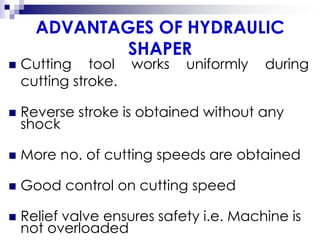

26. ADVANTAGES OF HYDRAULIC
SHAPER
Cutting tool works uniformly during
cutting stroke.
Reverse stroke is obtained without any
shock
More no. of cutting speeds are obtained
Good control on cutting speed
Relief valve ensures safety i.e. Machine is
not overloaded

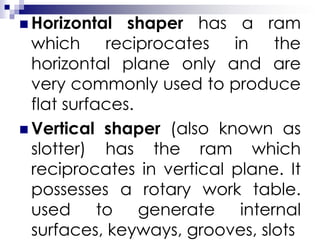

27. Horizontal shaper has a ram
which reciprocates in the
horizontal plane only and are
very commonly used to produce
flat surfaces.
Vertical shaper (also known as
slotter) has the ram which
reciprocates in vertical plane. It
possesses a rotary work table.
used to generate internal
surfaces, keyways, grooves, slots
28. Push cut shapers are of the
horizontal push cut type. In this
type, cutting occurs as the ram
pushes the tool across the
workpiece.
Draw cut shapers are used primarily
in tool and die shops. Cutting is
done during the return stroke as the
tool is set in a reversed direction to
that of the standard shaper. It can
take heavy cuts with 'less vibration
and strain on the work table.
29. SHAPER FEED MECHANISM
The feeds of a shaper are usually
obtained by means of a pawl and
ratchet actuating the feed (lead)
screw
The driving disc is linked by
connecting rod to the rocker arm
which carries a spring loaded
reversible pawl. As the disc rotates
it causes pawl to oscillate about
the centre of the feed screw.
31. By offsetting the driving pin on
the slotted disc, the rocker arm
is made to oscillate sufficient to
move the pawl over one or
more teeth of ratchet and so
transmit intermittent motion to
the Crossfeed lead screw
which moves the work table.

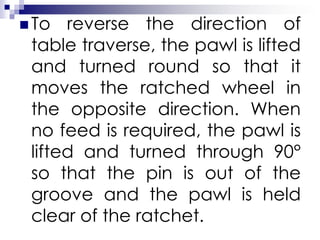

32. To reverse the direction of
table traverse, the pawl is lifted
and turned round so that it
moves the ratched wheel in
the opposite direction. When
no feed is required, the pawl is
lifted and turned through 90°
so that the pin is out of the
groove and the pawl is held
clear of the ratchet.

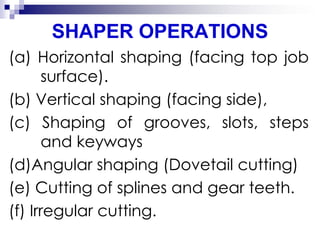

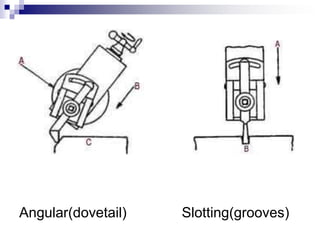

33. SHAPER OPERATIONS
(a) Horizontal shaping (facing top job
surface).
(b) Vertical shaping (facing side),
(c) Shaping of grooves, slots, steps
and keyways
(d)Angular shaping (Dovetail cutting)
(e) Cutting of splines and gear teeth.
(f) Irregular cutting.

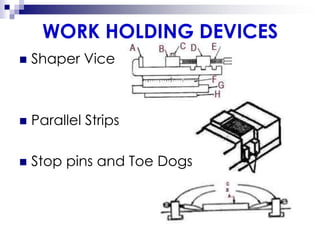

36. WORK HOLDING DEVICES
(i) Vices
(ii) Parallel strips
(iii) Clamps
(iv) Jack
(v) Angle plate
(vi) Vee blocks
(vii) Stop pins and toe dogs
(viii) Centres.

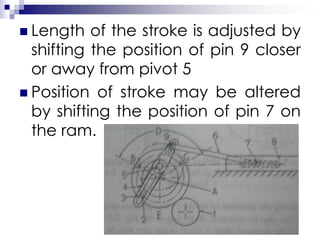

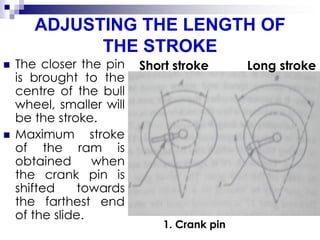

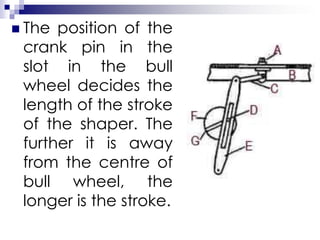

38. ADJUSTING THE LENGTH OF
THE STROKE
The closer the pin
is brought to the
centre of the bull
wheel, smaller will
be the stroke.
Maximum stroke
of the ram is
obtained when
the crank pin is
shifted towards
the farthest end
of the slide.
1. Crank pin
Short stroke Long stroke
39. ADJUSTING THE POSITION OF
STROKE
Clamping lever is loosened and by
rotating the hand wheel, screwed
shaft will rotate within the ram
block.
Rotation of the screwed shaft will
cause the ram to move forward or
backward. Thus position of the
ram is adjusted to desired position.
Now the clamping lever is

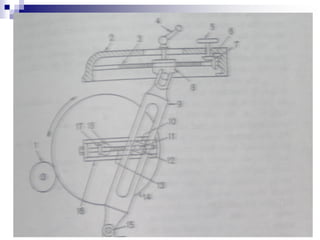

40.

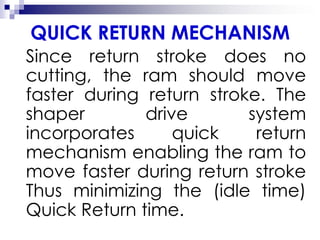

41. QUICK RETURN MECHANISM
Since return stroke does no
cutting, the ram should move
faster during return stroke. The
shaper drive system
incorporates quick return
mechanism enabling the ram to
move faster during return stroke
Thus minimizing the (idle time)
Quick Return time.

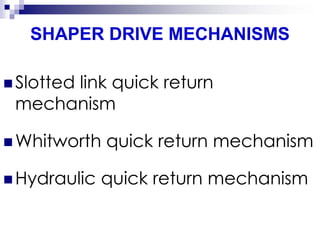

43. CRANK AND SLOTTED LINK
A - Clamping nut
B - Ram
C - Link
D - Crankpin
E - Slotted crank
F - Bull Wheel
G - Slot
A - Path of crankpin
B - Length of stroke
C - Cutting stroke
D - Idle or return

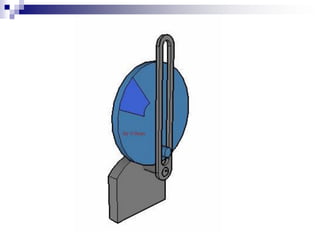

44. When the bull wheel
rotates, the crank pin
rotates and also slides
through the slot in the
slotted crank. This
makes the crank to
oscillate about its one
end E. This oscillating
motion of the crank
makes the ram to
reciprocate. Rise and
fall of the crank is
taken care by the
lever ‘C’
45. The position of the
crank pin in the
slot in the bull
wheel decides the
length of the stroke
of the shaper. The
further it is away
from the centre of
bull wheel, the
longer is the stroke.
46. The cutting stroke of the
ram is completed while
the crank pin moves
from A to A1 and the
slotted link goes from
left to right. Similarly,
during return stroke
crank pin moves from
A1 to A and the link
changes its position
from right to left.
47. Since the crank
pin rotates with
uniform velocity
and angles of A1A
is smaller, it is
obvious that the
idle return stroke is
quicker than the
forward cutting
stroke and hence
the slotted link
mechanism is
known as quick
return mechanism.
Cutting time/Idle time =
angles of AA1/angles of
A1A

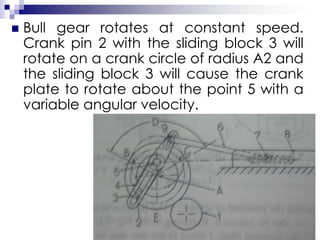

51. Bull gear rotates at constant speed.
Crank pin 2 with the sliding block 3 will
rotate on a crank circle of radius A2 and
the sliding block 3 will cause the crank
plate to rotate about the point 5 with a
variable angular velocity.
52. Rotary motion of the crank pin 9 will be
converted in to reciprocating motion
of the ram. When the pin 2 is at
position C, the ram will be at the
extreme backward position. At position
B, ram is at the forward position.
53. Length of the stroke is adjusted by
shifting the position of pin 9 closer
or away from pivot 5
Position of stroke may be altered
by shifting the position of pin 7 on
the ram.
54. DIFFERENCE BETWEEN THE
TWO QRM
In whitworth the slotted or driven
member is inside of the crank pin
circle, whereas in crank and
slotted link, the pivot is outside of
the crank pin circle.
As a result of this difference, part 4
in ww, has a continuous rotary
motion, while slotted link E swings
through a definite angle

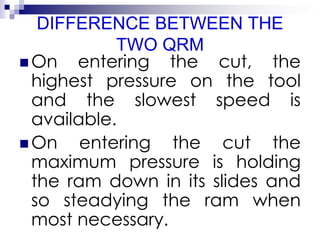

55. DIFFERENCE BETWEEN THE
TWO QRM
On entering the cut, the
highest pressure on the tool
and the slowest speed is
available.
On entering the cut the
maximum pressure is holding
the ram down in its slides and
so steadying the ram when
most necessary.

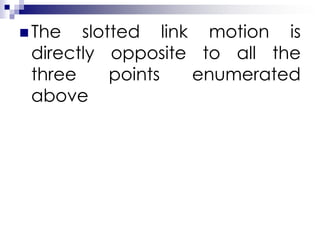

56. The slotted link motion is
directly opposite to all the
three points enumerated
above

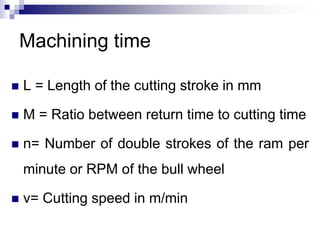

57. Machining time
L = Length of the cutting stroke in mm
M = Ratio between return time to cutting time
n= Number of double strokes of the ram per
minute or RPM of the bull wheel
v= Cutting speed in m/min

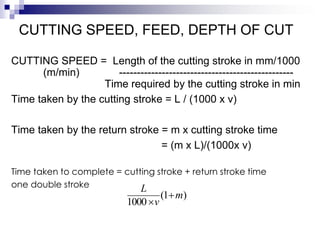

58. CUTTING SPEED, FEED, DEPTH OF CUT
CUTTING SPEED = Length of the cutting stroke in mm/1000
(m/min) -------------------------------------------------
Time required by the cutting stroke in min
Time taken by the cutting stroke = L / (1000 x v)
Time taken by the return stroke = m x cutting stroke time
= (m x L)/(1000x v)
Time taken to complete = cutting stroke + return stroke time
one double stroke
)1(
1000
m
v
L

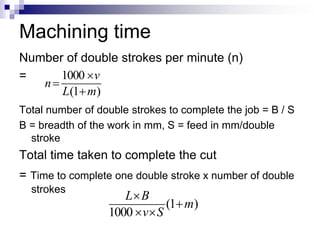

59. Machining time
Number of double strokes per minute (n)
=
Total number of double strokes to complete the job = B / S
B = breadth of the work in mm, S = feed in mm/double
stroke
Total time taken to complete the cut
= Time to complete one double stroke x number of double
strokes
)1(
1000
mL
v
n
)1(
1000
m
Sv
BL

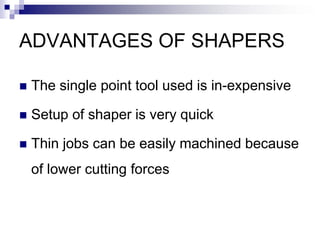

60. ADVANTAGES OF SHAPERS
The single point tool used is in-expensive
Setup of shaper is very quick
Thin jobs can be easily machined because
of lower cutting forces

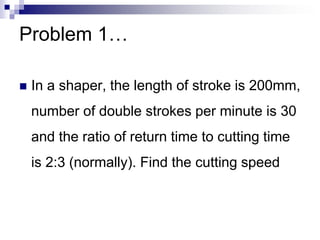

61. Problem 1…
In a shaper, the length of stroke is 200mm,
number of double strokes per minute is 30
and the ratio of return time to cutting time
is 2:3 (normally). Find the cutting speed

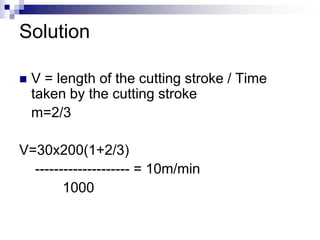

62. Solution
V = length of the cutting stroke / Time
taken by the cutting stroke
m=2/3
V=30x200(1+2/3)
-------------------- = 10m/min
1000

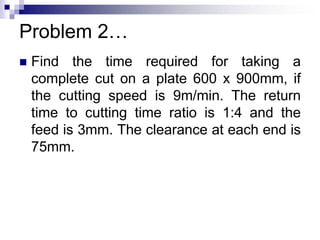

63. Problem 2…
Find the time required for taking a
complete cut on a plate 600 x 900mm, if
the cutting speed is 9m/min. The return
time to cutting time ratio is 1:4 and the
feed is 3mm. The clearance at each end is
75mm.

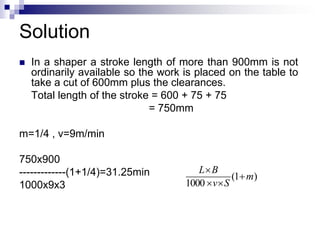

64. Solution
In a shaper a stroke length of more than 900mm is not
ordinarily available so the work is placed on the table to
take a cut of 600mm plus the clearances.
Total length of the stroke = 600 + 75 + 75
= 750mm
m=1/4 , v=9m/min
750x900
-------------(1+1/4)=31.25min
1000x9x3
)1(
1000
m
Sv
BL
65. Problems….
Find the correct number of strokes per
minute to use on a shaper cutting a m.s
piece 250mm long and 150mm wide. The
cutting speed is 20mpm for HSS tool. If a
feed of 1mm be used then how much time
will be taken in machining one surface of
job. What will be the machining time if
carbide tool be used to cut at 100mpm.
