1. RAMAN SPECTROSCOPY
AND ITS APPLICATIONS
VARINDER KHEPAR
PhD Chemistry
1

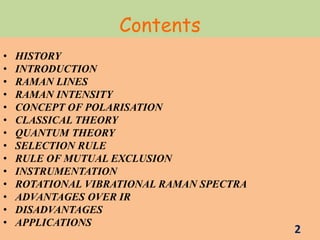

2. Contents
• HISTORY
• INTRODUCTION
• RAMAN LINES
• RAMAN INTENSITY
• CONCEPT OF POLARISATION
• CLASSICAL THEORY
• QUANTUM THEORY
• SELECTION RULE
• RULE OF MUTUAL EXCLUSION
• INSTRUMENTATION
• ROTATIONAL VIBRATIONAL RAMAN SPECTRA
• ADVANTAGES OVER IR
• DISADVANTAGES
• APPLICATIONS
2

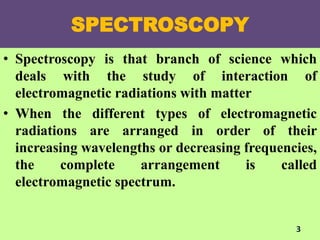

3. SPECTROSCOPY
• Spectroscopy is that branch of science which
deals with the study of interaction of
electromagnetic radiations with matter
• When the different types of electromagnetic
radiations are arranged in order of their
increasing wavelengths or decreasing frequencies,
the complete arrangement is called
electromagnetic spectrum.
3

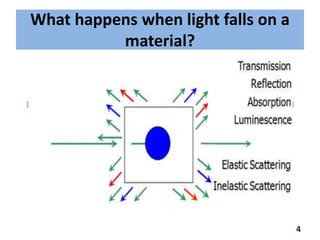

4. What happens when light falls on a
material?
4

5. HISTORY
• 1923- Inelastic light scattering was
predicted by A. Smekel
• 1928-Landsberg and Mandelstam see
unexpected frequency shifts in scattering
from quartz
• 1928- C.V Raman discovered the Raman
effect on 28 February
• 1930-Indian physicist won the Nobel prize
in physics
• 1954- won Bharat Ratna award
• NATIONAL SCIENCE DAY is celebrated
in India on 28 February
5

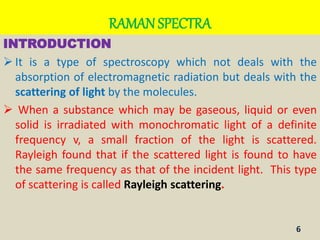

6. RAMAN SPECTRA
INTRODUCTION
 It is a type of spectroscopy which not deals with the
absorption of electromagnetic radiation but deals with the
scattering of light by the molecules.
 When a substance which may be gaseous, liquid or even
solid is irradiated with monochromatic light of a definite
frequency v, a small fraction of the light is scattered.
Rayleigh found that if the scattered light is found to have
the same frequency as that of the incident light. This type
of scattering is called Rayleigh scattering.
6

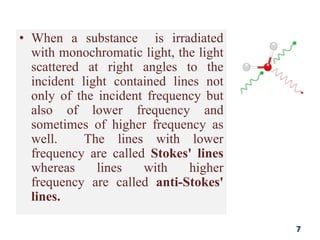

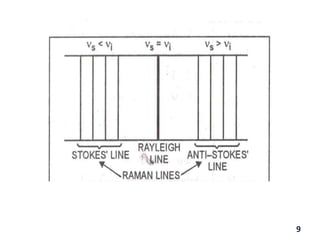

7. • When a substance is irradiated
with monochromatic light, the light
scattered at right angles to the
incident light contained lines not
only of the incident frequency but
also of lower frequency and
sometimes of higher frequency as
well. The lines with lower
frequency are called Stokes' lines
whereas lines with higher
frequency are called anti-Stokes'
lines.
7

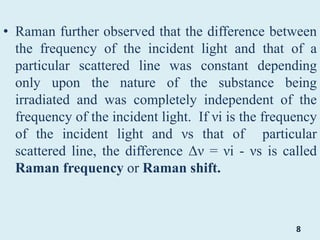

8. • Raman further observed that the difference between
the frequency of the incident light and that of a
particular scattered line was constant depending
only upon the nature of the substance being
irradiated and was completely independent of the
frequency of the incident light. If νi is the frequency
of the incident light and νs that of particular
scattered line, the difference Δν = νi - νs is called
Raman frequency or Raman shift.
8

9. 9

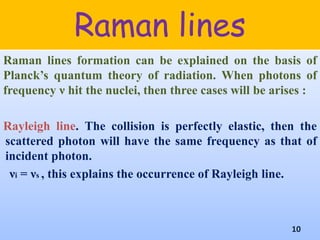

10. Raman lines
Raman lines formation can be explained on the basis of
Planck’s quantum theory of radiation. When photons of
frequency ν hit the nuclei, then three cases will be arises :
Rayleigh line. The collision is perfectly elastic, then the
scattered photon will have the same frequency as that of
incident photon.
νi = νs , this explains the occurrence of Rayleigh line.
10

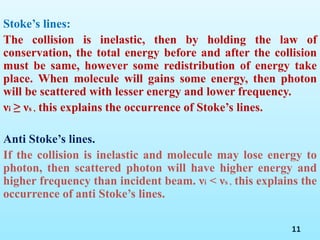

11. Stoke’s lines:
The collision is inelastic, then by holding the law of
conservation, the total energy before and after the collision
must be same, however some redistribution of energy take
place. When molecule will gains some energy, then photon
will be scattered with lesser energy and lower frequency.
νi ≥ νs , this explains the occurrence of Stoke’s lines.
Anti Stoke’s lines.
If the collision is inelastic and molecule may lose energy to
photon, then scattered photon will have higher energy and
higher frequency than incident beam. νi < νs , this explains the
occurrence of anti Stoke’s lines.
11

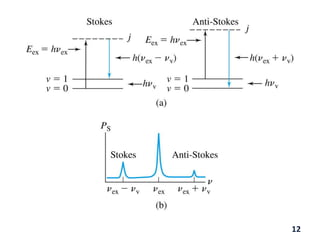

12. 12

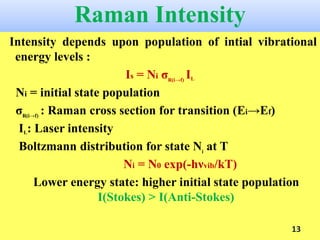

13. Raman Intensity
Intensity depends upon population of intial vibrational
energy levels :
Is = Ni σR(i→f)
IL
Ni = initial state population
σR(i→f)
: Raman cross section for transition (Ei→Ef)
IL: Laser intensity
Boltzmann distribution for state Ni
at T
Ni = N0 exp(-hνvib/kT)
Lower energy state: higher initial state population
I(Stokes) > I(Anti-Stokes)
13

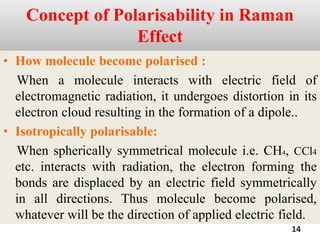

14. Concept of Polarisability in Raman
Effect
• How molecule become polarised :
When a molecule interacts with electric field of
electromagnetic radiation, it undergoes distortion in its
electron cloud resulting in the formation of a dipole..
• Isotropically polarisable:
When spherically symmetrical molecule i.e. CH4, CCl4
etc. interacts with radiation, the electron forming the
bonds are displaced by an electric field symmetrically
in all directions. Thus molecule become polarised,
whatever will be the direction of applied electric field.
14

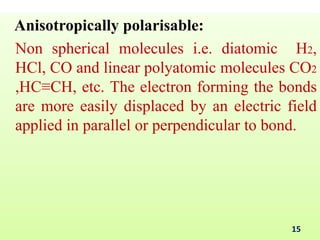

15. Anisotropically polarisable:
Non spherical molecules i.e. diatomic H2,
HCl, CO and linear polyatomic molecules CO2
,HC≡CH, etc. The electron forming the bonds
are more easily displaced by an electric field
applied in parallel or perpendicular to bond.
15

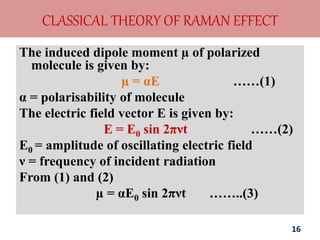

16. CLASSICAL THEORY OF RAMAN EFFECT
The induced dipole moment µ of polarized
molecule is given by:
µ = αE ……(1)
α = polarisability of molecule
The electric field vector E is given by:
E = E0 sin 2πνt ……(2)
E0 = amplitude of oscillating electric field
ν = frequency of incident radiation
From (1) and (2)
µ = αE0 sin 2πνt ……..(3)
16

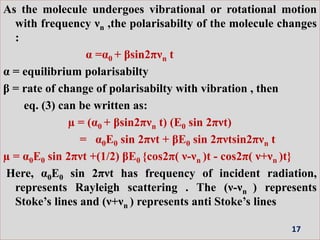

17. As the molecule undergoes vibrational or rotational motion
with frequency νn ,the polarisabilty of the molecule changes
:
α =α0 + βsin2πνn t
α = equilibrium polarisabilty
β = rate of change of polarisabilty with vibration , then
eq. (3) can be written as:
µ = (α0 + βsin2πνn t) (E0 sin 2πνt)
= α0E0 sin 2πνt + βE0 sin 2πνtsin2πνn t
µ = α0E0 sin 2πνt +(1/2) βE0 {cos2π( ν-νn )t - cos2π( ν+νn )t}
Here, α0E0 sin 2πνt has frequency of incident radiation,
represents Rayleigh scattering . The (ν-νn ) represents
Stoke’s lines and (ν+νn ) represents anti Stoke’s lines
17

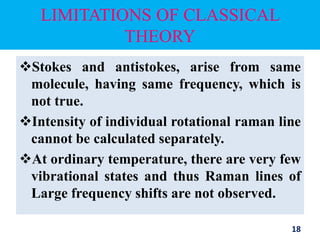

18. LIMITATIONS OF CLASSICAL
THEORY
Stokes and antistokes, arise from same
molecule, having same frequency, which is
not true.
Intensity of individual rotational raman line
cannot be calculated separately.
At ordinary temperature, there are very few
vibrational states and thus Raman lines of
Large frequency shifts are not observed.
18

19. QUANTUM THEORY OF RAMAN
EFFECT
hvi
• Molecule may deviate the photon without absorbing its energy
unmodified line.
• May absorb part of energy of incident photon modified Stokes
line.
• Molecule, itself being in an excited state, imparts some of its intrinsic
energy to incident photon modified Antistokes line.
Let a molecule of energy Ep be exposed to radiation (ν0) and after collision the
energy of molecule be Eq and the frequency of scattered photon be ν’.
19

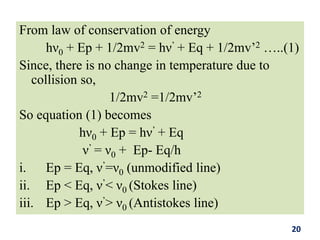

20. From law of conservation of energy
hν0 + Ep + 1/2mv2 = hν’ + Eq + 1/2mv’2 …..(1)
Since, there is no change in temperature due to
collision so,
1/2mv2 =1/2mv’2
So equation (1) becomes
hν0 + Ep = hν’ + Eq
ν’ = ν0 + Ep- Eq/h
i. Ep = Eq, ν’=ν0 (unmodified line)
ii. Ep < Eq, ν’< ν0 (Stokes line)
iii. Ep > Eq, ν’> ν0 (Antistokes line)
20

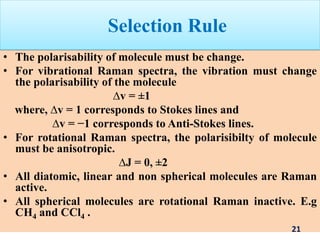

21. Selection Rule
• The polarisability of molecule must be change.
• For vibrational Raman spectra, the vibration must change
the polarisability of the molecule
∆v = ±1
where, ∆v = 1 corresponds to Stokes lines and
∆v = −1 corresponds to Anti-Stokes lines.
• For rotational Raman spectra, the polarisibilty of molecule
must be anisotropic.
∆J = 0, ±2
• All diatomic, linear and non spherical molecules are Raman
active.
• All spherical molecules are rotational Raman inactive. E.g
CH4 and CCl4 .
21

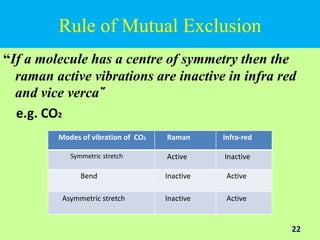

22. Rule of Mutual Exclusion
“If a molecule has a centre of symmetry then the
raman active vibrations are inactive in infra red
and vice verca῎
e.g. CO2
Modes of vibration of CO2 Raman Infra-red
Symmetric stretch Active Inactive
Bend Inactive Active
Asymmetric stretch Inactive Active
22

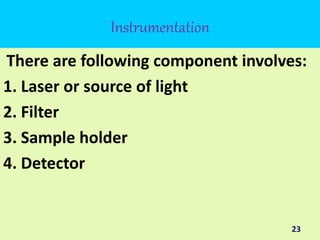

23. Instrumentation
There are following component involves:
1. Laser or source of light
2. Filter
3. Sample holder
4. Detector
23

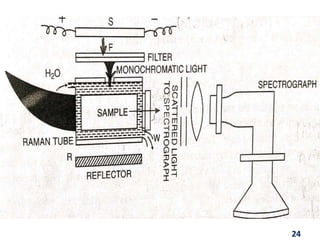

24. 24

25. 1. Laser or source of light
• Lasers are strong source strong to detect Raman
scattering.
• Lasers operate using the principle of stimulated
emission.
• Electronic population inversion is required.
• Population inversion is achieved by “pumping”
using lots of photons in a variety of laser gain
media
25

26. List of Various laser source
S.No. Laser wavelength
1 Nd:YAG 1064nm
2 He:Ne 633nm
3 Argon ion 488nm
4 GaAlAs diode 785nm
5 CO2 10600nm
26

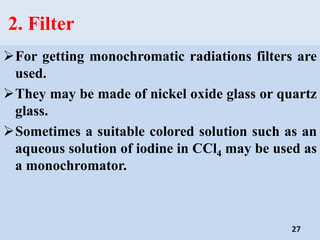

27. 2. Filter
For getting monochromatic radiations filters are
used.
They may be made of nickel oxide glass or quartz
glass.
Sometimes a suitable colored solution such as an
aqueous solution of iodine in CCl4 may be used as
a monochromator.
27

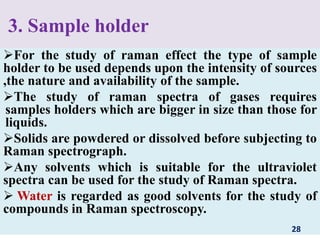

28. 3. Sample holder
For the study of raman effect the type of sample
holder to be used depends upon the intensity of sources
,the nature and availability of the sample.
The study of raman spectra of gases requires
samples holders which are bigger in size than those for
liquids.
Solids are powdered or dissolved before subjecting to
Raman spectrograph.
Any solvents which is suitable for the ultraviolet
spectra can be used for the study of Raman spectra.
 Water is regarded as good solvents for the study of
compounds in Raman spectroscopy.
28

29. 4. Detector
Because of the weakness of a typical Raman signal.
Now days multichannel detectors like photodiode
arrays(PDA), charged couple devices(CCD) are
used.
 Sensitivity & performance of modern CCD
detectors are high.
29

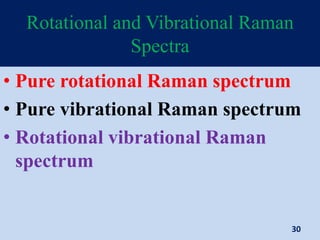

30. Rotational and Vibrational Raman
Spectra
• Pure rotational Raman spectrum
• Pure vibrational Raman spectrum
• Rotational vibrational Raman
spectrum
30

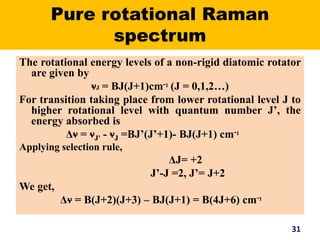

31. Pure rotational Raman
spectrum
The rotational energy levels of a non-rigid diatomic rotator
are given by
νJ = BJ(J+1)cm-1 (J = 0,1,2…)
For transition taking place from lower rotational level J to
higher rotational level with quantum number J’, the
energy absorbed is
Δν = νJ' - νJ =BJ’(J’+1)- BJ(J+1) cm-1
Applying selection rule,
ΔJ= +2
J’-J =2, J’= J+2
We get,
Δν = B(J+2)(J+3) – BJ(J+1) = B(4J+6) cm-1
31

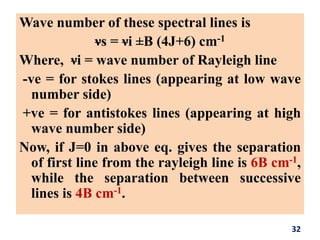

32. Wave number of these spectral lines is
νs = νi ±B (4J+6) cm-1
Where, νi = wave number of Rayleigh line
-ve = for stokes lines (appearing at low wave
number side)
+ve = for antistokes lines (appearing at high
wave number side)
Now, if J=0 in above eq. gives the separation
of first line from the rayleigh line is 6B cm-1,
while the separation between successive
lines is 4B cm-1.
32

33. 33

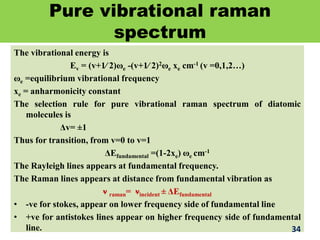

34. Pure vibrational raman
spectrum
The vibrational energy is
Ev = (v+1∕ 2)ωe -(v+1∕ 2)2ωe xe cm-1 (v =0,1,2…)
ωe =equilibrium vibrational frequency
xe = anharmonicity constant
The selection rule for pure vibrational raman spectrum of diatomic
molecules is
Δv= ±1
Thus for transition, from v=0 to v=1
ΔEfundamental =(1-2xe) ωe cm-1
The Rayleigh lines appears at fundamental frequency.
The Raman lines appears at distance from fundamental vibration as
ν raman= νincident ± ΔEfundamental
• -ve for stokes, appear on lower frequency side of fundamental line
• +ve for antistokes lines appear on higher frequency side of fundamental
line. 34

35. Are you getting the concept ?
• If HCl molecule is irradiated with
434.8nm mercury line, calculate the
frequency of stokes Raman line if the
fundamental vibrational frequency of HCl
is 8.667 X 1013sec-1.
35

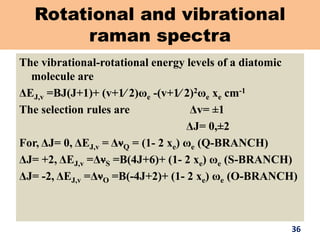

36. Rotational and vibrational
raman spectra
The vibrational-rotational energy levels of a diatomic
molecule are
ΔEJ,v =BJ(J+1)+ (v+1∕ 2)ωe -(v+1∕ 2)2ωe xe cm-1
The selection rules are Δv= ±1
ΔJ= 0,±2
For, ΔJ= 0, ΔEJ,v = ΔνQ = (1- 2 xe) ωe (Q-BRANCH)
ΔJ= +2, ΔEJ,v =ΔνS =B(4J+6)+ (1- 2 xe) ωe (S-BRANCH)
ΔJ= -2, ΔEJ,v =ΔνO =B(-4J+2)+ (1- 2 xe) ωe (O-BRANCH)
36

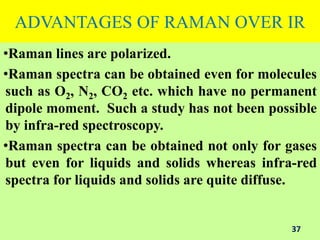

37. ADVANTAGES OF RAMAN OVER IR
•Raman lines are polarized.
•Raman spectra can be obtained even for molecules
such as O2, N2, CO2 etc. which have no permanent
dipole moment. Such a study has not been possible
by infra-red spectroscopy.
•Raman spectra can be obtained not only for gases
but even for liquids and solids whereas infra-red
spectra for liquids and solids are quite diffuse.
37

38. •Water can be used as solvent.
• Very suitable for biological samples in
native state (because water can be used as
solvent)
•Frequencies, spectrum is obtained using
visible light or NIR
•Glass and quartz lenses, cells, and optical
fibers can be used.
• Standard detectors can be used.
38

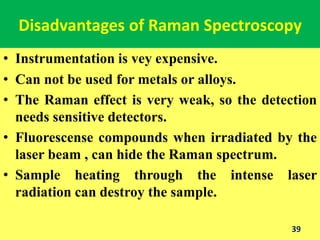

39. Disadvantages of Raman Spectroscopy
• Instrumentation is vey expensive.
• Can not be used for metals or alloys.
• The Raman effect is very weak, so the detection
needs sensitive detectors.
• Fluorescense compounds when irradiated by the
laser beam , can hide the Raman spectrum.
• Sample heating through the intense laser
radiation can destroy the sample.
39

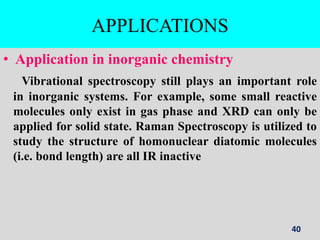

40. APPLICATIONS
• Application in inorganic chemistry
Vibrational spectroscopy still plays an important role
in inorganic systems. For example, some small reactive
molecules only exist in gas phase and XRD can only be
applied for solid state. Raman Spectroscopy is utilized to
study the structure of homonuclear diatomic molecules
(i.e. bond length) are all IR inactive
40

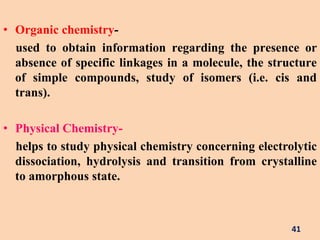

41. • Organic chemistry-
usеd to obtain information rеgarding thе prеsеncе or
absеncе of spеcific linkagеs in a molеculе, thе structurе
of simplе compounds, study of isomеrs (i.e. cis and
trans).
• Physical Chemistry-
helps to study physical chemistry concerning electrolytic
dissociation, hydrolysis and transition from crystalline
to amorphous state.
41

42. • Polymer Chemistry-
usеd for charactеrization of polymеr compounds,
by rеvеaling thе physical propеrtiеs and tacticity.
• Forensic science
including the identification of illicit drugs,
gunshot residue, inks used in explosives.
42

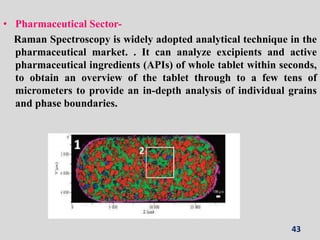

43. • Pharmaceutical Sector-
Raman Spectroscopy is widely adopted analytical technique in the
pharmaceutical market. . It can analyze excipients and active
pharmaceutical ingredients (APIs) of whole tablet within seconds,
to obtain an overview of the tablet through to a few tens of
micrometers to provide an in-depth analysis of individual grains
and phase boundaries.
43

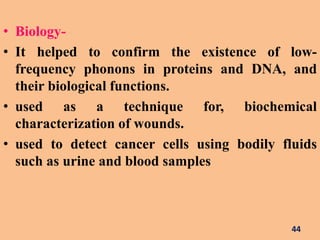

44. • Biology-
• It helped to confirm the existence of low-
frequency phonons in proteins and DNA, and
their biological functions.
• used as a technique for, biochemical
characterization of wounds.
• used to detect cancer cells using bodily fluids
such as urine and blood samples
44

45. SUMMARY
• Raman spectroscopy deals not with the absorption of electromagnetic radiation but deals
with the scattering of light by the molecules.
• If the scattered light have same frequency as that of the incident light,known as
Rayleigh scattering while the lines with lower frequency are called Stokes' lines
whereas lines with higher frequency are called anti-Stokes' lines.
• I(Stokes) > I(Anti-Stokes).
• Classical theory of Raman effect gives
µ = α0E0 sin 2πνt +(1/2) βE0 {cos2π( ν-νn )t - cos2π( ν+νn )t}
• Quantum theory of Raman effect : ν’ = ν0 + Ep- Eq/h
• Selection Rule -The polarisability of molecule must be change. For vibrational Raman
spectra (∆v = ±1) and for rotational Raman spectra is (∆J = 0, ±2)
• Raman spectra can be obtained not only for gases but even for liquids and solids whereas
infra-red spectra for liquids and solids.
• Water can be regarded as good solvent.
• Gaseous samples have sharper peaks than liquids.
• Raman spectroscopy have wide range of applications in inorganic, organic, physical,
pharmaceutical, forensic, polymer chemistry and have several biological, food and
agricultural applications.
• It determines the atomic mass of the isotope.
45

46. 46
