QMIX: monotonic value function factorization paper review

•
•
민
민재 정

QMIX is a deep multi-agent reinforcement learning method that allows for centralized training with decentralized execution. It represents the joint action-value function as a factored and monotonic combination of individual agent value functions. This ensures greedy policies over the individual value functions correspond to greedy policies over the joint value function. Experiments in StarCraft II micromanagement tasks show QMIX outperforms independent learners and value decomposition networks by effectively learning cooperative behaviors while ensuring scalability.

Engineering
1 of 23
Download to read offline
QMIX: Monotonic Value Function Factorisation for Deep Multi-Agent Reinforcement Learning 2021.4.30 정민재
Multi agent system setting (MAS) Jan’t Hoen, Pieter, et al. "An overview of cooperative and competitive multiagent learning." International Workshop on Learning and Adaption in Multi-Agent Systems. Springer, Berlin, Heidelberg, 2005. • Cooperative - The agents pursue a common goal • Competitive - Non-aligned goals - Individual agents seek only to maximize their own gains

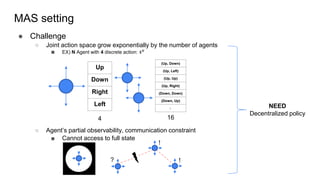

MAS setting ● Challenge ○ Joint action space grow exponentially by the number of agents ■ EX) N Agent with 4 discrete action: 4𝑁 ○ Agent’s partial observability, communication constraint ■ Cannot access to full state NEED Decentralized policy Up Down Right Left (Up, Down) (Up, Left) (Up, Up) (Up, Right) (Down, Down) (Down, Up) ⋮ 4 16 ! ! ?
Centralized Training Decentralized Execution(CTDE) ● We can use global state or extra state information and remove communication constraint in simulation and laboratorial environment Centralized Training Decentralized execution
CTDE Approach Independent Q learning (IQL) [Tan 1993] Counterfactual multi-agent policy gradient (COMA) [Foerster 2018] Value Decomposition network (VDN) [Sunehg 2017] policy 1 𝑸𝒕𝒐𝒕 policy 2 policy 3 How to learn action-value function 𝑸𝒕𝒐𝒕 and extract decentralized policy? 𝑸𝒕𝒐𝒕 Qa1 Qa2 Qa3 + + policy 3 𝑸𝒂𝟑 Greedy policy 2 𝑸𝒂𝟐 Greedy policy 1 𝑸𝒂𝟏 Greedy Learn independent individual action-value function policy 1 policy 2 policy 3 + Simplest Option + Learn decentralized policy trivially - Cannot handle non-stationary case Learn centralized, but factored action-value function Learn centralized full state action-value function + Lean 𝑸𝒕𝒐𝒕 directly with actor-critic framework - On policy: sample inefficient - Less scalability + Lean 𝑸𝒕𝒐𝒕 + Easy to extract decentralized policy - Limited representation capacity - Do not use additional global state information ● Learn 𝑸𝒕𝒐𝒕 - > figure out effectiveness of agent’s actions ● Extract decentralized policy <- joint-action space growth problem, local observability, communication constraint QMIX ! Other agents also learning and change the strategies -> no guarantee convergence

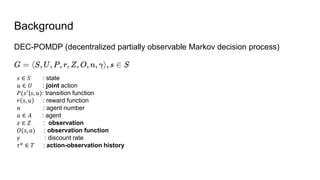

Background DEC-POMDP (decentralized partially observable Markov decision process) 𝑠 ∈ 𝑆 : state 𝑢 ∈ 𝑈 : joint action 𝑃(𝑠′ |𝑠, 𝑢): transition function 𝑟 𝑠, 𝑢 : reward function 𝑛 : agent number 𝑎 ∈ 𝐴 : agent 𝑧 ∈ 𝑍 : observation 𝑂(𝑠, 𝑎) : observation function 𝛾 : discount rate 𝜏𝑎 ∈ 𝑇 : action-observation history
Background: Value decomposition VDN full factorization Utility function, not value function Does not estimate an expected return Guestrin, Carlos, Daphne Koller, and Ronald Parr. "Multiagent Planning with Factored MDPs." NIPS. Vol. 1. 2001. Sunehag, Peter, et al. "Value-decomposition networks for cooperative multi-agent learning." arXiv preprint arXiv:1706.05296 (2017). Factored joint value function [Guestrin 2001] Subset of the agents Factored value function reduce the parameters that have to be learned https://youtu.be/W_9kcQmaWjo Improve scalability
QMIX: Key Idea Key Idea: full factorization of VDN is not necessary • Consistency holds if a global argmax performed on 𝑄𝑡𝑜𝑡 yields the same result as a set of individual argmax operations performed on each 𝑄𝑎 Assumption: the environment is not adversarial VDN’s representation also satisfy this QMIX’s representation can be generalized to the larger family of monotonic function How to ensure this?

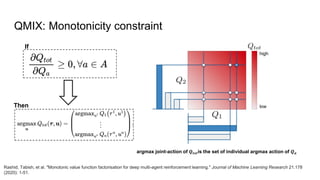

QMIX: Monotonicity constraint Rashid, Tabish, et al. "Monotonic value function factorisation for deep multi-agent reinforcement learning." Journal of Machine Learning Research 21.178 (2020): 1-51. argmax joint-action of 𝑸𝒕𝒐𝒕is the set of individual argmax action of 𝑸𝒂 If Then
QMIX: Architecture ● QMIX represents 𝑄𝑡𝑜𝑡 using an architecture consisting of agent network, mixing network, hypernetworks
QMIX: agent network • DRQN (Hausknecht 2015) - Deal with partial observability • 𝒖𝒕−𝟏 𝒂 input - Stochastic policies during training • Agent ID(optional) - Heterogeneous policies Hausknecht, Matthew, and Peter Stone. "Deep recurrent q-learning for partially observable mdps." arXiv preprint arXiv:1507.06527 (2015).
QMIX: Mixing Network • Hypernetwork - Change state 𝑠𝑡 into weights of the mixing network - Allow 𝑄𝑡𝑜𝑡 depend on the extra information • Absolute operation - Ensure the monotonicity constraint • Why not pass 𝒔𝒕 directly into mixing network? • Elu activation - Prevent overly constraining 𝑠𝑡 through the monotonic function, reduce representation capacity - Negative input is likely to remain negative <- zeroed by mixing network If use ReLU
QMIX: algorithm Initialization Rollout episode Episode sampling Update 𝑄𝑡𝑜𝑡 Update target Rashid, Tabish, et al. "Monotonic value function factorisation for deep multi-agent reinforcement learning." Journal of Machine Learning Research 21.178 (2020): 1-51.
Representational complexity Learned QMIX 𝑄𝑡𝑜𝑡 Learned VDN 𝑄𝑡𝑜𝑡 • Agent’s best action at the same time step in multi agent setting will not factorize perfectly with QMIX • Monotonicity constraint prevents QMIX from representing non monotonic function https://youtu.be/W_9kcQmaWjo

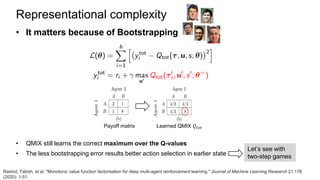

Representational complexity https://youtu.be/W_9kcQmaWjo Shimon Whiteson • Even VDN cannot represent the example of the middle exactly, it could approximate it with a value function from the left game • Should we care about these games that are in the middle?
Rashid, Tabish, et al. "Monotonic value function factorisation for deep multi-agent reinforcement learning." Journal of Machine Learning Research 21.178 (2020): 1-51. • It matters because of Bootstrapping Representational complexity • QMIX still learns the correct maximum over the Q-values Payoff matrix Learned QMIX 𝑄𝑡𝑜𝑡 • The less bootstrapping error results better action selection in earlier state Let’s see with two-step games
• Two-Step Game VDN QMIX Greedy policy Representational complexity The ability to express the complex situation (A, ∙) -> (A,B) or (B,B) (B, ∙) -> (B,B) 7 7 8 QMIX’s higher represent capacity Better strategy than VDN

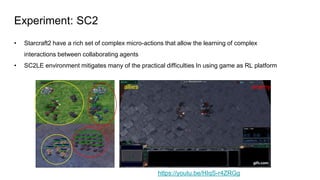

Experiment: SC2 • Starcraft2 have a rich set of complex micro-actions that allow the learning of complex interactions between collaborating agents • SC2LE environment mitigates many of the practical difficulties In using game as RL platform allies enemy https://youtu.be/HIqS-r4ZRGg

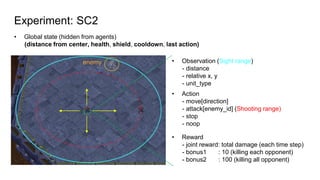

Experiment: SC2 • Observation (Sight range) - distance - relative x, y - unit_type • Action - move[direction] - attack[enemy_id] (Shooting range) - stop - noop • Reward - joint reward: total damage (each time step) - bonus1 : 10 (killing each opponent) - bonus2 : 100 (killing all opponent) enemy • Global state (hidden from agents) (distance from center, health, shield, cooldown, last action)
Experiment: SC2 - main results • IQL: Highly unstable <- non-stationary of the environment • VDN: Better than IQL in every experiment setup, learn focusing fire • QMIX: Superior at heterogeneous agent setting Heterogeneous : initial hump Learning the simple strategy Homogeneous
Experiment : SC2 - ablation result • QMIX-NS: Without hypernetworks -> significance of extra state information • QMIX-Lin: Removing hidden layer -> necessity of non-linear mixing • VDN-S: Adding a state-dependent term to the sum of the 𝑄𝑎 -> significance of utilizing the state 𝒔𝒕 Heterogeneous Nonlinear factorization is not always required Homogeneous

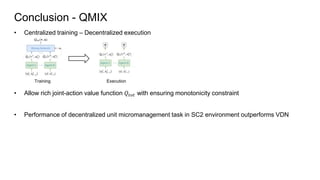

Conclusion - QMIX • Centralized training – Decentralized execution Training Execution • Allow rich joint-action value function 𝑄𝑡𝑜𝑡 with ensuring monotonicity constraint • Performance of decentralized unit micromanagement task in SC2 environment outperforms VDN
More information https://youtu.be/W_9kcQmaWjo Rashid, Tabish, et al. "Monotonic value function factorisation for deep multi-agent reinforcement learning." Journal of Machine Learning Research 21.178 (2020): 1-51.
