1. Process Control DaemonFor Embedded Linux PlatformsSpeaker: Hai Shalomrt-embedded.com/pcd

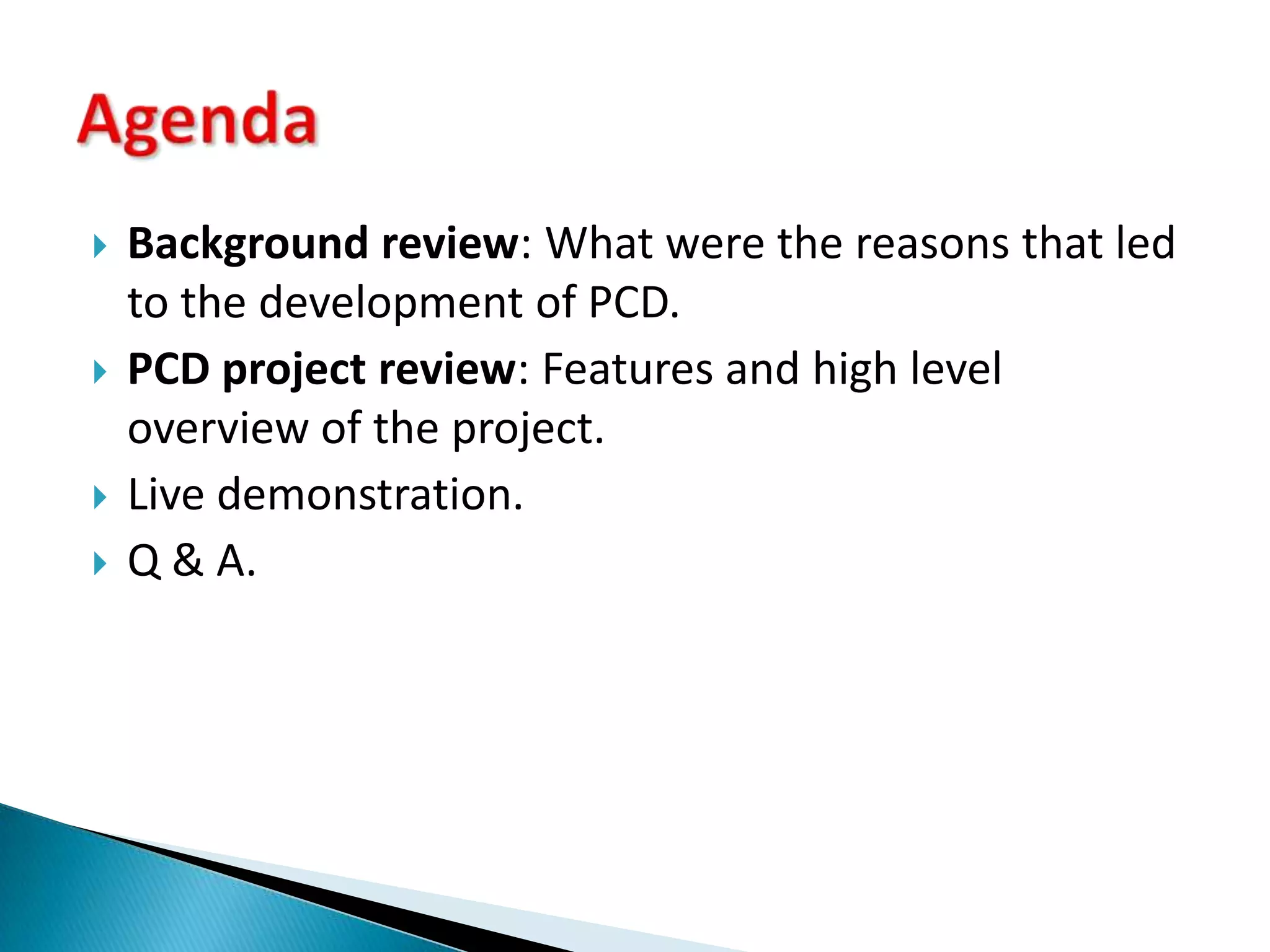

2. Background review: What were the reasons that led to the development of PCD.PCD project review: Features and high level overview of the project.Live demonstration.Q & A.Agenda

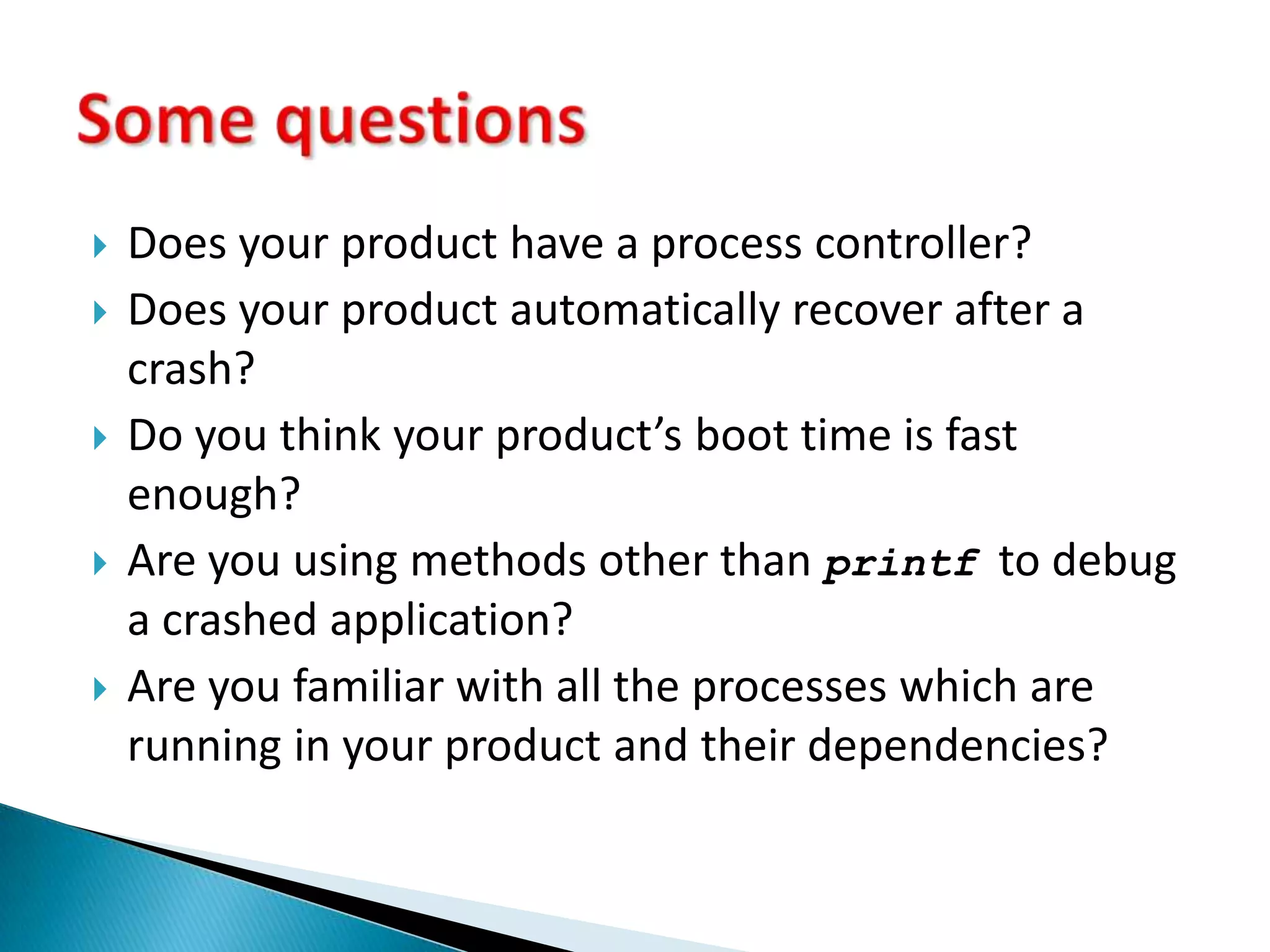

3. Does your product have a process controller?Does your product automatically recover after a crash?Do you think your product’s boot time is fast enough?Are you using methods other than printf to debug a crashed application?Are you familiar with all the processes which are running in your product and their dependencies?Some questions

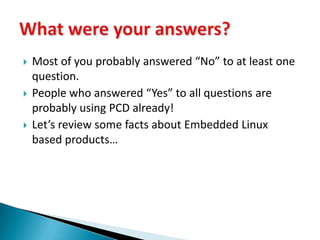

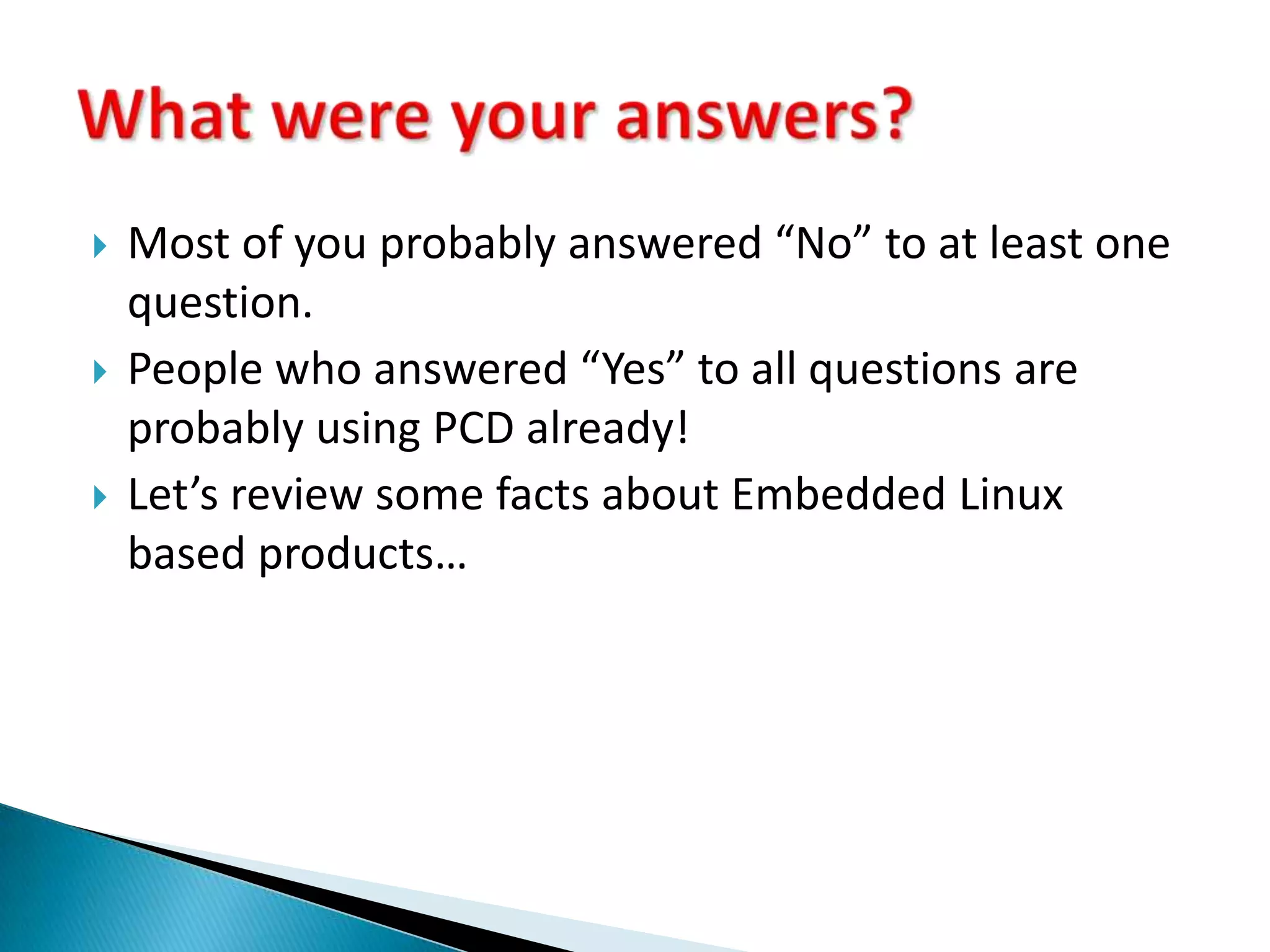

4. Most of you probably answered “No” to at least one question.People who answered “Yes” to all questions are probably using PCD already!Let’s review some facts about Embedded Linux based products…What were your answers?

5. Done by scripts (rcS, rc.*). These are great, but might be:Not optimal for embedded / not deterministic:

6. Limited ways to synchronize depended processes(delay).

7. Limited ways to verify successful start of a process

8. No error checking (usually).

9. No formal way to define dependencies.

10. Difficult to start processes in parallel.

11. Not trivial to understand, maintain and extend:

12. Require additional shell scripting expertise.

13. Tend to be long and unreadable.

14. Plenty of commented code, old remarks, different code styles.System start up

15. Done by scripts (rcS, rc.*). These are great, but might be:Not optimal for embedded / not deterministic:

16. Limited ways to synchronize depended processes (delay).

17. Limited ways to verify successful start of a process

18. No error checking (usually).

19. No formal way to define dependencies.

20. Difficult to start processes in parallel.

21. Not trivial to understand, maintain and extend:

22. Require additional shell scripting expertise.

23. Tend to be long and unreadable.

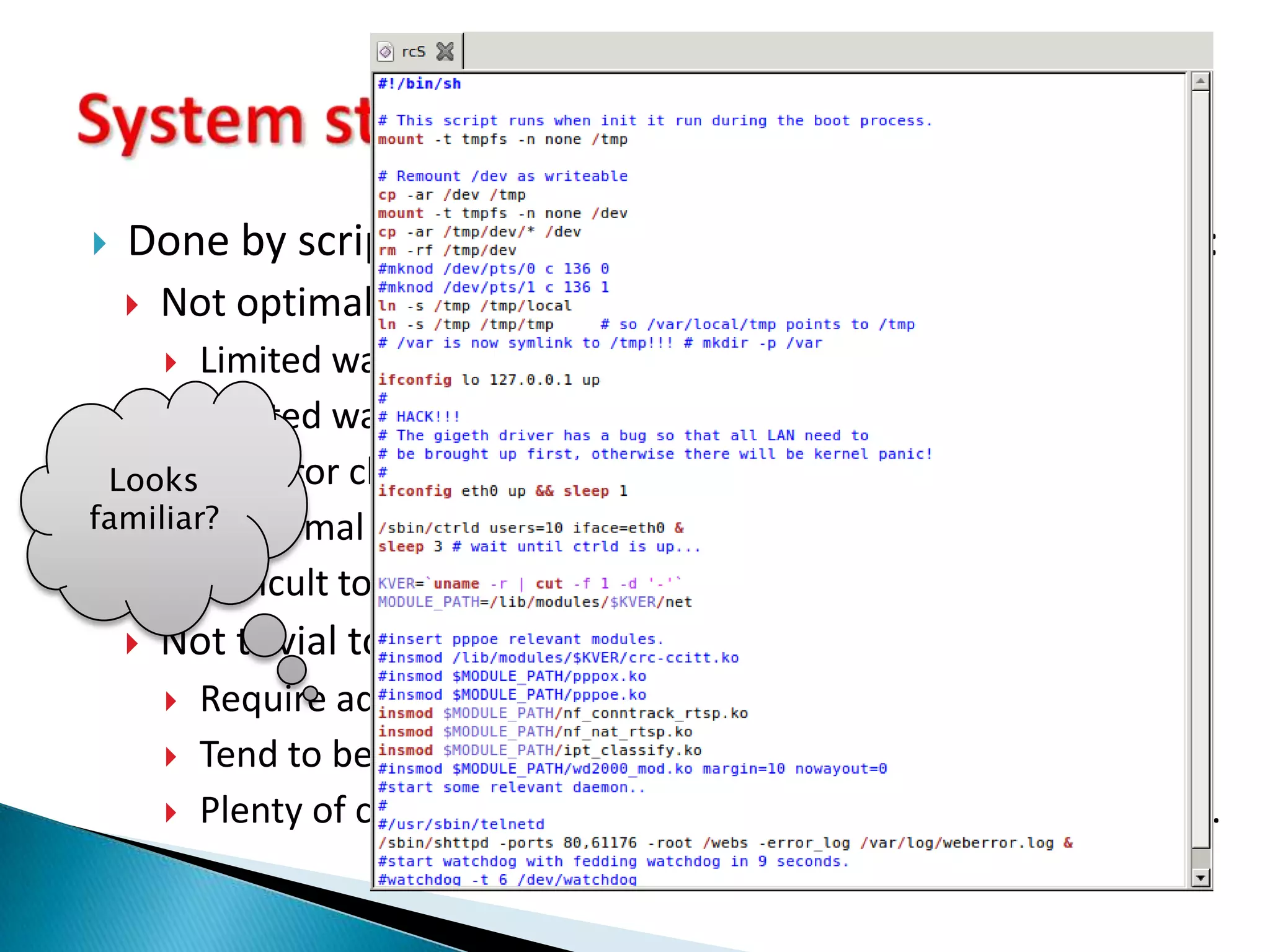

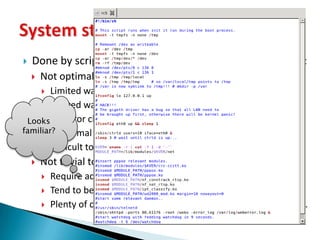

24. Plenty of commented code, old remarks, different code styles.System start upLooks familiar?

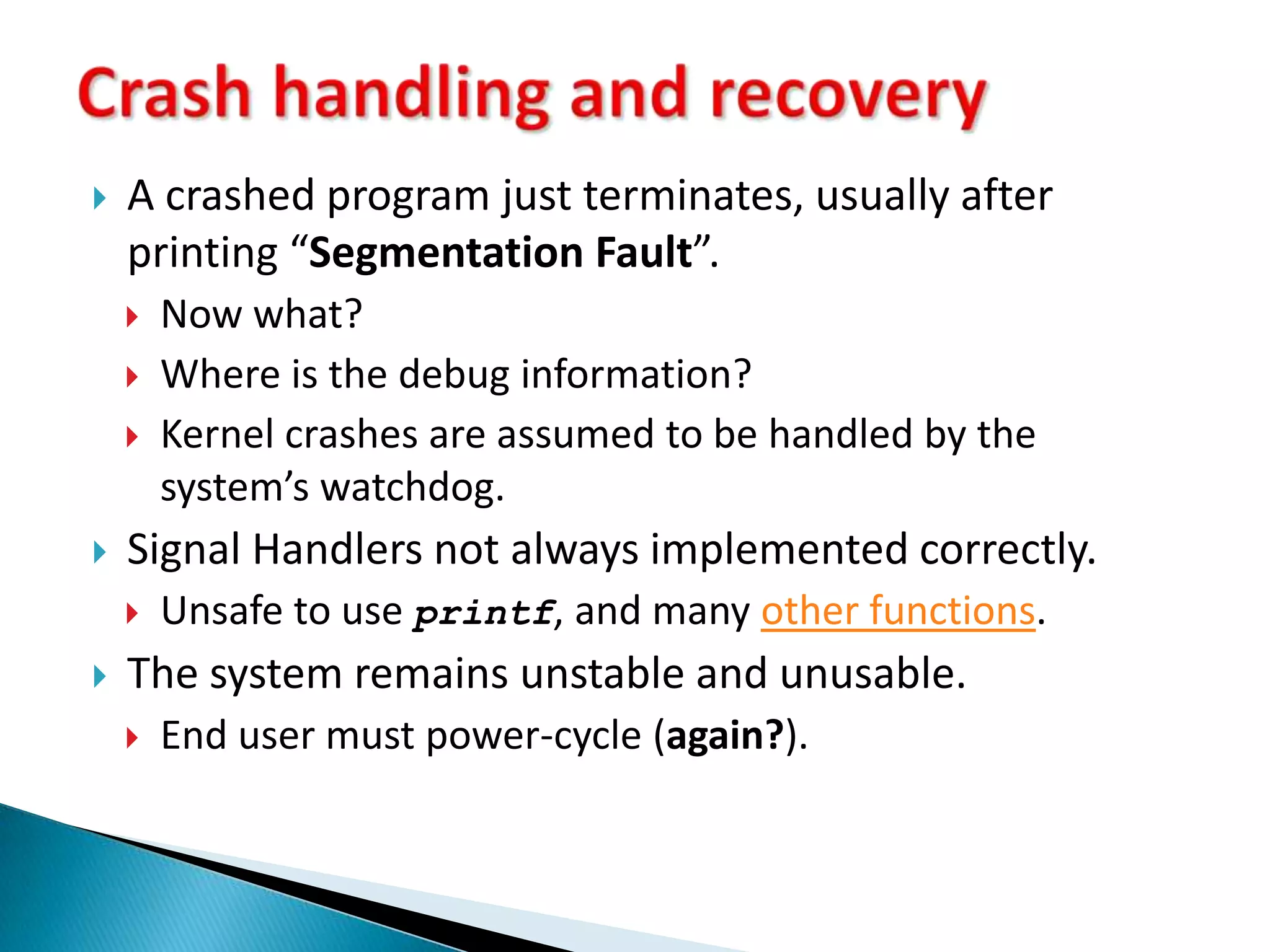

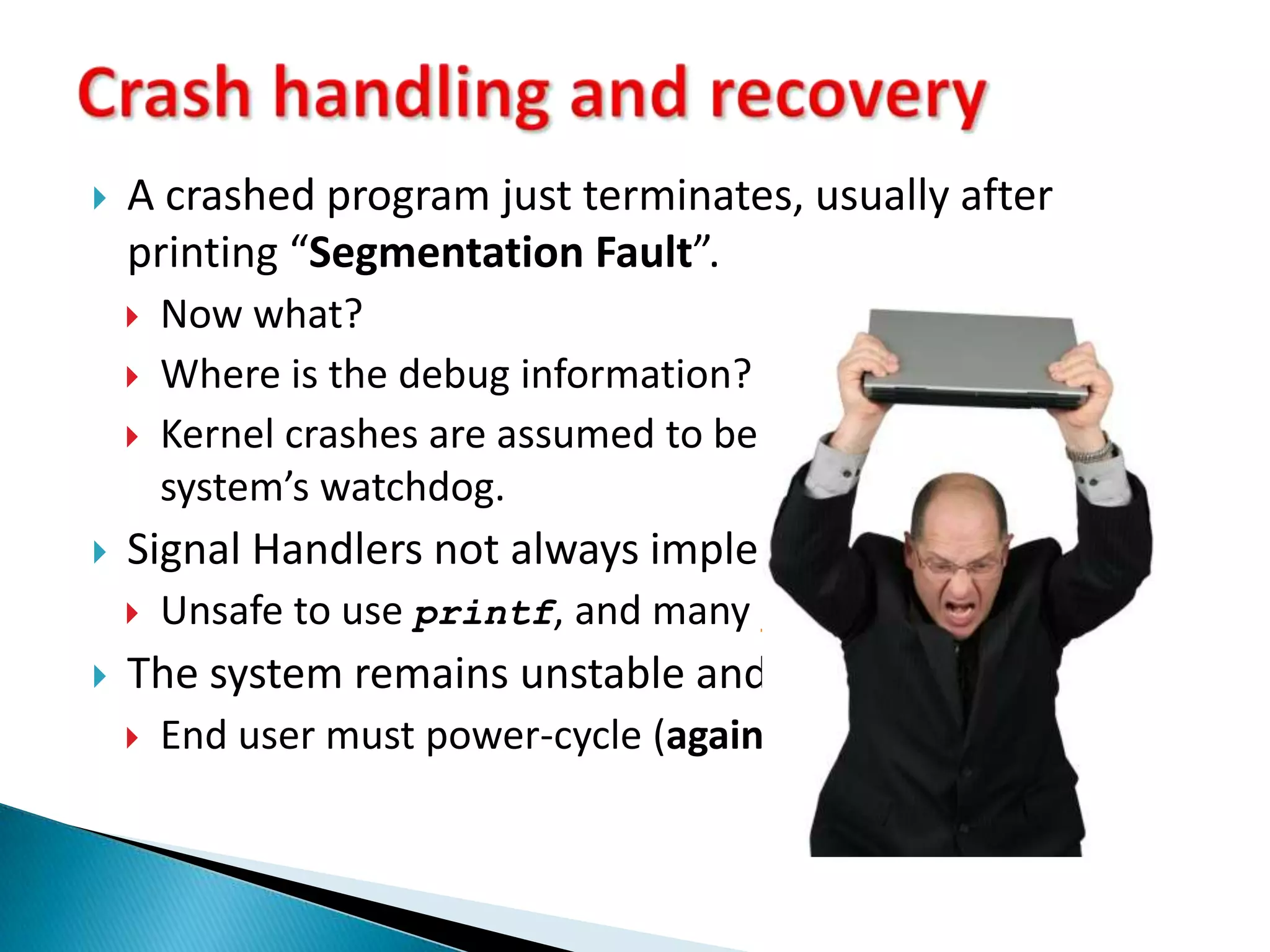

25. A crashed program just terminates, usually after printing “Segmentation Fault”.Now what?

26. Where is the debug information?

27. Kernel crashes are assumed to be handled by the system’s watchdog.Signal Handlers not always implemented correctly.Unsafe to use printf, and many other functions.The system remains unstable and unusable. End user must power-cycle (again?).Crash handling and recovery

28. A crashed program just terminates, usually after printing “Segmentation Fault”.Now what?

29. Where is the debug information?

30. Kernel crashes are assumed to be handled by the system’s watchdog.Signal Handlers not always implemented correctly.Unsafe to use printf, and many other functions.The system remains unstable and unusable. End user must power-cycle (again?).Crash handling and recovery

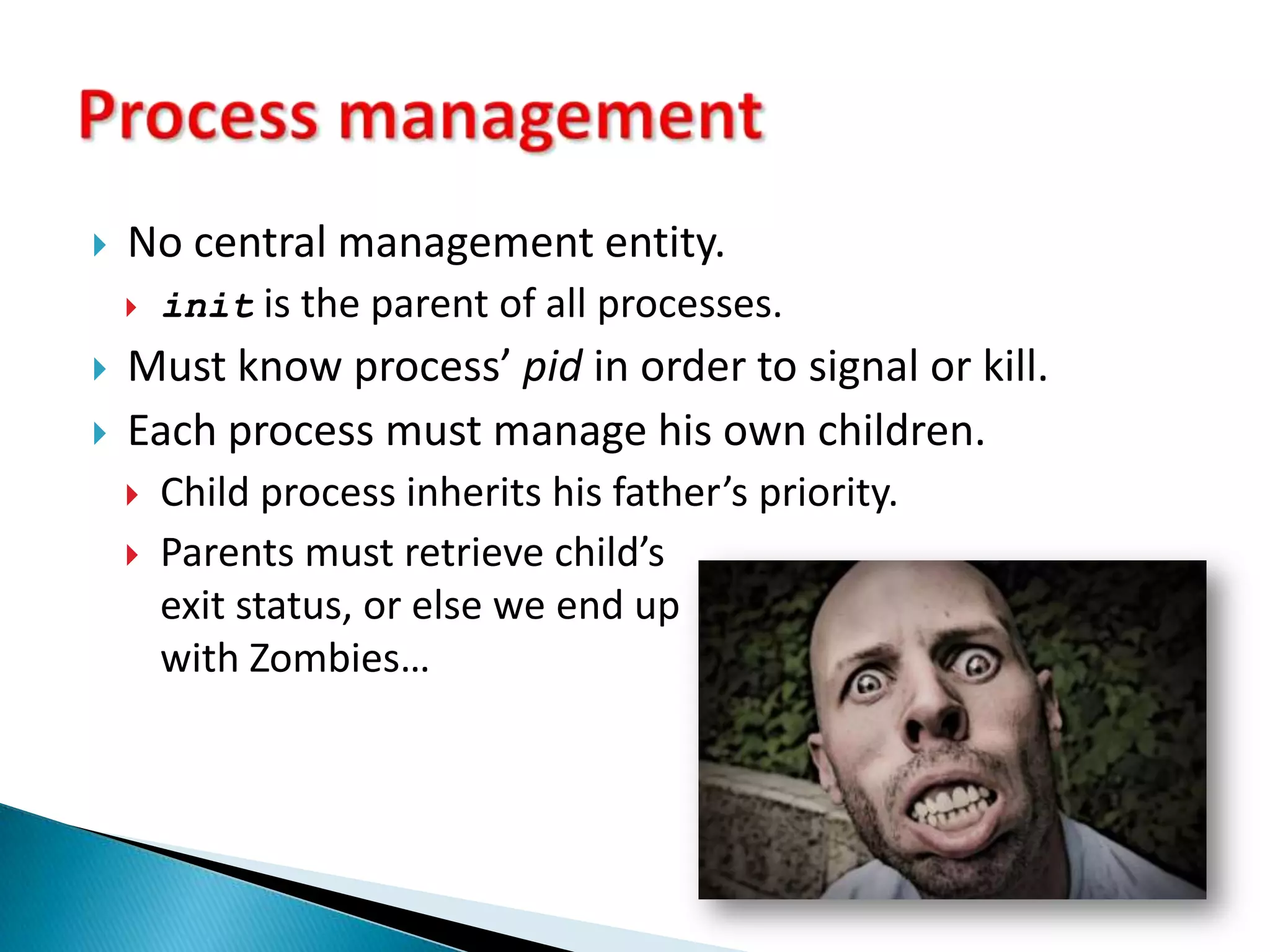

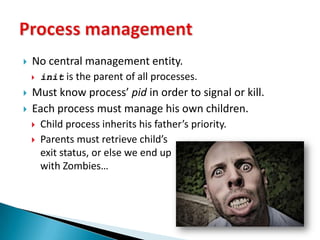

31. No central management entity.init is the parent of all processes.Must know process’ pid in order to signal or kill.Each process must manage his own children.Child process inherits his father’s priority.

32. Parents must retrieve child’sexit status, or else we end upwith Zombies…Process management

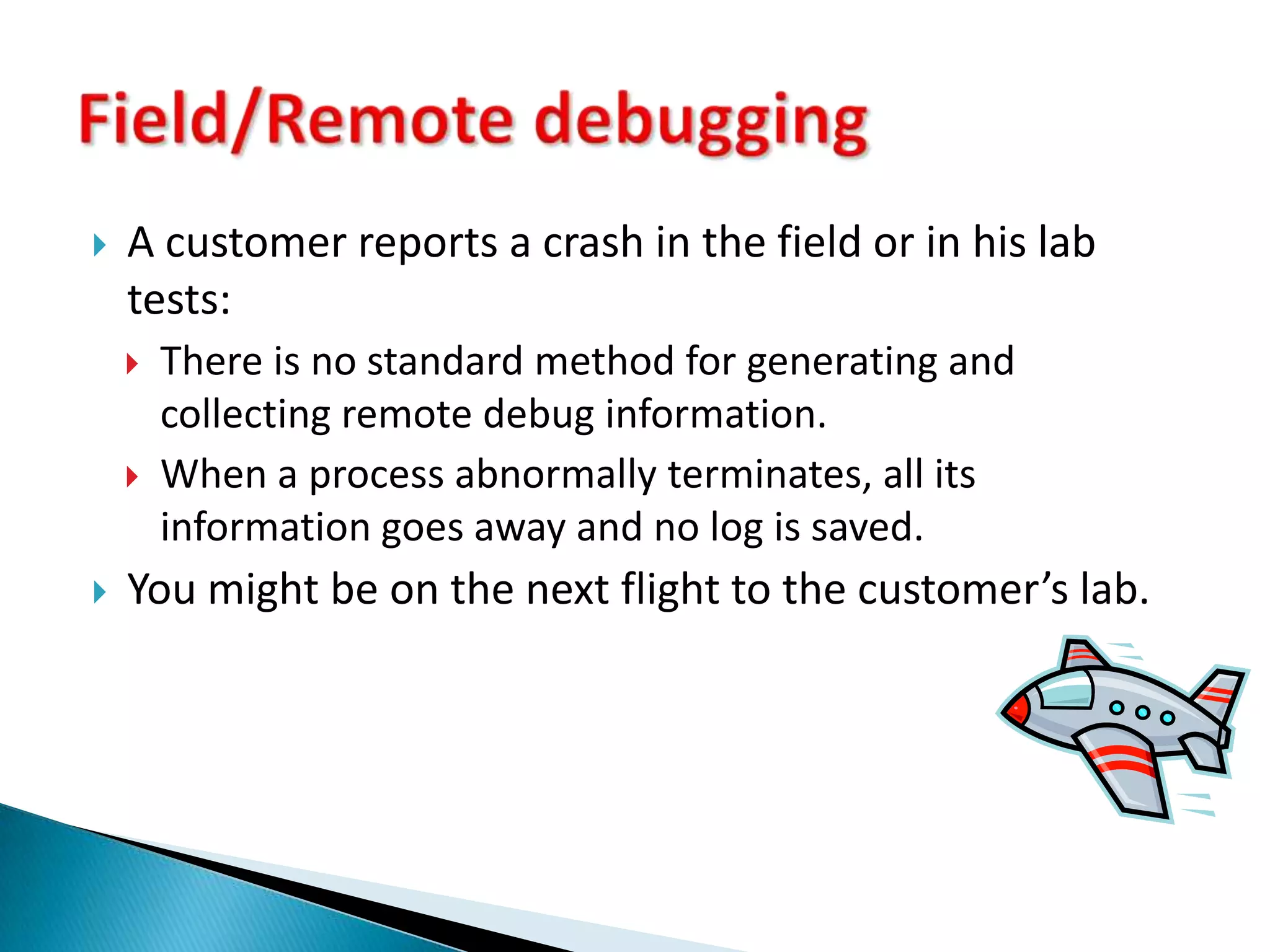

33. A customer reports a crash in the field or in his lab tests:There is no standard method for generating and collecting remote debug information.

34. When a process abnormally terminates, all its information goes away and no log is saved.

35. You might be on the next flight to the customer’s lab.Field/Remote debugging

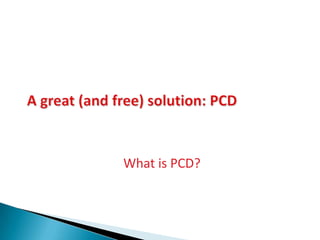

36. A great (and free) solution: PCDWhat is PCD?

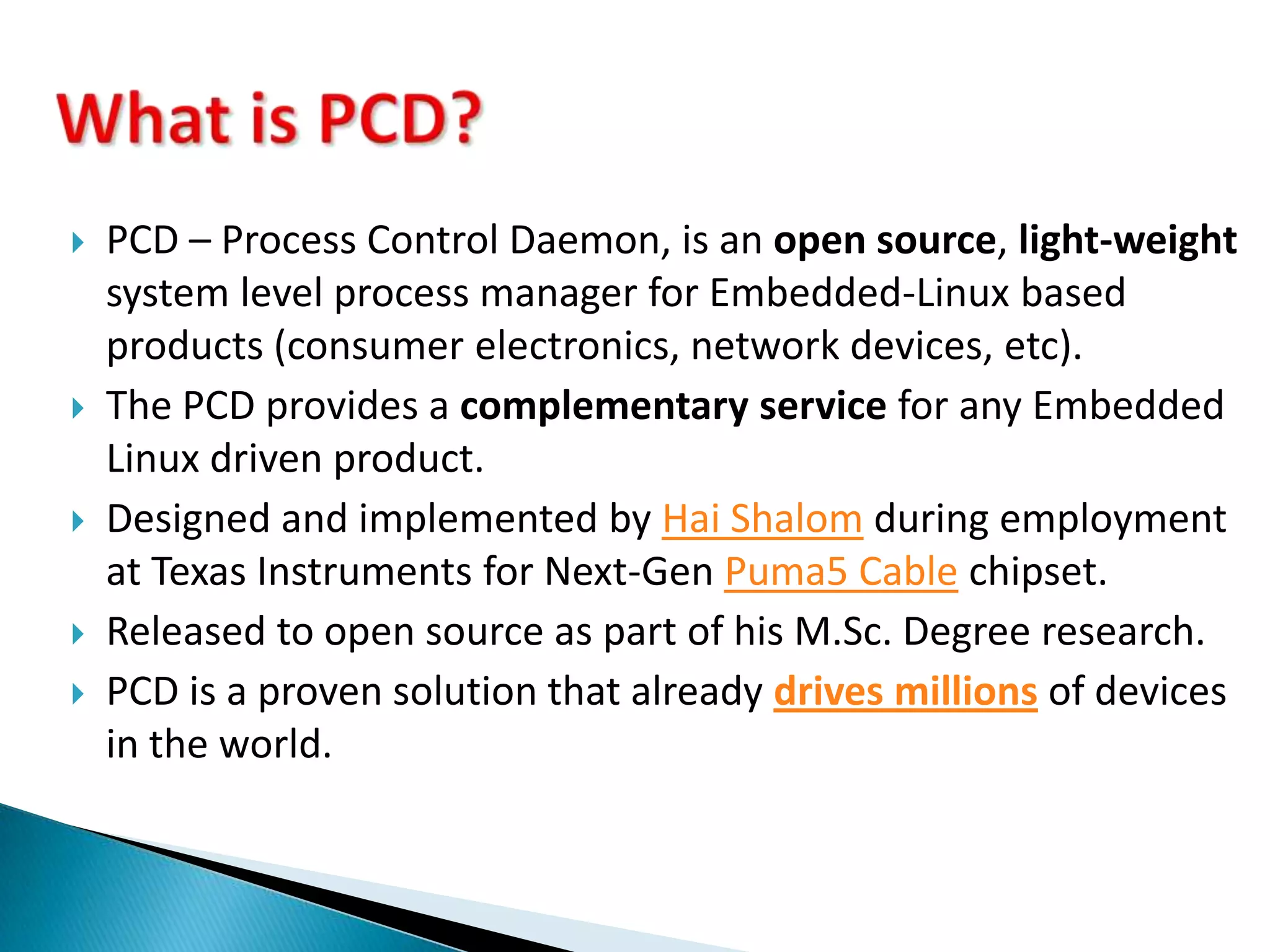

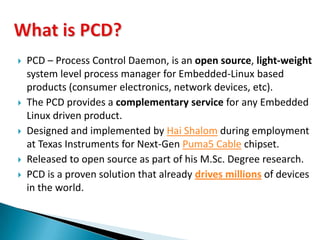

37. What is PCD?PCD – Process Control Daemon, is an open source, light-weight system level process manager for Embedded-Linux based products (consumer electronics, network devices, etc).The PCD provides a complementary service for any Embedded Linux driven product. Designed and implemented by Hai Shalom during employment at Texas Instruments for Next-Gen Puma5 Cable chipset.Released to open source as part of his M.Sc. Degree research.PCD is a proven solution that already drives millions of devices in the world.

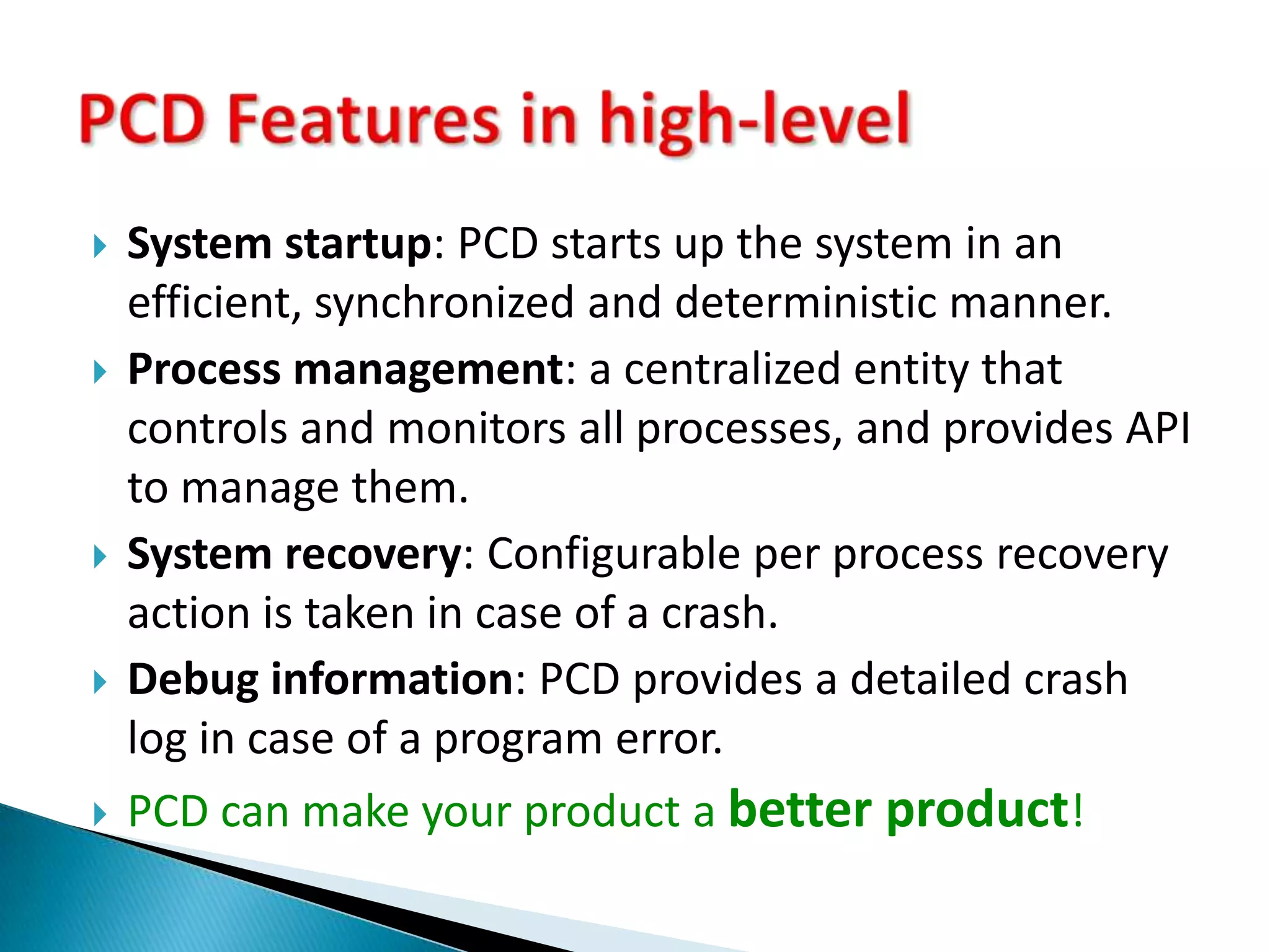

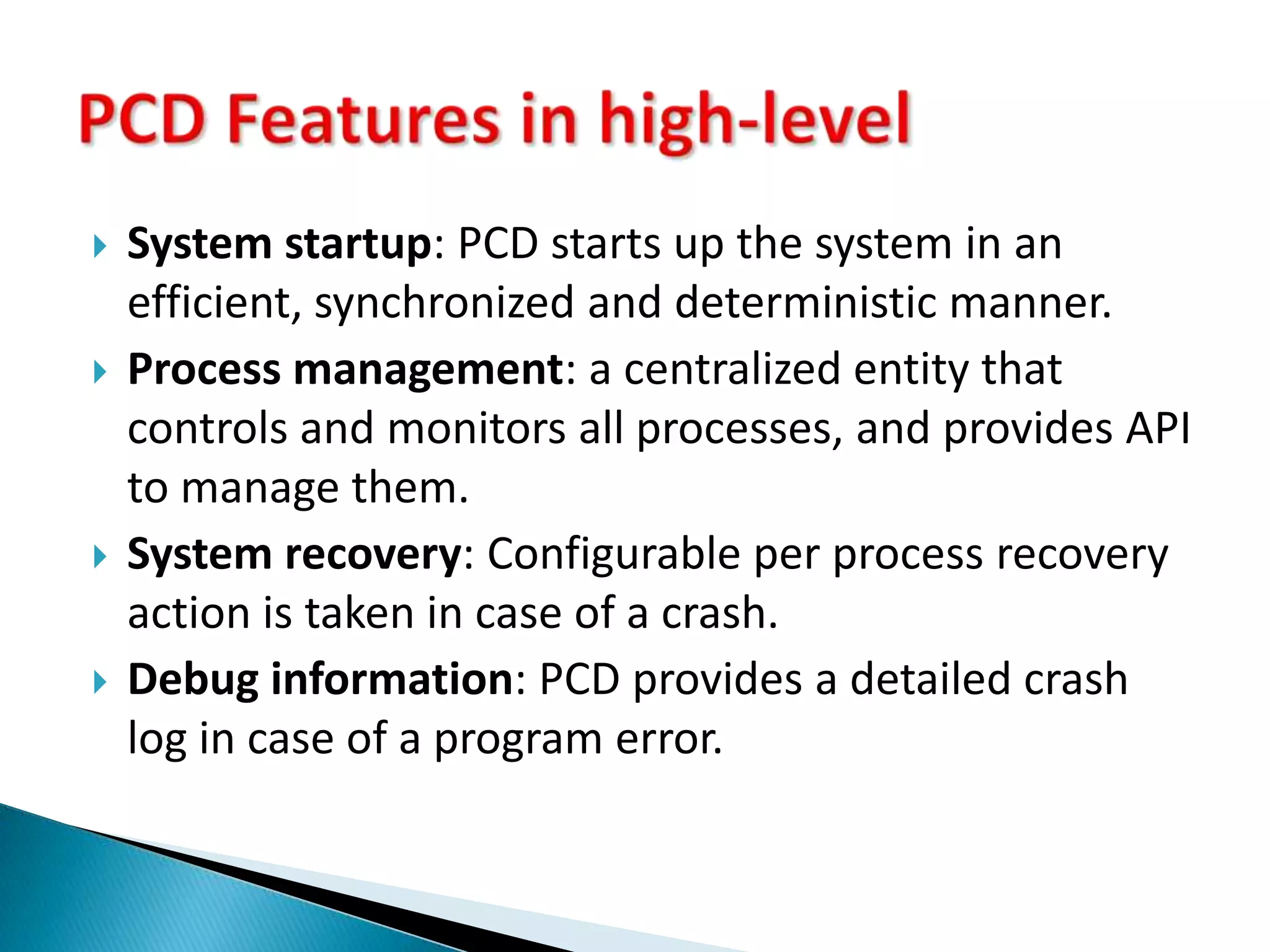

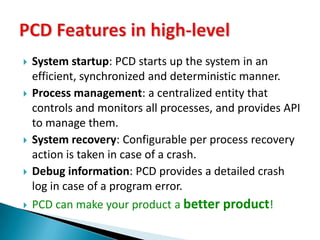

38. System startup: PCD starts up the system in an efficient, synchronized and deterministic manner.Process management: a centralized entity that controls and monitors all processes, and provides API to manage them. System recovery: Configurable per process recovery action is taken in case of a crash.Debug information: PCD provides a detailed crash log in case of a program error.PCD Features in high-level

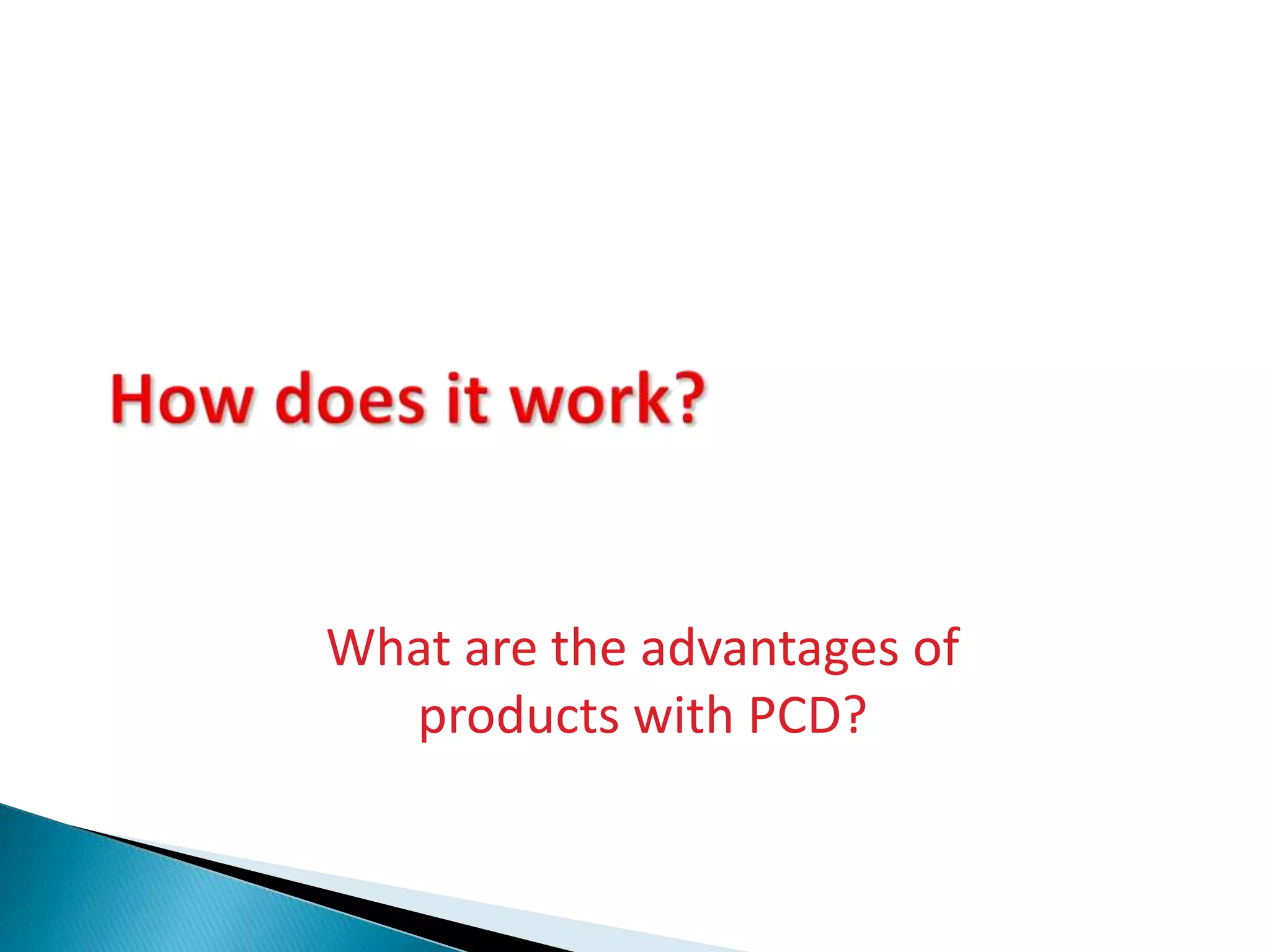

39. How does it work?What are the advantages of products with PCD?

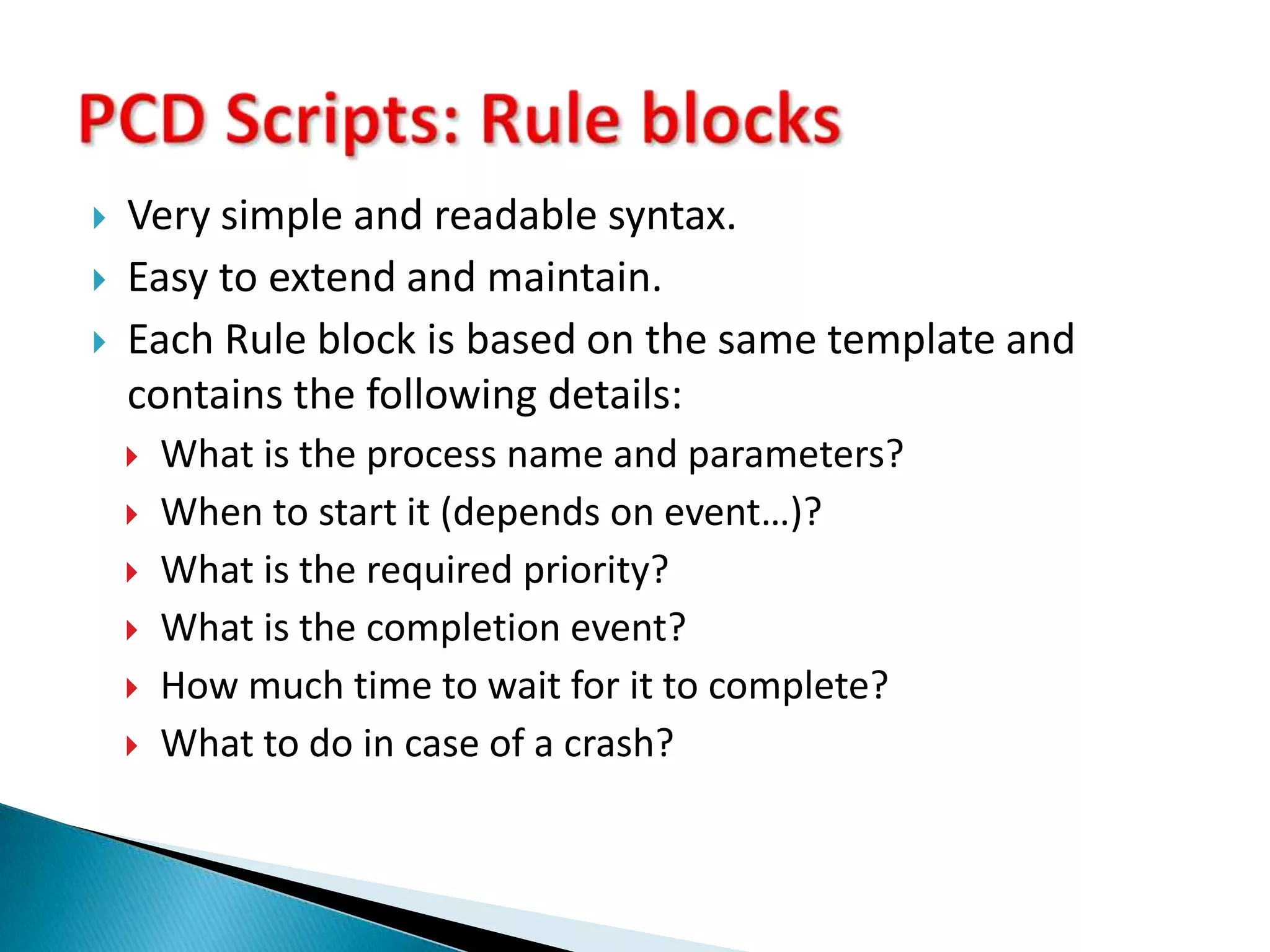

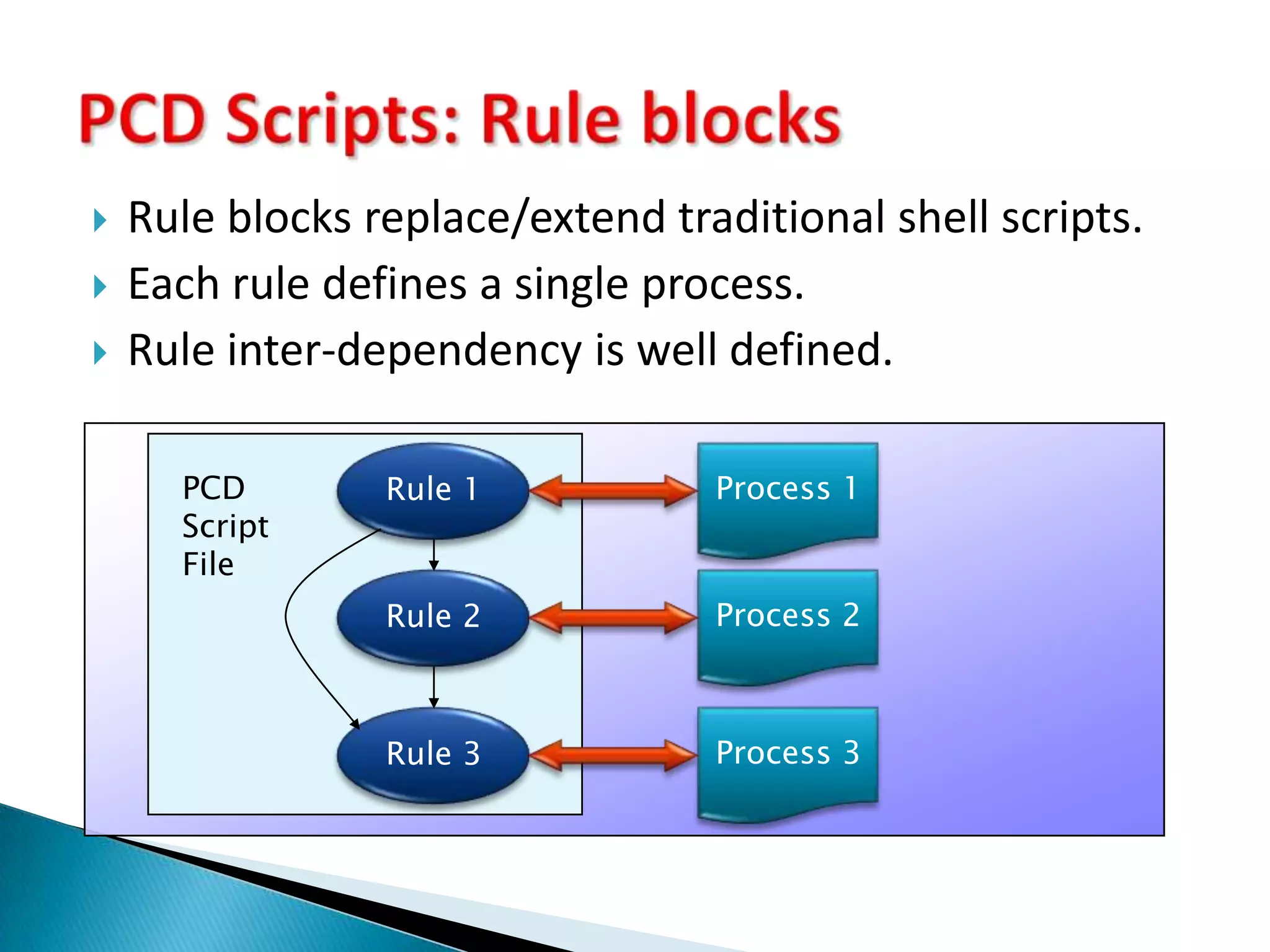

40. Rule blocks replace/extend traditional shell scripts.Each rule defines a single process.Rule inter-dependency is well defined.PCD Scripts: Rule blocksProcess 1Rule 1PCDScriptFileProcess 2Rule 2Process 3Rule 3

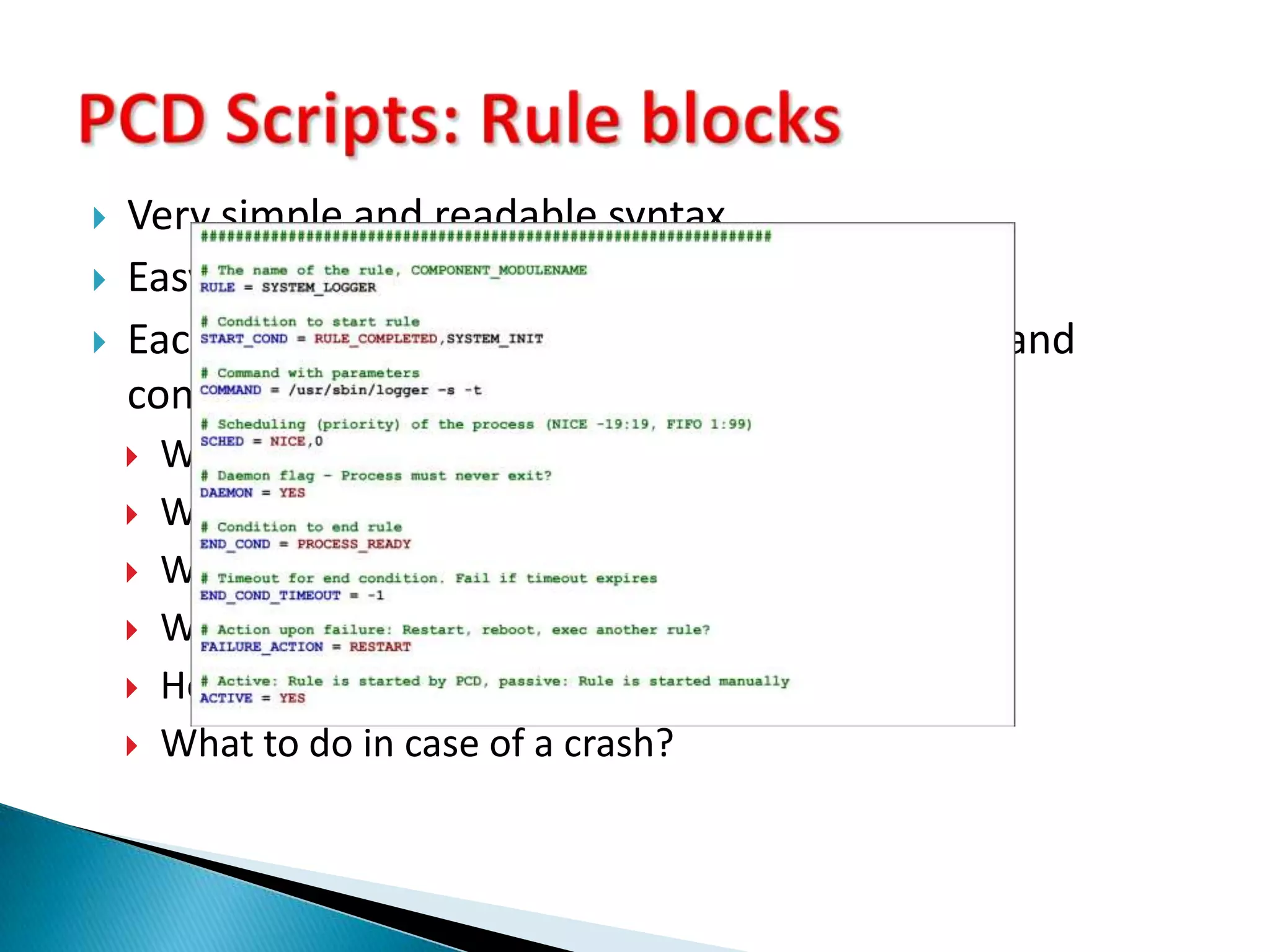

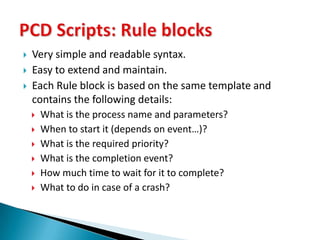

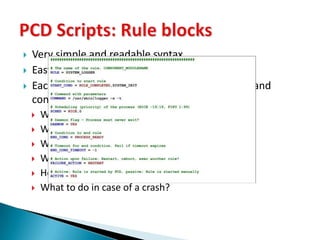

41. Very simple and readable syntax.Easy to extend and maintain.Each Rule block is based on the same template and contains the following details:What is the process name and parameters?

42. When to start it (depends on event…)?

43. What is the required priority?

44. What is the completion event?

45. How much time to wait for it to complete?

46. What to do in case of a crash?PCD Scripts: Rule blocks

47. Very simple and readable syntax.Easy to extend and maintain.Each Rule block is based on the same template and contains the following details:What is the process name and parameters?

48. When to start it (depends on event…)?

49. What is the required priority?

50. What is the completion event?

51. How much time to wait for it to complete?

52. What to do in case of a crash?PCD Scripts: Rule blocks

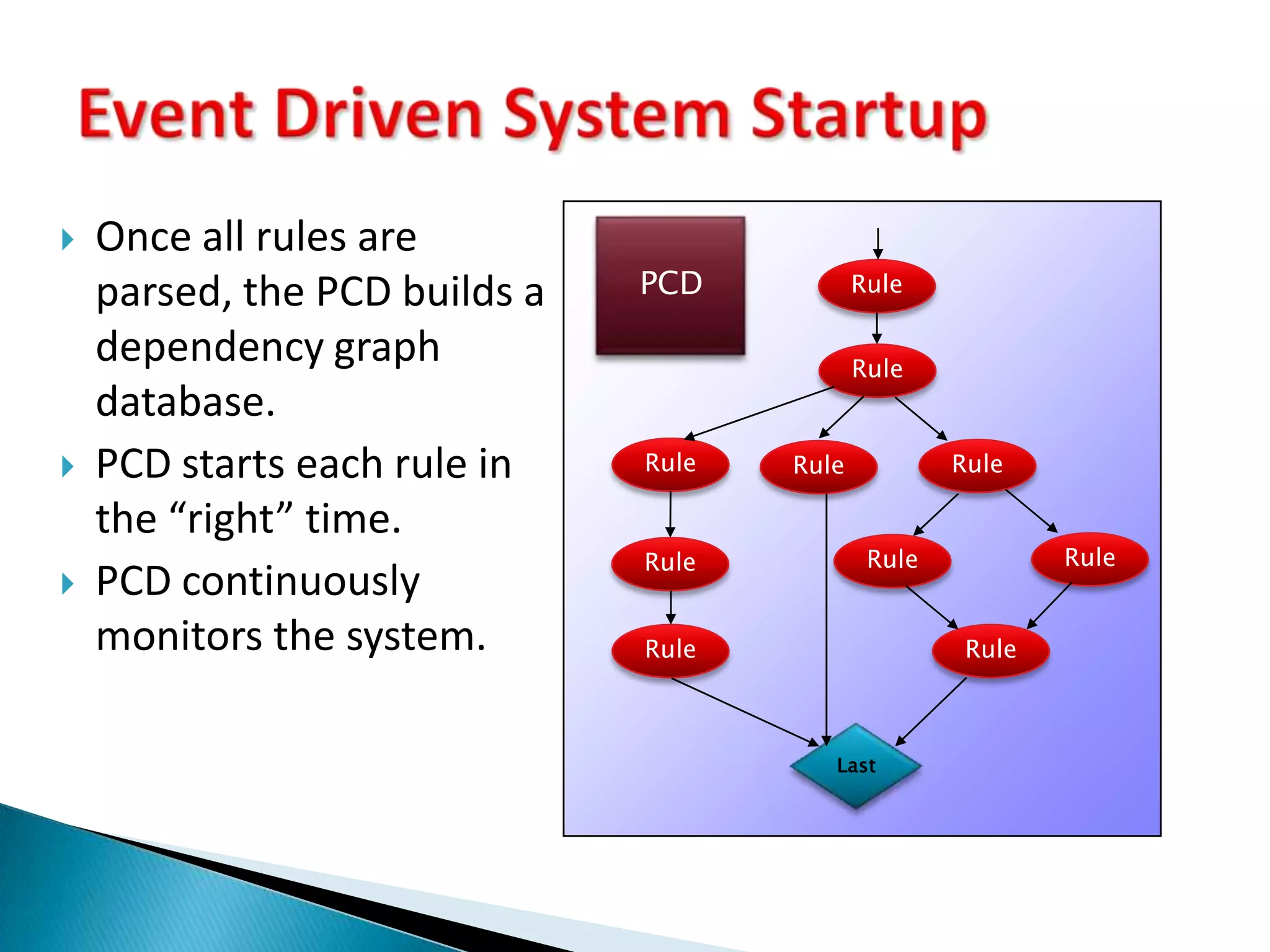

53. Event Driven System StartupOnce all rules are parsed, the PCD builds a dependency graph database.PCD starts each rule in the “right” time.PCD continuously monitors the system.PCDRuleRuleRuleRuleRuleRuleRuleRuleRuleRuleLast

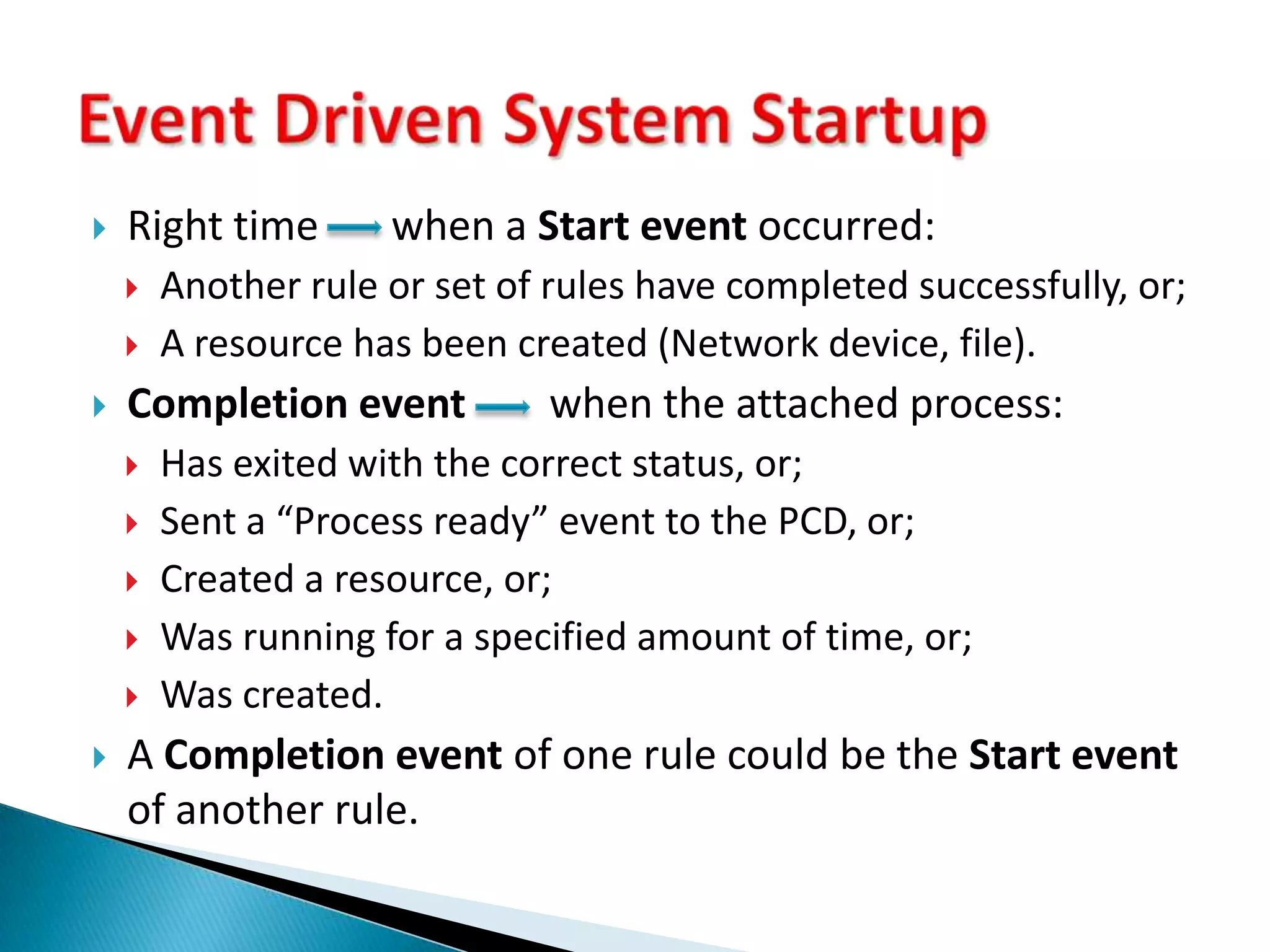

54. Right time when a Start eventoccurred:Another rule or set of rules have completed successfully, or;

55. A resource has been created (Network device, file).Completion event when the attached process:Has exited with the correct status, or;

56. Sent a “Process ready” event to the PCD, or;

57. Created a resource, or;

58. Was running for a specified amount of time, or;

59. Was created.

60. A Completion event of one rule could be the Start event of another rule.Event Driven System Startup

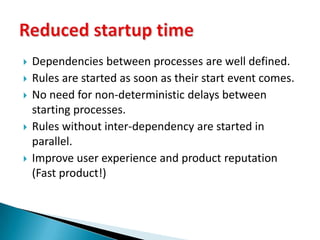

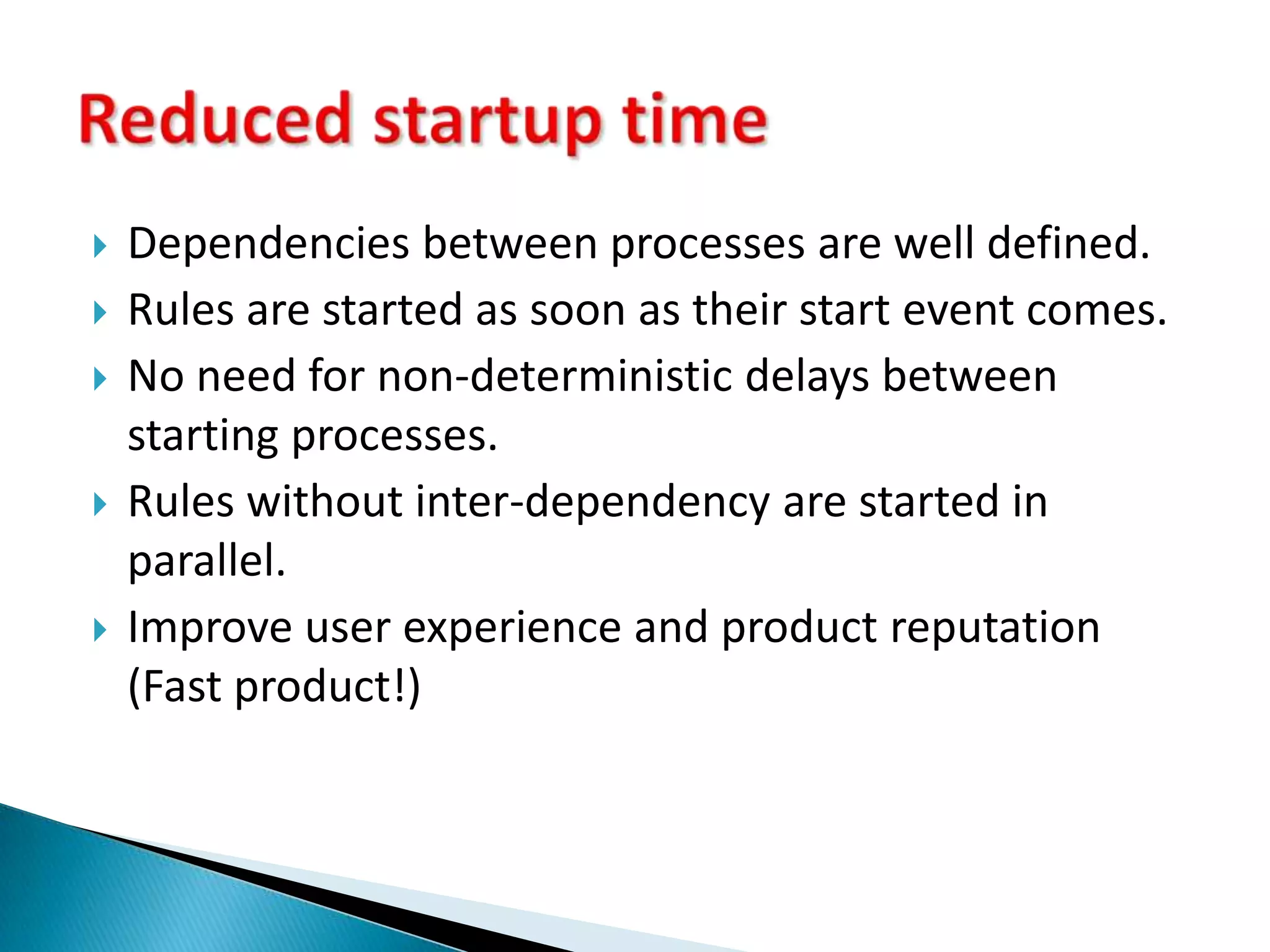

61. Dependencies between processes are well defined.Rules are started as soon as their start event comes.No need for non-deterministic delays between starting processes.Rules without inter-dependency are started in parallel.Improve user experience and product reputation (Fast product!)Reduced startup time

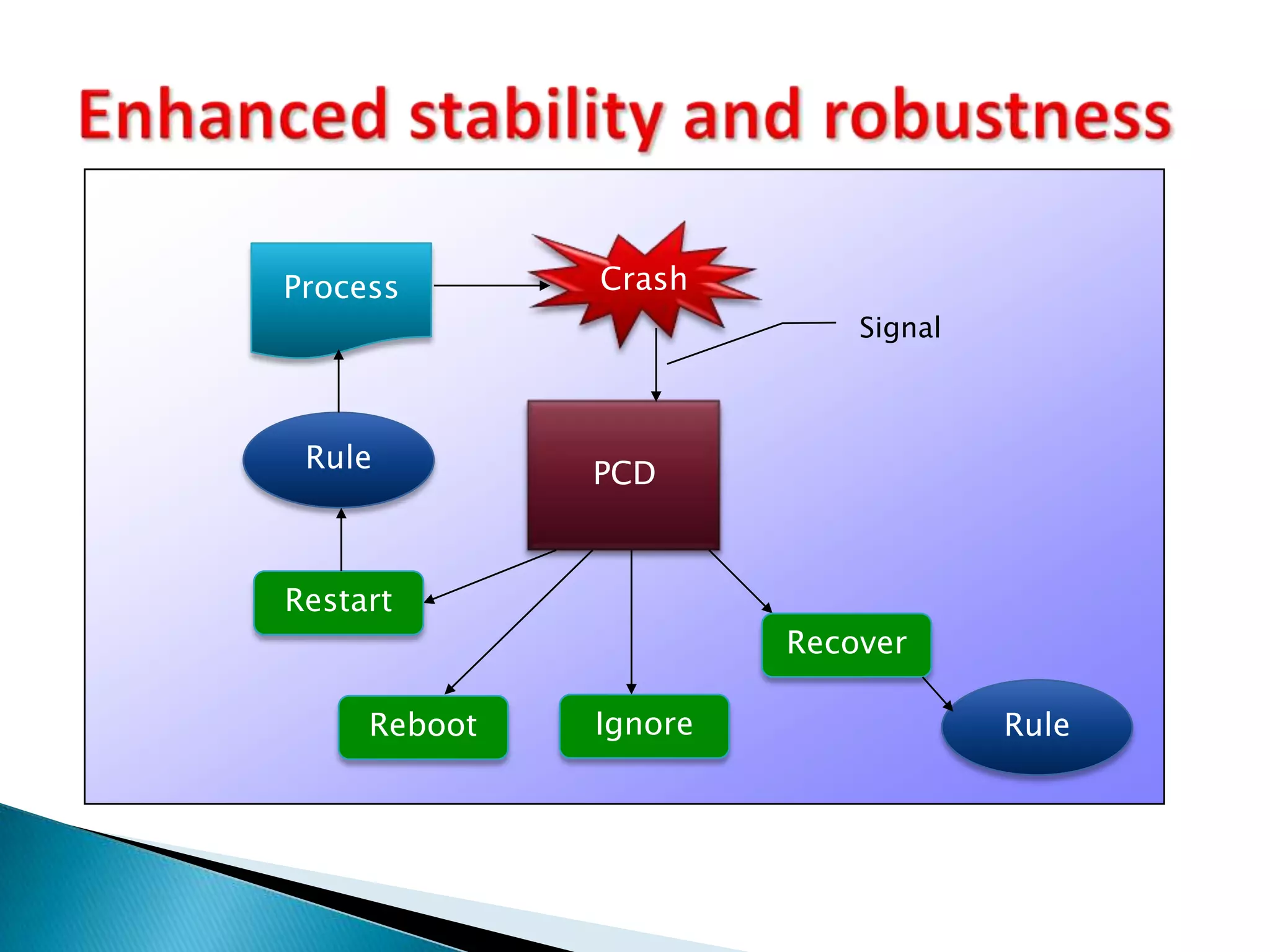

62. Enhanced stability and robustnessCrashProcessSignalPCDRuleRestartRecoverRuleIgnoreReboot

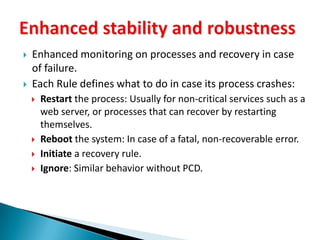

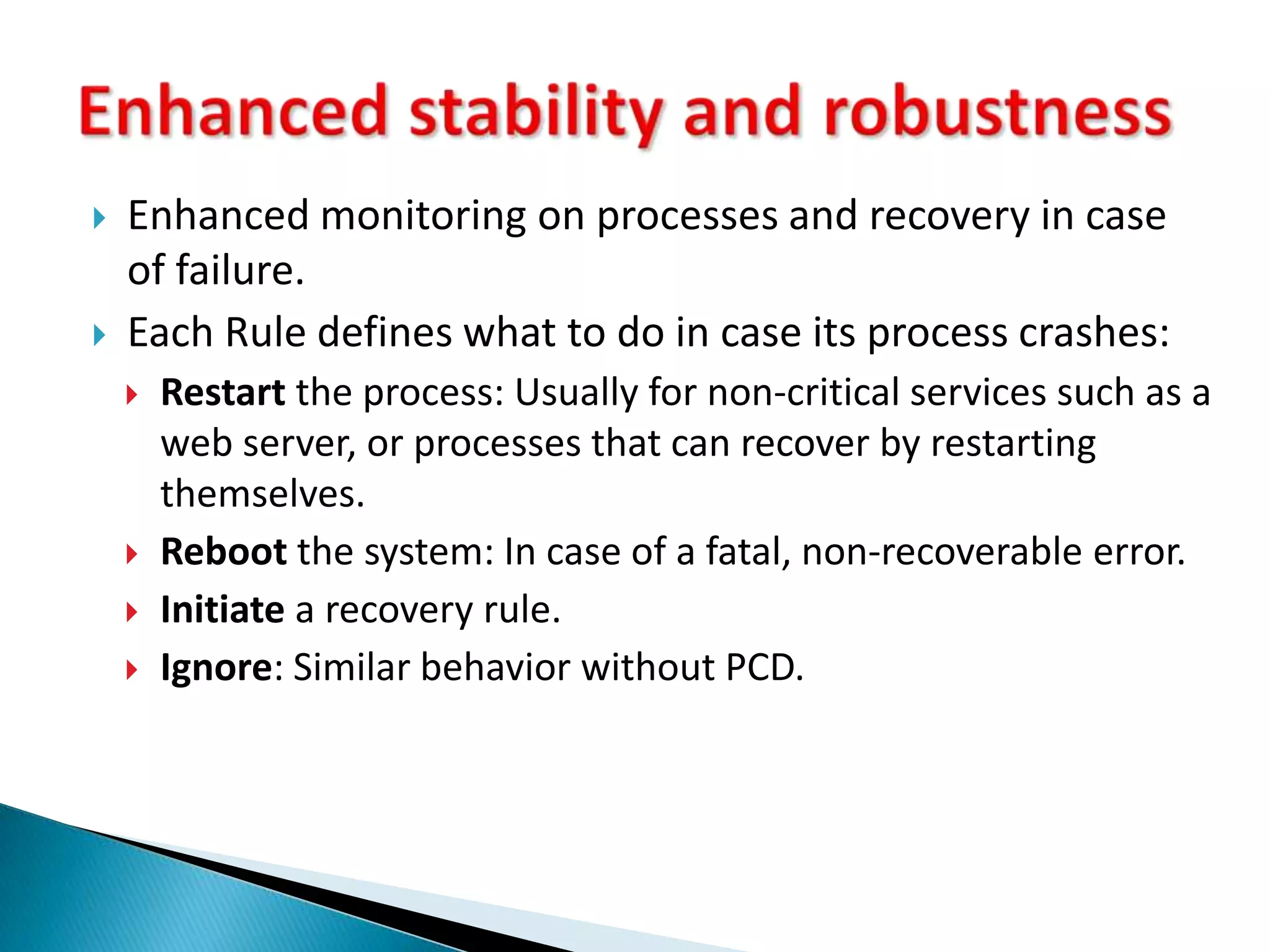

63. Enhanced stability and robustnessEnhanced monitoring on processes and recovery in case of failure.Each Rule defines what to do in case its process crashes:Restart the process: Usually for non-critical services such as a web server, or processes that can recover by restarting themselves.

64. Reboot the system: In case of a fatal, non-recoverable error.

65. Initiate a recovery rule.

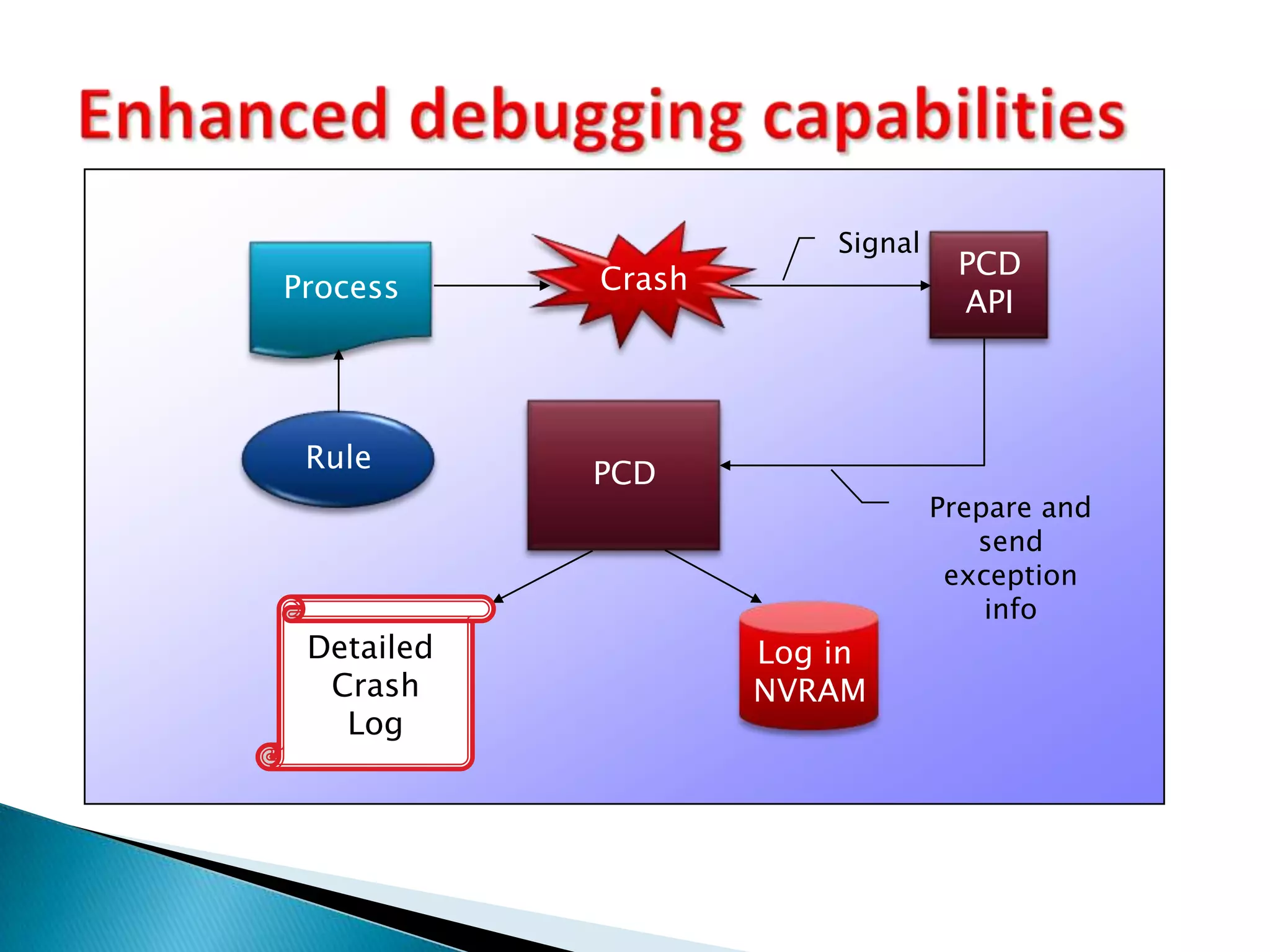

66. Ignore: Similar behavior without PCD.Enhanced debugging capabilitiesCrashSignalPCDAPIProcessPCDRulePrepare and send exception infoDetailed CrashLogLog in NVRAM

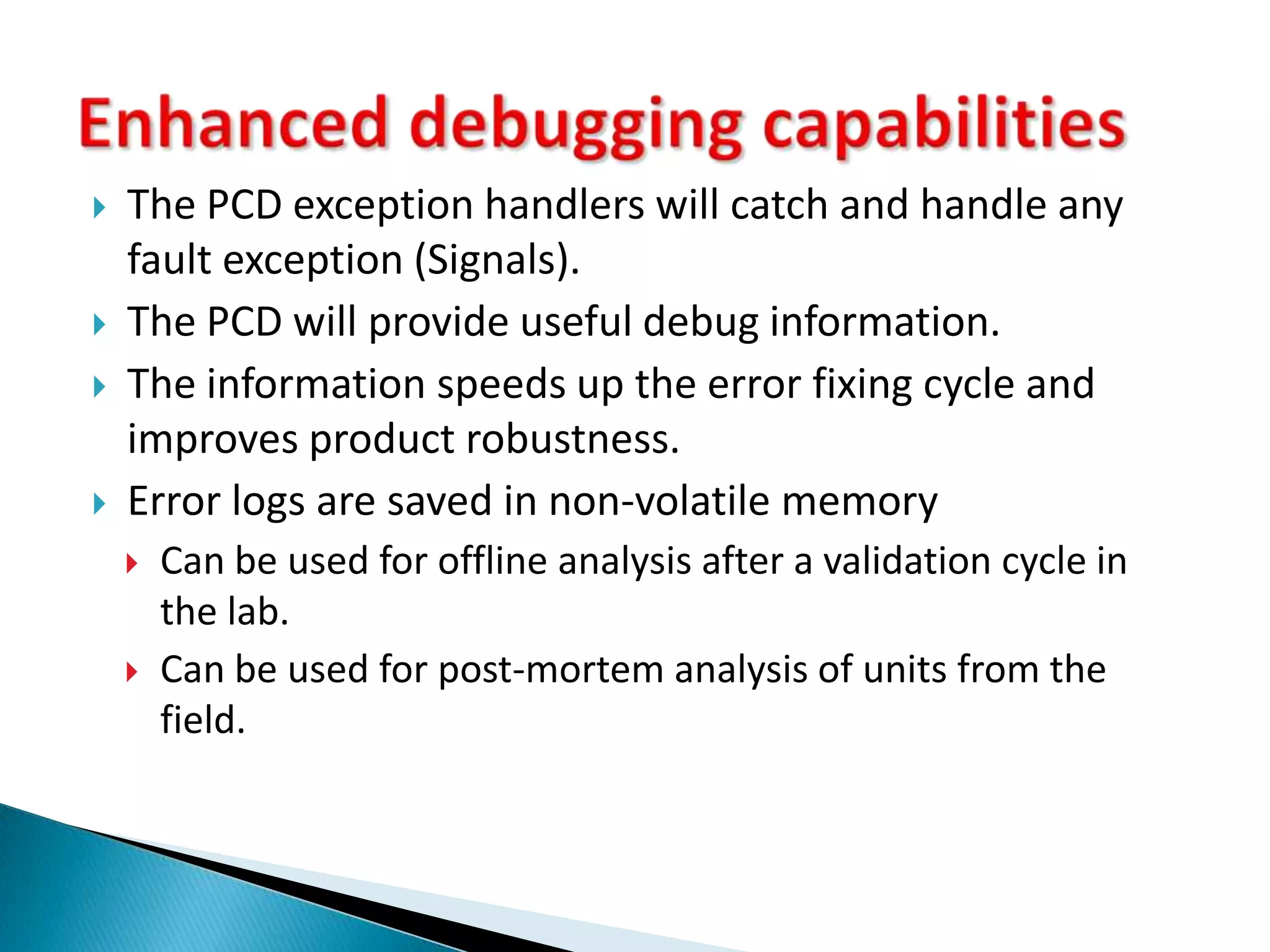

67. Enhanced debugging capabilitiesThe PCD exception handlers will catch and handle any fault exception (Signals).The PCD will provide useful debug information.The information speeds up the error fixing cycle and improves product robustness.Error logs are saved in non-volatile memoryCan be used for offline analysis after a validation cycle in the lab.

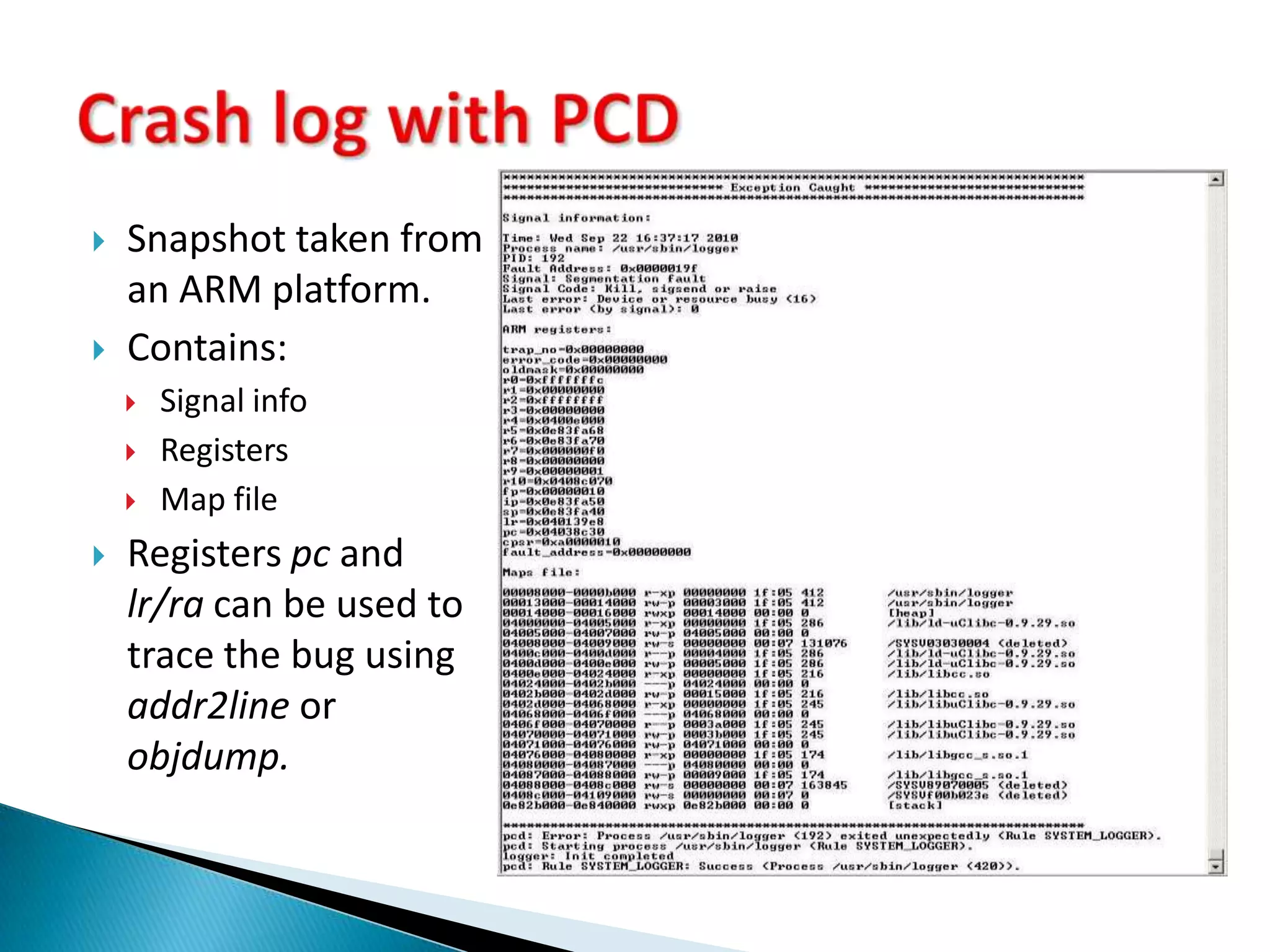

68. Can be used for post-mortem analysis of units from the field.Snapshot taken from an ARM platform.Contains:Signal info

69. Registers

70. Map file

71. Registers pc and lr/ra can be used to trace the bug using addr2line or objdump.Crash log with PCD

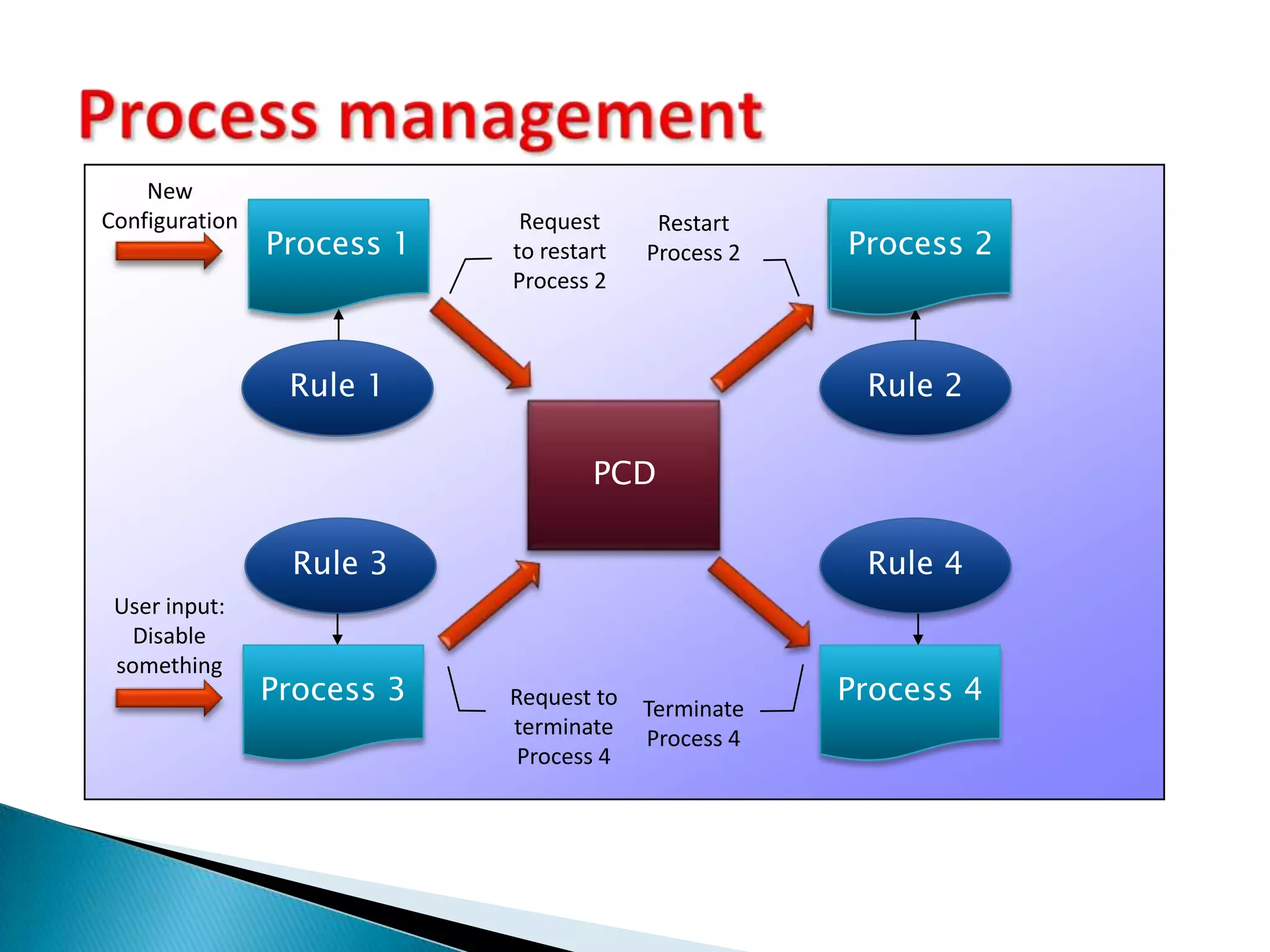

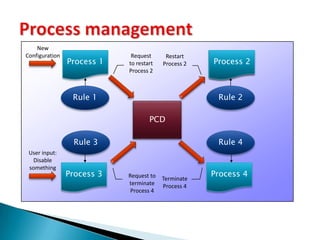

72. Process managementNew ConfigurationRequest to restart Process 2Process 1Process 2Process 2Restart Process 2Rule 1Rule 2PCDRule 4Rule 3User input: Disable somethingProcess 3Process 4Request to terminateProcess 4TerminateProcess 4

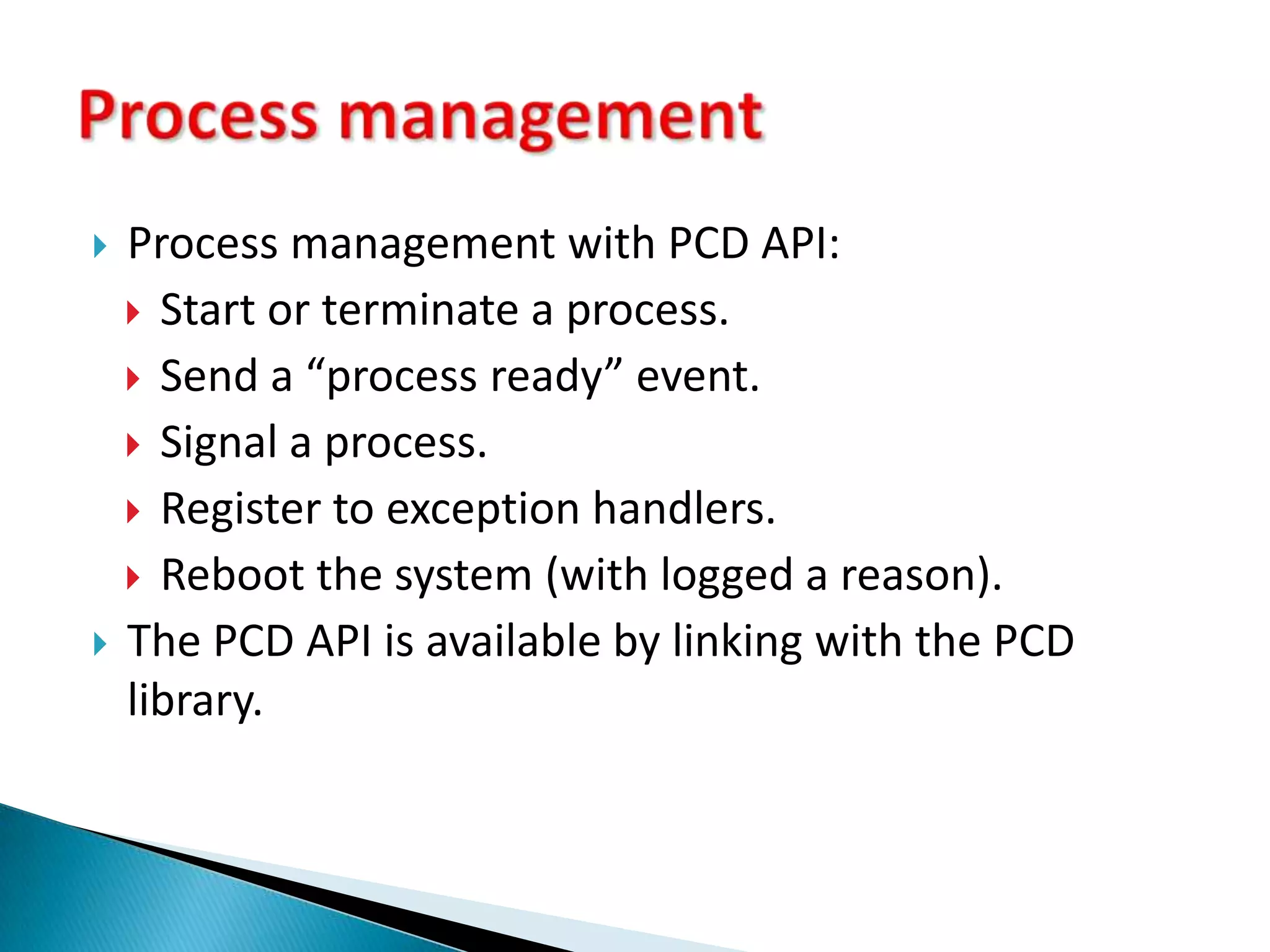

73. Process management with PCD API:Start or terminate a process.

74. Send a “process ready” event.

75. Signal a process.

76. Register to exception handlers.

77. Reboot the system (with logged a reason).The PCD API is available by linking with the PCD library.Process management

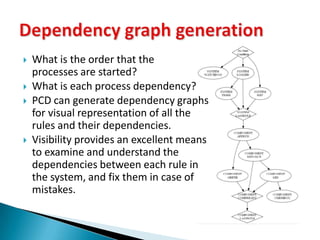

78. What is the order that the processes are started?What is each process dependency?PCDcan generate dependency graphs for visual representation of all the rules and their dependencies.Visibility provides an excellent means to examine and understand the dependencies between each rule in the system, and fix them in case of mistakes.Dependency graph generation

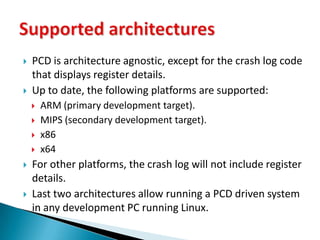

79. PCD is architecture agnostic, except for the crash log code that displays register details.Up to date, the following platforms are supported:ARM (primary development target).

80. MIPS (secondary development target).

81. x86

82. x64

83. For other platforms, the crash log will not include register details.

84. Last two architectures allow running a PCD driven system in any development PC running Linux.Supported architectures

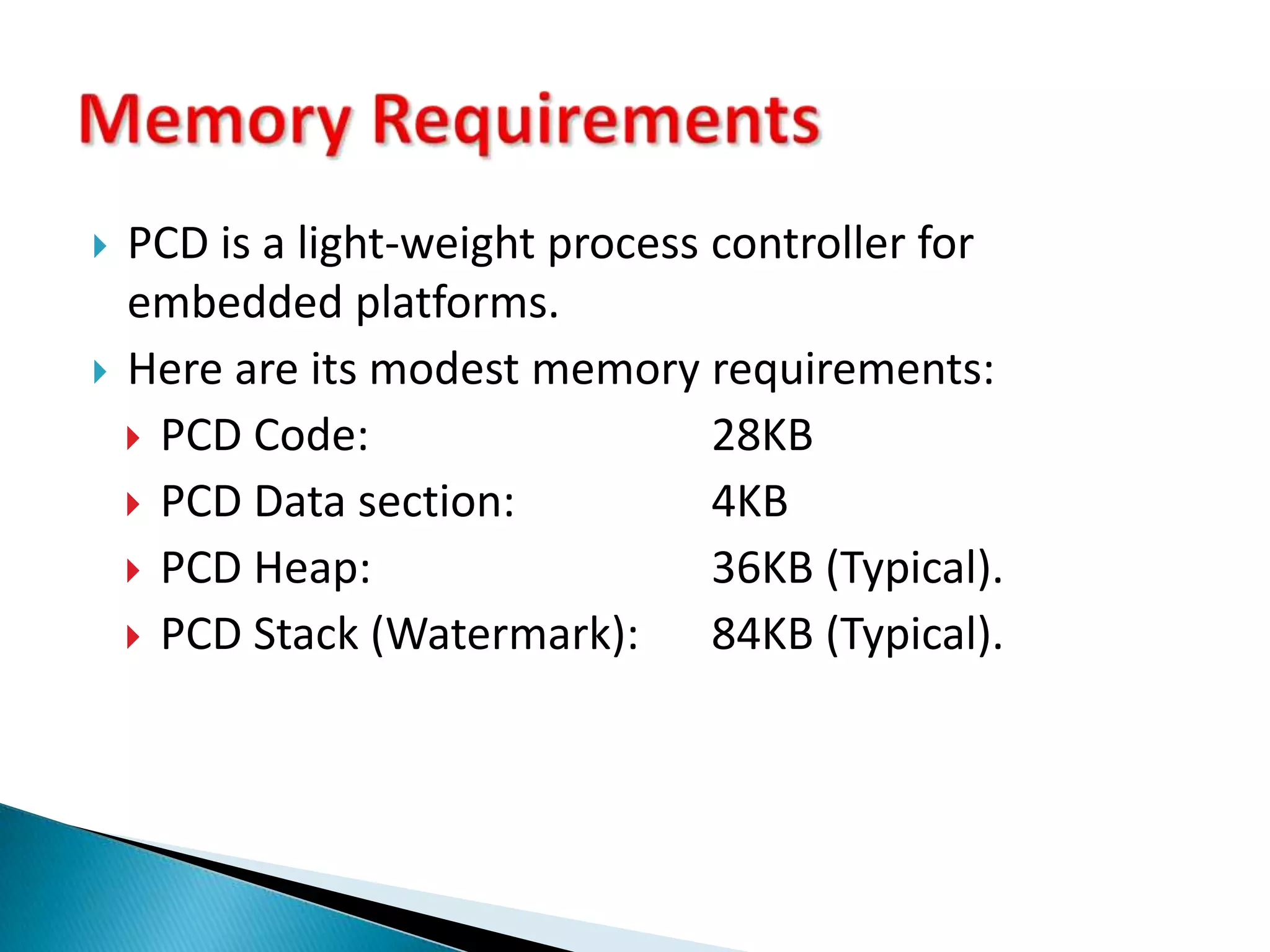

85. PCD is a light-weight process controller for embedded platforms.Here are its modest memory requirements:PCD Code: 28KB

86. PCD Data section: 4KB

87. PCD Heap: 36KB (Typical).

88. PCD Stack (Watermark): 84KB (Typical).Memory Requirements

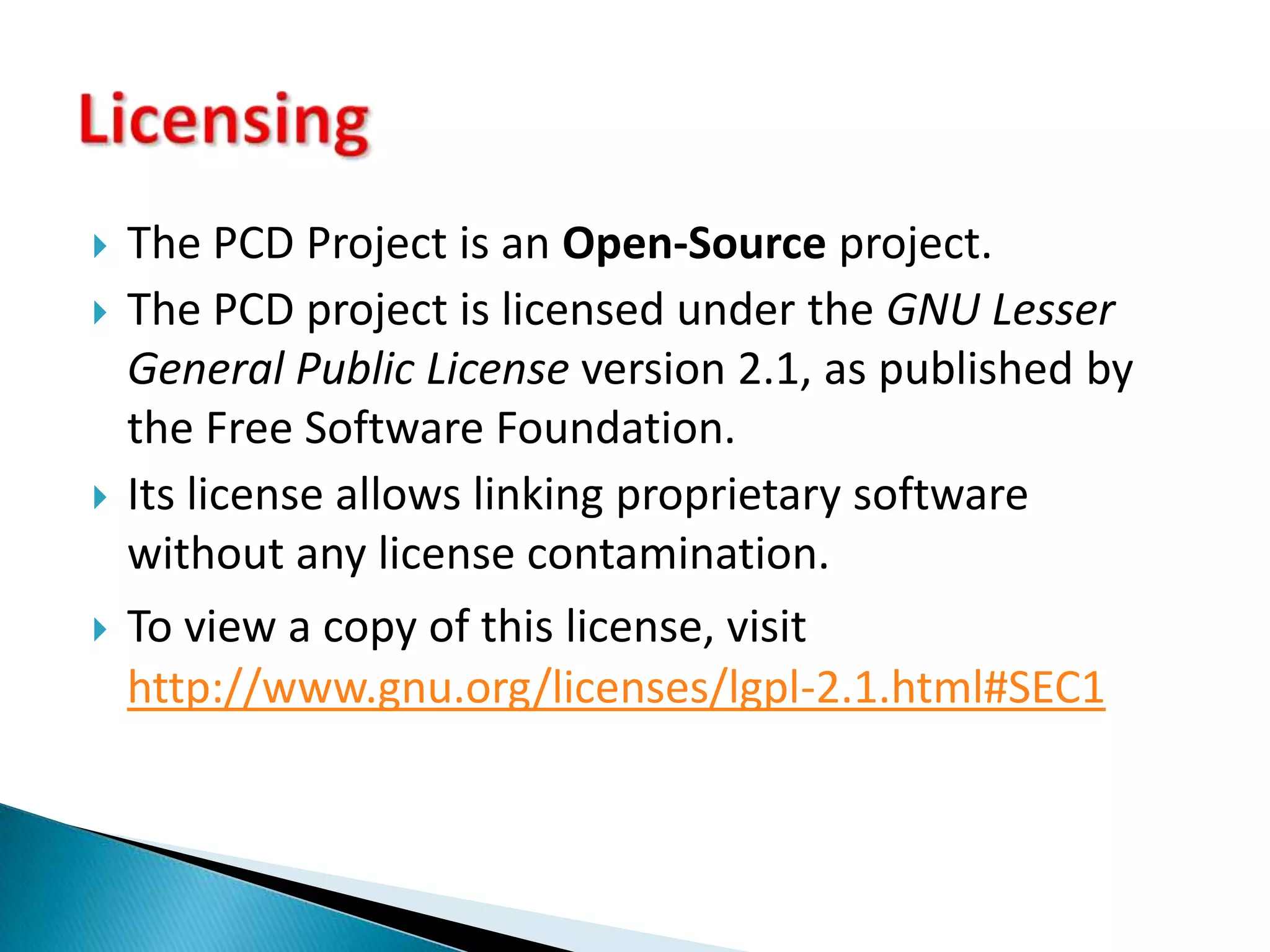

89. The PCD Project is an Open-Source project.The PCD project is licensed under the GNU Lesser General Public License version 2.1, as published by the Free Software Foundation.Its license allows linking proprietary software without any license contamination.To view a copy of this license, visithttp://www.gnu.org/licenses/lgpl-2.1.html#SEC1Licensing

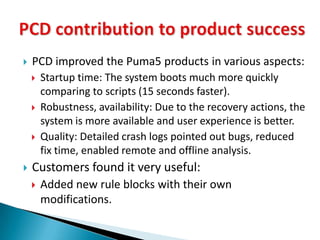

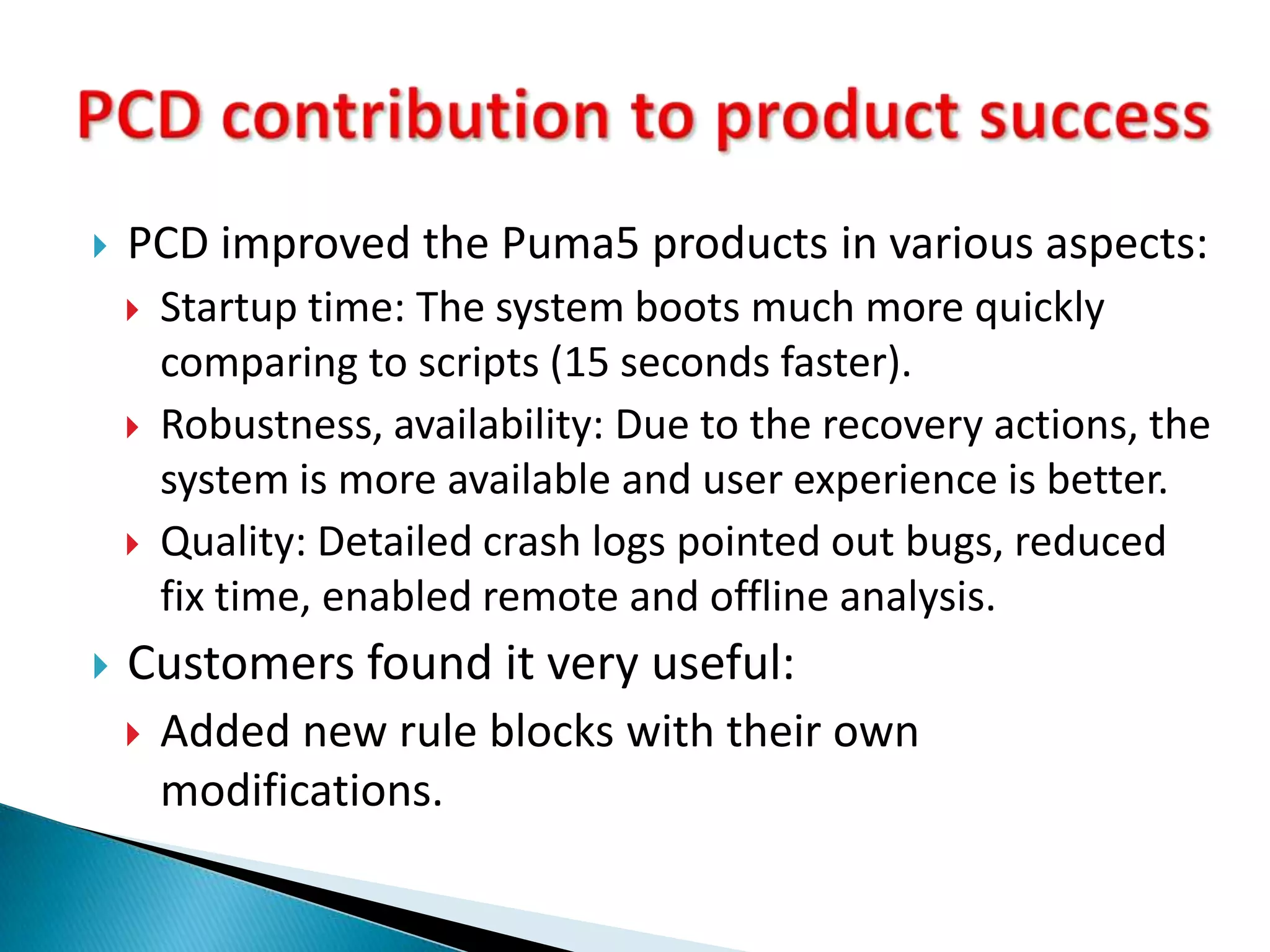

90. PCD contribution to product successPCD improved the Puma5 products in various aspects:Startup time: The system boots much more quickly comparing to scripts (15 seconds faster).

91. Robustness, availability: Due to the recovery actions, the system is more available and user experience is better.

92. Quality: Detailed crash logs pointed out bugs, reduced fix time, enabled remote and offline analysis.

93. Customers found it very useful:

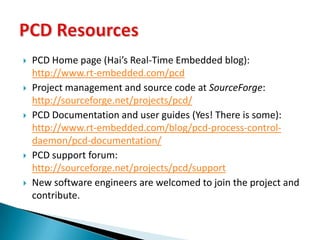

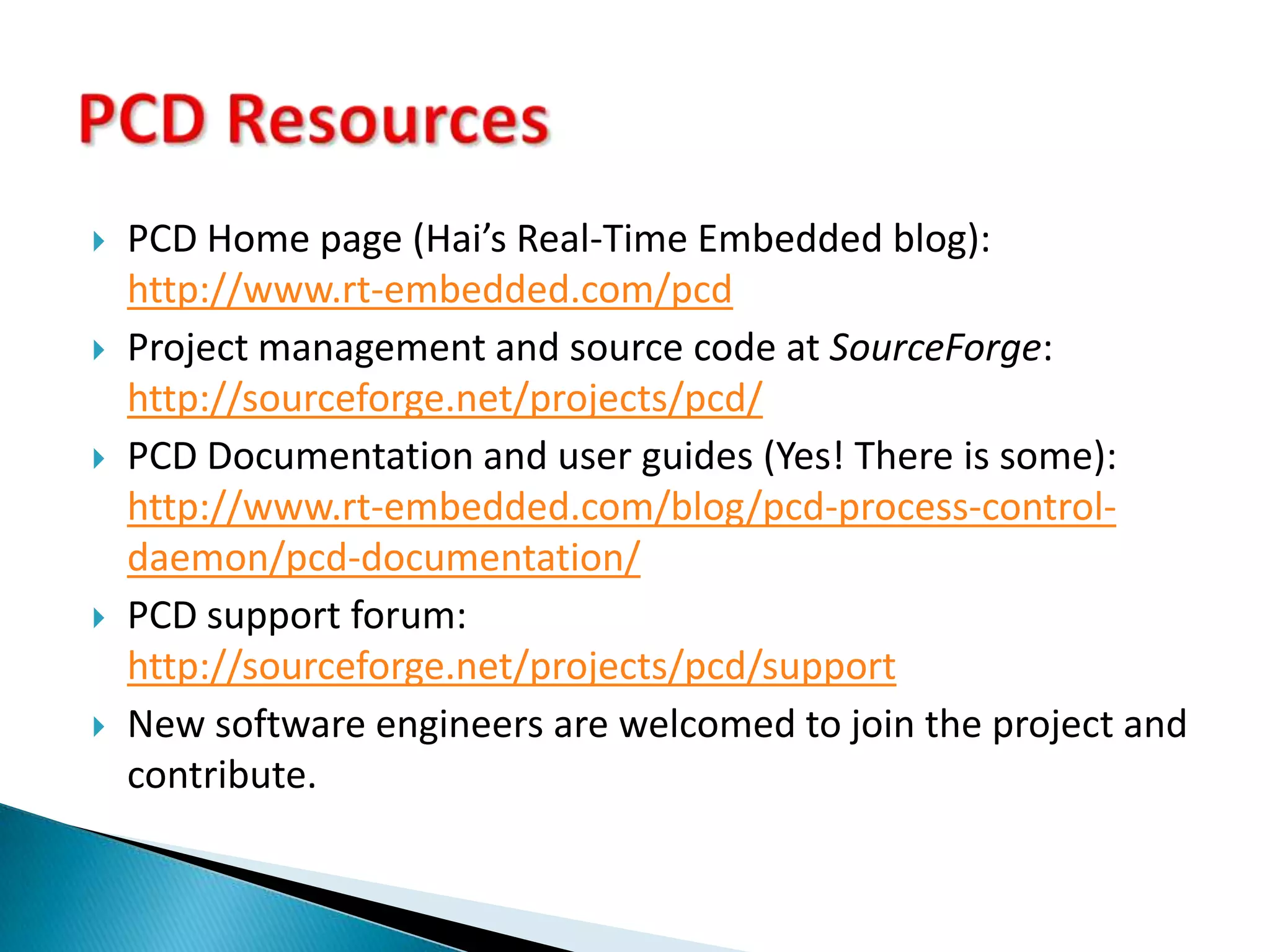

94. Added new rule blocks with their own modifications.PCD Home page (Hai’s Real-Time Embedded blog): http://www.rt-embedded.com/pcdProject management and source code at SourceForge: http://sourceforge.net/projects/pcd/PCD Documentation and user guides (Yes! There is some): http://www.rt-embedded.com/blog/pcd-process-control-daemon/pcd-documentation/PCD support forum: http://sourceforge.net/projects/pcd/supportNew software engineers are welcomed to join the project and contribute.PCD Resources

95. Questions and AnswersHai, fixing a bug

96. Wrap Up

97. System startup: PCD starts up the system in an efficient, synchronized and deterministic manner.Process management: a centralized entity that controls and monitors all processes, and provides API to manage them. System recovery: Configurable per process recovery action is taken in case of a crash.Debug information: PCD provides a detailed crash log in case of a program error.PCD can make your product a better product!PCD Features in high-level

98. Thank you!Hai Shalom

99. Backup slides

100. PCD High level technical info

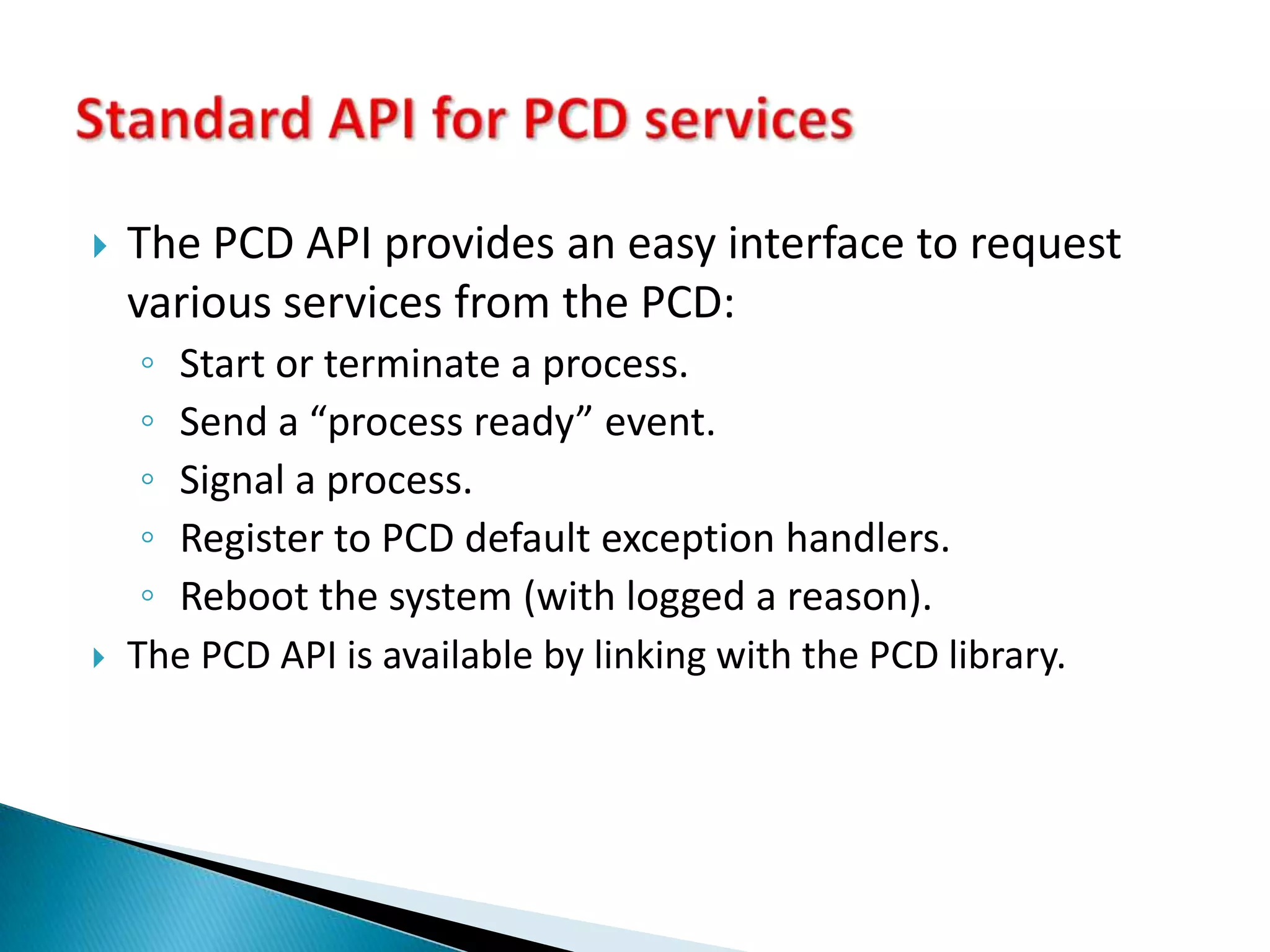

101. The PCD API provides an easy interface to request various services from the PCD:Start or terminate a process.Send a “process ready” event.Signal a process.Register to PCD default exception handlers.Reboot the system (with logged a reason).The PCD API is available by linking with the PCD library.Standard API for PCD services

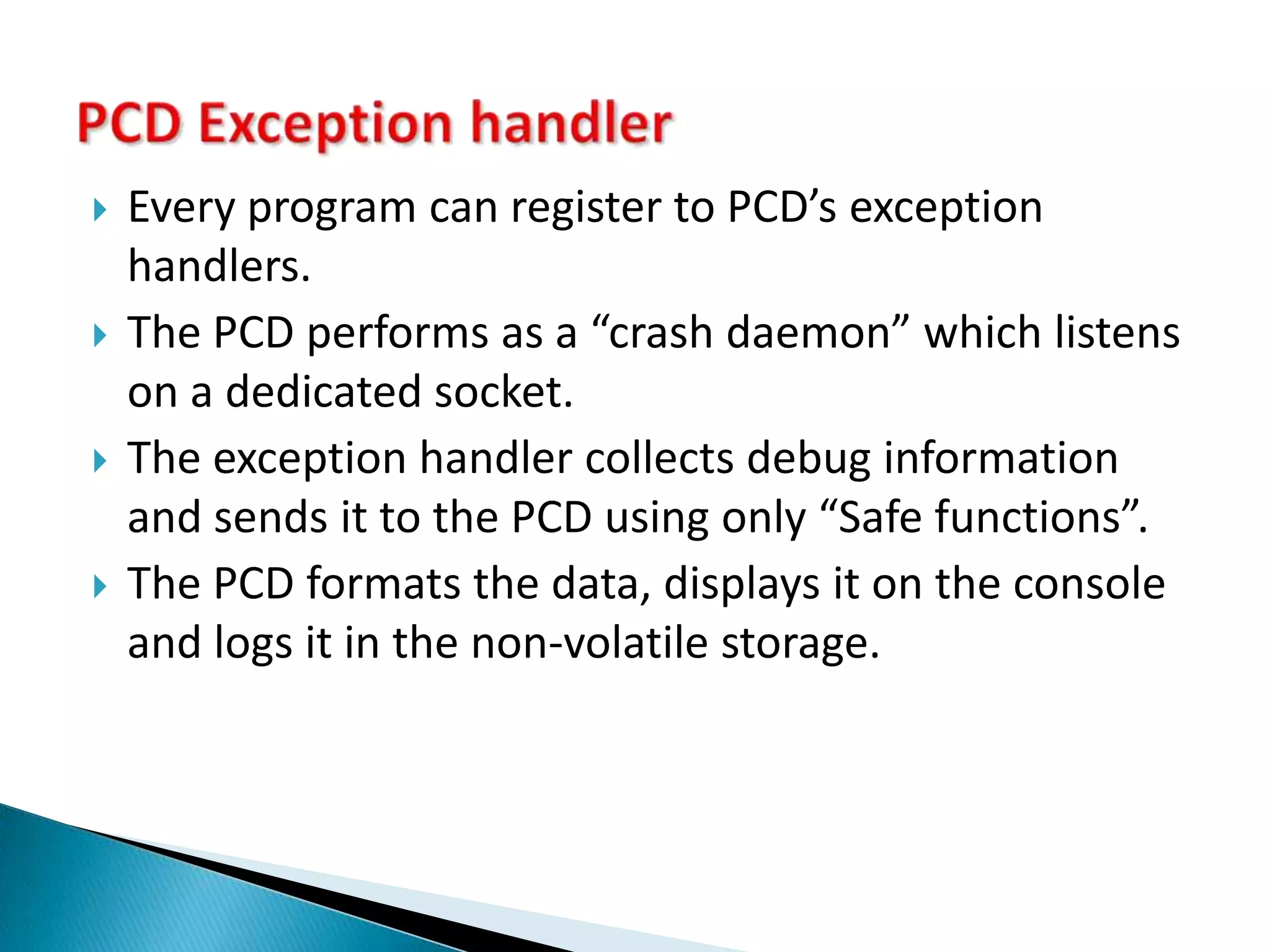

102. PCD Exception handlerEvery program can register to PCD’s exception handlers.The PCD performs as a “crash daemon” which listens on a dedicated socket.The exception handler collects debug information and sends it to the PCD using only “Safe functions”.The PCD formats the data, displays it on the console and logs it in the non-volatile storage.

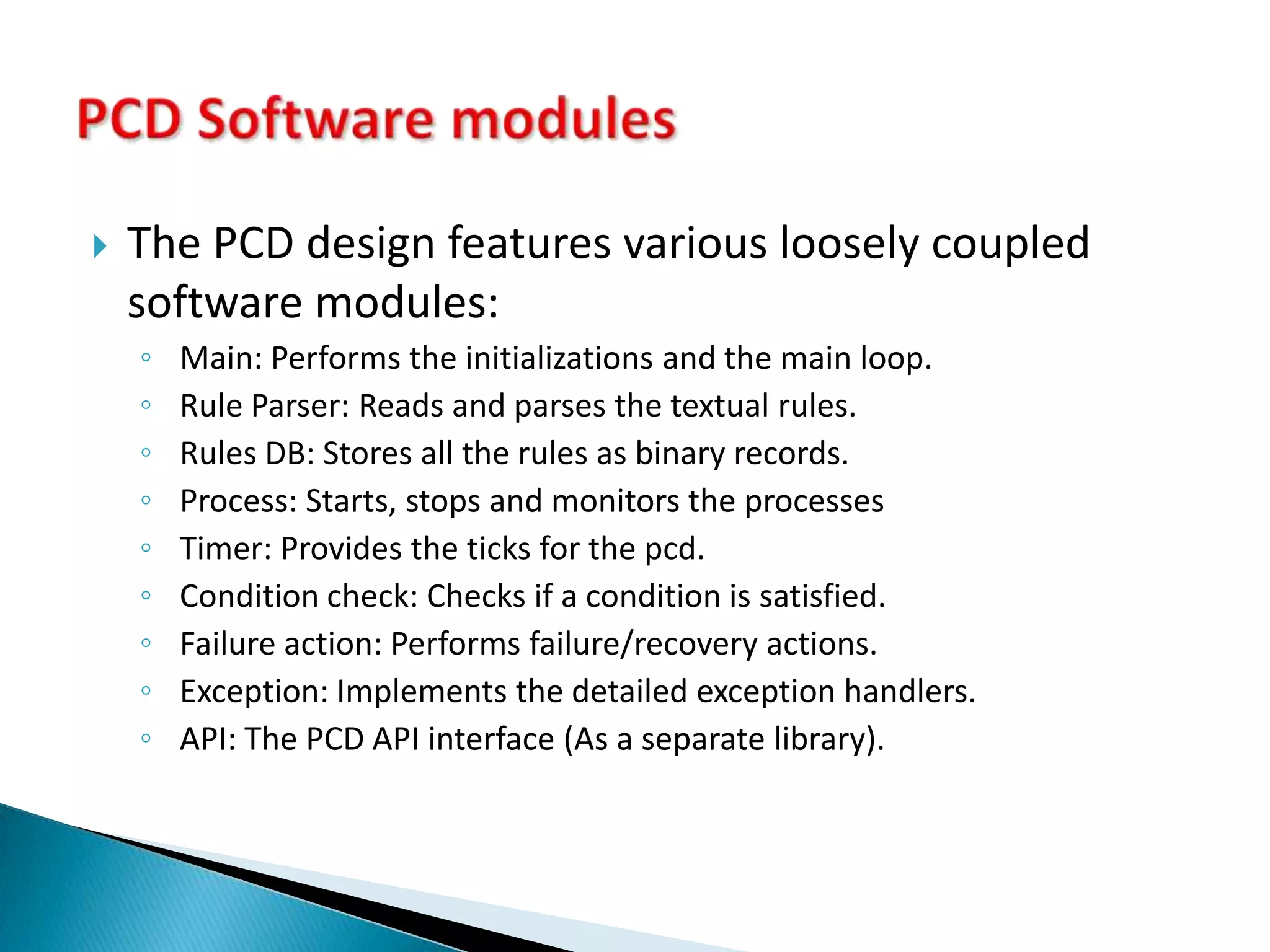

103. The PCD design features various loosely coupled software modules:Main: Performs the initializations and the main loop.Rule Parser: Reads and parses the textual rules.Rules DB: Stores all the rules as binary records.Process: Starts, stops and monitors the processesTimer: Provides the ticks for the pcd.Condition check: Checks if a condition is satisfied.Failure action: Performs failure/recovery actions.Exception: Implements the detailed exception handlers.API: The PCD API interface (As a separate library).PCD Software modules

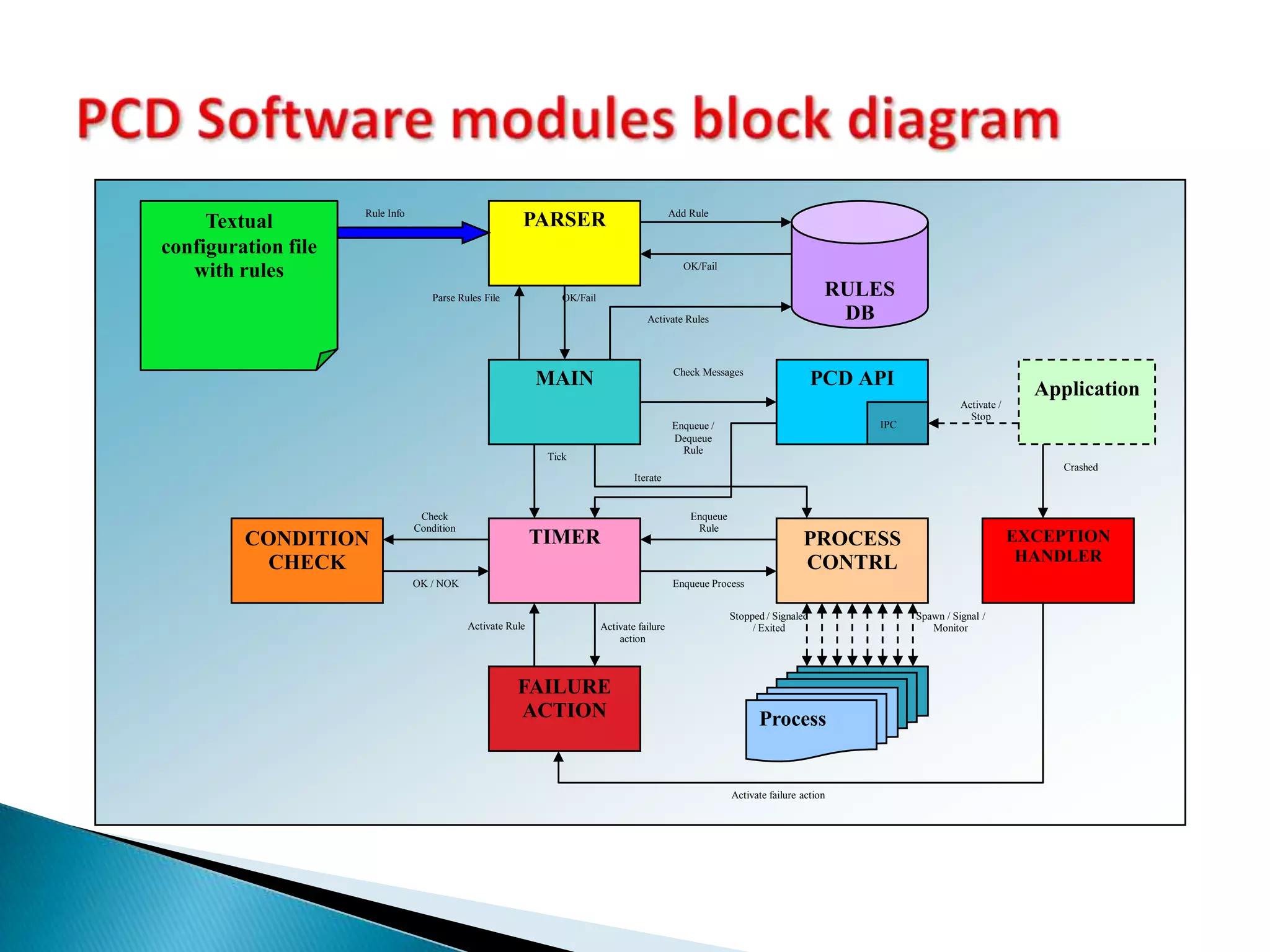

104. PCD Software modules block diagramPARSERRULESDBTextual configuration file with rulesAdd RuleRule InfoOK/FailParse Rules FileOK/FailActivate RulesMAINPCDAPICheck MessagesApplicationActivate /StopIPCEnqueue /DequeueRuleTickCrashedIterateCheckConditionEnqueueRuleTIMERPROCESS CONTRLCONDITIONCHECKEXCEPTION HANDLEROK / NOKEnqueue ProcessSpawn / Signal /MonitorStopped / Signaled / ExitedActivate failure actionActivate RuleFAILUREACTIONProcessActivate failure action

105. A textual file, similar to shell script syntax.Contains a list of “Rule Blocks”. A Rule block is defined per process.Scripts can be extended by including other scripts.dividing dedicated scripts per each logical or functional sub-system in the system.PCD Rules Script

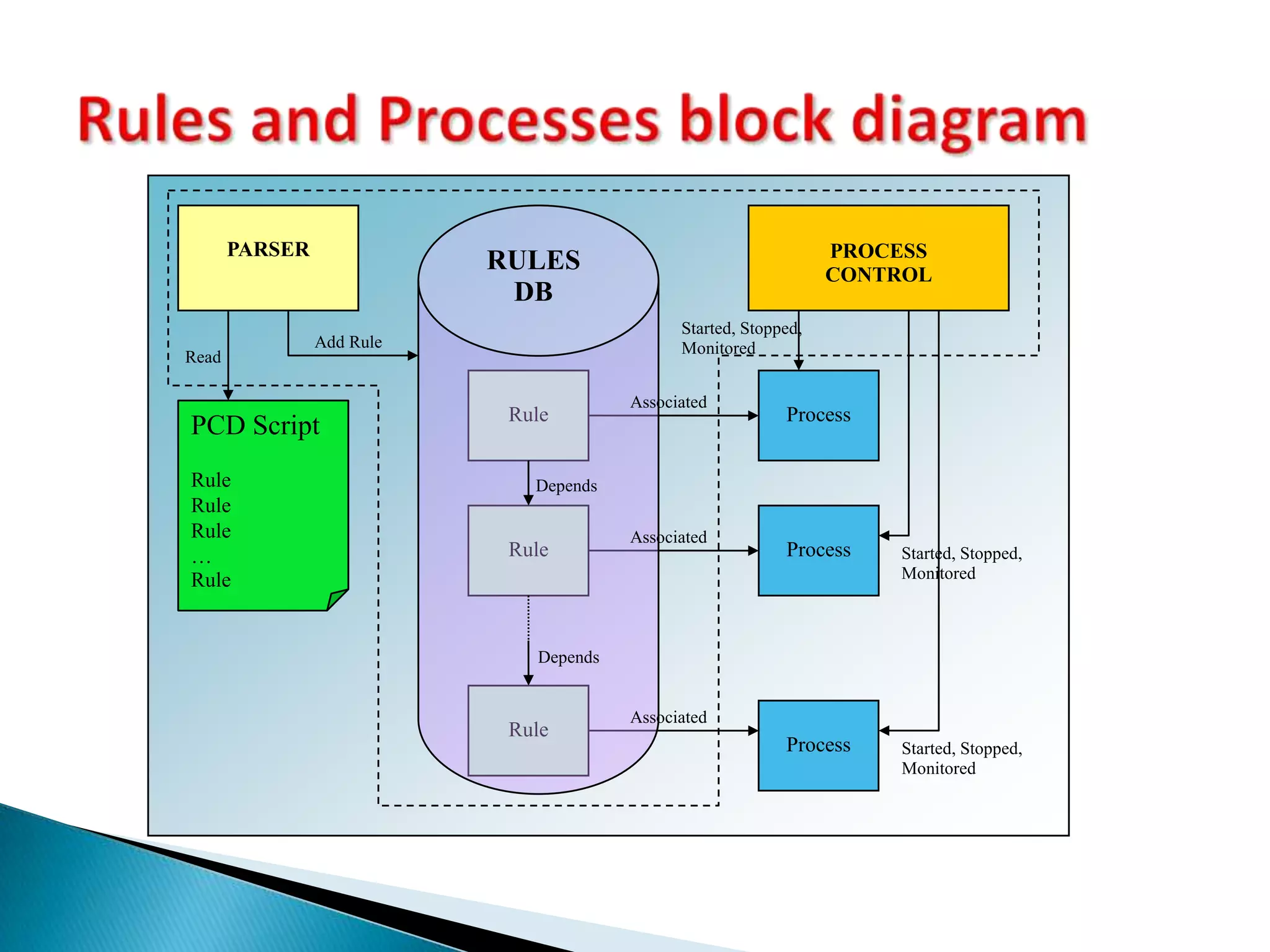

106. Rules and Processes block diagramPROCESS CONTROLPARSERRULESDBStarted, Stopped, MonitoredAdd RuleReadRuleProcessAssociatedPCD ScriptRuleRuleRule…RuleDependsRuleProcessAssociatedStarted, Stopped, MonitoredDependsRuleProcessAssociatedStarted, Stopped, Monitored

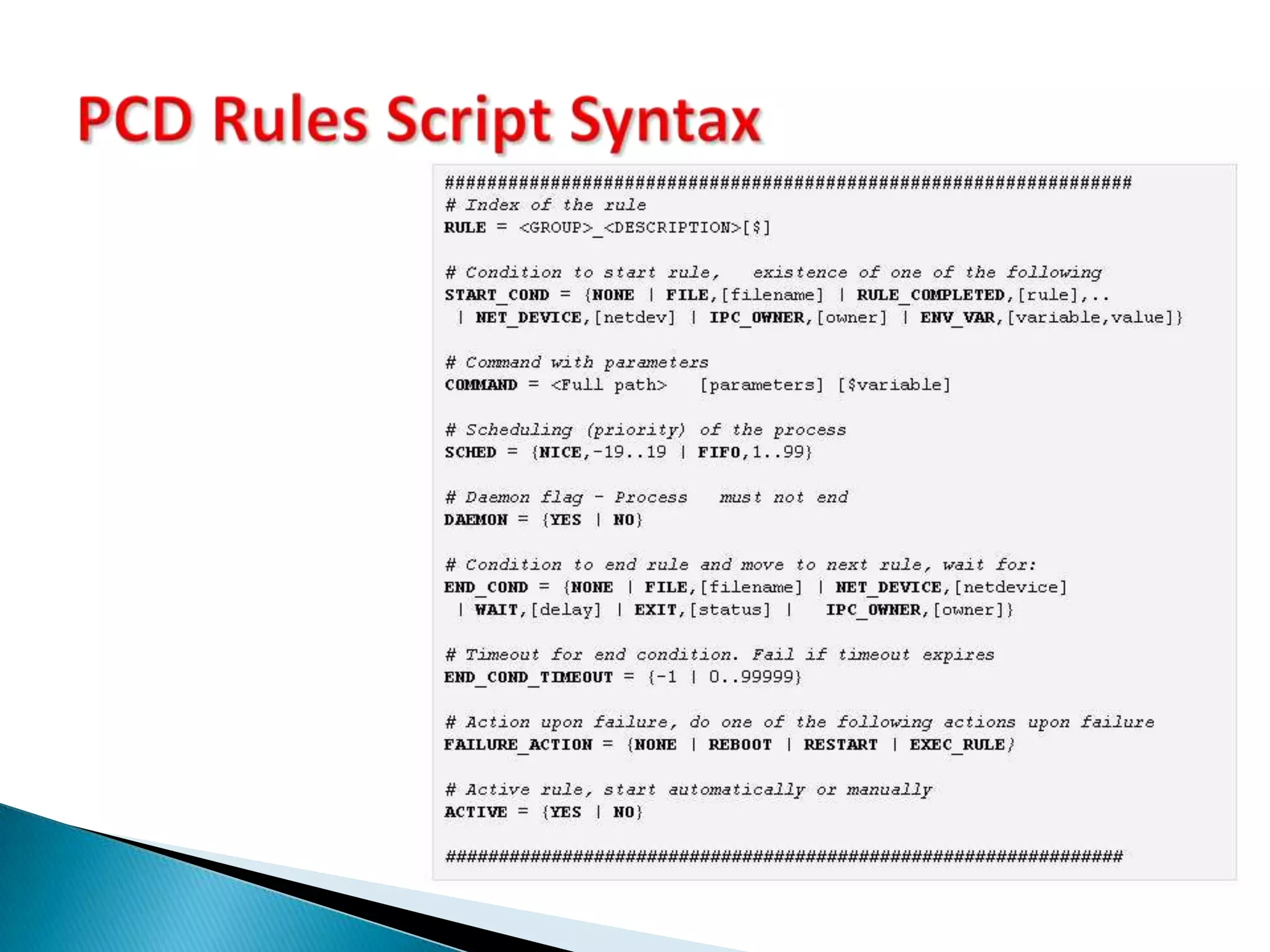

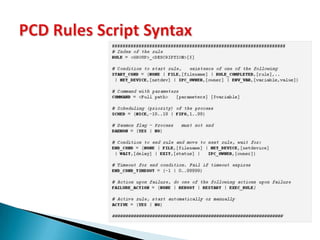

107. PCD Rules Script Syntax

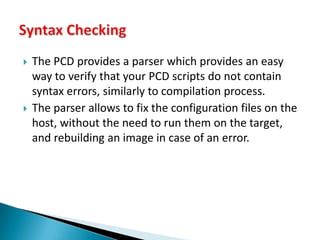

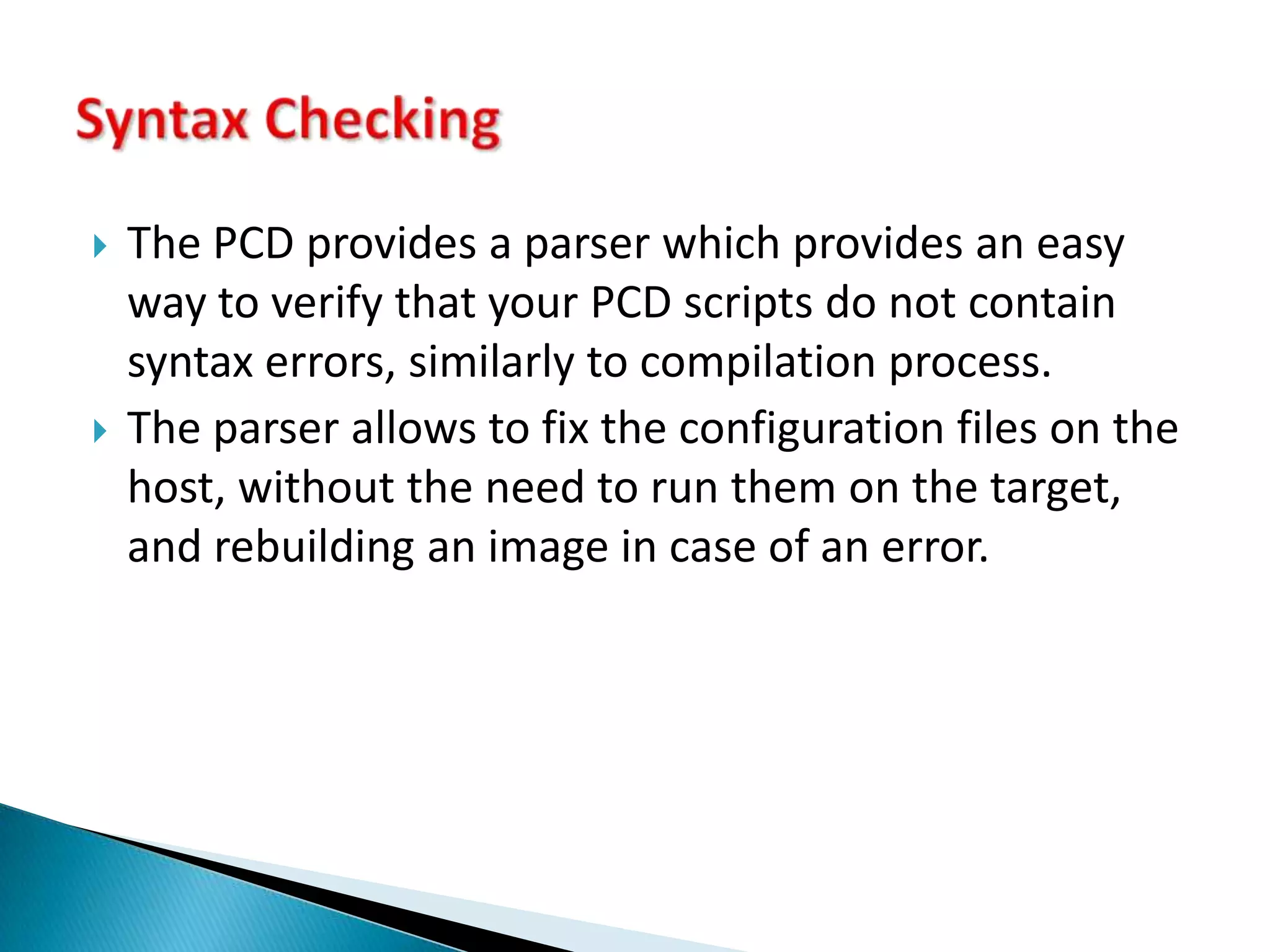

108. The PCD provides a parser which provides an easy way to verify that your PCD scripts do not contain syntax errors, similarly to compilation process.The parser allows to fix the configuration files on the host, without the need to run them on the target, and rebuilding an image in case of an error.Syntax Checking

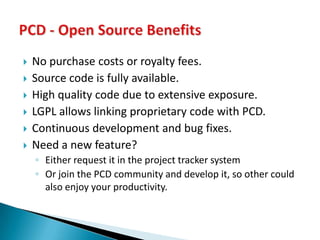

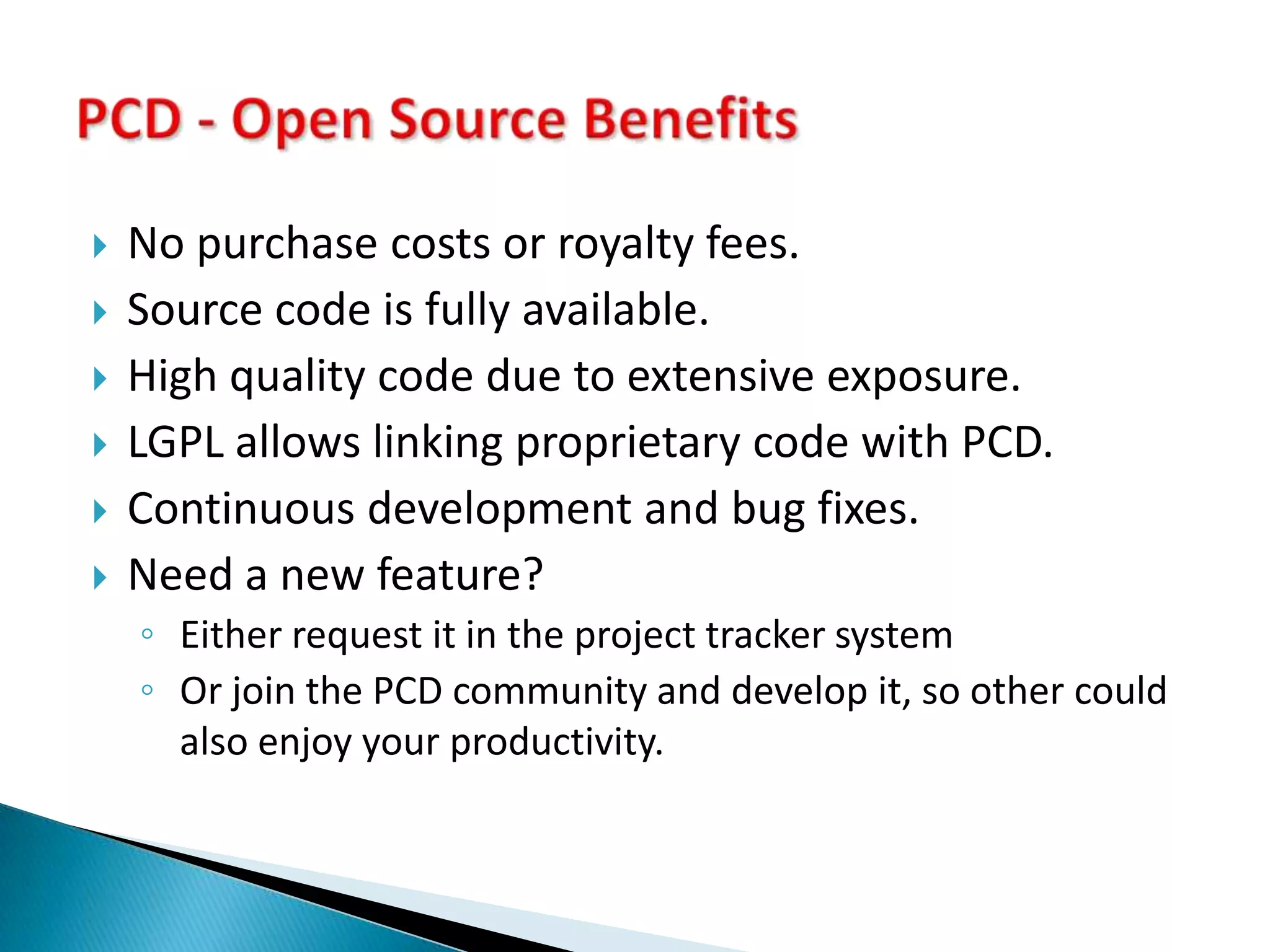

109. No purchase costs or royalty fees.Source code is fully available.High quality code due to extensive exposure.LGPL allows linking proprietary code with PCD.Continuous development and bug fixes.Need a new feature?Either request it in the project tracker systemOr join the PCD community and develop it, so other could also enjoy your productivity.PCD - Open Source Benefits

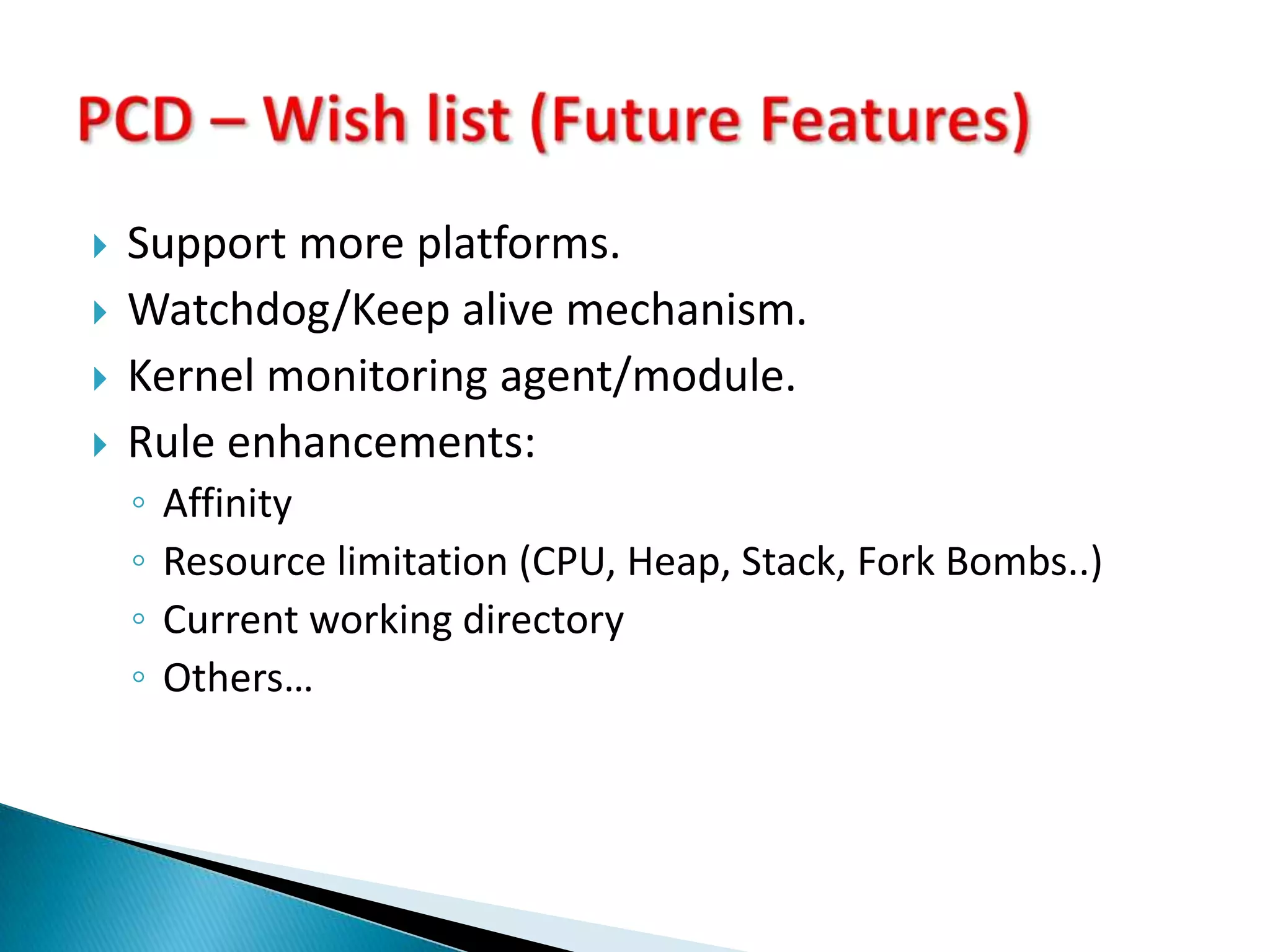

110. Support more platforms.Watchdog/Keep alive mechanism.Kernel monitoring agent/module.Rule enhancements:AffinityResource limitation (CPU, Heap, Stack, Fork Bombs..)Current working directoryOthers…PCD – Wish list (Future Features)
