This document discusses Android memory management. It explains that Android does not have swap space and relies on garbage collection. It describes the different memory regions in Android including the Java heap, native heap, and ashmem. It provides tips on increasing heap size, viewing heap updates, and how Android manages memory through processes. It also covers topics like memory leaks, references, and tools for analyzing memory usage.

1. Rights reserved
Android Memory
"Where is all my RAM"

2. Rights reserved
Deep Dive Into
State Restoration

3. Rights reserved
+Yossi Elkrief
@elkriefy
MaTriXy
Android Group leader Tikal
Proud Father
Android developer since 2008
GDG Beer Sheva co-founder & leader
Android Mentor @ Google Campus
Android Lecturer & speaker
LFC fan
Androids collector

4. Rights reserved
Android
Memory

5. Rights reserved

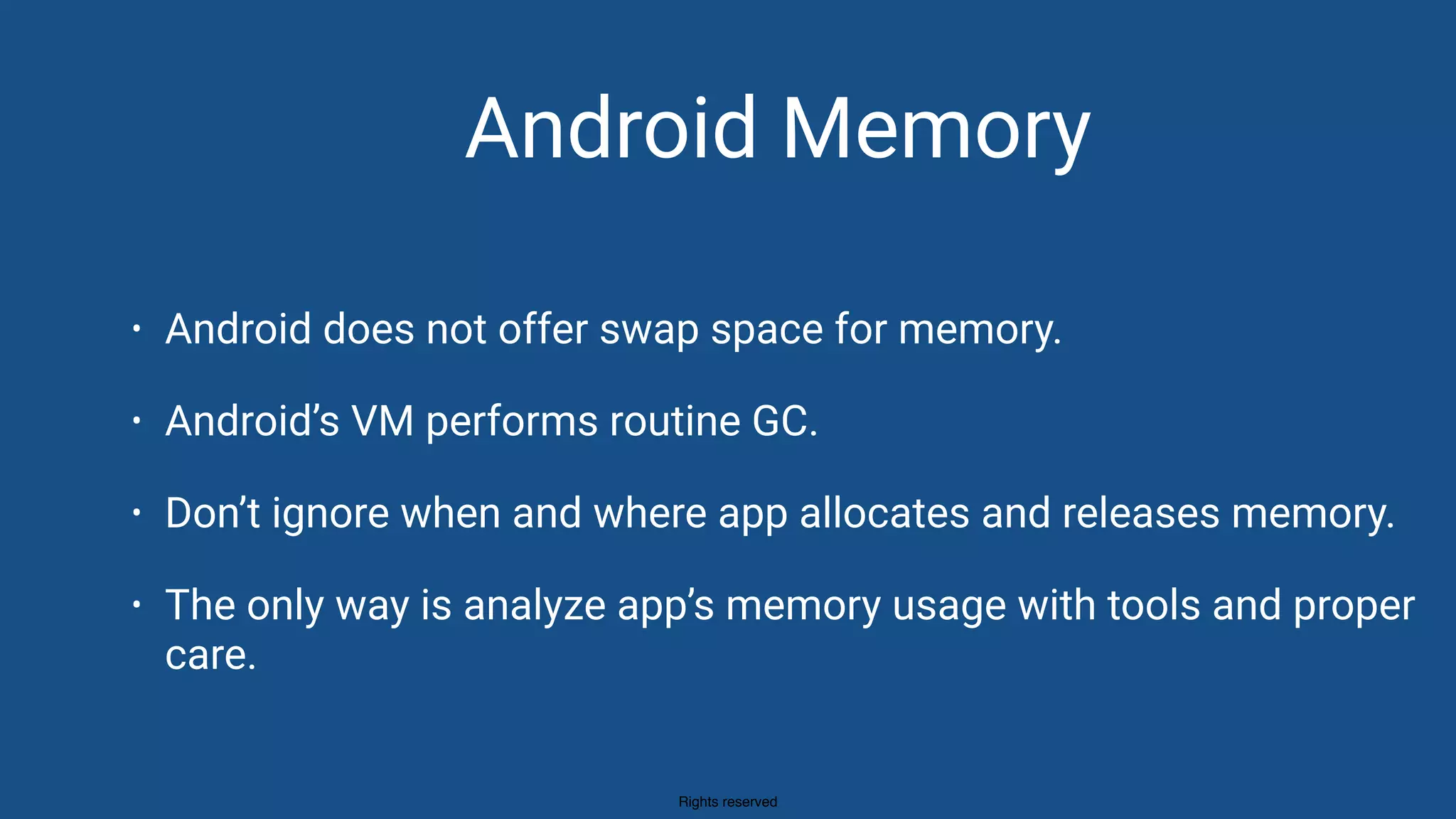

Android
MemoryAndroid Memory
• Android does not offer swap space for memory.
• Android’s VM performs routine GC.
• Don’t ignore when and where app allocates and releases memory.
• The only way is analyze app’s memory usage with tools and proper
care.

6. Rights reserved

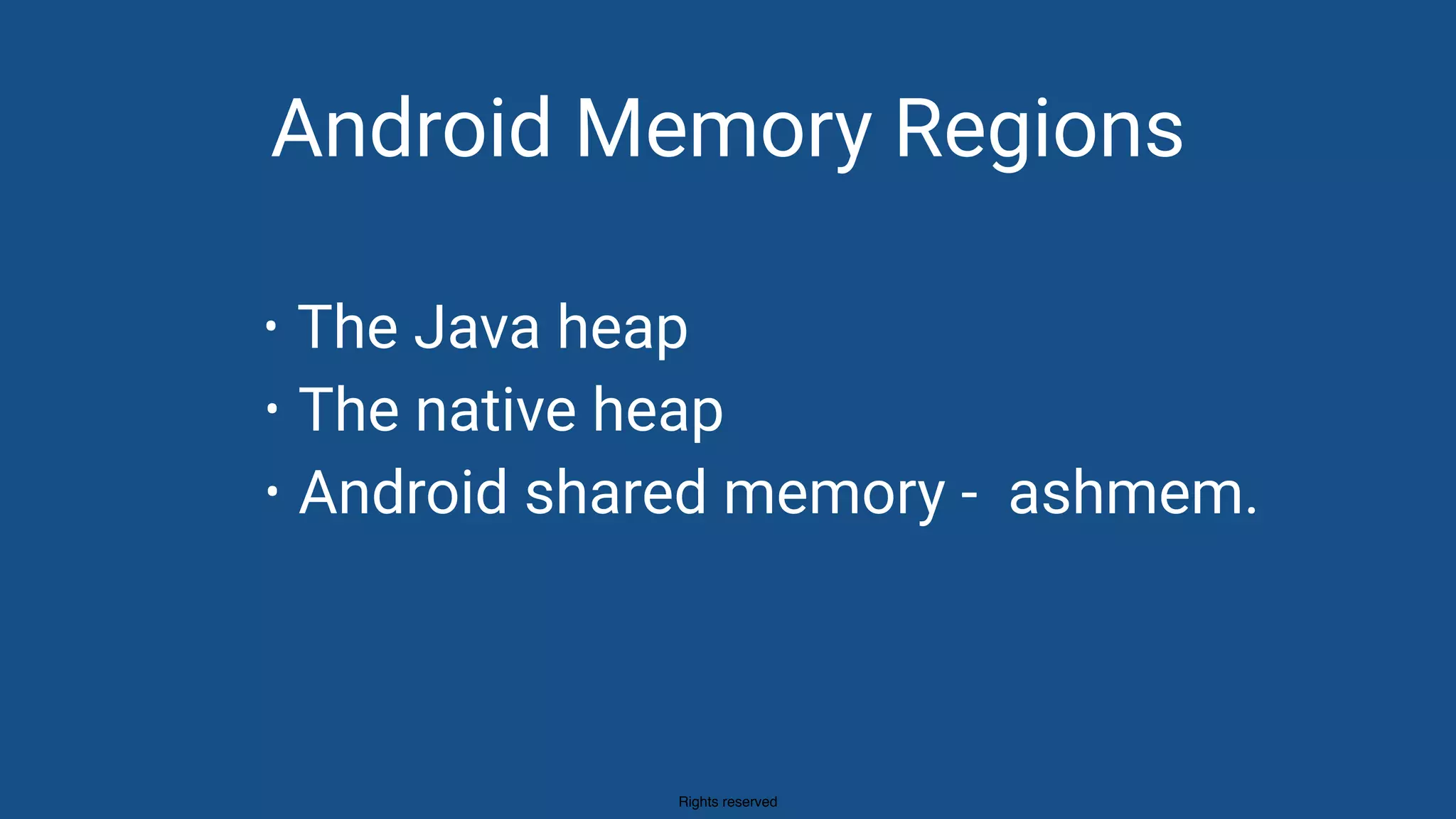

• The Java heap
• The native heap
• Android shared memory - ashmem.
Android Memory Regions

7. Rights reserved

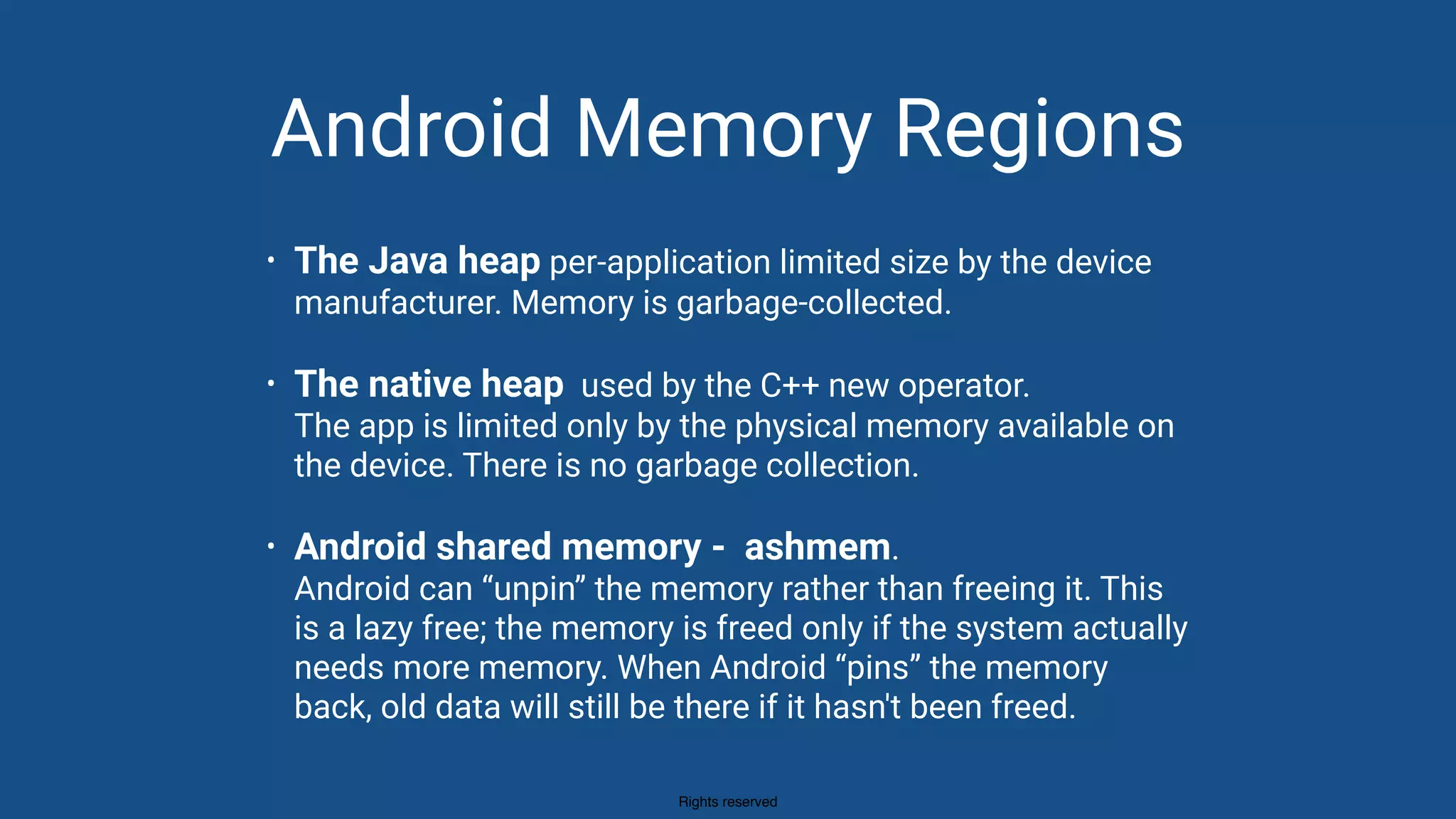

Android Memory Regions
• The Java heap per-application limited size by the device
manufacturer. Memory is garbage-collected.
• The native heap used by the C++ new operator.
The app is limited only by the physical memory available on
the device. There is no garbage collection.
• Android shared memory - ashmem.
Android can “unpin” the memory rather than freeing it. This
is a lazy free; the memory is freed only if the system actually
needs more memory. When Android “pins” the memory
back, old data will still be there if it hasn't been freed.

8. Rights reserved

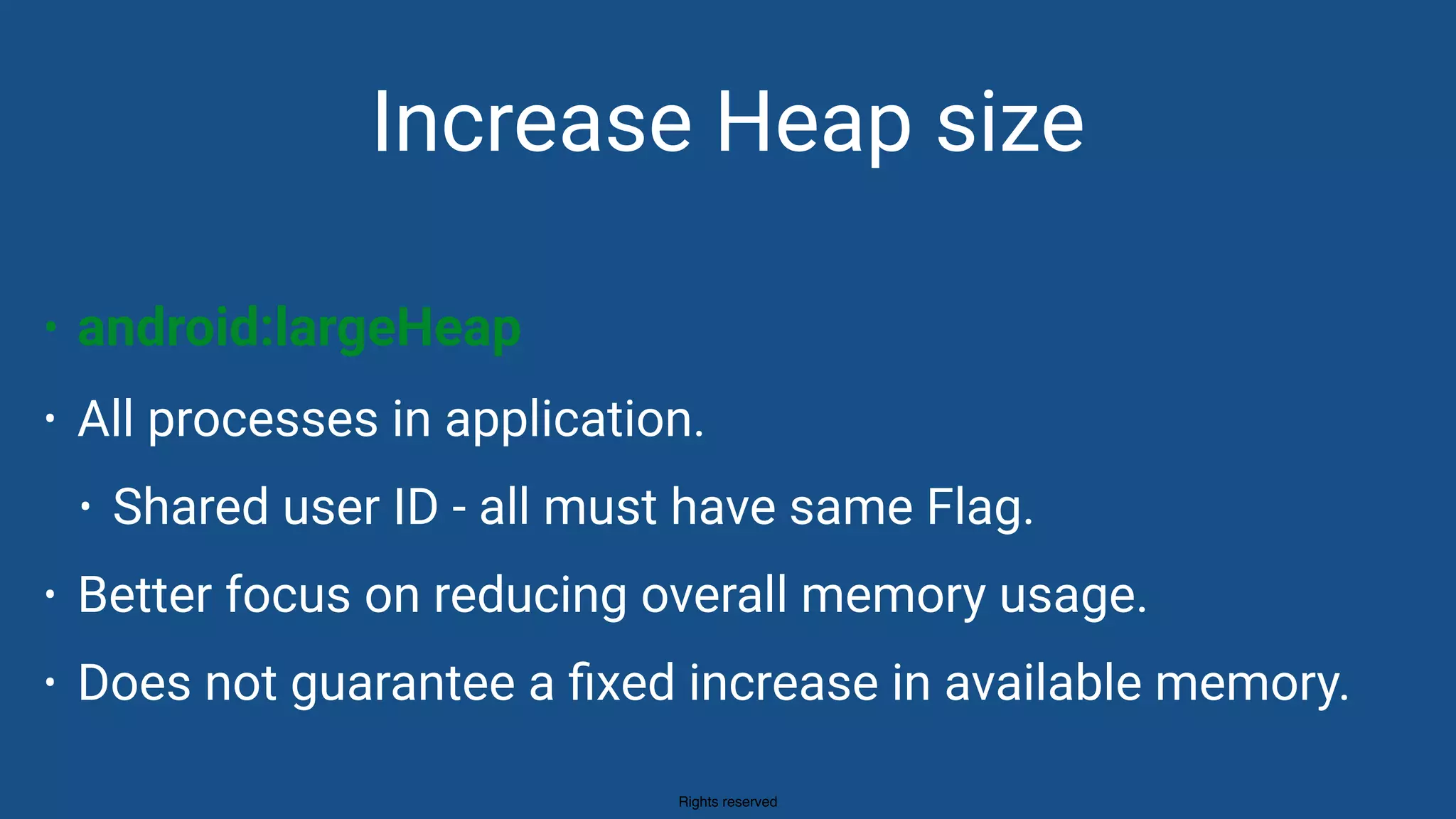

• android:largeHeap
• All processes in application.
• Shared user ID - all must have same Flag.
• Better focus on reducing overall memory usage.
• Does not guarantee a fixed increase in available memory.
Increase Heap size

9. Rights reserved

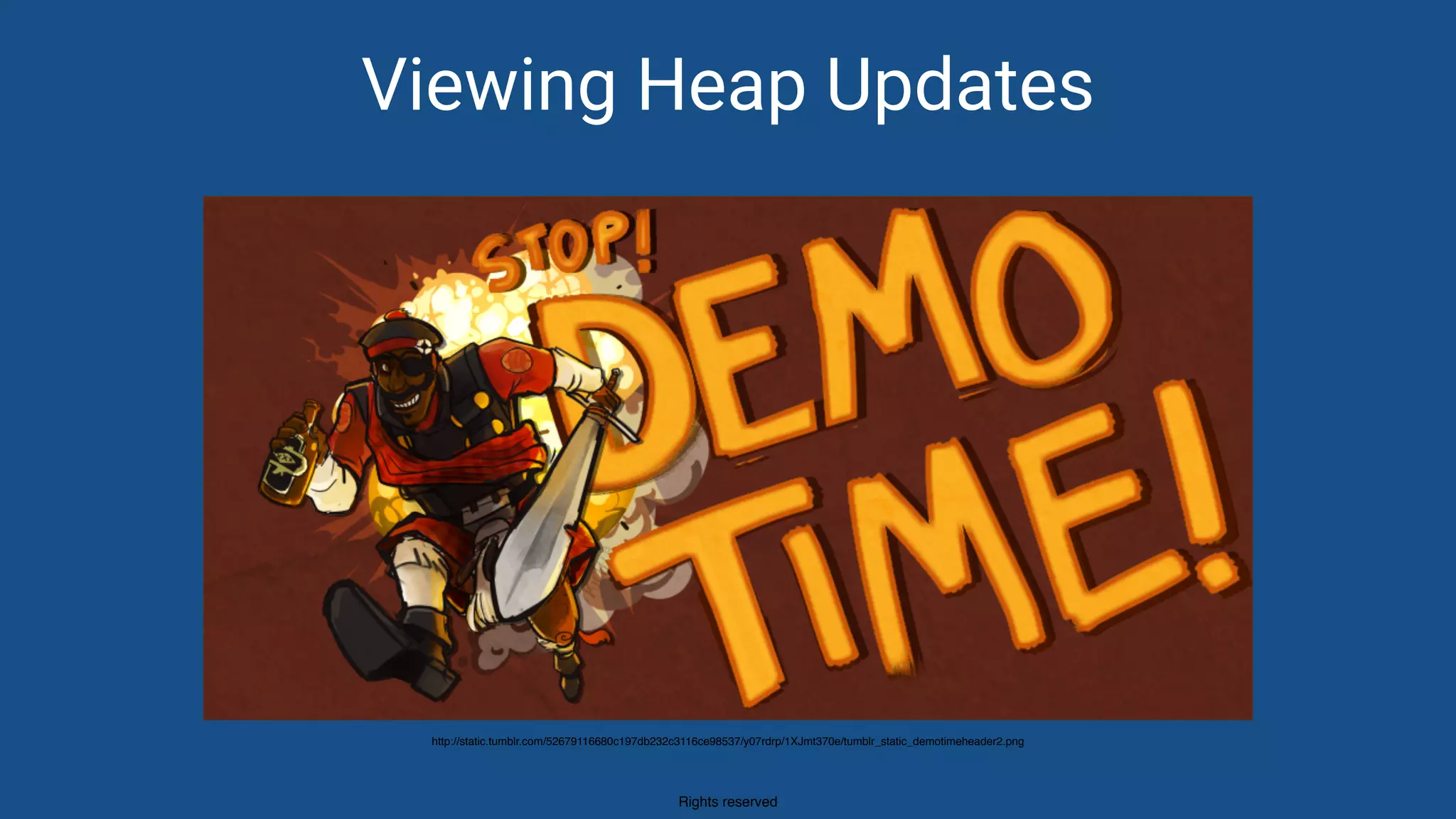

Viewing Heap Updates
http://static.tumblr.com/52679116680c197db232c3116ce98537/y07rdrp/1XJmt370e/tumblr_static_demotimeheader2.png

10. Rights reserved

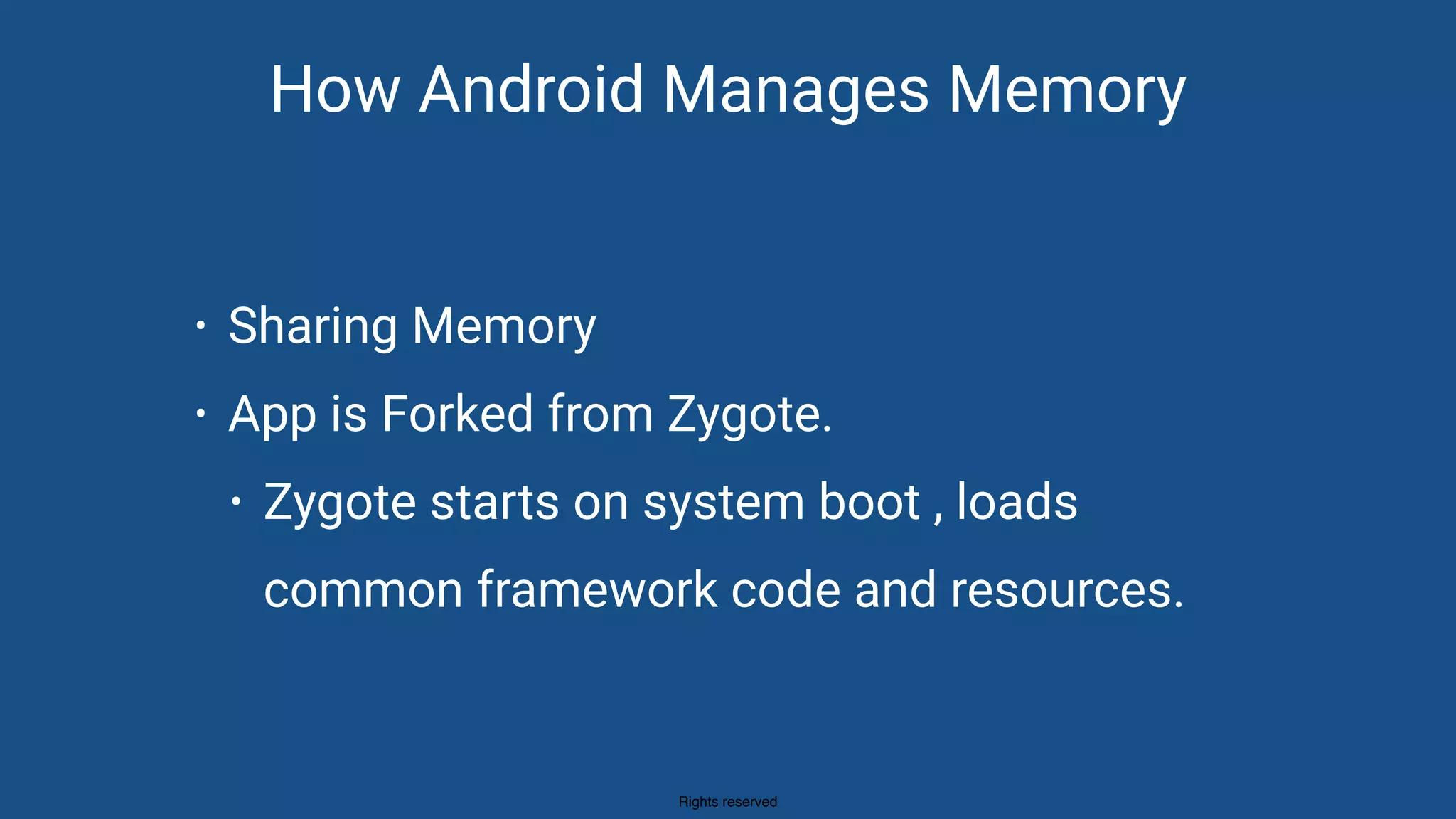

How Android Manages Memory
• Sharing Memory
• App is Forked from Zygote.
• Zygote starts on system boot , loads
common framework code and resources.

11. Rights reserved

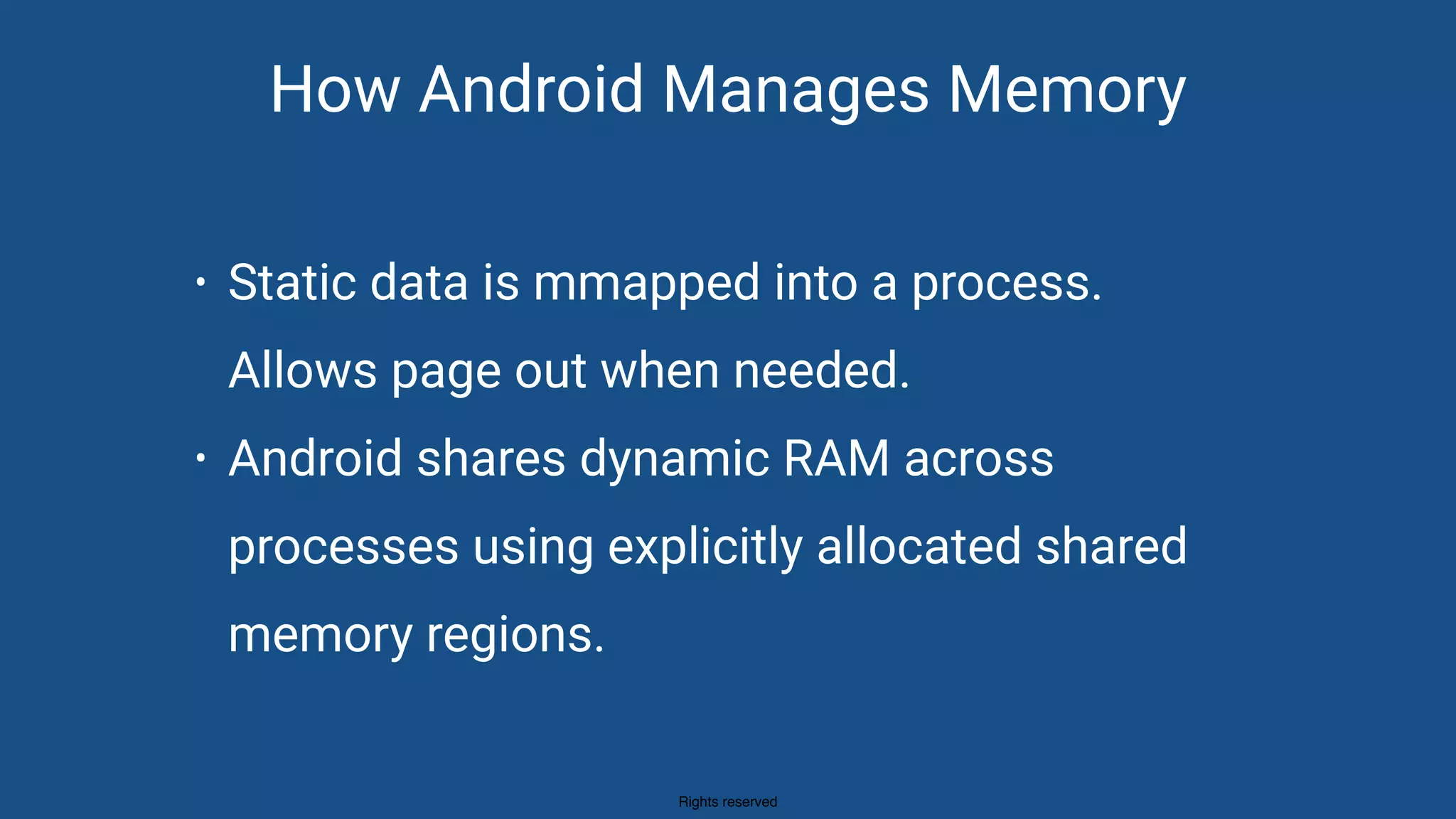

How Android Manages Memory
• Static data is mmapped into a process.
Allows page out when needed.
• Android shares dynamic RAM across
processes using explicitly allocated shared
memory regions.

12. Rights reserved

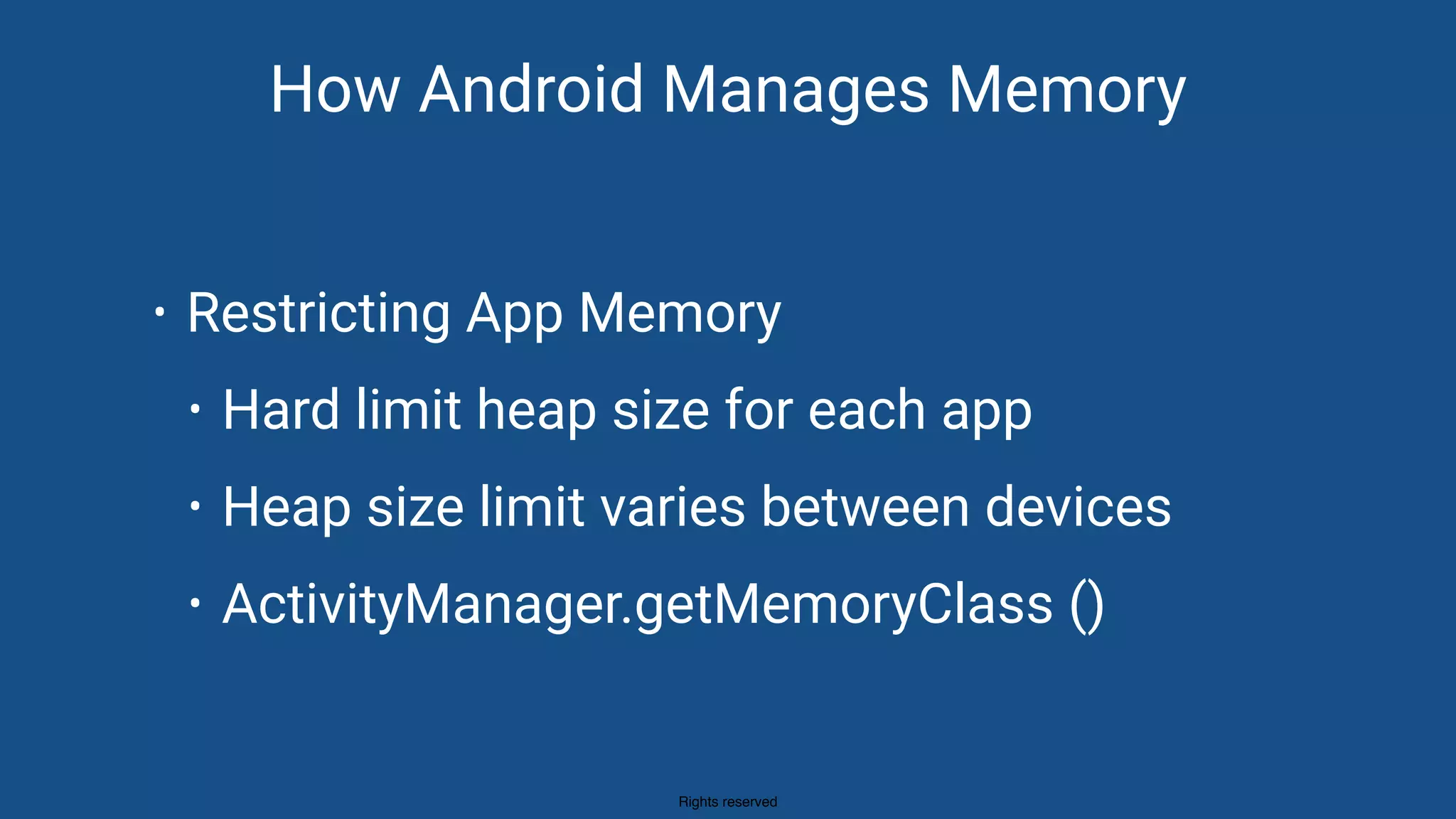

How Android Manages Memory
• Restricting App Memory
• Hard limit heap size for each app
• Heap size limit varies between devices
• ActivityManager.getMemoryClass ()

13. Rights reserved

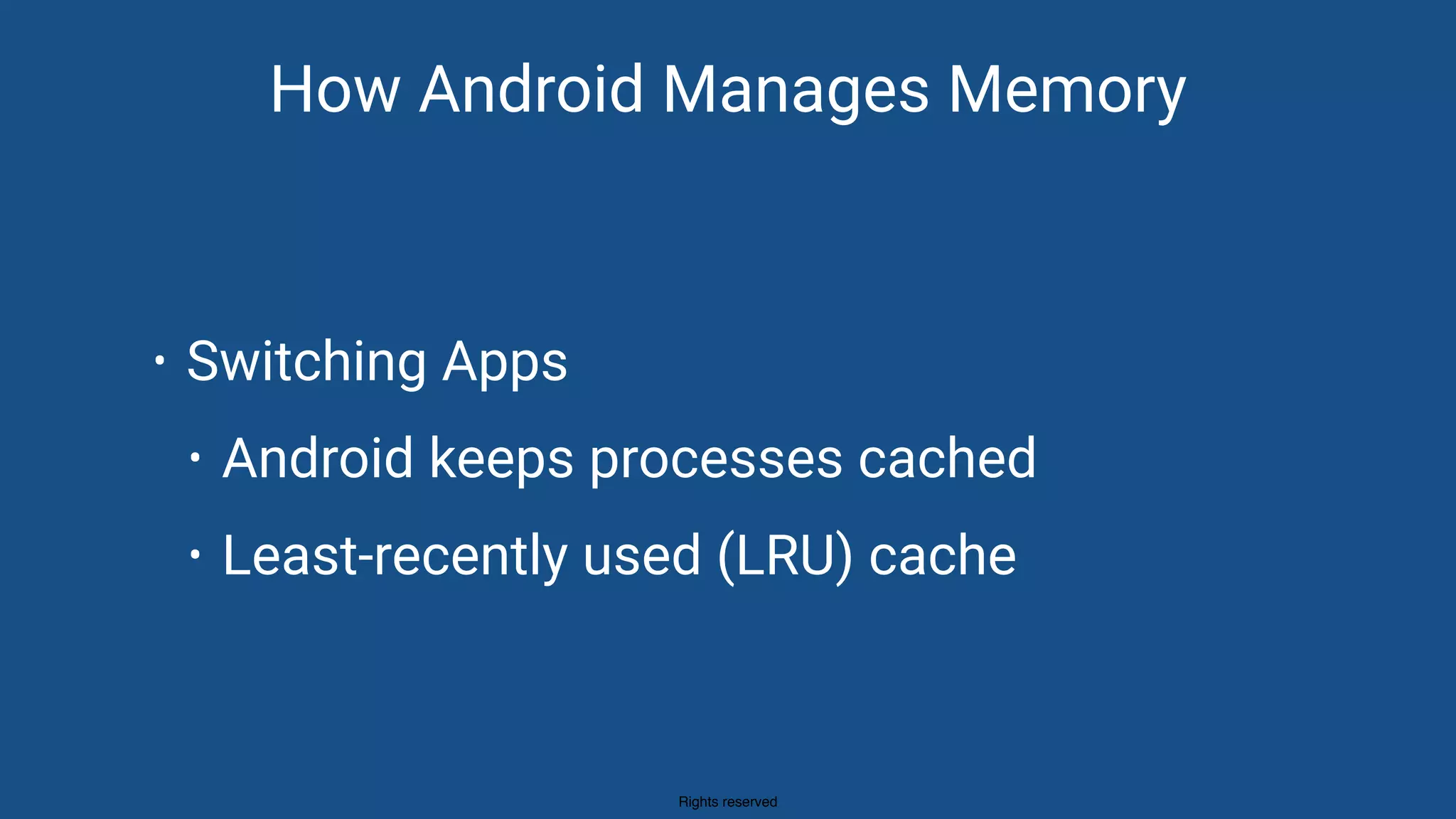

How Android Manages Memory
• Switching Apps
• Android keeps processes cached
• Least-recently used (LRU) cache

14. Rights reserved

15. Rights reserved

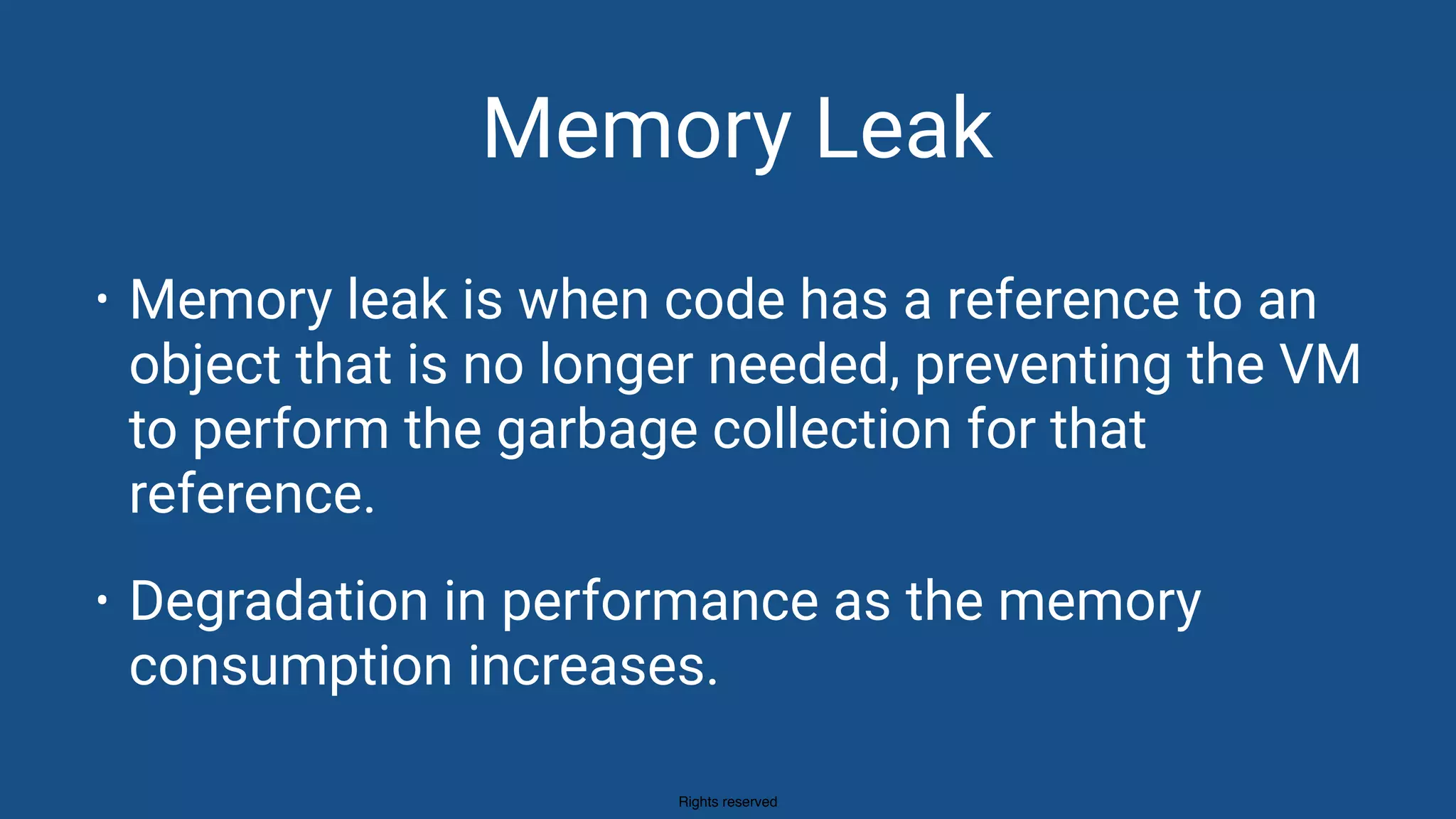

Memory Leak
• Memory leak is when code has a reference to an
object that is no longer needed, preventing the VM
to perform the garbage collection for that
reference.
• Degradation in performance as the memory
consumption increases.

16. Rights reserved

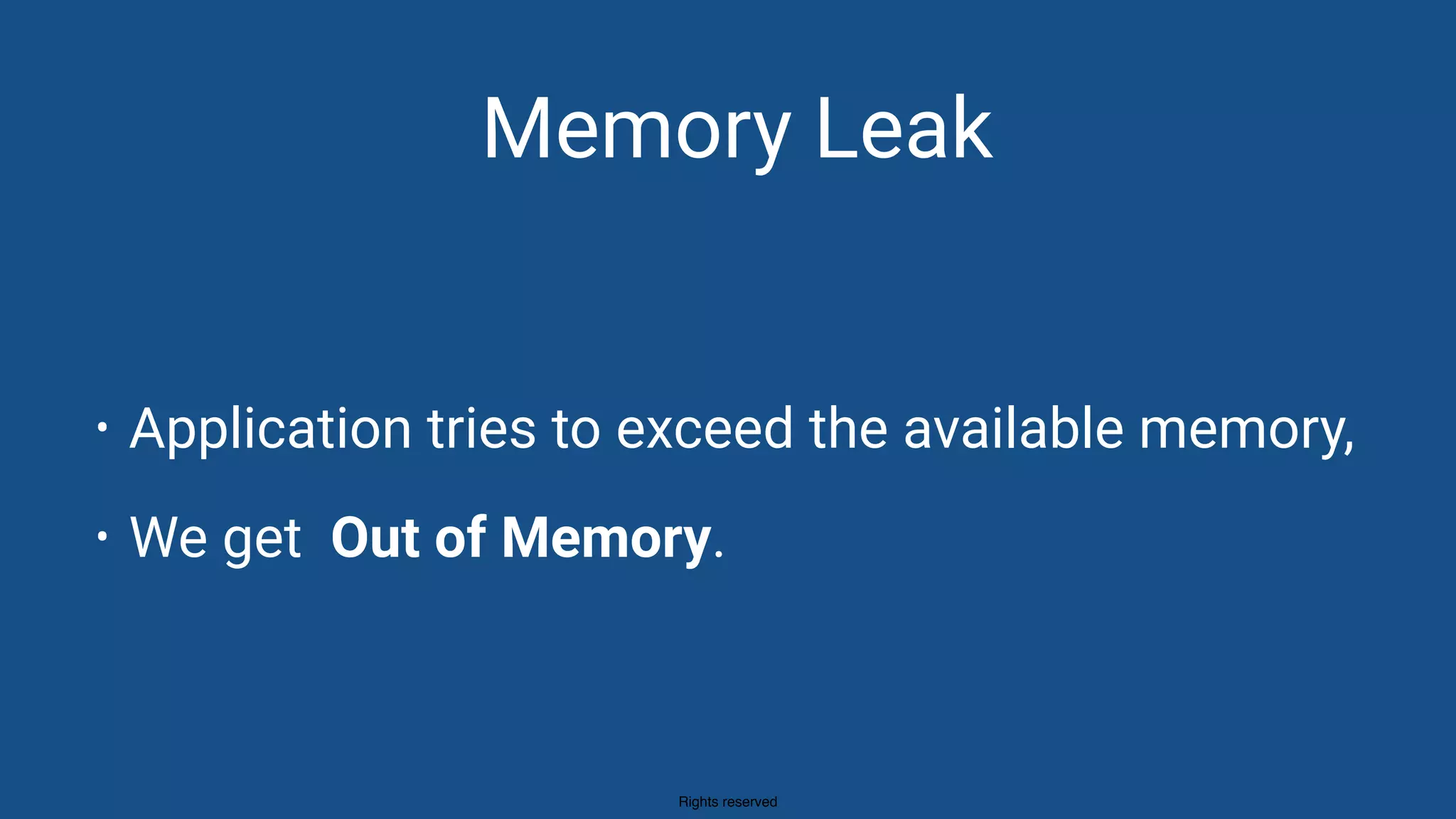

Memory Leak
• Application tries to exceed the available memory,
• We get Out of Memory.

17. Rights reserved

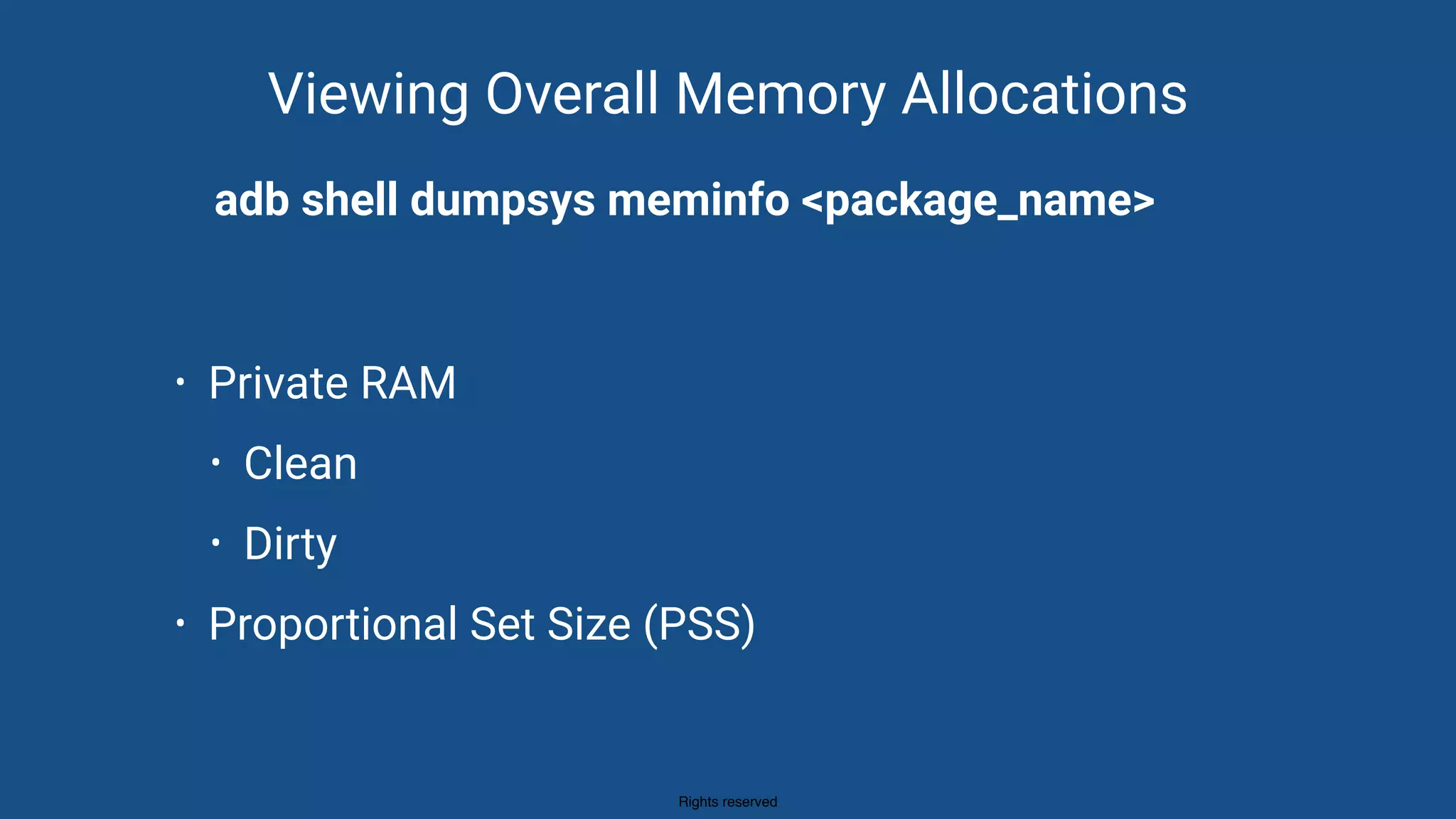

Viewing Overall Memory Allocations
• Private RAM
• Clean
• Dirty
• Proportional Set Size (PSS)
adb shell dumpsys meminfo <package_name>

18. Rights reserved

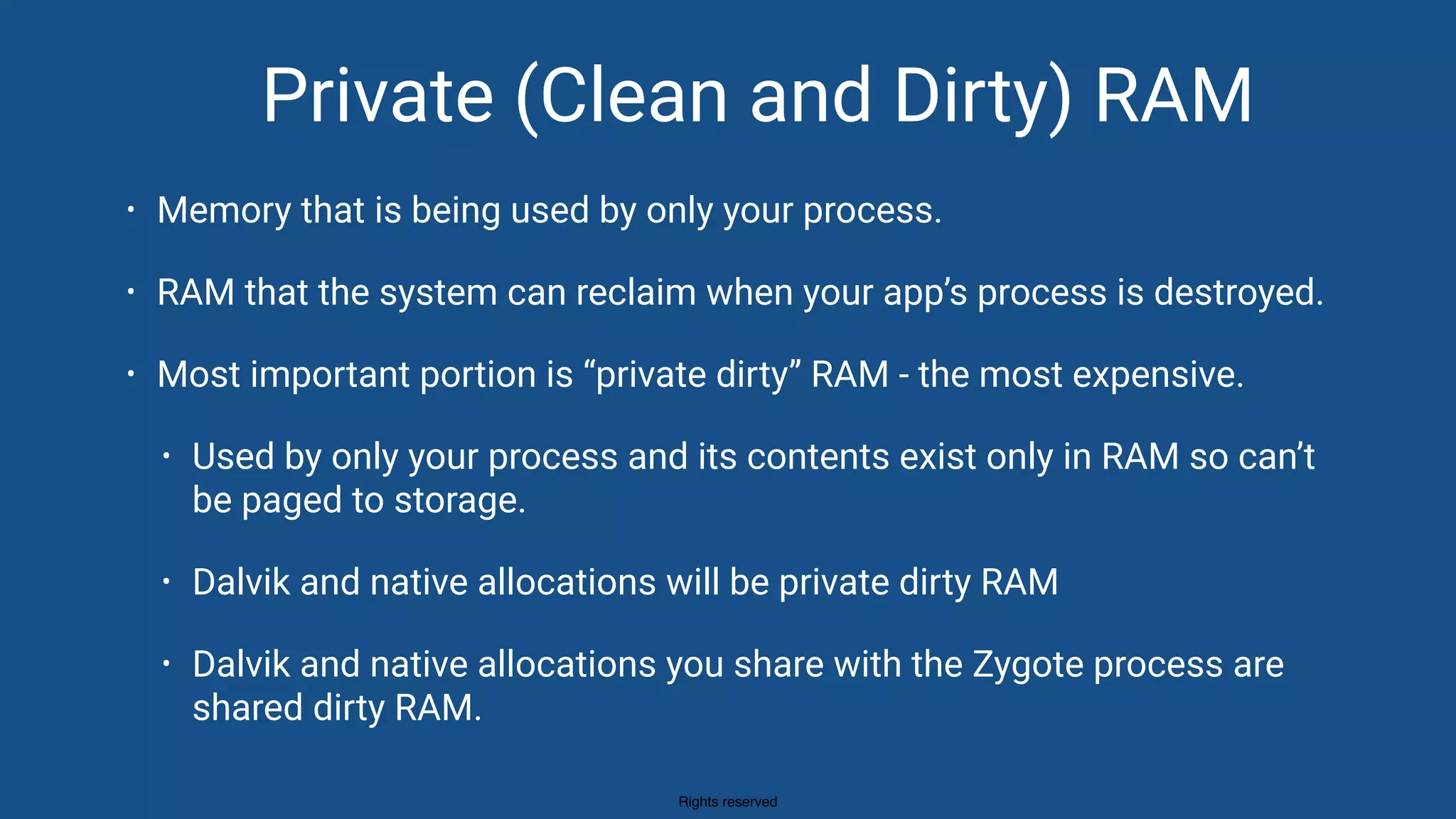

Private (Clean and Dirty) RAM
• Memory that is being used by only your process.
• RAM that the system can reclaim when your app’s process is destroyed.
• Most important portion is “private dirty” RAM - the most expensive.
• Used by only your process and its contents exist only in RAM so can’t
be paged to storage.
• Dalvik and native allocations will be private dirty RAM
• Dalvik and native allocations you share with the Zygote process are
shared dirty RAM.

19. Rights reserved

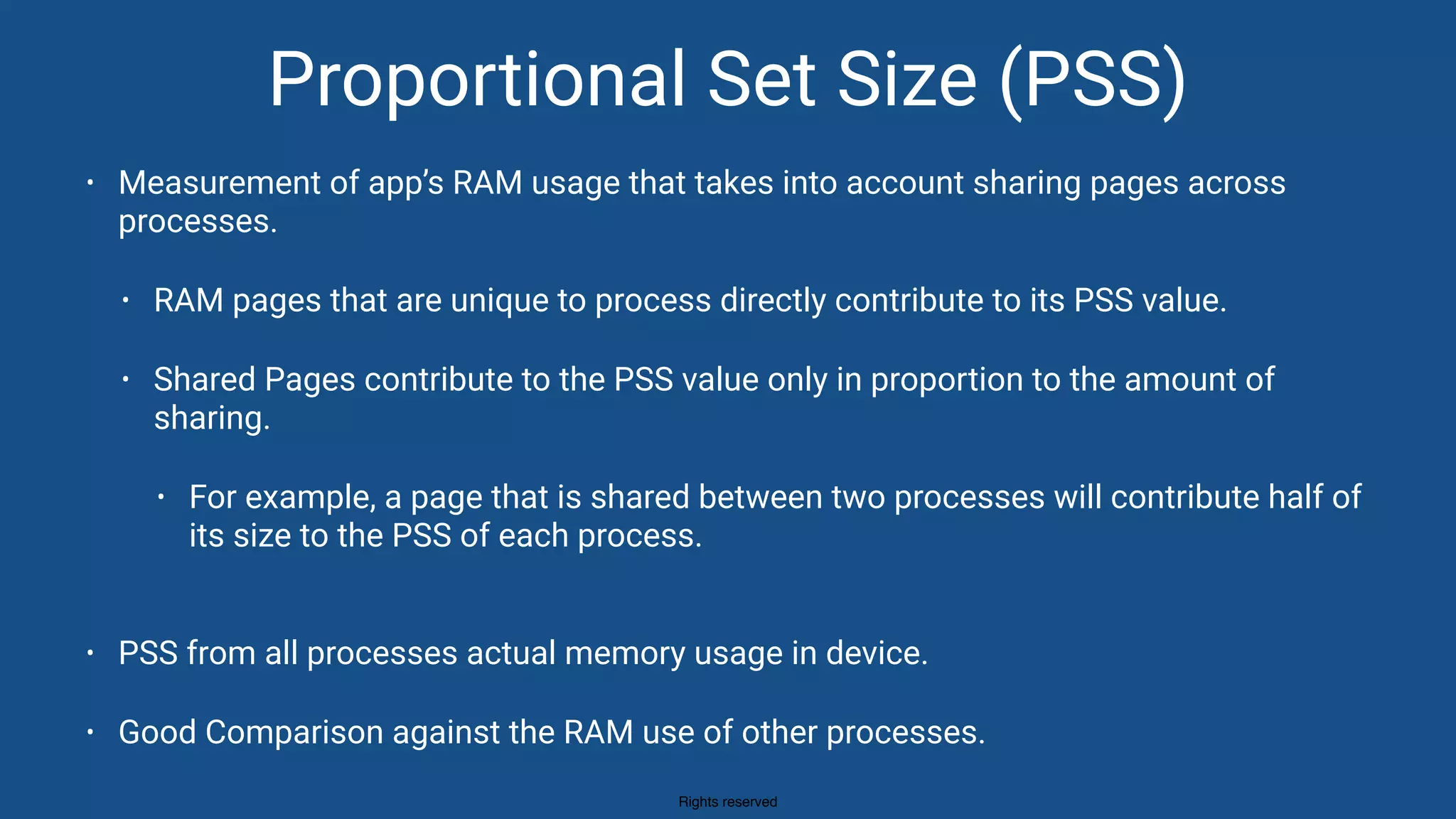

Proportional Set Size (PSS)
• Measurement of app’s RAM usage that takes into account sharing pages across
processes.
• RAM pages that are unique to process directly contribute to its PSS value.
• Shared Pages contribute to the PSS value only in proportion to the amount of
sharing.
• For example, a page that is shared between two processes will contribute half of
its size to the PSS of each process.
• PSS from all processes actual memory usage in device.
• Good Comparison against the RAM use of other processes.

20. Rights reserved

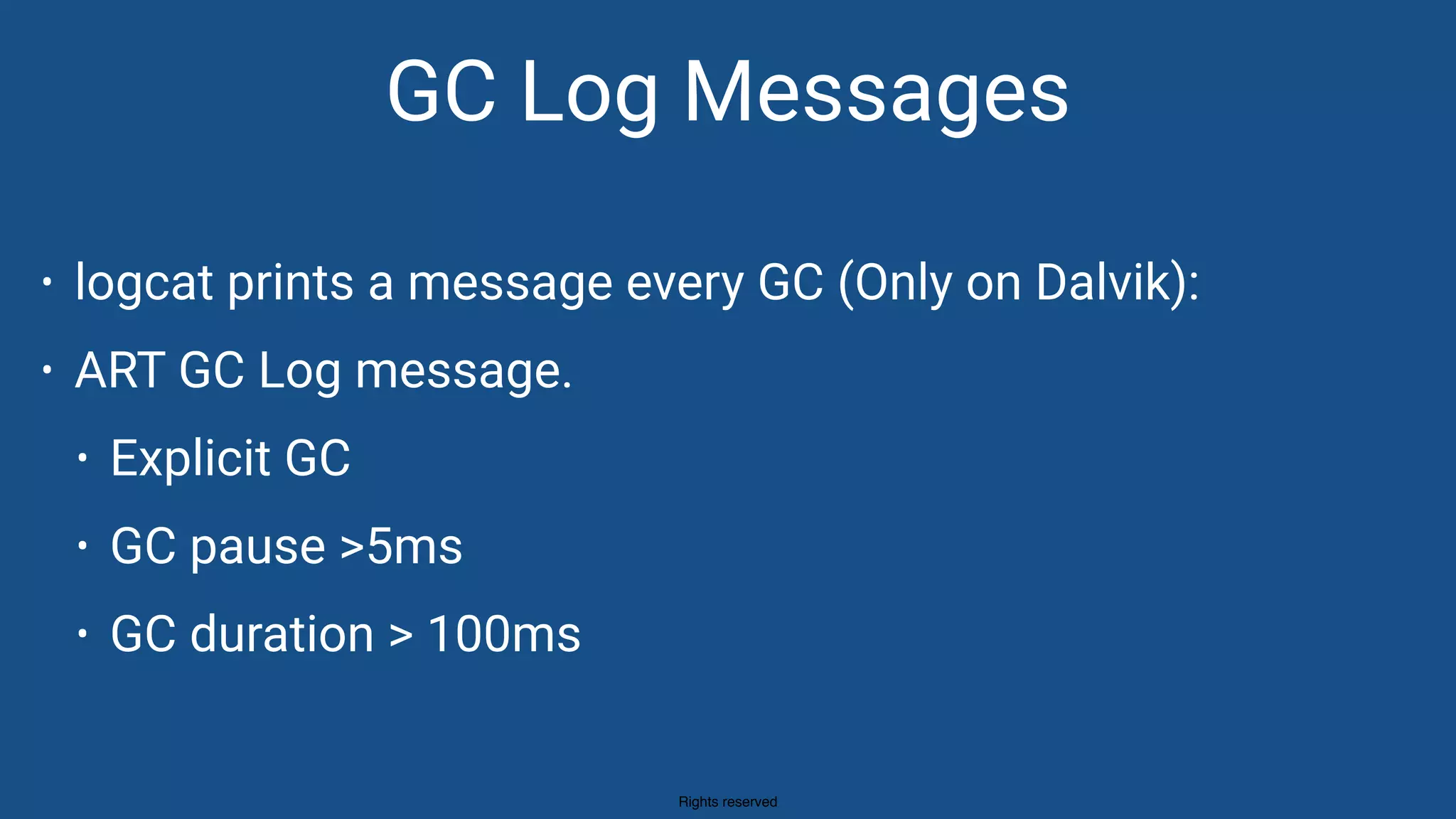

GC Log Messages
• logcat prints a message every GC (Only on Dalvik):
• ART GC Log message.
• Explicit GC
• GC pause >5ms
• GC duration > 100ms

21. Rights reserved

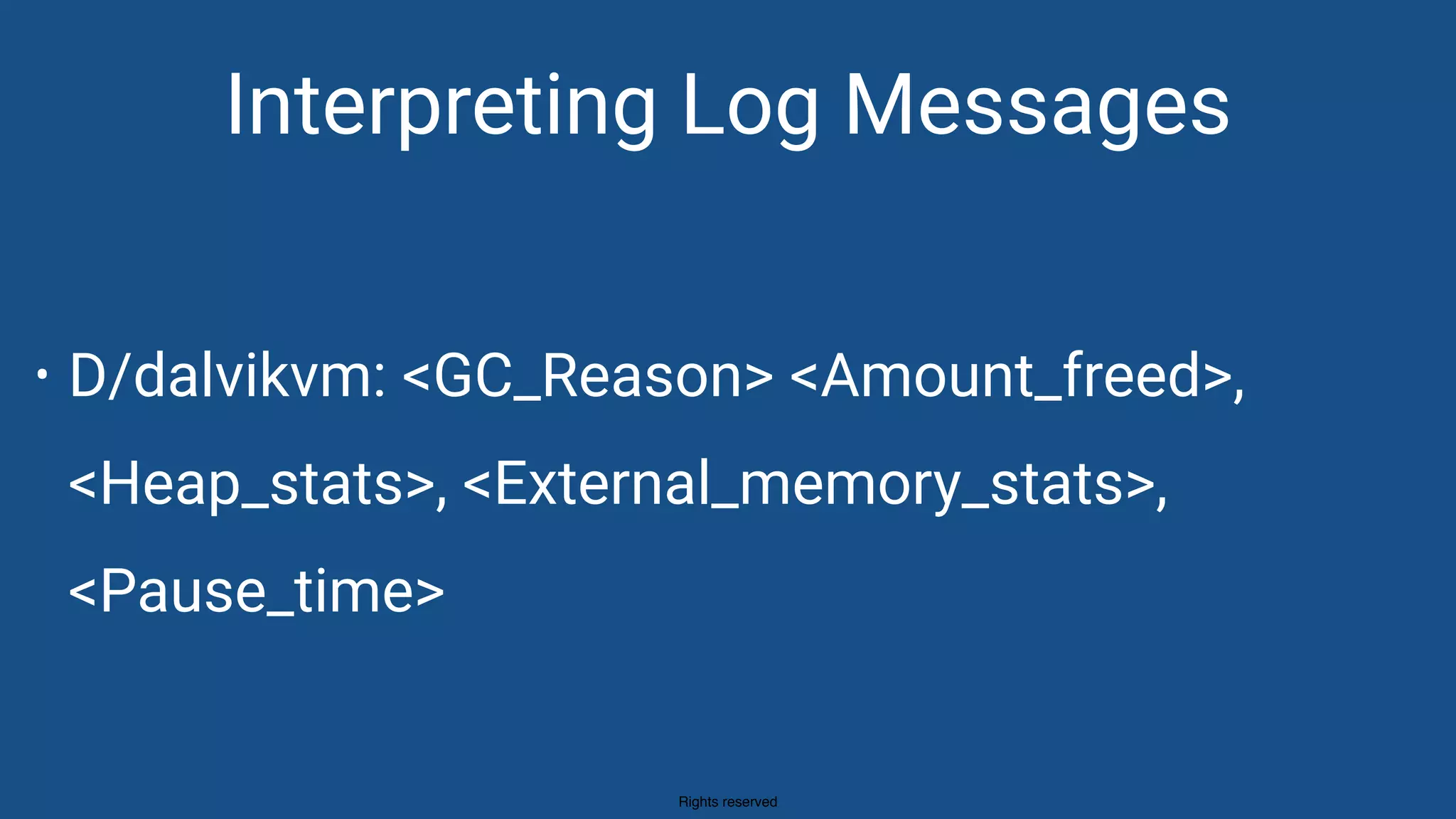

Interpreting Log Messages
• D/dalvikvm: <GC_Reason> <Amount_freed>,
<Heap_stats>, <External_memory_stats>,
<Pause_time>

22. Rights reserved

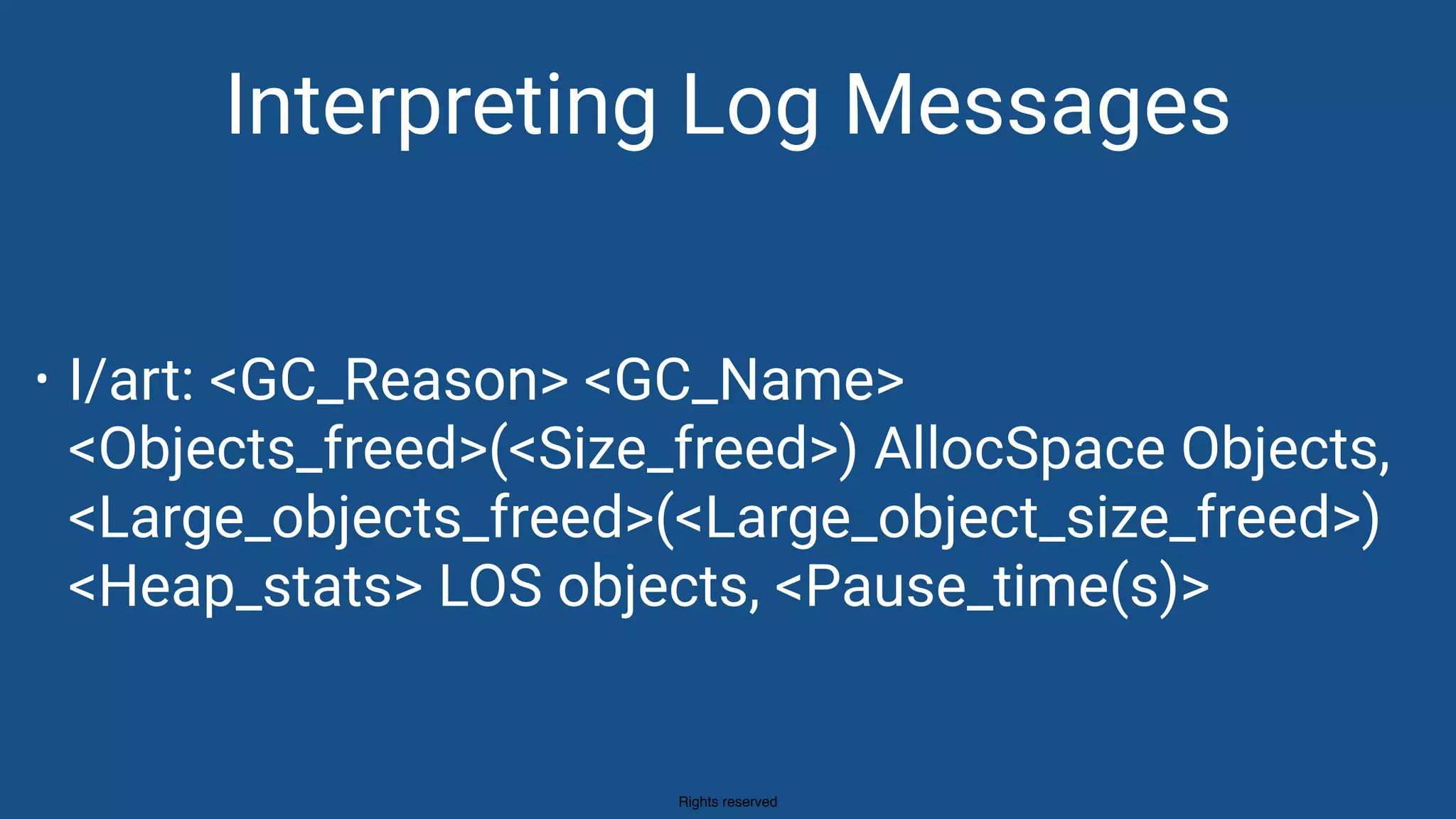

Interpreting Log Messages
• I/art: <GC_Reason> <GC_Name>
<Objects_freed>(<Size_freed>) AllocSpace Objects,
<Large_objects_freed>(<Large_object_size_freed>)
<Heap_stats> LOS objects, <Pause_time(s)>

23. Rights reserved

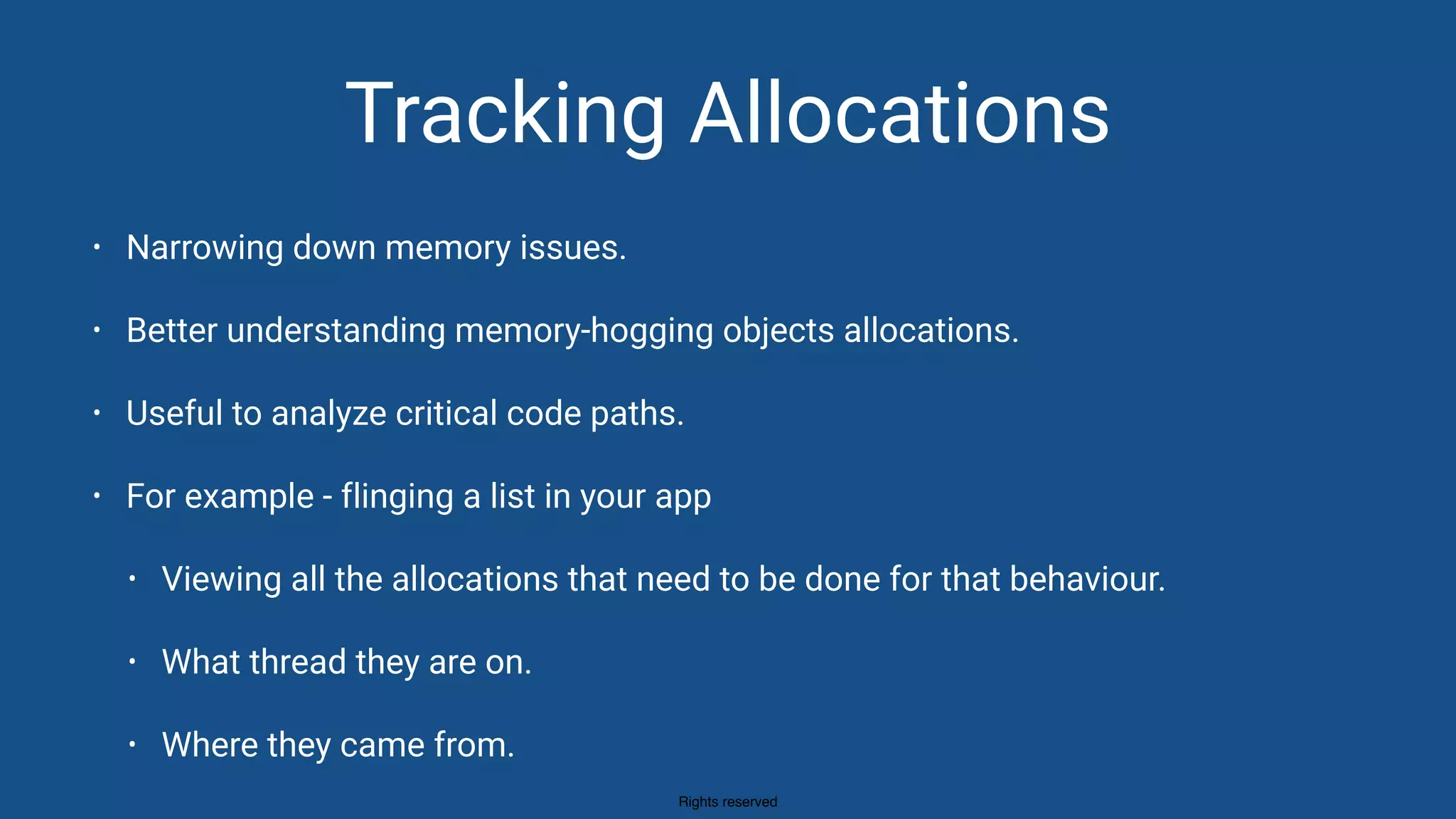

Tracking Allocations
• Narrowing down memory issues.
• Better understanding memory-hogging objects allocations.
• Useful to analyze critical code paths.
• For example - flinging a list in your app
• Viewing all the allocations that need to be done for that behaviour.
• What thread they are on.
• Where they came from.

24. Rights reserved
Tracking Allocations Demo
http://upload.wikimedia.org/wikipedia/commons/8/85/Flickr_-_The_U.S._Army_-_Working_dog_demo.jpg

25. Rights reserved

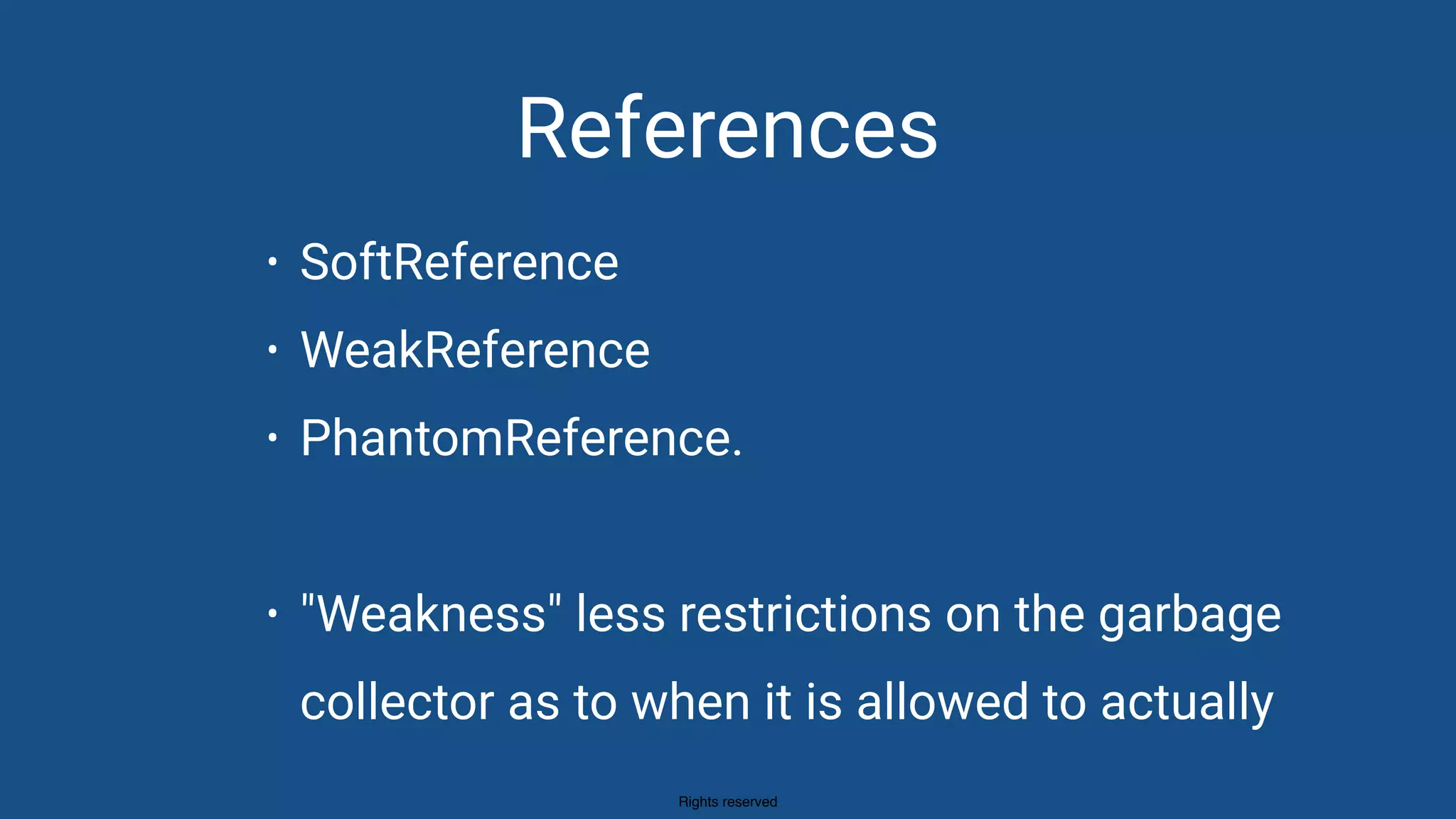

References
• SoftReference
• WeakReference
• PhantomReference.
• "Weakness" less restrictions on the garbage
collector as to when it is allowed to actually

26. Rights reserved

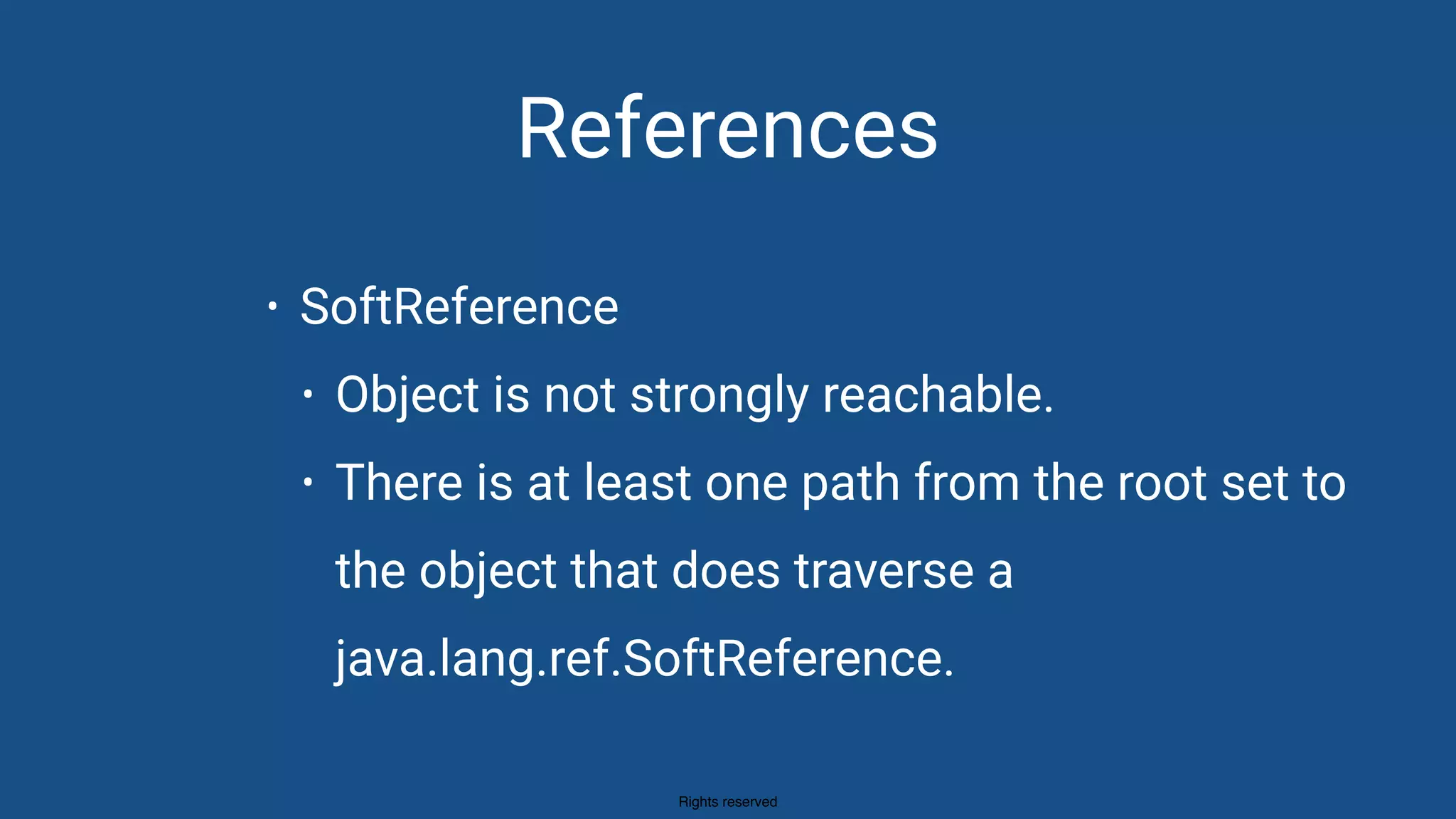

References
• SoftReference
• Object is not strongly reachable.
• There is at least one path from the root set to
the object that does traverse a
java.lang.ref.SoftReference.

27. Rights reserved

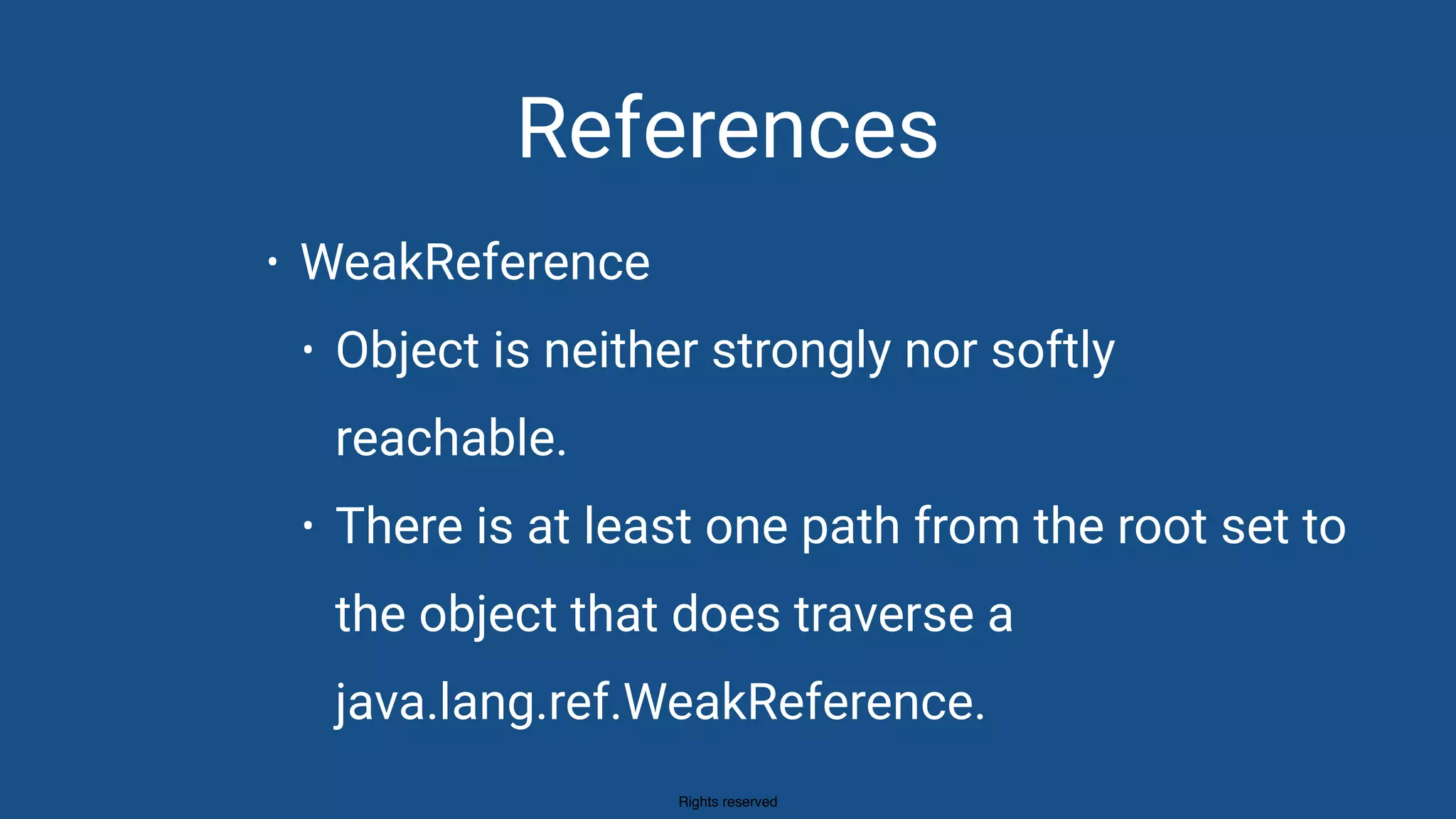

References
• WeakReference
• Object is neither strongly nor softly
reachable.
• There is at least one path from the root set to
the object that does traverse a
java.lang.ref.WeakReference.

28. Rights reserved

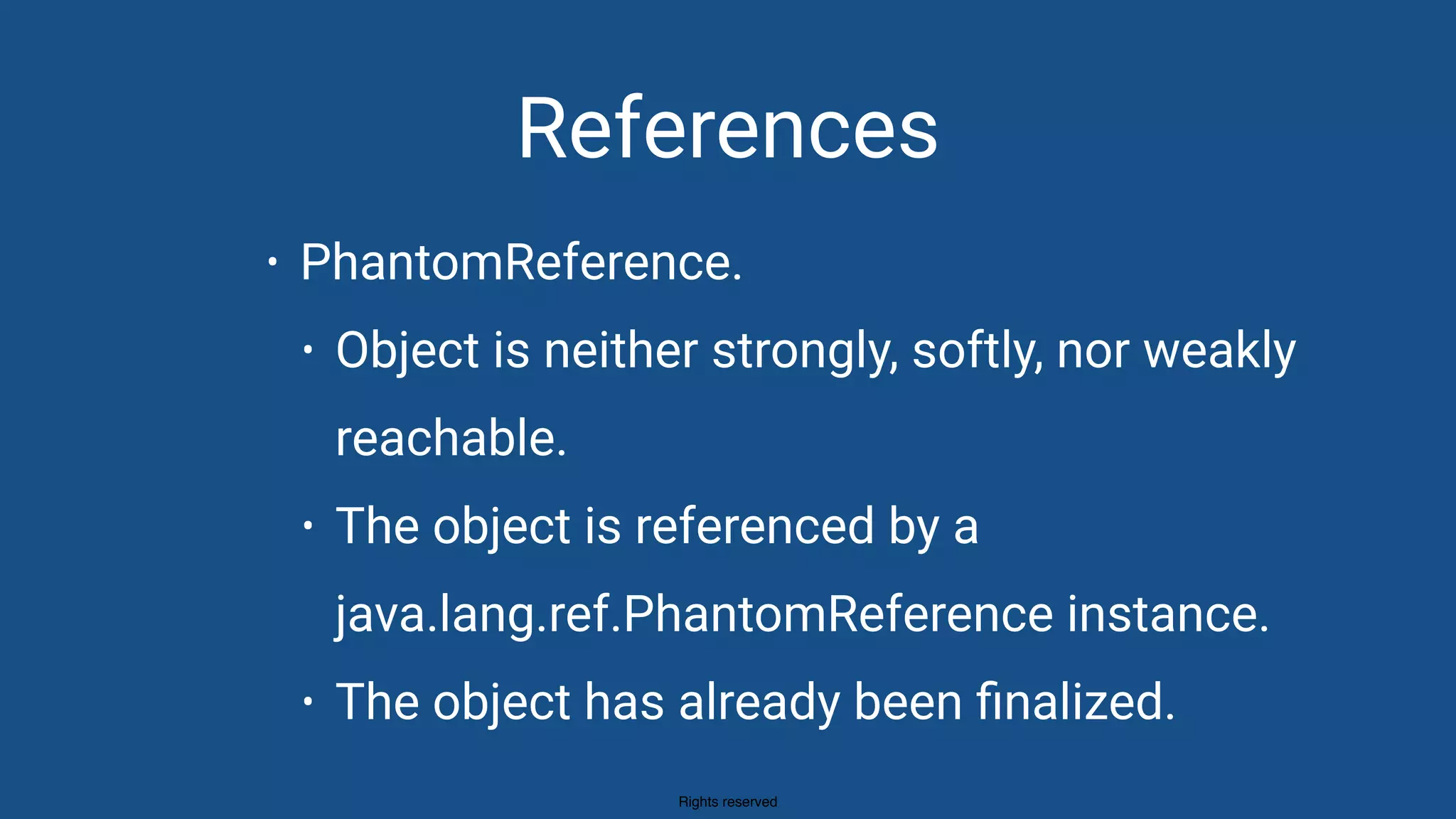

References
• PhantomReference.
• Object is neither strongly, softly, nor weakly
reachable.
• The object is referenced by a
java.lang.ref.PhantomReference instance.
• The object has already been finalized.

29. Rights reserved

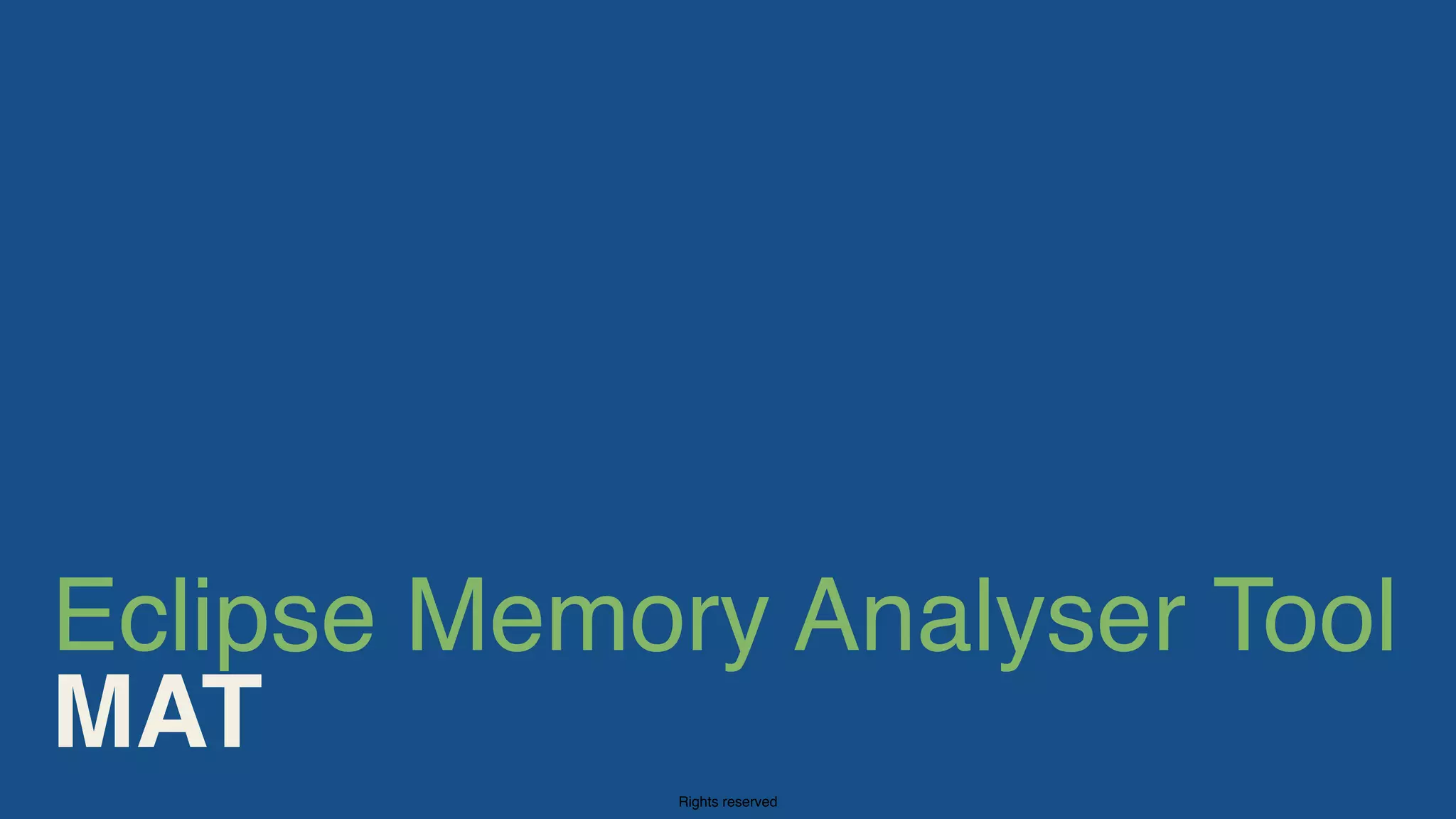

Eclipse Memory Analyser Tool
MAT

30. Rights reserved

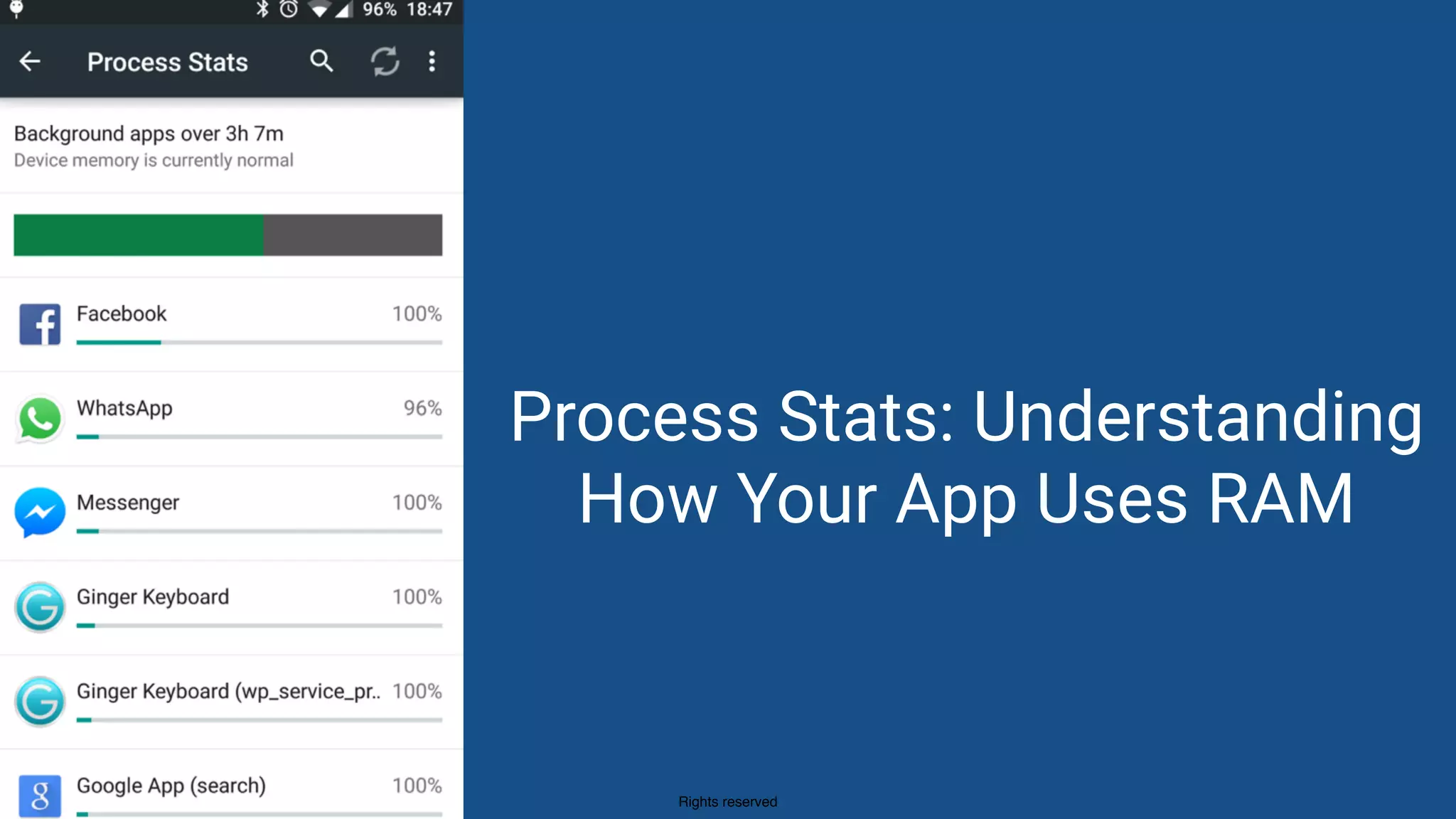

Process Stats: Understanding
How Your App Uses RAM

31. Rights reserved

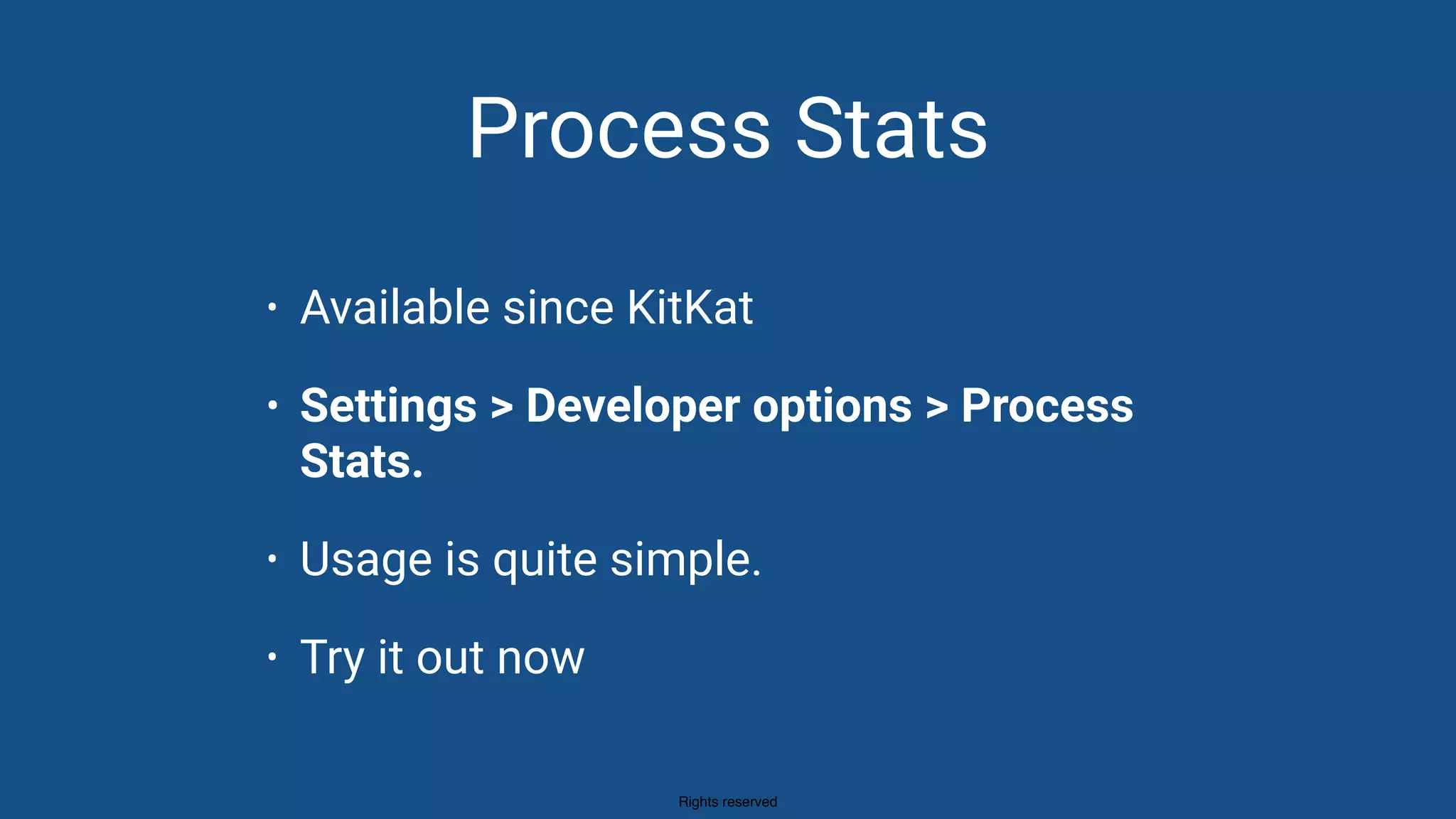

Process Stats
• Available since KitKat
• Settings > Developer options > Process
Stats.
• Usage is quite simple.
• Try it out now

32. Rights reserved
Memory leaks Examples

33. Rights reserved

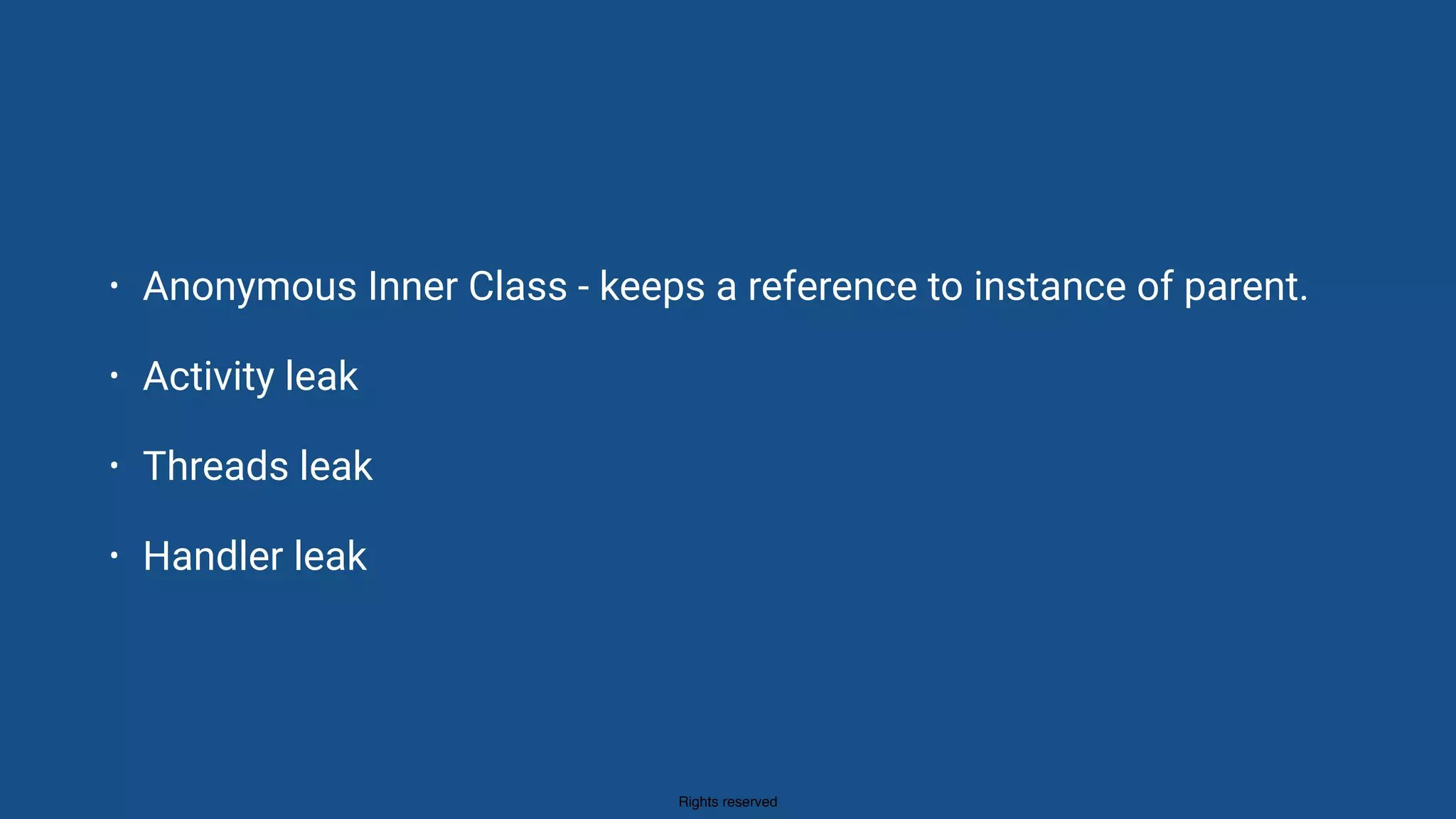

• Anonymous Inner Class - keeps a reference to instance of parent.
• Activity leak
• Threads leak
• Handler leak

34. Rights reserved

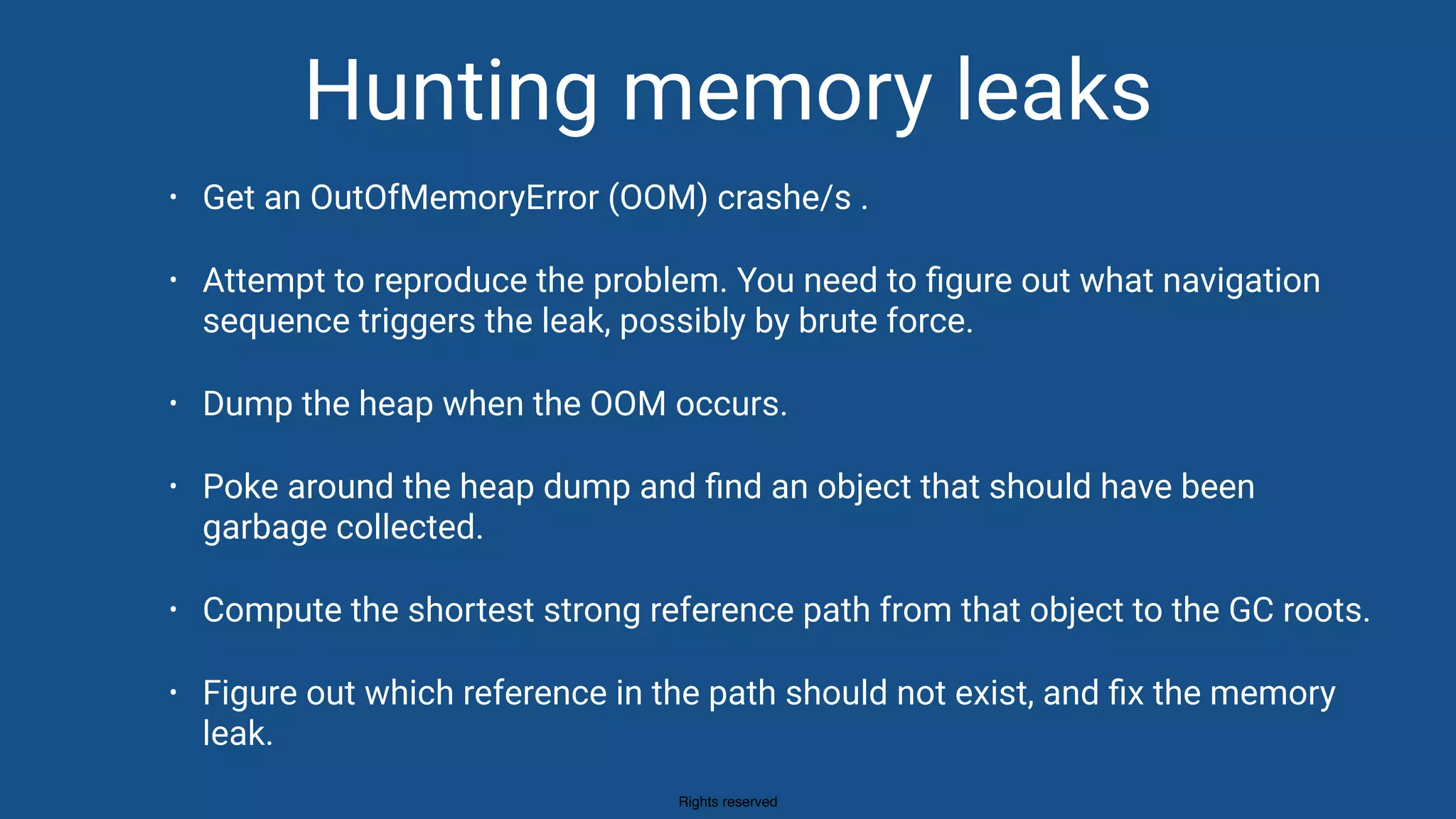

Hunting memory leaks
• Get an OutOfMemoryError (OOM) crashe/s .
• Attempt to reproduce the problem. You need to figure out what navigation
sequence triggers the leak, possibly by brute force.
• Dump the heap when the OOM occurs.
• Poke around the heap dump and find an object that should have been
garbage collected.
• Compute the shortest strong reference path from that object to the GC roots.
• Figure out which reference in the path should not exist, and fix the memory
leak.

35. Rights reserved
http://cdn.meme.am/instances/500x/58311156.jpg

36. Rights reserved
http://www.gxsblogs.com/wp-content/uploads/Trash-Big-Data.png

37. Rights reserved

38. The story of
LeakCanary
https://corner.squareup.com/2015/05/leak-canary.html

39. Rights reserved

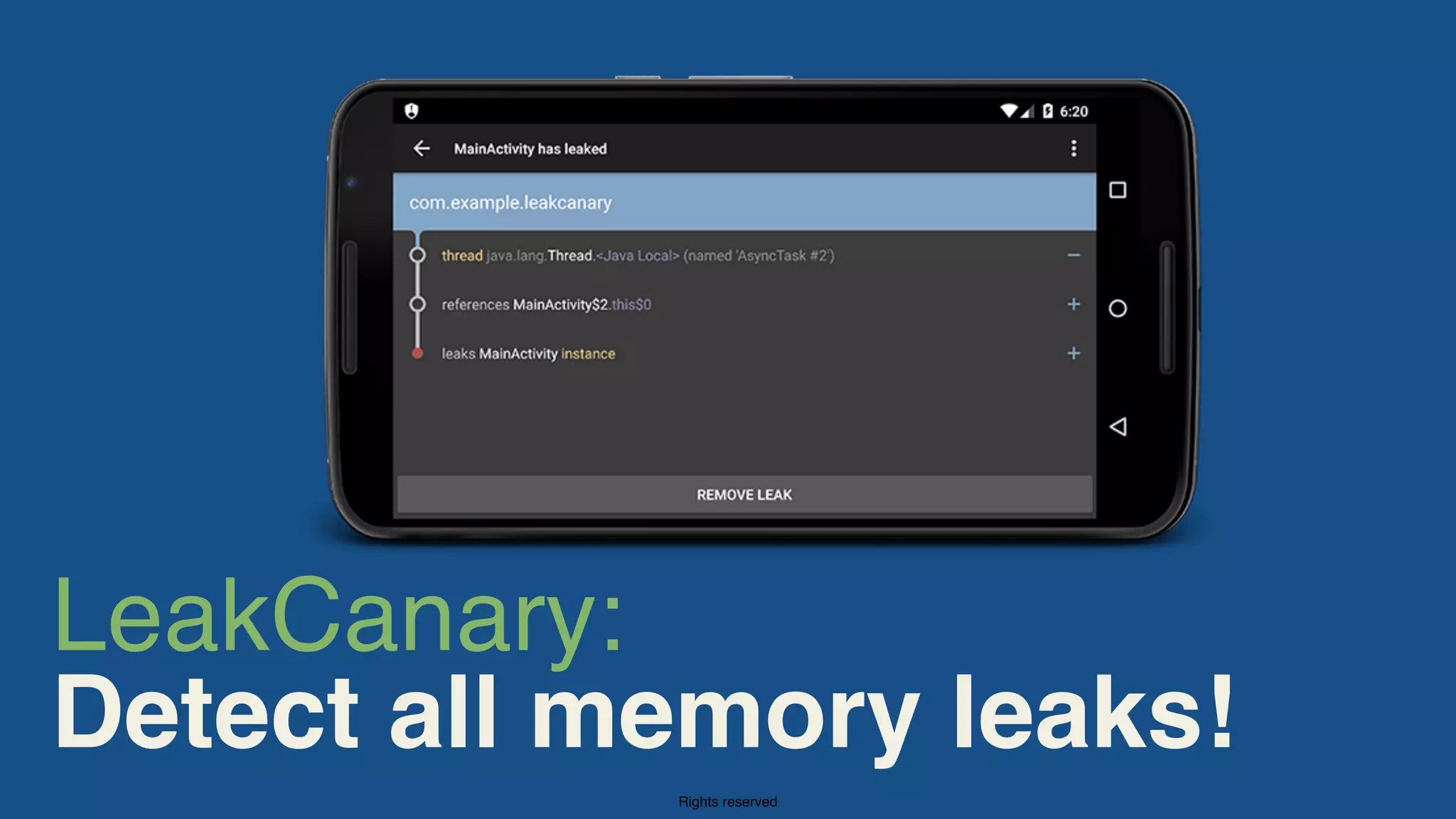

LeakCanary:
Detect all memory leaks!

40. Rights reserved

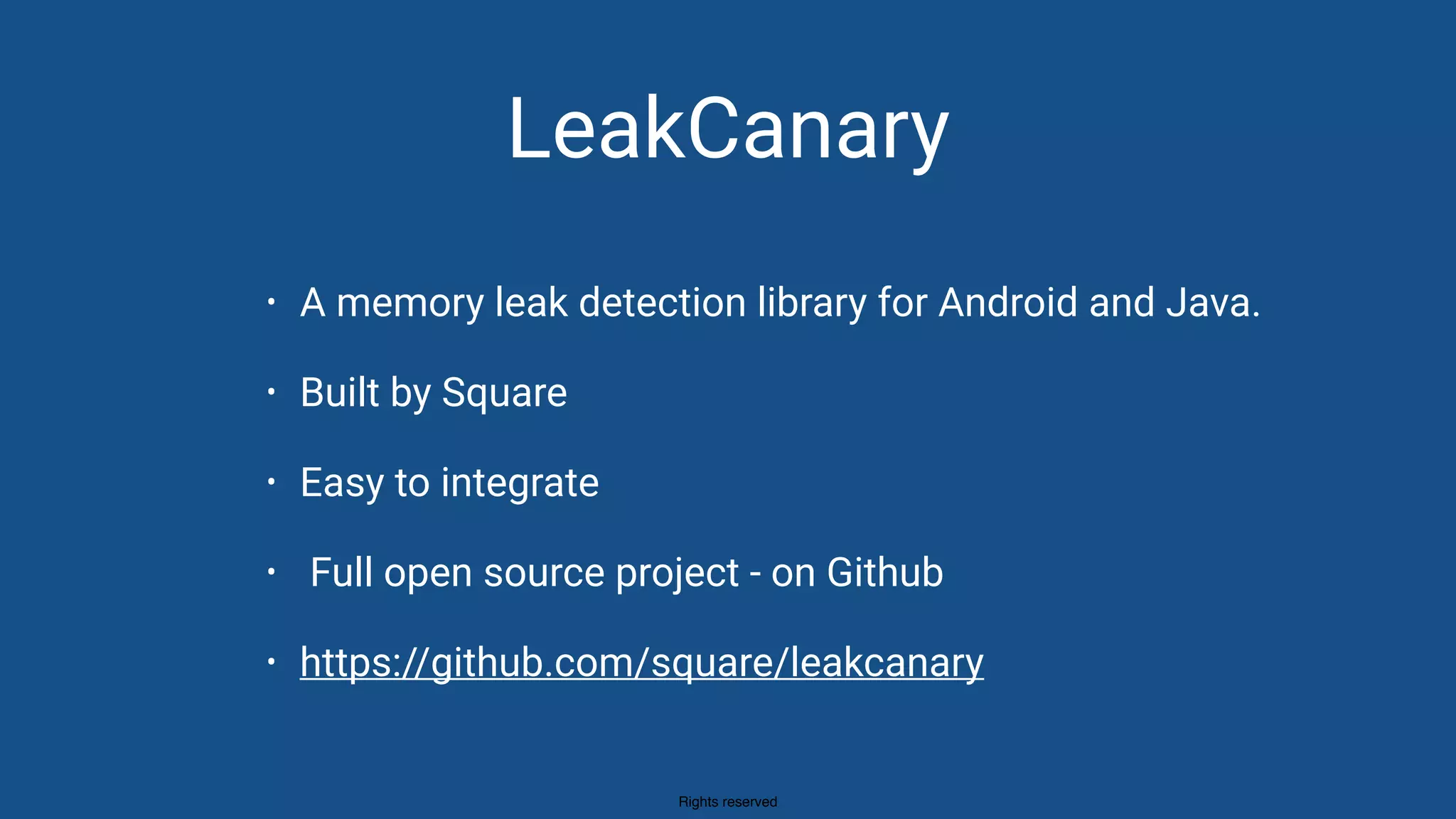

LeakCanary
• A memory leak detection library for Android and Java.
• Built by Square
• Easy to integrate
• Full open source project - on Github
• https://github.com/square/leakcanary

41. Rights reserved

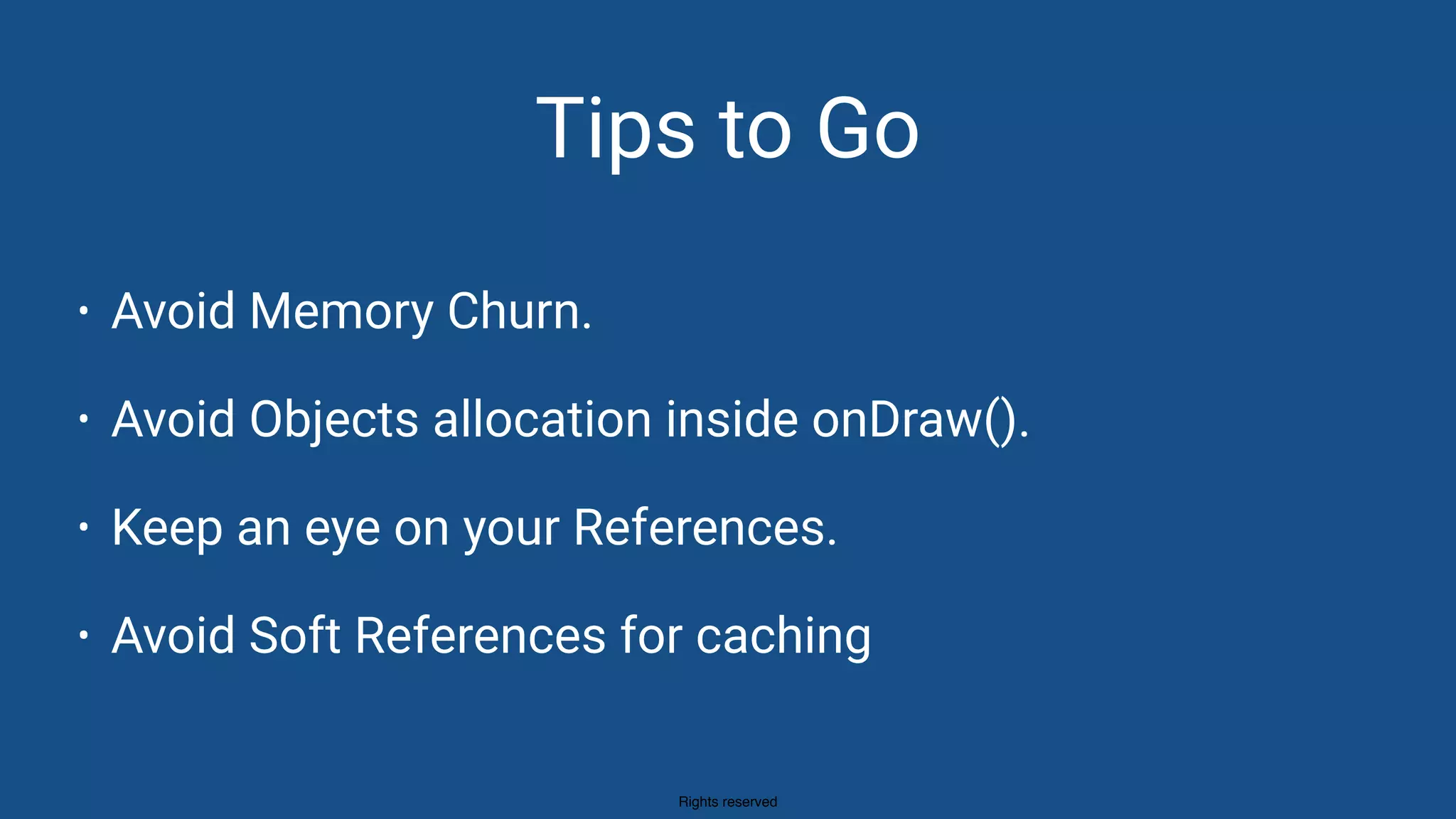

Tips to Go
• Avoid Memory Churn.
• Avoid Objects allocation inside onDraw().
• Keep an eye on your References.
• Avoid Soft References for caching

42. Rights reserved

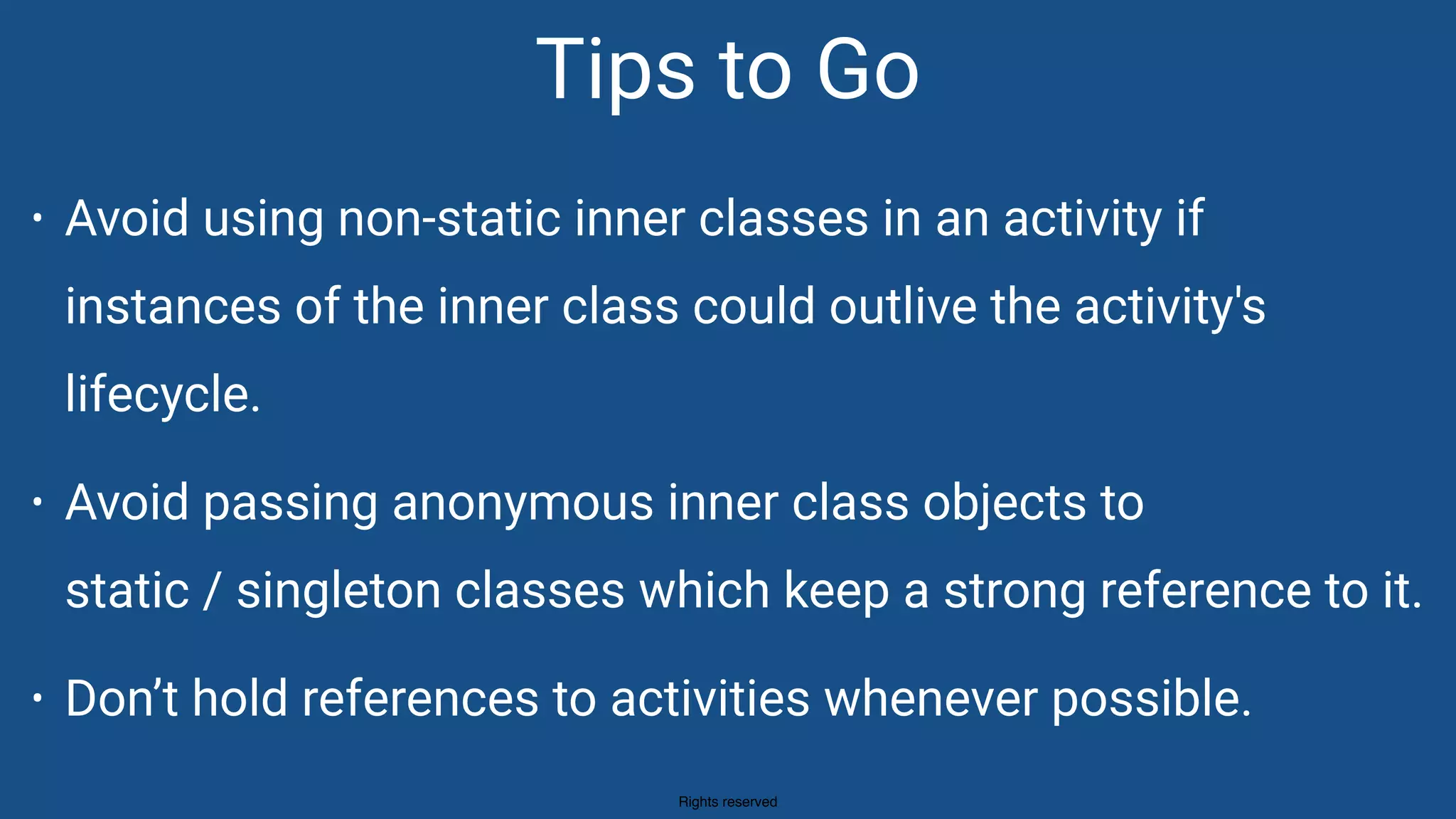

• Avoid using non-static inner classes in an activity if
instances of the inner class could outlive the activity's
lifecycle.
• Avoid passing anonymous inner class objects to
static / singleton classes which keep a strong reference to it.
• Don’t hold references to activities whenever possible.
Tips to Go

43. Rights reserved

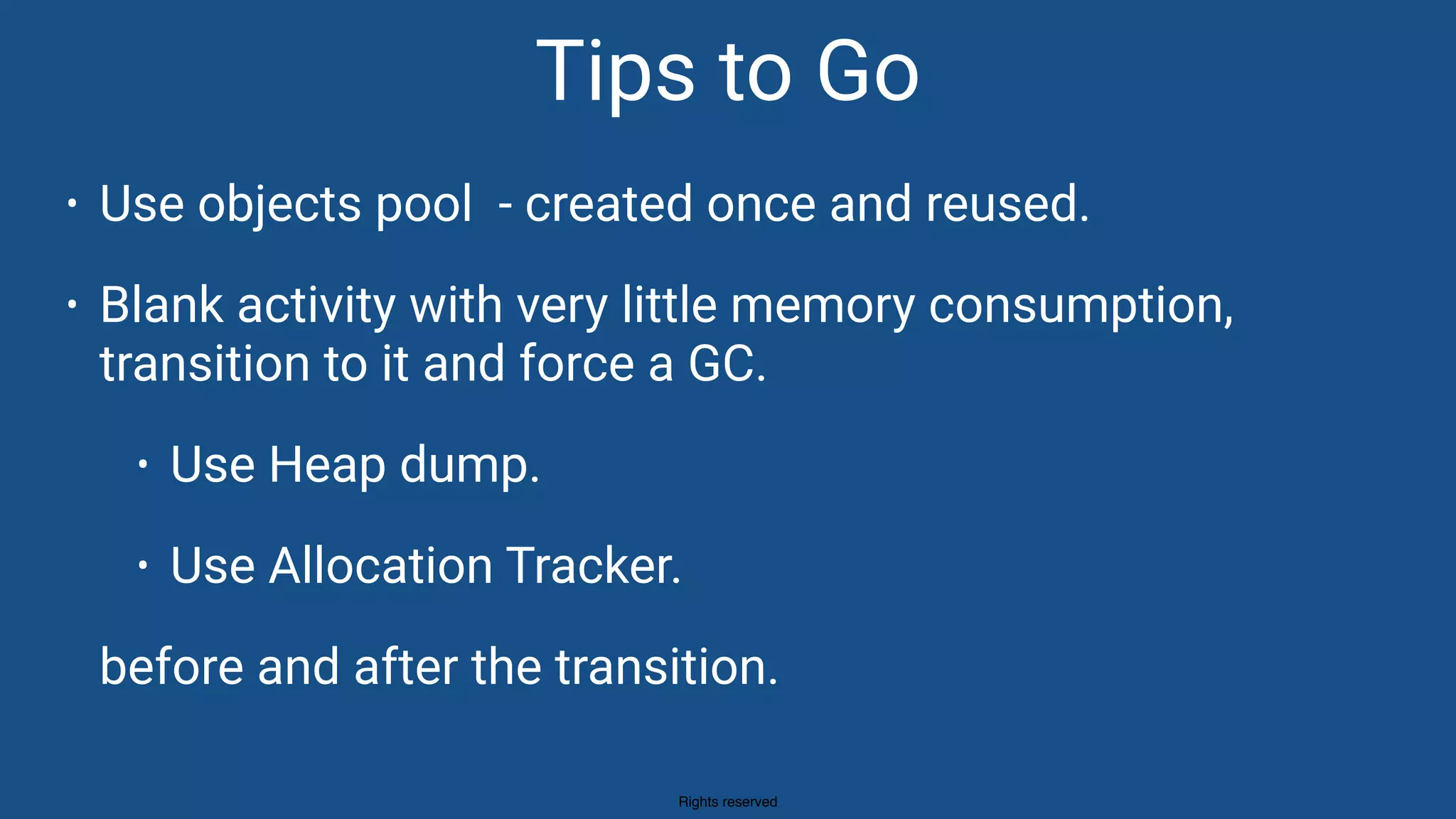

• Use objects pool - created once and reused.
• Blank activity with very little memory consumption,
transition to it and force a GC.
• Use Heap dump.
• Use Allocation Tracker.
before and after the transition.
Tips to Go

44. Rights reserved
• GC : Don’t call me…
http://memecrunch.com/meme/1C7NB/i-m-not-saying-don-t-call-me/image.jpg

45. Till next time, Yossi is satisfied

46. Rights reserved
Thank you!

47. Rights reserved

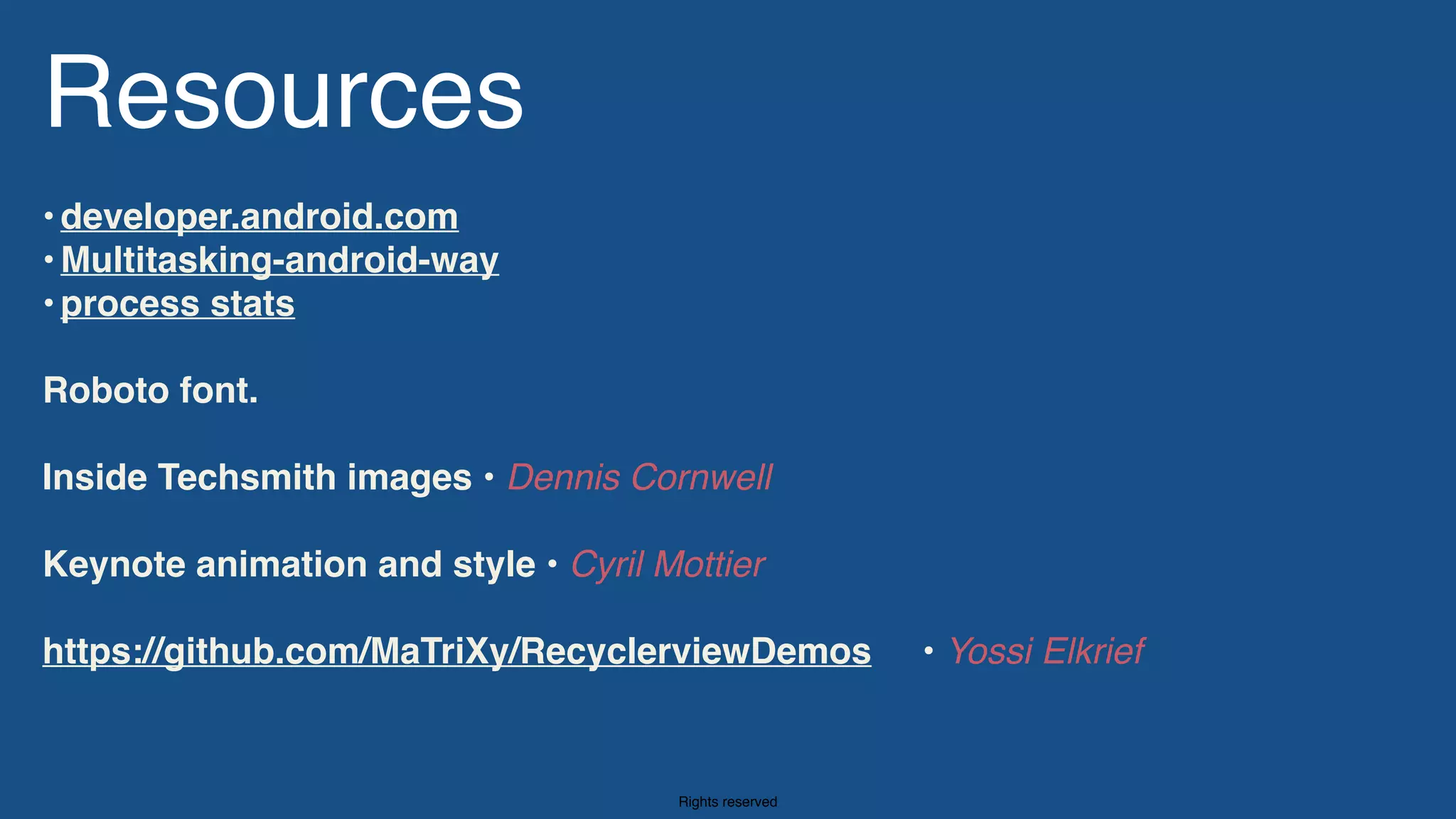

Resources
•developer.android.com
•Multitasking-android-way
•process stats
Roboto font.
Inside Techsmith images • Dennis Cornwell
Keynote animation and style • Cyril Mottier
https://github.com/MaTriXy/RecyclerviewDemos • Yossi Elkrief
