Primary Sedimentation
Dr. Akepati S. Reddy
School of Energy and Environment
Thapar University, Patiala
PUNJAB, INDIA

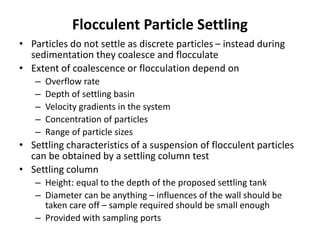

Flocculent Particle Settling
• Particles do not settle as discrete particles – instead during
sedimentation they coalesce and flocculate
• Extent of coalescence or flocculation depend on
– Overflow rate
– Depth of settling basin
– Velocity gradients in the system
– Concentration of particles
– Range of particle sizes
• Settling characteristics of a suspension of flocculent particles
can be obtained by a settling column test
• Settling column
– Height: equal to the depth of the proposed settling tank
– Diameter can be anything – influences of the wall should be
taken care off – sample required should be small enough
– Provided with sampling ports
• Settling column test
– To begin with ensure uniform distribution of particle size from
top to bottom of the column
– Duration of test should be equal to the settling time in the
proposed tank
– Draw samples from the ports at various time intervals, analyze
for TSS and compute % removal
– Plot % removal against time and depth and construct curves of
equal % removal
– Overflow rates for various settling are determined by noting
where the curve intersect the x-axis
Flocculent Particle Settling





 





 
 


2
(%) 1
1
nn
n
h
n RR
H
h
R

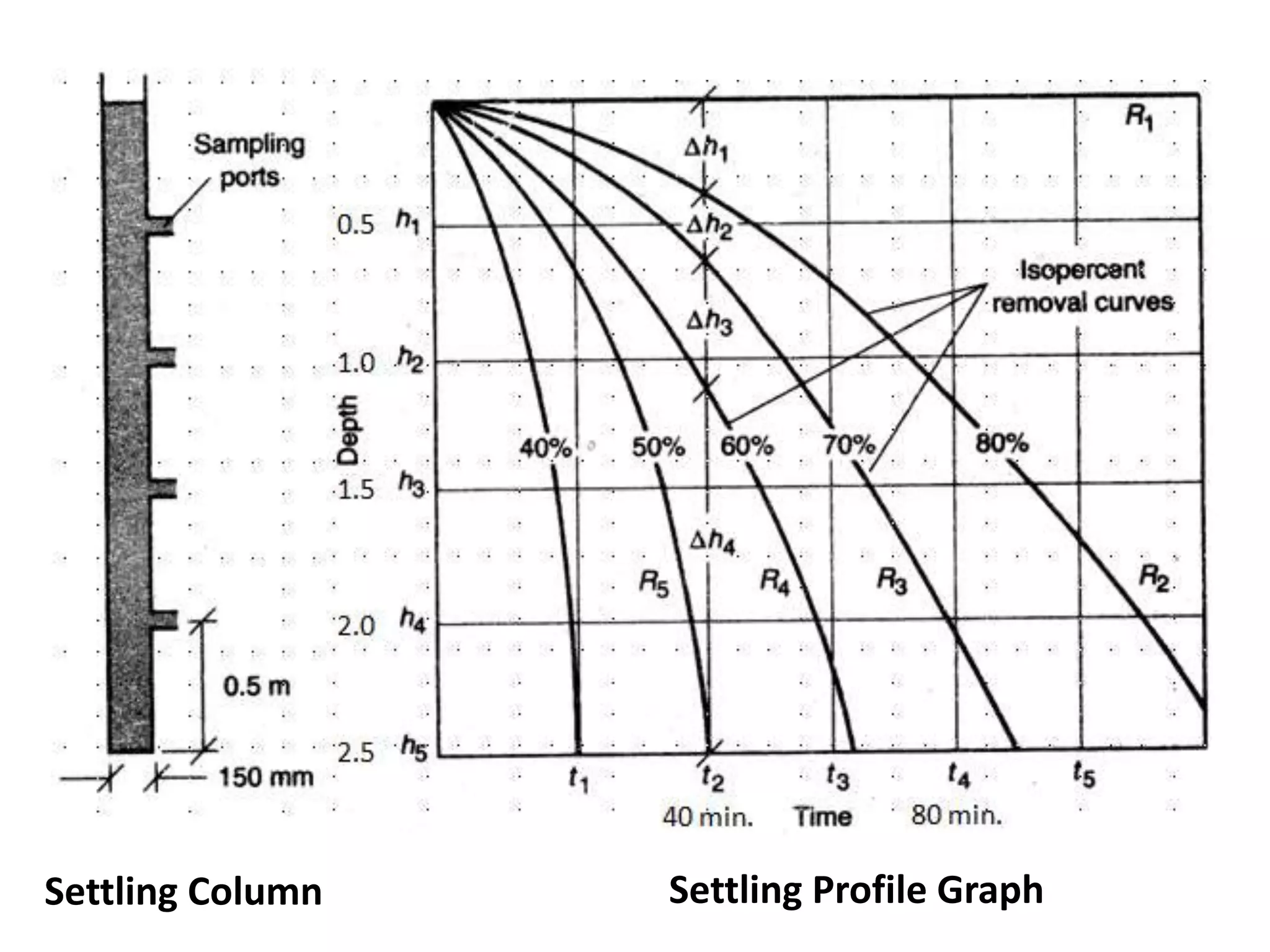

Settling Column Settling Profile Graph

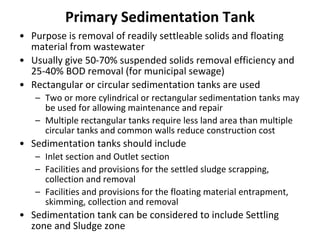

Primary Sedimentation Tank
• Purpose is removal of readily settleable solids and floating
material from wastewater
• Usually give 50-70% suspended solids removal efficiency and
25-40% BOD removal (for municipal sewage)
• Rectangular or circular sedimentation tanks are used
– Two or more cylindrical or rectangular sedimentation tanks may
be used for allowing maintenance and repair
– Multiple rectangular tanks require less land area than multiple
circular tanks and common walls reduce construction cost
• Sedimentation tanks should include
– Inlet section and Outlet section
– Facilities and provisions for the settled sludge scrapping,
collection and removal
– Facilities and provisions for the floating material entrapment,
skimming, collection and removal
• Sedimentation tank can be considered to include Settling
zone and Sludge zone

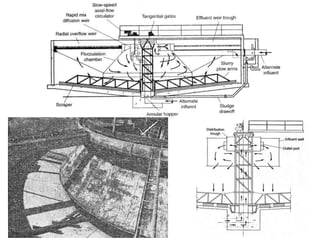

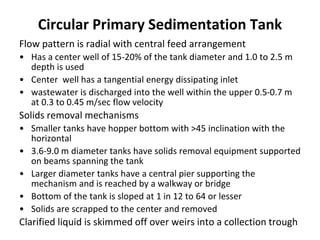

Flow pattern is radial with central feed arrangement
• Has a center well of 15-20% of the tank diameter and 1.0 to 2.5 m
depth is used
• Center well has a tangential energy dissipating inlet
• wastewater is discharged into the well within the upper 0.5-0.7 m
at 0.3 to 0.45 m/sec flow velocity
Solids removal mechanisms
• Smaller tanks have hopper bottom with >45 inclination with the
horizontal
• 3.6-9.0 m diameter tanks have solids removal equipment supported
on beams spanning the tank
• Larger diameter tanks have a central pier supporting the
mechanism and is reached by a walkway or bridge
• Bottom of the tank is sloped at 1 in 12 to 64 or lesser
• Solids are scrapped to the center and removed
Clarified liquid is skimmed off over weirs into a collection trough

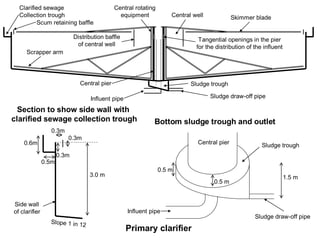

Circular Primary Sedimentation Tank
Clarified sewage
Collection trough
Scum retaining baffle
Distribution baffle
of central well
Scrapper arm
Skimmer bladeCentral well
Central pier
Influent pipe Sludge draw-off pipe
Central rotating
equipment
Sludge trough
Tangential openings in the pier
for the distribution of the influent
Slope 1 in 12
Side wall
of clarifier
0.5m
0.3m
0.3m
0.3m
0.6m Central pier Sludge trough
0.5 m
1.5 m
0.5 m
Sludge draw-off pipe
Influent pipe
Primary clarifier
Section to show side wall with
clarified sewage collection trough Bottom sludge trough and outlet
3.0 m

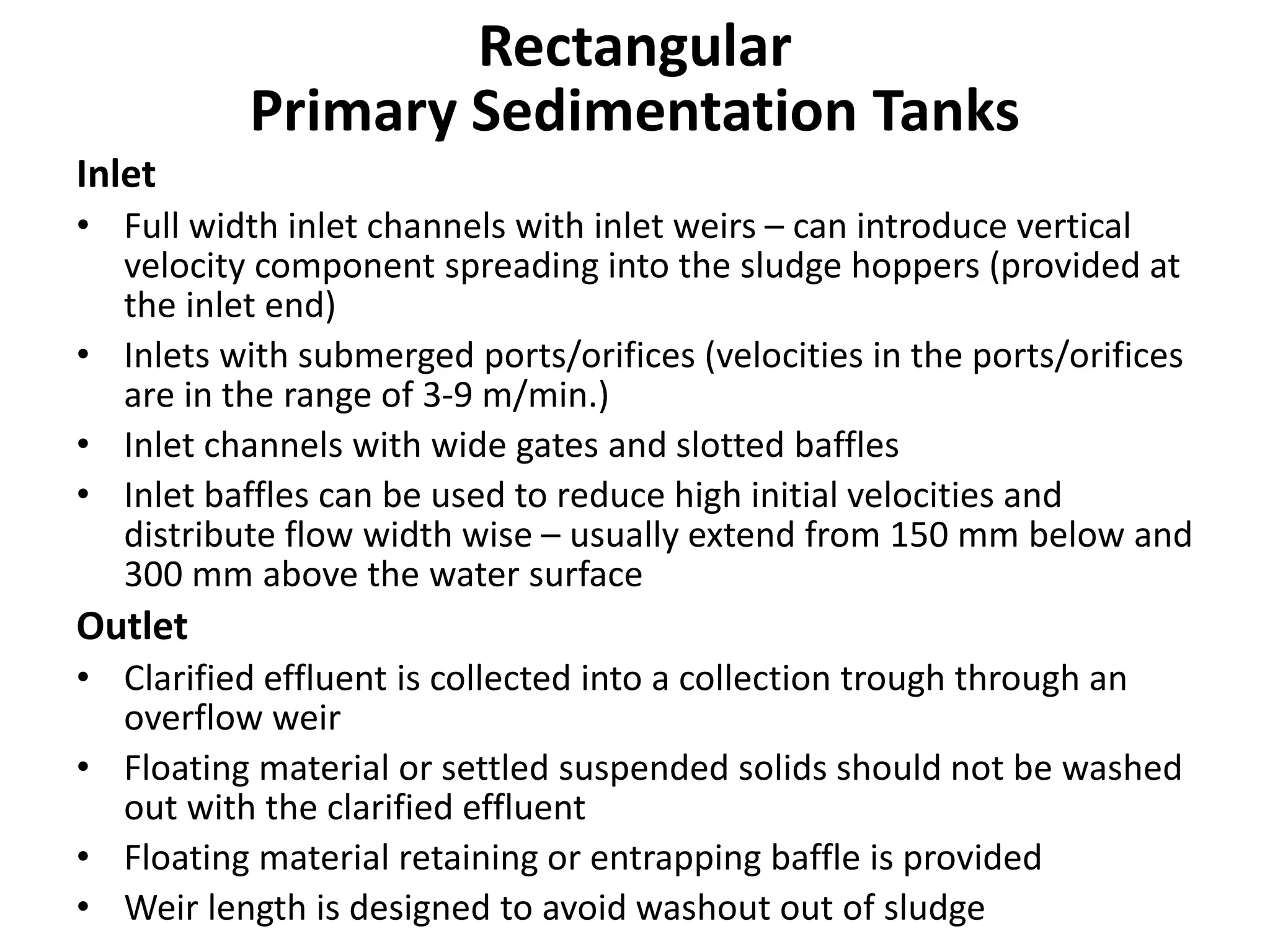

Inlet
• Full width inlet channels with inlet weirs – can introduce vertical
velocity component spreading into the sludge hoppers (provided at
the inlet end)
• Inlets with submerged ports/orifices (velocities in the ports/orifices
are in the range of 3-9 m/min.)
• Inlet channels with wide gates and slotted baffles
• Inlet baffles can be used to reduce high initial velocities and
distribute flow width wise – usually extend from 150 mm below and
300 mm above the water surface
Outlet
• Clarified effluent is collected into a collection trough through an
overflow weir
• Floating material or settled suspended solids should not be washed
out with the clarified effluent
• Floating material retaining or entrapping baffle is provided
• Weir length is designed to avoid washout out of sludge

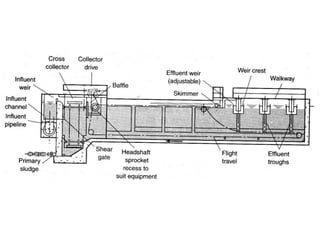

Rectangular
Primary Sedimentation Tanks

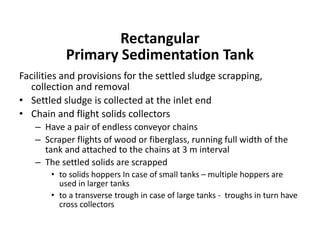

Facilities and provisions for the settled sludge scrapping,
collection and removal
• Settled sludge is collected at the inlet end
• Chain and flight solids collectors
– Have a pair of endless conveyor chains
– Scraper flights of wood or fiberglass, running full width of the
tank and attached to the chains at 3 m interval
– The settled solids are scrapped
• to solids hoppers In case of small tanks – multiple hoppers are
used in larger tanks
• to a transverse trough in case of large tanks - troughs in turn have
cross collectors
Rectangular
Primary Sedimentation Tank

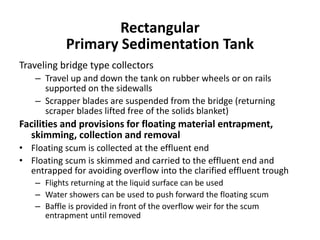

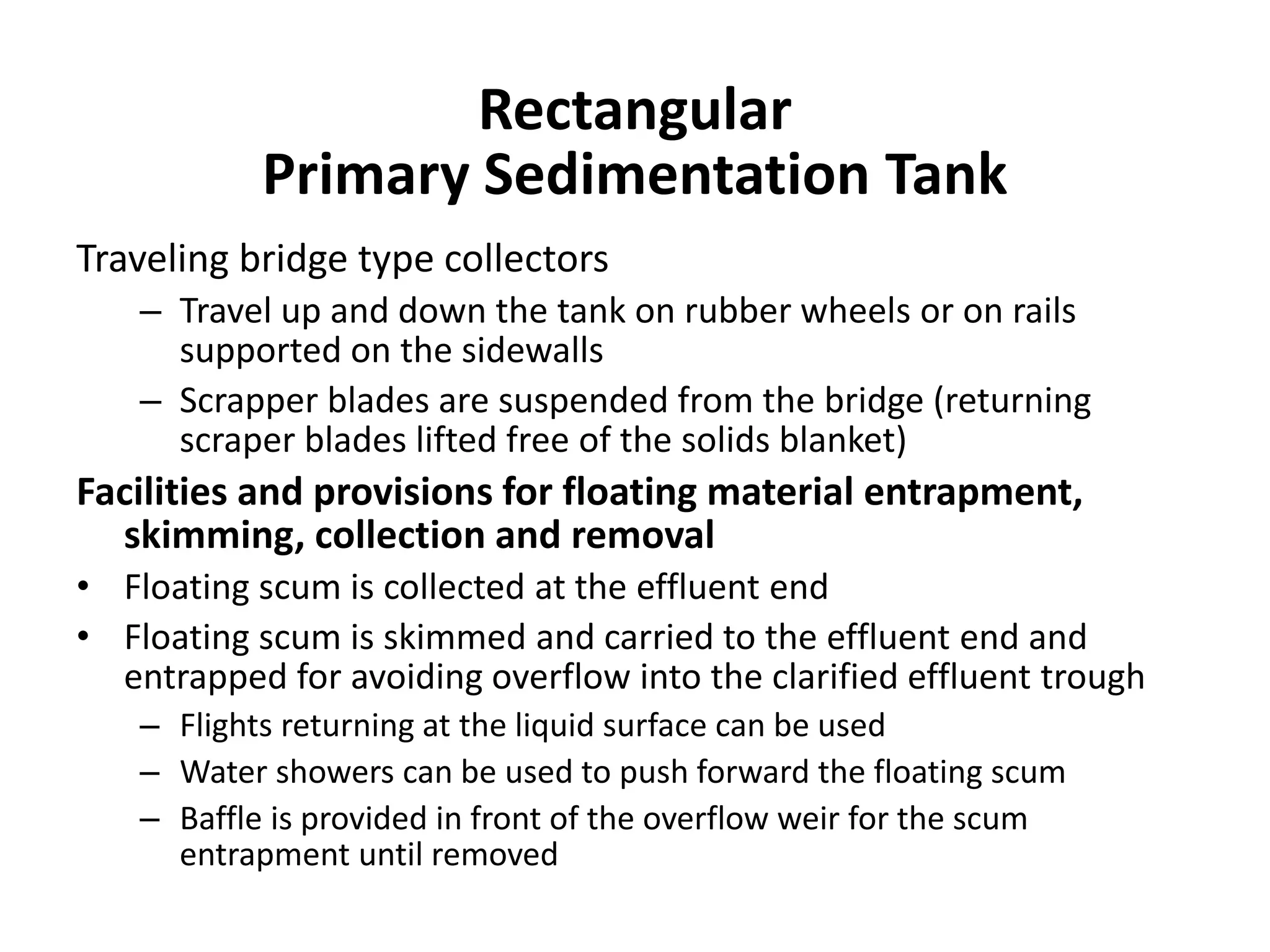

Traveling bridge type collectors
– Travel up and down the tank on rubber wheels or on rails
supported on the sidewalls
– Scrapper blades are suspended from the bridge (returning
scraper blades lifted free of the solids blanket)
Facilities and provisions for floating material entrapment,
skimming, collection and removal
• Floating scum is collected at the effluent end
• Floating scum is skimmed and carried to the effluent end and
entrapped for avoiding overflow into the clarified effluent trough
– Flights returning at the liquid surface can be used
– Water showers can be used to push forward the floating scum
– Baffle is provided in front of the overflow weir for the scum
entrapment until removed
Rectangular
Primary Sedimentation Tank

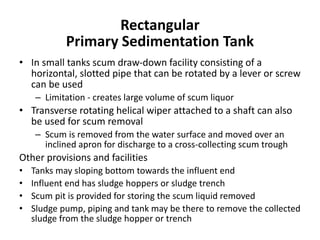

• In small tanks scum draw-down facility consisting of a
horizontal, slotted pipe that can be rotated by a lever or screw
can be used
– Limitation - creates large volume of scum liquor
• Transverse rotating helical wiper attached to a shaft can also
be used for scum removal
– Scum is removed from the water surface and moved over an
inclined apron for discharge to a cross-collecting scum trough
Other provisions and facilities
• Tanks may sloping bottom towards the influent end
• Influent end has sludge hoppers or sludge trench
• Scum pit is provided for storing the scum liquid removed
• Sludge pump, piping and tank may be there to remove the collected
sludge from the sludge hopper or trench
Rectangular
Primary Sedimentation Tank

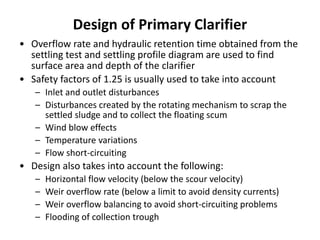

Design of Primary Clarifier
• Overflow rate and hydraulic retention time obtained from the
settling test and settling profile diagram are used to find
surface area and depth of the clarifier
• Safety factors of 1.25 is usually used to take into account
– Inlet and outlet disturbances
– Disturbances created by the rotating mechanism to scrap the
settled sludge and to collect the floating scum
– Wind blow effects
– Temperature variations
– Flow short-circuiting
• Design also takes into account the following:
– Horizontal flow velocity (below the scour velocity)
– Weir overflow rate (below a limit to avoid density currents)
– Weir overflow balancing to avoid short-circuiting problems
– Flooding of collection trough

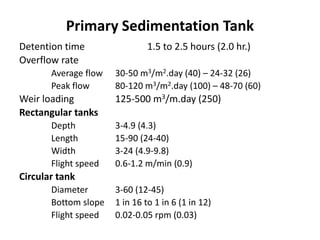

Detention time 1.5 to 2.5 hours (2.0 hr.)
Overflow rate
Average flow 30-50 m3/m2.day (40) – 24-32 (26)
Peak flow 80-120 m3/m2.day (100) – 48-70 (60)
Weir loading 125-500 m3/m.day (250)
Rectangular tanks
Depth 3-4.9 (4.3)
Length 15-90 (24-40)
Width 3-24 (4.9-9.8)
Flight speed 0.6-1.2 m/min (0.9)
Circular tank
Diameter 3-60 (12-45)
Bottom slope 1 in 16 to 1 in 6 (1 in 12)
Flight speed 0.02-0.05 rpm (0.03)
Primary Sedimentation Tank

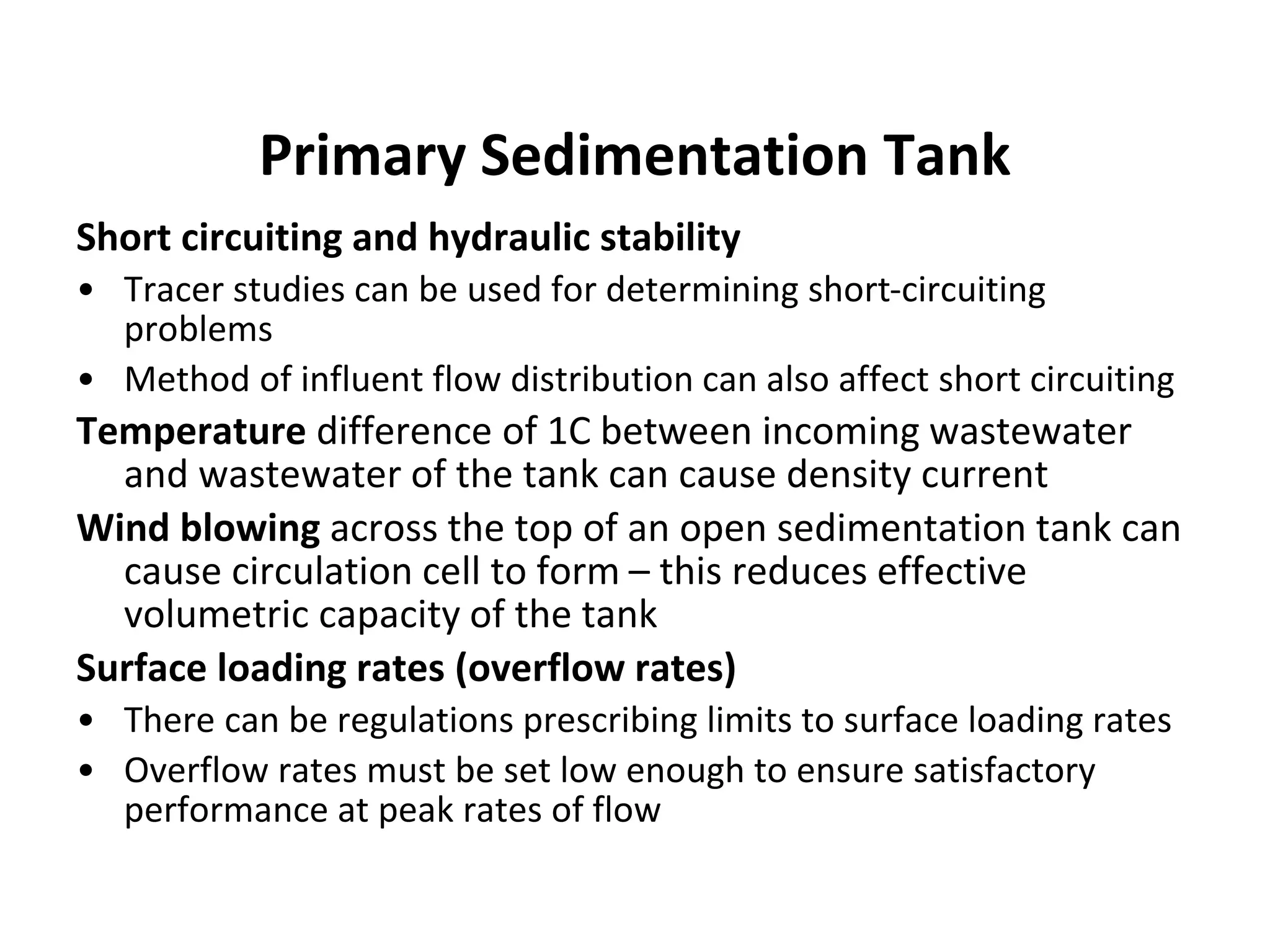

Short circuiting and hydraulic stability
• Tracer studies can be used for determining short-circuiting
problems
• Method of influent flow distribution can also affect short circuiting
Temperature difference of 1C between incoming wastewater
and wastewater of the tank can cause density current
Wind blowing across the top of an open sedimentation tank can
cause circulation cell to form – this reduces effective
volumetric capacity of the tank
Surface loading rates (overflow rates)
• There can be regulations prescribing limits to surface loading rates
• Overflow rates must be set low enough to ensure satisfactory
performance at peak rates of flow
Primary Sedimentation Tank

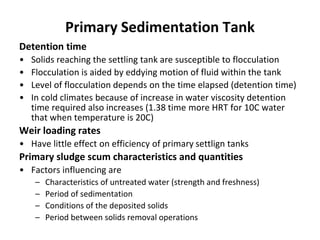

Detention time
• Solids reaching the settling tank are susceptible to flocculation
• Flocculation is aided by eddying motion of fluid within the tank
• Level of flocculation depends on the time elapsed (detention time)
• In cold climates because of increase in water viscosity detention
time required also increases (1.38 time more HRT for 10C water
that when temperature is 20C)
Weir loading rates
• Have little effect on efficiency of primary settlign tanks
Primary sludge scum characteristics and quantities
• Factors influencing are
– Characteristics of untreated water (strength and freshness)
– Period of sedimentation
– Conditions of the deposited solids
– Period between solids removal operations
Primary Sedimentation Tank

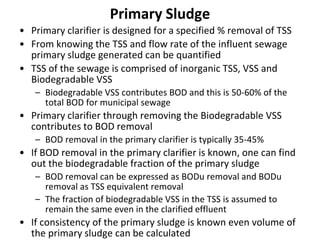

Primary Sludge
• Primary clarifier is designed for a specified % removal of TSS
• From knowing the TSS and flow rate of the influent sewage
primary sludge generated can be quantified
• TSS of the sewage is comprised of inorganic TSS, VSS and
Biodegradable VSS
– Biodegradable VSS contributes BOD and this is 50-60% of the
total BOD for municipal sewage
• Primary clarifier through removing the Biodegradable VSS
contributes to BOD removal
– BOD removal in the primary clarifier is typically 35-45%
• If BOD removal in the primary clarifier is known, one can find
out the biodegradable fraction of the primary sludge
– BOD removal can be expressed as BODu removal and BODu
removal as TSS equivalent removal
– The fraction of biodegradable VSS in the TSS is assumed to
remain the same even in the clarified effluent
• If consistency of the primary sludge is known even volume of
the primary sludge can be calculated

More Related Content

What's hot

Treatment of water
Treatment of waterTreatment of water
Treatment of water
dhavalsshah

Sedimentation Tanks: Design and Working
Sedimentation Tanks: Design and WorkingSedimentation Tanks: Design and Working
Sedimentation Tanks: Design and Working
Rohit Kumar Tiwari

Sewage Treatment: Primary Treatment
Sewage Treatment: Primary TreatmentSewage Treatment: Primary Treatment
Sewage Treatment: Primary Treatment
Akepati S. Reddy

L 32 Modifications of ASP
L 32 Modifications of ASPL 32 Modifications of ASP
L 32 Modifications of ASP
Dr. shrikant jahagirdar

L 24 filtration
L 24 filtrationL 24 filtration
L 24 filtration
Dr. shrikant jahagirdar

3. grit chamber
3. grit chamber3. grit chamber
3. grit chamber
vvsasane

Sludge treatment and disposal 1
Sludge treatment and disposal 1Sludge treatment and disposal 1
Sludge treatment and disposal 1
Nayana 54321

Ch 3 che of waste water
Ch 3 che of waste waterCh 3 che of waste water
02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx
02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx
02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx
PRACHI DESSAI

Characteristics of Waste-Water (Unit-I)
Characteristics of Waste-Water (Unit-I)Characteristics of Waste-Water (Unit-I)
Characteristics of Waste-Water (Unit-I)
GAURAV. H .TANDON

L 9 aeration
L 9 aerationL 9 aeration
Collection and estimation of sewage
Collection and estimation of sewageCollection and estimation of sewage
Collection and estimation of sewage
Bibhabasu Mohanty

Water treatment
Water treatmentWater treatment
Water treatment
Gokul Saud

L 20 High rate Trickling Filter
L 20 High rate Trickling FilterL 20 High rate Trickling Filter
L 20 High rate Trickling Filter
Dr. shrikant jahagirdar

Sewer Appurtenances
Sewer AppurtenancesSewer Appurtenances
Sewer Appurtenances
Shahid Arshad

Trickling filter ppt
Trickling filter pptTrickling filter ppt
Trickling filter ppt
Shilpa Patil

Types of sedimentation tank
Types of sedimentation tankTypes of sedimentation tank
Types of sedimentation tank
Sagar Vekariya

Sludge digestor
Sludge digestor Sludge digestor
Sludge digestor
MNIT,JAIPUR

PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM
PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEMPROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM
PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM
AB MAKASANA

L 17 coagulation and flocculation
L 17 coagulation and flocculationL 17 coagulation and flocculation
L 17 coagulation and flocculation
Dr. shrikant jahagirdar


What's hot (20)

Treatment of water
Treatment of waterTreatment of water
Treatment of water

Sedimentation Tanks: Design and Working
Sedimentation Tanks: Design and WorkingSedimentation Tanks: Design and Working
Sedimentation Tanks: Design and Working

Sewage Treatment: Primary Treatment
Sewage Treatment: Primary TreatmentSewage Treatment: Primary Treatment
Sewage Treatment: Primary Treatment

L 32 Modifications of ASP
L 32 Modifications of ASPL 32 Modifications of ASP
L 32 Modifications of ASP

L 24 filtration
L 24 filtrationL 24 filtration
L 24 filtration

3. grit chamber
3. grit chamber3. grit chamber
3. grit chamber

Sludge treatment and disposal 1
Sludge treatment and disposal 1Sludge treatment and disposal 1
Sludge treatment and disposal 1

Ch 3 che of waste water
Ch 3 che of waste waterCh 3 che of waste water
Ch 3 che of waste water

02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx
02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx
02 - Stream & Effluent standards, Oxygen sag curve, Self Purification.pptx

Characteristics of Waste-Water (Unit-I)
Characteristics of Waste-Water (Unit-I)Characteristics of Waste-Water (Unit-I)
Characteristics of Waste-Water (Unit-I)

L 9 aeration
L 9 aerationL 9 aeration
L 9 aeration

Collection and estimation of sewage
Collection and estimation of sewageCollection and estimation of sewage
Collection and estimation of sewage

Water treatment
Water treatmentWater treatment
Water treatment

L 20 High rate Trickling Filter
L 20 High rate Trickling FilterL 20 High rate Trickling Filter
L 20 High rate Trickling Filter

Sewer Appurtenances
Sewer AppurtenancesSewer Appurtenances
Sewer Appurtenances

Trickling filter ppt
Trickling filter pptTrickling filter ppt
Trickling filter ppt

Types of sedimentation tank
Types of sedimentation tankTypes of sedimentation tank
Types of sedimentation tank

Sludge digestor
Sludge digestor Sludge digestor
Sludge digestor

PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM
PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEMPROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM
PROCEDURE FOR MAINTENANCE OF SEWAGE SYSTEM

L 17 coagulation and flocculation
L 17 coagulation and flocculationL 17 coagulation and flocculation
L 17 coagulation and flocculation


Viewers also liked

water treatment slides
water treatment slideswater treatment slides
water treatment slides
Anand Keshri

Primary and secondary wastewater treatment..
Primary and secondary wastewater treatment..Primary and secondary wastewater treatment..
Primary and secondary wastewater treatment..
snehalmenon92

Industrial wastewater treatment
Industrial wastewater treatmentIndustrial wastewater treatment
Industrial wastewater treatment
Mohamed Ramzy

Waste water treatment processes
Waste water treatment processesWaste water treatment processes
Waste water treatment processes
Ashish Agarwal

07 coagulation-flocculation-settling
07 coagulation-flocculation-settling07 coagulation-flocculation-settling
07 coagulation-flocculation-settling
Akepati S. Reddy

Wastewater treatment
Wastewater treatmentWastewater treatment
Wastewater treatment
Ranjan Das

Simulation in Action: Fatigue Analysis on 1243 Scraper Tail
Simulation in Action: Fatigue Analysis on 1243 Scraper Tail Simulation in Action: Fatigue Analysis on 1243 Scraper Tail
Simulation in Action: Fatigue Analysis on 1243 Scraper Tail
Adaptive Corporation

B Tech R-13 Regulation Syllabus of JNTUH 2013
B Tech R-13 Regulation Syllabus of JNTUH 2013B Tech R-13 Regulation Syllabus of JNTUH 2013
B Tech R-13 Regulation Syllabus of JNTUH 2013
gouse_1210

Sewage Treatment and Recycle Presentation
Sewage Treatment and Recycle PresentationSewage Treatment and Recycle Presentation
Sewage Treatment and Recycle Presentation
Suresh Kumar

Ag wastewater treatment by ag.pdf 2
Ag wastewater treatment by ag.pdf 2Ag wastewater treatment by ag.pdf 2
Ag wastewater treatment by ag.pdf 2
ghildiyal8811

Atmospheric Water
Atmospheric WaterAtmospheric Water
Atmospheric Water
Akepati S. Reddy

Radiation and atmospheric temperature
Radiation and atmospheric temperatureRadiation and atmospheric temperature
Radiation and atmospheric temperature
Akepati S. Reddy

Aerobic attached growth systems
Aerobic attached growth systemsAerobic attached growth systems
Aerobic attached growth systems
Akepati S. Reddy

Solid waste biomethanation plants
Solid waste biomethanation plantsSolid waste biomethanation plants
Solid waste biomethanation plants
Akepati S. Reddy

Anaerobic ponds
Anaerobic pondsAnaerobic ponds
Anaerobic ponds
Akepati S. Reddy

15 secondary sedimentation
15 secondary sedimentation15 secondary sedimentation
15 secondary sedimentation
Akepati S. Reddy

Regulatory Requirements of Solid Waste Management, Indian Context
Regulatory Requirements of Solid Waste Management, Indian ContextRegulatory Requirements of Solid Waste Management, Indian Context
Regulatory Requirements of Solid Waste Management, Indian Context
Akepati S. Reddy

Biological n and p removal
Biological n and p removalBiological n and p removal
Biological n and p removal
Akepati S. Reddy

biomass fuels and cook stoves
biomass fuels and cook stovesbiomass fuels and cook stoves
biomass fuels and cook stoves
Akepati S. Reddy

Atmospheric Pressure and Winds
Atmospheric Pressure and WindsAtmospheric Pressure and Winds
Atmospheric Pressure and Winds
Akepati S. Reddy


Viewers also liked (20)

water treatment slides
water treatment slideswater treatment slides
water treatment slides

Primary and secondary wastewater treatment..
Primary and secondary wastewater treatment..Primary and secondary wastewater treatment..
Primary and secondary wastewater treatment..

Industrial wastewater treatment
Industrial wastewater treatmentIndustrial wastewater treatment
Industrial wastewater treatment

Waste water treatment processes
Waste water treatment processesWaste water treatment processes
Waste water treatment processes

07 coagulation-flocculation-settling
07 coagulation-flocculation-settling07 coagulation-flocculation-settling
07 coagulation-flocculation-settling

Wastewater treatment
Wastewater treatmentWastewater treatment
Wastewater treatment

Simulation in Action: Fatigue Analysis on 1243 Scraper Tail
Simulation in Action: Fatigue Analysis on 1243 Scraper Tail Simulation in Action: Fatigue Analysis on 1243 Scraper Tail
Simulation in Action: Fatigue Analysis on 1243 Scraper Tail

B Tech R-13 Regulation Syllabus of JNTUH 2013
B Tech R-13 Regulation Syllabus of JNTUH 2013B Tech R-13 Regulation Syllabus of JNTUH 2013
B Tech R-13 Regulation Syllabus of JNTUH 2013

Sewage Treatment and Recycle Presentation
Sewage Treatment and Recycle PresentationSewage Treatment and Recycle Presentation
Sewage Treatment and Recycle Presentation

Ag wastewater treatment by ag.pdf 2
Ag wastewater treatment by ag.pdf 2Ag wastewater treatment by ag.pdf 2
Ag wastewater treatment by ag.pdf 2

Atmospheric Water
Atmospheric WaterAtmospheric Water
Atmospheric Water

Radiation and atmospheric temperature
Radiation and atmospheric temperatureRadiation and atmospheric temperature
Radiation and atmospheric temperature

Aerobic attached growth systems
Aerobic attached growth systemsAerobic attached growth systems
Aerobic attached growth systems

Solid waste biomethanation plants
Solid waste biomethanation plantsSolid waste biomethanation plants
Solid waste biomethanation plants

Anaerobic ponds
Anaerobic pondsAnaerobic ponds
Anaerobic ponds

15 secondary sedimentation
15 secondary sedimentation15 secondary sedimentation
15 secondary sedimentation

Regulatory Requirements of Solid Waste Management, Indian Context
Regulatory Requirements of Solid Waste Management, Indian ContextRegulatory Requirements of Solid Waste Management, Indian Context
Regulatory Requirements of Solid Waste Management, Indian Context

Biological n and p removal
Biological n and p removalBiological n and p removal
Biological n and p removal

biomass fuels and cook stoves
biomass fuels and cook stovesbiomass fuels and cook stoves
biomass fuels and cook stoves

Atmospheric Pressure and Winds
Atmospheric Pressure and WindsAtmospheric Pressure and Winds
Atmospheric Pressure and Winds


Similar to Primary sedimentation

08 filtration
08 filtration08 filtration
08 filtration
Akepati S. Reddy

05 water supply system
05 water supply system05 water supply system
05 water supply system
Akepati S. Reddy

sedimentation
sedimentationsedimentation
sedimentation
Harshada Vispute

Pumping Stations
Pumping StationsPumping Stations
Pumping Stations
GAURAV. H .TANDON

14 stokes law and grit separators
14 stokes law and grit separators14 stokes law and grit separators
14 stokes law and grit separators
Akepati S. Reddy

Plain sedimentation
Plain sedimentationPlain sedimentation
Plain sedimentation
Dayananda Sreekanta

1. Onsite sanitation system and disposal of sludge slide series (1) septic tank
1. Onsite sanitation system and disposal of sludge slide series (1) septic tank1. Onsite sanitation system and disposal of sludge slide series (1) septic tank
1. Onsite sanitation system and disposal of sludge slide series (1) septic tank
vvsasane

UNIT -II Treatment of water- aeration and sedimentation.ppt
UNIT -II  Treatment of water- aeration and sedimentation.pptUNIT -II  Treatment of water- aeration and sedimentation.ppt
UNIT -II Treatment of water- aeration and sedimentation.ppt
madhukarjadhav10

Low Cost Sanitation Systems
Low Cost Sanitation SystemsLow Cost Sanitation Systems
Low Cost Sanitation Systems
GAURAV. H .TANDON

SEDIMENTATION
SEDIMENTATIONSEDIMENTATION
SEDIMENTATION
Erika Joy

Wwwe
WwweWwwe
Wwwe
ascivil

Physical Unit Operation- Screening, Grit Removal, Equalization
Physical Unit Operation-Screening, Grit Removal,EqualizationPhysical Unit Operation-Screening, Grit Removal,Equalization
Physical Unit Operation- Screening, Grit Removal, Equalization
Yash Patel

ASP.pptx
ASP.pptxASP.pptx
Activated Sludge process
Activated Sludge processActivated Sludge process
Activated Sludge process
MOHANKANDASAMY123

Presentation for safegard septic tank
Presentation for safegard septic tankPresentation for safegard septic tank
Presentation for safegard septic tank
kalyanmaji

Sewer Appurtanances
Sewer AppurtanancesSewer Appurtanances
Sewer Appurtanances
Akepati S. Reddy

Excavation and Ground water control1.pptx
Excavation and Ground water control1.pptxExcavation and Ground water control1.pptx
Excavation and Ground water control1.pptx
ssusercbae26

Coagulation and flocculation
 Coagulation and flocculation Coagulation and flocculation
Coagulation and flocculation
Harshada Vispute

Unit III Quality and Treatment
Unit  III Quality and TreatmentUnit  III Quality and Treatment
Unit III Quality and Treatment
MadhukarJadhav8

Sewage Treatment: Priliminary Treatment
Sewage Treatment: Priliminary TreatmentSewage Treatment: Priliminary Treatment
Sewage Treatment: Priliminary Treatment
Akepati S. Reddy


Similar to Primary sedimentation (20)

08 filtration
08 filtration08 filtration
08 filtration

05 water supply system
05 water supply system05 water supply system
05 water supply system

sedimentation
sedimentationsedimentation
sedimentation

Pumping Stations
Pumping StationsPumping Stations
Pumping Stations

14 stokes law and grit separators
14 stokes law and grit separators14 stokes law and grit separators
14 stokes law and grit separators

Plain sedimentation
Plain sedimentationPlain sedimentation
Plain sedimentation

1. Onsite sanitation system and disposal of sludge slide series (1) septic tank
1. Onsite sanitation system and disposal of sludge slide series (1) septic tank1. Onsite sanitation system and disposal of sludge slide series (1) septic tank
1. Onsite sanitation system and disposal of sludge slide series (1) septic tank

UNIT -II Treatment of water- aeration and sedimentation.ppt
UNIT -II  Treatment of water- aeration and sedimentation.pptUNIT -II  Treatment of water- aeration and sedimentation.ppt
UNIT -II Treatment of water- aeration and sedimentation.ppt

Low Cost Sanitation Systems
Low Cost Sanitation SystemsLow Cost Sanitation Systems
Low Cost Sanitation Systems

SEDIMENTATION
SEDIMENTATIONSEDIMENTATION
SEDIMENTATION

Wwwe
WwweWwwe
Wwwe

Physical Unit Operation- Screening, Grit Removal, Equalization
Physical Unit Operation-Screening, Grit Removal,EqualizationPhysical Unit Operation-Screening, Grit Removal,Equalization
Physical Unit Operation- Screening, Grit Removal, Equalization

ASP.pptx
ASP.pptxASP.pptx
ASP.pptx

Activated Sludge process
Activated Sludge processActivated Sludge process
Activated Sludge process

Presentation for safegard septic tank
Presentation for safegard septic tankPresentation for safegard septic tank
Presentation for safegard septic tank

Sewer Appurtanances
Sewer AppurtanancesSewer Appurtanances
Sewer Appurtanances

Excavation and Ground water control1.pptx
Excavation and Ground water control1.pptxExcavation and Ground water control1.pptx
Excavation and Ground water control1.pptx

Coagulation and flocculation
 Coagulation and flocculation Coagulation and flocculation
Coagulation and flocculation

Unit III Quality and Treatment
Unit  III Quality and TreatmentUnit  III Quality and Treatment
Unit III Quality and Treatment

Sewage Treatment: Priliminary Treatment
Sewage Treatment: Priliminary TreatmentSewage Treatment: Priliminary Treatment
Sewage Treatment: Priliminary Treatment


More from Akepati S. Reddy

PH,acidity and alkanity
PH,acidity and alkanityPH,acidity and alkanity
PH,acidity and alkanity
Akepati S. Reddy

Td sand tss
Td sand tssTd sand tss
Td sand tss
Akepati S. Reddy

Asr wastewater characteristics
Asr wastewater characteristicsAsr wastewater characteristics
Asr wastewater characteristics
Akepati S. Reddy

Asr flow measurement
Asr  flow measurementAsr  flow measurement
Asr flow measurement
Akepati S. Reddy

Asr= nutrients
Asr= nutrientsAsr= nutrients
Asr= nutrients
Akepati S. Reddy

Asr mp ntest
Asr mp ntestAsr mp ntest
Asr mp ntest
Akepati S. Reddy

02b priliminary treatment
02b priliminary treatment02b priliminary treatment
02b priliminary treatment
Akepati S. Reddy

02d secondary treatment
02d secondary treatment02d secondary treatment
02d secondary treatment
Akepati S. Reddy

Wastewater characteristics
Wastewater characteristicsWastewater characteristics
Wastewater characteristics
Akepati S. Reddy

Chapter2activestudge process
Chapter2activestudge processChapter2activestudge process
Chapter2activestudge process
Akepati S. Reddy

acticated sluge process
acticated sluge processacticated sluge process
acticated sluge process
Akepati S. Reddy

Atmosphere: Composition and Strucutre
Atmosphere: Composition and StrucutreAtmosphere: Composition and Strucutre
Atmosphere: Composition and Strucutre
Akepati S. Reddy

Biological sludge digestion
Biological sludge digestionBiological sludge digestion
Biological sludge digestion
Akepati S. Reddy

Geothermal energy technologies
Geothermal energy technologiesGeothermal energy technologies
Geothermal energy technologies
Akepati S. Reddy

UASB reactors
UASB reactorsUASB reactors
UASB reactors
Akepati S. Reddy

Activated sludge process
Activated sludge processActivated sludge process
Activated sludge process
Akepati S. Reddy

Scrubbing Systems
Scrubbing SystemsScrubbing Systems
Scrubbing Systems
Akepati S. Reddy

biomass gasification
biomass gasificationbiomass gasification
biomass gasification
Akepati S. Reddy

Sewerage System
Sewerage SystemSewerage System
Sewerage System
Akepati S. Reddy


More from Akepati S. Reddy (19)

PH,acidity and alkanity
PH,acidity and alkanityPH,acidity and alkanity
PH,acidity and alkanity

Td sand tss
Td sand tssTd sand tss
Td sand tss

Asr wastewater characteristics
Asr wastewater characteristicsAsr wastewater characteristics
Asr wastewater characteristics

Asr flow measurement
Asr  flow measurementAsr  flow measurement
Asr flow measurement

Asr= nutrients
Asr= nutrientsAsr= nutrients
Asr= nutrients

Asr mp ntest
Asr mp ntestAsr mp ntest
Asr mp ntest

02b priliminary treatment
02b priliminary treatment02b priliminary treatment
02b priliminary treatment

02d secondary treatment
02d secondary treatment02d secondary treatment
02d secondary treatment

Wastewater characteristics
Wastewater characteristicsWastewater characteristics
Wastewater characteristics

Chapter2activestudge process
Chapter2activestudge processChapter2activestudge process
Chapter2activestudge process

acticated sluge process
acticated sluge processacticated sluge process
acticated sluge process

Atmosphere: Composition and Strucutre
Atmosphere: Composition and StrucutreAtmosphere: Composition and Strucutre
Atmosphere: Composition and Strucutre

Biological sludge digestion
Biological sludge digestionBiological sludge digestion
Biological sludge digestion

Geothermal energy technologies
Geothermal energy technologiesGeothermal energy technologies
Geothermal energy technologies

UASB reactors
UASB reactorsUASB reactors
UASB reactors

Activated sludge process
Activated sludge processActivated sludge process
Activated sludge process

Scrubbing Systems
Scrubbing SystemsScrubbing Systems
Scrubbing Systems

biomass gasification
biomass gasificationbiomass gasification
biomass gasification

Sewerage System
Sewerage SystemSewerage System
Sewerage System


Recently uploaded

Call Girls Bangalore 9024918724 Independent Call Girl Service Bangalore
Call Girls Bangalore 9024918724 Independent Call Girl Service BangaloreCall Girls Bangalore 9024918724 Independent Call Girl Service Bangalore
Call Girls Bangalore 9024918724 Independent Call Girl Service Bangalore
namratasinha41

一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理
一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理
一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理
twqryq79

2024-06-22 Composting at Home 101 on Zoom
2024-06-22 Composting at Home 101  on Zoom2024-06-22 Composting at Home 101  on Zoom
2024-06-22 Composting at Home 101 on Zoom
Ellen Book

一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理
一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理
一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理
twqryq79

Call Girls Kolkata 7339748667 Independent Call Girl Service Kolkata
Call Girls Kolkata 7339748667 Independent Call Girl Service KolkataCall Girls Kolkata 7339748667 Independent Call Girl Service Kolkata
Call Girls Kolkata 7339748667 Independent Call Girl Service Kolkata
namratasinha41

原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
mvrpcz6

Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf
Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdfRepublic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf
Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf
Abraham Lebeza

Notes on National Green Tribunal, Environmental laws
Notes on National Green Tribunal, Environmental lawsNotes on National Green Tribunal, Environmental laws
Notes on National Green Tribunal, Environmental laws
sforsidd

Lessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approachesLessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approaches
CIFOR-ICRAF

Mass Production of Trichogramma sp..pptx
Mass Production of Trichogramma sp..pptxMass Production of Trichogramma sp..pptx
Mass Production of Trichogramma sp..pptx
SwastikBhattacharjya

一比一原版美国丹佛大学毕业证(ud学位证)如何办理
一比一原版美国丹佛大学毕业证(ud学位证)如何办理一比一原版美国丹佛大学毕业证(ud学位证)如何办理
一比一原版美国丹佛大学毕业证(ud学位证)如何办理
43ekmxzp

21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx
21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx
21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx
JustineGarcia32

一比一原版美国南加州大学毕业证(usc学位证)如何办理
一比一原版美国南加州大学毕业证(usc学位证)如何办理一比一原版美国南加州大学毕业证(usc学位证)如何办理
一比一原版美国南加州大学毕业证(usc学位证)如何办理
43ekmxzp

一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理
aonx8o5f

Call Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad
Call Girls Hyderabad 7023059433 Independent Call Girl Service HyderabadCall Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad
Call Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad
namratasinha41

一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理
一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理
一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理
evtena

学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样
学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样
学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样
ehfyqtu

一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理
一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理
一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理
7kvwgv0y

Green Wealth Management - UBS A world of access and opportunuty
Green Wealth Management - UBS A world of access and opportunutyGreen Wealth Management - UBS A world of access and opportunuty
Green Wealth Management - UBS A world of access and opportunuty
adrianmaruntelu

Monitor indicators of genetic diversity from space using Earth Observation data
Monitor indicators of genetic diversity from space using Earth Observation dataMonitor indicators of genetic diversity from space using Earth Observation data
Monitor indicators of genetic diversity from space using Earth Observation data
Spatial Genetics


Recently uploaded (20)

Call Girls Bangalore 9024918724 Independent Call Girl Service Bangalore
Call Girls Bangalore 9024918724 Independent Call Girl Service BangaloreCall Girls Bangalore 9024918724 Independent Call Girl Service Bangalore
Call Girls Bangalore 9024918724 Independent Call Girl Service Bangalore

一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理
一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理
一比一原版美国加利福尼亚大学欧文分校毕业证(ucirvine学位证)如何办理

2024-06-22 Composting at Home 101 on Zoom
2024-06-22 Composting at Home 101  on Zoom2024-06-22 Composting at Home 101  on Zoom
2024-06-22 Composting at Home 101 on Zoom

一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理
一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理
一比一原版美国加州大学欧文分校毕业证(uci学位证)如何办理

Call Girls Kolkata 7339748667 Independent Call Girl Service Kolkata
Call Girls Kolkata 7339748667 Independent Call Girl Service KolkataCall Girls Kolkata 7339748667 Independent Call Girl Service Kolkata
Call Girls Kolkata 7339748667 Independent Call Girl Service Kolkata

原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样

Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf
Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdfRepublic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf
Republic of Ethiopia EPA (2003) Ambient Environment Standards for Ethiopia.pdf

Notes on National Green Tribunal, Environmental laws
Notes on National Green Tribunal, Environmental lawsNotes on National Green Tribunal, Environmental laws
Notes on National Green Tribunal, Environmental laws

Lessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approachesLessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approaches

Mass Production of Trichogramma sp..pptx
Mass Production of Trichogramma sp..pptxMass Production of Trichogramma sp..pptx
Mass Production of Trichogramma sp..pptx

一比一原版美国丹佛大学毕业证(ud学位证)如何办理
一比一原版美国丹佛大学毕业证(ud学位证)如何办理一比一原版美国丹佛大学毕业证(ud学位证)如何办理
一比一原版美国丹佛大学毕业证(ud学位证)如何办理

21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx
21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx
21321321321sfsdfdsfsdfsdfsfddsfppt ai.pptx

一比一原版美国南加州大学毕业证(usc学位证)如何办理
一比一原版美国南加州大学毕业证(usc学位证)如何办理一比一原版美国南加州大学毕业证(usc学位证)如何办理
一比一原版美国南加州大学毕业证(usc学位证)如何办理

一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证)英国格拉斯哥大学毕业证如何办理

Call Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad
Call Girls Hyderabad 7023059433 Independent Call Girl Service HyderabadCall Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad
Call Girls Hyderabad 7023059433 Independent Call Girl Service Hyderabad

一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理
一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理
一比一原版(unuk毕业证书)英国诺丁汉大学毕业证如何办理

学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样
学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样
学校原版(unuk学位证书)英国牛津布鲁克斯大学毕业证硕士文凭原版一模一样

一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理
一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理
一比一原版美国堪萨斯大学毕业证(KU学位证)如何办理

Green Wealth Management - UBS A world of access and opportunuty
Green Wealth Management - UBS A world of access and opportunutyGreen Wealth Management - UBS A world of access and opportunuty
Green Wealth Management - UBS A world of access and opportunuty

Monitor indicators of genetic diversity from space using Earth Observation data
Monitor indicators of genetic diversity from space using Earth Observation dataMonitor indicators of genetic diversity from space using Earth Observation data
Monitor indicators of genetic diversity from space using Earth Observation data


Primary sedimentation

  • 1. Primary Sedimentation Dr. Akepati S. Reddy School of Energy and Environment Thapar University, Patiala PUNJAB, INDIA
  • 2. Flocculent Particle Settling • Particles do not settle as discrete particles – instead during sedimentation they coalesce and flocculate • Extent of coalescence or flocculation depend on – Overflow rate – Depth of settling basin – Velocity gradients in the system – Concentration of particles – Range of particle sizes • Settling characteristics of a suspension of flocculent particles can be obtained by a settling column test • Settling column – Height: equal to the depth of the proposed settling tank – Diameter can be anything – influences of the wall should be taken care off – sample required should be small enough – Provided with sampling ports
  • 3. • Settling column test – To begin with ensure uniform distribution of particle size from top to bottom of the column – Duration of test should be equal to the settling time in the proposed tank – Draw samples from the ports at various time intervals, analyze for TSS and compute % removal – Plot % removal against time and depth and construct curves of equal % removal – Overflow rates for various settling are determined by noting where the curve intersect the x-axis Flocculent Particle Settling                   2 (%) 1 1 nn n h n RR H h R
  • 4. Settling Column Settling Profile Graph

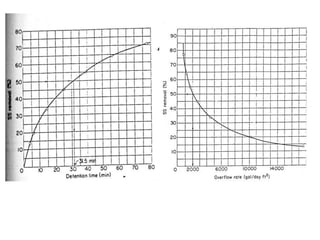

  • 5.
  • 6. Primary Sedimentation Tank • Purpose is removal of readily settleable solids and floating material from wastewater • Usually give 50-70% suspended solids removal efficiency and 25-40% BOD removal (for municipal sewage) • Rectangular or circular sedimentation tanks are used – Two or more cylindrical or rectangular sedimentation tanks may be used for allowing maintenance and repair – Multiple rectangular tanks require less land area than multiple circular tanks and common walls reduce construction cost • Sedimentation tanks should include – Inlet section and Outlet section – Facilities and provisions for the settled sludge scrapping, collection and removal – Facilities and provisions for the floating material entrapment, skimming, collection and removal • Sedimentation tank can be considered to include Settling zone and Sludge zone
  • 7. Flow pattern is radial with central feed arrangement • Has a center well of 15-20% of the tank diameter and 1.0 to 2.5 m depth is used • Center well has a tangential energy dissipating inlet • wastewater is discharged into the well within the upper 0.5-0.7 m at 0.3 to 0.45 m/sec flow velocity Solids removal mechanisms • Smaller tanks have hopper bottom with >45 inclination with the horizontal • 3.6-9.0 m diameter tanks have solids removal equipment supported on beams spanning the tank • Larger diameter tanks have a central pier supporting the mechanism and is reached by a walkway or bridge • Bottom of the tank is sloped at 1 in 12 to 64 or lesser • Solids are scrapped to the center and removed Clarified liquid is skimmed off over weirs into a collection trough Circular Primary Sedimentation Tank
  • 8.
  • 9. Clarified sewage Collection trough Scum retaining baffle Distribution baffle of central well Scrapper arm Skimmer bladeCentral well Central pier Influent pipe Sludge draw-off pipe Central rotating equipment Sludge trough Tangential openings in the pier for the distribution of the influent Slope 1 in 12 Side wall of clarifier 0.5m 0.3m 0.3m 0.3m 0.6m Central pier Sludge trough 0.5 m 1.5 m 0.5 m Sludge draw-off pipe Influent pipe Primary clarifier Section to show side wall with clarified sewage collection trough Bottom sludge trough and outlet 3.0 m
  • 10. Inlet • Full width inlet channels with inlet weirs – can introduce vertical velocity component spreading into the sludge hoppers (provided at the inlet end) • Inlets with submerged ports/orifices (velocities in the ports/orifices are in the range of 3-9 m/min.) • Inlet channels with wide gates and slotted baffles • Inlet baffles can be used to reduce high initial velocities and distribute flow width wise – usually extend from 150 mm below and 300 mm above the water surface Outlet • Clarified effluent is collected into a collection trough through an overflow weir • Floating material or settled suspended solids should not be washed out with the clarified effluent • Floating material retaining or entrapping baffle is provided • Weir length is designed to avoid washout out of sludge Rectangular Primary Sedimentation Tanks
  • 11. Facilities and provisions for the settled sludge scrapping, collection and removal • Settled sludge is collected at the inlet end • Chain and flight solids collectors – Have a pair of endless conveyor chains – Scraper flights of wood or fiberglass, running full width of the tank and attached to the chains at 3 m interval – The settled solids are scrapped • to solids hoppers In case of small tanks – multiple hoppers are used in larger tanks • to a transverse trough in case of large tanks - troughs in turn have cross collectors Rectangular Primary Sedimentation Tank
  • 12. Traveling bridge type collectors – Travel up and down the tank on rubber wheels or on rails supported on the sidewalls – Scrapper blades are suspended from the bridge (returning scraper blades lifted free of the solids blanket) Facilities and provisions for floating material entrapment, skimming, collection and removal • Floating scum is collected at the effluent end • Floating scum is skimmed and carried to the effluent end and entrapped for avoiding overflow into the clarified effluent trough – Flights returning at the liquid surface can be used – Water showers can be used to push forward the floating scum – Baffle is provided in front of the overflow weir for the scum entrapment until removed Rectangular Primary Sedimentation Tank
  • 13. • In small tanks scum draw-down facility consisting of a horizontal, slotted pipe that can be rotated by a lever or screw can be used – Limitation - creates large volume of scum liquor • Transverse rotating helical wiper attached to a shaft can also be used for scum removal – Scum is removed from the water surface and moved over an inclined apron for discharge to a cross-collecting scum trough Other provisions and facilities • Tanks may sloping bottom towards the influent end • Influent end has sludge hoppers or sludge trench • Scum pit is provided for storing the scum liquid removed • Sludge pump, piping and tank may be there to remove the collected sludge from the sludge hopper or trench Rectangular Primary Sedimentation Tank
  • 14.
  • 15. Design of Primary Clarifier • Overflow rate and hydraulic retention time obtained from the settling test and settling profile diagram are used to find surface area and depth of the clarifier • Safety factors of 1.25 is usually used to take into account – Inlet and outlet disturbances – Disturbances created by the rotating mechanism to scrap the settled sludge and to collect the floating scum – Wind blow effects – Temperature variations – Flow short-circuiting • Design also takes into account the following: – Horizontal flow velocity (below the scour velocity) – Weir overflow rate (below a limit to avoid density currents) – Weir overflow balancing to avoid short-circuiting problems – Flooding of collection trough
  • 16. Detention time 1.5 to 2.5 hours (2.0 hr.) Overflow rate Average flow 30-50 m3/m2.day (40) – 24-32 (26) Peak flow 80-120 m3/m2.day (100) – 48-70 (60) Weir loading 125-500 m3/m.day (250) Rectangular tanks Depth 3-4.9 (4.3) Length 15-90 (24-40) Width 3-24 (4.9-9.8) Flight speed 0.6-1.2 m/min (0.9) Circular tank Diameter 3-60 (12-45) Bottom slope 1 in 16 to 1 in 6 (1 in 12) Flight speed 0.02-0.05 rpm (0.03) Primary Sedimentation Tank
  • 17. Short circuiting and hydraulic stability • Tracer studies can be used for determining short-circuiting problems • Method of influent flow distribution can also affect short circuiting Temperature difference of 1C between incoming wastewater and wastewater of the tank can cause density current Wind blowing across the top of an open sedimentation tank can cause circulation cell to form – this reduces effective volumetric capacity of the tank Surface loading rates (overflow rates) • There can be regulations prescribing limits to surface loading rates • Overflow rates must be set low enough to ensure satisfactory performance at peak rates of flow Primary Sedimentation Tank
  • 18. Detention time • Solids reaching the settling tank are susceptible to flocculation • Flocculation is aided by eddying motion of fluid within the tank • Level of flocculation depends on the time elapsed (detention time) • In cold climates because of increase in water viscosity detention time required also increases (1.38 time more HRT for 10C water that when temperature is 20C) Weir loading rates • Have little effect on efficiency of primary settlign tanks Primary sludge scum characteristics and quantities • Factors influencing are – Characteristics of untreated water (strength and freshness) – Period of sedimentation – Conditions of the deposited solids – Period between solids removal operations Primary Sedimentation Tank
  • 19. Primary Sludge • Primary clarifier is designed for a specified % removal of TSS • From knowing the TSS and flow rate of the influent sewage primary sludge generated can be quantified • TSS of the sewage is comprised of inorganic TSS, VSS and Biodegradable VSS – Biodegradable VSS contributes BOD and this is 50-60% of the total BOD for municipal sewage • Primary clarifier through removing the Biodegradable VSS contributes to BOD removal – BOD removal in the primary clarifier is typically 35-45% • If BOD removal in the primary clarifier is known, one can find out the biodegradable fraction of the primary sludge – BOD removal can be expressed as BODu removal and BODu removal as TSS equivalent removal – The fraction of biodegradable VSS in the TSS is assumed to remain the same even in the clarified effluent • If consistency of the primary sludge is known even volume of the primary sludge can be calculated
