1. PAPER BATTERY
PRESENTED BY
V.V.SATYANARAYANA,
D.SAMPATH,
E.C.E Branch,
A.A.N.M & V.V.R.S.R POLYTECHNIC,
GUDLAVALLERU, ANDHRA PRADESH.

2. BATTERY

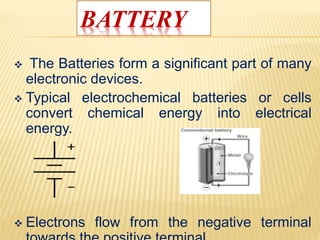

 The Batteries form a significant part of many
electronic devices.
 Typical electrochemical batteries or cells
convert chemical energy into electrical
energy.
 Electrons flow from the negative terminal

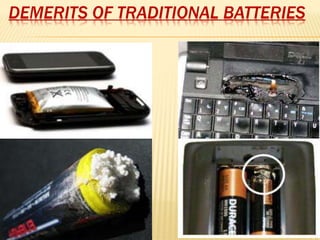

3. DEMERITS OF TRADITIONAL BATTERIES

4. WHAT IS A PAPER BATTERY?

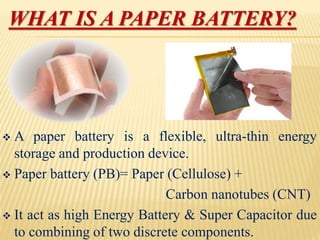

 A paper battery is a flexible, ultra-thin energy
storage and production device.
 Paper battery (PB)= Paper (Cellulose) +
Carbon nanotubes (CNT)
 It act as high Energy Battery & Super Capacitor due
to combining of two discrete components.

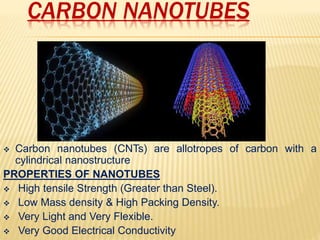

5. CARBON NANOTUBES
 Carbon nanotubes (CNTs) are allotropes of carbon with a
cylindrical nanostructure
PROPERTIES OF NANOTUBES
 High tensile Strength (Greater than Steel).
 Low Mass density & High Packing Density.
 Very Light and Very Flexible.
 Very Good Electrical Conductivity

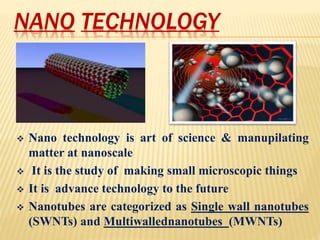

6. NANO TECHNOLOGY
 Nano technology is art of science & manupilating
matter at nanoscale
 It is the study of making small microscopic things
 It is advance technology to the future
 Nanotubes are categorized as Single wall nanotubes
(SWNTs) and Multiwallednanotubes (MWNTs)

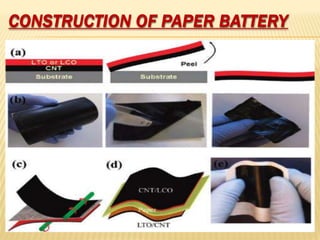

7. CONSTRUCTION OF PAPER BATTERY

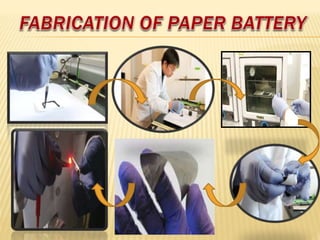

8. FABRICATION OF PAPER BATTERY

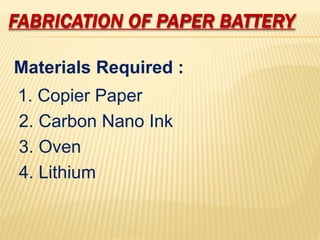

Materials Required :
1. Copier Paper
2. Carbon Nano Ink
3. Oven
4. Lithium

9. Step 1: The copier paper is taken

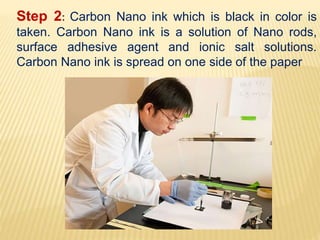

10. Step 2: Carbon Nano ink which is black in color is
taken. Carbon Nano ink is a solution of Nano rods,
surface adhesive agent and ionic salt solutions.
Carbon Nano ink is spread on one side of the paper

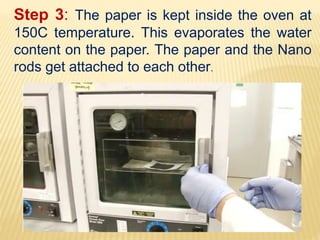

11. Step 3: The paper is kept inside the oven at
150C temperature. This evaporates the water
content on the paper. The paper and the Nano
rods get attached to each other.

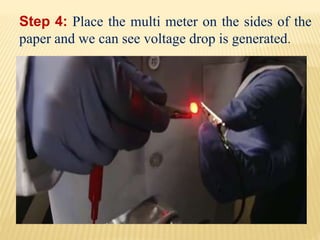

12. Step 4: Place the multi meter on the sides of the
paper and we can see voltage drop is generated.

14. FABRICATION PROCESS
PROCESS

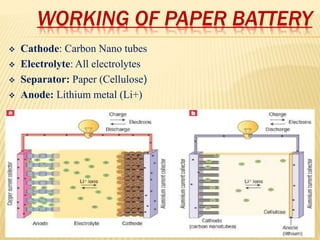

15. WORKING OF PAPER BATTERY
 Cathode: Carbon Nano tubes
 Electrolyte: All electrolytes
 Separator: Paper (Cellulose)
 Anode: Lithium metal (Li+)

16. Biodegradable & Non Toxic
Reusable & Recyclable
Durable
Rechargeable
No Leakage & Overheating
Very Light Weight & Flexible
ADVANTAGES OF PAPER BATTERY

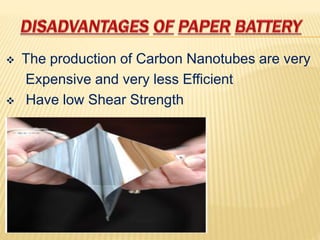

17.  The production of Carbon Nanotubes are very
Expensive and very less Efficient
 Have low Shear Strength

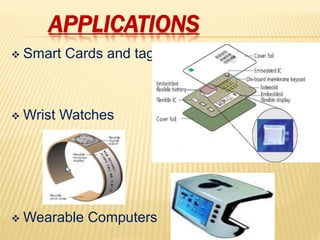

18. APPLICATIONS
 Smart Cards and tags.
 Wrist Watches
 Wearable Computers

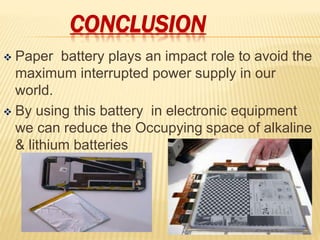

19. CONCLUSION
 Paper battery plays an impact role to avoid the
maximum interrupted power supply in our
world.
 By using this battery in electronic equipment
we can reduce the Occupying space of alkaline
& lithium batteries

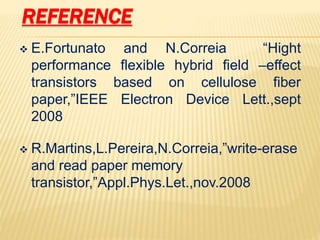

20. REFERENCE
 E.Fortunato and N.Correia “Hight
performance flexible hybrid field –effect
transistors based on cellulose fiber
paper,”IEEE Electron Device Lett.,sept
2008
 R.Martins,L.Pereira,N.Correia,”write-erase
and read paper memory
transistor,”Appl.Phys.Let.,nov.2008

21. QUERIES……?
