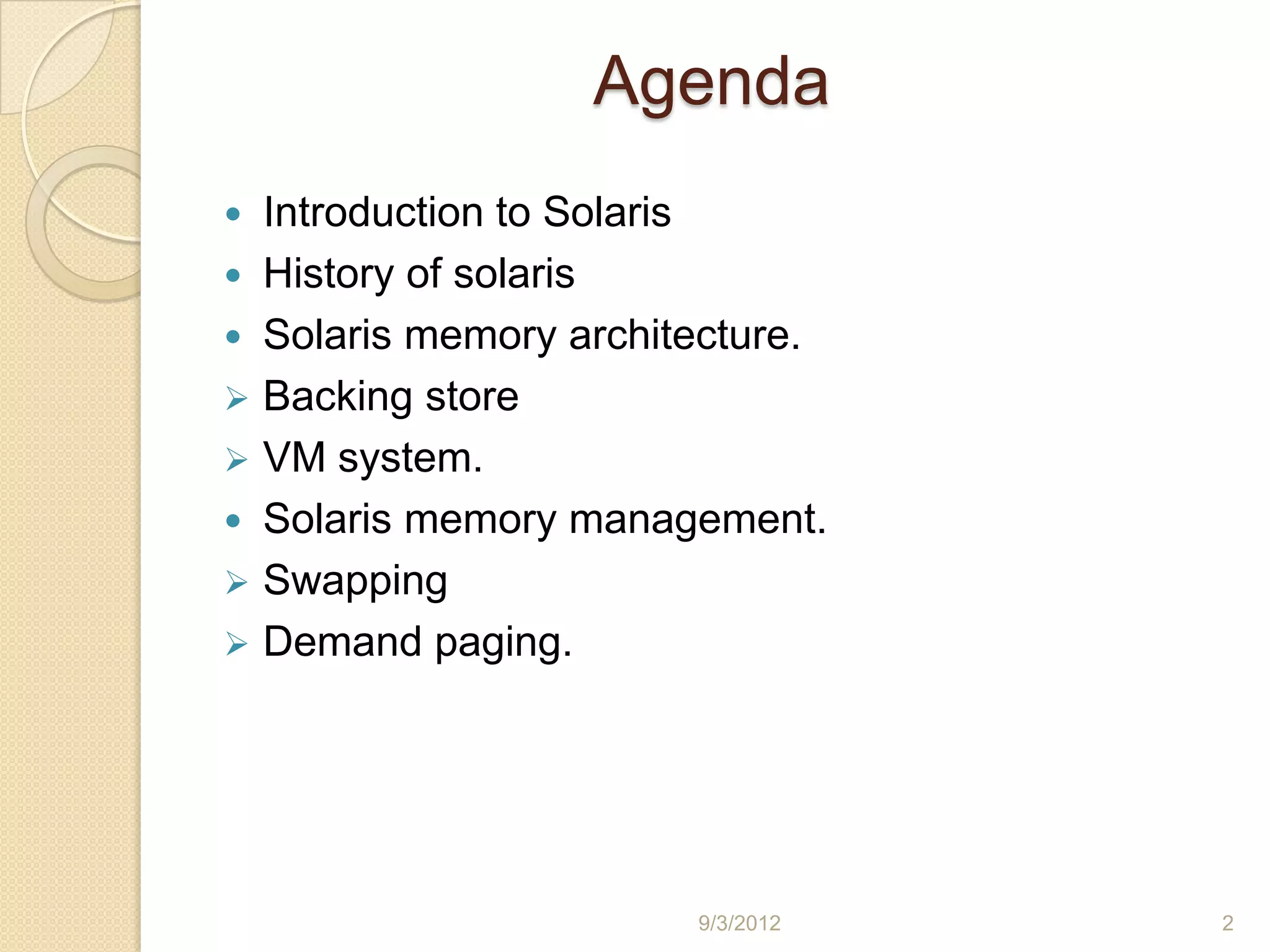

2. Agenda
Introduction to Solaris
History of solaris
Solaris memory architecture.
Backing store
VM system.
Solaris memory management.
Swapping
Demand paging.
9/3/2012 2

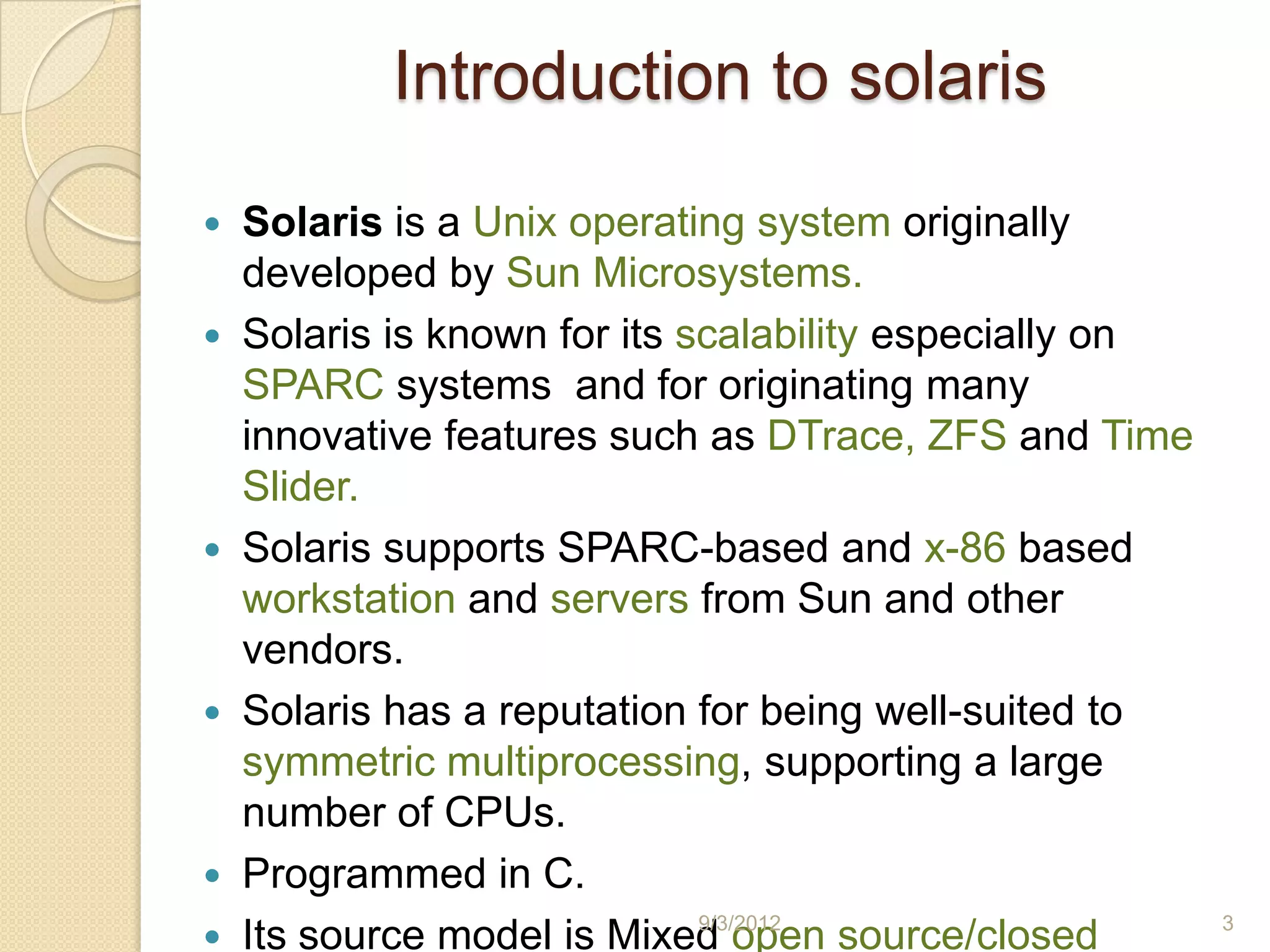

3. Introduction to solaris
Solaris is a Unix operating system originally
developed by Sun Microsystems.
Solaris is known for its scalability especially on
SPARC systems and for originating many
innovative features such as DTrace, ZFS and Time
Slider.
Solaris supports SPARC-based and x-86 based
workstation and servers from Sun and other
vendors.
Solaris has a reputation for being well-suited to
symmetric multiprocessing, supporting a large
number of CPUs.
Programmed in C.
9/3/2012 3
Its source model is Mixed open source/closed

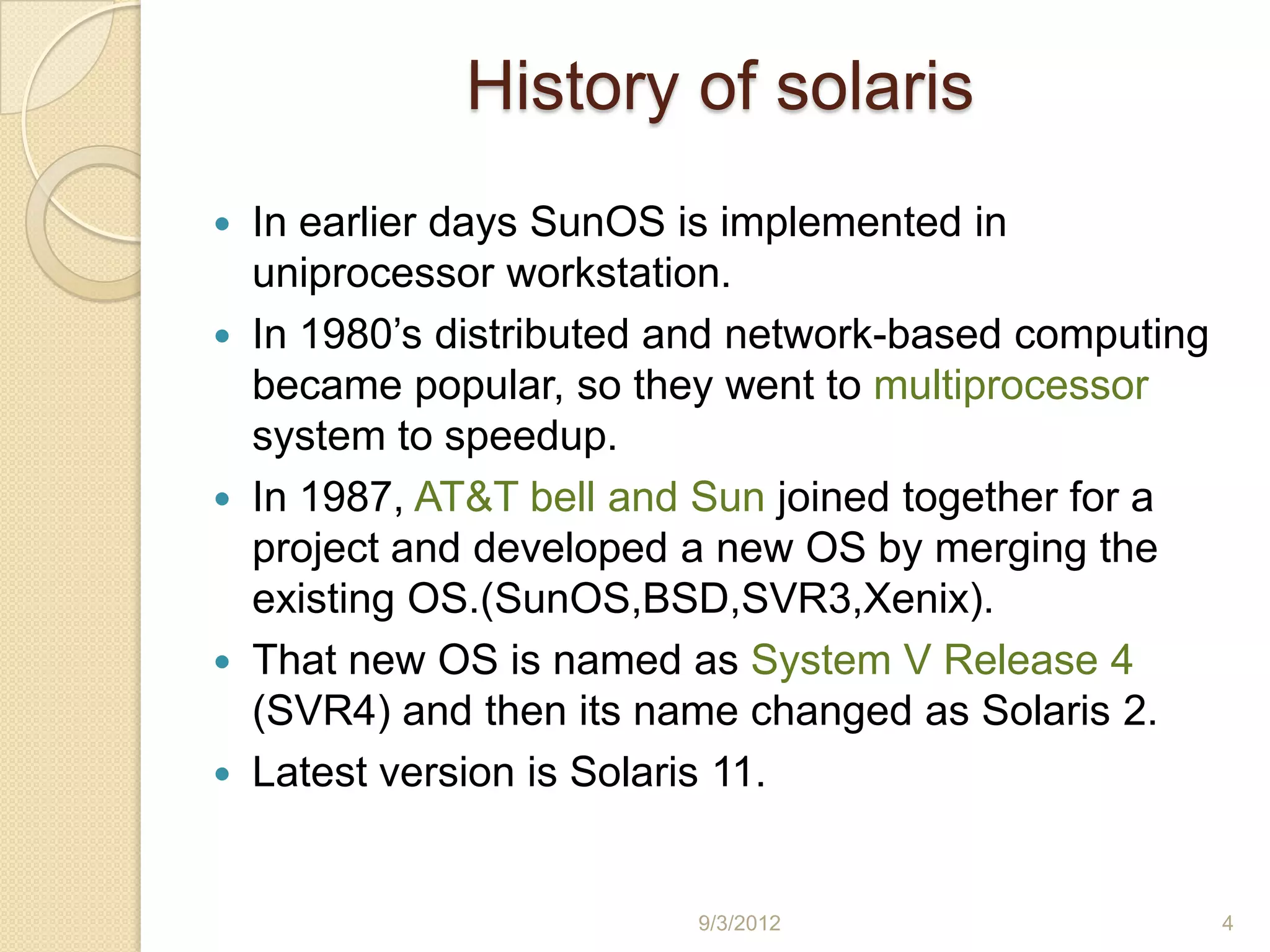

4. History of solaris
In earlier days SunOS is implemented in
uniprocessor workstation.
In 1980’s distributed and network-based computing
became popular, so they went to multiprocessor
system to speedup.
In 1987, AT&T bell and Sun joined together for a
project and developed a new OS by merging the
existing OS.(SunOS,BSD,SVR3,Xenix).
That new OS is named as System V Release 4
(SVR4) and then its name changed as Solaris 2.
Latest version is Solaris 11.
9/3/2012 4
5. Solaris Memory Architecture
Physical memory is divided into fixed-sized pieces
called pages.
The size of the page varies from platform to
platform.
The common size is 8 Kbytes.
Each page is associated with a file and offset.
The file and offset identify the backing store for the
page.
9/3/2012 5

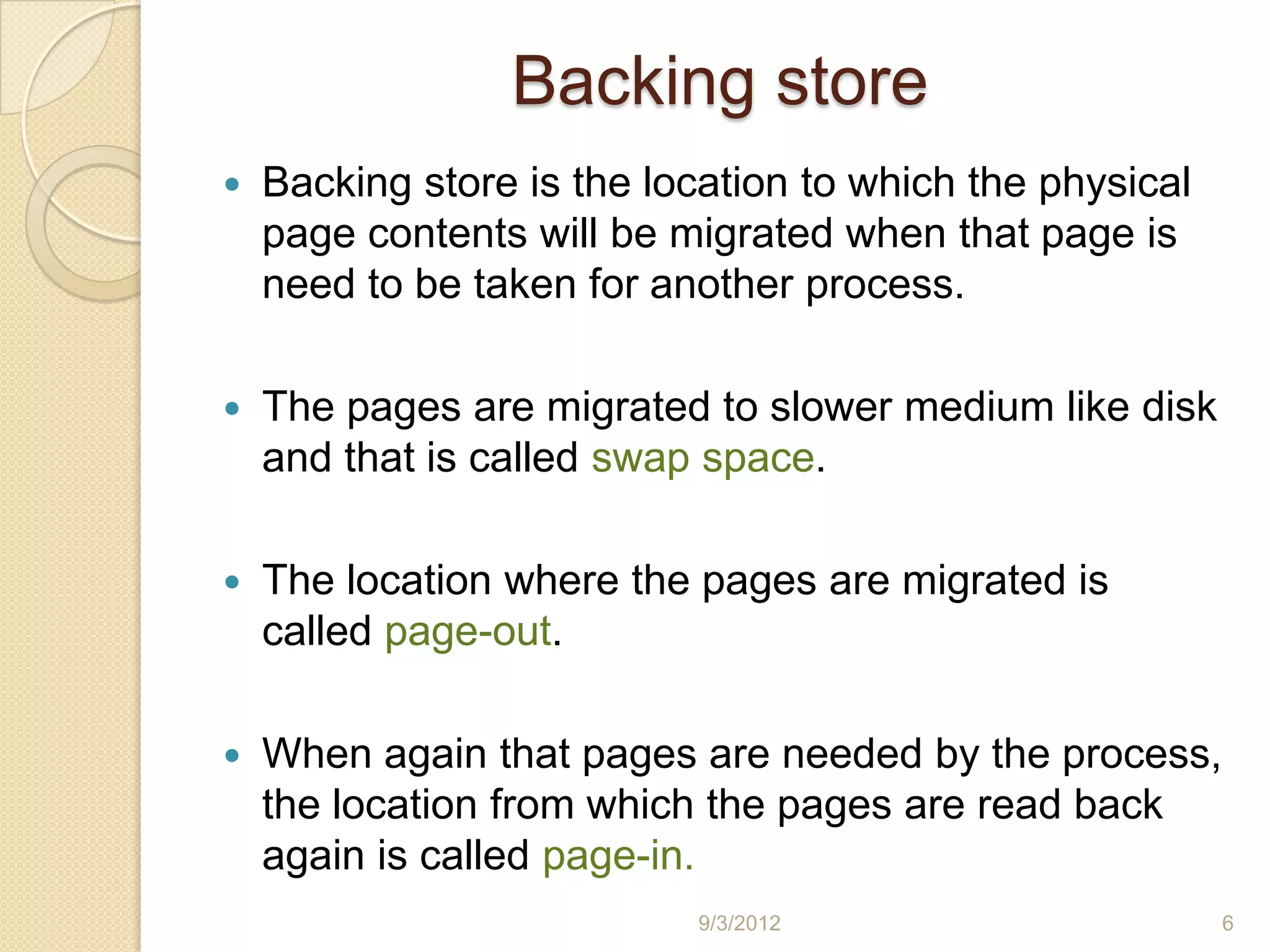

6. Backing store
Backing store is the location to which the physical
page contents will be migrated when that page is
need to be taken for another process.
The pages are migrated to slower medium like disk
and that is called swap space.
The location where the pages are migrated is
called page-out.
When again that pages are needed by the process,
the location from which the pages are read back
again is called page-in.
9/3/2012 6

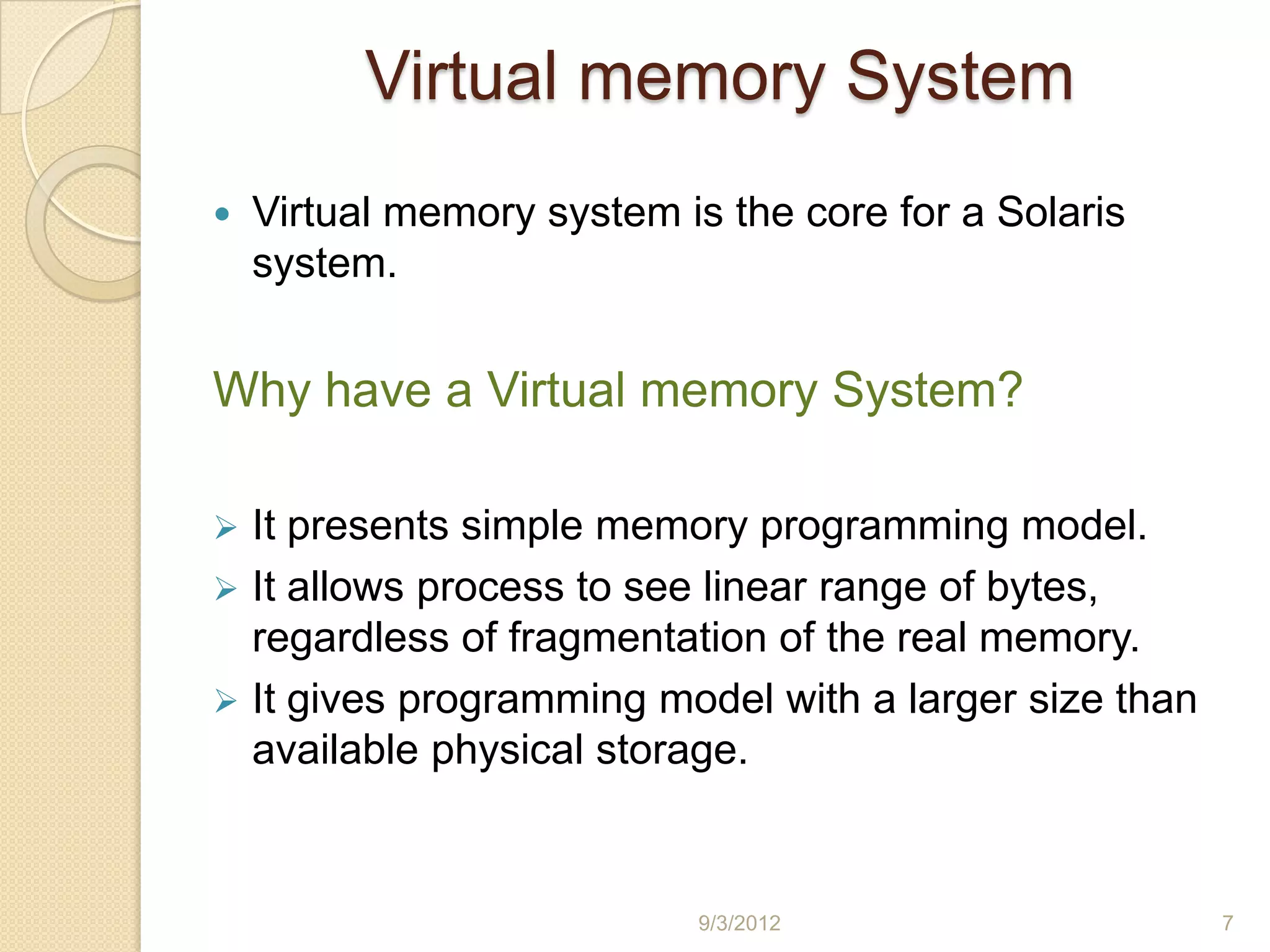

7. Virtual memory System
Virtual memory system is the core for a Solaris
system.
Why have a Virtual memory System?
It presents simple memory programming model.
It allows process to see linear range of bytes,
regardless of fragmentation of the real memory.
It gives programming model with a larger size than
available physical storage.
9/3/2012 7

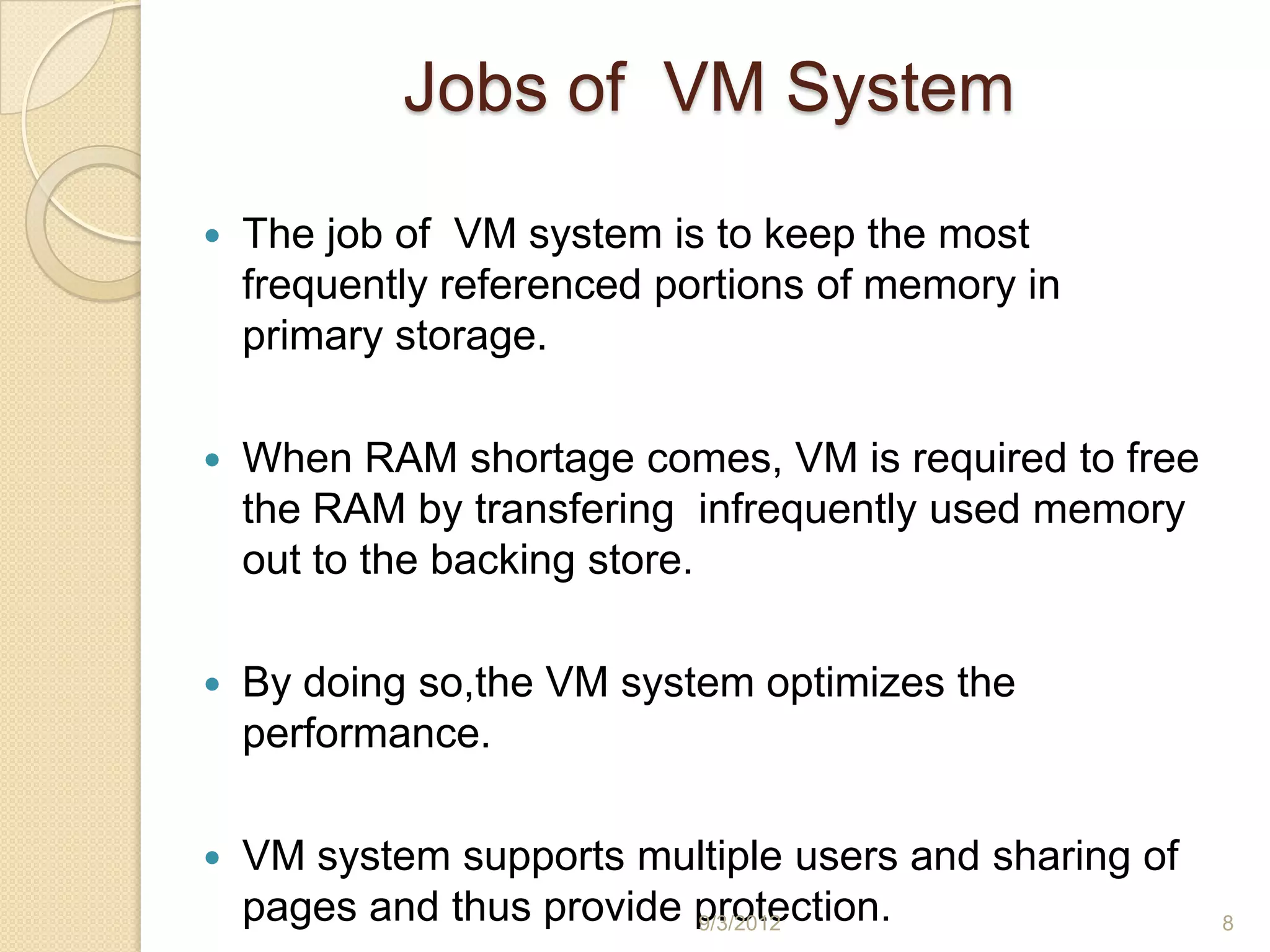

8. Jobs of VM System
The job of VM system is to keep the most
frequently referenced portions of memory in
primary storage.
When RAM shortage comes, VM is required to free
the RAM by transfering infrequently used memory
out to the backing store.
By doing so,the VM system optimizes the
performance.
VM system supports multiple users and sharing of
pages and thus provide protection.
9/3/2012 8
9. Process Memory Allocation
A process will have a linear virtual address space.
The linear Virtual address space of a process is
divided into segments like
Executable-text : Executable instructions in
binary form
Executable-Data : Initialized variables in the
executable
Heap space : Memory allocated by malloc()
Process Stack and so on……
9/3/2012 9

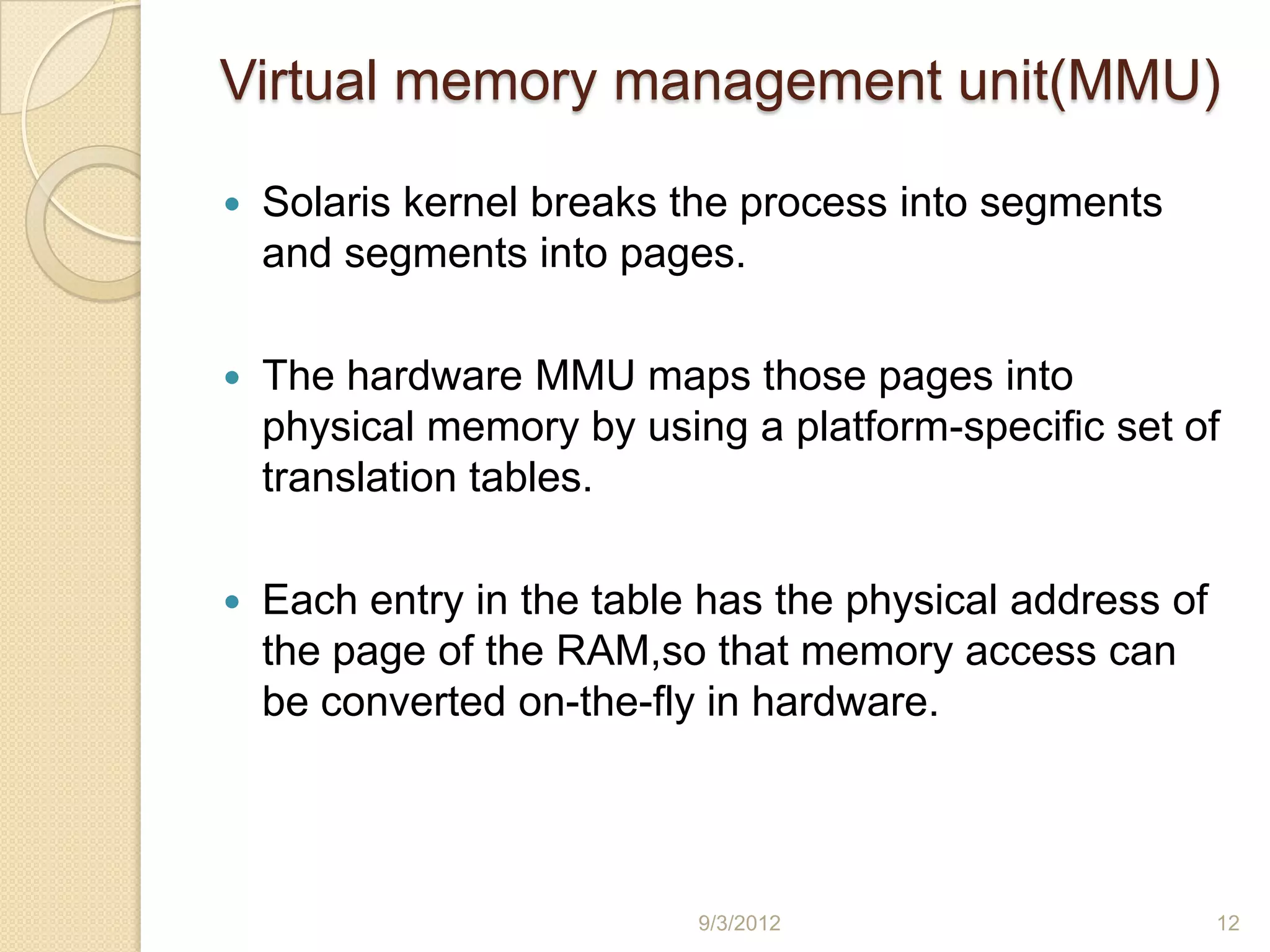

12. Virtual memory management unit(MMU)
Solaris kernel breaks the process into segments
and segments into pages.
The hardware MMU maps those pages into
physical memory by using a platform-specific set of
translation tables.
Each entry in the table has the physical address of
the page of the RAM,so that memory access can
be converted on-the-fly in hardware.
9/3/2012 12

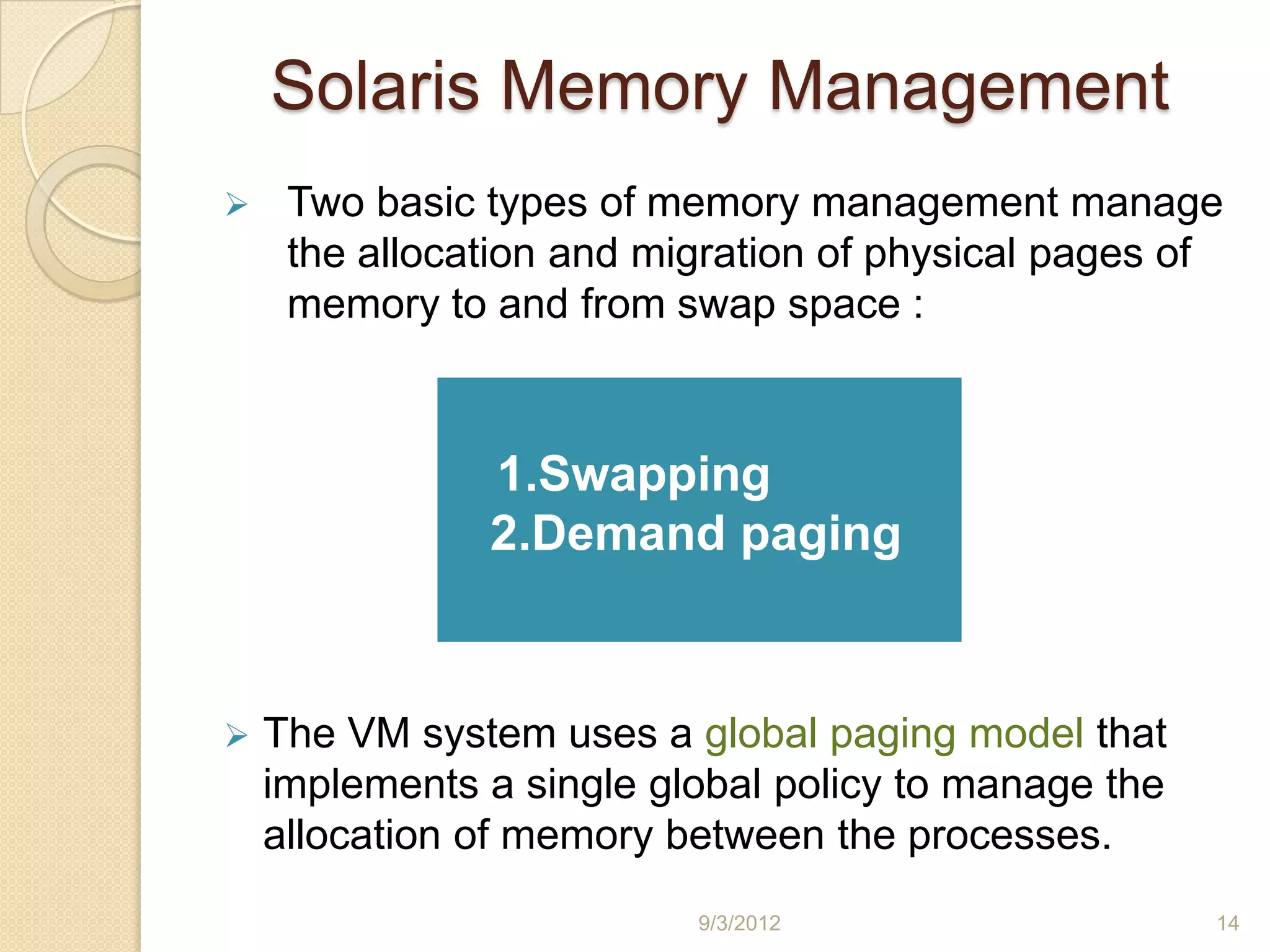

14. Solaris Memory Management
Two basic types of memory management manage
the allocation and migration of physical pages of
memory to and from swap space :
1.Swapping
2.Demand paging
The VM system uses a global paging model that
implements a single global policy to manage the
allocation of memory between the processes.
9/3/2012 14

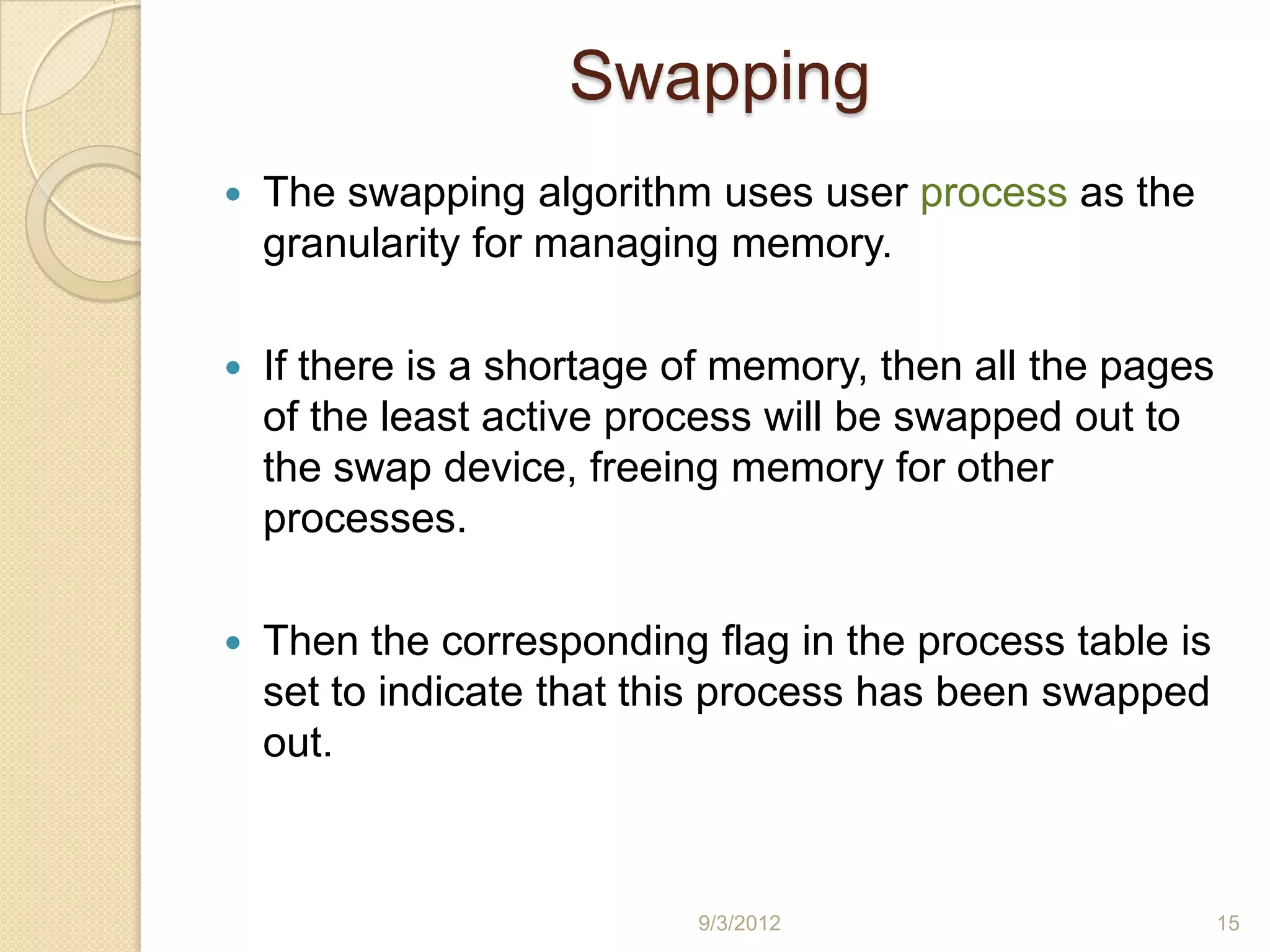

15. Swapping
The swapping algorithm uses user process as the
granularity for managing memory.
If there is a shortage of memory, then all the pages
of the least active process will be swapped out to
the swap device, freeing memory for other
processes.
Then the corresponding flag in the process table is
set to indicate that this process has been swapped
out.
9/3/2012 15

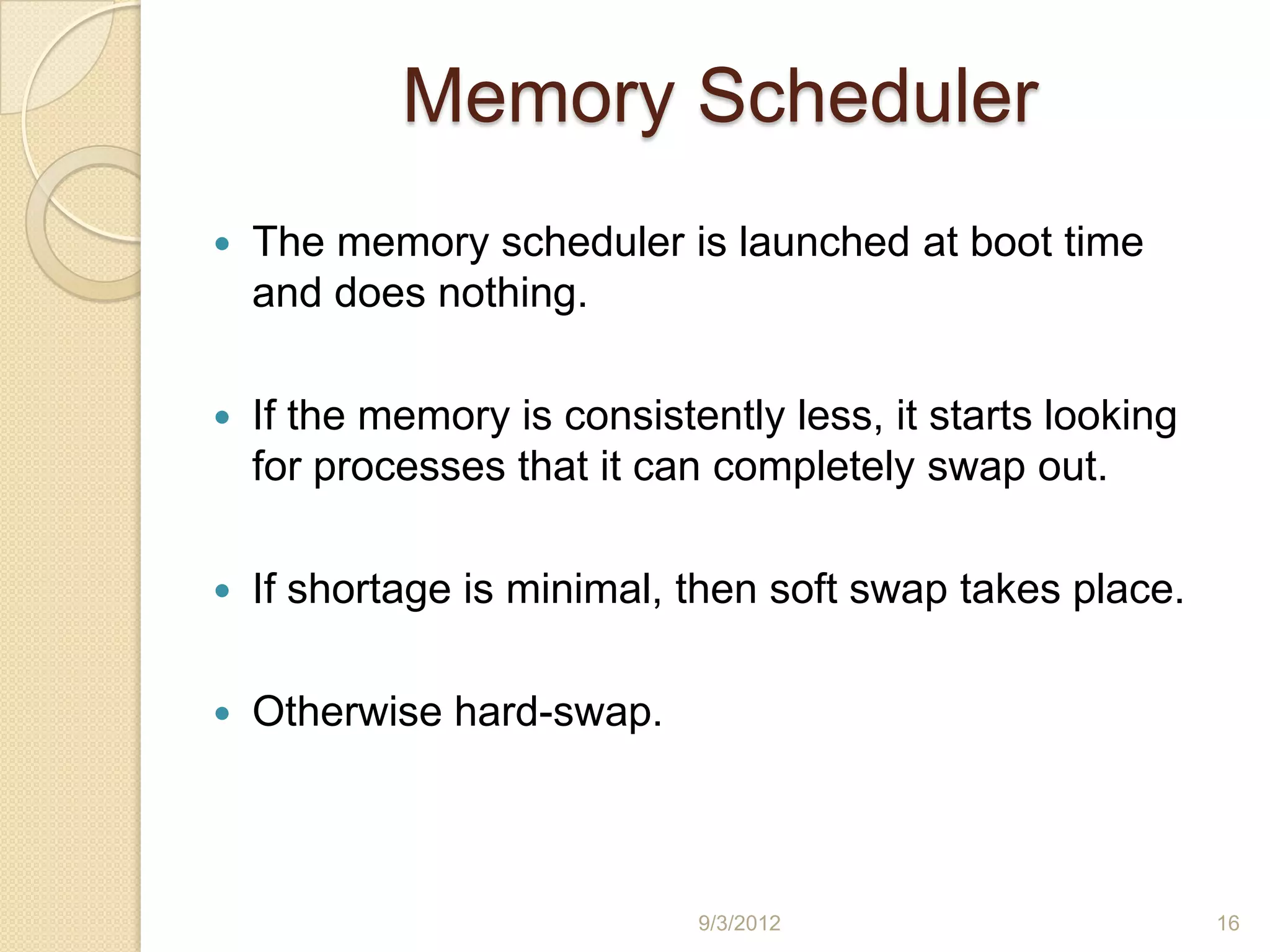

16. Memory Scheduler
The memory scheduler is launched at boot time
and does nothing.
If the memory is consistently less, it starts looking
for processes that it can completely swap out.
If shortage is minimal, then soft swap takes place.
Otherwise hard-swap.
9/3/2012 16

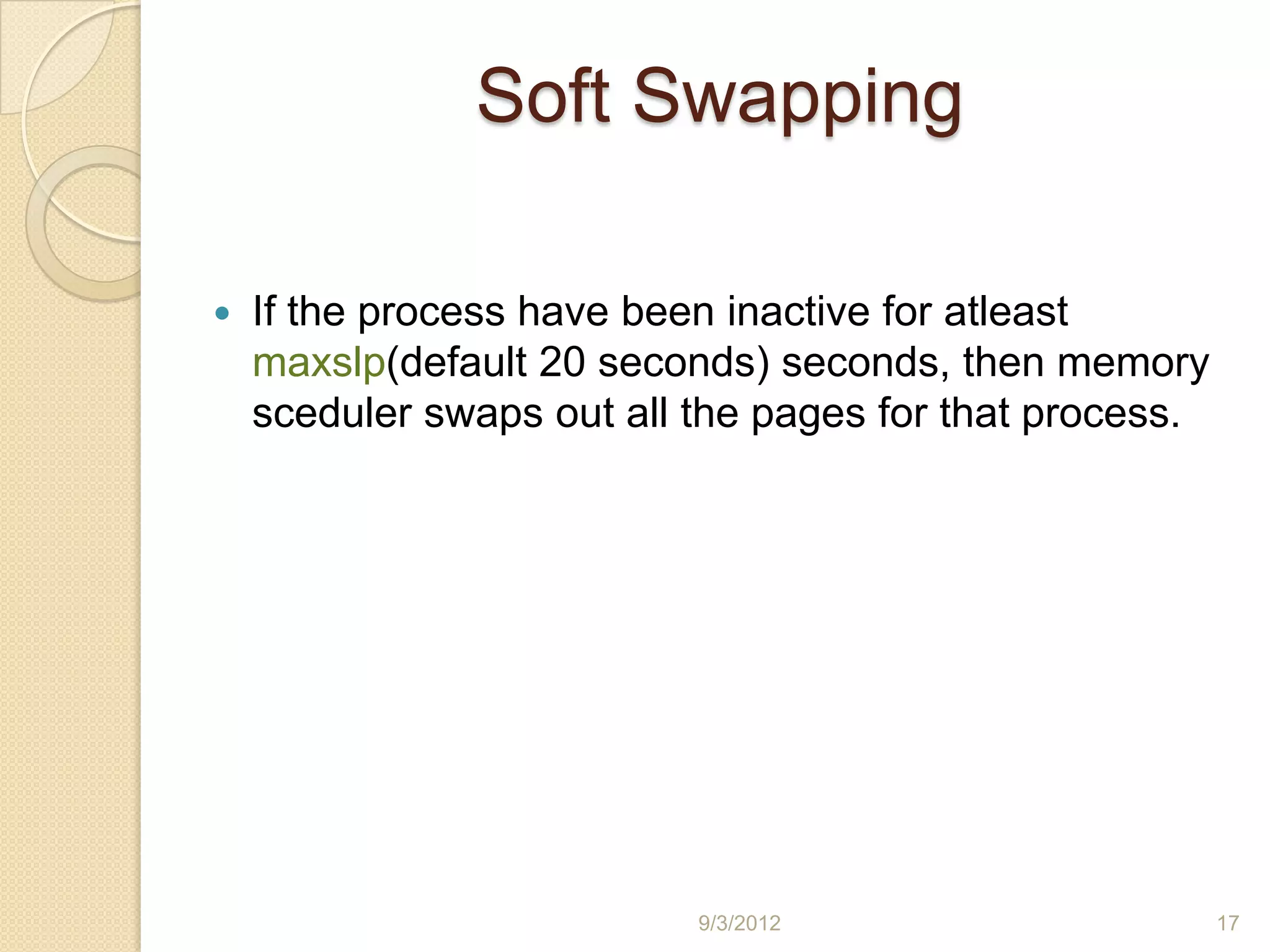

17. Soft Swapping
If the process have been inactive for atleast
maxslp(default 20 seconds) seconds, then memory
sceduler swaps out all the pages for that process.
9/3/2012 17

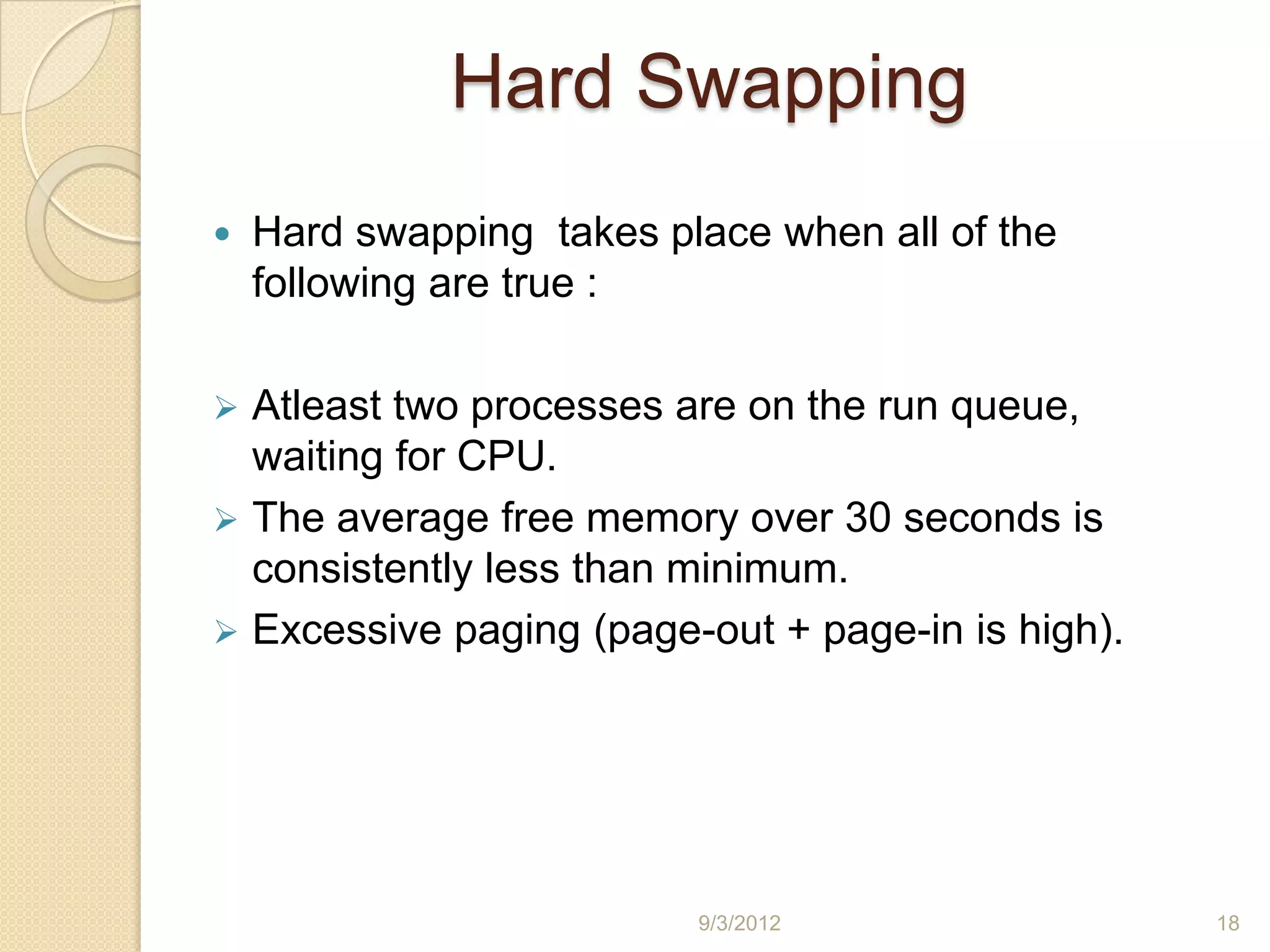

18. Hard Swapping
Hard swapping takes place when all of the
following are true :
Atleast two processes are on the run queue,
waiting for CPU.
The average free memory over 30 seconds is
consistently less than minimum.
Excessive paging (page-out + page-in is high).
9/3/2012 18

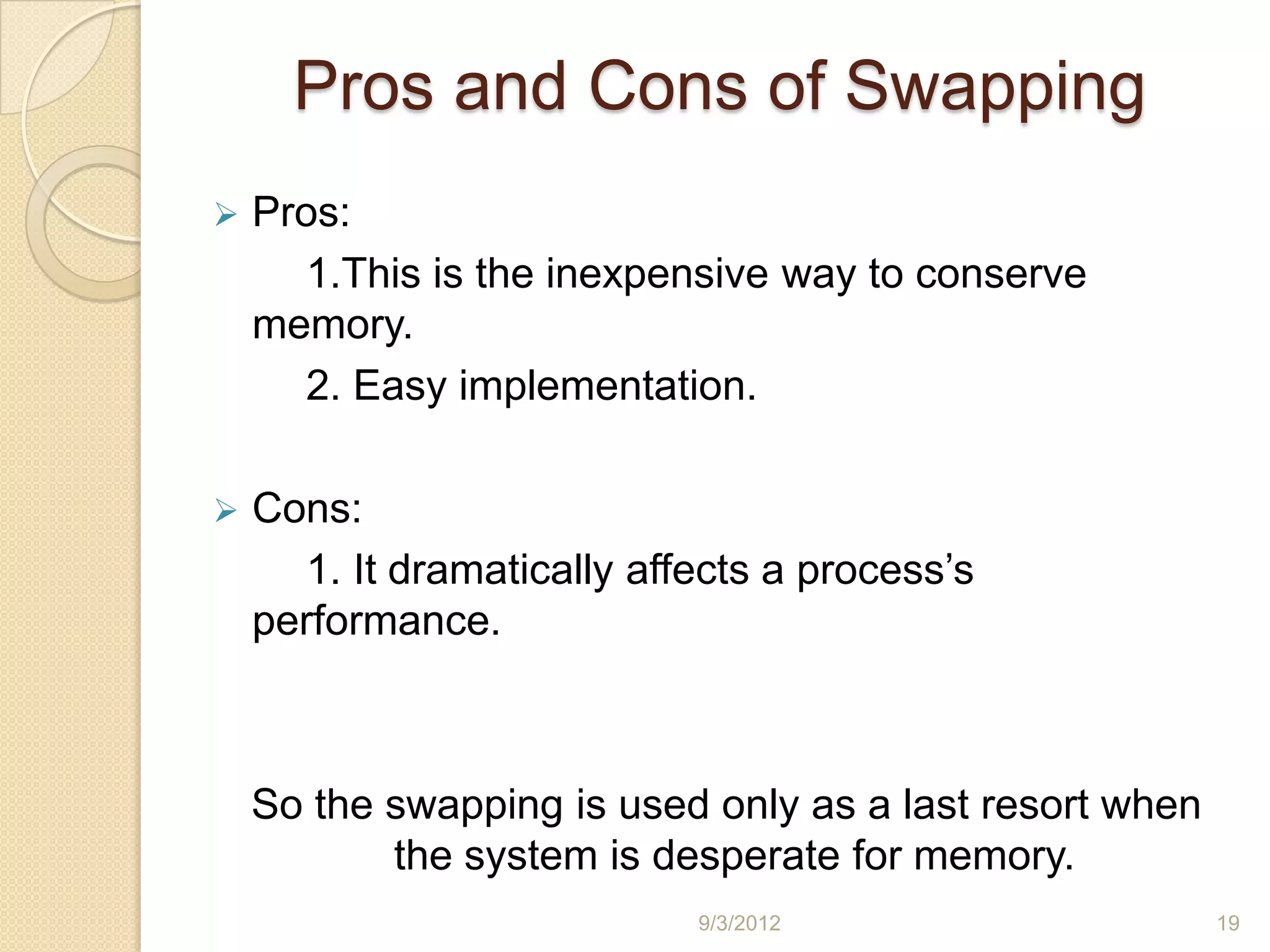

19. Pros and Cons of Swapping
Pros:
1.This is the inexpensive way to conserve
memory.
2. Easy implementation.
Cons:
1. It dramatically affects a process’s
performance.
So the swapping is used only as a last resort when
the system is desperate for memory.
9/3/2012 19
20. Demand paging
The Demand paging model uses a page as the
granularity for memory management.
Pages of memory are allocated on demand.
When memory is first referenced, a page fault
occurs and memory is allocated one page at a
time.

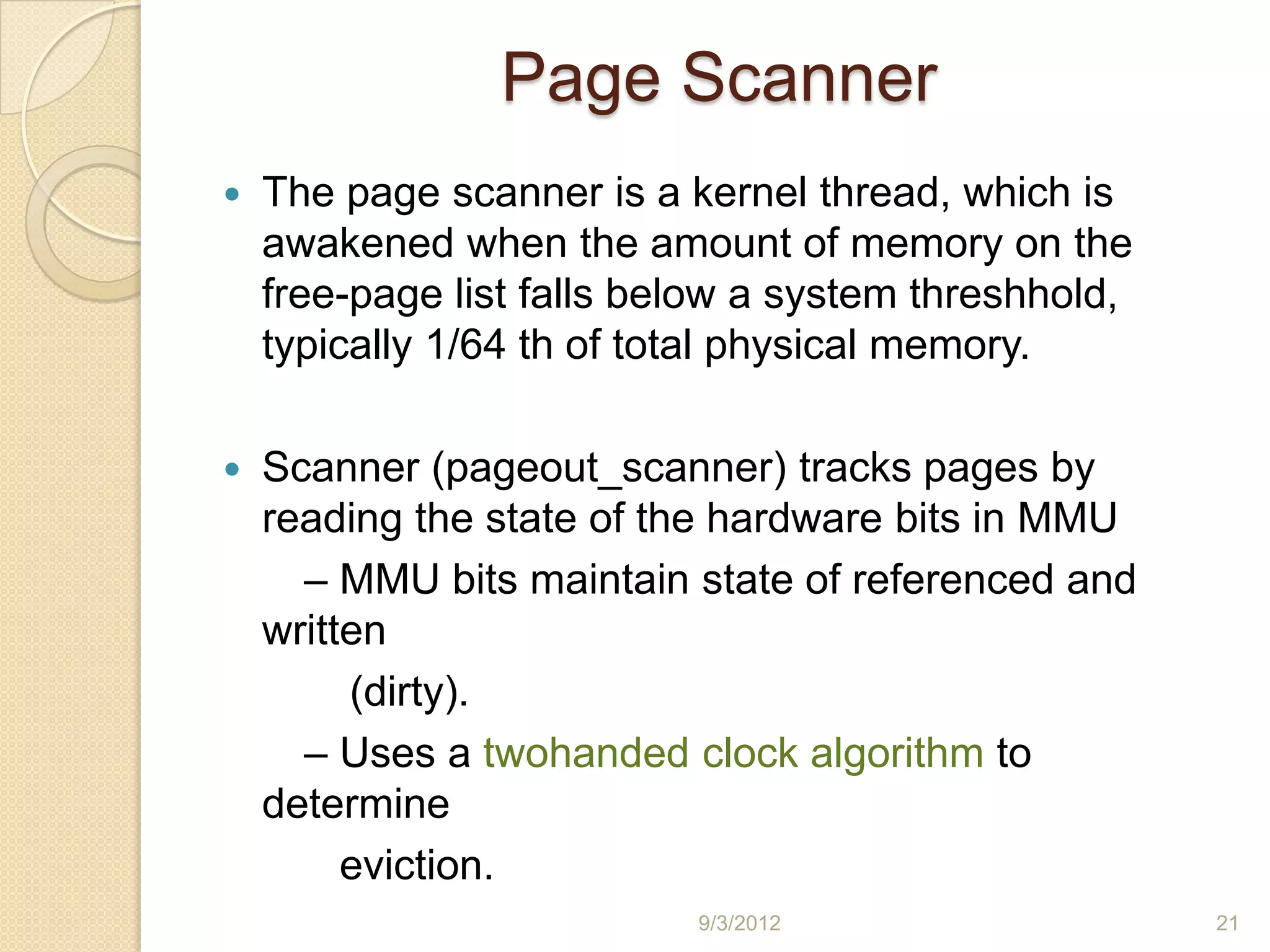

The page scanner and the virtual memory page
fault mechanism are the core of the demand paged
memory management.
9/3/2012 20
21. Page Scanner
The page scanner is a kernel thread, which is
awakened when the amount of memory on the
free-page list falls below a system threshhold,
typically 1/64 th of total physical memory.
Scanner (pageout_scanner) tracks pages by
reading the state of the hardware bits in MMU
– MMU bits maintain state of referenced and
written
(dirty).
– Uses a twohanded clock algorithm to
determine
eviction.
9/3/2012 21

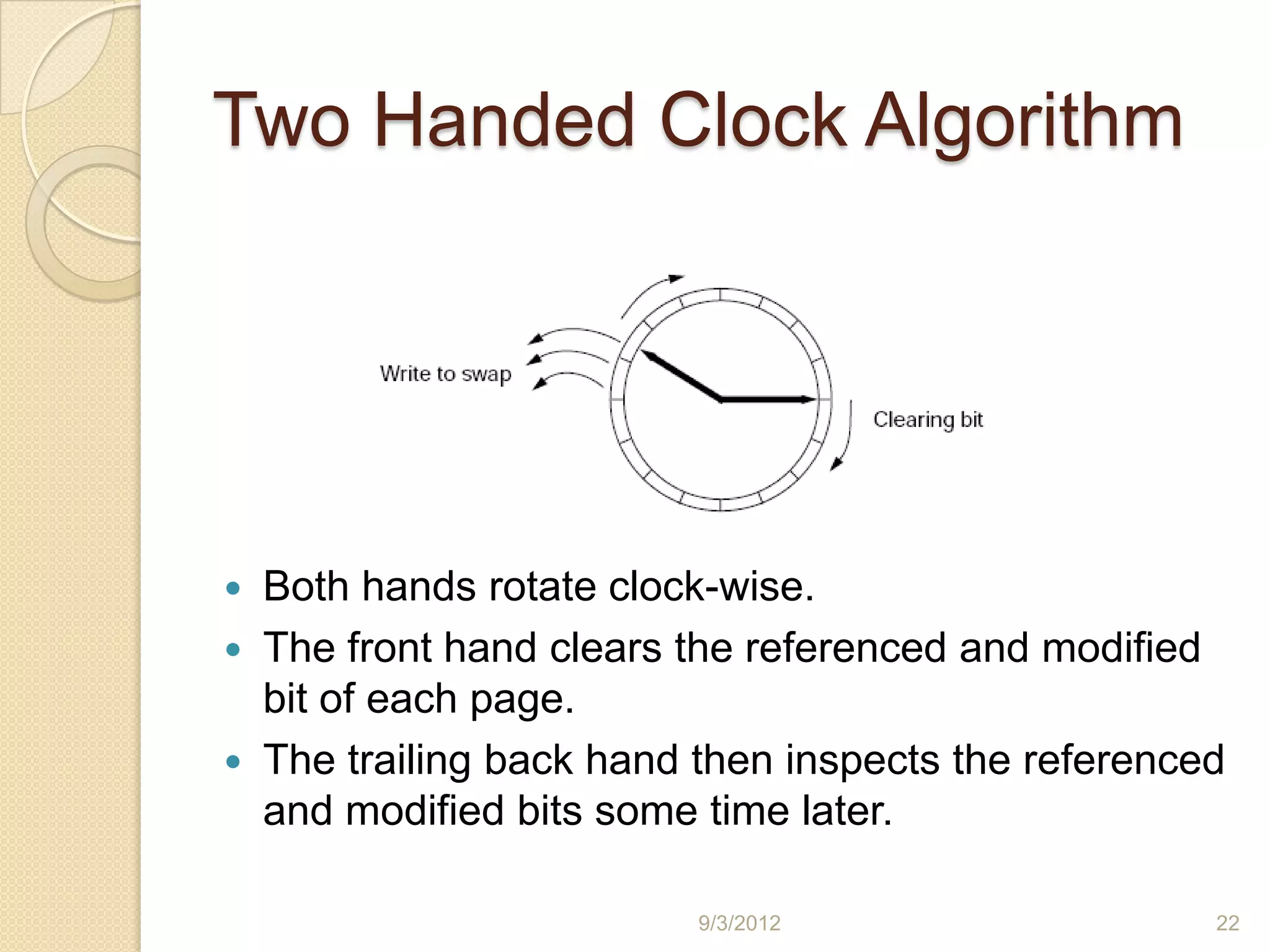

22. Two Handed Clock Algorithm
Both hands rotate clock-wise.
The front hand clears the referenced and modified
bit of each page.
The trailing back hand then inspects the referenced
and modified bits some time later.
9/3/2012 22

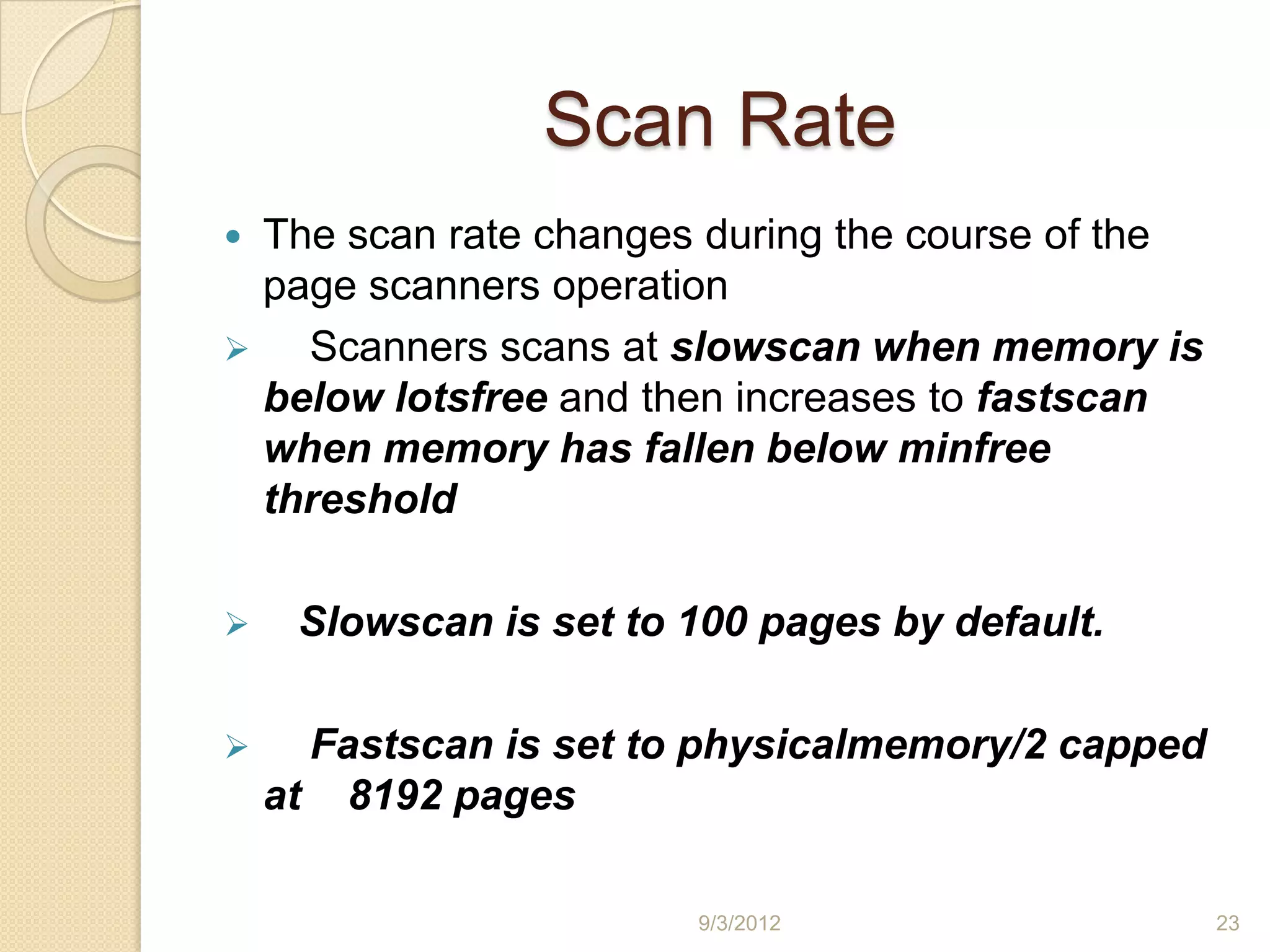

23. Scan Rate
The scan rate changes during the course of the
page scanners operation
Scanners scans at slowscan when memory is
below lotsfree and then increases to fastscan
when memory has fallen below minfree
threshold
Slowscan is set to 100 pages by default.
Fastscan is set to physicalmemory/2 capped
at 8192 pages
9/3/2012 23

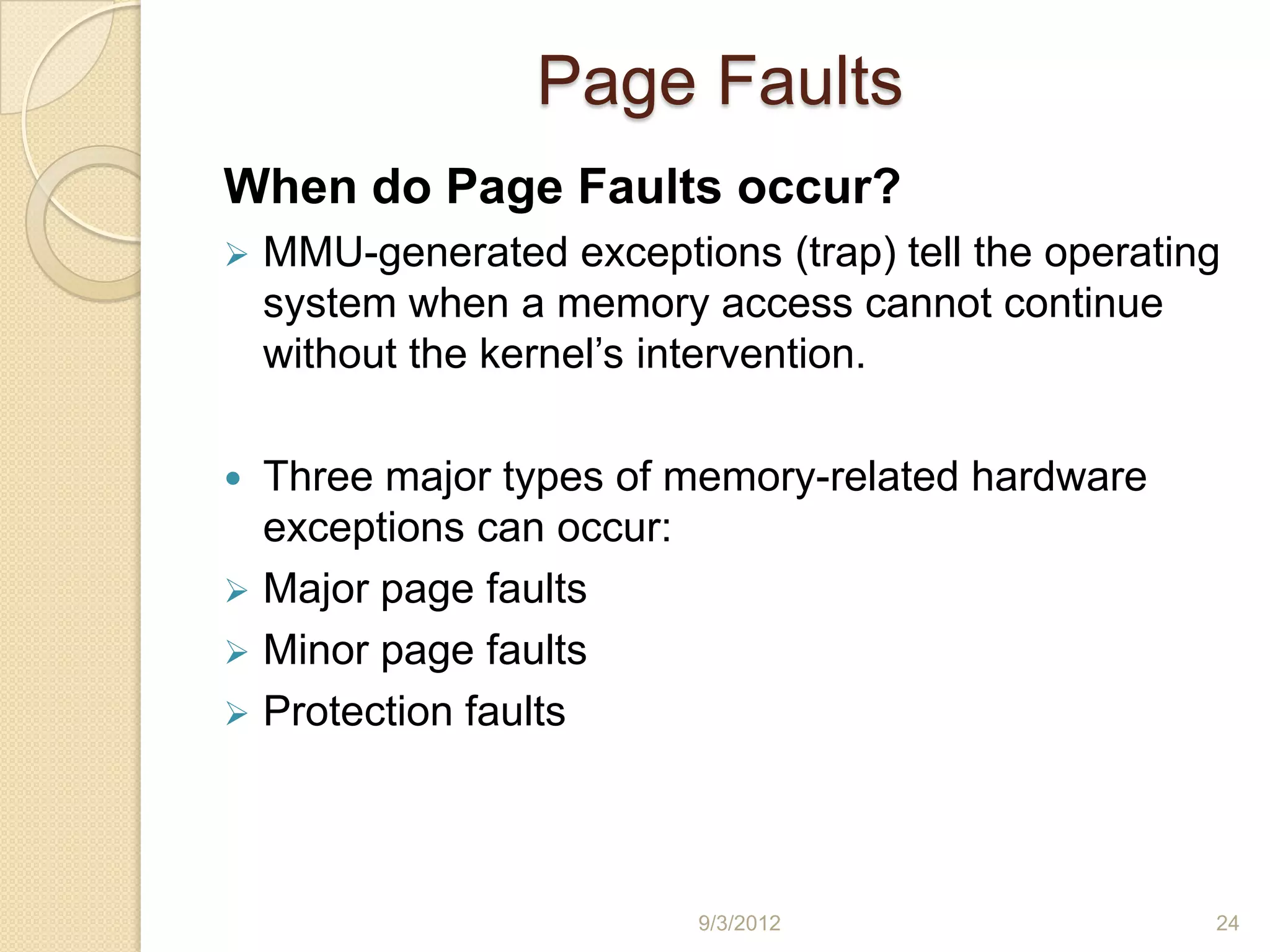

24. Page Faults
When do Page Faults occur?
MMU-generated exceptions (trap) tell the operating
system when a memory access cannot continue
without the kernel’s intervention.
Three major types of memory-related hardware
exceptions can occur:
Major page faults
Minor page faults
Protection faults
9/3/2012 24

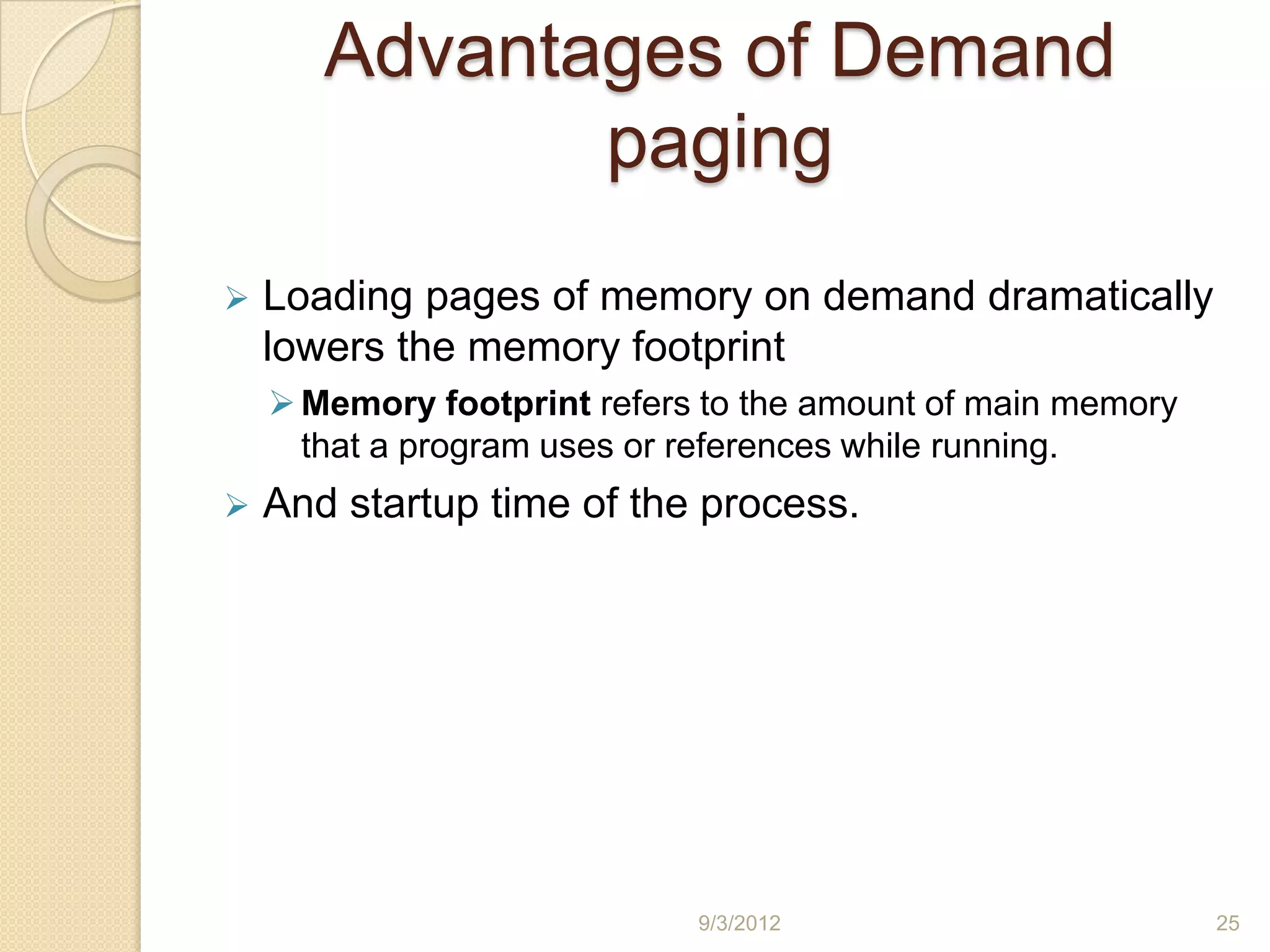

25. Advantages of Demand
paging
Loading pages of memory on demand dramatically
lowers the memory footprint
Memory footprint refers to the amount of main memory
that a program uses or references while running.
And startup time of the process.
9/3/2012 25

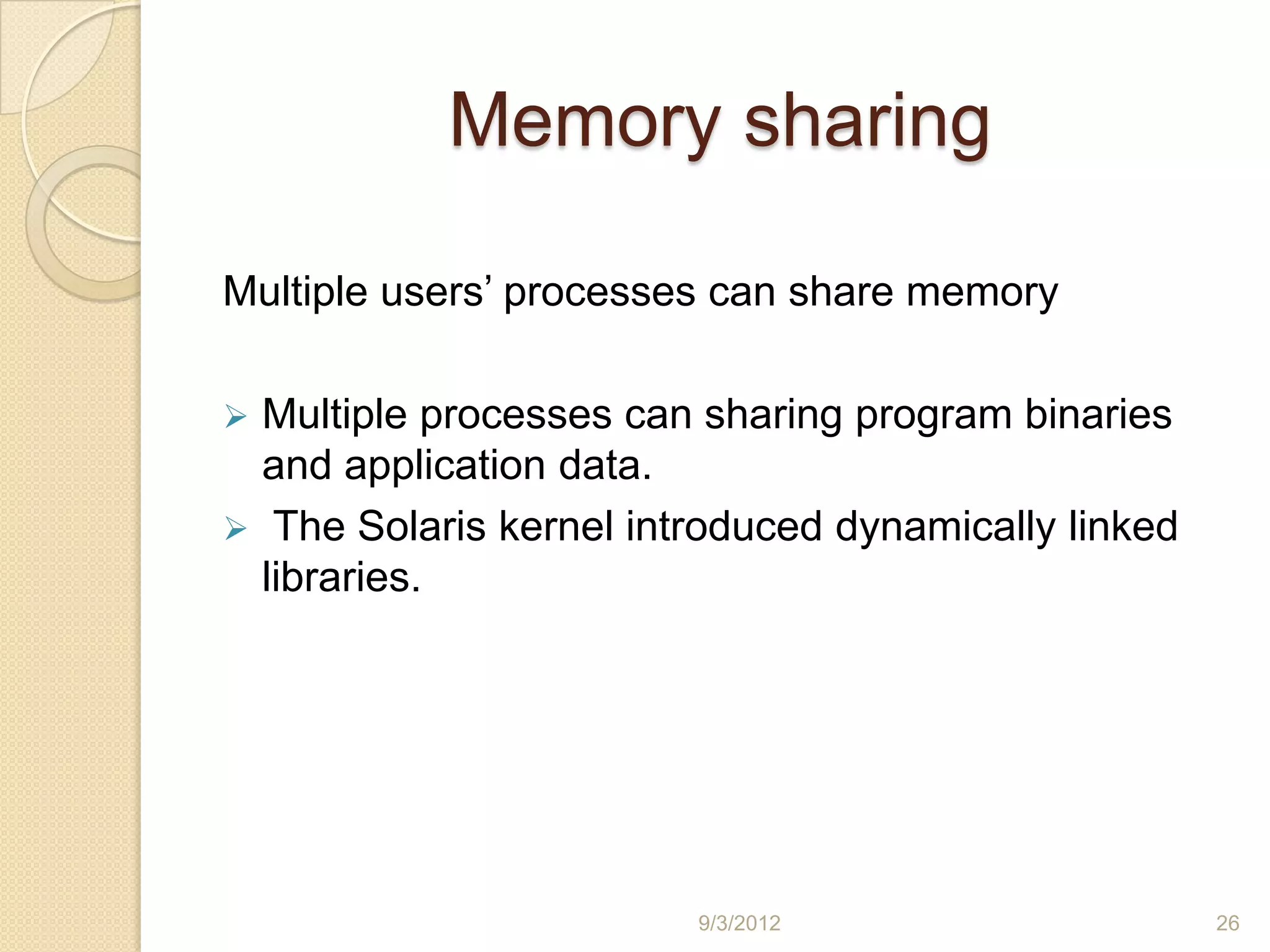

26. Memory sharing
Multiple users’ processes can share memory
Multiple processes can sharing program binaries
and application data.
The Solaris kernel introduced dynamically linked
libraries.
9/3/2012 26
27. Memory protection
A user’s process must not be able access the
memory of another process.
A program fault in one program could cause
another program (or the entire operating system) to
fail.
The protection is implemented by using protection
modes read, write, execute and boundary
checking.
9/3/2012 27

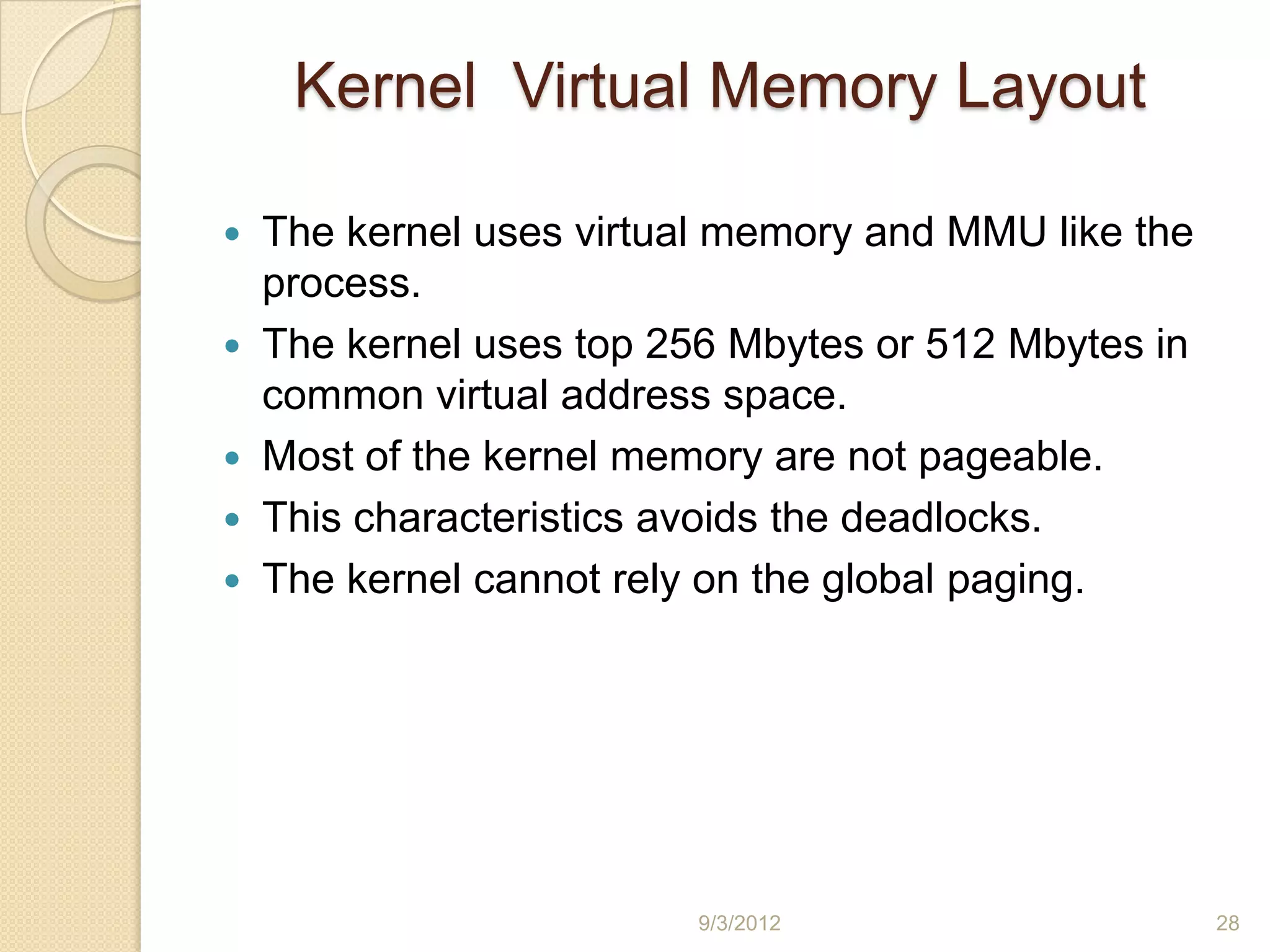

28. Kernel Virtual Memory Layout
The kernel uses virtual memory and MMU like the
process.
The kernel uses top 256 Mbytes or 512 Mbytes in
common virtual address space.
Most of the kernel memory are not pageable.
This characteristics avoids the deadlocks.
The kernel cannot rely on the global paging.
9/3/2012 28

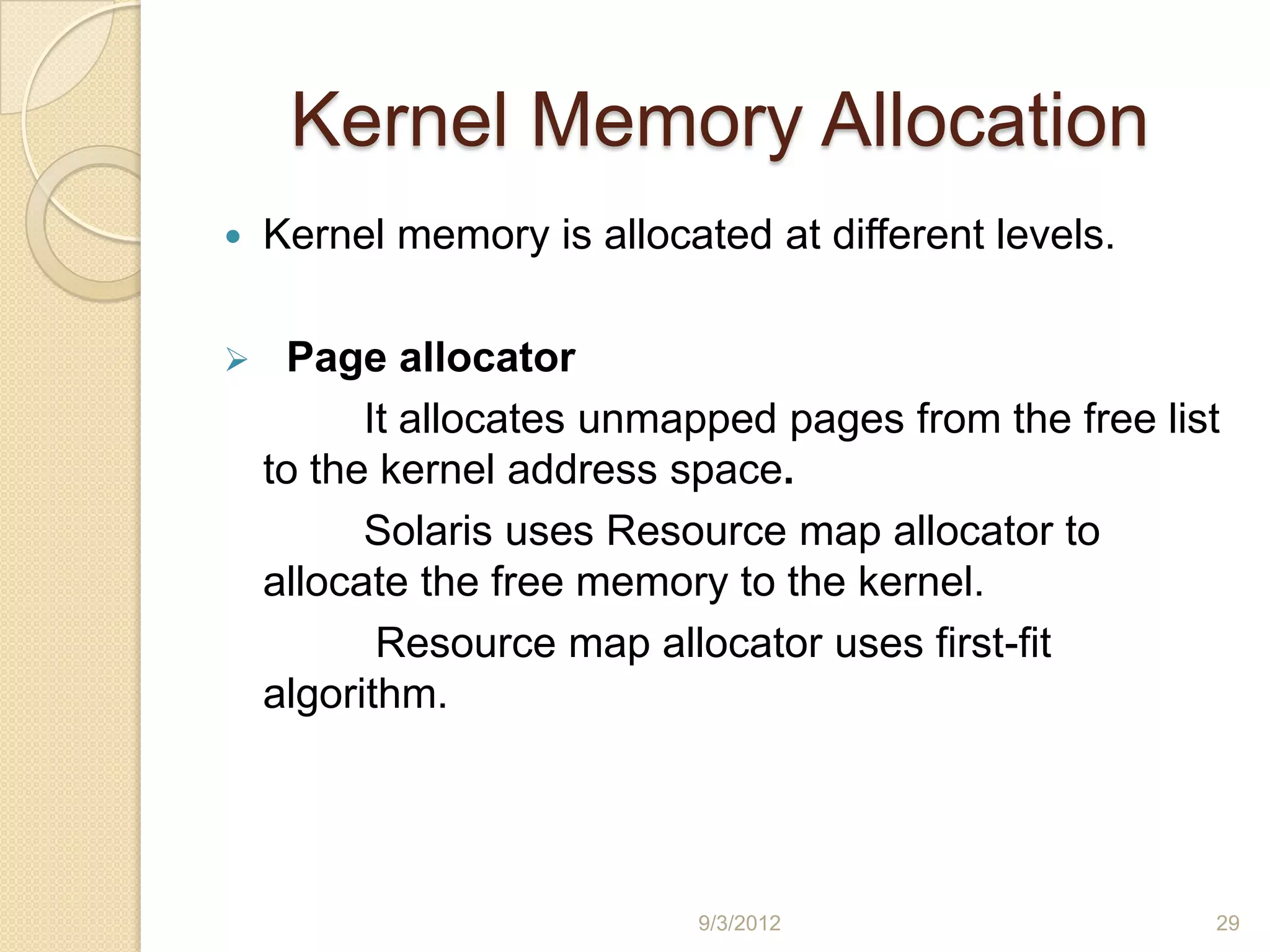

29. Kernel Memory Allocation
Kernel memory is allocated at different levels.
Page allocator
It allocates unmapped pages from the free list
to the kernel address space.
Solaris uses Resource map allocator to
allocate the free memory to the kernel.
Resource map allocator uses first-fit
algorithm.
9/3/2012 29

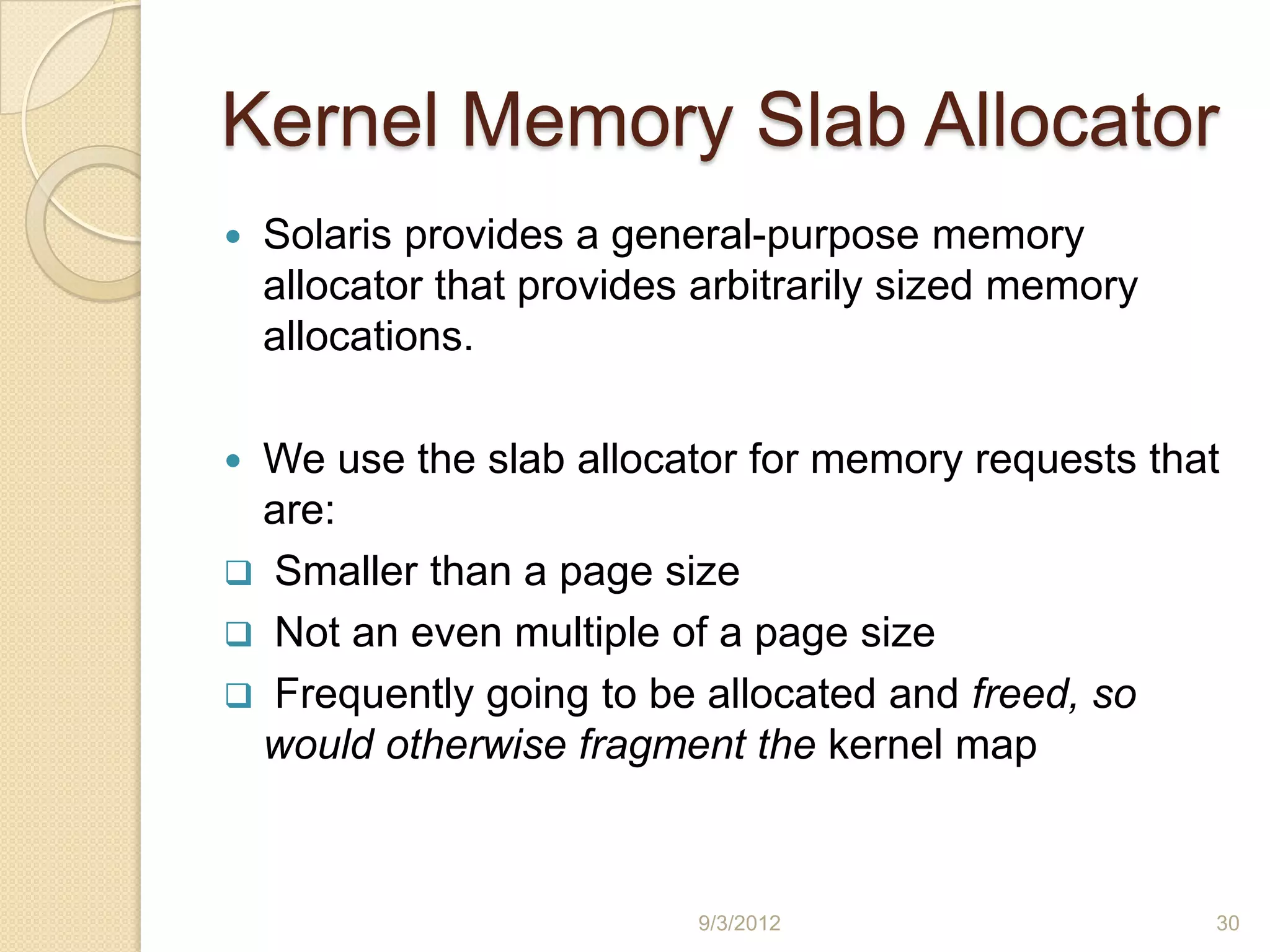

30. Kernel Memory Slab Allocator
Solaris provides a general-purpose memory
allocator that provides arbitrarily sized memory
allocations.
We use the slab allocator for memory requests that
are:
Smaller than a page size
Not an even multiple of a page size
Frequently going to be allocated and freed, so
would otherwise fragment the kernel map
9/3/2012 30

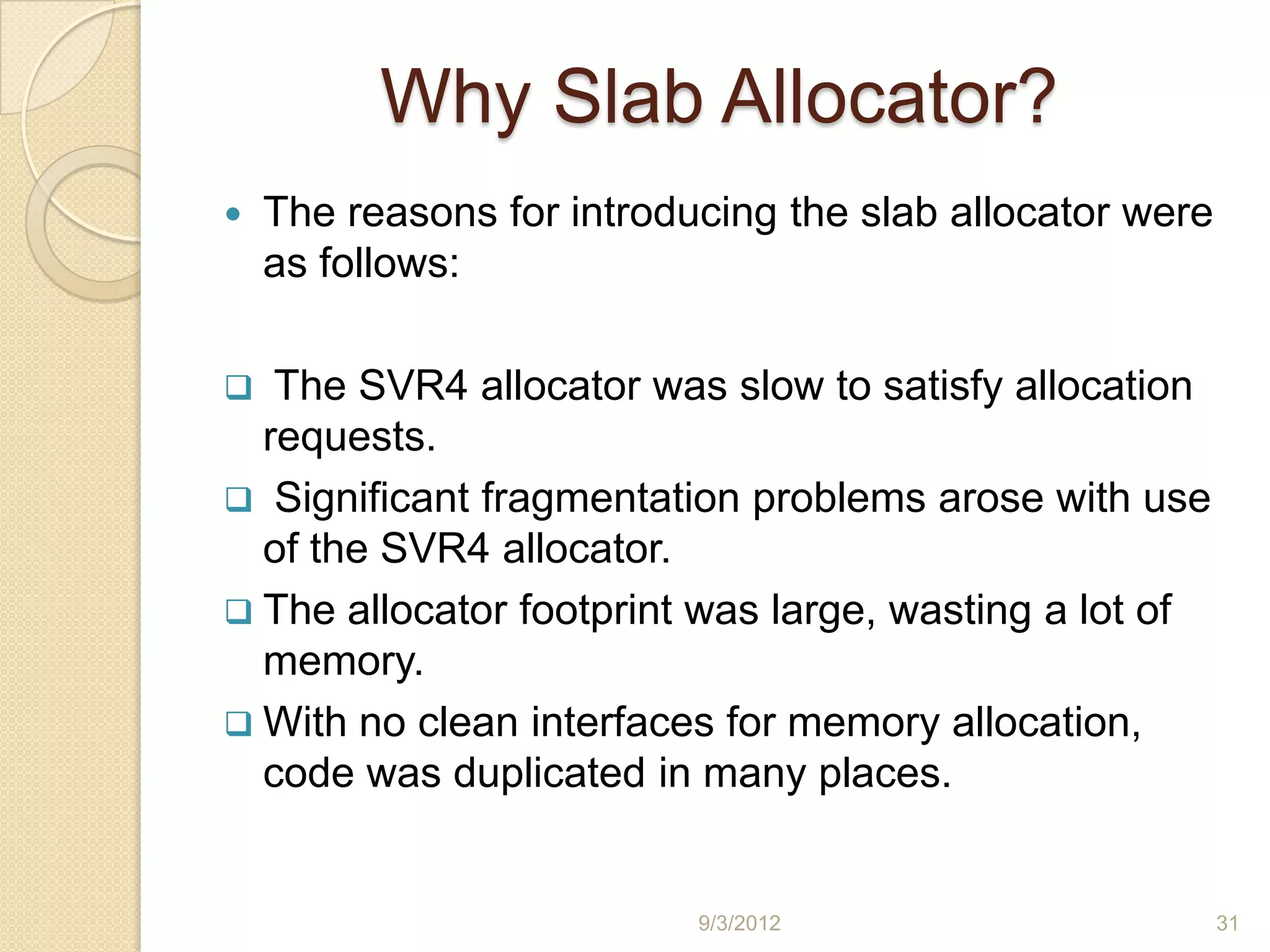

31. Why Slab Allocator?
The reasons for introducing the slab allocator were
as follows:
The SVR4 allocator was slow to satisfy allocation
requests.
Significant fragmentation problems arose with use
of the SVR4 allocator.
The allocator footprint was large, wasting a lot of
memory.
With no clean interfaces for memory allocation,
code was duplicated in many places.
9/3/2012 31

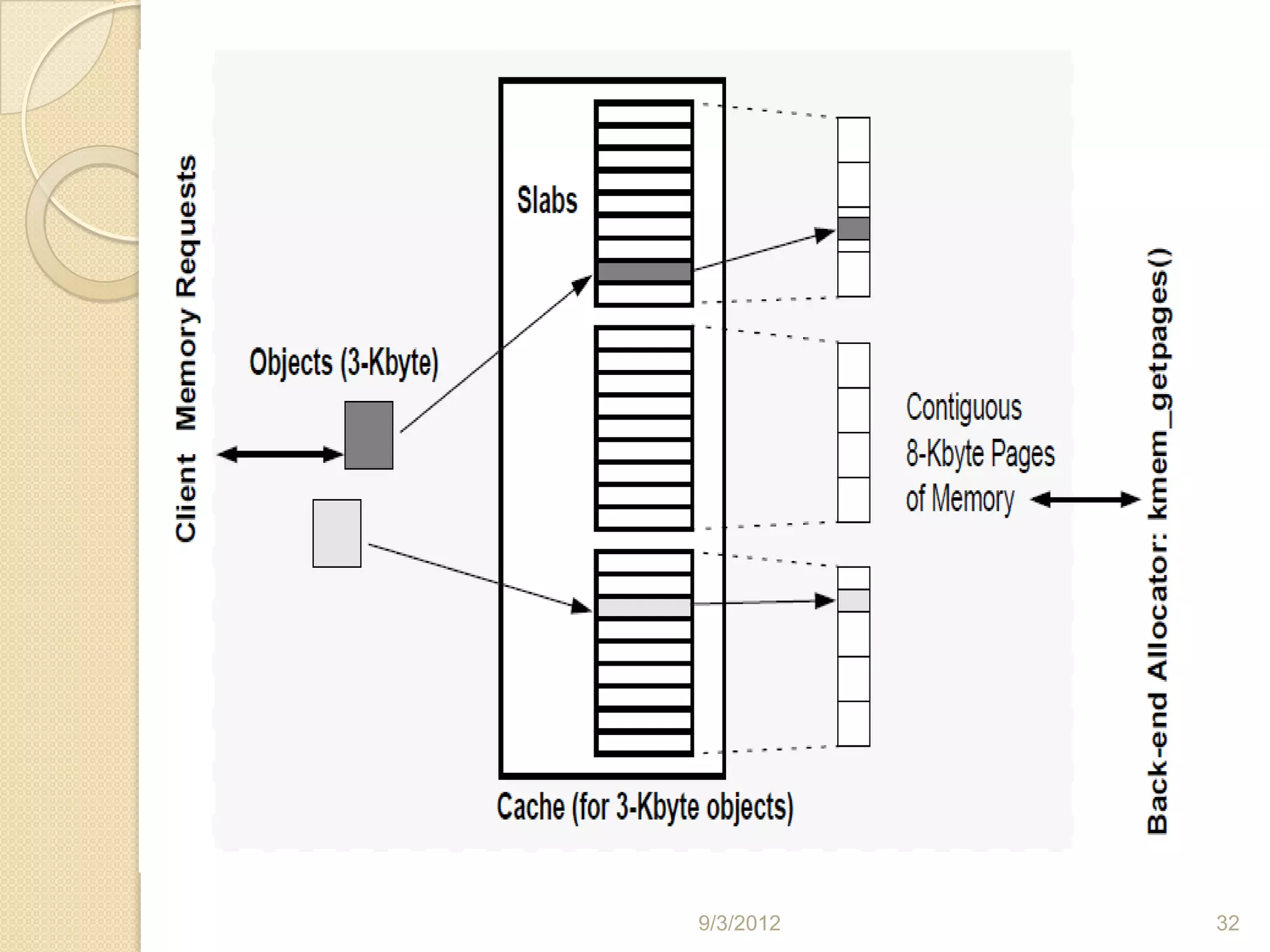

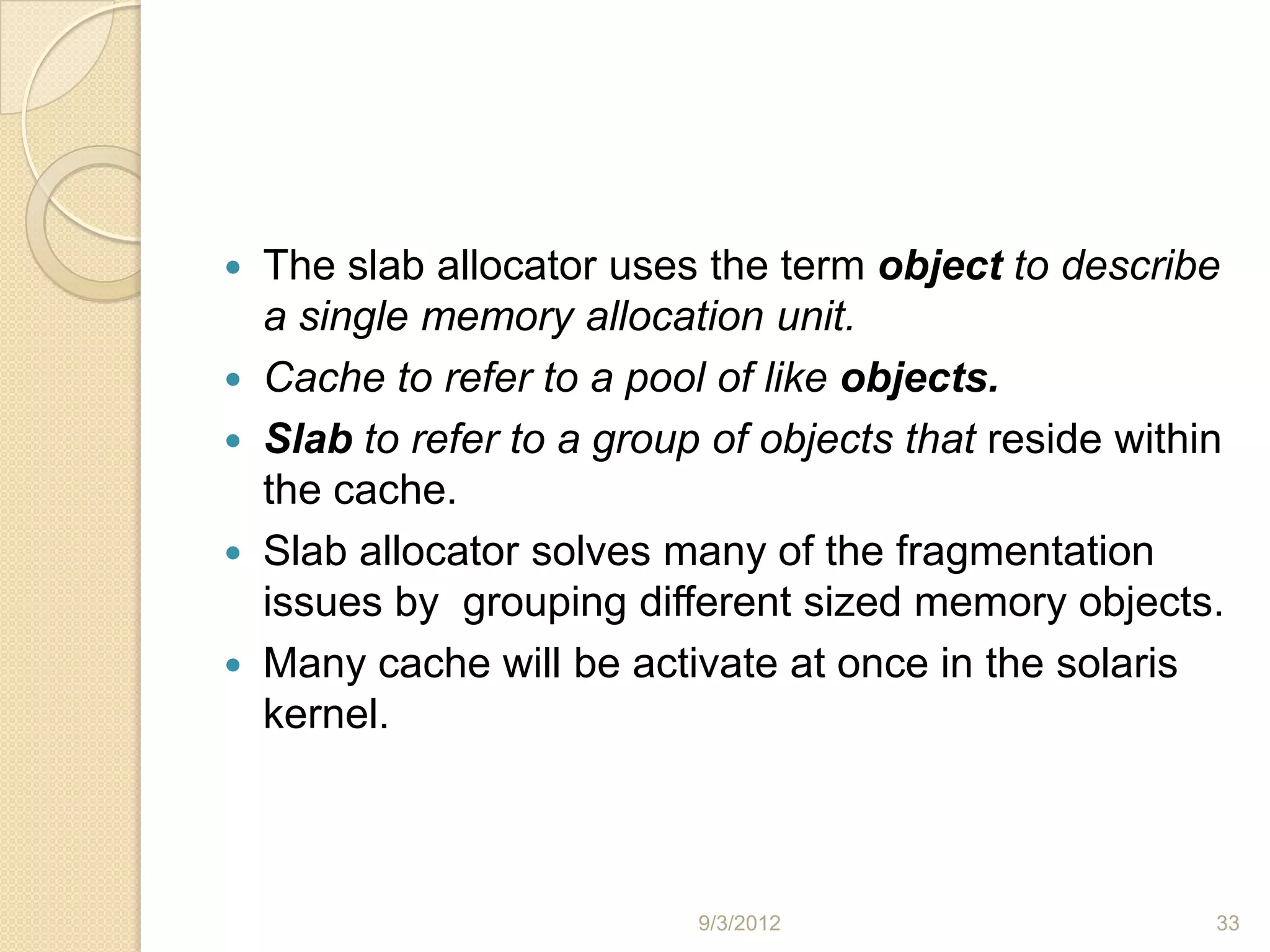

33. The slab allocator uses the term object to describe
a single memory allocation unit.
Cache to refer to a pool of like objects.
Slab to refer to a group of objects that reside within
the cache.
Slab allocator solves many of the fragmentation
issues by grouping different sized memory objects.
Many cache will be activate at once in the solaris
kernel.
9/3/2012 33
