Memory Management
Anu Aujlan
Assistant Professor
IT
Memory Management
Background
Swapping
Contiguous Memory Allocation
Paging
Structure of the Page Table
Segmentation

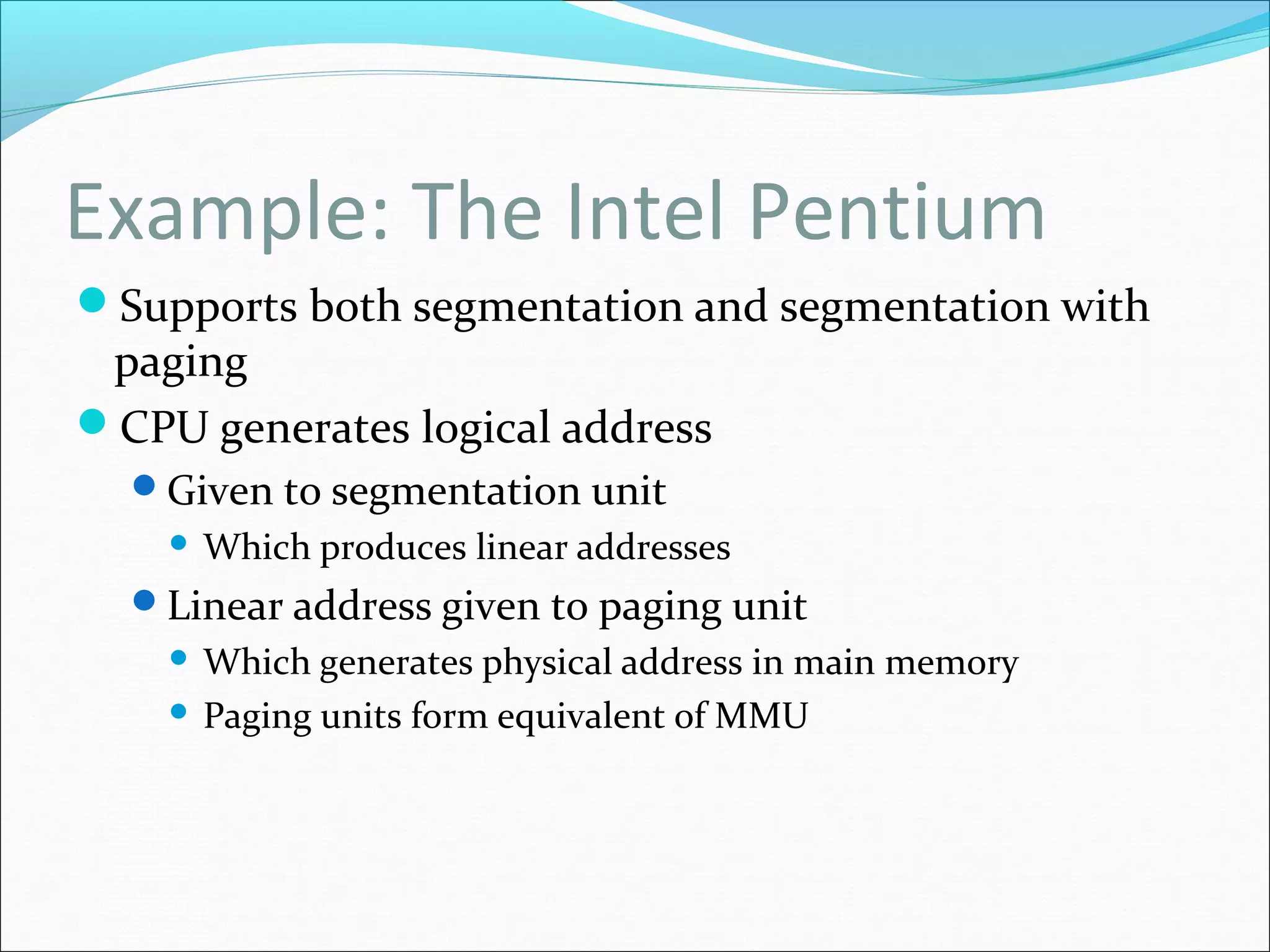

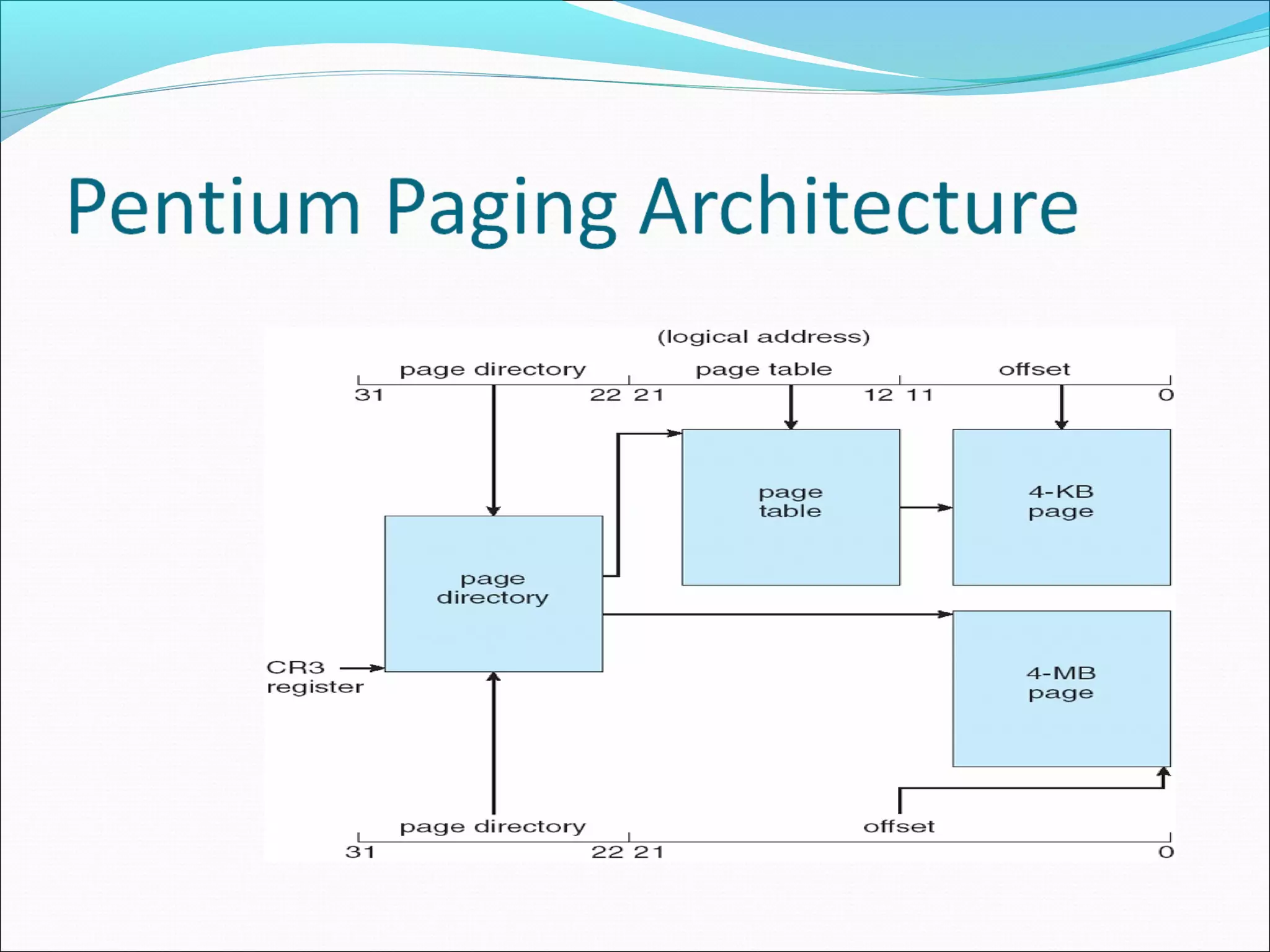

Example: The Intel Pentium
Objectives
To provide a detailed description of various
ways of organizing memory hardware
To discuss various memory-management
techniques, including paging and
segmentation
To provide a detailed description of the
Intel Pentium, which supports both pure
segmentation and segmentation with
paging

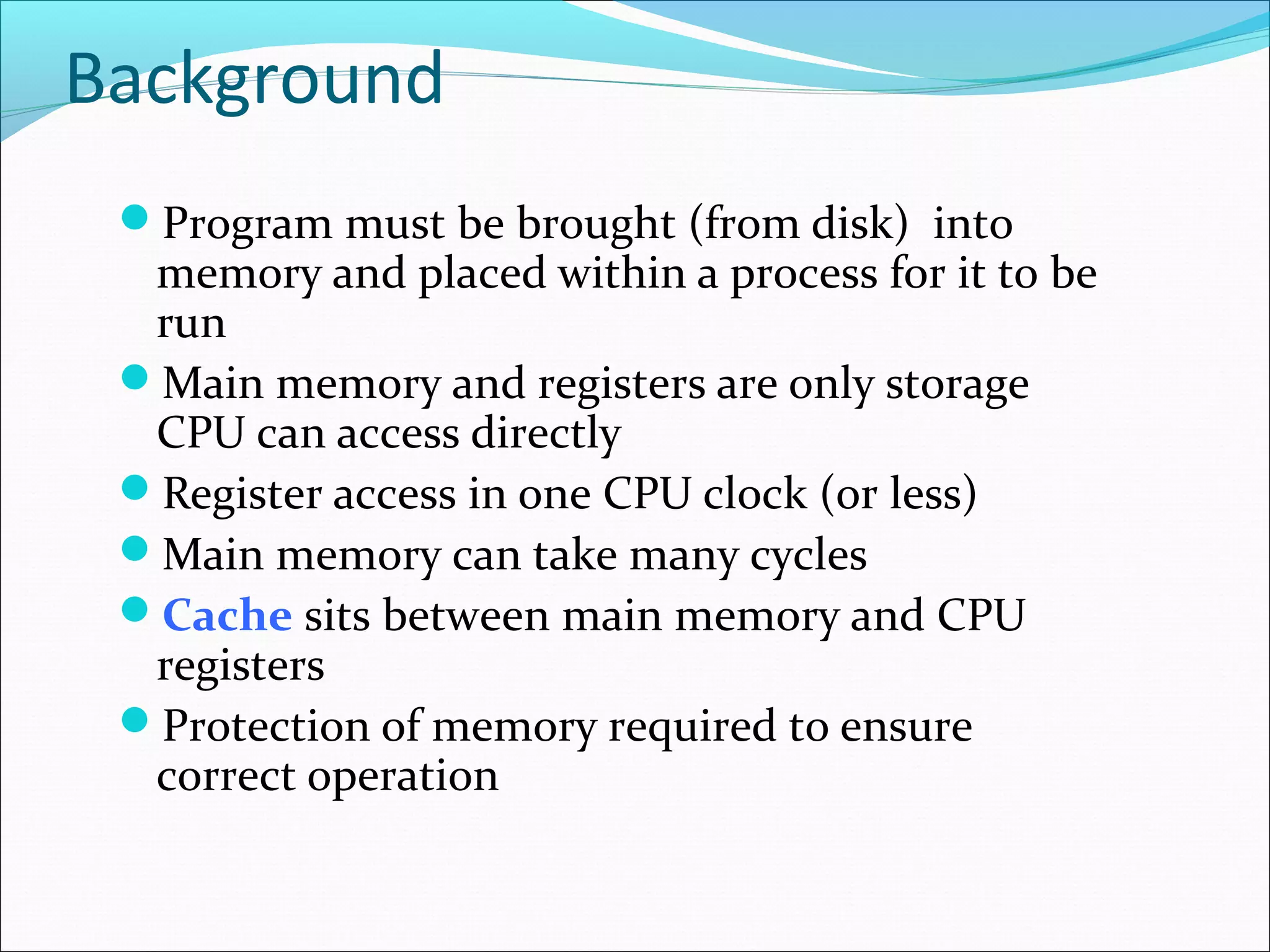

Background
Program must be brought (from disk) into
memory and placed within a process for it to be
run
Main memory and registers are only storage
CPU can access directly
Register access in one CPU clock (or less)
Main memory can take many cycles
Cache sits between main memory and CPU
registers
Protection of memory required to ensure
correct operation
Base and Limit Registers
A pair of base and limit registers define the
logical address space
Binding of Instructions and Data to Memory
Address binding of instructions and data to memory
addresses can happen at three different stages
Compile time: If memory location known a priori,
absolute code can be generated; must recompile code
if starting location changes
Load time: Must generate relocatable code if
memory location is not known at compile time
Execution time: Binding delayed until run time if the
process can be moved during its execution from one
memory segment to another. Need hardware support
for address maps (e.g., base and limit registers)

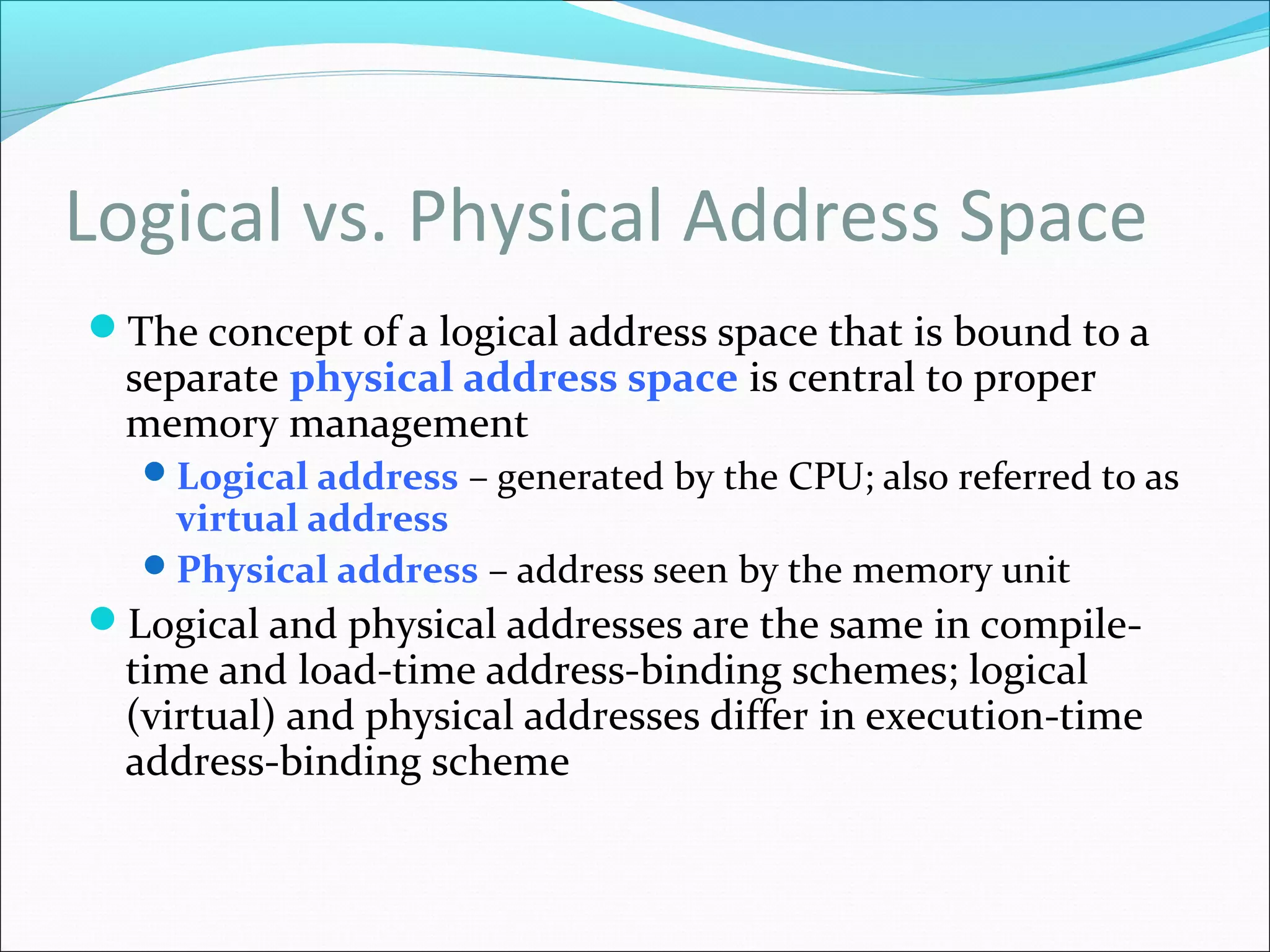

Logical vs. Physical Address Space
The concept of a logical address space that is bound to a
separate physical address space is central to proper
memory management
Logical address – generated by the CPU; also referred to as
virtual address
Physical address – address seen by the memory unit
Logical and physical addresses are the same in compile-
time and load-time address-binding schemes; logical
(virtual) and physical addresses differ in execution-time
address-binding scheme
Memory-Management Unit (MMU)
Hardware device that maps virtual to physical
address
In MMU scheme, the value in the relocation register
is added to every address generated by a user
process at the time it is sent to memory
The user program deals with logical addresses; it
never sees the real physical addresses

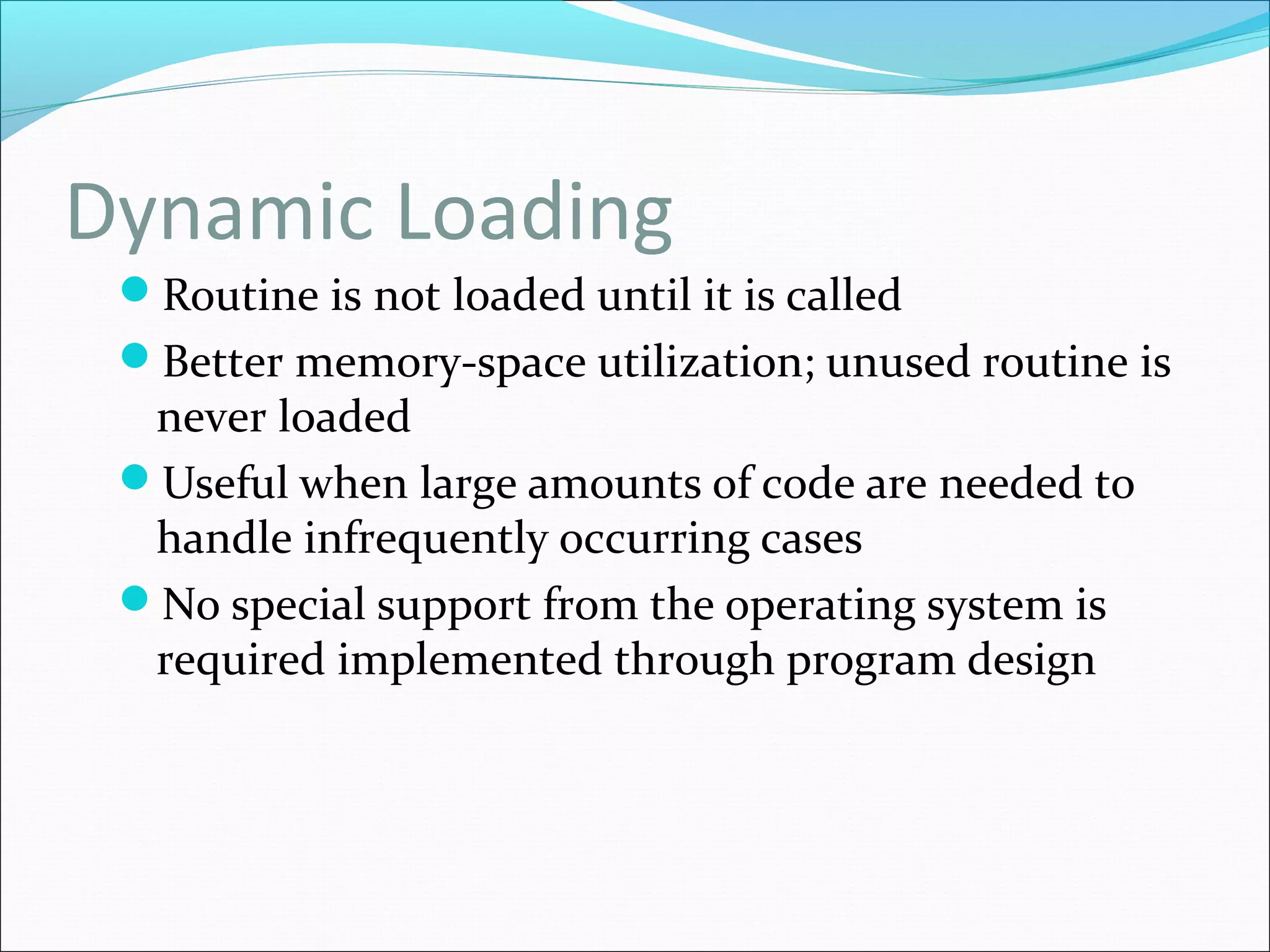

Dynamic Loading
Routine is not loaded until it is called
Better memory-space utilization; unused routine is
never loaded
Useful when large amounts of code are needed to
handle infrequently occurring cases
No special support from the operating system is
required implemented through program design
Dynamic Linking
Linking postponed until execution time
Small piece of code, stub, used to locate the appropriate
memory-resident library routine
Stub replaces itself with the address of the routine, and
executes the routine
Operating system needed to check if routine is in
processes’ memory address
Dynamic linking is particularly useful for libraries
System also known as shared libraries

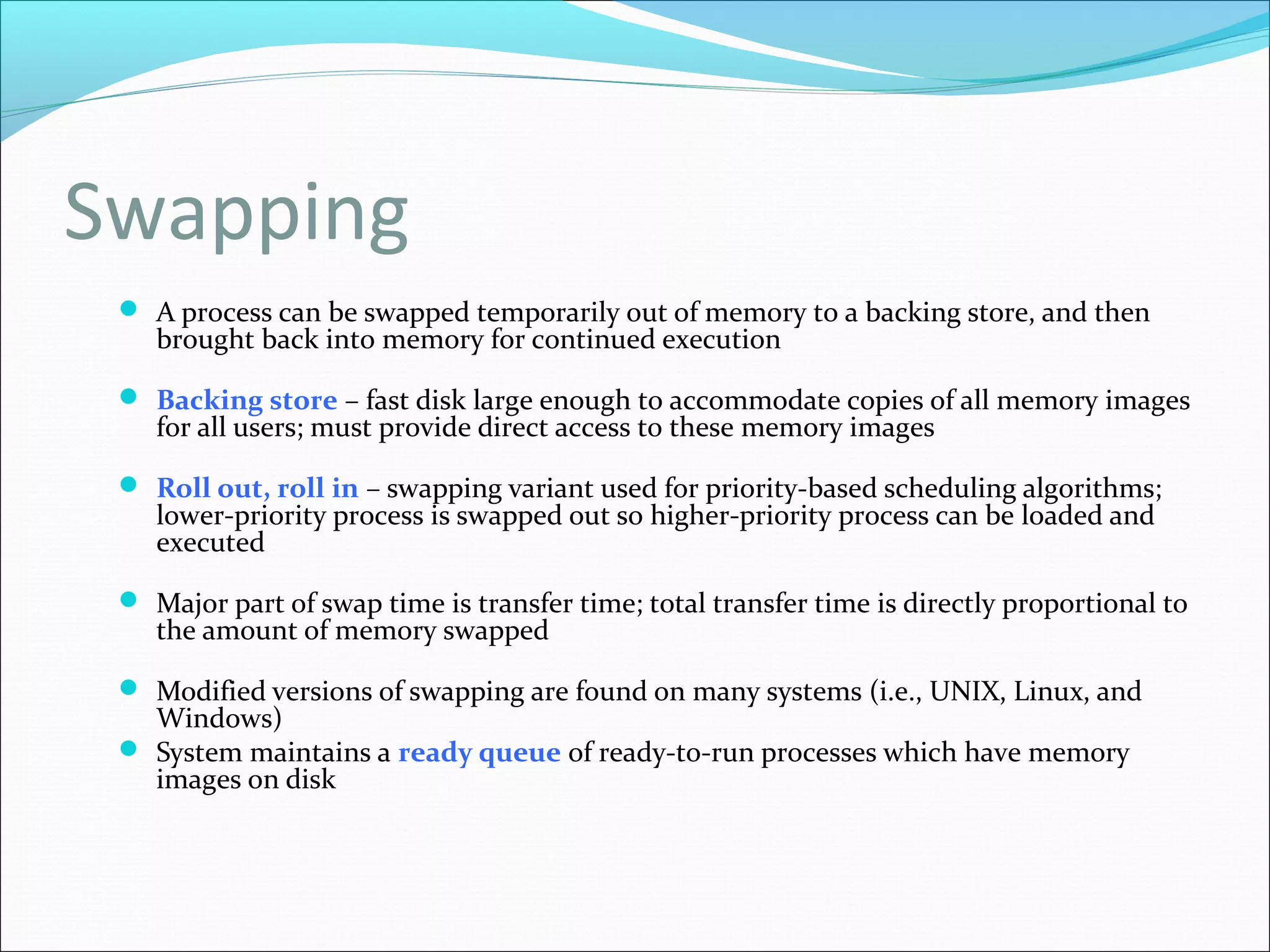

Swapping
 A process can be swapped temporarily out of memory to a backing store, and then
brought back into memory for continued execution
 Backing store – fast disk large enough to accommodate copies of all memory images
for all users; must provide direct access to these memory images
 Roll out, roll in – swapping variant used for priority-based scheduling algorithms;
lower-priority process is swapped out so higher-priority process can be loaded and
executed
 Major part of swap time is transfer time; total transfer time is directly proportional to
the amount of memory swapped
 Modified versions of swapping are found on many systems (i.e., UNIX, Linux, and
Windows)
 System maintains a ready queue of ready-to-run processes which have memory
images on disk

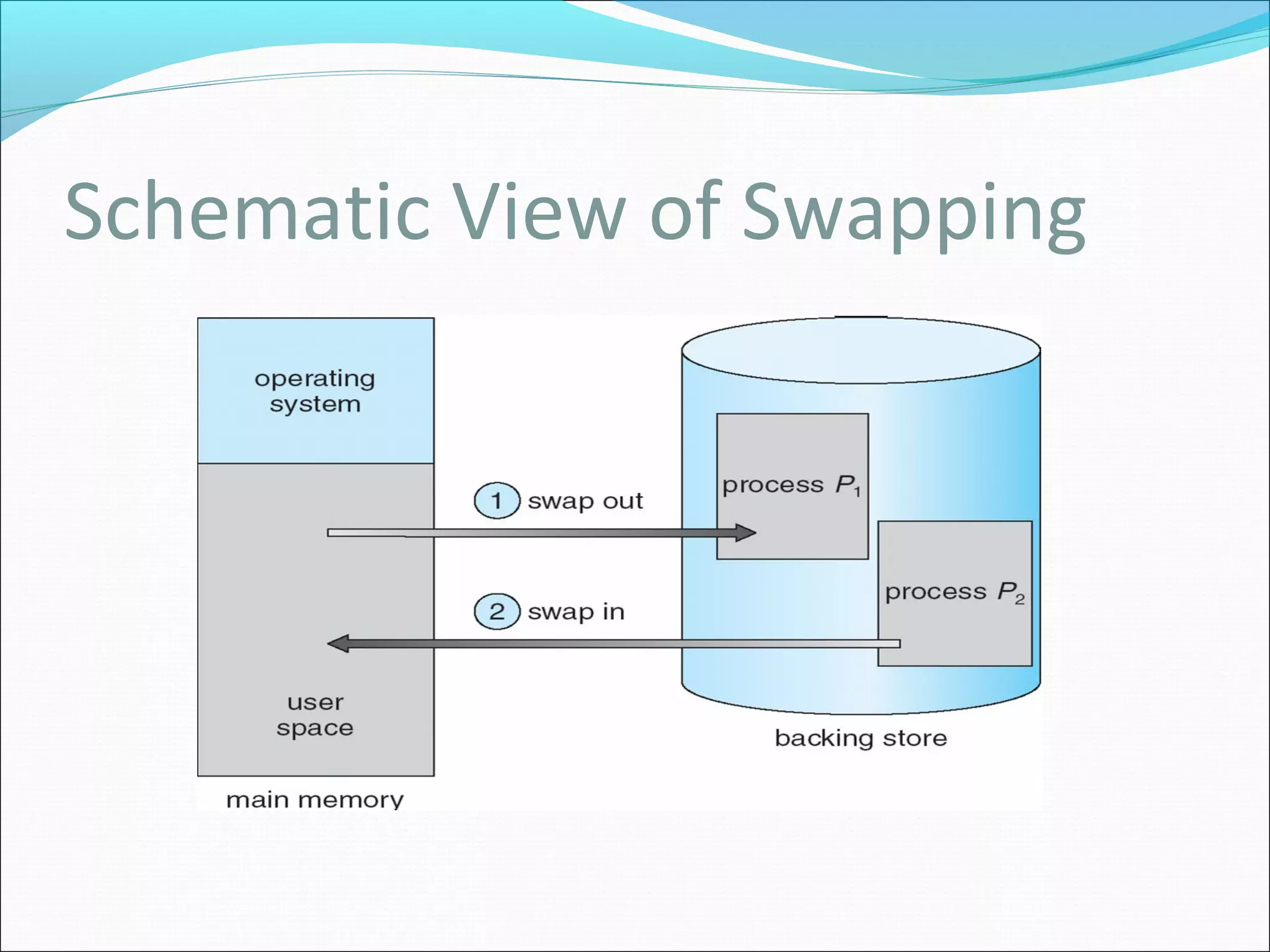

Schematic View of Swapping

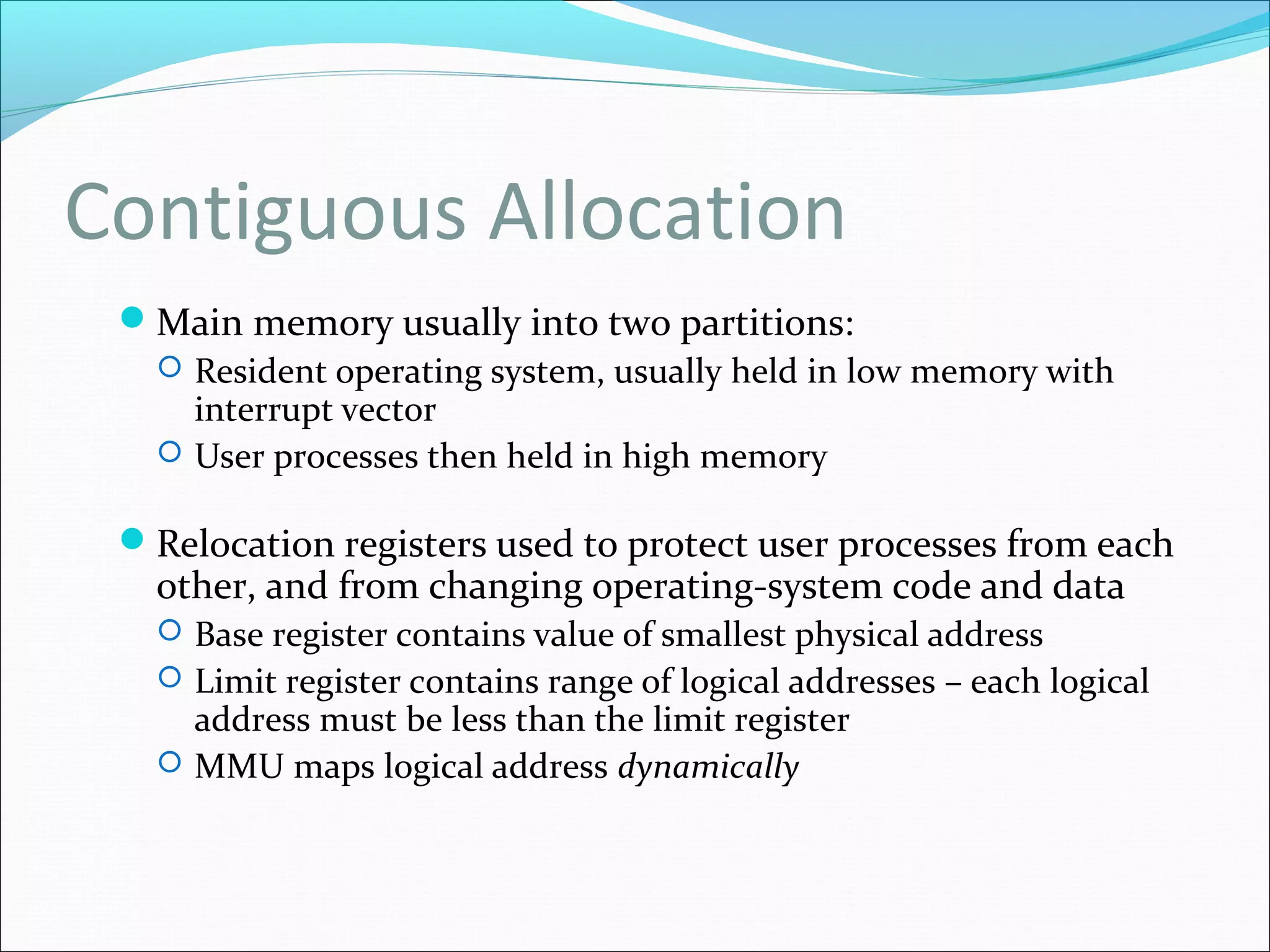

Contiguous Allocation
Main memory usually into two partitions:
 Resident operating system, usually held in low memory with
interrupt vector
 User processes then held in high memory
Relocation registers used to protect user processes from each
other, and from changing operating-system code and data
 Base register contains value of smallest physical address
 Limit register contains range of logical addresses – each logical
address must be less than the limit register
 MMU maps logical address dynamically
Hardware Support for Relocation and Limit Registers
Contiguous Allocation (Cont)
Multiple-partition allocation
 Hole – block of available memory; holes of various size are scattered
throughout memory
 When a process arrives, it is allocated memory from a hole large
enough to accommodate it
 Operating system maintains information about:
a) allocated partitions b) free partitions (hole)
OS
process 5
process 8
process 2
OS
process 5
process 2
OS
process 5
process 2
OS
process 5
process 9
process 2
process 9
process 10
Dynamic Storage-Allocation
Problem
First-fit: Allocate the first hole that is big enough
Best-fit: Allocate the smallest hole that is big enough;
must search entire list, unless ordered by size
 Produces the smallest leftover hole
Worst-fit: Allocate the largest hole; must also search
entire list
 Produces the largest leftover hole
How to satisfy a request of size n from a list of free holes
First-fit and best-fit better than worst-fit in terms of
speed and storage utilization
Fragmentation
External Fragmentation – total memory space exists to
satisfy a request, but it is not contiguous
Internal Fragmentation – allocated memory may be slightly
larger than requested memory; this size difference is memory
internal to a partition, but not being used
Reduce external fragmentation by compaction
 Shuffle memory contents to place all free memory together in
one large block
 Compaction is possible only if relocation is dynamic, and is
done at execution time
 I/O problem
 Latch job in memory while it is involved in I/O
 Do I/O only into OS buffers
Paging
Logical address space of a process can be noncontiguous;
process is allocated physical memory whenever the latter is
available
Divide physical memory into fixed-sized blocks called frames
(size is power of 2, between 512 bytes and 8,192 bytes)
Divide logical memory into blocks of same size called pages
Keep track of all free frames
To run a program of size n pages, need to find n free frames and
load program
Set up a page table to translate logical to physical addresses
Internal fragmentation
32-byte memory and 4-byte pages
Before allocation After allocation

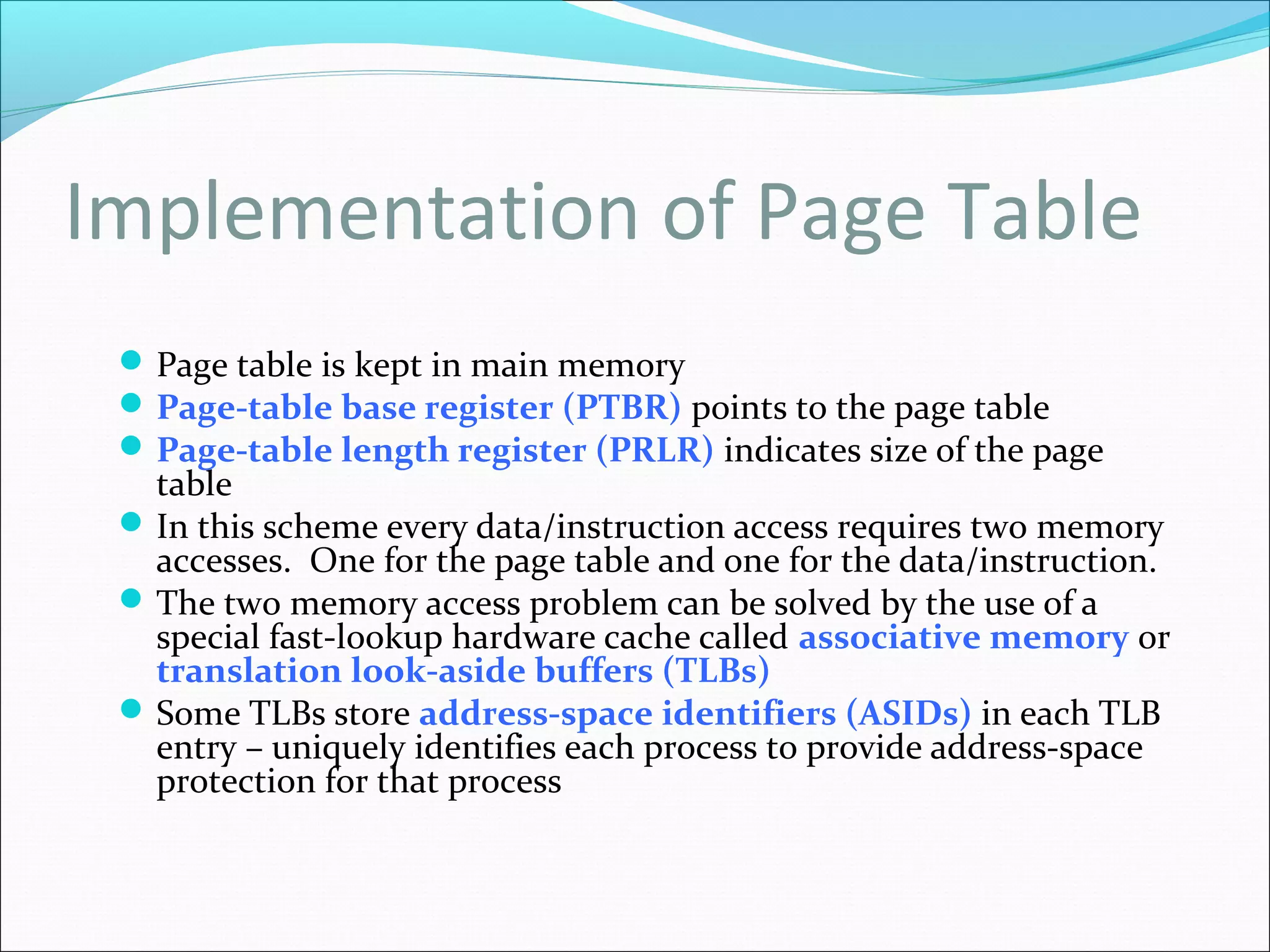

Implementation of Page Table
Page table is kept in main memory
Page-table base register (PTBR) points to the page table
Page-table length register (PRLR) indicates size of the page
table
In this scheme every data/instruction access requires two memory
accesses. One for the page table and one for the data/instruction.
The two memory access problem can be solved by the use of a
special fast-lookup hardware cache called associative memory or
translation look-aside buffers (TLBs)
Some TLBs store address-space identifiers (ASIDs) in each TLB
entry – uniquely identifies each process to provide address-space
protection for that process
Associative Memory
Associative memory – parallel search
Address translation (p, d)
If p is in associative register, get frame # out
Otherwise get frame # from page table in memory
Page # Frame #

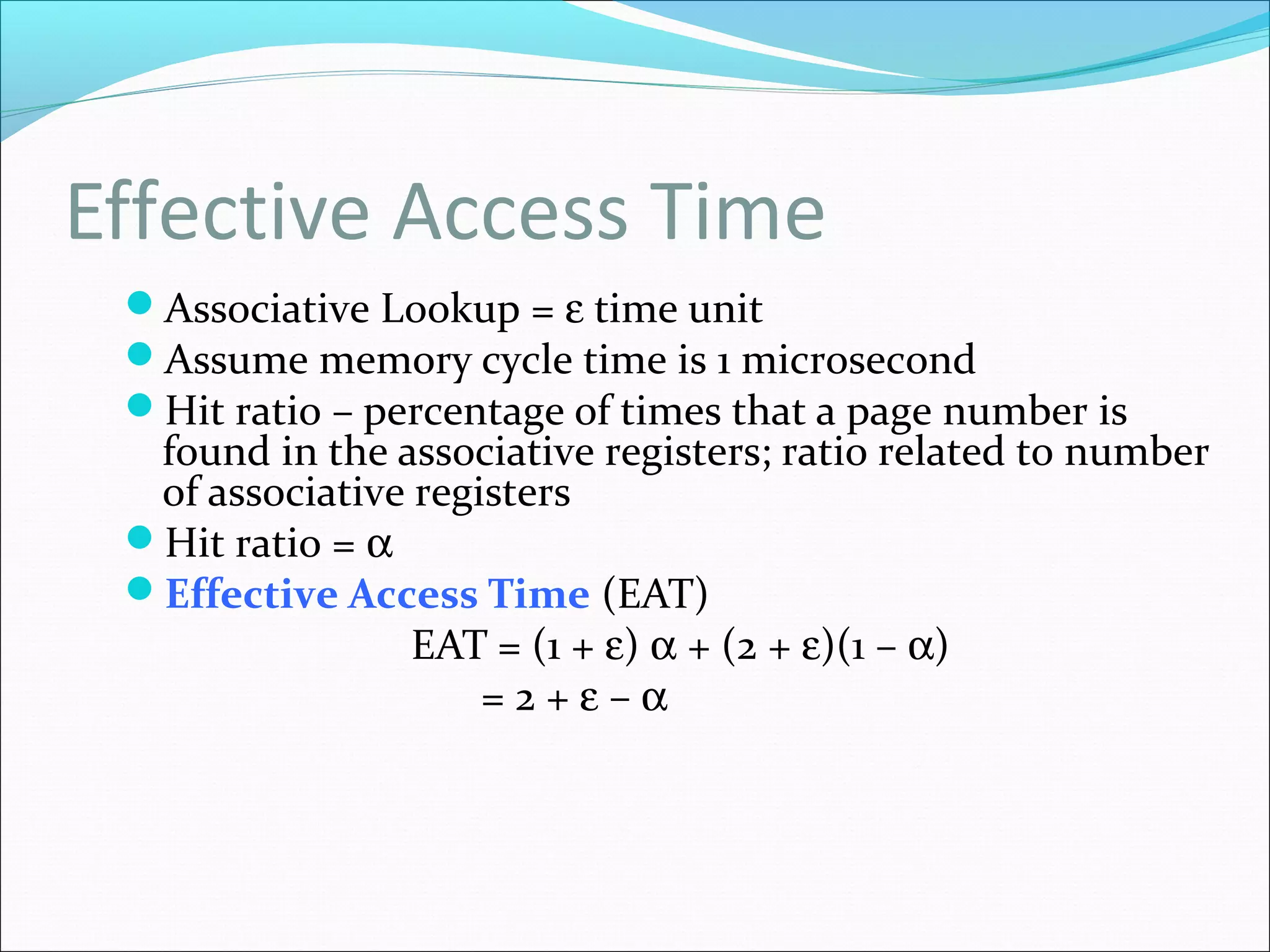

Effective Access Time
Associative Lookup = ε time unit
Assume memory cycle time is 1 microsecond
Hit ratio – percentage of times that a page number is
found in the associative registers; ratio related to number
of associative registers
Hit ratio = α
Effective Access Time (EAT)
EAT = (1 + ε) α + (2 + ε)(1 – α)
= 2 + ε – α

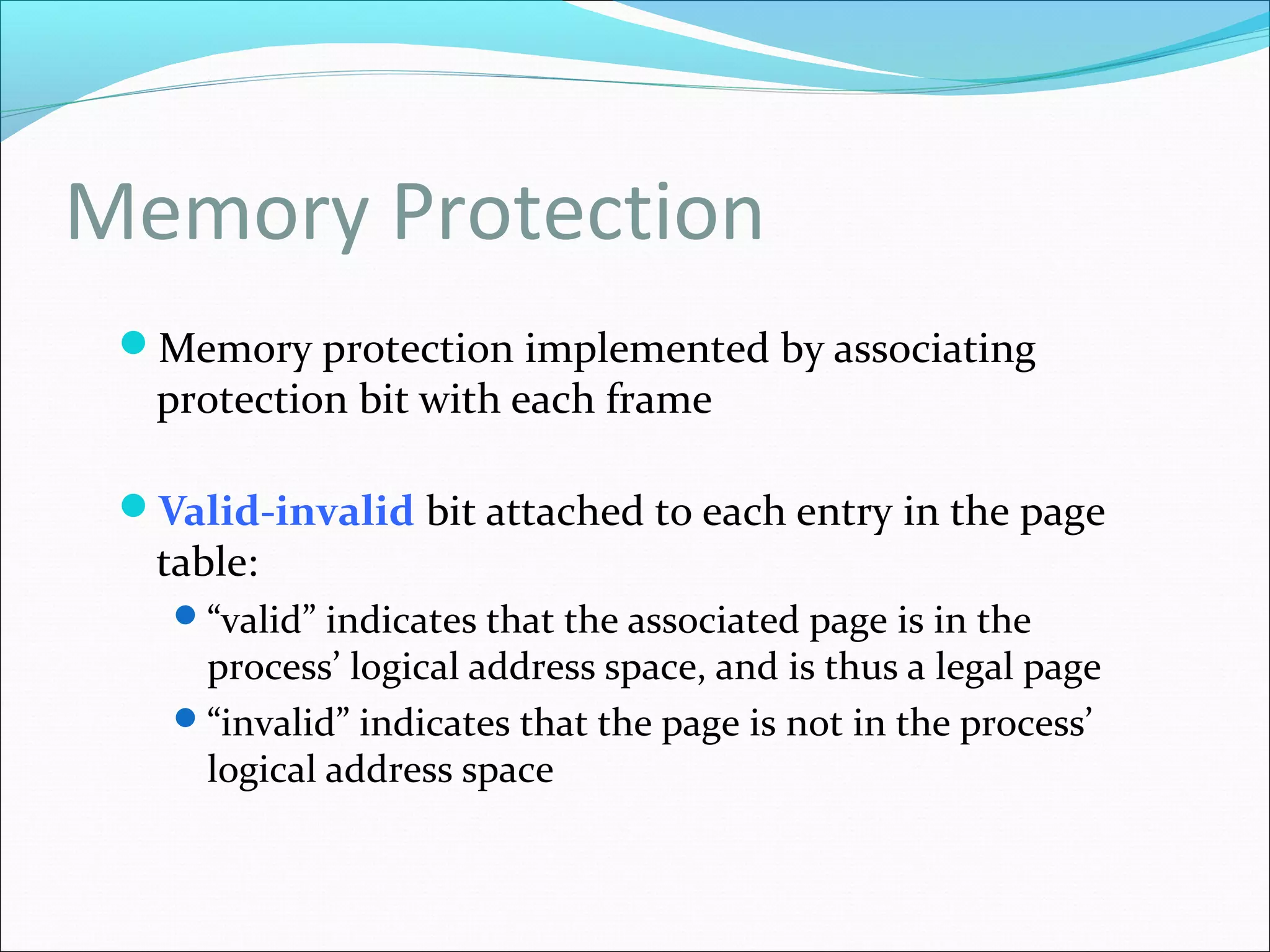

Memory Protection
Memory protection implemented by associating
protection bit with each frame
Valid-invalid bit attached to each entry in the page
table:
“valid” indicates that the associated page is in the
process’ logical address space, and is thus a legal page
“invalid” indicates that the page is not in the process’
logical address space

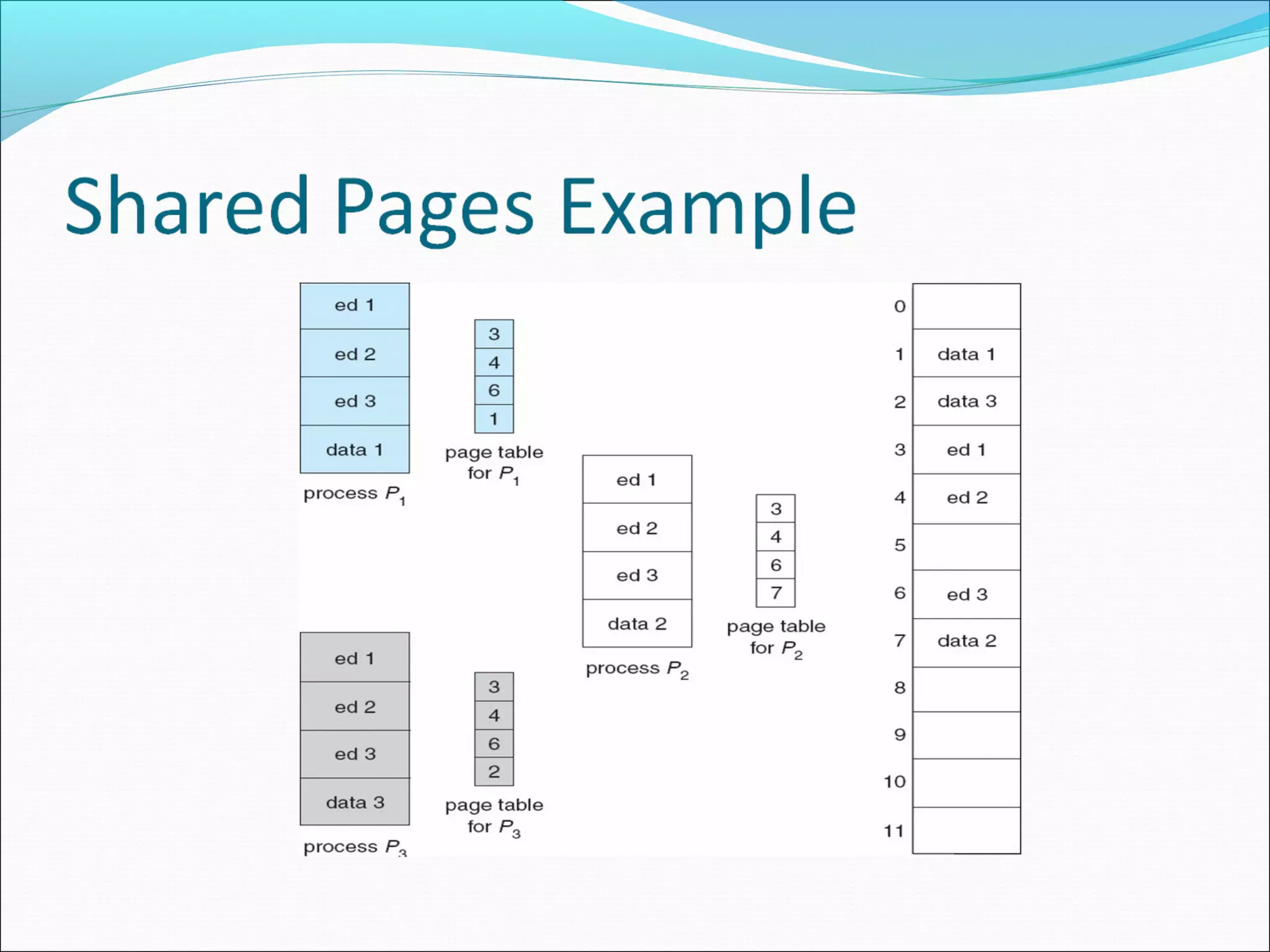

Shared Pages
Shared code
 One copy of read-only (reentrant) code shared
among processes (i.e., text editors, compilers,
window systems).
 Shared code must appear in same location in the
logical address space of all processes
Private code and data
 Each process keeps a separate copy of the code
and data
 The pages for the private code and data can
appear anywhere in the logical address space
Structure of the Page Table
Hierarchical Paging
Hashed Page Tables
Inverted Page Tables
Hierarchical Page Tables
Break up the logical address space into multiple
page tables
A simple technique is a two-level page table

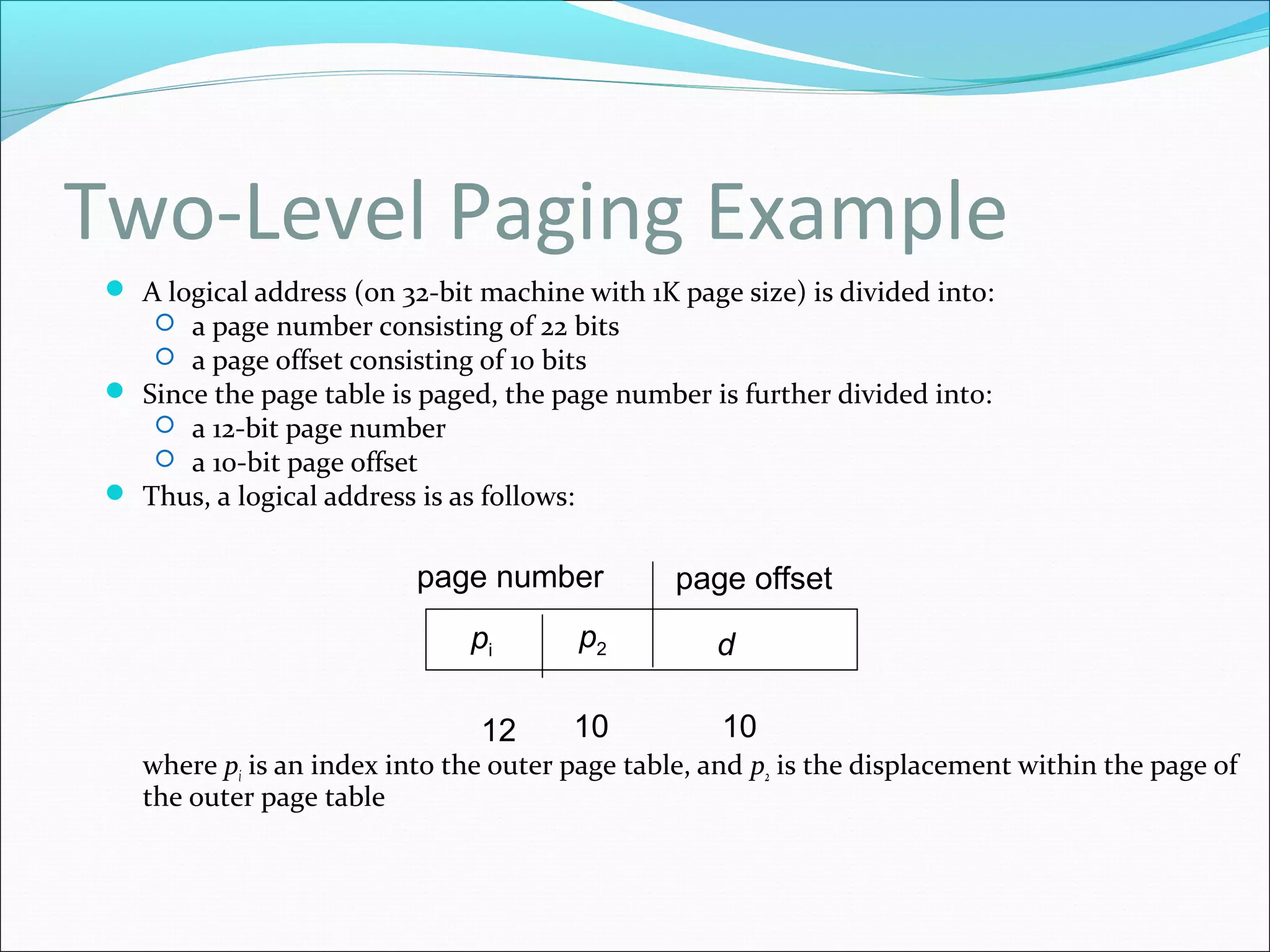

Two-Level Paging Example
 A logical address (on 32-bit machine with 1K page size) is divided into:
 a page number consisting of 22 bits
 a page offset consisting of 10 bits
 Since the page table is paged, the page number is further divided into:
 a 12-bit page number
 a 10-bit page offset
 Thus, a logical address is as follows:
where pi is an index into the outer page table, and p2 is the displacement within the page of
the outer page table
page number page offset
pi p2 d
12 10 10

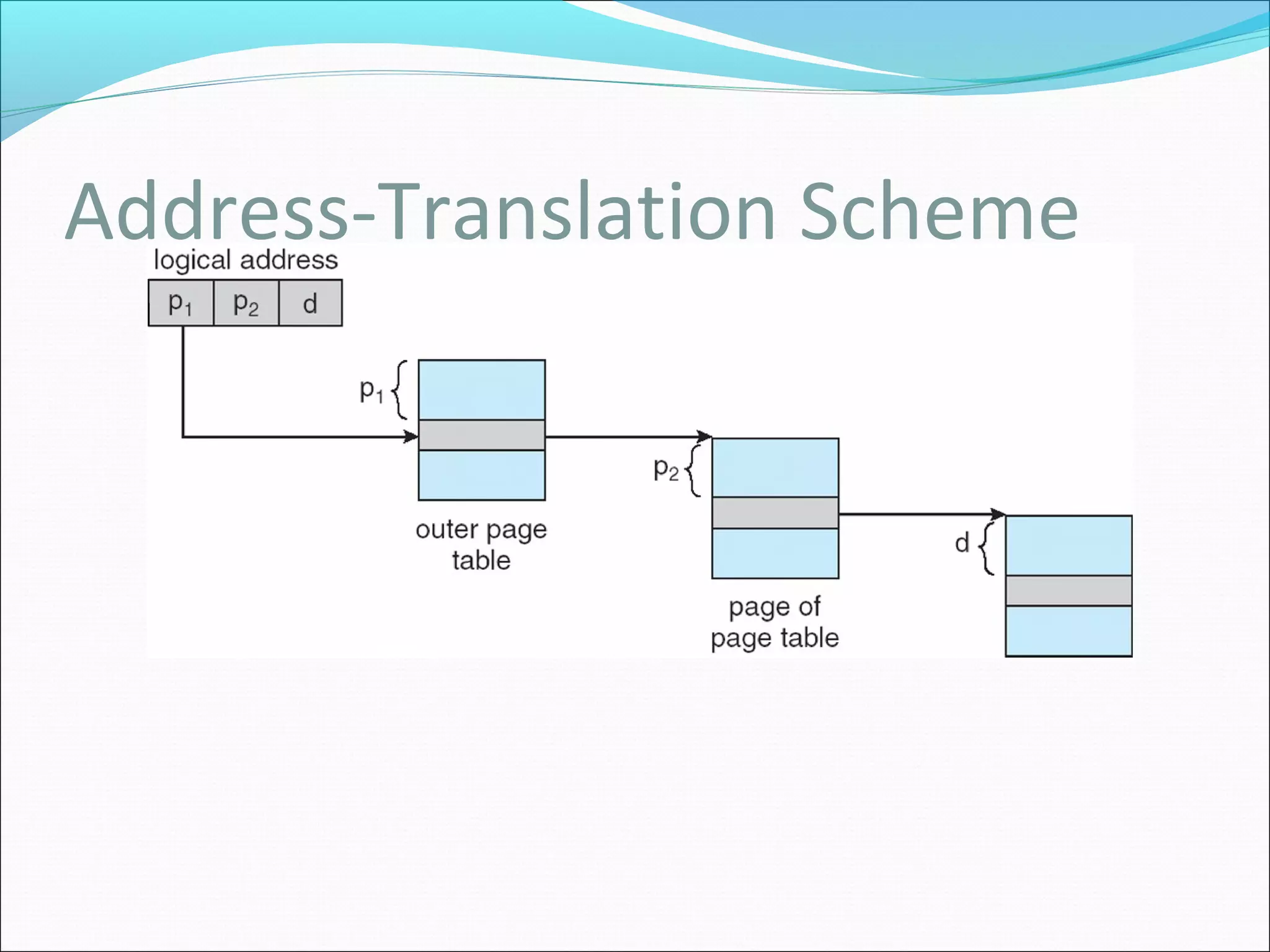

Address-Translation Scheme
Three-level Paging Scheme
Hashed Page Tables
Common in address spaces > 32 bits
The virtual page number is hashed into a page table
 This page table contains a chain of elements hashing
to the same location
Virtual page numbers are compared in this chain
searching for a match
 If a match is found, the corresponding physical frame
is extracted

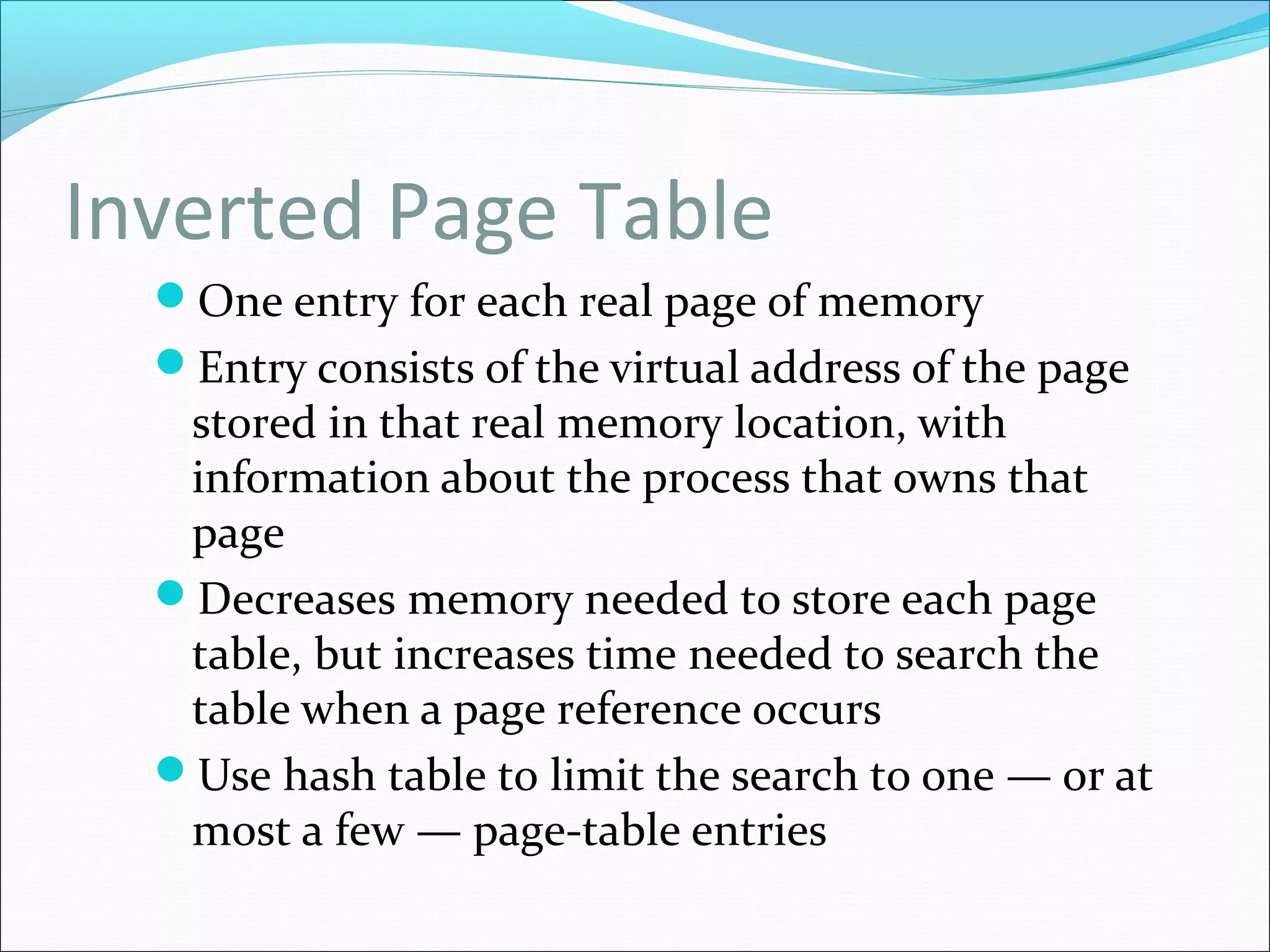

Inverted Page Table
One entry for each real page of memory
Entry consists of the virtual address of the page
stored in that real memory location, with
information about the process that owns that
page
Decreases memory needed to store each page
table, but increases time needed to search the
table when a page reference occurs
Use hash table to limit the search to one — or at
most a few — page-table entries

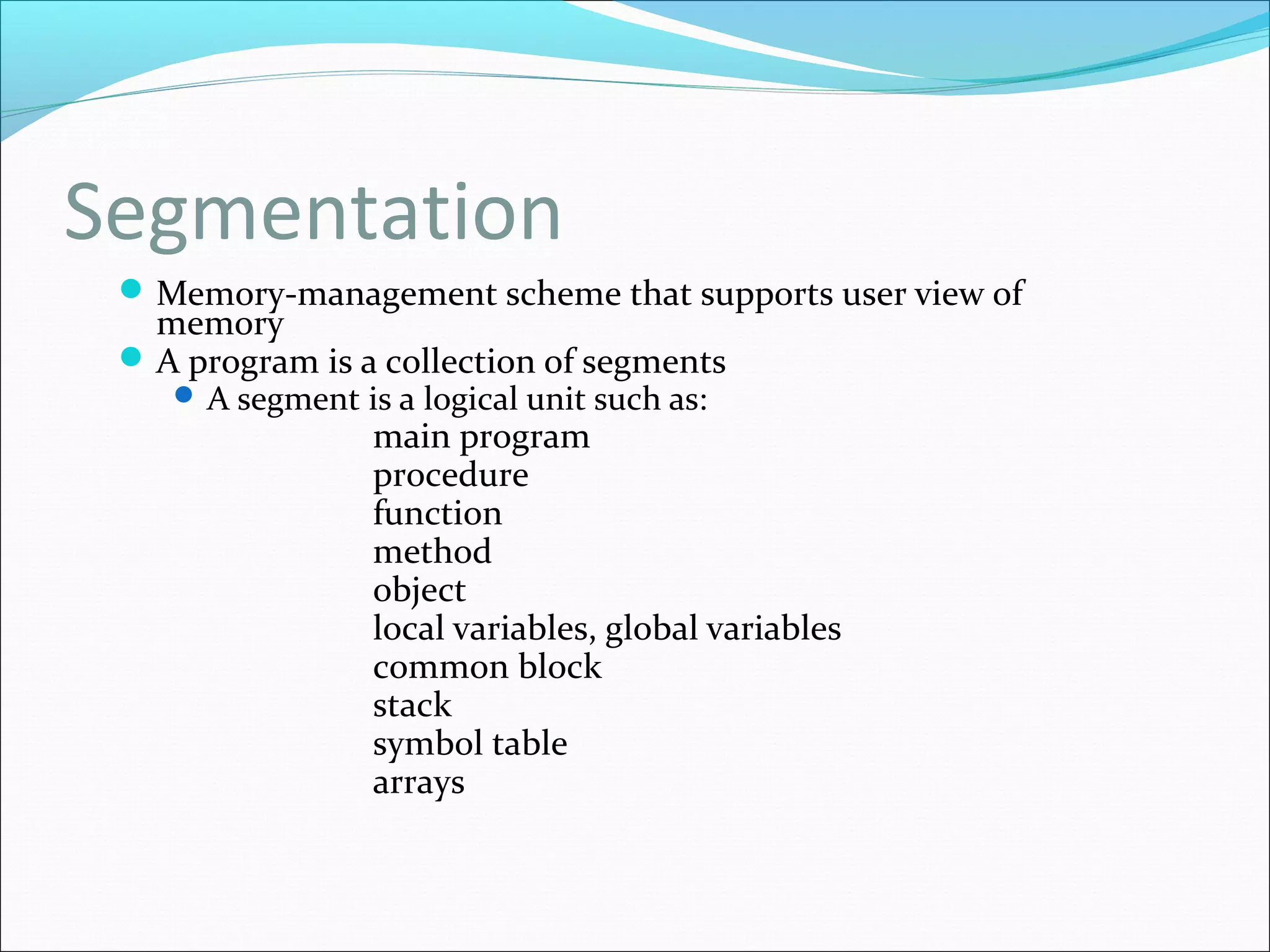

Segmentation
Memory-management scheme that supports user view of
memory
A program is a collection of segments
 A segment is a logical unit such as:
main program
procedure
function
method
object
local variables, global variables
common block
stack
symbol table
arrays
1
3
2
4
1
4
2
3
user space physical memory space

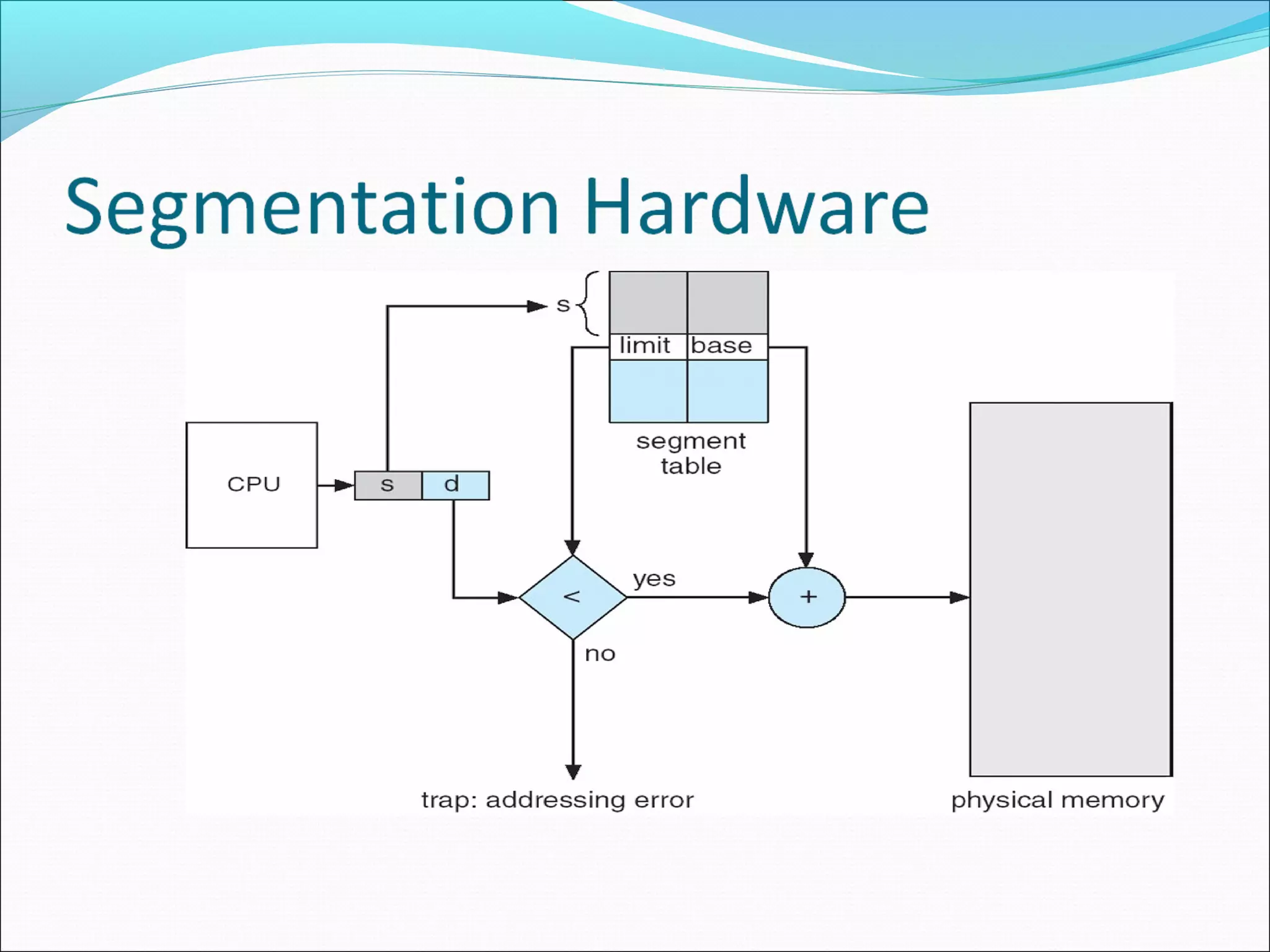

Segmentation Architecture
Logical address consists of a two tuple:
<segment-number, offset>,
Segment table – maps two-dimensional physical
addresses; each table entry has:
base – contains the starting physical address where the
segments reside in memory
limit – specifies the length of the segment
Segment-table base register (STBR) points to the
segment table’s location in memory
Segment-table length register (STLR) indicates
number of segments used by a program;
segment number s is legal if s < STLR

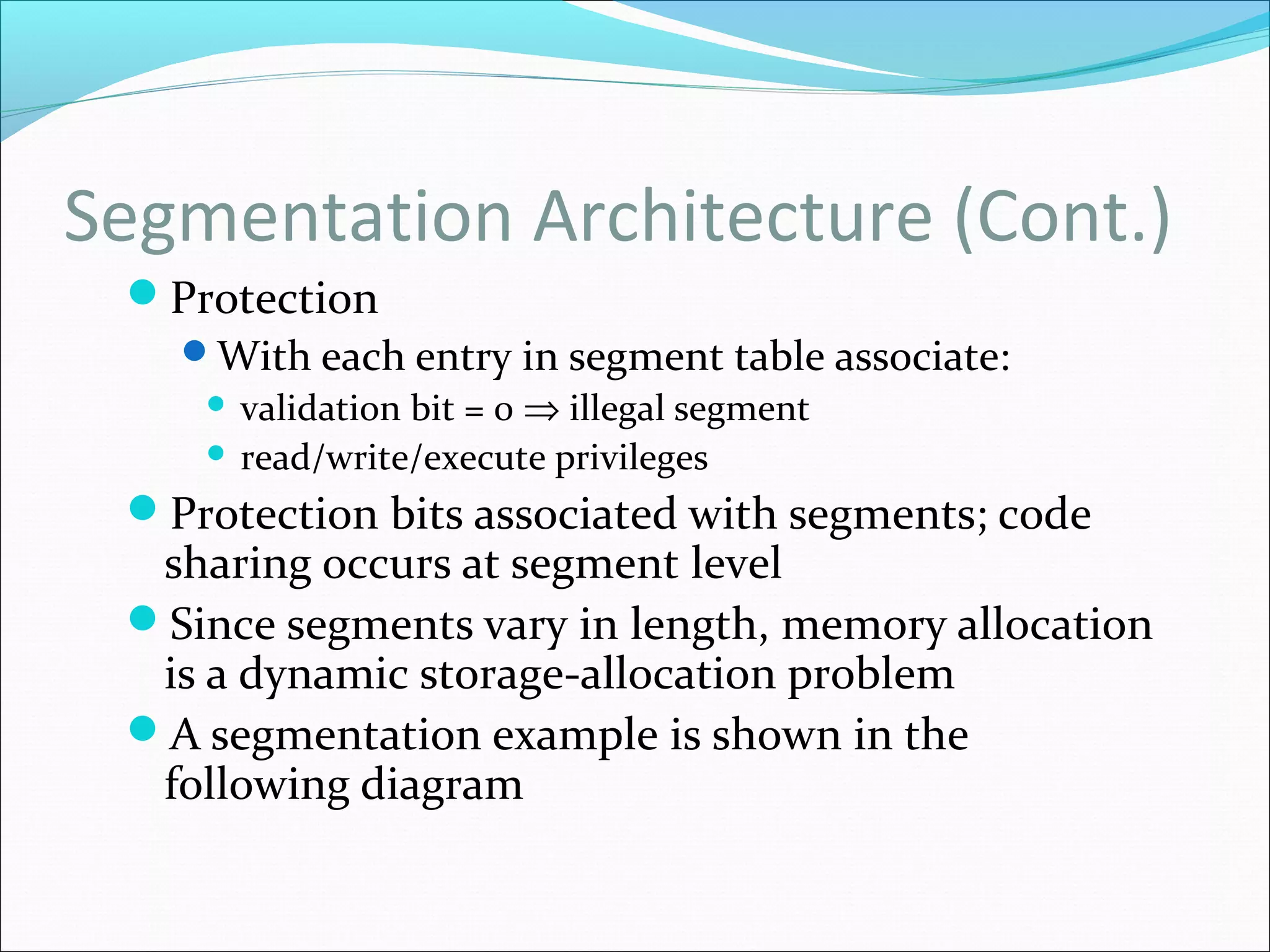

Segmentation Architecture (Cont.)
Protection
With each entry in segment table associate:
 validation bit = 0 ⇒ illegal segment
 read/write/execute privileges
Protection bits associated with segments; code
sharing occurs at segment level
Since segments vary in length, memory allocation
is a dynamic storage-allocation problem
A segmentation example is shown in the
following diagram
Example: The Intel Pentium
Supports both segmentation and segmentation with
paging
CPU generates logical address
Given to segmentation unit
 Which produces linear addresses
Linear address given to paging unit
 Which generates physical address in main memory
 Paging units form equivalent of MMU
Broken into four parts:
Thank You

More Related Content

What's hot

Virtual memory
Virtual memoryVirtual memory
Virtual memory
Anuj Modi

11. Storage and File Structure in DBMS
11. Storage and File Structure in DBMS11. Storage and File Structure in DBMS
11. Storage and File Structure in DBMS
koolkampus


What's hot (20)

File system Os
File system OsFile system Os
File system Os

System calls
System callsSystem calls
System calls

Memory management ppt
Memory management pptMemory management ppt
Memory management ppt

Memory allocation (4)
Memory allocation (4)Memory allocation (4)
Memory allocation (4)

Contiguous Memory Allocation.ppt
Contiguous Memory Allocation.pptContiguous Memory Allocation.ppt
Contiguous Memory Allocation.ppt

memory hierarchy
memory hierarchymemory hierarchy
memory hierarchy

Chapter 12 - Mass Storage Systems
Chapter 12 - Mass Storage SystemsChapter 12 - Mass Storage Systems
Chapter 12 - Mass Storage Systems

Memory organization (Computer architecture)
Memory organization (Computer architecture)Memory organization (Computer architecture)
Memory organization (Computer architecture)

Cache coherence ppt
Cache coherence pptCache coherence ppt
Cache coherence ppt

Computer architecture virtual memory
Computer architecture virtual memoryComputer architecture virtual memory
Computer architecture virtual memory

Paging and segmentation
Paging and segmentationPaging and segmentation
Paging and segmentation

Memory management
Memory managementMemory management
Memory management

Virtual memory
Virtual memoryVirtual memory
Virtual memory

File organization 1
File organization 1File organization 1
File organization 1

Memory Organization
Memory OrganizationMemory Organization
Memory Organization

11. Storage and File Structure in DBMS
11. Storage and File Structure in DBMS11. Storage and File Structure in DBMS
11. Storage and File Structure in DBMS

Disk structure
Disk structureDisk structure
Disk structure

File system structure
File system structureFile system structure
File system structure

Memory management ppt coa
Memory management ppt coaMemory management ppt coa
Memory management ppt coa

CPU Scheduling in OS Presentation
CPU Scheduling in OS  PresentationCPU Scheduling in OS  Presentation
CPU Scheduling in OS Presentation


Viewers also liked (6)

Unix Memory Management - Operating Systems
Unix Memory Management - Operating SystemsUnix Memory Management - Operating Systems
Unix Memory Management - Operating Systems

Unix Process management
Unix Process managementUnix Process management
Unix Process management

File system.
File system.File system.
File system.

file system in operating system
file system in operating systemfile system in operating system
file system in operating system

File system
File systemFile system
File system

Memory management in Linux
Memory management in LinuxMemory management in Linux
Memory management in Linux


Similar to Memory management

Ch9 OS
Ch9 OSCh9 OS
Ch9 OS
C.U

Memory Managment(OS).pptx
Memory Managment(OS).pptxMemory Managment(OS).pptx
Memory Managment(OS).pptx
RohitPaul71

Chapter 9 OS
Chapter 9 OSChapter 9 OS
Chapter 9 OS
C.U


Similar to Memory management (20)

Memory+management
Memory+managementMemory+management
Memory+management

Main memory os - prashant odhavani- 160920107003
Main memory   os - prashant odhavani- 160920107003Main memory   os - prashant odhavani- 160920107003
Main memory os - prashant odhavani- 160920107003

Chapter 8 - Main Memory
Chapter 8 - Main MemoryChapter 8 - Main Memory
Chapter 8 - Main Memory

Ch8
Ch8Ch8
Ch8

OS_Ch9
OS_Ch9OS_Ch9
OS_Ch9

OSCh9
OSCh9OSCh9
OSCh9

Ch9 OS
Ch9 OSCh9 OS
Ch9 OS

Unit 5Memory management.pptx
Unit 5Memory management.pptxUnit 5Memory management.pptx
Unit 5Memory management.pptx

Memory Managment(OS).pptx
Memory Managment(OS).pptxMemory Managment(OS).pptx
Memory Managment(OS).pptx

Memory management
Memory managementMemory management
Memory management

Bab 4
Bab 4Bab 4
Bab 4

Unit-4 swapping.pptx
Unit-4 swapping.pptxUnit-4 swapping.pptx
Unit-4 swapping.pptx

Memory Management
Memory ManagementMemory Management
Memory Management

CH08.pdf
CH08.pdfCH08.pdf
CH08.pdf

Memory management Assignment Help
Memory management Assignment HelpMemory management Assignment Help
Memory management Assignment Help

Memory comp
Memory compMemory comp
Memory comp

Chapter 9 OS
Chapter 9 OSChapter 9 OS
Chapter 9 OS

Operating system Memory management
Operating system Memory management Operating system Memory management
Operating system Memory management

Operating system
Operating systemOperating system
Operating system

Os4
Os4Os4
Os4


More from cpjcollege

More from cpjcollege (20)

Tax Law (LLB-403)
Tax Law (LLB-403)Tax Law (LLB-403)
Tax Law (LLB-403)

Law and Emerging Technology (LLB -405)
 Law and Emerging Technology (LLB -405) Law and Emerging Technology (LLB -405)
Law and Emerging Technology (LLB -405)

Law of Crimes-I ( LLB -205)
 Law of Crimes-I  ( LLB -205)  Law of Crimes-I  ( LLB -205)
Law of Crimes-I ( LLB -205)

Socio-Legal Dimensions of Gender (LLB-507 & 509 )
Socio-Legal Dimensions of Gender (LLB-507 & 509 )Socio-Legal Dimensions of Gender (LLB-507 & 509 )
Socio-Legal Dimensions of Gender (LLB-507 & 509 )

Family Law-I ( LLB -201)
Family Law-I  ( LLB -201) Family Law-I  ( LLB -201)
Family Law-I ( LLB -201)

Alternative Dispute Resolution (ADR) [LLB -309]
Alternative Dispute Resolution (ADR) [LLB -309] Alternative Dispute Resolution (ADR) [LLB -309]
Alternative Dispute Resolution (ADR) [LLB -309]

Law of Evidence (LLB-303)
Law of Evidence  (LLB-303) Law of Evidence  (LLB-303)
Law of Evidence (LLB-303)

Environmental Studies and Environmental Laws (: LLB -301)
Environmental Studies and Environmental Laws (: LLB -301)Environmental Studies and Environmental Laws (: LLB -301)
Environmental Studies and Environmental Laws (: LLB -301)

Code of Civil Procedure (LLB -307)
 Code of Civil Procedure (LLB -307) Code of Civil Procedure (LLB -307)
Code of Civil Procedure (LLB -307)

Constitutional Law-I (LLB -203)
 Constitutional Law-I (LLB -203) Constitutional Law-I (LLB -203)
Constitutional Law-I (LLB -203)

Women and Law [LLB 409 (c)]
Women and Law [LLB 409 (c)]Women and Law [LLB 409 (c)]
Women and Law [LLB 409 (c)]

Corporate Law ( LLB- 305)
Corporate Law ( LLB- 305)Corporate Law ( LLB- 305)
Corporate Law ( LLB- 305)

Human Rights Law ( LLB -407)
 Human Rights Law ( LLB -407) Human Rights Law ( LLB -407)
Human Rights Law ( LLB -407)

Labour Law-I (LLB 401)
 Labour Law-I (LLB 401) Labour Law-I (LLB 401)
Labour Law-I (LLB 401)

Legal Ethics and Court Craft (LLB 501)
 Legal Ethics and Court Craft (LLB 501) Legal Ethics and Court Craft (LLB 501)
Legal Ethics and Court Craft (LLB 501)

Political Science-II (BALLB- 209)
Political Science-II (BALLB- 209)Political Science-II (BALLB- 209)
Political Science-II (BALLB- 209)

Health Care Law ( LLB 507 & LLB 509 )
Health Care Law ( LLB 507 & LLB 509 )Health Care Law ( LLB 507 & LLB 509 )
Health Care Law ( LLB 507 & LLB 509 )

Land and Real Estate Laws (LLB-505)
Land and Real Estate Laws (LLB-505)Land and Real Estate Laws (LLB-505)
Land and Real Estate Laws (LLB-505)

Business Environment and Ethical Practices (BBA LLB 213 )
Business Environment and Ethical Practices (BBA LLB 213 )Business Environment and Ethical Practices (BBA LLB 213 )
Business Environment and Ethical Practices (BBA LLB 213 )

HUMAN RESOURCE MANAGEMENT (BBA LLB215 )
HUMAN RESOURCE MANAGEMENT (BBA LLB215 )HUMAN RESOURCE MANAGEMENT (BBA LLB215 )
HUMAN RESOURCE MANAGEMENT (BBA LLB215 )


Recently uploaded

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research
CaitlinCummins3

Orientation Canvas Course Presentation.pdf
Orientation Canvas Course Presentation.pdfOrientation Canvas Course Presentation.pdf
Orientation Canvas Course Presentation.pdf
Elizabeth Walsh

Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdfContoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
cupulin

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples
Peter Brusilovsky


Recently uploaded (20)

Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptx
Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptxMichaelis Menten Equation and Estimation Of Vmax and Tmax.pptx
Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptx

FSB Advising Checklist - Orientation 2024
FSB Advising Checklist - Orientation 2024FSB Advising Checklist - Orientation 2024
FSB Advising Checklist - Orientation 2024

80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...

8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management

Observing-Correct-Grammar-in-Making-Definitions.pptx
Observing-Correct-Grammar-in-Making-Definitions.pptxObserving-Correct-Grammar-in-Making-Definitions.pptx
Observing-Correct-Grammar-in-Making-Definitions.pptx

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research

How to Manage Call for Tendor in Odoo 17
How to Manage Call for Tendor in Odoo 17How to Manage Call for Tendor in Odoo 17
How to Manage Call for Tendor in Odoo 17

e-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopale-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopal

Orientation Canvas Course Presentation.pdf
Orientation Canvas Course Presentation.pdfOrientation Canvas Course Presentation.pdf
Orientation Canvas Course Presentation.pdf

Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdfContoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf

UGC NET Paper 1 Unit 7 DATA INTERPRETATION.pdf
UGC NET Paper 1 Unit 7 DATA INTERPRETATION.pdfUGC NET Paper 1 Unit 7 DATA INTERPRETATION.pdf
UGC NET Paper 1 Unit 7 DATA INTERPRETATION.pdf

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples

How to Send Pro Forma Invoice to Your Customers in Odoo 17
How to Send Pro Forma Invoice to Your Customers in Odoo 17How to Send Pro Forma Invoice to Your Customers in Odoo 17
How to Send Pro Forma Invoice to Your Customers in Odoo 17

REMIFENTANIL: An Ultra short acting opioid.pptx
REMIFENTANIL: An Ultra short acting opioid.pptxREMIFENTANIL: An Ultra short acting opioid.pptx
REMIFENTANIL: An Ultra short acting opioid.pptx

HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptxHMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx

How to Manage Website in Odoo 17 Studio App.pptx
How to Manage Website in Odoo 17 Studio App.pptxHow to Manage Website in Odoo 17 Studio App.pptx
How to Manage Website in Odoo 17 Studio App.pptx

Details on CBSE Compartment Exam.pptx1111
Details on CBSE Compartment Exam.pptx1111Details on CBSE Compartment Exam.pptx1111
Details on CBSE Compartment Exam.pptx1111

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

Ernest Hemingway's For Whom the Bell Tolls
Ernest Hemingway's For Whom the Bell TollsErnest Hemingway's For Whom the Bell Tolls
Ernest Hemingway's For Whom the Bell Tolls

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....


Memory management

  • 2. Memory Management Background Swapping Contiguous Memory Allocation Paging Structure of the Page Table Segmentation Example: The Intel Pentium
  • 3. Objectives To provide a detailed description of various ways of organizing memory hardware To discuss various memory-management techniques, including paging and segmentation To provide a detailed description of the Intel Pentium, which supports both pure segmentation and segmentation with paging
  • 4. Background Program must be brought (from disk) into memory and placed within a process for it to be run Main memory and registers are only storage CPU can access directly Register access in one CPU clock (or less) Main memory can take many cycles Cache sits between main memory and CPU registers Protection of memory required to ensure correct operation
  • 5. Base and Limit Registers A pair of base and limit registers define the logical address space
  • 6. Binding of Instructions and Data to Memory Address binding of instructions and data to memory addresses can happen at three different stages Compile time: If memory location known a priori, absolute code can be generated; must recompile code if starting location changes Load time: Must generate relocatable code if memory location is not known at compile time Execution time: Binding delayed until run time if the process can be moved during its execution from one memory segment to another. Need hardware support for address maps (e.g., base and limit registers)
  • 7.
  • 8. Logical vs. Physical Address Space The concept of a logical address space that is bound to a separate physical address space is central to proper memory management Logical address – generated by the CPU; also referred to as virtual address Physical address – address seen by the memory unit Logical and physical addresses are the same in compile- time and load-time address-binding schemes; logical (virtual) and physical addresses differ in execution-time address-binding scheme
  • 9. Memory-Management Unit (MMU) Hardware device that maps virtual to physical address In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory The user program deals with logical addresses; it never sees the real physical addresses
  • 10.
  • 11. Dynamic Loading Routine is not loaded until it is called Better memory-space utilization; unused routine is never loaded Useful when large amounts of code are needed to handle infrequently occurring cases No special support from the operating system is required implemented through program design
  • 12. Dynamic Linking Linking postponed until execution time Small piece of code, stub, used to locate the appropriate memory-resident library routine Stub replaces itself with the address of the routine, and executes the routine Operating system needed to check if routine is in processes’ memory address Dynamic linking is particularly useful for libraries System also known as shared libraries
  • 13. Swapping  A process can be swapped temporarily out of memory to a backing store, and then brought back into memory for continued execution  Backing store – fast disk large enough to accommodate copies of all memory images for all users; must provide direct access to these memory images  Roll out, roll in – swapping variant used for priority-based scheduling algorithms; lower-priority process is swapped out so higher-priority process can be loaded and executed  Major part of swap time is transfer time; total transfer time is directly proportional to the amount of memory swapped  Modified versions of swapping are found on many systems (i.e., UNIX, Linux, and Windows)  System maintains a ready queue of ready-to-run processes which have memory images on disk
  • 14. Schematic View of Swapping
  • 15. Contiguous Allocation Main memory usually into two partitions:  Resident operating system, usually held in low memory with interrupt vector  User processes then held in high memory Relocation registers used to protect user processes from each other, and from changing operating-system code and data  Base register contains value of smallest physical address  Limit register contains range of logical addresses – each logical address must be less than the limit register  MMU maps logical address dynamically
  • 16. Hardware Support for Relocation and Limit Registers
  • 17. Contiguous Allocation (Cont) Multiple-partition allocation  Hole – block of available memory; holes of various size are scattered throughout memory  When a process arrives, it is allocated memory from a hole large enough to accommodate it  Operating system maintains information about: a) allocated partitions b) free partitions (hole) OS process 5 process 8 process 2 OS process 5 process 2 OS process 5 process 2 OS process 5 process 9 process 2 process 9 process 10
  • 18. Dynamic Storage-Allocation Problem First-fit: Allocate the first hole that is big enough Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size  Produces the smallest leftover hole Worst-fit: Allocate the largest hole; must also search entire list  Produces the largest leftover hole How to satisfy a request of size n from a list of free holes First-fit and best-fit better than worst-fit in terms of speed and storage utilization
  • 19. Fragmentation External Fragmentation – total memory space exists to satisfy a request, but it is not contiguous Internal Fragmentation – allocated memory may be slightly larger than requested memory; this size difference is memory internal to a partition, but not being used Reduce external fragmentation by compaction  Shuffle memory contents to place all free memory together in one large block  Compaction is possible only if relocation is dynamic, and is done at execution time  I/O problem  Latch job in memory while it is involved in I/O  Do I/O only into OS buffers
  • 20. Paging Logical address space of a process can be noncontiguous; process is allocated physical memory whenever the latter is available Divide physical memory into fixed-sized blocks called frames (size is power of 2, between 512 bytes and 8,192 bytes) Divide logical memory into blocks of same size called pages Keep track of all free frames To run a program of size n pages, need to find n free frames and load program Set up a page table to translate logical to physical addresses Internal fragmentation
  • 21.
  • 22.
  • 23. 32-byte memory and 4-byte pages
  • 25. Implementation of Page Table Page table is kept in main memory Page-table base register (PTBR) points to the page table Page-table length register (PRLR) indicates size of the page table In this scheme every data/instruction access requires two memory accesses. One for the page table and one for the data/instruction. The two memory access problem can be solved by the use of a special fast-lookup hardware cache called associative memory or translation look-aside buffers (TLBs) Some TLBs store address-space identifiers (ASIDs) in each TLB entry – uniquely identifies each process to provide address-space protection for that process
  • 26. Associative Memory Associative memory – parallel search Address translation (p, d) If p is in associative register, get frame # out Otherwise get frame # from page table in memory Page # Frame #
  • 27.
  • 28. Effective Access Time Associative Lookup = ε time unit Assume memory cycle time is 1 microsecond Hit ratio – percentage of times that a page number is found in the associative registers; ratio related to number of associative registers Hit ratio = α Effective Access Time (EAT) EAT = (1 + ε) α + (2 + ε)(1 – α) = 2 + ε – α
  • 29. Memory Protection Memory protection implemented by associating protection bit with each frame Valid-invalid bit attached to each entry in the page table: “valid” indicates that the associated page is in the process’ logical address space, and is thus a legal page “invalid” indicates that the page is not in the process’ logical address space
  • 30.
  • 31. Shared Pages Shared code  One copy of read-only (reentrant) code shared among processes (i.e., text editors, compilers, window systems).  Shared code must appear in same location in the logical address space of all processes Private code and data  Each process keeps a separate copy of the code and data  The pages for the private code and data can appear anywhere in the logical address space
  • 32.
  • 33. Structure of the Page Table Hierarchical Paging Hashed Page Tables Inverted Page Tables
  • 34. Hierarchical Page Tables Break up the logical address space into multiple page tables A simple technique is a two-level page table
  • 35.
  • 36. Two-Level Paging Example  A logical address (on 32-bit machine with 1K page size) is divided into:  a page number consisting of 22 bits  a page offset consisting of 10 bits  Since the page table is paged, the page number is further divided into:  a 12-bit page number  a 10-bit page offset  Thus, a logical address is as follows: where pi is an index into the outer page table, and p2 is the displacement within the page of the outer page table page number page offset pi p2 d 12 10 10
  • 39. Hashed Page Tables Common in address spaces > 32 bits The virtual page number is hashed into a page table  This page table contains a chain of elements hashing to the same location Virtual page numbers are compared in this chain searching for a match  If a match is found, the corresponding physical frame is extracted
  • 40.
  • 41. Inverted Page Table One entry for each real page of memory Entry consists of the virtual address of the page stored in that real memory location, with information about the process that owns that page Decreases memory needed to store each page table, but increases time needed to search the table when a page reference occurs Use hash table to limit the search to one — or at most a few — page-table entries
  • 42.
  • 43. Segmentation Memory-management scheme that supports user view of memory A program is a collection of segments  A segment is a logical unit such as: main program procedure function method object local variables, global variables common block stack symbol table arrays
  • 44.
  • 46. Segmentation Architecture Logical address consists of a two tuple: <segment-number, offset>, Segment table – maps two-dimensional physical addresses; each table entry has: base – contains the starting physical address where the segments reside in memory limit – specifies the length of the segment Segment-table base register (STBR) points to the segment table’s location in memory Segment-table length register (STLR) indicates number of segments used by a program; segment number s is legal if s < STLR
  • 47. Segmentation Architecture (Cont.) Protection With each entry in segment table associate:  validation bit = 0 ⇒ illegal segment  read/write/execute privileges Protection bits associated with segments; code sharing occurs at segment level Since segments vary in length, memory allocation is a dynamic storage-allocation problem A segmentation example is shown in the following diagram
  • 48.
  • 49.
  • 50. Example: The Intel Pentium Supports both segmentation and segmentation with paging CPU generates logical address Given to segmentation unit  Which produces linear addresses Linear address given to paging unit  Which generates physical address in main memory  Paging units form equivalent of MMU
  • 51.
  • 52.
  • 53.
  • 55.
