The document discusses key concepts related to virtual memory in Windows operating systems, including: 1) Windows uses demand paging and clustering to handle page faults, bringing in surrounding pages along with the faulting page. 2) Virtual memory allows programs to access more space than physical RAM by paging parts of programs and data to a page file on disk as needed. 3) A page fault occurs when a program tries to access a virtual page that is not currently mapped to physical memory, triggering the page to be loaded from the page file.

1. 9/3/2012 1

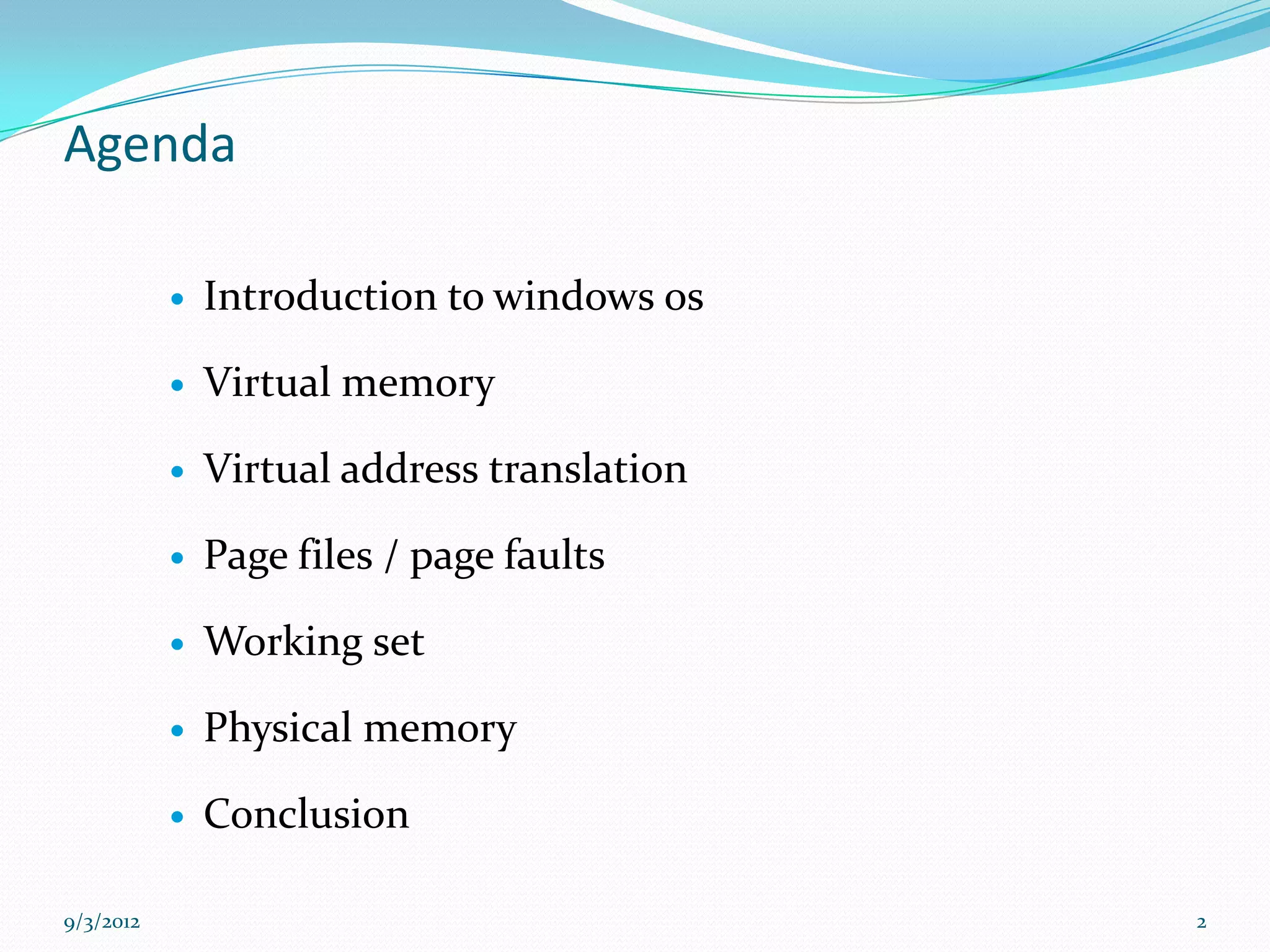

2. Agenda
 Introduction to windows os
 Virtual memory
 Virtual address translation
 Page files / page faults
 Working set
 Physical memory
 Conclusion
9/3/2012 2

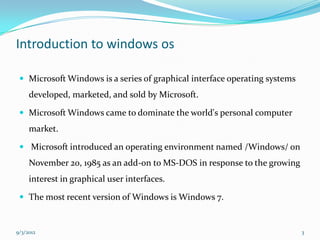

3. Introduction to windows os
 Microsoft Windows is a series of graphical interface operating systems
developed, marketed, and sold by Microsoft.
 Microsoft Windows came to dominate the world's personal computer
market.
 Microsoft introduced an operating environment named /Windows/ on
November 20, 1985 as an add-on to MS-DOS in response to the growing
interest in graphical user interfaces.
 The most recent version of Windows is Windows 7.
9/3/2012 3

4.  Windows uses demand paging with Clustering.
 Clustering handles page faults by bringing in not only the
faulting page but also the multiple pages surrounding the
faulting page.
 Windows uses clock algorithm.
9/3/2012 4

5. What is Virtual Memory?
 CPU can address up to 3GB of memory, using its full 32 bits.
 This is normally far more than the RAM of the machine.
 The hardware provides for programs to operate in terms of as
much as they wish of this full 4GB space as Virtual Memory, those
parts of the program and data which are currently active being
loaded into Physical Random Access Memory (RAM).
9/3/2012 5

6. Why virtual memory?
 The first is to allow the use of programs that are too big to
physically fit in memory.
 The other reason is to allow for multitasking – multiple
programs running at once.
9/3/2012 6

7. Virtual Memory in Windows
 In Windows the processor manages the mapping in terms of pages of
4 Kilobytes each a size that has implications for managing virtual
memory by the system.
 Only some parts of the program and data that are currently in active
use need to be held in physical RAM.
 Other parts are then held in a swap file(in as it’s called in Windows
95/98/ME: Win386.swp )or page file(in Windows NT versions
including Windows 2000 and XP).
9/3/2012 7

8. Address space of Windows
32-bit Address Space
32-bits = 2^32 = 4 GB
 3 GB for address space
 1 GB for kernel mode
64-bit Address space
64-bits = 2^64 = 17,179,869,184 GB
 x64 today supports 48 bits virtual = 262,144 GB = 256 TB
 IA-64 today support 50 bits virtual = 1,048,576 GB = 1024 TB
 64-bit Windows supports 44 bits = 16,384 GB = 16 TB
9/3/2012 8

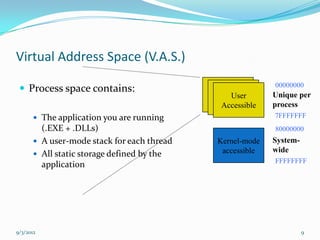

9. Virtual Address Space (V.A.S.)
00000000
 Process space contains:
User Unique per
Accessible process
 The application you are running 7FFFFFFF
(.EXE + .DLLs) 80000000
 A user-mode stack for each thread Kernel-mode System-
accessible wide
 All static storage defined by the
FFFFFFFF
application
9/3/2012 9

10. Virtual Address Space (V.A.S.)
00000000
 System space contains:
 Executive, Kernel User Unique per
Accessible process
 Statically-allocated system-
wide data cells 7FFFFFFF
 Page tables 80000000
 Kernel-mode device drivers Kernel-mode System-
accessible wide
 File system cache
FFFFFFFF
 A kernel-mode stack
for every thread
in every
process
9/3/2012 10

11. What is loaded in RAM?
Items of RAM can be divided into two parts :
-Non paged area
• Parts of system which are very important . This cannot
be paged out.
-page pool
• Program code, Data pages that had actual data written
to them.
9/3/2012 11

12. Memory Organization
 Two-level hierarchical memory map
 Page directory table
 Page directory entries (PDEs) point to page table
 One page directory table per process
 Location in page directory register
 Page table
 Page table entries (PTEs) point to page frames
 Page frame
 Contains page of data
 TLB (translation look aside buffer) accelerates address translation
9/3/2012 12

13. Virtual Address Translation
 Hardware converts each valid virtual address to a physical
address
virtual address
Virtual page number Byte within page
Page
Directory
Address translation
(hardware) If page Page
not valid fault
Page
Tables
Physical page number Byte within page
Translation physical address
Lookaside
Buffer
9/3/2012 13

14. Virtual address translation
.
9/3/2012 14

15.  Page file
 The page file is a hidden file called pagefile.sys.
 It is regenerated at each boot .
 there is no need to include it in a backup
9/3/2012 15

16. The paging file and the RAM
 The VMM creates a file on the hard disk that holds the extra memory that
is needed by the O.S.
 This file is called a paging file (also known as a swap file), and plays an
important role in virtual memory.
 The paging file combined with the RAM accounts for all of the memory.
 Whenever the O.S. needs a ‘block’ of memory that’s not in the real (RAM)
memory, the VMM takes a block from the real memory that hasn’t been
used recently, writes it to the paging file.
 Then it reads the block of memory that the O.S. needs from the paging
file.
9/3/2012 16

17. The paging file and the RAM
 The VMM then takes the block of memory from the paging file, and
moves it into the real memory – in place of the old block.
 This process is called swapping (also known as paging),
 The blocks of memory that are swapped are called pages.
9/3/2012 17

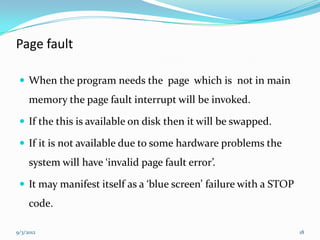

18. Page fault
 When the program needs the page which is not in main
memory the page fault interrupt will be invoked.
 If the this is available on disk then it will be swapped.
 If it is not available due to some hardware problems the
system will have ‘invalid page fault error’.
 It may manifest itself as a ‘blue screen’ failure with a STOP
code.
9/3/2012 18

19. Page Faults
 A page fault occurs when there is a reference to a page that isn’t
mapped to a physical page
 The system goes to the appropriate block in the associated file to find
the contents of the page:
 Physical page is allocated
 Block is read into physical page
 Page table entry is filled in
 Exception is dismissed
 Processor re-executes the instruction that caused the page fault
 The page has now been “faulted into” the process “working set”
 Pages are only brought into memory as a result of page faults
9/3/2012 19

20. Disadvantages of virtual memory
 Virtual memory can slow down performance.
 If the size of virtual memory is quite large in comparison to the real
memory, then more swapping to and from the hard disk will occur as a
result.
 Accessing the hard disk is far slower than using system memory.
 Using too many programs at once in a system with an insufficient
amount of RAM results in constant disk swapping – also
called thrashing.
9/3/2012 20

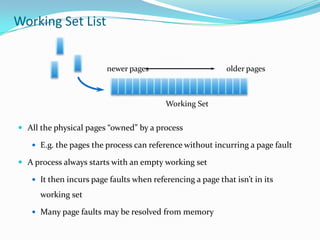

21. Working Set List
newer pages older pages
Working Set
 All the physical pages “owned” by a process
 E.g. the pages the process can reference without incurring a page fault
 A process always starts with an empty working set
 It then incurs page faults when referencing a page that isn’t in its
working set
 Many page faults may be resolved from memory

22. Working Set
 Each process has a default working set minimum and maximum
 Can change with SetProcessWorkingSet
 Working set minimum controls maximum number of locked
pages (VirtualLock)
 Minimum is also reserved from RAM as a guarantee to the
process
 Working set maximum is ignored
 If there’s ample memory, process working set represents all the
memory it has referenced (but not freed)

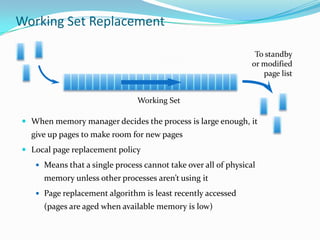

23. Working Set Replacement
To standby
or modified
page list
Working Set
 When memory manager decides the process is large enough, it
give up pages to make room for new pages
 Local page replacement policy
 Means that a single process cannot take over all of physical
memory unless other processes aren’t using it
 Page replacement algorithm is least recently accessed
(pages are aged when available memory is low)

24. Working Set Breakdown
 Consists of 2 types of pages:
 Shareable (of which some may be shared)
 Private
 Four performance counters available:
 Working Set Shareable
 Working Set Shared (subset of shareable that are currently shared)
 Working Set Private
 Working Set Size (total of WS Shareable+Private)
 Note: adding this up for each process overcounts shared pages

25. Managing Physical Memory
 System keeps unassigned physical pages on one of several lists
 Free page list
 Modified page list
 Standby page lists (8 as of Vista & later)
 Zero page list
 Bad page list - pages that failed memory test at system startup
 Lists are implemented by entries in the “PFN database”
 Maintained as FIFO lists or queues

26. Standby and Modified Page Lists
 Modified pages go to modified (dirty) list
 Avoids writing pages back to disk too soon
 Unmodified pages go to standby (clean) lists
 They form a system-wide cache of “pages likely to be needed again”
 Pages can be faulted back into a process from the standby and
modified page list
 These are counted as page faults, but not page reads

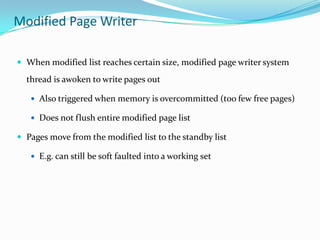

27. Modified Page Writer
 When modified list reaches certain size, modified page writer system
thread is awoken to write pages out
 Also triggered when memory is overcommitted (too few free pages)
 Does not flush entire modified page list
 Pages move from the modified list to the standby list
 E.g. can still be soft faulted into a working set

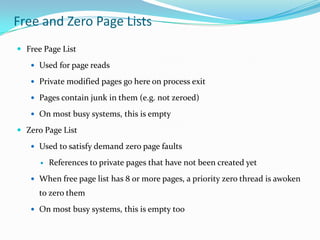

28. Free and Zero Page Lists
 Free Page List
 Used for page reads
 Private modified pages go here on process exit
 Pages contain junk in them (e.g. not zeroed)
 On most busy systems, this is empty
 Zero Page List
 Used to satisfy demand zero page faults
 References to private pages that have not been created yet
 When free page list has 8 or more pages, a priority zero thread is awoken
to zero them
 On most busy systems, this is empty too

29. Super Fetch
 Superfetch proactively repopulates RAM with the most useful data
 Sets priority of pages to optimal value, based on the page history and
other analysis that it performs
 Takes into account frequency of page usage, usage of page in context
of other pages in memory
 Scenarios SuperFetch improves include
 Resume from hibernate and suspend
 Fast user switching
 Performance after infrequent or low priority tasks execute
 Application launch

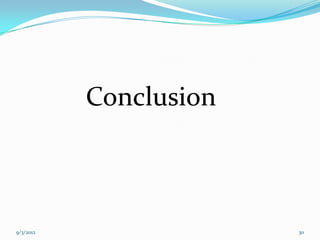

30. Conclusion
9/3/2012 30

31. Thank you
9/3/2012 31
