1. MERGING FILES

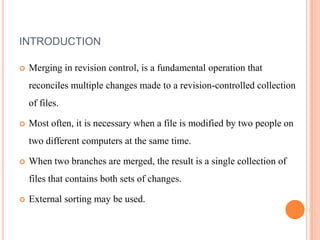

2. INTRODUCTION
 Merging in revision control, is a fundamental operation that
reconciles multiple changes made to a revision-controlled collection
of files.
 Most often, it is necessary when a file is modified by two people on
two different computers at the same time.
 When two branches are merged, the result is a single collection of
files that contains both sets of changes.
 External sorting may be used.

3. EXTERNAL SORTING
 External sorting is a term for a class of sorting algorithms that can
handle massive amounts of data.
 External sorting is required when the data being sorted do not fit into
the main memory of a computing device and instead they must reside
in the slower external memory.
 External sorting typically uses a sort-merge strategy.
 In the merge phase, the sorted sub files are combined into a single
larger file.

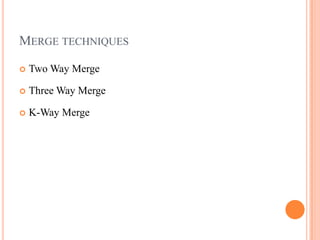

4. MERGE TECHNIQUES
 Two Way Merge
 Three Way Merge
 K-Way Merge

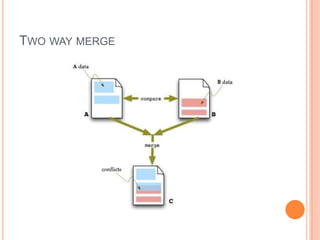

5. TWO WAY MERGE
 A two-way merge performs an automated difference
analysis between a file 'A' and a file 'B'.
 This method considers the differences between the two
files alone to conduct the merge and makes a "best-
guess" analysis to generate the resulting merge.

6. TWO WAY MERGE

8. ALGORITHM

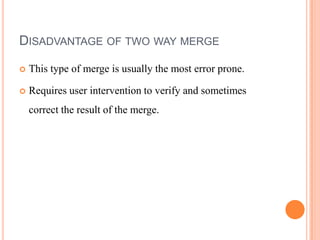

9. DISADVANTAGE OF TWO WAY MERGE
 This type of merge is usually the most error prone.
 Requires user intervention to verify and sometimes
correct the result of the merge.

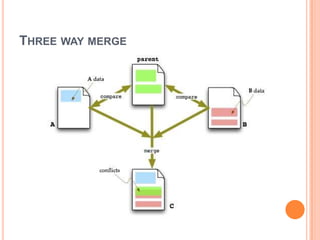

10. THREE WAY MERGE
 A three-way merge is performed after an automated difference
analysis between a file 'A' and a file 'B' while also considering
the origin, or parent, of both files.
 This type of merge is more likely to be usable in revision
control systems, which can guarantee that such a parent exists
and is known.
 The merge tool examines the differences and patterns
appearing in the changes between both files as well as the
parent.

11. THREE WAY MERGE

12. ADVANTAGES OF THREE WAY MERGE
 This merge is the most reliable and has performed well
in practice.
 It has also required the least amount of user intervention.
 In many cases, requiring no intervention at all making
the process eligible for task automation.

13. K-WAY MERGE ALGORITHM
Let there be two arrays:
•An array of k lists and
•An array of k index values corresponding to the current
element in each of the k lists, respectively.
Main loop of the K-Way Merge algorithm:
•Find the index of the minimum current item, minItem
•Process minItem(output it to the output list)
•For i=0 until i=k-1 (in increments of 1)
If the current item of list i is equal to minItem then
advance list i.
•Go back to the first step.

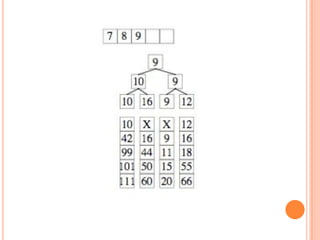

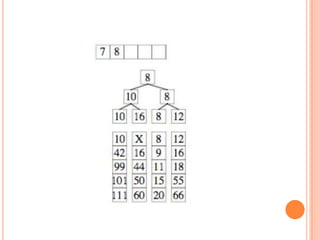

14. K-WAY MERGE
 Tournament sort is used.

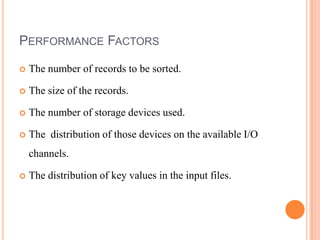

17. PERFORMANCE FACTORS
 The number of records to be sorted.
 The size of the records.
 The number of storage devices used.
 The distribution of those devices on the available I/O
channels.
 The distribution of key values in the input files.
