Nanoparticulate drug delivery systems can provide several advantages over traditional medications. Nanoparticles are sub-100nm structures that can encapsulate drugs and biologically active substances. They can improve drug efficacy, reduce toxicity, enhance distribution in the body, and improve patient compliance. Common types of nanoparticles used for drug delivery include polymeric nanoparticles, solid lipid nanoparticles, nanosuspensions, liposomes, dendrimers, and magnetic nanoparticles. Nanoparticles are prepared using various methods such as cross-linking of amphiphilic polymers, emulsion polymerization, and precipitation of hydrophobic polymers from organic solvents. The small size of nanoparticles allows for targeted drug delivery to specific sites in the body.

1. NANOPARTICULATE
DRUG DELIVERY
SYSTEM
Presented by:
Chinchole Pravin Sonu
(M.PHARM 2nd SEM)
DEPARTMENT OF PHARMACEUTICS & QUALITY ASSURANCE
R. C. Patel Institute of Pharmaceutical Education and Research,
shirpur.

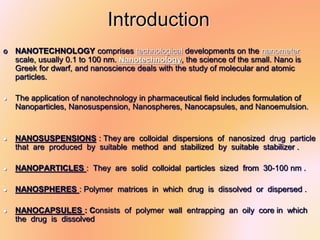

2. Introduction
‫סּ‬ NANOTECHNOLOGY comprises technological developments on the nanometer
scale, usually 0.1 to 100 nm. Nanotechnology, the science of the small. Nano is
Greek for dwarf, and nanoscience deals with the study of molecular and atomic
particles.
 The application of nanotechnology in pharmaceutical field includes formulation of
Nanoparticles, Nanosuspension, Nanospheres, Nanocapsules, and Nanoemulsion.
 NANOSUSPENSIONS : They are colloidal dispersions of nanosized drug particle
that are produced by suitable method and stabilized by suitable stabilizer .
 NANOPARTICLES : They are solid colloidal particles sized from 30-100 nm .
 NANOSPHERES : Polymer matrices in which drug is dissolved or dispersed .
 NANOCAPSULES : Consists of polymer wall entrapping an oily core in which
the drug is dissolved

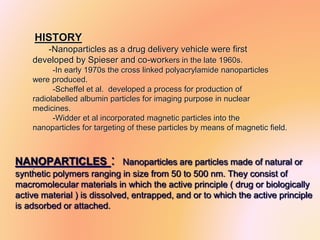

3. HISTORY
-Nanoparticles as a drug delivery vehicle were first
developed by Spieser and co-workers in the late 1960s.
-In early 1970s the cross linked polyacrylamide nanoparticles
were produced.
-Scheffel et al. developed a process for production of
radiolabelled albumin particles for imaging purpose in nuclear
medicines.
-Widder et al incorporated magnetic particles into the
nanoparticles for targeting of these particles by means of magnetic field.
.
NANOPARTICLES : Nanoparticles are particles made of natural or
synthetic polymers ranging in size from 50 to 500 nm. They consist of
macromolecular materials in which the active principle ( drug or biologically
active material ) is dissolved, entrapped, and or to which the active principle
is adsorbed or attached.

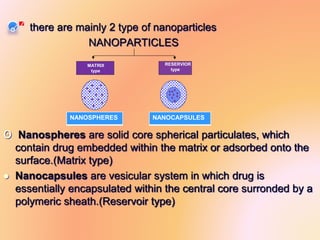

4. there are mainly 2 type of nanoparticles
NANOPARTICLES

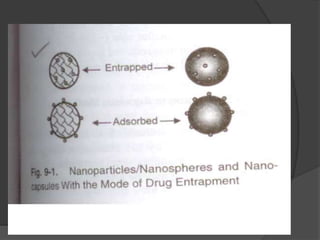

‫סּ‬ Nanospheres are solid core spherical particulates, which
contain drug embedded within the matrix or adsorbed onto the
surface.(Matrix type)
 Nanocapsules are vesicular system in which drug is
essentially encapsulated within the central core surronded by a
polymeric sheath.(Reservoir type)
MATRIX
type
RESERVIOR
type
NANOSPHERES NANOCAPSULES

5. DEFINITION :
 SUBNANOSIZED STRUCTURES C CONTAIN
DRUG OR BIOACTIVE SUBS. WITHIN THEM
 SIZE RANGE : 5nm – 300 nm

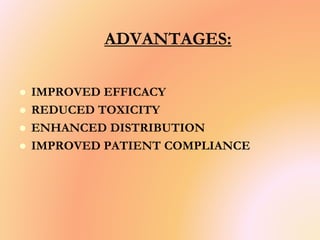

6. ADVANTAGES:
 IMPROVED EFFICACY
 REDUCED TOXICITY
 ENHANCED DISTRIBUTION
 IMPROVED PATIENT COMPLIANCE

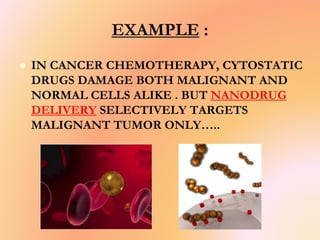

7. EXAMPLE :
 IN CANCER CHEMOTHERAPY, CYTOSTATIC
DRUGS DAMAGE BOTH MALIGNANT AND
NORMAL CELLS ALIKE . BUT NANODRUG
DELIVERY SELECTIVELY TARGETS
MALIGNANT TUMOR ONLY…..

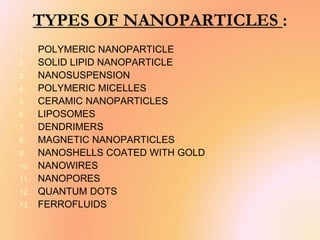

8. TYPES OF NANOPARTICLES :
1. POLYMERIC NANOPARTICLE
2. SOLID LIPID NANOPARTICLE
3. NANOSUSPENSION
4. POLYMERIC MICELLES
5. CERAMIC NANOPARTICLES
6. LIPOSOMES
7. DENDRIMERS
8. MAGNETIC NANOPARTICLES
9. NANOSHELLS COATED WITH GOLD
10. NANOWIRES
11. NANOPORES
12. QUANTUM DOTS
13. FERROFLUIDS

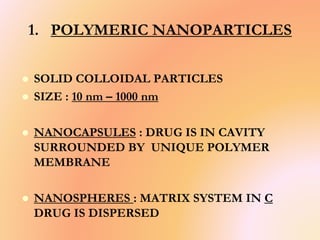

9. 1. POLYMERIC NANOPARTICLES
 SOLID COLLOIDAL PARTICLES
 SIZE : 10 nm – 1000 nm
 NANOCAPSULES : DRUG IS IN CAVITY
SURROUNDED BY UNIQUE POLYMER
MEMBRANE
 NANOSPHERES : MATRIX SYSTEM IN C
DRUG IS DISPERSED

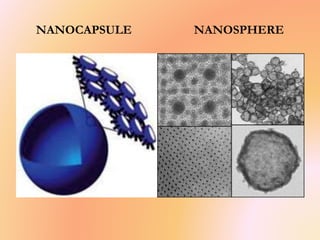

10. NANOCAPSULE NANOSPHERE

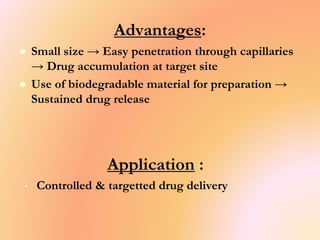

11. Advantages:
 Small size → Easy penetration through capillaries
→ Drug accumulation at target site
 Use of biodegradable material for preparation →
Sustained drug release
Application :
• Controlled & targetted drug delivery

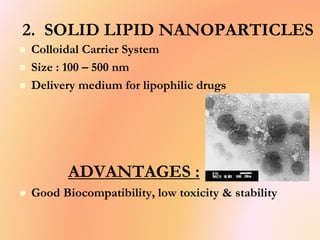

12. 2. SOLID LIPID NANOPARTICLES
 Colloidal Carrier System
 Size : 100 – 500 nm
 Delivery medium for lipophilic drugs
ADVANTAGES :
 Good Biocompatibility, low toxicity & stability

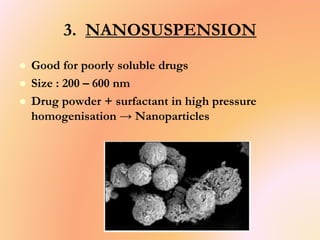

13. 3. NANOSUSPENSION
 Good for poorly soluble drugs
 Size : 200 – 600 nm
 Drug powder + surfactant in high pressure
homogenisation → Nanoparticles

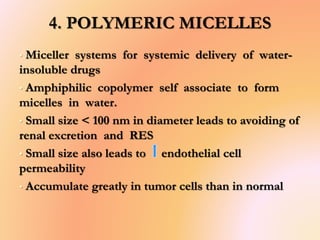

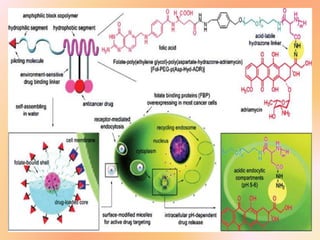

14. 4. POLYMERIC MICELLES
• Miceller systems for systemic delivery of water-
insoluble drugs
• Amphiphilic copolymer self associate to form
micelles in water.
• Small size < 100 nm in diameter leads to avoiding of
renal excretion and RES
• Small size also leads to endothelial cell
permeability
• Accumulate greatly in tumor cells than in normal

16. ADVANTAGES :
 Better thermodynamic stability in physiological
solution
 Stable & prolonged systemic circulation time
 Rapid invivo dissociation is prevented

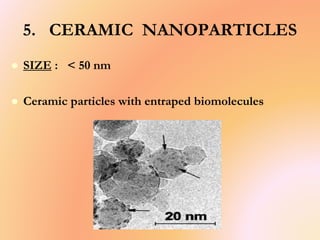

17. 5. CERAMIC NANOPARTICLES
 SIZE : < 50 nm
 Ceramic particles with entraped biomolecules

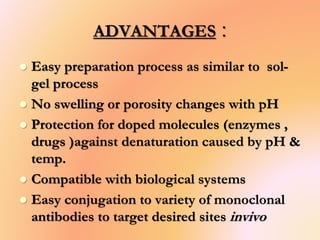

18. ADVANTAGES :
 Easy preparation process as similar to sol-
gel process
 No swelling or porosity changes with pH
 Protection for doped molecules (enzymes ,
drugs )against denaturation caused by pH &
temp.
 Compatible with biological systems
 Easy conjugation to variety of monoclonal
antibodies to target desired sites invivo

19. 6. LIPOSOMES
 Small artificial spherical shape vesicles
 Prepared from natural non toxic phospholiids and
cholesterol

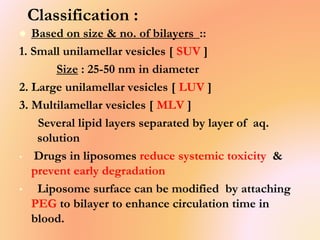

20. Classification :
 Based on size & no. of bilayers ::
1. Small unilamellar vesicles [ SUV ]
Size : 25-50 nm in diameter
2. Large unilamellar vesicles [ LUV ]
3. Multilamellar vesicles [ MLV ]
Several lipid layers separated by layer of aq.
solution
• Drugs in liposomes reduce systemic toxicity &
prevent early degradation
• Liposome surface can be modified by attaching
PEG to bilayer to enhance circulation time in
blood.

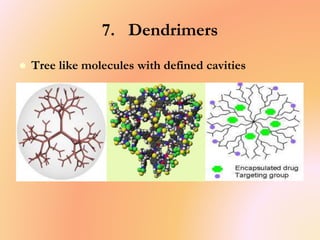

21. 7. Dendrimers
 Tree like molecules with defined cavities

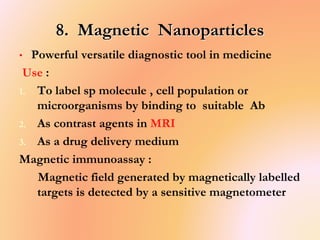

22. 8. Magnetic Nanoparticles
• Powerful versatile diagnostic tool in medicine
Use :
1. To label sp molecule , cell population or
microorganisms by binding to suitable Ab
2. As contrast agents in MRI
3. As a drug delivery medium
Magnetic immunoassay :
Magnetic field generated by magnetically labelled
targets is detected by a sensitive magnetometer

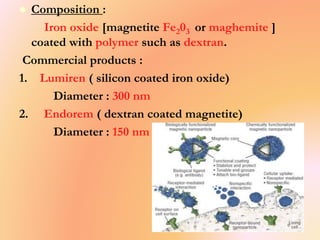

23.  Composition :
Iron oxide [magnetite Fe203 or maghemite ]
coated with polymer such as dextran.
Commercial products :
1. Lumiren ( silicon coated iron oxide)
Diameter : 300 nm
2. Endorem ( dextran coated magnetite)
Diameter : 150 nm

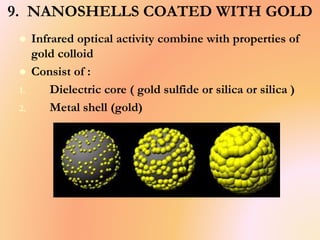

24. 9. NANOSHELLS COATED WITH GOLD
 Infrared optical activity combine with properties of
gold colloid
 Consist of :
1. Dielectric core ( gold sulfide or silica or silica )
2. Metal shell (gold)

25.  Particle < 75 nm diameter absorb & others scatter
the incidence light
 Surface properties of gold nanoshells = gold
colloid.
 Use :
 Destroy breast cancer cells
Antibodies to breast cancer can be directly
attached to gold nanoshells

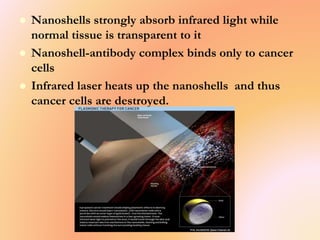

26.  Nanoshells strongly absorb infrared light while
normal tissue is transparent to it
 Nanoshell-antibody complex binds only to cancer
cells
 Infrared laser heats up the nanoshells and thus
cancer cells are destroyed.

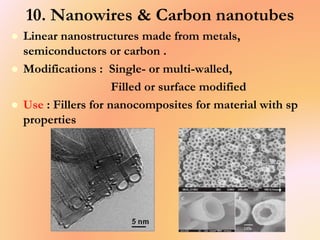

27. 10. Nanowires & Carbon nanotubes
 Linear nanostructures made from metals,
semiconductors or carbon .
 Modifications : Single- or multi-walled,
Filled or surface modified
 Use : Fillers for nanocomposites for material with sp
properties

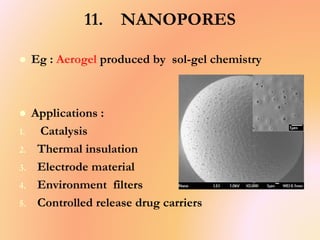

28. 11. NANOPORES
 Eg : Aerogel produced by sol-gel chemistry
 Applications :
1. Catalysis
2. Thermal insulation
3. Electrode material
4. Environment filters
5. Controlled release drug carriers

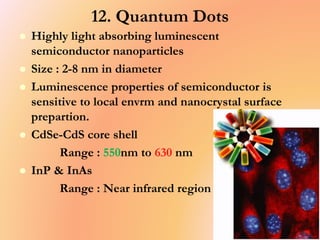

29. 12. Quantum Dots
 Highly light absorbing luminescent
semiconductor nanoparticles
 Size : 2-8 nm in diameter
 Luminescence properties of semiconductor is
sensitive to local envrm and nanocrystal surface
prepartion.
 CdSe-CdS core shell
Range : 550nm to 630 nm
 InP & InAs
Range : Near infrared region

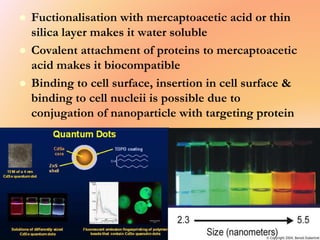

30.  Fuctionalisation with mercaptoacetic acid or thin
silica layer makes it water soluble
 Covalent attachment of proteins to mercaptoacetic
acid makes it biocompatible
 Binding to cell surface, insertion in cell surface &
binding to cell nucleii is possible due to
conjugation of nanoparticle with targeting protein

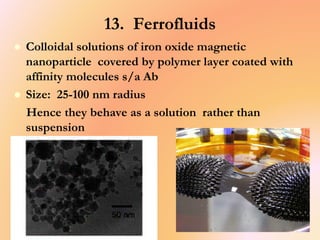

31. 13. Ferrofluids
 Colloidal solutions of iron oxide magnetic
nanoparticle covered by polymer layer coated with
affinity molecules s/a Ab
 Size: 25-100 nm radius
Hence they behave as a solution rather than
suspension

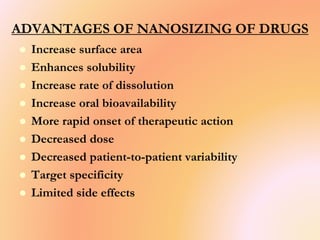

32. ADVANTAGES OF NANOSIZING OF DRUGS
 Increase surface area
 Enhances solubility
 Increase rate of dissolution
 Increase oral bioavailability
 More rapid onset of therapeutic action
 Decreased dose
 Decreased patient-to-patient variability
 Target specificity
 Limited side effects

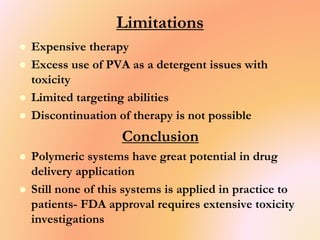

33. Limitations
 Expensive therapy
 Excess use of PVA as a detergent issues with
toxicity
 Limited targeting abilities
 Discontinuation of therapy is not possible
Conclusion
 Polymeric systems have great potential in drug
delivery application
 Still none of this systems is applied in practice to
patients- FDA approval requires extensive toxicity
investigations

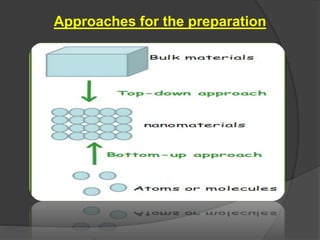

34. Approaches for the preparation

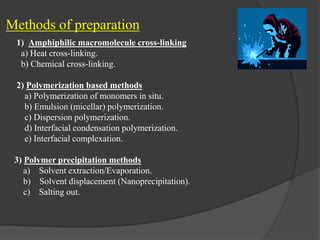

35. Methods of preparation

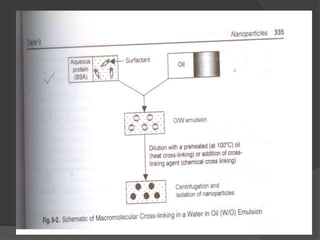

1) Amphiphilic macromolecule cross-linking
a) Heat cross-linking.
b) Chemical cross-linking.
2) Polymerization based methods
a) Polymerization of monomers in situ.
b) Emulsion (micellar) polymerization.
c) Dispersion polymerization.
d) Interfacial condensation polymerization.
e) Interfacial complexation.
3) Polymer precipitation methods
a) Solvent extraction/Evaporation.
b) Solvent displacement (Nanoprecipitation).
c) Salting out.

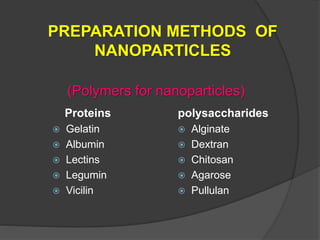

36. PREPARATION METHODS OF
NANOPARTICLES
Proteins
 Gelatin
 Albumin
 Lectins
 Legumin
 Vicilin
polysaccharides
 Alginate
 Dextran
 Chitosan
 Agarose
 Pullulan
(Polymers for nanoparticles)

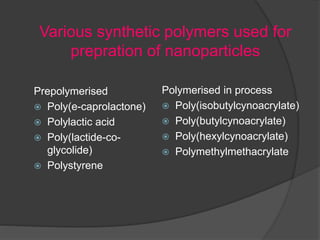

37. Various synthetic polymers used for
prepration of nanoparticles
Prepolymerised
 Poly(e-caprolactone)
 Polylactic acid
 Poly(lactide-co-
glycolide)
 Polystyrene
Polymerised in process
 Poly(isobutylcynoacrylate)
 Poly(butylcynoacrylate)
 Poly(hexylcynoacrylate)
 Polymethylmethacrylate

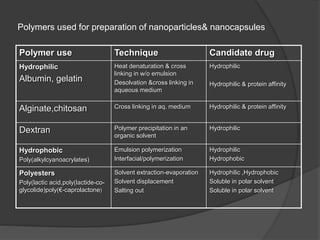

39. Polymers used for preparation of nanoparticles& nanocapsules
Polymer use Technique Candidate drug
Hydrophilic
Albumin, gelatin
Heat denaturation & cross
linking in w/o emulsion
Desolvation &cross linking in
aqueous medium
Hydrophilic
Hydrophilic & protein affinity
Alginate,chitosan Cross linking in aq. medium Hydrophilic & protein affinity
Dextran Polymer precipitation in an
organic solvent
Hydrophilic
Hydrophobic
Poly(alkylcyanoacrylates)
Emulsion polymerization
Interfacial/polymerization
Hydrophilic
Hydrophobic
Polyesters
Poly(lactic acid,poly(lactide-co-
glycolide)poly(€-caprolactone)
Solvent extraction-evaporation
Solvent displacement
Salting out
Hydrophilic ,Hydrophobic
Soluble in polar solvent
Soluble in polar solvent

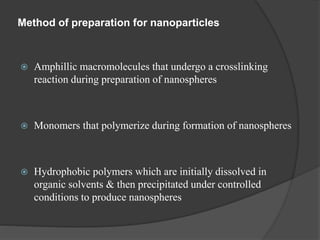

40. Method of preparation for nanoparticles
 Amphillic macromolecules that undergo a crosslinking
reaction during preparation of nanospheres
 Monomers that polymerize during formation of nanospheres
 Hydrophobic polymers which are initially dissolved in
organic solvents & then precipitated under controlled
conditions to produce nanospheres

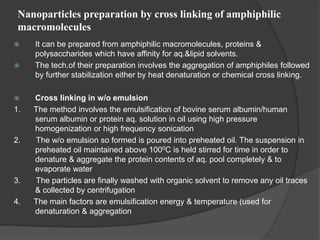

41. Nanoparticles preparation by cross linking of amphiphilic
macromolecules
 It can be prepared from amphiphilic macromolecules, proteins &
polysaccharides which have affinity for aq.&lipid solvents.
 The tech.of their preparation involves the aggregation of amphiphiles followed
by further stabilization either by heat denaturation or chemical cross linking.
 Cross linking in w/o emulsion
1. The method involves the emulsification of bovine serum albumin/human
serum albumin or protein aq. solution in oil using high pressure
homogenization or high frequency sonication
2. The w/o emulsion so formed is poured into preheated oil. The suspension in
preheated oil maintained above 1000C is held stirred for time in order to
denature & aggregate the protein contents of aq. pool completely & to
evaporate water
3. The particles are finally washed with organic solvent to remove any oil traces
& collected by centrifugation
4. The main factors are emulsification energy & temperature (used for
denaturation & aggregation

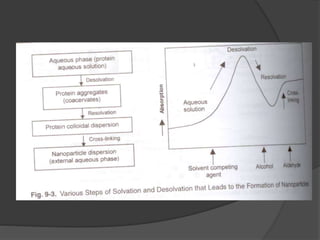

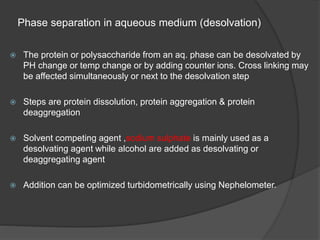

43. Phase separation in aqueous medium (desolvation)
 The protein or polysaccharide from an aq. phase can be desolvated by
PH change or temp change or by adding counter ions. Cross linking may
be affected simultaneously or next to the desolvation step
 Steps are protein dissolution, protein aggregation & protein
deaggregation
 Solvent competing agent ,sodium sulphate is mainly used as a
desolvating agent while alcohol are added as desolvating or
deaggregating agent
 Addition can be optimized turbidometrically using Nephelometer.

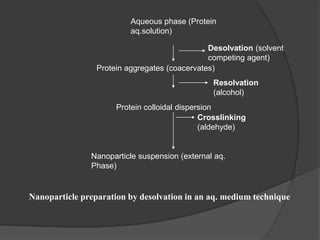

44. Aqueous phase (Protein
aq.solution)
Protein aggregates (coacervates)
Desolvation (solvent
competing agent)
Protein colloidal dispersion
Nanoparticle suspension (external aq.
Phase)
Crosslinking
(aldehyde)
Resolvation
(alcohol)
Nanoparticle preparation by desolvation in an aq. medium technique

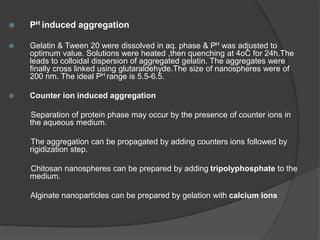

46.  PH induced aggregation
 Gelatin & Tween 20 were dissolved in aq. phase & PH was adjusted to
optimum value. Solutions were heated ,then quenching at 4oC for 24h.The
leads to colloidal dispersion of aggregated gelatin. The aggregates were
finally cross linked using glutaraldehyde.The size of nanospheres were of
200 nm. The ideal PH range is 5.5-6.5.
 Counter ion induced aggregation
Separation of protein phase may occur by the presence of counter ions in
the aqueous medium.
The aggregation can be propagated by adding counters ions followed by
rigidization step.
Chitosan nanospheres can be prepared by adding tripolyphosphate to the
medium.
Alginate nanoparticles can be prepared by gelation with calcium ions

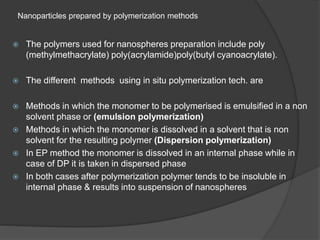

47. Nanoparticles prepared by polymerization methods
 The polymers used for nanospheres preparation include poly
(methylmethacrylate) poly(acrylamide)poly(butyl cyanoacrylate).
 The different methods using in situ polymerization tech. are
 Methods in which the monomer to be polymerised is emulsified in a non
solvent phase or (emulsion polymerization)
 Methods in which the monomer is dissolved in a solvent that is non
solvent for the resulting polymer (Dispersion polymerization)
 In EP method the monomer is dissolved in an internal phase while in
case of DP it is taken in dispersed phase
 In both cases after polymerization polymer tends to be insoluble in
internal phase & results into suspension of nanospheres

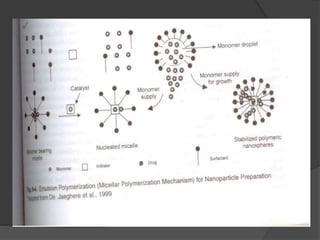

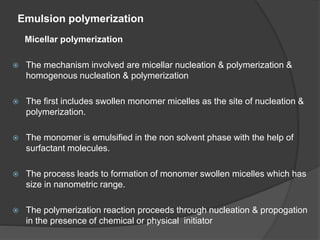

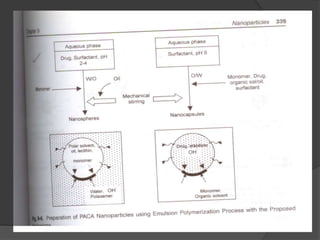

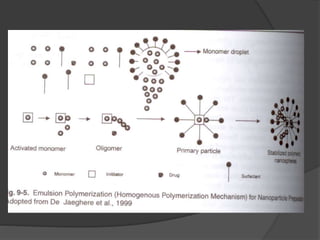

48. Emulsion polymerization
Micellar polymerization
 The mechanism involved are micellar nucleation & polymerization &
homogenous nucleation & polymerization
 The first includes swollen monomer micelles as the site of nucleation &
polymerization.
 The monomer is emulsified in the non solvent phase with the help of
surfactant molecules.
 The process leads to formation of monomer swollen micelles which has
size in nanometric range.
 The polymerization reaction proceeds through nucleation & propogation
in the presence of chemical or physical initiator

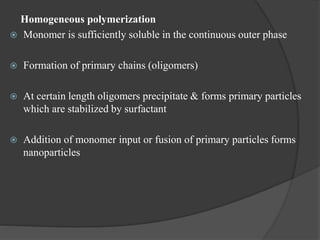

50. Homogeneous polymerization
 Monomer is sufficiently soluble in the continuous outer phase
 Formation of primary chains (oligomers)
 At certain length oligomers precipitate & forms primary particles
which are stabilized by surfactant
 Addition of monomer input or fusion of primary particles forms
nanoparticles

52.  Water soluble drugs may be associated with PACA
nanoparticles either by dissolving the drug in the
aqueous polymerization medium or by incubating the
blank nanospheres with an aq. solution of drug
 Drug molecules may be entrapped within the polymer
matrix & are also adsorbed onto the surface of
nanoparticles
 Drug molecules may be physically adsorbed on the
surface

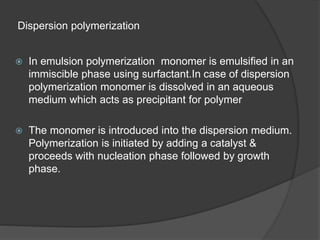

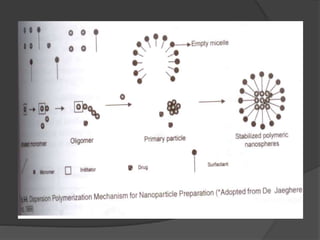

54. Dispersion polymerization
 In emulsion polymerization monomer is emulsified in an
immiscible phase using surfactant.In case of dispersion
polymerization monomer is dissolved in an aqueous
medium which acts as precipitant for polymer
 The monomer is introduced into the dispersion medium.
Polymerization is initiated by adding a catalyst &
proceeds with nucleation phase followed by growth
phase.

55. Inverse emulsification polymerization mechanism

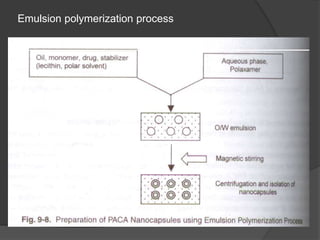

56. Emulsion polymerization process

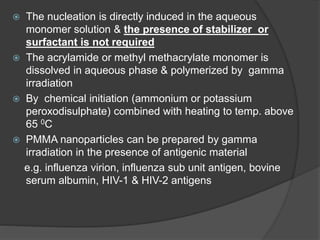

58.  The nucleation is directly induced in the aqueous
monomer solution & the presence of stabilizer or
surfactant is not required
 The acrylamide or methyl methacrylate monomer is
dissolved in aqueous phase & polymerized by gamma
irradiation
 By chemical initiation (ammonium or potassium
peroxodisulphate) combined with heating to temp. above
65 0C
 PMMA nanoparticles can be prepared by gamma
irradiation in the presence of antigenic material
e.g. influenza virion, influenza sub unit antigen, bovine
serum albumin, HIV-1 & HIV-2 antigens

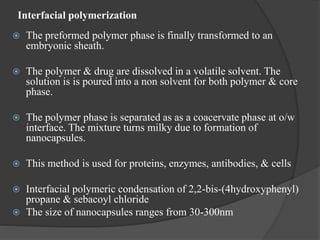

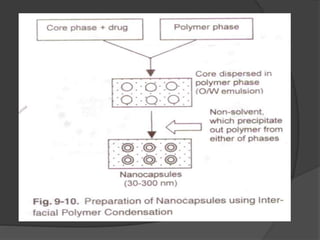

59. Interfacial polymerization
 The preformed polymer phase is finally transformed to an
embryonic sheath.
 The polymer & drug are dissolved in a volatile solvent. The
solution is is poured into a non solvent for both polymer & core
phase.
 The polymer phase is separated as as a coacervate phase at o/w
interface. The mixture turns milky due to formation of
nanocapsules.
 This method is used for proteins, enzymes, antibodies, & cells
 Interfacial polymeric condensation of 2,2-bis-(4hydroxyphenyl)
propane & sebacoyl chloride
 The size of nanocapsules ranges from 30-300nm

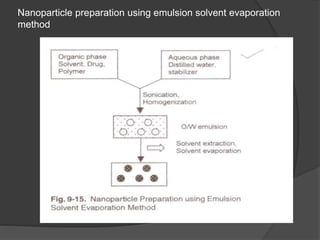

61. Nanoparticle preparation using emulsion solvent evaporation
method

62.  Hydrophobic polymer & or hydrophobic drug is dissolved in a organic
solvent followed by its dispersion in a continuous aq. Phase in which the
polymer is insoluble. External phase contains stabilizer.
 Depending upon solvent miscibility tech.may called as solvent extraction
or evaporation method
The polymer precipitation is done by
 Increasing the solubility of organic solvent in the external medium by
adding an alcohol (isopropanol)
 By incorporating water into ultraemulsion(to extract solvent)
 By evaporation of solvent at room temp. by using vacuum
 Using an organic solvent which is completely soluble in the continuous
aq.phase(acetone)nanoprecipitation

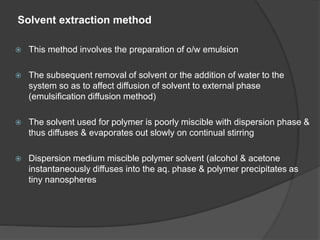

63. Solvent extraction method
 This method involves the preparation of o/w emulsion
 The subsequent removal of solvent or the addition of water to the
system so as to affect diffusion of solvent to external phase
(emulsification diffusion method)
 The solvent used for polymer is poorly miscible with dispersion phase &
thus diffuses & evaporates out slowly on continual stirring
 Dispersion medium miscible polymer solvent (alcohol & acetone
instantaneously diffuses into the aq. phase & polymer precipitates as
tiny nanospheres

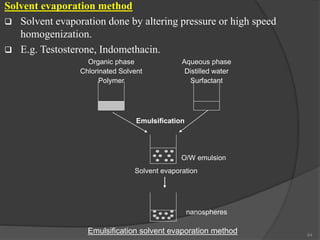

64. Solvent evaporation method
 Solvent evaporation done by altering pressure or high speed
homogenization.
 E.g. Testosterone, Indomethacin.
64
Emulsification
Aqueous phase
Distilled water
Surfactant
Solvent evaporation
nanospheres
O/W emulsion
Organic phase
Chlorinated Solvent
Polymer
Emulsification solvent evaporation method

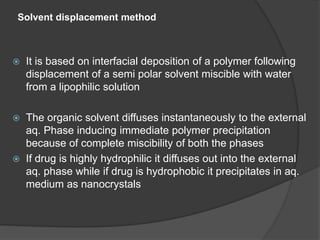

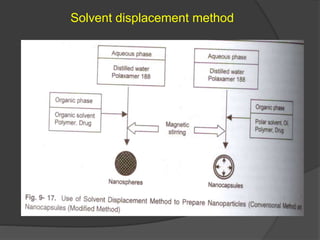

65. Solvent displacement method

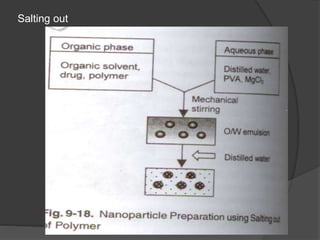

66. Salting out

67. Solvent displacement method
 It is based on interfacial deposition of a polymer following
displacement of a semi polar solvent miscible with water
from a lipophilic solution
 The organic solvent diffuses instantaneously to the external
aq. Phase inducing immediate polymer precipitation
because of complete miscibility of both the phases
 If drug is highly hydrophilic it diffuses out into the external
aq. phase while if drug is hydrophobic it precipitates in aq.
medium as nanocrystals

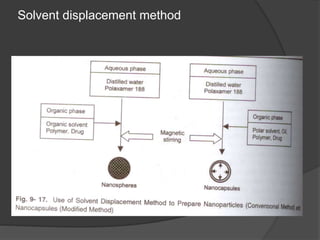

68. Solvent displacement method

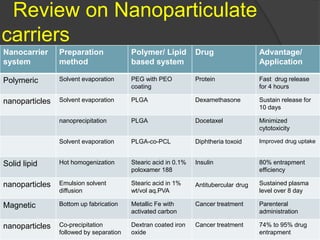

69. Review on Nanoparticulate
carriers
Nanocarrier
system
Preparation
method
Polymer/ Lipid
based system
Drug Advantage/
Application
Polymeric Solvent evaporation PEG with PEO
coating
Protein Fast drug release
for 4 hours
nanoparticles Solvent evaporation PLGA Dexamethasone Sustain release for
10 days
nanoprecipitation PLGA Docetaxel Minimized
cytotoxicity
Solvent evaporation PLGA-co-PCL Diphtheria toxoid Improved drug uptake
Solid lipid Hot homogenization Stearic acid in 0.1%
poloxamer 188
Insulin 80% entrapment
efficiency
nanoparticles Emulsion solvent
diffusion
Stearic acid in 1%
wt/vol aq.PVA
Antitubercular drug Sustained plasma
level over 8 day
Magnetic Bottom up fabrication Metallic Fe with
activated carbon
Cancer treatment Parenteral
administration
nanoparticles Co-precipitation
followed by separation
Dextran coated iron
oxide
Cancer treatment 74% to 95% drug
entrapment

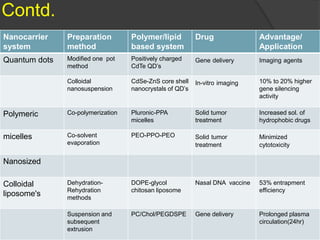

70. Contd.
Nanocarrier
system
Preparation
method
Polymer/lipid
based system
Drug Advantage/
Application
Quantum dots Modified one pot
method
Positively charged
CdTe QD’s
Gene delivery Imaging agents
Colloidal
nanosuspension
CdSe-ZnS core shell
nanocrystals of QD’s
In-vitro imaging 10% to 20% higher
gene silencing
activity
Polymeric Co-polymerization Pluronic-PPA
micelles
Solid tumor
treatment
Increased sol. of
hydrophobic drugs
micelles Co-solvent
evaporation
PEO-PPO-PEO Solid tumor
treatment
Minimized
cytotoxicity
Nanosized
Colloidal
liposome's
Dehydration-
Rehydration
methods
DOPE-glycol
chitosan liposome
Nasal DNA vaccine 53% entrapment
efficiency
Suspension and
subsequent
extrusion
PC/Chol/PEGDSPE Gene delivery Prolonged plasma
circulation(24hr)

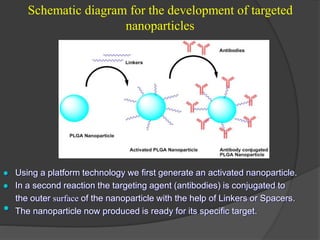

71. Schematic diagram for the development of targeted
nanoparticles
 Using a platform technology we first generate an activated nanoparticle.
 In a second reaction the targeting agent (antibodies) is conjugated to
the outer surface of the nanoparticle with the help of Linkers or Spacers.
• The nanoparticle now produced is ready for its specific target.

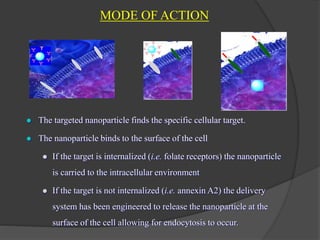

72. MODE OF ACTION
 The targeted nanoparticle finds the specific cellular target.
 The nanoparticle binds to the surface of the cell
 If the target is internalized (i.e. folate receptors) the nanoparticle
is carried to the intracellular environment
 If the target is not internalized (i.e. annexin A2) the delivery
system has been engineered to release the nanoparticle at the
surface of the cell allowing for endocytosis to occur.

73. The potential of Nanocarriers as Drug Delivery Systems.

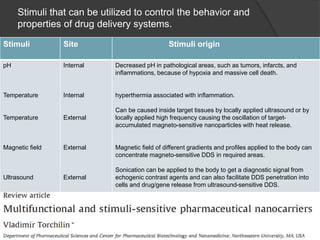

74. Stimuli that can be utilized to control the behavior and
properties of drug delivery systems.
Stimuli Site Stimuli origin
pH
Temperature
Temperature
Magnetic field
Ultrasound
Internal
Internal
External
External
External
Decreased pH in pathological areas, such as tumors, infarcts, and
inflammations, because of hypoxia and massive cell death.
hyperthermia associated with inflammation.
Can be caused inside target tissues by locally applied ultrasound or by
locally applied high frequency causing the oscillation of target-
accumulated magneto-sensitive nanoparticles with heat release.
Magnetic field of different gradients and profiles applied to the body can
concentrate magneto-sensitive DDS in required areas.
Sonication can be applied to the body to get a diagnostic signal from
echogenic contrast agents and can also facilitate DDS penetration into
cells and drug/gene release from ultrasound-sensitive DDS.

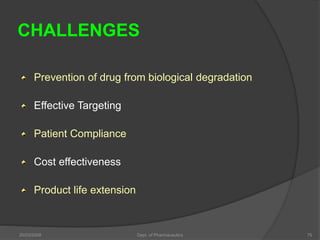

75. CHALLENGES
Prevention of drug from biological degradation
Effective Targeting
Patient Compliance
Cost effectiveness
Product life extension
20/03/2008 Dept. of Pharmaceutics 75

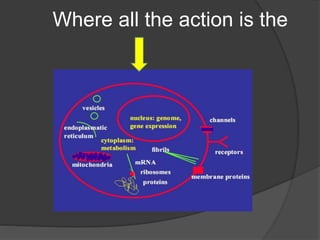

76. Where all the action is the

77. Block copolymer micelles for gene
therapy
 Transfection of plasmid
DNA using diblock
copolymer.
 DNA is released inside
the cytosol and appears
in the nucleus to express
a desired protein.

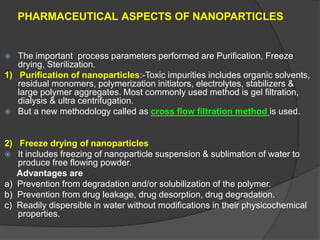

78. PHARMACEUTICAL ASPECTS OF NANOPARTICLES
 The important process parameters performed are Purification, Freeze
drying, Sterilization.
1) Purification of nanoparticles:-Toxic impurities includes organic solvents,
residual monomers, polymerization initiators, electrolytes, stabilizers &
large polymer aggregates. Most commonly used method is gel filtration,
dialysis & ultra centrifugation.
 But a new methodology called as cross flow filtration method is used.
2) Freeze drying of nanoparticles
 It includes freezing of nanoparticle suspension & sublimation of water to
produce free flowing powder.
Advantages are
a) Prevention from degradation and/or solubilization of the polymer.
b) Prevention from drug leakage, drug desorption, drug degradation.
c) Readily dispersible in water without modifications in their physicochemical
properties.

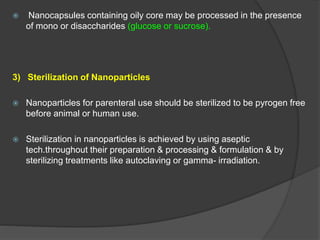

79.  Nanocapsules containing oily core may be processed in the presence
of mono or disaccharides (glucose or sucrose).
3) Sterilization of Nanoparticles
 Nanoparticles for parenteral use should be sterilized to be pyrogen free
before animal or human use.
 Sterilization in nanoparticles is achieved by using aseptic
tech.throughout their preparation & processing & formulation & by
sterilizing treatments like autoclaving or gamma- irradiation.

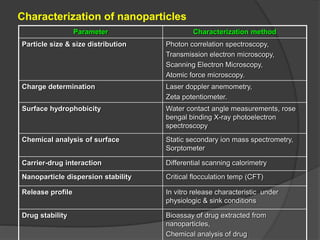

80. Characterization of nanoparticles
Parameter Characterization method
Particle size & size distribution Photon correlation spectroscopy,
Transmission electron microscopy,
Scanning Electron Microscopy,
Atomic force microscopy.
Charge determination Laser doppler anemometry,
Zeta potentiometer.
Surface hydrophobicity Water contact angle measurements, rose
bengal binding X-ray photoelectron
spectroscopy
Chemical analysis of surface Static secondary ion mass spectrometry,
Sorptometer
Carrier-drug interaction Differential scanning calorimetry
Nanoparticle dispersion stability Critical flocculation temp (CFT)
Release profile In vitro release characteristic under
physiologic & sink conditions
Drug stability Bioassay of drug extracted from
nanoparticles,
Chemical analysis of drug

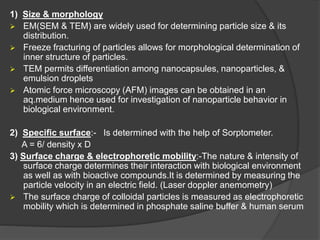

81. 1) Size & morphology
 EM(SEM & TEM) are widely used for determining particle size & its
distribution.
 Freeze fracturing of particles allows for morphological determination of
inner structure of particles.
 TEM permits differentiation among nanocapsules, nanoparticles, &
emulsion droplets
 Atomic force microscopy (AFM) images can be obtained in an
aq.medium hence used for investigation of nanoparticle behavior in
biological environment.
2) Specific surface:- Is determined with the help of Sorptometer.
A = 6/ density x D
3) Surface charge & electrophoretic mobility:-The nature & intensity of
surface charge determines their interaction with biological environment
as well as with bioactive compounds.It is determined by measuring the
particle velocity in an electric field. (Laser doppler anemometry)
 The surface charge of colloidal particles is measured as electrophoretic
mobility which is determined in phosphate saline buffer & human serum

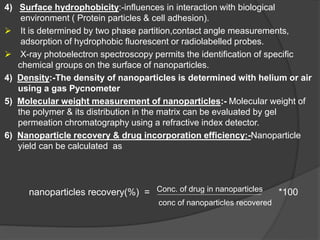

82. 4) Surface hydrophobicity:-influences in interaction with biological
environment ( Protein particles & cell adhesion).
 It is determined by two phase partition,contact angle measurements,
adsorption of hydrophobic fluorescent or radiolabelled probes.
 X-ray photoelectron spectroscopy permits the identification of specific
chemical groups on the surface of nanoparticles.
4) Density:-The density of nanoparticles is determined with helium or air
using a gas Pycnometer
5) Molecular weight measurement of nanoparticles:- Molecular weight of
the polymer & its distribution in the matrix can be evaluated by gel
permeation chromatography using a refractive index detector.
6) Nanoparticle recovery & drug incorporation efficiency:-Nanoparticle
yield can be calculated as
nanoparticles recovery(%) = Conc. of drug in nanoparticles *100
conc of nanoparticles recovered

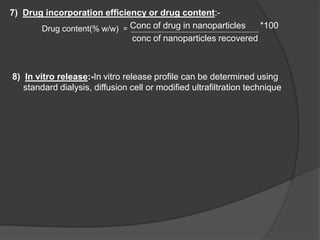

83. 7) Drug incorporation efficiency or drug content:-
Drug content(% w/w) = Conc of drug in nanoparticles *100
conc of nanoparticles recovered
8) In vitro release:-In vitro release profile can be determined using
standard dialysis, diffusion cell or modified ultrafiltration technique

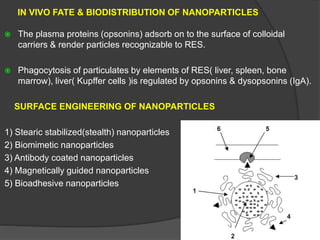

84. IN VIVO FATE & BIODISTRIBUTION OF NANOPARTICLES
 The plasma proteins (opsonins) adsorb on to the surface of colloidal
carriers & render particles recognizable to RES.
 Phagocytosis of particulates by elements of RES( liver, spleen, bone
marrow), liver( Kupffer cells )is regulated by opsonins & dysopsonins (IgA).
SURFACE ENGINEERING OF NANOPARTICLES
1) Stearic stabilized(stealth) nanoparticles
2) Biomimetic nanoparticles
3) Antibody coated nanoparticles
4) Magnetically guided nanoparticles
5) Bioadhesive nanoparticles

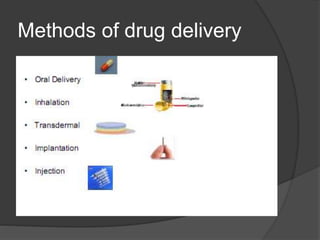

85. Methods of drug delivery

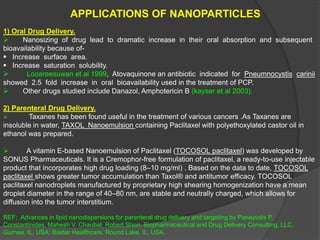

86. APPLICATIONS OF NANOPARTICLES
1) Oral Drug Delivery.
 Nanosizing of drug lead to dramatic increase in their oral absorption and subsequent
bioavailability because of-
 Increase surface area.
 Increase saturation solubility.
 Looareesuwan et al 1999, Atovaquinone an antibiotic indicated for Pneumnocystis carinii
showed 2.5 fold increase in oral bioavailability used in the treatment of PCP.
 Other drugs studied include Danazol, Amphotericin B (kayser et al 2003).
2) Parenteral Drug Delivery.
 Taxanes has been found useful in the treatment of various cancers .As Taxanes are
insoluble in water, TAXOL Nanoemulsion containing Paclitaxel with polyethoxylated castor oil in
ethanol was prepared.
 A vitamin E-based Nanoemulsion of Paclitaxel (TOCOSOL paclitaxel) was developed by
SONUS Pharmaceuticals. It is a Cremophor-free formulation of paclitaxel, a ready-to-use injectable
product that incorporates high drug loading (8–10 mg/ml) . Based on the data to date, TOCOSOL
paclitaxel shows greater tumor accumulation than Taxol® and antitumor efficacy. TOCOSOL
paclitaxel nanodroplets manufactured by proprietary high shearing homogenization have a mean
droplet diameter in the range of 40–80 nm, are stable and neutrally charged, which allows for
diffusion into the tumor interstitium.
REF; Advances in lipid nanodispersions for parenteral drug delivery and targeting by Panayiotis P.
Constantinides, Mahesh V. Chaubal, Robert Shorr. Biopharmaceutical and Drug Delivery Consulting, LLC,
Gurnee, IL, USA; Baxter Healthcare, Round Lake, IL, USA.

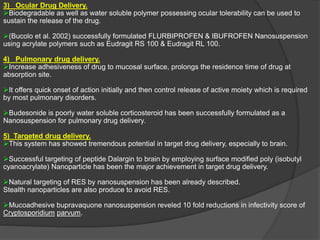

87. 3) Ocular Drug Delivery.
Biodegradable as well as water soluble polymer possessing ocular tolerability can be used to
sustain the release of the drug.
(Bucolo et al. 2002) successfully formulated FLURBIPROFEN & IBUFROFEN Nanosuspension
using acrylate polymers such as Eudragit RS 100 & Eudragit RL 100.
4) Pulmonary drug delivery.
Increase adhesiveness of drug to mucosal surface, prolongs the residence time of drug at
absorption site.
It offers quick onset of action initially and then control release of active moiety which is required
by most pulmonary disorders.
Budesonide is poorly water soluble corticosteroid has been successfully formulated as a
Nanosuspension for pulmonary drug delivery.
5) Targeted drug delivery.
This system has showed tremendous potential in target drug delivery, especially to brain.
Successful targeting of peptide Dalargin to brain by employing surface modified poly (isobutyl
cyanoacrylate) Nanoparticle has been the major achievement in target drug delivery.
Natural targeting of RES by nanosuspension has been already described.
Stealth nanoparticles are also produce to avoid RES.
Mucoadhesive bupravaquone nanosuspension reveled 10 fold reductions in infectivity score of
Cryptosporidium parvum.

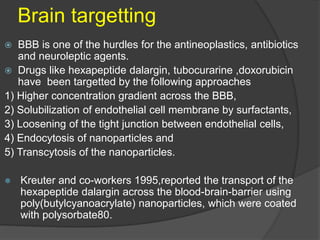

88. Brain targetting
 BBB is one of the hurdles for the antineoplastics, antibiotics
and neuroleptic agents.
 Drugs like hexapeptide dalargin, tubocurarine ,doxorubicin
have been targetted by the following approaches
1) Higher concentration gradient across the BBB,
2) Solubilization of endothelial cell membrane by surfactants,
3) Loosening of the tight junction between endothelial cells,
4) Endocytosis of nanoparticles and
5) Transcytosis of the nanoparticles.
 Kreuter and co-workers 1995,reported the transport of the
hexapeptide dalargin across the blood-brain-barrier using
poly(butylcyanoacrylate) nanoparticles, which were coated
with polysorbate80.

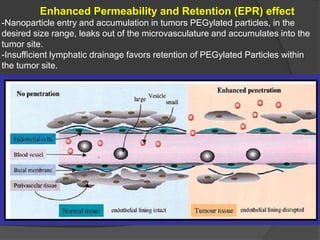

89. Enhanced Permeability and Retention (EPR) effect
-Nanoparticle entry and accumulation in tumors PEGylated particles, in the
desired size range, leaks out of the microvasculature and accumulates into the
tumor site.
-Insufficient lymphatic drainage favors retention of PEGylated Particles within
the tumor site.

90. Various therapeutic applications of
nanoparticles /nanocapsules
Application Material Purpose
Cancer therapy Poly(alkylcyanoacrylate)nanoparticle
swith anticancer
agents,oligonucleotides
Targeting,reduced toxicity,
enhanced uptake of
antitumour agents,
improved in vivo & in vitro
stability
Intracellular
targeting
Poly(alkylcyanoacrylate)
Polyester nanoparticles with anti
parasitic or antiviral agents
Target RES for intracellular
interactions
Prolonged systemic
circulation
Polyesters with adsorbed
polyethylene glycols or pluronics
Prolong systemic drug
effect,avoid uptake by RES
Vaccine adjuvant Poly
(methylmetghacrylate)nanoparticles
with vaccines(oral & IM injection)
Enhances immune
response

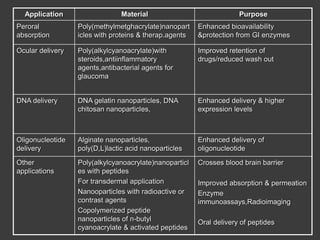

91. Application Material Purpose
Peroral
absorption
Poly(methylmetghacrylate)nanopart
icles with proteins & therap.agents
Enhanced bioavailability
&protection from GI enzymes
Ocular delivery Poly(alkylcyanoacrylate)with
steroids,antiinflammatory
agents,antibacterial agents for
glaucoma
Improved retention of
drugs/reduced wash out
DNA delivery DNA gelatin nanoparticles, DNA
chitosan nanoparticles,
Enhanced delivery & higher
expression levels
Oligonucleotide
delivery
Alginate nanoparticles,
poly(D,L)lactic acid nanoparticles
Enhanced delivery of
oligonucleotide
Other
applications
Poly(alkylcyanoacrylate)nanoparticl
es with peptides
For transdermal application
Nanooparticles with radioactive or
contrast agents
Copolymerized peptide
nanoparticles of n-butyl
cyanoacrylate & activated peptides
Crosses blood brain barrier
Improved absorption & permeation
Enzyme
immunoassays,Radioimaging
Oral delivery of peptides

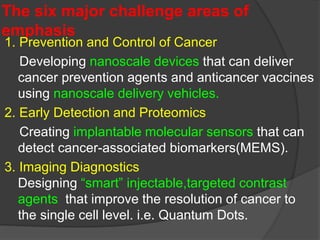

92. The six major challenge areas of
emphasis
1. Prevention and Control of Cancer
Developing nanoscale devices that can deliver
cancer prevention agents and anticancer vaccines
using nanoscale delivery vehicles.
2. Early Detection and Proteomics
Creating implantable molecular sensors that can
detect cancer-associated biomarkers(MEMS).
3. Imaging Diagnostics
Designing “smart” injectable,targeted contrast
agents that improve the resolution of cancer to
the single cell level. i.e. Quantum Dots.

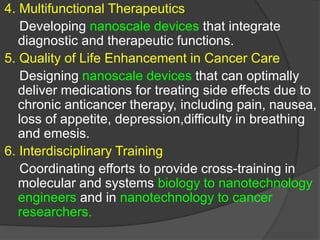

93. .
4. Multifunctional Therapeutics
Developing nanoscale devices that integrate
diagnostic and therapeutic functions.
5. Quality of Life Enhancement in Cancer Care
Designing nanoscale devices that can optimally
deliver medications for treating side effects due to
chronic anticancer therapy, including pain, nausea,
loss of appetite, depression,difficulty in breathing
and emesis.
6. Interdisciplinary Training
Coordinating efforts to provide cross-training in
molecular and systems biology to nanotechnology
engineers and in nanotechnology to cancer
researchers.

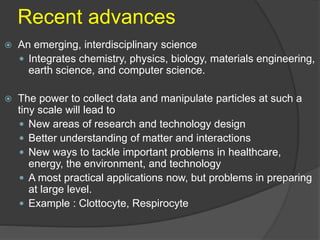

94. Recent advances
 An emerging, interdisciplinary science
 Integrates chemistry, physics, biology, materials engineering,
earth science, and computer science.
 The power to collect data and manipulate particles at such a
tiny scale will lead to
 New areas of research and technology design
 Better understanding of matter and interactions
 New ways to tackle important problems in healthcare,
energy, the environment, and technology
 A most practical applications now, but problems in preparing
at large level.
 Example : Clottocyte, Respirocyte

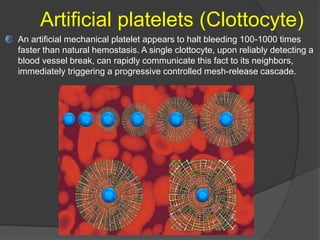

95. Artificial platelets (Clottocyte)
An artificial mechanical platelet appears to halt bleeding 100-1000 times
faster than natural hemostasis. A single clottocyte, upon reliably detecting a
blood vessel break, can rapidly communicate this fact to its neighbors,
immediately triggering a progressive controlled mesh-release cascade.

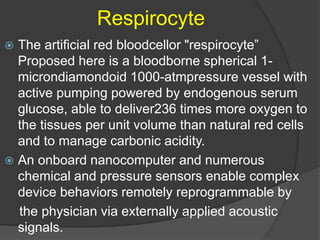

96. Respirocyte
 The artificial red bloodcellor "respirocyte”
Proposed here is a bloodborne spherical 1-
microndiamondoid 1000-atmpressure vessel with
active pumping powered by endogenous serum
glucose, able to deliver236 times more oxygen to
the tissues per unit volume than natural red cells
and to manage carbonic acidity.
 An onboard nanocomputer and numerous
chemical and pressure sensors enable complex
device behaviors remotely reprogrammable by
the physician via externally applied acoustic
signals.

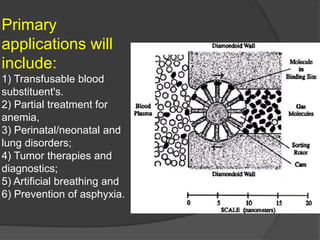

97. Primary
applications will
include:
1) Transfusable blood
substituent's.
2) Partial treatment for
anemia,
3) Perinatal/neonatal and
lung disorders;
4) Tumor therapies and
diagnostics;
5) Artificial breathing and
6) Prevention of asphyxia.

98. REFERENCES
 Swarbrick J, Boylan J. Encyclopedia of pharmaceutical technology. 2nd ed.;
Marcel Dekker, New York, 2002, pp : 443.
 Targetted and controlled drug delivery, Novel carrier systems; S.P Vyas and
R.K.Khar , CBS publishers and distributors, New Delhi, pg no : 331-385.
 Pharmaceutical dosage form and drug delivery; Ram I. Mahato, CRC press;
pg no : 258-260.
 Advances in controlled and novel drug delivery ; Jain N.K. ,CBS publishers and
distributors, New Delhi, pg no : 408-426.
 www. nanoproject.org
 www.nanomanufacturing.eu
 NANOPARTICLES & NANOTECHNOLOGY by Dr Paranjothy Kanni*, Health
Administrator , Vol : XX, Number 1&2, pg no : 26-28.

99. 1) Kreuter J, Ramge P, Petrov V, Hamm S, Gelperina SE, Engelhardt B, Alyautdin R,
von Briesen H, Begley DJ. Direct evidence that polysorbate-80-coated
poly(butylcyanoacrylate) nanoparticles deliver drugs to the CNS via specific mechanisms
requiring prior binding of drug to the nanoparticles .Journal of Pharmaceutical science
2003; pg no. 409-16.
2) Chen Y, Dalwadi G, Benson H. Drug delivery across the blood-brain barrier. Current
Drug Delivery 2004; vol .1, pg no.361-376.
3) Binding and release of drugs into and from thermo sensitive poly(N-vinyl
caprolactam) nanoparticles.
* Henna Vihola , Antti Laukkanen , Jouni Hirvonen , Heikki Tenhu .
Division of Pharmaceutical Technology, Viikki Drug Discovery Technology Center,
University of Helsinki, PB 56, FIN-00014, Helsinki, Finland.
Journal of pharmaceutical science.
4) Colloidal Nanocarriers: a review on formulation technology, types and applications
toward targeted drug delivery.
B. Mishra , PhD; Bhavesh B. Patel; Sanjay Tiwari.
Department of Pharmaceutics, Institute of Technology, Banaras Hindu University,
Varanasi, India.

100. .
THANK YOU

101. THANK YOU…!
