This document describes a molten salt reactor that uses uranium or thorium fluoride dissolved in fluoride salt as fuel, with a graphite moderator. It has an outlet temperature of 700°C, negative temperature coefficient reactivity, capacity of 1000 MWe, and operates at low pressure below 0.5 MPa. Benefits include efficient heat removal, reduced core size due to less pumping and piping needs, proliferation resistance through low fissile material inventory, waste minimization, and efficient uranium use. Timelines and cost comparisons for molten salt reactors are also mentioned.

1. Molten Salt Reactor
By
Muhammad Uzair Rasheed
MS NPE KINPOE

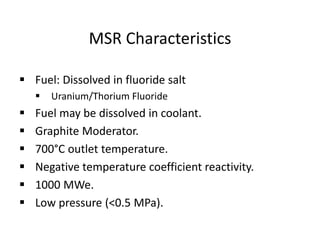

2. MSR Characteristics
 Fuel: Dissolved in fluoride salt
 Uranium/Thorium Fluoride
 Fuel may be dissolved in coolant.
 Graphite Moderator.
 700°C outlet temperature.
 Negative temperature coefficient reactivity.
 1000 MWe.
 Low pressure (<0.5 MPa).

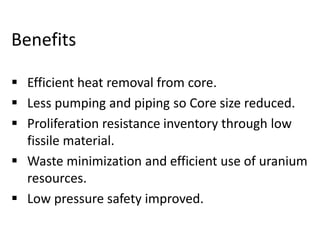

4. Benefits
 Efficient heat removal from core.
 Less pumping and piping so Core size reduced.
 Proliferation resistance inventory through low
fissile material.
 Waste minimization and efficient use of uranium
resources.
 Low pressure safety improved.

5. Timeline MSR

6. Cost Comparison

7. Thank You
