Kubernetes has two simple but powerful network concepts: every Pod is connected to the same network, and Services let you talk to a Pod by name. Bryan will take you through how these concepts are implemented - Pod Networks via the Container Network Interface (CNI), Service Discovery via kube-dns and Service virtual IPs, then on to how Services are exposed to the rest of the world.

1. Kubernetes Networking
Bryan Boreham, Director of Engineering
@bboreham

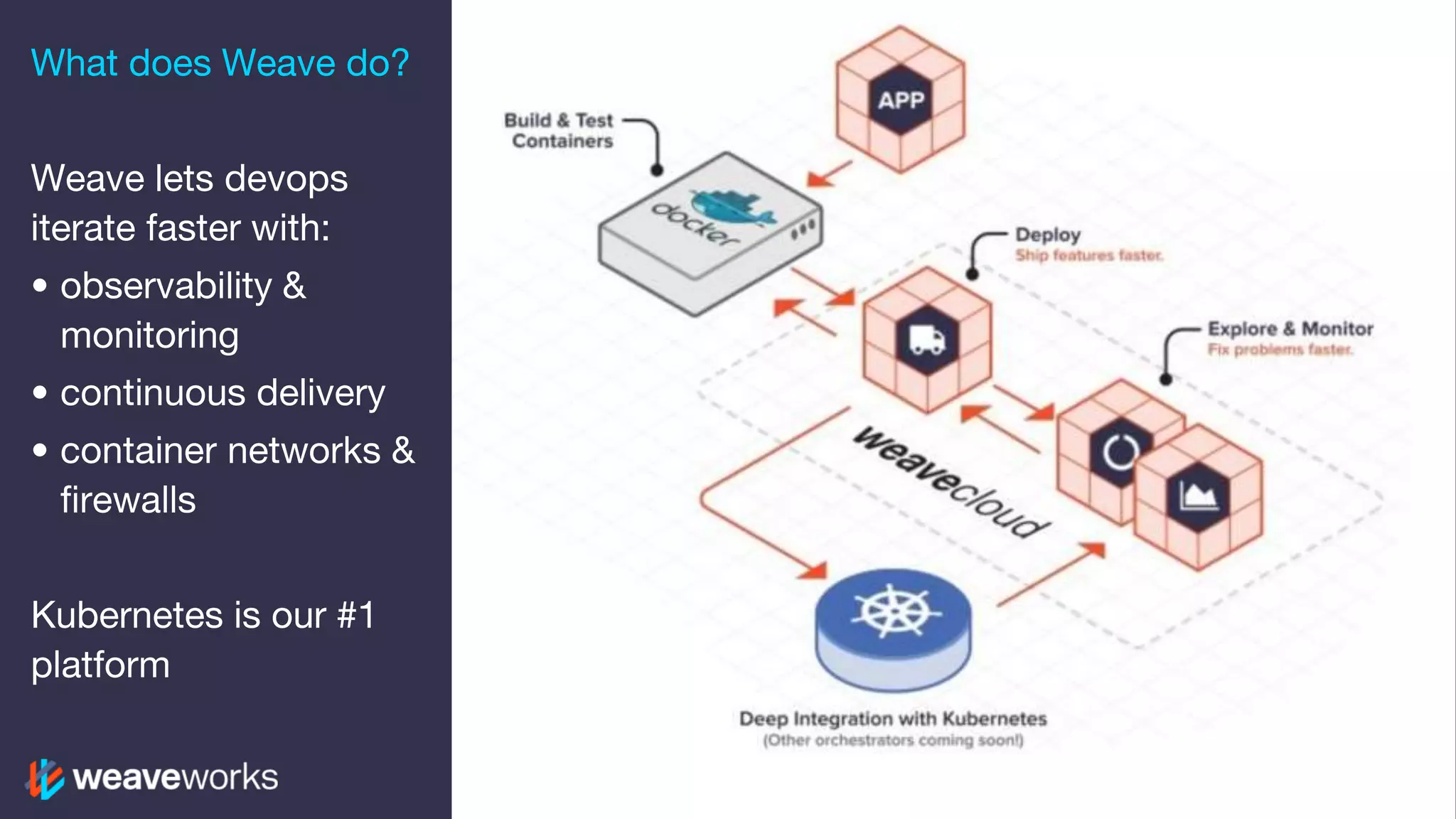

2. What does Weave do?
Weave lets devops
iterate faster with:
• observability &
monitoring
• continuous delivery
• container networks &
firewalls
Kubernetes is our #1
platform

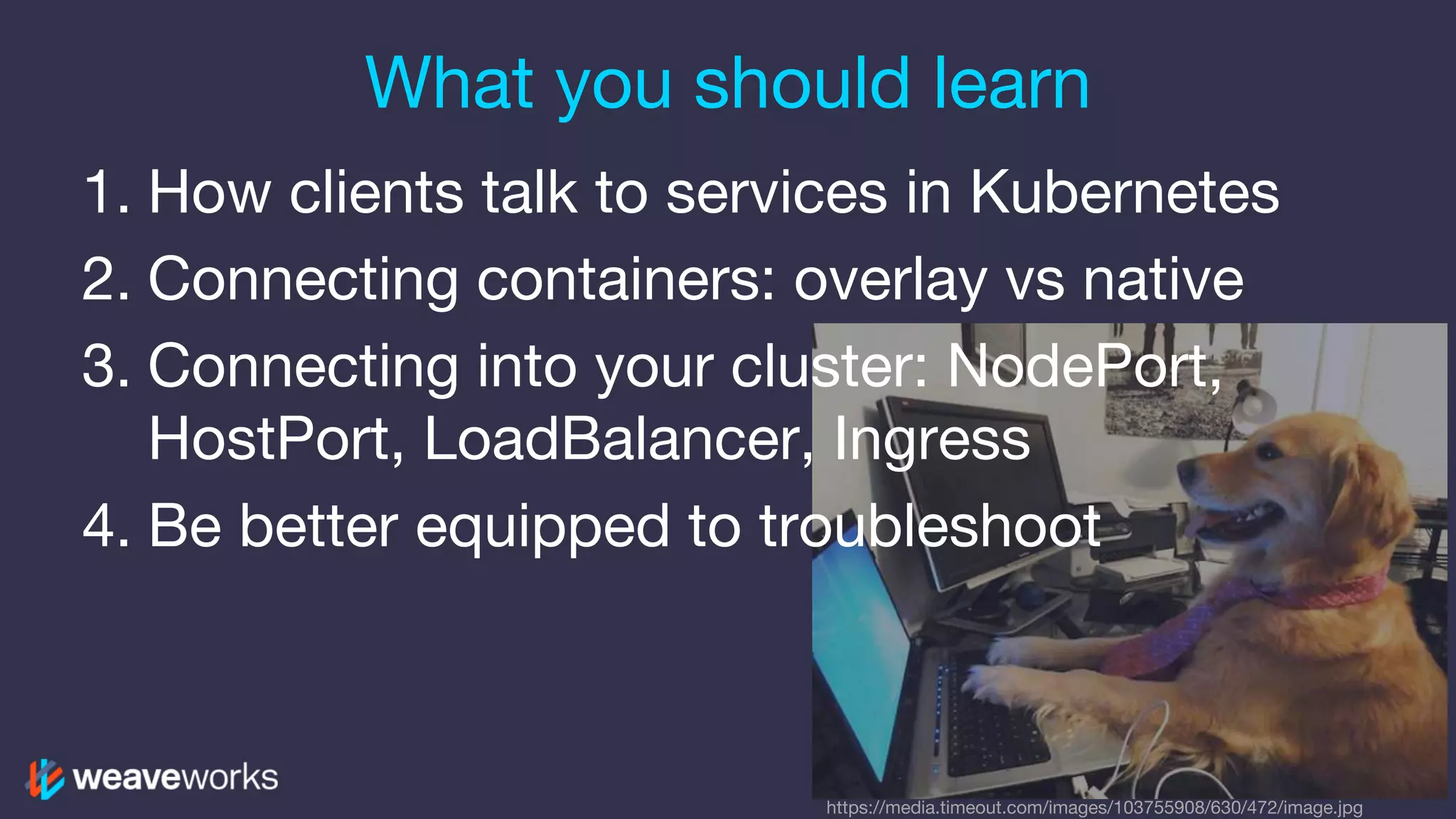

3. What you should learn
1. How clients talk to services in Kubernetes
2. Connecting containers: overlay vs native
3. Connecting into your cluster: NodePort,
HostPort, LoadBalancer, Ingress
4. Be better equipped to troubleshoot
https://media.timeout.com/images/103755908/630/472/image.jpg

4. • Docker
• Kubernetes
• Weave
Who is working with...

5. What is Kubernetes?
https://image.shutterstock.com/z/stock-photo-vintage-photo-of-a-man-working-on-complex-machine-1392745.jpg

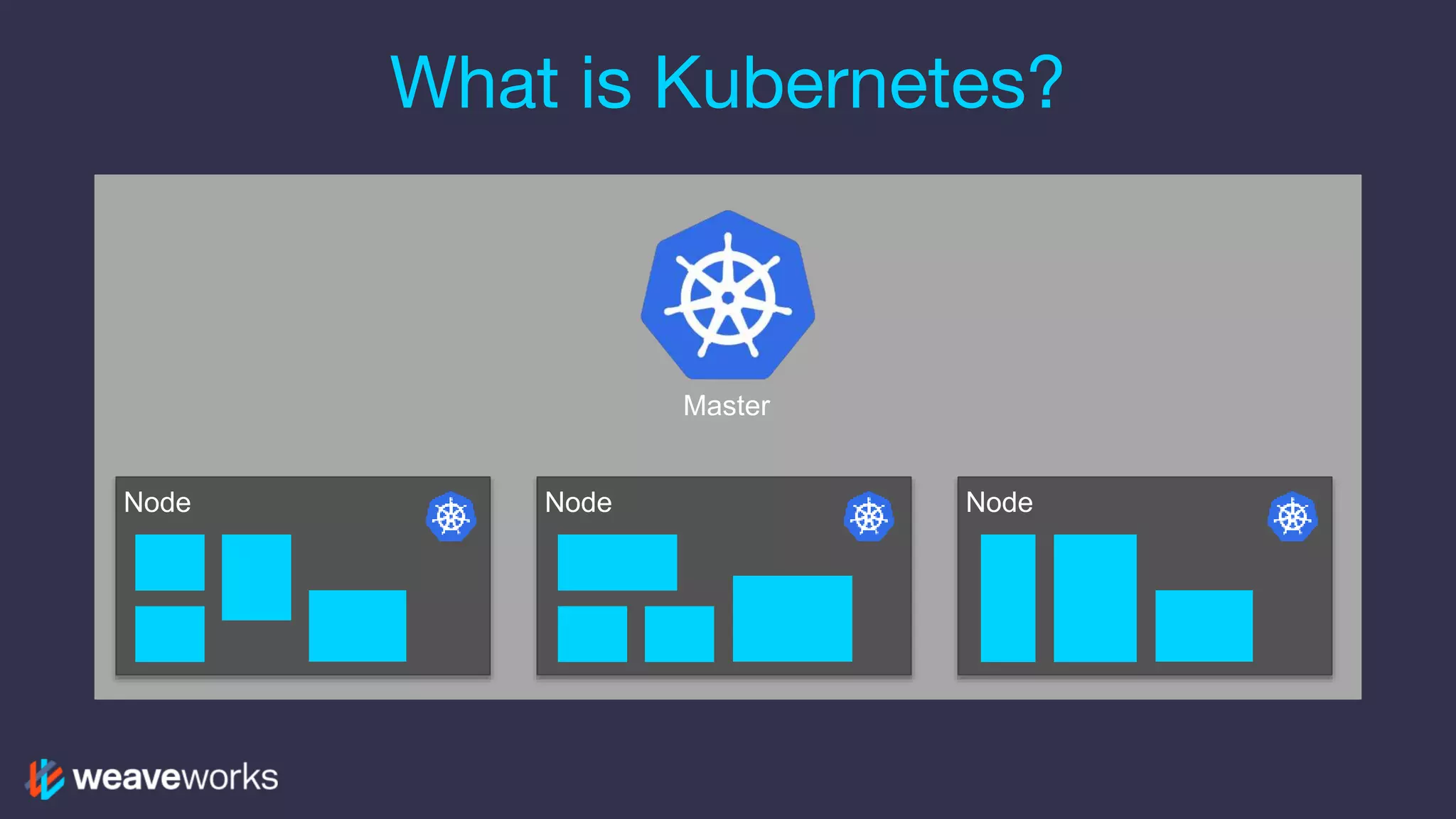

6. What is Kubernetes?
NodeNode Node
Master

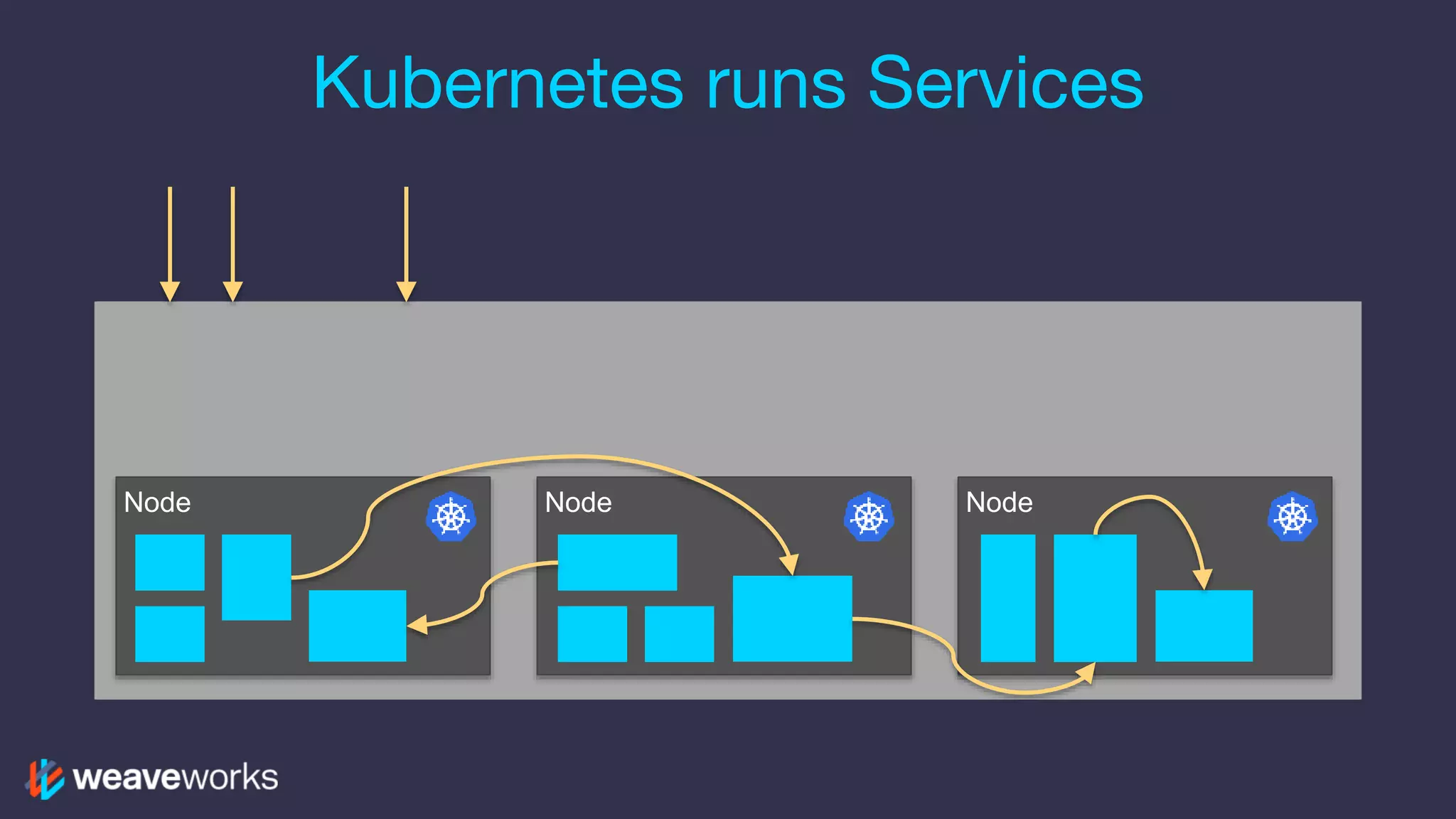

7. NodeNode Node
Kubernetes runs Services

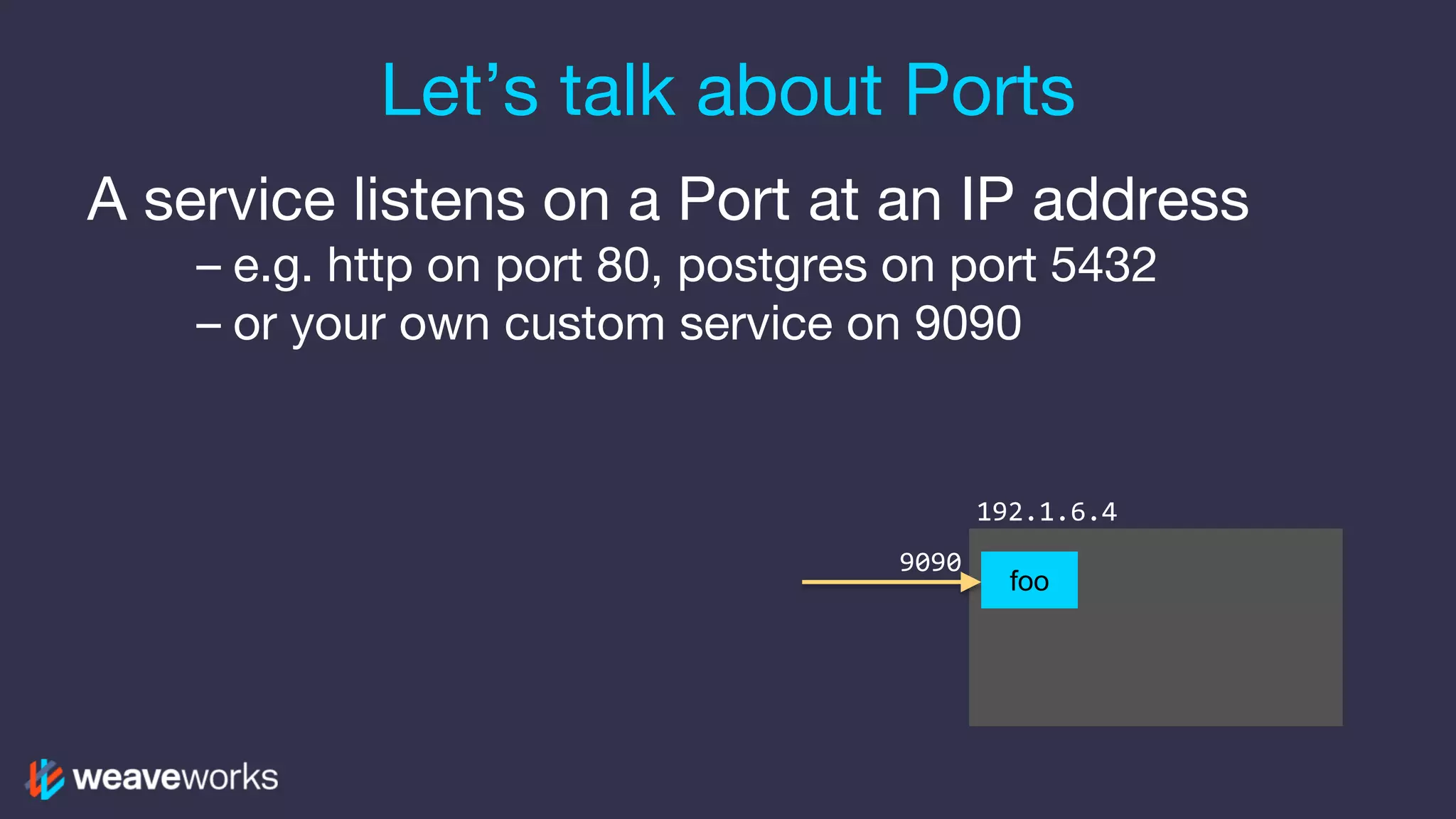

8. Let’s talk about Ports
A service listens on a Port at an IP address
– e.g. http on port 80, postgres on port 5432
– or your own custom service on 9090
192.1.6.4
9090
foo

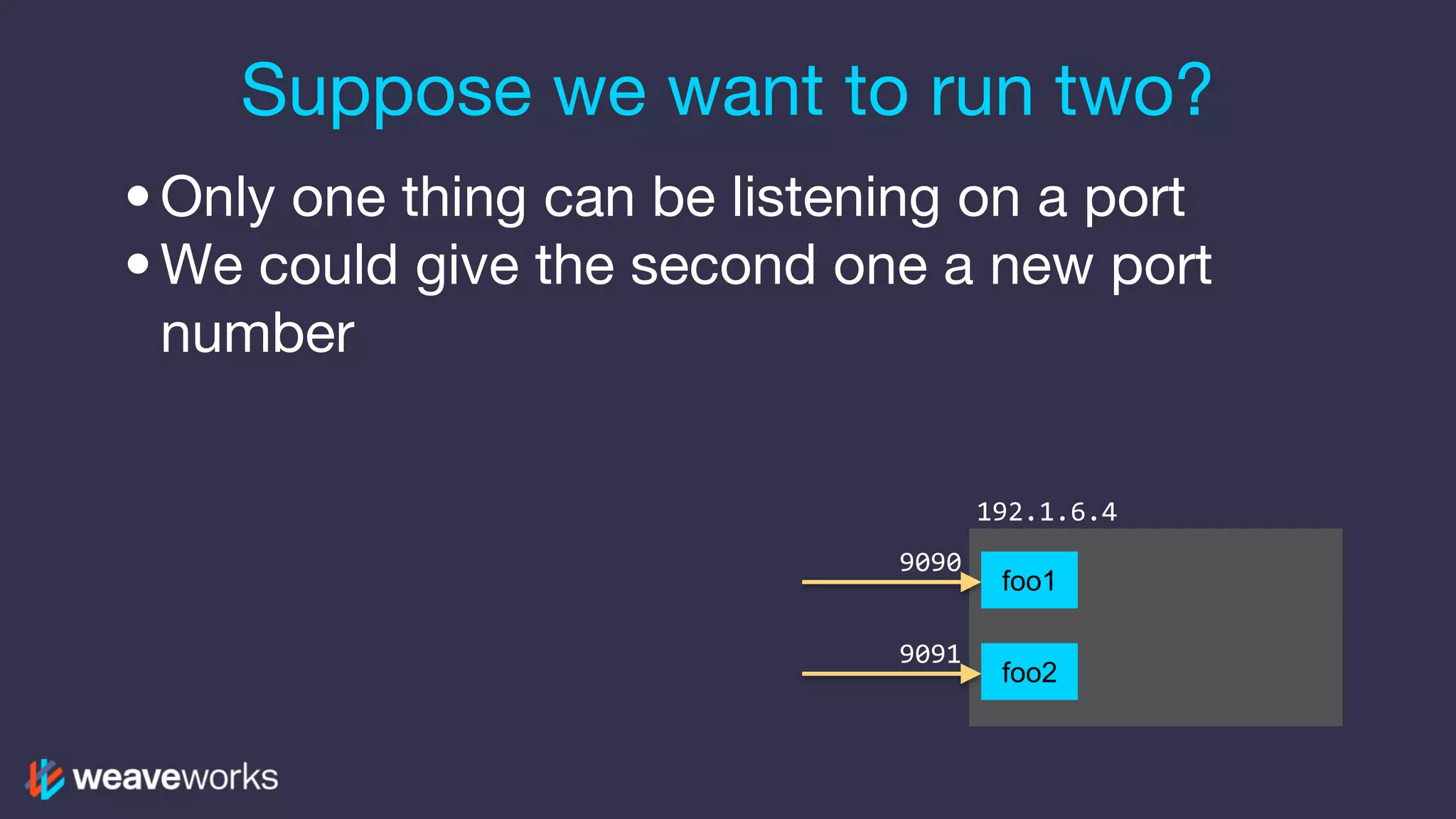

9. Suppose we want to run two?
•Only one thing can be listening on a port
•We could give the second one a new port
number
192.1.6.4
9090
9091
foo1
foo2

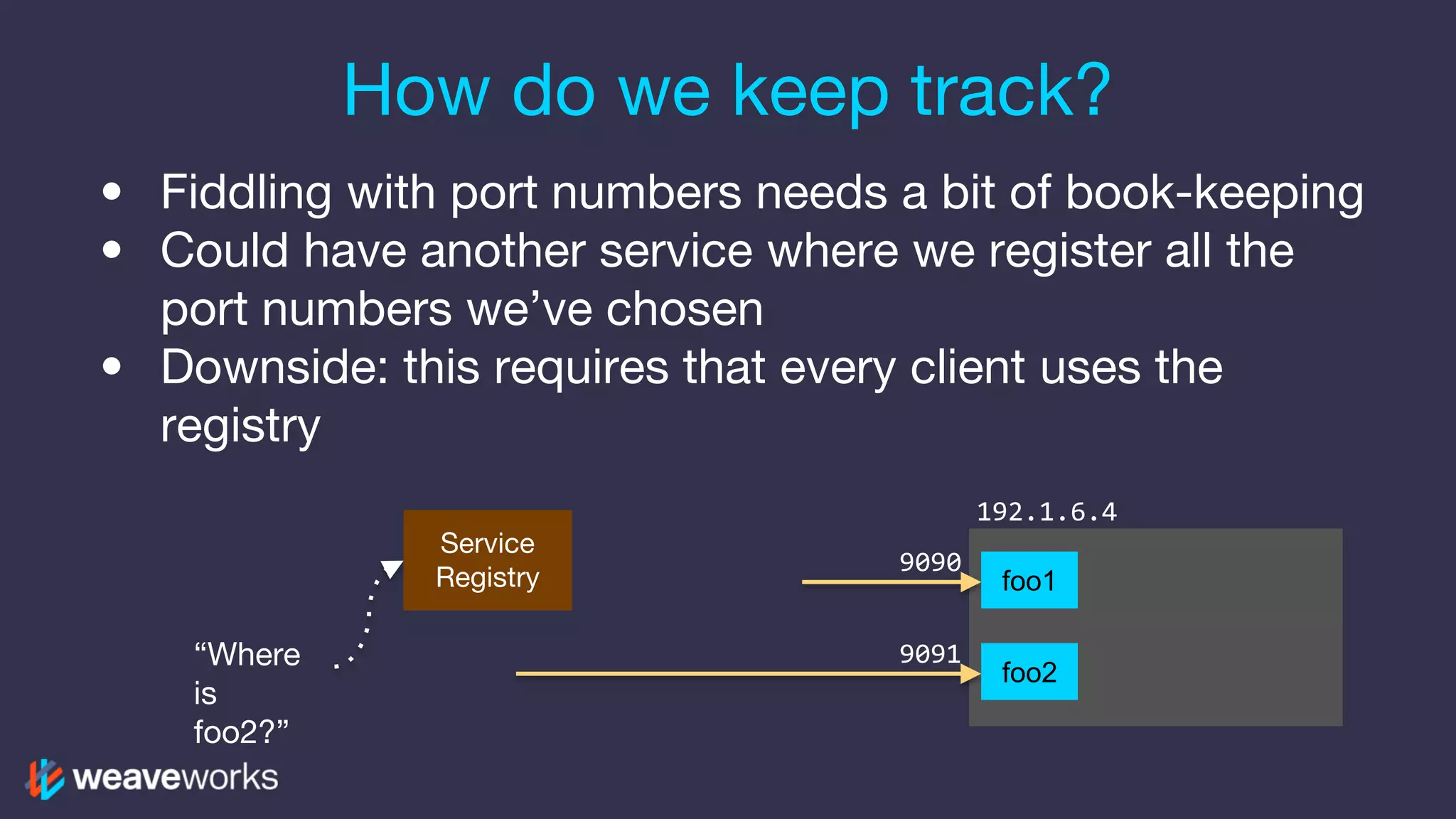

10. How do we keep track?
• Fiddling with port numbers needs a bit of book-keeping
• Could have another service where we register all the
port numbers we’ve chosen
• Downside: this requires that every client uses the
registry
192.1.6.4
9090
9091
Service
Registry
“Where
is
foo2?”
foo1
foo2

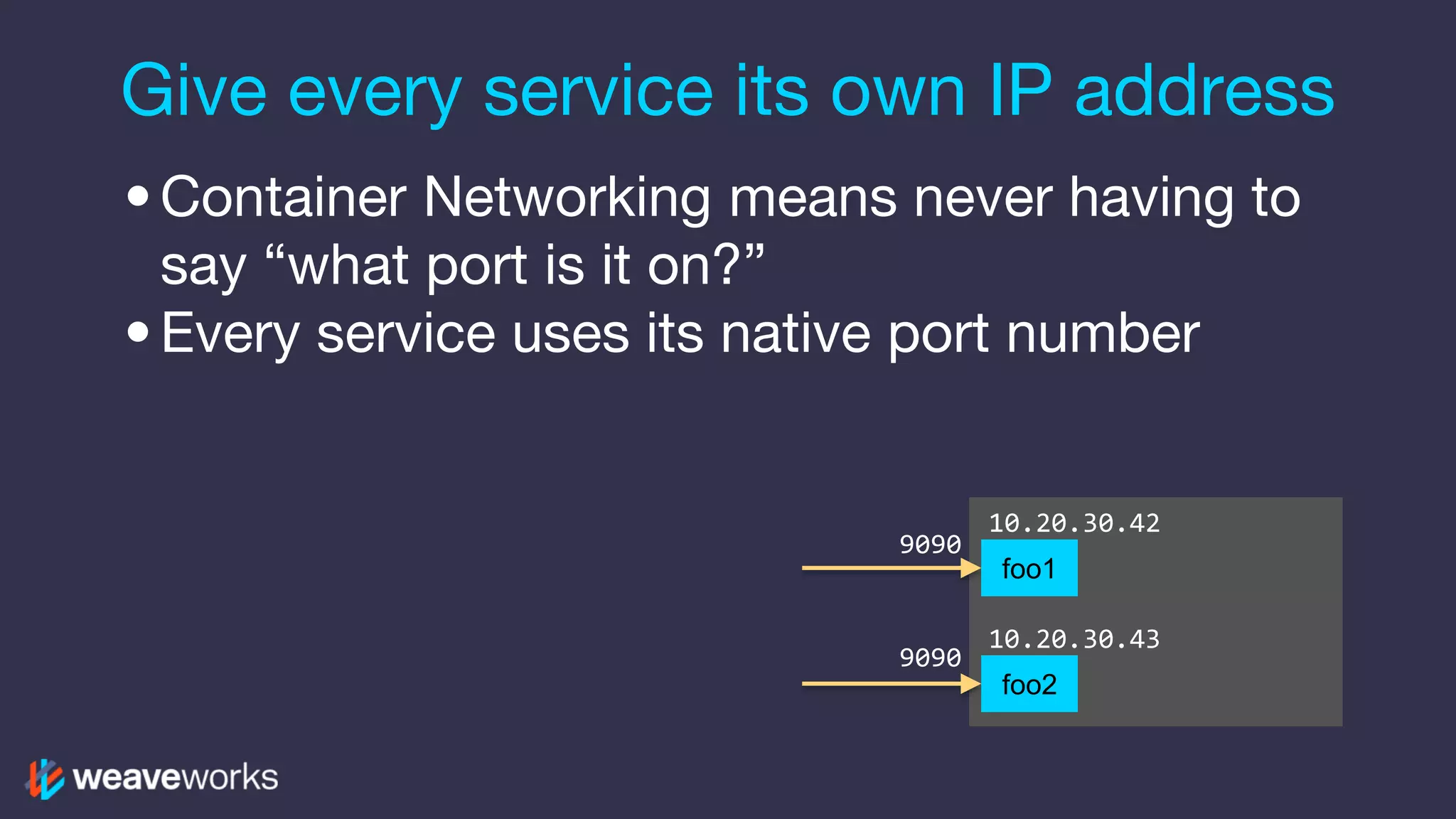

11. Give every service its own IP address
•Container Networking means never having to
say “what port is it on?”
•Every service uses its native port number
10.20.30.42
9090
foo1
9090
foo2
10.20.30.43

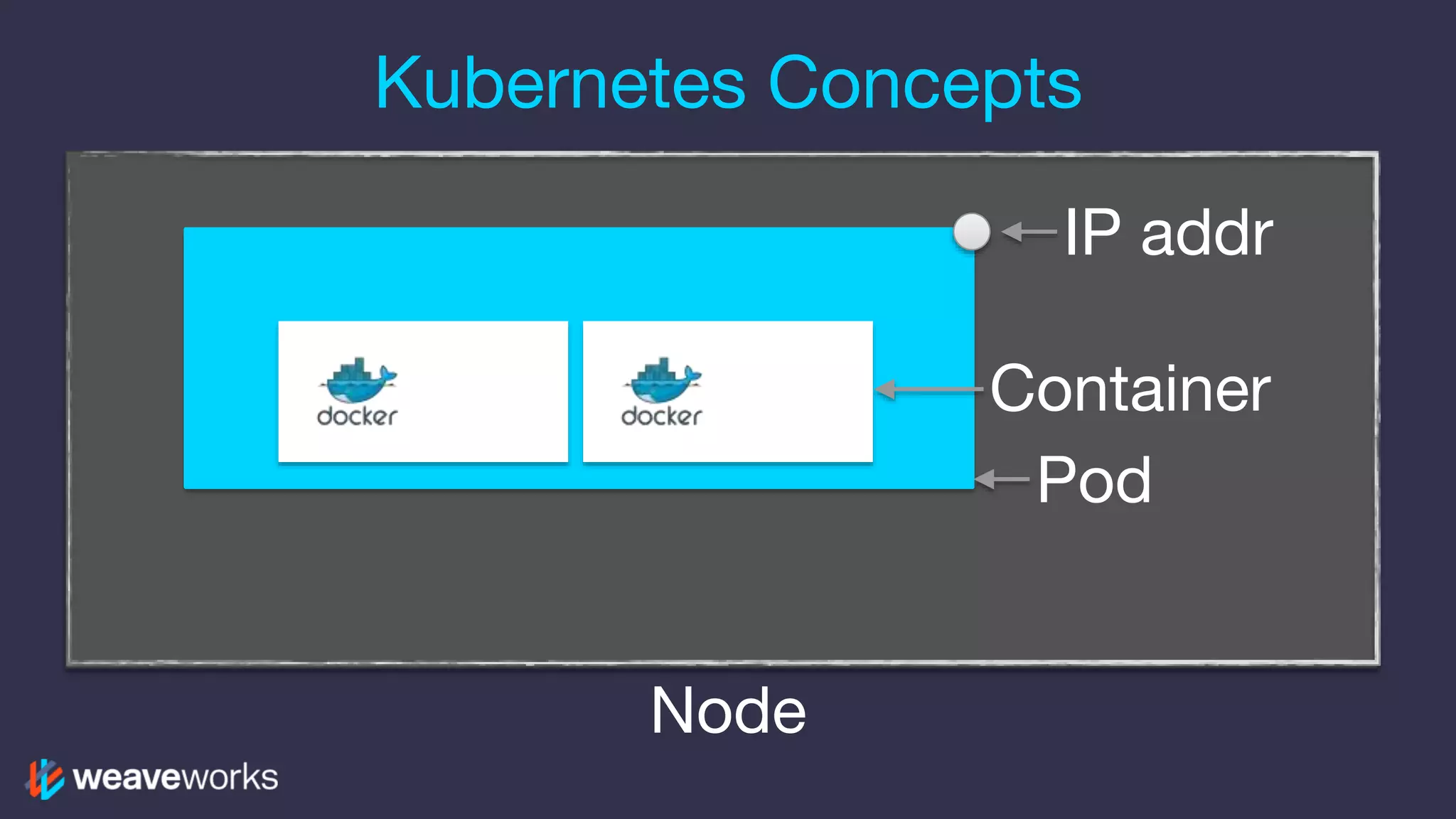

12. Kubernetes Concepts
Pod
IP addr
Node
Container

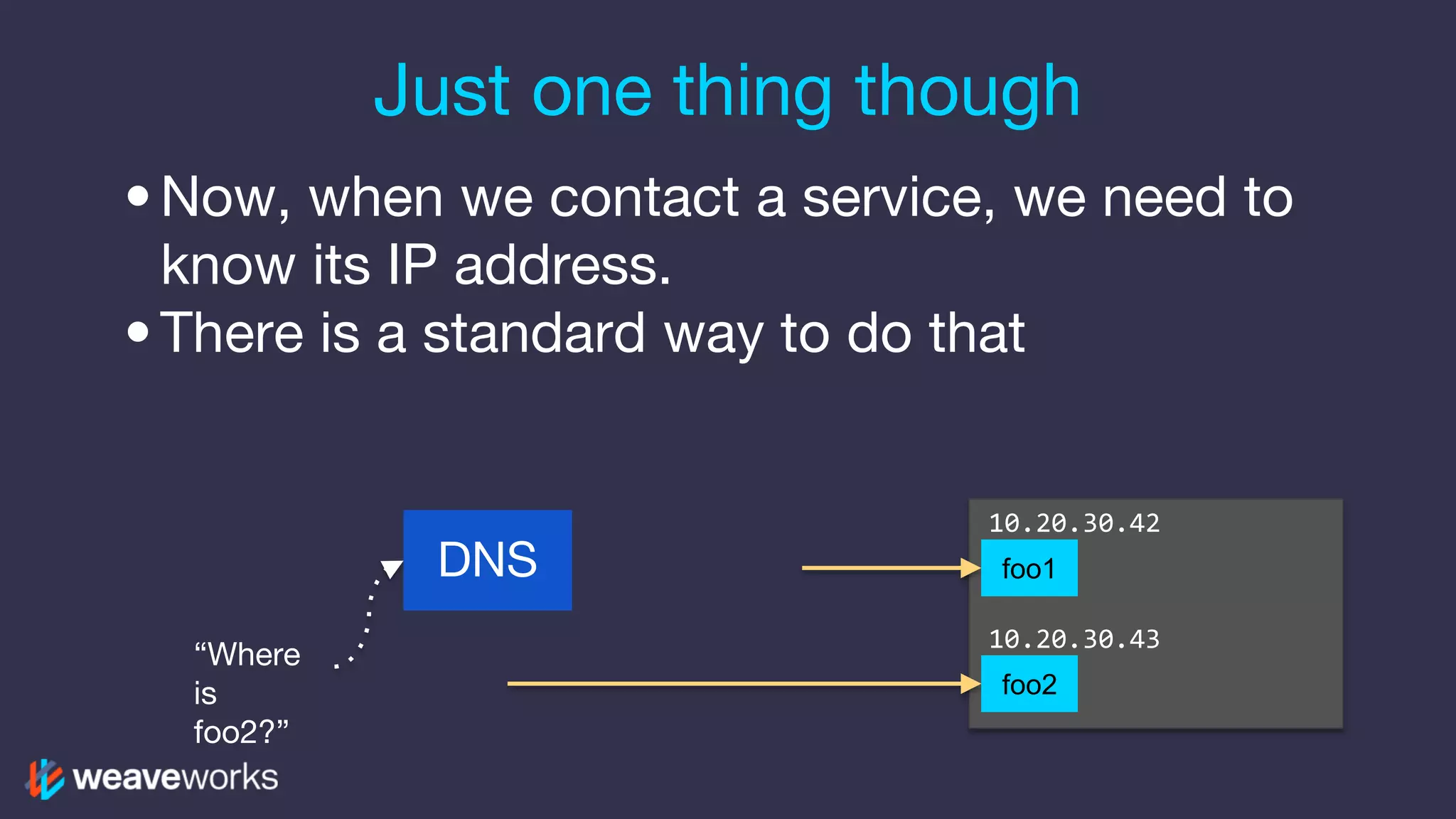

13. Just one thing though
•Now, when we contact a service, we need to
know its IP address.
•There is a standard way to do that
DNS
“Where
is
foo2?”
10.20.30.42
foo1
foo2
10.20.30.43

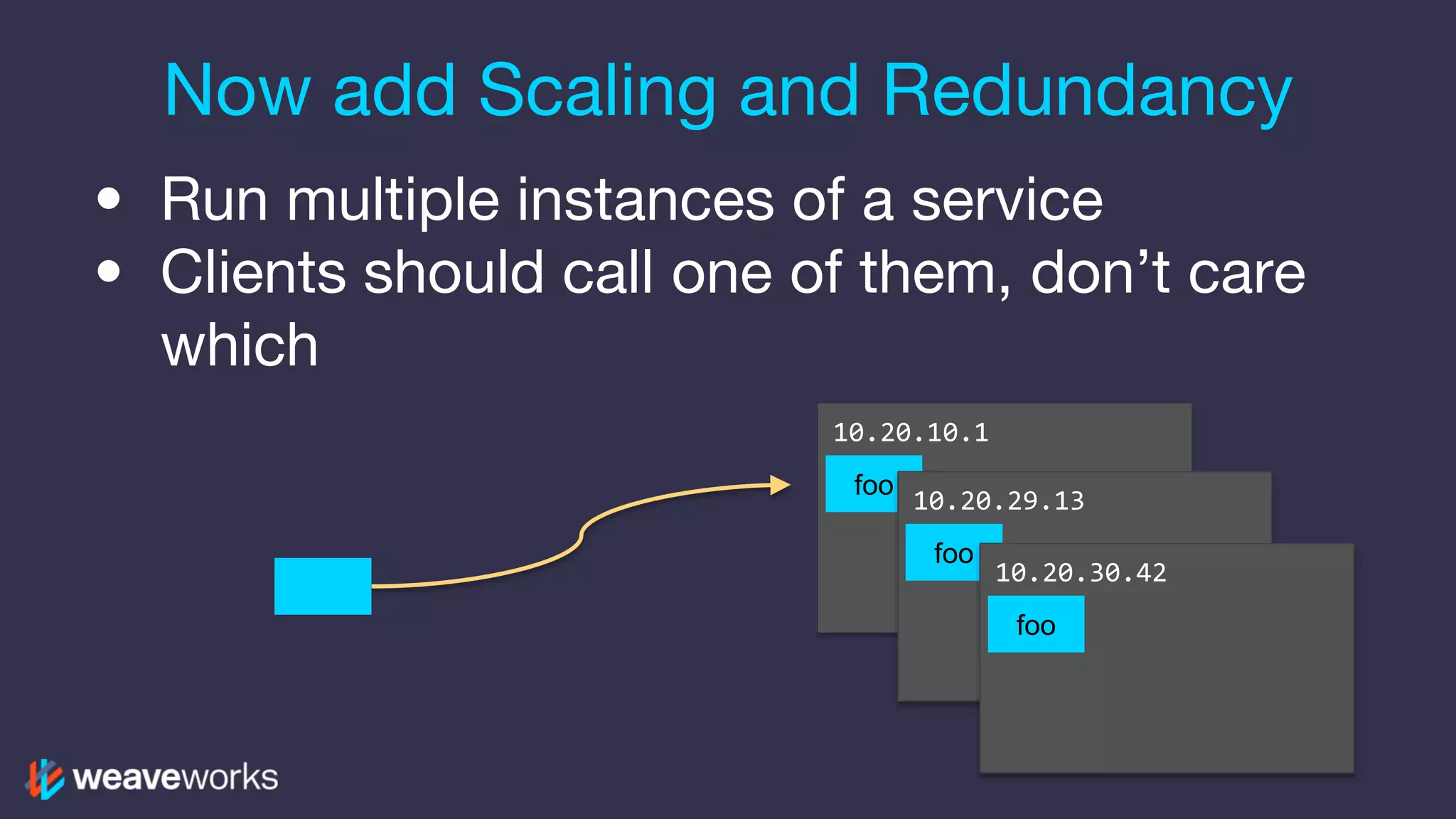

14. • Run multiple instances of a service
• Clients should call one of them, don’t care
which
foo
10.20.10.1
foo
10.20.29.13
Now add Scaling and Redundancy
foo
10.20.30.42

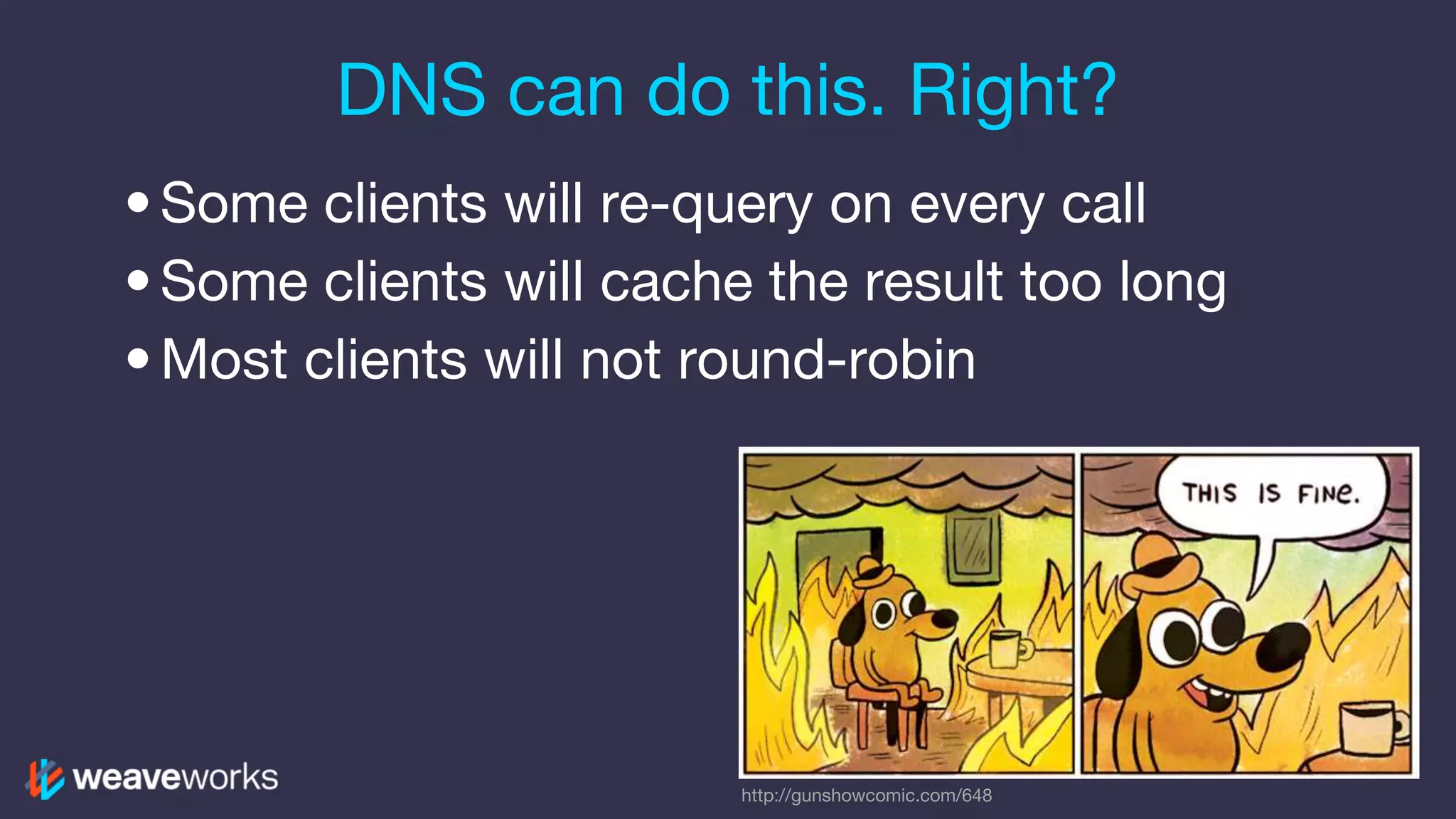

15. DNS can do this. Right?
•Some clients will re-query on every call
•Some clients will cache the result too long
•Most clients will not round-robin
http://gunshowcomic.com/648

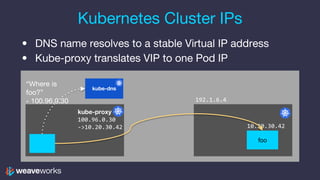

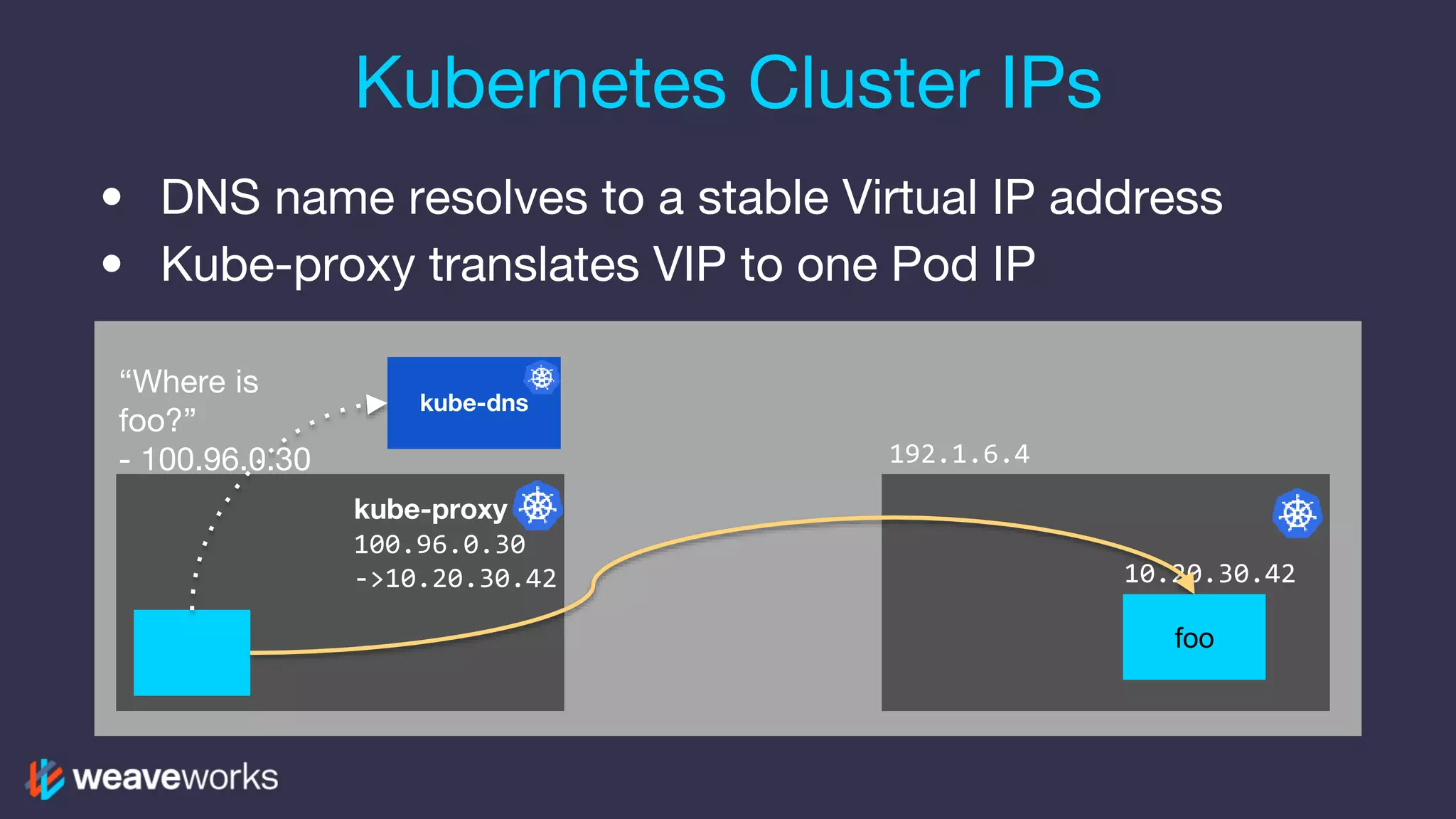

16. • DNS name resolves to a stable Virtual IP address
• Kube-proxy translates VIP to one Pod IP
Kubernetes Cluster IPs
kube-dns
10.20.30.42
kube-proxy
100.96.0.30
->10.20.30.42
foo
“Where is
foo?”
- 100.96.0.30 192.1.6.4

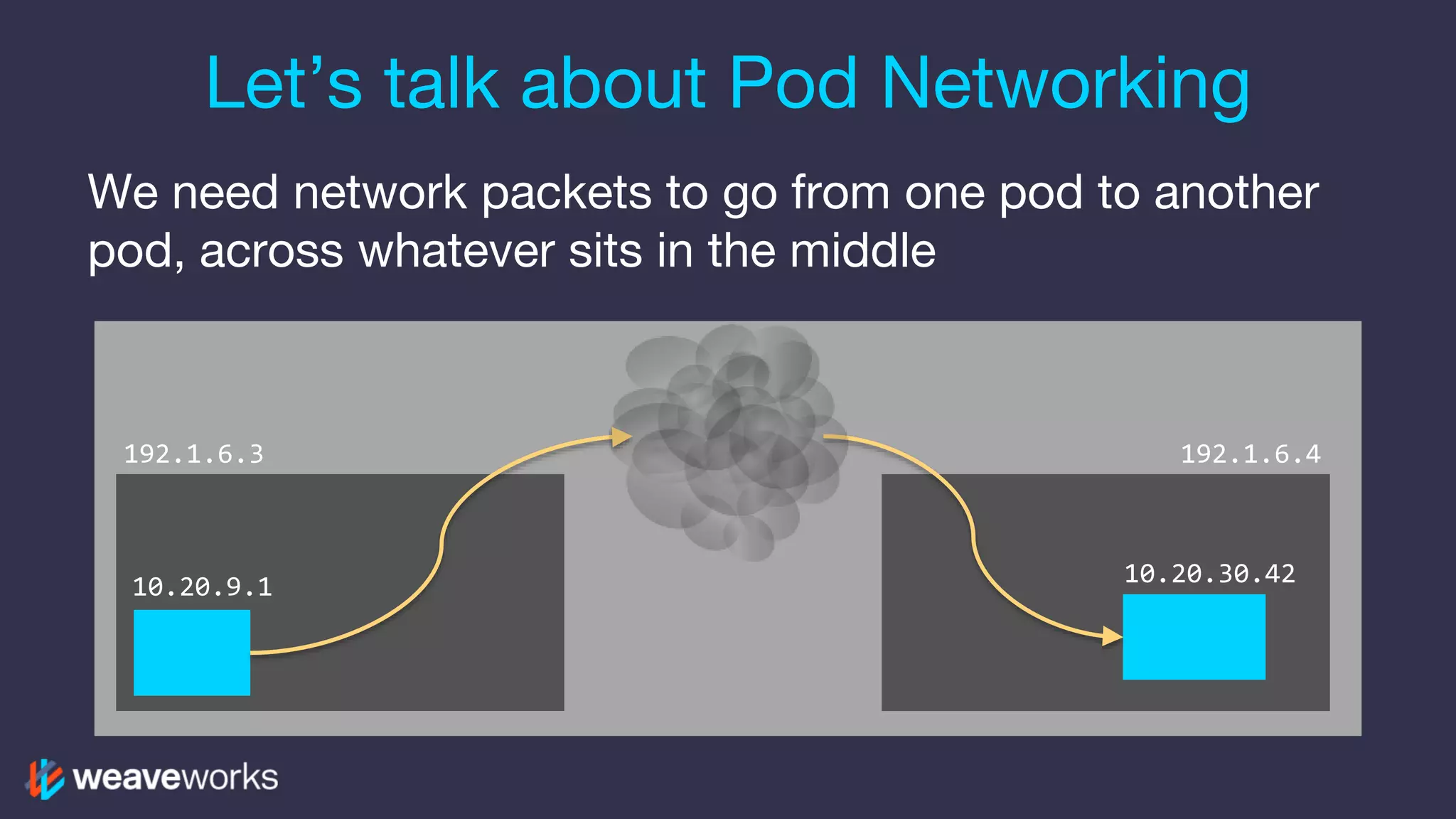

17. We need network packets to go from one pod to another
pod, across whatever sits in the middle
Let’s talk about Pod Networking
10.20.30.42
192.1.6.4192.1.6.3
10.20.9.1

18. Who controls your network?
http://philippel.deviantart.com/art/DUNE-Sandworm-Rising-
403336019

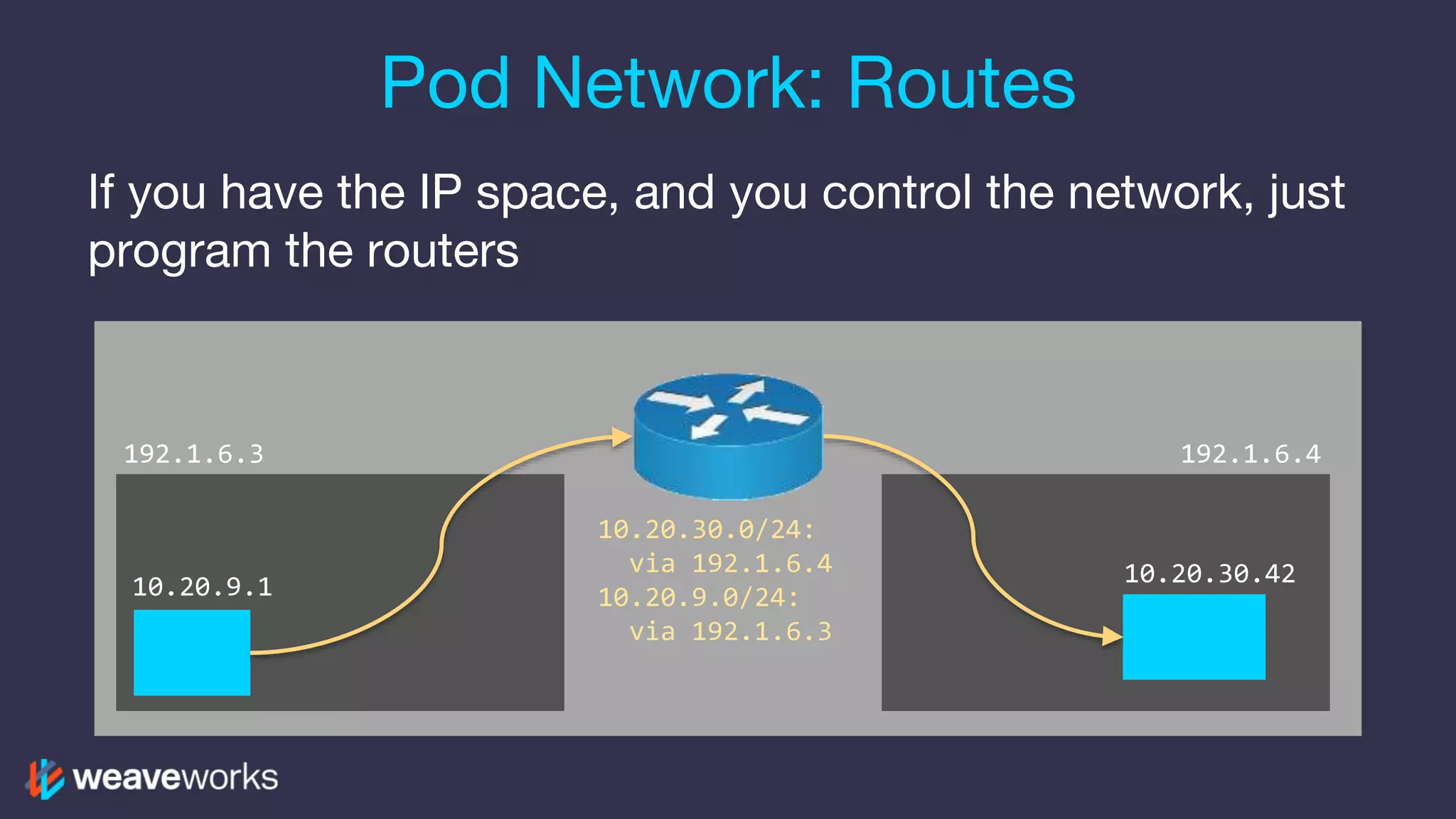

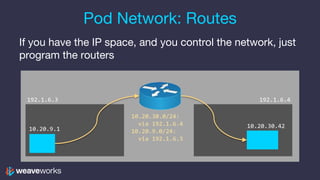

19. If you have the IP space, and you control the network, just
program the routers
Pod Network: Routes
10.20.30.42
192.1.6.4192.1.6.3
10.20.30.0/24:
via 192.1.6.4
10.20.9.0/24:
via 192.1.6.3
10.20.9.1

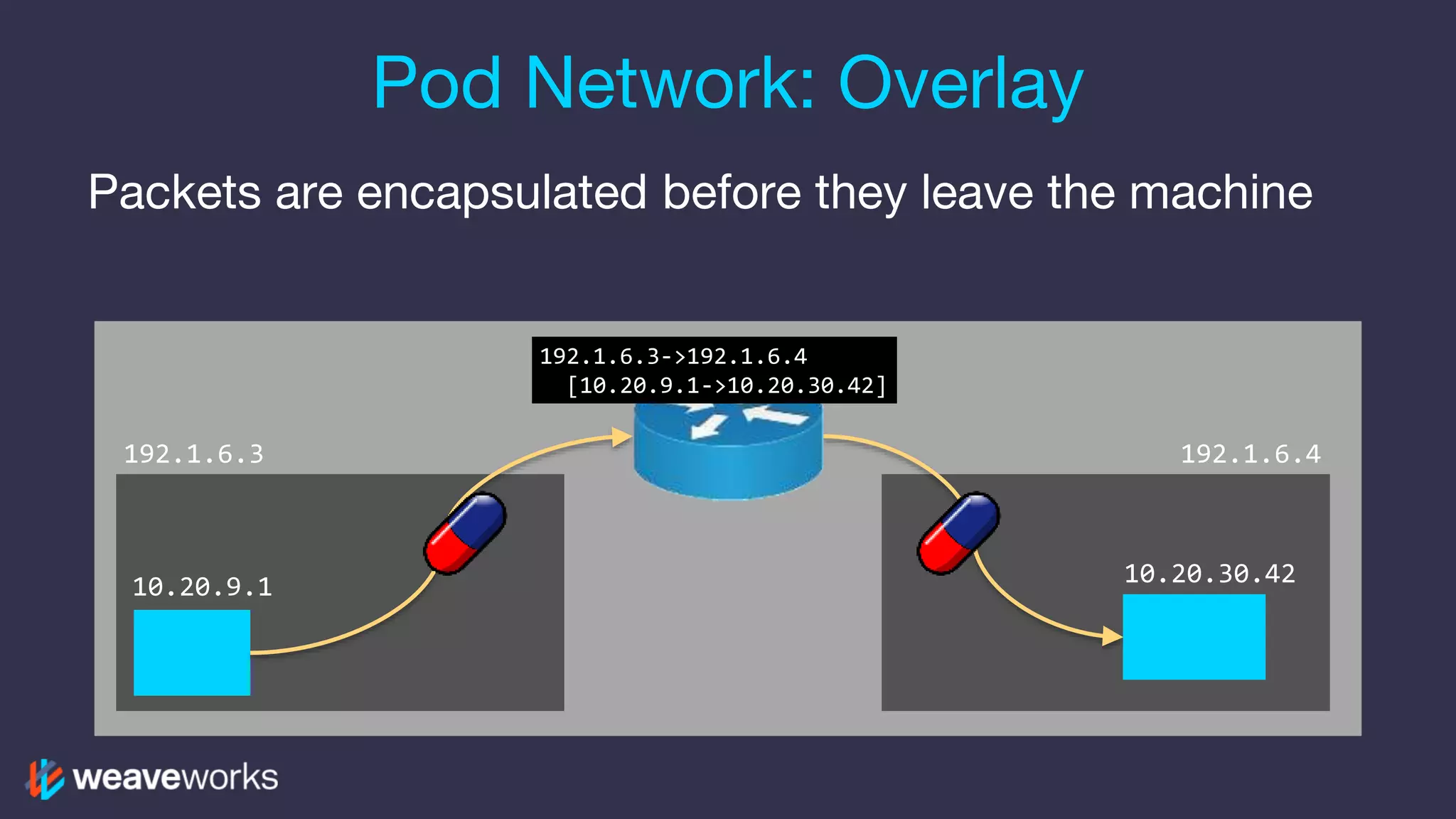

20. Packets are encapsulated before they leave the machine
Pod Network: Overlay
10.20.30.42
192.1.6.4192.1.6.3
10.20.9.1
192.1.6.3->192.1.6.4
[10.20.9.1->10.20.30.42]

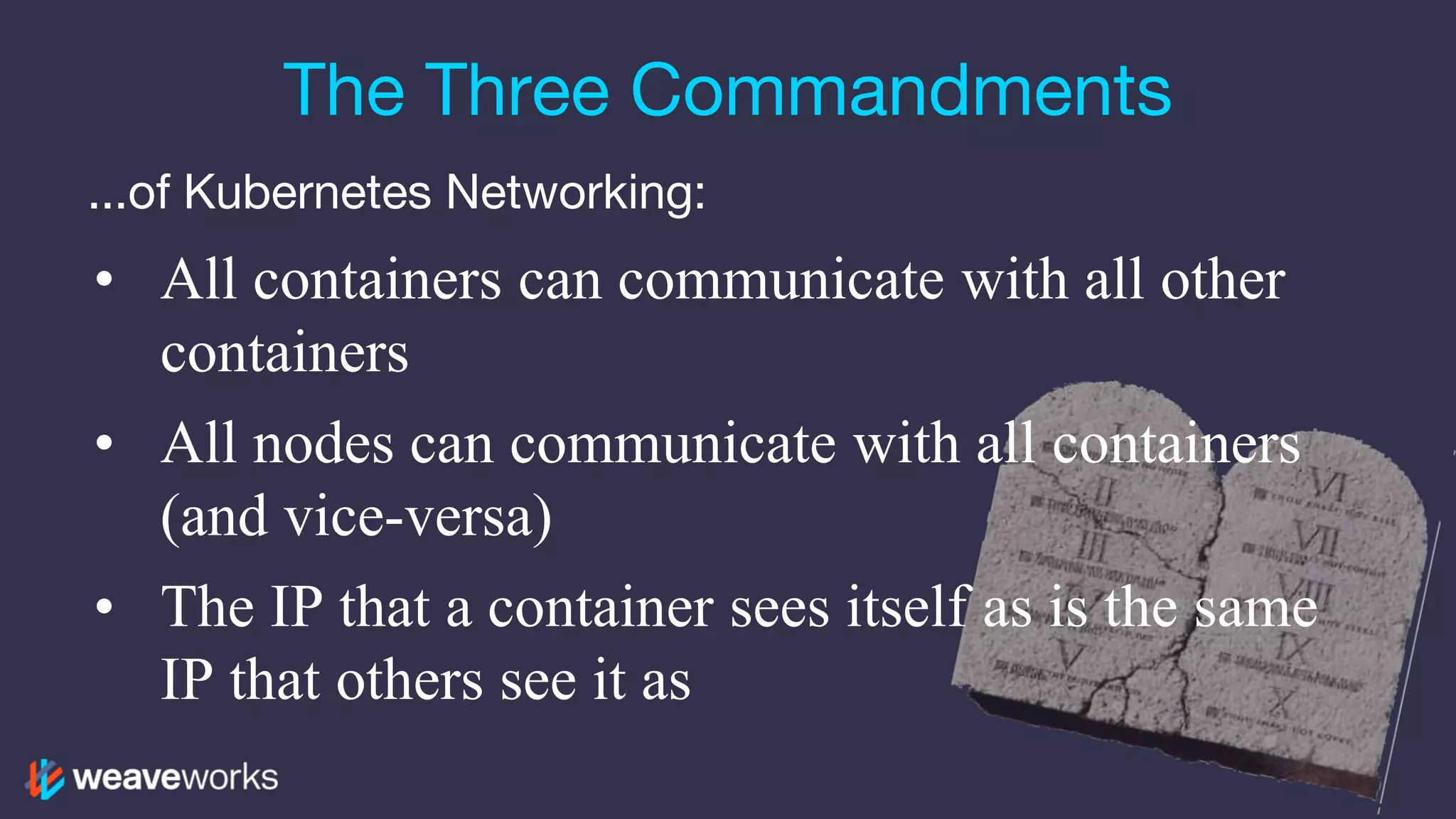

21. The Three Commandments
...of Kubernetes Networking:
• All containers can communicate with all other
containers
• All nodes can communicate with all containers
(and vice-versa)
• The IP that a container sees itself as is the same
IP that others see it as

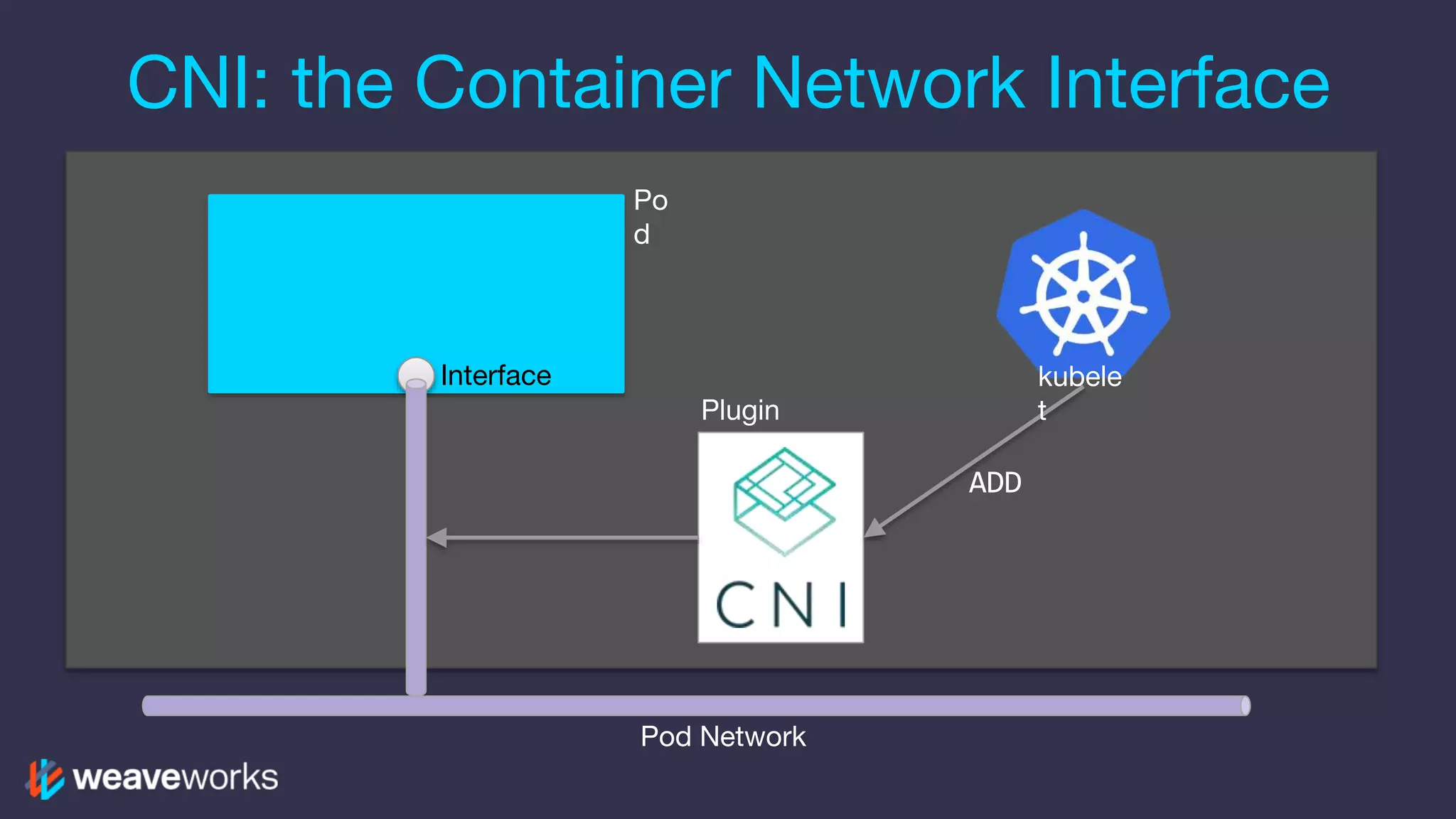

22. CNI: the Container Network Interface
kubele
t
Po
d
Interface
Plugin
Pod Network
ADD

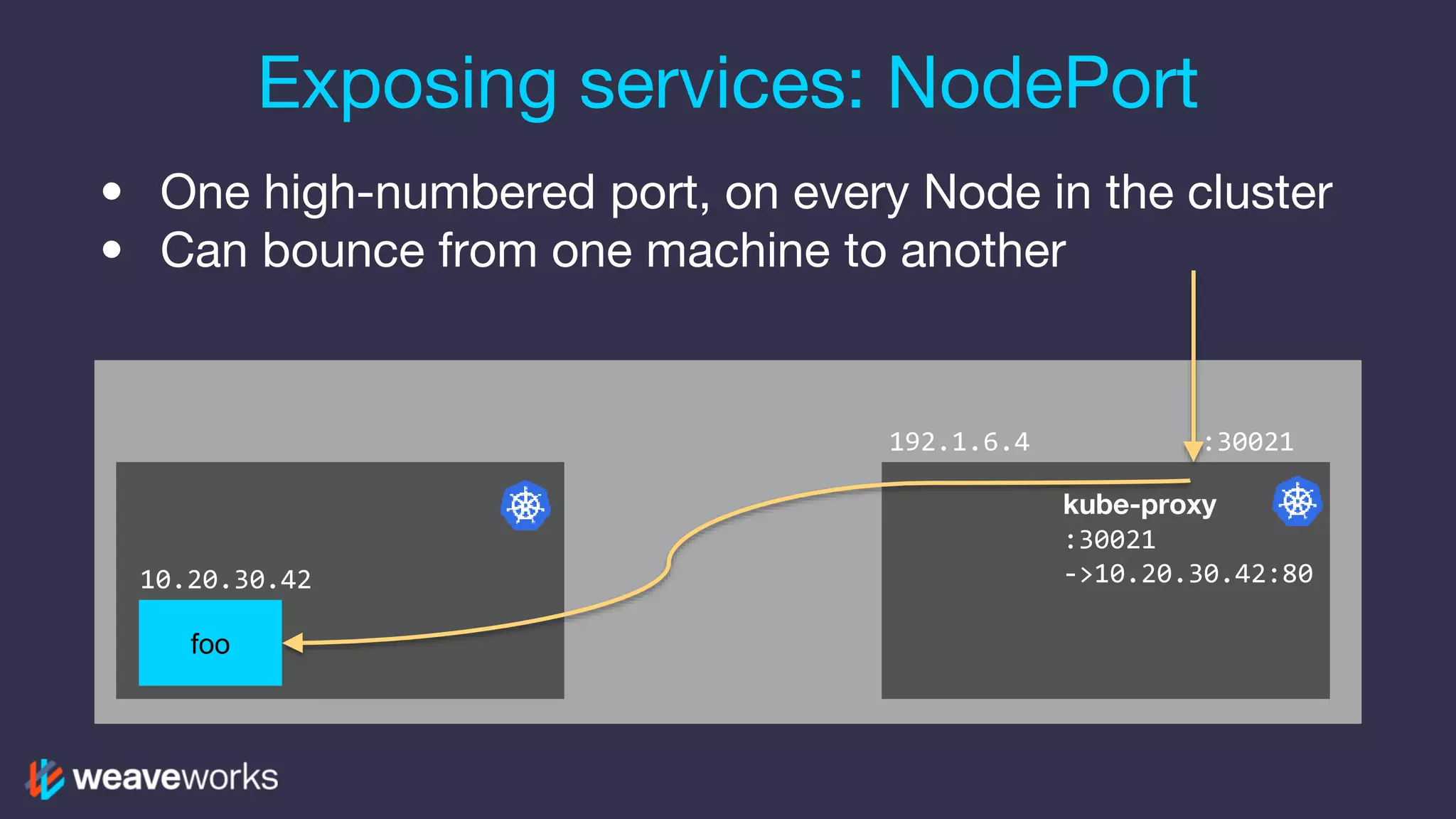

23. • One high-numbered port, on every Node in the cluster
• Can bounce from one machine to another
Exposing services: NodePort
10.20.30.42
kube-proxy
:30021
->10.20.30.42:80
foo
192.1.6.4 :30021

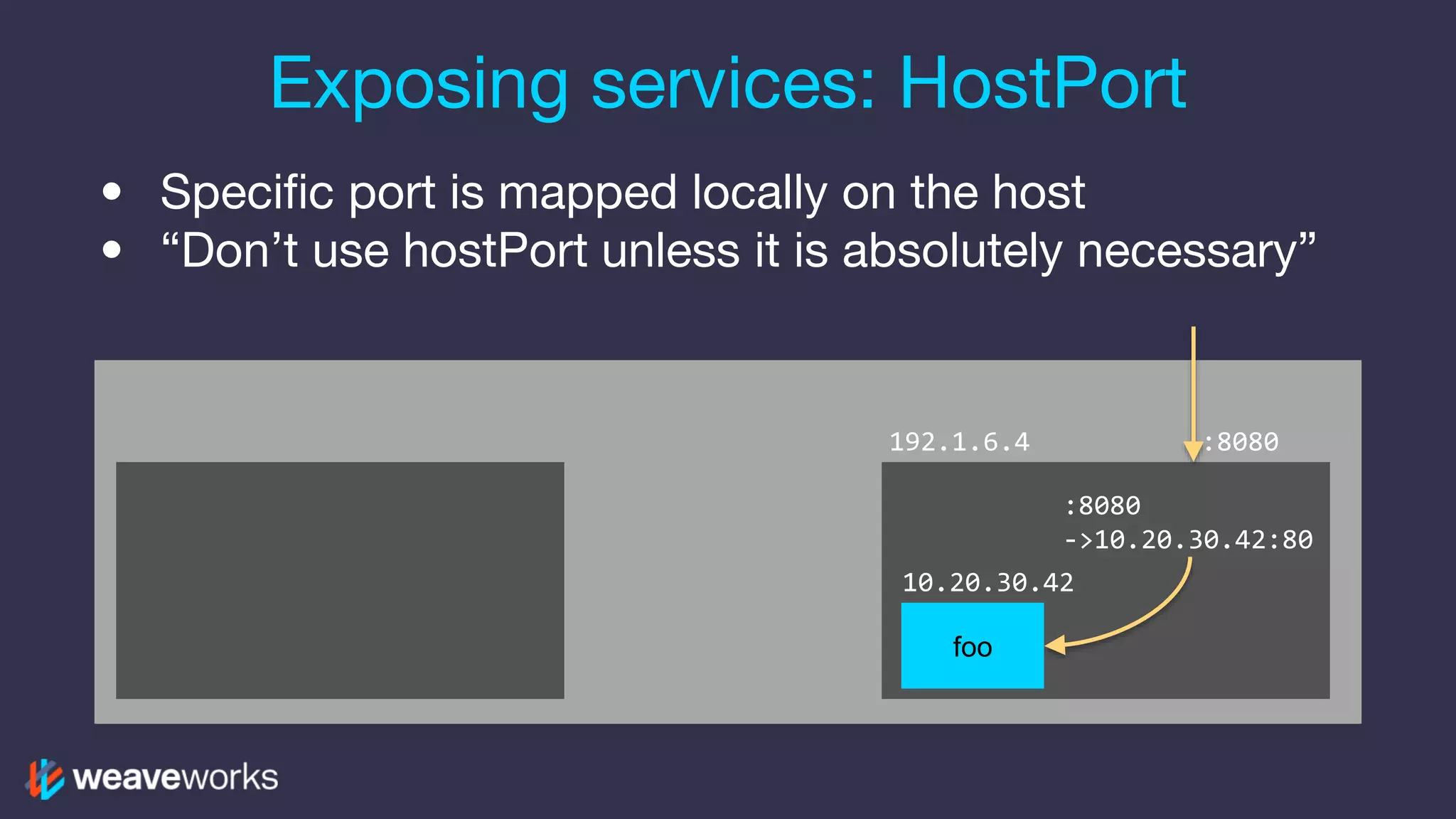

24. • Specific port is mapped locally on the host
• “Don’t use hostPort unless it is absolutely necessary”
Exposing services: HostPort
10.20.30.42
:8080
->10.20.30.42:80
foo
192.1.6.4 :8080

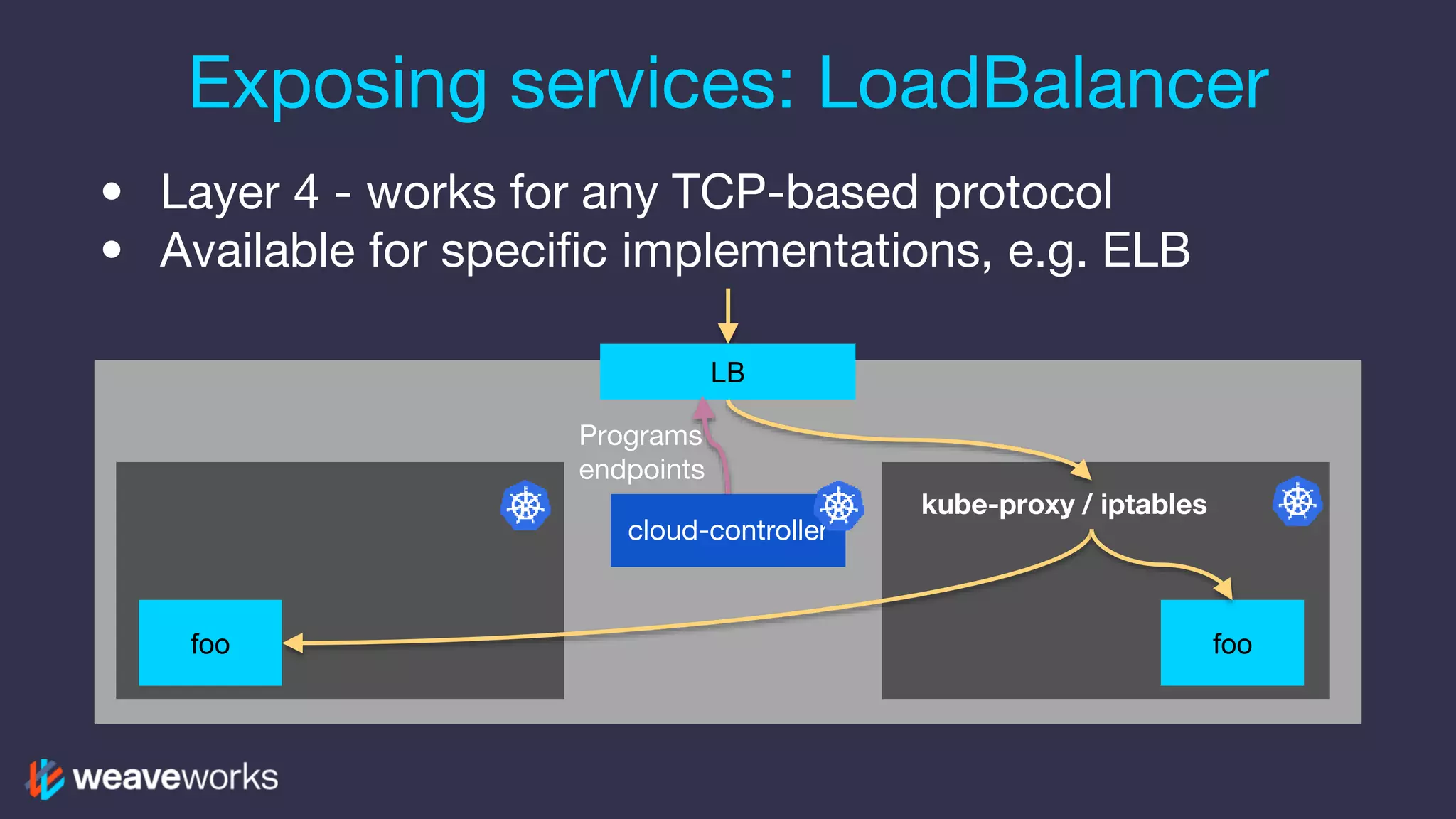

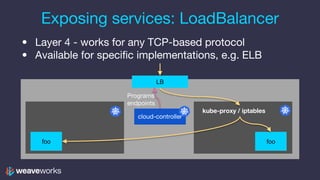

25. • Layer 4 - works for any TCP-based protocol
• Available for specific implementations, e.g. ELB
Exposing services: LoadBalancer
LB
foo
cloud-controller
Programs
endpoints
kube-proxy / iptables
foo

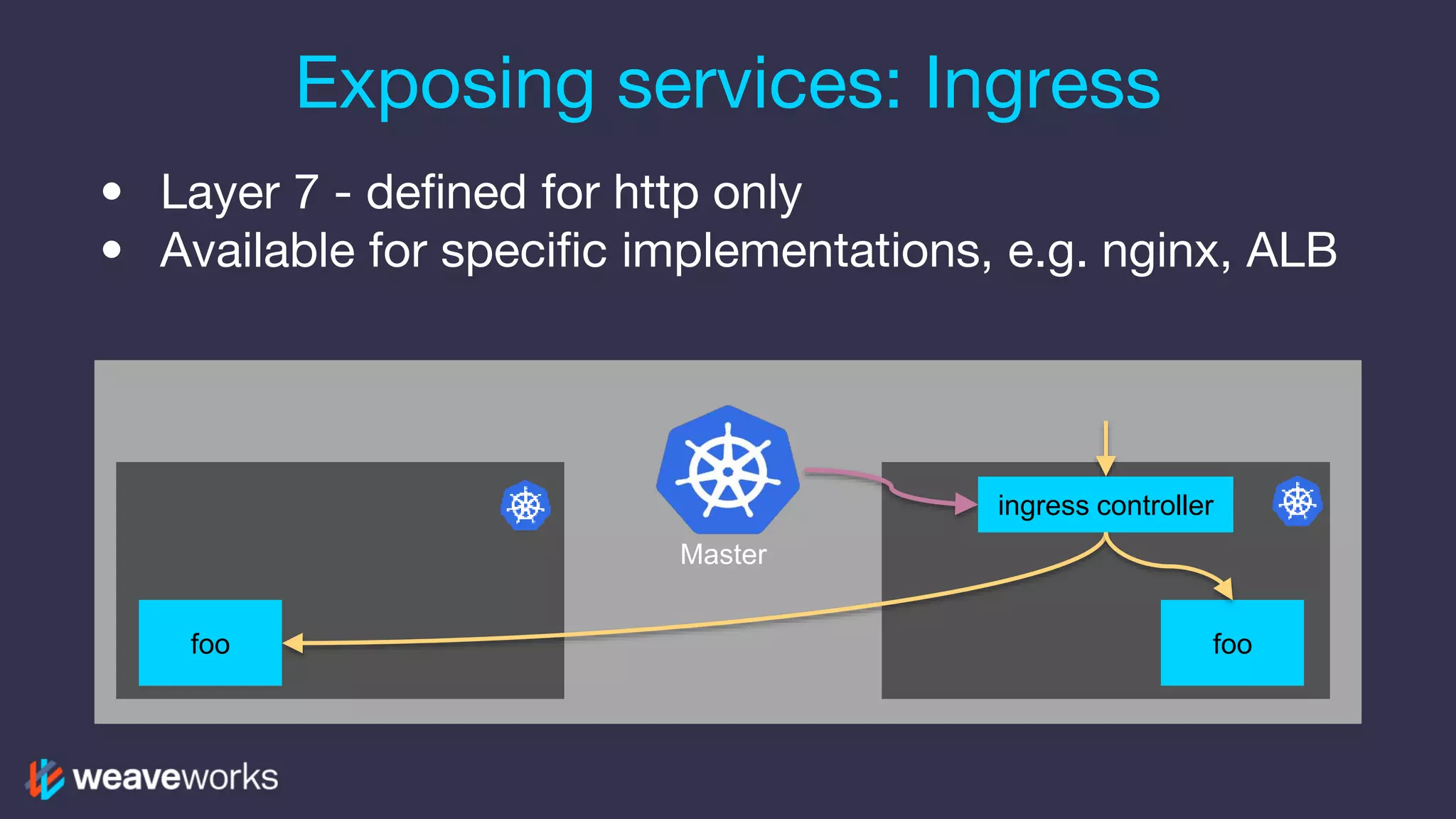

26. • Layer 7 - defined for http only
• Available for specific implementations, e.g. nginx, ALB
Exposing services: Ingress
ingress controller
foo foo
Master

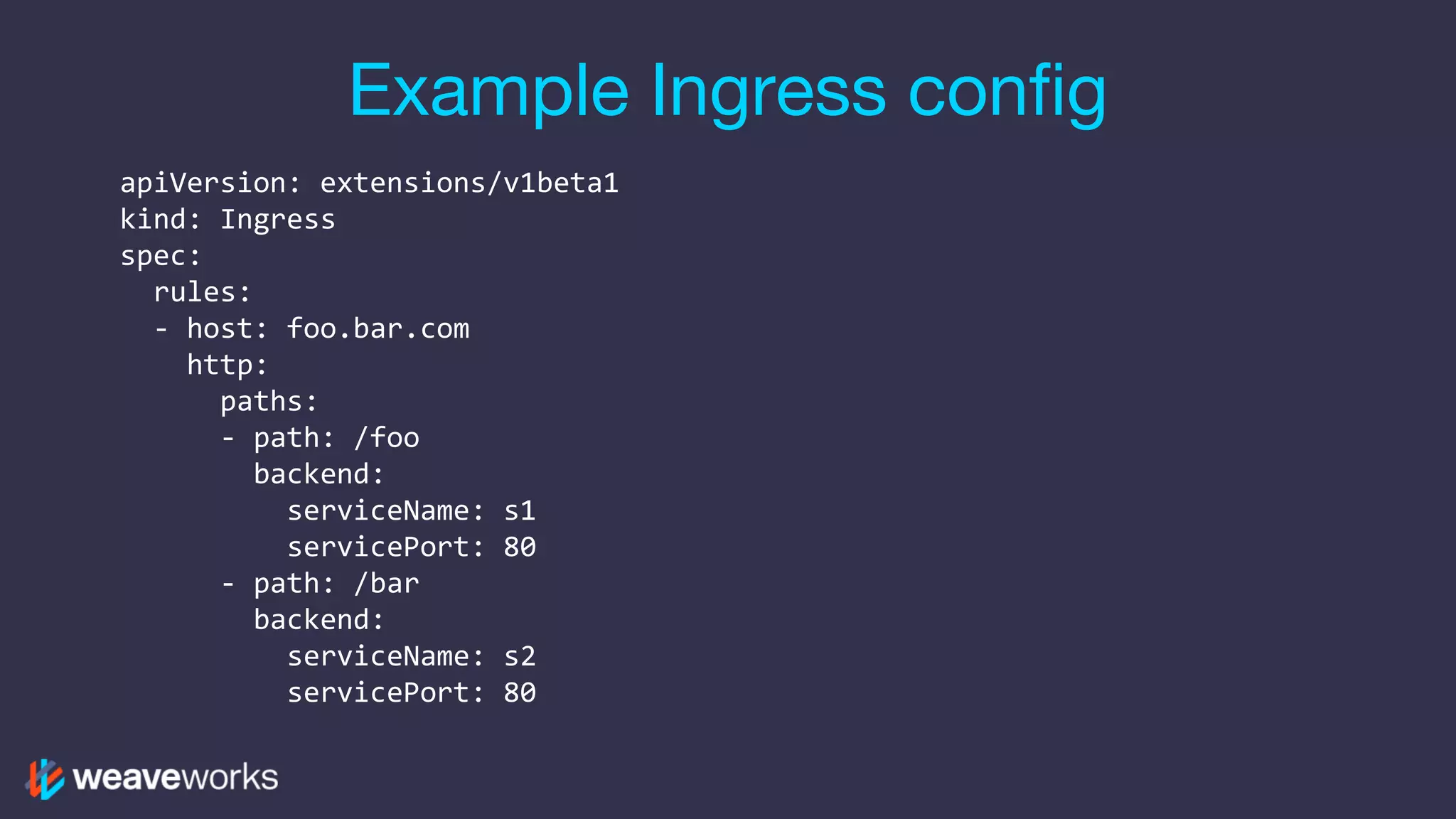

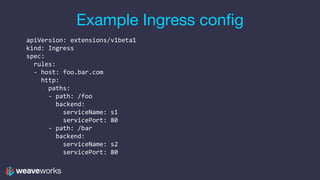

27. Example Ingress config
apiVersion: extensions/v1beta1
kind: Ingress
spec:
rules:
- host: foo.bar.com
http:
paths:
- path: /foo
backend:
serviceName: s1
servicePort: 80
- path: /bar
backend:
serviceName: s2
servicePort: 80

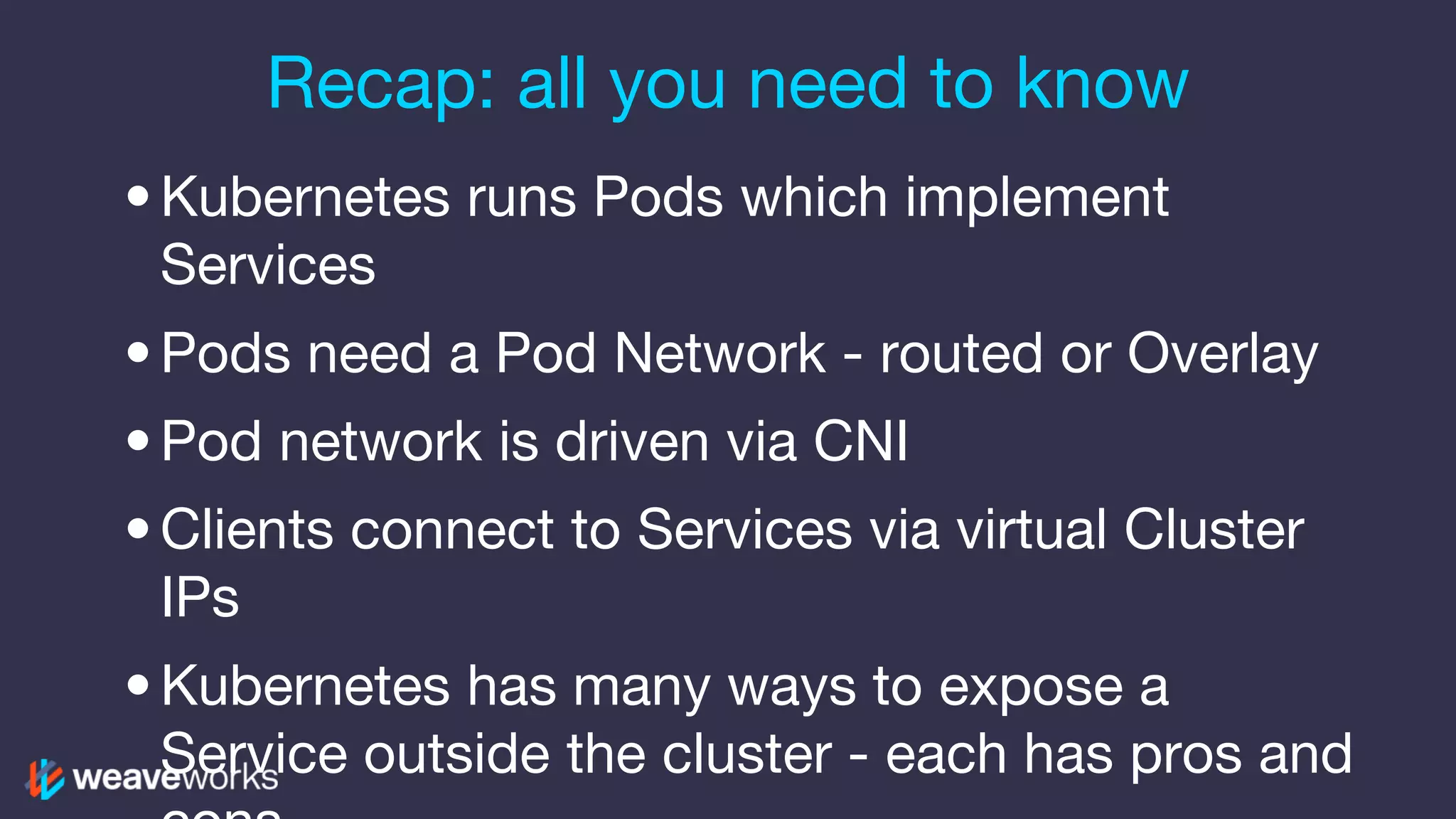

28. Recap: all you need to know
•Kubernetes runs Pods which implement
Services
•Pods need a Pod Network - routed or Overlay
•Pod network is driven via CNI
•Clients connect to Services via virtual Cluster
IPs
•Kubernetes has many ways to expose a
Service outside the cluster - each has pros and

29. Thanks! Questions?
We are hiring!
Engineers in SF & London
weave.works/hiring

30. What’s Next?
•Try Weave Cloud
– https://cloud.weave.works
•Join the Weave user group!
– meetup.com/pro/Weave
•Get in touch! (Slack, Email, etc.)
– weave.works/help
