DNSSEC Validation Tutorial

The document provides an overview of DNSSEC validation including: - How DNSSEC uses digital signatures and a chain of trust to validate DNS records and ensure they have not been tampered with. - The process of validation works by verifying signatures up the DNS hierarchy from the data record to the root zone using public/private key pairs. - The roles of different record types like DNSKEY, DS, and their use in establishing the chain of trust during validation.

Embed presentation

1 / 133
2 / 133
3 / 133
4 / 133
5 / 133
6 / 133
7 / 133
8 / 133
9 / 133
10 / 133
11 / 133
12 / 133
13 / 133
14 / 133
15 / 133
16 / 133
17 / 133
18 / 133
19 / 133
20 / 133
21 / 133
22 / 133
23 / 133
24 / 133
25 / 133
26 / 133
27 / 133
28 / 133
29 / 133
30 / 133
31 / 133
32 / 133
33 / 133
34 / 133
35 / 133
36 / 133
37 / 133
38 / 133
39 / 133
40 / 133
41 / 133
42 / 133
43 / 133
44 / 133
45 / 133
46 / 133
47 / 133
48 / 133
49 / 133
50 / 133
51 / 133
52 / 133
53 / 133
54 / 133
55 / 133
56 / 133
57 / 133
58 / 133
59 / 133
60 / 133
61 / 133
62 / 133
63 / 133
64 / 133
65 / 133
66 / 133
67 / 133
68 / 133
69 / 133
70 / 133
71 / 133
72 / 133
73 / 133
74 / 133
75 / 133
76 / 133
77 / 133
78 / 133
79 / 133
80 / 133
81 / 133
82 / 133
83 / 133
84 / 133
85 / 133
86 / 133
87 / 133
88 / 133
89 / 133
90 / 133
91 / 133
92 / 133
93 / 133
94 / 133

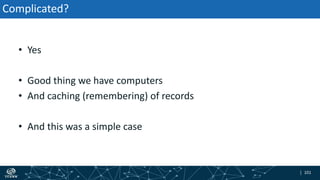

95 / 133
96 / 133
97 / 133
98 / 133
99 / 133
100 / 133
101 / 133
102 / 133
103 / 133
104 / 133
105 / 133
106 / 133
107 / 133
108 / 133
109 / 133
110 / 133
111 / 133
112 / 133
113 / 133
114 / 133
115 / 133
116 / 133
117 / 133
118 / 133
119 / 133
120 / 133
121 / 133
122 / 133
123 / 133
124 / 133
125 / 133
126 / 133
127 / 133
128 / 133
129 / 133
130 / 133
131 / 133
132 / 133
133 / 133
| 1 Edward Lewis APRICOT 2019 25 February 2019 DNSSEC Validation Tutorial How it is done

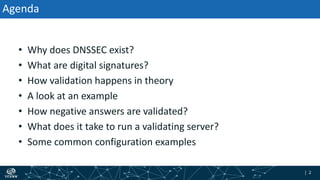

| 2| 2 Agenda • Why does DNSSEC exist? • What are digital signatures? • How validation happens in theory • A look at an example • How negative answers are validated? • What does it take to run a validating server? • Some common configuration examples

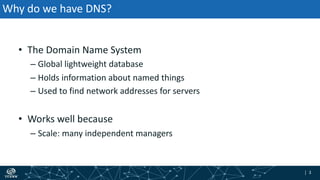

| 3| 3 Why do we have DNS? • The Domain Name System – Global lightweight database – Holds information about named things – Used to find network addresses for servers • Works well because – Scale: many independent managers
| 4| 4 What is the IPv4 address for www.example.com.? The address for www.example.com. is W.X.Y.Z DNS Looks Simple
| 5| 5 Information Source Information Source Information Source Information Source IntermediaryIntermediaryIntermediary But DNS consists of many layers Relying Client Intermediary Information Source
| 6| 6 Finding a DNS answer Root Server EXAMPLE.COM Server Application Recursive Server COM. server www.example.com./A

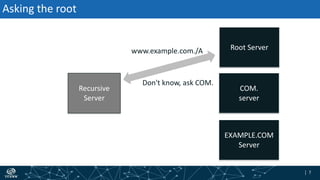

| 7| 7 Asking the root Recursive Server www.example.com./A Don't know, ask COM. Root Server EXAMPLE.COM Server COM. server
| 8| 8 Asking the top-level domain Recursive Server www.example.com./A go ask EXAMPLE.COM Root Server EXAMPLE.COM Server COM. server

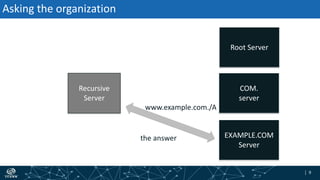

| 9| 9 Asking the organization Recursive Server www.example.com./A the answer Root Server EXAMPLE.COM Server COM. server

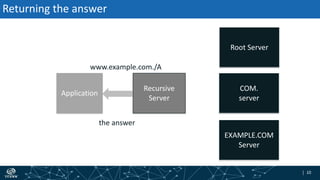

| 10| 10 Returning the answer Application Recursive Server www.example.com./A the answer Root Server EXAMPLE.COM Server COM. server

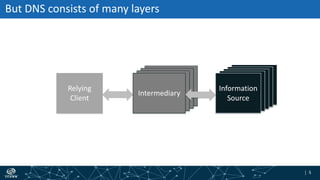

| 11| 11 Information Source Information Source Information Source Information Source IntermediaryIntermediaryIntermediary Why is there DNSSEC? Relying Client Intermediary Information Source • Seeks Information • Easily Fooled

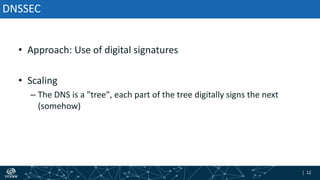

| 12| 12 DNSSEC • Approach: Use of digital signatures • Scaling – The DNS is a "tree", each part of the tree digitally signs the next (somehow)
| 13| 13 What is the IPv4 address for www.example.com,? The address for www.example.com. is W.X.Y.Z DNS looks simple
| 14| 14 Digital signature by example.com. DNSSEC's change What is the IPv4 address for www.example.com.? The address for www.example.com. is W.X.Y.Z
| 15| 15 Digital Signature? • Think of your handwritten signature but in terms of computing – Not a picture of your signature – But the "idea" of why a signature is important
| 16| 16 Digital Signatures in Theory Key Pair
| 17| 17 Digital Signatures in Theory Private Key Key Pair Public Key A pair of keys have a unique bond. If you can "verify" something with one, they other "signed" it. If the public key of someone verifies it, that person's private key must have signed it.

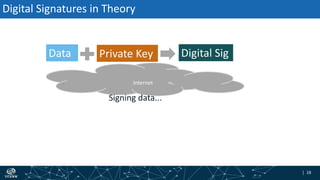

| 18| 18 Internet Digital Signatures in Theory Data Digital SigPrivate Key Signing data...

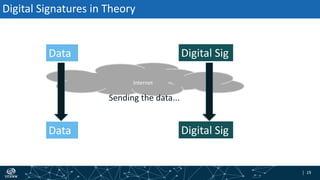

| 19| 19 Internet Digital Signatures in Theory Data Digital Sig Data Digital Sig Sending the data...
| 20| 20 Internet Digital Signatures in Theory Data Digital SigPublic Key OR Verifying the data...

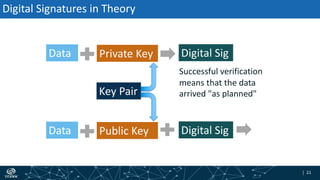

| 21| 21 Digital Signatures in Theory Data Private Key Key Pair Data Digital SigPublic Key Successful verification means that the data arrived "as planned" Digital Sig
| 22| 22 Could Anything Go Wrong? • Yes – The holder of the private key might "leak" it – Someone might "abuse" the key or cryptography • With care and attention, like guarding your house keys, you can rely on the checks

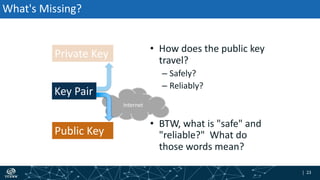

| 23| 23 Internet What's Missing? • How does the public key travel? – Safely? – Reliably? • BTW, what is "safe" and "reliable?" What do those words mean? Private Key Key Pair Public Key
| 24| 24 DNS's Data Organization • The DNS is a federation of owners (registrants) of information – Each owner signs their own data with their own key – That's a lot of keys • Hierarchy to the rescue! The Root TLD SLD data
| 25| 25 DNSSEC Chain of Keys In Theory The Root TLD SLD data sld KEYs tld KEYs root KEYs data records
| 26| 26 Making A Chain • The root zone signs TLD keys • A TLD (administrator) signs registrant keys • A DNS zone administrator (registrant) signs their own data This creates a "chain" used in validation
| 27| 27 Verification In Theory • Verification works backwards, or "up" the hierarchy • Start with the data sought – in this case the address... Address Data SLD Digital Sig SLD Public Key

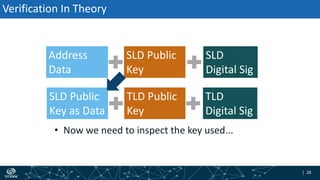

| 28| 28 Verification In Theory • Now we need to inspect the key used... Address Data SLD Digital Sig SLD Public Key SLD Public Key as Data TLD Digital Sig TLD Public Key
| 29| 29 Verification In Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key as Data Root Digital Sig Root Public Key
| 30| 30 Verification In Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key Root Digital Sig Root Public Key

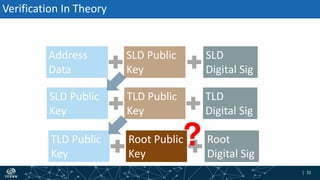

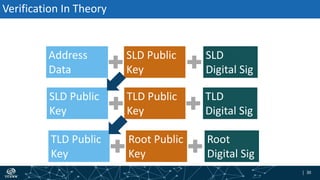

| 31| 31 Verification In Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key Root Digital Sig Root Public Key ?
| 32| 32 Trust Anchors • Within DNSSEC, the "top" key used in a chain • Trust anchor hygiene is important

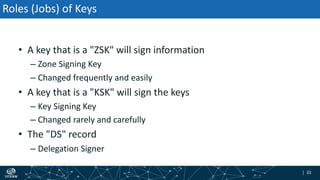

| 33| 33 Roles (Jobs) of Keys • A key that is a "ZSK" will sign information – Zone Signing Key – Changed frequently and easily • A key that is a "KSK" will sign the keys – Key Signing Key – Changed rarely and carefully • The "DS" record – Delegation Signer

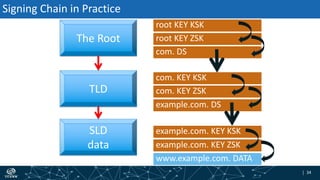

| 34| 34 The Root TLD SLD data example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA Signing Chain in Practice
| 35| 35 Verification Chain In Practice The Root TLD SLD data example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA

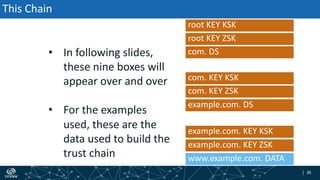

| 36| 36 This Chain • In following slides, these nine boxes will appear over and over • For the examples used, these are the data used to build the trust chain example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA
| 37| 37 Finding an answer DNSSEC-style Application Recursive Server www.example.com./A Root Server EXAMPLE.COM Server COM. server

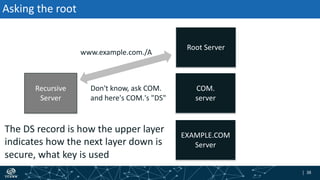

| 38| 38 Asking the root Recursive Server Don't know, ask COM. and here's COM.'s "DS" The DS record is how the upper layer indicates how the next layer down is secure, what key is used www.example.com./A Root Server EXAMPLE.COM Server COM. server

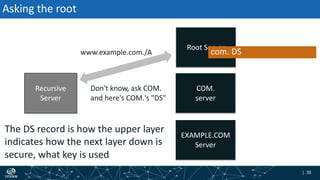

| 39| 39 Asking the root Recursive Server Don't know, ask COM. and here's COM.'s "DS" The DS record is how the upper layer indicates how the next layer down is secure, what key is used www.example.com./A Root Server EXAMPLE.COM Server COM. server com. DS

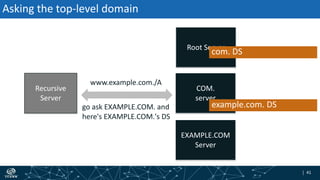

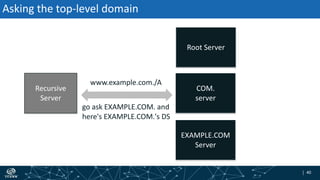

| 40| 40 Asking the top-level domain Recursive Server go ask EXAMPLE.COM. and here's EXAMPLE.COM.'s DS www.example.com./A Root Server EXAMPLE.COM Server COM. server
| 41| 41 Recursive Server go ask EXAMPLE.COM. and here's EXAMPLE.COM.'s DS www.example.com./A Root Server EXAMPLE.COM Server COM. server Asking the top-level domain example.com. DS com. DS

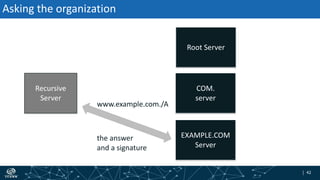

| 42| 42 Asking the organization Recursive Server the answer and a signature www.example.com./A Root Server EXAMPLE.COM Server COM. server
| 43| 43 Recursive Server the answer and a signature www.example.com./A Root Server EXAMPLE.COM Server COM. server Asking the organization example.com. DS com. DS www.example.com. DATA

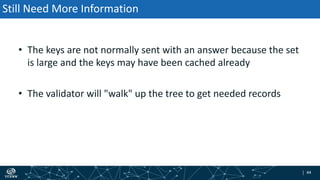

| 44| 44 Still Need More Information • The keys are not normally sent with an answer because the set is large and the keys may have been cached already • The validator will "walk" up the tree to get needed records

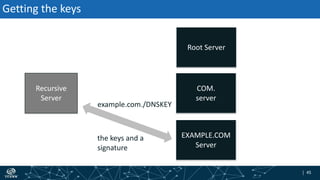

| 45| 45 Getting the keys Recursive Server example.com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server
| 46| 46 Getting the keys Recursive Server example.com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. DS www.example.com. DATA

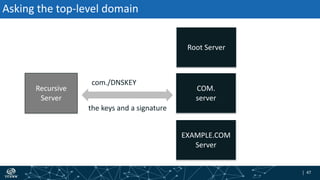

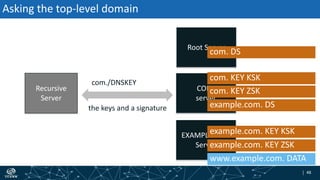

| 47| 47 Asking the top-level domain Recursive Server com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server
| 48| 48 Asking the top-level domain Recursive Server com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS www.example.com. DATA
| 49| 49 Asking the root Recursive Server "root's"/DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server

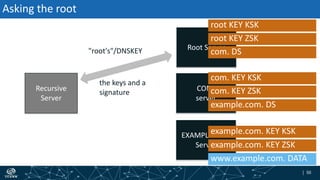

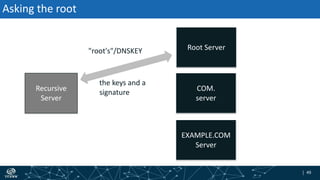

| 50| 50 Asking the root Recursive Server "root's"/DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA

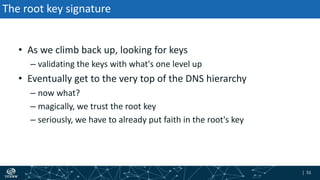

| 51| 51 The root key signature • As we climb back up, looking for keys – validating the keys with what's one level up • Eventually get to the very top of the DNS hierarchy – now what? – magically, we trust the root key – seriously, we have to already put faith in the root's key

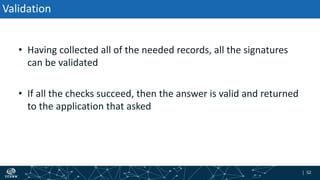

| 52| 52 Validation • Having collected all of the needed records, all the signatures can be validated • If all the checks succeed, then the answer is valid and returned to the application that asked

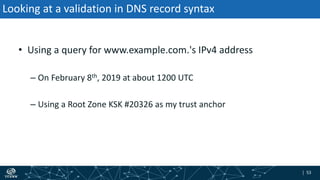

| 53| 53 Looking at a validation in DNS record syntax • Using a query for www.example.com.'s IPv4 address – On February 8th, 2019 at about 1200 UTC – Using a Root Zone KSK #20326 as my trust anchor
| 54| 54 Ordinarily... • In coming slides, I'll retrieve the DS record at times • A DNS cache would have gotten them while finding the final answer and cache them • In debugging, you won't rely on that, you'll probably query as the slides show...

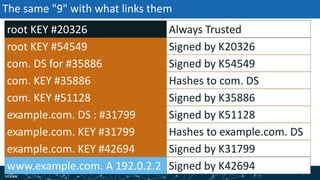

| 55| 55 The same "9" with what links them root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Always Trusted Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS

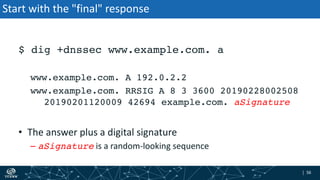

| 56| 56 Start with the "final" response $ dig +dnssec www.example.com. a www.example.com. A 192.0.2.2 www.example.com. RRSIG A 8 3 3600 20190228002508 20190201120009 42694 example.com. aSignature • The answer plus a digital signature – aSignature is a random-looking sequence
| 57| 57 Close look at the signature record • www.example.com. RRSIG A 8 3 3600 20190228002508 20190201120009 42694 example.com. aSignature Signature Record (Type "Covered") Start time End time The key used • This signature is good for February 1 to 28, so on February 8, "ok" • The signature line ought to appear on one single line
| 58| 58 How are we doing? www.example.com. A 192.0.2.2 Unverified Signature
| 59| 59 What's needed next – the key set The IPv4 address for www.example.com. is 192.0.2.2 Digital signature by example.com. key #42694 over answer example.com. KEY #42694 (need this) ? OR

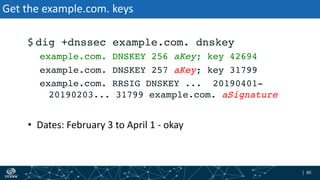

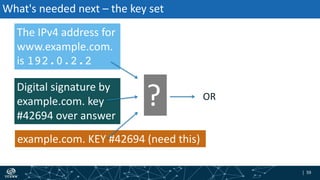

| 60| 60 Get the example.com. keys $ dig +dnssec example.com. dnskey example.com. DNSKEY 256 aKey; key 42694 example.com. DNSKEY 257 aKey; key 31799 example.com. RRSIG DNSKEY ... 20190401- 20190203... 31799 example.com. aSignature • Dates: February 3 to April 1 - okay
| 61| 61 Why are there two keys? • The answer is a key set – more than one key – At times we tend to forget that all DNS answers are sets and not single records • One key is a Key Signing Key (KSK) – "257" appears • One key is a Zone Signing Key (ZSK) – "256" appears – Key #42694 signs the address record, the KSK signs the two keys • There may be multiple KSK and multiple ZSK in the set

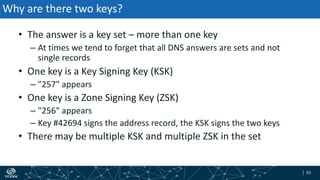

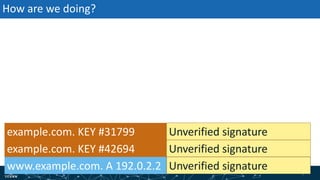

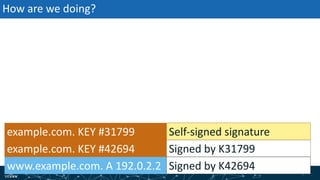

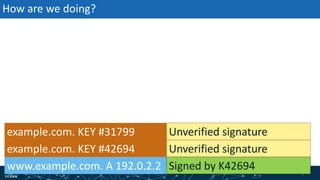

| 62| 62 How are we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Unverified signature Unverified signature
| 63| 63 Checking the data The IPv4 address for www.example.com. is 192.0.2.2 Digital signature by example.com. key #42694 over answer example.com. KEY #42694 ? ...but do we trust example.com.'s key #42694?
| 64| 64 How are we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K42694 Unverified signature Unverified signature

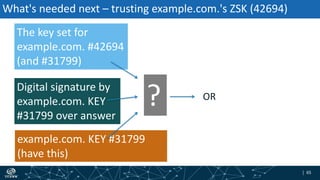

| 65| 65 What's needed next – trusting example.com.'s ZSK (42694) The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 (have this) ? OR
| 66| 66 Look for example.com.'s key #31799 • In the same message example.com. DNSKEY 256 aKey; key 42694 example.com. DNSKEY 257 aKey; key 31799 example.com. RRSIG DNSKEY ... 20190401- 201902031... 31799 example.com. aSignature • Set is "self-signed" (can I trust it?)

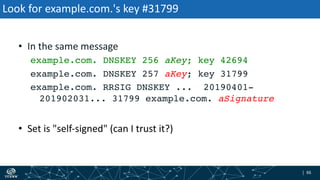

| 67| 67 Check of example.com. ZSK #42694 The key set for example.com. are #42694, #31799 Digital signature by example.com. #31799 example.com. KEY #31799 ? ...but, do we trust #31799?

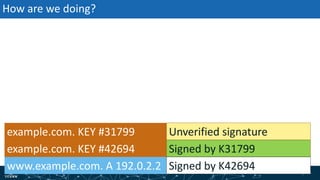

| 68| 68 How are we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K31799 Signed by K42694 Unverified signature
| 69| 69 What's needed next – trusting example.com.'s KSK (31799) The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 (have this) ? OR

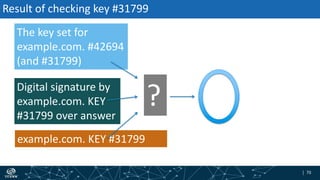

| 70| 70 Result of checking key #31799 The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 ?
| 71| 71 How are we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K31799 Signed by K42694 Self-signed signature
| 72| 72 DNSSEC "chains" • Started this section saying we "trust" a root zone key #20326 – Not the self-signed key of example.com., #31799 • DNSSEC relies on a chain of trust – How can the root zone KSK be used to trust the self-signed key? • The DS record is used – First, the DS for example.com. is needed – If it isn't already in cache (from descending the tree)
| 73| 73 What's needed next – is the self-signed 31799 "valid" The KSK key for example.com. #31799 The example.com. DS record's hash (need this) ? OR
| 74| 74 Getting DS for example.com. $ dig +dnssec example.com. ds example.com. DS 31799 8 2 aHash example.com. RRSIG DS 8 2 86400 20190312... 20190205... 51128 com. aSignature • Response has a hash of example.com.'s #31799 and a signature by com.'s #51128 – Needed next – com.'s keys, including #51128 • Signature is good for February 5 to March 12

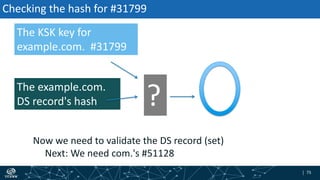

| 75| 75 Checking the hash for #31799 Now we need to validate the DS record (set) Next: We need com.'s #51128 The KSK key for example.com. #31799 The example.com. DS record's hash ?

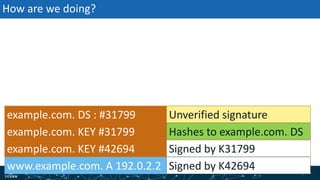

| 76| 76 How are we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 example.com. DS : #31799 Signed by K31799 Signed by K42694 Hashes to example.com. DS Unverified signature
| 77| 77 Checking the example.com. DS record The DS record for example.com. Digital signature by com. #51128 com. KEY #51128 (need this) ? OR

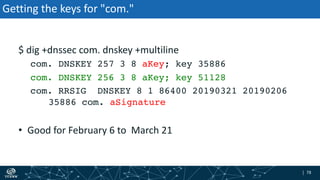

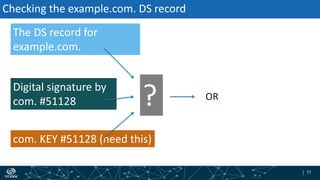

| 78| 78 Getting the keys for "com." $ dig +dnssec com. dnskey +multiline com. DNSKEY 257 3 8 aKey; key 35886 com. DNSKEY 256 3 8 aKey; key 51128 com. RRSIG DNSKEY 8 1 86400 20190321 20190206 35886 com. aSignature • Good for February 6 to March 21

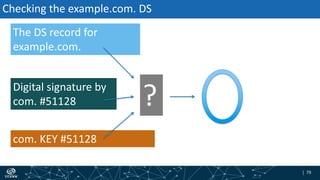

| 79| 79 Checking the example.com. DS The DS record for example.com. Digital signature by com. #51128 com. KEY #51128 ?

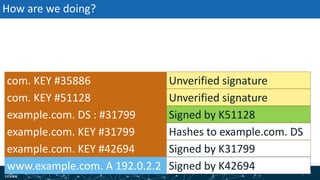

| 80| 80 How are we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Unverified signature
| 81| 81 Checking com.'s key ZSK #51128 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? OR
| 82| 82 Results of the check The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? ...but do we trust com.'s #35886?

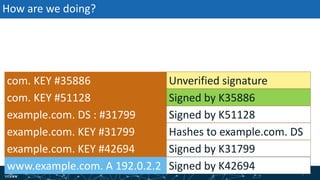

| 83| 83 How are we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Signed by K35886

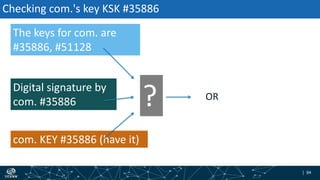

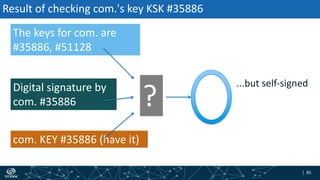

| 84| 84 Checking com.'s key KSK #35886 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? OR
| 85| 85 Result of checking com.'s key KSK #35886 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? ...but self-signed
| 86| 86 How are we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Self-signed signature Signed by K35886
| 87| 87 What's needed next – is com.'s self-signed 35886 "valid"? The keys for com. are #51128, #35886 The com. DS record's hash (need this) ? OR

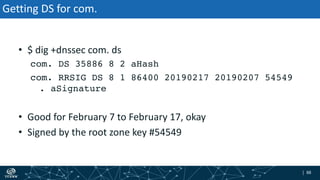

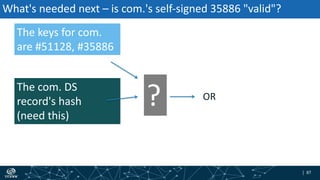

| 88| 88 Getting DS for com. • $ dig +dnssec com. ds com. DS 35886 8 2 aHash com. RRSIG DS 8 1 86400 20190217 20190207 54549 . aSignature • Good for February 7 to February 17, okay • Signed by the root zone key #54549

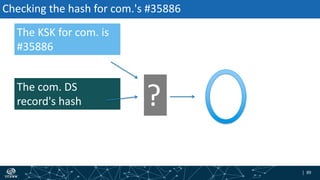

| 89| 89 Checking the hash for com.'s #35886 The KSK for com. is #35886 The com. DS record's hash ?

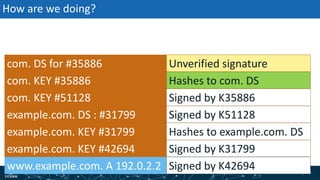

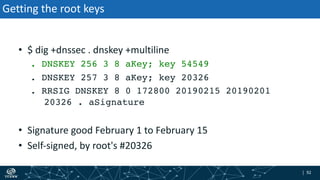

| 90| 90 How are we doing? com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Unverified signature Signed by K51128 Hashes to example.com. DS
| 91| 91 Checking the com. DS record The DS record set for com. Digital signature by root #54549 root KEY #54549 (need this) ? OR
| 92| 92 Getting the root keys • $ dig +dnssec . dnskey +multiline . DNSKEY 256 3 8 aKey; key 54549 . DNSKEY 257 3 8 aKey; key 20326 . RRSIG DNSKEY 8 0 172800 20190215 20190201 20326 . aSignature • Signature good February 1 to February 15 • Self-signed, by root's #20326
| 93| 93 Results of checking the com. DS The DS record set for com. Digital signature by root #54549 root KEY #54549 ?

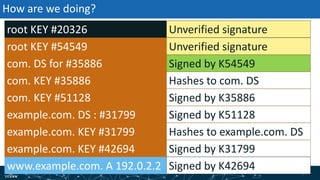

| 94| 94 How are we doing? root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Unverified signature Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS Unverified signature
| 95| 95 Checking root's KSK #54549? The keys for . (root) are #20326, #54549 Digital signature by root #20326 root KEY #20326 ? OR

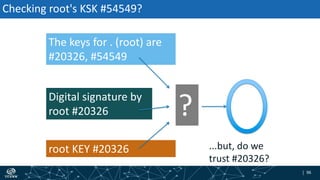

| 96| 96 Checking root's KSK #54549? The keys for . (root) are #20326, #54549 Digital signature by root #20326 root KEY #20326 ? ...but, do we trust #20326?

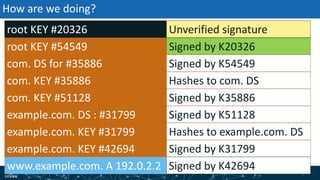

| 97| 97 How are we doing? root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS Unverified signature
| 98| 98 But wait! • We started out saying that we trust root key #20326 – It is our trust anchor • No need to verify the self-signed signature if we use the trust anchor, not the key in the message • It is our trust anchor because – We learned it in the past – Tested it, examined it – We consider it a "secure entry point" or a "trust anchor" for the chain of trust
| 99| 99 • This may be an implementation detail • One must check that the key matching a trust anchor is truly identical to the trust anchor before relying on it • Option: use the trust anchor and not the key • Option: use the DNSKEY record and then validate that Caution

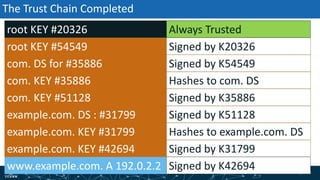

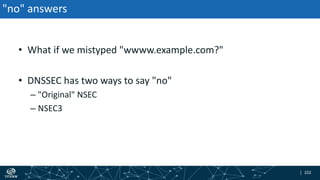

| 100| 100 The Trust Chain Completed root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Always Trusted Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS
| 101| 101 Complicated? • Yes • Good thing we have computers • And caching (remembering) of records • And this was a simple case
| 102| 102 "no" answers • What if we mistyped "wwww.example.com?" • DNSSEC has two ways to say "no" – "Original" NSEC – NSEC3
| 103| 103 • NSEC's approach to "no" is: – Sort all records in order – Show the record before and after the query – The response "implies" the data is not there – E.g. "wwww.example.com" does not exist – But www.example.com and wwwz.example.com do NSEC

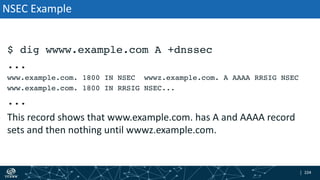

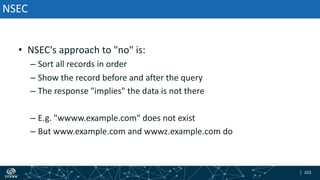

| 104| 104 $ dig wwww.example.com A +dnssec ... www.example.com. 1800 IN NSEC wwwz.example.com. A AAAA RRSIG NSEC www.example.com. 1800 IN RRSIG NSEC... ... This record shows that www.example.com. has A and AAAA record sets and then nothing until wwwz.example.com. NSEC Example
| 105| 105 • DNSSEC was designed when servers were extremely vulnerable • Cryptographic keys were not put on-line • Cryptography took a lot of server time too • All answers are pre-computed, thus, before the query was made Why this odd approach?
| 106| 106 • NSEC3 was developed to prevent a problem some operators have with NSEC, namely "zone walking" • The approach is to "hash" the zone and then show what hashes exist or don't exist • NSEC3 is complicated because it "flattens" the name tree NSEC3

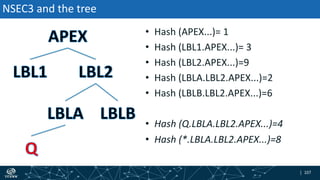

| 107| 107 • Hash (APEX...)= 1 • Hash (LBL1.APEX...)= 3 • Hash (LBL2.APEX...)=9 • Hash (LBLA.LBL2.APEX...)=2 • Hash (LBLB.LBL2.APEX...)=6 • Hash (Q.LBLA.LBL2.APEX...)=4 • Hash (*.LBLA.LBL2.APEX...)=8 NSEC3 and the tree
| 108| 108 • Hash (APEX...)= 1 • Hash (LBL1.APEX...)= 3 • Hash (LBL2.APEX...)=9 • Hash (LBLA.LBL2.APEX...)=2 • Hash (LBLB.LBL2.APEX...)=6 • Hash (Q.LBLA.LBL2.APEX...)=4 • Hash (*.LBLA.LBL2.APEX...)=8 NSEC3 and the response • The response will need to have: • 3-> 6 to show there is no "Q" • 2->3 to determine where a wildcard might be • and • 6-> 9 to show there is no wildcard
| 109| 109 Is that clear? • The answer is meant to be obscure – NSEC3 is trying to hide as much as possible • Few DNSSEC experts can get this right

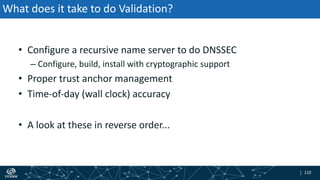

| 110| 110 What does it take to do Validation? • Configure a recursive name server to do DNSSEC – Configure, build, install with cryptographic support • Proper trust anchor management • Time-of-day (wall clock) accuracy • A look at these in reverse order...
| 111| 111 Time (of Day) • Since validation checks dates and times on signatures, keep the host clock "right" • This used to be a big issue but now everyone has Network Time Protocol running – Still, check the server does have it running • But, it's a first step

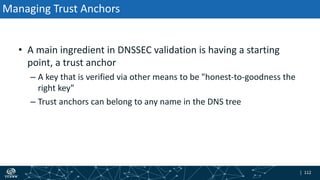

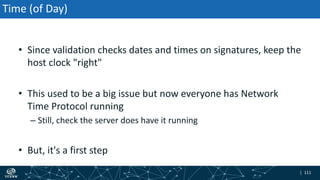

| 112| 112 Managing Trust Anchors • A main ingredient in DNSSEC validation is having a starting point, a trust anchor – A key that is verified via other means to be "honest-to-goodness the right key" – Trust anchors can belong to any name in the DNS tree

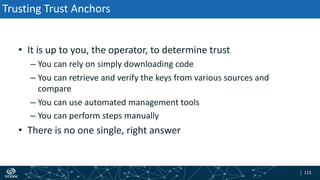

| 113| 113 Trusting Trust Anchors • It is up to you, the operator, to determine trust – You can rely on simply downloading code – You can retrieve and verify the keys from various sources and compare – You can use automated management tools – You can perform steps manually • There is no one single, right answer
| 114| 114 Manual versus Automatic • Manual – You find, analyze, trust, "hard" configure – Implementation dependent – Time consuming, needs to be updated – or else! • Automatic – Automated Updates of DNSSEC Trust Anchors (RFC 5011), IETF Full Standard – Learns updates to existing trust anchors

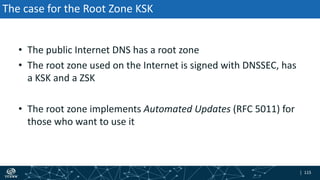

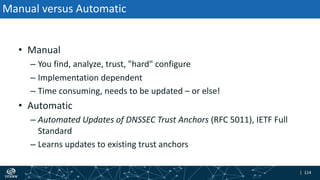

| 115| 115 The case for the Root Zone KSK • The public Internet DNS has a root zone • The root zone used on the Internet is signed with DNSSEC, has a KSK and a ZSK • The root zone implements Automated Updates (RFC 5011) for those who want to use it

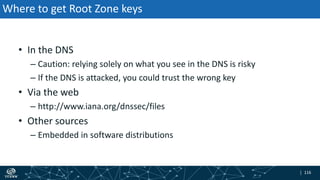

| 116| 116 Where to get Root Zone keys • In the DNS – Caution: relying solely on what you see in the DNS is risky – If the DNS is attacked, you could trust the wrong key • Via the web – http://www.iana.org/dnssec/files • Other sources – Embedded in software distributions
| 117| 117 Why would you need more? • In an ideal, complete world, there's no need to have more than just the root trust anchor • But that is not this world – Not all TLDs are signed – Not all operators are trusted

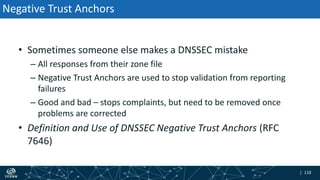

| 118| 118 Negative Trust Anchors • Sometimes someone else makes a DNSSEC mistake – All responses from their zone file – Negative Trust Anchors are used to stop validation from reporting failures – Good and bad – stops complaints, but need to be removed once problems are corrected • Definition and Use of DNSSEC Negative Trust Anchors (RFC 7646)

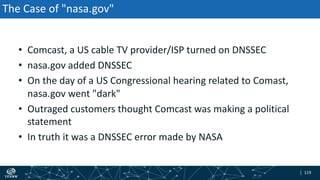

| 119| 119 The Case of "nasa.gov" • Comcast, a US cable TV provider/ISP turned on DNSSEC • nasa.gov added DNSSEC • On the day of a US Congressional hearing related to Comast, nasa.gov went "dark" • Outraged customers thought Comcast was making a political statement • In truth it was a DNSSEC error made by NASA

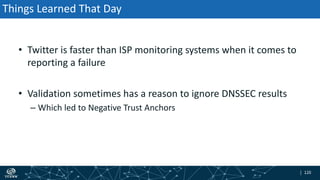

| 120| 120 Things Learned That Day • Twitter is faster than ISP monitoring systems when it comes to reporting a failure • Validation sometimes has a reason to ignore DNSSEC results – Which led to Negative Trust Anchors
| 121| 121 How to Set Up Validation • Software known to do validation – BIND – Unbound – Windows – Nominum Vantio (now part of Akamai) – Knot Resolver – DNSMASQ – Secure64 DNS Cache – PowerDNS Recursor

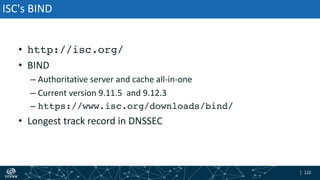

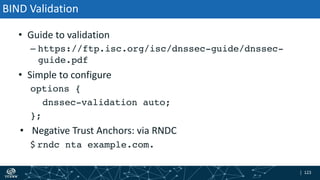

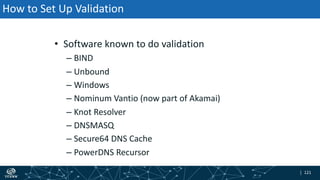

| 122| 122 ISC's BIND • http://isc.org/ • BIND – Authoritative server and cache all-in-one – Current version 9.11.5 and 9.12.3 – https://www.isc.org/downloads/bind/ • Longest track record in DNSSEC
| 123| 123 BIND Validation • Guide to validation – https://ftp.isc.org/isc/dnssec-guide/dnssec- guide.pdf • Simple to configure options { dnssec-validation auto; }; • Negative Trust Anchors: via RNDC $ rndc nta example.com.
| 124| 124 NLnetLab's unbound • Has it's own website – http://www.unbound.net/ • unbound is a caching-only name server with DNSSEC built in – "unbound" is a play on the word "bind" • Tools for trust anchor management – unbound-anchor

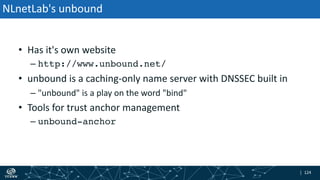

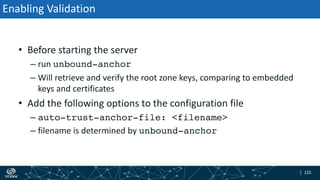

| 125| 125 Enabling Validation • Before starting the server – run unbound-anchor – Will retrieve and verify the root zone keys, comparing to embedded keys and certificates • Add the following options to the configuration file – auto-trust-anchor-file: <filename> – filename is determined by unbound-anchor
| 126| 126 Negative Trust Anchors • Configuration file option – domain-insecure: <zone> • Run-time commanding via unbound-control – unbound-control insecure_add <zone> – unbound-control insecure_remove <zone> – (Upon restart these are forgotten)
| 127| 127 • PowerDNS – https://doc.powerdns.com/md/recursor/dnssec/ • Knot Resolver – https://knot- resolver.readthedocs.io/en/stable/daemon.html#enabling-dnssec Other Open Source DNS

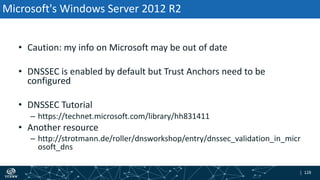

| 128| 128 Microsoft's Windows Server 2012 R2 • Caution: my info on Microsoft may be out of date • DNSSEC is enabled by default but Trust Anchors need to be configured • DNSSEC Tutorial – https://technet.microsoft.com/library/hh831411 • Another resource – http://strotmann.de/roller/dnsworkshop/entry/dnssec_validation_in_micr osoft_dns
| 129| 129 Management Interfaces • Microsoft offers different administrative interfaces – UI (dnsmgmt.mmc) – Powershell (recommended) – DnsCmd • All have feature parity, same default settings

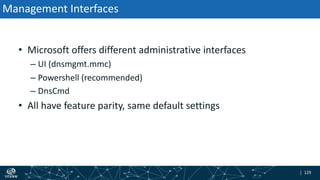

| 130| 130 Enabling Validation • Enabling DNSSEC Validation – Default settings $a = Get-DNSServerSetting -all $a.EnableDnsSec • Need to load trust anchors – Add-DnsServerTrustAnchor –Root – Other trust anchors can be added • https://technet.microsoft.com/en- us/library/jj649932.aspx

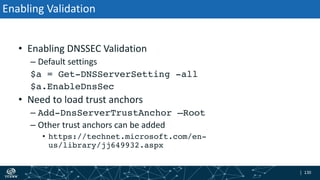

| 131| 131 Managing Trust Anchors • On standalone DNS servers – stored in a file named TrustAnchors.dns • Windows Server 2012 or Windows Server 2012 R2 – DNS Manager console tree, Trust Points container • Viewing trust anchors – Windows PowerShell or Dnscmd.exe
| 132| 132 Questions? • DNSSEC Validation is one step to protecting your interests – Goal is to protect against in-DNS attacks – The "business case" for it is much like that for automobile seat belts (i.e., hard to make) • Other layers of defense are needed
| 133| 133 Reach me at: Email: edward.lewis@icann.org Website: icann.org ThankYou and Questions gplus.to/icann weibo.com/ICANNorg flickr.com/photos/icann slideshare.net/icannpresentations twitter.com/icann facebook.com/icannorg linkedin.com/company/icann youtube.com/user/icannnews Engage with ICANN

More Related Content

PPTX
DNS Security Presentation ISSA
bySrikrupa Srivatsan

PDF
DNS & DNSSEC
byAPNIC

PDF
DNSSEC - Domain Name System Security Extensions
byPeter R. Egli

PDF
Alphorm.com Formation Wireshark : L'essentiel
byAlphorm

PDF
Faster packet processing in Linux: XDP
byDaniel T. Lee

PDF
DerbyCon 2019 - Kerberoasting Revisited
byWill Schroeder

PPT
Security Vulnerabilities
byMarius Vorster

PDF
DNS Attacks
byHimanshu Prabhakar

DNS Security Presentation ISSA
bySrikrupa Srivatsan

DNS & DNSSEC
byAPNIC

DNSSEC - Domain Name System Security Extensions
byPeter R. Egli

Alphorm.com Formation Wireshark : L'essentiel
byAlphorm

Faster packet processing in Linux: XDP
byDaniel T. Lee

DerbyCon 2019 - Kerberoasting Revisited
byWill Schroeder

Security Vulnerabilities
byMarius Vorster

DNS Attacks
byHimanshu Prabhakar


What's hot

PDF
Administration Reseau
bydenischef1

PDF
Cilium - Container Networking with BPF & XDP
byThomas Graf

PDF
I Have the Power(View)
byWill Schroeder

PDF
Wide Column Store NoSQL vs SQL Data Modeling
byScyllaDB

PDF
Linux commands
bydebashis rout

PDF
Alphorm.com Formation VirtualBox
byAlphorm

DOCX
Linux Server Hardening - Steps by Steps
bySunil Paudel

PPTX
La virtualisation
byJuvénal CHOKOGOUE

DOCX
Type of DDoS attacks with hping3 example
byHimani Singh

PDF
Linux Networking Explained
byThomas Graf

PDF
Attacker's Perspective of Active Directory
bySunny Neo

PPTX
Understanding DPDK
byDenys Haryachyy

PDF
SSH - Secure Shell
bySouhaib El

PPTX
Introduction XSS
byAymeric Lagier

PDF
MongoDB World 2019: MongoDB Read Isolation: Making Your Reads Clean, Committe...
byMongoDB

PDF
Active Directory Trusts
byn|u - The Open Security Community

PDF
0wn-premises: Bypassing Microsoft Defender for Identity
byNikhil Mittal

PDF
How fun of privilege escalation Red Pill2017
byAmmarit Thongthua ,CISSP CISM GXPN CSSLP CCNP

PPTX
Wireless hacking
byarushi bhatnagar

PPT
RADIUS
byamogh_ubale

Administration Reseau
bydenischef1

Cilium - Container Networking with BPF & XDP
byThomas Graf

I Have the Power(View)
byWill Schroeder

Wide Column Store NoSQL vs SQL Data Modeling
byScyllaDB

Linux commands
bydebashis rout

Alphorm.com Formation VirtualBox
byAlphorm

Linux Server Hardening - Steps by Steps
bySunil Paudel

La virtualisation
byJuvénal CHOKOGOUE

Type of DDoS attacks with hping3 example
byHimani Singh

Linux Networking Explained
byThomas Graf

Attacker's Perspective of Active Directory
bySunny Neo

Understanding DPDK
byDenys Haryachyy

SSH - Secure Shell
bySouhaib El

Introduction XSS
byAymeric Lagier

MongoDB World 2019: MongoDB Read Isolation: Making Your Reads Clean, Committe...
byMongoDB

Active Directory Trusts
byn|u - The Open Security Community

0wn-premises: Bypassing Microsoft Defender for Identity
byNikhil Mittal

How fun of privilege escalation Red Pill2017
byAmmarit Thongthua ,CISSP CISM GXPN CSSLP CCNP

Wireless hacking
byarushi bhatnagar

RADIUS
byamogh_ubale


Similar to DNSSEC Validation Tutorial

PDF
Hardening the Core of the Internet
byRIPE NCC

PDF
Introduction DNSSec
byAFRINIC

PDF
Rolling the Root Zone DNSSEC Key Signing Key
byAPNIC

PDF
DNSSEC Made Easy, presented at PHNOG 2025
byAPNIC

PDF
dns-sec-4-slides
bykj teoh

PDF
An Overview of DNSSEC
byCarlos Martinez Cagnazzo

PDF
2010 za con_todor_genov
byJohan Klerk

PDF
The DNSSEC KSK of the root rolls
byMen and Mice

PDF
RIPE 86: DNSSEC — Yes or No?
byAPNIC

PDF
CNIT 40: 6: DNSSEC and beyond
bySam Bowne

PDF
Understanding and Deploying DNSSEC, by Champika Wijayatunga [APRICOT 2015]
byAPNIC

PDF
NANOG 74: That KSK Roll
byAPNIC

PDF
Signing DNSSEC answers on the fly at the edge: challenges and solutions
byAPNIC

PPTX
DNSandDNSSecurity (1).pptx
byAisha Siddiqui

PDF
8 technical-dns-workshop-day4
byDNS Entrepreneurship Center

PDF
2017 DNSSEC KSK Rollover
byAPNIC

PDF
Technical and Business Considerations for DNSSEC Deployment
byAPNIC

PDF
DNS Over HTTPS by Michael Casadevall
byGlenn McKnight

PPTX
Phreebird Suite 1.0: Introducing the Domain Key Infrastructure
byDan Kaminsky

PPTX
ION Hangzhou - How to Deploy DNSSEC
byDeploy360 Programme (Internet Society)

Hardening the Core of the Internet
byRIPE NCC

Introduction DNSSec
byAFRINIC

Rolling the Root Zone DNSSEC Key Signing Key
byAPNIC

DNSSEC Made Easy, presented at PHNOG 2025
byAPNIC

dns-sec-4-slides
bykj teoh

An Overview of DNSSEC
byCarlos Martinez Cagnazzo

2010 za con_todor_genov
byJohan Klerk

The DNSSEC KSK of the root rolls
byMen and Mice

RIPE 86: DNSSEC — Yes or No?
byAPNIC

CNIT 40: 6: DNSSEC and beyond
bySam Bowne

Understanding and Deploying DNSSEC, by Champika Wijayatunga [APRICOT 2015]
byAPNIC

NANOG 74: That KSK Roll
byAPNIC

Signing DNSSEC answers on the fly at the edge: challenges and solutions
byAPNIC

DNSandDNSSecurity (1).pptx
byAisha Siddiqui

8 technical-dns-workshop-day4
byDNS Entrepreneurship Center

2017 DNSSEC KSK Rollover
byAPNIC

Technical and Business Considerations for DNSSEC Deployment
byAPNIC

DNS Over HTTPS by Michael Casadevall
byGlenn McKnight

Phreebird Suite 1.0: Introducing the Domain Key Infrastructure
byDan Kaminsky

ION Hangzhou - How to Deploy DNSSEC
byDeploy360 Programme (Internet Society)


More from APNIC

PPTX
APNIC Report, presented at APAN 60 by Thy Boskovic
byAPNIC

PDF
APNIC Update, presented at PHNOG 2025 by Shane Hermoso
byAPNIC

PDF
RPKI Status Update, presented by Makito Lay at IDNOG 10
byAPNIC

PDF
The Internet -By the Numbers, Sri Lanka Edition
byAPNIC

PDF
Triggering QUIC, presented by Geoff Huston at IETF 123
byAPNIC

PDF
BGP Security Best Practices that Matter, presented at PHNOG 2025
byAPNIC

PDF
APNIC's Role in the Pacific Islands, presented at Pacific IGF 2205
byAPNIC

PDF
IPv6 Deployment and Best Practices, presented by Makito Lay
byAPNIC

PDF
Cleaning up your RPKI invalids, presented at PacNOG 35
byAPNIC

PDF
The Internet - By the numbers, presented at npNOG 11
byAPNIC

PDF
Transmission Control Protocol (TCP) and Starlink
byAPNIC

PDF
DDoS in India, presented at INNOG 8 by Dave Phelan
byAPNIC

PDF
Global Networking Trends, presented at the India ISP Conclave 2025
byAPNIC

PDF
Make DDoS expensive for the threat actors
byAPNIC

PDF
Fast Reroute in SR-MPLS, presented at bdNOG 19
byAPNIC

PDF
DDos Mitigation Strategie, presented at bdNOG 19
byAPNIC

PDF
ICP -2 Review – What It Is, and How to Participate and Provide Your Feedback
byAPNIC

PDF
APNIC Update - Global Synergy among the RIRs: Connecting the Regions
byAPNIC

PDF
Measuring Starlink Protocol Performance, presented at LACNIC 43
byAPNIC

PDF
Prop-154: Resizing of IPv4 assignments for IXPs
byAPNIC

APNIC Report, presented at APAN 60 by Thy Boskovic
byAPNIC

APNIC Update, presented at PHNOG 2025 by Shane Hermoso
byAPNIC

RPKI Status Update, presented by Makito Lay at IDNOG 10
byAPNIC

The Internet -By the Numbers, Sri Lanka Edition
byAPNIC

Triggering QUIC, presented by Geoff Huston at IETF 123
byAPNIC

BGP Security Best Practices that Matter, presented at PHNOG 2025
byAPNIC

APNIC's Role in the Pacific Islands, presented at Pacific IGF 2205
byAPNIC

IPv6 Deployment and Best Practices, presented by Makito Lay
byAPNIC

Cleaning up your RPKI invalids, presented at PacNOG 35
byAPNIC

The Internet - By the numbers, presented at npNOG 11
byAPNIC

Transmission Control Protocol (TCP) and Starlink
byAPNIC

DDoS in India, presented at INNOG 8 by Dave Phelan
byAPNIC

Global Networking Trends, presented at the India ISP Conclave 2025
byAPNIC

Make DDoS expensive for the threat actors
byAPNIC

Fast Reroute in SR-MPLS, presented at bdNOG 19
byAPNIC

DDos Mitigation Strategie, presented at bdNOG 19
byAPNIC

ICP -2 Review – What It Is, and How to Participate and Provide Your Feedback
byAPNIC

APNIC Update - Global Synergy among the RIRs: Connecting the Regions
byAPNIC

Measuring Starlink Protocol Performance, presented at LACNIC 43
byAPNIC

Prop-154: Resizing of IPv4 assignments for IXPs
byAPNIC


DNSSEC Validation Tutorial

  • 1.
    | 1 Edward Lewis APRICOT2019 25 February 2019 DNSSEC Validation Tutorial How it is done
  • 2.
    | 2| 2 Agenda •Why does DNSSEC exist? • What are digital signatures? • How validation happens in theory • A look at an example • How negative answers are validated? • What does it take to run a validating server? • Some common configuration examples
  • 3.
    | 3| 3 Whydo we have DNS? • The Domain Name System – Global lightweight database – Holds information about named things – Used to find network addresses for servers • Works well because – Scale: many independent managers
  • 4.
    | 4| 4 Whatis the IPv4 address for www.example.com.? The address for www.example.com. is W.X.Y.Z DNS Looks Simple
  • 5.
  • 6.
    | 6| 6 Findinga DNS answer Root Server EXAMPLE.COM Server Application Recursive Server COM. server www.example.com./A
  • 7.
    | 7| 7 Askingthe root Recursive Server www.example.com./A Don't know, ask COM. Root Server EXAMPLE.COM Server COM. server
  • 8.
    | 8| 8 Askingthe top-level domain Recursive Server www.example.com./A go ask EXAMPLE.COM Root Server EXAMPLE.COM Server COM. server
  • 9.
    | 9| 9 Askingthe organization Recursive Server www.example.com./A the answer Root Server EXAMPLE.COM Server COM. server
  • 10.
    | 10| 10 Returningthe answer Application Recursive Server www.example.com./A the answer Root Server EXAMPLE.COM Server COM. server
  • 11.
    | 11| 11 Information Source Information Source Information Source Information Source IntermediaryIntermediaryIntermediary Whyis there DNSSEC? Relying Client Intermediary Information Source • Seeks Information • Easily Fooled
  • 12.
    | 12| 12 DNSSEC •Approach: Use of digital signatures • Scaling – The DNS is a "tree", each part of the tree digitally signs the next (somehow)
  • 13.
    | 13| 13 Whatis the IPv4 address for www.example.com,? The address for www.example.com. is W.X.Y.Z DNS looks simple
  • 14.

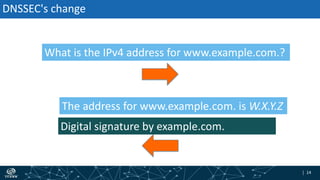

    | 14| 14 Digitalsignature by example.com. DNSSEC's change What is the IPv4 address for www.example.com.? The address for www.example.com. is W.X.Y.Z
  • 15.
    | 15| 15 DigitalSignature? • Think of your handwritten signature but in terms of computing – Not a picture of your signature – But the "idea" of why a signature is important
  • 16.
    | 16| 16 DigitalSignatures in Theory Key Pair
  • 17.
    | 17| 17 DigitalSignatures in Theory Private Key Key Pair Public Key A pair of keys have a unique bond. If you can "verify" something with one, they other "signed" it. If the public key of someone verifies it, that person's private key must have signed it.
  • 18.
    | 18| 18 Internet DigitalSignatures in Theory Data Digital SigPrivate Key Signing data...
  • 19.
    | 19| 19 Internet DigitalSignatures in Theory Data Digital Sig Data Digital Sig Sending the data...
  • 20.
    | 20| 20 Internet DigitalSignatures in Theory Data Digital SigPublic Key OR Verifying the data...
  • 21.
    | 21| 21 DigitalSignatures in Theory Data Private Key Key Pair Data Digital SigPublic Key Successful verification means that the data arrived "as planned" Digital Sig
  • 22.
    | 22| 22 CouldAnything Go Wrong? • Yes – The holder of the private key might "leak" it – Someone might "abuse" the key or cryptography • With care and attention, like guarding your house keys, you can rely on the checks
  • 23.
    | 23| 23 Internet What'sMissing? • How does the public key travel? – Safely? – Reliably? • BTW, what is "safe" and "reliable?" What do those words mean? Private Key Key Pair Public Key
  • 24.
    | 24| 24 DNS'sData Organization • The DNS is a federation of owners (registrants) of information – Each owner signs their own data with their own key – That's a lot of keys • Hierarchy to the rescue! The Root TLD SLD data
  • 25.
    | 25| 25 DNSSECChain of Keys In Theory The Root TLD SLD data sld KEYs tld KEYs root KEYs data records
  • 26.
    | 26| 26 MakingA Chain • The root zone signs TLD keys • A TLD (administrator) signs registrant keys • A DNS zone administrator (registrant) signs their own data This creates a "chain" used in validation
  • 27.
    | 27| 27 VerificationIn Theory • Verification works backwards, or "up" the hierarchy • Start with the data sought – in this case the address... Address Data SLD Digital Sig SLD Public Key
  • 28.
    | 28| 28 VerificationIn Theory • Now we need to inspect the key used... Address Data SLD Digital Sig SLD Public Key SLD Public Key as Data TLD Digital Sig TLD Public Key
  • 29.
    | 29| 29 VerificationIn Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key as Data Root Digital Sig Root Public Key
  • 30.
    | 30| 30 VerificationIn Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key Root Digital Sig Root Public Key
  • 31.
    | 31| 31 VerificationIn Theory Address Data SLD Digital Sig SLD Public Key SLD Public Key TLD Digital Sig TLD Public Key TLD Public Key Root Digital Sig Root Public Key ?
  • 32.
    | 32| 32 TrustAnchors • Within DNSSEC, the "top" key used in a chain • Trust anchor hygiene is important
  • 33.
    | 33| 33 Roles(Jobs) of Keys • A key that is a "ZSK" will sign information – Zone Signing Key – Changed frequently and easily • A key that is a "KSK" will sign the keys – Key Signing Key – Changed rarely and carefully • The "DS" record – Delegation Signer
  • 34.
    | 34| 34 TheRoot TLD SLD data example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA Signing Chain in Practice
  • 35.
    | 35| 35 VerificationChain In Practice The Root TLD SLD data example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA
  • 36.
    | 36| 36 ThisChain • In following slides, these nine boxes will appear over and over • For the examples used, these are the data used to build the trust chain example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA
  • 37.
    | 37| 37 Findingan answer DNSSEC-style Application Recursive Server www.example.com./A Root Server EXAMPLE.COM Server COM. server
  • 38.
    | 38| 38 Askingthe root Recursive Server Don't know, ask COM. and here's COM.'s "DS" The DS record is how the upper layer indicates how the next layer down is secure, what key is used www.example.com./A Root Server EXAMPLE.COM Server COM. server
  • 39.
    | 39| 39 Askingthe root Recursive Server Don't know, ask COM. and here's COM.'s "DS" The DS record is how the upper layer indicates how the next layer down is secure, what key is used www.example.com./A Root Server EXAMPLE.COM Server COM. server com. DS
  • 40.
    | 40| 40 Askingthe top-level domain Recursive Server go ask EXAMPLE.COM. and here's EXAMPLE.COM.'s DS www.example.com./A Root Server EXAMPLE.COM Server COM. server
  • 41.
    | 41| 41 Recursive Server goask EXAMPLE.COM. and here's EXAMPLE.COM.'s DS www.example.com./A Root Server EXAMPLE.COM Server COM. server Asking the top-level domain example.com. DS com. DS
  • 42.
    | 42| 42 Askingthe organization Recursive Server the answer and a signature www.example.com./A Root Server EXAMPLE.COM Server COM. server
  • 43.
    | 43| 43 Recursive Server theanswer and a signature www.example.com./A Root Server EXAMPLE.COM Server COM. server Asking the organization example.com. DS com. DS www.example.com. DATA
  • 44.
    | 44| 44 StillNeed More Information • The keys are not normally sent with an answer because the set is large and the keys may have been cached already • The validator will "walk" up the tree to get needed records
  • 45.
    | 45| 45 Gettingthe keys Recursive Server example.com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server
  • 46.
    | 46| 46 Gettingthe keys Recursive Server example.com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. DS www.example.com. DATA
  • 47.
    | 47| 47 Askingthe top-level domain Recursive Server com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server
  • 48.
    | 48| 48 Askingthe top-level domain Recursive Server com./DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS www.example.com. DATA
  • 49.
    | 49| 49 Askingthe root Recursive Server "root's"/DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server
  • 50.
    | 50| 50 Askingthe root Recursive Server "root's"/DNSKEY the keys and a signature Root Server EXAMPLE.COM Server COM. server example.com. KEY ZSK example.com. KEY KSK example.com. DS com. KEY ZSK com. KEY KSK com. DS root KEY ZSK root KEY KSK www.example.com. DATA
  • 51.
    | 51| 51 Theroot key signature • As we climb back up, looking for keys – validating the keys with what's one level up • Eventually get to the very top of the DNS hierarchy – now what? – magically, we trust the root key – seriously, we have to already put faith in the root's key
  • 52.
    | 52| 52 Validation •Having collected all of the needed records, all the signatures can be validated • If all the checks succeed, then the answer is valid and returned to the application that asked
  • 53.
    | 53| 53 Lookingat a validation in DNS record syntax • Using a query for www.example.com.'s IPv4 address – On February 8th, 2019 at about 1200 UTC – Using a Root Zone KSK #20326 as my trust anchor
  • 54.
    | 54| 54 Ordinarily... •In coming slides, I'll retrieve the DS record at times • A DNS cache would have gotten them while finding the final answer and cache them • In debugging, you won't rely on that, you'll probably query as the slides show...
  • 55.
    | 55| 55 Thesame "9" with what links them root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Always Trusted Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS
  • 56.
    | 56| 56 Startwith the "final" response $ dig +dnssec www.example.com. a www.example.com. A 192.0.2.2 www.example.com. RRSIG A 8 3 3600 20190228002508 20190201120009 42694 example.com. aSignature • The answer plus a digital signature – aSignature is a random-looking sequence
  • 57.
    | 57| 57 Closelook at the signature record • www.example.com. RRSIG A 8 3 3600 20190228002508 20190201120009 42694 example.com. aSignature Signature Record (Type "Covered") Start time End time The key used • This signature is good for February 1 to 28, so on February 8, "ok" • The signature line ought to appear on one single line
  • 58.
    | 58| 58 Howare we doing? www.example.com. A 192.0.2.2 Unverified Signature
  • 59.
    | 59| 59 What'sneeded next – the key set The IPv4 address for www.example.com. is 192.0.2.2 Digital signature by example.com. key #42694 over answer example.com. KEY #42694 (need this) ? OR
  • 60.
    | 60| 60 Getthe example.com. keys $ dig +dnssec example.com. dnskey example.com. DNSKEY 256 aKey; key 42694 example.com. DNSKEY 257 aKey; key 31799 example.com. RRSIG DNSKEY ... 20190401- 20190203... 31799 example.com. aSignature • Dates: February 3 to April 1 - okay
  • 61.
    | 61| 61 Whyare there two keys? • The answer is a key set – more than one key – At times we tend to forget that all DNS answers are sets and not single records • One key is a Key Signing Key (KSK) – "257" appears • One key is a Zone Signing Key (ZSK) – "256" appears – Key #42694 signs the address record, the KSK signs the two keys • There may be multiple KSK and multiple ZSK in the set
  • 62.
    | 62| 62 Howare we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Unverified signature Unverified signature
  • 63.
    | 63| 63 Checkingthe data The IPv4 address for www.example.com. is 192.0.2.2 Digital signature by example.com. key #42694 over answer example.com. KEY #42694 ? ...but do we trust example.com.'s key #42694?
  • 64.
    | 64| 64 Howare we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K42694 Unverified signature Unverified signature
  • 65.
    | 65| 65 What'sneeded next – trusting example.com.'s ZSK (42694) The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 (have this) ? OR
  • 66.
    | 66| 66 Lookfor example.com.'s key #31799 • In the same message example.com. DNSKEY 256 aKey; key 42694 example.com. DNSKEY 257 aKey; key 31799 example.com. RRSIG DNSKEY ... 20190401- 201902031... 31799 example.com. aSignature • Set is "self-signed" (can I trust it?)
  • 67.
    | 67| 67 Checkof example.com. ZSK #42694 The key set for example.com. are #42694, #31799 Digital signature by example.com. #31799 example.com. KEY #31799 ? ...but, do we trust #31799?
  • 68.
    | 68| 68 Howare we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K31799 Signed by K42694 Unverified signature
  • 69.
    | 69| 69 What'sneeded next – trusting example.com.'s KSK (31799) The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 (have this) ? OR
  • 70.
    | 70| 70 Resultof checking key #31799 The key set for example.com. #42694 (and #31799) Digital signature by example.com. KEY #31799 over answer example.com. KEY #31799 ?
  • 71.
    | 71| 71 Howare we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Signed by K31799 Signed by K42694 Self-signed signature
  • 72.

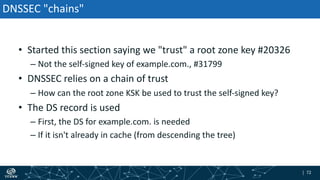

    | 72| 72 DNSSEC"chains" • Started this section saying we "trust" a root zone key #20326 – Not the self-signed key of example.com., #31799 • DNSSEC relies on a chain of trust – How can the root zone KSK be used to trust the self-signed key? • The DS record is used – First, the DS for example.com. is needed – If it isn't already in cache (from descending the tree)
  • 73.
    | 73| 73 What'sneeded next – is the self-signed 31799 "valid" The KSK key for example.com. #31799 The example.com. DS record's hash (need this) ? OR
  • 74.

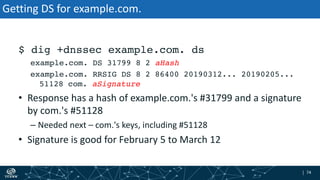

    | 74| 74 GettingDS for example.com. $ dig +dnssec example.com. ds example.com. DS 31799 8 2 aHash example.com. RRSIG DS 8 2 86400 20190312... 20190205... 51128 com. aSignature • Response has a hash of example.com.'s #31799 and a signature by com.'s #51128 – Needed next – com.'s keys, including #51128 • Signature is good for February 5 to March 12
  • 75.
    | 75| 75 Checkingthe hash for #31799 Now we need to validate the DS record (set) Next: We need com.'s #51128 The KSK key for example.com. #31799 The example.com. DS record's hash ?
  • 76.

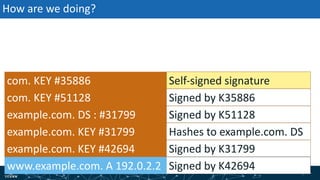

    | 76| 76 Howare we doing? example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 example.com. DS : #31799 Signed by K31799 Signed by K42694 Hashes to example.com. DS Unverified signature
  • 77.
    | 77| 77 Checkingthe example.com. DS record The DS record for example.com. Digital signature by com. #51128 com. KEY #51128 (need this) ? OR
  • 78.
    | 78| 78 Gettingthe keys for "com." $ dig +dnssec com. dnskey +multiline com. DNSKEY 257 3 8 aKey; key 35886 com. DNSKEY 256 3 8 aKey; key 51128 com. RRSIG DNSKEY 8 1 86400 20190321 20190206 35886 com. aSignature • Good for February 6 to March 21
  • 79.
    | 79| 79 Checkingthe example.com. DS The DS record for example.com. Digital signature by com. #51128 com. KEY #51128 ?
  • 80.
    | 80| 80 Howare we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Unverified signature
  • 81.
    | 81| 81 Checkingcom.'s key ZSK #51128 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? OR
  • 82.

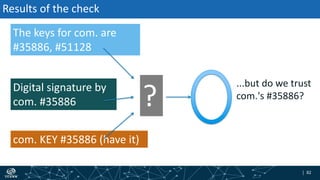

    | 82| 82 Resultsof the check The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? ...but do we trust com.'s #35886?
  • 83.
    | 83| 83 Howare we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Unverified signature Signed by K35886
  • 84.
    | 84| 84 Checkingcom.'s key KSK #35886 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? OR
  • 85.
    | 85| 85 Resultof checking com.'s key KSK #35886 The keys for com. are #35886, #51128 Digital signature by com. #35886 com. KEY #35886 (have it) ? ...but self-signed
  • 86.
    | 86| 86 Howare we doing? com. KEY #35886 com. KEY #51128 example.com. DS : #31799 Signed by K31799 Signed by K42694 Signed by K51128 Hashes to example.com. DSexample.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 Self-signed signature Signed by K35886
  • 87.
    | 87| 87 What'sneeded next – is com.'s self-signed 35886 "valid"? The keys for com. are #51128, #35886 The com. DS record's hash (need this) ? OR
  • 88.
    | 88| 88 GettingDS for com. • $ dig +dnssec com. ds com. DS 35886 8 2 aHash com. RRSIG DS 8 1 86400 20190217 20190207 54549 . aSignature • Good for February 7 to February 17, okay • Signed by the root zone key #54549
  • 89.
    | 89| 89 Checkingthe hash for com.'s #35886 The KSK for com. is #35886 The com. DS record's hash ?
  • 90.
    | 90| 90 Howare we doing? com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Unverified signature Signed by K51128 Hashes to example.com. DS
  • 91.

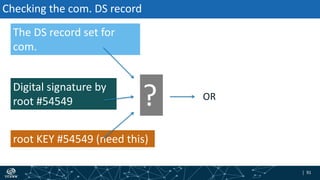

    | 91| 91 Checkingthe com. DS record The DS record set for com. Digital signature by root #54549 root KEY #54549 (need this) ? OR
  • 92.
    | 92| 92 Gettingthe root keys • $ dig +dnssec . dnskey +multiline . DNSKEY 256 3 8 aKey; key 54549 . DNSKEY 257 3 8 aKey; key 20326 . RRSIG DNSKEY 8 0 172800 20190215 20190201 20326 . aSignature • Signature good February 1 to February 15 • Self-signed, by root's #20326
  • 93.
    | 93| 93 Resultsof checking the com. DS The DS record set for com. Digital signature by root #54549 root KEY #54549 ?
  • 94.
    | 94| 94 Howare we doing? root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Unverified signature Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS Unverified signature
  • 95.
    | 95| 95 Checkingroot's KSK #54549? The keys for . (root) are #20326, #54549 Digital signature by root #20326 root KEY #20326 ? OR
  • 96.
    | 96| 96 Checkingroot's KSK #54549? The keys for . (root) are #20326, #54549 Digital signature by root #20326 root KEY #20326 ? ...but, do we trust #20326?
  • 97.
    | 97| 97 Howare we doing? root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS Unverified signature
  • 98.

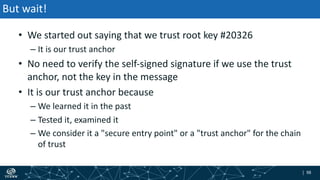

    | 98| 98 Butwait! • We started out saying that we trust root key #20326 – It is our trust anchor • No need to verify the self-signed signature if we use the trust anchor, not the key in the message • It is our trust anchor because – We learned it in the past – Tested it, examined it – We consider it a "secure entry point" or a "trust anchor" for the chain of trust
  • 99.
    | 99| 99 •This may be an implementation detail • One must check that the key matching a trust anchor is truly identical to the trust anchor before relying on it • Option: use the trust anchor and not the key • Option: use the DNSKEY record and then validate that Caution
  • 100.
    | 100| 100 TheTrust Chain Completed root KEY #54549 com. KEY #35886 com. KEY #51128 example.com. KEY #31799 example.com. KEY #42694 root KEY #20326 www.example.com. A 192.0.2.2 com. DS for #35886 example.com. DS : #31799 Signed by K20326 Hashes to com. DS Signed by K35886 Signed by K31799 Always Trusted Signed by K42694 Signed by K54549 Signed by K51128 Hashes to example.com. DS
  • 101.
    | 101| 101 Complicated? •Yes • Good thing we have computers • And caching (remembering) of records • And this was a simple case
  • 102.
    | 102| 102 "no"answers • What if we mistyped "wwww.example.com?" • DNSSEC has two ways to say "no" – "Original" NSEC – NSEC3
  • 103.
    | 103| 103 •NSEC's approach to "no" is: – Sort all records in order – Show the record before and after the query – The response "implies" the data is not there – E.g. "wwww.example.com" does not exist – But www.example.com and wwwz.example.com do NSEC
  • 104.
    | 104| 104 $dig wwww.example.com A +dnssec ... www.example.com. 1800 IN NSEC wwwz.example.com. A AAAA RRSIG NSEC www.example.com. 1800 IN RRSIG NSEC... ... This record shows that www.example.com. has A and AAAA record sets and then nothing until wwwz.example.com. NSEC Example
  • 105.
    | 105| 105 •DNSSEC was designed when servers were extremely vulnerable • Cryptographic keys were not put on-line • Cryptography took a lot of server time too • All answers are pre-computed, thus, before the query was made Why this odd approach?
  • 106.
    | 106| 106 •NSEC3 was developed to prevent a problem some operators have with NSEC, namely "zone walking" • The approach is to "hash" the zone and then show what hashes exist or don't exist • NSEC3 is complicated because it "flattens" the name tree NSEC3
  • 107.

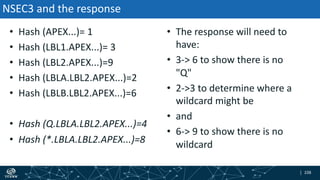

    | 107| 107 •Hash (APEX...)= 1 • Hash (LBL1.APEX...)= 3 • Hash (LBL2.APEX...)=9 • Hash (LBLA.LBL2.APEX...)=2 • Hash (LBLB.LBL2.APEX...)=6 • Hash (Q.LBLA.LBL2.APEX...)=4 • Hash (*.LBLA.LBL2.APEX...)=8 NSEC3 and the tree
  • 108.
    | 108| 108 •Hash (APEX...)= 1 • Hash (LBL1.APEX...)= 3 • Hash (LBL2.APEX...)=9 • Hash (LBLA.LBL2.APEX...)=2 • Hash (LBLB.LBL2.APEX...)=6 • Hash (Q.LBLA.LBL2.APEX...)=4 • Hash (*.LBLA.LBL2.APEX...)=8 NSEC3 and the response • The response will need to have: • 3-> 6 to show there is no "Q" • 2->3 to determine where a wildcard might be • and • 6-> 9 to show there is no wildcard
  • 109.
    | 109| 109 Isthat clear? • The answer is meant to be obscure – NSEC3 is trying to hide as much as possible • Few DNSSEC experts can get this right
  • 110.
    | 110| 110 Whatdoes it take to do Validation? • Configure a recursive name server to do DNSSEC – Configure, build, install with cryptographic support • Proper trust anchor management • Time-of-day (wall clock) accuracy • A look at these in reverse order...
  • 111.
    | 111| 111 Time(of Day) • Since validation checks dates and times on signatures, keep the host clock "right" • This used to be a big issue but now everyone has Network Time Protocol running – Still, check the server does have it running • But, it's a first step
  • 112.
    | 112| 112 ManagingTrust Anchors • A main ingredient in DNSSEC validation is having a starting point, a trust anchor – A key that is verified via other means to be "honest-to-goodness the right key" – Trust anchors can belong to any name in the DNS tree
  • 113.
    | 113| 113 TrustingTrust Anchors • It is up to you, the operator, to determine trust – You can rely on simply downloading code – You can retrieve and verify the keys from various sources and compare – You can use automated management tools – You can perform steps manually • There is no one single, right answer
  • 114.
    | 114| 114 Manualversus Automatic • Manual – You find, analyze, trust, "hard" configure – Implementation dependent – Time consuming, needs to be updated – or else! • Automatic – Automated Updates of DNSSEC Trust Anchors (RFC 5011), IETF Full Standard – Learns updates to existing trust anchors
  • 115.

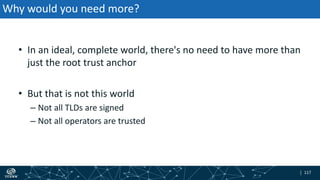

    | 115| 115 Thecase for the Root Zone KSK • The public Internet DNS has a root zone • The root zone used on the Internet is signed with DNSSEC, has a KSK and a ZSK • The root zone implements Automated Updates (RFC 5011) for those who want to use it
  • 116.
    | 116| 116 Whereto get Root Zone keys • In the DNS – Caution: relying solely on what you see in the DNS is risky – If the DNS is attacked, you could trust the wrong key • Via the web – http://www.iana.org/dnssec/files • Other sources – Embedded in software distributions
  • 117.
    | 117| 117 Whywould you need more? • In an ideal, complete world, there's no need to have more than just the root trust anchor • But that is not this world – Not all TLDs are signed – Not all operators are trusted
  • 118.
    | 118| 118 NegativeTrust Anchors • Sometimes someone else makes a DNSSEC mistake – All responses from their zone file – Negative Trust Anchors are used to stop validation from reporting failures – Good and bad – stops complaints, but need to be removed once problems are corrected • Definition and Use of DNSSEC Negative Trust Anchors (RFC 7646)
  • 119.
    | 119| 119 TheCase of "nasa.gov" • Comcast, a US cable TV provider/ISP turned on DNSSEC • nasa.gov added DNSSEC • On the day of a US Congressional hearing related to Comast, nasa.gov went "dark" • Outraged customers thought Comcast was making a political statement • In truth it was a DNSSEC error made by NASA
  • 120.
    | 120| 120 ThingsLearned That Day • Twitter is faster than ISP monitoring systems when it comes to reporting a failure • Validation sometimes has a reason to ignore DNSSEC results – Which led to Negative Trust Anchors
  • 121.
    | 121| 121 Howto Set Up Validation • Software known to do validation – BIND – Unbound – Windows – Nominum Vantio (now part of Akamai) – Knot Resolver – DNSMASQ – Secure64 DNS Cache – PowerDNS Recursor
  • 122.
    | 122| 122 ISC'sBIND • http://isc.org/ • BIND – Authoritative server and cache all-in-one – Current version 9.11.5 and 9.12.3 – https://www.isc.org/downloads/bind/ • Longest track record in DNSSEC
  • 123.
    | 123| 123 BINDValidation • Guide to validation – https://ftp.isc.org/isc/dnssec-guide/dnssec- guide.pdf • Simple to configure options { dnssec-validation auto; }; • Negative Trust Anchors: via RNDC $ rndc nta example.com.
  • 124.
    | 124| 124 NLnetLab'sunbound • Has it's own website – http://www.unbound.net/ • unbound is a caching-only name server with DNSSEC built in – "unbound" is a play on the word "bind" • Tools for trust anchor management – unbound-anchor
  • 125.
    | 125| 125 EnablingValidation • Before starting the server – run unbound-anchor – Will retrieve and verify the root zone keys, comparing to embedded keys and certificates • Add the following options to the configuration file – auto-trust-anchor-file: <filename> – filename is determined by unbound-anchor
  • 126.
    | 126| 126 NegativeTrust Anchors • Configuration file option – domain-insecure: <zone> • Run-time commanding via unbound-control – unbound-control insecure_add <zone> – unbound-control insecure_remove <zone> – (Upon restart these are forgotten)
  • 127.
    | 127| 127 •PowerDNS – https://doc.powerdns.com/md/recursor/dnssec/ • Knot Resolver – https://knot- resolver.readthedocs.io/en/stable/daemon.html#enabling-dnssec Other Open Source DNS
  • 128.
    | 128| 128 Microsoft'sWindows Server 2012 R2 • Caution: my info on Microsoft may be out of date • DNSSEC is enabled by default but Trust Anchors need to be configured • DNSSEC Tutorial – https://technet.microsoft.com/library/hh831411 • Another resource – http://strotmann.de/roller/dnsworkshop/entry/dnssec_validation_in_micr osoft_dns
  • 129.
    | 129| 129 ManagementInterfaces • Microsoft offers different administrative interfaces – UI (dnsmgmt.mmc) – Powershell (recommended) – DnsCmd • All have feature parity, same default settings
  • 130.
    | 130| 130 EnablingValidation • Enabling DNSSEC Validation – Default settings $a = Get-DNSServerSetting -all $a.EnableDnsSec • Need to load trust anchors – Add-DnsServerTrustAnchor –Root – Other trust anchors can be added • https://technet.microsoft.com/en- us/library/jj649932.aspx
  • 131.
    | 131| 131 ManagingTrust Anchors • On standalone DNS servers – stored in a file named TrustAnchors.dns • Windows Server 2012 or Windows Server 2012 R2 – DNS Manager console tree, Trust Points container • Viewing trust anchors – Windows PowerShell or Dnscmd.exe
  • 132.
    | 132| 132 Questions? •DNSSEC Validation is one step to protecting your interests – Goal is to protect against in-DNS attacks – The "business case" for it is much like that for automobile seat belts (i.e., hard to make) • Other layers of defense are needed
  • 133.
    | 133| 133 Reachme at: Email: edward.lewis@icann.org Website: icann.org ThankYou and Questions gplus.to/icann weibo.com/ICANNorg flickr.com/photos/icann slideshare.net/icannpresentations twitter.com/icann facebook.com/icannorg linkedin.com/company/icann youtube.com/user/icannnews Engage with ICANN
