This document provides specifications for various doors and windows measured at a partially renovated terrace house in Subang Jaya, Selangor. It includes dimensions and materials for 5 types of doors (timber panel door with glazing, timber frame louver door, timber panel door with 4 panels, timber panel door with 8 panels, timber frame flush door) and 5 types of windows (aluminum frame window, aluminum frame double leaf side hung window, aluminum glazed sliding double window, timber louver stiles window, aluminum frame single leaf top hung window). Brand names and suppliers are listed for each door and window type in the appendix.

1. pg. 1
QSB2115/QSB60304MEASUREMENT3
SCHOOL OF ARCHITECTURE, BUILDING & DESIGN
BACHELOR OF QUANTITY SURVEYING (HONS)
QSB 2115/QSB 60304 MEASUREMENT 3
ASSIGNMENT 1
STUDENT NAME: YAMYIHHWAN 0305861
LOWRONG TZUOO 0308336
NG JUNKEAT 0307587
WONG HA SHIONG 0309640
HARVEY YAP ZHUGUANG0309325
LECTURER:MR SOONLAMTATT
SUBMISSIONDATE: 30TH JUNE2014

2. pg. 2

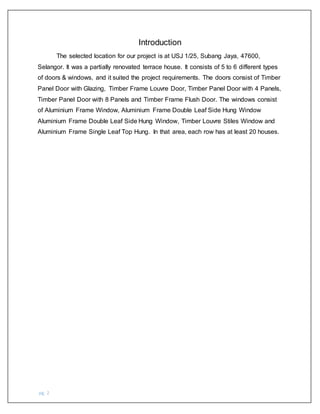

Introduction
The selected location for our project is at USJ 1/25, Subang Jaya, 47600,
Selangor. It was a partially renovated terrace house. It consists of 5 to 6 different types
of doors & windows, and it suited the project requirements. The doors consist of Timber
Panel Door with Glazing, Timber Frame Louvre Door, Timber Panel Door with 4 Panels,
Timber Panel Door with 8 Panels and Timber Frame Flush Door. The windows consist
of Aluminium Frame Window, Aluminium Frame Double Leaf Side Hung Window
Aluminium Frame Double Leaf Side Hung Window, Timber Louvre Stiles Window and
Aluminium Frame Single Leaf Top Hung. In that area, each row has at least 20 houses.

3. pg. 3

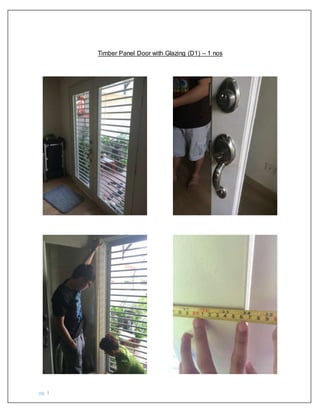

Timber Panel Door with Glazing (D1) – 1 nos

4. pg. 4

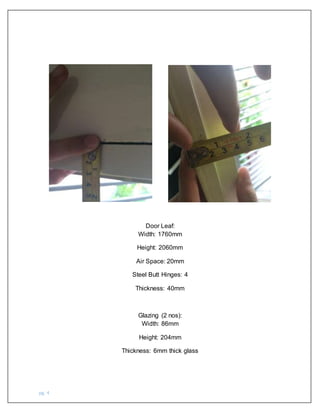

Door Leaf:
Width: 1760mm
Height: 2060mm
Air Space: 20mm
Steel Butt Hinges: 4
Thickness: 40mm
Glazing (2 nos):
Width: 86mm
Height: 204mm
Thickness: 6mm thick glass

5. pg. 5
Timber Frame Louvre Door (D2) – 1 nos
Door Leaf:
Width: 755mm
Height: 2070mm
Frame width: 140mm
Door thickness: 40mm

6. pg. 6
Timber Panel Door with 4 Panels (D3) - 2 nos
Length = 780mm
Height = 2000mm
Thickness = 35mm
Frame Thickness = 130mm

7. pg. 7

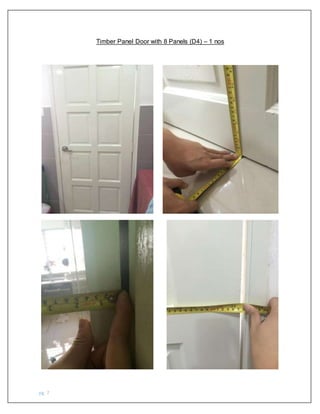

Timber Panel Door with 8 Panels (D4) – 1 nos

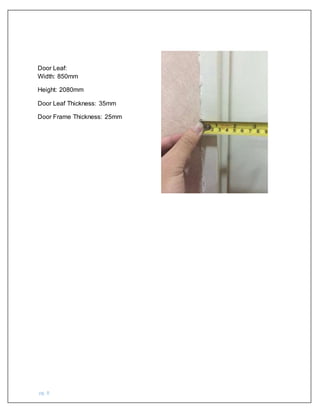

8. pg. 8
Door Leaf:
Width: 850mm
Height: 2080mm
Door Leaf Thickness: 35mm
Door Frame Thickness: 25mm

9. pg. 9
Timber Frame Flush Door (D5) – 6 nos
Door Leaf:
Width: 840mm
Height: 2040mm
Thickness: 35mm

10. pg. 10

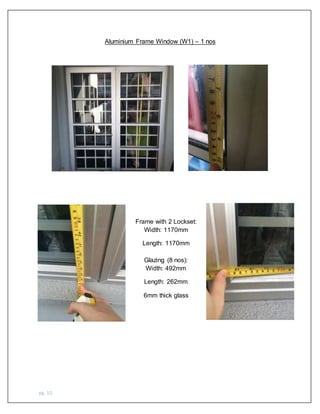

Aluminium Frame Window (W1) – 1 nos
Frame with 2 Lockset:
Width: 1170mm
Length: 1170mm
Glazing (8 nos):
Width: 492mm
Length: 262mm
6mm thick glass

11. pg. 11
Aluminium Frame Double Leaf Window Side Hung (W2) – 2 nos
Frame with 2 Lockset:
Length: 1180mm
Height: 1180mm
Glazing (2 nos):
Width: 480mm
Thickness: 6mm

12. pg. 12

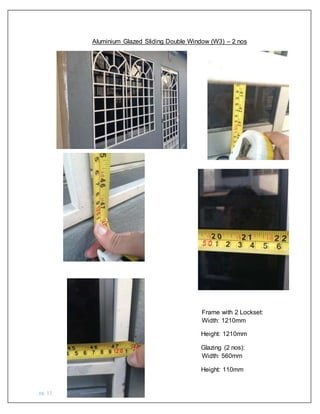

Aluminium Glazed Sliding Double Window (W3) – 2 nos
Frame with 2 Lockset:
Width: 1210mm
Height: 1210mm
Glazing (2 nos):
Width: 560mm
Height: 110mm

13. pg. 13
Timber Louvre Stiles Window (W4) – 2 nos
Frame:
Width: 1575mm
Height: 1230mm
Mullion: 35mm
Thickness: 15mm
Glazing (8 nos):
Width: 150mm
Height: 440mm
Thickness: 6mm thick

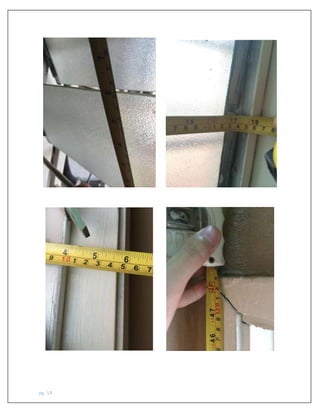

14. pg. 14

15. pg. 15

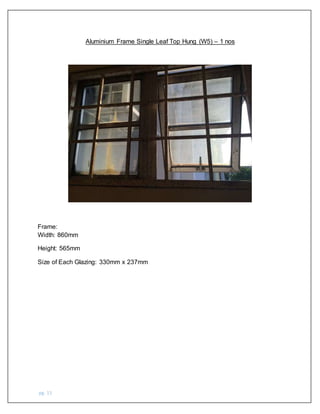

Aluminium Frame Single Leaf Top Hung (W5) – 1 nos
Frame:
Width: 860mm
Height: 565mm
Size of Each Glazing: 330mm x 237mm

16. pg. 16
Appendix

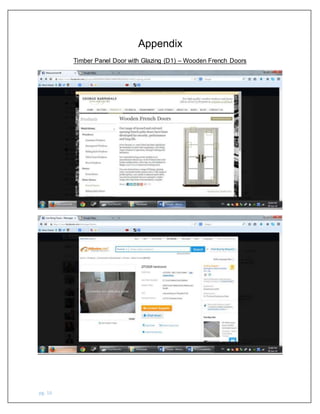

Timber Panel Door with Glazing (D1) – Wooden French Doors

17. pg. 17

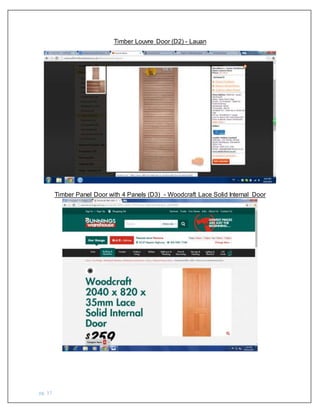

Timber Louvre Door (D2) - Lauan
Timber Panel Door with 4 Panels (D3) - Woodcraft Lace Solid Internal Door

18. pg. 18

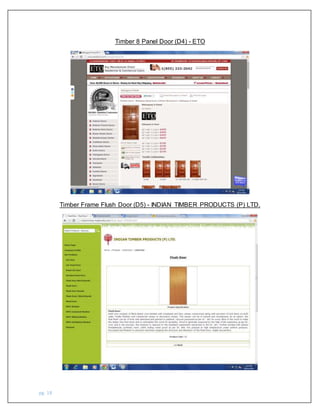

Timber 8 Panel Door (D4) - ETO
Timber Frame Flush Door (D5) - INDIAN TIMBER PRODUCTS (P) LTD.

19. pg. 19

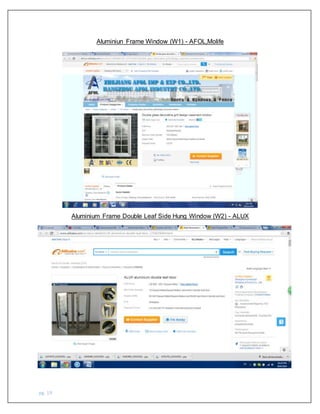

Aluminiun Frame Window (W1) - AFOL,Molife
Aluminium Frame Double Leaf Side Hung Window (W2) - ALUX

20. pg. 20
Aluminum Glazed Sliding Double Window (W3) – Australian Standard
Timber Louvre Stiles Window (W4) – Clear Louvre Tempered Glass

21. pg. 21
Top Hung Window (W5) – Uni Aluminium

22. pg. 22
Paint
JOTUN GARDEX
