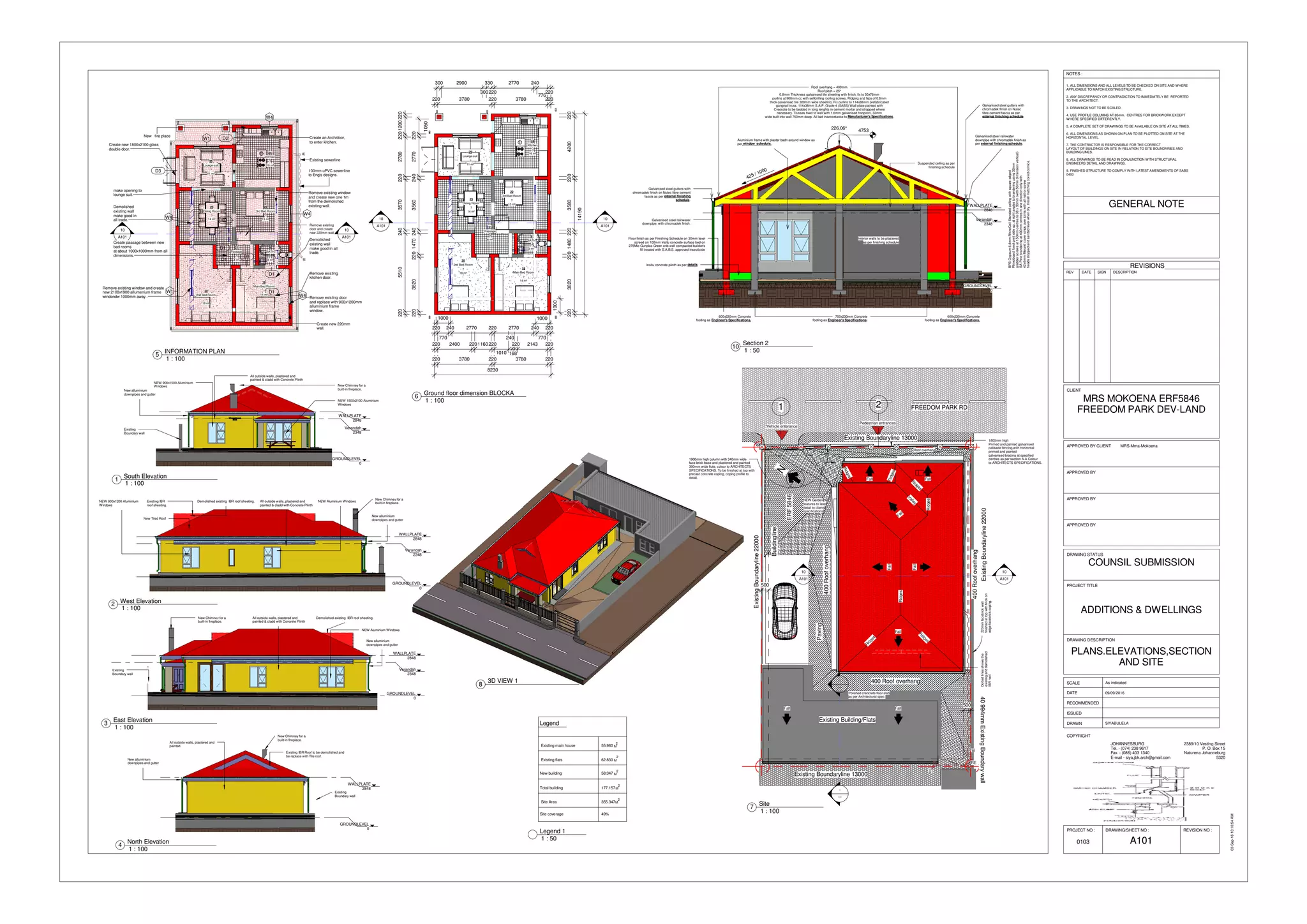

This document contains architectural plans for additions and renovations to an existing dwelling, including floor plans showing new layouts, elevations of the building, sections, and a site plan. The plans call for demolishing an existing roof and replacing it with new tiled roofing. Windows and doors will be replaced with new aluminum frames. Exterior walls will be plastered and painted. The site plan shows the location of the building on the property and surrounding context.

1. 10
A101
10
A101
220 3780 220 3780 220
220
770
240 2770 220 2770 240
770
220
220 2400 2201160220
1010
240
168
220 2143 220
8230
220 3780 220 3780 220
300 2900
300
330
220
2770 240
770
220
2205510240357022027802201200220
1050
2202770240356024014702203820220
2203820220148022035802204200220
1000
10001000
14190
16 m²
Kitchen
?
24
13 m²
3rd Bed Room
?
22
14 m²
Dining Room
?
23
4 m²
Passage
?
21
14 m²
Main Bed Room
?
19
18 m²
2nd Bed Room
?
20
11 m²
Lounge-suit
?
25
3 m²
BATH
?
9
GROUNDLEVEL
0
WALLPLATE
2848
Verandah
2348
Interior walls to be plastered
as per finishing schedule
700x230mm Concrete
footing as Engineer's Specifications.
600x230mm Concrete
footing as Engineer's Specifications.
Suspended ceiling as per
finishing schedule
BPBGypsum6,4mmRhinoCeilStandardceilingwithsquareedged
Rhinoboardfixedprintsideup,atrightanglestobranderingusing32mm
grabberscrewsat150mmcentresto38x50mm(with50mmdimensionvertical)
SAPinebranderingat400mmcentresinonedirectiononlywith
42x6mmMeranticoverstripsoverjointswithallnailorscrew
headsstoppedandsandedlevelwhendry.Installmatchingcovedcornice.
Floor finish as per Finishing Schedule on 30mm level
screed on 100mm insitu concrete surface bed on
275Mic Gunplas Green onb well compacted builder's
fill treated with S.A.B.S. approved insecticide
Roof overhang = 400mm
Roof pitch = 25°
0.8mm Thickness galvanised tile sheeting with finish, fix to 50x76mm
purlins at 900mm cc with selfdrilling roofing screws. Ridging and hips of 0.8mm
thick galvanised tile 300mm wide sheeting. Fix purlins to 114x38mm prefabricated
gangnail truss. 114x38mm S.A.P. Grade 4 (SABS) Wall plate painted with
Creosote to be bedded in long lenghts in cement mortar and strapped where
necessary. Trusses fixed to wall with 1.6mm galvanised hoopiron, 32mm
wide built into wall 760mm deep. All laid inaccordance to Manufacturer's Specifications.
Aluminium frame with plaster badn around window as
per window schedule.
Galvanised steel rainwater
downpipe with chromadek finish as
per external finishing schedule.
Galvanised steel gutters with
chromadek finish on Nutec fibre cement
fascia as per external finishing
schedule.
Galvanised steel gutters with
chromadek finish on Nutec
fibre cement fascia as per
external finishing schedule.
Insitu concrete plinth as per details
Galvanised steel rainwater
downpipe, with chromadek finish.
425 / 1000
4753226.06°
600x230mm Concrete
footing as Engineer's Specifications.
GROUNDLEVEL
0
WALLPLATE
2848
Verandah
2348
All outside walls, plastered and
painted & cladd with Concrete Plinth
New alluminium
downpipes and gutter
NEW 1500x2100 Aluminium
Windows
New Chimney for a
built-in fireplace.
Existing
Boundary wall
NEW 900x1500 Aluminium
Windows
GROUNDLEVEL
0
WALLPLATE
2848
Verandah
2348
All outside walls, plastered and
painted & cladd with Concrete Plinth
New alluminium
downpipes and gutter
NEW Aluminium Windows
New Chimney for a
built-in fireplace.
New Tiled Roof
NEW 900x1200 Aluminium
Windows
Existing IBR
roof sheeting.
Demolished existing IBR roof sheeting.
GROUNDLEVEL
0
WALLPLATE
2848
Verandah
2348
All outside walls, plastered and
painted & cladd with Concrete Plinth
New alluminium
downpipes and gutter
NEW Aluminium Windows
New Chimney for a
built-in fireplace.
Existing
Boundary wall
Demolished existing IBR roof sheeting.
GROUNDLEVEL
0
WALLPLATE
2848
All outside walls, plastered and
painted.
New alluminium
downpipes and gutter
New Chimney for a
built-in fireplace.
Existing
Boundary wall
Existing IBR Roof to be demolished and
be replace with Tile roof.
-
---
-
---
10
A101
10
A101
N
220mmfacebrickwall
finishedattopwithbrickon
edgefacebrickcoping.
1900mm high column with 340mm wide
face brick base and plastered and painted
300mm wide flute, colour to ARCHITECTS
SPECIFICATIONS. To be finished at top with
precast concrete coping, coping profile to
detail.
1800mm high
Primed and painted galvanised
palisade fencing,with horizontal
primed and painted
galvanised bracing at specified
centres as per section A-A Colour
to ARCHITECTS SPECIFICATIONS.
Fall
Fall
Fall
Fall Fall
Fall
40994mmExistingBoundarywall
NEW Garden
features to later
detail to clients
specifications
RE
IE
RE
Ridges
V
alle
y
R
idges
R
idges
Ridges
R
idges
Ridges
Ridges
Existing Building/Flats
FallFall
ExistingBoundaryline22000
ExistingBoundaryline22000
Existing Boundaryline 13000
Existing Boundaryline 13000
2
Paving
500
400Roofoverhang
400Roofoverhang
Roof overhang
ERF5846
Dottedlinesshowsthe
existinganddemolished
IBRroof.
Buildingline
Polished crencrete floor slab
as per Architectural spec.
Vehicle enterance
Pedestrian entrances
1 FREEDOM PARK RD
500
400 Roof overhang
Legend
Existing main house
Existing flats
New building
Total building
Site Area
Site coverage
55.980 M
2
62.830
58.347
M
2
M
2
M
2
177.157
355.347M
2
49%
10
A101
10
A101
Remove existing window and create
new 2100x1900 allumenium frame
windondw 1000mm away . Remove existing door
and replace with 900x1200mm
alluminium frame
window.
Romove existing window
and create new one 1m
from the demolished
existing wall.
Create new 220mm
wall.
100mm uPVC sewerline
to Eng's designs.
Demolished
existing wall
make good in all
trade.
Demolished
existing wall
make good in
all trade.
make opening to
lounge suit.
Create an Arch/door,
to enter kitchen.
New fire place
Remove existing
kitchen door.
Existing sewerline
Create passage between new
bed rooms
at about 1000x1000mm from all
dimensions.
D1
W4
W4
W4
D2W1
D3
W4
D1
D1
D1
D1
W1
Create new 1800x2100 glass
double door.
IE
IE
Remove existing
door and create
new 220mm wall.
D1
16 m²
Kitchen
?
24
13 m²
3rd Bed Room
?
22
14 m²
Dining Room
?
23
11 m²
Lounge-suit
?
25
18 m²
2nd Bed Room
?
20
14 m²
Main Bed Room
?
19
3 m²
BATH
?
9
4 m²
Passage
?
21
PROJECT NO : DRAWING/SHEET NO : REVISION NO :
COPYRIGHT
JOHANNESBURG
Tel. - (074) 238 9617
Fax. - (086) 403 1340
E-mail - siya.jbk.arch@gmail.com
2389/10 Vesting Street
P. O. Box 15
Naturena Johanneburg
5320
DRAWN
ISSUED
RECOMMENDED
DATE
SCALE
DRAWING DESCRIPTION
PROJECT TITLE
DRAWING STATUS
APPROVED BY
APPROVED BY
APPROVED BY
APPROVED BY CLIENT MRS Mma-Mokoena
REVISIONS
REV DATE SIGN DESCRIPTION
GENERAL NOTE
NOTES :
1. ALL DIMENSIONS AND ALL LEVELS TO BE CHECKED ON SITE AND WHERE
APPLICABLE TO MATCH EXISTING STRUCTURE.
2. ANY DISCREPANCY OR CONTRADICTION TO IMMEDIATELY BE REPORTED
TO THE ARCHITECT.
3. DRAWINGS NOT TO BE SCALED.
4. USE PROFILE COLUMNS AT 85mm. CENTRES FOR BRICKWORK EXCEPT
WHERE SPECIFIED DIFFERENTLY.
5. A COMPLETE SET OF DRAWINGS TO BE AVAILABLE ON SITE AT ALL TIMES.
6. ALL DIMENSIONS AS SHOWN ON PLAN TO BE PLOTTED ON SITE AT THE
HORIZONTAL LEVEL.
7. THE CONTRACTOR IS RESPONSIBLE FOR THE CORRECT
LAYOUT OF BUILDINGS ON SITE IN RELATION TO SITE BOUNDARIES AND
BUILDING LINES.
8. ALL DRAWINGS TO BE READ IN CONJUNCTION WITH STRUCTURAL
ENGINEERS DETAIL AND DRAWINGS.
9. FINISHED STRUCTURE TO COMPLY WITH LATEST AMENDMENTS OF SABS
0400
CLIENT
As indicated
03-Sep-1610:10:54AM
PLANS.ELEVATIONS,SECTION
AND SITE
0103
ADDITIONS & DWELLINGS
MRS MOKOENA ERF5846
FREEDOM PARK DEV-LAND
09/09/2016
SIYABULELA
A101
COUNSIL SUBMISSION
1 : 100
6
Ground floor dimension BLOCKA
1 : 50
10
Section 2
1 : 100
1
South Elevation
1 : 100
2
West Elevation
1 : 100
3
East Elevation
1 : 100
4
North Elevation
1 : 100
7
Site
8
3D VIEW 1
1 : 50
Legend 1
1 : 100
5
INFORMATION PLAN
