This document provides a bill of quantities for doors and windows. It includes 3 sentences describing the items: Precast concrete lintels reinforced with rebar and stirrups, packing pieces of pressure treated timber fixed to structures, and purpose made windows and frames of pressure treated timber including casement leaves, heads, jambs, mullions, and sills are included. Ironmongeries like hinges and locks for the windows along with glazing of glass in panes and painting of timber surfaces and windows with primer, undercoat and finish coats are also part of the bill of quantities. The rates provided are in Malaysian Ringgit per specified unit for each item such as per meter, number, or square meter.

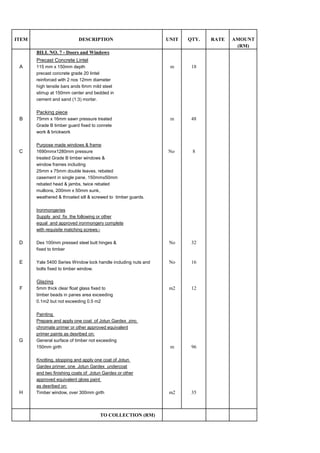

1. ITEM DESCRIPTION UNIT RATE
(RM)
BILL NO. 7 - Doors and Windows
Precast Concrete Lintel
A 115 mm x 150mm depth m 18
precast concrete grade 20 lintel
reinforced with 2 nos 12mm diameter
high tensile bars ands 6mm mild steel
stirrup at 150mm center and bedded in
cement and sand (1:3) mortar.
Packing piece
B 75mm x 16mm sawn pressure treated m 48
Grade B timber guard fixed to conrete
work & brickwork
Purpose made windows & frame
C 1690mmx1280mm pressure No 8
treated Grade B timber windows &
window frames including
25mm x 75mm double leaves, rebated
casement in single pane, 150mmx50mm
rebated head & jambs, twice rebated
mullions, 200mm x 50mm sunk,
weathered & throated sill & screwed to timber guards.
Ironmongeries
Supply and fix the following or other
equal and approved ironmongery complete
with requisite matching screws:-
D Dex 100mm pressed steel butt hinges & No 32
fixed to timber
E Yale 5400 Series Window lock handle including nuts and No 16
bolts fixed to timber window.
Glazing
F 5mm thick clear float glass fixed to m2 12
timber beads in panes area exceeding
0.1m2 but not exceeding 0.5 m2
Painting
Prepare and apply one coat of Jotun Gardex zinc
chromate primer or other approved equivalent
primer paints as desribed on:
G General surface of timber not exceeding
150mm girth m 96
Knotting, stopping and apply one coat of Jotun
Gardex primer, one Jotun Gardex undercoat
and two finishing coats of Jotun Gardex or other
approved equivalent gloss paint
as desribed on:
H Timber window, over 300mm girth m2 35
TO COLLECTION (RM)
AMOUNTQTY.
