1. Technical Paper Presentation
By:DCRUST, MURTHAL

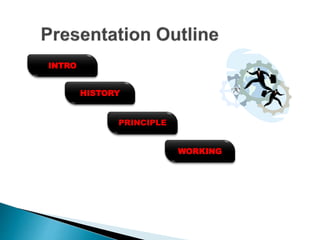

2. PRINCIPLE
HISTORY
WORKING
INTRO

3. HISTORYINTRO PRINCIPLE WORKING
What is Levitation ?

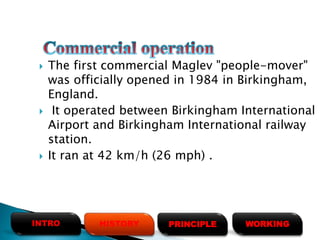

4.  The first commercial Maglev "people-mover"
was officially opened in 1984 in Birkingham,
England.
 It operated between Birkingham International
Airport and Birkingham International railway
station.
 It ran at 42 km/h (26 mph) .
HISTORYINTRO PRINCIPLE WORKING

5.  They work on a basic principle of magnetism
i.e.
“LIKE POLE REPEL EACH OTHER AND UNLIKE POLE
ATTRACT EACH OTHER.”
HISTORYINTRO PRINCIPLE WORKING

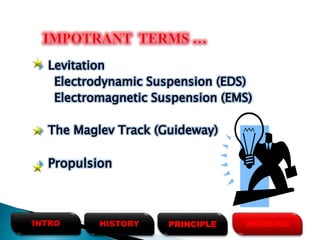

6.  Levitation
Electrodynamic Suspension (EDS)
Electromagnetic Suspension (EMS)
 The Maglev Track (Guideway)
 Propulsion
HISTORYINTRO PRINCIPLE WORKING

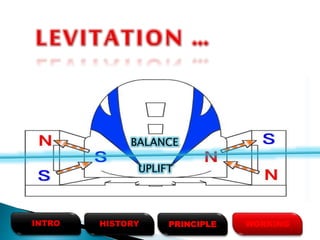

7. HISTORYINTRO PRINCIPLE WORKING
BALANCE
UPLIFT

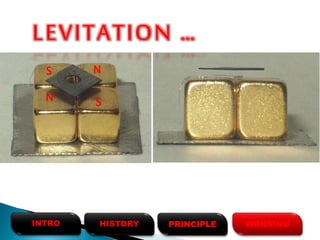

8. HISTORYINTRO PRINCIPLE WORKING
N S
S N
LEVITATION …

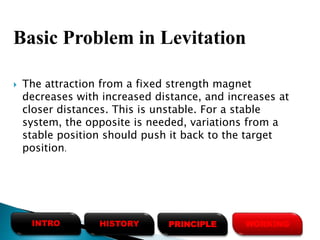

9.  The attraction from a fixed strength magnet
decreases with increased distance, and increases at
closer distances. This is unstable. For a stable
system, the opposite is needed, variations from a
stable position should push it back to the target
position.
Basic Problem in Levitation
HISTORYINTRO PRINCIPLE WORKING

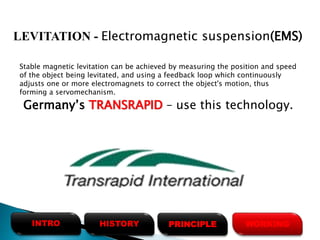

10. Stable magnetic levitation can be achieved by measuring the position and speed
of the object being levitated, and using a feedback loop which continuously
adjusts one or more electromagnets to correct the object's motion, thus
forming a servomechanism.
Germany’s TRANSRAPID – use this technology.
LEVITATION - Electromagnetic suspension(EMS)
HISTORYINTRO PRINCIPLE WORKING

11. Germany’s TRANSRAPID – uses this technology.
LEVITATION - Electromagnetic suspension(EMS)
HISTORYINTRO PRINCIPLE WORKING

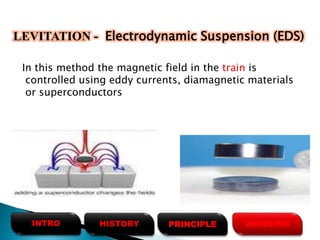

12. In this method the magnetic field in the train is
controlled using eddy currents, diamagnetic materials
or superconductors
LEVITATION - Electrodynamic Suspension (EDS)
HISTORYINTRO PRINCIPLE WORKING

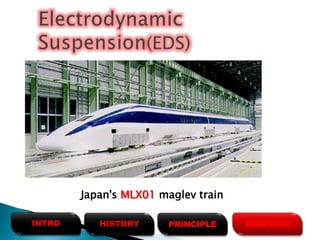

13. Japan's MLX01 maglev train
HISTORYINTRO PRINCIPLE WORKING

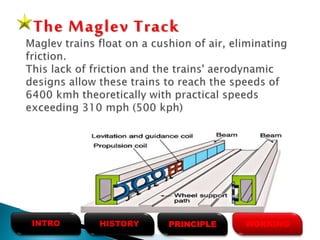

14. The Maglev Track
HISTORYINTRO PRINCIPLE WORKING

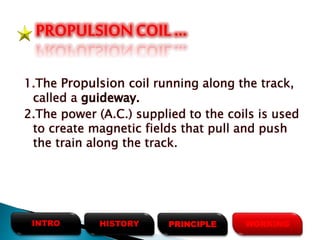

15. 1.The Propulsion coil running along the track,
called a guideway.
2.The power (A.C.) supplied to the coils is used
to create magnetic fields that pull and push
the train along the track.
PROPULSIONCOIL …
HISTORYINTRO PRINCIPLE WORKING

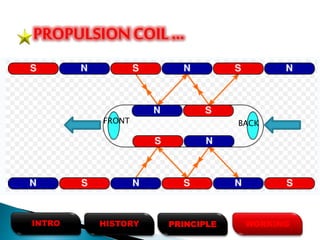

16. PROPULSIONCOIL …
HISTORYINTRO PRINCIPLE WORKING
FRONT BACK

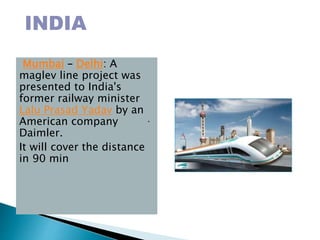

17. Mumbai – Delhi: A
maglev line project was
presented to India's
former railway minister
Lalu Prasad Yadav by an
American company
Daimler.
It will cover the distance
in 90 min
.
*INDIA

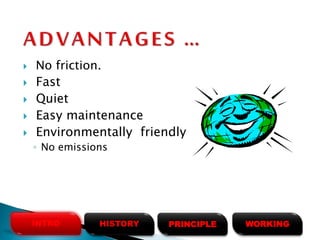

18.  No friction.
 Fast
 Quiet
 Easy maintenance
 Environmentally friendly
◦ No emissions
HISTORYINTRO PRINCIPLE WORKING

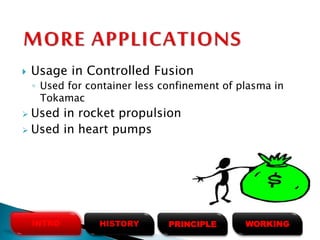

19.  Usage in Controlled Fusion
◦ Used for container less confinement of plasma in
Tokamac
 Used in rocket propulsion
 Used in heart pumps
HISTORYINTRO PRINCIPLE WORKING

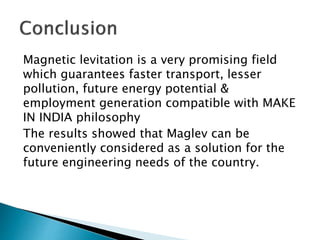

20. Magnetic levitation is a very promising field
which guarantees faster transport, lesser
pollution, future energy potential &
employment generation compatible with MAKE
IN INDIA philosophy
The results showed that Maglev can be
conveniently considered as a solution for the
future engineering needs of the country.
