The document discusses lockout/tagout procedures required by OSHA. It notes that written lockout/tagout programs and training are required. Every two minutes a fatality occurs and 170 injuries daily result from noncompliance. All affected employees must be notified and trained. Common energy sources like electricity must be identified, isolated through locking out or tagging out, and verified before equipment repairs. Proper lockout is crucial for safety.

2. Lockout/Tagout

3. Lockout/Tagout

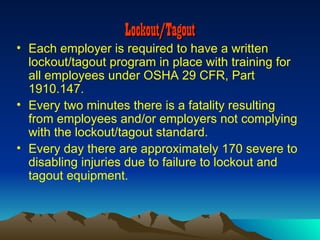

• Each employer is required to have a written
lockout/tagout program in place with training for
all employees under OSHA 29 CFR, Part
1910.147.
• Every two minutes there is a fatality resulting
from employees and/or employers not complying
with the lockout/tagout standard.
• Every day there are approximately 170 severe to
disabling injuries due to failure to lockout and
tagout equipment.

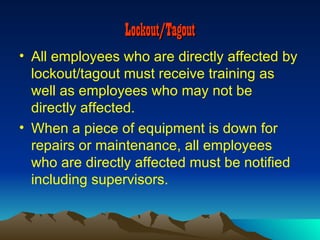

4. Lockout/Tagout
• All employees who are directly affected by
lockout/tagout must receive training as
well as employees who may not be
directly affected.
• When a piece of equipment is down for
repairs or maintenance, all employees
who are directly affected must be notified
including supervisors.

5. Lockout/Tagout
The most common types of energy sources
include:
1. Electricity
2. Pneumatic
3. Steam
4. Vacuum
5. Hydraulic
6. Gravity
7. Compressed or stretched springs
8. Spinning flywheels

6. Lockout/Tagout
• All sources of energy must be identified,
locked out, neutralized, etc.
• Each employee must attach his/her lock to
the lockout device for each energy source.
• When the next shift comes on duty for
repairs, each employee will attach their
lock as the previous shift personnel
remove their locks.

7. Lockout/Tagout

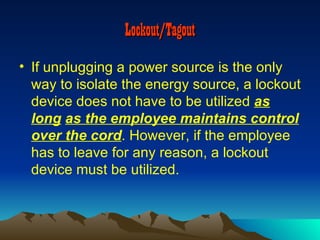

• If unplugging a power source is the only
way to isolate the energy source, a lockout
device does not have to be utilized as
long as the employee maintains control
over the cord. However, if the employee
has to leave for any reason, a lockout
device must be utilized.

8. Lockout/Tagout

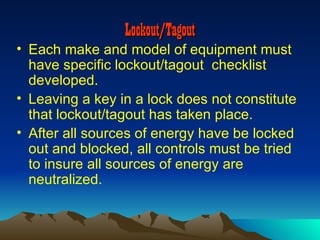

• Each make and model of equipment must
have specific lockout/tagout checklist
developed.
• Leaving a key in a lock does not constitute
that lockout/tagout has taken place.
• After all sources of energy have be locked
out and blocked, all controls must be tried
to insure all sources of energy are
neutralized.

9. Lockout/Tagout

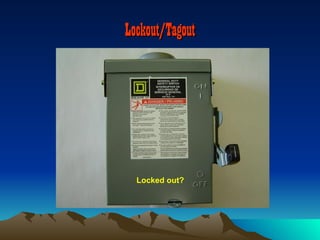

Locked out?

10. Lockout/Tagout

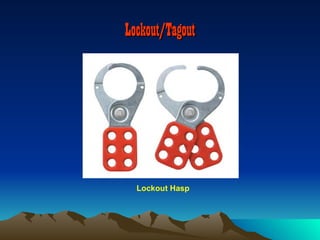

Lockout Hasp

11. Lockout/Tagout
Ball Valve Lockout

12. Lockout/Tagout
Gate Valve Lockout

13. Lockout/Tagout

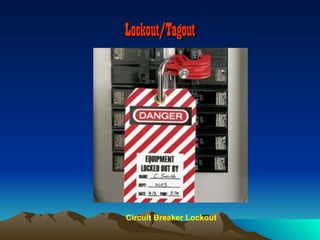

Circuit Breaker Lockout

14. Lockout/Tagout

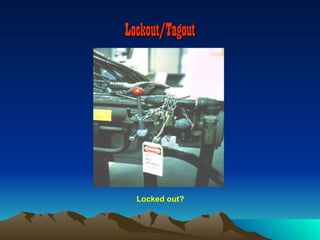

Locked out?

15. Lockout/Tagout

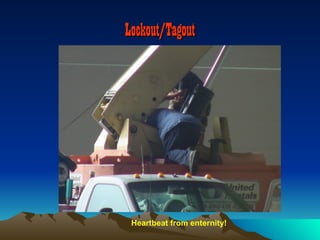

Heartbeat from enternity!

16. Lockout/Tagout

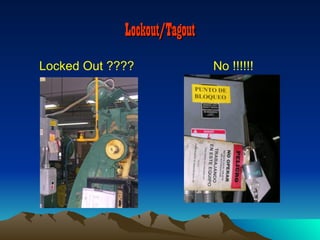

Locked Out ???? No !!!!!!

17. Lockout/Tagout
What’s Wrong Here? The Correct Way

18. Lockout/Tagout
Grounds for immediate termination.
