1. Carrington CCGT
Safe Lifting Operations & Safe
use of Lifting Equipment
Mon 13th January 2014

2. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 2

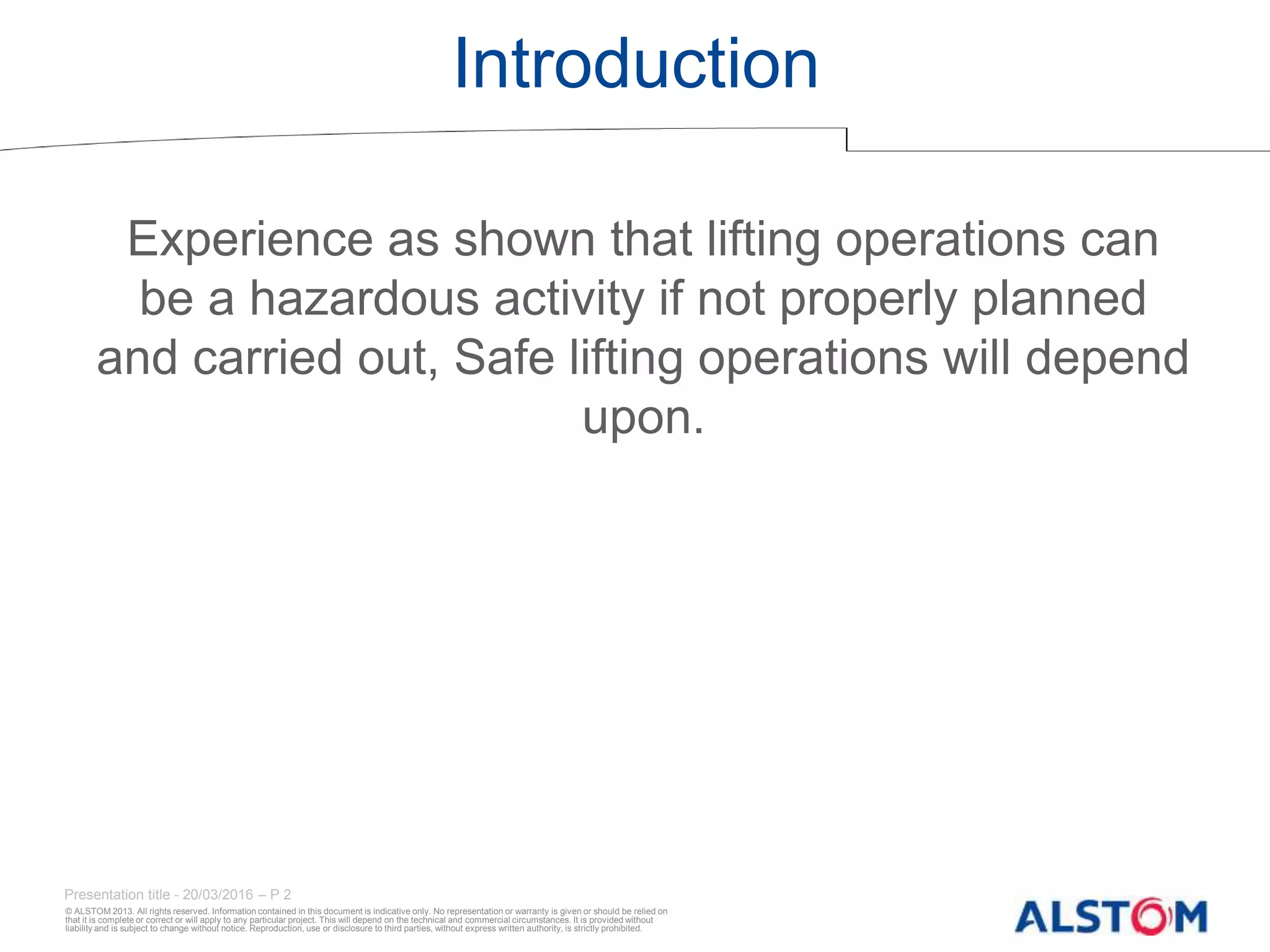

Introduction
Experience as shown that lifting operations can
be a hazardous activity if not properly planned
and carried out, Safe lifting operations will depend
upon.

3. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 3

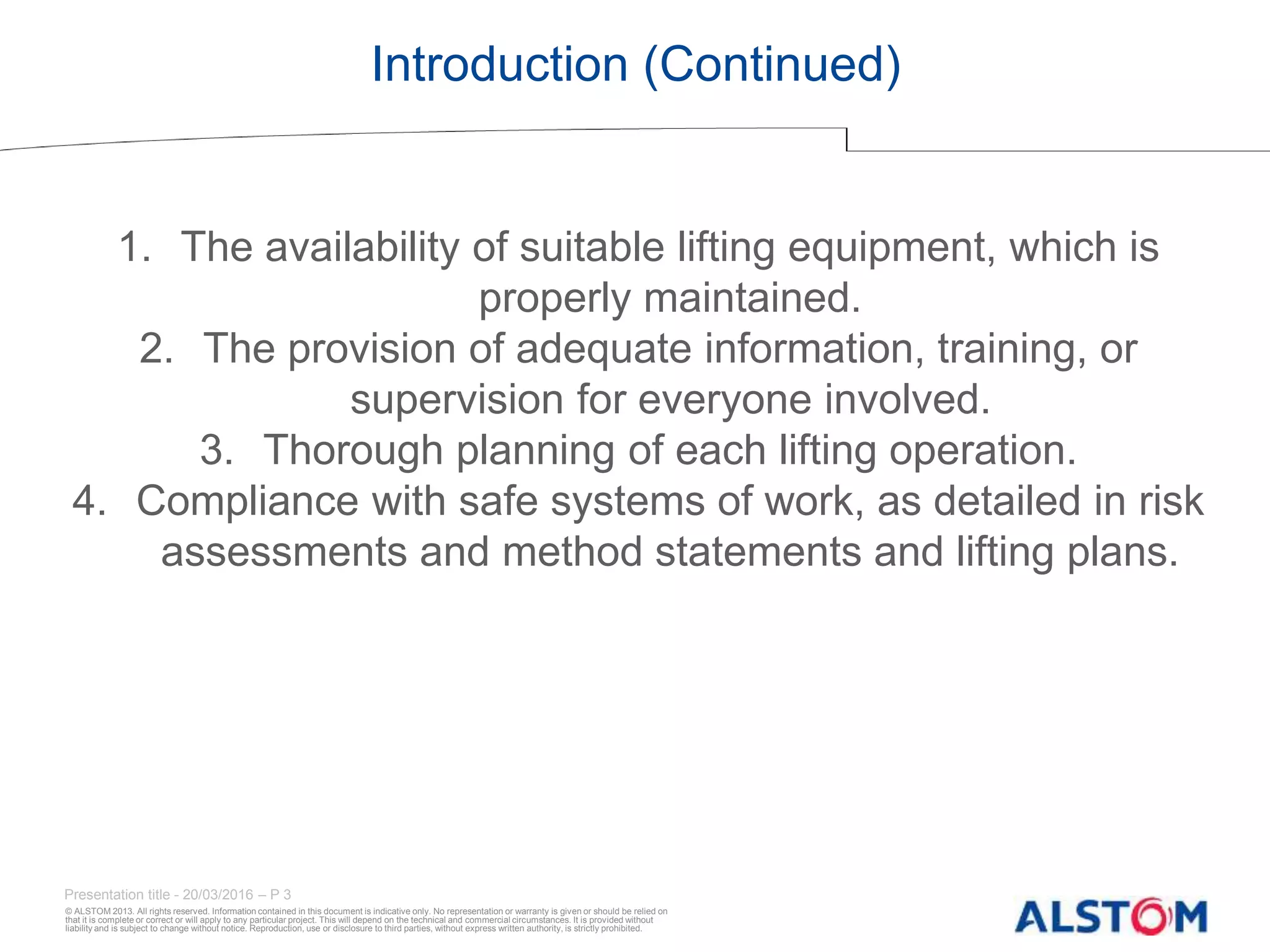

Introduction (Continued)
1. The availability of suitable lifting equipment, which is
properly maintained.
2. The provision of adequate information, training, or
supervision for everyone involved.
3. Thorough planning of each lifting operation.
4. Compliance with safe systems of work, as detailed in risk
assessments and method statements and lifting plans.

4. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 4

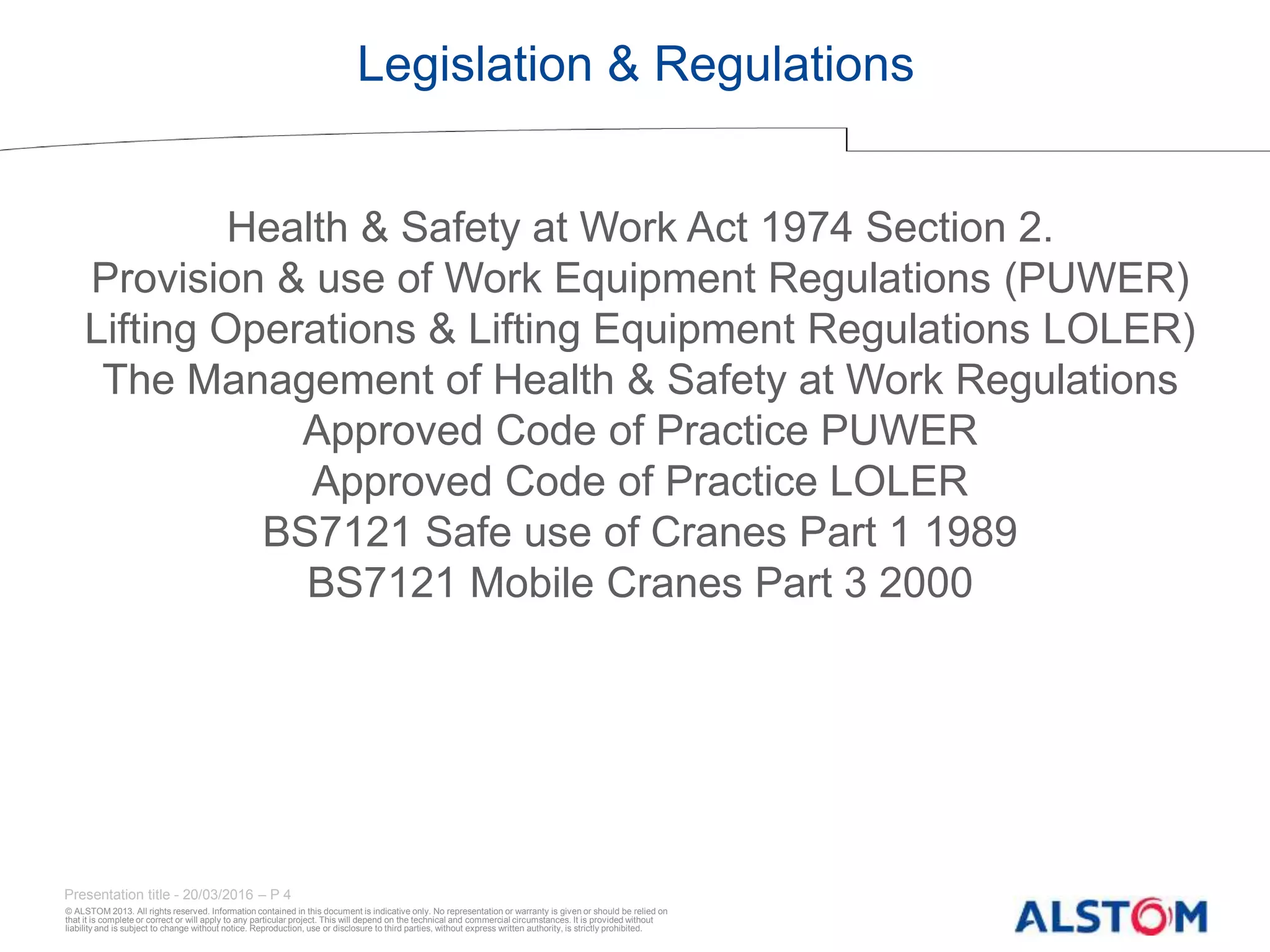

Legislation & Regulations
Health & Safety at Work Act 1974 Section 2.
Provision & use of Work Equipment Regulations (PUWER)
Lifting Operations & Lifting Equipment Regulations LOLER)
The Management of Health & Safety at Work Regulations
Approved Code of Practice PUWER
Approved Code of Practice LOLER
BS7121 Safe use of Cranes Part 1 1989
BS7121 Mobile Cranes Part 3 2000

5. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 5

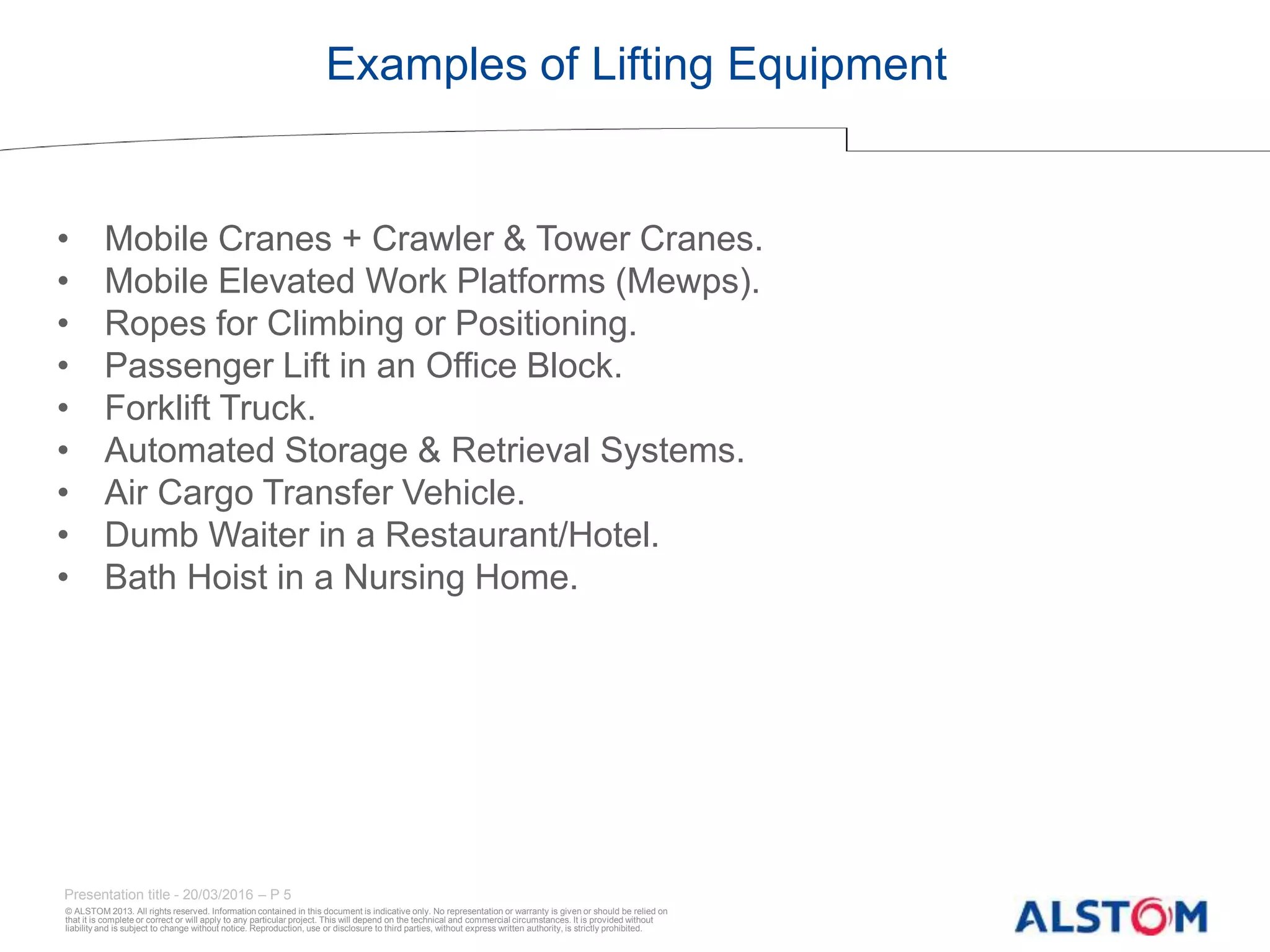

Examples of Lifting Equipment
• Mobile Cranes + Crawler & Tower Cranes.
• Mobile Elevated Work Platforms (Mewps).
• Ropes for Climbing or Positioning.
• Passenger Lift in an Office Block.
• Forklift Truck.
• Automated Storage & Retrieval Systems.
• Air Cargo Transfer Vehicle.
• Dumb Waiter in a Restaurant/Hotel.
• Bath Hoist in a Nursing Home.

6. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 6

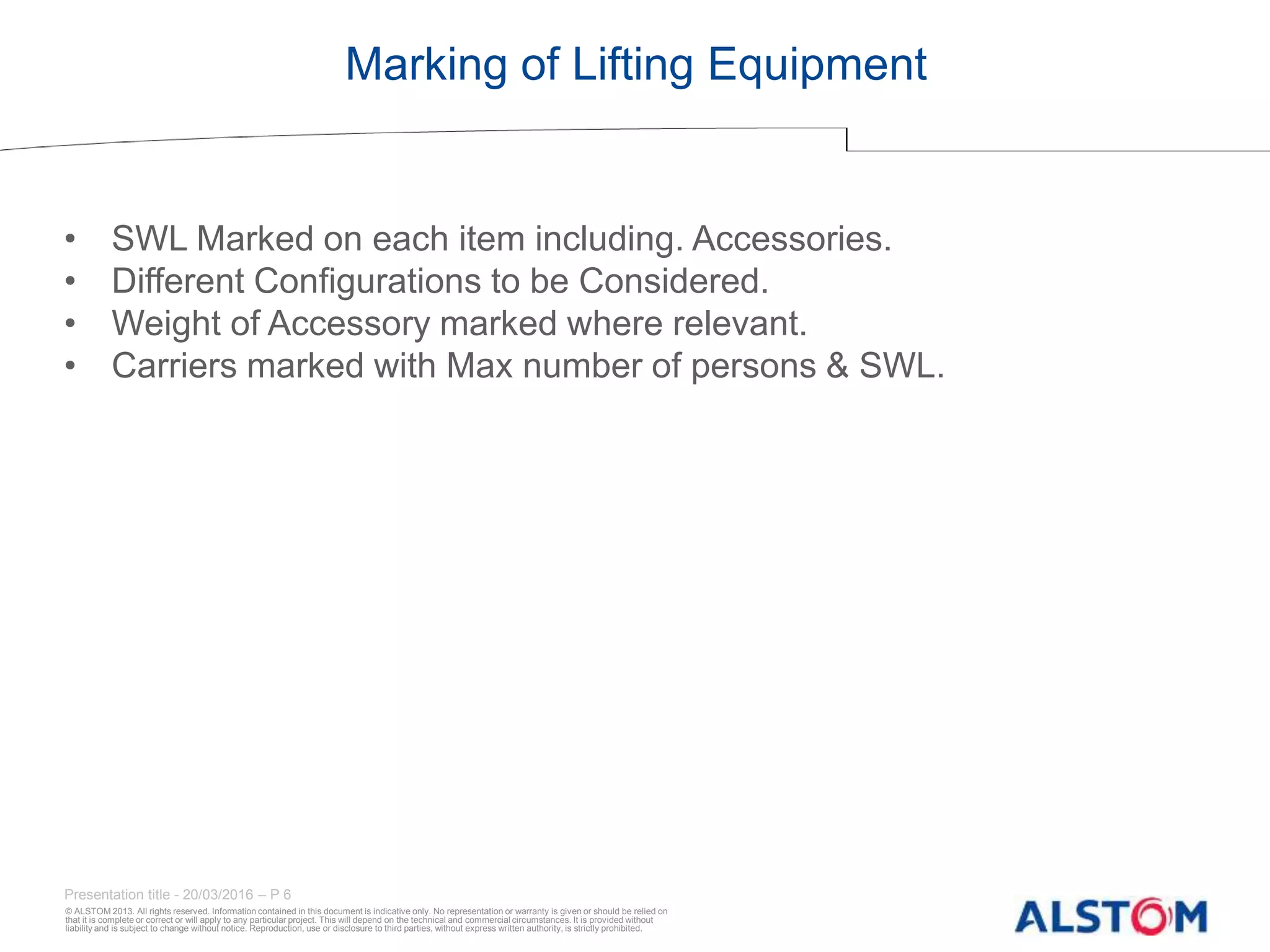

Marking of Lifting Equipment
• SWL Marked on each item including. Accessories.
• Different Configurations to be Considered.
• Weight of Accessory marked where relevant.
• Carriers marked with Max number of persons & SWL.

7. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 7

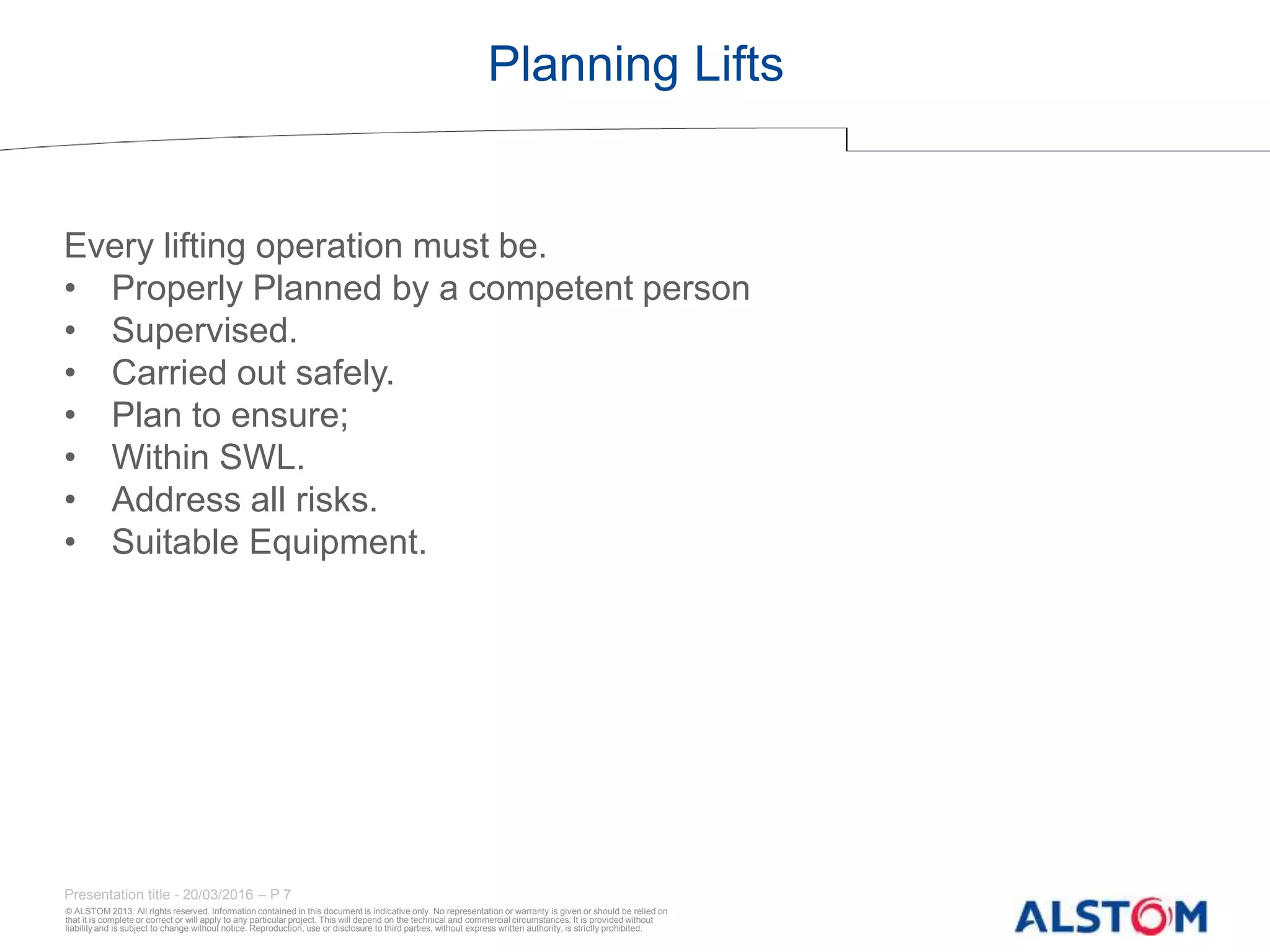

Planning Lifts
Every lifting operation must be.
• Properly Planned by a competent person
• Supervised.
• Carried out safely.
• Plan to ensure;
• Within SWL.
• Address all risks.
• Suitable Equipment.

8. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 8
Individual Lifting Operations
• Assess the Load.
• Select appropriate accessories.
• Check anticipated path.
• Prepare lay down area.
• Procedure.

9. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 9

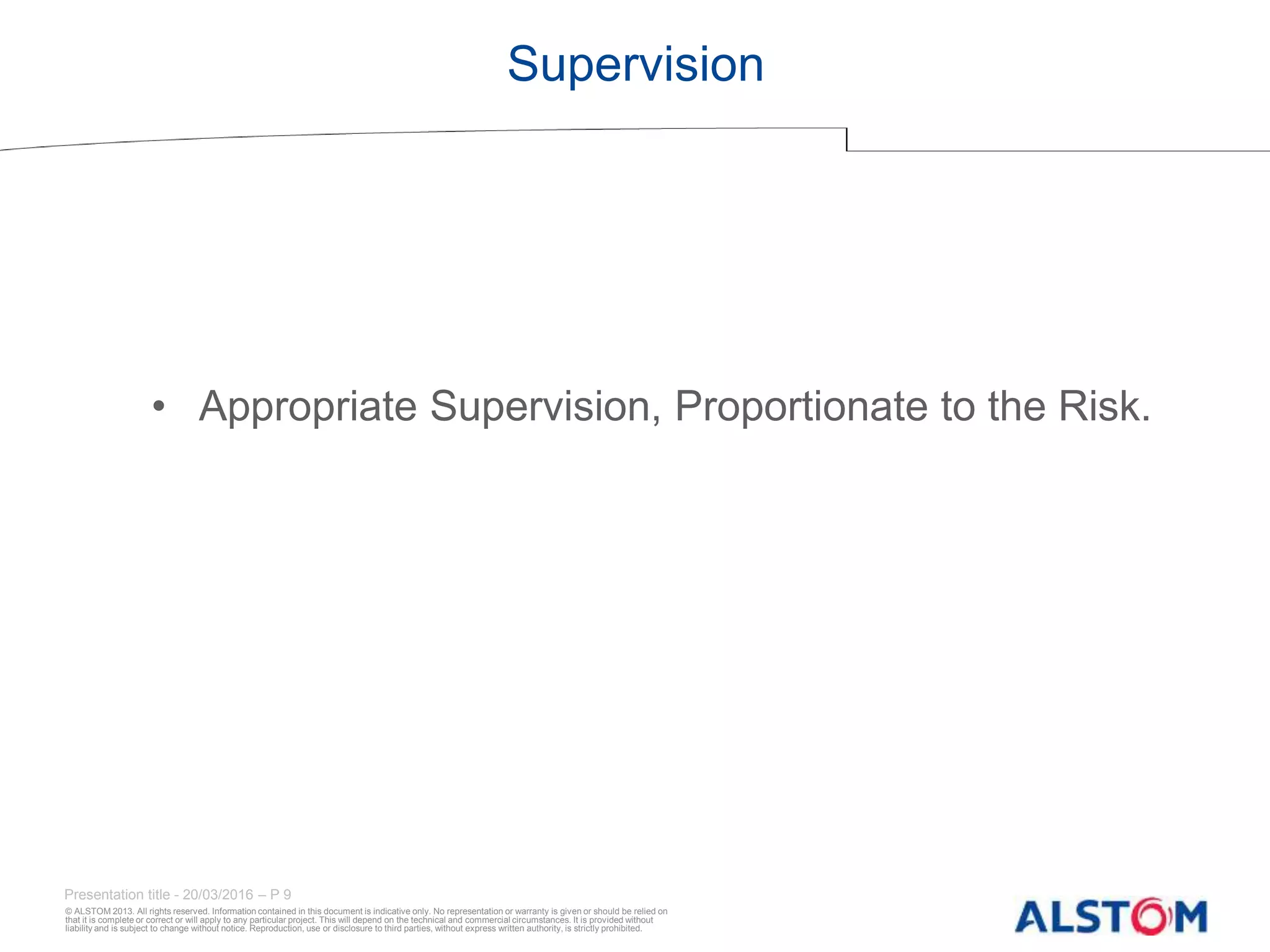

Supervision
• Appropriate Supervision, Proportionate to the Risk.

10. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 10

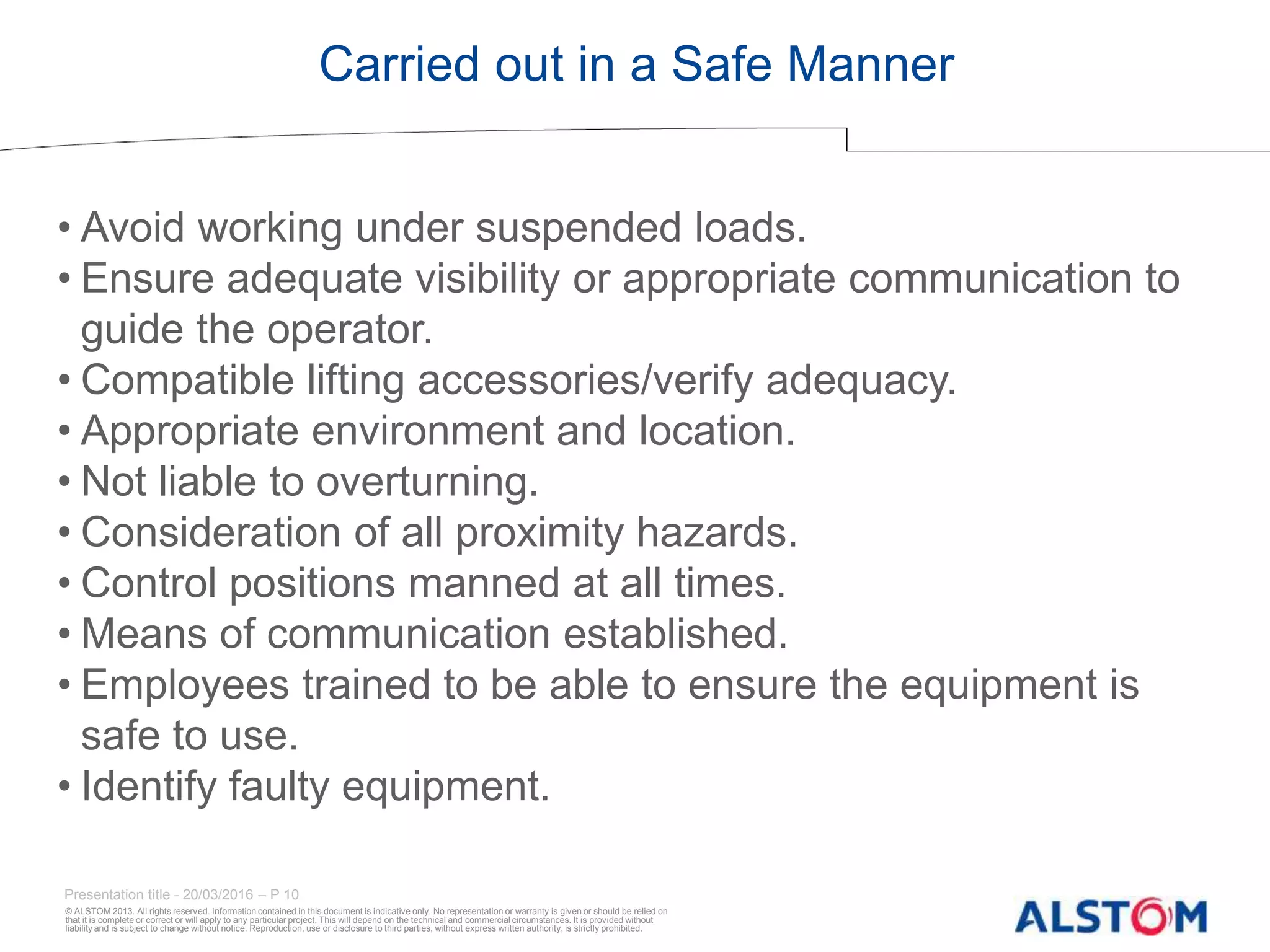

Carried out in a Safe Manner
• Avoid working under suspended loads.
• Ensure adequate visibility or appropriate communication to
guide the operator.
• Compatible lifting accessories/verify adequacy.
• Appropriate environment and location.
• Not liable to overturning.
• Consideration of all proximity hazards.
• Control positions manned at all times.
• Means of communication established.
• Employees trained to be able to ensure the equipment is
safe to use.
• Identify faulty equipment.

11. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 11

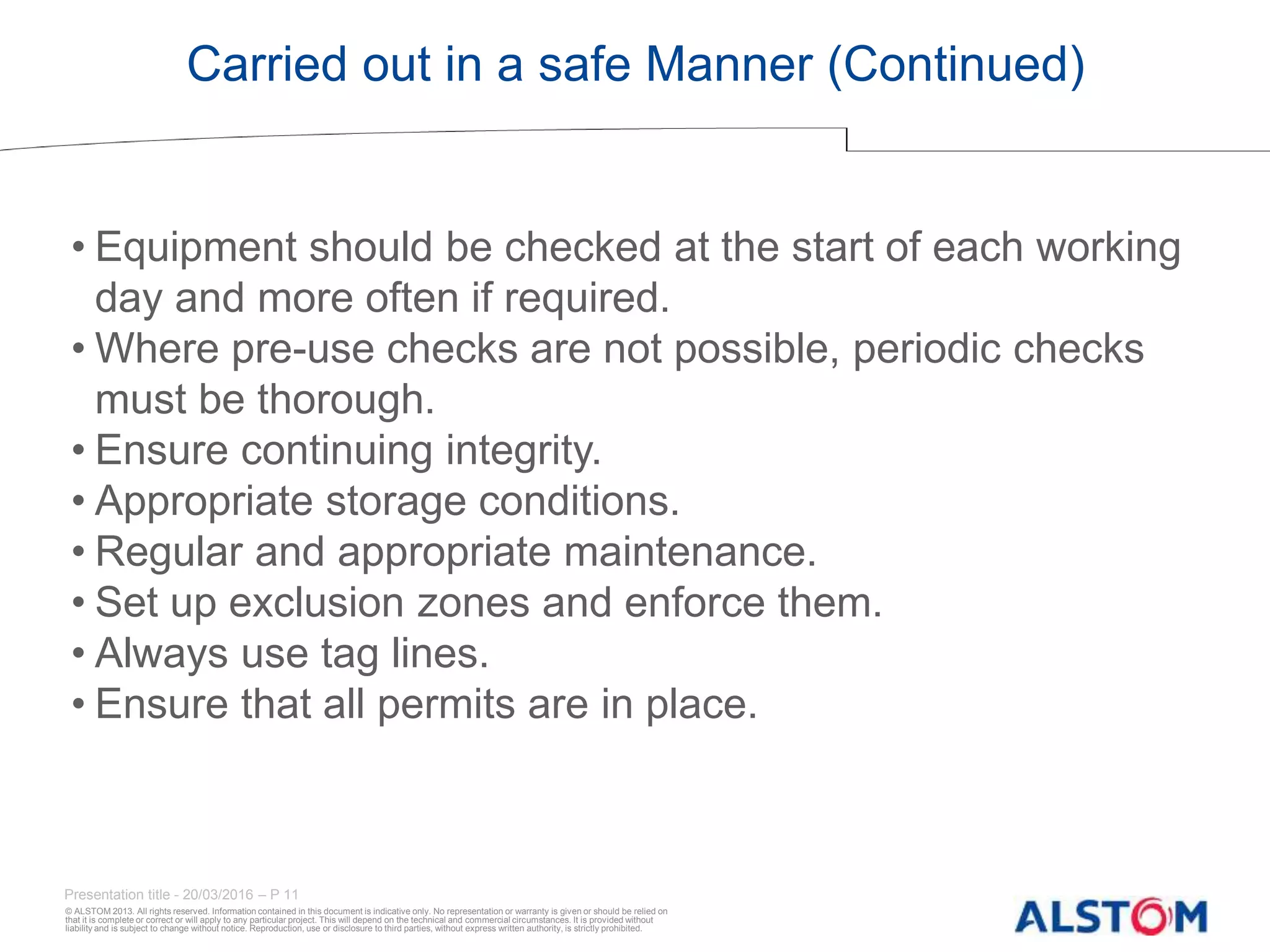

Carried out in a safe Manner (Continued)
• Equipment should be checked at the start of each working
day and more often if required.
• Where pre-use checks are not possible, periodic checks
must be thorough.
• Ensure continuing integrity.
• Appropriate storage conditions.
• Regular and appropriate maintenance.
• Set up exclusion zones and enforce them.
• Always use tag lines.
• Ensure that all permits are in place.

12. © ALSTOM 2013. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on
that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without
liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
Presentation title - 20/03/2016 – P 12

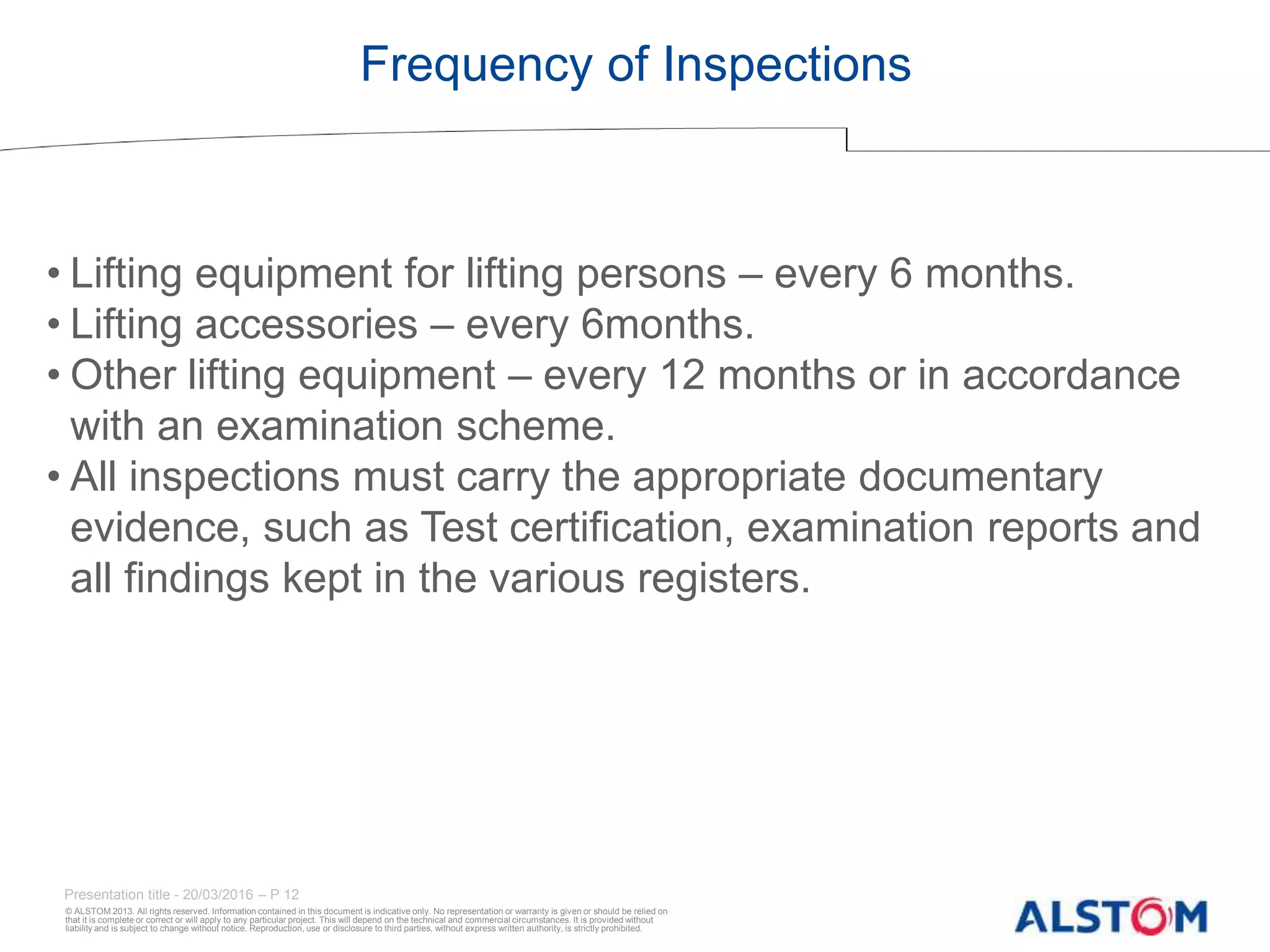

Frequency of Inspections
• Lifting equipment for lifting persons – every 6 months.
• Lifting accessories – every 6months.
• Other lifting equipment – every 12 months or in accordance
with an examination scheme.
• All inspections must carry the appropriate documentary
evidence, such as Test certification, examination reports and
all findings kept in the various registers.
