The document outlines the isolation process for hazardous energies in Australia, focusing on protecting personnel, equipment, and the environment while ensuring compliance with legislation. It details steps for isolating energy sources, including identification, lockout procedures, testing, and documentation, as well as guidelines for work permits and group isolation processes. Additionally, it emphasizes the importance of avoiding isolation breaches and maintaining proper communication and verification during the isolation process.

2. 2
A U S T R A L I A
WHY ISOLATE ??
PROTECT PERSONNEL
PROTECT EQUIPMENT
PROTECT ENVIRONMENT
COMPLY WITH
LEGISLATION

3. 3
A U S T R A L I A
HAZARDOUS ENERGIES
ELECTRICAL CHEMICAL
PRESSURE THERMAL
MECHANICAL RADIATION
STORED SUSPENDED

4. 4
A U S T R A L I A
ISOLATION PROCESS
IDENTIFY ENERGY SOURCES

5. 5
A U S T R A L I A

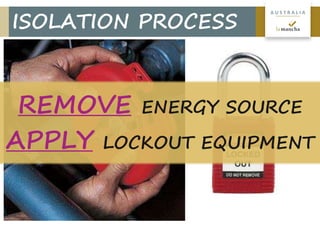

ISOLATION PROCESS
REMOVE ENERGY SOURCE
APPLY LOCKOUT EQUIPMENT

6. 6
A U S T R A L I A
ISOLATION PROCESS
TEST THE ISOLATION
COPY
CONTROL
ROOM…
CONFIRMED..
NO START!

7. 7
A U S T R A L I A
ISOLATION PROCESS
TAGS AND
DOCUMENTS
COMPLETE

8. 8
A U S T R A L I A

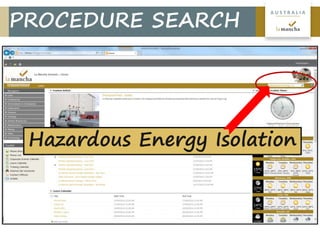

PROCEDURE SEARCH
Hazardous Energy Isolation

9. 9
A U S T R A L I A

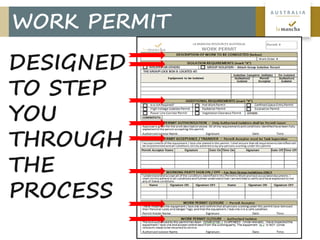

WORK PERMIT
DESIGNED
TO STEP
YOU
THROUGH
THE
PROCESS

10. 10
A U S T R A L I A

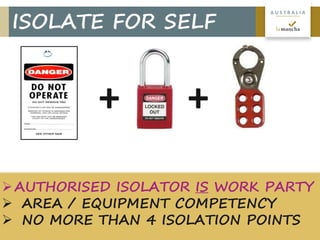

ISOLATE FOR SELF
+ +
AUTHORISED ISOLATOR IS WORK PARTY
 AREA / EQUIPMENT COMPETENCY
 NO MORE THAN 4 ISOLATION POINTS

11. 11
A U S T R A L I A
+ + +
AUTHORISED ISOLATOR
*Maximum*
 4 ISOLATIONS
 5 WORKING PARTY
ISOLATE FOR OTHERS -
DIRECT SUPERVISION
(AT ALL TIMES)

12. 12
A U S T R A L I A

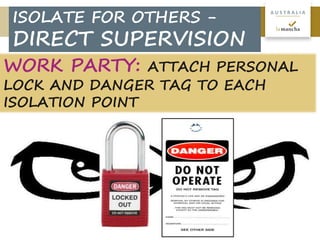

WORK PARTY: ATTACH PERSONAL
LOCK AND DANGER TAG TO EACH
ISOLATION POINT
ISOLATE FOR OTHERS -
DIRECT SUPERVISION

13. 13
A U S T R A L I A
+ + +

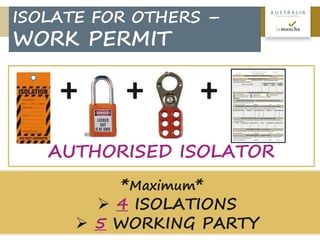

AUTHORISED ISOLATOR
*Maximum*
 4 ISOLATIONS
 5 WORKING PARTY
ISOLATE FOR OTHERS –
WORK PERMIT

14. 14
A U S T R A L I A
ISOLATE FOR OTHERS
WORK PARTY: ATTACH PERSONAL
LOCK AND DANGER
TAG TO EACH
ISOLATION POINT
AND SIGN ONTO
THE WORK PERMIT

15. 15
A U S T R A L I A
GROUP ISOLATION
+ +
+ +
AUTHORISED ISOLATOR
(WORK PERMIT)
(GROUP ISOLATION RECORD)

16. 16
A U S T R A L I A
GROUP ISOLATION
WORK PARTY: ATTACH PERSONAL
LOCK AND DANGER
TAG TO THE LOCKBOX
AND SIGN ON TO THE
GROUP ISOLATION
RECORD

17. 17
A U S T R A L I A
EQUIPMENT HANDOVER
WORK PERMIT MUST BE
RETURNED TO OPERATIONS AT
THE END OF THE TASK

18. 18
A U S T R A L I A
HOW TO ISOLATEISOLATION BREACHES
AVOID THIS ...

19. 19
A U S T R A L I A
AVOID: WORK PARTY
PERMIT ACCEPTOR: DON’T
ACCEPT/HAND BACK PERMIT
START WORK: NO LOCK/TAG
RECYCLE “OLD” PAPER TAGS
LEAVE SITE: LOCK/TAG ON
REMOVE OTHER LOCK/TAG

20. 20
A U S T R A L I A
AVOID: PERMIT ISSUER
INCORRECT SCOPE OF WORK
INCORRECT ISOLATIONS
FAIL TO TEST ISOLATIONS
FAIL TO CLOSE PERMIT
ADD TASKS TO PERMIT WITH
OUT CONFIRMATION OF P/H

21. 21
A U S T R A L I A

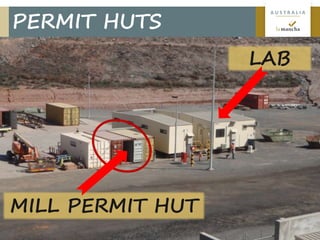

PERMIT HUTS
LAB
MILL PERMIT HUT

22. 22
A U S T R A L I A
PERMIT HUTS
CRUSHER SWITCH ROOM
CRUSHER PERMIT HUT
(MCC)

23. *NOW ANSWER THE QUESTIONS*
