Light travels in straight lines at a speed of around 300,000 kilometres per second, much faster than sound. We see objects because they reflect light into our eyes. Shadows are formed when light is blocked by an object. Light reflects off surfaces at the same angle it hits them, following the law of reflection. White light is made up of the colors of the rainbow which can be split and recombined.

1. Light Properties of light Reflection Colours

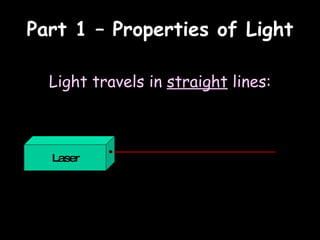

2. Part 1 – Properties of Light Light travels in straight lines: Laser

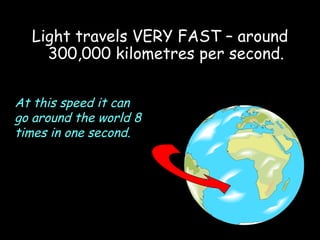

3. Light travels VERY FAST – around 300,000 kilometres per second. At this speed it can go around the world 8 times in one second.

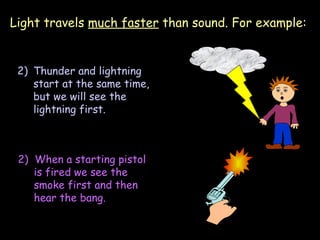

4. Light travels much faster than sound. For example: Thunder and lightning start at the same time, but we will see the lightning first. 2) When a starting pistol is fired we see the smoke first and then hear the bang.

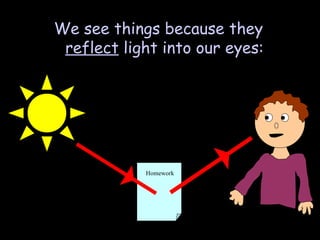

5. We see things because they reflect light into our eyes: Homework

6. Luminous and non-luminous objects A luminous object is one that produces light. A non-luminous object is one that reflects light. Luminous objects Reflectors -The Sun - Lamps - Lights - Lasers - Campfires The Moon Mirrors People Objects

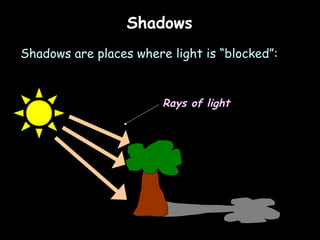

7. Shadows Shadows are places where light is “blocked”: Rays of light

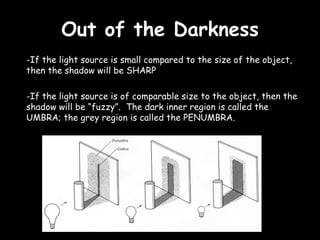

8. Out of the Darkness If the light source is small compared to the size of the object, then the shadow will be SHARP If the light source is of comparable size to the object, then the shadow will be “fuzzy”. The dark inner region is called the UMBRA; the grey region is called the PENUMBRA.

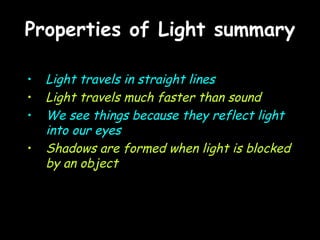

9. Properties of Light summary Light travels in straight lines Light travels much faster than sound We see things because they reflect light into our eyes Shadows are formed when light is blocked by an object

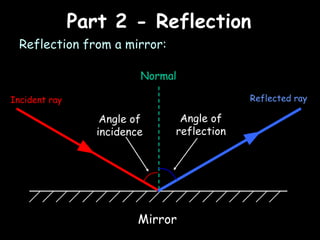

10. Part 2 - Reflection Reflection from a mirror: Incident ray Normal Reflected ray Angle of incidence Angle of reflection Mirror

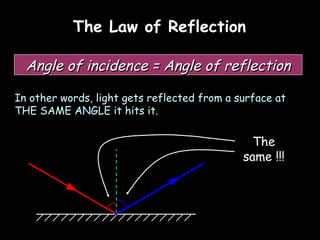

11. The Law of Reflection Angle of incidence = Angle of reflection In other words, light gets reflected from a surface at THE SAME ANGLE it hits it. The same !!!

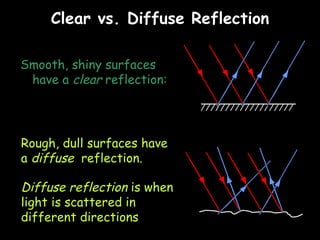

12. Clear vs. Diffuse Reflection Smooth, shiny surfaces have a clear reflection: Rough, dull surfaces have a diffuse reflection. Diffuse reflection is when light is scattered in different directions

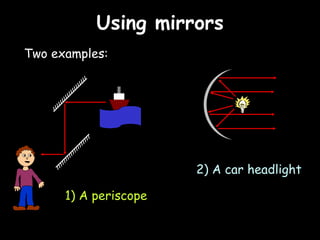

13. Using mirrors Two examples: 1) A periscope 2) A car headlight

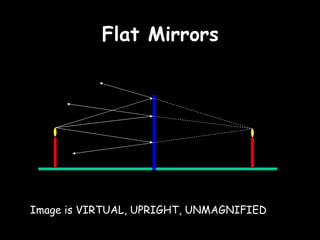

14. Flat Mirrors Image is VIRTUAL, UPRIGHT, UNMAGNIFIED

15. Spherical Mirrors - Concave Image is REAL, INVERTED, and DEMAGNIFIED !!! C F

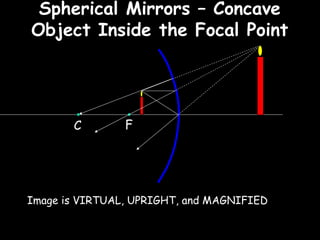

16. Spherical Mirrors – Concave Object Inside the Focal Point Image is VIRTUAL, UPRIGHT, and MAGNIFIED C F

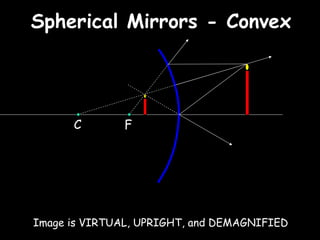

17. Spherical Mirrors - Convex Image is VIRTUAL, UPRIGHT, and DEMAGNIFIED C F

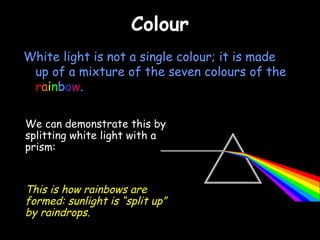

18. Colour White light is not a single colour; it is made up of a mixture of the seven colours of the r a i n b o w . We can demonstrate this by splitting white light with a prism: This is how rainbows are formed: sunlight is “split up” by raindrops.

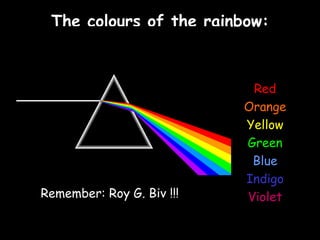

19. The colours of the rainbow: Red Orange Yellow Green Blue Indigo Violet Remember: Roy G. Biv !!!

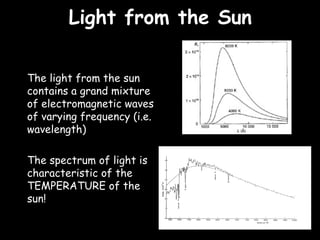

20. Light from the Sun The light from the sun contains a grand mixture of electromagnetic waves of varying frequency (i.e. wavelength) The spectrum of light is characteristic of the TEMPERATURE of the sun!

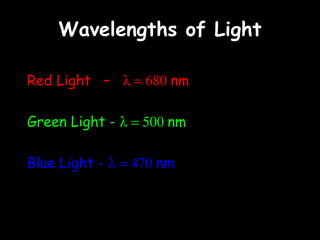

21. Wavelengths of Light Red Light –  nm Green Light -  nm Blue Light -  nm

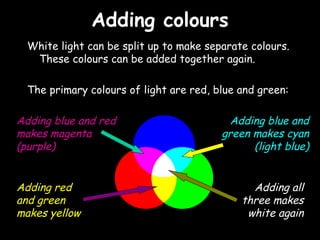

22. Adding colours White light can be split up to make separate colours. These colours can be added together again. The primary colours of light are red, blue and green: Adding blue and red makes magenta (purple) Adding blue and green makes cyan (light blue) Adding all three makes white again Adding red and green makes yellow

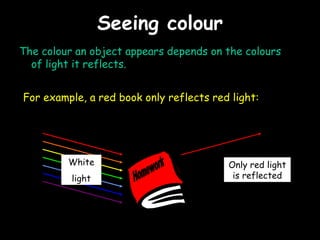

23. Seeing colour The colour an object appears depends on the colours of light it reflects. For example, a red book only reflects red light: White light Only red light is reflected Homework

24. A white hat would reflect all seven colours: A pair of purple pants, in addition to being ugly, would reflect purple light (or red and blue, as purple is made up of red and blue): Purple light White light

25. Using coloured light If we look at a coloured object in coloured light we see something different. For example, consider the outfit below – I mean, from a physics standpoint, not as a fashion choice: White light Shorts look blue Shirt looks red

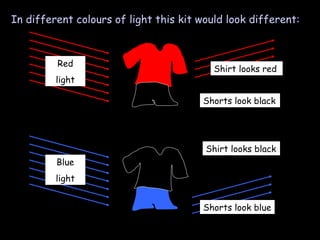

26. In different colours of light this kit would look different: Red light Shirt looks red Shorts look black Blue light Shirt looks black Shorts look blue

27. Using filters Filters can be used to “block” out different colours of light: Red Filter Magenta Filter
