This document provides an introduction to functions and their representations. It defines what a function is and gives examples of functions expressed through formulas, numerically, graphically and verbally. It also covers properties of functions including monotonicity, symmetry, even and odd functions. Key examples are used throughout to illustrate concepts.

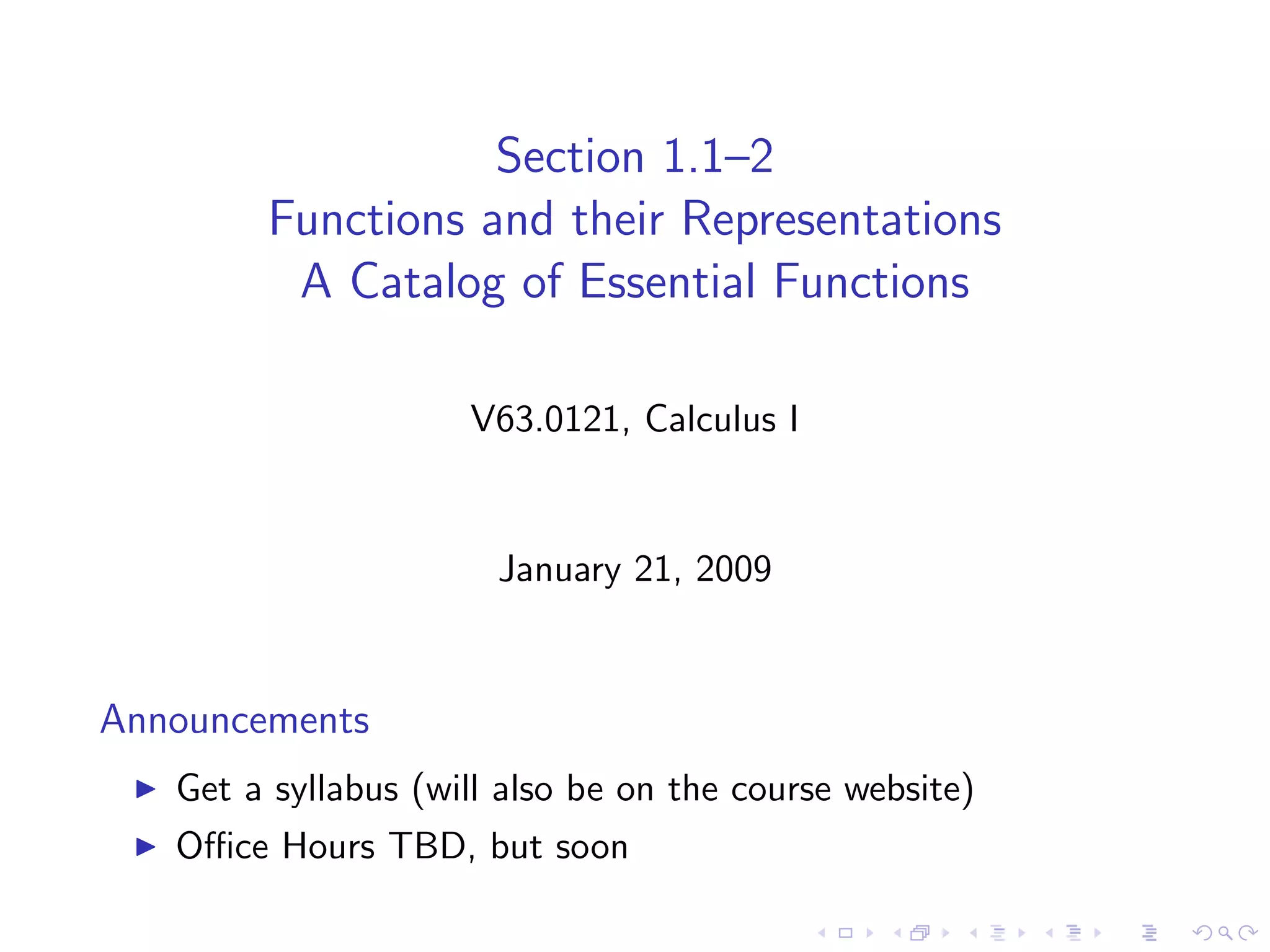

1. Section 1.1–2
Functions and their Representations
A Catalog of Essential Functions
V63.0121, Calculus I
January 21, 2009
Announcements
Get a syllabus (will also be on the course website)
Office Hours TBD, but soon

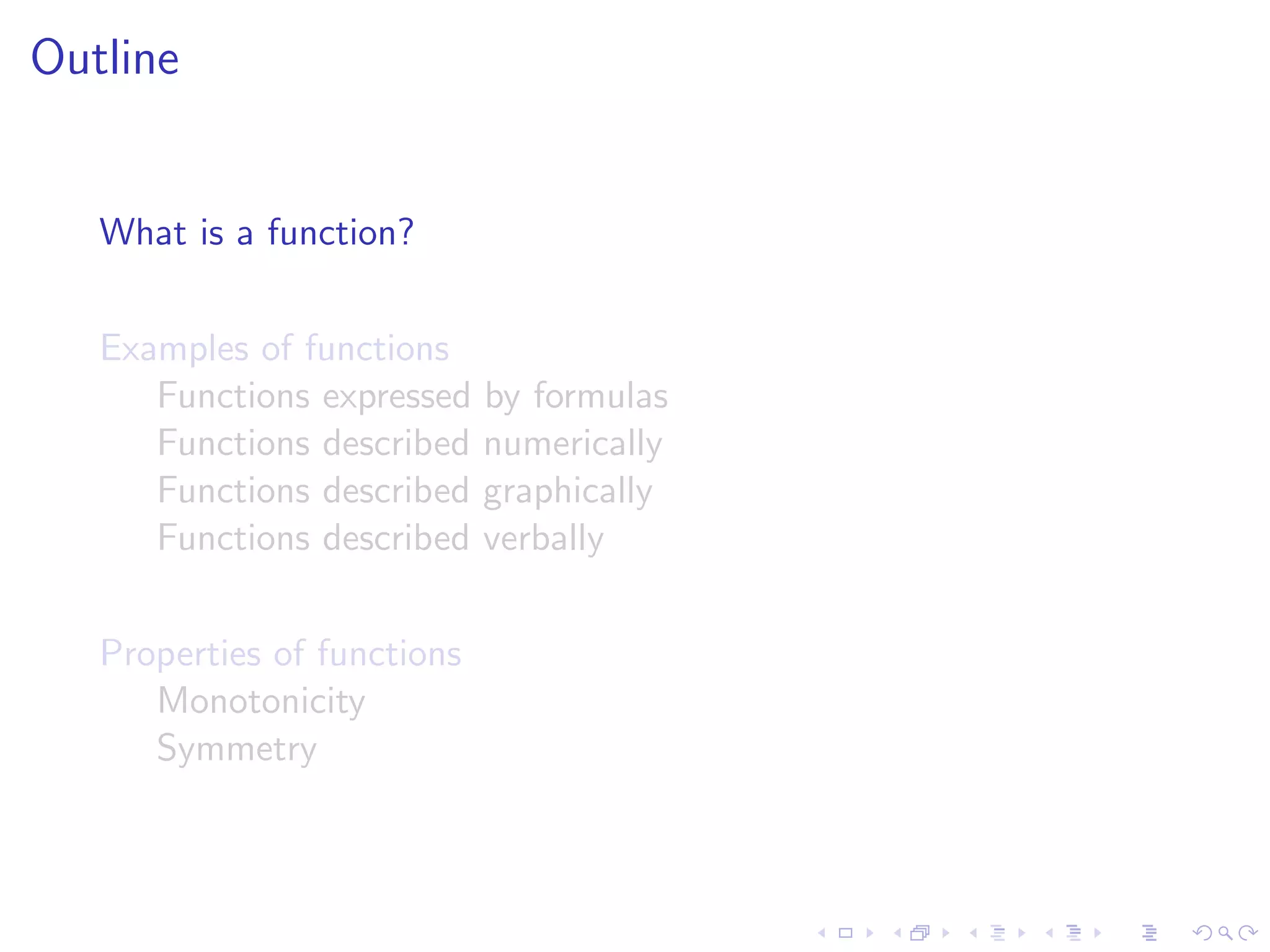

2. Outline
What is a function?
Examples of functions
Functions expressed by formulas
Functions described numerically
Functions described graphically
Functions described verbally
Properties of functions
Monotonicity
Symmetry

3. Definition
A function f is a relation which assigns to to every element x in a
set D a single element f (x) in a set E .
The set D is called the domain of f .
The set E is called the target of f .
The set { f (x) | x ∈ D } is called the range of f .

4. Outline
What is a function?
Examples of functions
Functions expressed by formulas
Functions described numerically
Functions described graphically
Functions described verbally
Properties of functions
Monotonicity
Symmetry

5. Functions expressed by formulas
Any expression in a single variable x defines a function. In this
case, the domain is understood to be the largest set of x which
after substitution, give a real number.

6. Example
x +1
Let f (x) = . Find the domain and range of f .
x −1

7. Example
x +1
Let f (x) = . Find the domain and range of f .
x −1
Solution
The denominator is zero when x = 1, so the domain is all real
numbers excepting one. As for the range, we can solve
x +1 y +1
y= =⇒ x =
x −1 y −1
So as long as y = 1, there is an x associated to y .

8. No-no’s for expressions
Cannot have zero in the denominator of an expression
Cannot have a negative number under an even root (e.g.,
square root)
Cannot have the logarithm of a negative number

9. Piecewise-defined functions
Example
Let
x2 0 ≤ x ≤ 1;
f (x) =
3−x 1 < x ≤ 2.
Find the domain and range of f and graph the function.

10. Piecewise-defined functions
Example
Let
x2 0 ≤ x ≤ 1;
f (x) =
3−x 1 < x ≤ 2.
Find the domain and range of f and graph the function.
Solution
The domain is [0, 2]. The range is [0, 2). The graph is piecewise.
2
1
0 1 2

11. Functions described numerically
We can just describe a function by a table of values, or a diagram.

12. Example
Is this a function? If so, what is the range?
x f (x)
1 4
2 5
3 6

13. Example
Is this a function? If so, what is the range?
1 4
x f (x)
1 4 2 5
2 5
3 6
3 6

14. Example
Is this a function? If so, what is the range?
1 4
x f (x)
1 4 2 5
2 5
3 6
3 6
Yes, the range is {4, 5, 6}.

15. Example
Is this a function? If so, what is the range?
x f (x)
1 4
2 4
3 6

16. Example
Is this a function? If so, what is the range?
1 4
x f (x)
1 4 2 5
2 4
3 6
3 6

17. Example
Is this a function? If so, what is the range?
1 4
x f (x)
1 4 2 5
2 4
3 6
3 6
Yes, the range is {4, 6}.

18. Example
How about this one?
x f (x)
1 4
1 5
3 6

19. Example
How about this one?
1 4
x f (x)
1 4 2 5
1 5
3 6
3 6

20. Example
How about this one?
1 4
x f (x)
1 4 2 5
1 5
3 6
3 6
No, that one’s not “deterministic.”

21. In science, functions are often defined by data. Or, we observe
data and assume that it’s close to some nice continuous function.

22. Example
Here is the temperature in Boise, Idaho measured in 15-minute
intervals over the period August 22–29, 2008.
100
90
80
70
60
50
40
30
20
10
8/22 8/23 8/24 8/25 8/26 8/27 8/28 8/29

23. Functions described graphically
Sometimes all we have is the “picture” of a function, by which we
mean, its graph.

24. Functions described graphically
Sometimes all we have is the “picture” of a function, by which we
mean, its graph.
The one on the right is a relation but not a function.

25. Functions described verbally
Oftentimes our functions come out of nature and have verbal
descriptions:
The temperature T (t) in this room at time t.
The elevation h(θ) of the point on the equation at longitude θ.
The utility u(x) I derive by consuming x burritos.

26. Outline
What is a function?
Examples of functions
Functions expressed by formulas
Functions described numerically
Functions described graphically
Functions described verbally
Properties of functions
Monotonicity
Symmetry

27. Monotonicity
Example
Let P(x) be the probability that my income was at least $x last
year. What might a graph of P(x) look like?

28. Monotonicity
Definition
A function f is decreasing if f (x1 ) > f (x2 ) whenever x1 < x2
for any two points x1 and x2 in the domain of f .
A function f is increasing if f (x1 ) < f (x2 ) whenever x1 < x2
for any two points x1 and x2 in the domain of f .

29. Examples
Example
Going back to the burrito function, would you call it increasing?

30. Examples
Example
Going back to the burrito function, would you call it increasing?
Example
Obviously, the temperature in Boise is neither increasing nor
decreasing.

31. Symmetry
Example
Let I (x) be the intensity of light x distance from a point.
Example
Let U(x) be the gravitational potential at a point x distance from
a black hole.

32. Definitions
Definition
A function f is called even if f (−x) = f (x) for all x in the
domain of f .
A function f is called odd if f (−x) = −f (x) for all x in the
domain of f .

33. Examples
Even: constants, even powers, cosine
Odd: odd powers, sine, tangent
Neither: exp, log
