Layer 2 switching uses devices' MAC addresses on a LAN to segment a network into multiple collision domains. Switches and bridges are used to break up one large collision domain into smaller ones. Switches have more ports than bridges and can inspect incoming traffic to make forwarding decisions based on destination MAC addresses, placing each port on its own collision domain.

1. Layer 2 Switching
www.netprotocolxpert.in

2. • Layer 2 switching (or Data Link layer switching) is the process of
using devices' MAC addresses on a LAN to segment a network.
• Switches and bridges are used for Layer 2 switching. They break up
one large collision domain into multiple smaller ones.

3. • In a typical LAN, all hosts are connected to one central
device.
• In the past, the device was usually a hub. But hubs had
many disadvantages, such as not being aware of traffic
that passes through them, creating one large collision
domain, etc.
• To overcome some of the problems with hubs, bridges
were created. They were better than hubs because
they created multiple collision domains, but they had
limited number of ports.
• Finally, switch were created and are still widely used
today. Switches have more ports than bridges, can
inspect incoming traffic and make forwarding
decisions accordingly. Each port on a switch is a
separate collision domain.

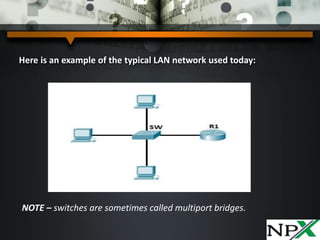

4. Here is an example of the typical LAN network used today:
NOTE – switches are sometimes called multiport bridges.

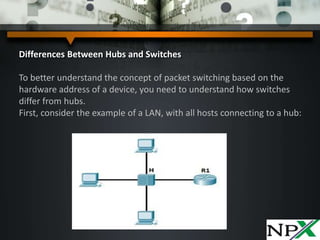

5. Differences Between Hubs and Switches
To better understand the concept of packet switching based on the
hardware address of a device, you need to understand how switches
differ from hubs.
First, consider the example of a LAN, with all hosts connecting to a hub:

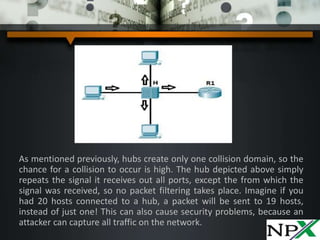

6. As mentioned previously, hubs create only one collision domain, so the
chance for a collision to occur is high. The hub depicted above simply
repeats the signal it receives out all ports, except the from which the
signal was received, so no packet filtering takes place. Imagine if you
had 20 hosts connected to a hub, a packet will be sent to 19 hosts,
instead of just one! This can also cause security problems, because an
attacker can capture all traffic on the network.

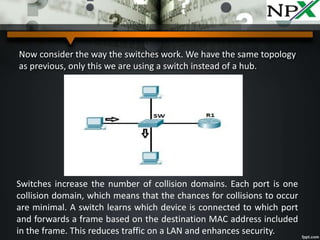

7. Now consider the way the switches work. We have the same topology
as previous, only this we are using a switch instead of a hub.
Switches increase the number of collision domains. Each port is one
collision domain, which means that the chances for collisions to occur
are minimal. A switch learns which device is connected to which port
and forwards a frame based on the destination MAC address included
in the frame. This reduces traffic on a LAN and enhances security.

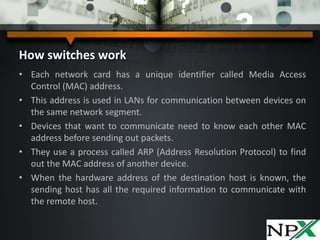

8. How switches work
• Each network card has a unique identifier called Media Access
Control (MAC) address.
• This address is used in LANs for communication between devices on
the same network segment.
• Devices that want to communicate need to know each other MAC
address before sending out packets.
• They use a process called ARP (Address Resolution Protocol) to find
out the MAC address of another device.
• When the hardware address of the destination host is known, the
sending host has all the required information to communicate with
the remote host.

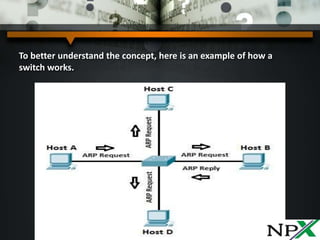

9. To better understand the concept, here is an example of how a
switch works.

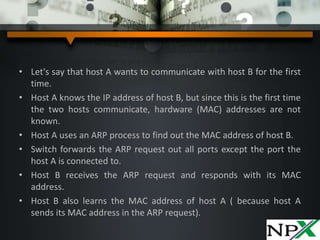

10. • Let's say that host A wants to communicate with host B for the first
time.
• Host A knows the IP address of host B, but since this is the first time
the two hosts communicate, hardware (MAC) addresses are not
known.
• Host A uses an ARP process to find out the MAC address of host B.
• Switch forwards the ARP request out all ports except the port the
host A is connected to.
• Host B receives the ARP request and responds with its MAC
address.
• Host B also learns the MAC address of host A ( because host A
sends its MAC address in the ARP request).

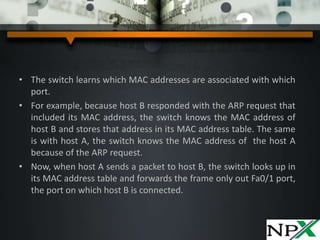

11. • The switch learns which MAC addresses are associated with which
port.
• For example, because host B responded with the ARP request that
included its MAC address, the switch knows the MAC address of
host B and stores that address in its MAC address table. The same
is with host A, the switch knows the MAC address of the host A
because of the ARP request.
• Now, when host A sends a packet to host B, the switch looks up in
its MAC address table and forwards the frame only out Fa0/1 port,
the port on which host B is connected.

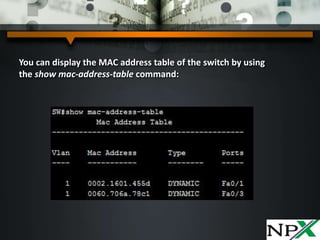

12. You can display the MAC address table of the switch by using
the show mac-address-table command:
