Webinar topic: Troubleshooting Layer 2 Ethernet Problem: Loop, Broadcast, Security Presenter: Achmad Mardiansyah, M. Taufik Nurhuda In this webinar series, Troubleshooting Layer 2 Ethernet Problem: Loop, Broadcast, Security Please share your feedback or webinar ideas here: http://bit.ly/glcfeedback Check our schedule for future events: https://www.glcnetworks.com/en/schedule/ Follow our social media for updates: Facebook, Instagram, YouTube Channel, and telegram also discord Recording available on Youtube https://youtu.be/G4IuMNaJZLY

1. www.glcnetworks.com

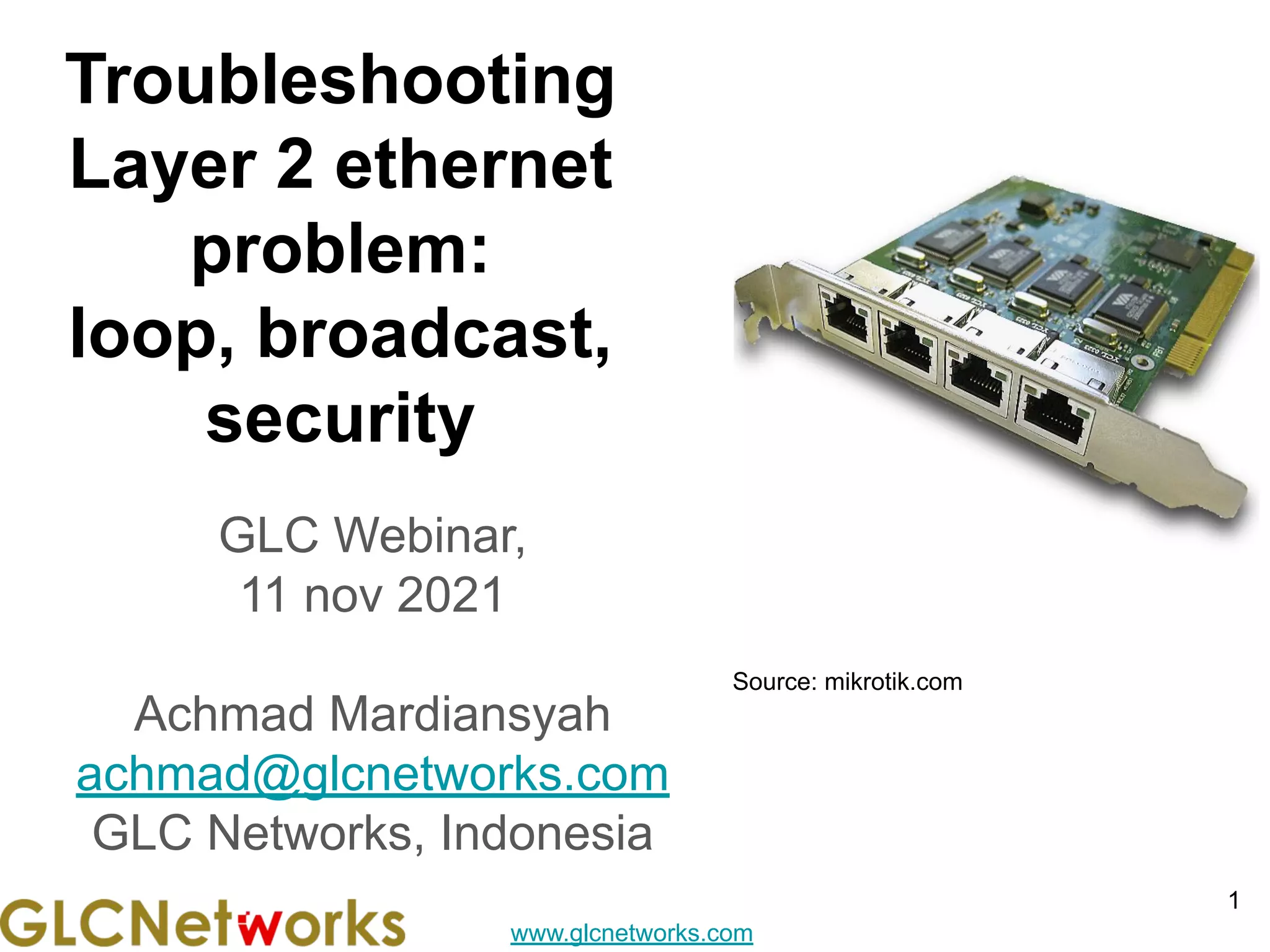

Troubleshooting
Layer 2 ethernet
problem:
loop, broadcast,
security
GLC Webinar,
11 nov 2021
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1
Source: mikrotik.com

2. www.glcnetworks.com

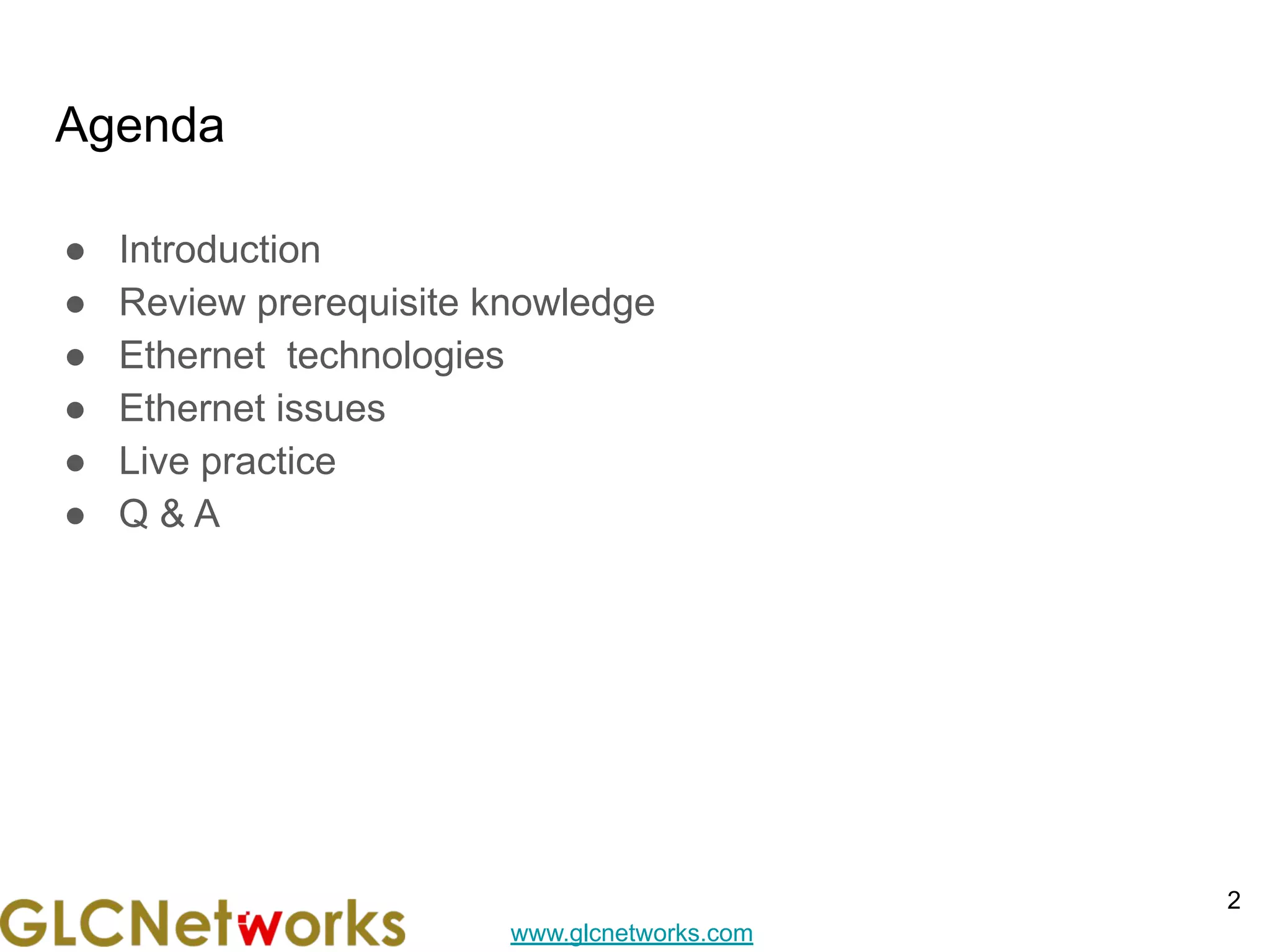

Agenda
● Introduction
● Review prerequisite knowledge
● Ethernet technologies
● Ethernet issues
● Live practice
● Q & A
2

3. www.glcnetworks.com
introduction
3

4. www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● Based in Bandung, Indonesia
● Areas: Training, IT Consulting
● Certified partner for: Mikrotik, Ubiquity, Linux foundation
● Product: GLC radius manager
● Regular event
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user since 1999, mikrotik user since 2007, UBNT
2011
● Mikrotik Certified Trainer
(MTCNA/RE/WE/UME/INE/TCE/IPv6)
● Mikrotik/Linux Certified Consultant
● Website contributor: achmadjournal.com, mikrotik.tips,
asysadmin.tips
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com
Past experience
6
● 2021 (Congo DRC, Malaysia): network support,
radius/billing integration
● 2020 (Congo DRC, Malaysia): IOT integration,
network automation
● 2019, Congo (DRC): build a wireless ISP from
ground-up
● 2018, Malaysia: network revamp, develop billing
solution and integration, setup dynamic routing
● 2017, Libya (north africa): remote wireless migration
for a new Wireless ISP
● 2016, United Kingdom: workshop for wireless ISP,
migrating a bridged to routed network

7. www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new year
with solaris OS)
● As a sharing event with various topics:
linux, networking, wireless, database,
programming, etc
● Regular schedule
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/schedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
7

8. www.glcnetworks.com

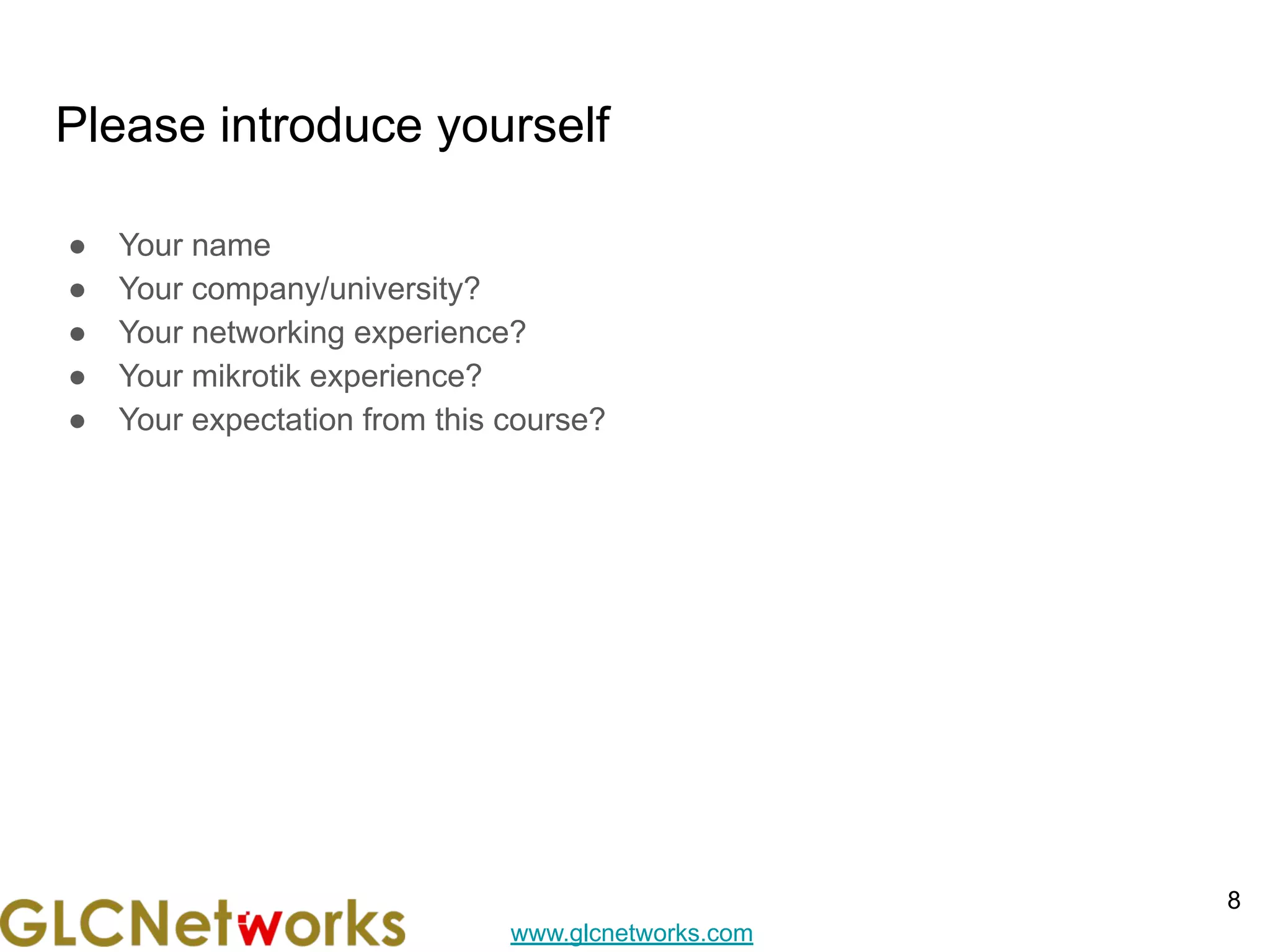

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
8

9. www.glcnetworks.com
Prerequisite
● This presentation some prerequisite knowledge
● We assume you already understand:
○ How browsing works
○ Computer networks
9

10. www.glcnetworks.com
Review prerequisite knowledge
10

11. www.glcnetworks.com

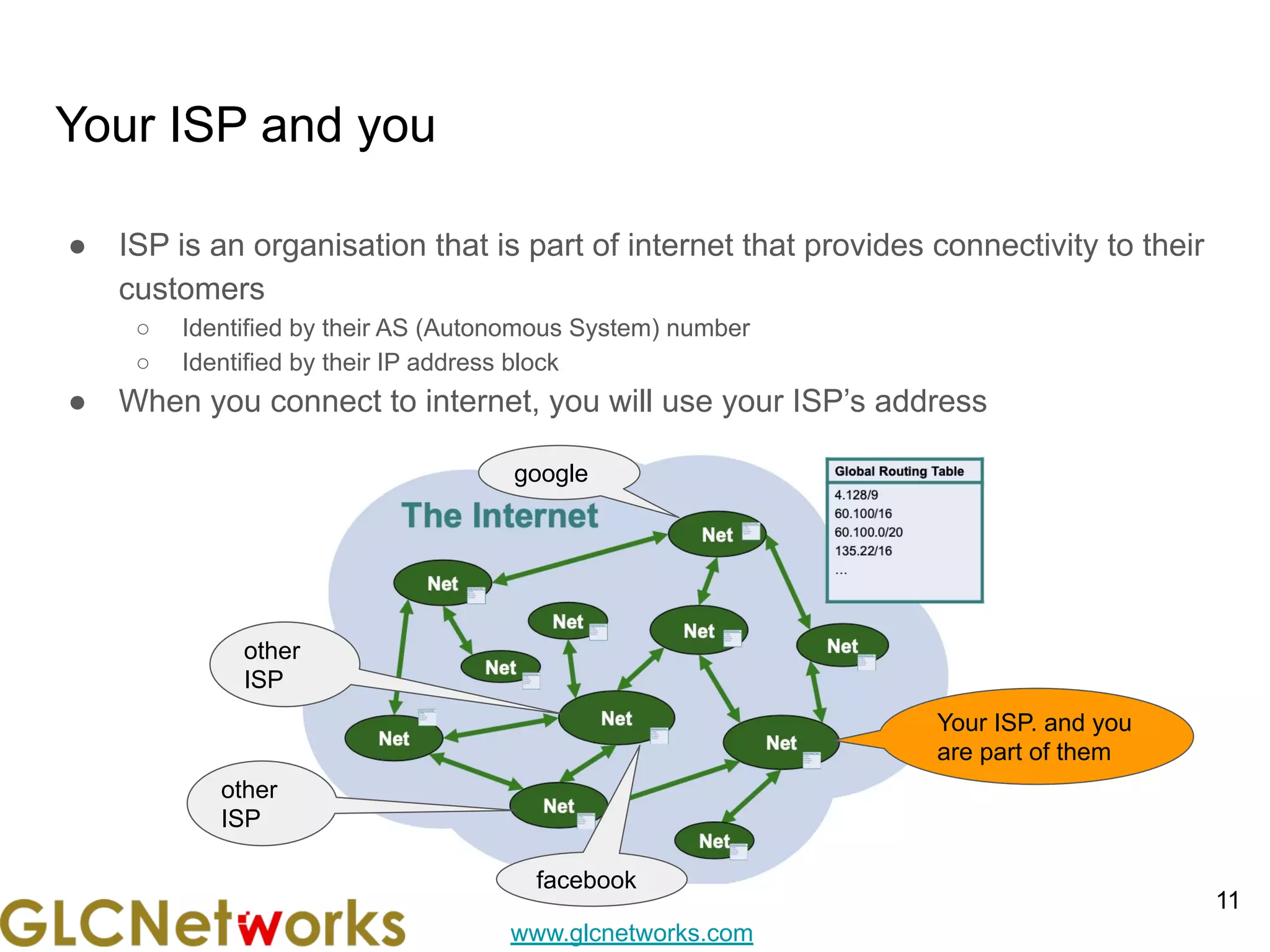

Your ISP and you
● ISP is an organisation that is part of internet that provides connectivity to their
customers
○ Identified by their AS (Autonomous System) number
○ Identified by their IP address block
● When you connect to internet, you will use your ISP’s address
11
Your ISP. and you
are part of them
other
ISP
other
ISP
google
facebook

12. www.glcnetworks.com

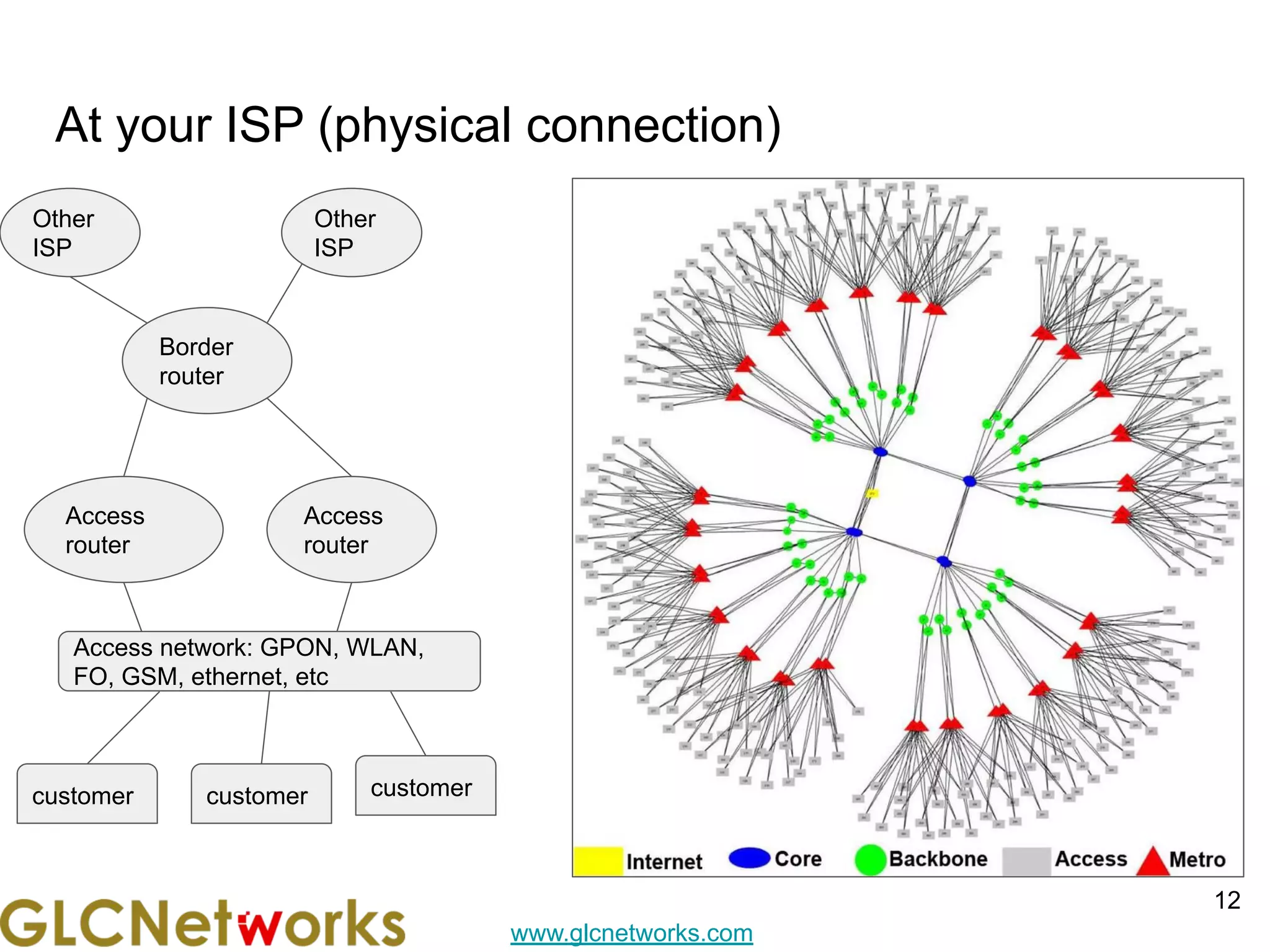

At your ISP (physical connection)
12
Border
router
Other
ISP
Other
ISP
Access
router
Access
router
customer customer customer
Access network: GPON, WLAN,
FO, GSM, ethernet, etc

13. www.glcnetworks.com

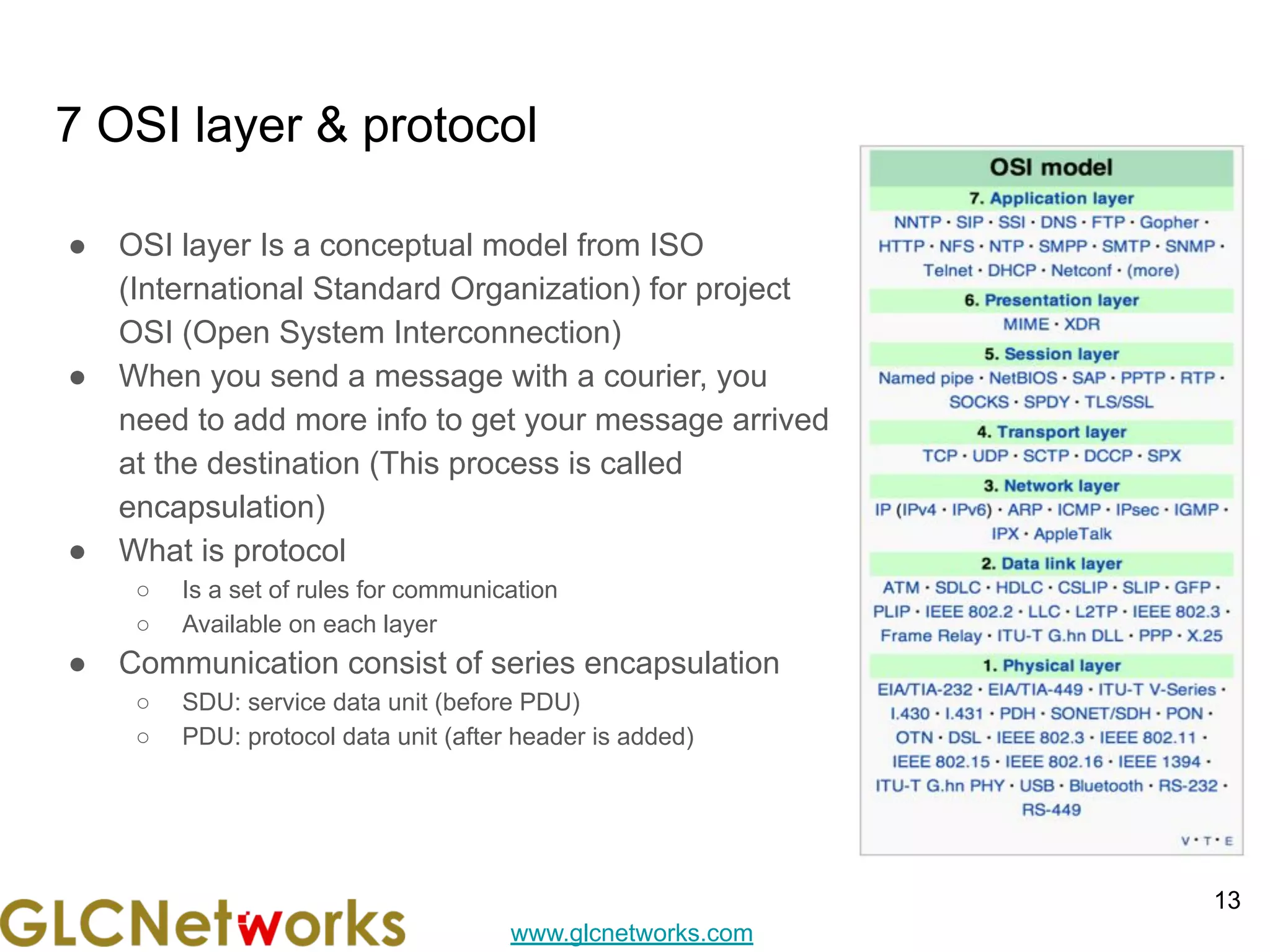

7 OSI layer & protocol
13
● OSI layer Is a conceptual model from ISO
(International Standard Organization) for project
OSI (Open System Interconnection)
● When you send a message with a courier, you
need to add more info to get your message arrived
at the destination (This process is called
encapsulation)
● What is protocol
○ Is a set of rules for communication
○ Available on each layer
● Communication consist of series encapsulation
○ SDU: service data unit (before PDU)
○ PDU: protocol data unit (after header is added)

14. www.glcnetworks.com

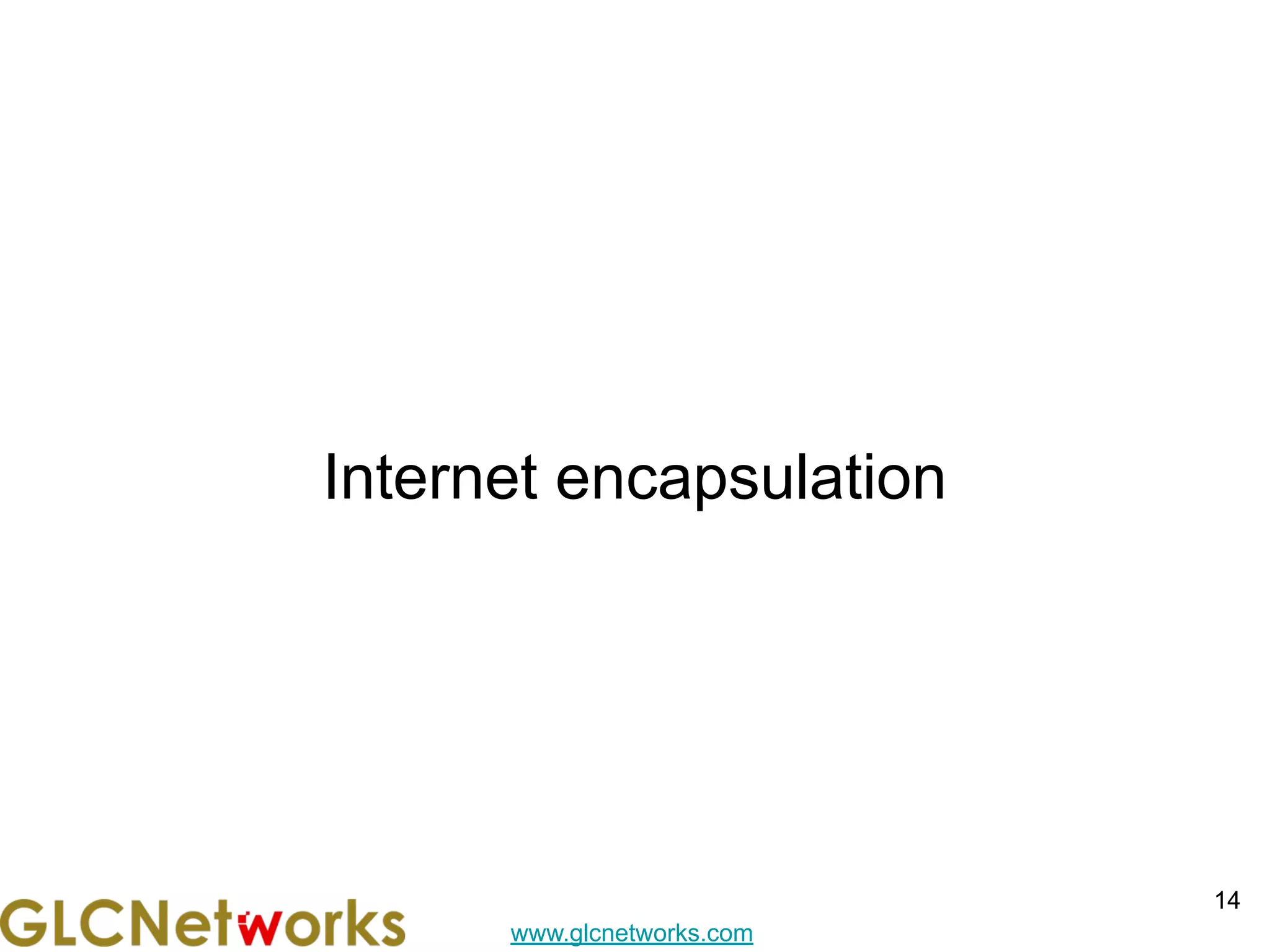

Internet encapsulation
14

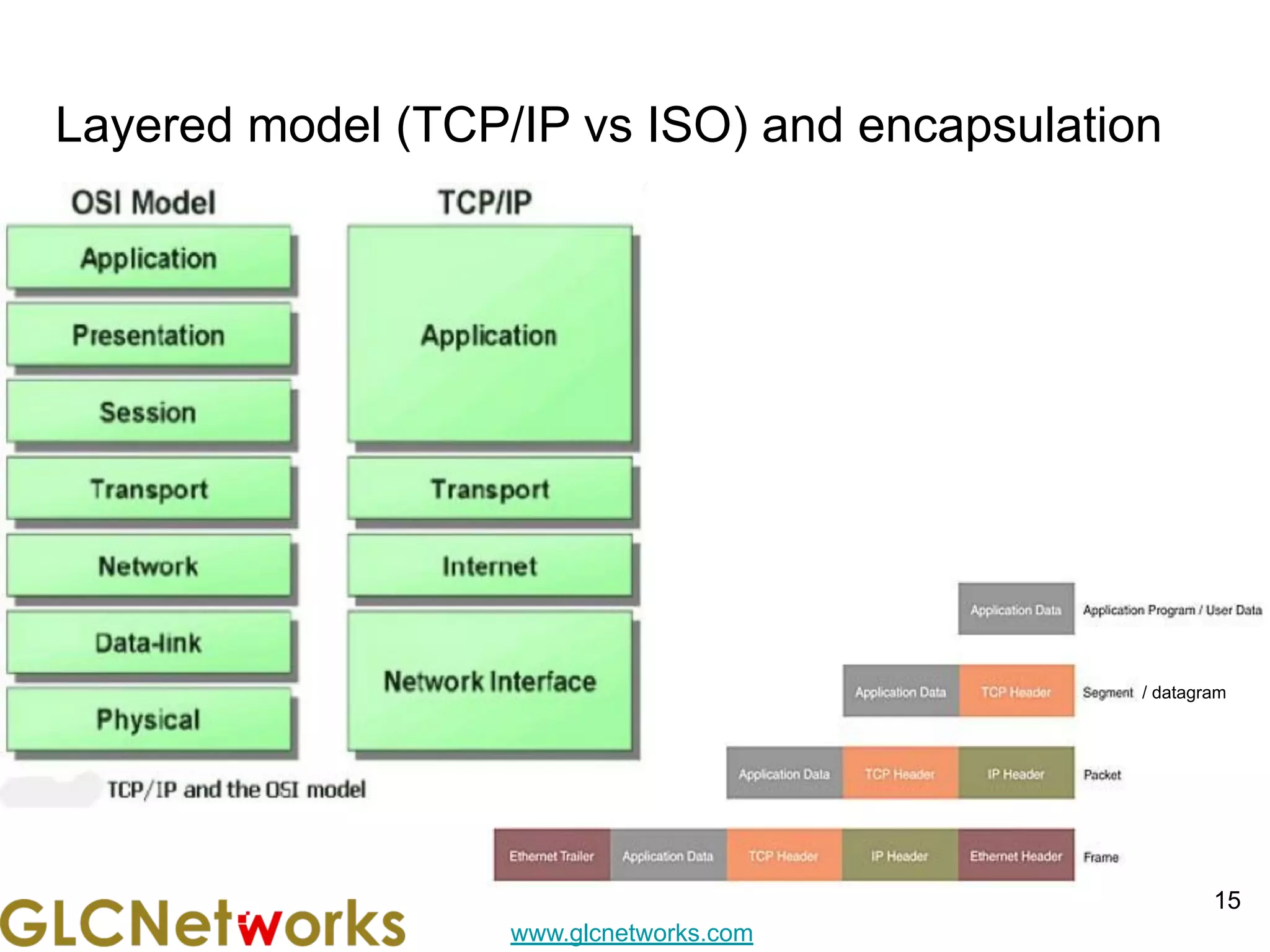

15. www.glcnetworks.com
Layered model (TCP/IP vs ISO) and encapsulation
15
/ datagram

16. www.glcnetworks.com

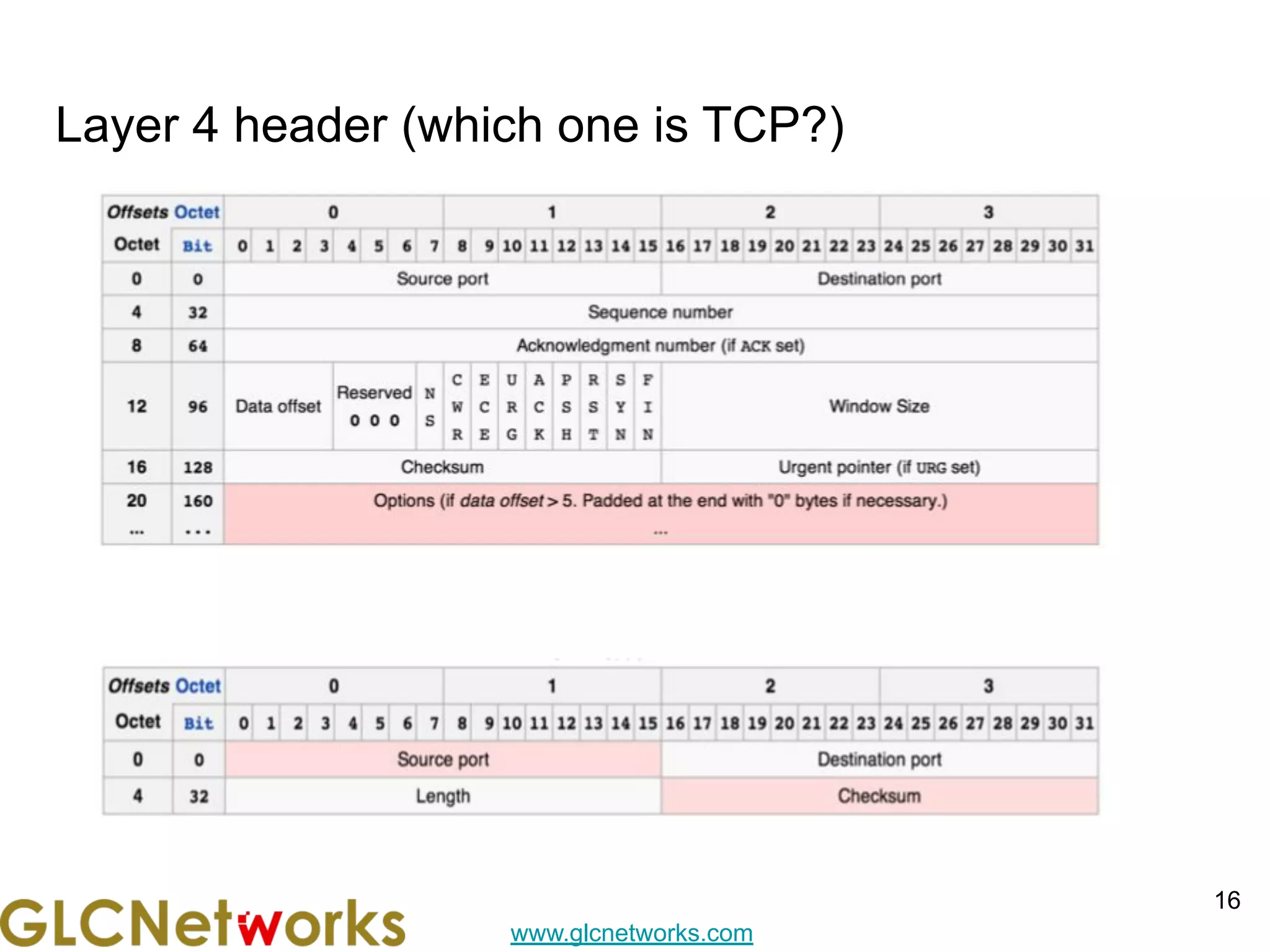

Layer 4 header (which one is TCP?)
16

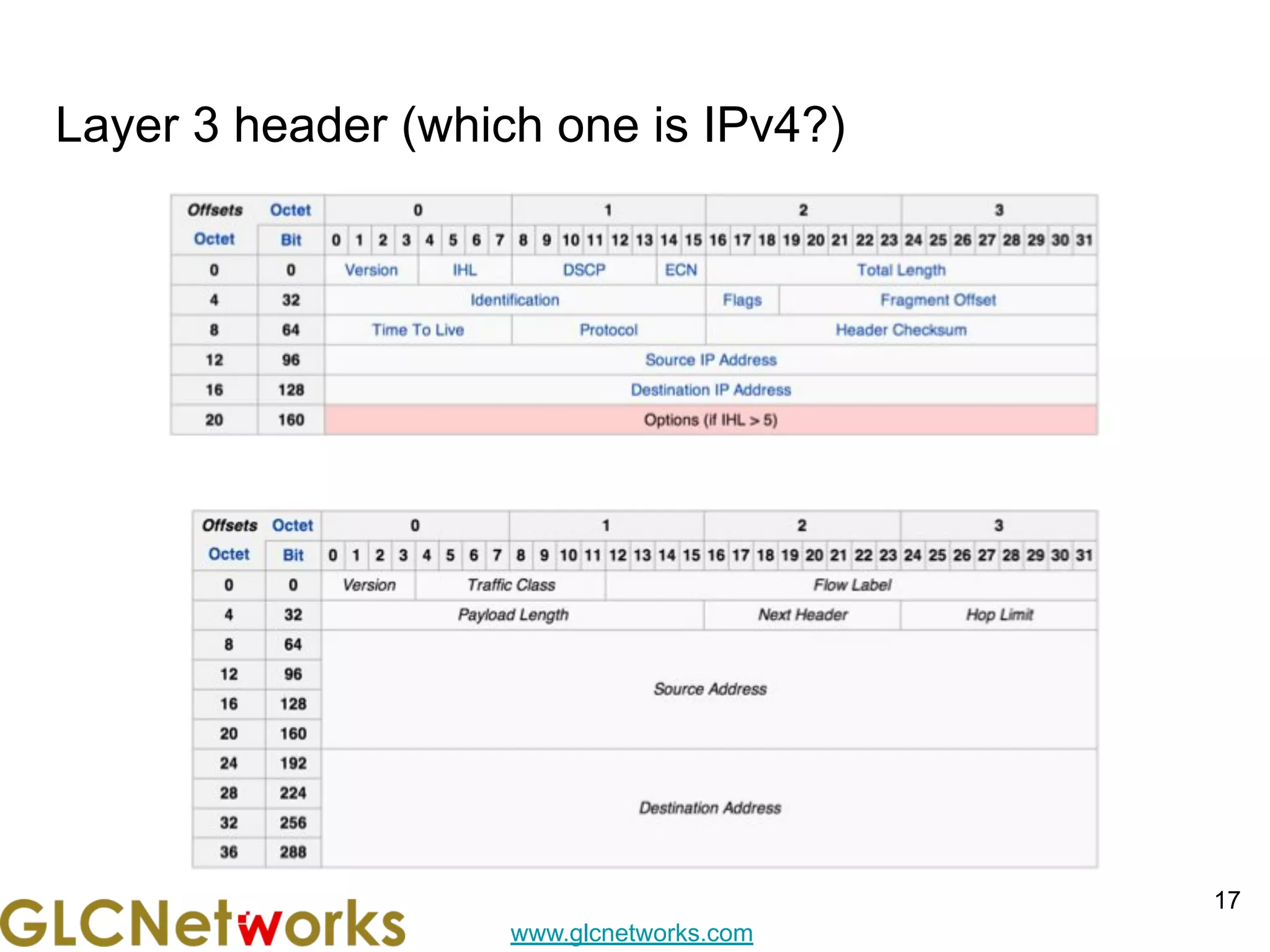

17. www.glcnetworks.com
Layer 3 header (which one is IPv4?)
17

18. www.glcnetworks.com

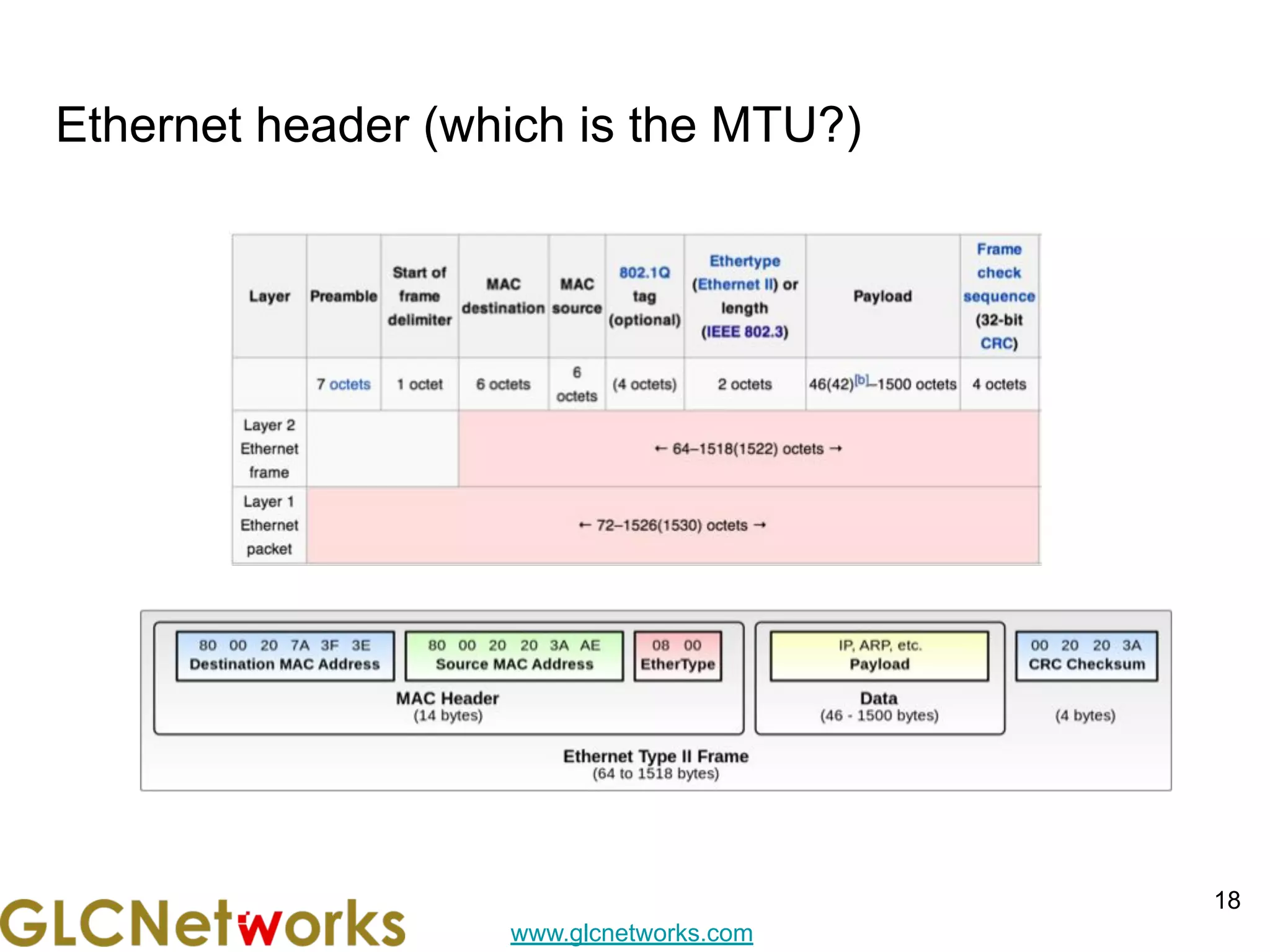

Ethernet header (which is the MTU?)
18

19. www.glcnetworks.com

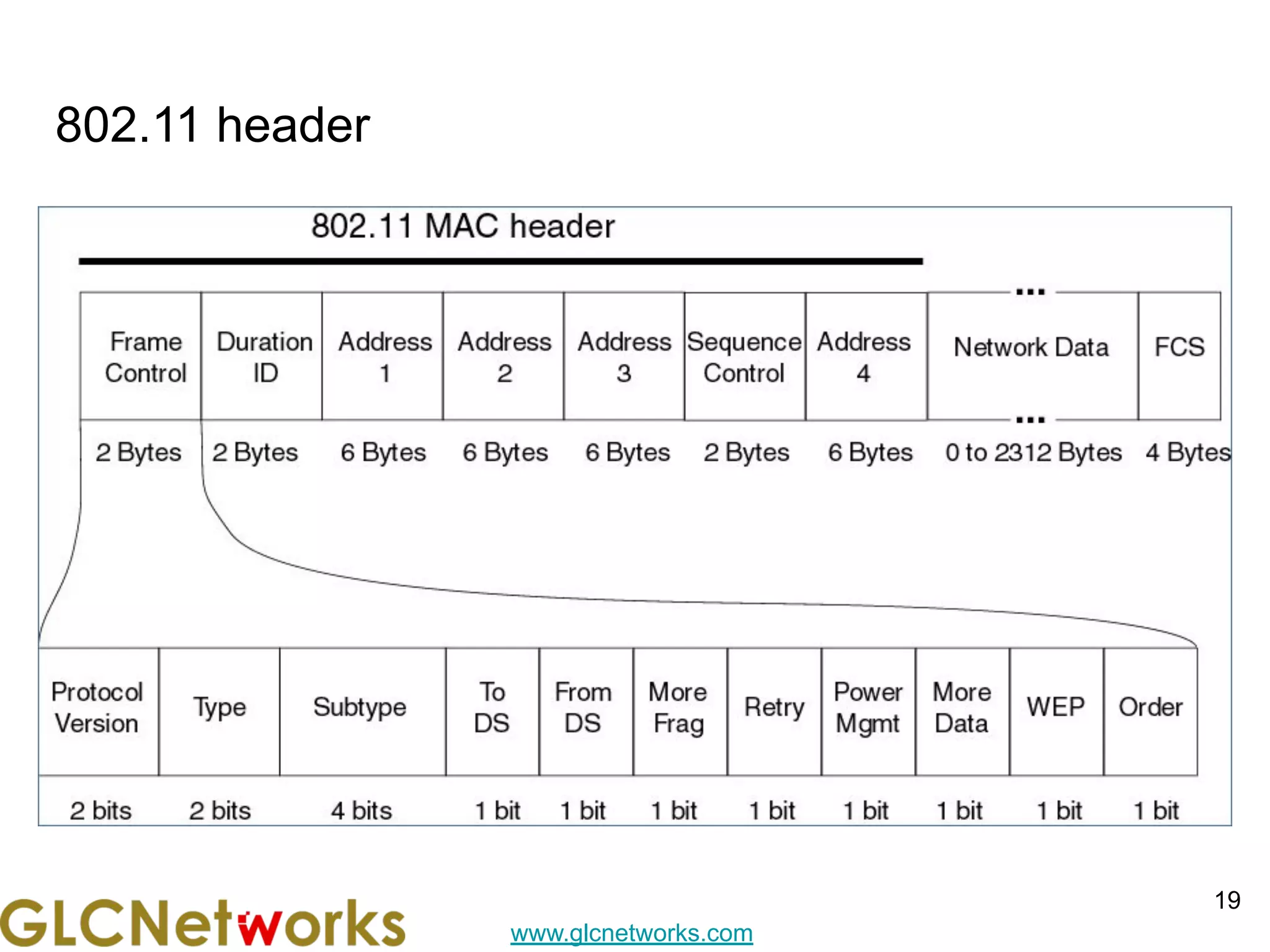

802.11 header
19

20. www.glcnetworks.com

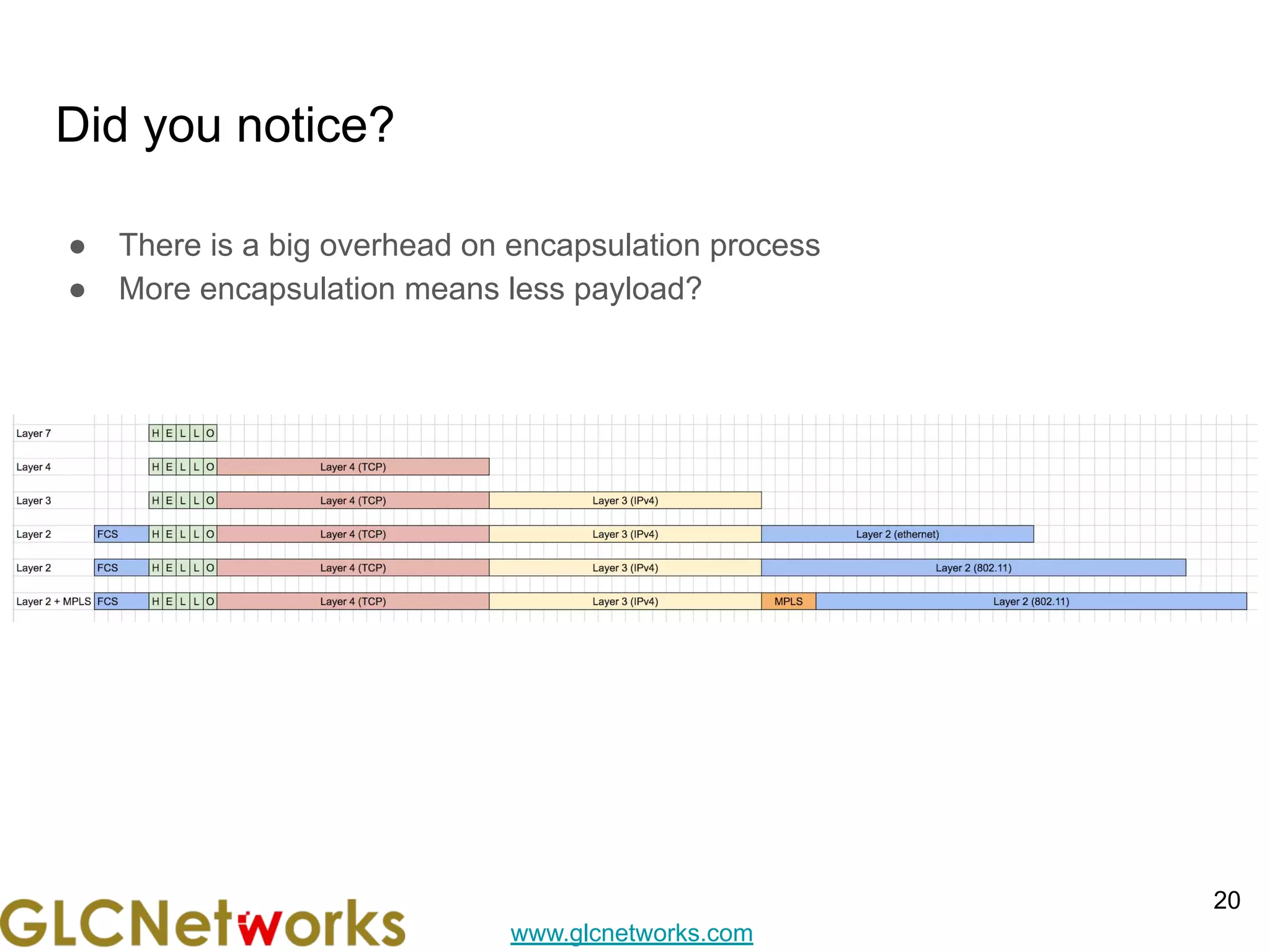

Did you notice?
● There is a big overhead on encapsulation process
● More encapsulation means less payload?
20

21. www.glcnetworks.com
ethernet
21

22. www.glcnetworks.com

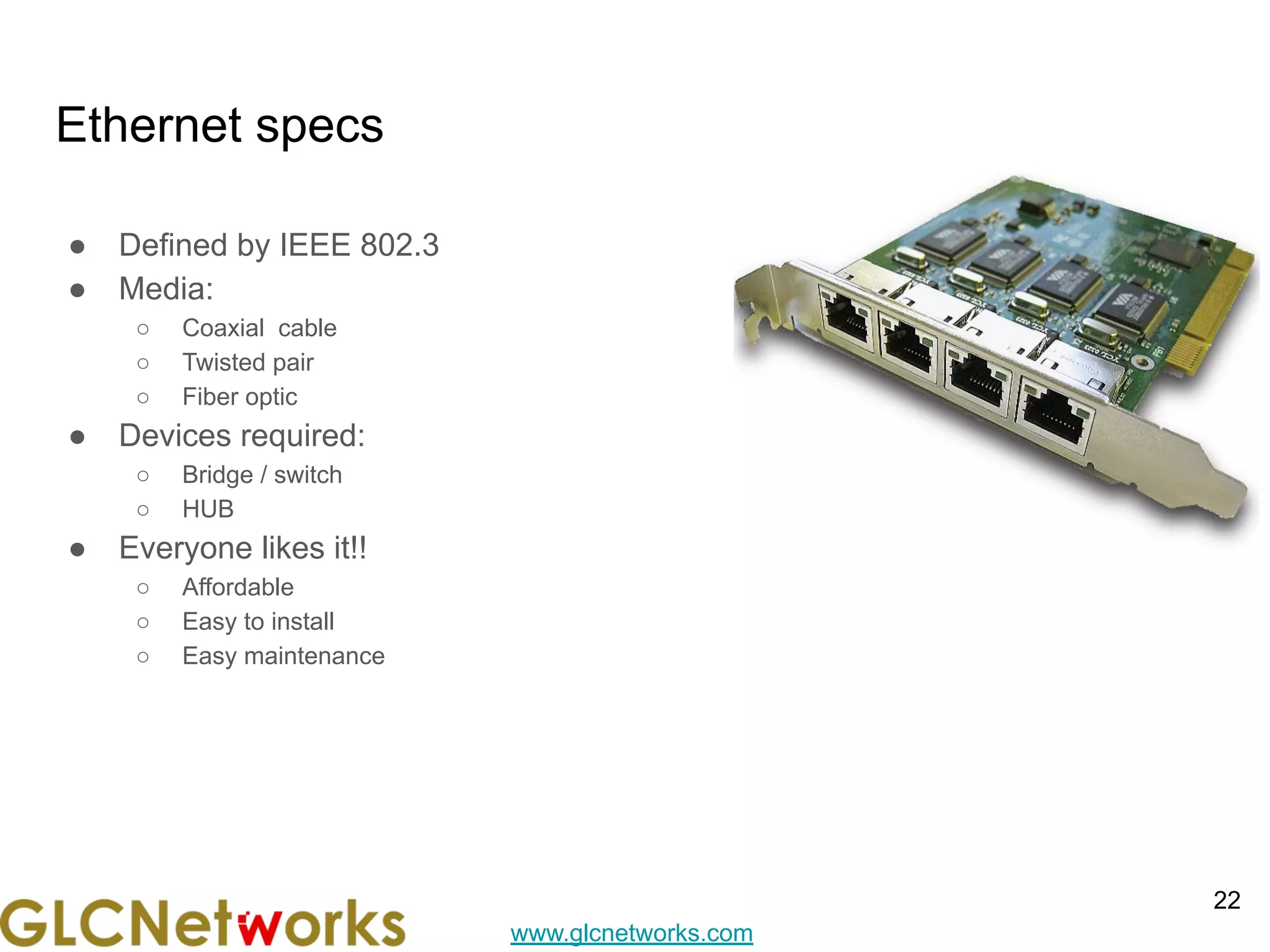

Ethernet specs
● Defined by IEEE 802.3
● Media:
○ Coaxial cable
○ Twisted pair
○ Fiber optic
● Devices required:
○ Bridge / switch
○ HUB
● Everyone likes it!!
○ Affordable
○ Easy to install
○ Easy maintenance
22

23. www.glcnetworks.com

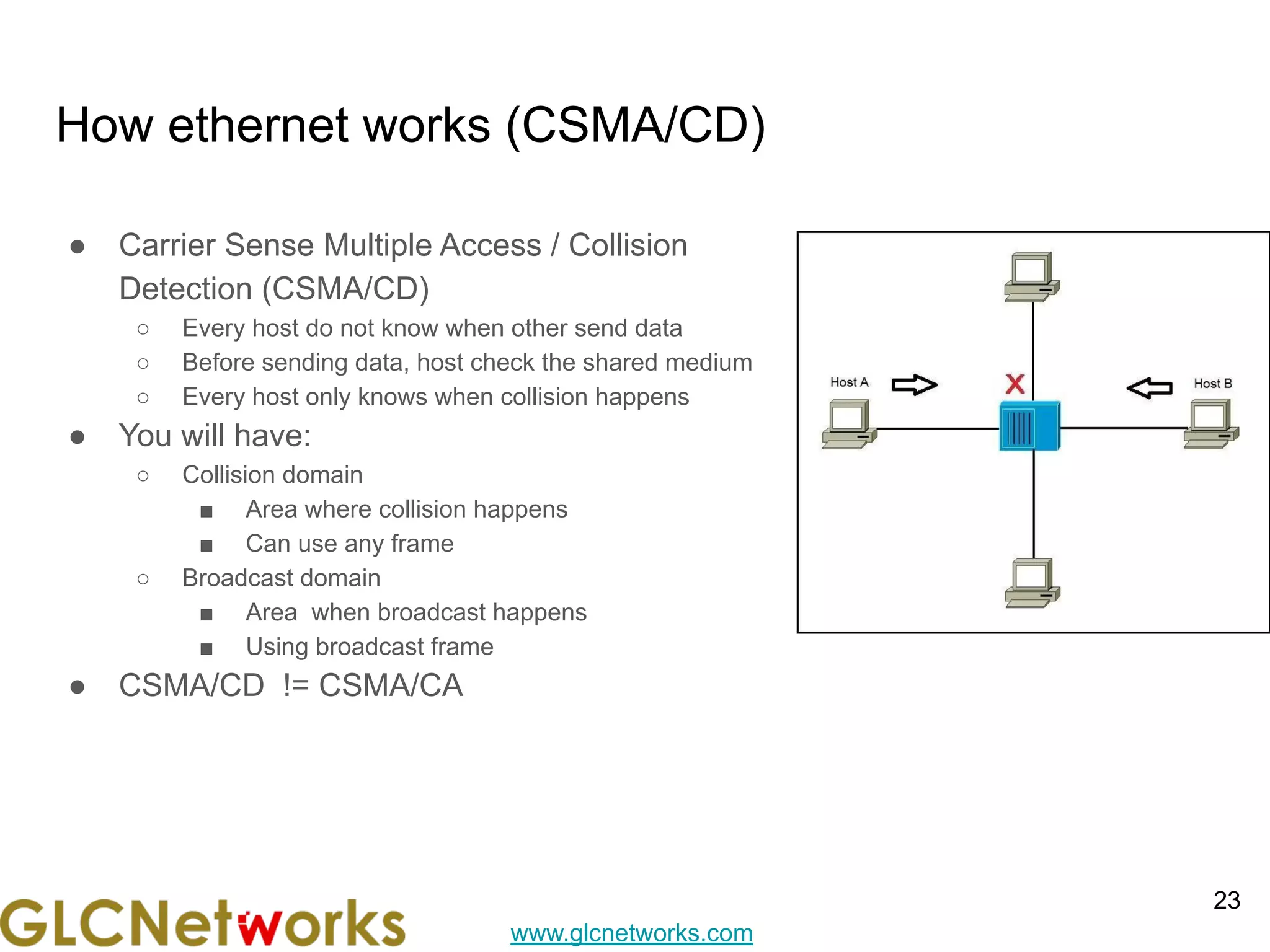

How ethernet works (CSMA/CD)
● Carrier Sense Multiple Access / Collision
Detection (CSMA/CD)
○ Every host do not know when other send data
○ Before sending data, host check the shared medium
○ Every host only knows when collision happens
● You will have:
○ Collision domain
■ Area where collision happens
■ Can use any frame
○ Broadcast domain
■ Area when broadcast happens
■ Using broadcast frame
● CSMA/CD != CSMA/CA
23

24. www.glcnetworks.com

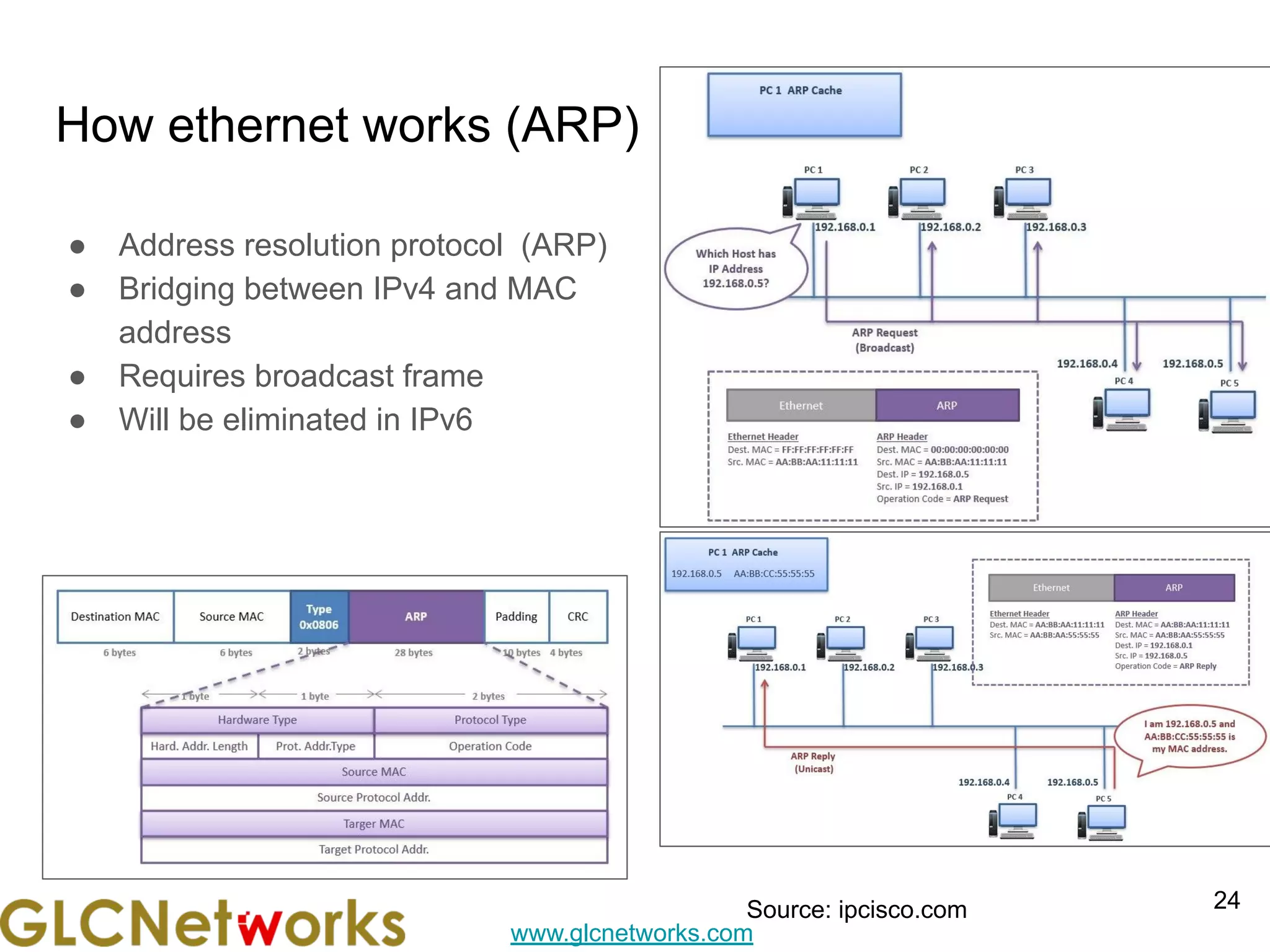

How ethernet works (ARP)
● Address resolution protocol (ARP)
● Bridging between IPv4 and MAC
address
● Requires broadcast frame
● Will be eliminated in IPv6
24
Source: ipcisco.com

25. www.glcnetworks.com

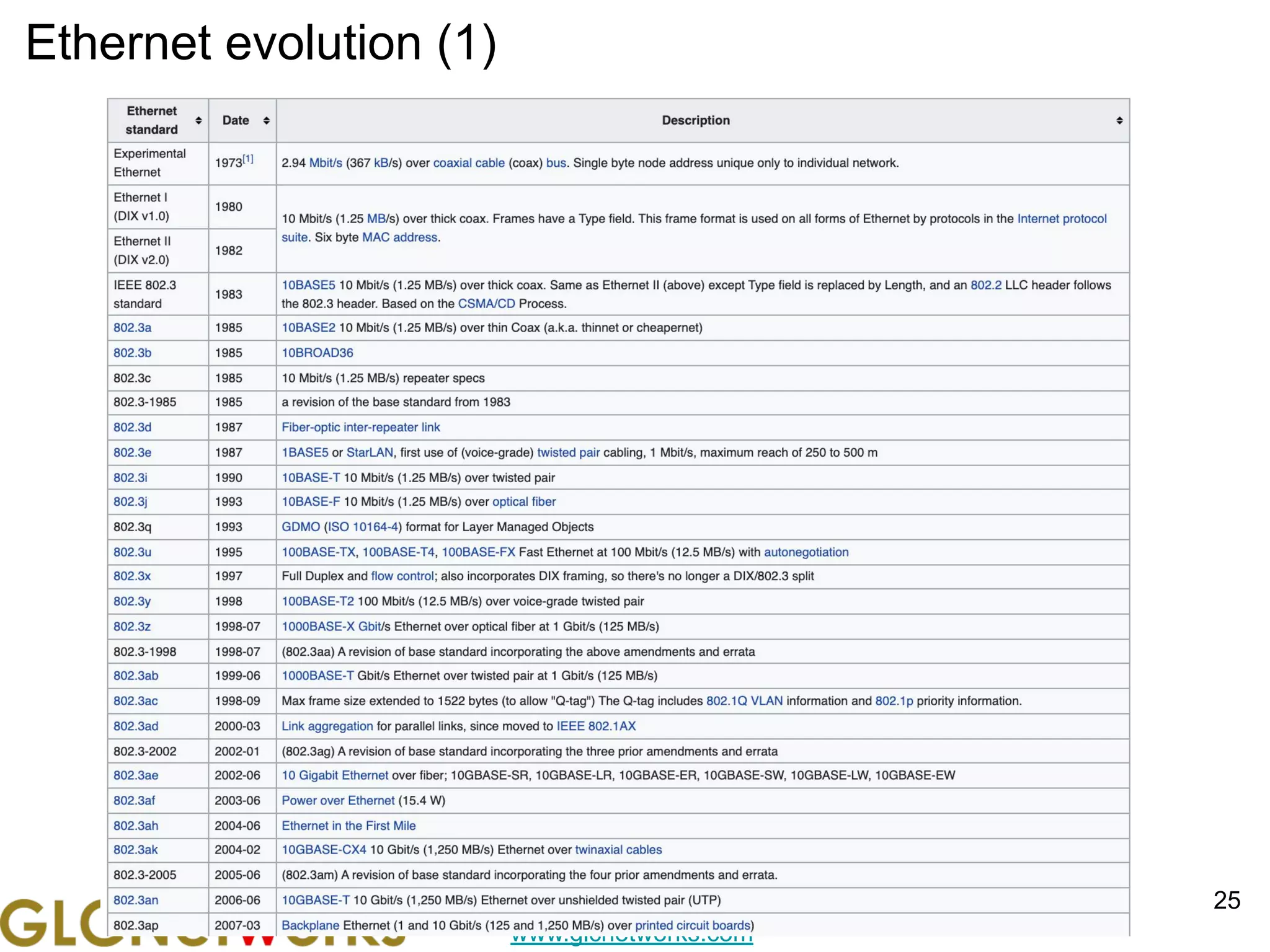

Ethernet evolution (1)
25

26. www.glcnetworks.com

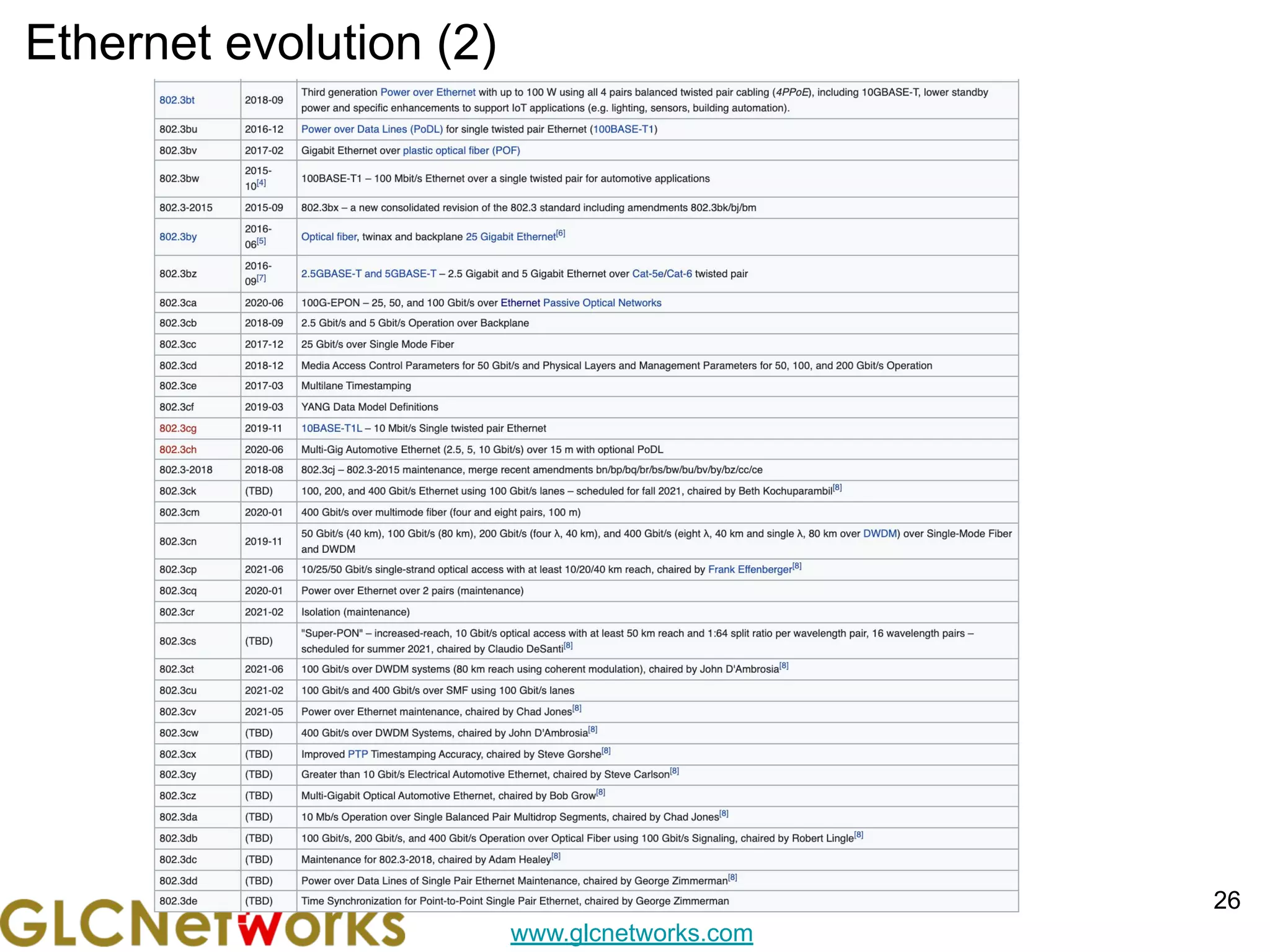

Ethernet evolution (2)
26

27. www.glcnetworks.com
Ethernet issues
27

28. www.glcnetworks.com

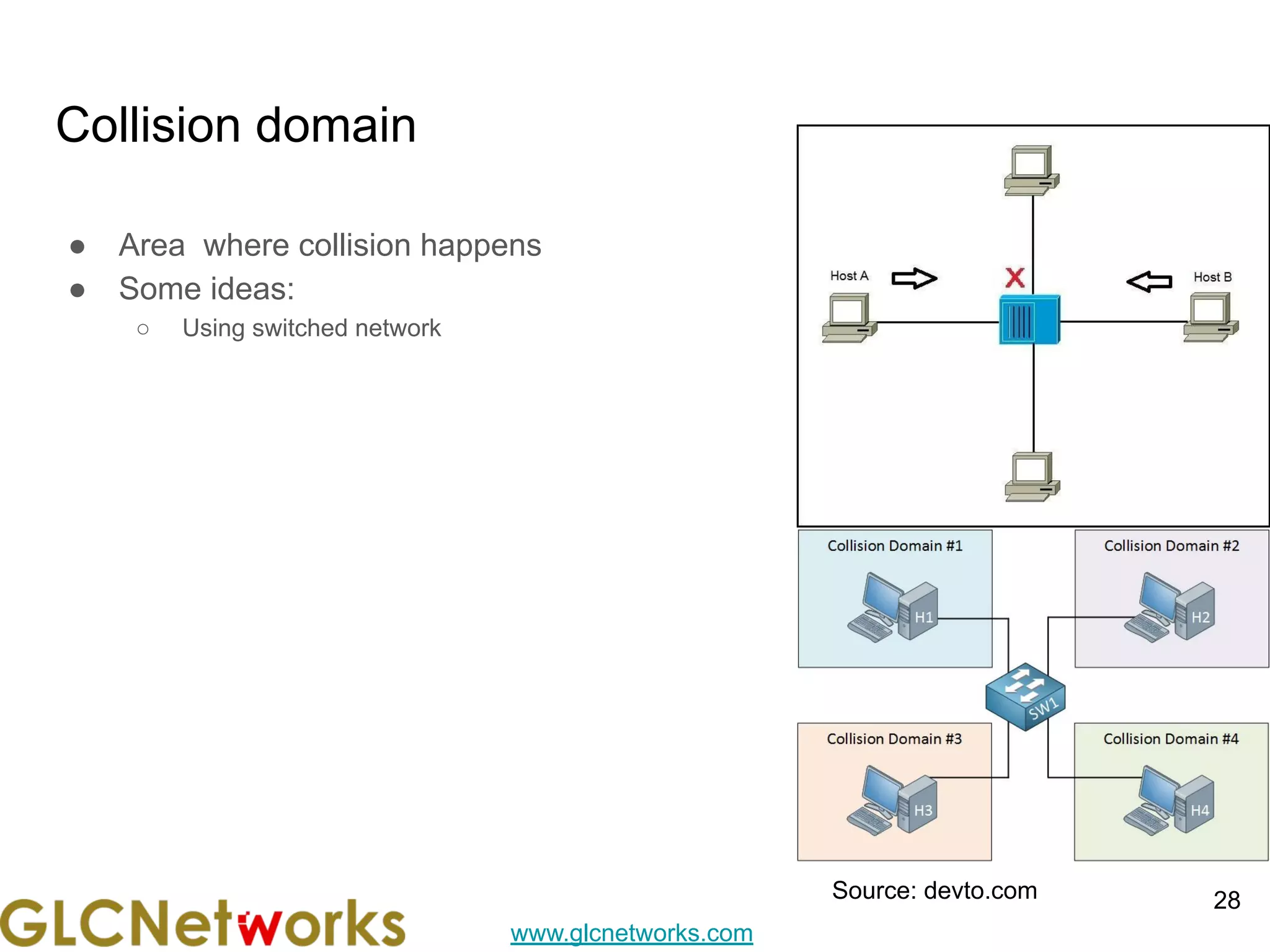

Collision domain
● Area where collision happens
● Some ideas:
○ Using switched network
28
Source: devto.com

29. www.glcnetworks.com

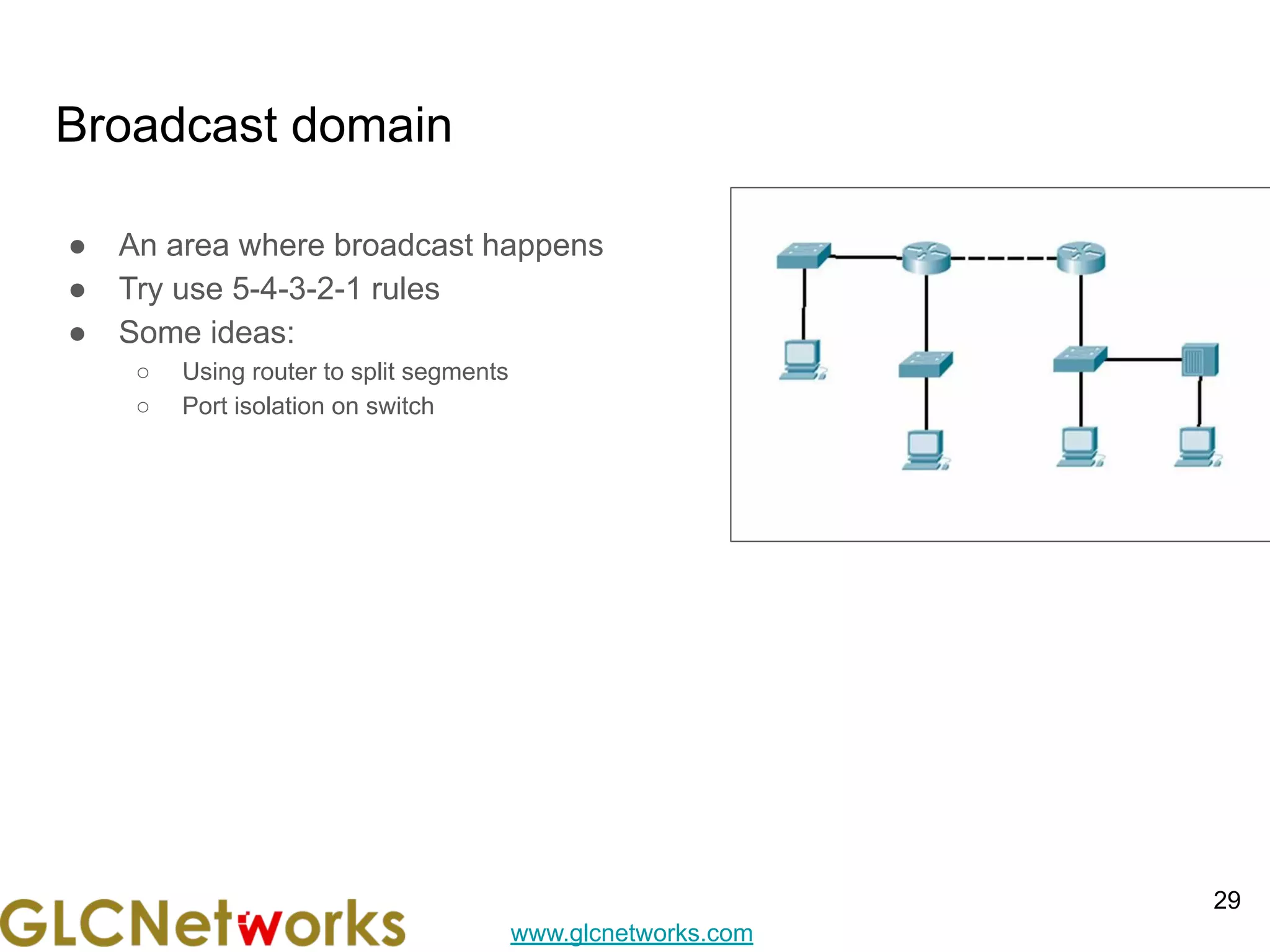

Broadcast domain
● An area where broadcast happens
● Try use 5-4-3-2-1 rules
● Some ideas:
○ Using router to split segments
○ Port isolation on switch
29

30. www.glcnetworks.com
Loop

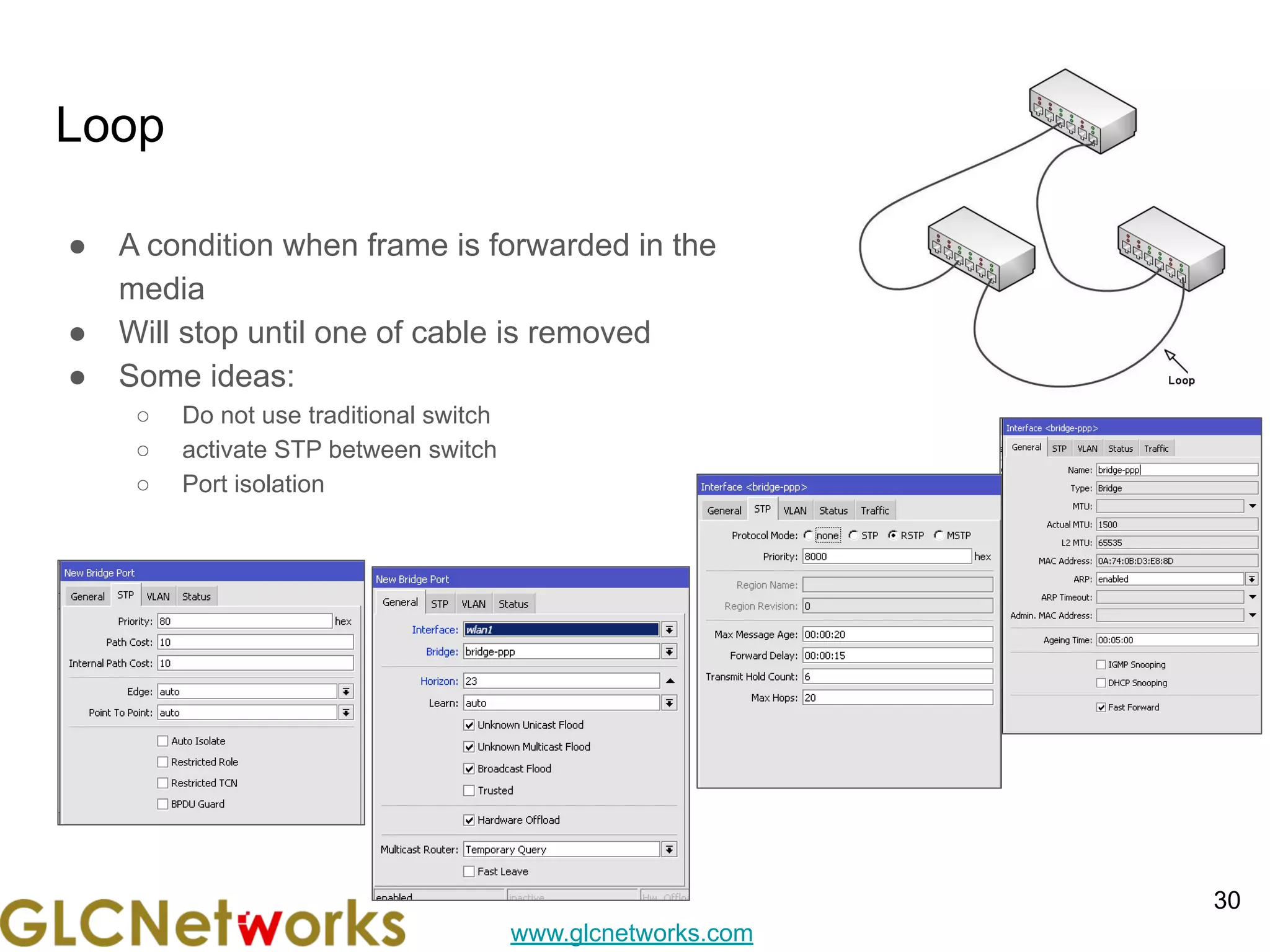

● A condition when frame is forwarded in the
media
● Will stop until one of cable is removed
● Some ideas:
○ Do not use traditional switch
○ activate STP between switch
○ Port isolation
30

31. www.glcnetworks.com

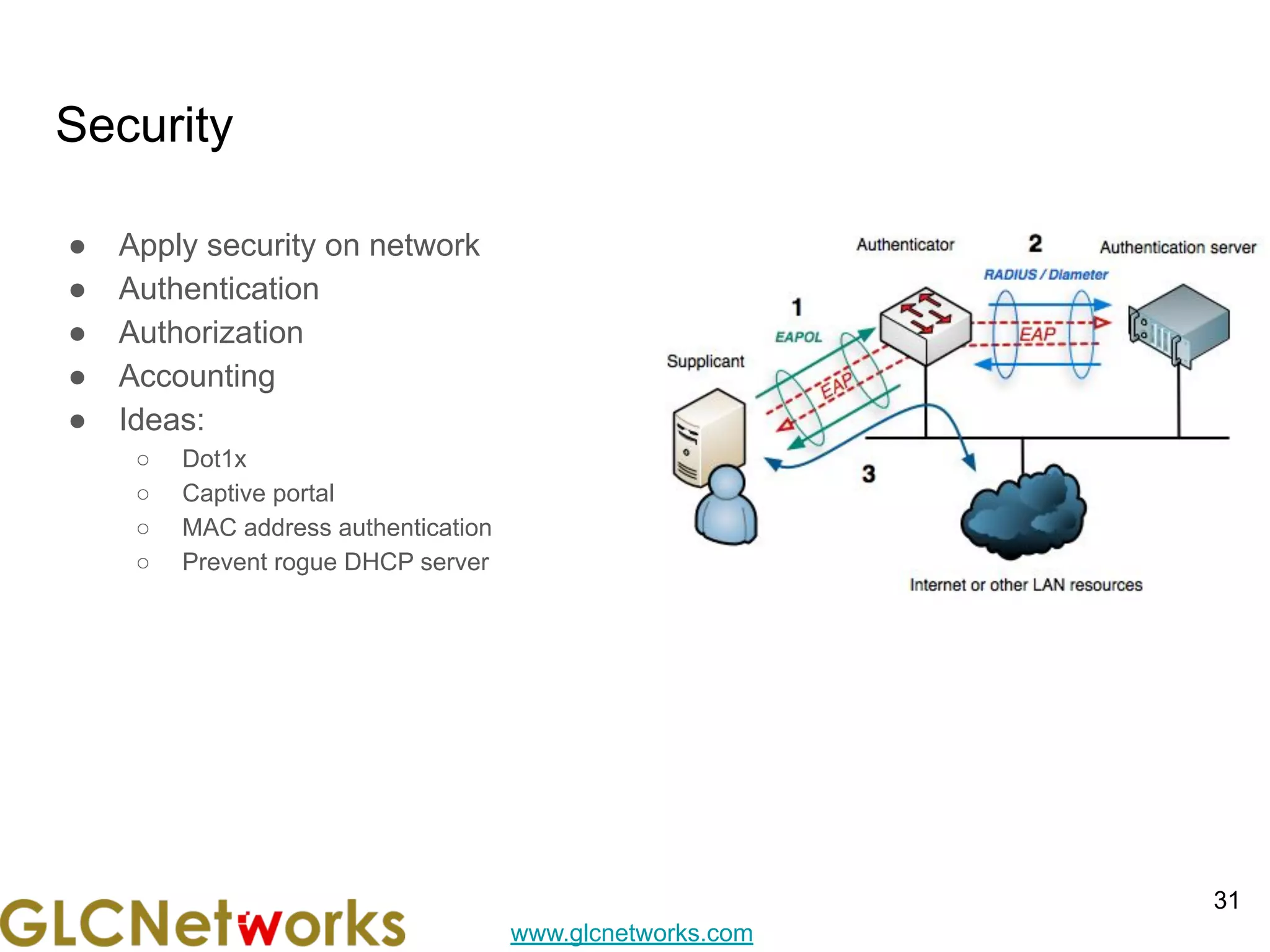

Security
● Apply security on network
● Authentication
● Authorization
● Accounting
● Ideas:
○ Dot1x
○ Captive portal
○ MAC address authentication
○ Prevent rogue DHCP server
31

32. www.glcnetworks.com

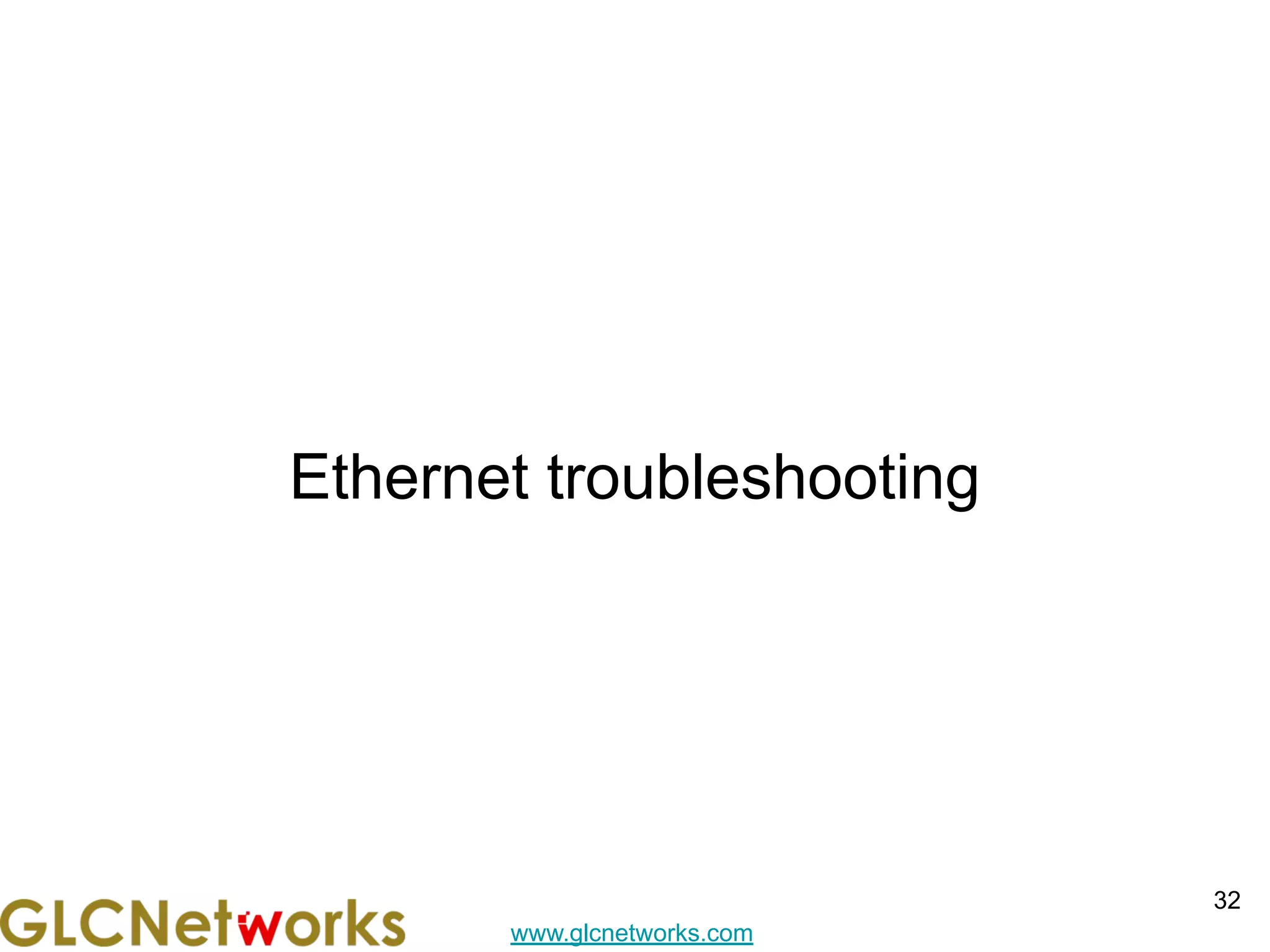

Ethernet troubleshooting
32

33. www.glcnetworks.com

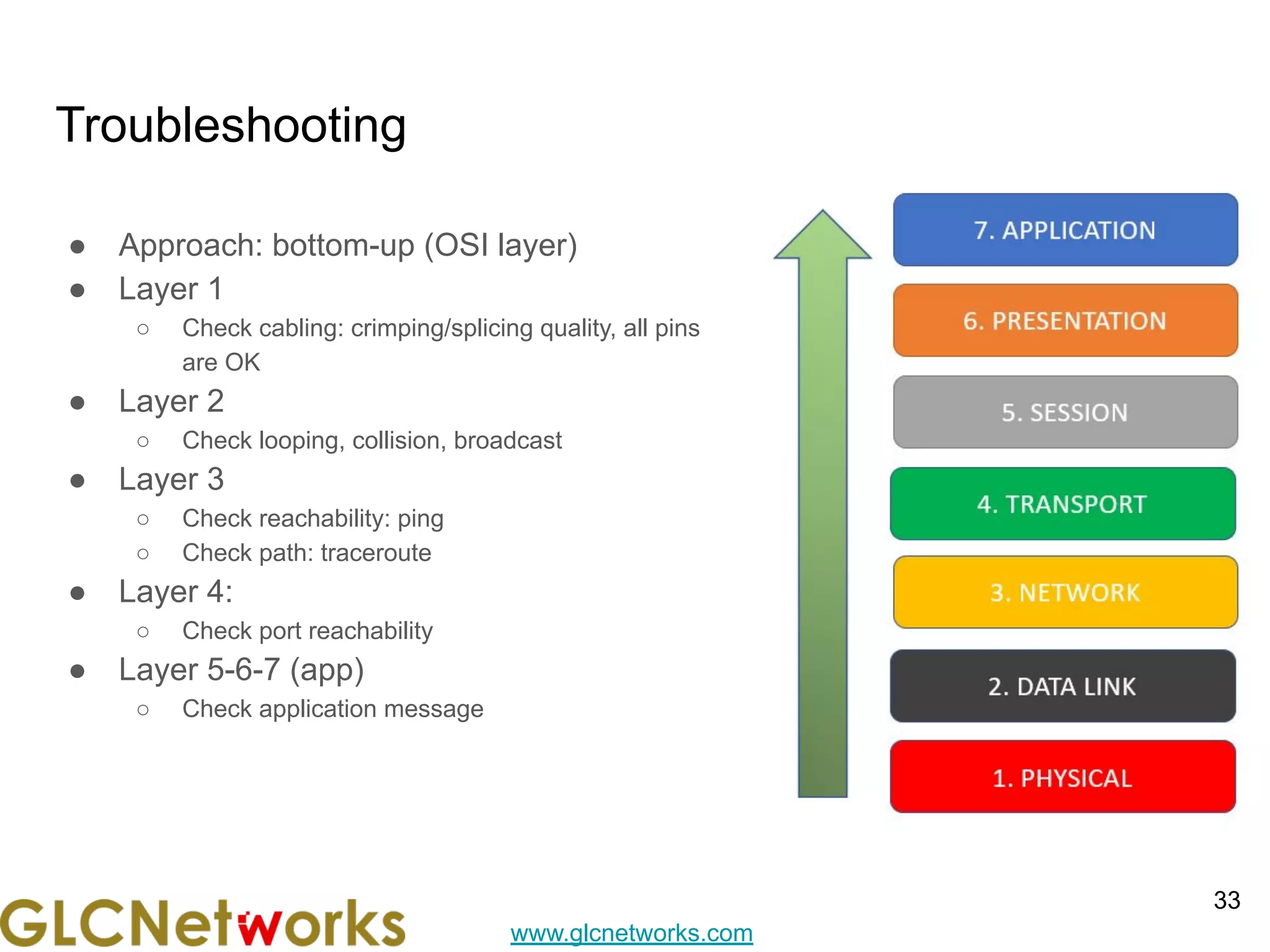

Troubleshooting
● Approach: bottom-up (OSI layer)
● Layer 1
○ Check cabling: crimping/splicing quality, all pins
are OK
● Layer 2
○ Check looping, collision, broadcast
● Layer 3
○ Check reachability: ping
○ Check path: traceroute
● Layer 4:
○ Check port reachability
● Layer 5-6-7 (app)
○ Check application message
33

34. www.glcnetworks.com

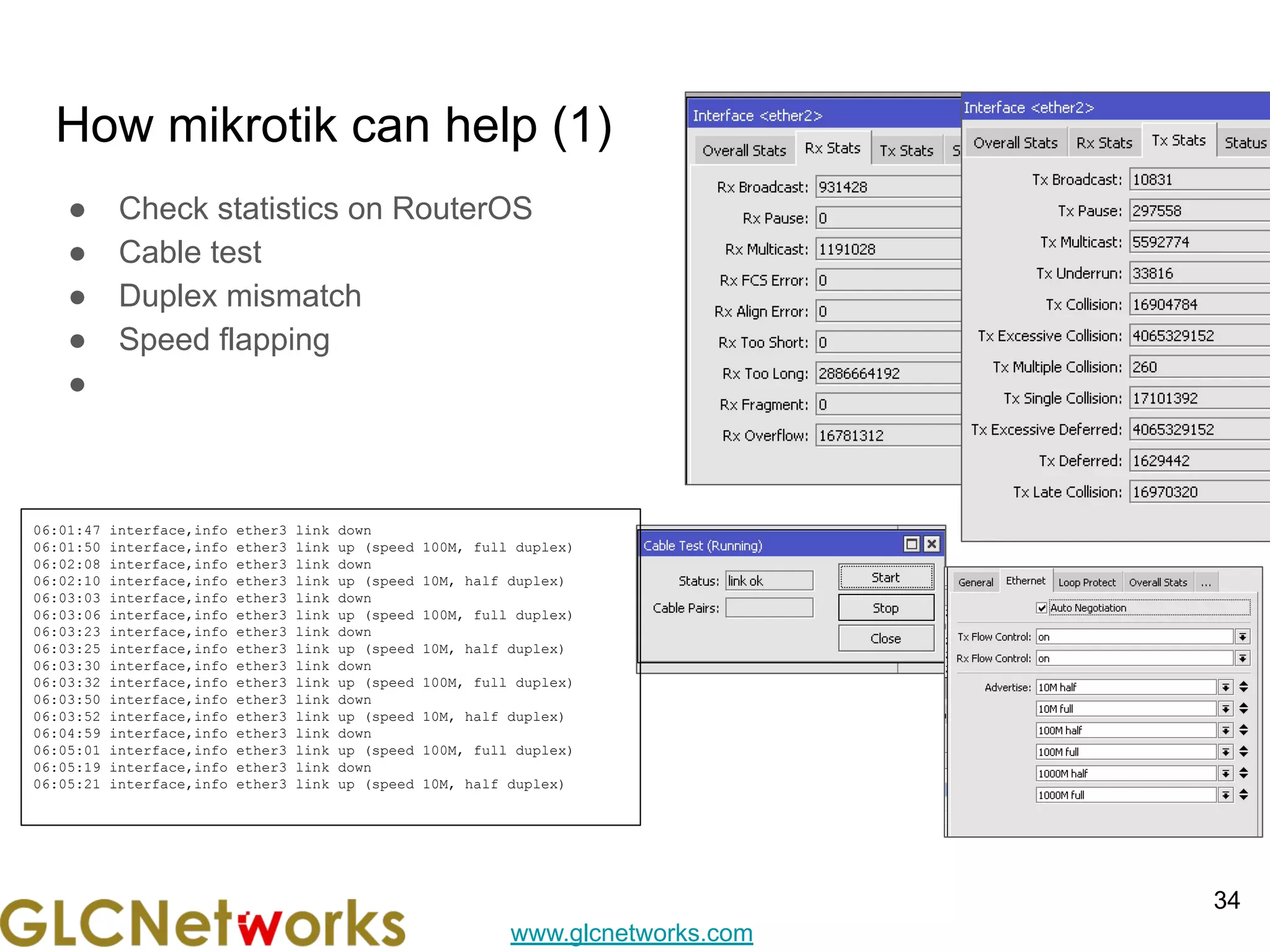

How mikrotik can help (1)
● Check statistics on RouterOS
● Cable test
● Duplex mismatch
● Speed flapping
●
34
06:01:47 interface,info ether3 link down
06:01:50 interface,info ether3 link up (speed 100M, full duplex)
06:02:08 interface,info ether3 link down
06:02:10 interface,info ether3 link up (speed 10M, half duplex)
06:03:03 interface,info ether3 link down
06:03:06 interface,info ether3 link up (speed 100M, full duplex)
06:03:23 interface,info ether3 link down
06:03:25 interface,info ether3 link up (speed 10M, half duplex)
06:03:30 interface,info ether3 link down
06:03:32 interface,info ether3 link up (speed 100M, full duplex)
06:03:50 interface,info ether3 link down
06:03:52 interface,info ether3 link up (speed 10M, half duplex)
06:04:59 interface,info ether3 link down
06:05:01 interface,info ether3 link up (speed 100M, full duplex)
06:05:19 interface,info ether3 link down
06:05:21 interface,info ether3 link up (speed 10M, half duplex)

35. www.glcnetworks.com
How mikrotik can help (2)

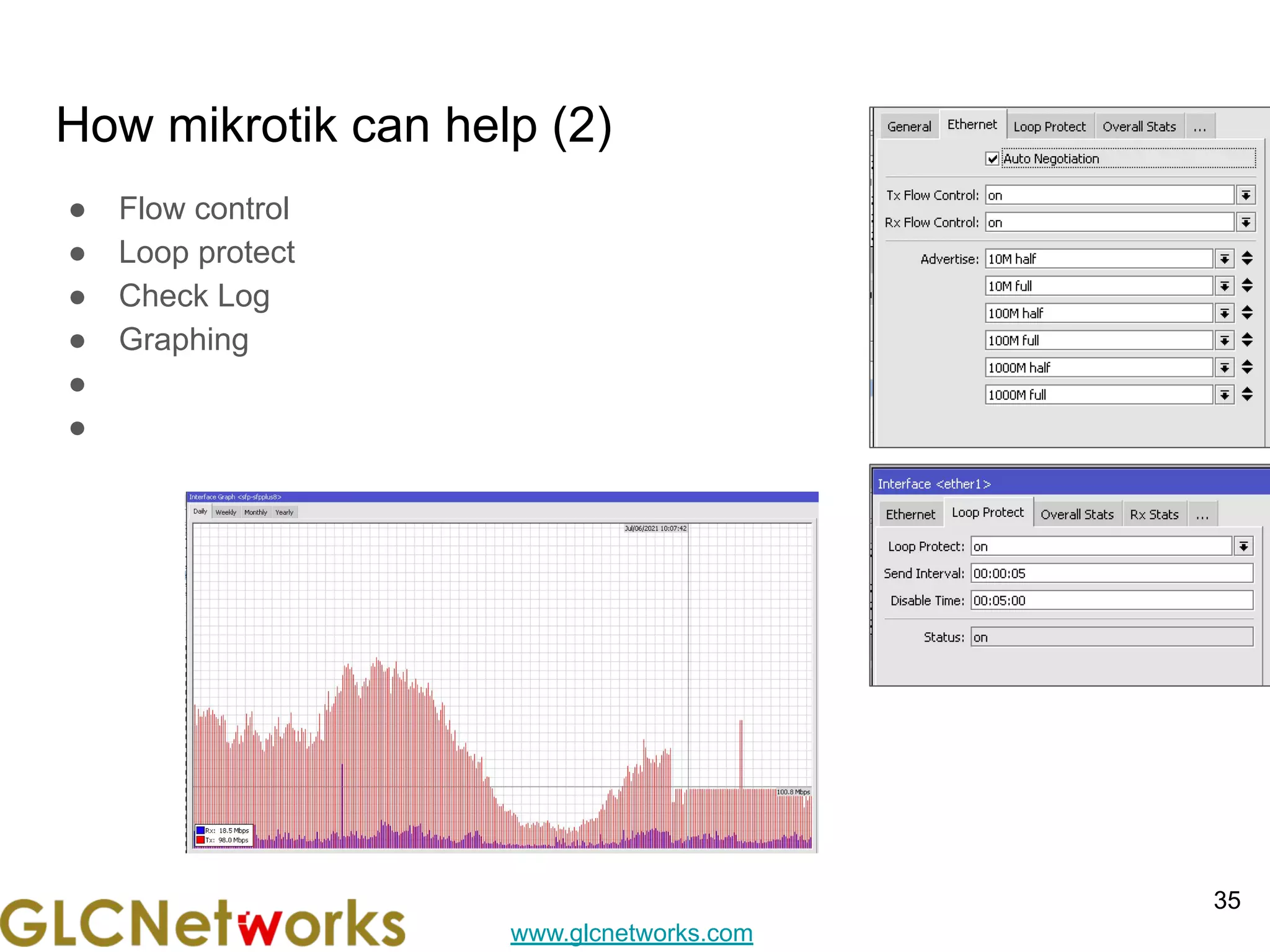

● Flow control
● Loop protect
● Check Log
● Graphing
●
●
35

36. www.glcnetworks.com

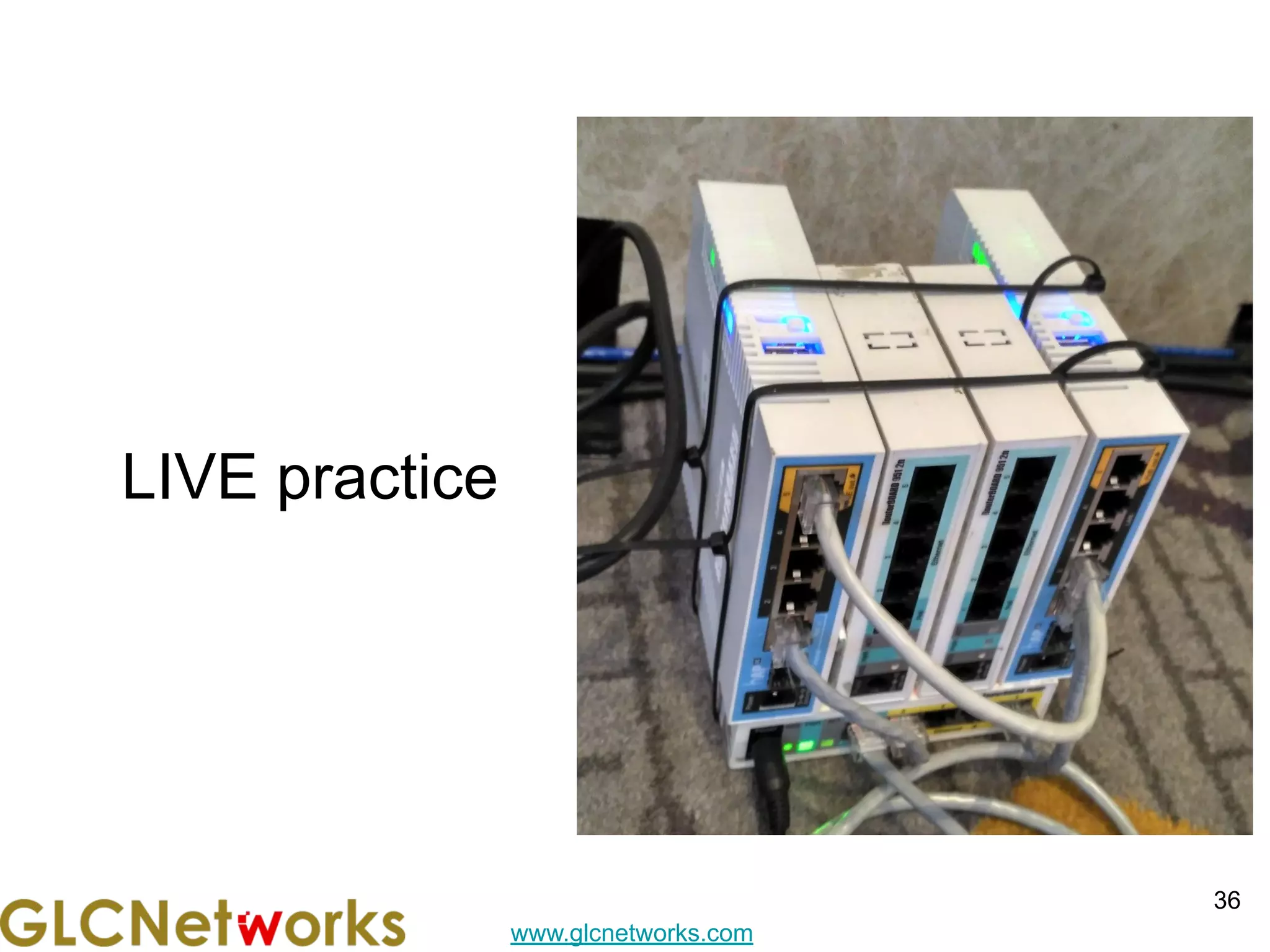

LIVE practice
36

37. www.glcnetworks.com
preparation
● SSH client
● SSH parameters
○ SSH address
○ SSH port
○ SSH username
○ SSH password
37

38. www.glcnetworks.com
Q & A
38

39. www.glcnetworks.com
Interested? Just come to our training...
● Topics are arranged in systematic and logical way
● You will learn from experienced teacher
● Not only learn the materials, but also sharing experiences, best-practices, and
networking
39

40. www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Find our further event on our website : https://www.glcnetworks.com/en/
● Like our facebook page: https://www.facebook.com/glcnetworks
● Slide: https://www.slideshare.net/glcnetworks/
● Discord (bahasa indonesia): (https://discord.gg/6MZ3KUHHBX)
● Recording (youtube): https://www.youtube.com/c/GLCNetworks
● Stay tune with our schedule
● Any questions?
