1. IPv4 vs IPv6
Presented Devang Doshi on: Aug 27, 2015

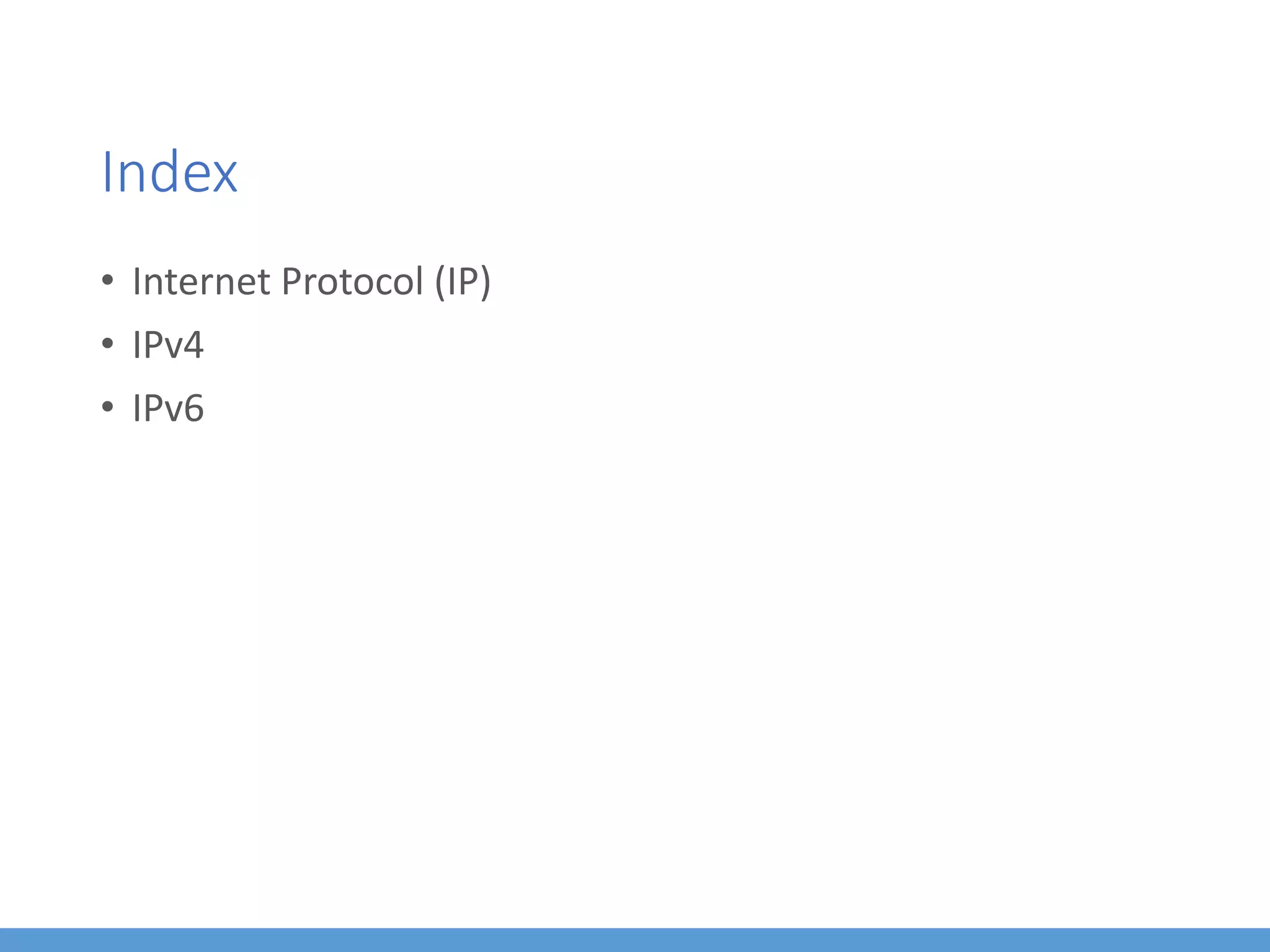

2. Index
• Internet Protocol (IP)
• IPv4
• IPv6

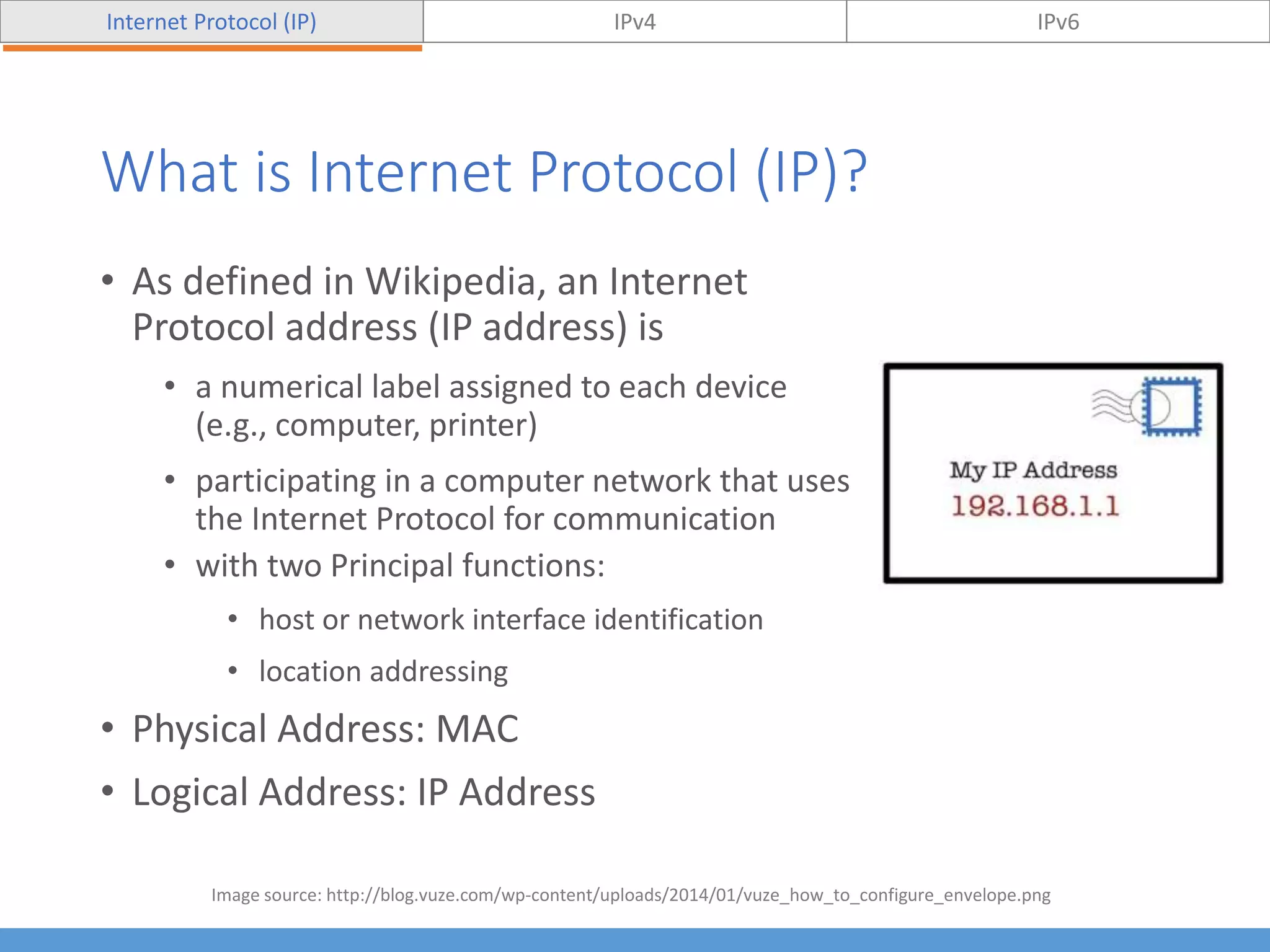

3. What is Internet Protocol (IP)?
• As defined in Wikipedia, an Internet
Protocol address (IP address) is
• a numerical label assigned to each device
(e.g., computer, printer)
• participating in a computer network that uses
the Internet Protocol for communication
• with two Principal functions:
• host or network interface identification
• location addressing
• Physical Address: MAC
• Logical Address: IP Address
Internet Protocol (IP) IPv4 IPv6
Image source: http://blog.vuze.com/wp-content/uploads/2014/01/vuze_how_to_configure_envelope.png

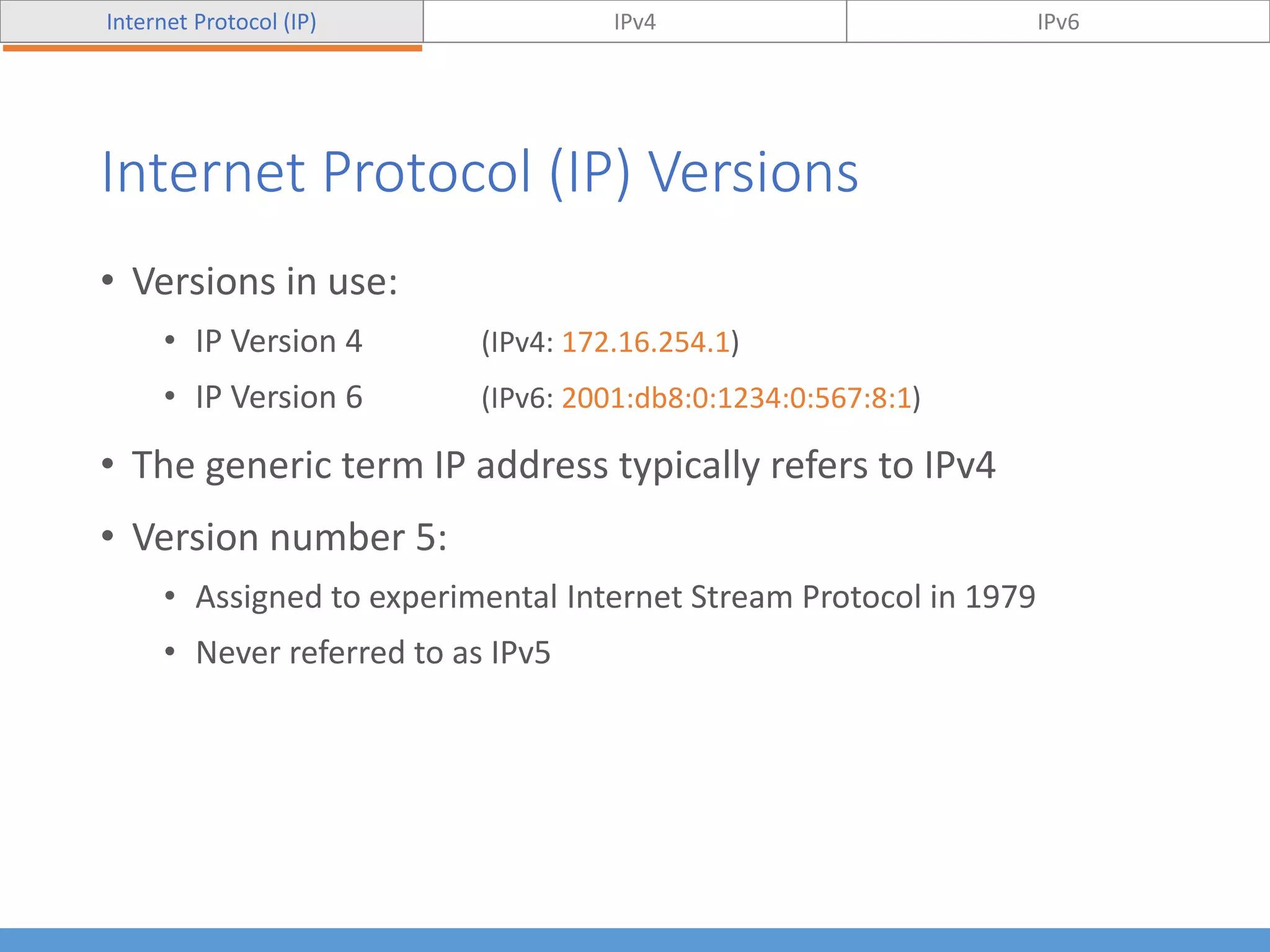

4. Internet Protocol (IP) Versions
• Versions in use:
• IP Version 4 (IPv4: 172.16.254.1)
• IP Version 6 (IPv6: 2001:db8:0:1234:0:567:8:1)
• The generic term IP address typically refers to IPv4
• Version number 5:
• Assigned to experimental Internet Stream Protocol in 1979
• Never referred to as IPv5
Internet Protocol (IP) IPv4 IPv6

5. IPv4 Address
• IPv4 addresses are 32 bits
• ~4 Million address
(232 = 4294967296)
• Dotted-decimal notation
• 4 decimal numbers
• Ranging from 0 to 255
• Separated by dots (.)
• Each part represents a group of
8 bits (octet) of the address
Internet Protocol (IP) IPv4 IPv6
Image source: https://en.wikipedia.org/wiki/IP_address#/media/File:Ipv4_address.svg

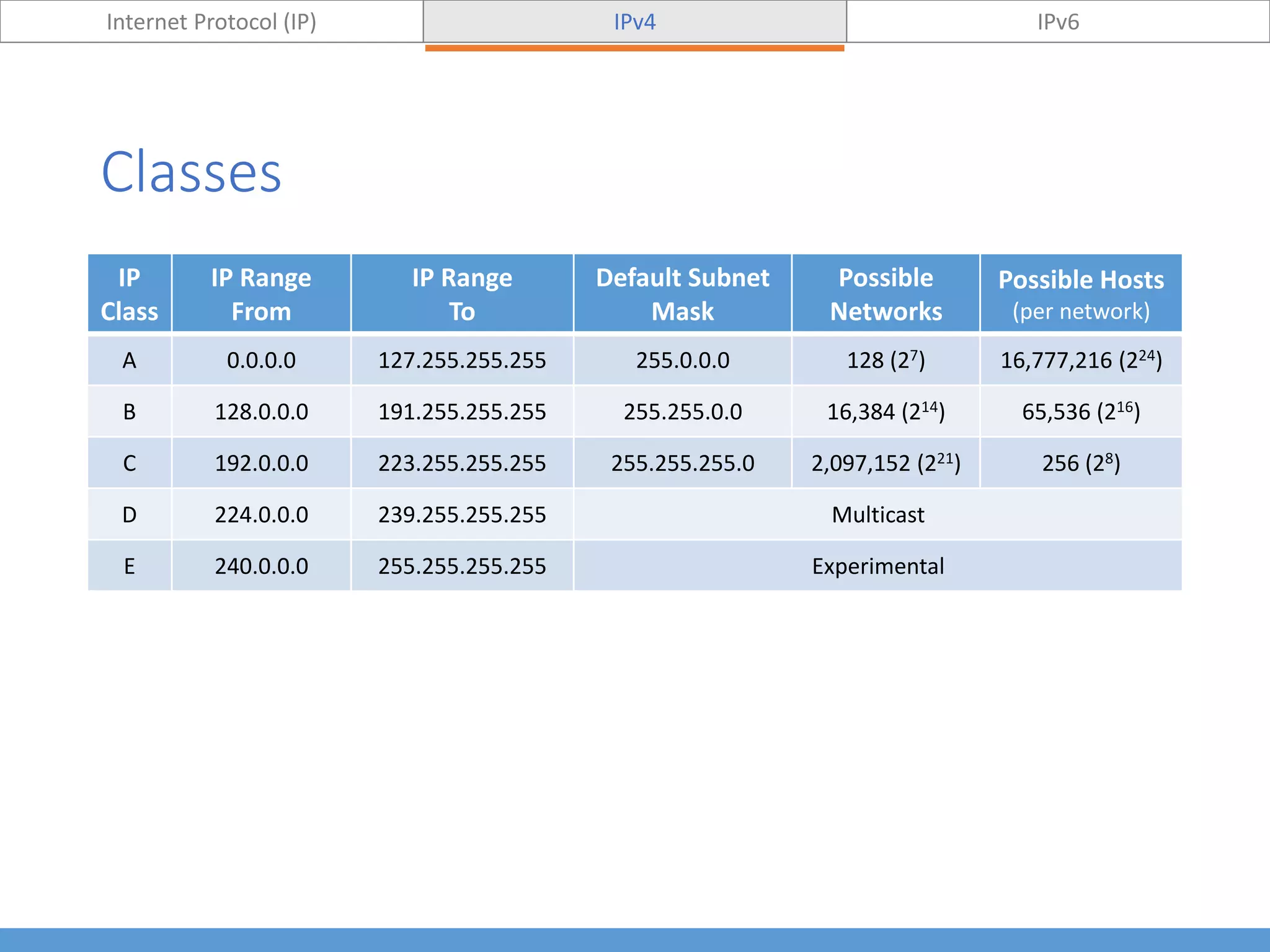

6. Classes
IP
Class
IP Range
From
IP Range
To
Default Subnet
Mask
Possible
Networks
Possible Hosts
(per network)
A 0.0.0.0 127.255.255.255 255.0.0.0 128 (27) 16,777,216 (224)
B 128.0.0.0 191.255.255.255 255.255.0.0 16,384 (214) 65,536 (216)
C 192.0.0.0 223.255.255.255 255.255.255.0 2,097,152 (221) 256 (28)
D 224.0.0.0 239.255.255.255 Multicast
E 240.0.0.0 255.255.255.255 Experimental
Internet Protocol (IP) IPv4 IPv6

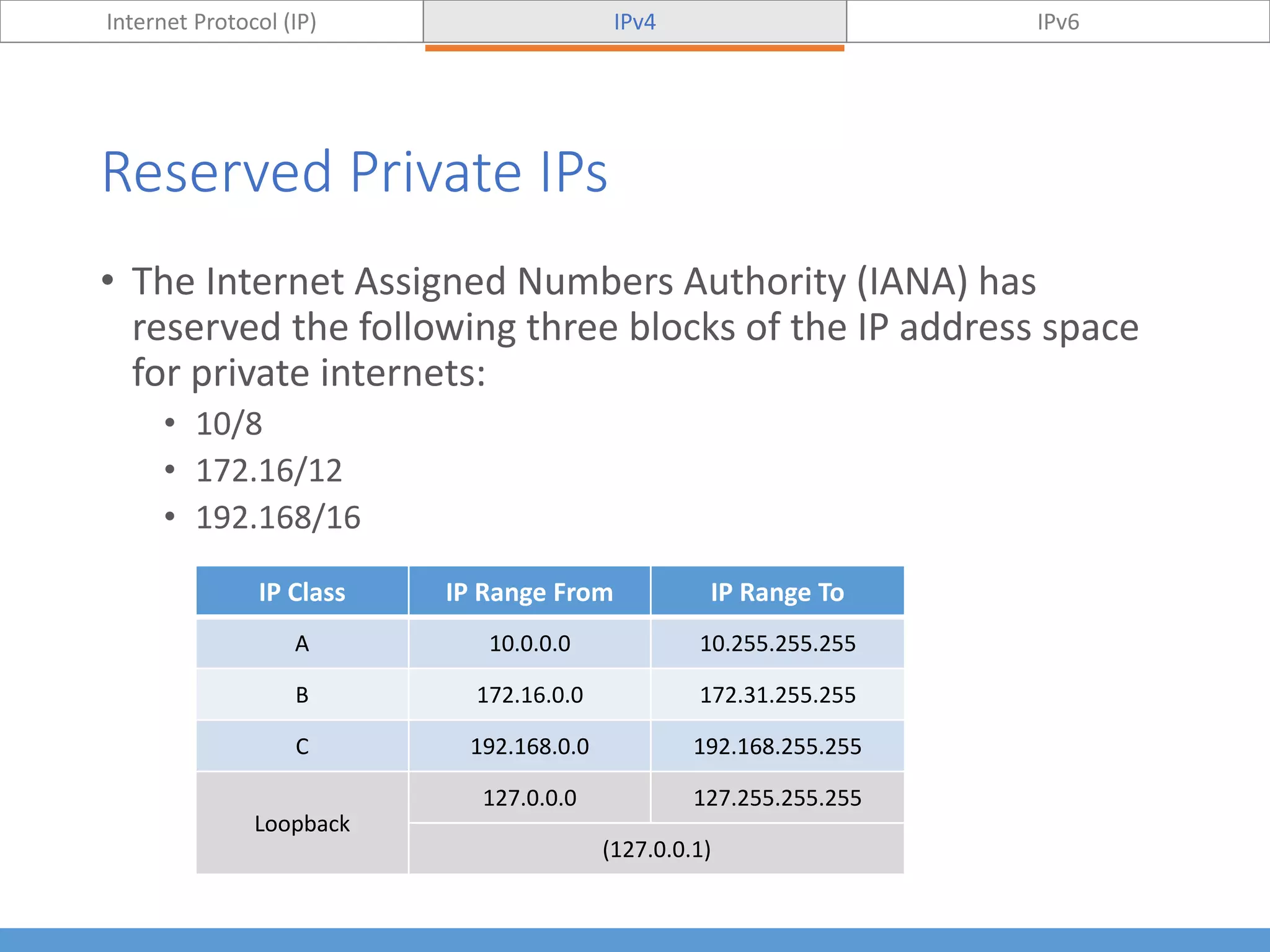

7. Reserved Private IPs
• The Internet Assigned Numbers Authority (IANA) has
reserved the following three blocks of the IP address space
for private internets:
• 10/8
• 172.16/12
• 192.168/16
Internet Protocol (IP) IPv4 IPv6
IP Class IP Range From IP Range To
A 10.0.0.0 10.255.255.255
B 172.16.0.0 172.31.255.255
C 192.168.0.0 192.168.255.255
Loopback
127.0.0.0 127.255.255.255
(127.0.0.1)

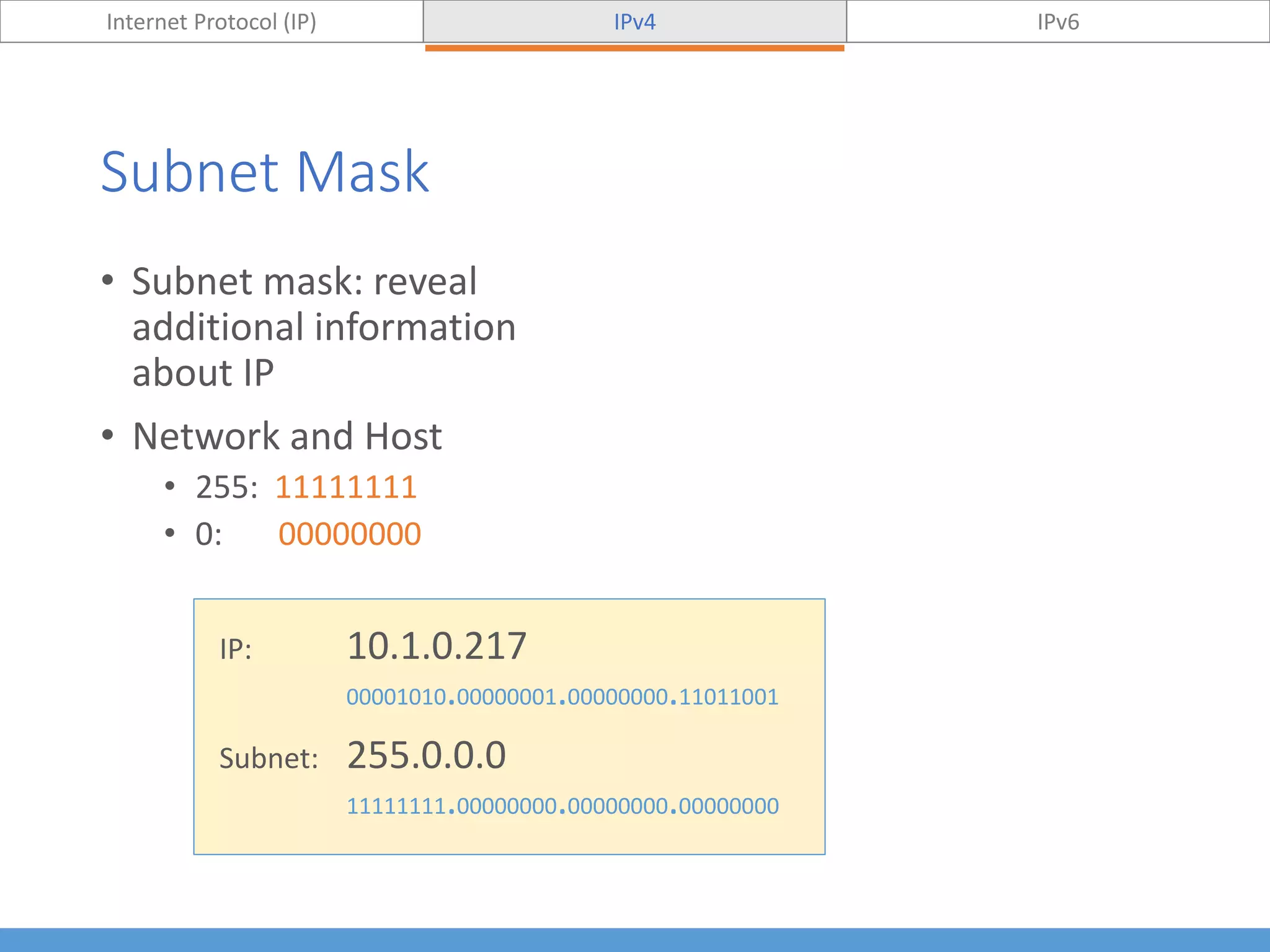

8. Subnet Mask
• Subnet mask: reveal
additional information
about IP
• Network and Host
• 255: 11111111
• 0: 00000000
Internet Protocol (IP) IPv4 IPv6
IP: 10.1.0.217
00001010.00000001.00000000.11011001
Subnet: 255.0.0.0
11111111.00000000.00000000.00000000

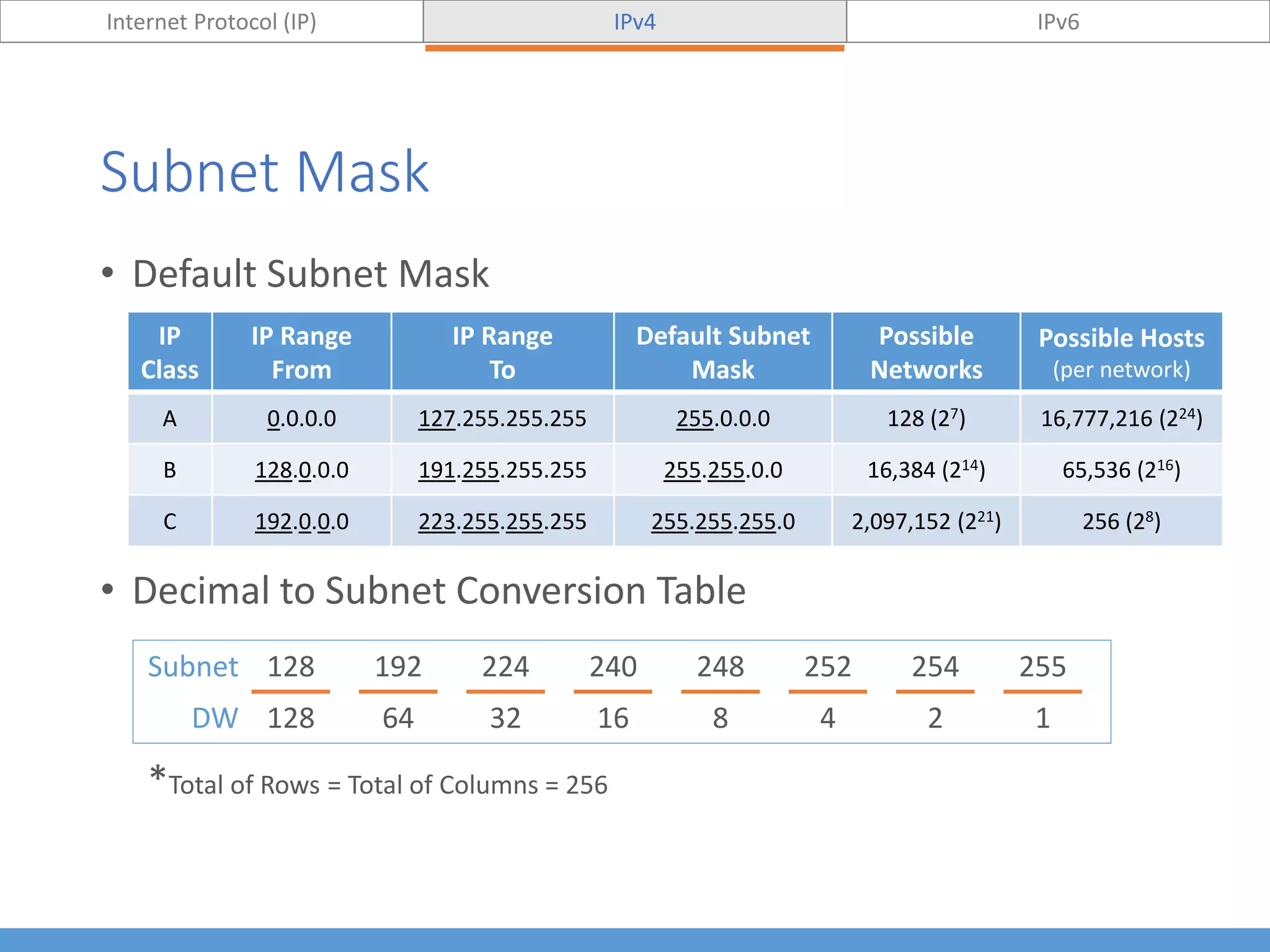

9. Subnet Mask
• Default Subnet Mask
• Decimal to Subnet Conversion Table
*Total of Rows = Total of Columns = 256
Subnet 128 192 224 240 248 252 254 255
DW 128 64 32 16 8 4 2 1
Internet Protocol (IP) IPv4 IPv6
IP
Class
IP Range
From
IP Range
To
Default Subnet
Mask
Possible
Networks
Possible Hosts
(per network)
A 0.0.0.0 127.255.255.255 255.0.0.0 128 (27) 16,777,216 (224)
B 128.0.0.0 191.255.255.255 255.255.0.0 16,384 (214) 65,536 (216)
C 192.0.0.0 223.255.255.255 255.255.255.0 2,097,152 (221) 256 (28)

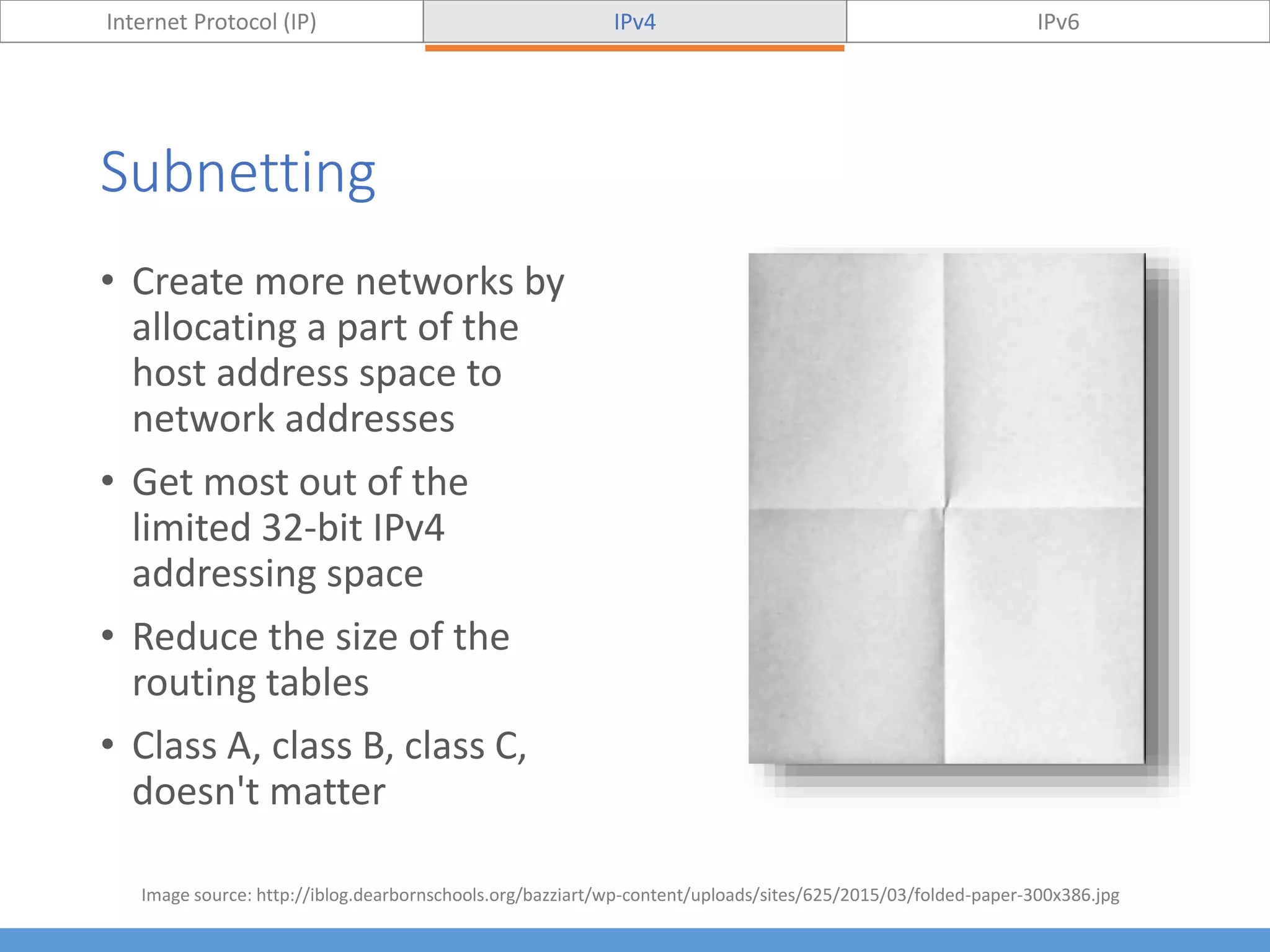

10. Subnetting
Internet Protocol (IP) IPv4 IPv6
• Create more networks by
allocating a part of the
host address space to
network addresses
• Get most out of the
limited 32-bit IPv4
addressing space
• Reduce the size of the
routing tables
• Class A, class B, class C,
doesn't matter
Image source: http://iblog.dearbornschools.org/bazziart/wp-content/uploads/sites/625/2015/03/folded-paper-300x386.jpg

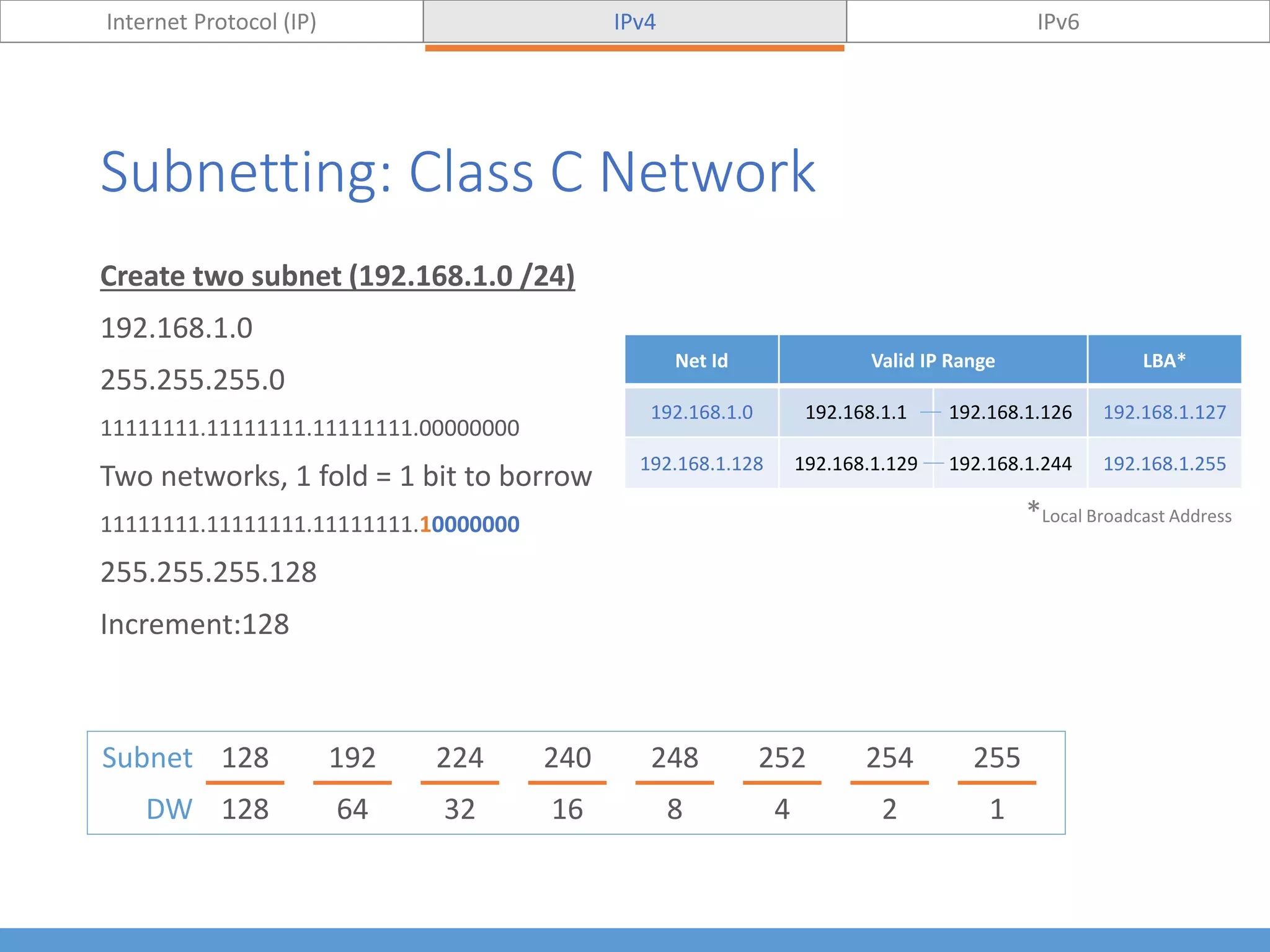

11. Subnetting: Class C Network
Create two subnet (192.168.1.0 /24)
192.168.1.0
255.255.255.0
11111111.11111111.11111111.00000000
Two networks, 1 fold = 1 bit to borrow
11111111.11111111.11111111.10000000
255.255.255.128
Increment:128
Internet Protocol (IP) IPv4 IPv6
Subnet 128 192 224 240 248 252 254 255
DW 128 64 32 16 8 4 2 1
Net Id Valid IP Range LBA*
192.168.1.0 192.168.1.1 192.168.1.126 192.168.1.127
192.168.1.128 192.168.1.129 192.168.1.244 192.168.1.255
*Local Broadcast Address

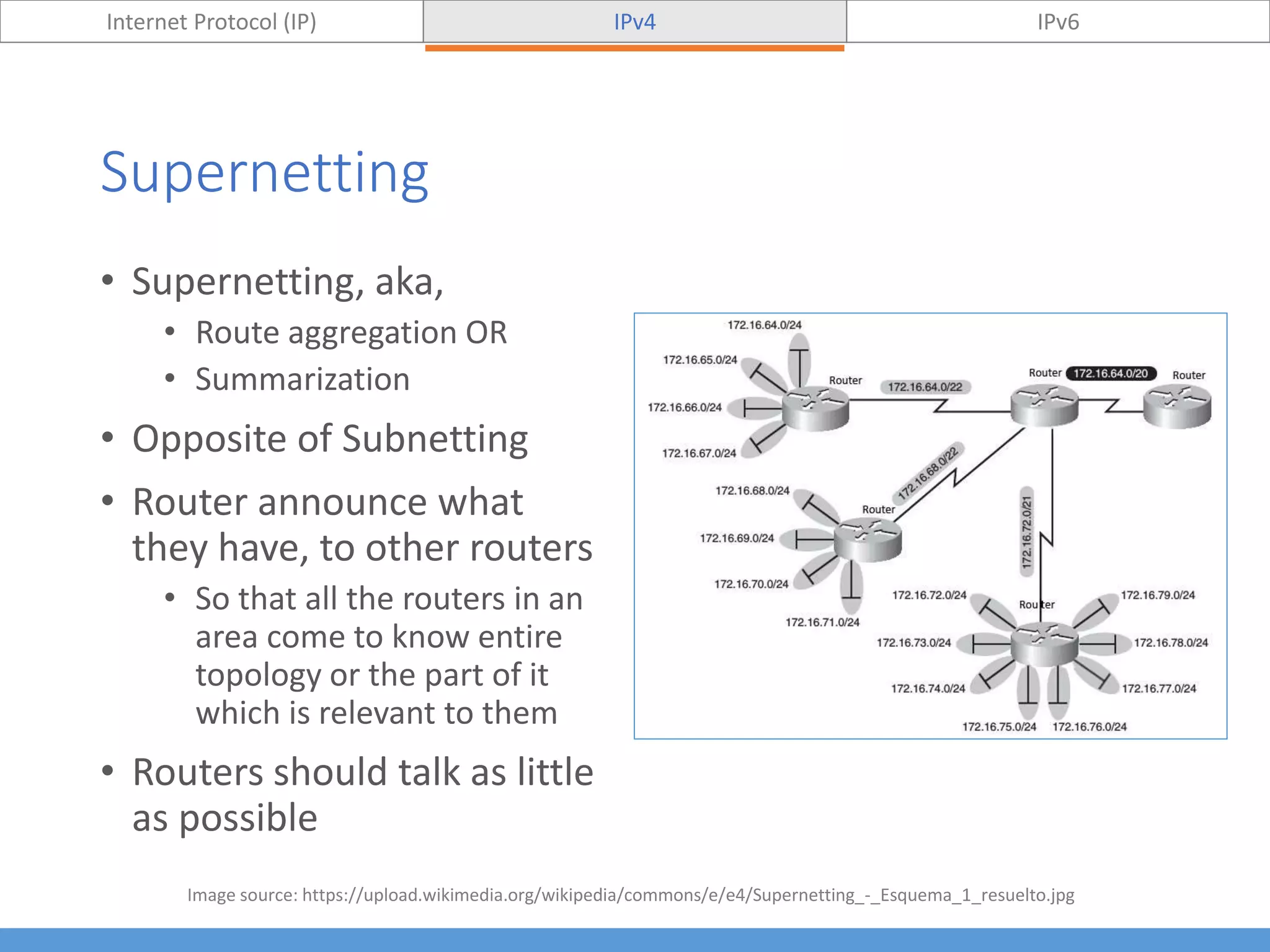

12. Supernetting
Internet Protocol (IP) IPv4 IPv6
• Supernetting, aka,
• Route aggregation OR
• Summarization
• Opposite of Subnetting
• Router announce what
they have, to other routers
• So that all the routers in an
area come to know entire
topology or the part of it
which is relevant to them
• Routers should talk as little
as possible
Image source: https://upload.wikimedia.org/wikipedia/commons/e/e4/Supernetting_-_Esquema_1_resuelto.jpg

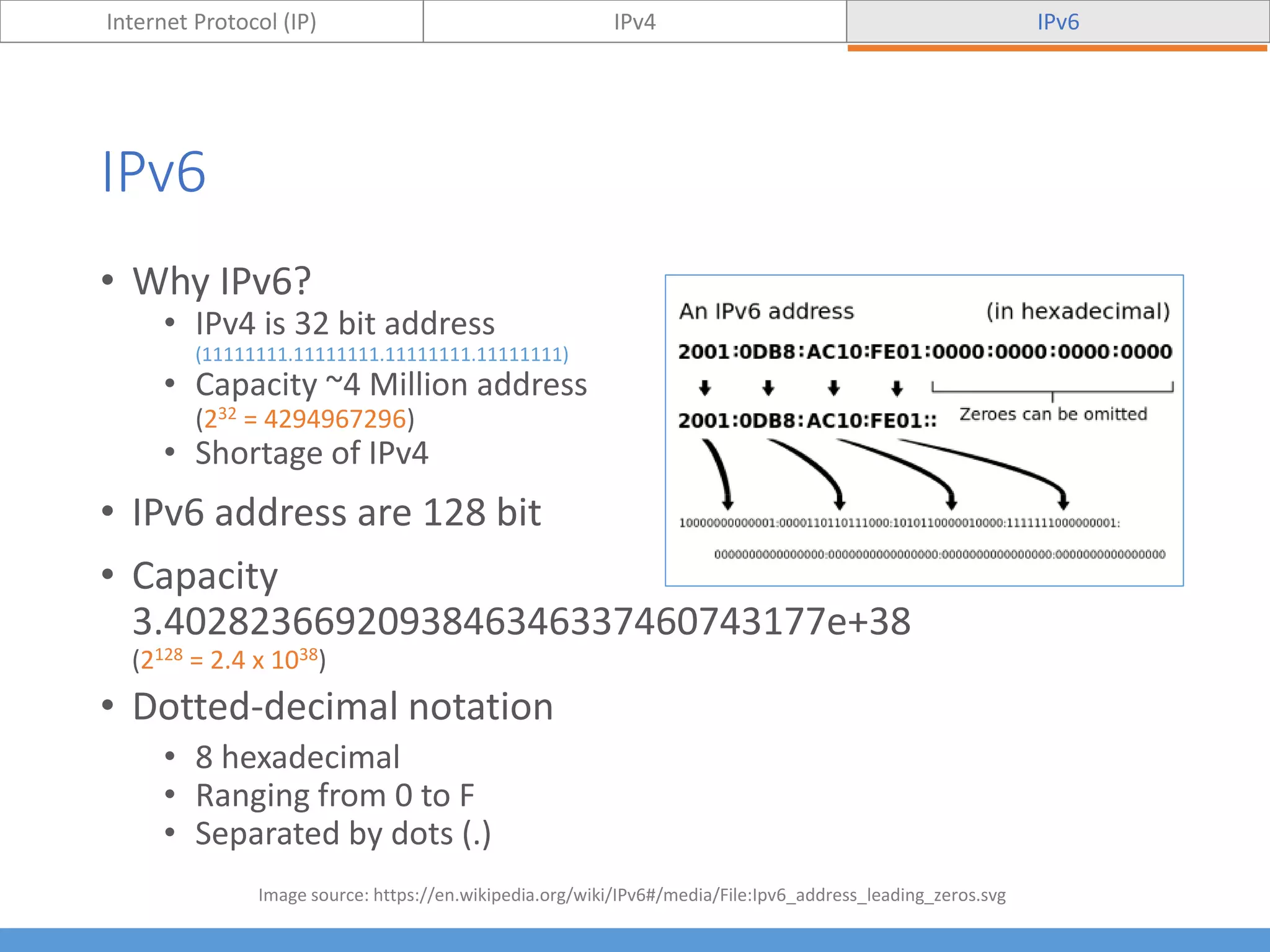

13. IPv6
Internet Protocol (IP) IPv4 IPv6
• Why IPv6?
• IPv4 is 32 bit address
(11111111.11111111.11111111.11111111)
• Capacity ~4 Million address
(232 = 4294967296)
• Shortage of IPv4
• IPv6 address are 128 bit
• Capacity
3.4028236692093846346337460743177e+38
(2128 = 2.4 x 1038)
• Dotted-decimal notation
• 8 hexadecimal
• Ranging from 0 to F
• Separated by dots (.)
Image source: https://en.wikipedia.org/wiki/IPv6#/media/File:Ipv6_address_leading_zeros.svg

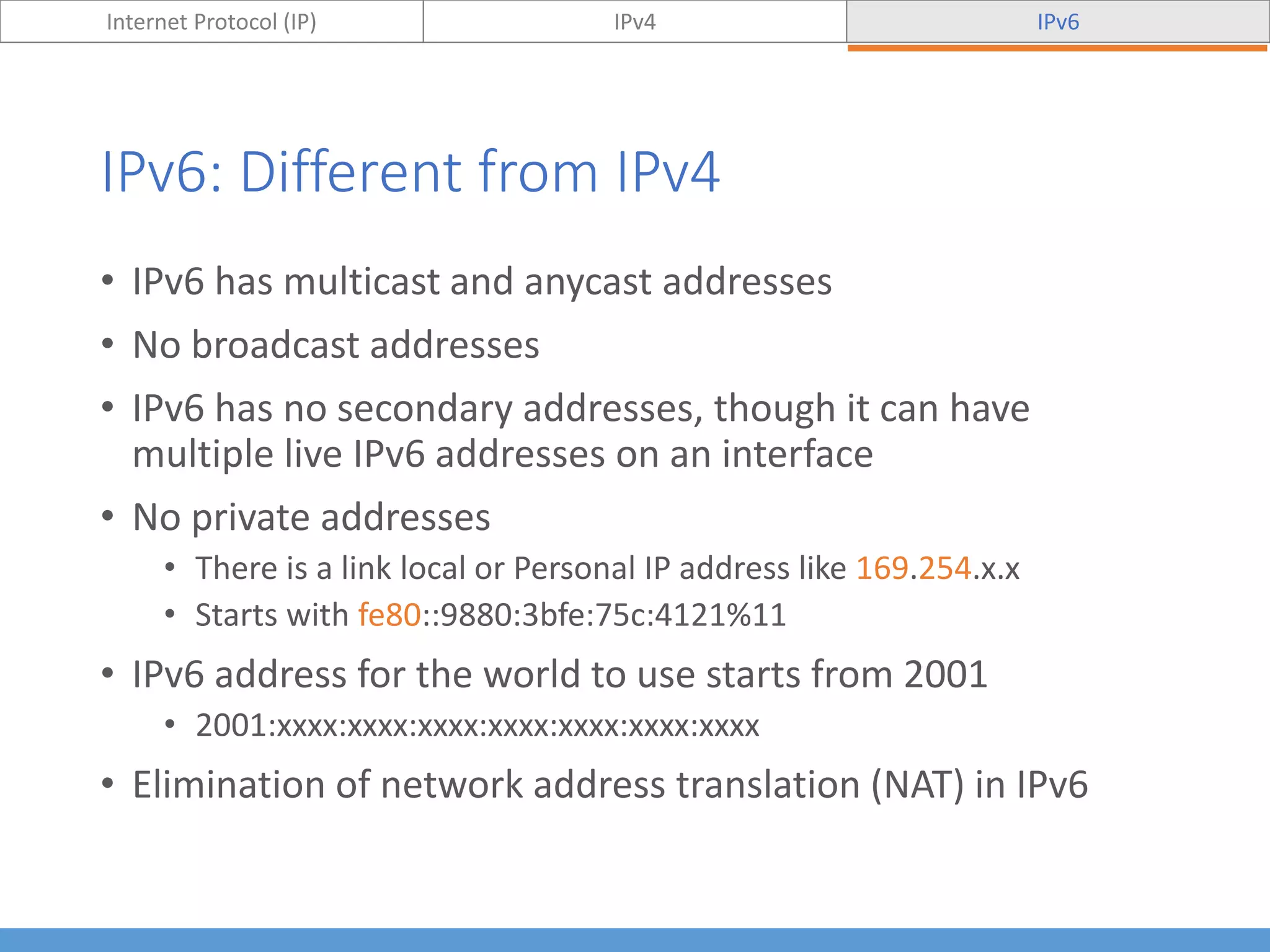

14. IPv6: Different from IPv4
Internet Protocol (IP) IPv4 IPv6
• IPv6 has multicast and anycast addresses
• No broadcast addresses
• IPv6 has no secondary addresses, though it can have
multiple live IPv6 addresses on an interface
• No private addresses
• There is a link local or Personal IP address like 169.254.x.x
• Starts with fe80::9880:3bfe:75c:4121%11
• IPv6 address for the world to use starts from 2001
• 2001:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx
• Elimination of network address translation (NAT) in IPv6

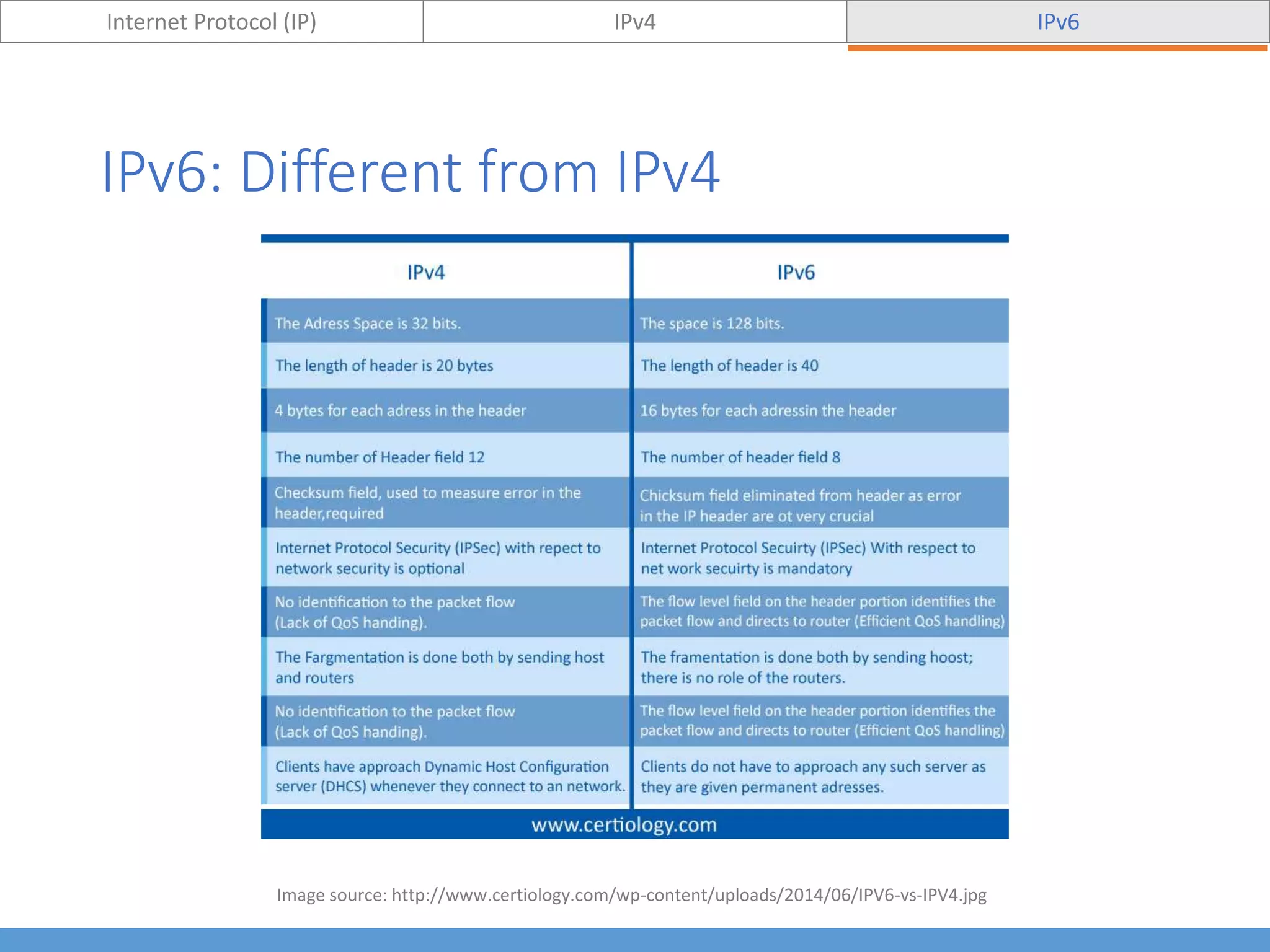

15. IPv6: Different from IPv4
Internet Protocol (IP) IPv4 IPv6
Image source: http://www.certiology.com/wp-content/uploads/2014/06/IPV6-vs-IPV4.jpg

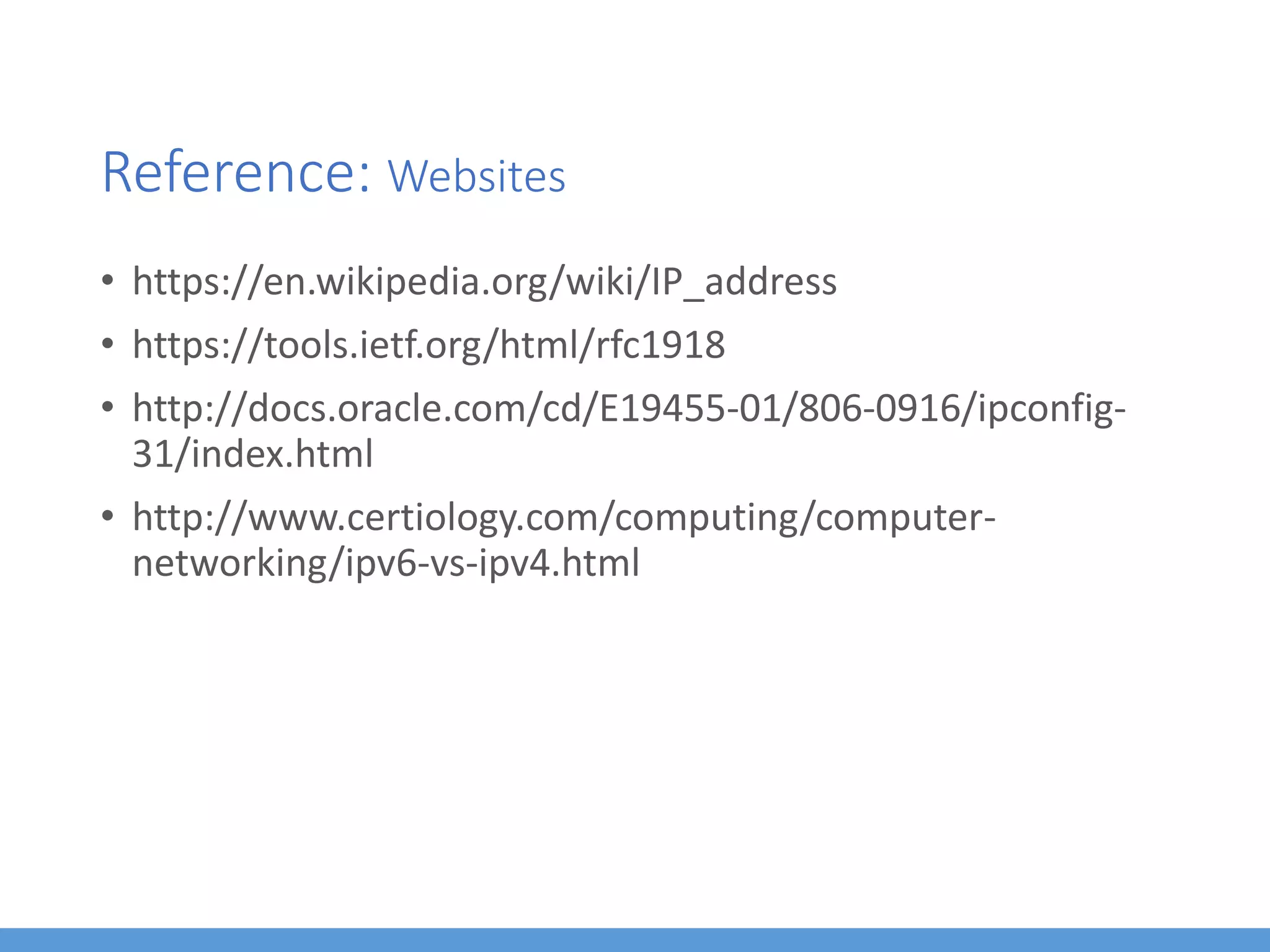

16. Reference: Websites
• https://en.wikipedia.org/wiki/IP_address
• https://tools.ietf.org/html/rfc1918
• http://docs.oracle.com/cd/E19455-01/806-0916/ipconfig-
31/index.html
• http://www.certiology.com/computing/computer-
networking/ipv6-vs-ipv4.html

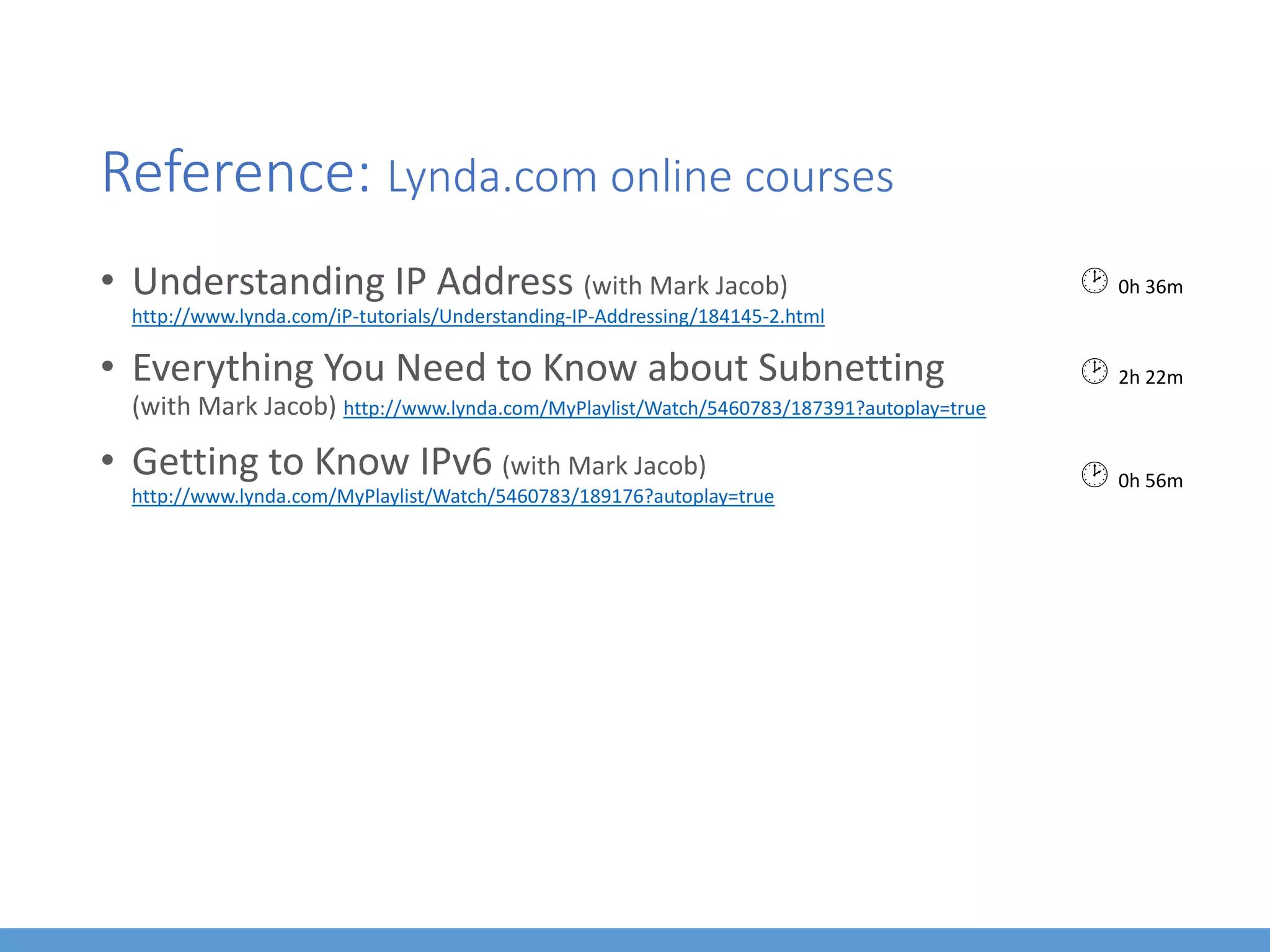

17. Reference: Lynda.com online courses
• Understanding IP Address (with Mark Jacob)
http://www.lynda.com/iP-tutorials/Understanding-IP-Addressing/184145-2.html
• Everything You Need to Know about Subnetting
(with Mark Jacob) http://www.lynda.com/MyPlaylist/Watch/5460783/187391?autoplay=true
• Getting to Know IPv6 (with Mark Jacob)
http://www.lynda.com/MyPlaylist/Watch/5460783/189176?autoplay=true
 0h 36m
 2h 22m
 0h 56m

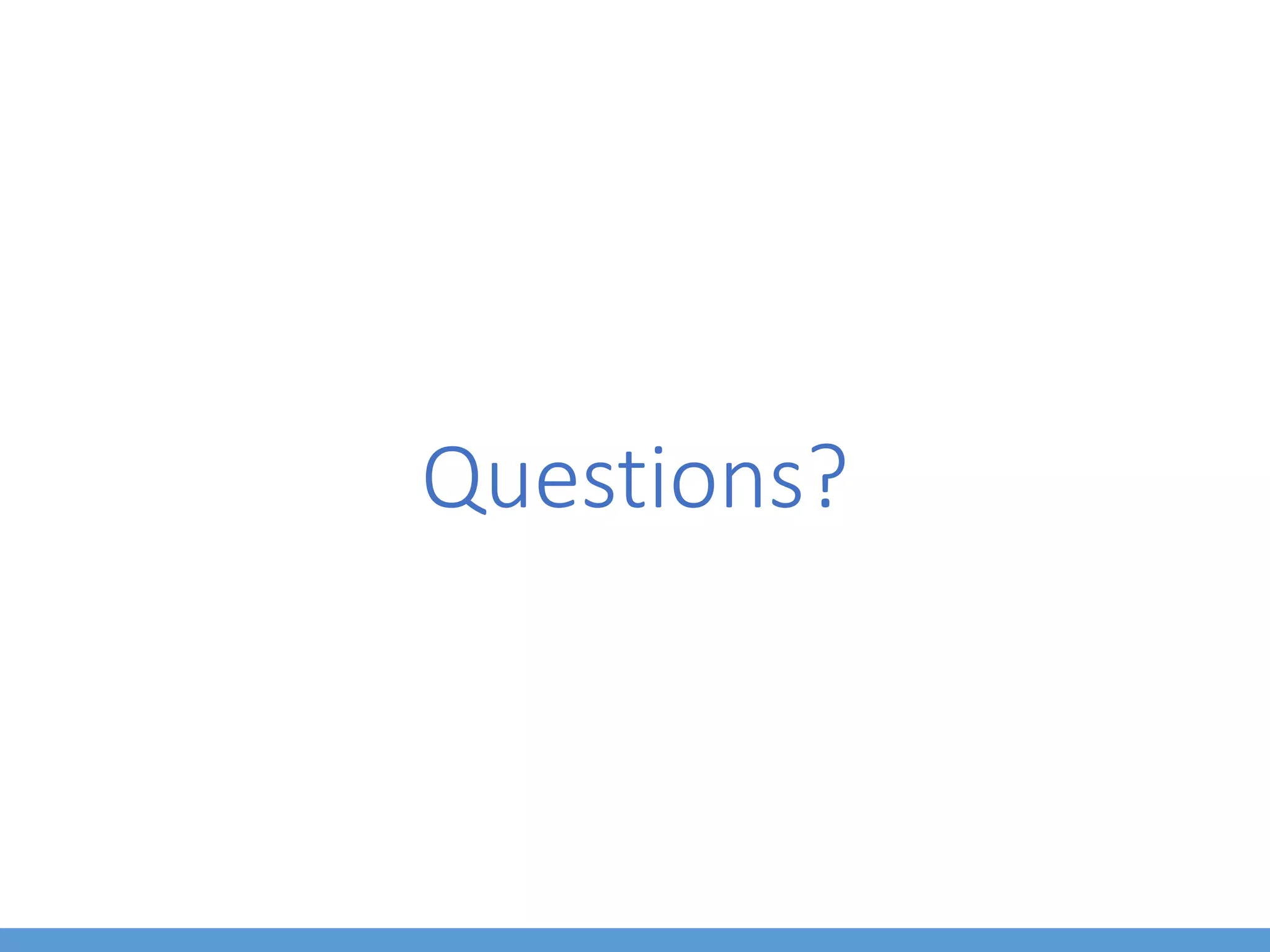

18. Questions?

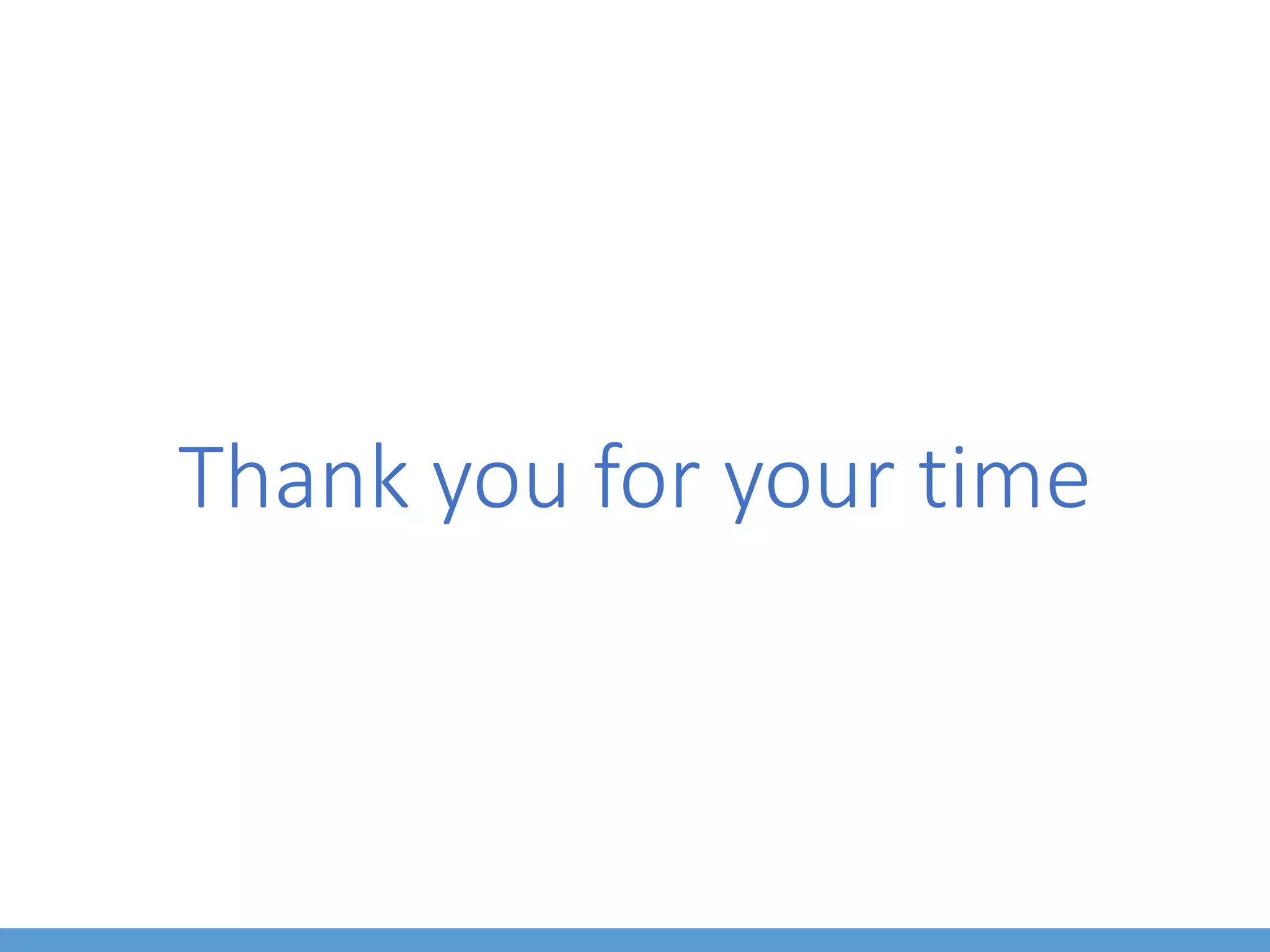

19. Thank you for your time
