This document discusses intrusion detection systems (IDS), which monitor networks and systems for malicious activity such as malware, attacks, and unauthorized access. An IDS typically consists of sensors to detect security events, an engine to analyze the events and generate alerts, and a console for administrators to monitor alerts and configure sensors. Network and host-based IDS monitor network traffic and host activities respectively. IDS can detect a wider range of attacks than firewalls by analyzing network traffic and system behaviors.

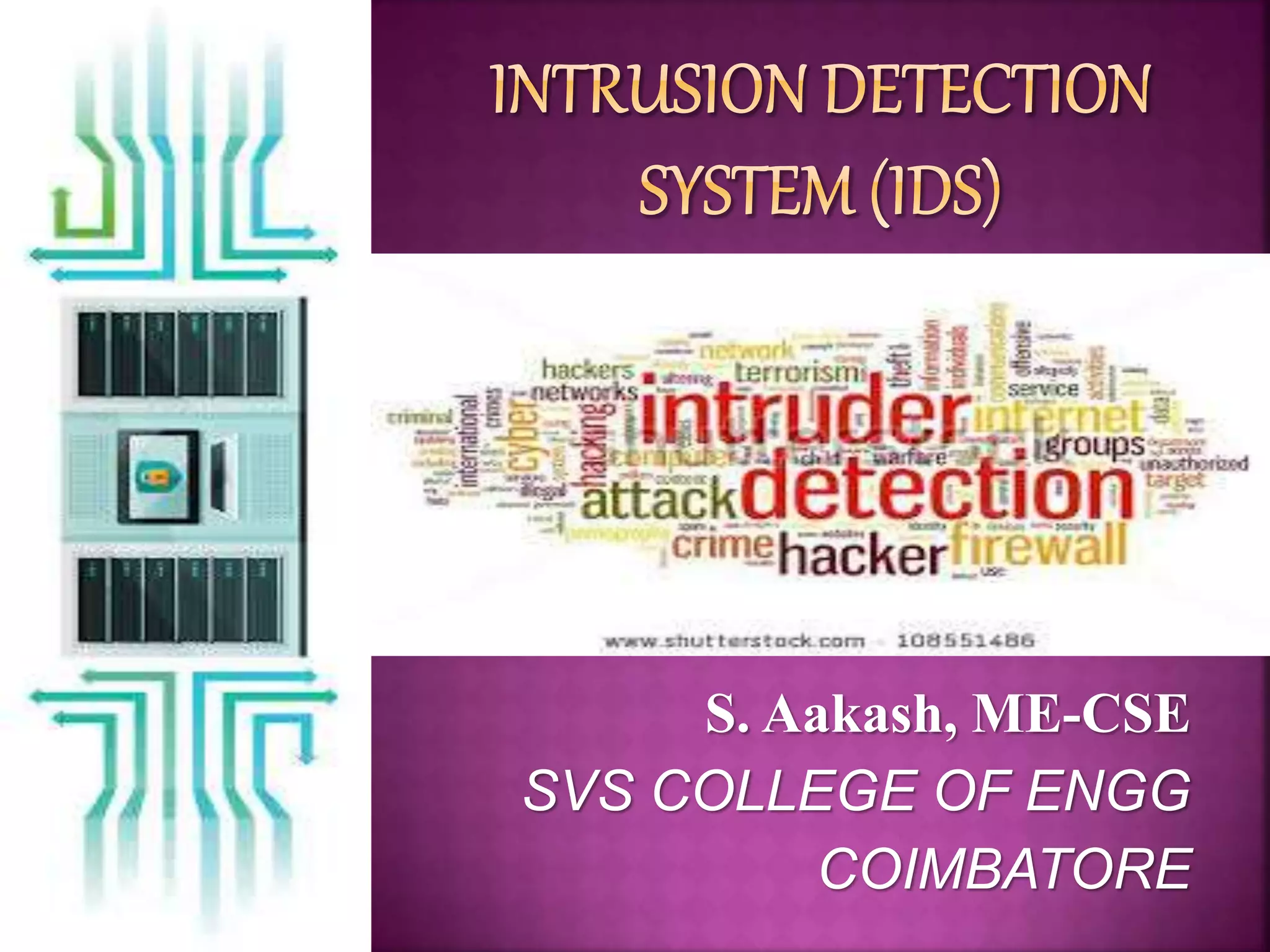

1. S. Aakash, ME-CSE
SVS COLLEGE OF ENGG
COIMBATORE

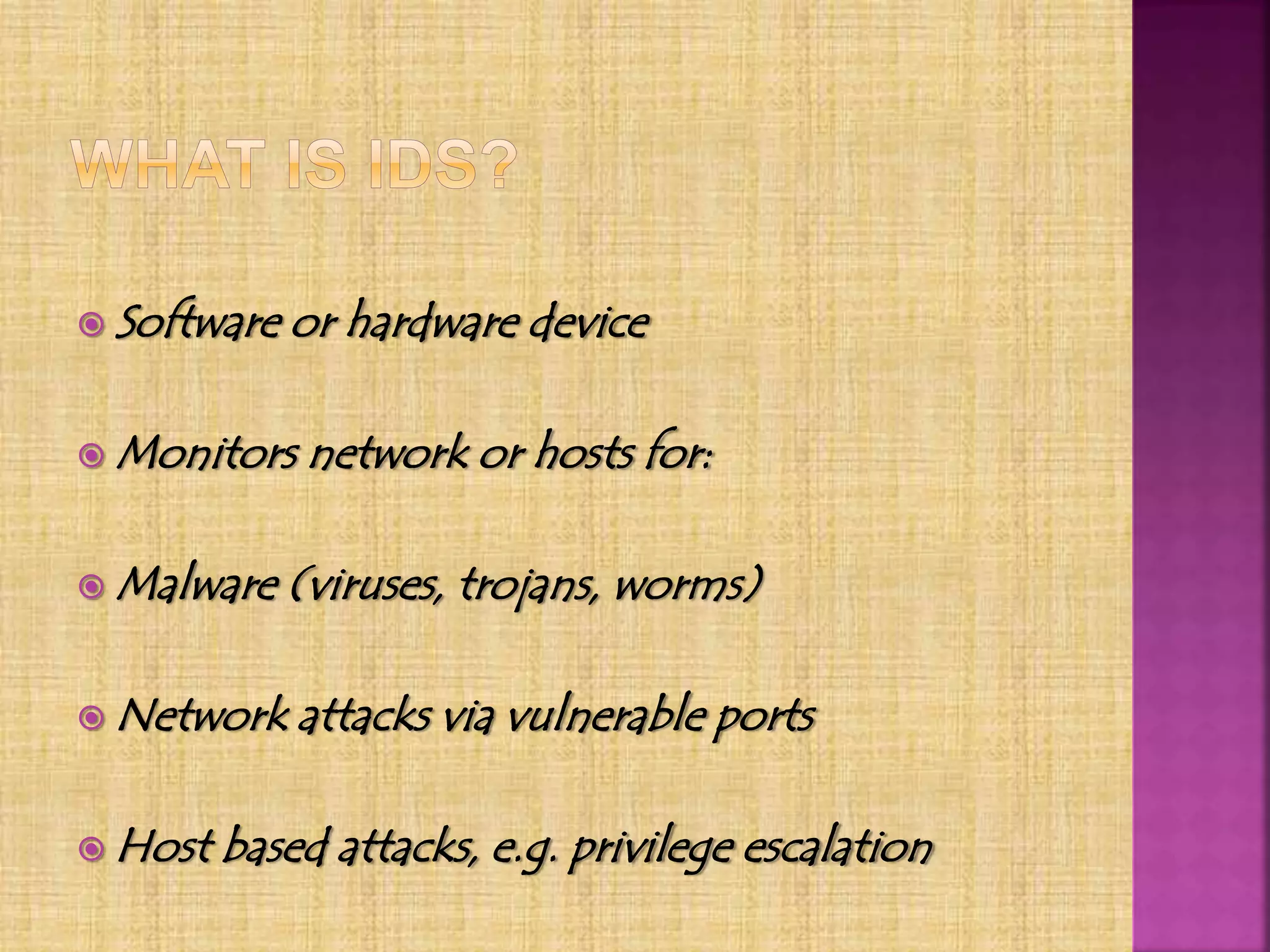

2.  Software or hardware device
 Monitors network or hosts for:
 Malware (viruses, trojans, worms)
 Network attacks via vulnerable ports
 Host based attacks, e.g. privilege escalation

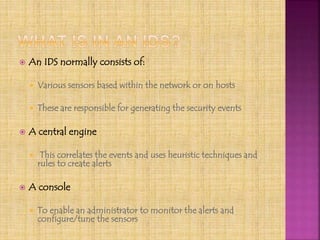

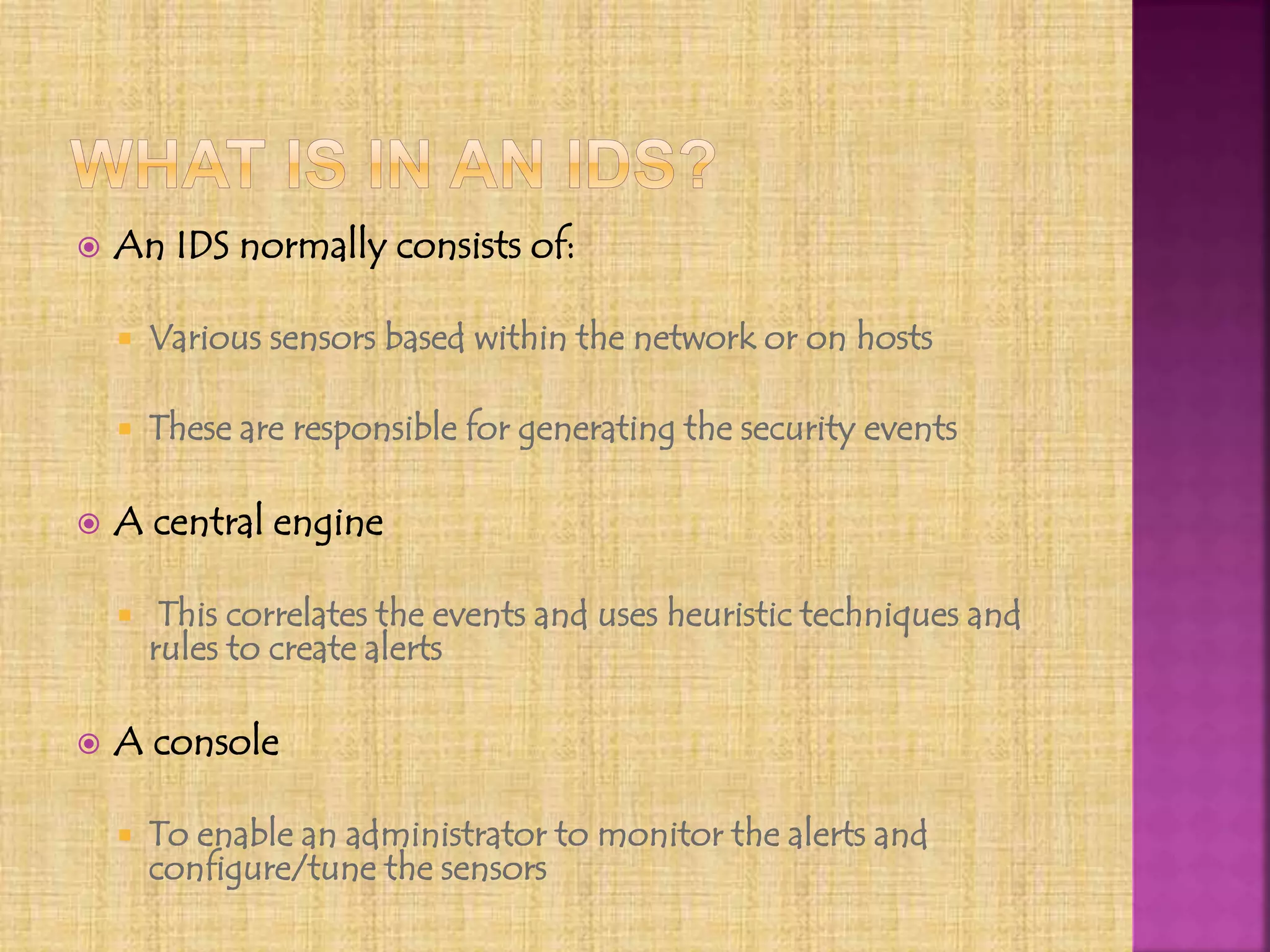

3.  An IDS normally consists of:
 Various sensors based within the network or on hosts
 These are responsible for generating the security events
 A central engine
 This correlates the events and uses heuristic techniques and
rules to create alerts
 A console
 To enable an administrator to monitor the alerts and
configure/tune the sensors

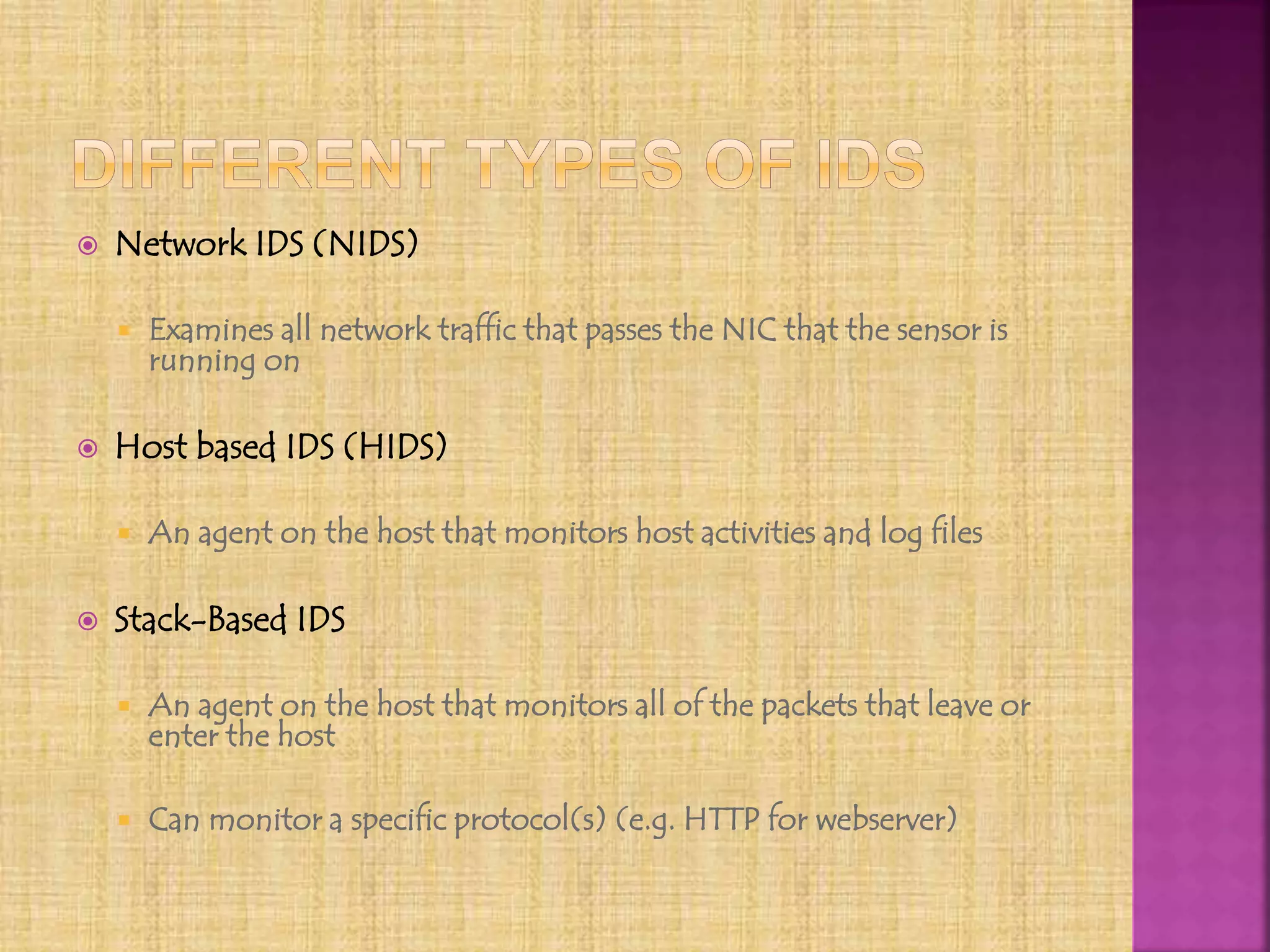

4.  Network IDS (NIDS)
 Examines all network traffic that passes the NIC that the sensor is
running on
 Host based IDS (HIDS)
 An agent on the host that monitors host activities and log files
 Stack-Based IDS
 An agent on the host that monitors all of the packets that leave or
enter the host
 Can monitor a specific protocol(s) (e.g. HTTP for webserver)

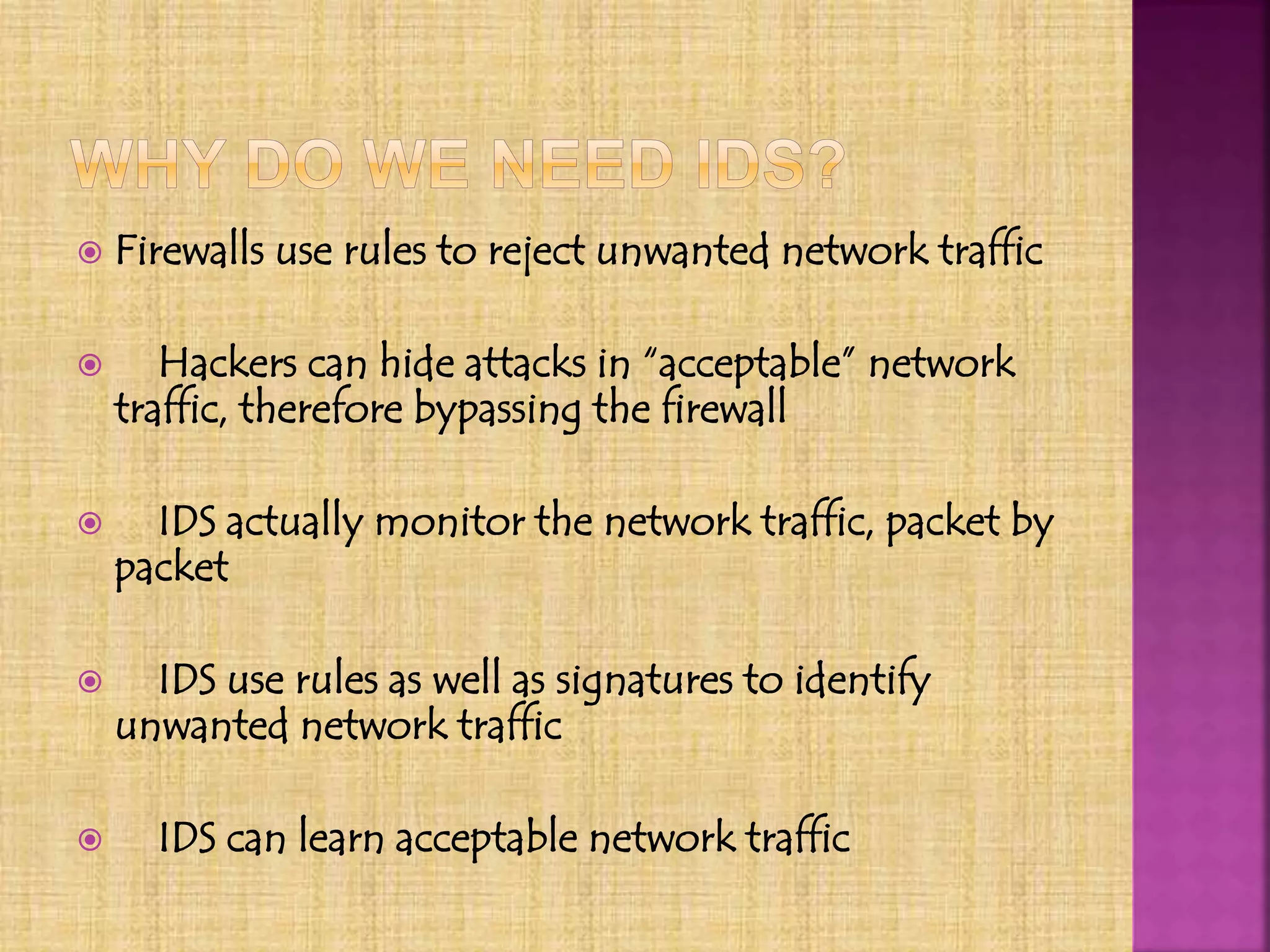

5.  Firewalls use rules to reject unwanted network traffic
 Hackers can hide attacks in “acceptable” network
traffic, therefore bypassing the firewall
 IDS actually monitor the network traffic, packet by
packet
 IDS use rules as well as signatures to identify
unwanted network traffic
 IDS can learn acceptable network traffic

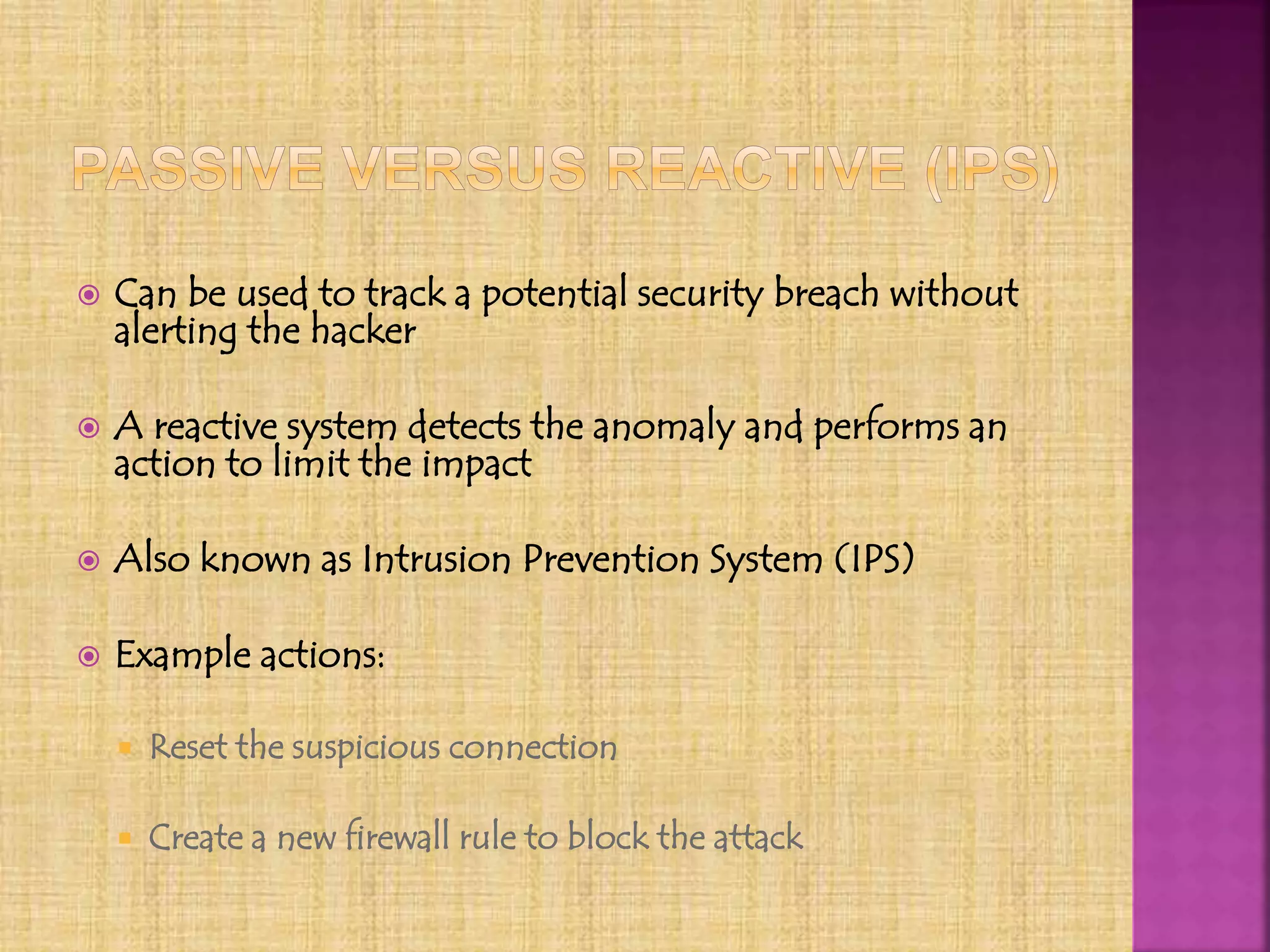

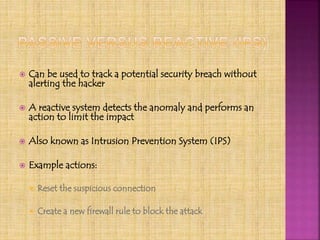

6.  Can be used to track a potential security breach without
alerting the hacker
 A reactive system detects the anomaly and performs an
action to limit the impact
 Also known as Intrusion Prevention System (IPS)
 Example actions:
 Reset the suspicious connection
 Create a new firewall rule to block the attack

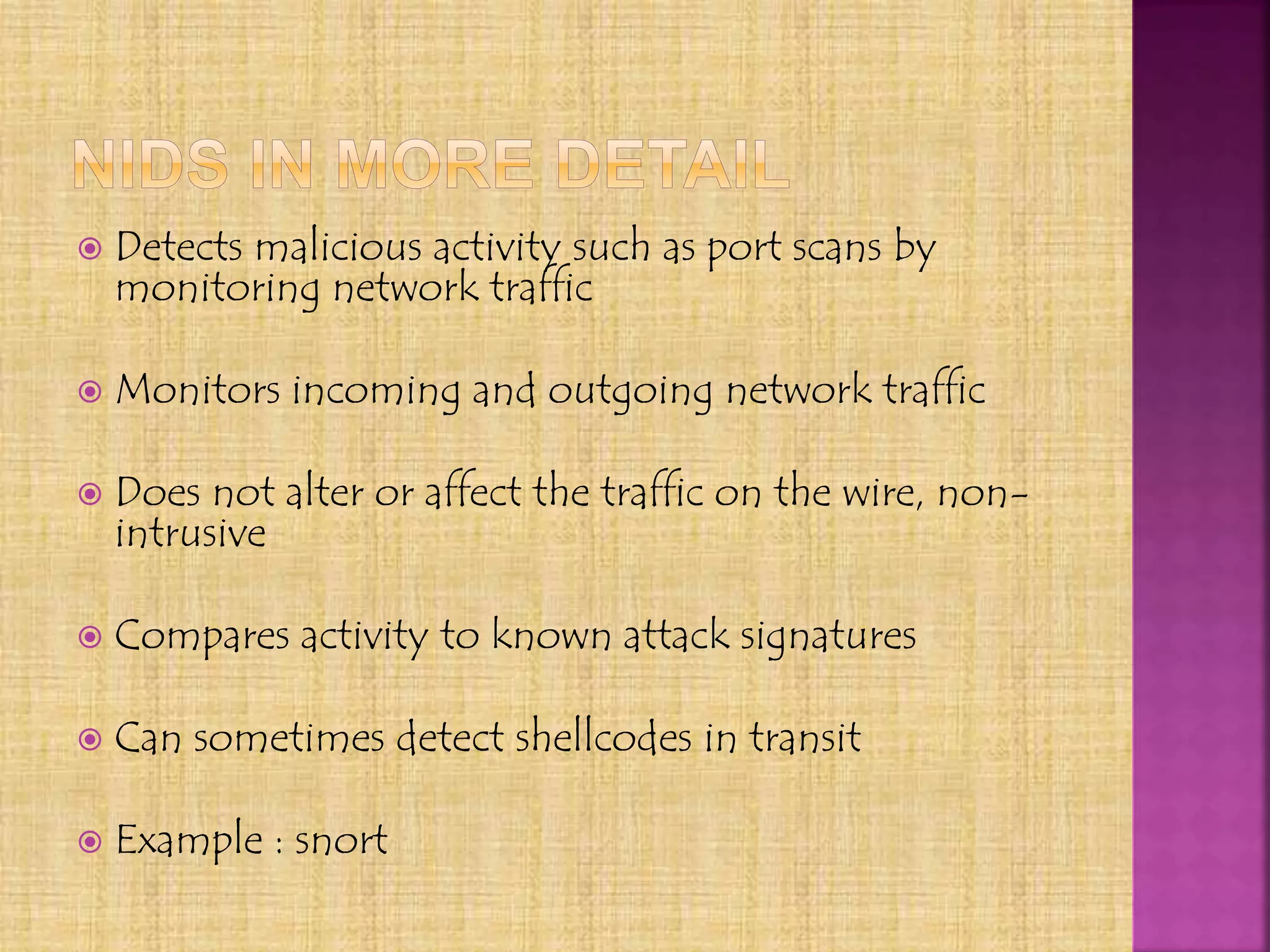

7.  Detects malicious activity such as port scans by
monitoring network traffic
 Monitors incoming and outgoing network traffic
 Does not alter or affect the traffic on the wire, non-
intrusive
 Compares activity to known attack signatures
 Can sometimes detect shellcodes in transit
 Example : snort

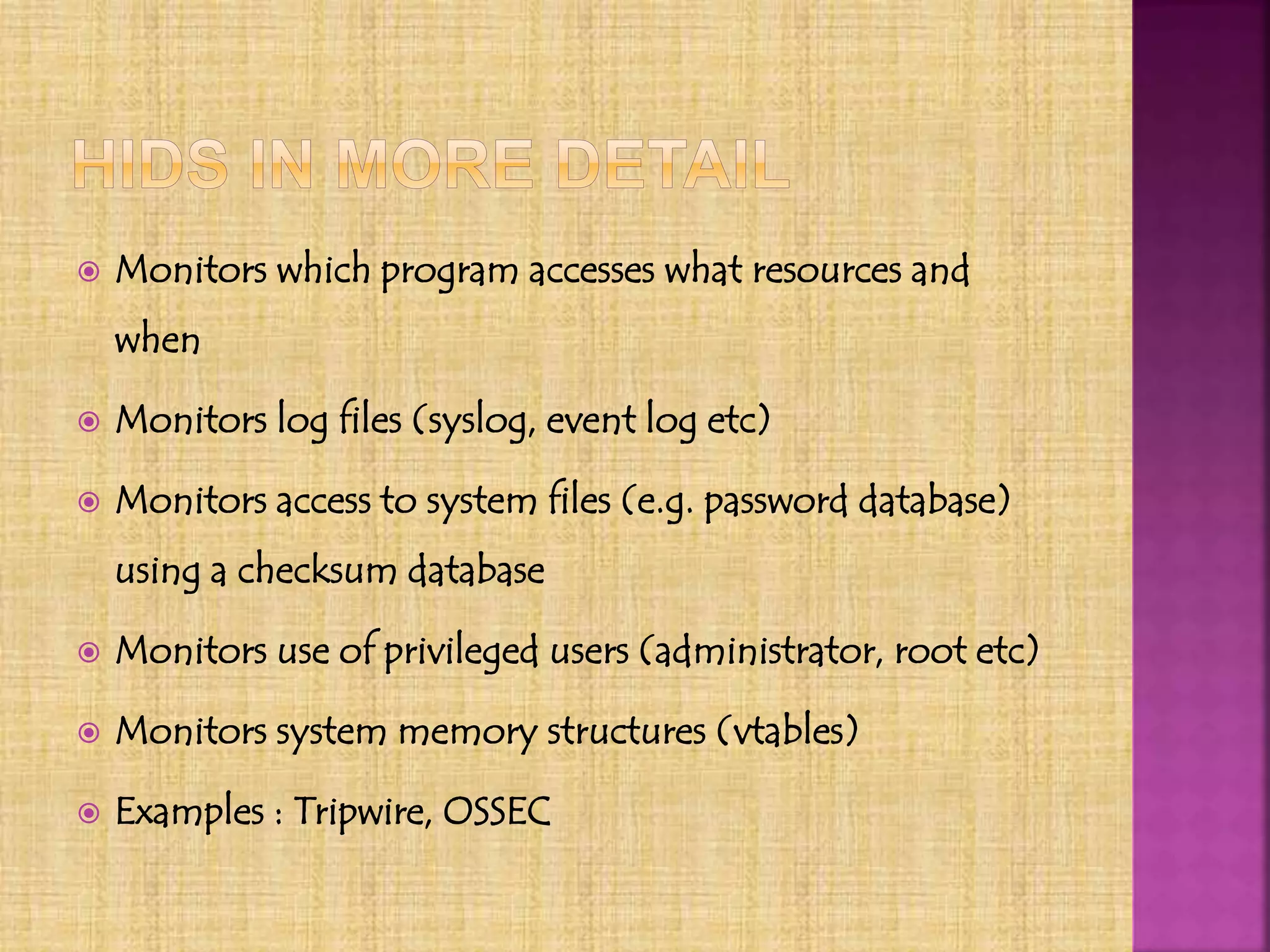

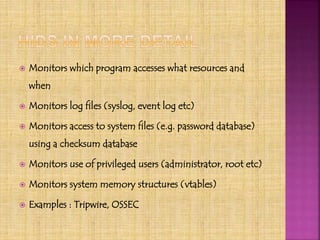

8.  Monitors which program accesses what resources and
when
 Monitors log files (syslog, event log etc)
 Monitors access to system files (e.g. password database)
using a checksum database
 Monitors use of privileged users (administrator, root etc)
 Monitors system memory structures (vtables)
 Examples : Tripwire, OSSEC

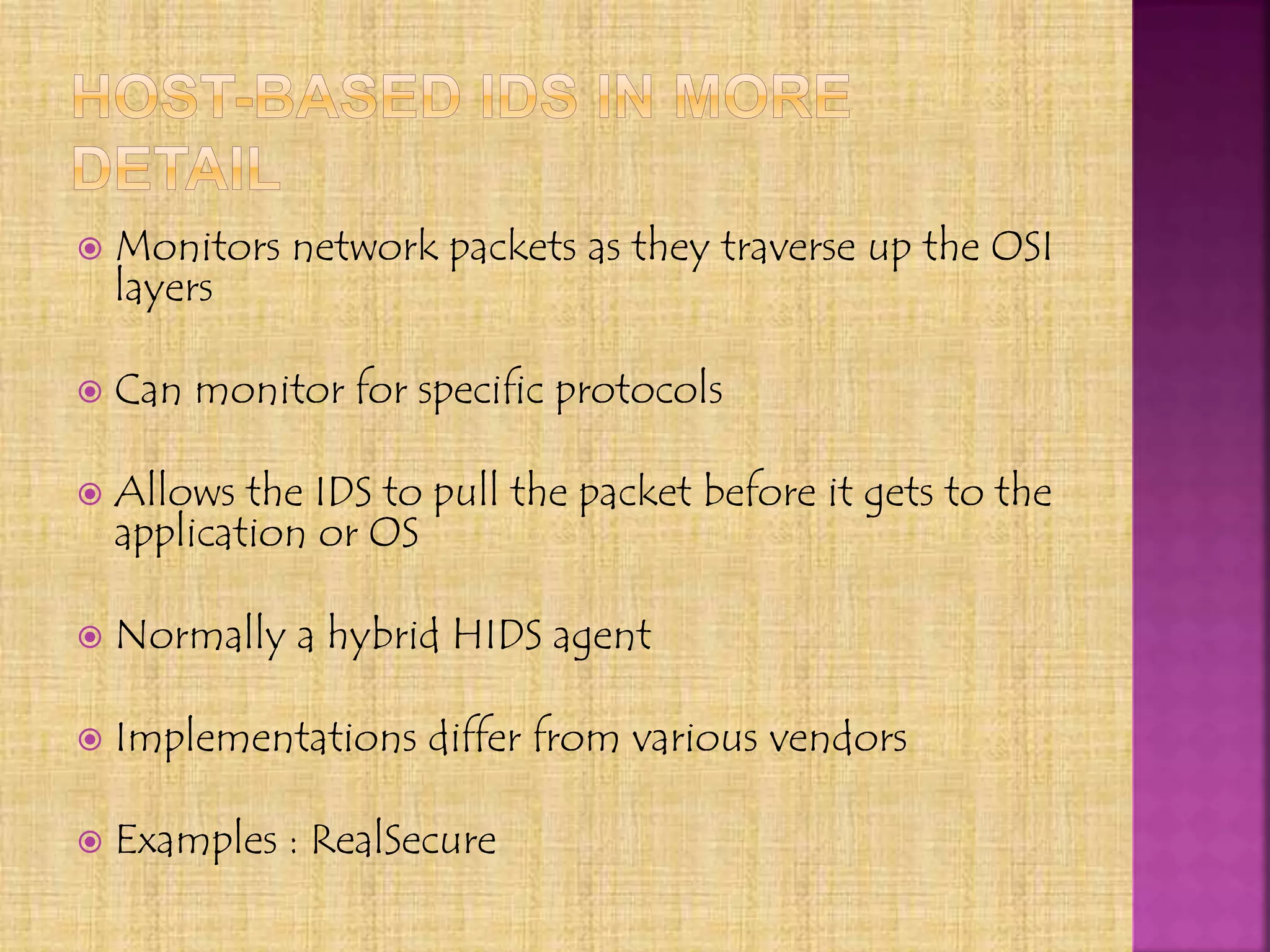

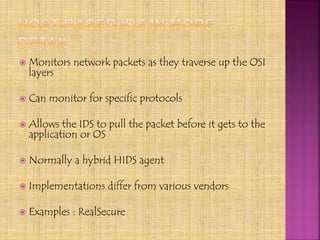

9.  Monitors network packets as they traverse up the OSI
layers
 Can monitor for specific protocols
 Allows the IDS to pull the packet before it gets to the
application or OS
 Normally a hybrid HIDS agent
 Implementations differ from various vendors
 Examples : RealSecure

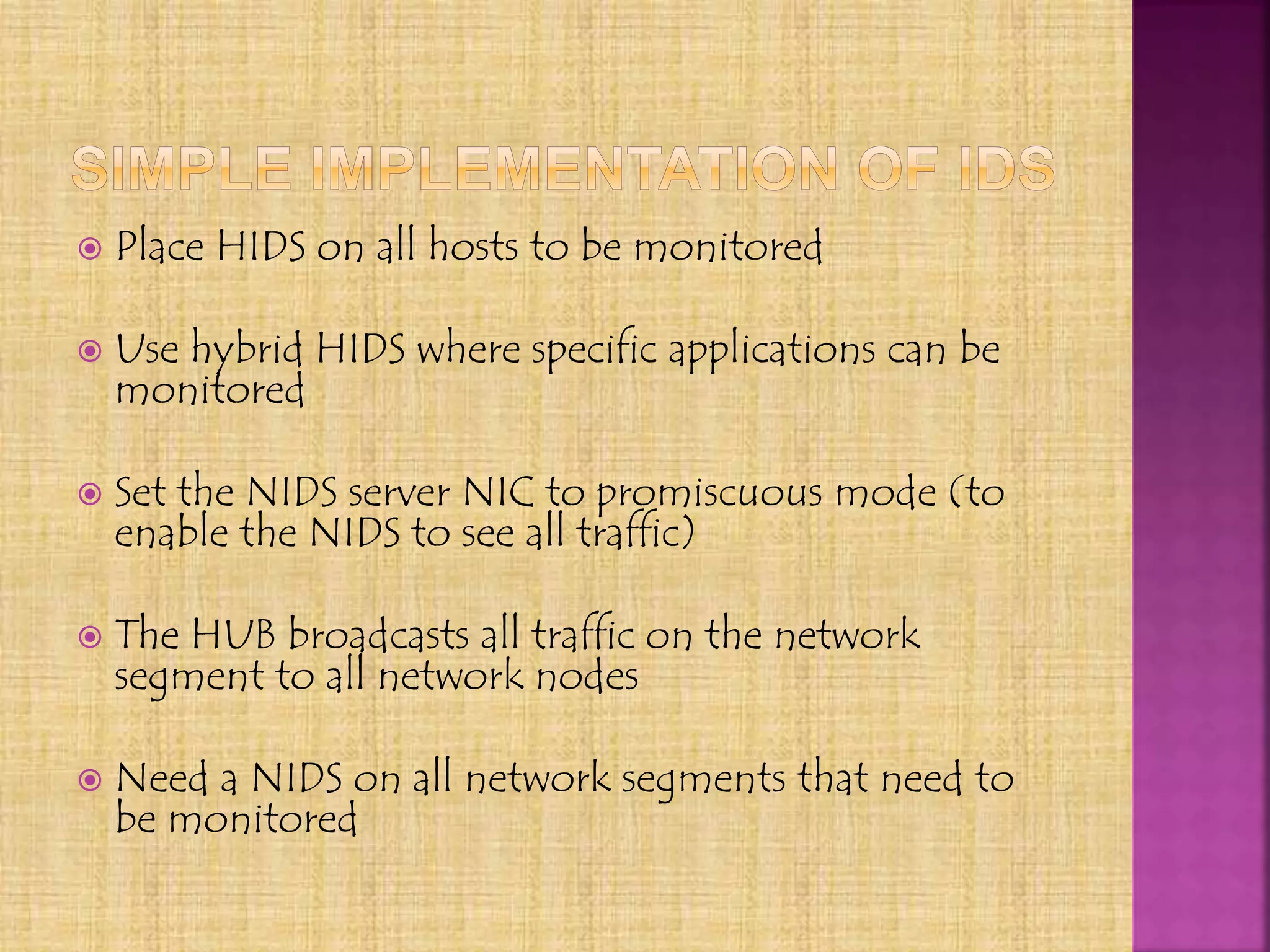

10.  Place HIDS on all hosts to be monitored
 Use hybrid HIDS where specific applications can be
monitored
 Set the NIDS server NIC to promiscuous mode (to
enable the NIDS to see all traffic)
 The HUB broadcasts all traffic on the network
segment to all network nodes
 Need a NIDS on all network segments that need to
be monitored

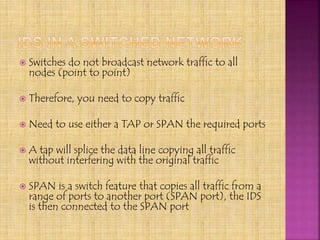

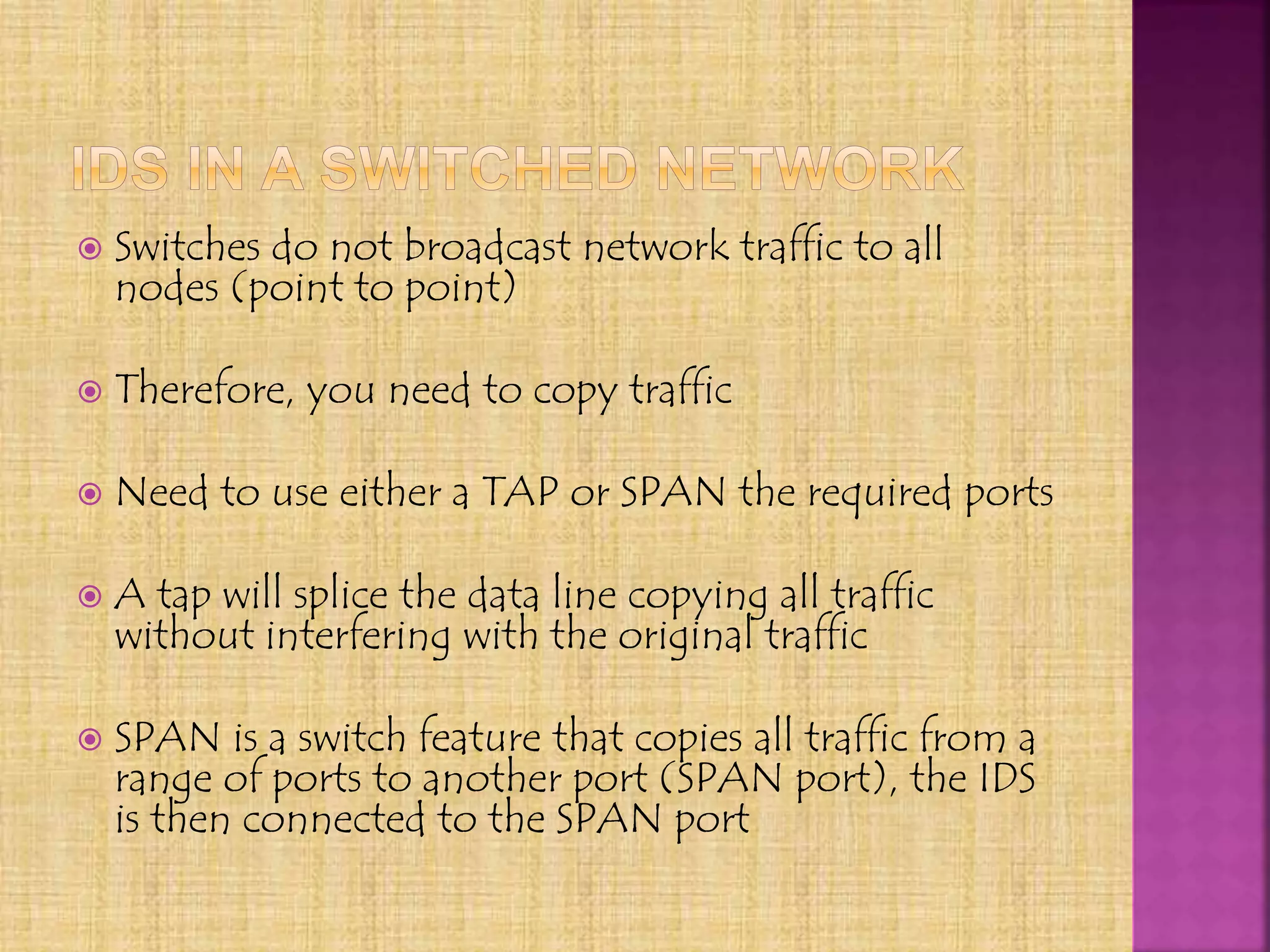

11.  Switches do not broadcast network traffic to all
nodes (point to point)
 Therefore, you need to copy traffic
 Need to use either a TAP or SPAN the required ports
 A tap will splice the data line copying all traffic
without interfering with the original traffic
 SPAN is a switch feature that copies all traffic from a
range of ports to another port (SPAN port), the IDS
is then connected to the SPAN port

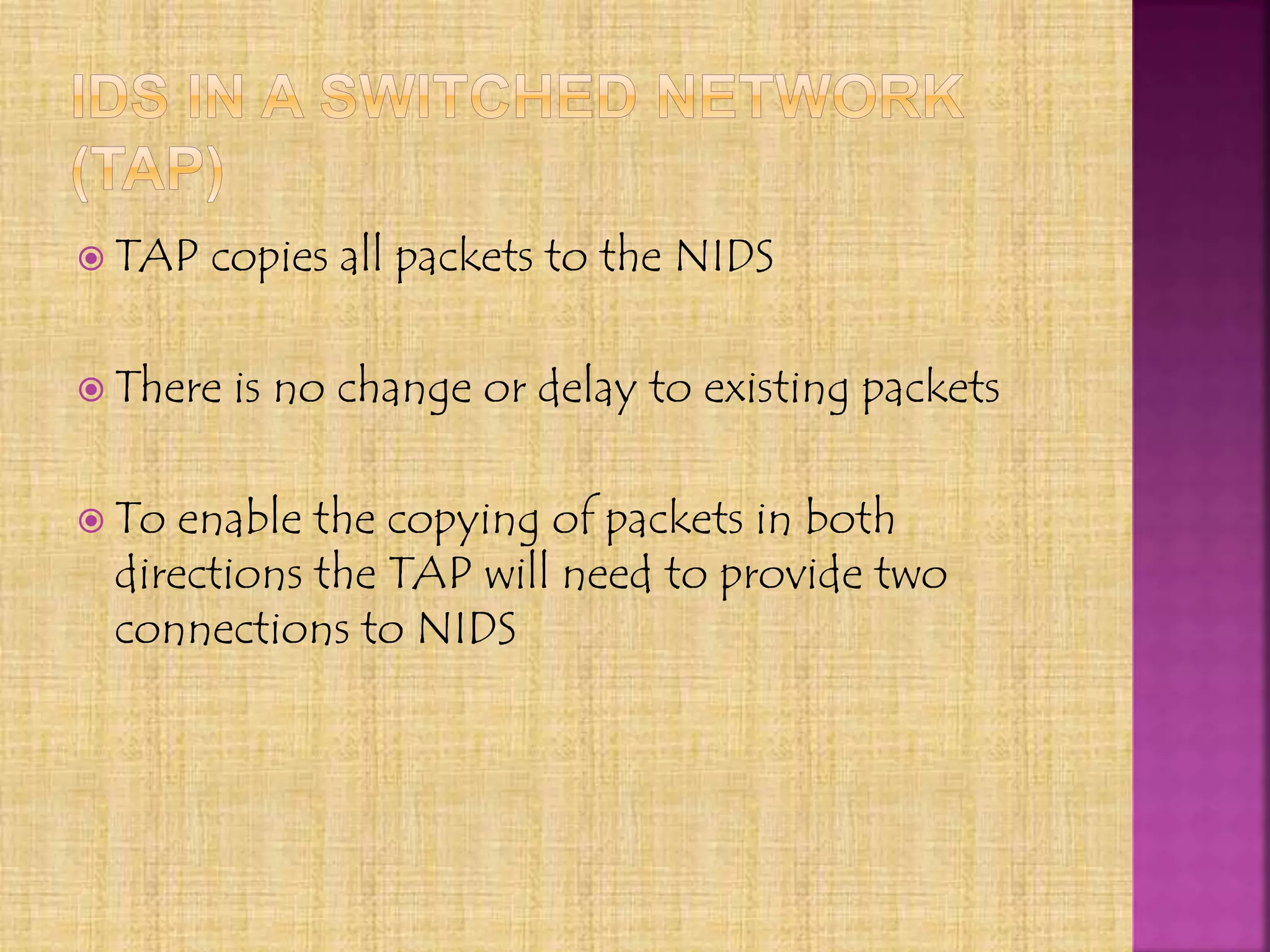

12.  TAP copies all packets to the NIDS
 There is no change or delay to existing packets
 To enable the copying of packets in both
directions the TAP will need to provide two
connections to NIDS

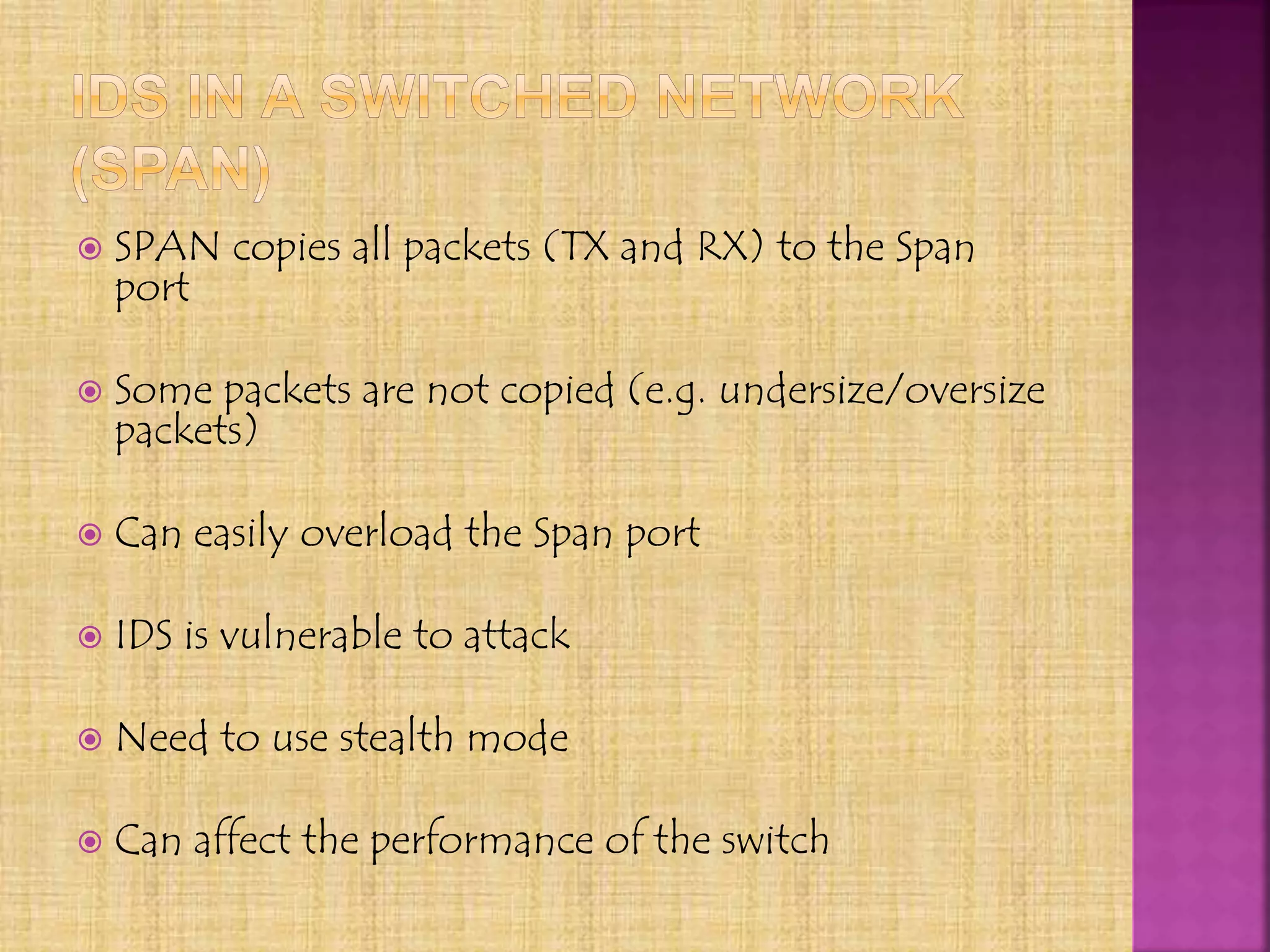

13.  SPAN copies all packets (TX and RX) to the Span
port
 Some packets are not copied (e.g. undersize/oversize
packets)
 Can easily overload the Span port
 IDS is vulnerable to attack
 Need to use stealth mode
 Can affect the performance of the switch

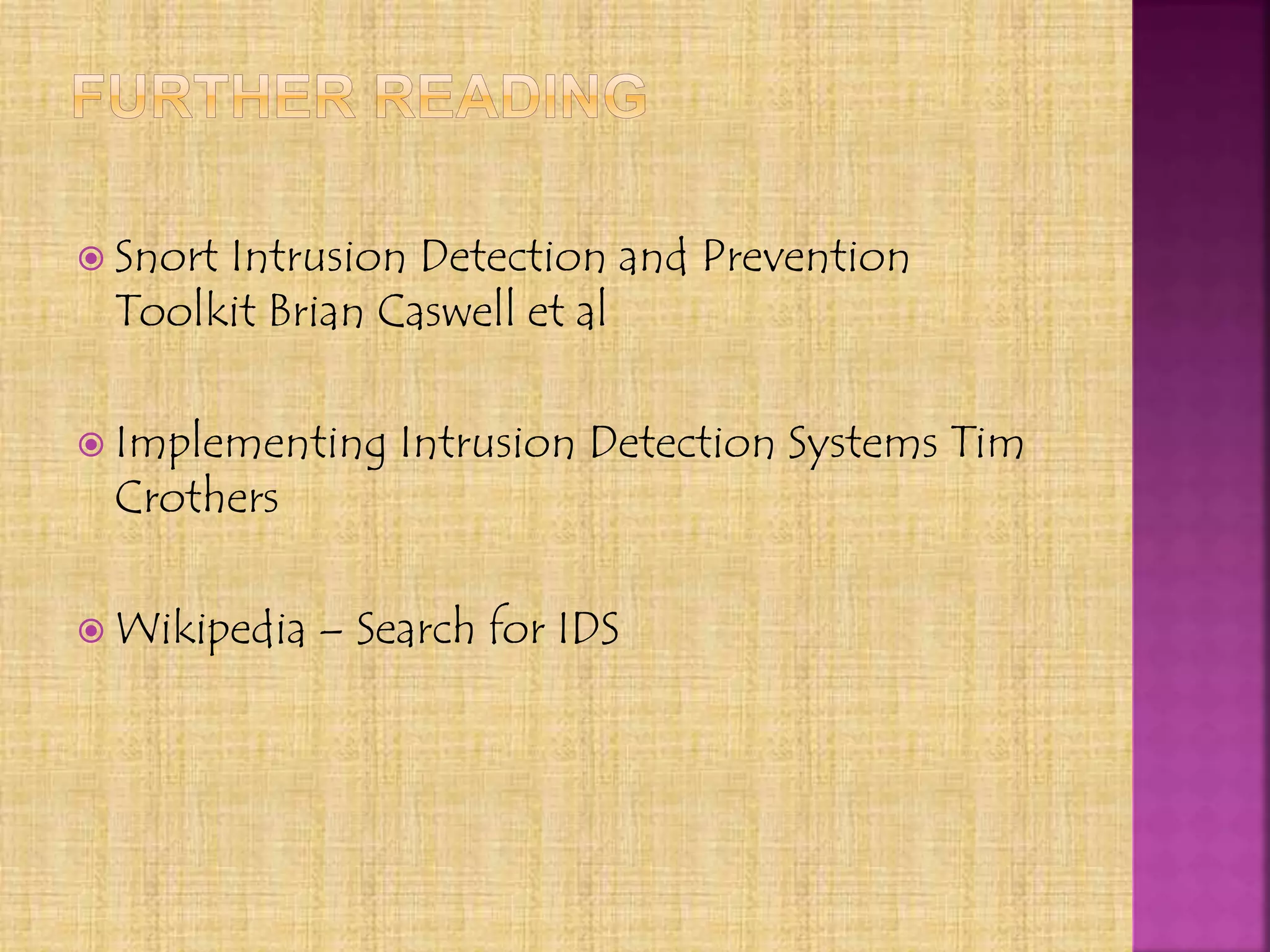

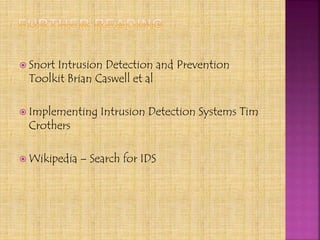

14.  Snort Intrusion Detection and Prevention
Toolkit Brian Caswell et al
 Implementing Intrusion Detection Systems Tim
Crothers
 Wikipedia – Search for IDS

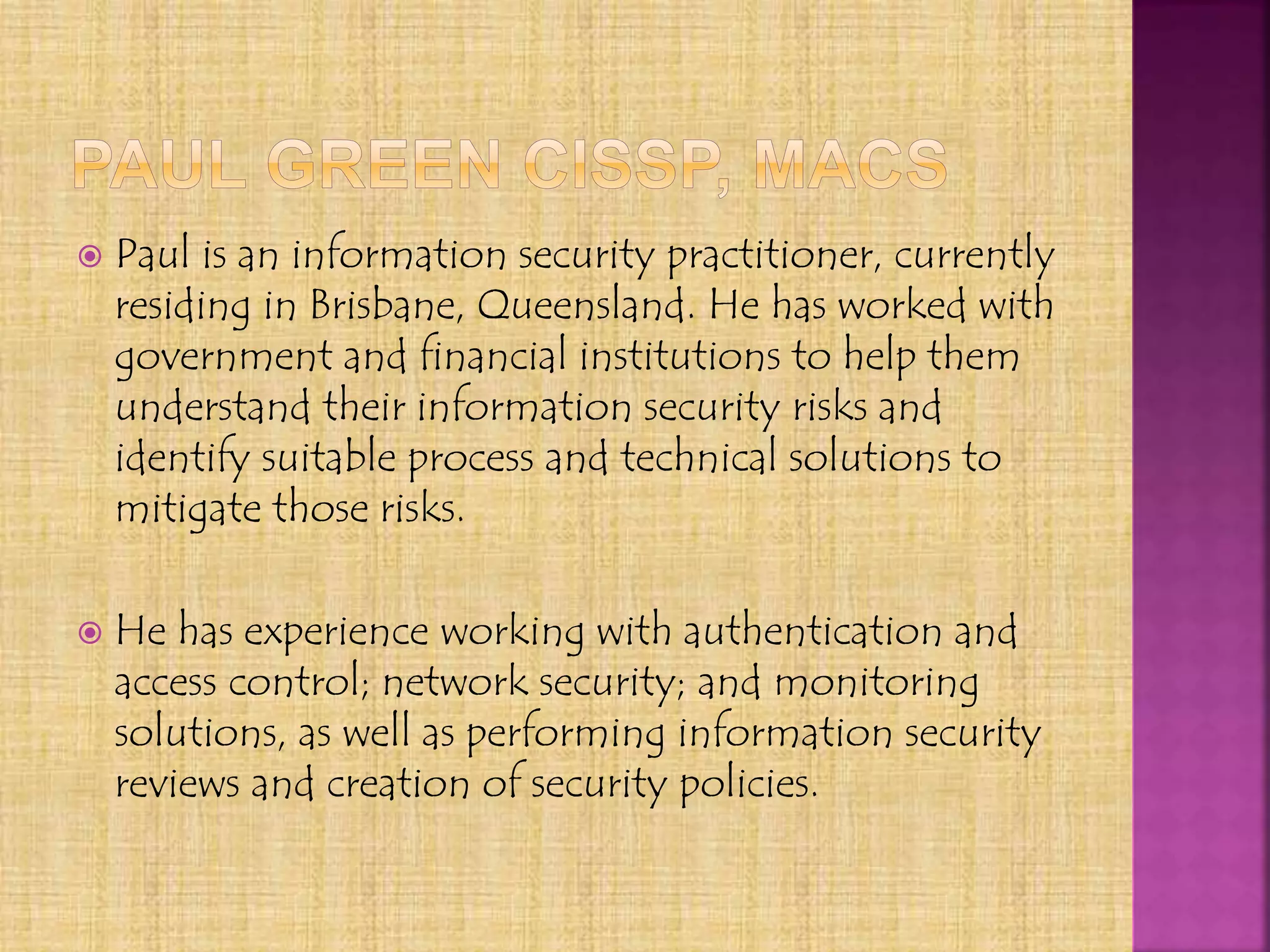

15.  Paul is an information security practitioner, currently
residing in Brisbane, Queensland. He has worked with
government and financial institutions to help them
understand their information security risks and
identify suitable process and technical solutions to
mitigate those risks.
 He has experience working with authentication and
access control; network security; and monitoring
solutions, as well as performing information security
reviews and creation of security policies.
