QOD ROUTING PROTOCOLS
Presented by :
S.Aakasham, ME-CSE
PG Scholar (2013-2015)
SVS COLLEGE OF
ENGINEERING,CBE-109

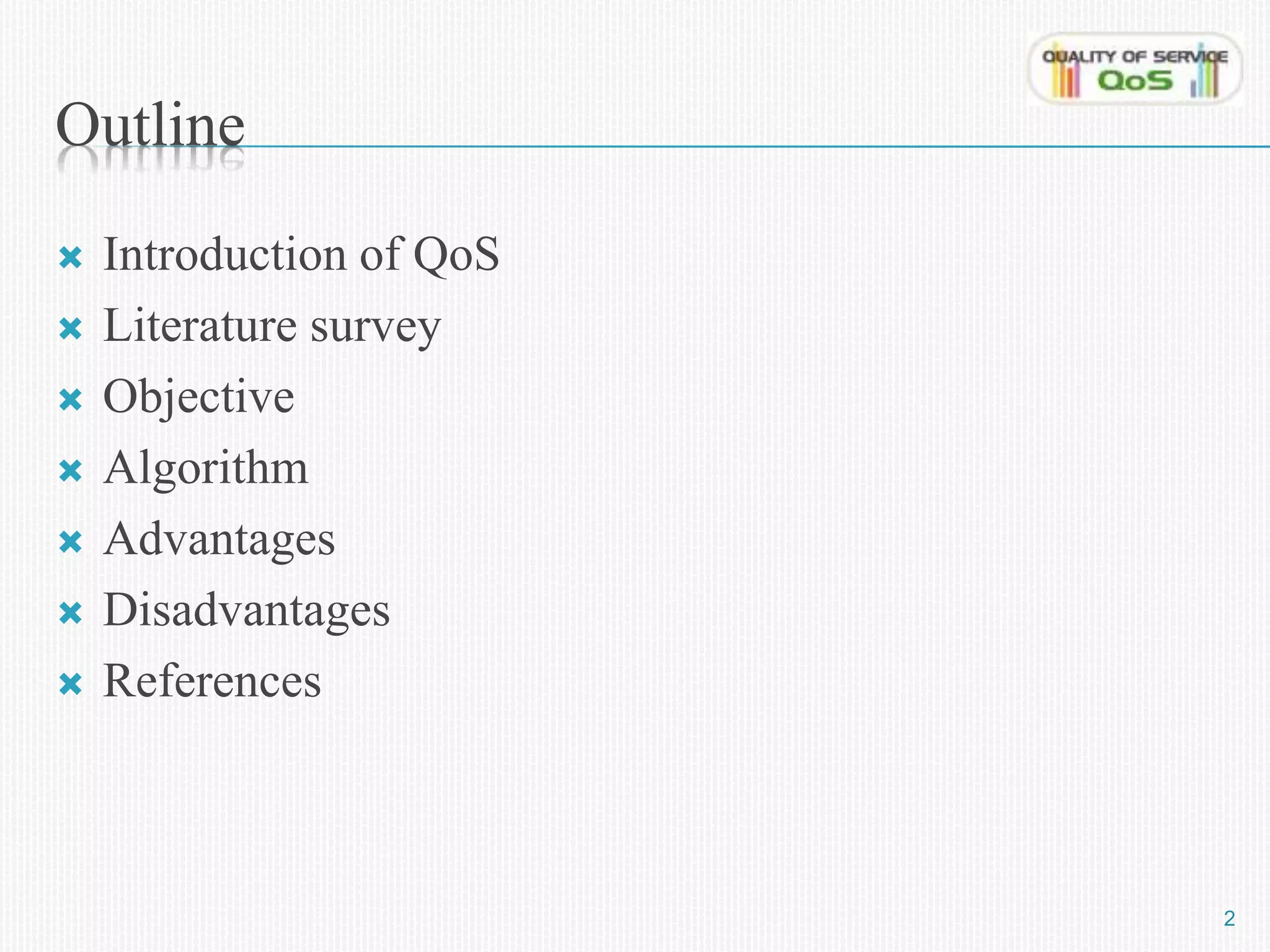

Outline
 Introduction of QoS
 Literature survey
 Objective
 Algorithm
 Advantages
 Disadvantages
 References
2
Introduction Of QoS
 To find a QoS path between source and destination, Which
satisfies
 The QoS requirements for each admitted connection and
 Optimizes the use of network resources
 Quality encompasses the data loss, latency, jitter, efficient
use of network resources,..
 QoS mechanisms for unfairness: managing queuing
behavior, shaping traffic, control admission, routing, …
3
Challenges In QOS
 Mobility
 Dynamic changing topology
 Bandwidth constrains
 Energy constrains
 Scalability
4
QOD ROUTING PROTOCOL FOR HWN
 Usually, a hybrid network has widespread base stations
 The data transmission in hybrid networks has two features:
1. An AP can be a source or a destination to any mobile node
 It allows a stream to have anycast transmission along multiple
transmission paths to its destination through base stations
2. The number of transmission hops between a mobile node and
an AP is small
 It enables a source node to connect to an AP through an intermediate
node
5
Network model of the HWM
6
Algorithms
 In this paper introduce the QoS-Oriented Distributed routing
protocol(QOD)
 This QOD protocol makes five contributions:
 QoS-guaranteed neighbor selection algorithm
 Distributed packet scheduling algorithm
 Mobility-based segment resizing algorithm
 Soft-deadline based forwarding scheduling algorithm
 Data redundancy elimination based transmission
7
Algorithm(cont..)
 1.QoS-guaranteed neighbor selection algorithm
 The algorithm selects qualified neighbors and deadline-driven scheduling
mechanism to guarantee QoS routing
 Get an allocation set A :
 Uas(i)* Wi : available workload rate source node needs to distribute its
packets to the Nq
 Ai : workload rate allocation from source node to immediate node
 Wg : the packet generating rate of the source node
8
Algorithm(cont..)
 2.Distributed packet scheduling algorithm
 After qualified neighbors are identified, this algorithm schedules packet
routing. It assigns earlier generated packets to forwarders with higher
queuing delays, while assigns more recently generated packets to
forwarders with lower queuing delays to reduce total transmission delay
 Distributed queuing mechanism (e.g.: 3 packets distributed)
9
Algorithm(cont..)
 2.Distributed packet scheduling algorithm
 The queuing time of a packet with priority x estimated by :
 and : The transmission delay and arrival interval of a packet
with the jth priority
 : The number of packets arriving during the packet’s
queuing time
10
Algorithm(cont..)
 3.Mobility-based segment resizing algorithm
 The source node adaptively resizes each packet in its packet stream for each
neighbor node according to the neighbor’s mobility
 The mobility of a node increases, the size of a packet Sp sent from a node to
its neighbor nodes i decreases as following :
 γ : Scaling parameter an
 υi : The relative mobility speed of the source node and intermediate node
 =1 kb
11
Algorithm(cont..)
 4.Soft-deadline based forwarding scheduling algorithm
 An intermediate node first forwards the packet with the least time
allowed to wait before being packet forwarding
 A forwarding node can use the least slack first (LSF) scheduling
algorithm
 The slack time of a packet p is defined as :
 Dp : Deadline of packet p
 t : The current time
 c’ : The remaining packet transmission time of the packet
12
Algorithm(cont..)
 5.Data redundancy elimination based transmission
 The APs and mobile nodes can overhead and cache packets
 Use an end-to-end traffic redundancy elimination (TRE) algorithm
eliminates the redundant data to improve the QoS of the packet transmission
13
Advantages
 Guarantee QoS routing
 Reduce total transmission delay
 Increases node mobility
 Achieve fairness in packet forwarding
 Eliminates the redundant data
 Improve the QoS of packet transmission
14
