- 1. Introduction to NanoBoard-3000FPGA Source: Altium
- 2. Introduction Purpose AnIntroduction to NanoBoard-3000 FPGA Outline Key Features, Architectural details and Functional overview. NanoBoard 3000 Motherboard resources. PC Interface, Video output, Host FPGA. ESD and Enclosure of NanoBoard 3000. Content 15 pages
- 3. Key Features ofNanoBoard-3000 Host (NanoTalk) Controller FPGA: NanoBoard 3000XN – Xilinx variant: A Xilinx Spartan-3AN device. NanoBoard 3000AL – Altera variant: An Altera Cyclone III device. NanoBoard 3000LC – Lattice variant: A LatticeECP2 device. 4x Serial SPI Flash memory devices. 1-Wire® memory device used to store board ID and related information. Programmable clock 6 to 200 MHz. On-board memories accessible by User FPGA: 256K x 32-bit common-bus SRAM (1MByte). 16M x 32-bit common-bus SDRAM (64MByte). 8M x 16-bit common-bus 3.0V Page Mode Flash memory (16MByte). Dual 256K x 16-bit independent SRAM (512KByte each). 4-channel 8-bit ADC and DAC, SPI-compatible. 4x isolated IM Relay channels, S/PDIF interface. SVGA interface (24-bit, 80MHz). 240 x 320 TFT LCD with touch screen. 24-bit Stereo Audio CODEC with I2S-compatible interface.

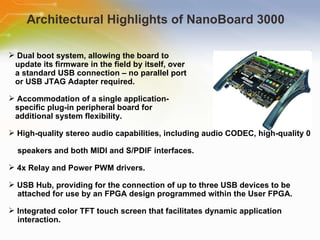

- 4. Architectural Highlights ofNanoBoard 3000 Dual boot system, allowing the board to update its firmware in the field by itself, over a standard USB connection – no parallel port or USB JTAG Adapter required. Accommodation of a single application- specific plug-in peripheral board for additional system flexibility. High-quality stereo audio capabilities, including audio CODEC, high-quality 0 speakers and both MIDI and S/PDIF interfaces. 4x Relay and Power PWM drivers. USB Hub, providing for the connection of up to three USB devices to be attached for use by an FPGA design programmed within the User FPGA. Integrated color TFT touch screen that facilitates dynamic application interaction.
- 5. Functional Overview ofNB-3000

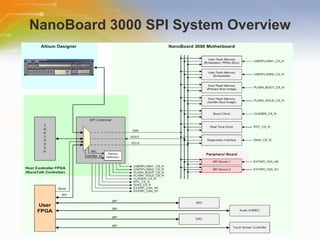

- 6. NanoBoard 3000 SPISystem Overview
- 7. NanoBoard 3000 Motherboard Resources System Clocks. Serial SPI Flash Memory. Common-Bus SRAM,SDRAM . Common-Bus Flash Memory. Independent SRAM. RS-232 / 485 Serial Interface. Ethernet Port. PS/2 Keyboard and Mouse Ports. User USB Port. USB Hub. ADC Interface. DAC Interface. PWM Power Drivers. SD Card Reader (User FPGA). MIDI,SPDIF Interface.
- 8. NanoBoard-PC Interface (USBPort) The NanoBoard 3000 is connected to PC via one of the computer's standard USB 2.0 ports. This device has a built-in USB transceiver and a Serial Interface Engine (SIE), which automatically manages the USB protocol. Internal clocking for the USB transceiver is supplied from an internal PLL. PLL is driven by an external 24MHz crystal connected across the device's XTALIN and XTALOUT pins. Reset of the USB interface device is provided through use of a supervisory reset circuit device. USB high-speed interface device USB interface port for connection to a PC
- 9. NanoBoard 3000 -Host FPGA (NanoTalk Controller) The NanoTalk Controller manages JTAG communications with: USB-PC interface, User FPGA, Peripheral board, System JTAG header. 1-Wire memory devices (used for identification) on motherboard and peripheral board SPI resources on peripheral board Host and User SPI Flash memories Host status Led's. SPI Master clock. Real-Time Clock (RTC). Diagnostics interface. Accessing information for the multiplexed JTAG chains over a single JTAG link
- 10. NanoBoard 3000 -Video Output The NanoBoard 3000 provides a standard SVGA (Super Video Graphics Array) interface, for connection to any SVGA-compatible monitor. Analog RGB video output (24-bit/80MHz) is made through a DB15F connector. The analog R, G and B signals – required for output to a connected monitor are obtained by passing the 24-bit digital RGB video signal (RGB, 8-bits parallel) through a THS8134 Video DAC device. For each colour, the 8-bit digital signal can be converted into 256 distinct analog levels. These levels specify the intensity of each of the three primary colours. Video output connector Video DAC
- 11. NanoBoard 3000 -User FPGA The NanoBoard 3000 provides a single FPGA device, to which an FPGA design is targeted and ultimately programmed. Referred to as the 'User FPGA', this device is fixed on the motherboard – there are no daughter boards used with the 3000-series NanoBoards. The actual FPGA device resident on the motherboard will depend on which variant of NanoBoard you are using. The NanoBoard 3000XN provides a Spartan-3AN device (XC3S1400AN-4FGG676C) as its User FPGA. The NanoBoard 3000AL provides an Altera Cyclone III device (EP3C40F780C8N) as its User FPGA. The NanoBoard 3000LC provides a LatticeECP2 device (LFE2-35SE-5FN672C) as its User FPGA.

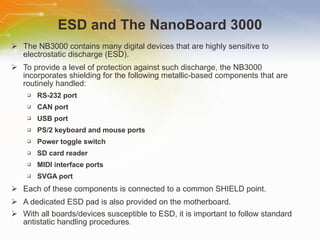

- 12. ESD and TheNanoBoard 3000 The NB3000 contains many digital devices that are highly sensitive to electrostatic discharge (ESD). To provide a level of protection against such discharge, the NB3000 incorporates shielding for the following metallic-based components that are routinely handled: RS-232 port CAN port USB port PS/2 keyboard and mouse ports Power toggle switch SD card reader MIDI interface ports SVGA port Each of these components is connected to a common SHIELD point. A dedicated ESD pad is also provided on the motherboard. With all boards/devices susceptible to ESD, it is important to follow standard antistatic handling procedures .

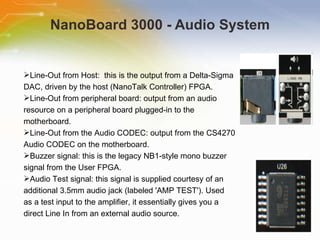

- 13. NanoBoard 3000 -Audio System Line-Out from Host: this is the output from a Delta-Sigma DAC, driven by the host (NanoTalk Controller) FPGA. Line-Out from peripheral board: output from an audio resource on a peripheral board plugged-in to the motherboard. Line-Out from the Audio CODEC: output from the CS4270 Audio CODEC on the motherboard. Buzzer signal: this is the legacy NB1-style mono buzzer signal from the User FPGA. Audio Test signal: this signal is supplied courtesy of an additional 3.5mm audio jack (labeled 'AMP TEST'). Used as a test input to the amplifier, it essentially gives you a direct Line In from an external audio source.
- 14. NanoBoard 3000 ModularEnclosure NanoBoard 3000 Modular Enclosure configurations: Desktop – horizontal Desktop - horizontal with LCD screen Desktop – stacked Desktop – vertical Desktop - vertical with LCD screen Wall mounted Wall mounted - with LCD screen Wall mounted - bridged

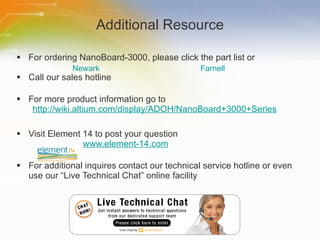

- 15. Additional Resource Forordering NanoBoard-3000, please click the part list or Call our sales hotline For more product information go to http://wiki.altium.com/display/ADOH/NanoBoard+3000+Series Visit Element 14 to post your question www.element-14.com For additional inquires contact our technical service hotline or even use our “Live Technical Chat” online facility Newark Farnell
