Introduction to nand2 tetris
This document provides an outline and introduction for the Nand2Tetris course, which teaches students to build a computer from basic logic gates up through an entire computer architecture. The outline covers building combinational logic circuits in part 1 and developing a virtual machine and compiler in part 2. Key concepts discussed include NAND gates, Boolean logic, ALU design, CPU implementation, assembly language, stack-based virtual machines, and high-level language compilers. Diagrams illustrate the course progression from basic gates to an entire computer system.
In this document
Powered by AI
Introduction to the Nand2Tetris course designed by Noam Nisan and Shimon Schocken, outlining course content and resources. Detailed breakdown of course weeks, covering topics from basic logic gates to CPU architecture.
Introduction to Nand and its significance in circuits, leading to ALU and sequential logic.
Focus on D Flip-Flops and combinational circuits, explaining memory structures and CPU elements.
Overview of instruction formats in CPU operations, detailing ROM and memory structure.
Hack Assembly language structure, instructions, and example implementations.
Introduction to Stack Virtual Machine architecture, including push/pop management and command implementation.
Overview and implementation of Jack language, including compiler design and array handling.
Key functionalities of an OS including memory management, input processing, and math functions.Summary of the Nand2Tetris journey from hardware to software, with references for further learning.
More Related Content
Similar to Introduction to nand2 tetris
Introduction to nand2 tetris
- 1. Nand2Tetris Learning Computer byBuilding It
- 2. About the Speaker ●YehBan (aka: Yodalee) ● Blogger: http://yodalee.blogspot.tw/ ● Programmer: https://github.com/yodalee
- 3. Outline ● Introduction toNand2Tetris ● Detail content in each week ○ Part 1: ■ Week 1, 2: Nand to ALU ■ Week 3, 5: Sequential Logic to CPU ■ Week 4, 6: Assembly and Assembler ○ Part 2: ■ Week 1, 2: Stack Virtual Machine ■ Week 4, 5: Jack Compiler ■ Week 6: Runtime and OS

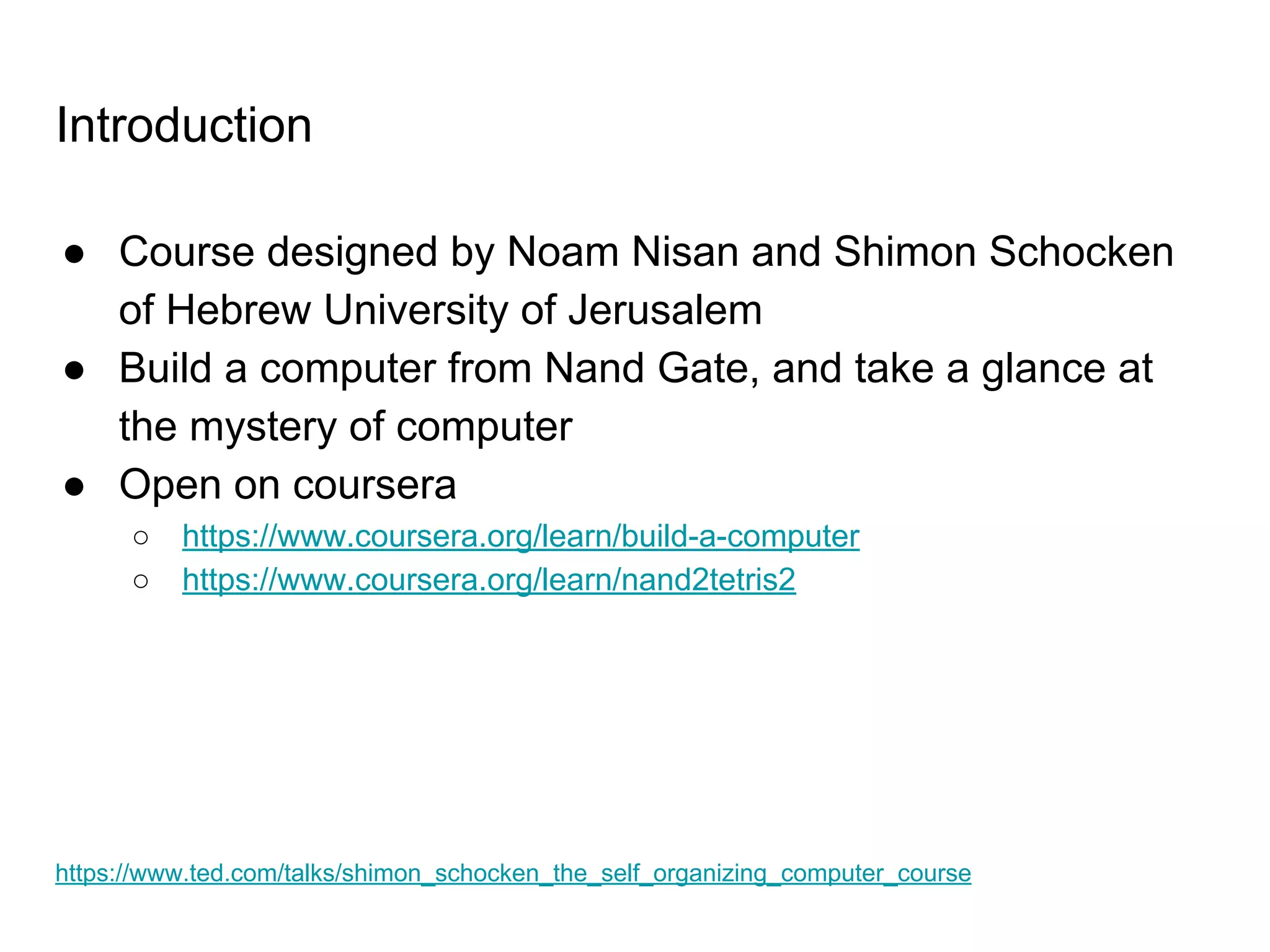

- 4. Introduction ● Course designedby Noam Nisan and Shimon Schocken of Hebrew University of Jerusalem ● Build a computer from Nand Gate, and take a glance at the mystery of computer ● Open on coursera ○ https://www.coursera.org/learn/build-a-computer ○ https://www.coursera.org/learn/nand2tetris2 https://www.ted.com/talks/shimon_schocken_the_self_organizing_computer_course

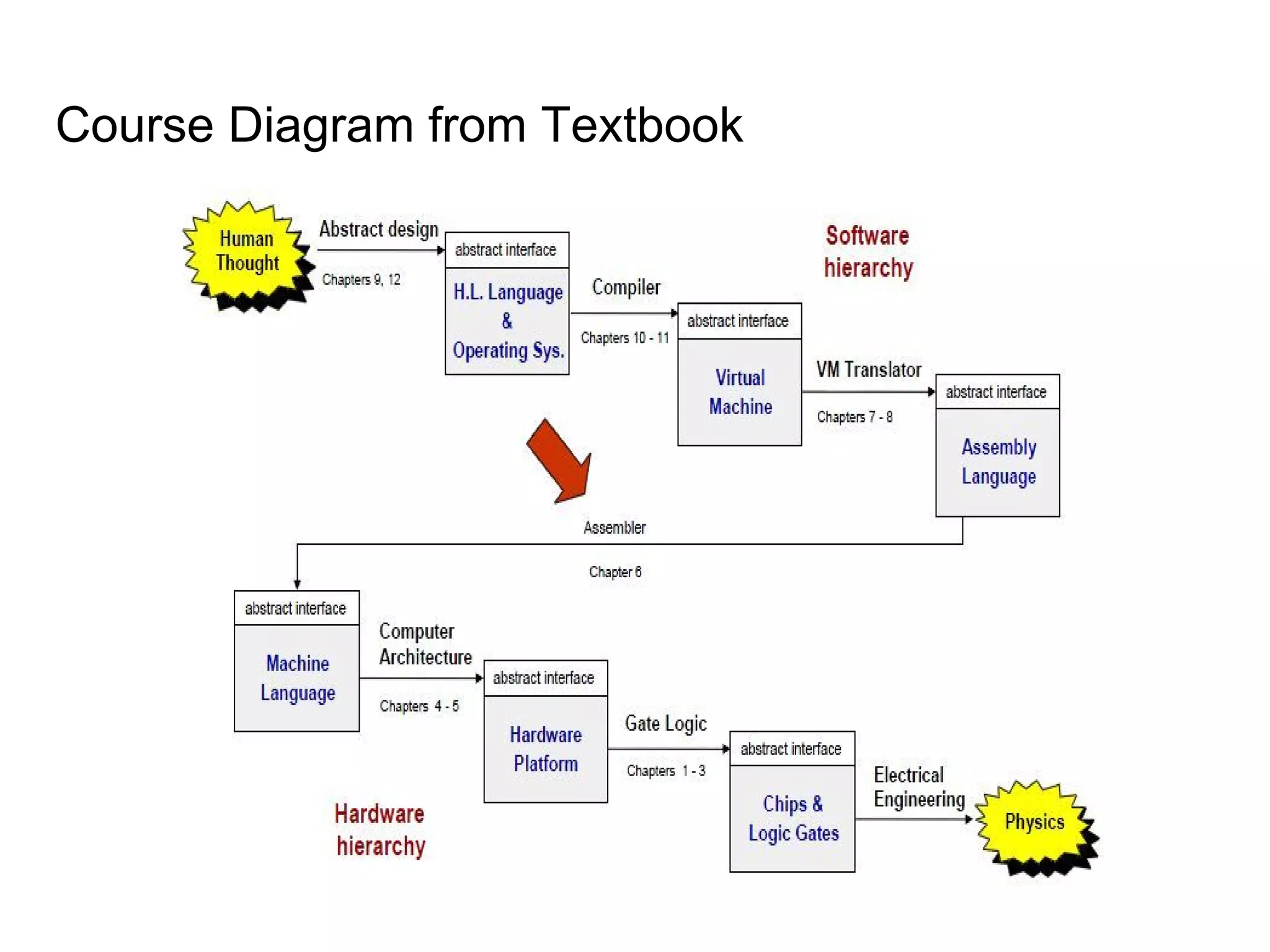

- 5. Course Diagram fromTextbook

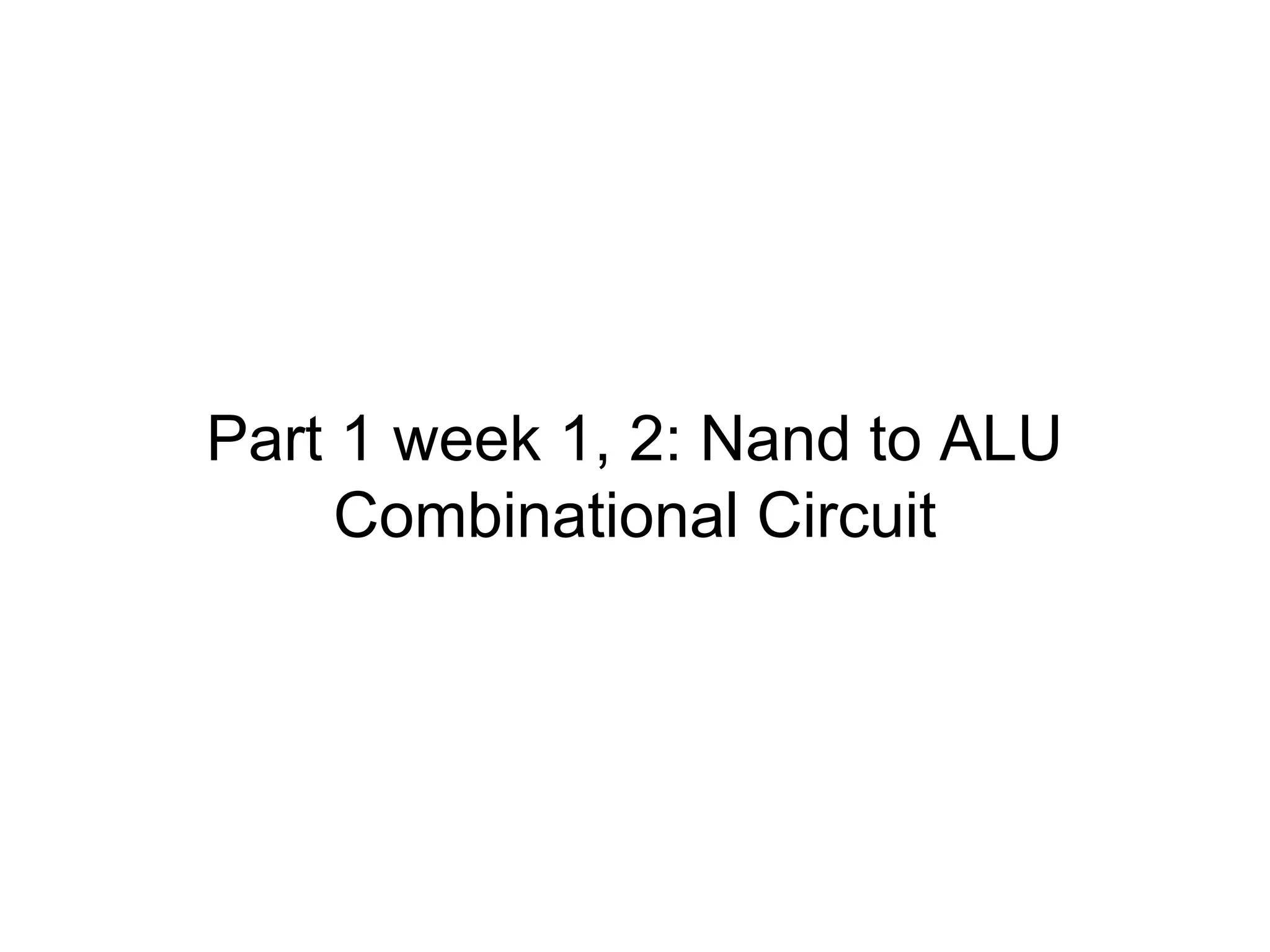

- 6. Part 1 week1, 2: Nand to ALU Combinational Circuit
- 7. From the Beginning:Nand A B Nand(A, B) 0 0 1 0 1 1 1 0 1 1 1 0 ● Nand is one kind of basic logic gate ○ Why Nand, not Nor? ● The truth table of Nand https://electronics.stackexchange.com/questions/110649/why-is-nand-gate-preferred-over-nor-gate-in-industry

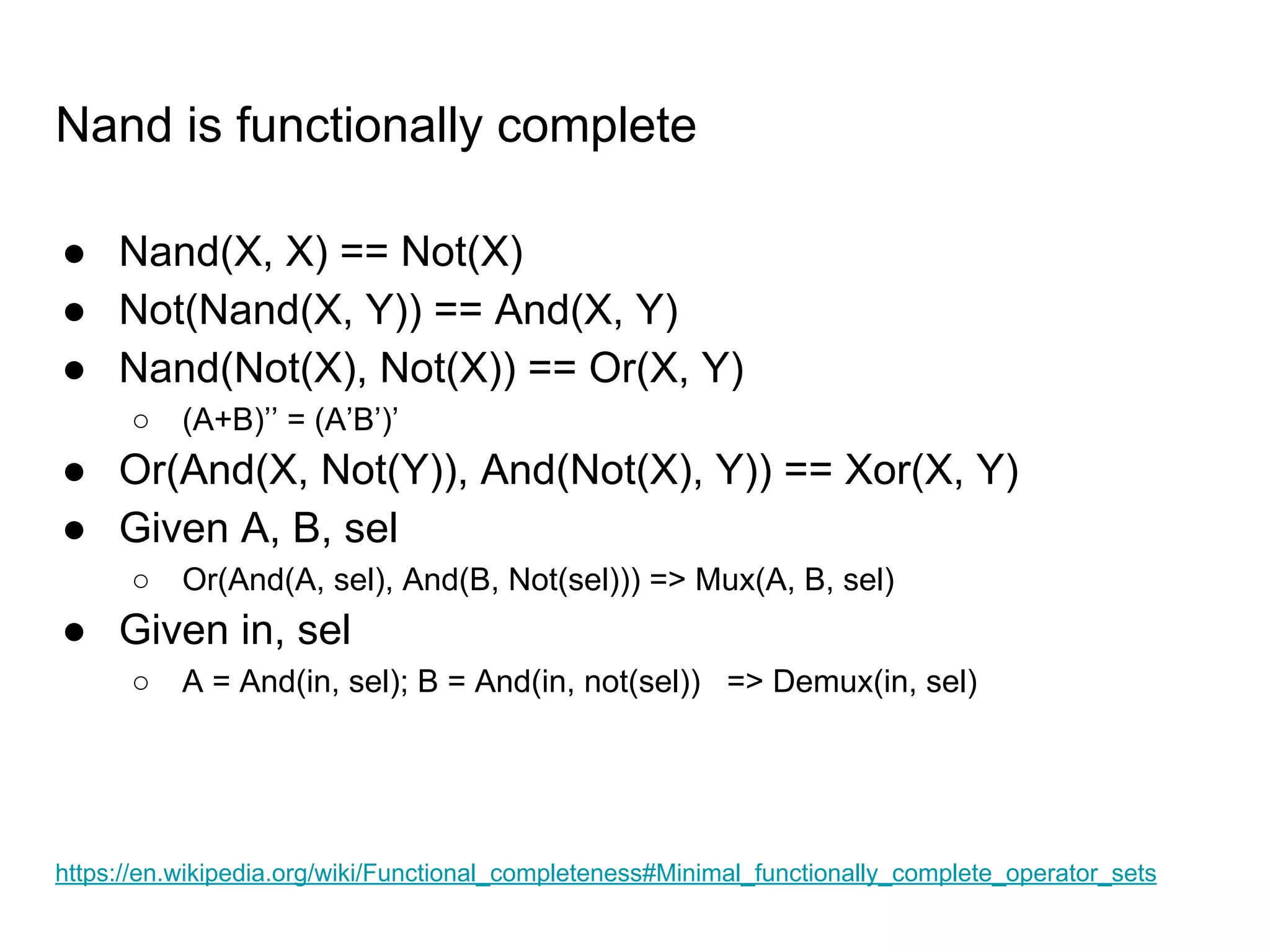

- 8. Nand is functionallycomplete ● Nand(X, X) == Not(X) ● Not(Nand(X, Y)) == And(X, Y) ● Nand(Not(X), Not(X)) == Or(X, Y) ○ (A+B)’’ = (A’B’)’ ● Or(And(X, Not(Y)), And(Not(X), Y)) == Xor(X, Y) ● Given A, B, sel ○ Or(And(A, sel), And(B, Not(sel))) => Mux(A, B, sel) ● Given in, sel ○ A = And(in, sel); B = And(in, not(sel)) => Demux(in, sel) https://en.wikipedia.org/wiki/Functional_completeness#Minimal_functionally_complete_operator_sets

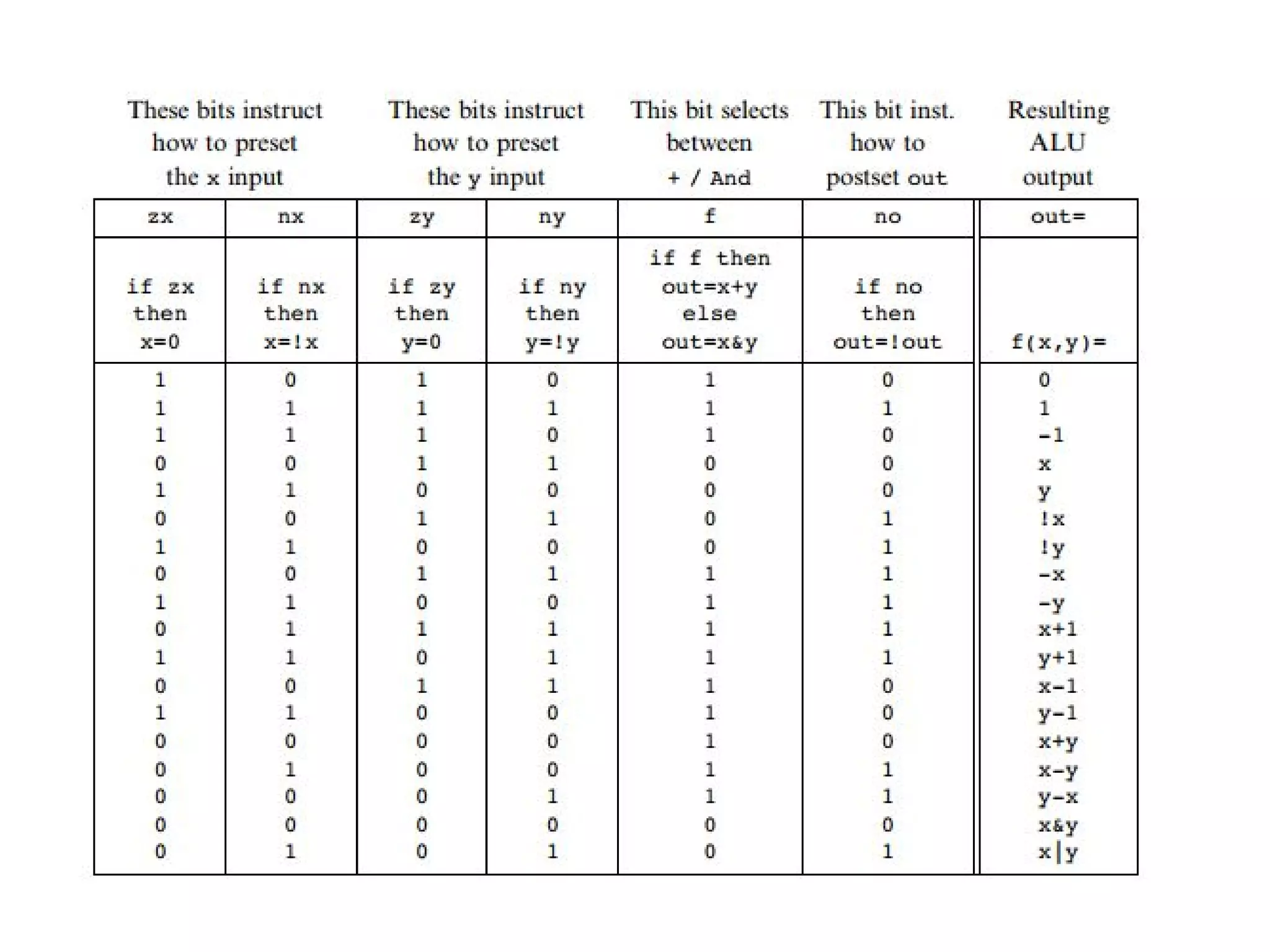

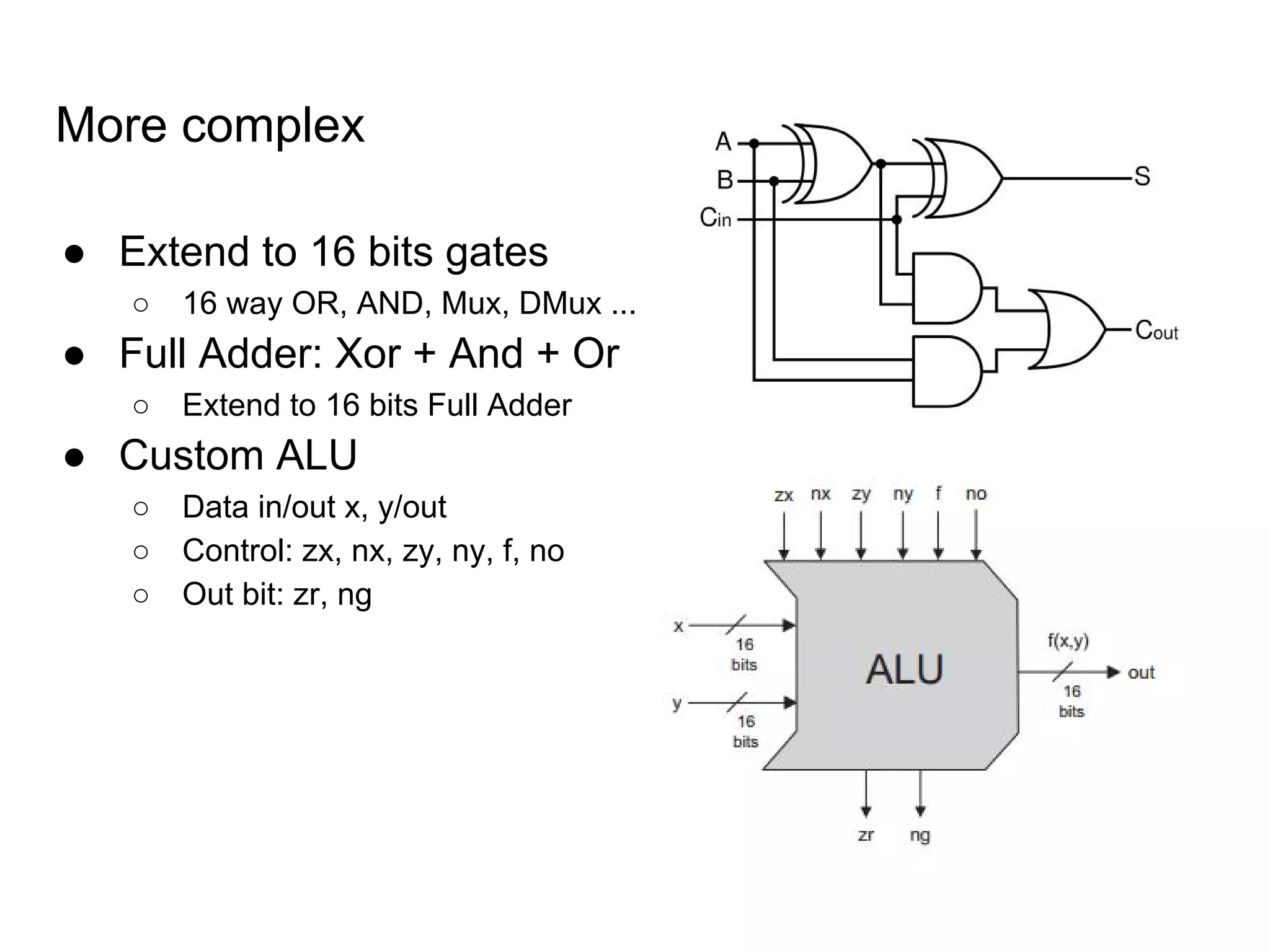

- 9. More complex ● Extendto 16 bits gates ○ 16 way OR, AND, Mux, DMux ... ● Full Adder: Xor + And + Or ○ Extend to 16 bits Full Adder ● Custom ALU ○ Data in/out x, y/out ○ Control: zx, nx, zy, ny, f, no ○ Out bit: zr, ng

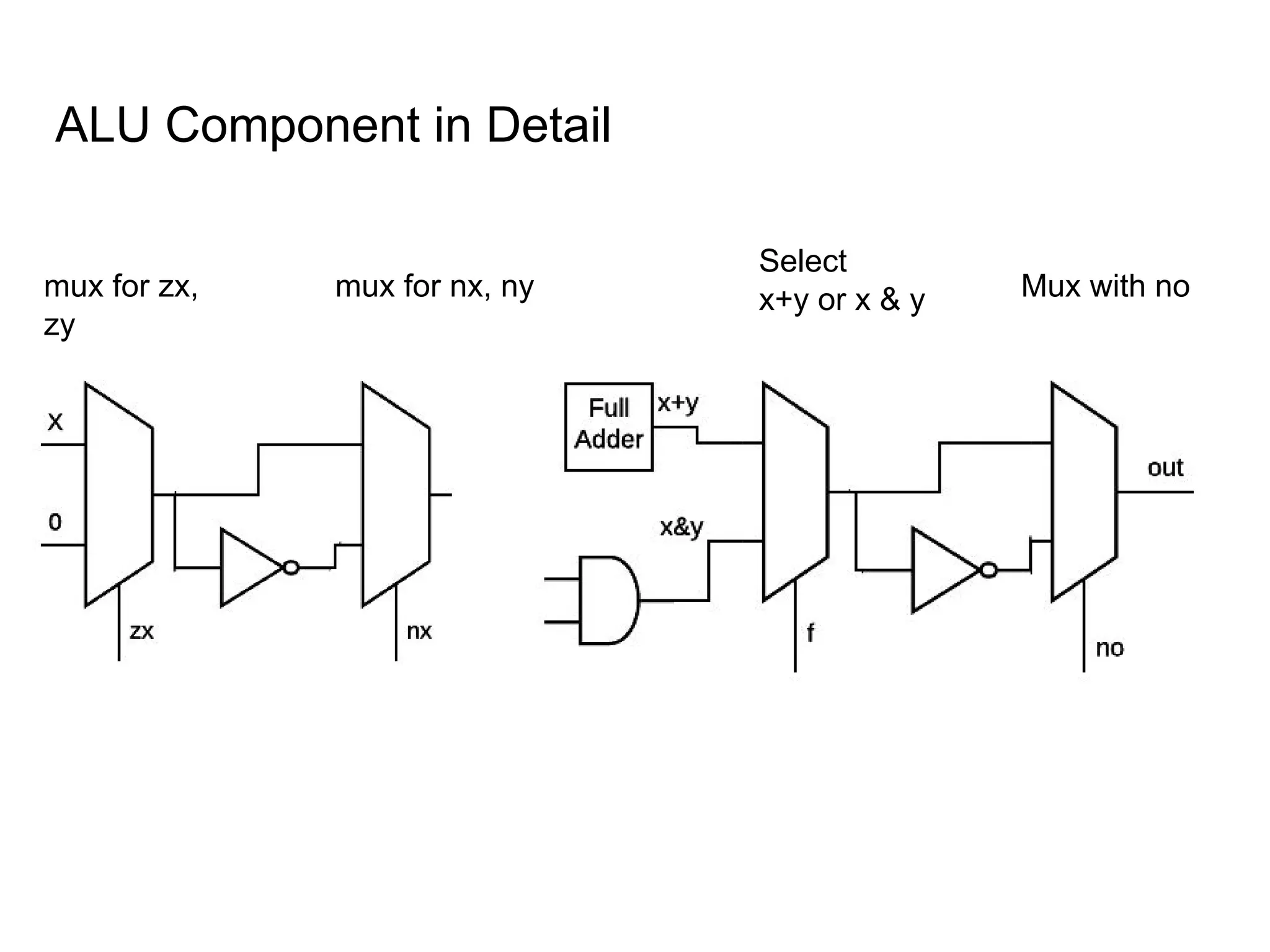

- 11. ALU Component inDetail mux for zx, zy mux for nx, ny Select x+y or x & y Mux with no

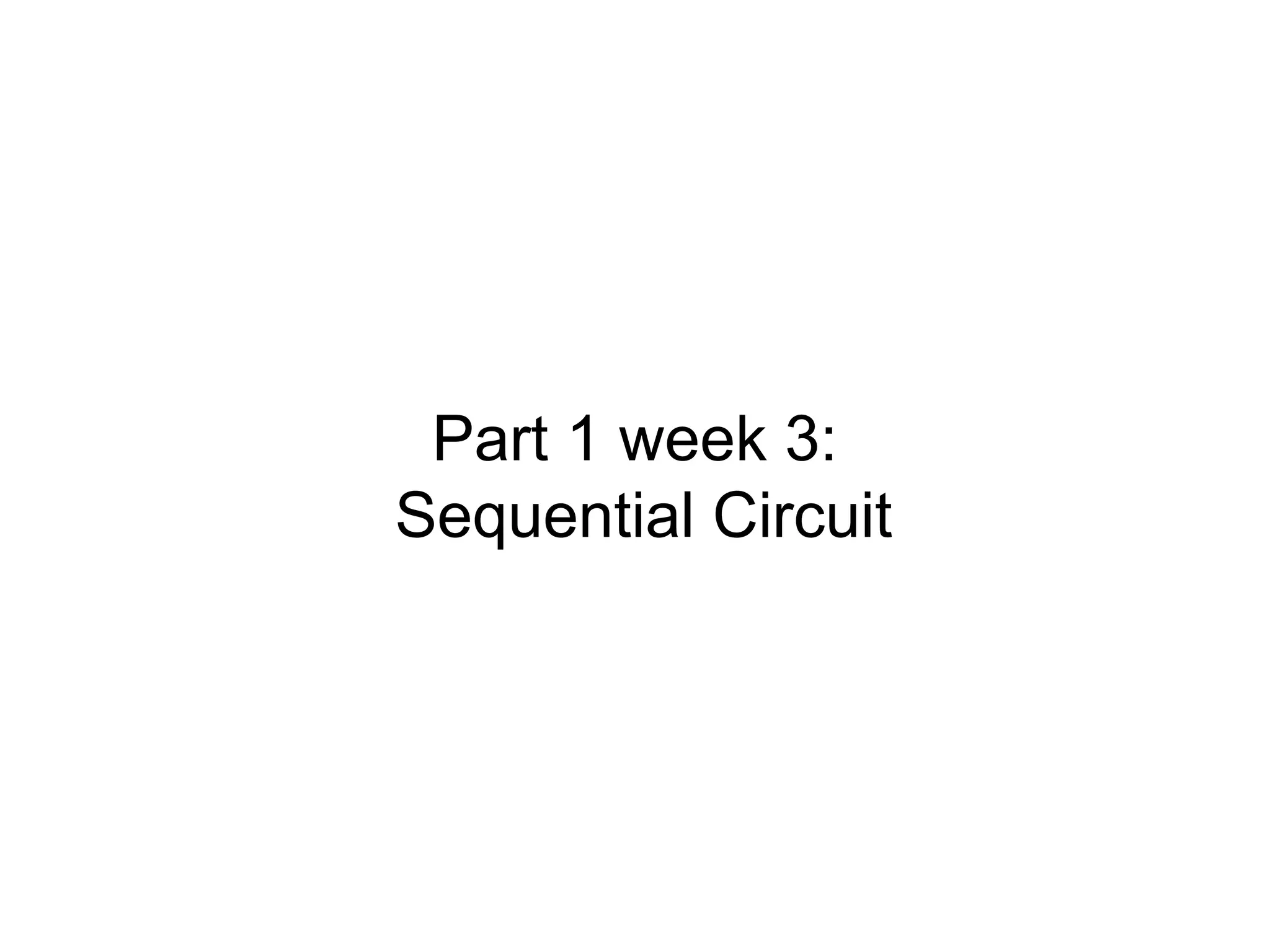

- 12. Part 1 week3: Sequential Circuit

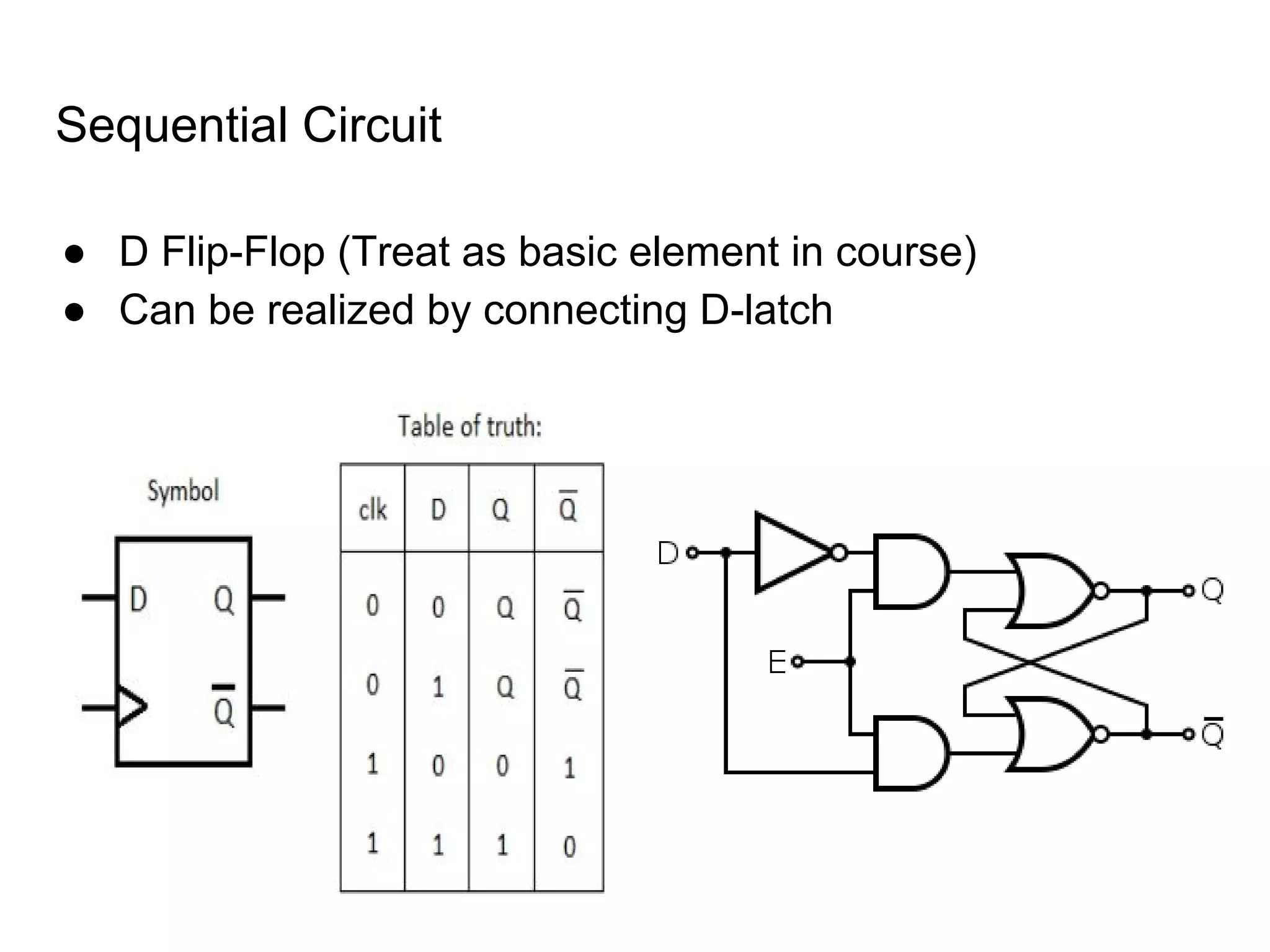

- 13. Sequential Circuit ● DFlip-Flop (Treat as basic element in course) ● Can be realized by connecting D-latch

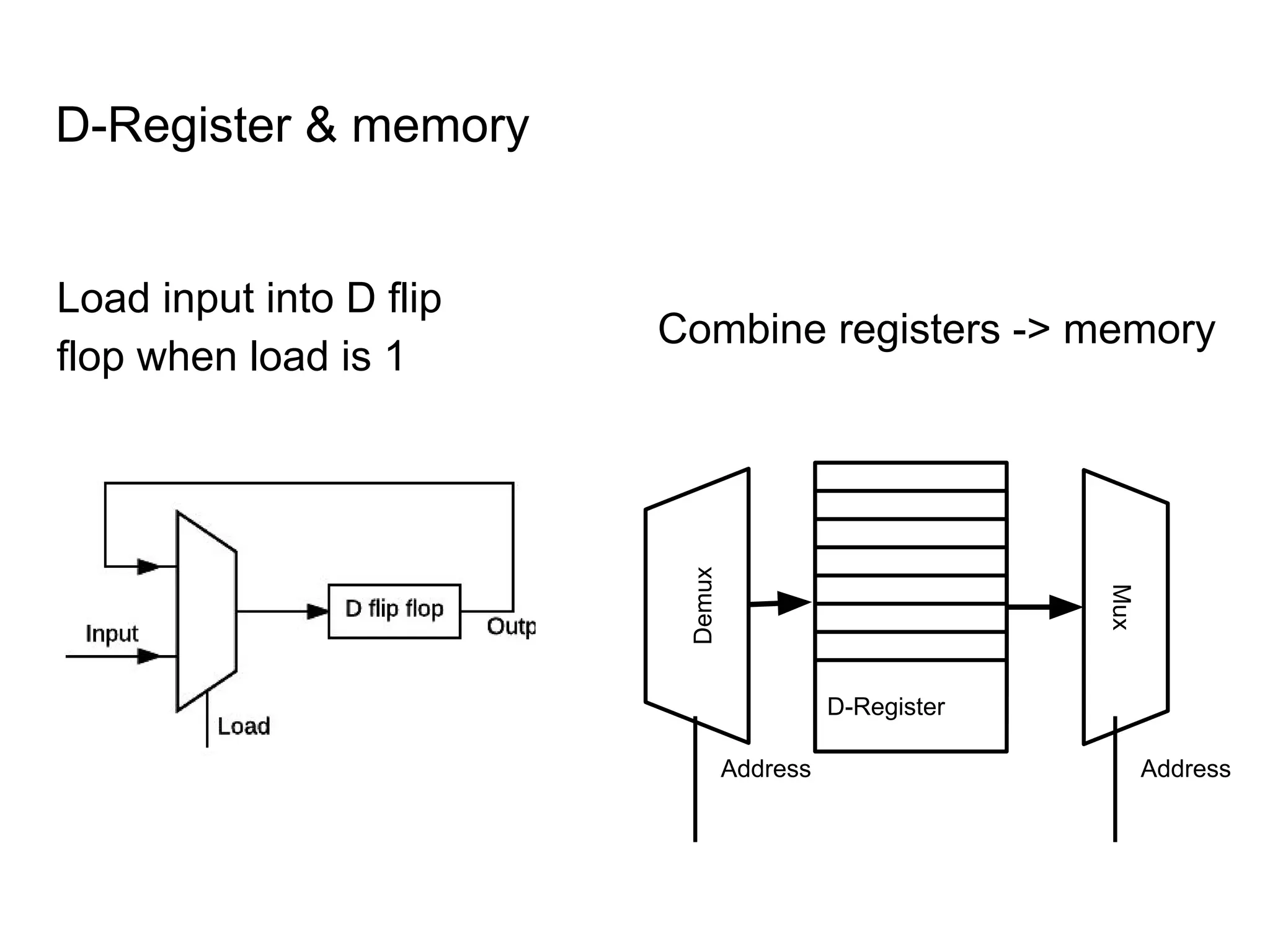

- 14. D-Register & memory Combineregisters -> memory D-Register D-Register D-Register D-Register D-Register D-Register D-Register D-Register Mux Address Demux Address Load input into D flip flop when load is 1

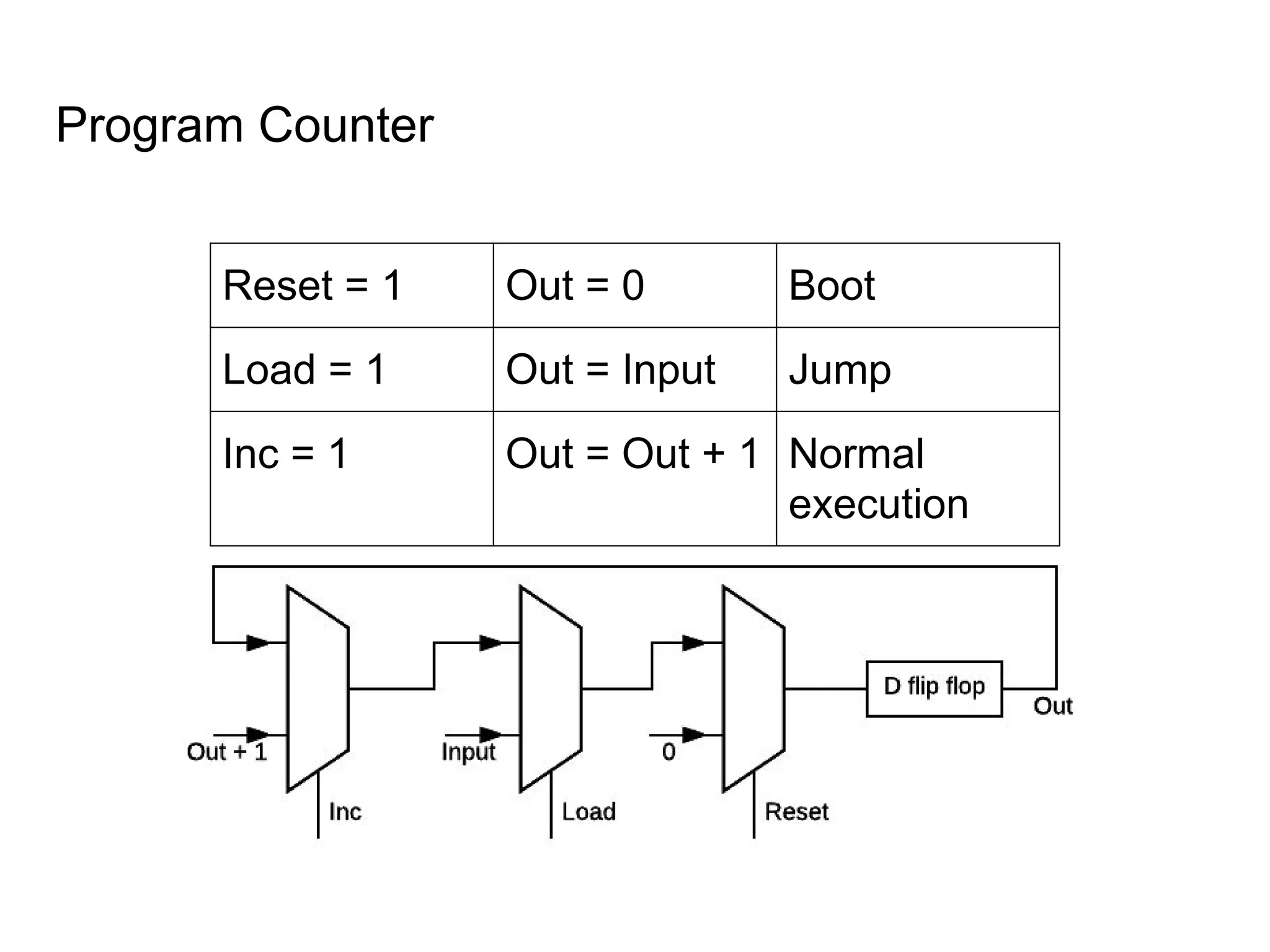

- 15. Program Counter Reset =1 Out = 0 Boot Load = 1 Out = Input Jump Inc = 1 Out = Out + 1 Normal execution
- 16. Part 1 Week4, 5: Instruction Set, CPU and Computer

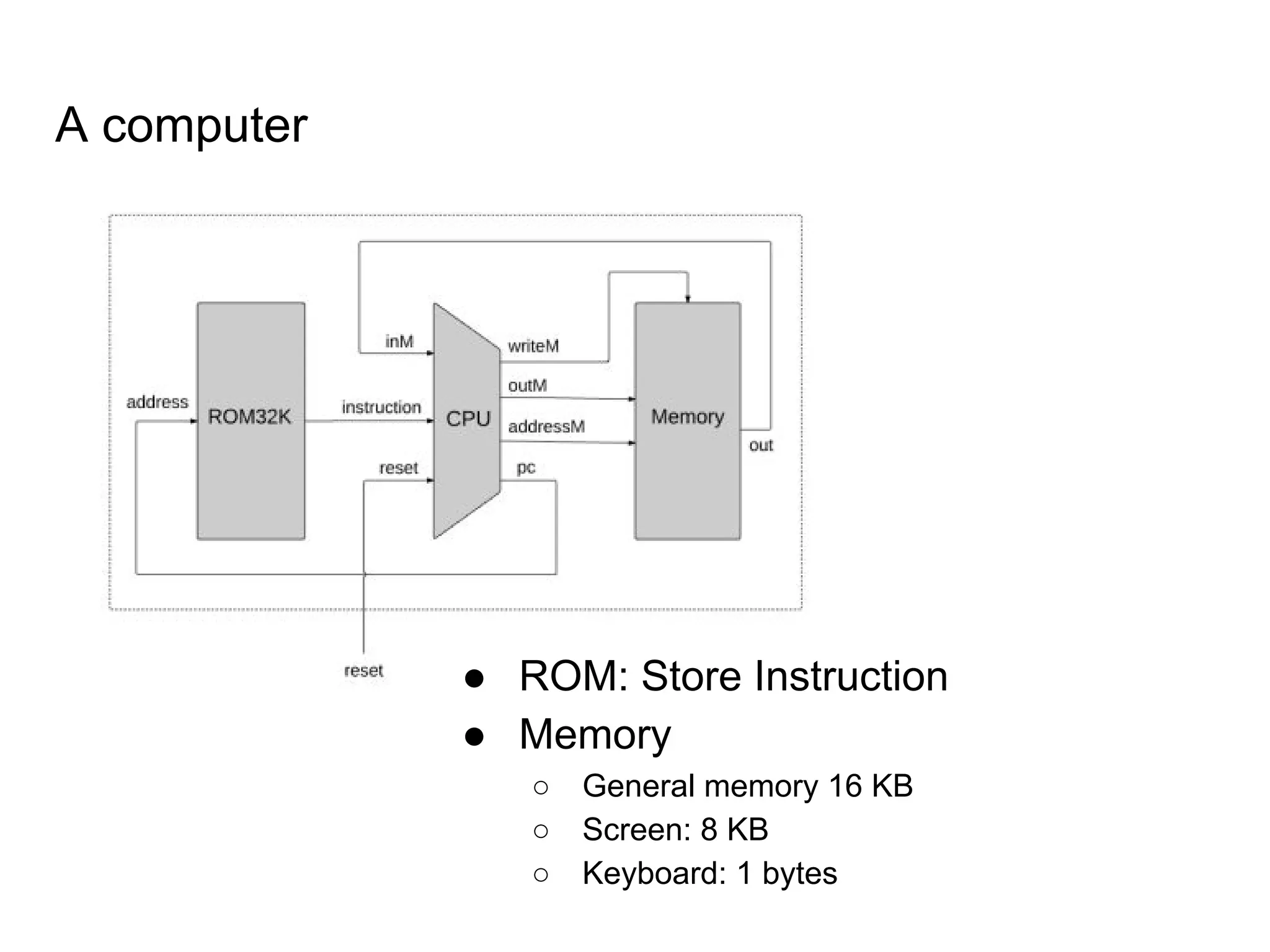

- 17. A computer ● ROM:Store Instruction ● Memory ○ General memory 16 KB ○ Screen: 8 KB ○ Keyboard: 1 bytes

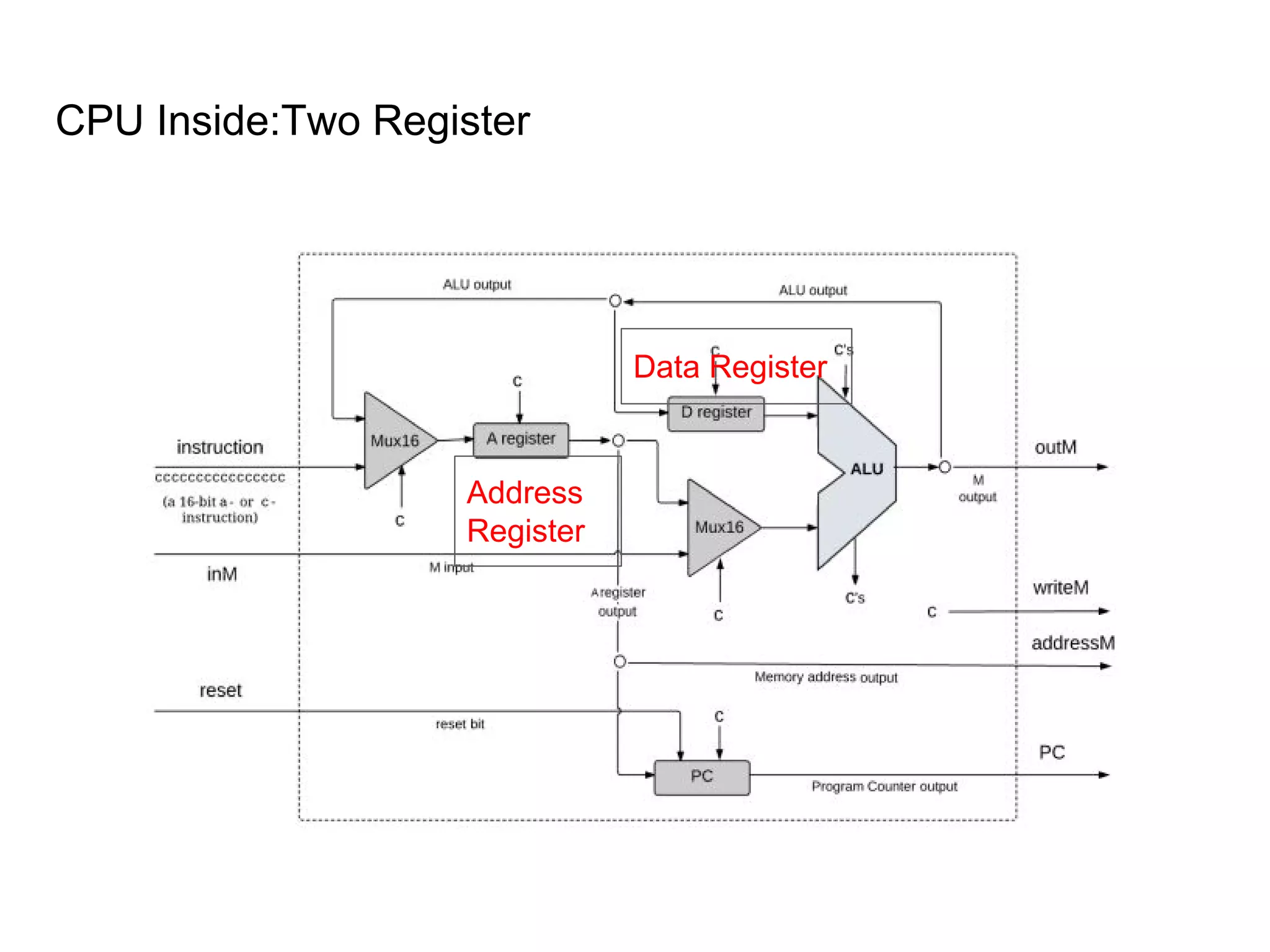

- 18.
- 19. Instruction Overview ● AInstruction: MSB = 0, load [14:0] to A register ○ Ex. 0000 0000 0000 0111: load 7 into A ● C Instruction: MSB = 1, format: 111A CCCCCC DDD JJJ ○ A: Data selection C: Arithmetic select ○ D: Destination select J: Jump select

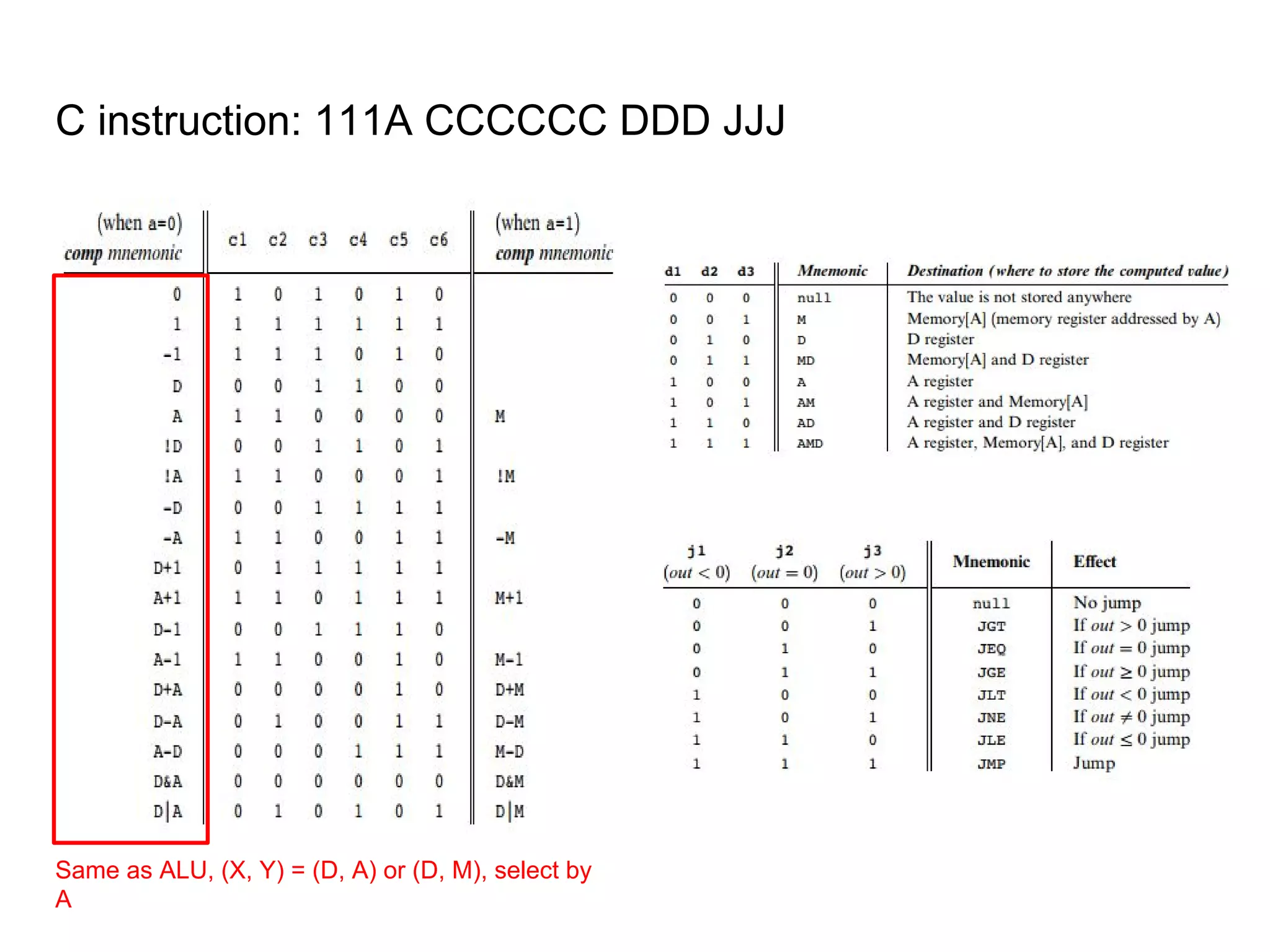

- 20. C instruction: 111ACCCCCC DDD JJJ Same as ALU, (X, Y) = (D, A) or (D, M), select by A

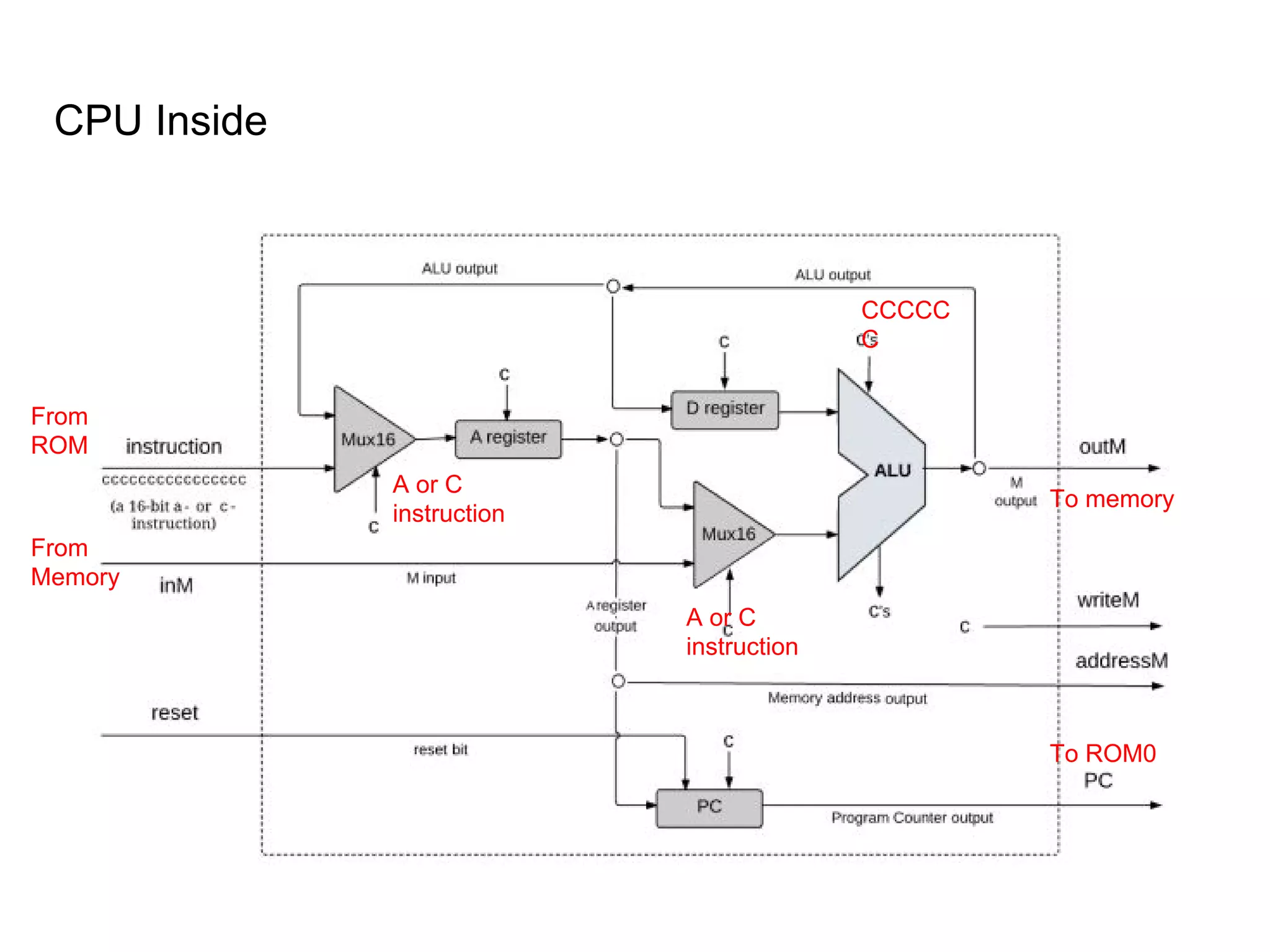

- 21. CCCCC C A or C instruction CPUInside From ROM From Memory To memory To ROM0 A or C instruction

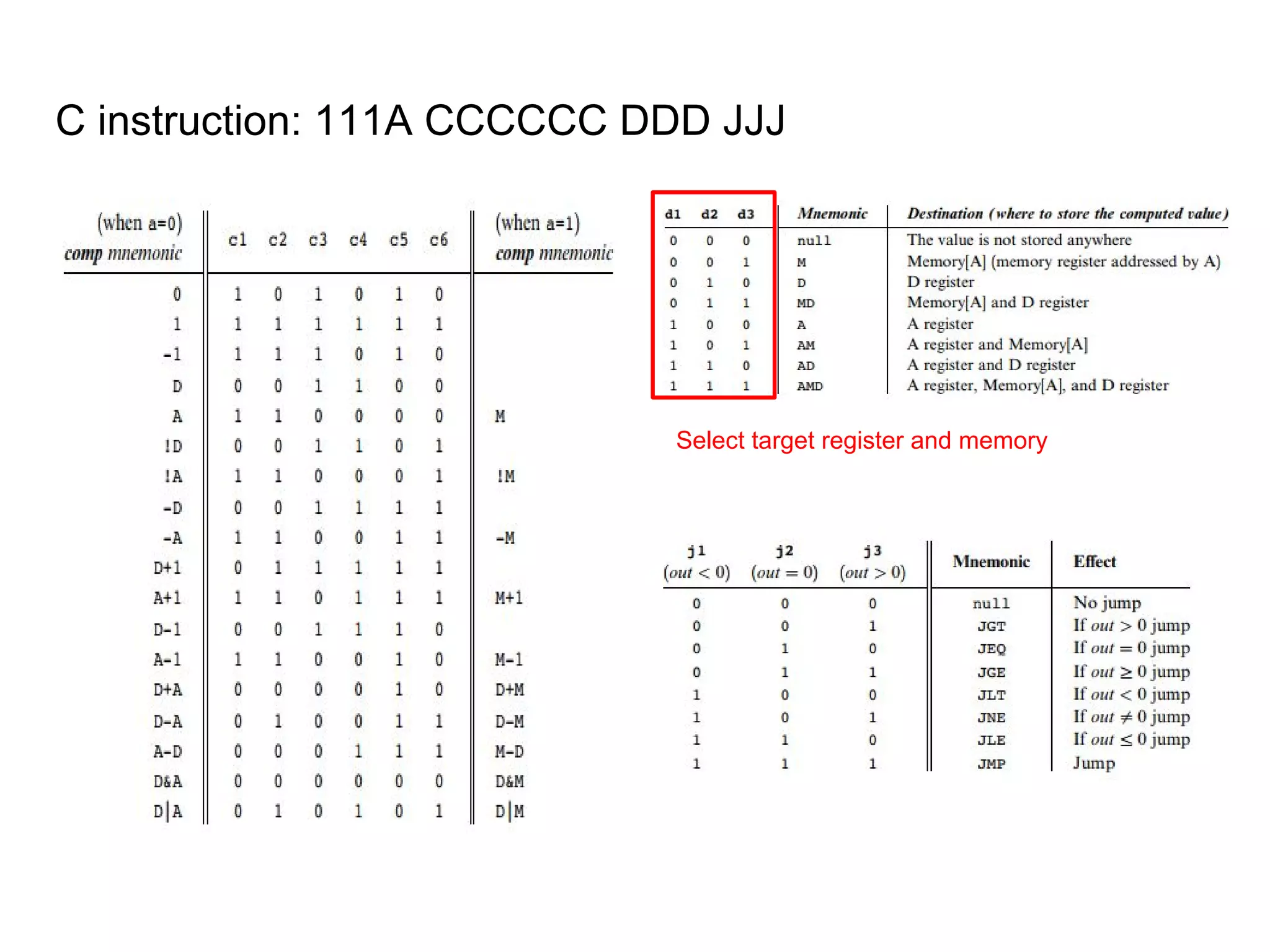

- 22. C instruction: 111ACCCCCC DDD JJJ Select target register and memory

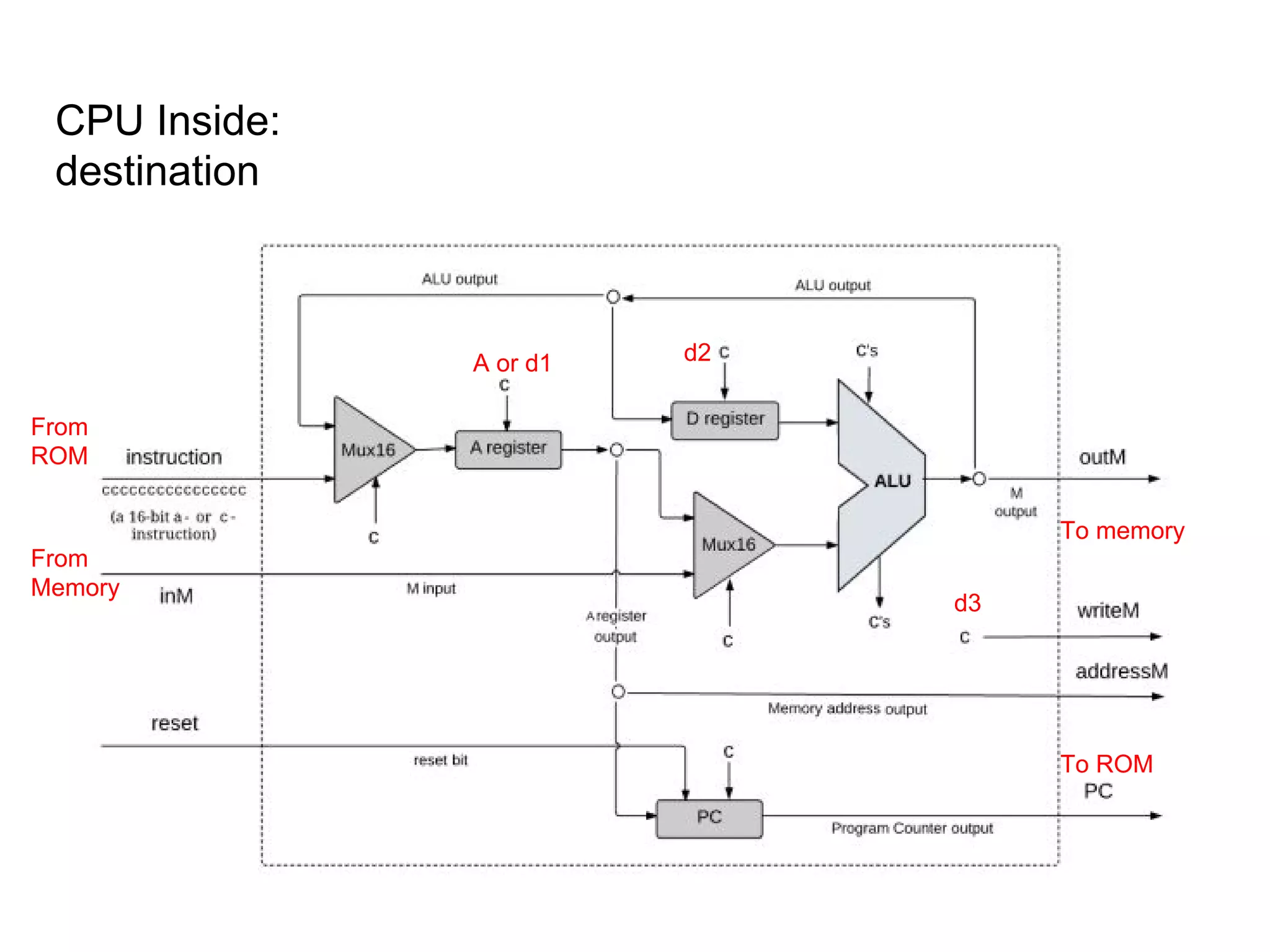

- 23. d2 d3 A or d1 CPUInside: destination From ROM From Memory To memory To ROM

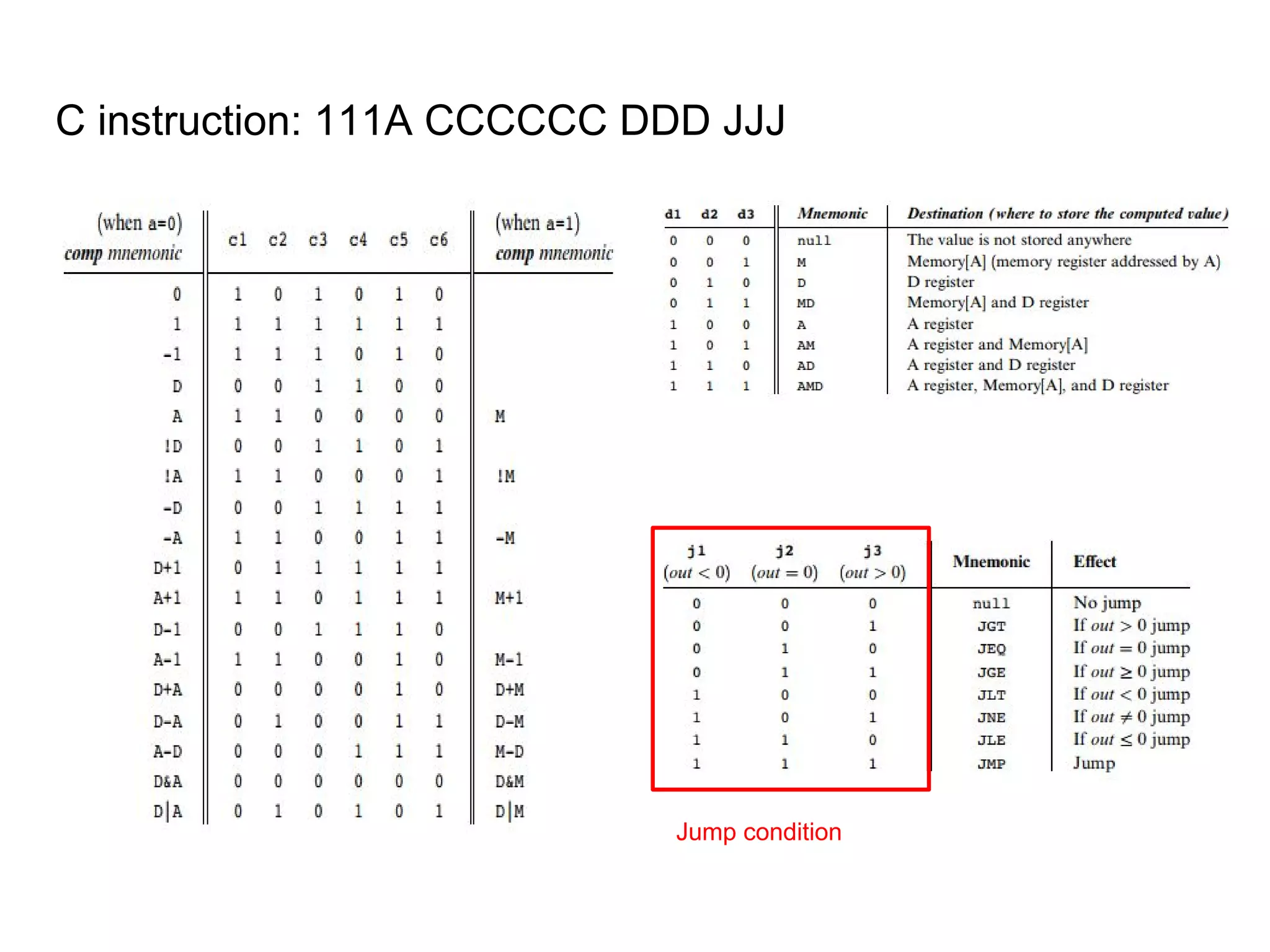

- 24. C instruction: 111ACCCCCC DDD JJJ Jump condition

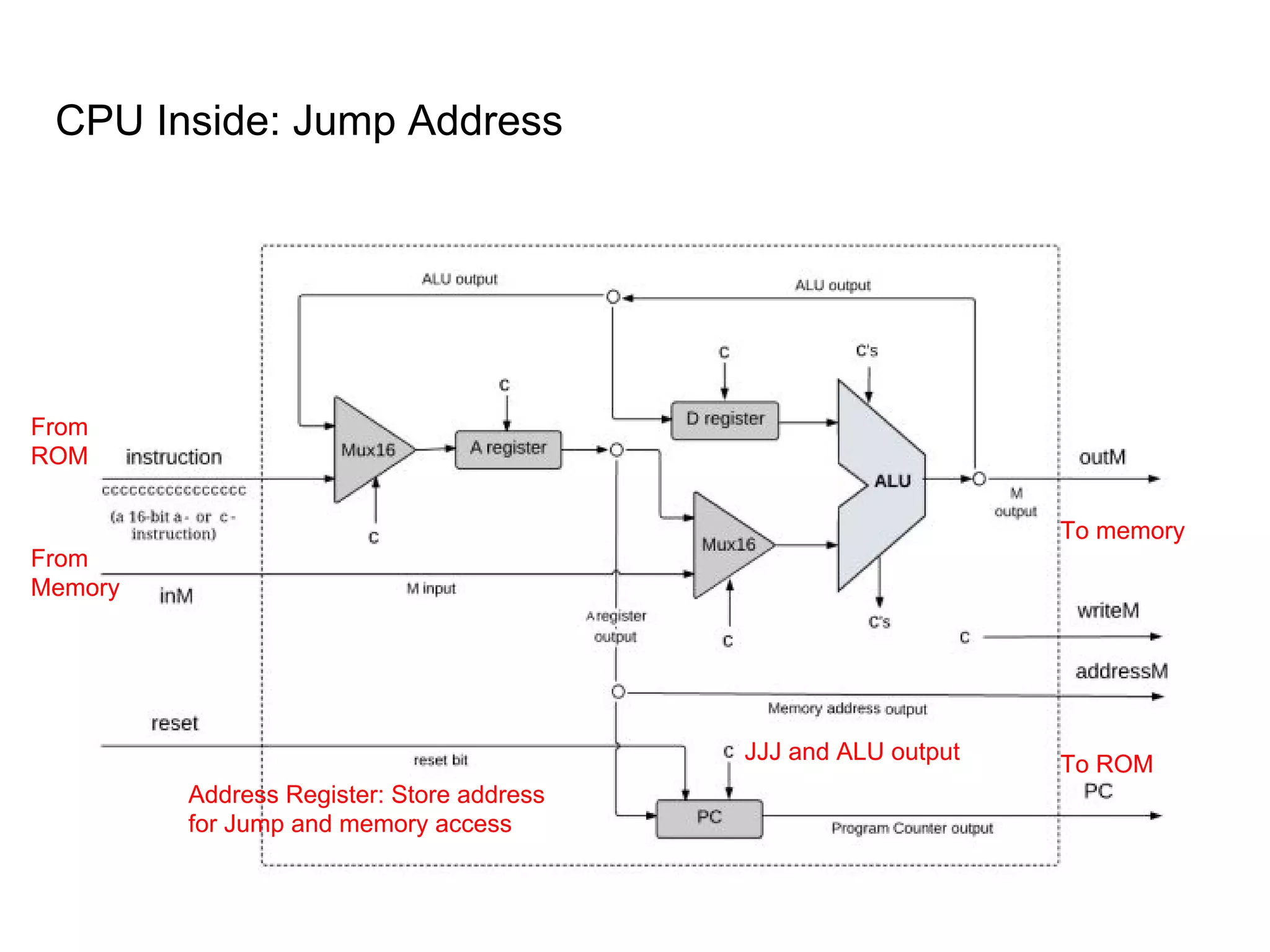

- 25. CPU Inside: JumpAddress From ROM From Memory To memory To ROM Address Register: Store address for Jump and memory access JJJ and ALU output

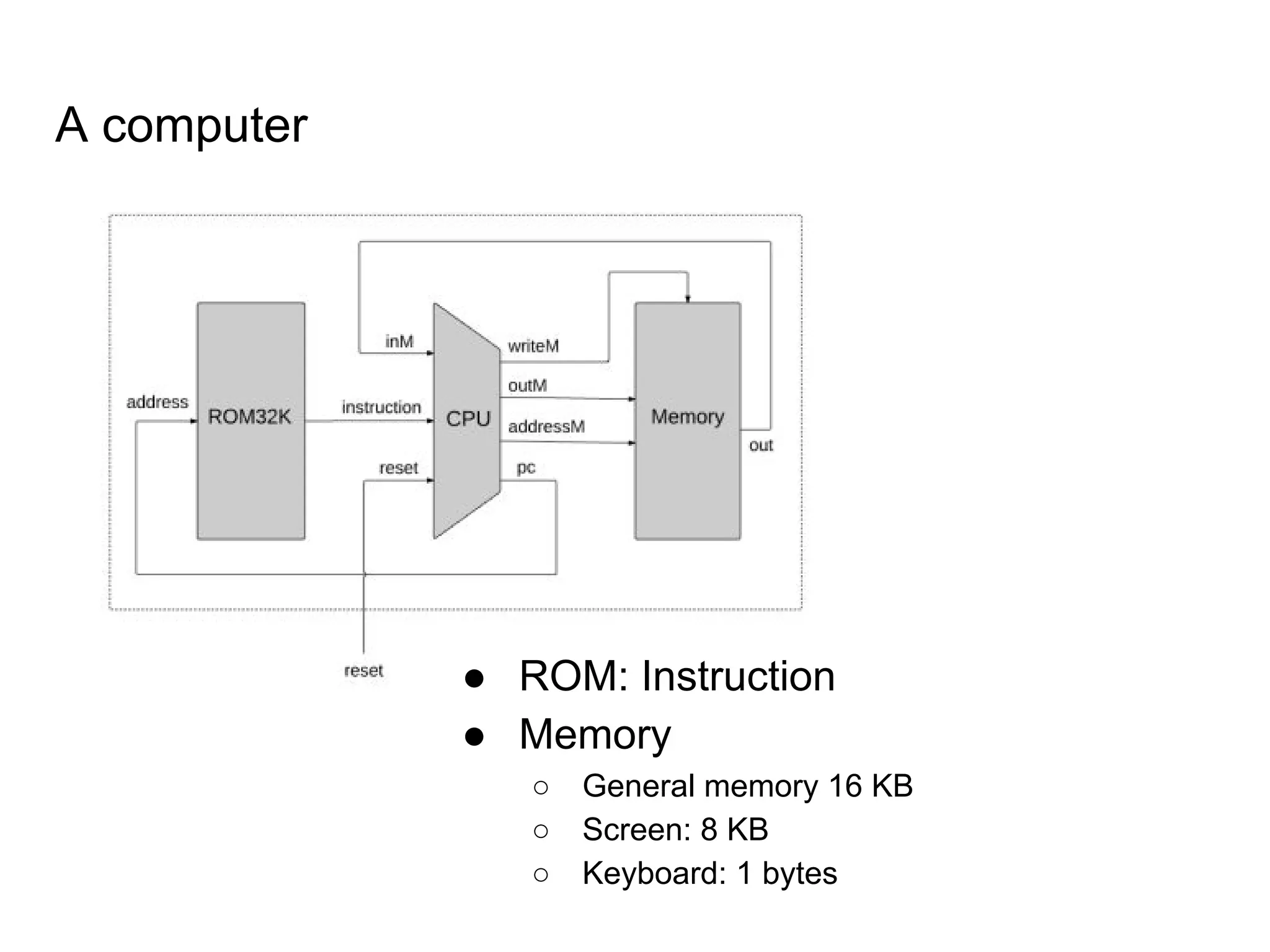

- 26. A computer ● ROM:Instruction ● Memory ○ General memory 16 KB ○ Screen: 8 KB ○ Keyboard: 1 bytes
- 27. Part 1 Week6: Assembly

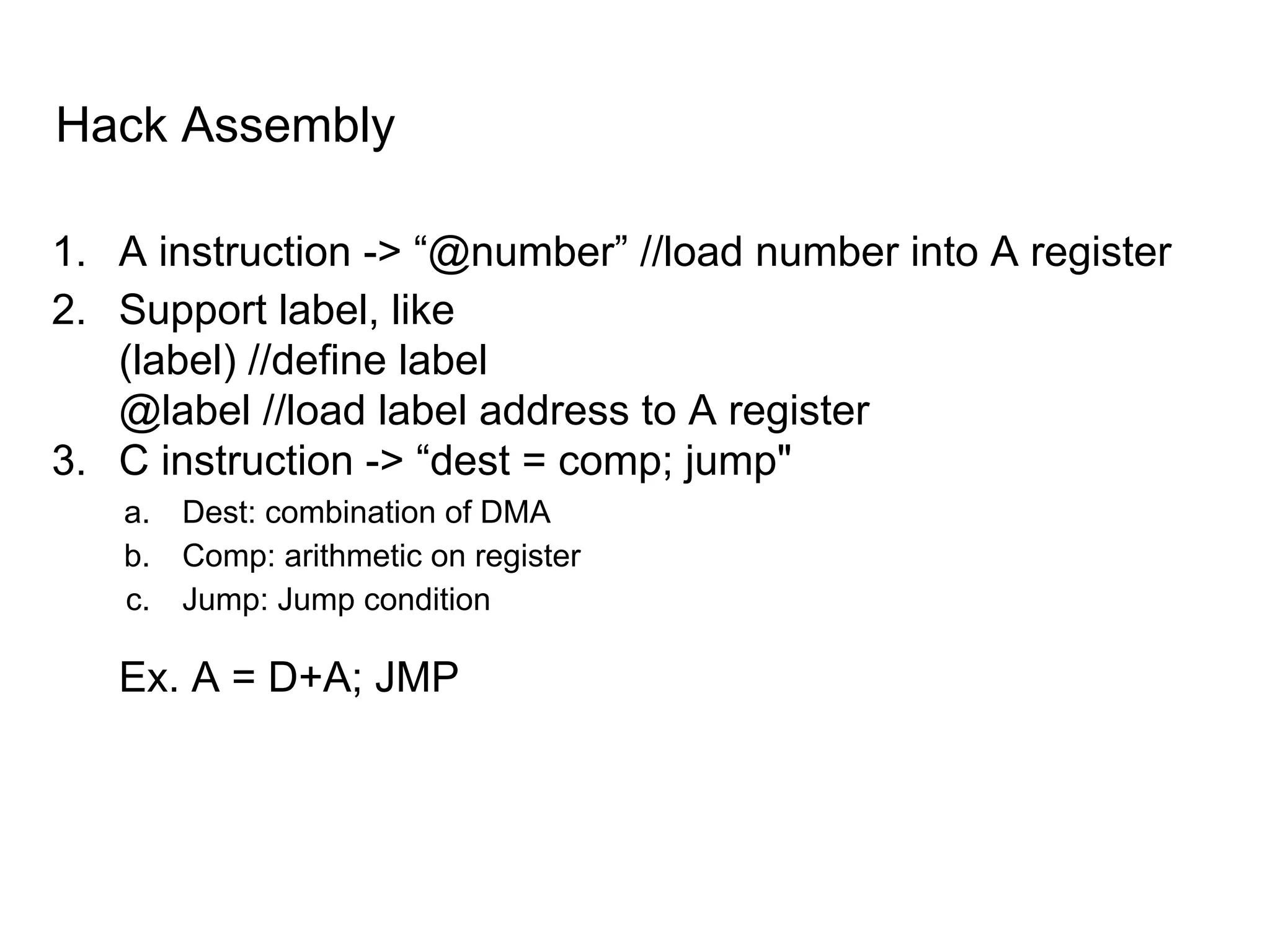

- 28. Hack Assembly 1. Ainstruction -> “@number” //load number into A register 2. Support label, like (label) //define label @label //load label address to A register 3. C instruction -> “dest = comp; jump" a. Dest: combination of DMA b. Comp: arithmetic on register c. Jump: Jump condition Ex. A = D+A; JMP

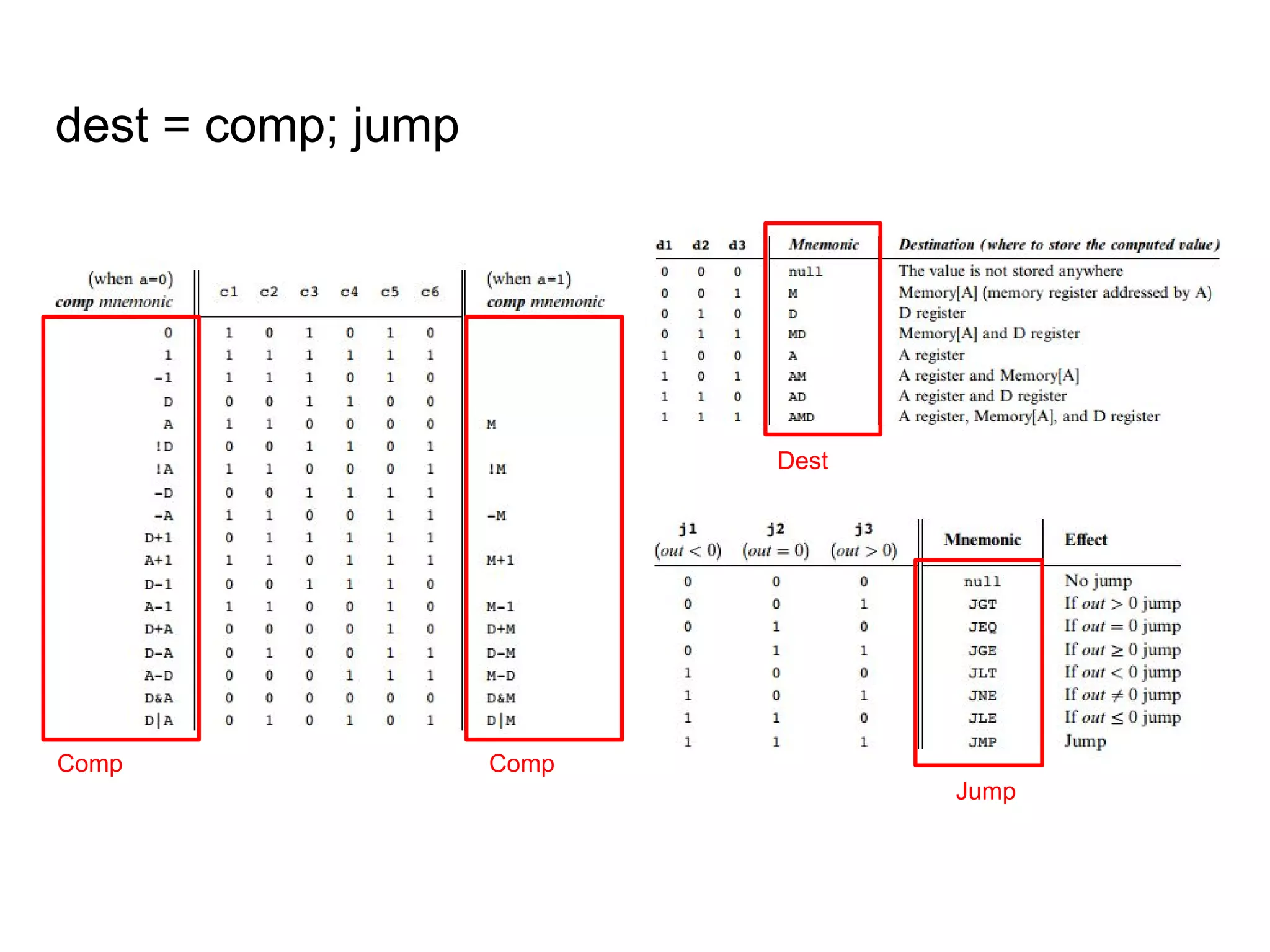

- 29. dest = comp;jump Comp Dest Jump Comp

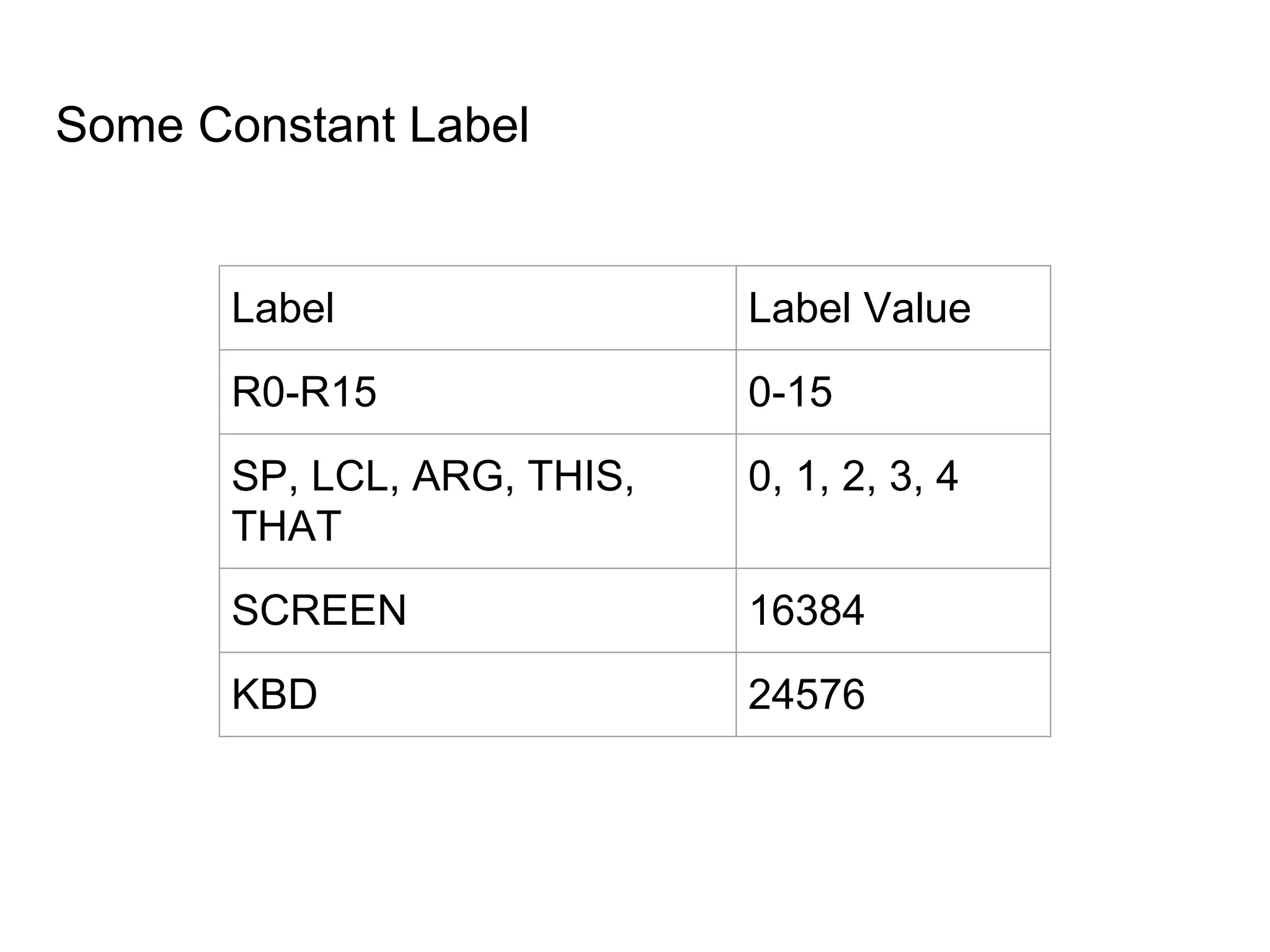

- 30. Some Constant Label LabelLabel Value R0-R15 0-15 SP, LCL, ARG, THIS, THAT 0, 1, 2, 3, 4 SCREEN 16384 KBD 24576

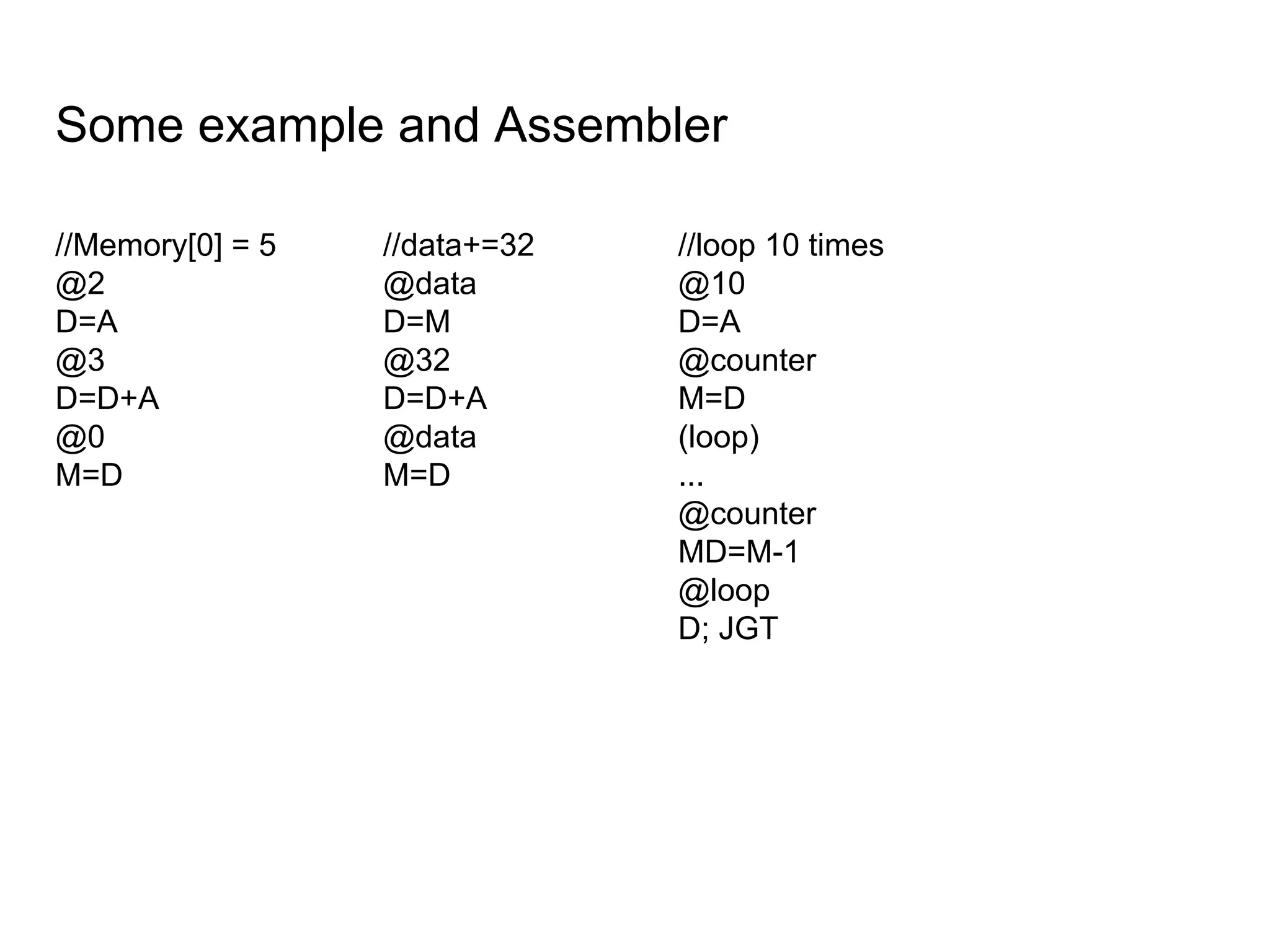

- 31. Some example andAssembler //Memory[0] = 5 @2 D=A @3 D=D+A @0 M=D //data+=32 @data D=M @32 D=D+A @data M=D //loop 10 times @10 D=A @counter M=D (loop) ... @counter MD=M-1 @loop D; JGT
- 32. Implement an Assembler 1.Scan (label) in program, record the address 2. Translate @label, @const to A instruction bitcode 3. Translate C instruction ● Directly map “string” to bitcode ● If Dest has M -> A = 1 ● M -> 001, D -> 010, MD -> 011 ... ● JGT -> 001, JEQ -> 010, JMP -> 111 … 4. Input Assembly; Output Bitcode that can be programmed to instruction ROM
- 33. Part 2 Week1, 2: Stack Virtual Machine

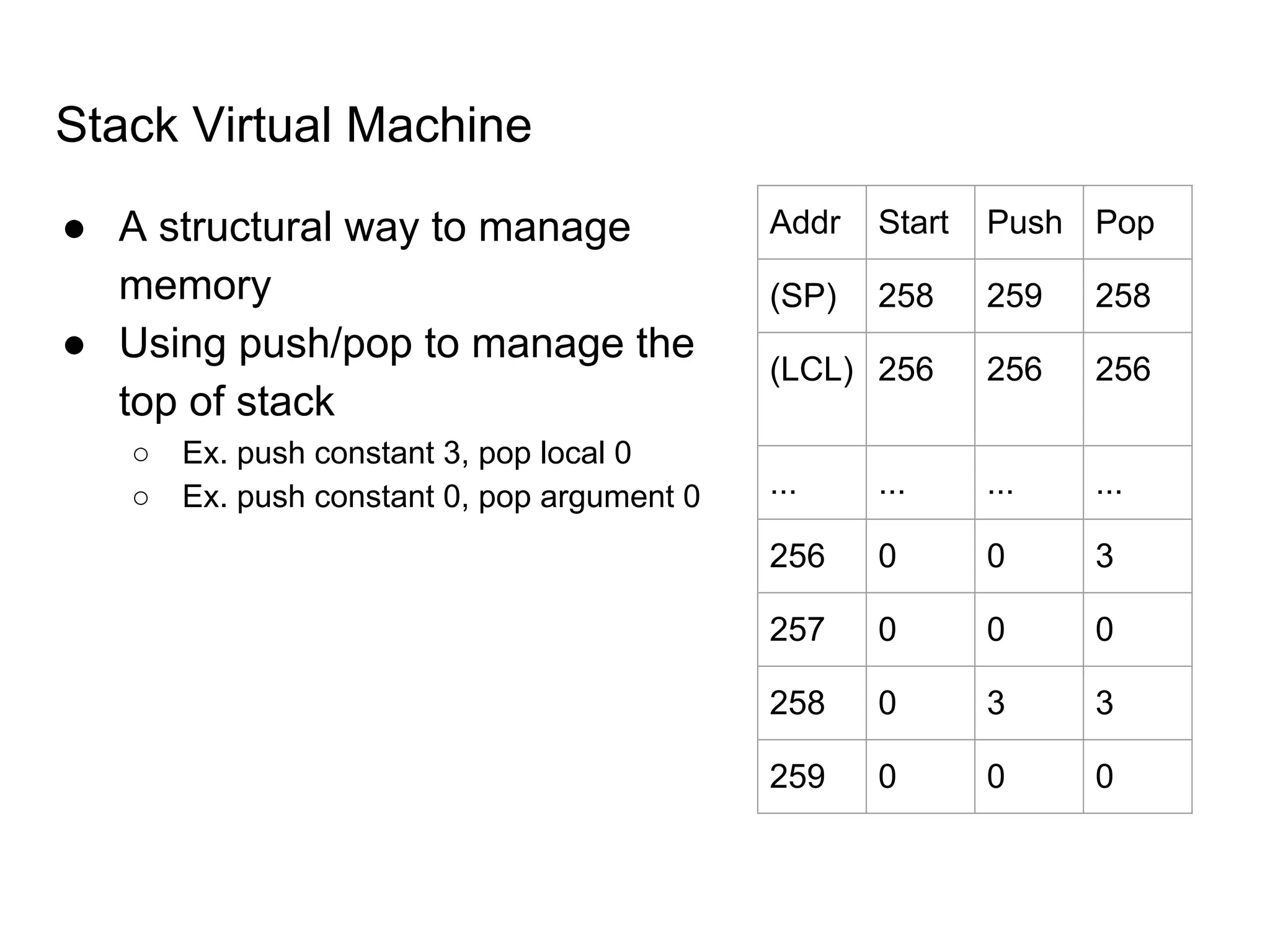

- 34. Stack Virtual Machine ●A structural way to manage memory ● Using push/pop to manage the top of stack ○ Ex. push constant 3, pop local 0 ○ Ex. push constant 0, pop argument 0 Addr Start Push Pop (SP) 258 259 258 (LCL) 256 256 256 ... ... ... ... 256 0 0 3 257 0 0 0 258 0 3 3 259 0 0 0

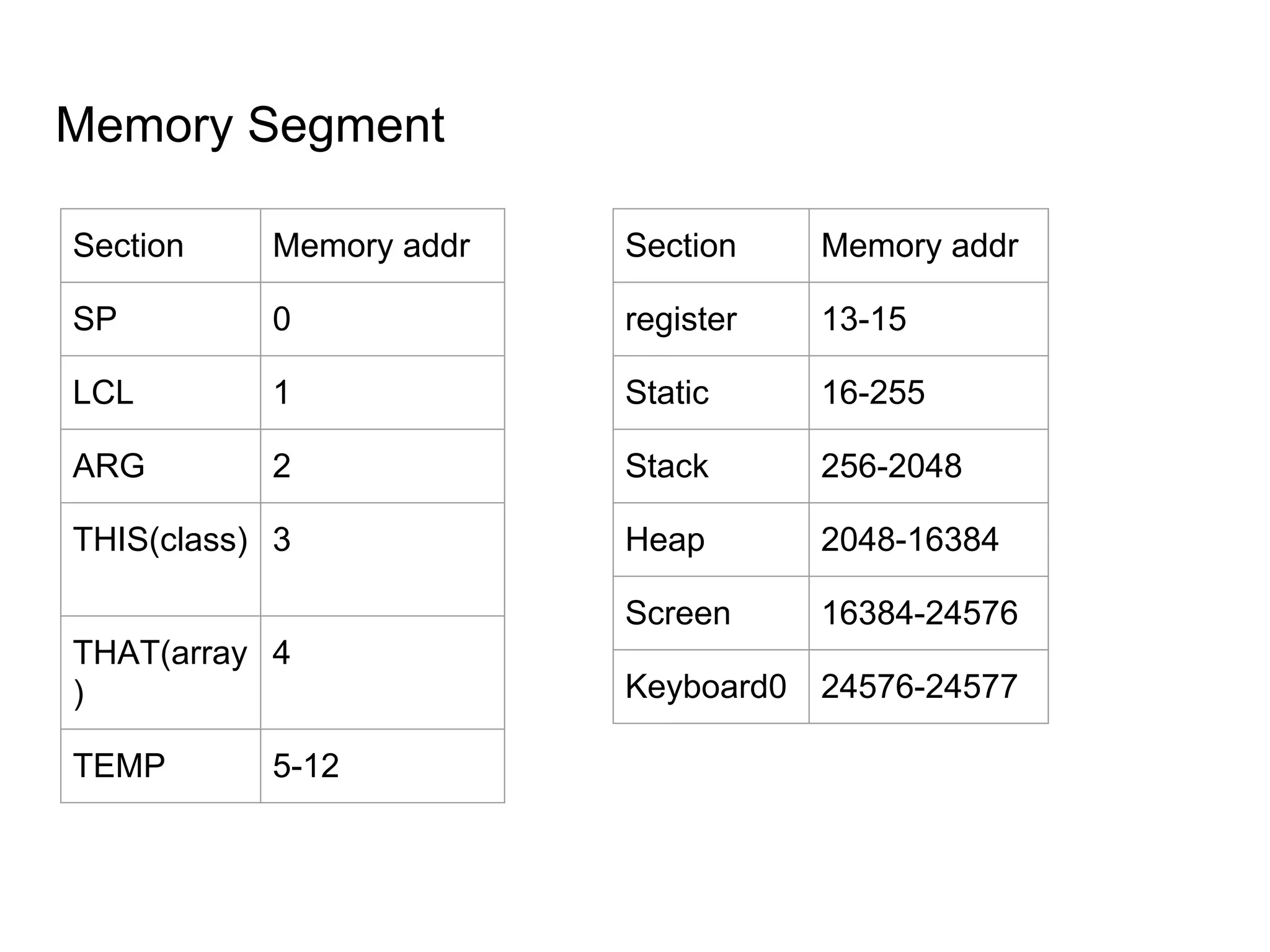

- 35. Memory Segment Section Memoryaddr SP 0 LCL 1 ARG 2 THIS(class) 3 THAT(array ) 4 TEMP 5-12 Section Memory addr register 13-15 Static 16-255 Stack 256-2048 Heap 2048-16384 Screen 16384-24576 Keyboard0 24576-24577

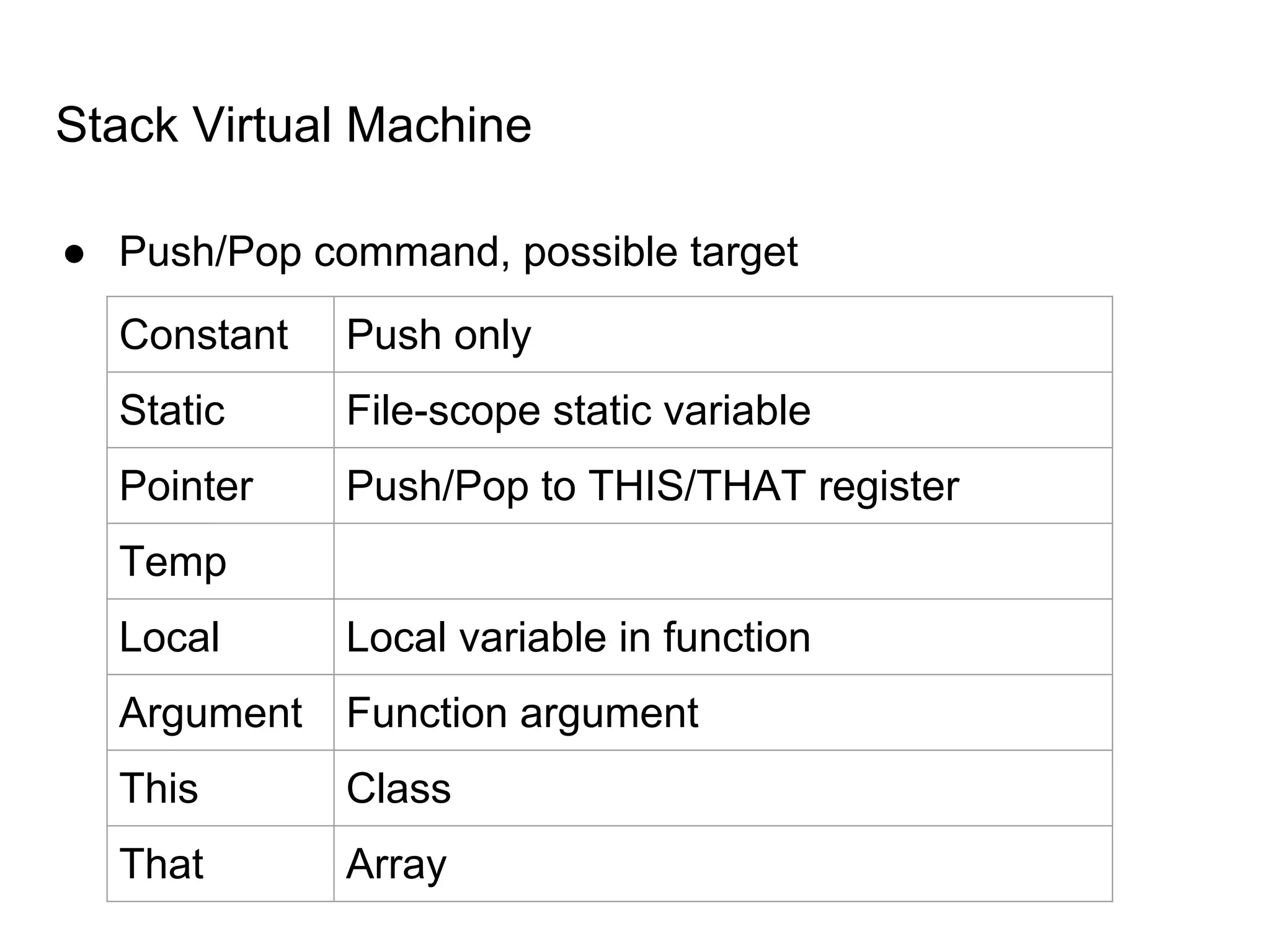

- 36. Stack Virtual Machine ●Push/Pop command, possible target Constant Push only Static File-scope static variable Pointer Push/Pop to THIS/THAT register Temp Local Local variable in function Argument Function argument This Class That Array

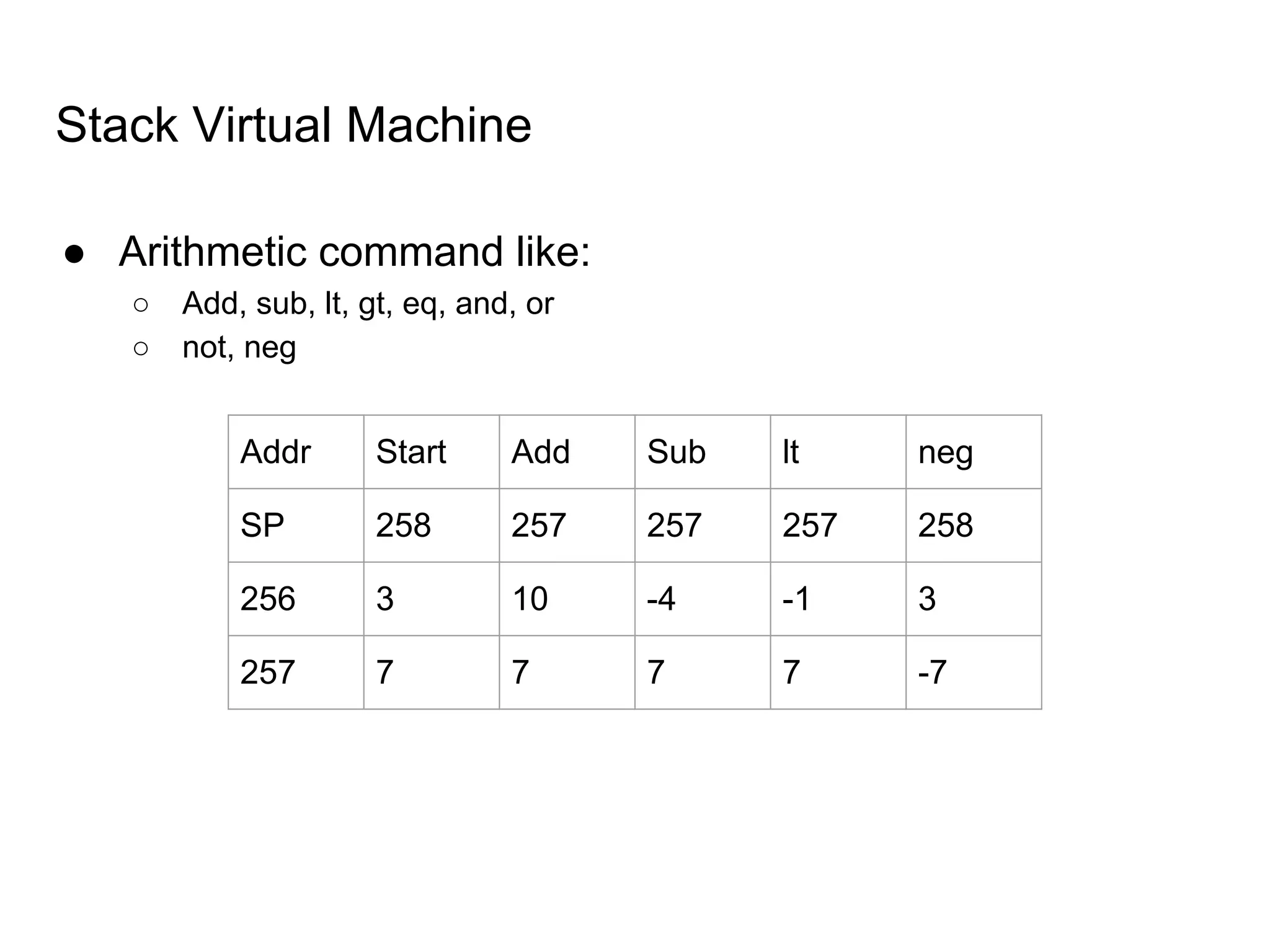

- 37. Stack Virtual Machine ●Arithmetic command like: ○ Add, sub, lt, gt, eq, and, or ○ not, neg Addr Start Add Sub lt neg SP 258 257 257 257 258 256 3 10 -4 -1 3 257 7 7 7 7 -7

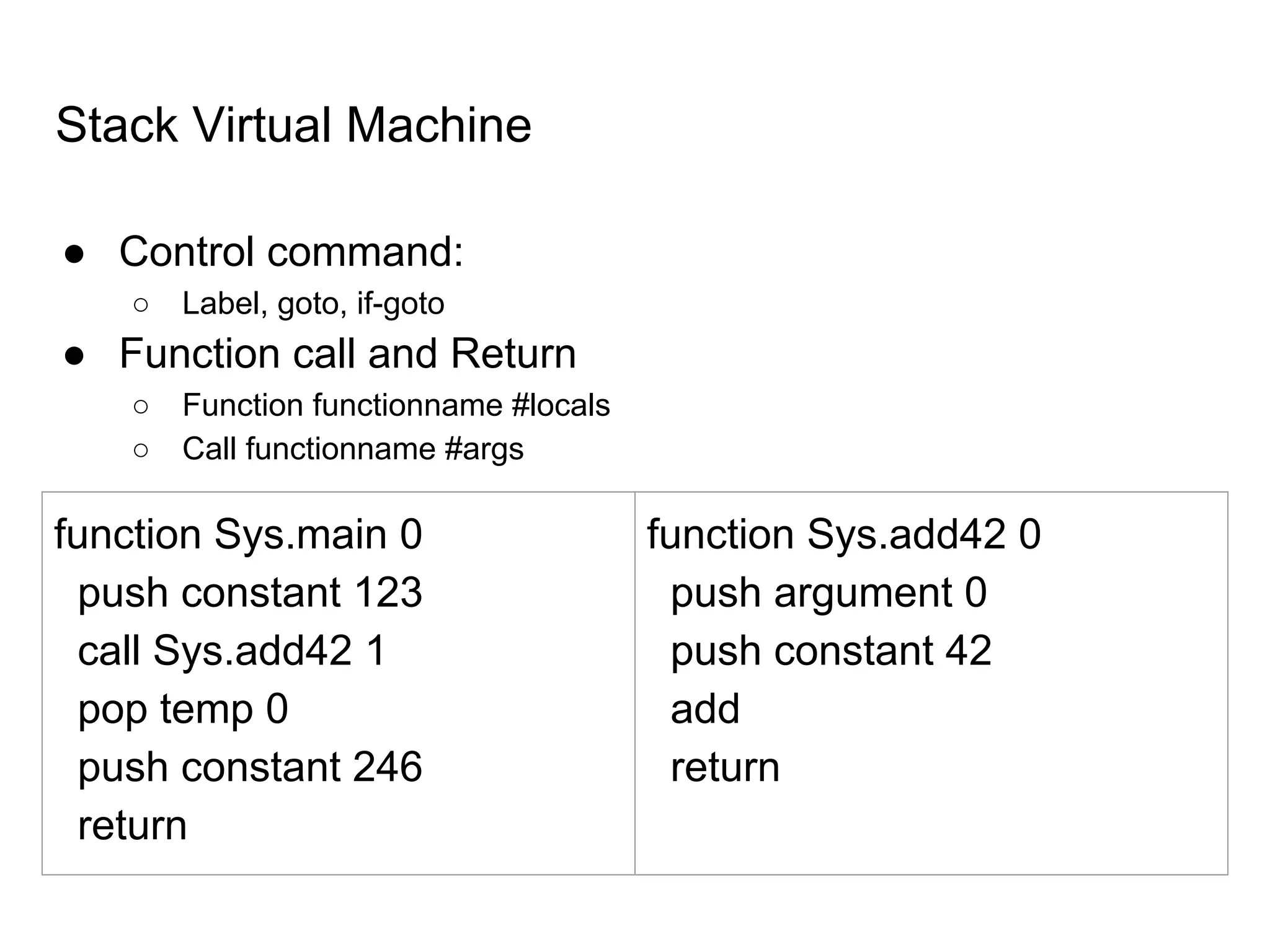

- 38. Stack Virtual Machine ●Control command: ○ Label, goto, if-goto ● Function call and Return ○ Function functionname #locals ○ Call functionname #args function Sys.main 0 push constant 123 call Sys.add42 1 pop temp 0 push constant 246 return function Sys.add42 0 push argument 0 push constant 42 add return

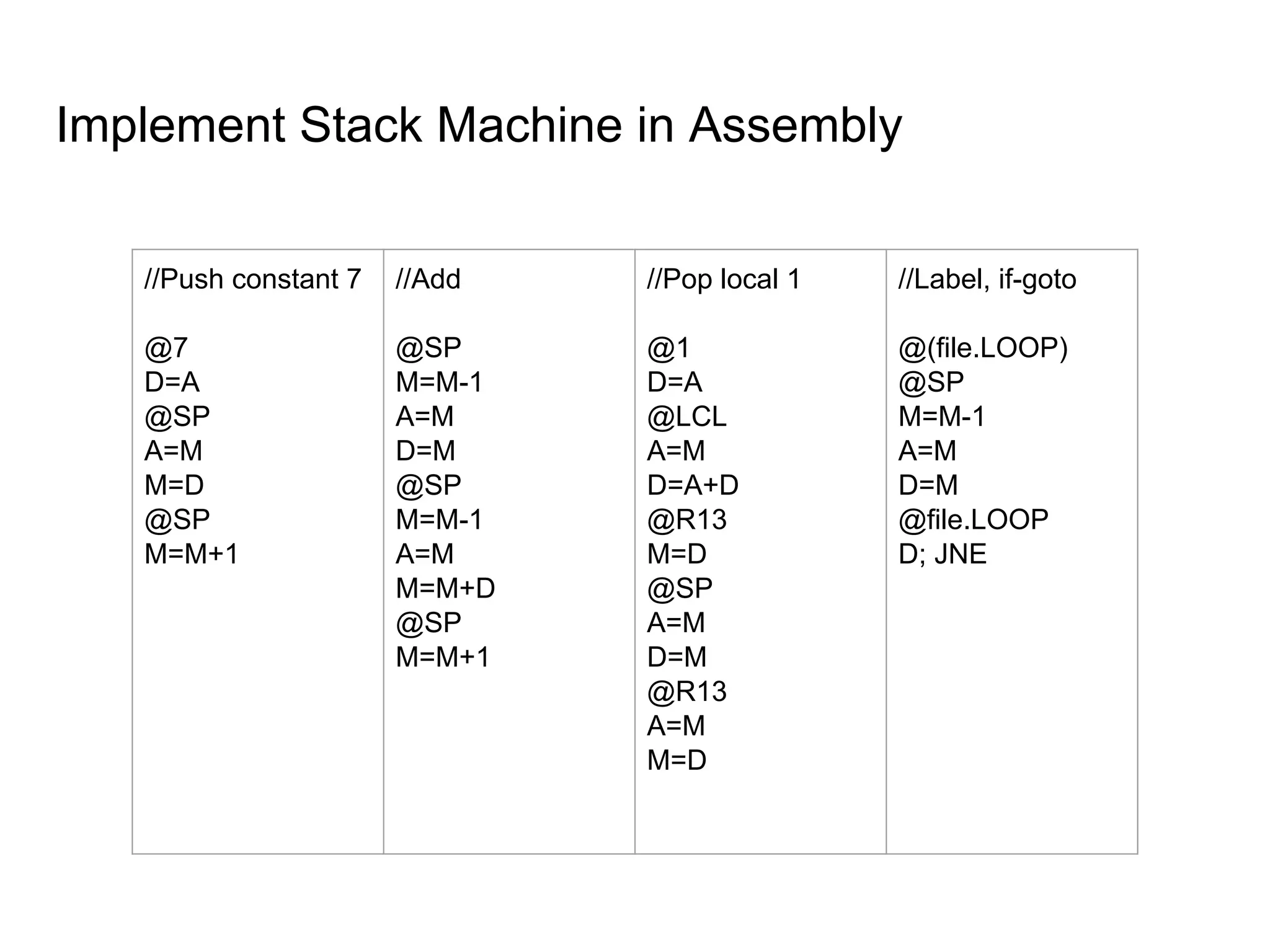

- 39. Implement Stack Machinein Assembly //Push constant 7 @7 D=A @SP A=M M=D @SP M=M+1 //Add @SP M=M-1 A=M D=M @SP M=M-1 A=M M=M+D @SP M=M+1 //Pop local 1 @1 D=A @LCL A=M D=A+D @R13 M=D @SP A=M D=M @R13 A=M M=D //Label, if-goto @(file.LOOP) @SP M=M-1 A=M D=M @file.LOOP D; JNE

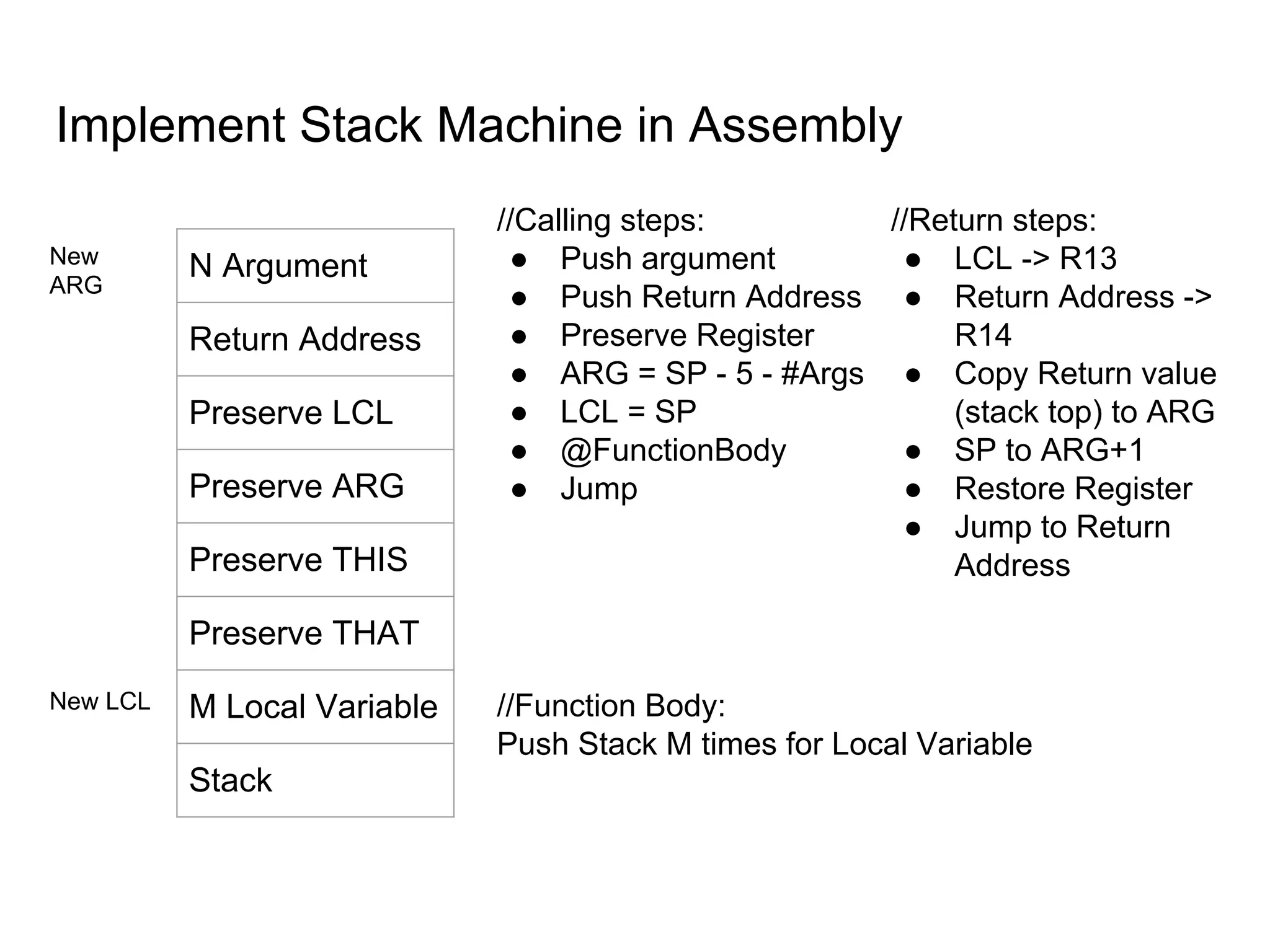

- 40. Implement Stack Machinein Assembly N Argument Return Address Preserve LCL Preserve ARG Preserve THIS Preserve THAT M Local Variable Stack New ARG New LCL //Calling steps: ● Push argument ● Push Return Address ● Preserve Register ● ARG = SP - 5 - #Args ● LCL = SP ● @FunctionBody ● Jump //Return steps: ● LCL -> R13 ● Return Address -> R14 ● Copy Return value (stack top) to ARG ● SP to ARG+1 ● Restore Register ● Jump to Return Address //Function Body: Push Stack M times for Local Variable

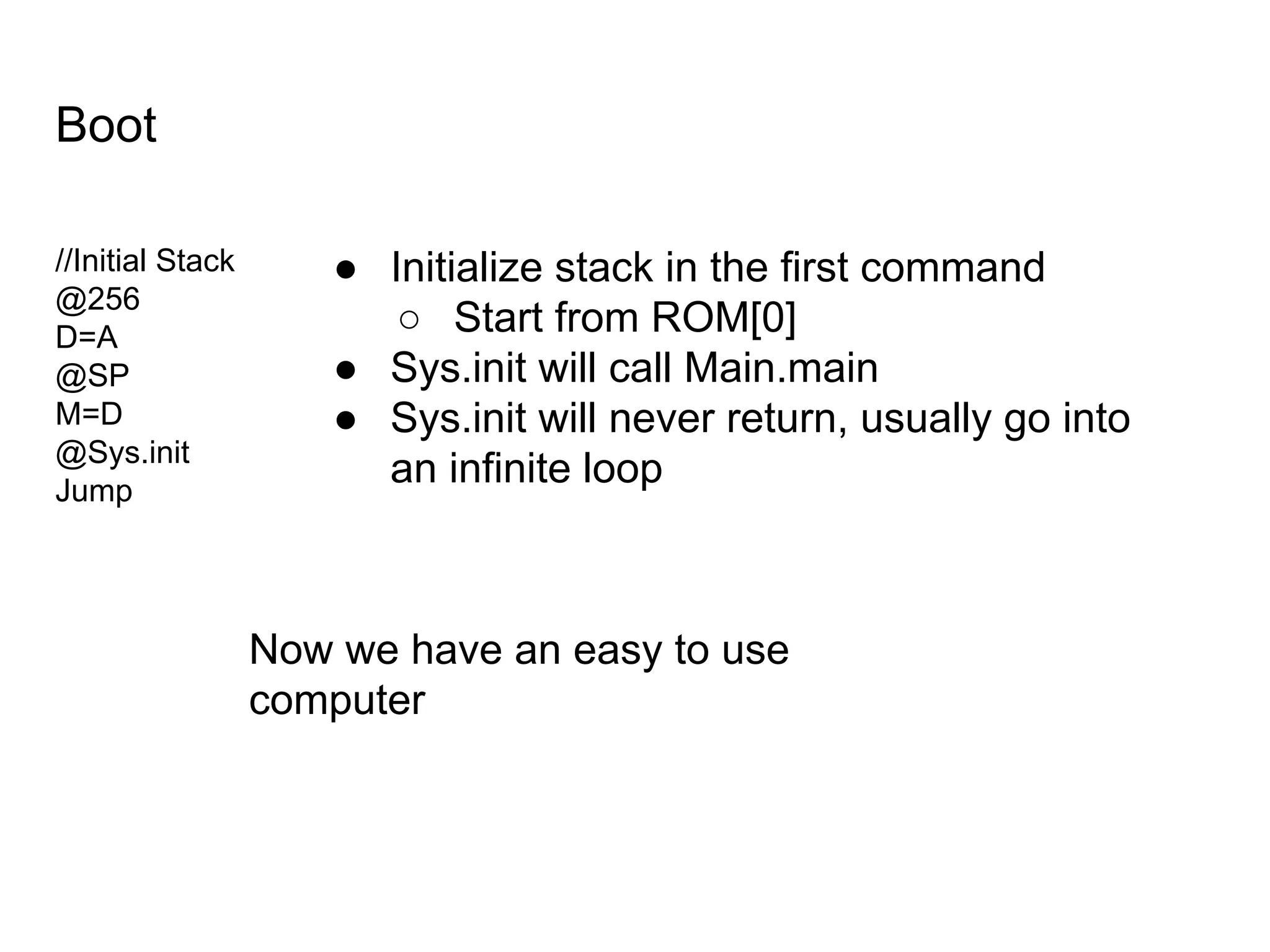

- 41. Boot //Initial Stack @256 D=A @SP M=D @Sys.init Jump ● Initializestack in the first command ○ Start from ROM[0] ● Sys.init will call Main.main ● Sys.init will never return, usually go into an infinite loop Now we have an easy to use computer
- 42. Part 2 Week4, 5: High Level Programming Language

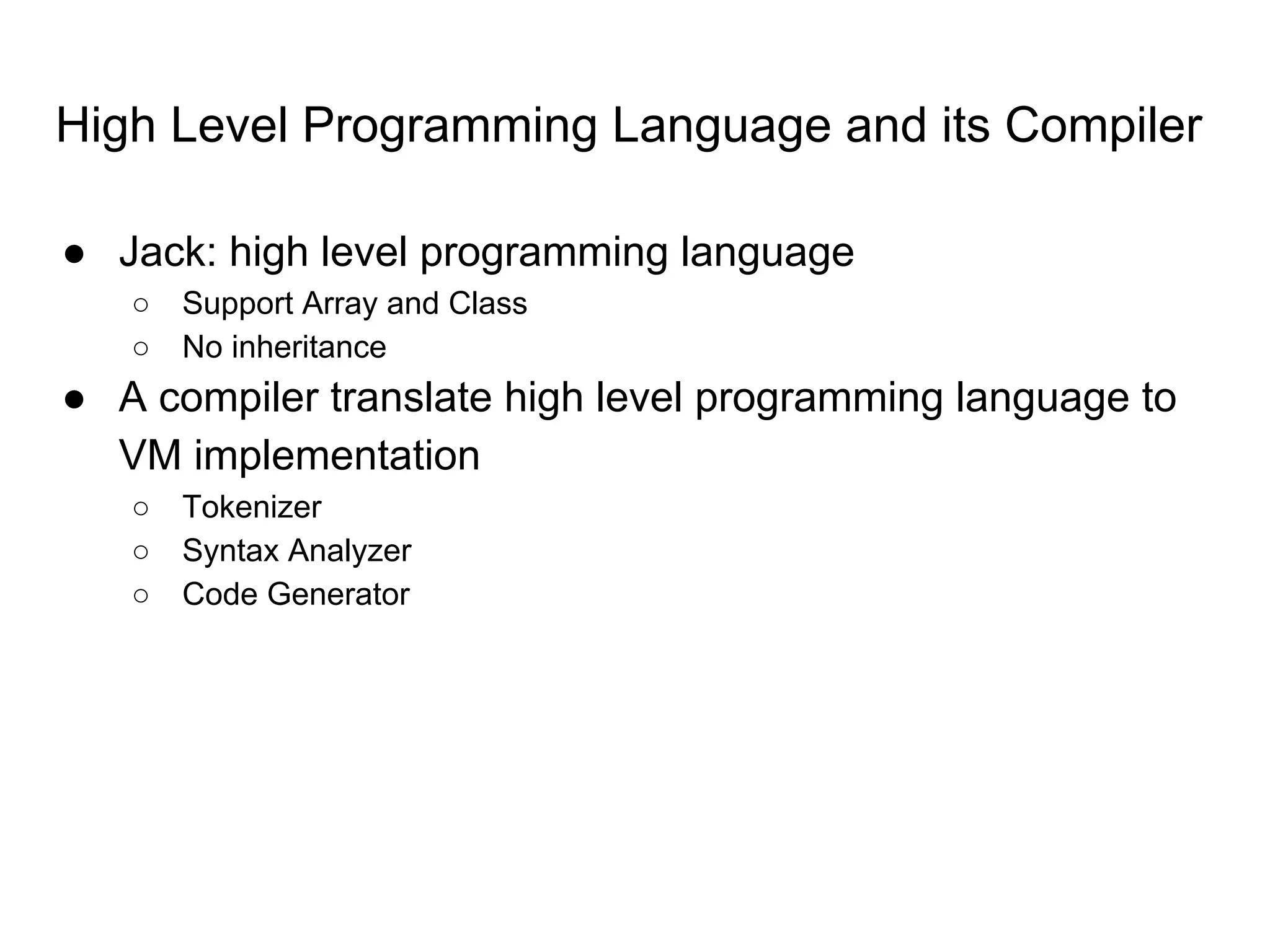

- 43. High Level ProgrammingLanguage and its Compiler ● Jack: high level programming language ○ Support Array and Class ○ No inheritance ● A compiler translate high level programming language to VM implementation ○ Tokenizer ○ Syntax Analyzer ○ Code Generator

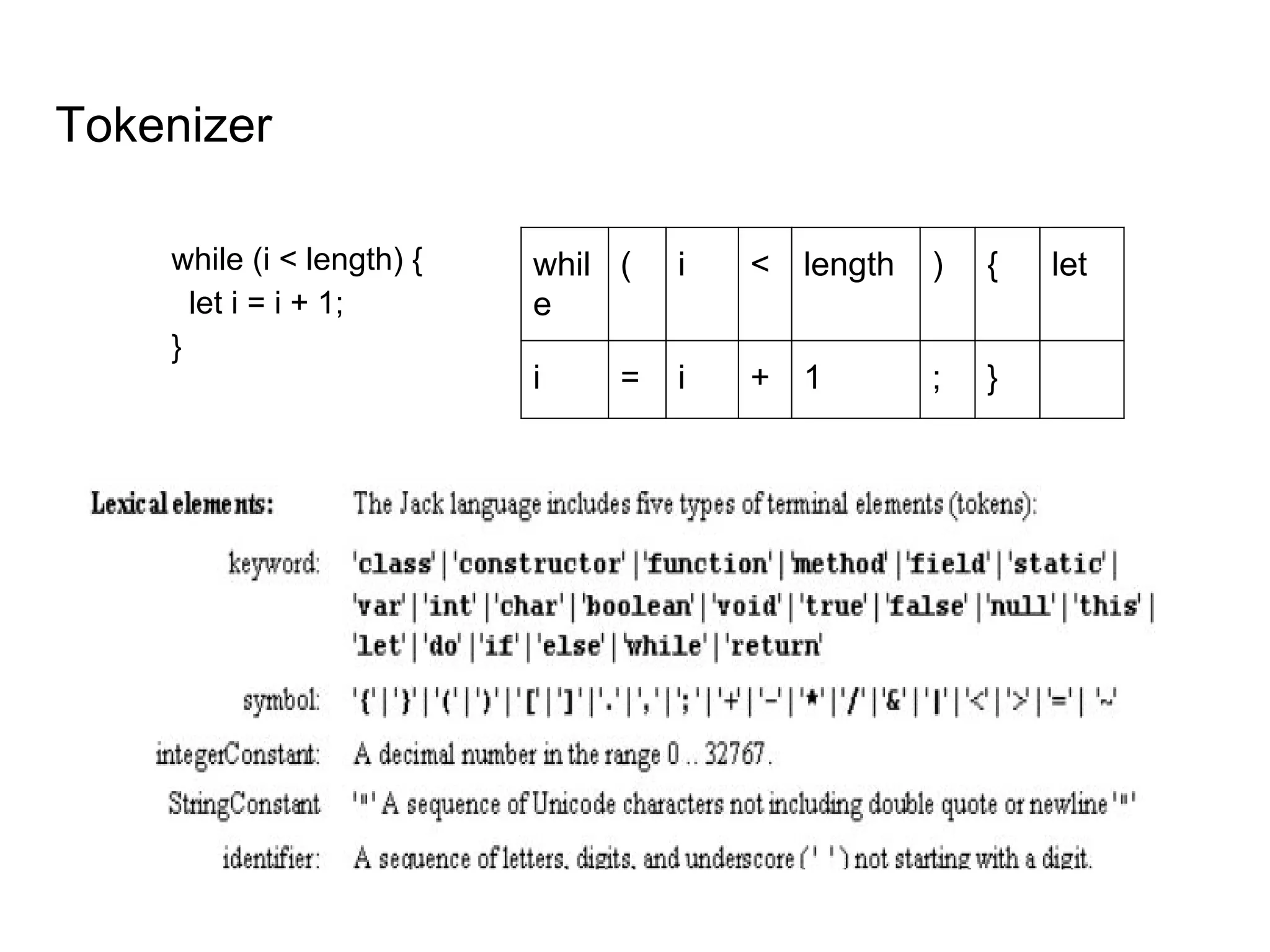

- 44. Tokenizer while (i <length) { let i = i + 1; } whil e ( i < length ) { let i = i + 1 ; }

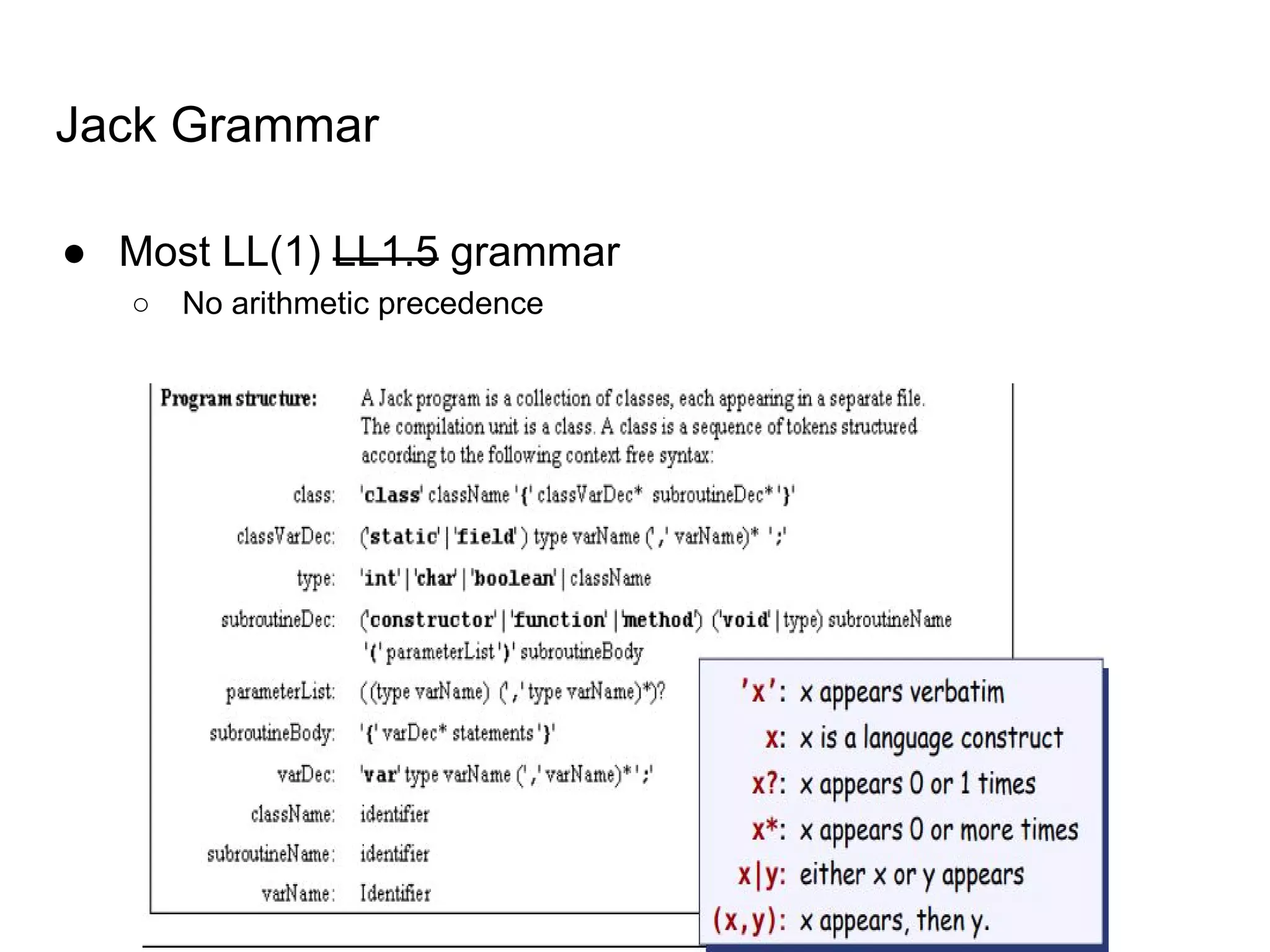

- 45. Jack Grammar ● MostLL(1) LL1.5 grammar ○ No arithmetic precedence

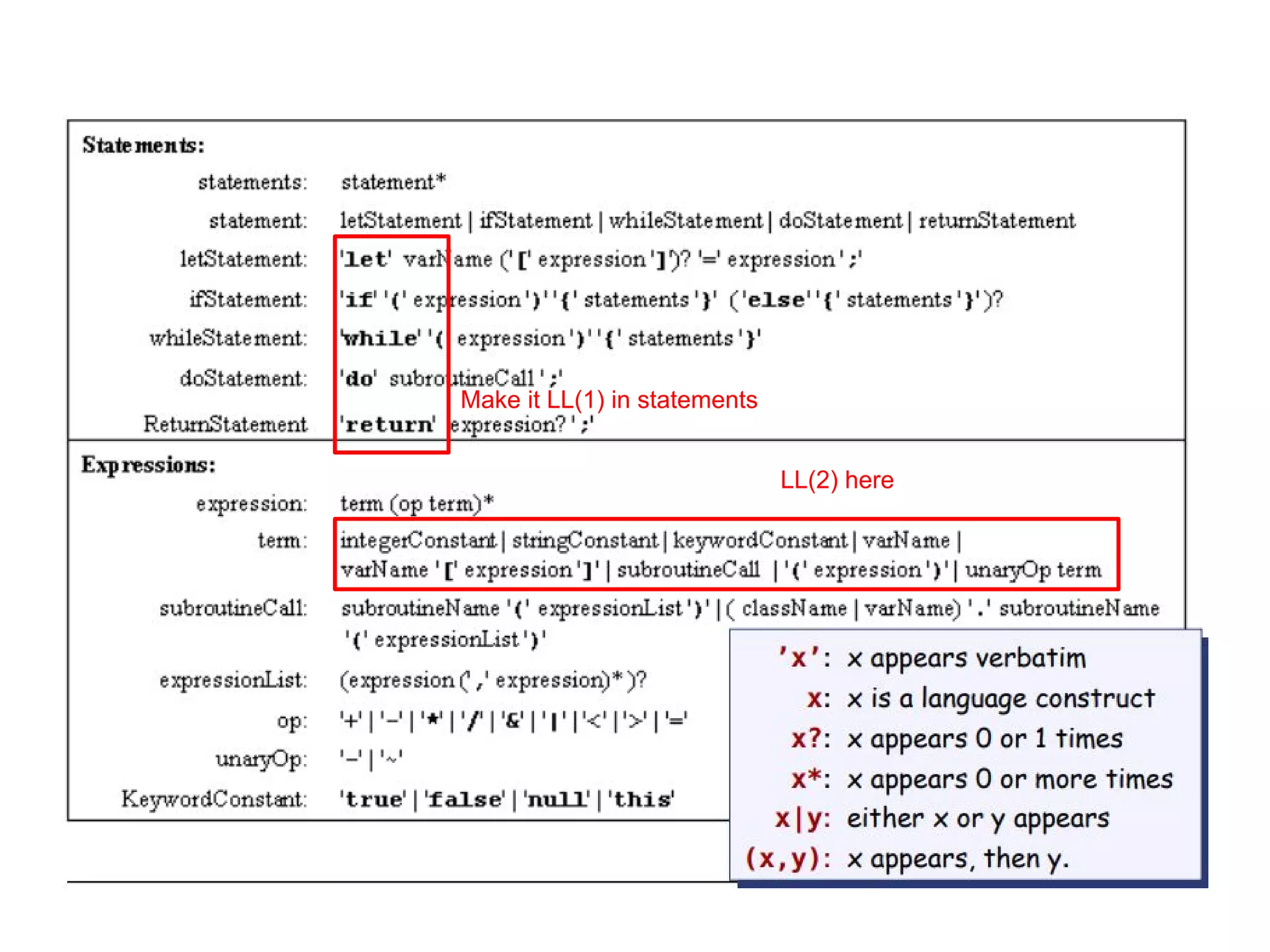

- 46. Make it LL(1)in statements LL(2) here

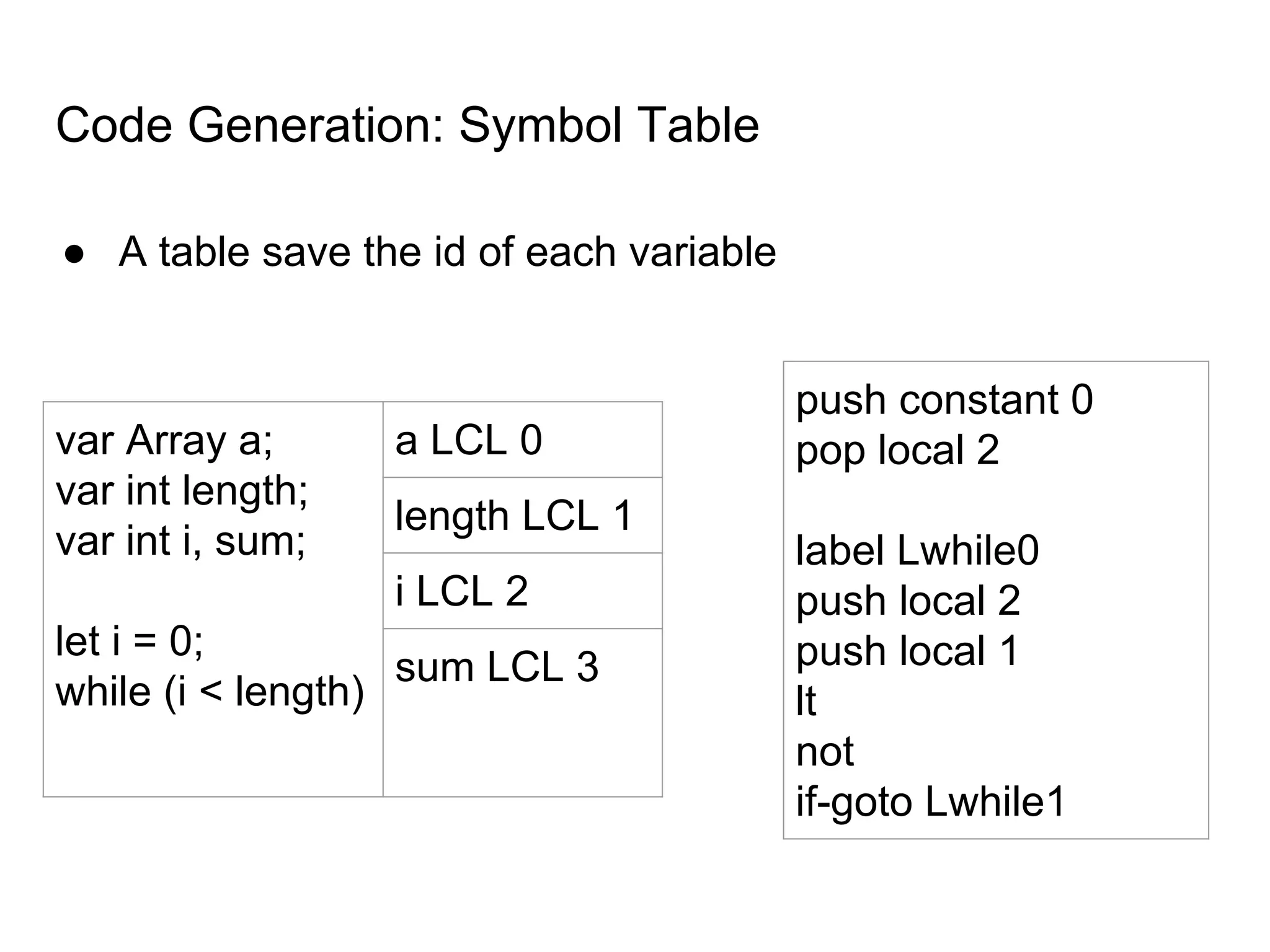

- 47. Code Generation: SymbolTable ● A table save the id of each variable var Array a; var int length; var int i, sum; let i = 0; while (i < length) a LCL 0 length LCL 1 i LCL 2 sum LCL 3 push constant 0 pop local 2 label Lwhile0 push local 2 push local 1 lt not if-goto Lwhile1

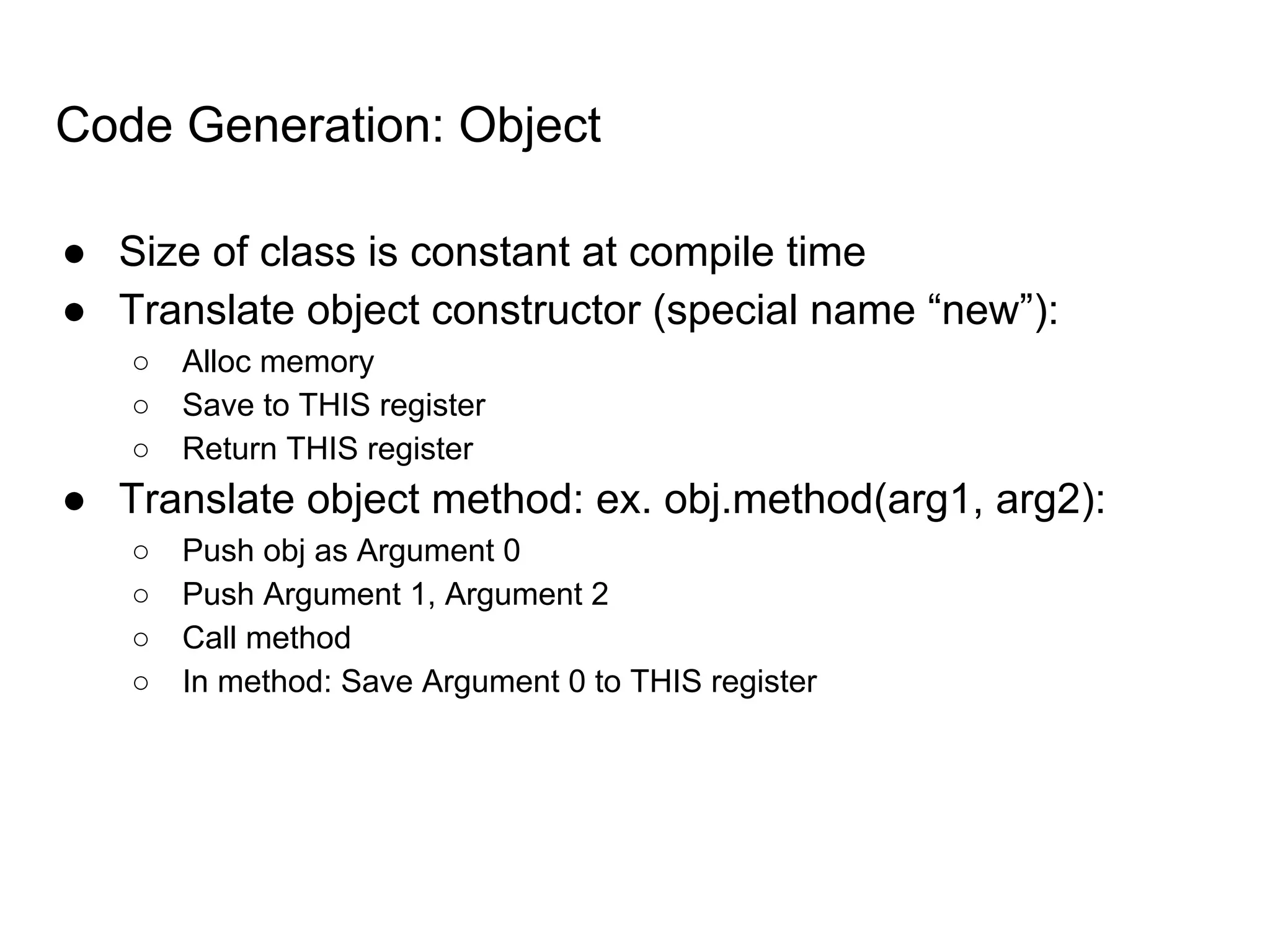

- 48. Code Generation: Object ●Size of class is constant at compile time ● Translate object constructor (special name “new”): ○ Alloc memory ○ Save to THIS register ○ Return THIS register ● Translate object method: ex. obj.method(arg1, arg2): ○ Push obj as Argument 0 ○ Push Argument 1, Argument 2 ○ Call method ○ In method: Save Argument 0 to THIS register

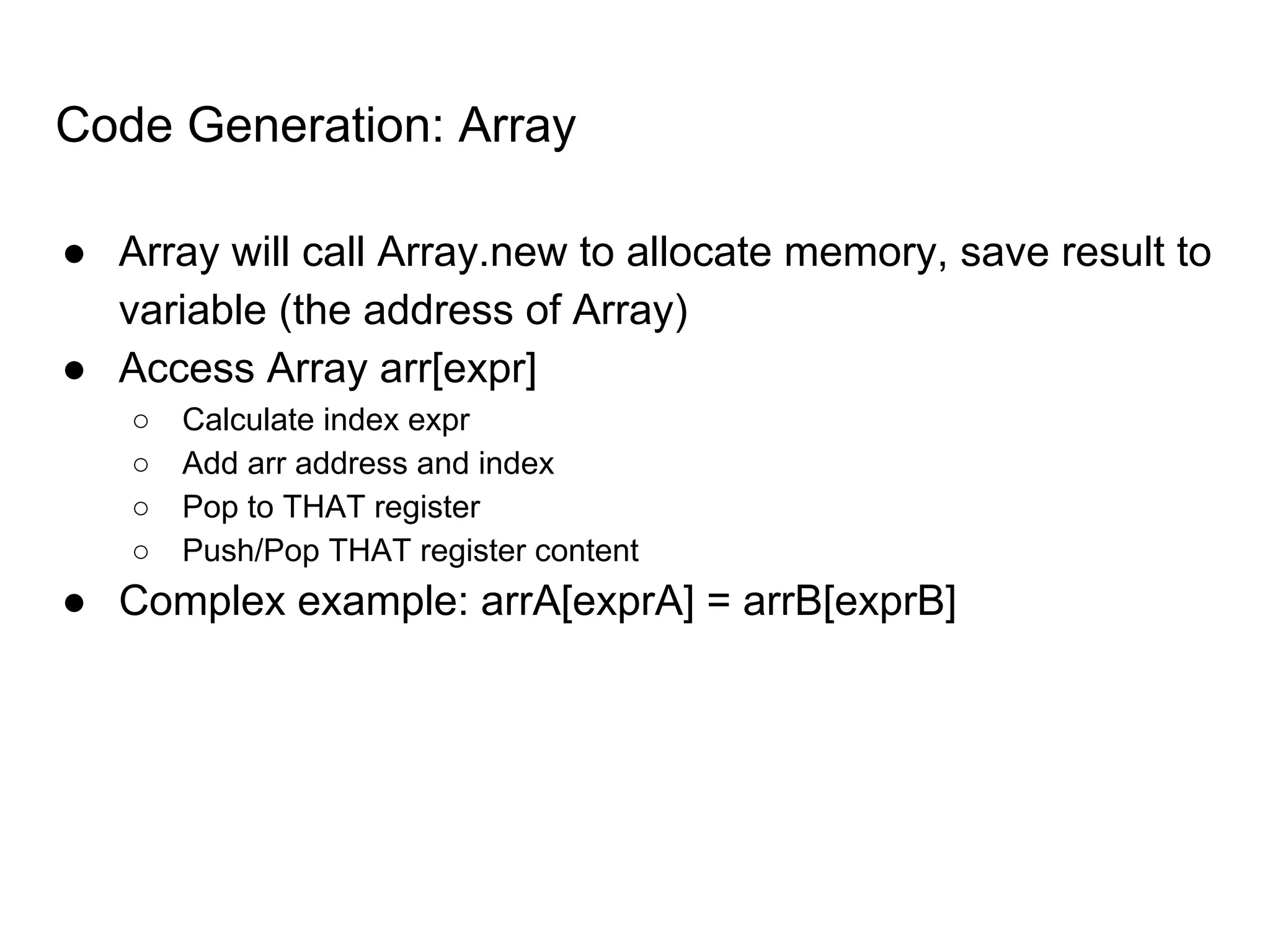

- 49. Code Generation: Array ●Array will call Array.new to allocate memory, save result to variable (the address of Array) ● Access Array arr[expr] ○ Calculate index expr ○ Add arr address and index ○ Pop to THAT register ○ Push/Pop THAT register content ● Complex example: arrA[exprA] = arrB[exprB]
- 50. Part 2 Week6: Library and (part of) OS

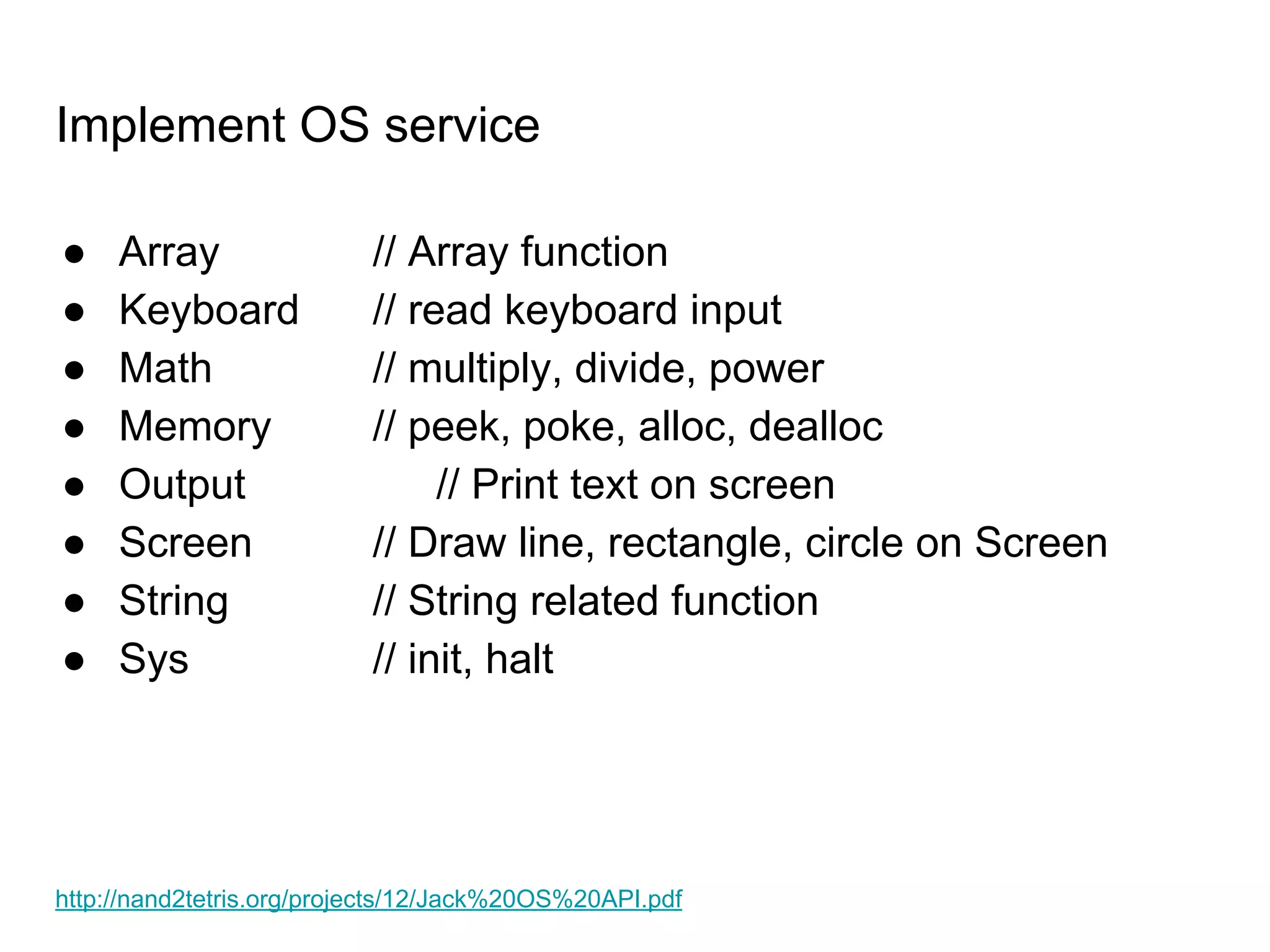

- 51. Implement OS service ●Array // Array function ● Keyboard // read keyboard input ● Math // multiply, divide, power ● Memory // peek, poke, alloc, dealloc ● Output // Print text on screen ● Screen // Draw line, rectangle, circle on Screen ● String // String related function ● Sys // init, halt http://nand2tetris.org/projects/12/Jack%20OS%20API.pdf

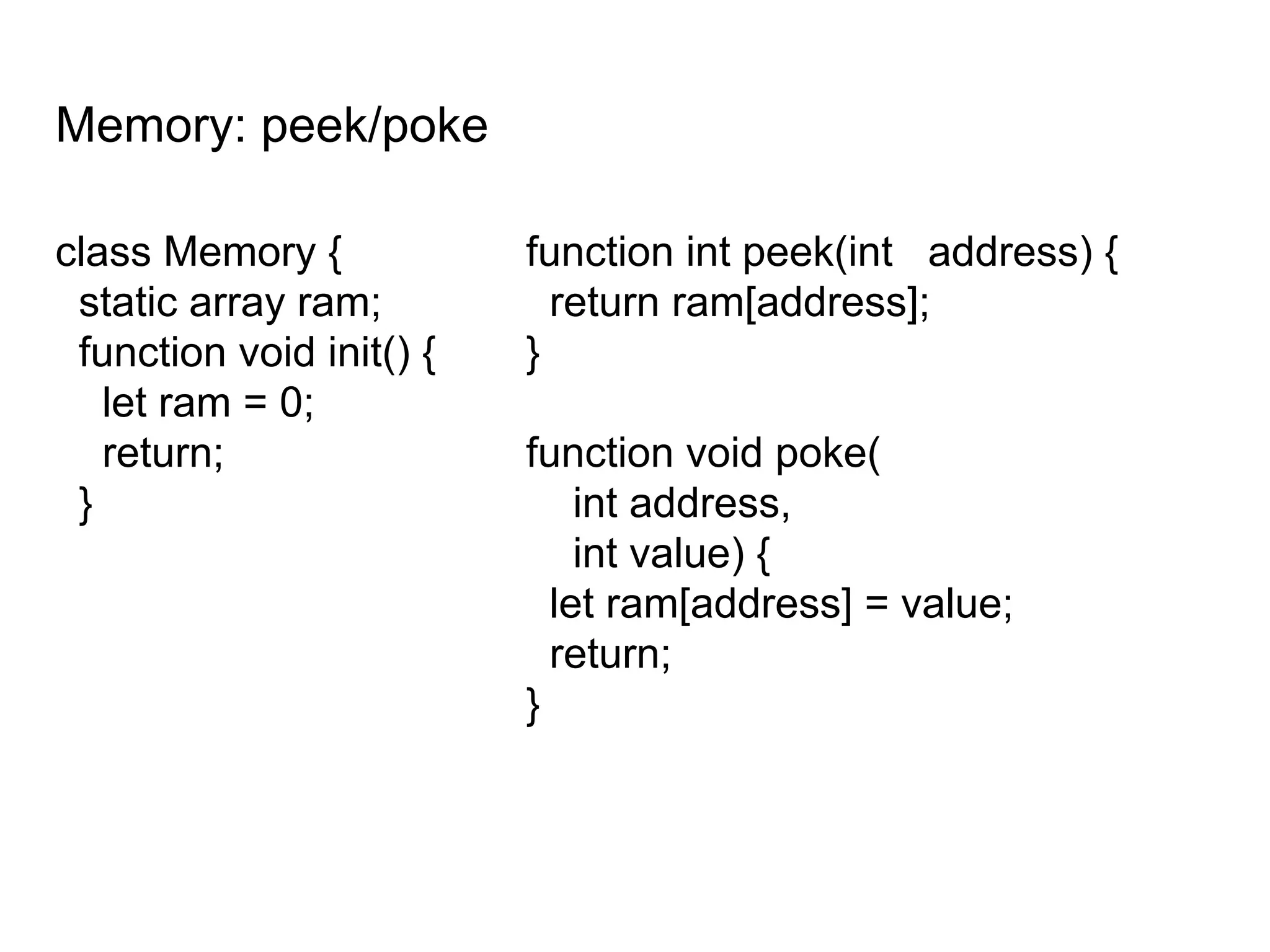

- 52. Memory: peek/poke class Memory{ static array ram; function void init() { let ram = 0; return; } function int peek(int address) { return ram[address]; } function void poke( int address, int value) { let ram[address] = value; return; }

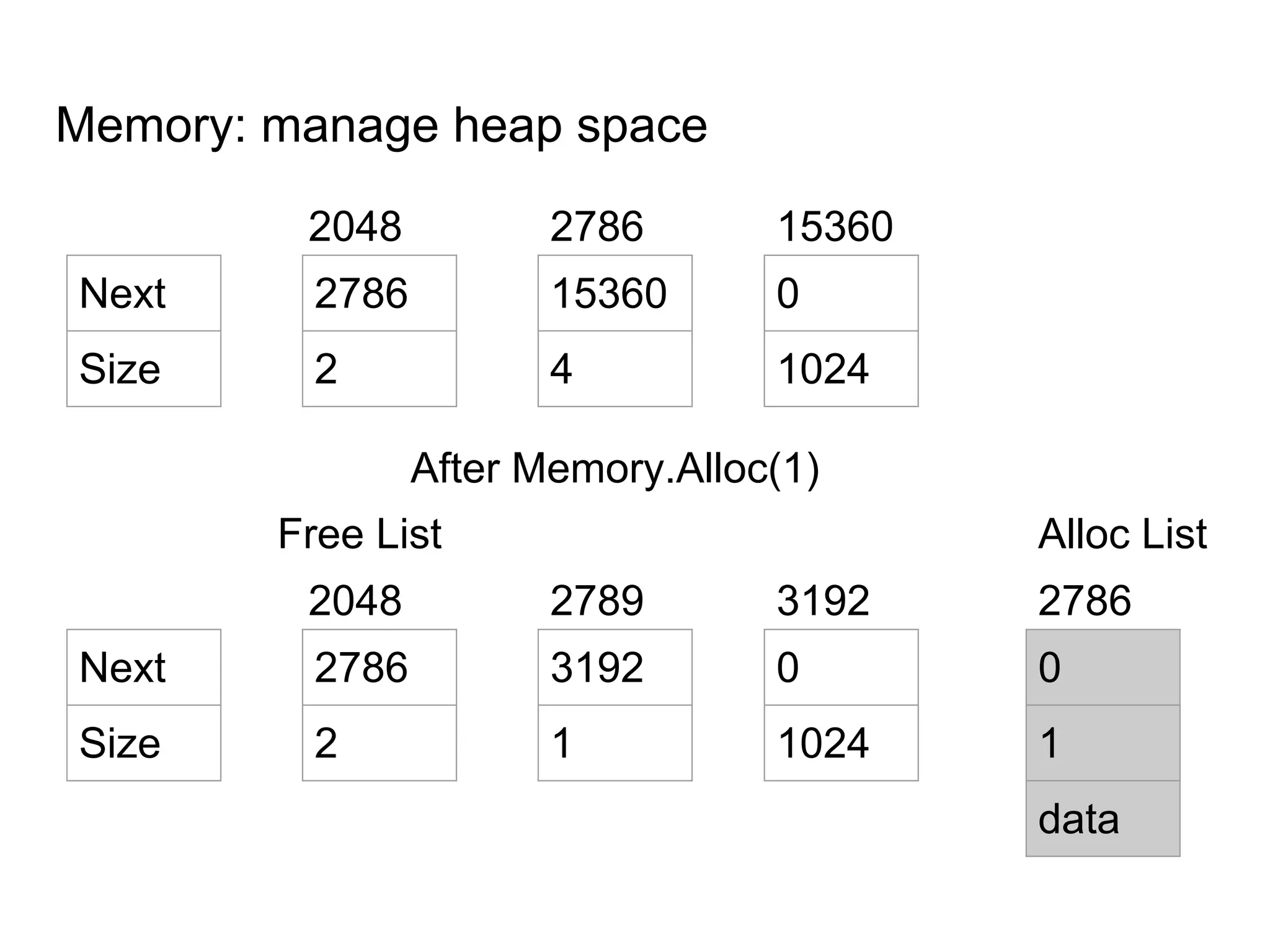

- 53. Memory: manage heapspace 2786 2 15360 4 0 1024 2048 2786 15360 Next Size 2786 2 3192 1 0 1024 2048 2789 3192 Next Size After Memory.Alloc(1) 0 1 data 2786 Alloc ListFree List

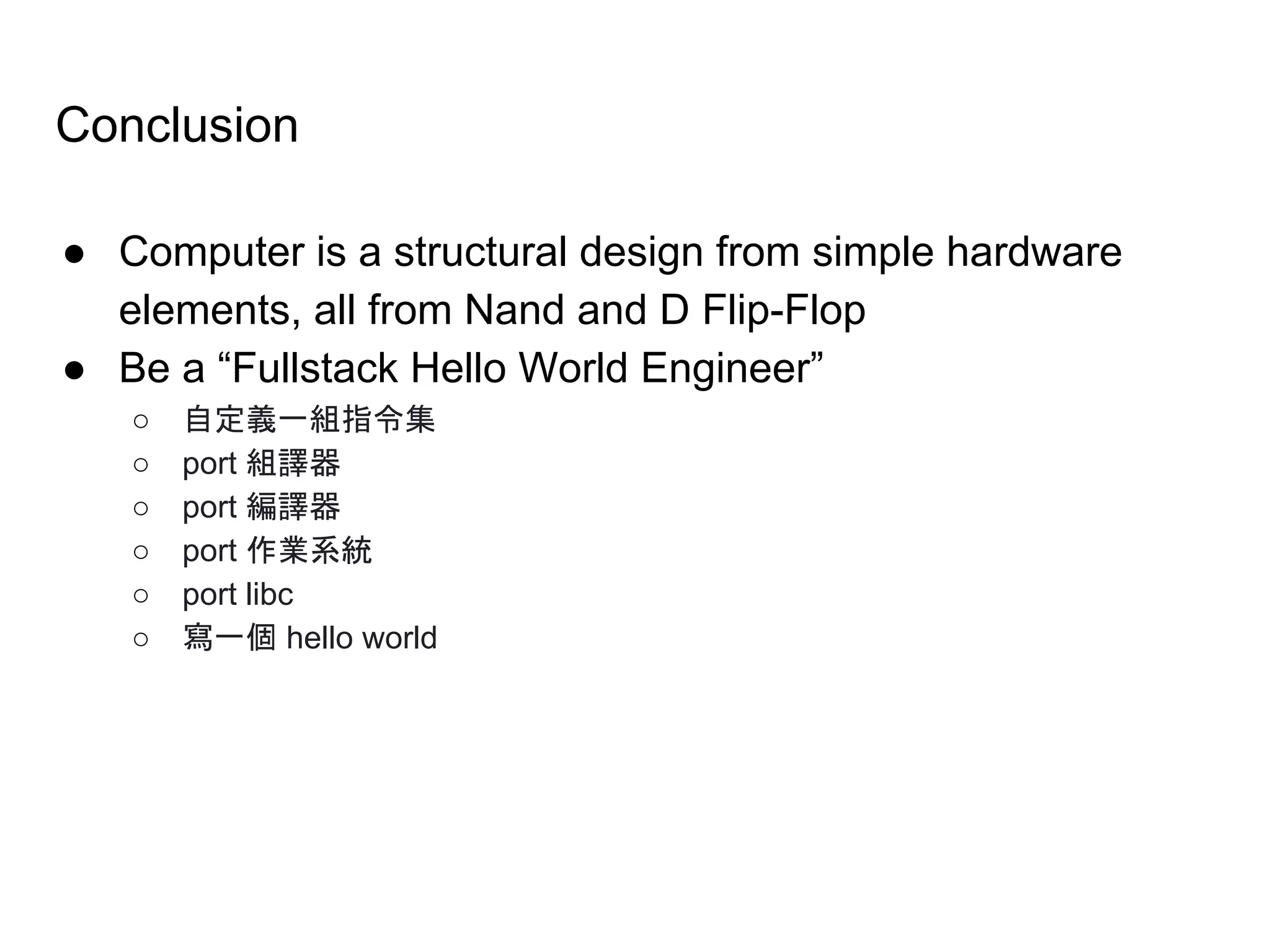

- 54. Conclusion ● Computer isa structural design from simple hardware elements, all from Nand and D Flip-Flop ● Be a “Fullstack Hello World Engineer” ○ 自定義一組指令集 ○ port 組譯器 ○ port 編譯器 ○ port 作業系統 ○ port libc ○ 寫一個 hello world
- 55. Course Diagram fromTextbook

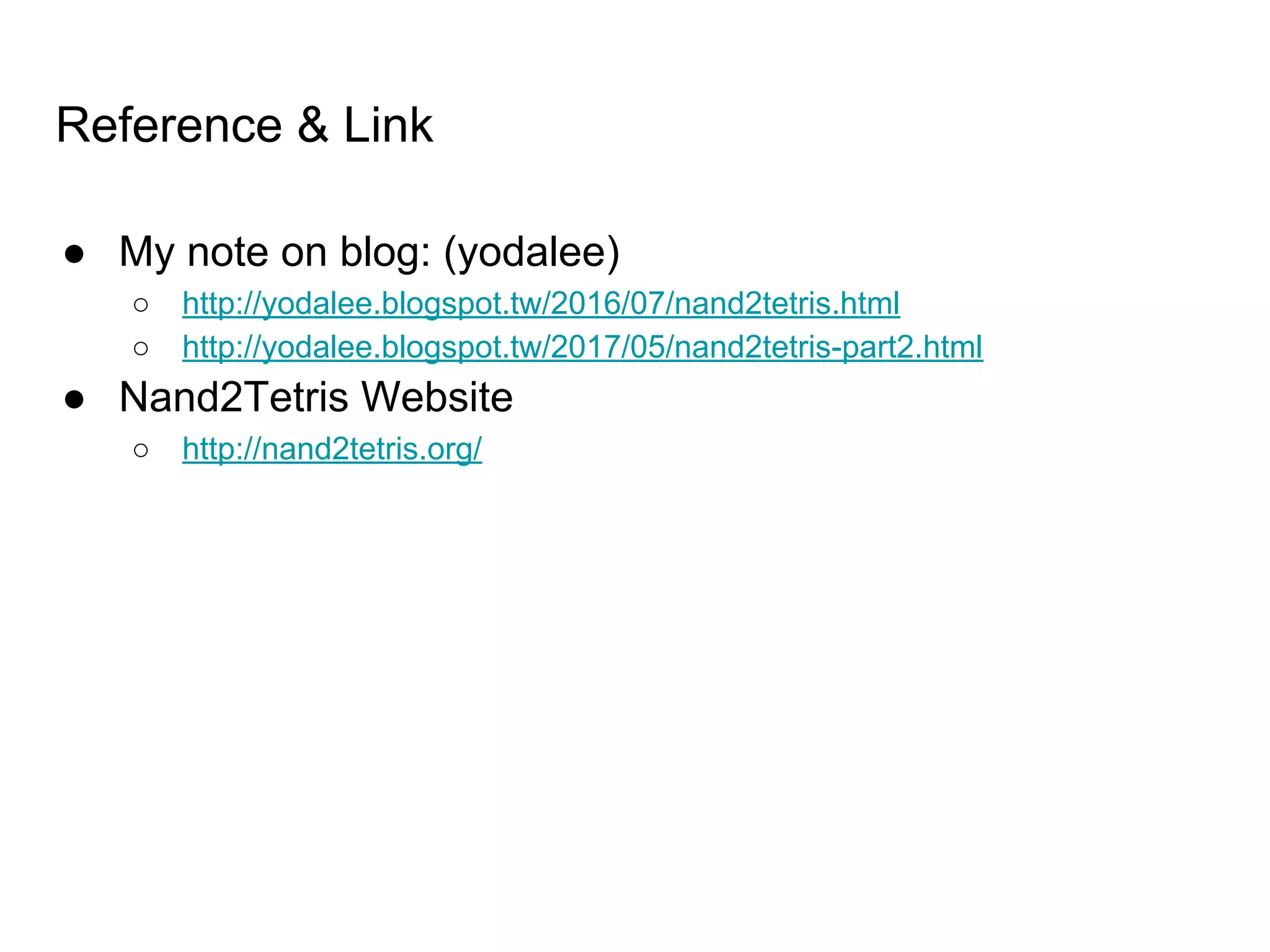

- 56. Reference & Link ●My note on blog: (yodalee) ○ http://yodalee.blogspot.tw/2016/07/nand2tetris.html ○ http://yodalee.blogspot.tw/2017/05/nand2tetris-part2.html ● Nand2Tetris Website ○ http://nand2tetris.org/
