PEG is a replacement to CFG. It is more powerful and can be more precise. In this slide I give a short introduction to PEG, the concept behind a programming language. Finally I write a parser for our programming language simple.

1. 1

2. Outline
 Who am I? Why I did this?
 Introduction to PEG
 Introduction to programming language
 Write a parser in PEG
 No demo QQ
2

3. About Me
 葉闆, Yodalee <lc85301@gmail.com>
 Study EE in college, Microwave in graduate school,
now rookie engineer in Synopsys.
3
Github: yodalee Blogger: http://yodalee.blogspot.tw

4. Why Did I Do This
 “Understanding Computation: From
Simple Machines to Impossible
Programs”
 In the book, it implements a
programming language parser, regular
expression parser with Ruby Treetop,
which is a PEG parser.
 I re-write all the code in Rust, so I did a
little research on PEG.
https://github.com/yodalee/computationbook
-rust
4

5. Introduction to PEG
5

6. Parsing Expression Grammar, PEG
 Bryan Ford, <Parsing Expression Grammars: A Recognition-
Based Syntactic Foundation>, 2004
 A replacement to Chomsky language, by removing the
ambiguity in grammar.
 The ambiguity is useful in modeling natural language, but not
in precise and unambiguous programming language.
6
Language <- Subject Verb Noun
Subject <- He | Lisa …
Verb <- is | has | sees…
Noun <- student | a toy …

7. PEG Basic Rule
 PEG in definition are very similar to CFG, composed
of rules.
 Rule will either:
 Match success: consume input.
 Match fail: not consume input.
 As predicate: only return success or fail, not consume input.
7

8. PEG Basic Rule
 Replace choice ‘|’ with
prioritized choice ‘/’.
 Consider following:
 CFG: A = “a” | “ab”
PEG: A = “a” / “ab”
 PEG: A = a* a
8
Operator
“” String Literal
[] Character Set
. Any Character
(e1 e2 ..) Grouping
e? e+ e* Optional Repetition
&e And predicate
!e Not predicate
e1 e2 Sequence
e1 / e2 Prioritized Choice

9. Some Example
 NUMBER <- [1-9] [0-9]*
 COMMENT <- “//” (!”n” .)* n
 EXPRESSION <- TERM ([+-] TERM)*
TERM <- FACTOR ([*/] FACTOR)*
 STAT_IF <-
“if” COND “then” STATEMENT “else” STATEMENT /
“if” COND “then” STATEMENT
9

10. PEG is not CFG
 PEG is equivalent to Top Down Programming Language
(TDPL)
 Language anbncn is not context-free, however PEG can parse
it with And-predicate.
 In CFG, A <- aAa | a match: odd number “a”
In PEG, A <- aAa / a match: 2n-1 “a”
 It is an open problem that any CFG can be parsed by PEG
10
A <- aAb / ε
B <- bBc / ε
S <- &(A !b) a* B

11. Using PEG
 There are many library that supports PEG:
 Rust: rust-peg, pest, nom-peg …
 C++: PEGTL, Boost …
 Ruby: kpeg, raabro, Treetop …
 Python: pyPEG, parsimonious …
 Haskell: Peggy …
 …
 So why Rust?
11

12. Introduction to
Programming Language
12

13. Simple Language
 3 types of statements: assign, if else, while.
 Support integer arithmetic.
 Support pair, list, function with one argument.
Simple, but actually we can do some complex things, like
recursion, map.
13
factorfun = function factor(x) {
if (x > 1) { x * factor ( x-1 ) } else { 1 }
}
result = factorfun(10); // 3628800
function last(l) {
if (isnothing(snd(l))) {
fst(l)
} else {
last(snd(l))
}
}

14. Abstract Syntax Tree
 Use Rust enum to store a payload inside.
 “Programming” like this:
14
pub enum Node {
Number(i64),
Boolean(bool),
Add(Box<Node>, Box<Node>),
Subtract(Box<Node>, Box<Node>),
LT(Box<Node>, Box<Node>)
…
}
let n = Node::add(Node::number(3), Node::number(4))
Add
3 4
LT
8

15. Abstract Syntax Tree
 All the statement are Node:
15
pub enum Node {
Variable ( String ),
Assign ( String, Box<Node>),
If ( Box<Node>, Box<Node>, Box<Node> ),
While ( Box<Node>, Box<Node> ),
…
}

16. Pair, List and Nothing
 Node::pair(Node::number(3), Node::number(4))
 List [3,4,5] = pair(3, pair(4, pair(5, nothing)))
 Nothing special
16
Pair
3 4
Pair
3 Pair
4 Pair
Nothing5

17. Environment and Machine
 Environment stores a Hashmap<String, Box<Node>>, with
<add> and <get> interface.
 A machine accepts an AST and an environment to evaluate
AST inside the machine.
17
pub struct Environment {
pub vars: HashMap<String, Box<Node>>
}
pub struct Machine {
pub environment: Environment,
expression: Box<Node>
}

18. Evaluate the AST
 Add evaluate function to all AST node using trait.
 The result will be a new Node.
18
fn evaluate(&self, env: &mut Environment) -> Box<Node>;
match *self {
Node::Add(ref l, ref r) => {
Node::number(l.evaluate(env).value() +
r.evaluate(env).value()) }
…
}

19. Evaluate the AST
 How to evaluate While Node ( condition, body )?
 Evaluate condition => evaluate body and self if true.
19
x = 3;
while (x < 9) { x = x * 2; }
Evaluate x = 3
Evaluate while (x < 9) x = x * 2
Evaluate x = x * 2
Evaluate while (x < 9) x = x * 2
Evaluate x = x * 2
Evaluate while (x < 9) x = x * 2

20. Function
 Function is also a type of Node. Upon evaluation, function is
wrapped into Closure with environment at that time.
 Call is evaluated the function with closure’s environment.
20
Node::Func(String, String, Box<Node>)
Node::Closure(Environment, Box<Node>)
fn evaluate(&self, env: &mut Environment) -> Box<Node> {
Node::Fun(ref name, ref arg, ref body) => {
Node::closure(env.clone(), Box::new(self.clone()))
}
}

21. Call a Function
fn evaluate(&self, env: &mut Environment) -> Box<Node> {
Node::Call(ref closure, ref arg) => {
match *closure {
Node::Closure(ref env, ref fun) => {
if let Node::Fun(funname, argname, body) = *fun.clone() {
let mut newenv = env.clone();
newenv.add(&funname, closure.evaluate(env));
newenv.add(&argname, arg.evaluate(env));
body.evaluate(&mut newenv);
} } } } }
21

22. Free Variable
 Evaluate the free variables in a function to prevent copy whole
environment
 Node::Variable
 Node::Assign
 Node::Function
22
function addx(x) { function addy(y) { x + y }}
-> no free variables
function addy(x) { x + y }
-> free variable y

23. Call a Function
if let Node::Fun(funname, argname, body) = *fun.clone() {
let mut newenv = new Environment {};
for var in free_vars(fun) {
newenv.add(var, env.get(var));
}
newenv.add(&funname, closure.evaluate(env));
newenv.add(&argname, arg.evaluate(env));
body.evaluate(&mut newenv);
}
23

24. What is a Language?
 We make some concepts abstract, like a virtual machine.
Design a language is to design the abstraction.
 Function “evaluate” implement the concept, of course we can
implement it as anything. Like return 42 on every evaluation.
24
Concept Simple, virtual
machine
Real Machine
Number 3 Node::number(3) 0b11 in memory
+ Node::add(l, r) add r1 r2
Choice Node::if branch command

25. What is a Language?
 Abstraction will bring some precision issue, like floating point.
We have no way to express concept of <infinite>.
 We can create a language on geometry as below, which
representation for line is best?
 Consider every pros and cons the abstraction will bring.
25
Concept In Programming Language
Point (x: u32, y: u32)
Line
(Point, Point)
(Point, Slope)
(Point, Point, type{vertical, horizontal, angled})
Intersection Calculate intersection

26. Implement a Parser with
PEG
26

27. The Pest Package
 Rust Pest
 https://github.com/pest-parser/pest
 My simple language parser grammar at:
 https://github.com/yodalee/simplelang
 Parsing Flow
27
Grammar Parser
Source
Code
Pest Pair
Structure
Simple AST

28. The Pest Package
28
use pest::Parser;
#[derive(Parser)]
#[grammar = "simple.pest"]
struct SimpleParser;
let pairs = SimpleParser::parse(
Rule::simple, “<source code>")
 A pair represents the parse result
from a rule.
 Pair.as_rule() => the rule
 Pair.as_span() => get match span
 Pair.as_str() => matched text
 Pair.into_inner()=> Sub-rules

29. Grammar <-> Build AST
Number = { [1-9] ~ [0-9]* }
Variable = { [A-Za-z] ~ [A-Za-z0-9]* }
Call = { Variable ~ “(“ ~ Expr ~ “)” }
Factor = { “(“ ~ Expr ~ “)” | Call | Variable | Number }
29
fn build_factor(pair: Pair<Rule>) -> Box<Node> {
match pair.as_rule() {
Rule::number => Node::number(pair.as_str().parse::<i64>().unwrap()),
Rule::variable => Node::variable(pair.as_str()),
Rule::expr => ...,
Rule::call => ...,
}
}

30. Climb the Expression
 Expression can be written as single Rule:
Expr = { Factor ~ (op_binary ~ Factor)* }
 Pest provides a template, just defines:
 Function build factor => create Factor Node
 Function infix rules => create Operator Node
 Operator precedence =>
vector of operator precedence and left/right association
30

31. Challenges
 Error message with syntax error.
 How to deal with optional? Like C for loop
 A more systematic way to deal with large language, like C.
31
compound_statement <- block_list
block_list <- block_list block | ε
block <- declaration_list | statement_list
declaration_list <- declaration_list declaration | ε
statement_list <- statment_list statement | ε
// Wrong PEG
compound_statement <- block*
block <- declaration* ~ statement*
// Correct PEG
compound_statement <- block*
block <- (declaration | statement)+

32. Conclusion
32

33. Conclusion
 PEG is a new, much powerful grammar than CFG. Fast and
convenient to create a small language parser.
 The most important concept in programming language?
Abstraction
 Is there best abstraction? NO. It is engineering.
33

34. Reference
 <Parsing Expression Grammars: A Recognition-Based
Syntactic Foundation>, Bryan Ford
 <Understanding Computation: From Simple Machines to
Impossible Programs>
 <Programming Language Part B> on Coursera, University of
Washington
34

35. Thank You for Listening
35

36. IB502 1430 – 1510

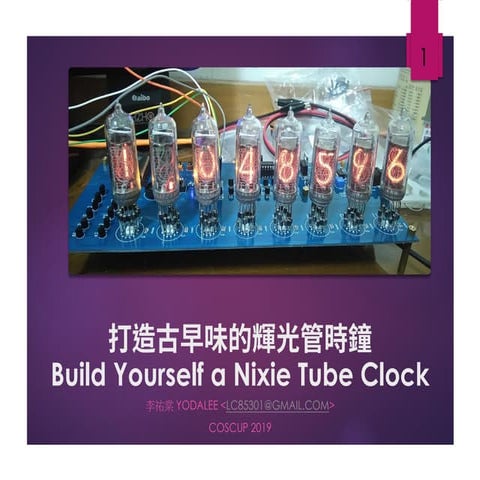

Build Yourself a Nixie Tube Clock
