The slide introduce some of the Rust concept that are necessary to write a kernel. Including wrapping an CSRs operation, locking mutable static variable, memory allocator, and pointer in Rust. Please visit the project github to see the source code of the rrxv6 projects: https://github.com/yodalee/rrxv6

1. rrxv6: Build a RISC-V xv6 Kernel in Rust
Author: Yodalee
<lc85301@gmail.com>

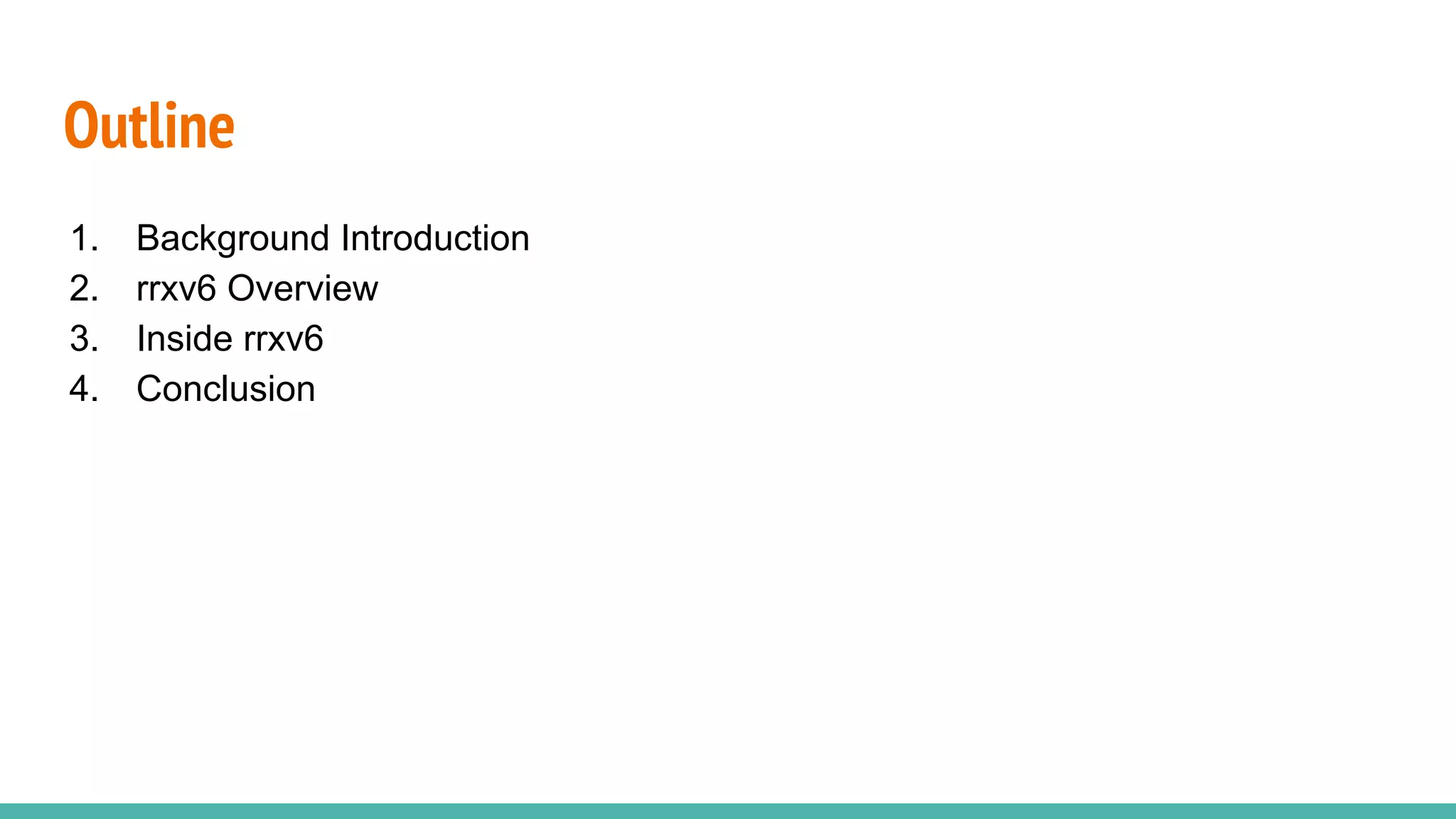

2. Outline
1. Background Introduction
2. rrxv6 Overview
3. Inside rrxv6
4. Conclusion

3. Outline
1. Background Introduction
2. rrxv6 Overview
3. Inside rrxv6
4. Conclusion
There won't be much details about
xv6, RISC-V, or Operating System

4. ● A re-implementation of Dennis Ritchie's and Ken Thompson's Unix
Version 6 (v6)
● Migrate from x86 to RISC-V multiprocessor using ANSI C
● Now used in operating systems courses at many universities.
Introduction to xv6

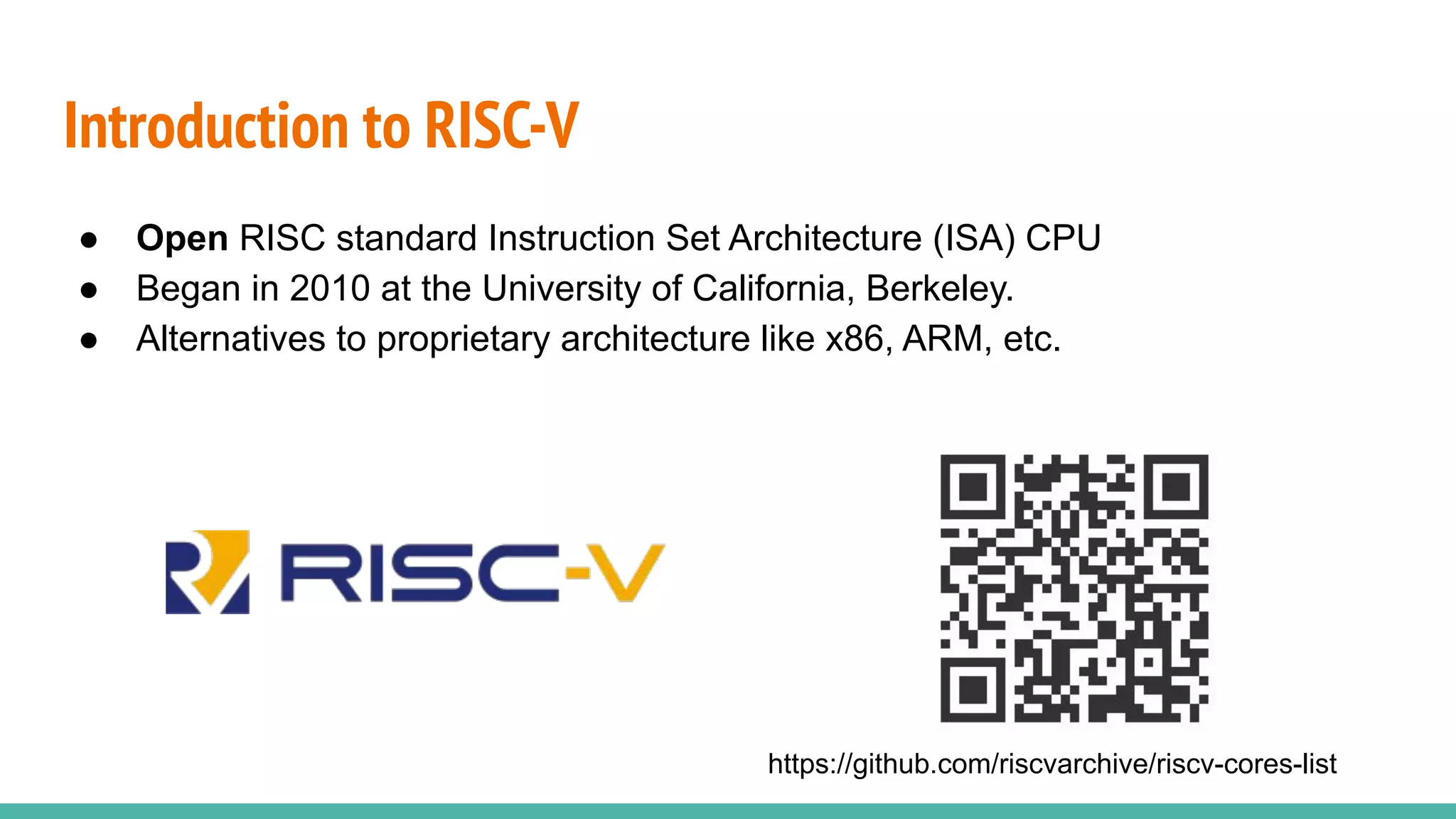

5. Introduction to RISC-V
● Open RISC standard Instruction Set Architecture (ISA) CPU
● Began in 2010 at the University of California, Berkeley.
● Alternatives to proprietary architecture like x86, ARM, etc.
https://github.com/riscvarchive/riscv-cores-list

6. rrxv6 Overview

7. Star Me on Github!
Note: (Traditional Chinese)
https://yodalee.me/series/rrxv6/
Source Code
https://github.com/yodalee/rrxv6

8. rrxv6 Overview (so far)
RISC-V 64 bits Hardware (on qemu)
Application
rv64
(csr operation abstraction)
Kernel
Virtual Memory
PLIC
UART Scheduler
Memory Allocator

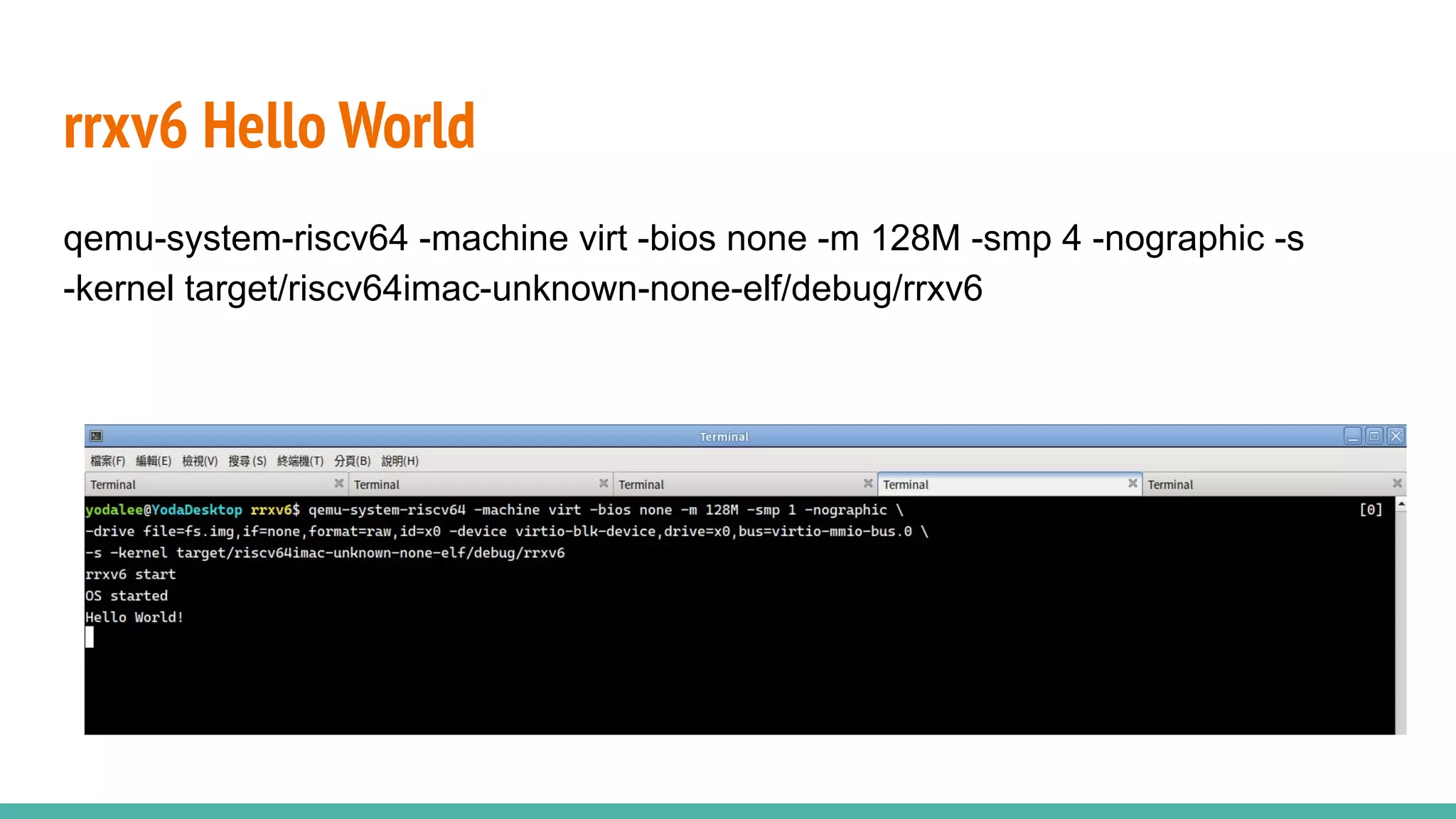

9. rrxv6 Hello World
qemu-system-riscv64 -machine virt -bios none -m 128M -smp 4 -nographic -s
-kernel target/riscv64imac-unknown-none-elf/debug/rrxv6

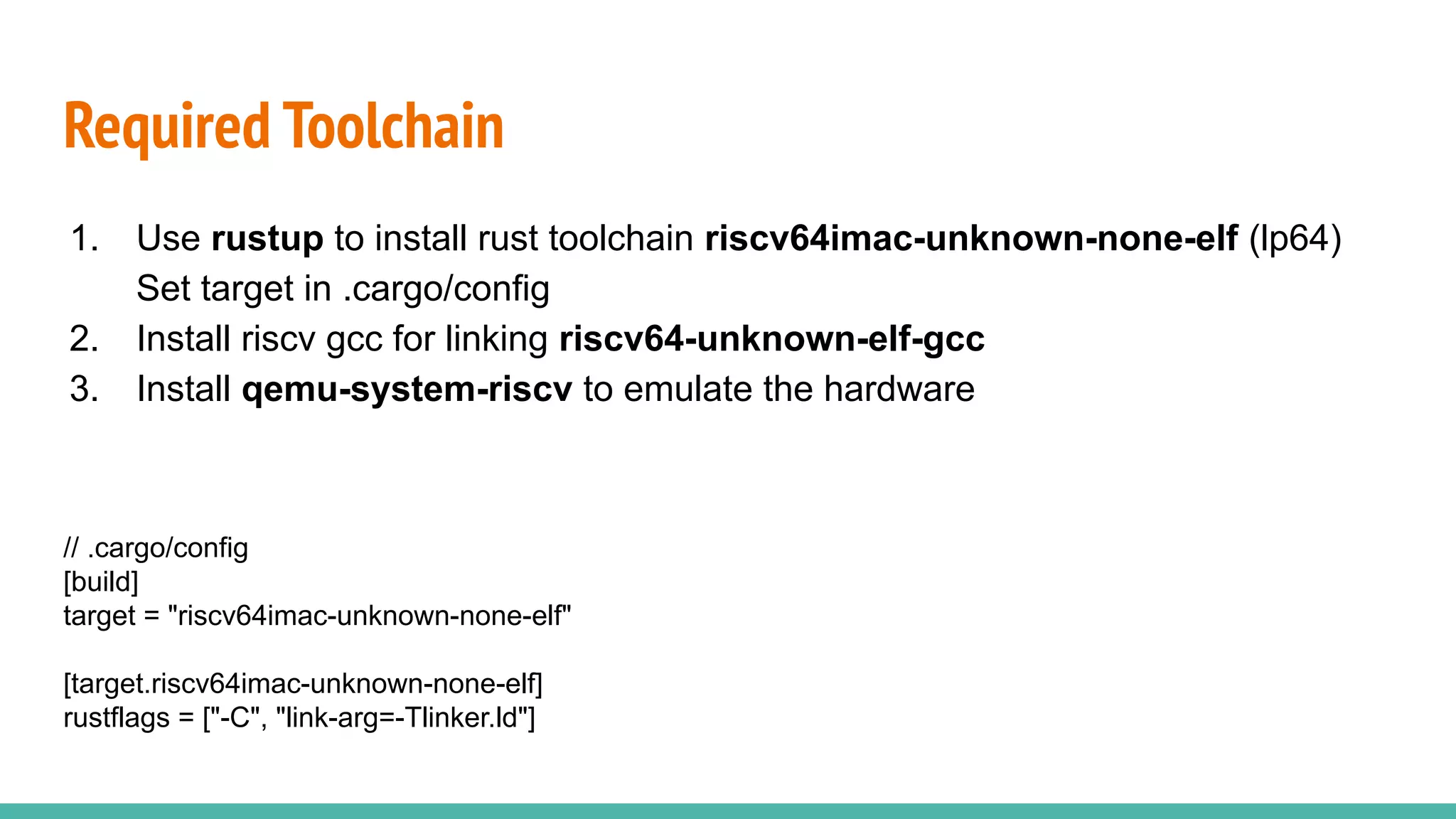

10. Required Toolchain
1. Use rustup to install rust toolchain riscv64imac-unknown-none-elf (lp64)
Set target in .cargo/config
2. Install riscv gcc for linking riscv64-unknown-elf-gcc
3. Install qemu-system-riscv to emulate the hardware
// .cargo/config
[build]
target = "riscv64imac-unknown-none-elf"
[target.riscv64imac-unknown-none-elf]
rustflags = ["-C", "link-arg=-Tlinker.ld"]

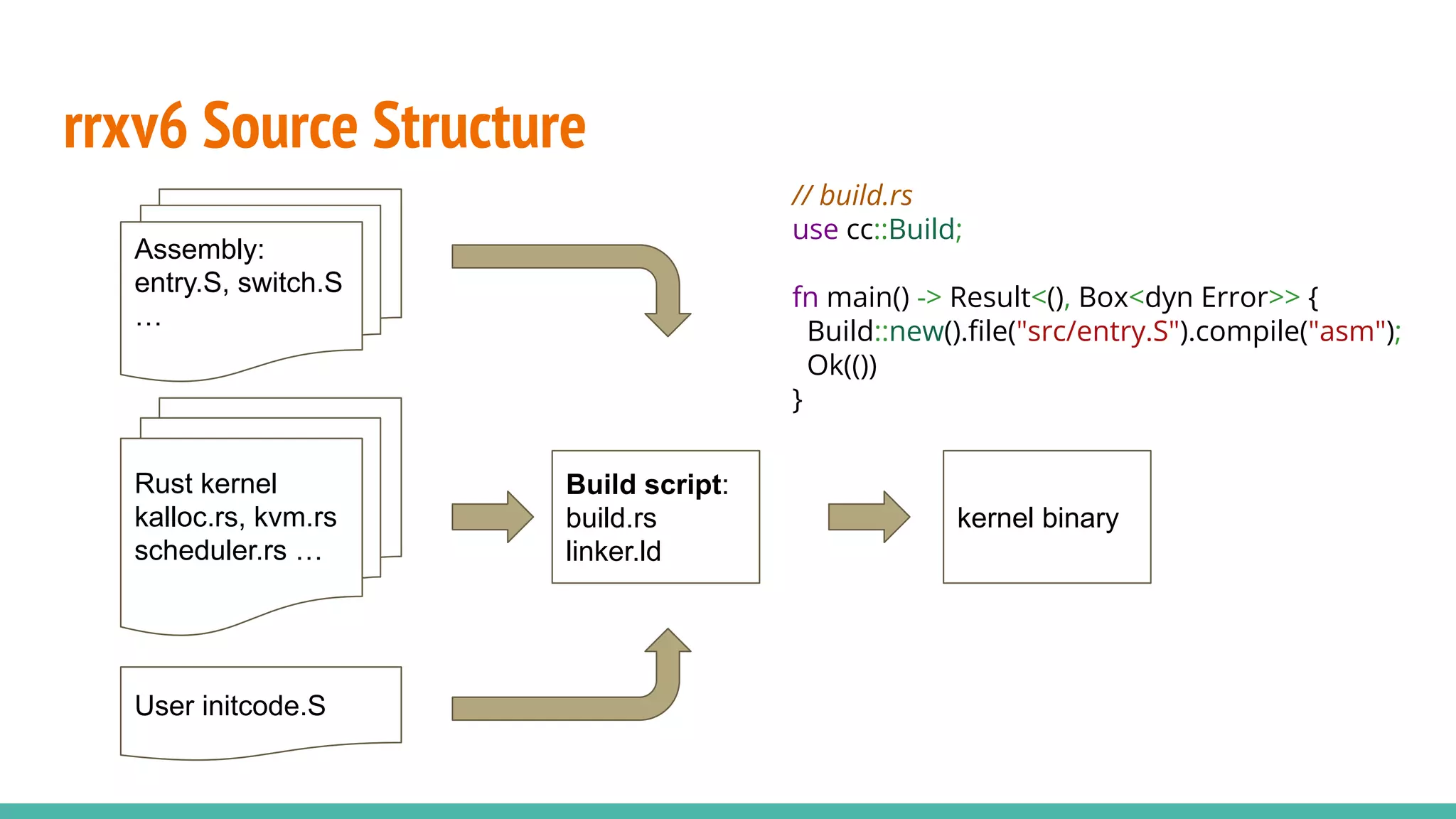

11. rrxv6 Source Structure
Assembly:
entry.S, switch.S
…
Rust kernel
kalloc.rs, kvm.rs
scheduler.rs …
Build script:
build.rs
linker.ld
User initcode.S
kernel binary
// build.rs
use cc::Build;
fn main() -> Result<(), Box<dyn Error>> {
Build::new().file("src/entry.S").compile("asm");
Ok(())
}

12. Inside the rrxv6

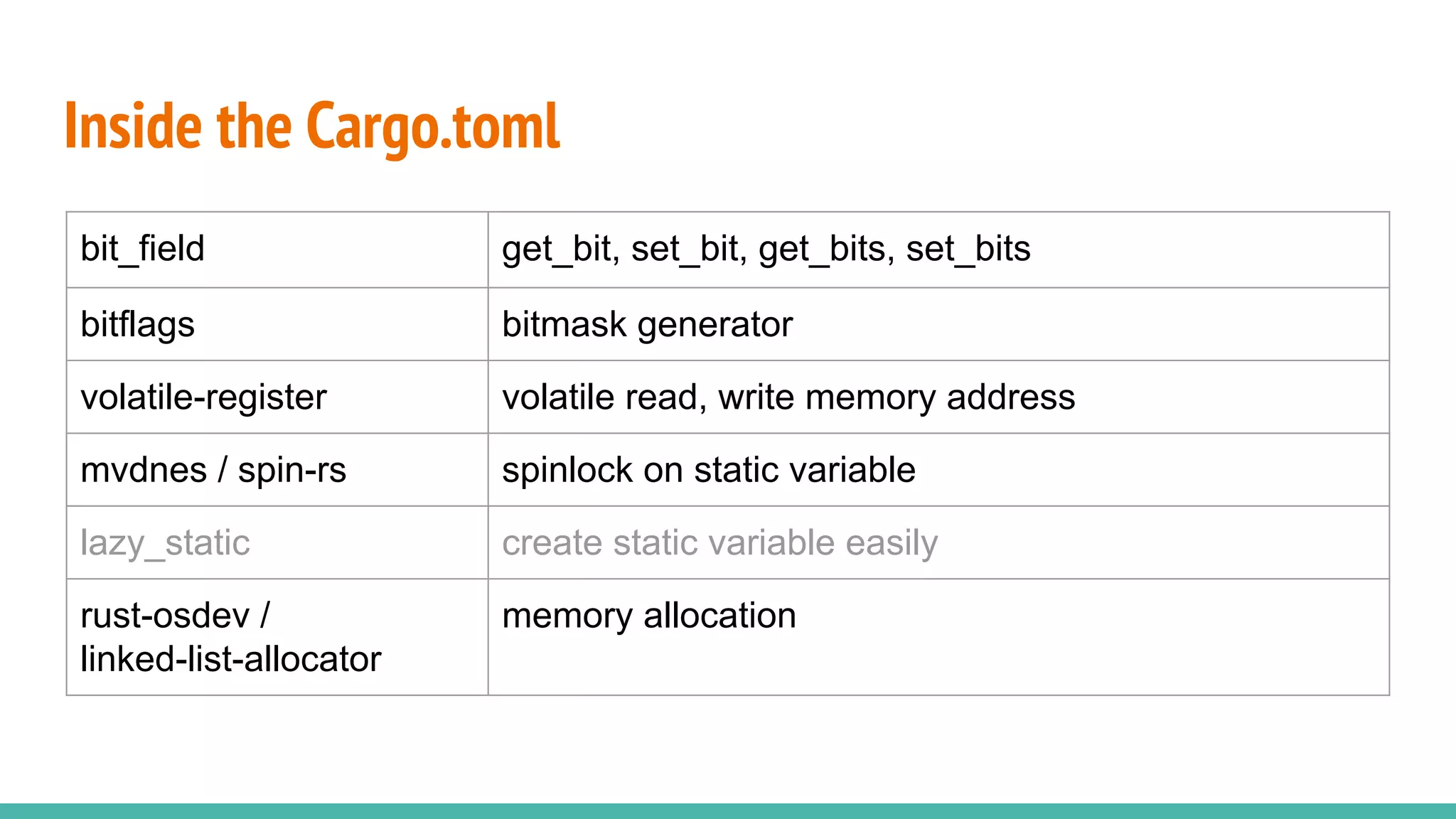

13. Inside the Cargo.toml
bit_field get_bit, set_bit, get_bits, set_bits
bitflags bitmask generator
volatile-register volatile read, write memory address
mvdnes / spin-rs spinlock on static variable
lazy_static create static variable easily
rust-osdev /
linked-list-allocator
memory allocation

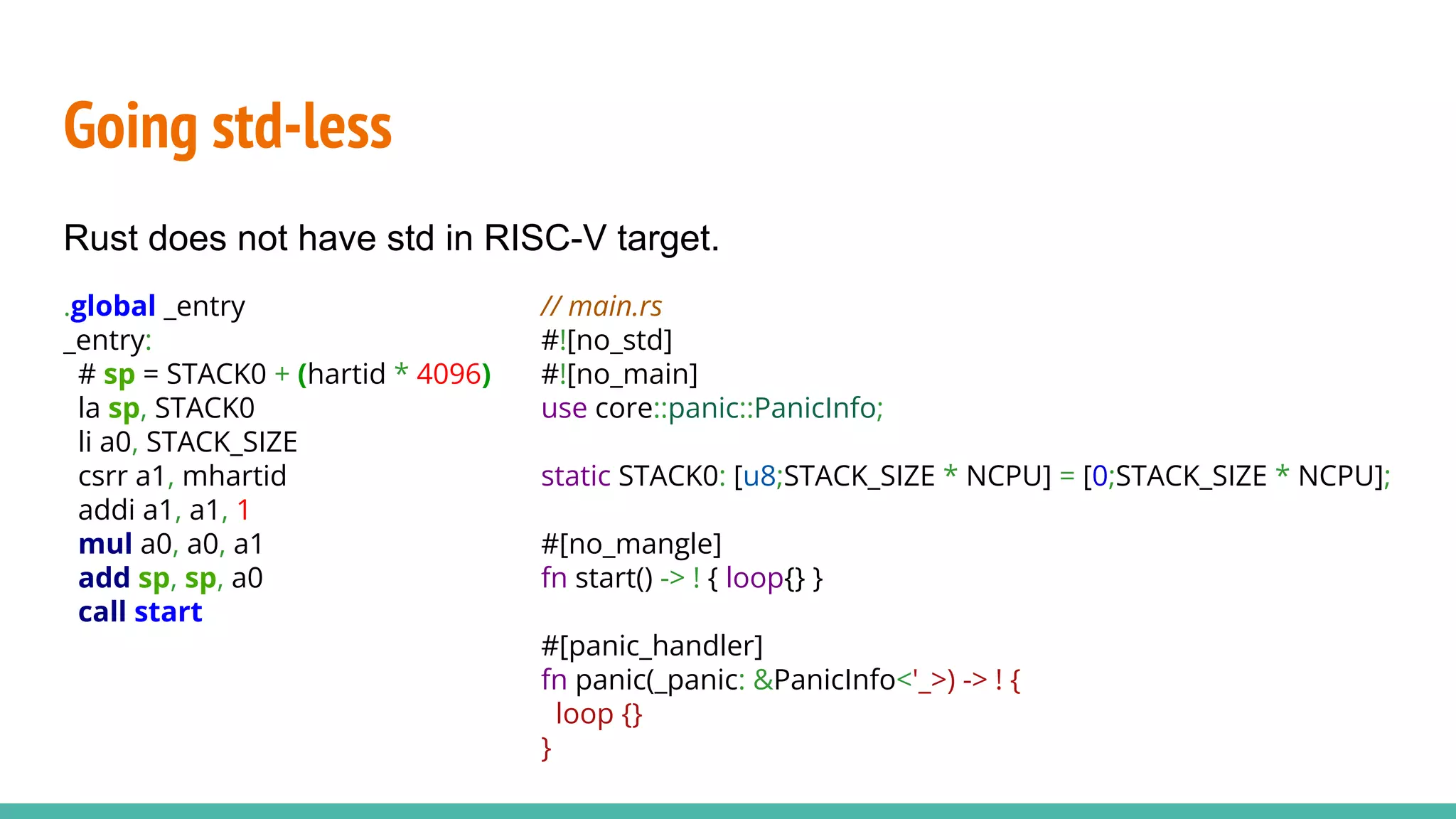

14. Going std-less
Rust does not have std in RISC-V target.
// main.rs
#![no_std]
#![no_main]
use core::panic::PanicInfo;
static STACK0: [u8;STACK_SIZE * NCPU] = [0;STACK_SIZE * NCPU];
#[no_mangle]
fn start() -> ! { loop{} }
#[panic_handler]
fn panic(_panic: &PanicInfo<'_>) -> ! {
loop {}
}
.global _entry
_entry:
# sp = STACK0 + (hartid * 4096)
la sp, STACK0
li a0, STACK_SIZE
csrr a1, mhartid
addi a1, a1, 1
mul a0, a0, a1
add sp, sp, a0
call start

15. What we have?

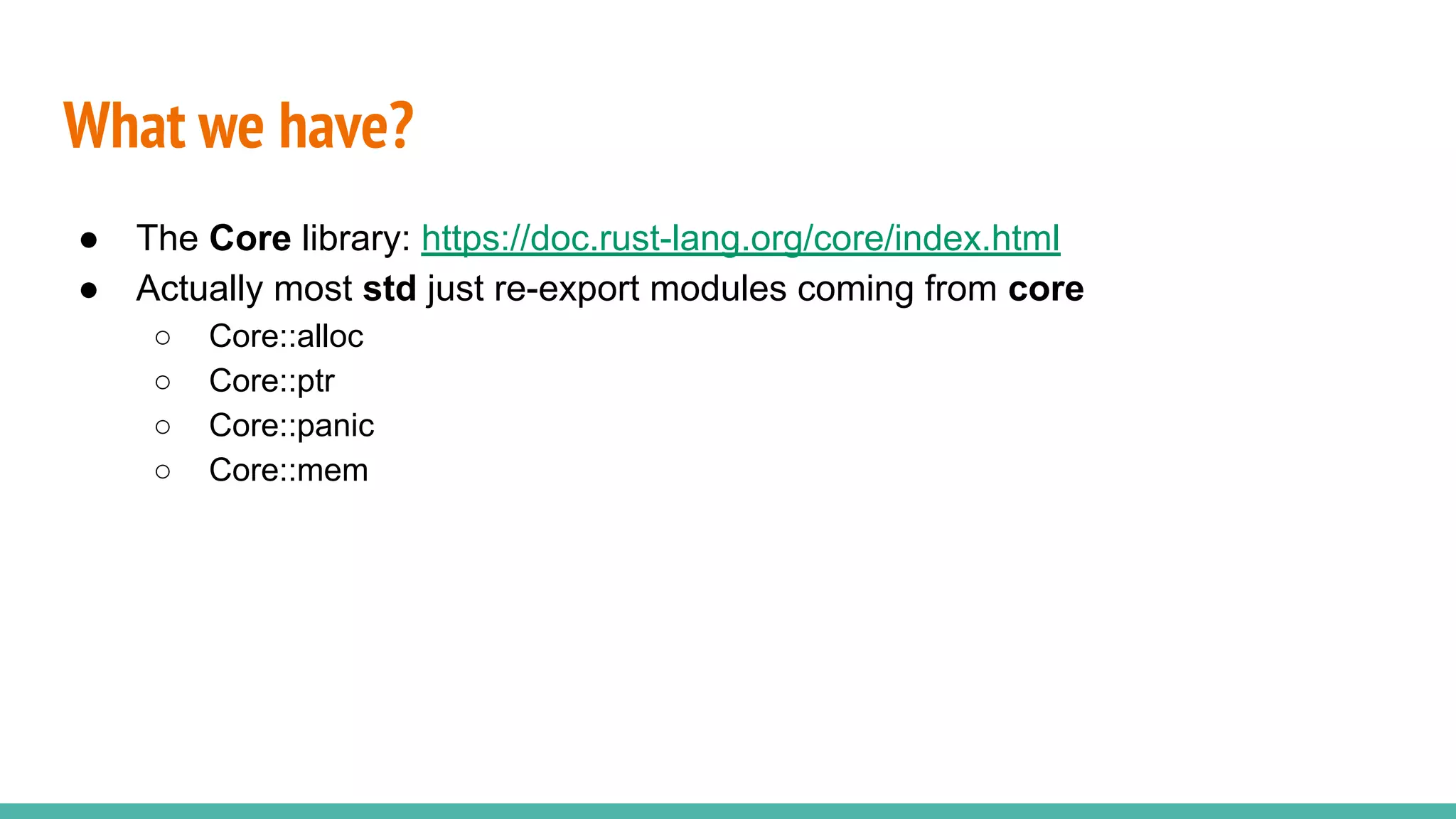

● The Core library: https://doc.rust-lang.org/core/index.html
● Actually most std just re-export modules coming from core
○ Core::alloc
○ Core::ptr
○ Core::panic
○ Core::mem

16. rv64: CSR Abstraction

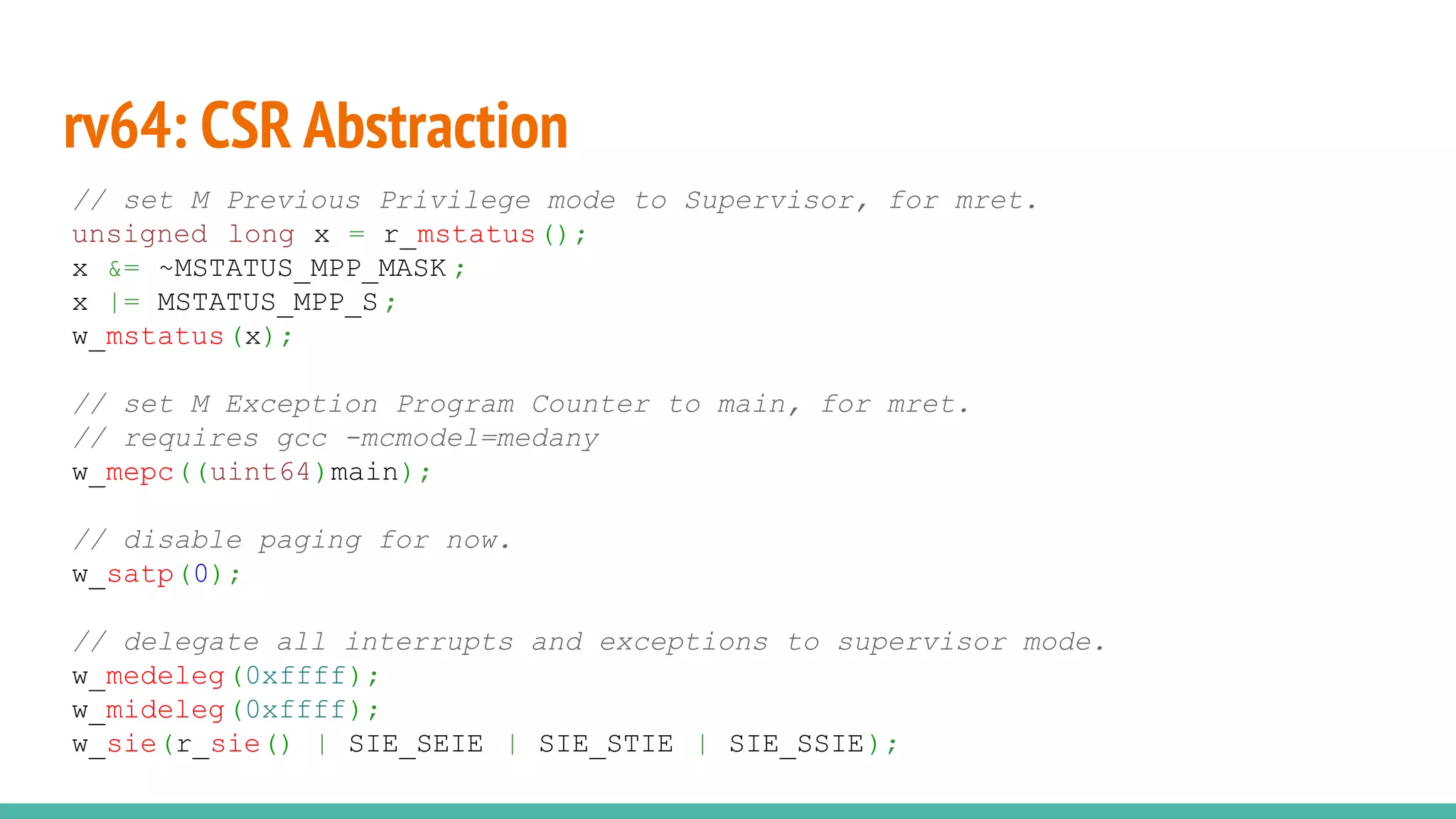

// set M Previous Privilege mode to Supervisor, for mret.
unsigned long x = r_mstatus();
x &= ~MSTATUS_MPP_MASK ;
x |= MSTATUS_MPP_S ;
w_mstatus(x);
// set M Exception Program Counter to main, for mret.
// requires gcc -mcmodel=medany
w_mepc((uint64)main);
// disable paging for now.
w_satp(0);
// delegate all interrupts and exceptions to supervisor mode.
w_medeleg(0xffff);
w_mideleg(0xffff);
w_sie(r_sie() | SIE_SEIE | SIE_STIE | SIE_SSIE);

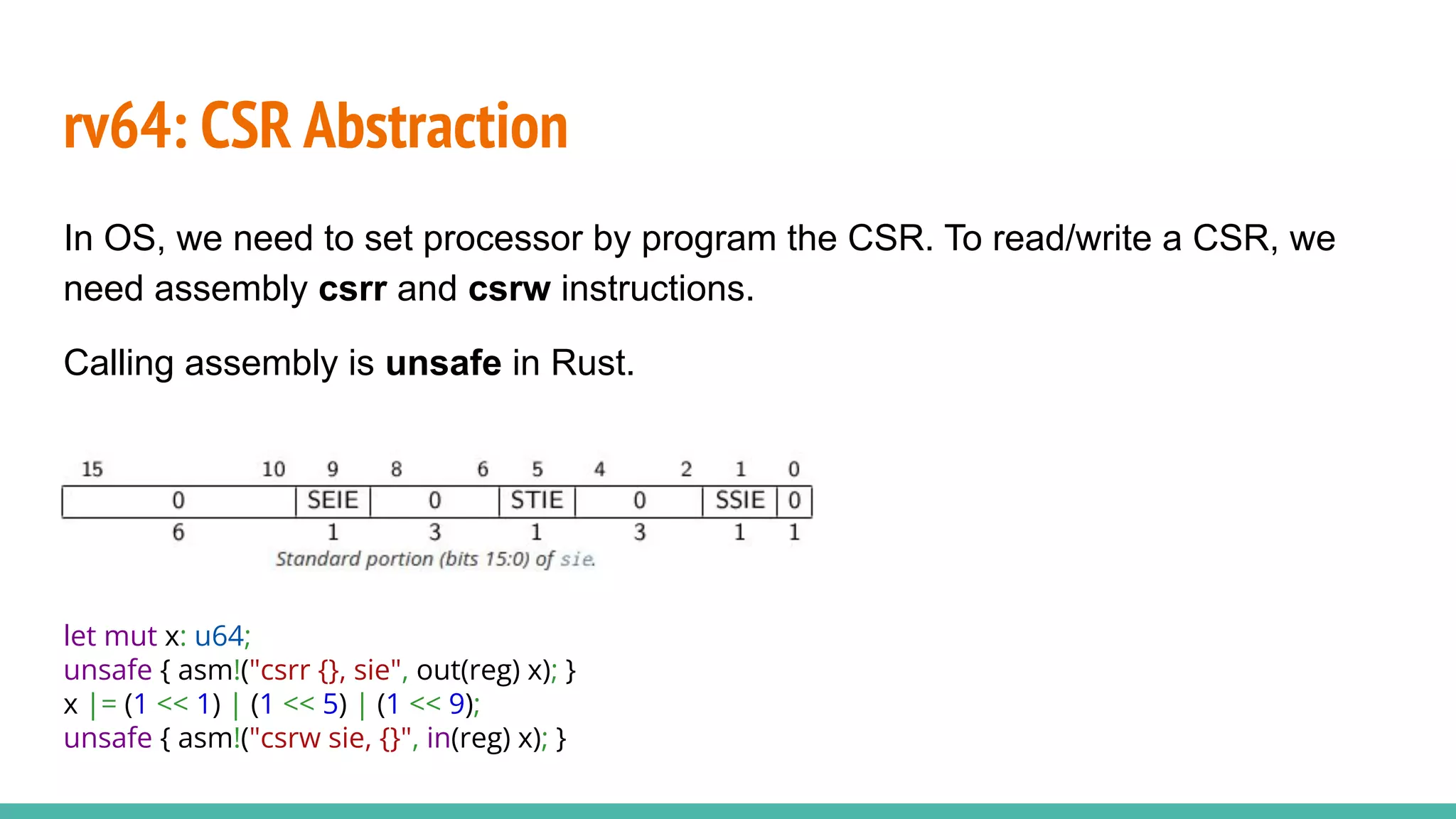

17. rv64: CSR Abstraction
In OS, we need to set processor by program the CSR. To read/write a CSR, we
need assembly csrr and csrw instructions.
Calling assembly is unsafe in Rust.
let mut x: u64;
unsafe { asm!("csrr {}, sie", out(reg) x); }
x |= (1 << 1) | (1 << 5) | (1 << 9);
unsafe { asm!("csrw sie, {}", in(reg) x); }

18. rv64: CSR Abstraction

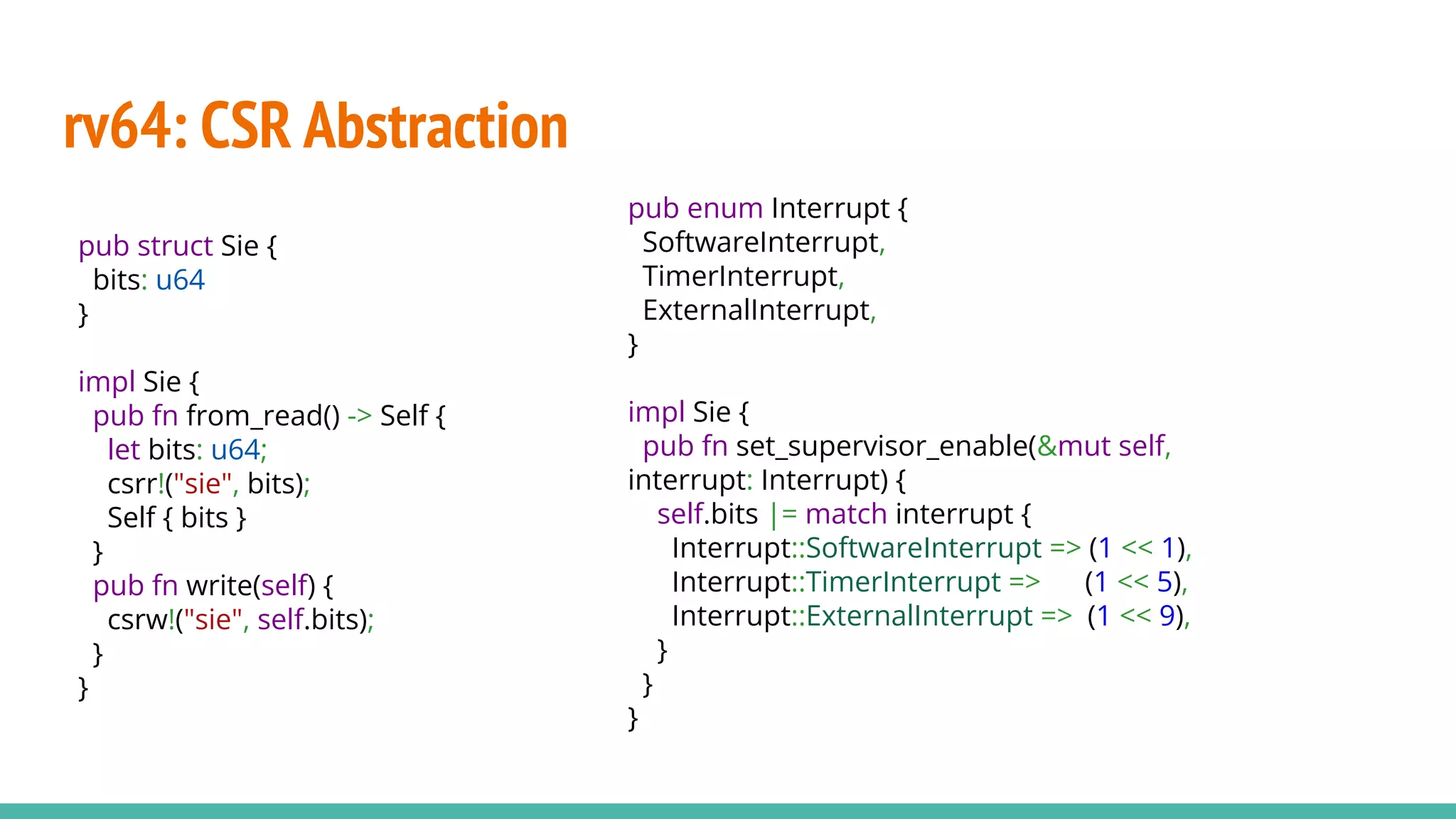

pub struct Sie {
bits: u64
}
impl Sie {
pub fn from_read() -> Self {
let bits: u64;
csrr!("sie", bits);
Self { bits }
}
pub fn write(self) {
csrw!("sie", self.bits);
}
}
pub enum Interrupt {
SoftwareInterrupt,
TimerInterrupt,
ExternalInterrupt,
}
impl Sie {
pub fn set_supervisor_enable(&mut self,
interrupt: Interrupt) {
self.bits |= match interrupt {
Interrupt::SoftwareInterrupt => (1 << 1),
Interrupt::TimerInterrupt => (1 << 5),
Interrupt::ExternalInterrupt => (1 << 9),
}
}
}

19. rv64: CSR Abstraction
let mut sie = Sie::from_read();
sie.set_supervisor_enable(Interrupt::SoftwareInterrupt);
sie.set_supervisor_enable(Interrupt::TimerInterrupt);
sie.set_supervisor_enable(Interrupt::ExternalInterrupt);
sie.write();

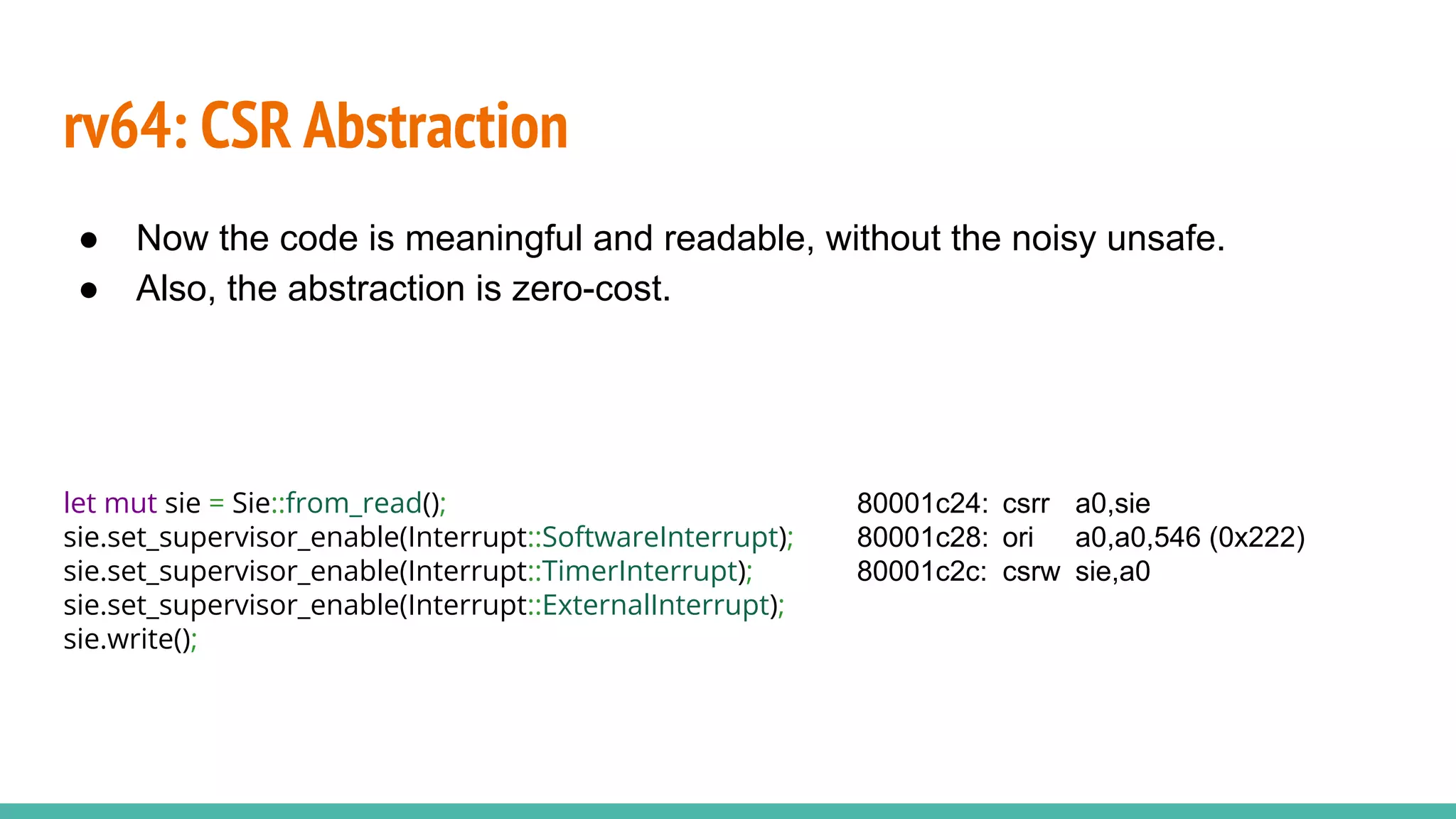

● Now the code is meaningful and readable, without the noisy unsafe.
● Also, the abstraction is zero-cost.
80001c24: csrr a0,sie
80001c28: ori a0,a0,546 (0x222)
80001c2c: csrw sie,a0

20. MemoryAllocator

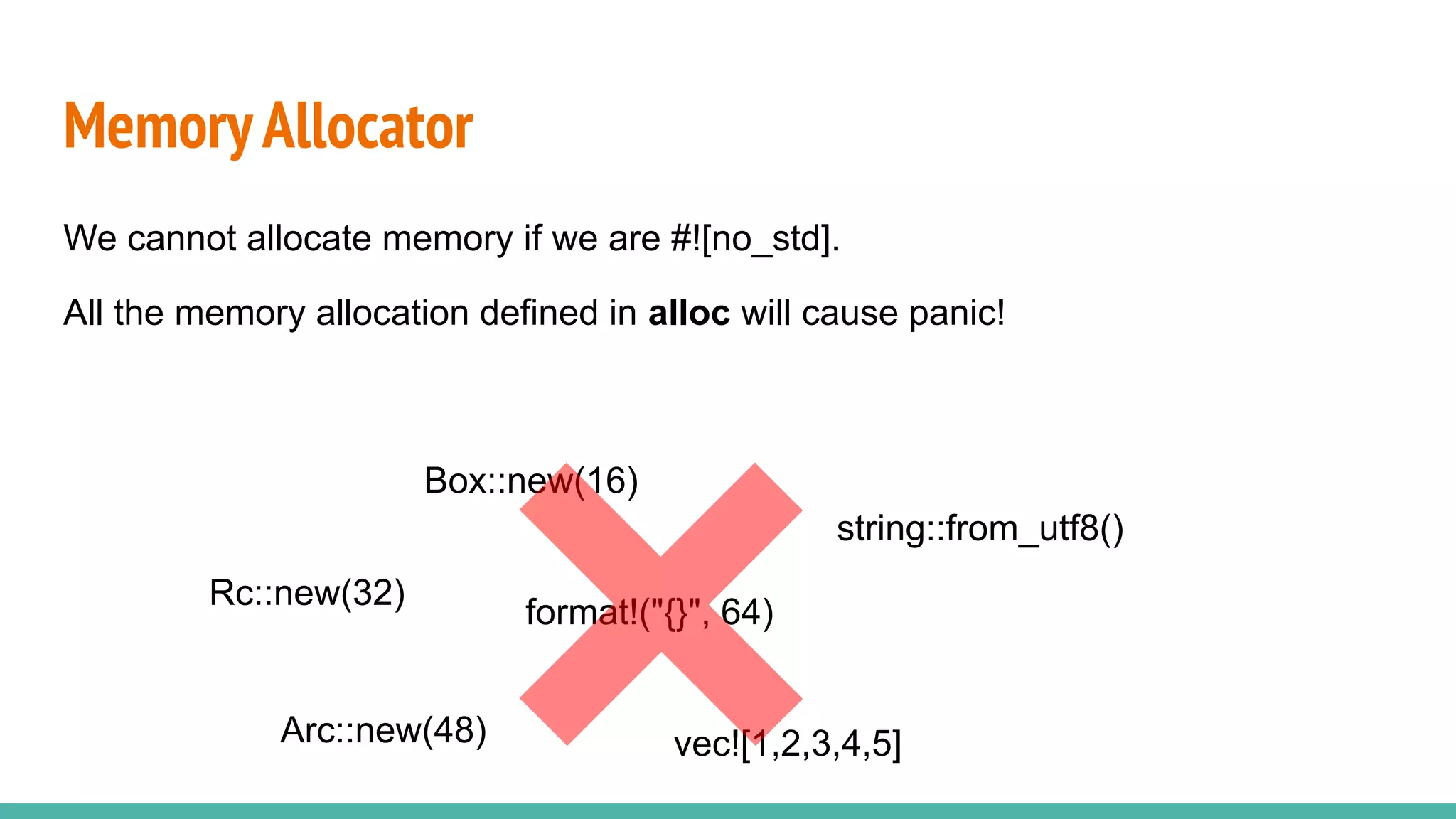

We cannot allocate memory if we are #![no_std].
All the memory allocation defined in alloc will cause panic!
Box::new(16)
Rc::new(32)
string::from_utf8()
format!("{}", 64)
vec![1,2,3,4,5]
Arc::new(48)

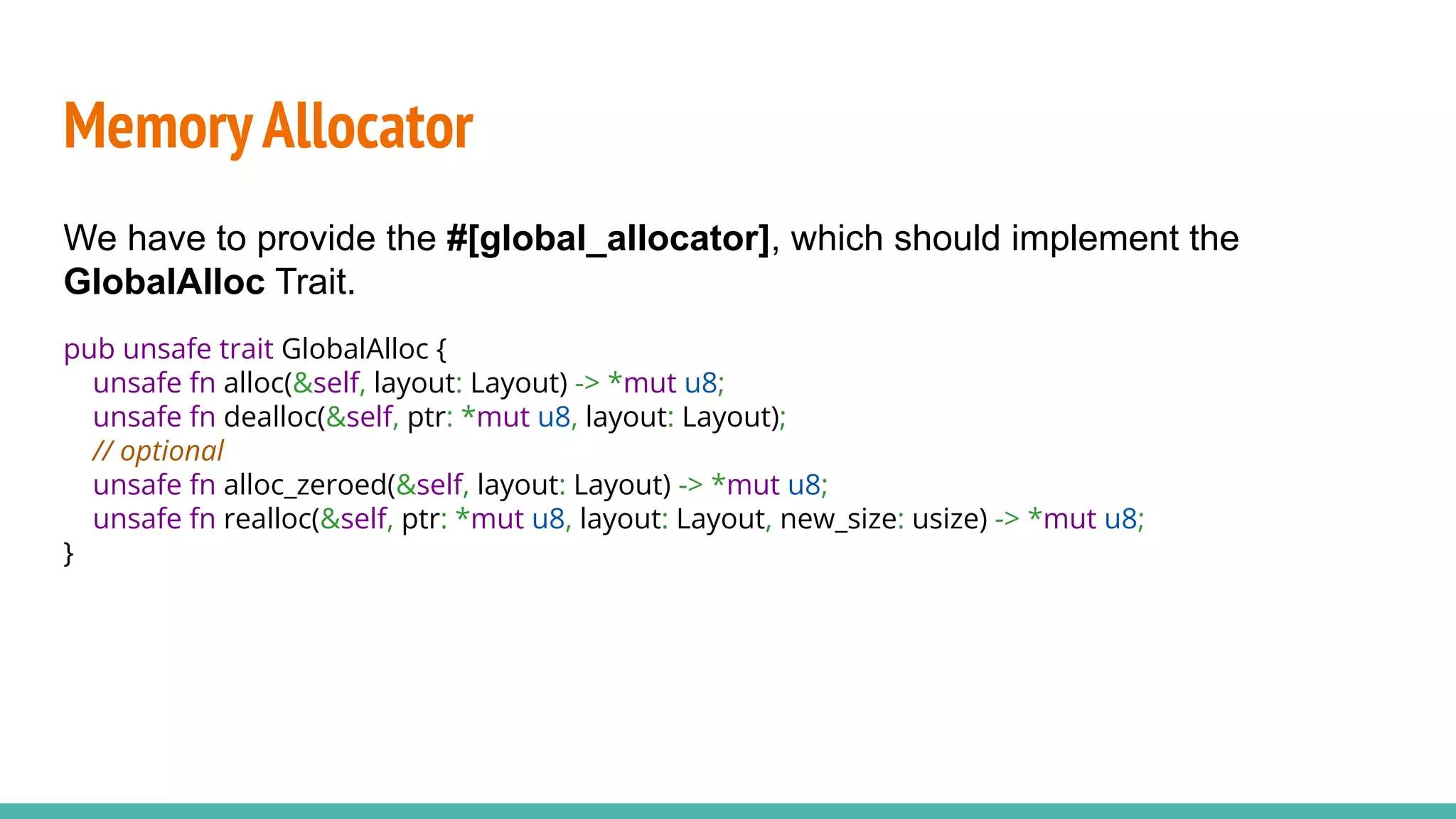

21. MemoryAllocator
We have to provide the #[global_allocator], which should implement the
GlobalAlloc Trait.
pub unsafe trait GlobalAlloc {
unsafe fn alloc(&self, layout: Layout) -> *mut u8;
unsafe fn dealloc(&self, ptr: *mut u8, layout: Layout);
// optional
unsafe fn alloc_zeroed(&self, layout: Layout) -> *mut u8;
unsafe fn realloc(&self, ptr: *mut u8, layout: Layout, new_size: usize) -> *mut u8;
}

22. MemoryAllocator -Dummy Implementation

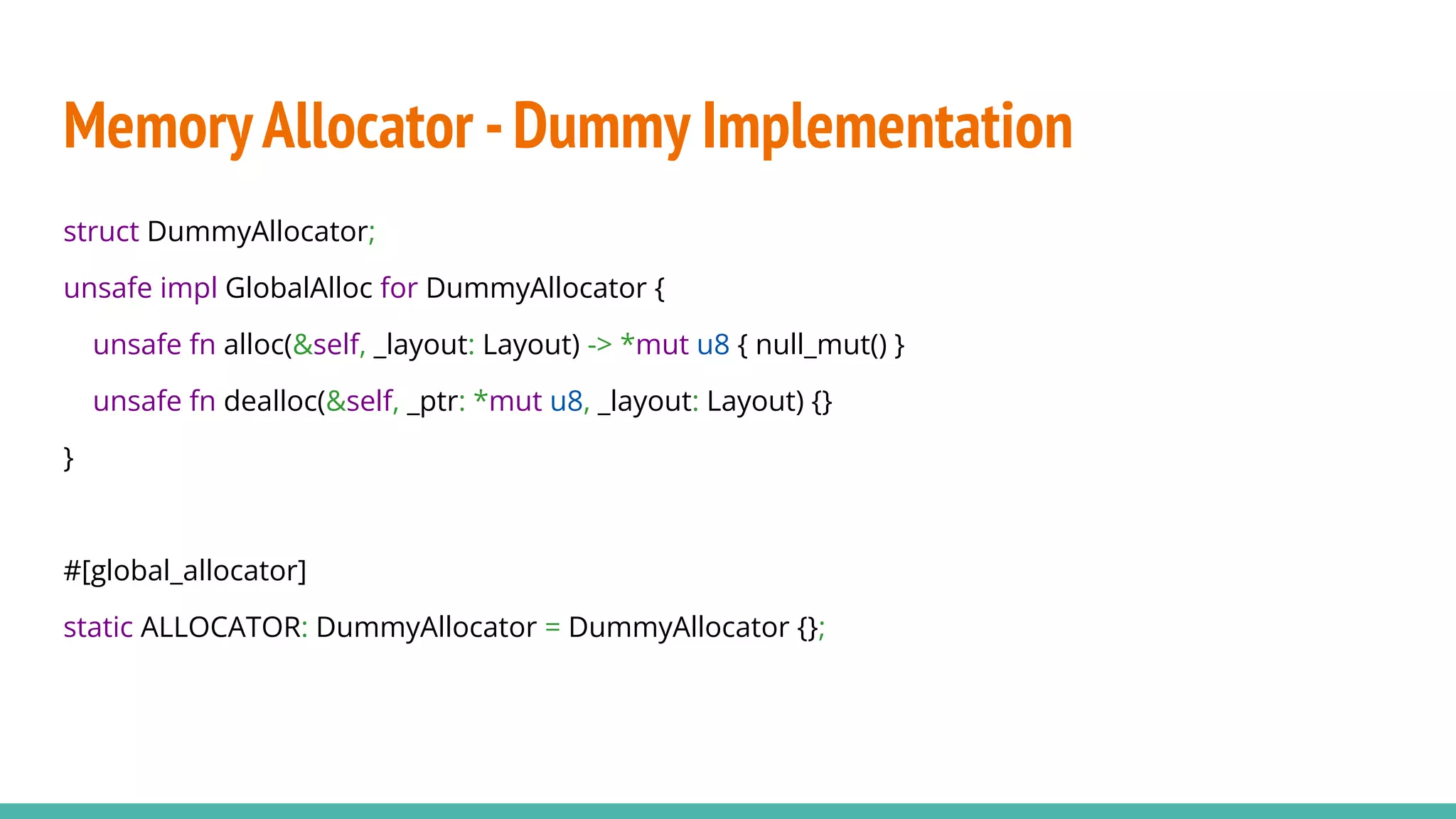

struct DummyAllocator;
unsafe impl GlobalAlloc for DummyAllocator {
unsafe fn alloc(&self, _layout: Layout) -> *mut u8 { null_mut() }
unsafe fn dealloc(&self, _ptr: *mut u8, _layout: Layout) {}
}
#[global_allocator]
static ALLOCATOR: DummyAllocator = DummyAllocator {};

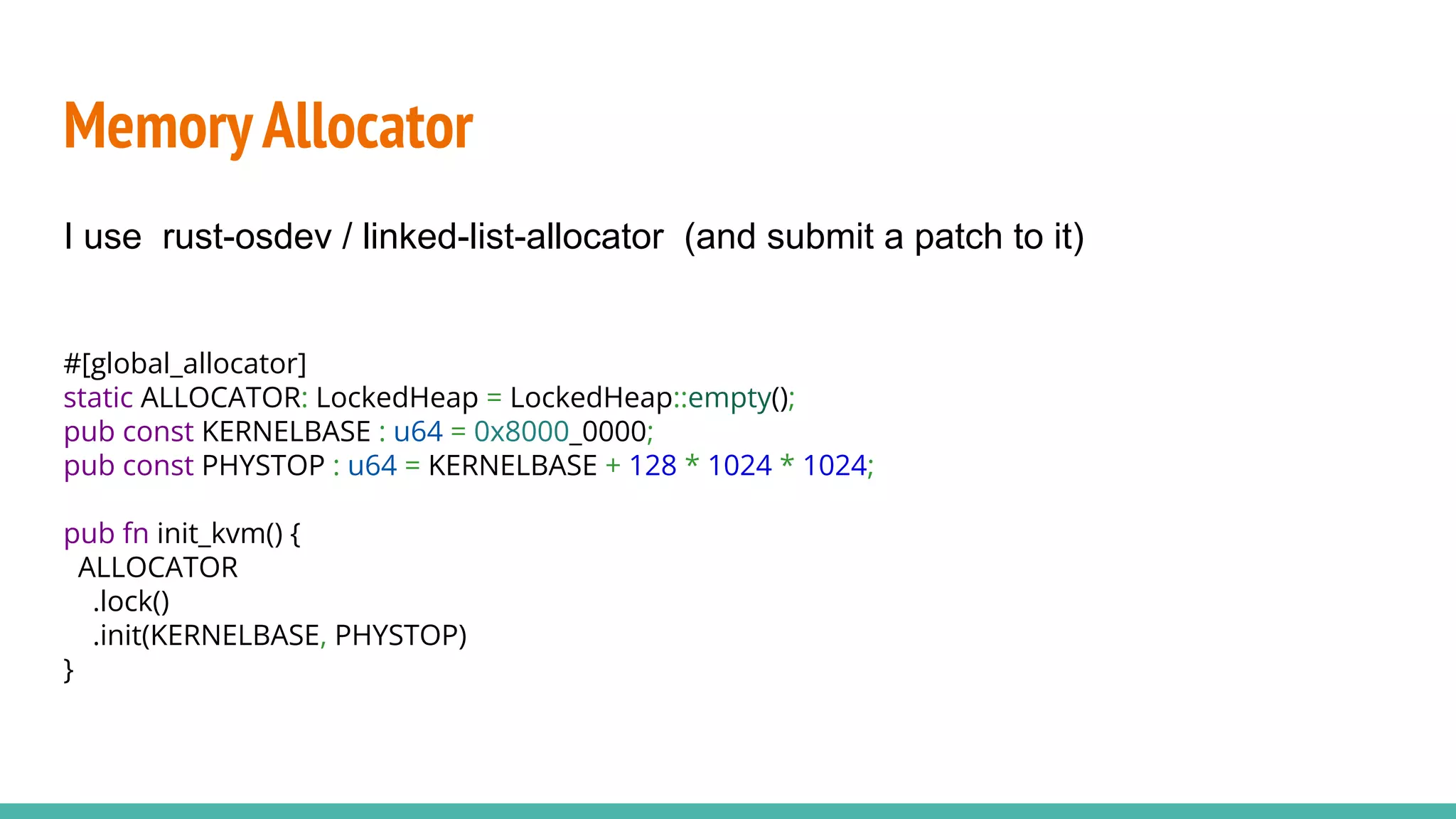

23. MemoryAllocator
#[global_allocator]
static ALLOCATOR: LockedHeap = LockedHeap::empty();
pub const KERNELBASE : u64 = 0x8000_0000;
pub const PHYSTOP : u64 = KERNELBASE + 128 * 1024 * 1024;
pub fn init_kvm() {
ALLOCATOR
.lock()
.init(KERNELBASE, PHYSTOP)
}
I use rust-osdev / linked-list-allocator (and submit a patch to it)

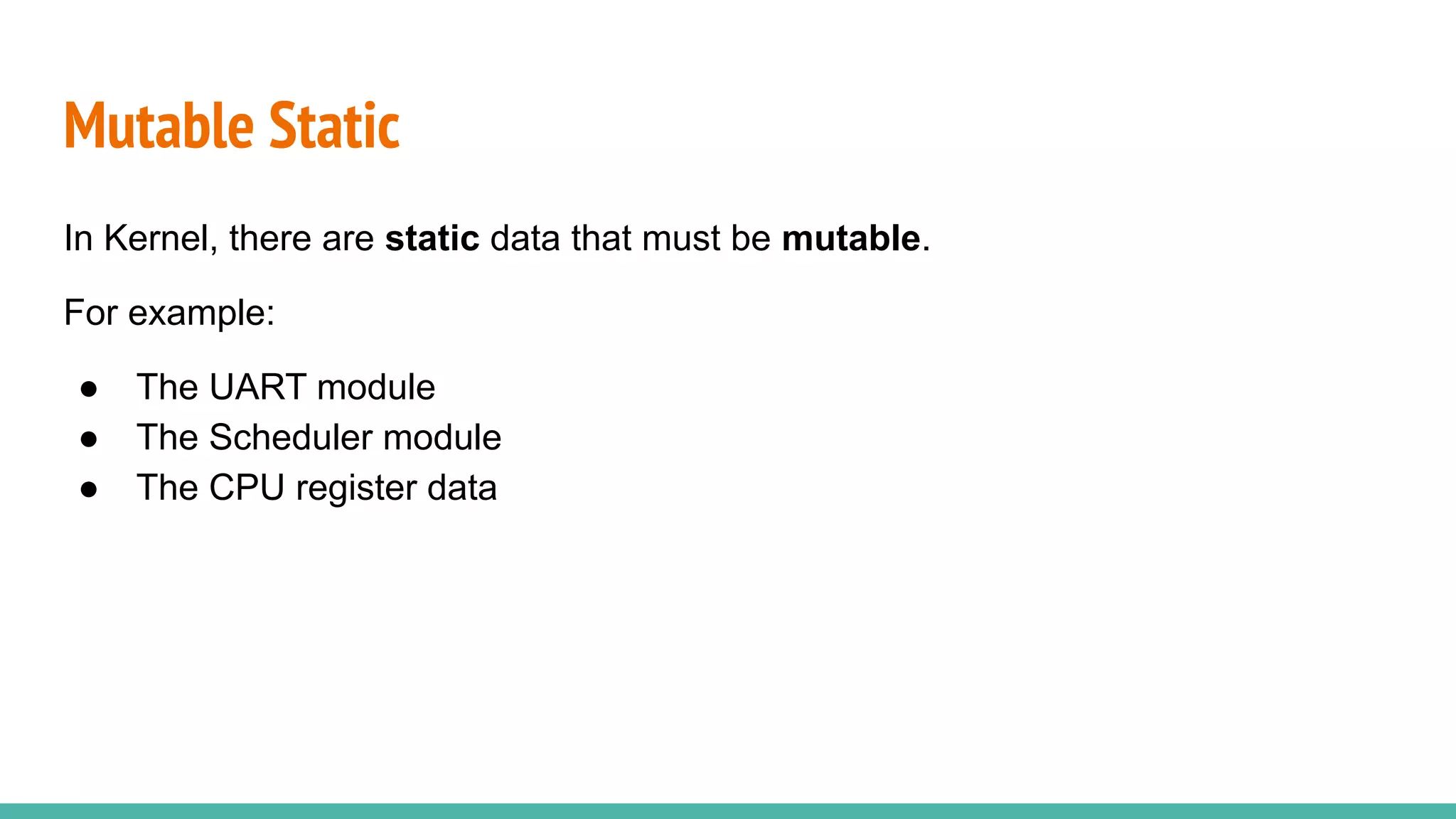

24. Mutable Static
In Kernel, there are static data that must be mutable.
For example:
● The UART module
● The Scheduler module
● The CPU register data

25. Mutable Static

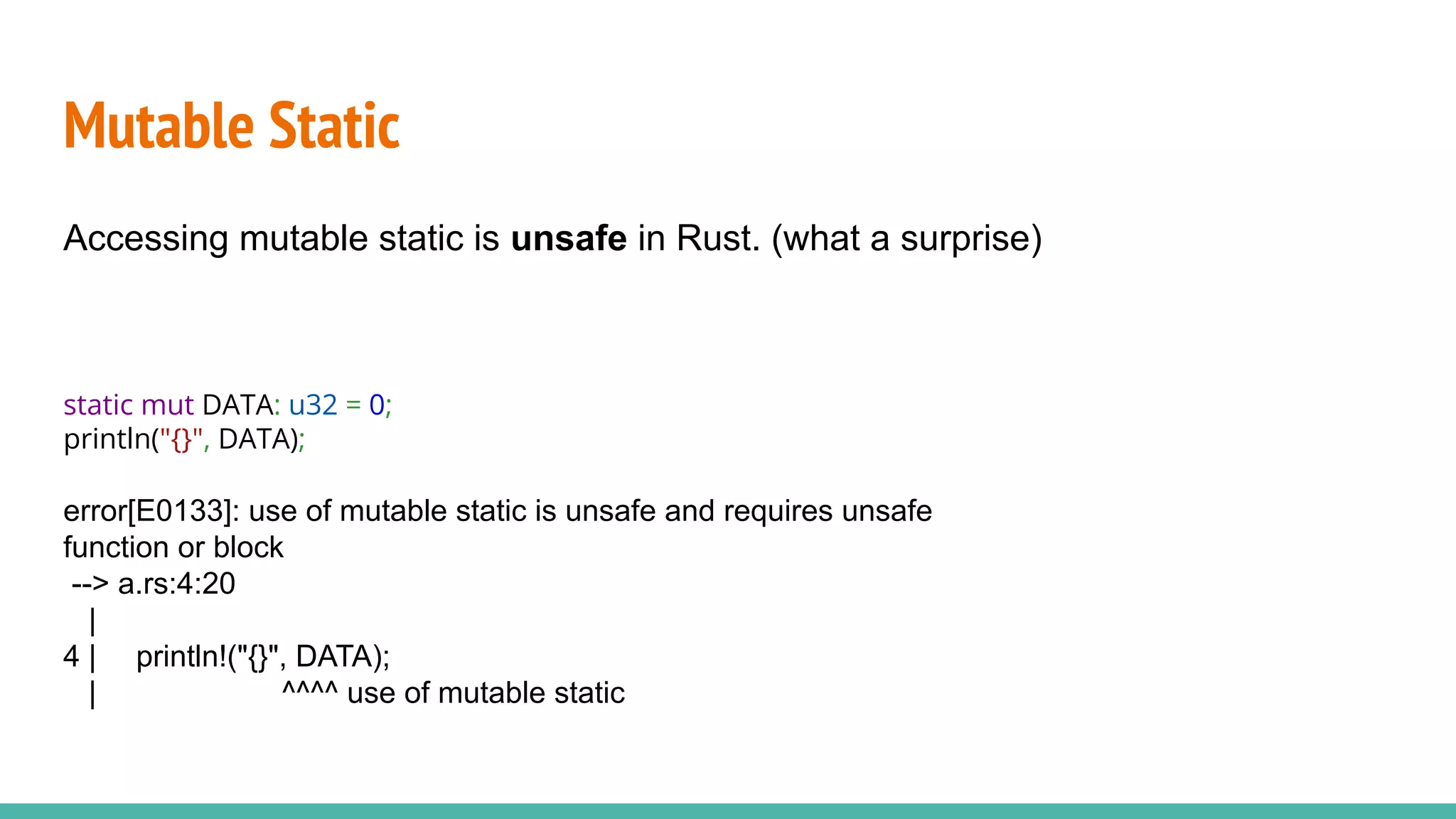

Accessing mutable static is unsafe in Rust. (what a surprise)
static mut DATA: u32 = 0;
println("{}", DATA);
error[E0133]: use of mutable static is unsafe and requires unsafe
function or block
--> a.rs:4:20
|
4 | println!("{}", DATA);
| ^^^^ use of mutable static

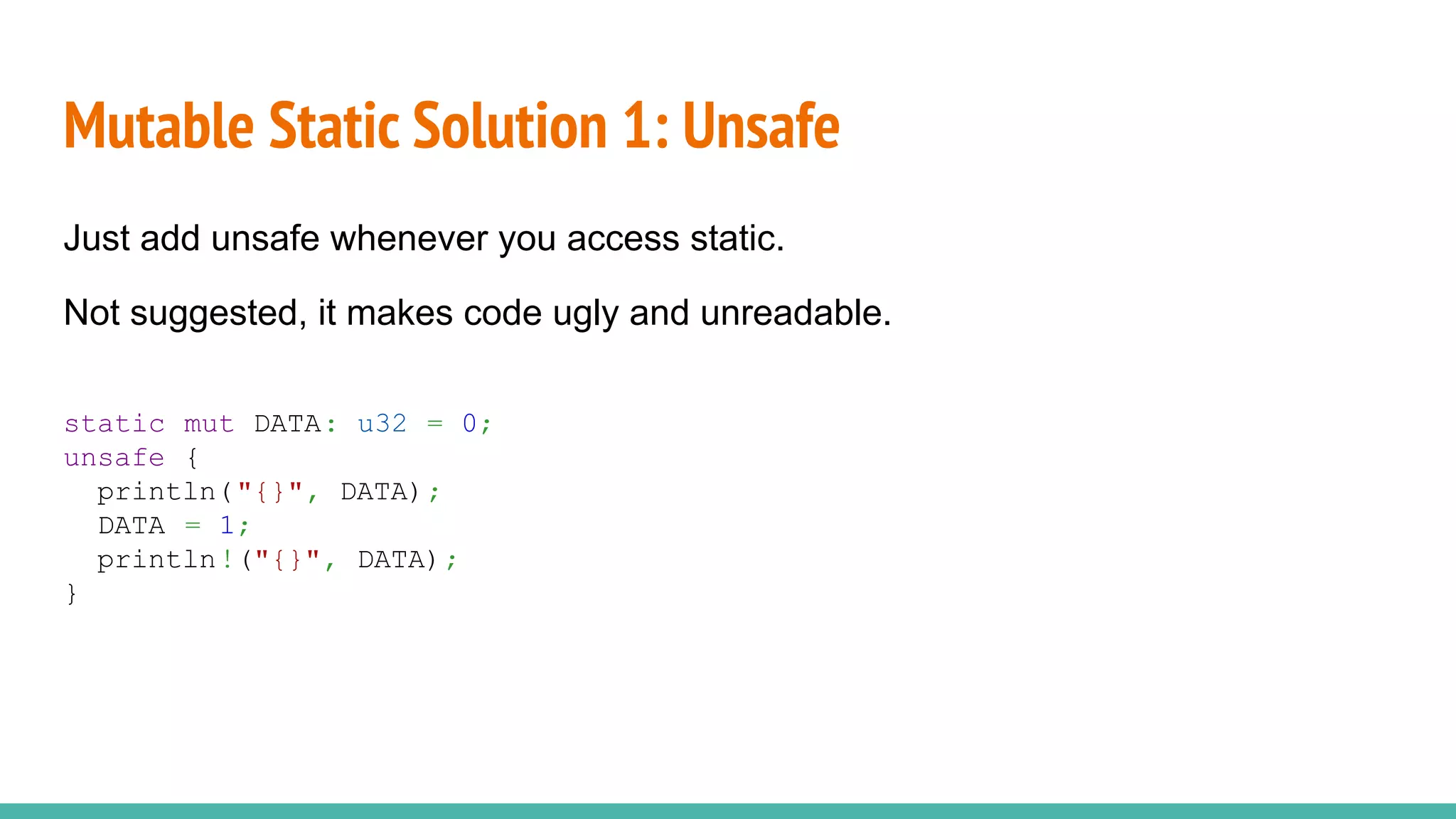

26. Mutable Static Solution 1: Unsafe
Just add unsafe whenever you access static.
Not suggested, it makes code ugly and unreadable.
static mut DATA: u32 = 0;
unsafe {
println("{}", DATA);
DATA = 1;
println!("{}", DATA);
}

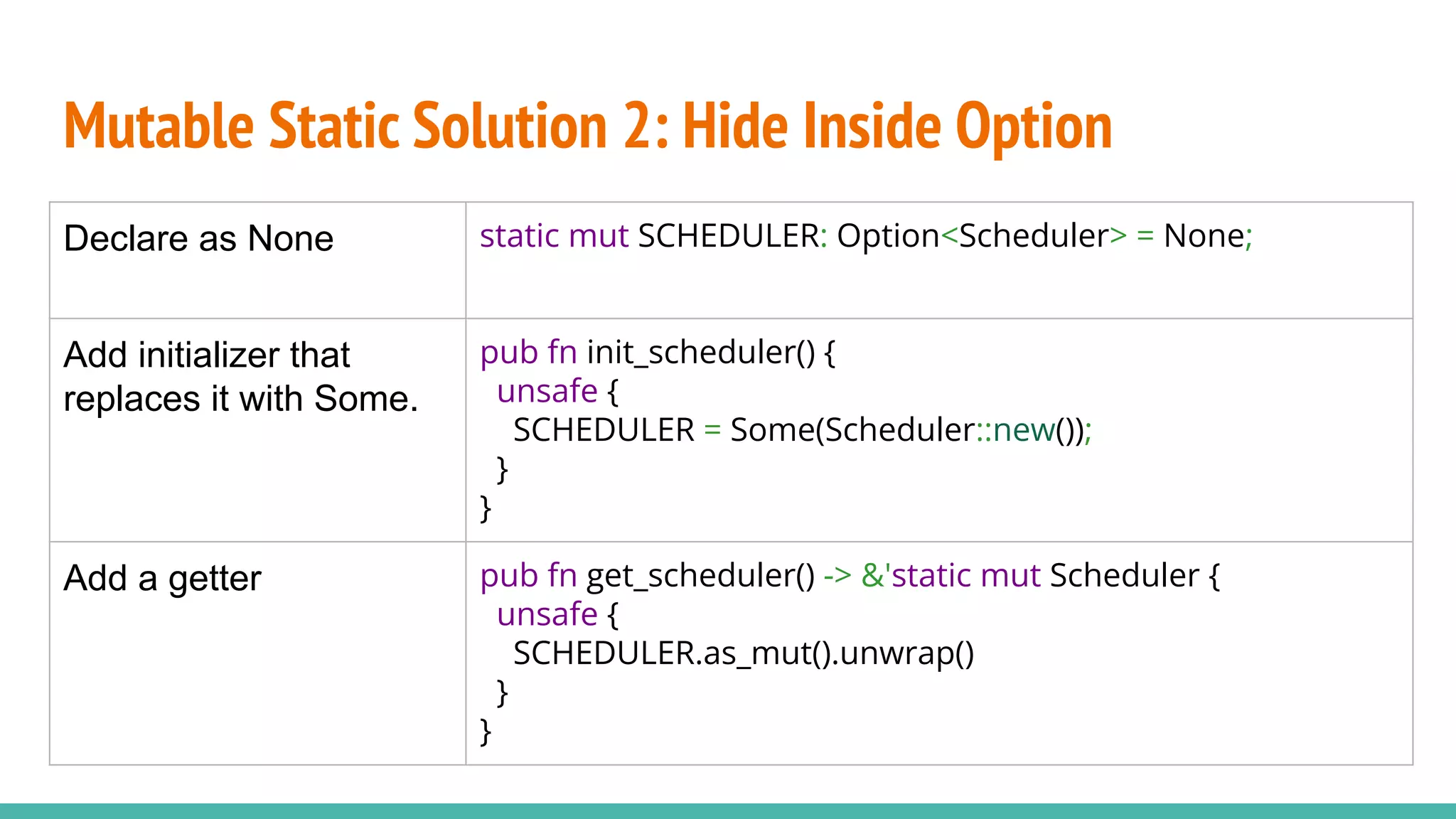

27. Mutable Static Solution 2: Hide Inside Option
Declare as None static mut SCHEDULER: Option<Scheduler> = None;
Add initializer that
replaces it with Some.
pub fn init_scheduler() {
unsafe {
SCHEDULER = Some(Scheduler::new());
}
}
Add a getter pub fn get_scheduler() -> &'static mut Scheduler {
unsafe {
SCHEDULER.as_mut().unwrap()
}
}

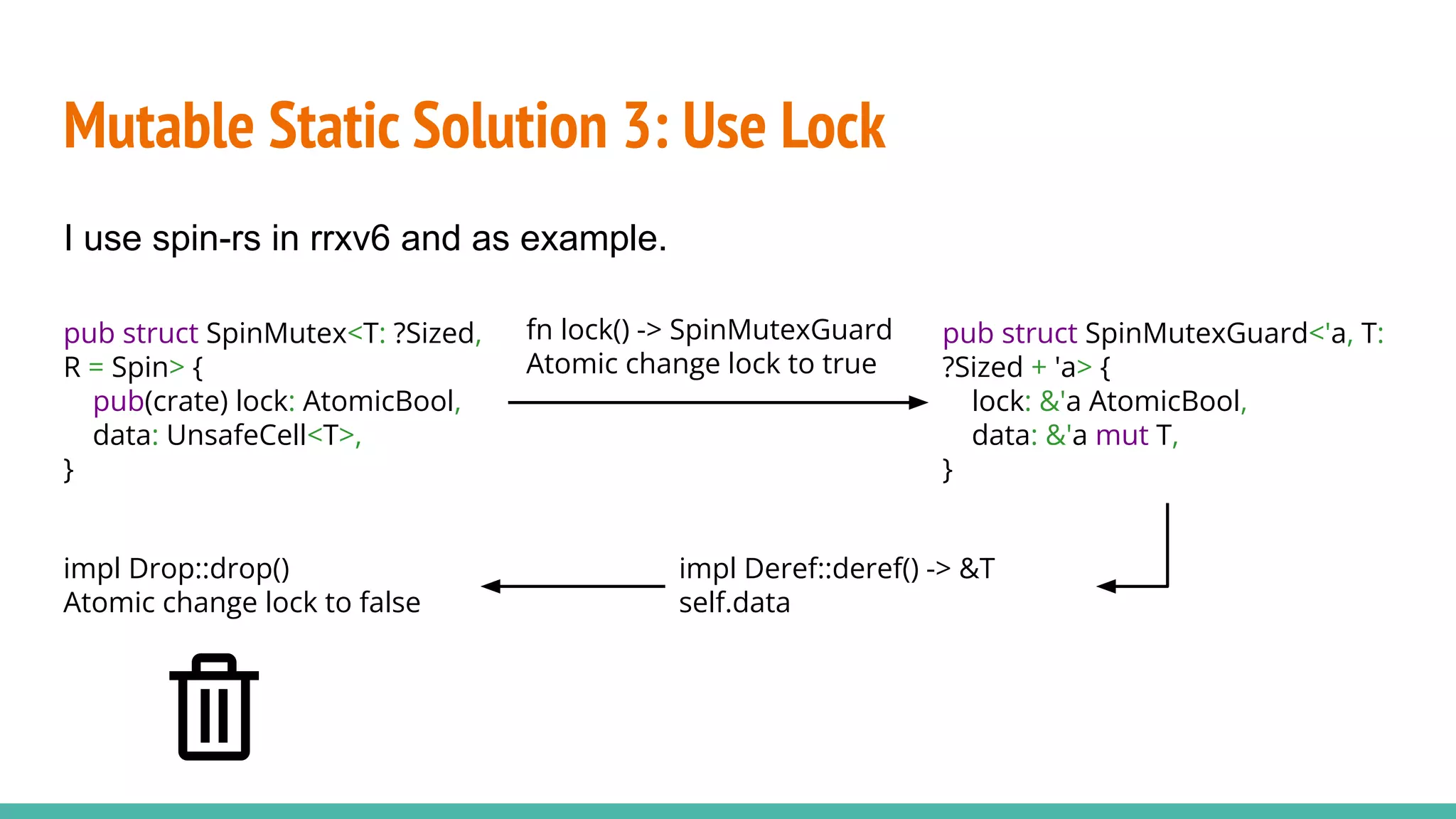

28. Mutable Static Solution 3: Use Lock
pub struct SpinMutex<T: ?Sized,
R = Spin> {
pub(crate) lock: AtomicBool,
data: UnsafeCell<T>,
}
I use spin-rs in rrxv6 and as example.
pub struct SpinMutexGuard<'a, T:
?Sized + 'a> {
lock: &'a AtomicBool,
data: &'a mut T,
}
fn lock() -> SpinMutexGuard
Atomic change lock to true
impl Drop::drop()
Atomic change lock to false
impl Deref::deref() -> &T
self.data

29. Limitation: be careful not to create deadlock.

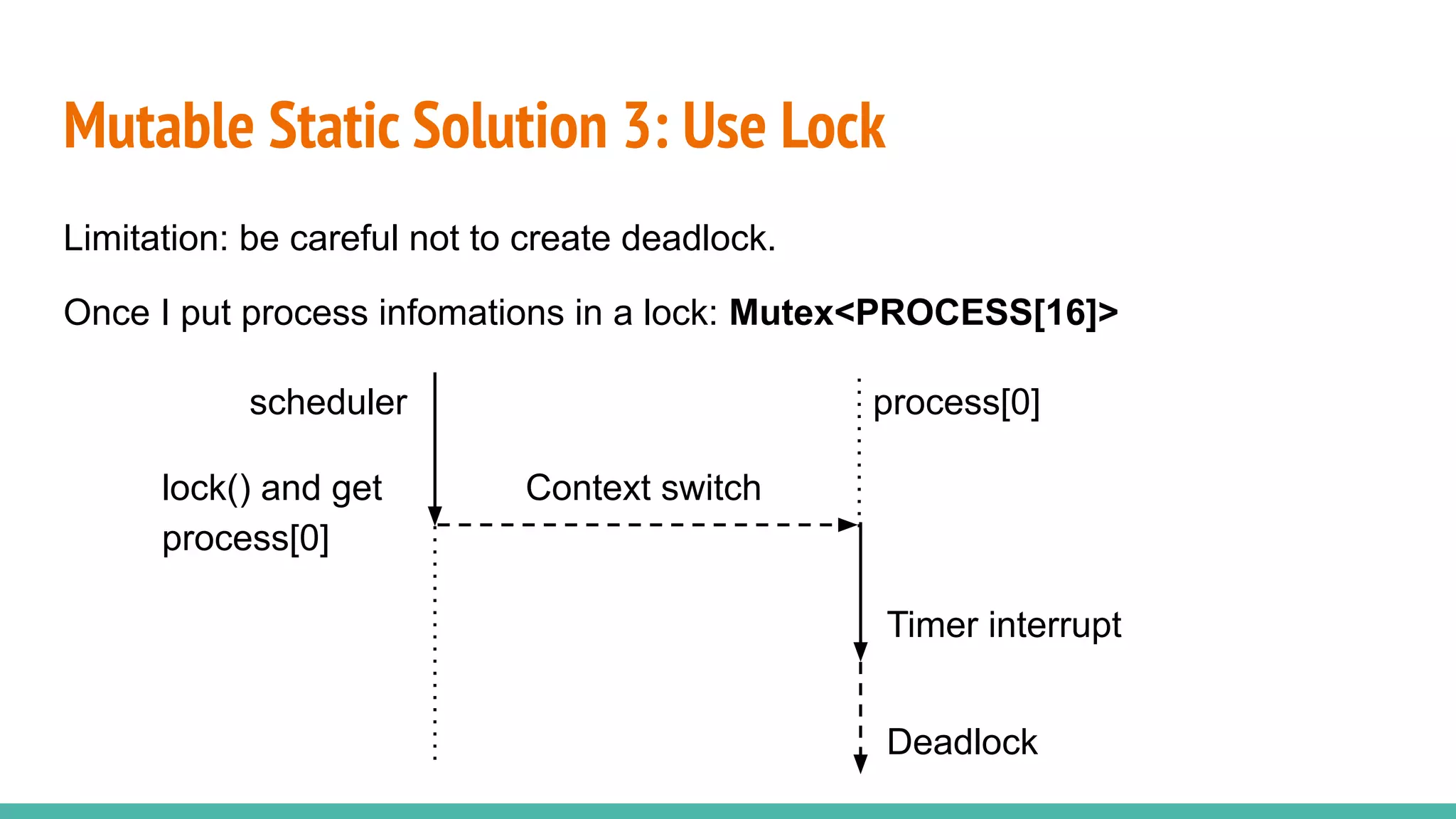

Once I put process infomations in a lock: Mutex<PROCESS[16]>
Mutable Static Solution 3: Use Lock
scheduler process[0]
Context switch
lock() and get
process[0]
Timer interrupt
Deadlock

30. Mutable Static Solution Comparison
Pros Cons
Unsafe Easy to use Readability
Option Easy to use Not thread-safe
Lock Thread safe Deadlock
Usually I use:
1. struct with field of Mutex<data>
2. static struct using Option

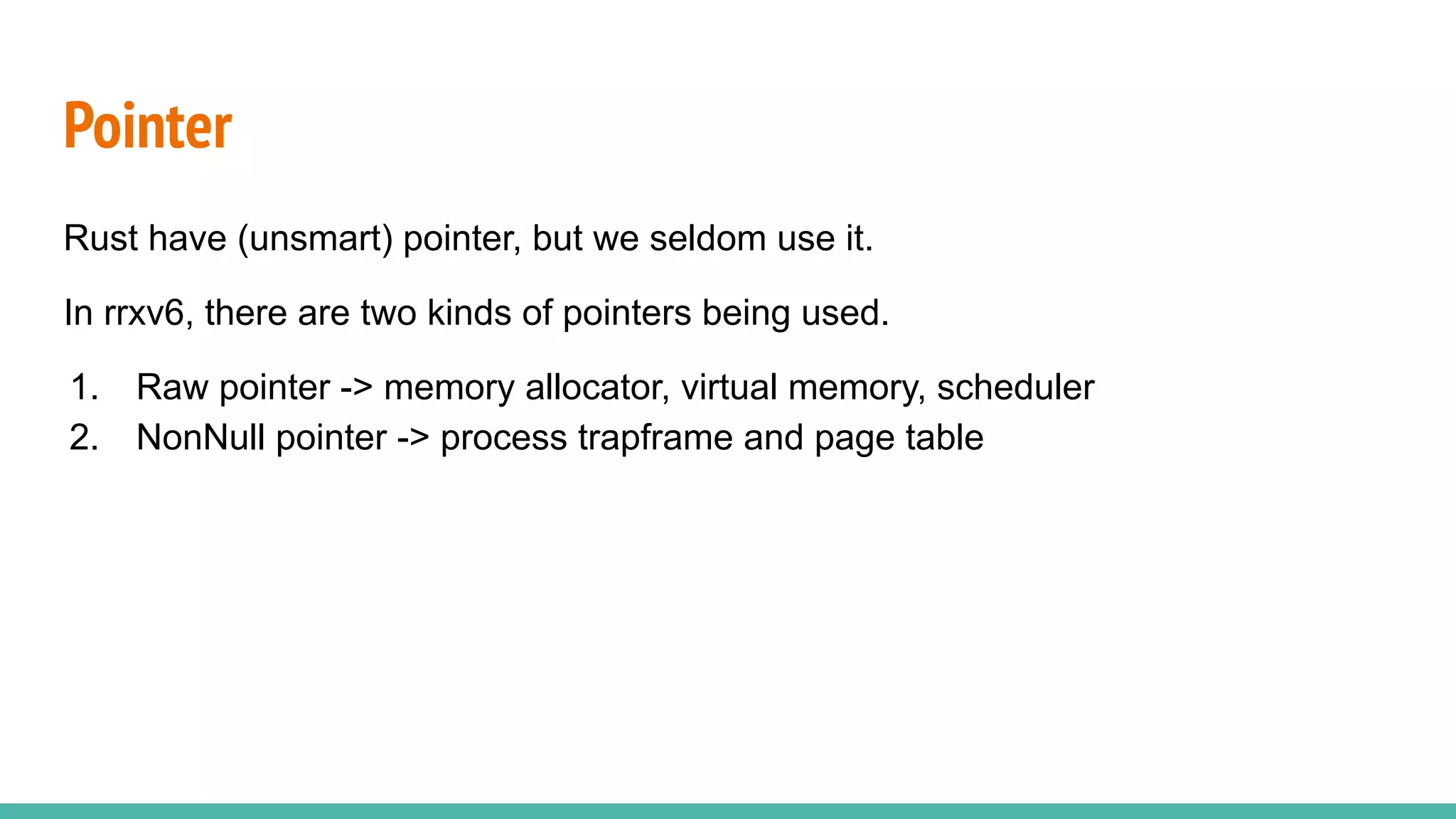

31. Rust have (unsmart) pointer, but we seldom use it.
In rrxv6, there are two kinds of pointers being used.
1. Raw pointer -> memory allocator, virtual memory, scheduler
2. NonNull pointer -> process trapframe and page table
Pointer

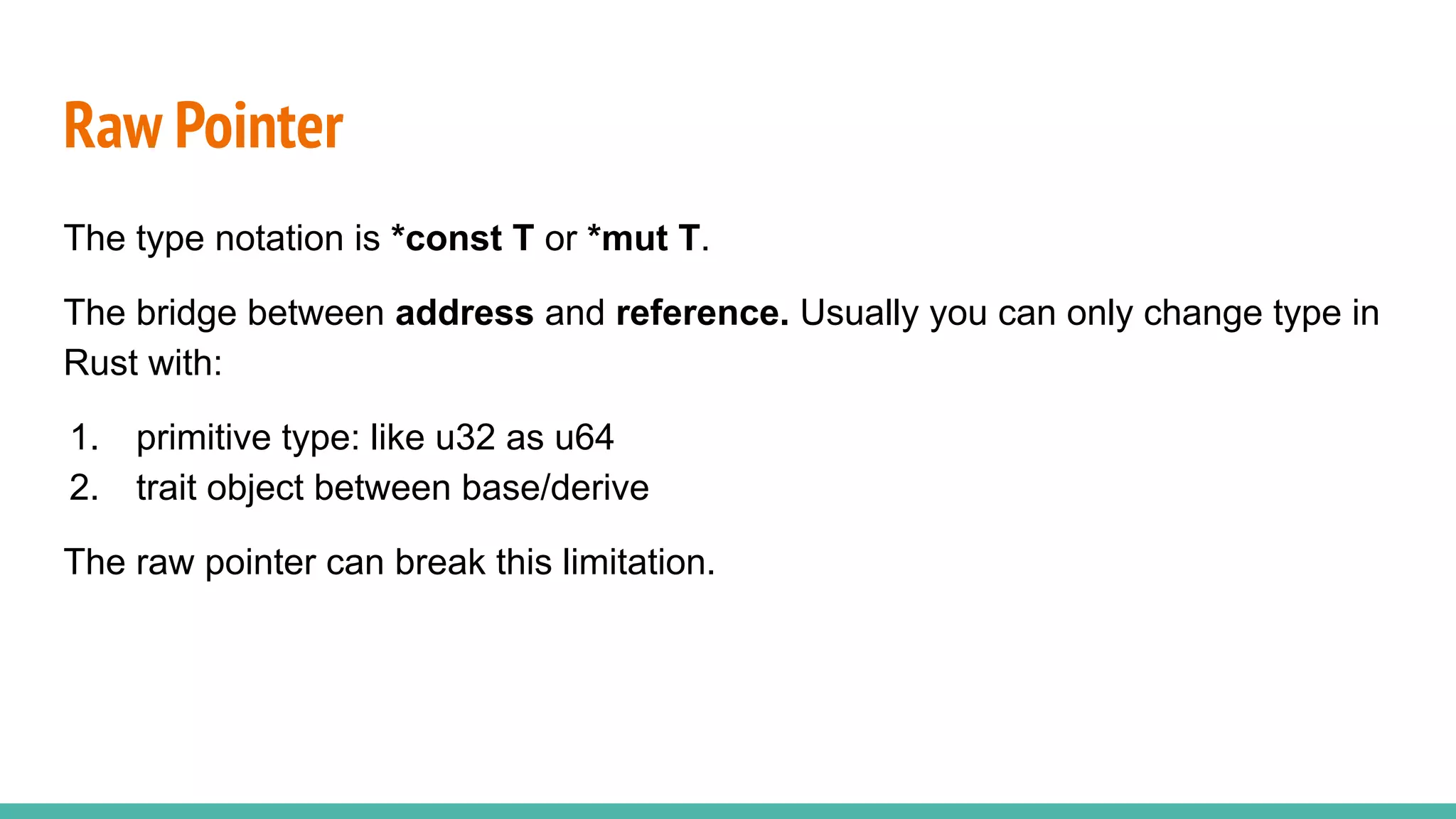

32. The type notation is *const T or *mut T.
The bridge between address and reference. Usually you can only change type in
Rust with:
1. primitive type: like u32 as u64
2. trait object between base/derive
The raw pointer can break this limitation.
Raw Pointer

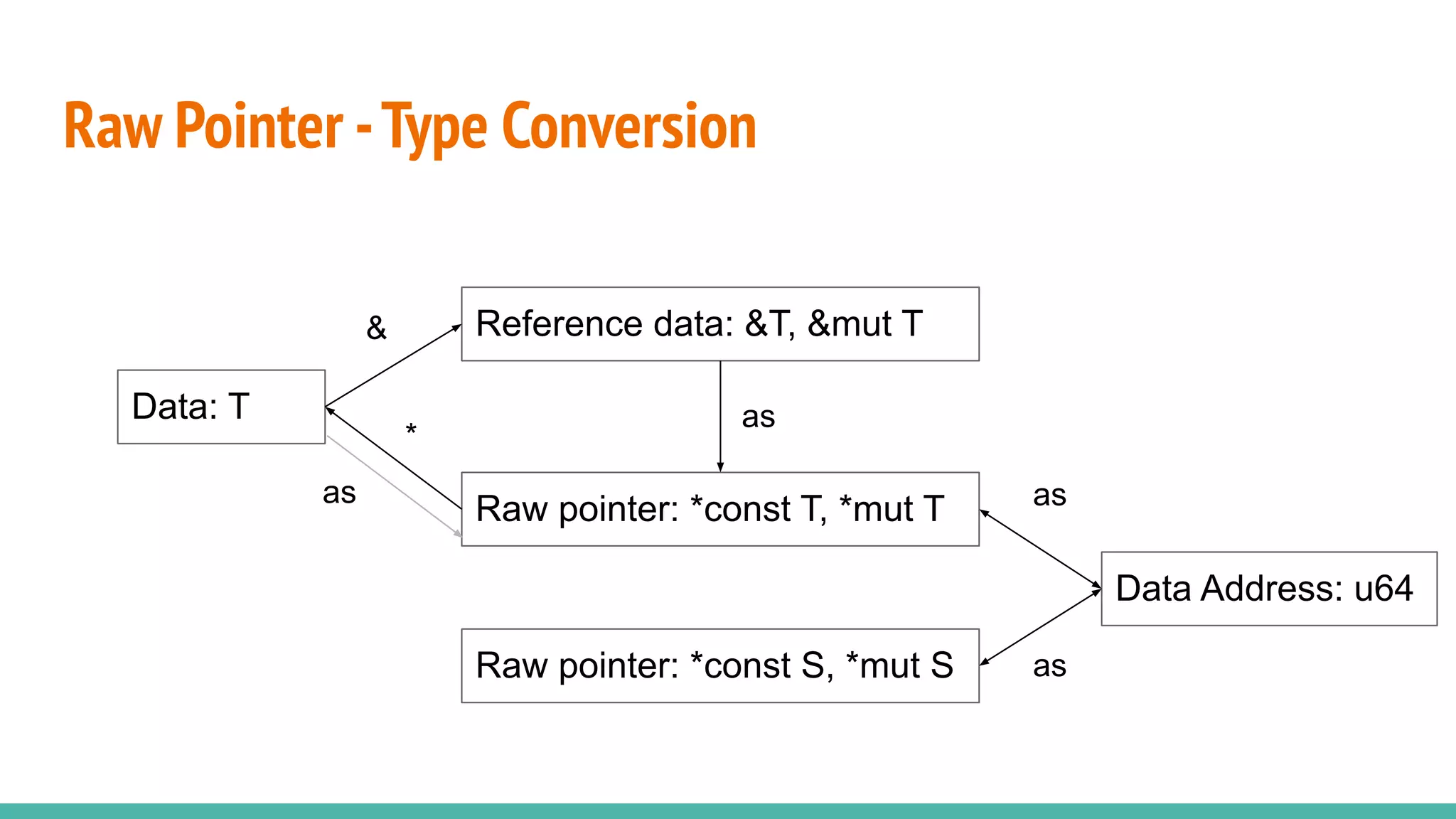

33. Raw Pointer -Type Conversion
Data: T
Reference data: &T, &mut T
Raw pointer: *const T, *mut T
Data Address: u64
&
as
as
*
as
Raw pointer: *const S, *mut S as

34. Raw Pointer -Type Conversion
let next_table: &mut PageTable = unsafe { &mut *(pte.addr() as *mut PageTable) };
free_pagetable(next_table, …);
Data: T
Reference data: &T, &mut T
Raw pointer: *const T, *mut T Data Address: u64
&
as
as
*
as

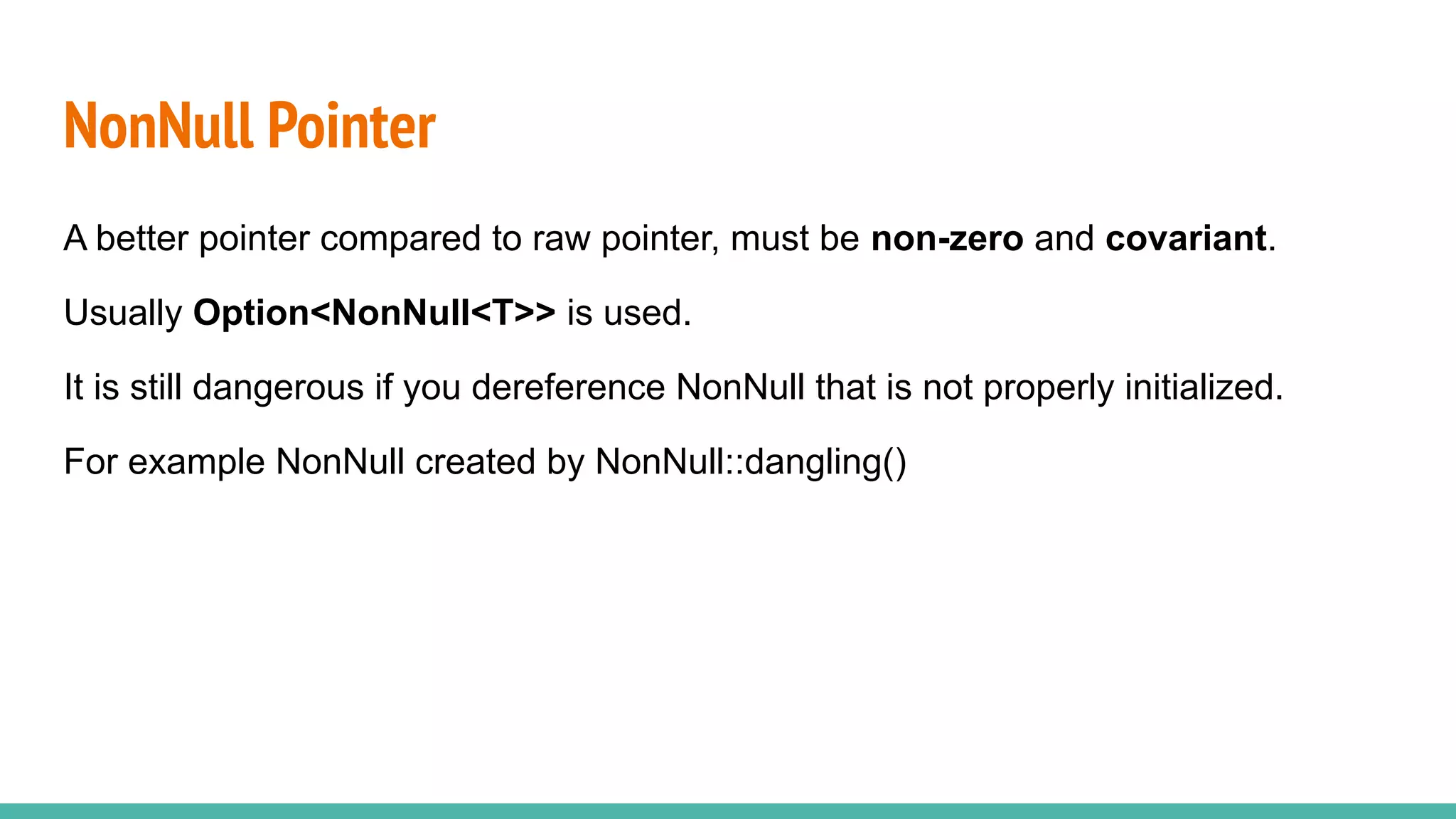

35. A better pointer compared to raw pointer, must be non-zero and covariant.
Usually Option<NonNull<T>> is used.
It is still dangerous if you dereference NonNull that is not properly initialized.
For example NonNull created by NonNull::dangling()
NonNull Pointer

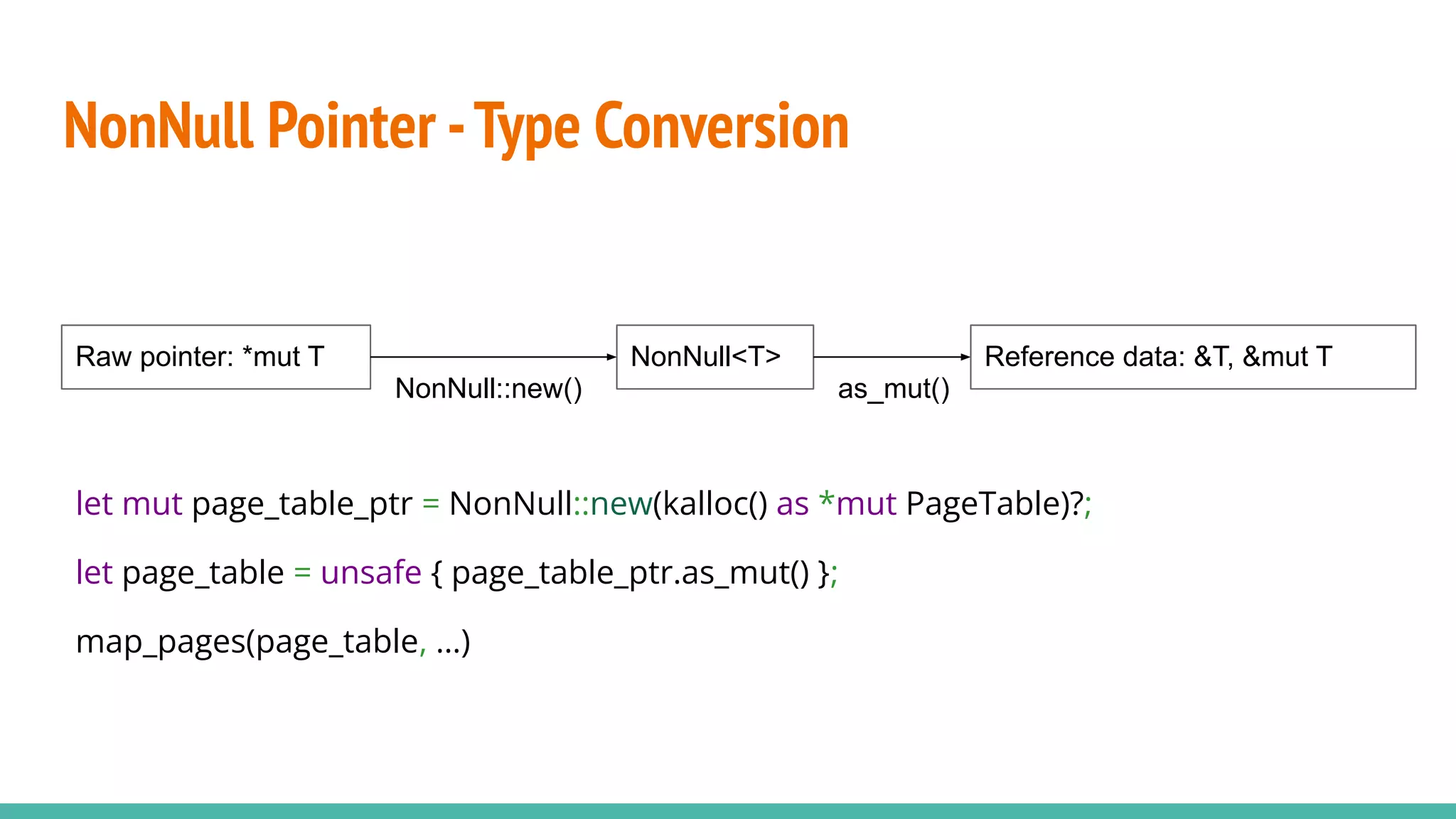

36. NonNull Pointer -Type Conversion
Reference data: &T, &mut T
NonNull<T>
as_mut()
Raw pointer: *mut T
let mut page_table_ptr = NonNull::new(kalloc() as *mut PageTable)?;
let page_table = unsafe { page_table_ptr.as_mut() };
map_pages(page_table, …)
NonNull::new()

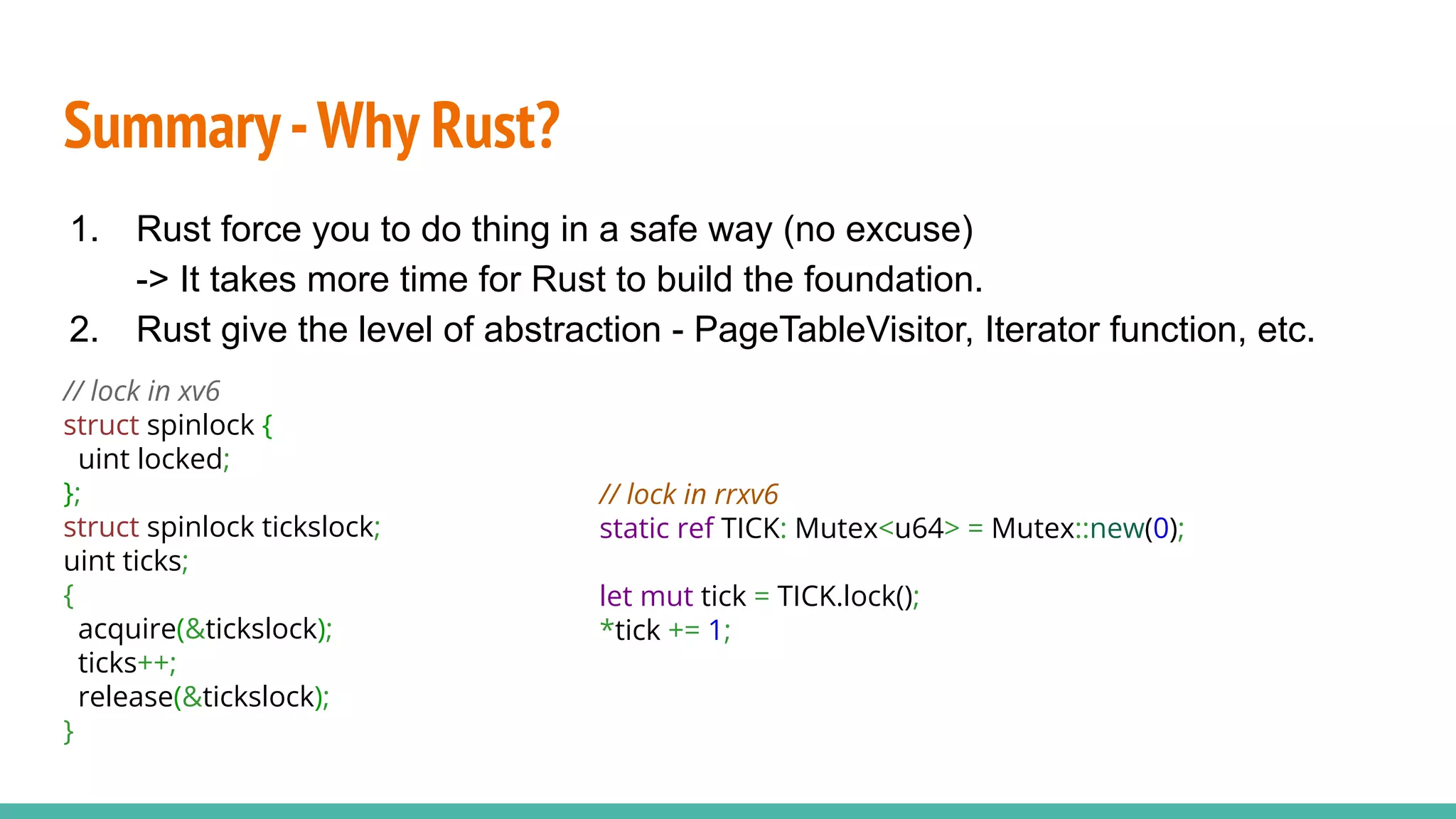

37. Summary-Why Rust?
1. Rust force you to do thing in a safe way (no excuse)
-> It takes more time for Rust to build the foundation.
2. Rust give the level of abstraction - PageTableVisitor, Iterator function, etc.
// lock in xv6
struct spinlock {
uint locked;
};
struct spinlock tickslock;
uint ticks;
{
acquire(&tickslock);
ticks++;
release(&tickslock);
}
// lock in rrxv6
static ref TICK: Mutex<u64> = Mutex::new(0);
let mut tick = TICK.lock();
*tick += 1;

38. Conclusion

39. Conclusion

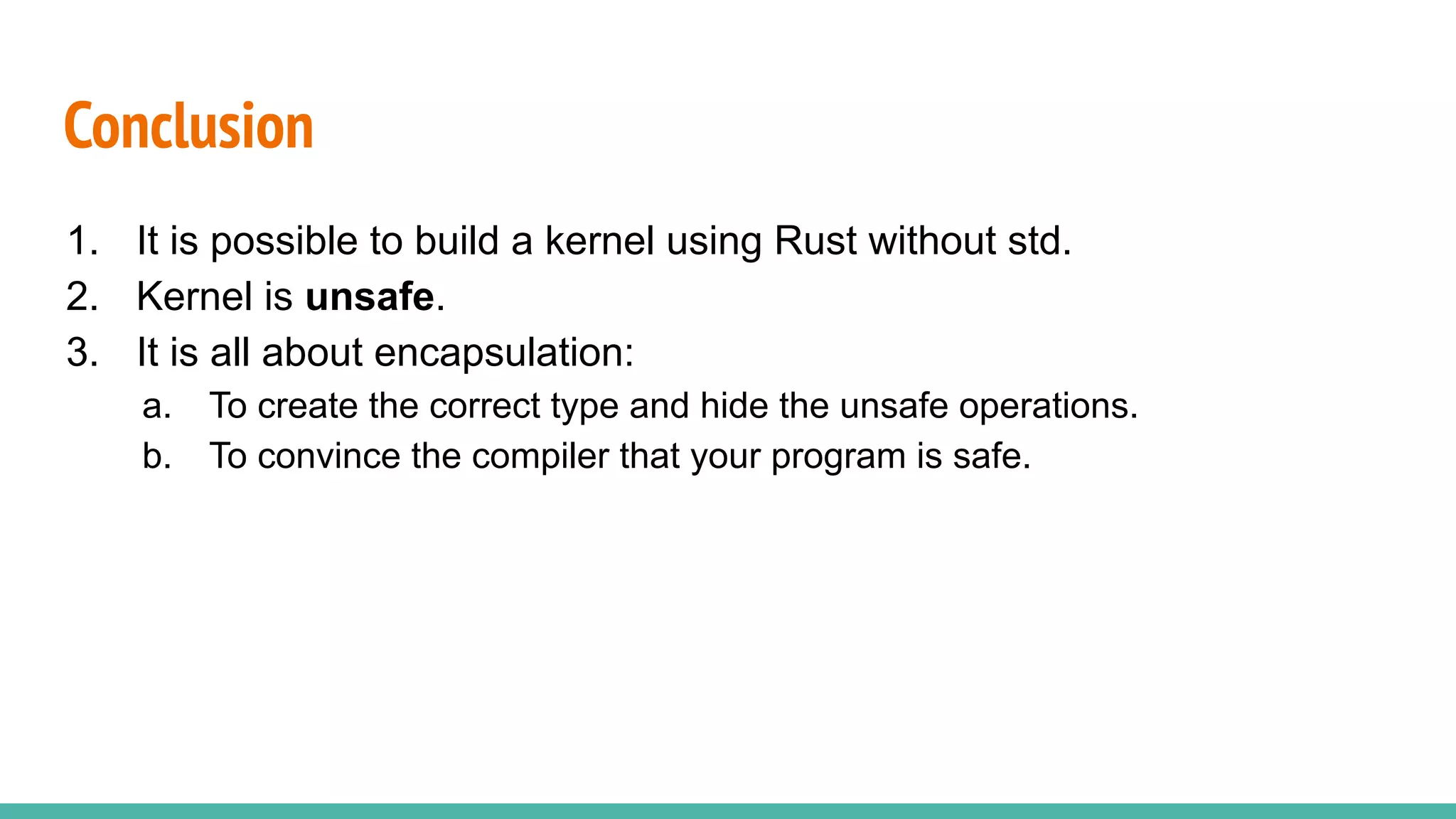

1. It is possible to build a kernel using Rust without std.
2. Kernel is unsafe.
3. It is all about encapsulation:
a. To create the correct type and hide the unsafe operations.
b. To convince the compiler that your program is safe.

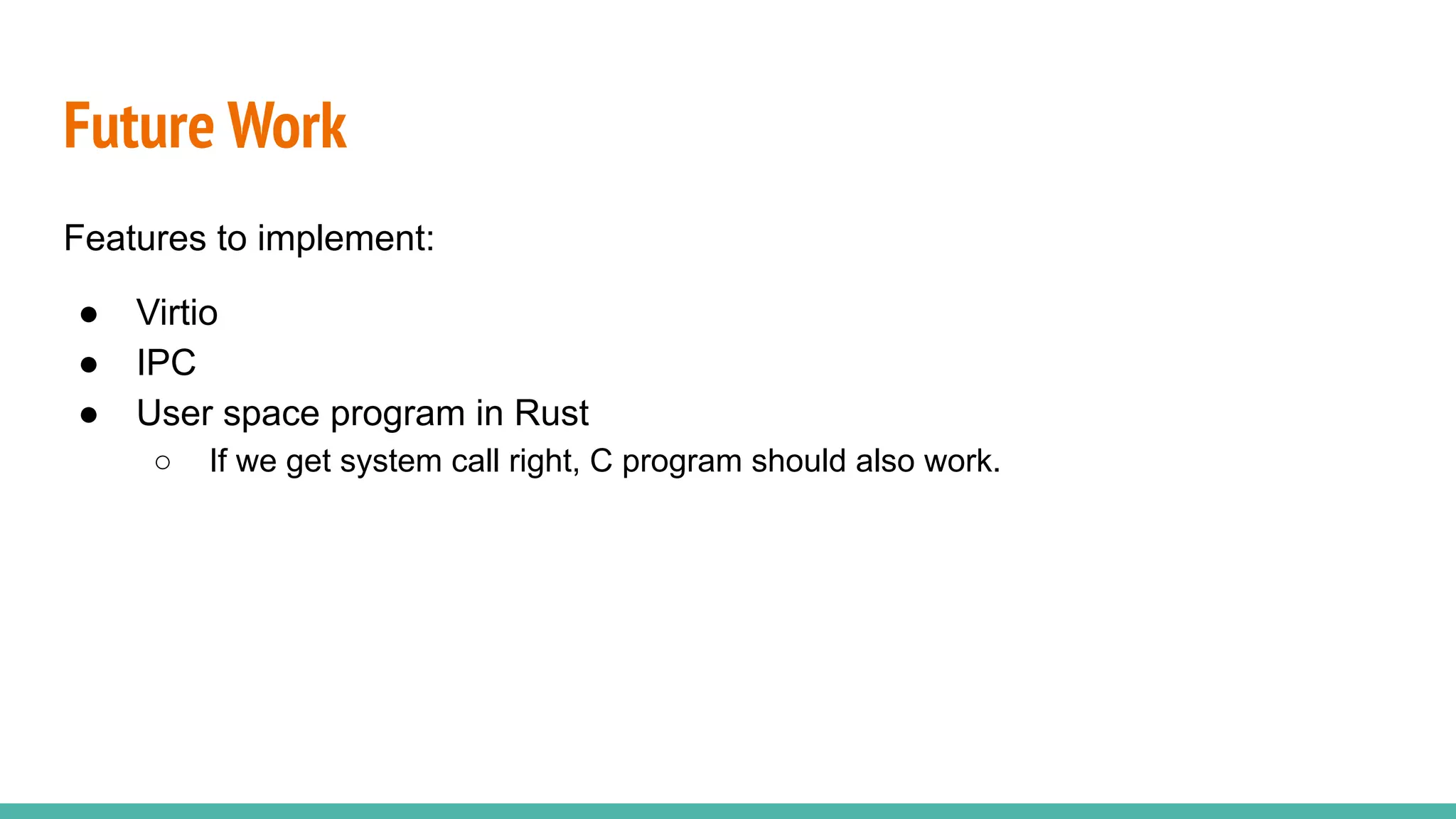

40. Future Work
Features to implement:
● Virtio
● IPC
● User space program in Rust
○ If we get system call right, C program should also work.

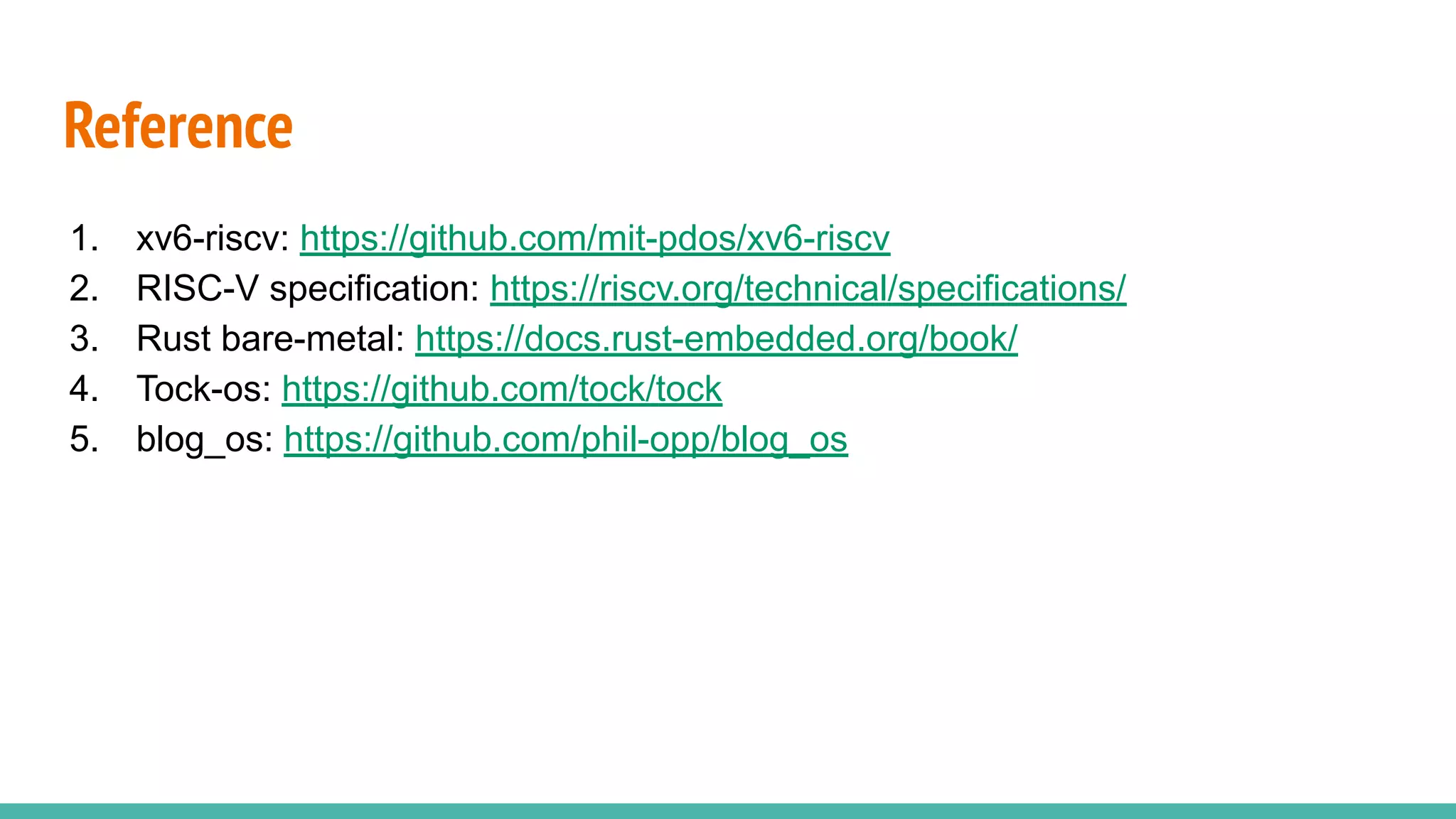

41. Reference
