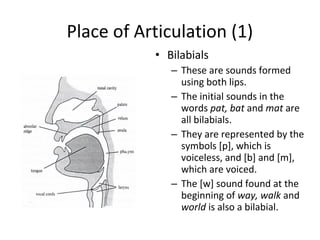

![Place of Articulation (1)
• Bilabials
– These are sounds formed
using both lips.
– The initial sounds in the
words pat, bat and mat are
all bilabials.
– They are represented by the
symbols [p], which is
voiceless, and [b] and [m],
which are voiced.
– The [w] sound found at the
beginning of way, walk and
world is also a bilabial.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-5-320.jpg)

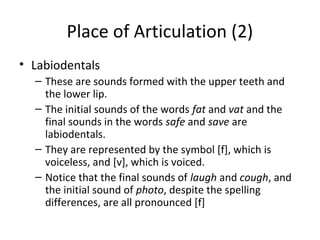

![Place of Articulation (2)
• Labiodentals
– These are sounds formed with the upper teeth and
the lower lip.
– The initial sounds of the words fat and vat and the
final sounds in the words safe and save are
labiodentals.
– They are represented by the symbol [f], which is
voiceless, and [v], which is voiced.
– Notice that the final sounds of laugh and cough, and
the initial sound of photo, despite the spelling
differences, are all pronounced [f]](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-6-320.jpg)

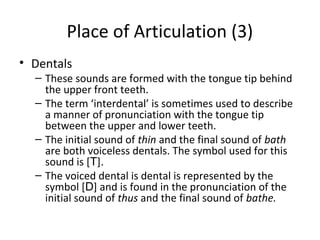

![Place of Articulation (3)
• Dentals
– These sounds are formed with the tongue tip behind
the upper front teeth.
– The term ‘interdental’ is sometimes used to describe
a manner of pronunciation with the tongue tip
between the upper and lower teeth.
– The initial sound of thin and the final sound of bath
are both voiceless dentals. The symbol used for this
sound is [T].
– The voiced dental is dental is represented by the
symbol [D] and is found in the pronunciation of the
initial sound of thus and the final sound of bathe.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-7-320.jpg)

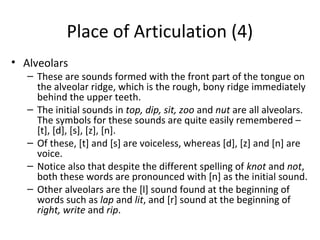

![Place of Articulation (4)
• Alveolars
– These are sounds formed with the front part of the tongue on
the alveolar ridge, which is the rough, bony ridge immediately
behind the upper teeth.
– The initial sounds in top, dip, sit, zoo and nut are all alveolars.
The symbols for these sounds are quite easily remembered –
[t], [d], [s], [z], [n].
– Of these, [t] and [s] are voiceless, whereas [d], [z] and [n] are
voice.
– Notice also that despite the different spelling of knot and not,
both these words are pronounced with [n] as the initial sound.
– Other alveolars are the [l] sound found at the beginning of
words such as lap and lit, and [r] sound at the beginning of
right, write and rip.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-8-320.jpg)
![Place of Articulation (5a)
• Alveo-palatals
– If you feel back behind the alveolar ridge, you should
find a hard part in the roof of your mouth. This called
palate.
– Sounds which are produced with the tongue at the
very front of the palate, near the alveolar ridge, are
called alveo-palatals.
– Examples are the initial sounds in the words shoot
and child, which are voiceless. Although there are
two letters in the spelling of ‘sh’ and ‘ch,’ the sounds
are represented by the single phonetic symbols [S]
and [T].](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-9-320.jpg)

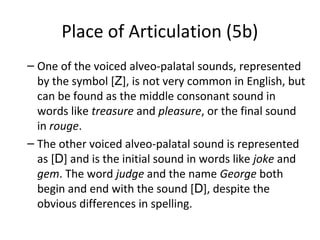

![Place of Articulation (5b)
– One of the voiced alveo-palatal sounds, represented
by the symbol [Z], is not very common in English, but
can be found as the middle consonant sound in
words like treasure and pleasure, or the final sound
in rouge.
– The other voiced alveo-palatal sound is represented
as [D] and is the initial sound in words like joke and
gem. The word judge and the name George both
begin and end with the sound [D], despite the
obvious differences in spelling.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-10-320.jpg)

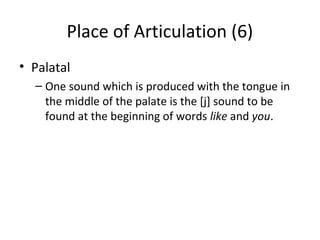

![Place of Articulation (6)
• Palatal
– One sound which is produced with the tongue in
the middle of the palate is the [j] sound to be
found at the beginning of words like and you.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-11-320.jpg)

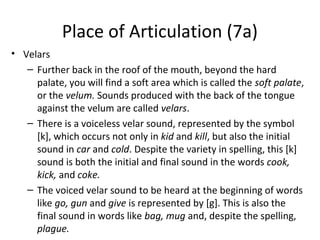

![Place of Articulation (7a)
• Velars
– Further back in the roof of the mouth, beyond the hard
palate, you will find a soft area which is called the soft palate,
or the velum. Sounds produced with the back of the tongue
against the velum are called velars.
– There is a voiceless velar sound, represented by the symbol
[k], which occurs not only in kid and kill, but also the initial
sound in car and cold. Despite the variety in spelling, this [k]
sound is both the initial and final sound in the words cook,
kick, and coke.
– The voiced velar sound to be heard at the beginning of words
like go, gun and give is represented by [g]. This is also the
final sound in words like bag, mug and, despite the spelling,
plague.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-12-320.jpg)

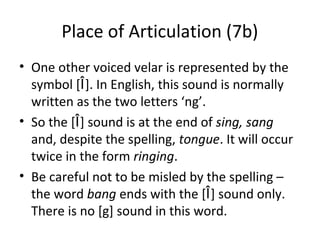

![Place of Articulation (7b)
• One other voiced velar is represented by the
symbol [Î]. In English, this sound is normally
written as the two letters ‘ng’.
• So the [Î] sound is at the end of sing, sang
and, despite the spelling, tongue. It will occur
twice in the form ringing.
• Be careful not to be misled by the spelling –
the word bang ends with the [Î] sound only.
There is no [g] sound in this word.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-13-320.jpg)

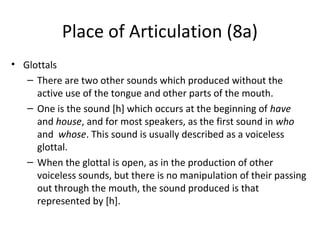

![Place of Articulation (8a)
• Glottals
– There are two other sounds which produced without the
active use of the tongue and other parts of the mouth.
– One is the sound [h] which occurs at the beginning of have
and house, and for most speakers, as the first sound in who
and whose. This sound is usually described as a voiceless
glottal.
– When the glottal is open, as in the production of other
voiceless sounds, but there is no manipulation of their passing
out through the mouth, the sound produced is that
represented by [h].](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-14-320.jpg)

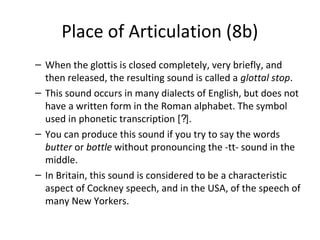

![Place of Articulation (8b)
– When the glottis is closed completely, very briefly, and
then released, the resulting sound is called a glottal stop.
– This sound occurs in many dialects of English, but does not
have a written form in the Roman alphabet. The symbol
used in phonetic transcription [?].
– You can produce this sound if you try to say the words
butter or bottle without pronouncing the -tt- sound in the
middle.
– In Britain, this sound is considered to be a characteristic
aspect of Cockney speech, and in the USA, of the speech of
many New Yorkers.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-15-320.jpg)

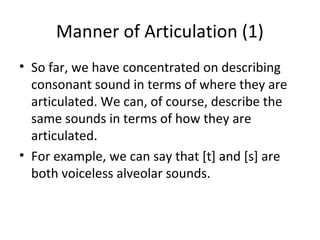

![Manner of Articulation (1)
• So far, we have concentrated on describing
consonant sound in terms of where they are
articulated. We can, of course, describe the
same sounds in terms of how they are
articulated.
• For example, we can say that [t] and [s] are
both voiceless alveolar sounds.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-16-320.jpg)

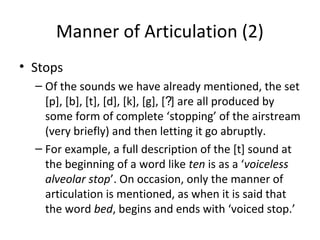

![Manner of Articulation (2)
• Stops
– Of the sounds we have already mentioned, the set
[p], [b], [t], [d], [k], [g], [?] are all produced by
some form of complete ‘stopping’ of the airstream
(very briefly) and then letting it go abruptly.
– For example, a full description of the [t] sound at
the beginning of a word like ten is as a ‘voiceless
alveolar stop’. On occasion, only the manner of
articulation is mentioned, as when it is said that
the word bed, begins and ends with ‘voiced stop.’](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-17-320.jpg)

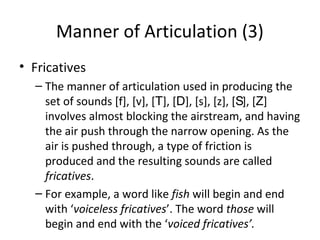

![Manner of Articulation (3)
• Fricatives
– The manner of articulation used in producing the
set of sounds [f], [v], [T], [D], [s], [z], [S], [Z]
involves almost blocking the airstream, and having
the air push through the narrow opening. As the
air is pushed through, a type of friction is
produced and the resulting sounds are called
fricatives.
– For example, a word like fish will begin and end
with ‘voiceless fricatives’. The word those will
begin and end with the ‘voiced fricatives’.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-18-320.jpg)

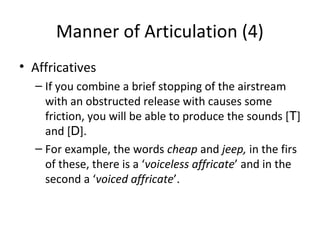

![Manner of Articulation (4)
• Affricatives
– If you combine a brief stopping of the airstream
with an obstructed release with causes some
friction, you will be able to produce the sounds [T]
and [D].
– For example, the words cheap and jeep, in the firs
of these, there is a ‘voiceless affricate’ and in the
second a ‘voiced affricate’.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-19-320.jpg)

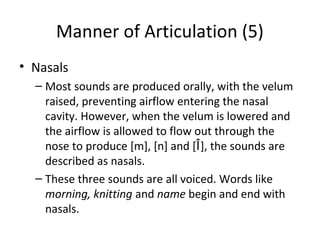

![Manner of Articulation (5)
• Nasals
– Most sounds are produced orally, with the velum
raised, preventing airflow entering the nasal
cavity. However, when the velum is lowered and
the airflow is allowed to flow out through the
nose to produce [m], [n] and [Î], the sounds are
described as nasals.
– These three sounds are all voiced. Words like
morning, knitting and name begin and end with
nasals.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-20-320.jpg)

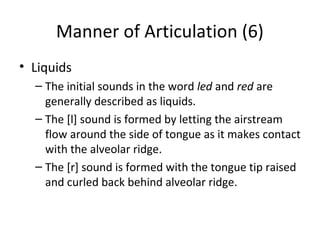

![Manner of Articulation (6)
• Liquids
– The initial sounds in the word led and red are
generally described as liquids.
– The [l] sound is formed by letting the airstream
flow around the side of tongue as it makes contact
with the alveolar ridge.
– The [r] sound is formed with the tongue tip raised
and curled back behind alveolar ridge.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-21-320.jpg)

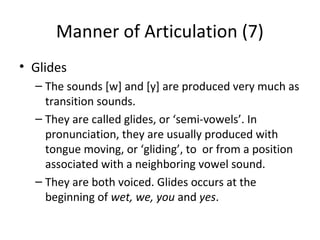

![Manner of Articulation (7)
• Glides
– The sounds [w] and [y] are produced very much as
transition sounds.
– They are called glides, or ‘semi-vowels’. In
pronunciation, they are usually produced with
tongue moving, or ‘gliding’, to or from a position
associated with a neighboring vowel sound.
– They are both voiced. Glides occurs at the
beginning of wet, we, you and yes.](https://image.slidesharecdn.com/introduction-20to-20linguistic-20-284-29-131224202714-phpapp01/85/Introduction-to-linguistic-4-22-320.jpg)
Uploaded byFlorizqul Shodiq
Introduction to linguistic (4)
This document provides an introduction to phonetics, the study of speech sounds, including their articulation and acoustic properties. It describes the distinction between voiced and voiceless sounds, which depend on whether the vocal cords are vibrating. It then discusses different places of articulation for consonant sounds, including bilabial, labiodental, dental, alveolar, alveo-palatal, palatal, velar, and glottal sounds. It also covers different manners of articulation such as stops, fricatives, affricates, nasals, liquids, and glides. Finally, it introduces vowels and diphthongs, noting that vowels involve a relatively free airflow compared to consonants.
More Related Content
Similar to Introduction to linguistic (4)
Introduction to linguistic (4)
- 1. Introduction to Linguistic(4) The Sounds of Language

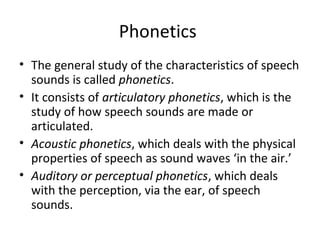

- 2. Phonetics • The generalstudy of the characteristics of speech sounds is called phonetics. • It consists of articulatory phonetics, which is the study of how speech sounds are made or articulated. • Acoustic phonetics, which deals with the physical properties of speech as sound waves ‘in the air.’ • Auditory or perceptual phonetics, which deals with the perception, via the ear, of speech sounds.

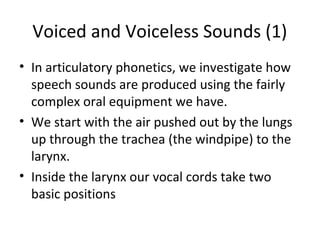

- 3. Voiced and VoicelessSounds (1) • In articulatory phonetics, we investigate how speech sounds are produced using the fairly complex oral equipment we have. • We start with the air pushed out by the lungs up through the trachea (the windpipe) to the larynx. • Inside the larynx our vocal cords take two basic positions

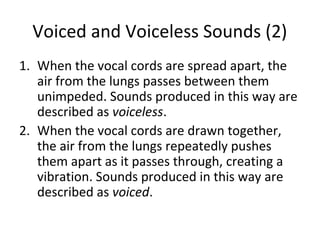

- 4. Voiced and VoicelessSounds (2) 1. When the vocal cords are spread apart, the air from the lungs passes between them unimpeded. Sounds produced in this way are described as voiceless. 2. When the vocal cords are drawn together, the air from the lungs repeatedly pushes them apart as it passes through, creating a vibration. Sounds produced in this way are described as voiced.
- 5. Place of Articulation(1) • Bilabials – These are sounds formed using both lips. – The initial sounds in the words pat, bat and mat are all bilabials. – They are represented by the symbols [p], which is voiceless, and [b] and [m], which are voiced. – The [w] sound found at the beginning of way, walk and world is also a bilabial.
- 6. Place of Articulation(2) • Labiodentals – These are sounds formed with the upper teeth and the lower lip. – The initial sounds of the words fat and vat and the final sounds in the words safe and save are labiodentals. – They are represented by the symbol [f], which is voiceless, and [v], which is voiced. – Notice that the final sounds of laugh and cough, and the initial sound of photo, despite the spelling differences, are all pronounced [f]
- 7. Place of Articulation(3) • Dentals – These sounds are formed with the tongue tip behind the upper front teeth. – The term ‘interdental’ is sometimes used to describe a manner of pronunciation with the tongue tip between the upper and lower teeth. – The initial sound of thin and the final sound of bath are both voiceless dentals. The symbol used for this sound is [T]. – The voiced dental is dental is represented by the symbol [D] and is found in the pronunciation of the initial sound of thus and the final sound of bathe.
- 8. Place of Articulation(4) • Alveolars – These are sounds formed with the front part of the tongue on the alveolar ridge, which is the rough, bony ridge immediately behind the upper teeth. – The initial sounds in top, dip, sit, zoo and nut are all alveolars. The symbols for these sounds are quite easily remembered – [t], [d], [s], [z], [n]. – Of these, [t] and [s] are voiceless, whereas [d], [z] and [n] are voice. – Notice also that despite the different spelling of knot and not, both these words are pronounced with [n] as the initial sound. – Other alveolars are the [l] sound found at the beginning of words such as lap and lit, and [r] sound at the beginning of right, write and rip.
- 9. Place of Articulation(5a) • Alveo-palatals – If you feel back behind the alveolar ridge, you should find a hard part in the roof of your mouth. This called palate. – Sounds which are produced with the tongue at the very front of the palate, near the alveolar ridge, are called alveo-palatals. – Examples are the initial sounds in the words shoot and child, which are voiceless. Although there are two letters in the spelling of ‘sh’ and ‘ch,’ the sounds are represented by the single phonetic symbols [S] and [T].
- 10. Place of Articulation(5b) – One of the voiced alveo-palatal sounds, represented by the symbol [Z], is not very common in English, but can be found as the middle consonant sound in words like treasure and pleasure, or the final sound in rouge. – The other voiced alveo-palatal sound is represented as [D] and is the initial sound in words like joke and gem. The word judge and the name George both begin and end with the sound [D], despite the obvious differences in spelling.
- 11. Place of Articulation(6) • Palatal – One sound which is produced with the tongue in the middle of the palate is the [j] sound to be found at the beginning of words like and you.
- 12. Place of Articulation(7a) • Velars – Further back in the roof of the mouth, beyond the hard palate, you will find a soft area which is called the soft palate, or the velum. Sounds produced with the back of the tongue against the velum are called velars. – There is a voiceless velar sound, represented by the symbol [k], which occurs not only in kid and kill, but also the initial sound in car and cold. Despite the variety in spelling, this [k] sound is both the initial and final sound in the words cook, kick, and coke. – The voiced velar sound to be heard at the beginning of words like go, gun and give is represented by [g]. This is also the final sound in words like bag, mug and, despite the spelling, plague.
- 13. Place of Articulation(7b) • One other voiced velar is represented by the symbol [Î]. In English, this sound is normally written as the two letters ‘ng’. • So the [Î] sound is at the end of sing, sang and, despite the spelling, tongue. It will occur twice in the form ringing. • Be careful not to be misled by the spelling – the word bang ends with the [Î] sound only. There is no [g] sound in this word.
- 14. Place of Articulation(8a) • Glottals – There are two other sounds which produced without the active use of the tongue and other parts of the mouth. – One is the sound [h] which occurs at the beginning of have and house, and for most speakers, as the first sound in who and whose. This sound is usually described as a voiceless glottal. – When the glottal is open, as in the production of other voiceless sounds, but there is no manipulation of their passing out through the mouth, the sound produced is that represented by [h].
- 15. Place of Articulation(8b) – When the glottis is closed completely, very briefly, and then released, the resulting sound is called a glottal stop. – This sound occurs in many dialects of English, but does not have a written form in the Roman alphabet. The symbol used in phonetic transcription [?]. – You can produce this sound if you try to say the words butter or bottle without pronouncing the -tt- sound in the middle. – In Britain, this sound is considered to be a characteristic aspect of Cockney speech, and in the USA, of the speech of many New Yorkers.
- 16. Manner of Articulation(1) • So far, we have concentrated on describing consonant sound in terms of where they are articulated. We can, of course, describe the same sounds in terms of how they are articulated. • For example, we can say that [t] and [s] are both voiceless alveolar sounds.
- 17. Manner of Articulation(2) • Stops – Of the sounds we have already mentioned, the set [p], [b], [t], [d], [k], [g], [?] are all produced by some form of complete ‘stopping’ of the airstream (very briefly) and then letting it go abruptly. – For example, a full description of the [t] sound at the beginning of a word like ten is as a ‘voiceless alveolar stop’. On occasion, only the manner of articulation is mentioned, as when it is said that the word bed, begins and ends with ‘voiced stop.’
- 18. Manner of Articulation(3) • Fricatives – The manner of articulation used in producing the set of sounds [f], [v], [T], [D], [s], [z], [S], [Z] involves almost blocking the airstream, and having the air push through the narrow opening. As the air is pushed through, a type of friction is produced and the resulting sounds are called fricatives. – For example, a word like fish will begin and end with ‘voiceless fricatives’. The word those will begin and end with the ‘voiced fricatives’.
- 19. Manner of Articulation(4) • Affricatives – If you combine a brief stopping of the airstream with an obstructed release with causes some friction, you will be able to produce the sounds [T] and [D]. – For example, the words cheap and jeep, in the firs of these, there is a ‘voiceless affricate’ and in the second a ‘voiced affricate’.
- 20. Manner of Articulation(5) • Nasals – Most sounds are produced orally, with the velum raised, preventing airflow entering the nasal cavity. However, when the velum is lowered and the airflow is allowed to flow out through the nose to produce [m], [n] and [Î], the sounds are described as nasals. – These three sounds are all voiced. Words like morning, knitting and name begin and end with nasals.
- 21. Manner of Articulation(6) • Liquids – The initial sounds in the word led and red are generally described as liquids. – The [l] sound is formed by letting the airstream flow around the side of tongue as it makes contact with the alveolar ridge. – The [r] sound is formed with the tongue tip raised and curled back behind alveolar ridge.
- 22. Manner of Articulation(7) • Glides – The sounds [w] and [y] are produced very much as transition sounds. – They are called glides, or ‘semi-vowels’. In pronunciation, they are usually produced with tongue moving, or ‘gliding’, to or from a position associated with a neighboring vowel sound. – They are both voiced. Glides occurs at the beginning of wet, we, you and yes.
- 23. Vowels (1) • • While theconsonant sounds are mostly articulated via closure or obstruction in the vocal tract, vowel sounds are produced with a relatively free flow air. To describe vowel sounds, we consider the way in which the tongue influences the ‘shape’ through which the airflow must pass. Because these sounds are not so easily defined in terms of place and manner of articulation, we use labels which serve to indicate how each vowel sounds in relation to the others.

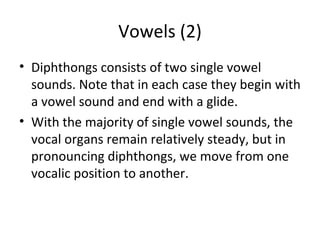

- 24. Vowels (2) • Diphthongsconsists of two single vowel sounds. Note that in each case they begin with a vowel sound and end with a glide. • With the majority of single vowel sounds, the vocal organs remain relatively steady, but in pronouncing diphthongs, we move from one vocalic position to another.
