The HSV color model defines color space using three components: hue, saturation, and value. Hue represents the color, defined as an angle from 0-360 degrees and correlates to colors like red, yellow, green, etc. Saturation indicates the amount of gray in a color, ranging from 0% (gray) to 100% (vibrant color). Value represents the brightness level from 0% (black) to 100% (full brightness). The HSV color space is widely used in computer graphics and image editing to select and manipulate colors.

1. HSV Color Model
POOJA JAISWAL
2015PGCACA13
3rd sem.,MCA

2. Hue, Saturation and Value(HSV)
defines a type of color space.
similar to modern RGB and CMYK models
describes colors in terms of their
shade(saturation or amount of gray) and their
brightness(value or luminance).
may be depicted as a cone or cylinder.
the additive primary and secondary
colors—red,yellow,green,cyan,blue
and magenta---and linear mixture
between adjacent pairs of them.
three componens :
Hue
Saturation
value

3.  In HSV, hue represents color. In this model, hue is an
angle from 0 degrees to 360 degrees.
Hue
Angle Color
0-60 Red
60-120 Yellow
120-180 Green
180-240 Cyan
240-300 Blue
300-360 Magenta

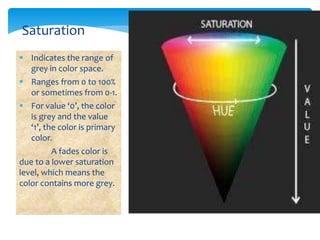

4.  Indicates the range of
grey in color space.
 Ranges from 0 to 100%
or sometimes from 0-1.
 For value ‘0’, the color
is grey and the value
‘1’, the color is primary
color.
A fades color is
due to a lower saturation
level, which means the
color contains more grey.
Saturation

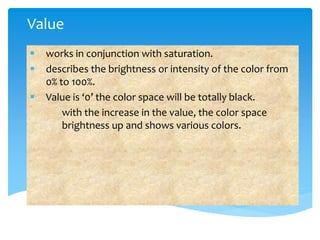

5. Value
 works in conjunction with saturation.
 describes the brightness or intensity of the color from
0% to 100%.
 Value is ‘0’ the color space will be totally black.
with the increase in the value, the color space
brightness up and shows various colors.

6. Application of HSV
• The HSV color space is widely used to generate high
quality computer graphics.
or is used to select various different colors needed
for a particular picture.
• An HSV color wheel is used to select the desired color.
A user can select the particular color needed for the
picture from the color wheel.
• Used in color pickers, image editing software, image
analysis, computer vision.
