- 1. Ahmad Ali IBGE TRENDS INDNA SEQUENCING, METHODS AND APPLICATIONS
- 2. CONTENTS: • DNA • DNASEQUENCING • PURPOSE • DAN SEQUENCING METHODS • HISTORICAL METHOD • NEXT GENERATION METHODS • APPLICATIONS

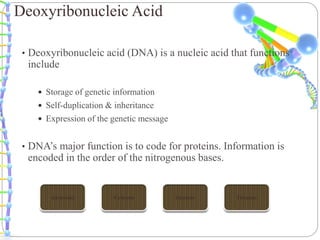

- 3. • Deoxyribonucleic acid(DNA) is a nucleic acid that functions include Storage of genetic information Self-duplication & inheritance Expression of the genetic message • DNA’s major function is to code for proteins. Information is encoded in the order of the nitrogenous bases. Deoxyribonucleic Acid
- 4. DNA SEQUENCING Determining theorder of bases in a section of DNA To analyze gene structure and its relation to gene expression as well as protein conformation

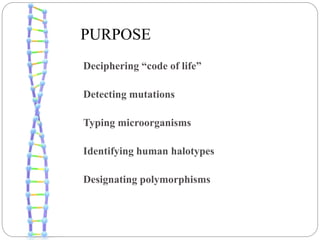

- 5. PURPOSE Deciphering “code oflife” Detecting mutations Typing microorganisms Identifying human halotypes Designating polymorphisms

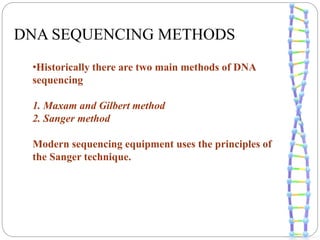

- 6. DNA SEQUENCING METHODS •Historicallythere are two main methods of DNA sequencing 1. Maxam and Gilbert method 2. Sanger method Modern sequencing equipment uses the principles of the Sanger technique.

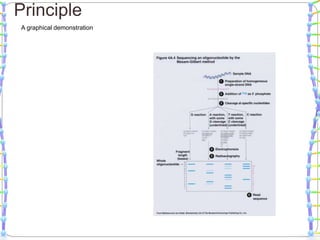

- 7. •A. M. Maxamand W.Gilbert-1975 •Chemical Sequencing •Treatment of DNA with certain Chemicals DNA cuts into Fragments Monitoring of sequences MAXAM & GILBERT METHOD
- 8.

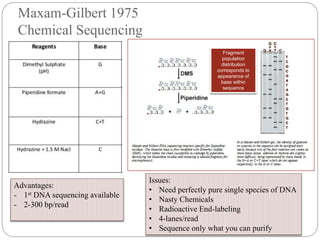

- 9. Maxam-Gilbert 1975 Chemical Sequencing Issues: •Need perfectly pure single species of DNA • Nasty Chemicals • Radioactive End-labeling • 4-lanes/read • Sequence only what you can purify Advantages: - 1st DNA sequencing available - 2-300 bp/read Fragment population distribution corresponds to appearance of base within sequence

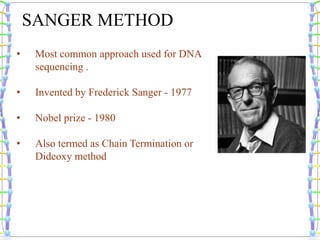

- 10. • Most commonapproach used for DNA sequencing . • Invented by Frederick Sanger - 1977 • Nobel prize - 1980 • Also termed as Chain Termination or Dideoxy method SANGER METHOD

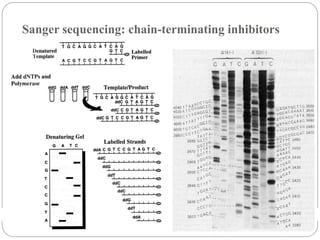

- 11. Sanger sequencing: chain-terminatinginhibitors

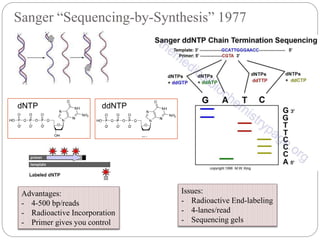

- 12. Sanger “Sequencing-by-Synthesis” 1977 Issues: -Radioactive End-labeling - 4-lanes/read - Sequencing gels Advantages: - 4-500 bp/reads - Radioactive Incorporation - Primer gives you control dNTP ddNTP

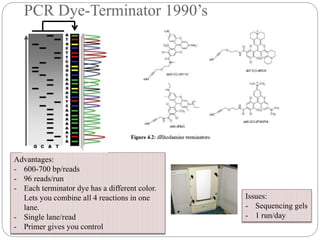

- 13. PCR Dye-Terminator 1990’s Issues: -Sequencing gels - 1 run/day Advantages: - 600-700 bp/reads - 96 reads/run - Each terminator dye has a different color. Lets you combine all 4 reactions in one lane. - Single lane/read - Primer gives you control

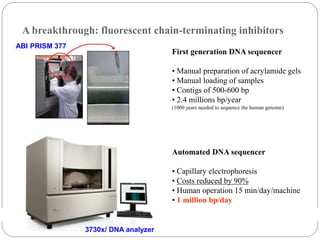

- 14. A breakthrough: fluorescentchain-terminating inhibitors Automated DNA sequencer • Capillary electrophoresis • Costs reduced by 90% • Human operation 15 min/day/machine • 1 million bp/day 3730x/ DNA analyzer First generation DNA sequencer • Manual preparation of acrylamide gels • Manual loading of samples • Contigs of 500-600 bp • 2.4 millions bp/year (1000 years needed to sequence the human genome) ABI PRISM 377

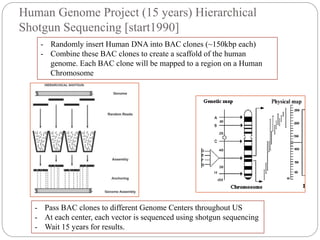

- 15. Human Genome Project(15 years) Hierarchical Shotgun Sequencing [start1990] - Randomly insert Human DNA into BAC clones (~150kbp each) - Combine these BAC clones to create a scaffold of the human genome. Each BAC clone will be mapped to a region on a Human Chromosome - Pass BAC clones to different Genome Centers throughout US - At each center, each vector is sequenced using shotgun sequencing - Wait 15 years for results.

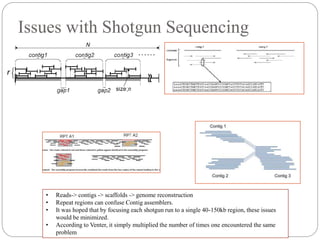

- 16. Issues with ShotgunSequencing • Reads-> contigs -> scaffolds -> genome reconstruction • Repeat regions can confuse Contig assemblers. • It was hoped that by focusing each shotgun run to a single 40-150kb region, these issues would be minimized. • According to Venter, it simply multiplied the number of times one encountered the same problem

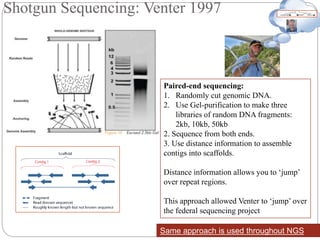

- 17. Shotgun Sequencing: Venter1997 Same approach is used throughout NGS Paired-end sequencing: 1. Randomly cut genomic DNA. 2. Use Gel-purification to make three libraries of random DNA fragments: 2kb, 10kb, 50kb 2. Sequence from both ends. 3. Use distance information to assemble contigs into scaffolds. Distance information allows you to ‘jump’ over repeat regions. This approach allowed Venter to ‘jump’ over the federal sequencing project
- 18. NEXT GENERATION SEQUENCING CommonPipeline. Library Prep. Sequencing – Massively Parallel Sequencing. Bioinformatics - Data Analysis . Popular Platforms (commercially available): Roche 454 AB SOLiD Illumina(HiSeq,MiSeq). Newer Platforms (Experemental ): Ion Torrent PacBio RS Oxford Nanopore.

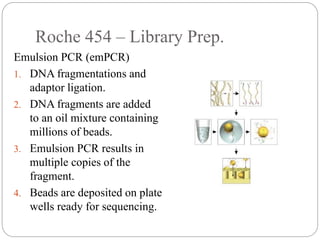

- 19. Roche 454 –Library Prep. Emulsion PCR (emPCR) 1. DNA fragmentations and adaptor ligation. 2. DNA fragments are added to an oil mixture containing millions of beads. 3. Emulsion PCR results in multiple copies of the fragment. 4. Beads are deposited on plate wells ready for sequencing.

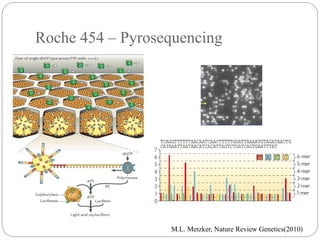

- 20. Roche 454 –Pyrosequencing M.L. Metzker, Nature Review Genetics(2010)

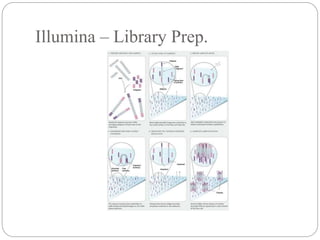

- 21. Illumina – LibraryPrep.

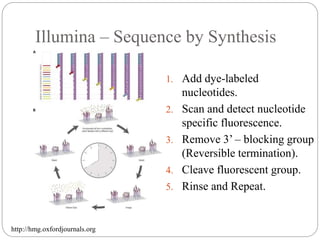

- 22. Illumina – Sequenceby Synthesis 1. Add dye-labeled nucleotides. 2. Scan and detect nucleotide specific fluorescence. 3. Remove 3’ – blocking group (Reversible termination). 4. Cleave fluorescent group. 5. Rinse and Repeat. http://hmg.oxfordjournals.org

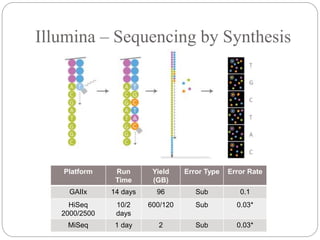

- 23. Illumina – Sequencingby Synthesis Platform Run Time Yield (GB) Error Type Error Rate GAIIx 14 days 96 Sub 0.1 HiSeq 2000/2500 10/2 days 600/120 Sub 0.03* MiSeq 1 day 2 Sub 0.03*

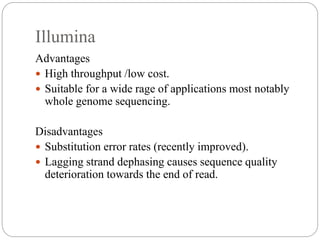

- 24. Illumina Advantages High throughput/low cost. Suitable for a wide rage of applications most notably whole genome sequencing. Disadvantages Substitution error rates (recently improved). Lagging strand dephasing causes sequence quality deterioration towards the end of read.
- 25. SOLiD (Life/AB) SOLiD:Sequencing by Oligonucleotide Ligation and Detection. Library Prep: emPCR “2-base encoding” – Instead of the typical single dNTP addition, two base matching probes are used. (possible 16 probes). Color Space – four color sequencing encoding further increases accuracy.

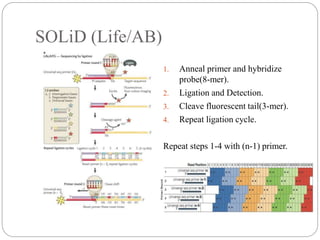

- 26. SOLiD (Life/AB) 1. Annealprimer and hybridize probe(8-mer). 2. Ligation and Detection. 3. Cleave fluorescent tail(3-mer). 4. Repeat ligation cycle. Repeat steps 1-4 with (n-1) primer.
- 27. SOLiD – ColorSpace • 16 possible base combination are represented by 4 colors. • All possible sequencing combination need to be decoded.

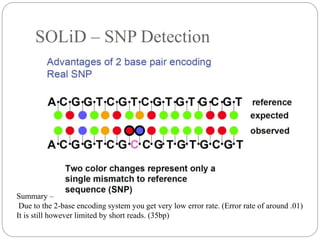

- 28. SOLiD – SNPDetection Summary – Due to the 2-base encoding system you get very low error rate. (Error rate of around .01) It is still however limited by short reads. (35bp)

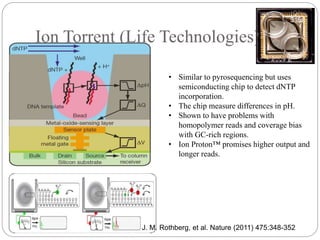

- 29. Ion Torrent (LifeTechnologies) J. M. Rothberg, et al. Nature (2011) 475:348-352 • Similar to pyrosequencing but uses semiconducting chip to detect dNTP incorporation. • The chip measure differences in pH. • Shown to have problems with homopolymer reads and coverage bias with GC-rich regions. • Ion Proton™ promises higher output and longer reads.

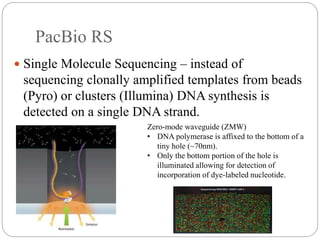

- 30. PacBio RS SingleMolecule Sequencing – instead of sequencing clonally amplified templates from beads (Pyro) or clusters (Illumina) DNA synthesis is detected on a single DNA strand. Zero-mode waveguide (ZMW) • DNA polymerase is affixed to the bottom of a tiny hole (~70nm). • Only the bottom portion of the hole is illuminated allowing for detection of incorporation of dye-labeled nucleotide.

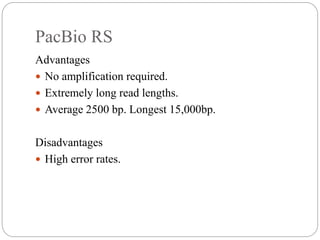

- 31. PacBio RS Advantages Noamplification required. Extremely long read lengths. Average 2500 bp. Longest 15,000bp. Disadvantages High error rates.

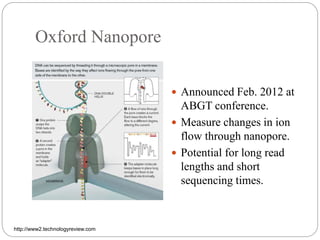

- 32. Oxford Nanopore AnnouncedFeb. 2012 at ABGT conference. Measure changes in ion flow through nanopore. Potential for long read lengths and short sequencing times. http://www2.technologyreview.com

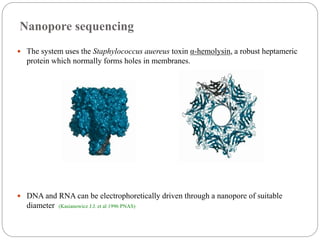

- 33. Nanopore sequencing Thesystem uses the Staphylococcus auereus toxin α-hemolysin, a robust heptameric protein which normally forms holes in membranes. DNA and RNA can be electrophoretically driven through a nanopore of suitable diameter (Kasianowicz J.J. et al 1996 PNAS)

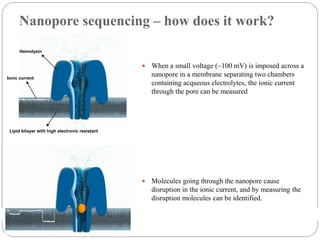

- 34. Nanopore sequencing –how does it work? When a small voltage (~100 mV) is imposed across a nanopore in a membrane separating two chambers containing acqueous electrolytes, the ionic current through the pore can be measured Molecules going through the nanopore cause disruption in the ionic current, and by measuring the disruption molecules can be identified. Lipid bilayer with high electronic resistant Ionic current Hemolysin

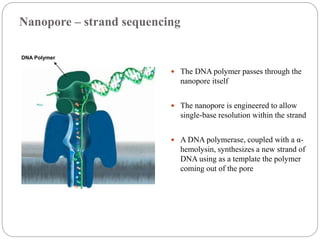

- 35. Nanopore – strandsequencing The DNA polymer passes through the nanopore itself The nanopore is engineered to allow single-base resolution within the strand A DNA polymerase, coupled with a α- hemolysin, synthesizes a new strand of DNA using as a template the polymer coming out of the pore DNA Polymer
- 36. Nanopore sequencing Advantages minimal sample preparation no requirement for ploymerase and ligase potential of very long read-lengths ( > 10,000 – 50,000 nt ) it might well achieve the $1,000 per mammalian genome goal the instrument is inexpensive

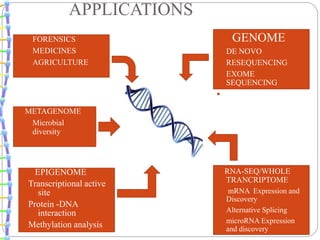

- 37. EPIGENOME Transcriptional active site Protein -DNA interaction Methylationanalysis METAGENOME Microbial diversity FORENSICS MEDICINES AGRICULTURE GENOME DE NOVO RESEQUENCING EXOME SEQUENCING ANCIENT DNA RNA-SEQ/WHOLE TRANCRIPTOME mRNA Expression and Discovery Alternative Splicing microRNA Expression and discovery APPLICATIONS
- 38. References Mardis, E. R.A decade’s perspective on DNA sequencing technology. Nature (2011) 470:198 - 203 Metzker, M.L. Sequencing technologies – the next generation. Nature Review Genetics(2010) 11:31 – 46 N. J. Loman, C. Constantinidou, Jacqueline Z. M. Chan, M. Halachev, M. Sergeant, C. W. Penn, E. R. Robinson & M. J. Pallen. High-throughput bacterial genome sequencing: an embarrassment of choice, a world of opportunity. Nature Review Microbiology 10, 599-606.
