This document describes a security-based handheld control bot that uses gesture recognition technology. A camera captures the user's hand gestures which are processed through predefined algorithms in MATLAB to identify the gestures. If a gesture like "forward" is detected, a signal is sent wirelessly to a microcontroller that controls motors on the bot to move forward. This type of gesture-based human-machine interface has applications in assisting disabled individuals and enhancing security and gaming.

1. “GESTURE CONTROL
BOT”
Security Based Hand-Held Control
Bot
05/10/2013
1

2. INDEX
 Introduction
What is Gesture
Software Used
Hardware
Working
 Features
Applications
Conclusion
Security Based Hand-Held
Control Bot
05/10/2013
2

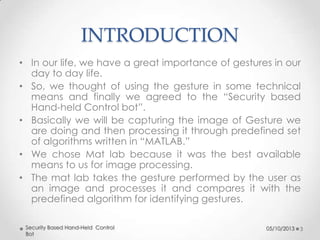

3. INTRODUCTION
• In our life, we have a great importance of gestures in our
day to day life.
• So, we thought of using the gesture in some technical
means and finally we agreed to the “Security based
Hand-held Control bot”.
• Basically we will be capturing the image of Gesture we
are doing and then processing it through predefined set
of algorithms written in “MATLAB.”
• We chose Mat lab because it was the best available
means to us for image processing.
• The mat lab takes the gesture performed by the user as
an image and processes it and compares it with the
predefined algorithm for identifying gestures.
Security Based Hand-Held Control
Bot
05/10/2013
3

4. WHAT IS GESTURE?
•
Interface with computers using gestures
of the human body, typically hand
movements.
•
One way gesture recognition is being
used is to help the physically impaired to
interact with computers, such as
interpreting sign language.
• The gestures of the body are read by a
camera instead of sensors attached to a
device such as a data glove.
• In addition to hand and body
movement,
gesture
recognition
technology also can be used to read
facial and speech expressions (i.e., lip
reading), and eye movements.
•
Security Based Hand-Held Control
Bot
05/10/2013
4

5. SOFTWARE NEED
 Matlab
•
Matlab is a basically build for image
processing and our project is also a
good
example
of
an
processing project.

Keil Compiler
•
It is Development and Convert the
code into .hex file which load into our
microcontroller.
Security Based Hand-Held Control
Bot
05/10/2013
5

6. HARDWARE USED
 8051 Microcontroller:• The
P89V51RD2
is
an
8051
microcontroller with 64 KB Flash and
1024 bytes of data RAM
• A key feature of the P89V51RD2 is its X2
mode option
• The design engineer can choose to run
the application with the conventional
8051 clock rate (12 clocks per machine
cycle) or select the X2 mode (6 clocks
per machine cycle) to achieve twicethe
throughput
at
the
same
clock
frequency.
Security Based Hand-Held Control
Bot
04/10/2013
6

7. HARDWARE USED

CC2500:-
•
It is transreciever which is used
to transmitted or receive the
signal from robot to
commanding device
•
It is controlled to the Robot with
wireless Communication.
•
The CC2500 is2.4Gh
transreciever designed for very
low power wireless application.
Security Based Hand-Held Control
Bot
04/10/2013
7

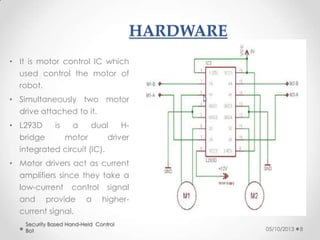

8. HARDWARE
• It is motor control IC which
used control the motor of
robot.
• Simultaneously two motor
drive attached to it.
• L293D
bridge
is
a
dual
Hmotor
driver
integrated circuit (IC).
• Motor drivers act as current
amplifiers since they take a
low-current control signal
and
provide
a
higher-
current signal.
Security Based Hand-Held Control
Bot
05/10/2013
8

9. WORKING
•
First the camera captures the image of the hand
gesture.
•
It processes the image with predefined algorithms
Writing mat lab.
•
If the gesture is found then it will serially send the data
signal to the computer. ex: forward -'f'.
•
The transmitter then encodes the data received serially
and sends it to the receiver.
•
The microcontroller then receives the signal through the
receiver and compares it with prewritten set of codes.
 For example:•
If f is received then the microcontroller gives signal to
L293D motor driver IC in such a way that the motor
connected to it goes into forward direction.
Security Based Hand-Held Control
Bot
05/10/2013
9

10. FEATURES
• It is easy to use.
• Person to do anything to anywhere
without any hard work due to using
hand gesture technology.
• Advance using in future.
• Person can do physical gesture to
digital world.
• It is applicable for the person who
can’t talk, they can do only hand
tricks to communicate.
Security Based Hand-Held Control
Bot
05/10/2013
10

11. APPLICATIONS
• Very Effective and help
to the handicap people
• Useful to Military and
Higher Security bases
• Gaming Zone just Like
Play Stations, XBOX
• Controlling The Car,
Airplane
through the
Gesture
Security Based Hand-Held Control
Bot
05/10/2013
11

12. CONCLUSION
• Here we are used in single
hand gesture instead of whole
body movement like driving a
car.
• We proposed a fast and
simple algorithm for hand
gesture
recognition
for
controlling robot.
• This
technology
will
save
humans physical energy.
• In our system of gesture
controlled robots, we have
only
considered
a
limited
number of gestures
Security Based Hand-Held Control
Bot
05/10/2013
12

13. Any Question?
Security Based Hand-Held Control
Bot
05/10/2013
13
