This project helps to control any type of appliance using simple touchless hand gesture on a recognition kit and a LPC2148 microcontroller

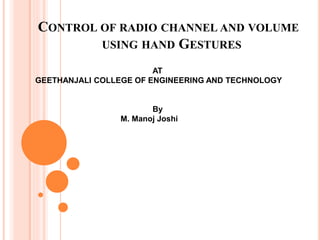

1. CONTROL OF RADIO CHANNEL AND VOLUME
USING HAND GESTURES
AT
GEETHANJALI COLLEGE OF ENGINEERING AND TECHNOLOGY
By
M. Manoj Joshi

2. ABSTRACT
 This project discuss on the current use of gestures in domestic
appliances and possible usage for various other domains.
 The overview of products is given with varying input methods.
 A perfect example is the radio control by hand gesture. This
idea made it possible to change the channel, and change the
volume with the use of hand gestures.

3. PROPOSED SYSTEM
 Free hand motion (free space).
 Using electric field (E-field).
 Easy deployable to most applications.

4. BLOCK DIAGRAM
ARM
based
microcontroller
PIC18F14K50
based Gesture
recognition kit
Voice
chip/speaker
RF
transceiver
Vibrator
Power supply
Radio

5. POWER SUPPLY CIRCUIT

6. GESTURE RECOGNITION KIT

7. • MGC3130 3D Tracking and Gesture Controller
• Built-in 7" frame electrodes
• LED bar signaling when board is powered and indicating the
communication status
• Microchip’s PIC18F14K50 USB microcontroller passing messages between
MGC3130 and the PC
• USB mini-B connector to connect the board to a PC
• Reset button resetting the MGC3130
• LDO voltage regulator converting 5V USB power to 3.3V board supply
• Acrylic glass (180 x 116.5 x 2 mm) simulating the housing of a target
device
• Plastic rivets mounting the acrylic glass to the PCB.

8. ARM 7 PROCESSOR
 32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 or
HVQFN package.
 32 KB of on-chip static RAM and 512 KB of on-chip flash
program memory.
 128-bit wide interface/accelerator enables high-speed 60 MHz
operation.
 In-System programming/In-Application Programming
(ISP/IAP) via on-chip boot loader software.

9. WORKING MODEL

10. RADIO FREQUENCY (RF)
 Radio frequency (RF) is any of the electromagnetic wave
frequencies that lie in the range extending from around 3 kHz to
300 GHz.
 It include those frequencies used for communications or radar
signals.

11. HARDWARE TOOLS
 ARM based controller
 Gesture recognition kit with PIC18F14K50
 Voice chip with speaker
 RF transceivers
 Vibrator

12. SOFTWARE TOOLS
 Keil
 Flash magic
 Embedded C

13. APPLICATIONS
 Gesture processing application
 Automobile Applications
 Industrial Application
 Home applications
