Section 6-3
Tests for Parallelograms

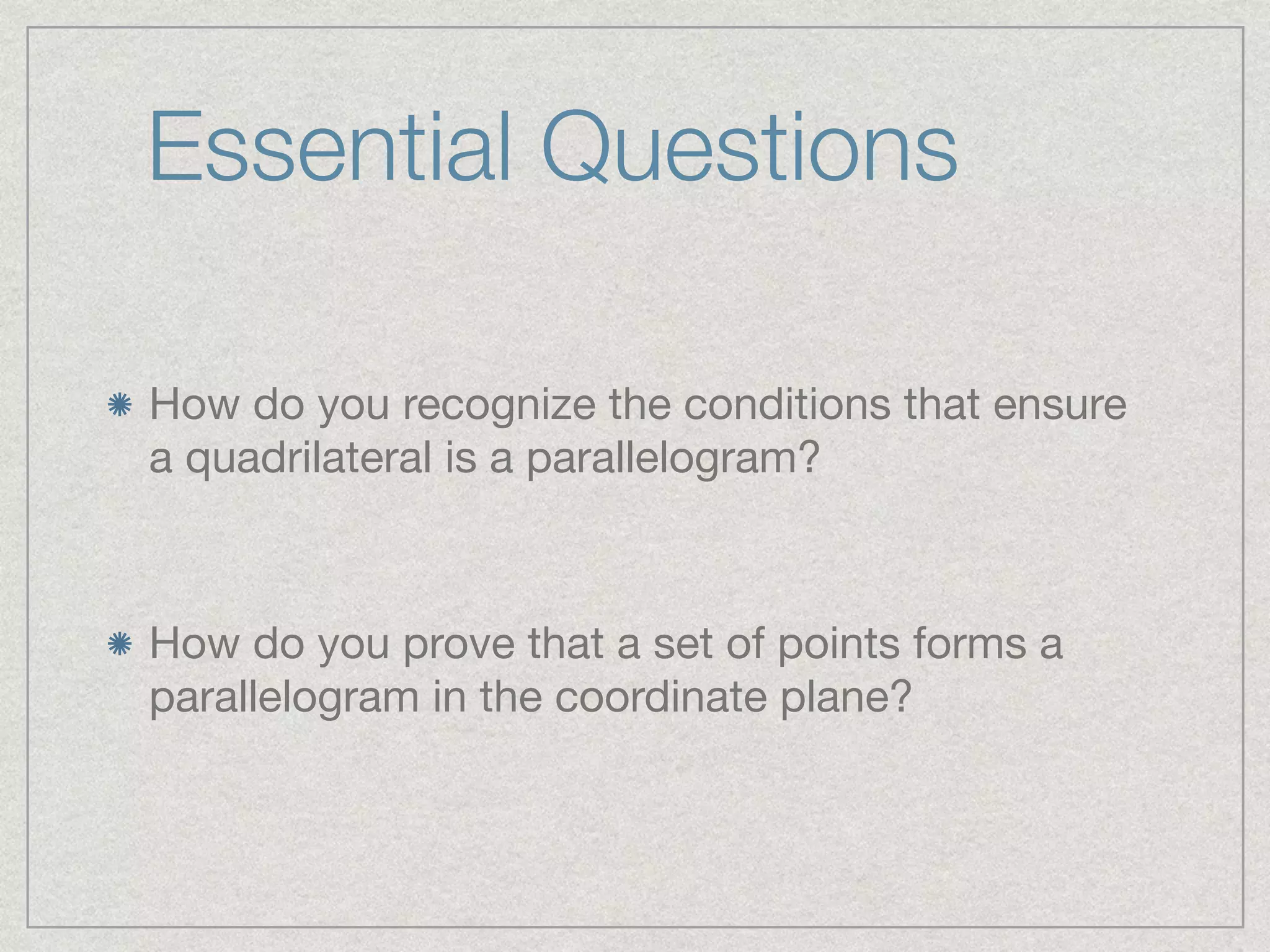

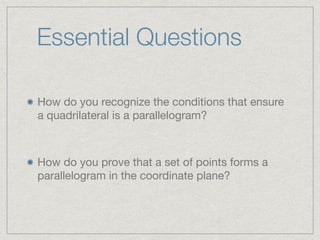

Essential Questions
How do you recognize the conditions that ensure
a quadrilateral is a parallelogram?

How do you prove that a set of points forms a
parallelogram in the coordinate plane?

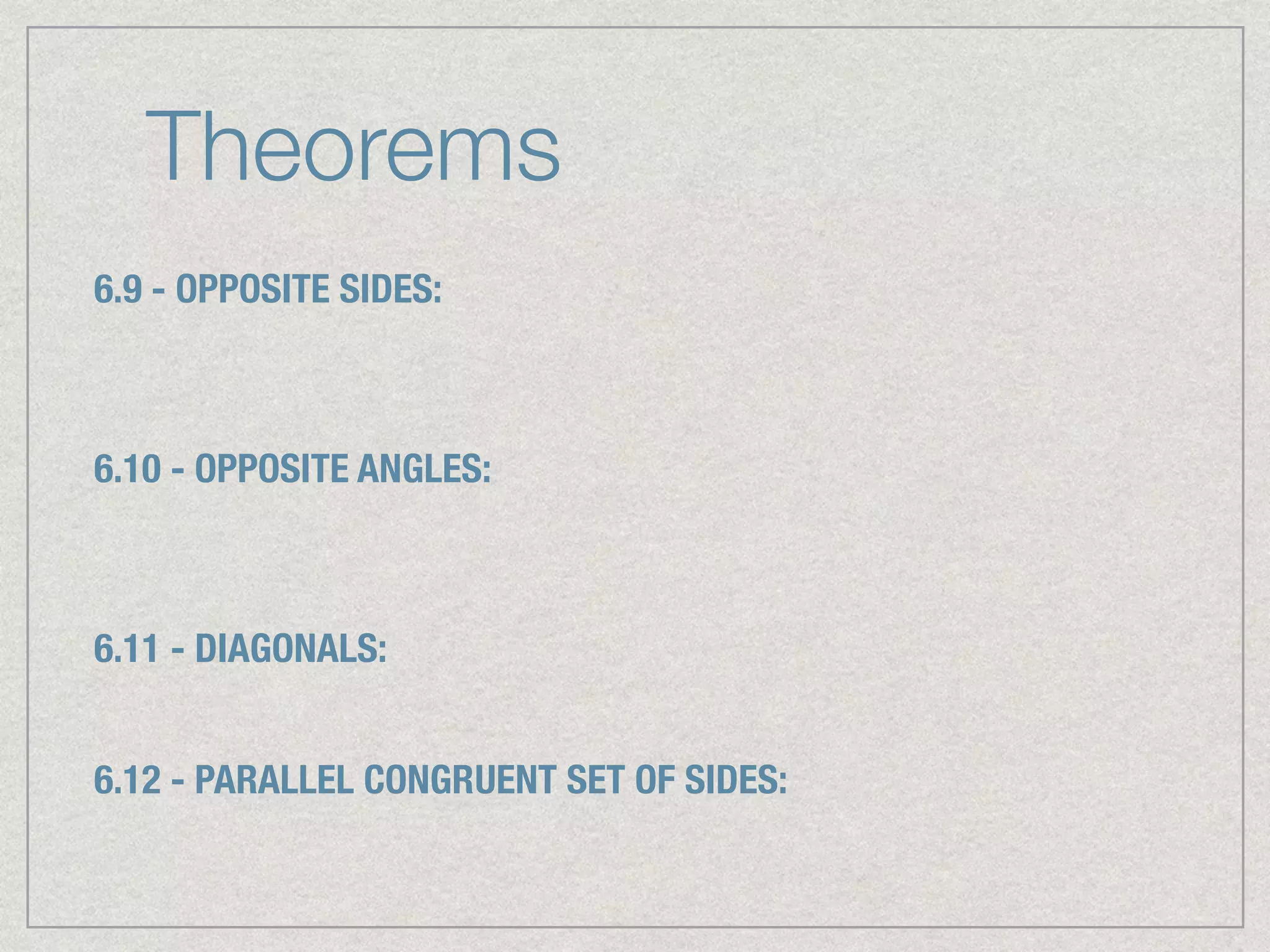

Theorems
6.9 - OPPOSITE SIDES:
6.10 - OPPOSITE ANGLES:
6.11 - DIAGONALS:
6.12 - PARALLEL CONGRUENT SET OF SIDES:

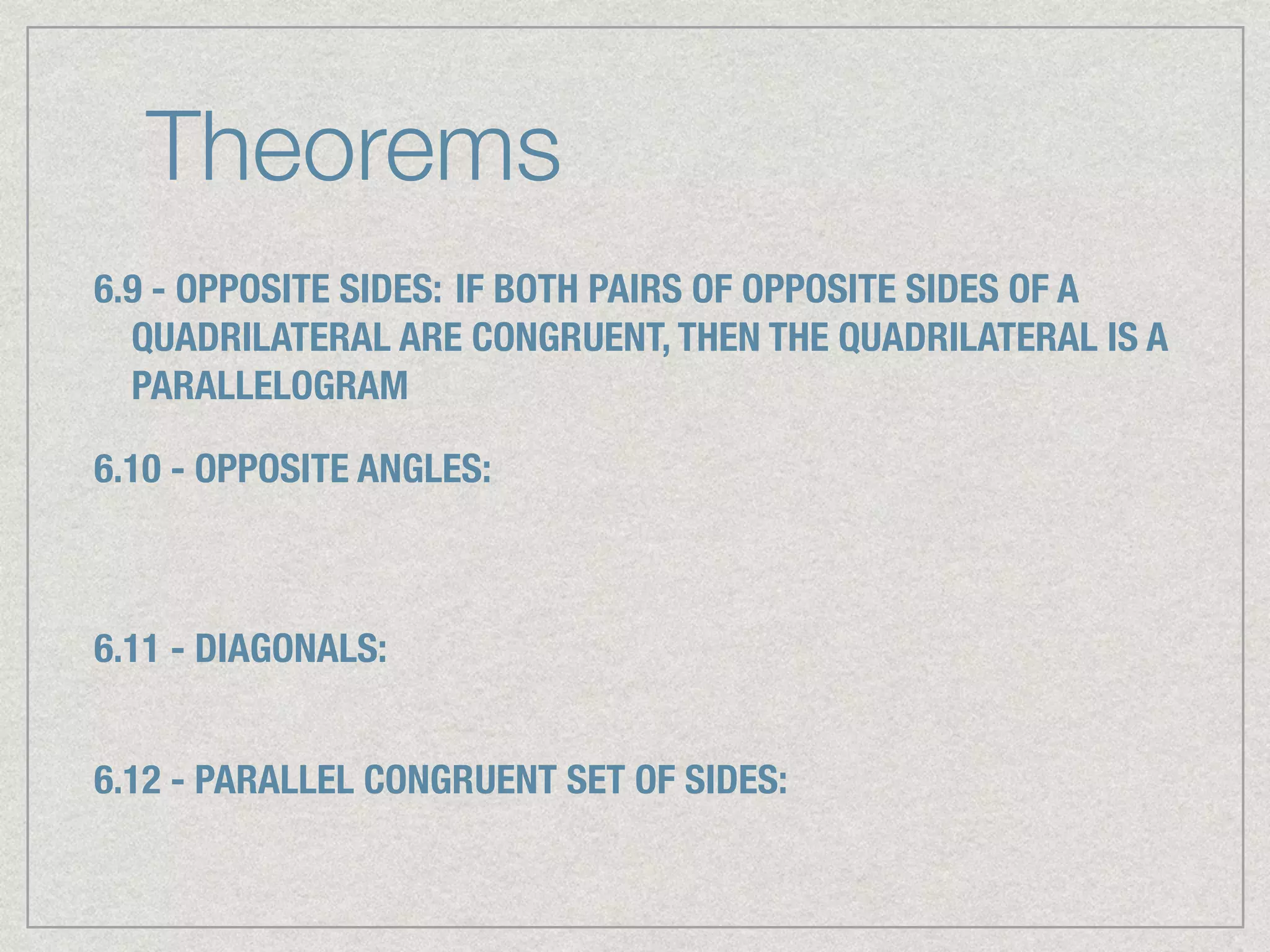

Theorems
6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.10 - OPPOSITE ANGLES:
6.11 - DIAGONALS:
6.12 - PARALLEL CONGRUENT SET OF SIDES:

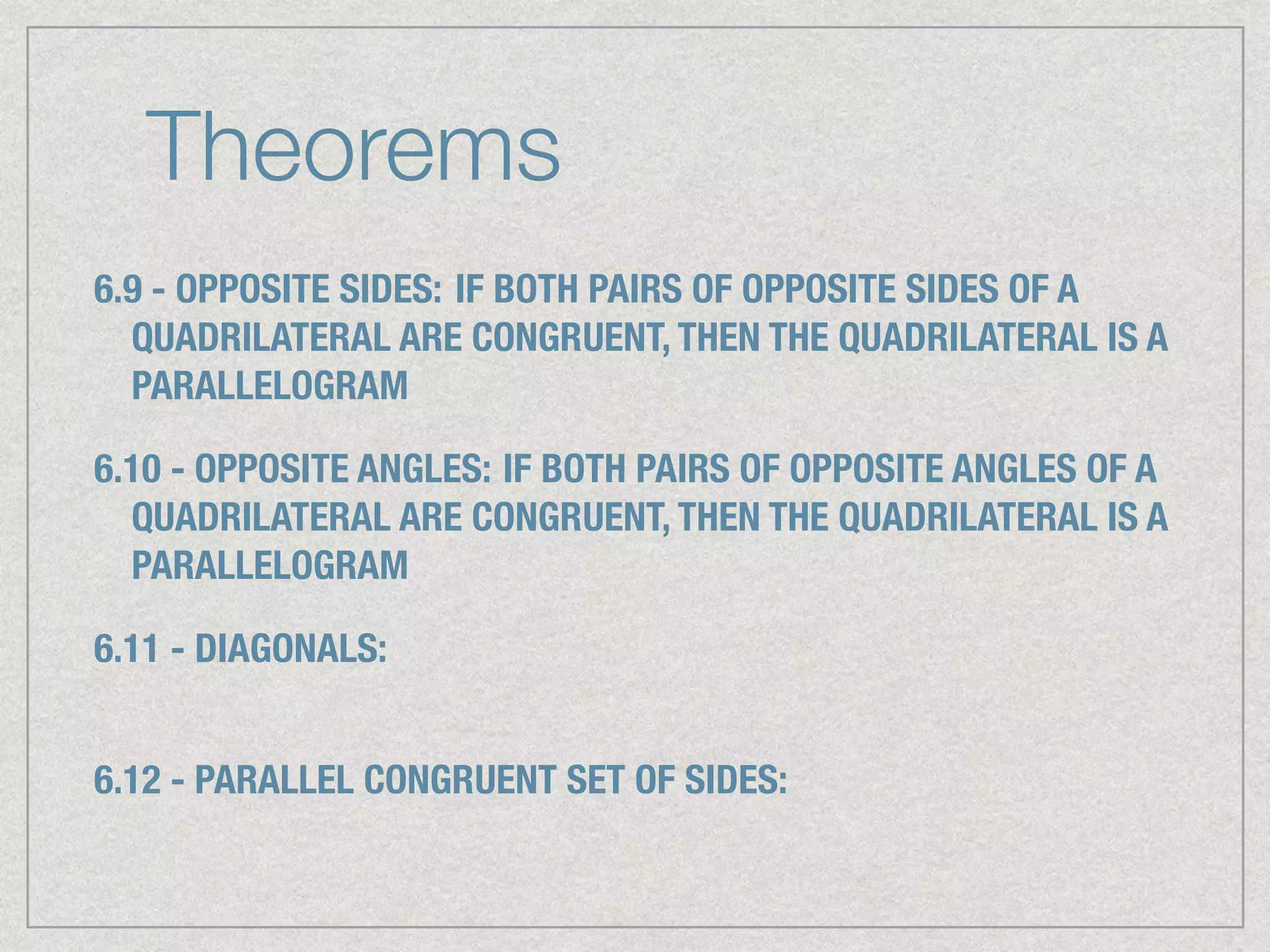

Theorems
6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.11 - DIAGONALS:
6.12 - PARALLEL CONGRUENT SET OF SIDES:

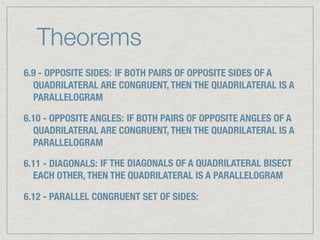

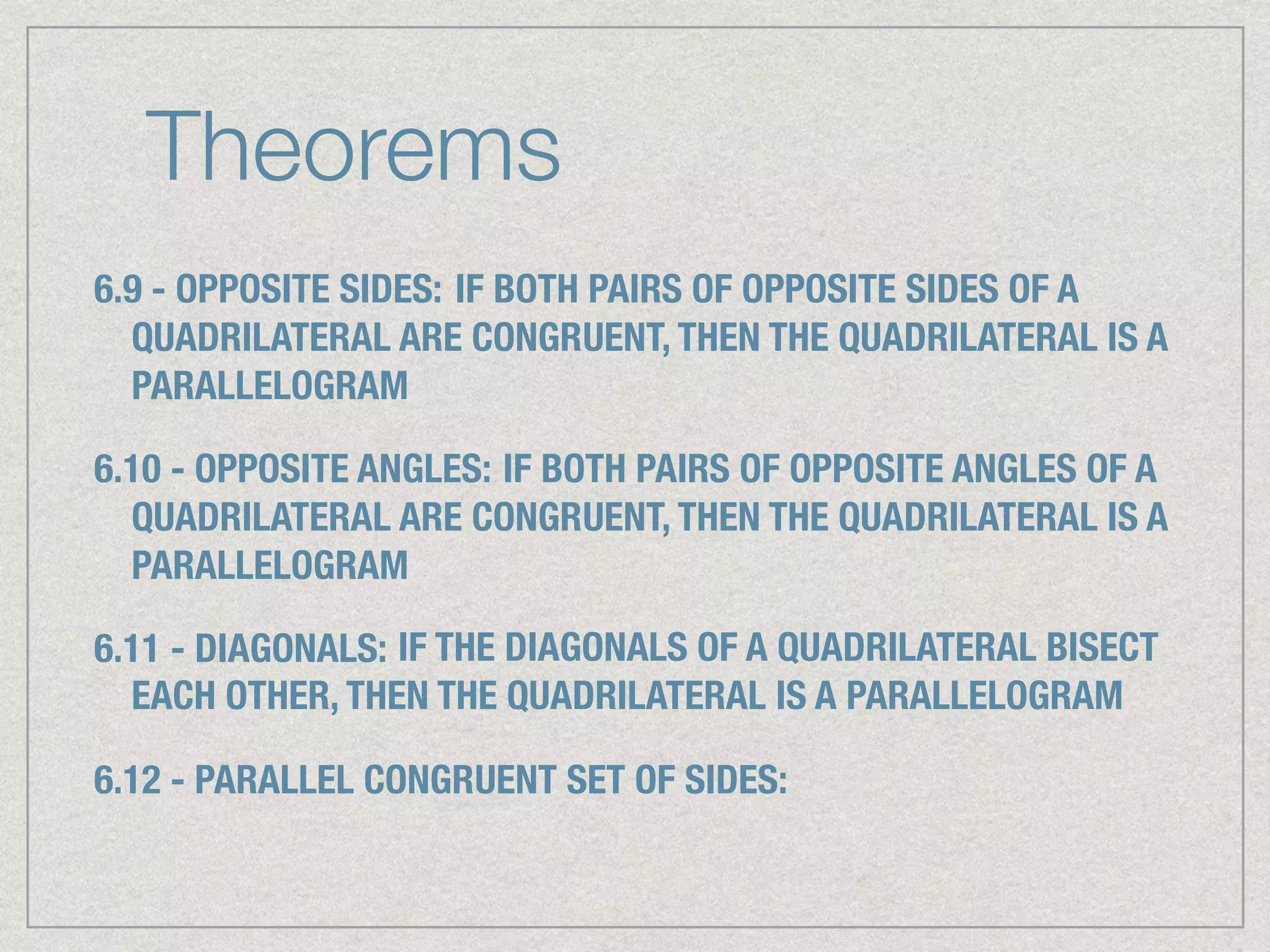

Theorems
6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.11 - DIAGONALS: IF THE DIAGONALS OF A QUADRILATERAL BISECT
EACH OTHER, THEN THE QUADRILATERAL IS A PARALLELOGRAM
6.12 - PARALLEL CONGRUENT SET OF SIDES:

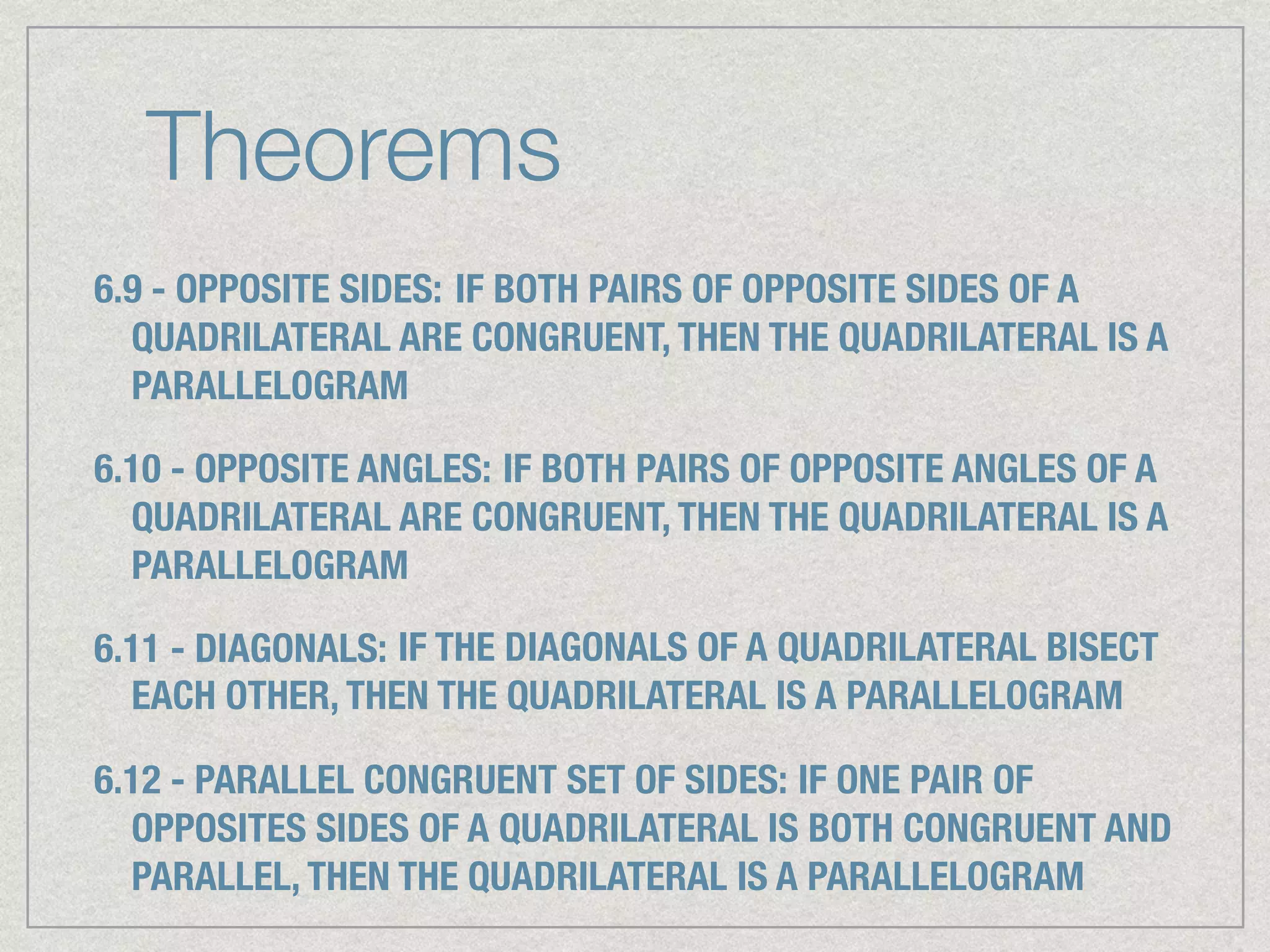

Theorems
6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A
QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A
PARALLELOGRAM
6.11 - DIAGONALS: IF THE DIAGONALS OF A QUADRILATERAL BISECT
EACH OTHER, THEN THE QUADRILATERAL IS A PARALLELOGRAM
6.12 - PARALLEL CONGRUENT SET OF SIDES: IF ONE PAIR OF
OPPOSITES SIDES OF A QUADRILATERAL IS BOTH CONGRUENT AND
PARALLEL, THEN THE QUADRILATERAL IS A PARALLELOGRAM

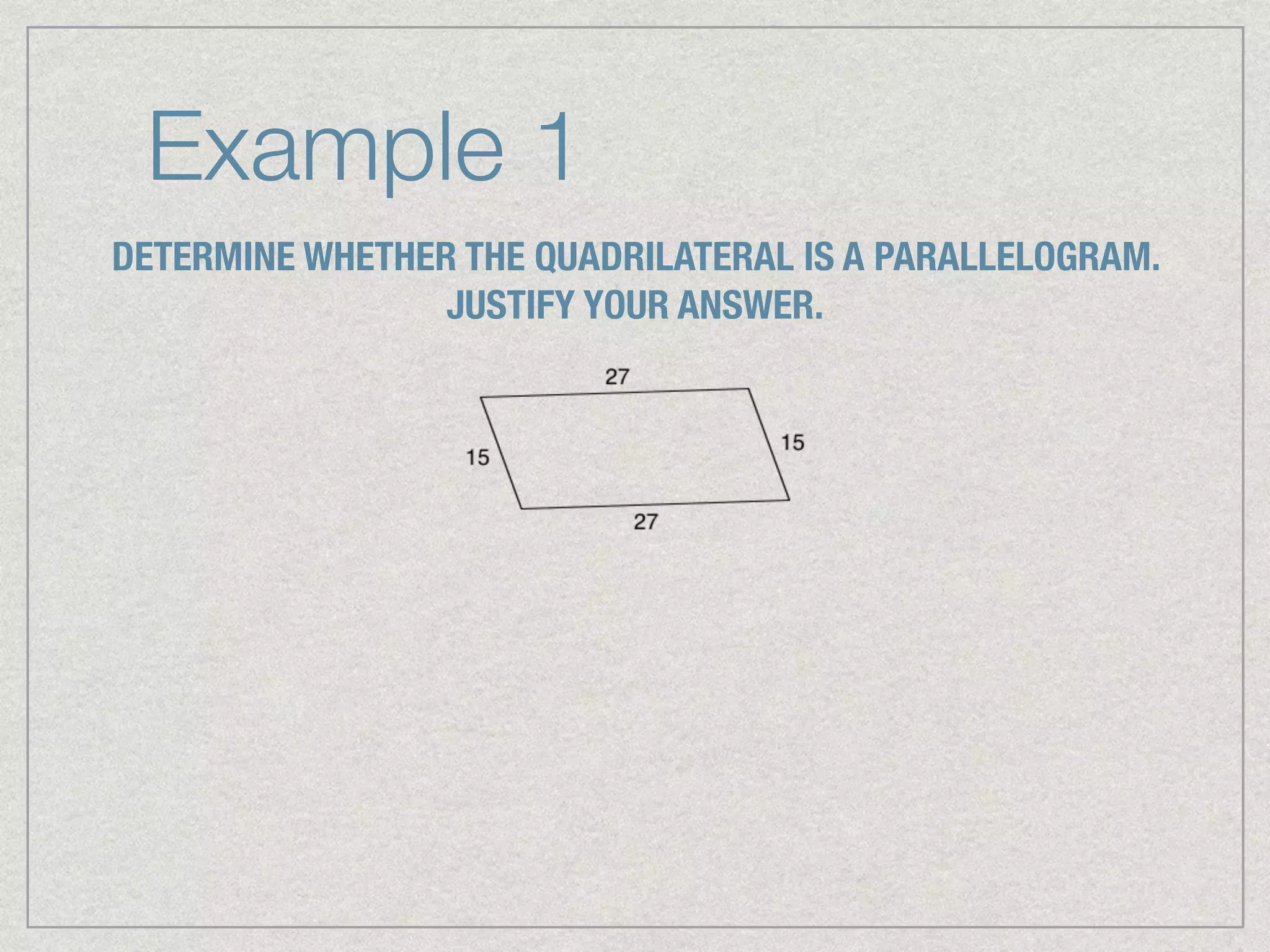

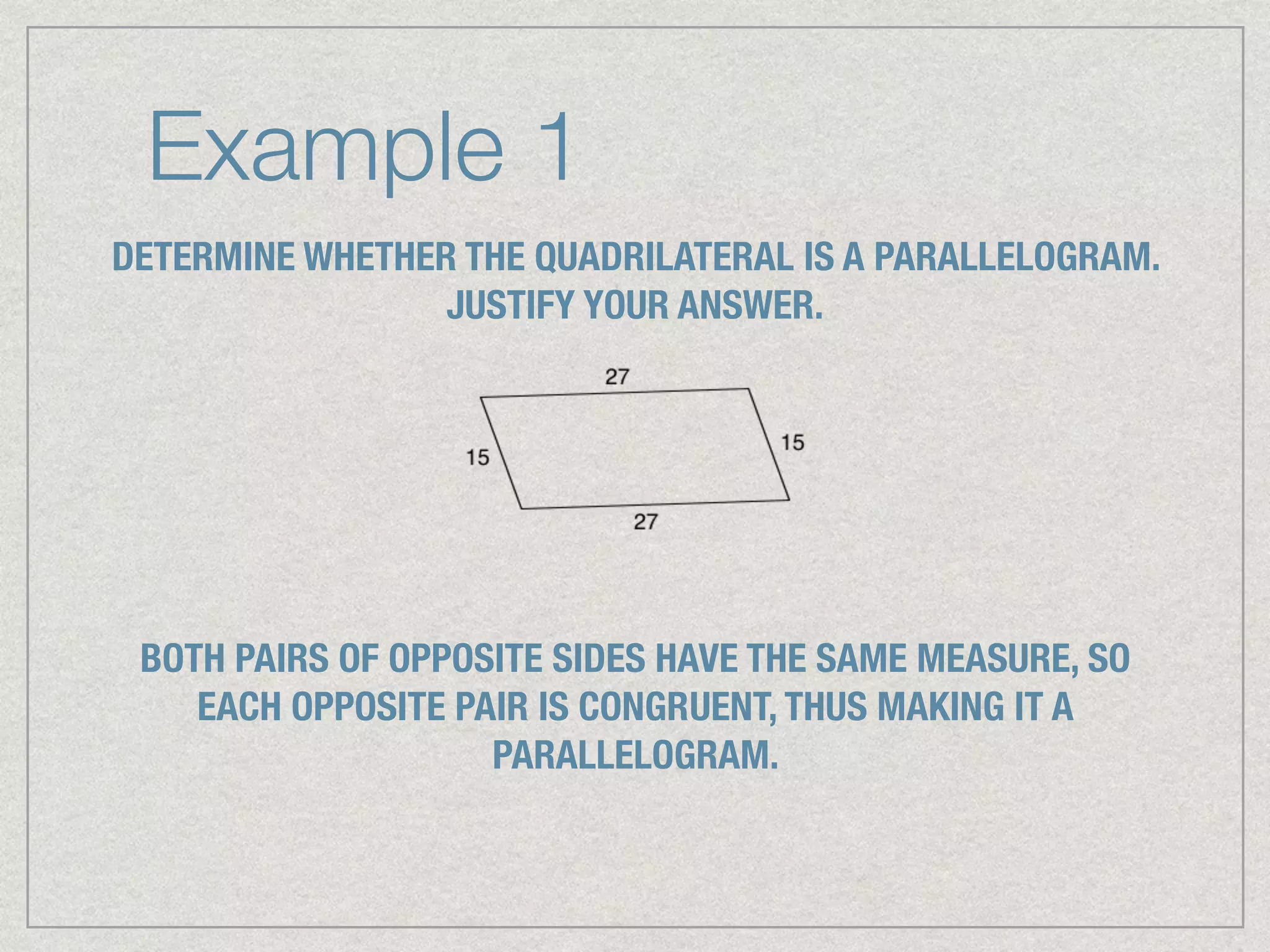

Example 1
DETERMINE WHETHER THE QUADRILATERAL IS A PARALLELOGRAM.
JUSTIFY YOUR ANSWER.
Example 1
DETERMINE WHETHER THE QUADRILATERAL IS A PARALLELOGRAM.
JUSTIFY YOUR ANSWER.
BOTH PAIRS OF OPPOSITE SIDES HAVE THE SAME MEASURE, SO
EACH OPPOSITE PAIR IS CONGRUENT, THUS MAKING IT A
PARALLELOGRAM.

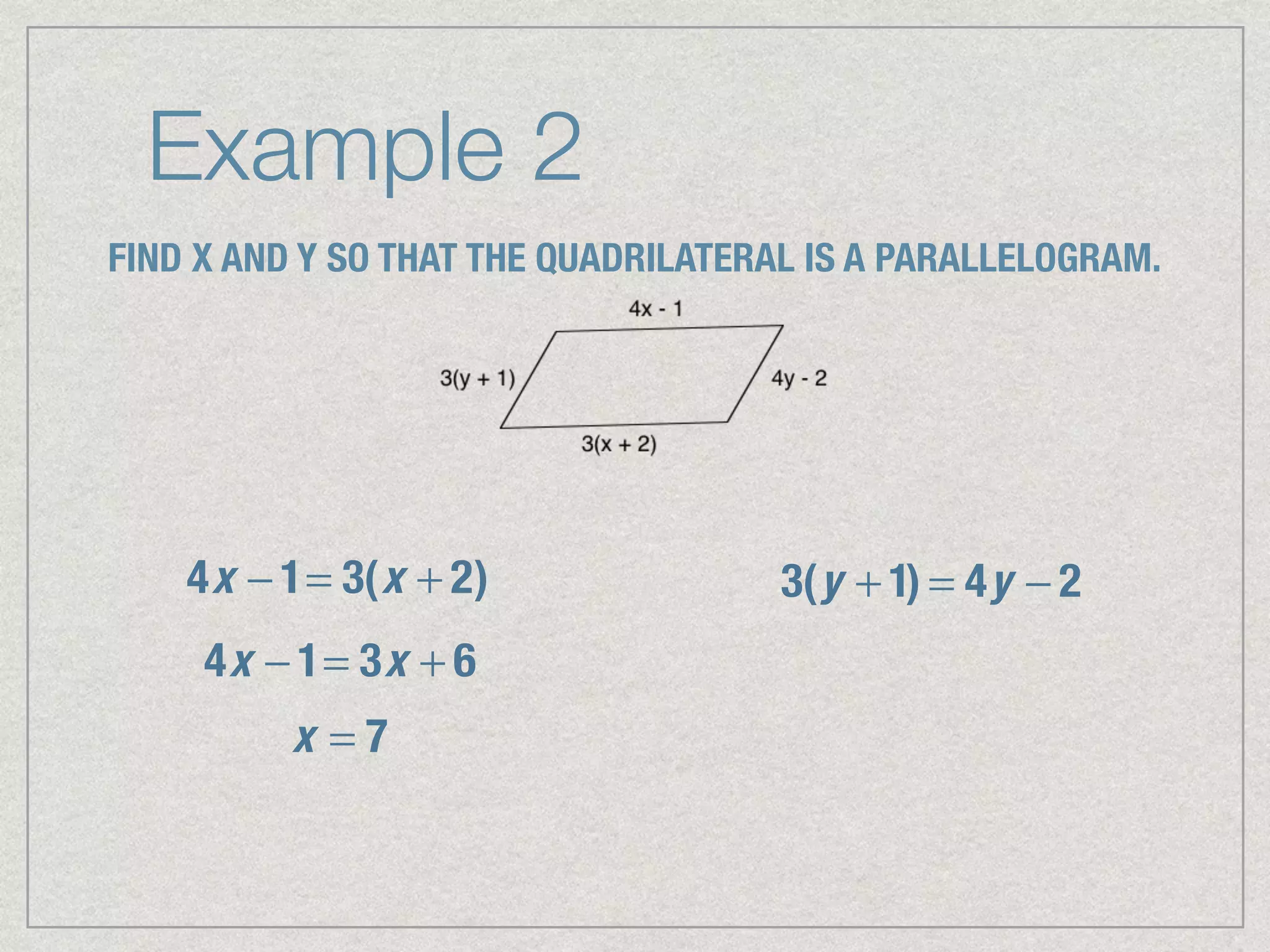

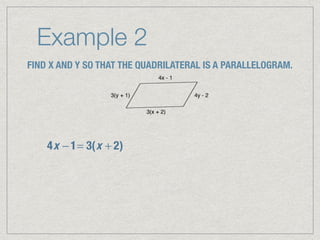

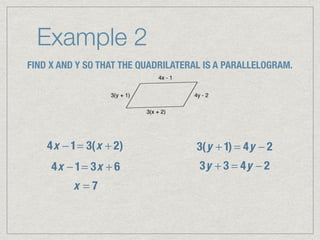

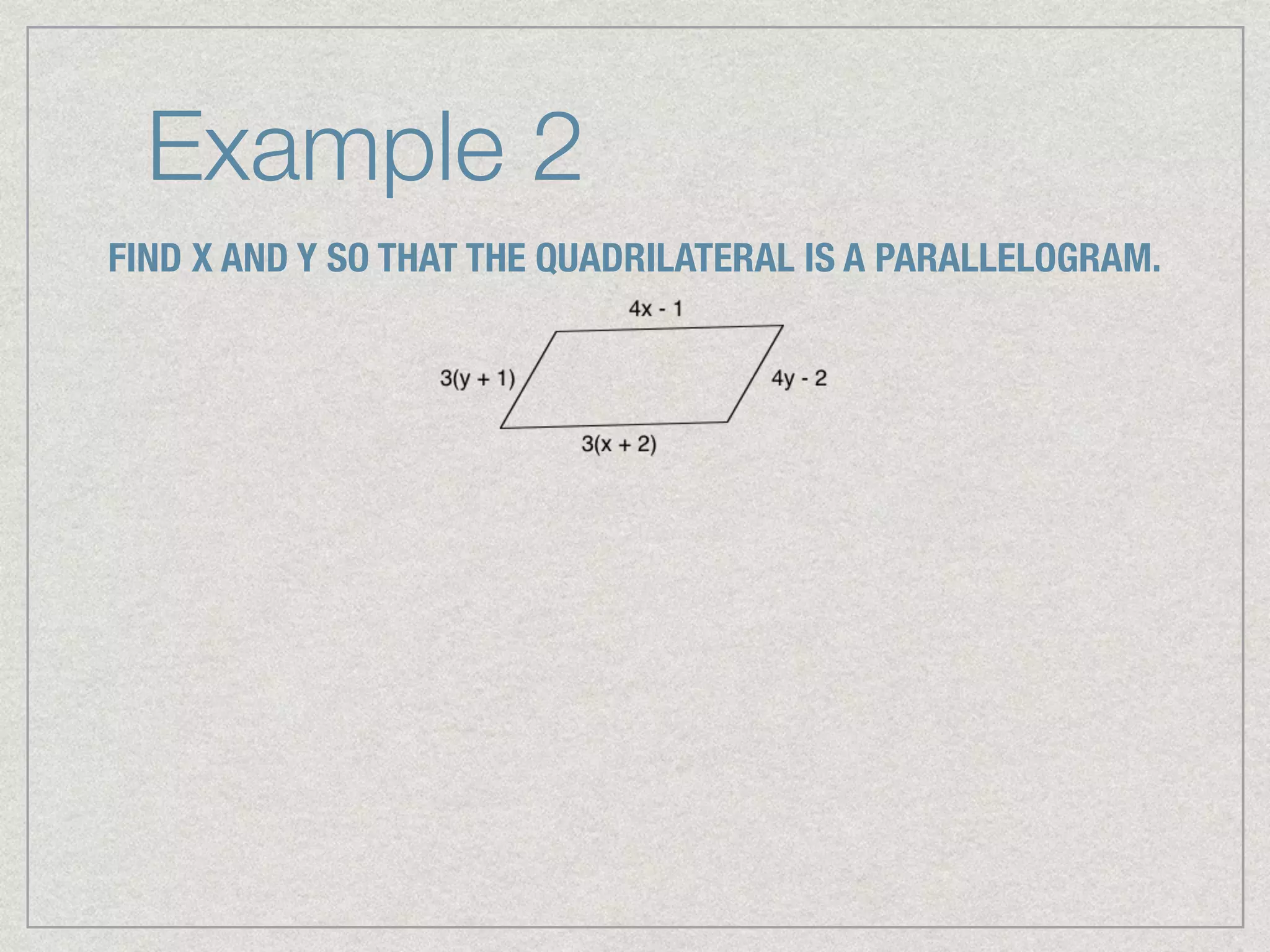

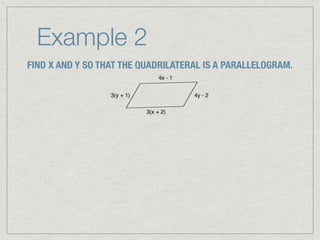

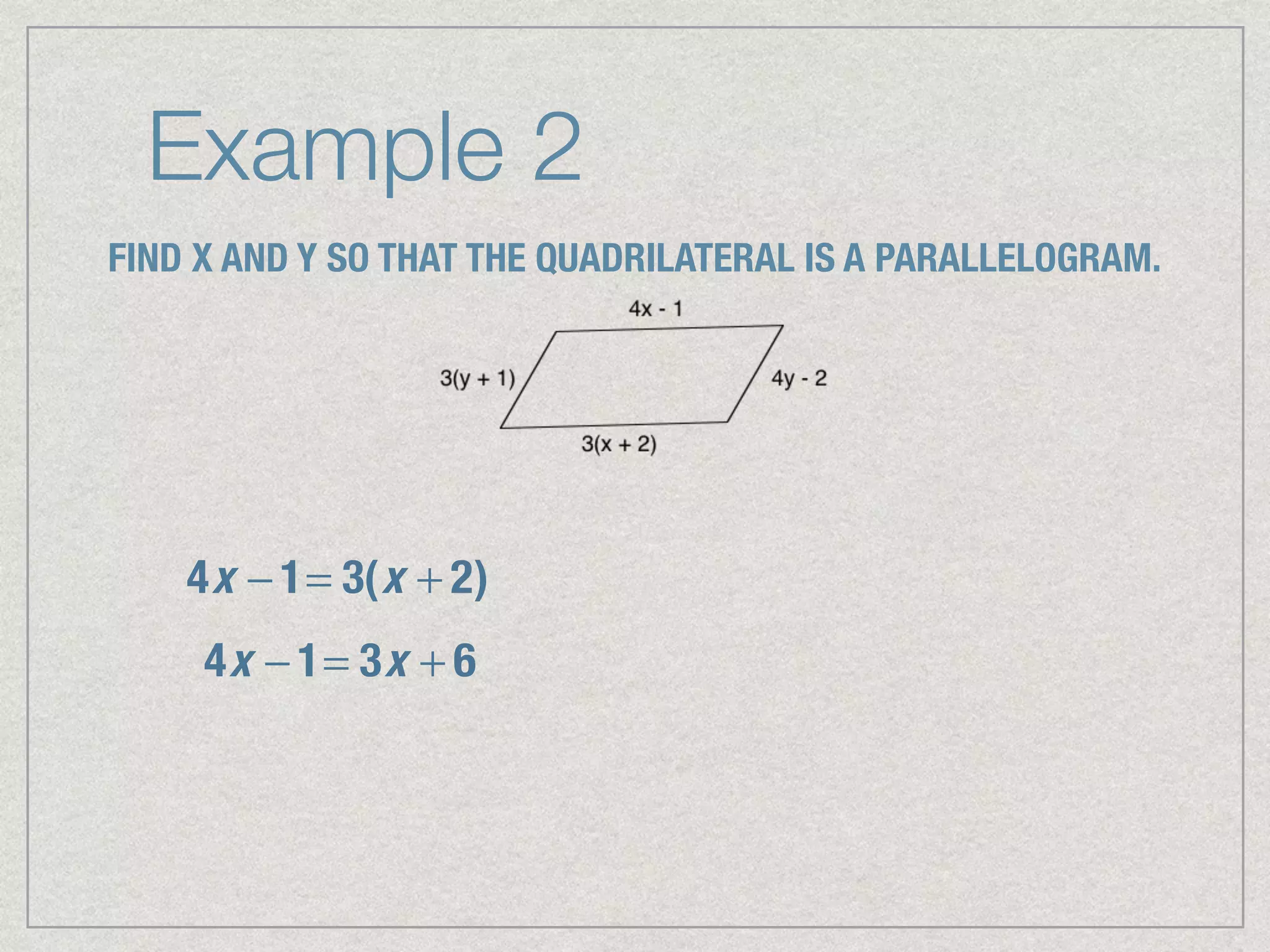

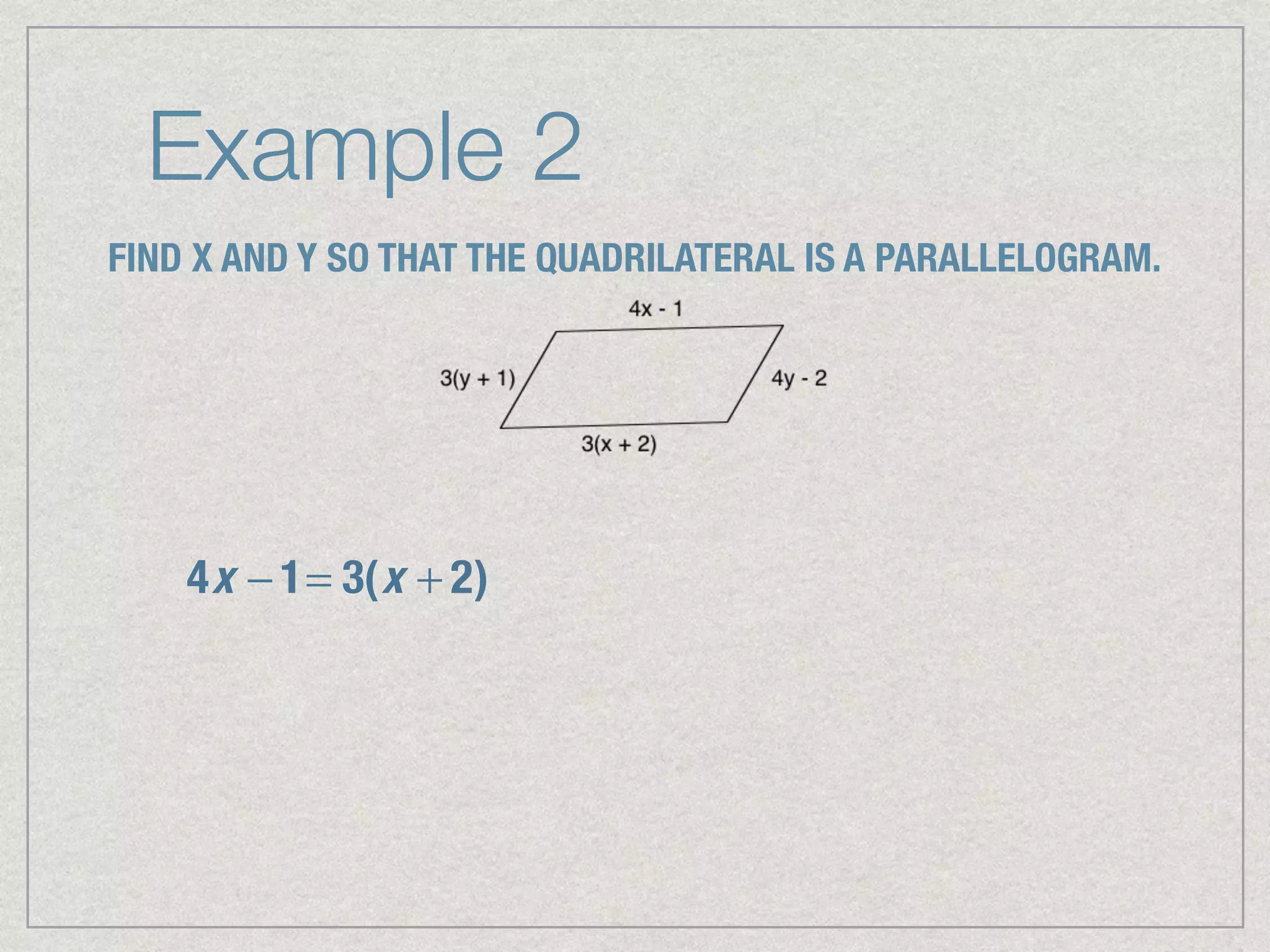

Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
4x − 1= 3x + 6

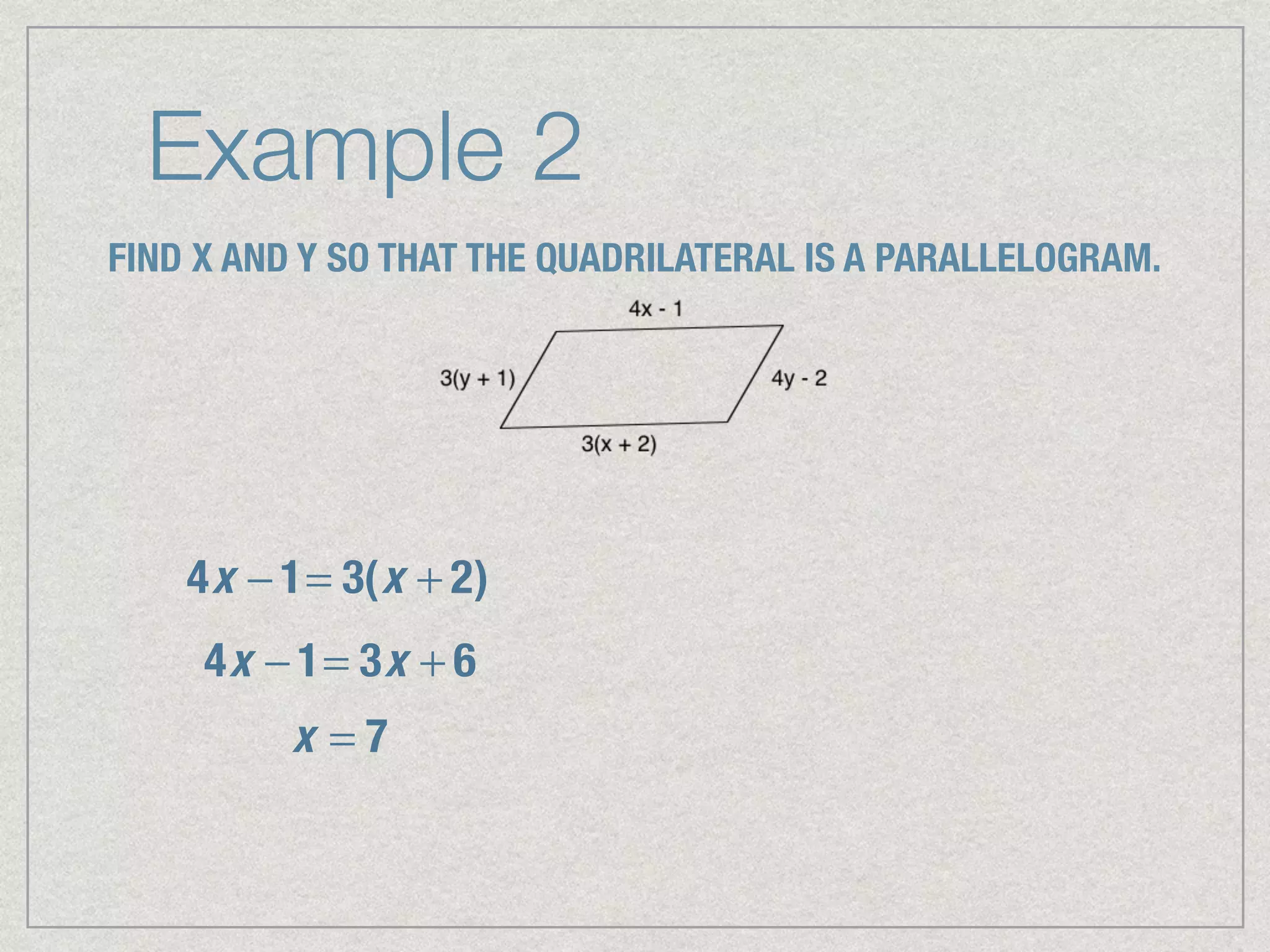

Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
4x − 1= 3x + 6
x = 7
Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
4x − 1= 3x + 6
x = 7
3(y + 1) = 4y − 2

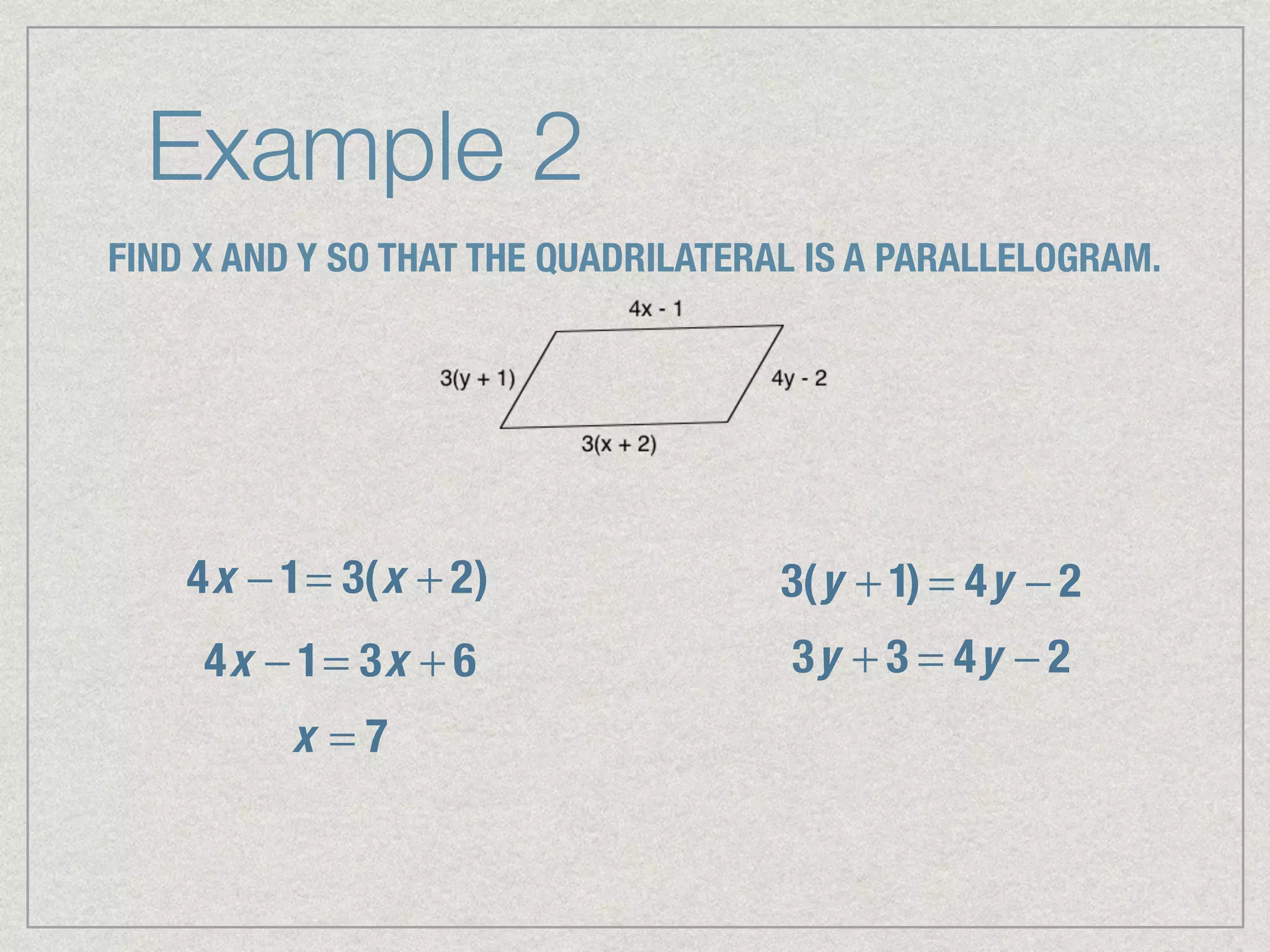

Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
4x − 1= 3x + 6
x = 7
3(y + 1) = 4y − 2
3y + 3 = 4y − 2

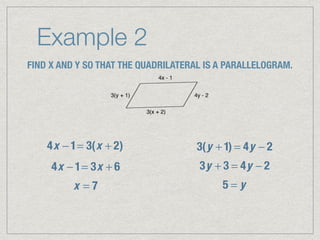

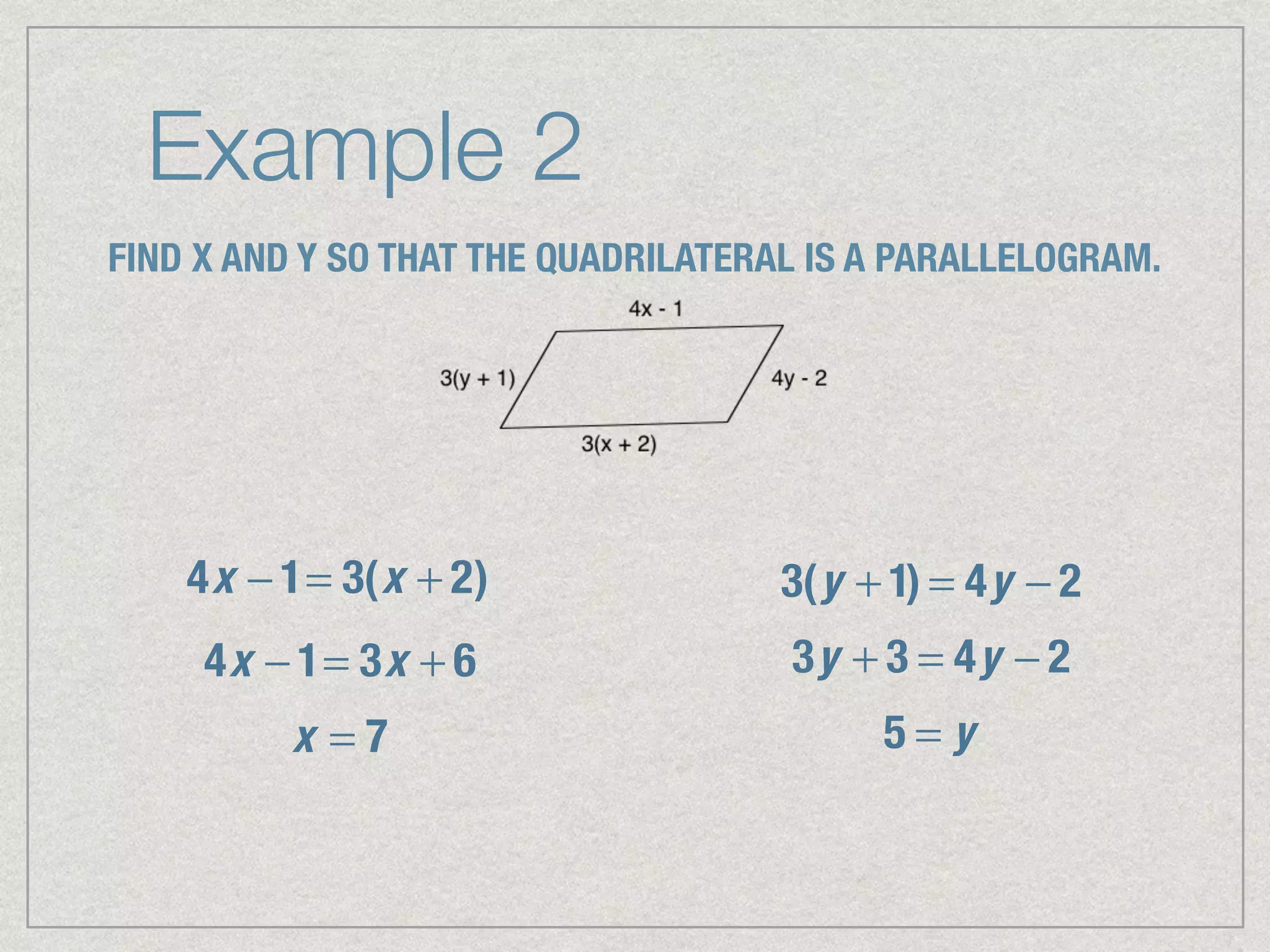

Example 2
FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
4x − 1= 3(x + 2)
4x − 1= 3x + 6
x = 7
3(y + 1) = 4y − 2
3y + 3 = 4y − 2
5 = y

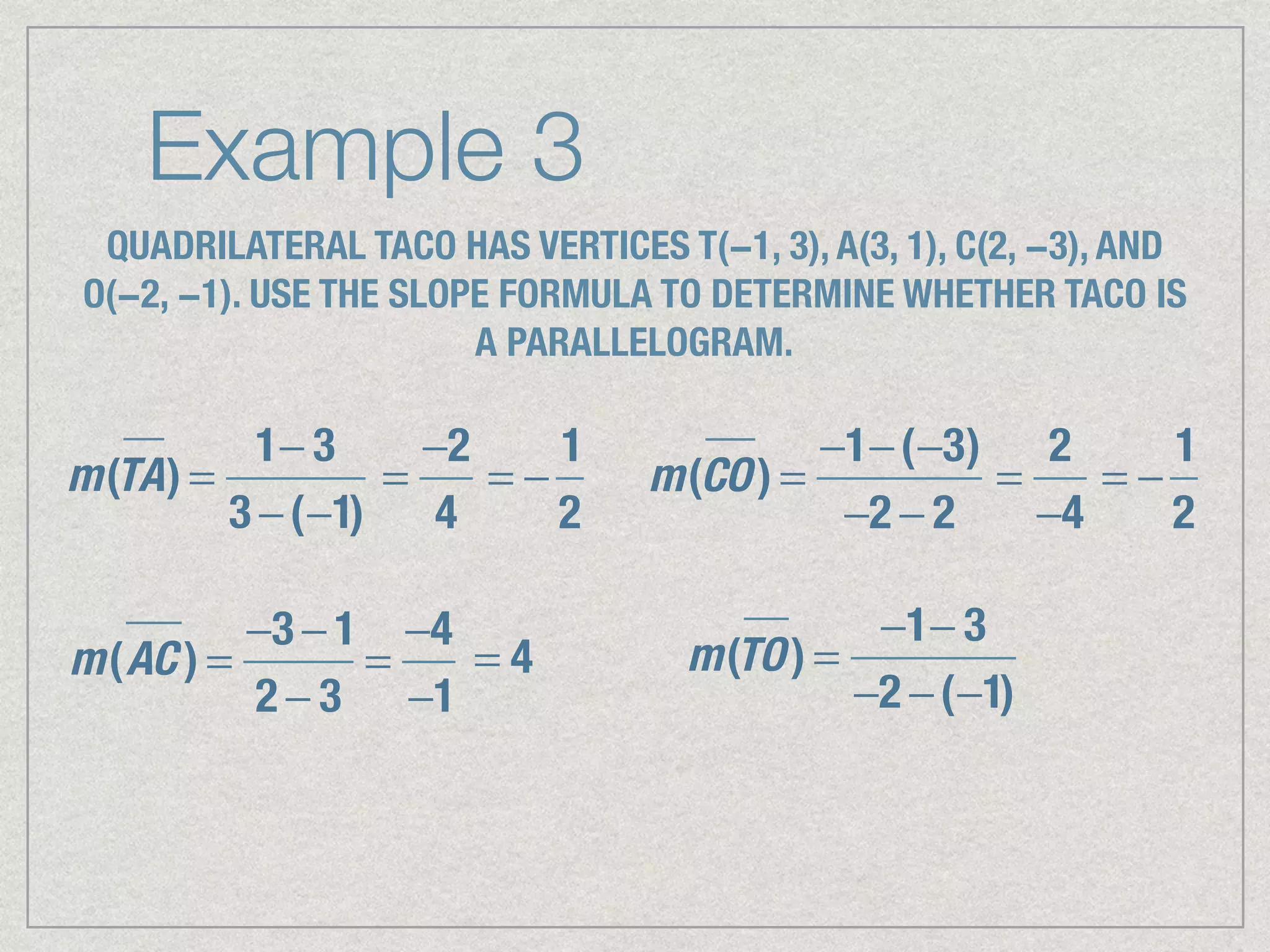

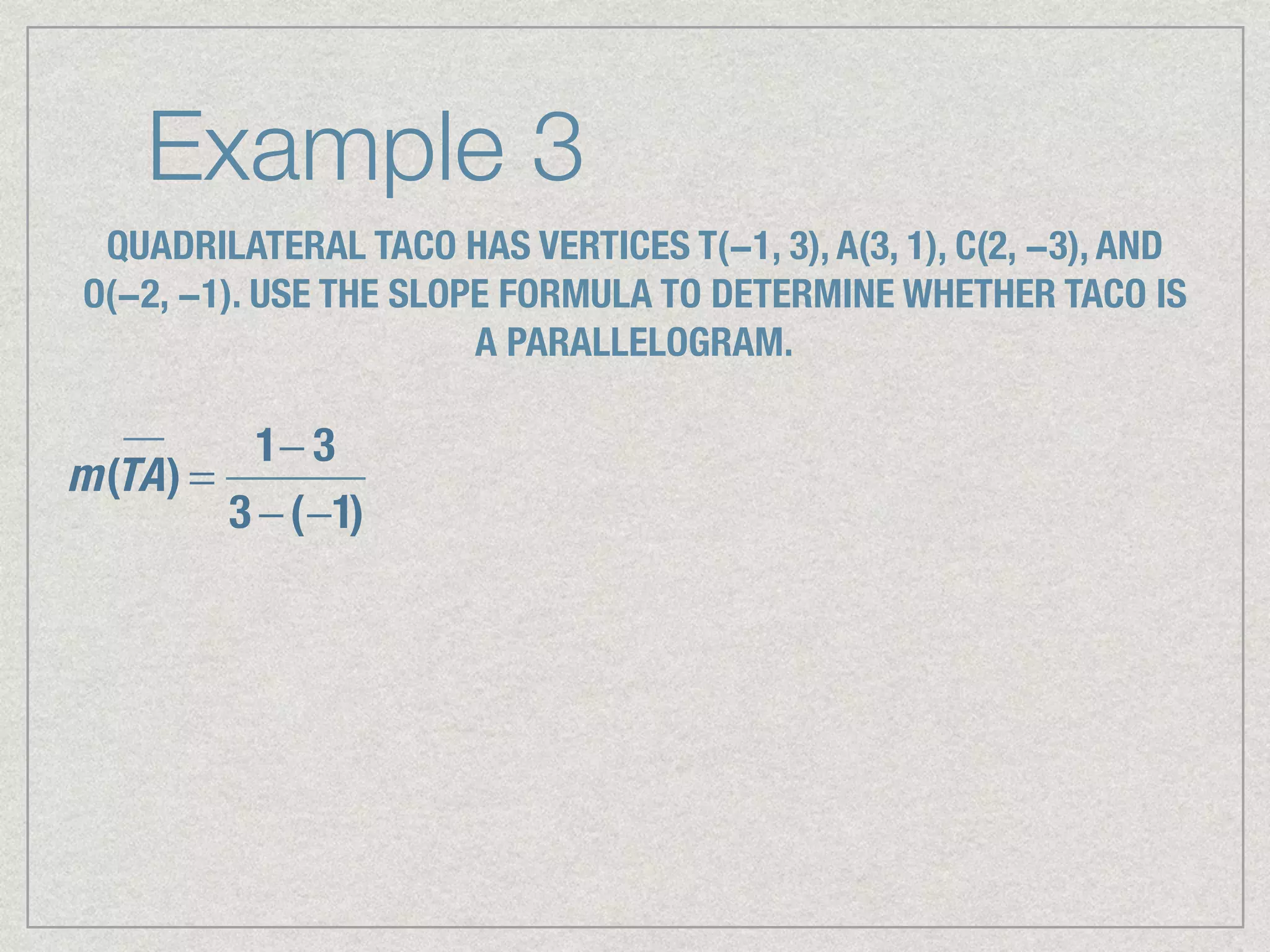

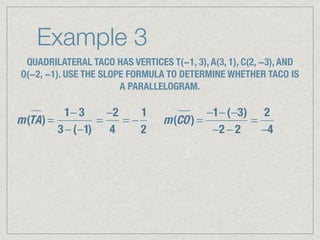

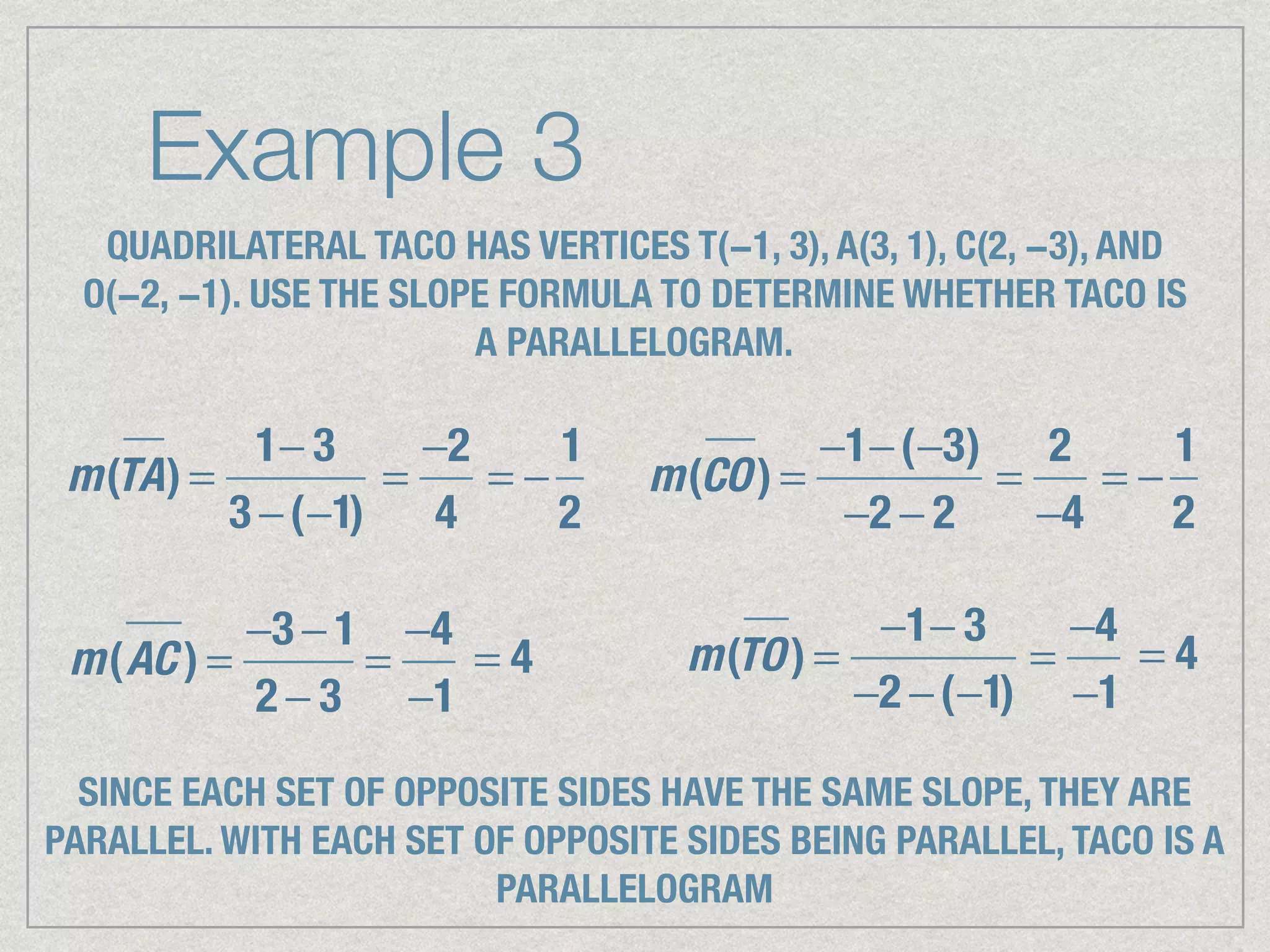

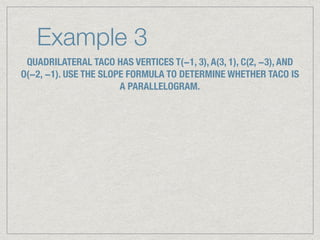

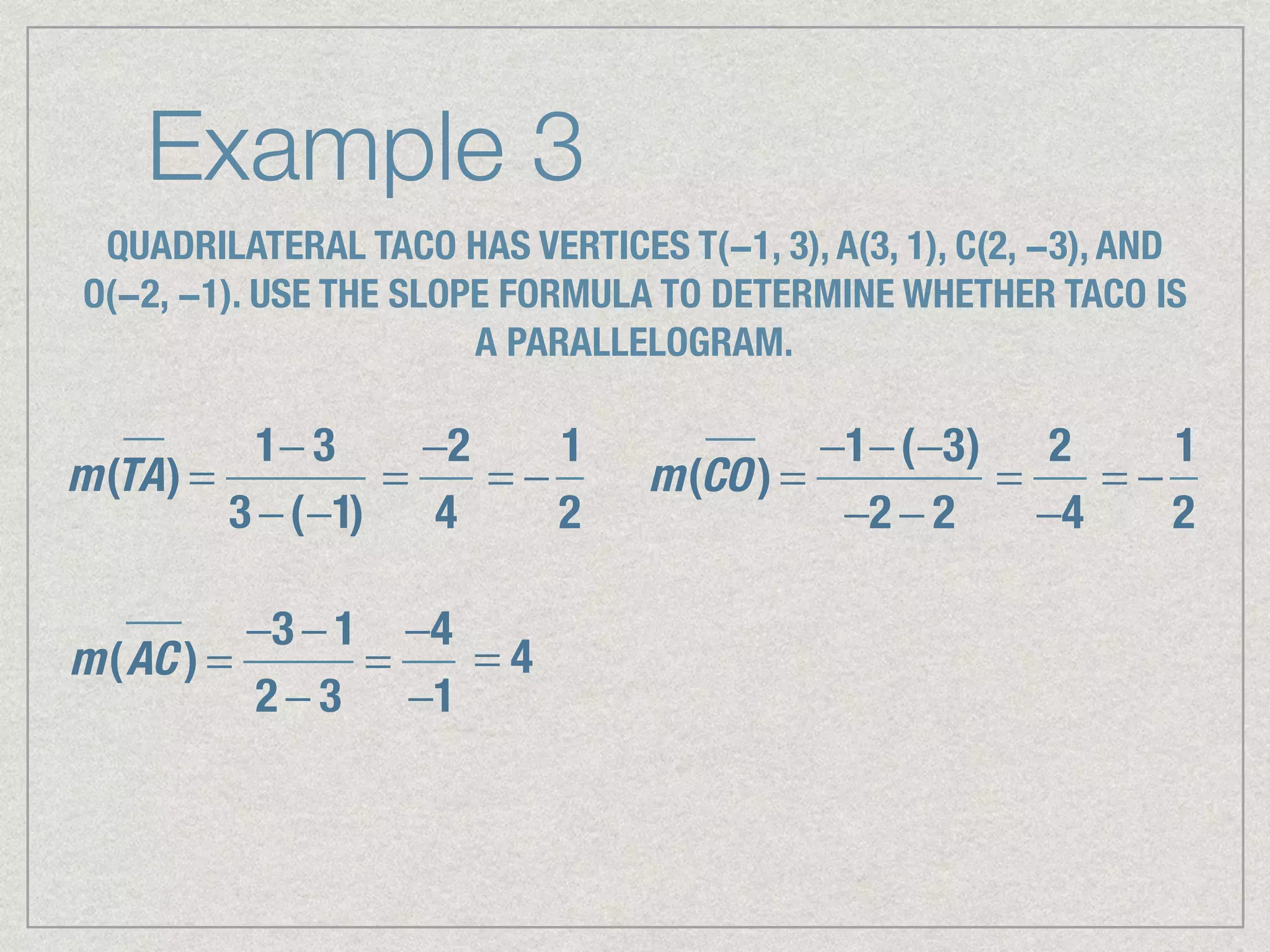

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4

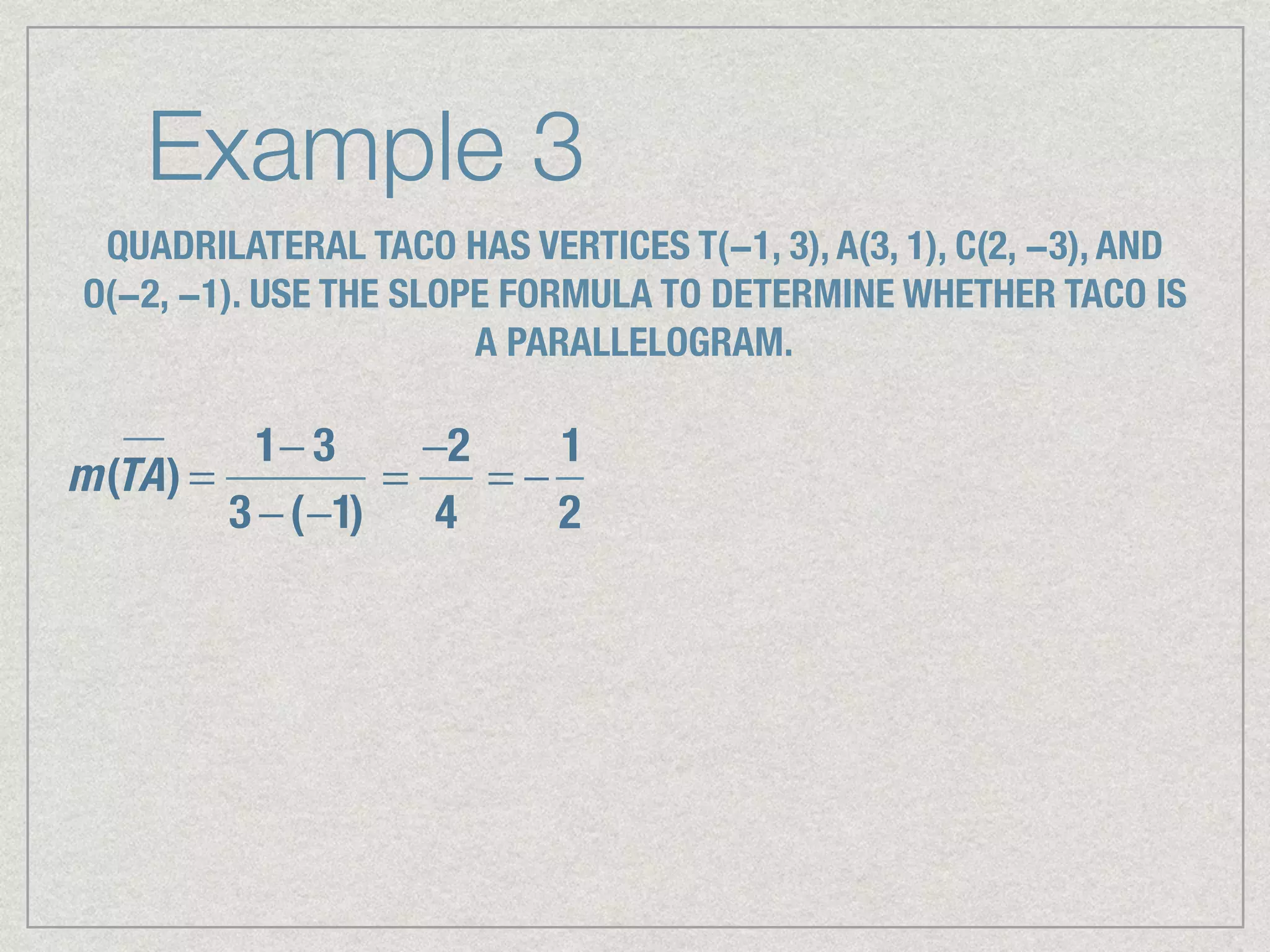

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2

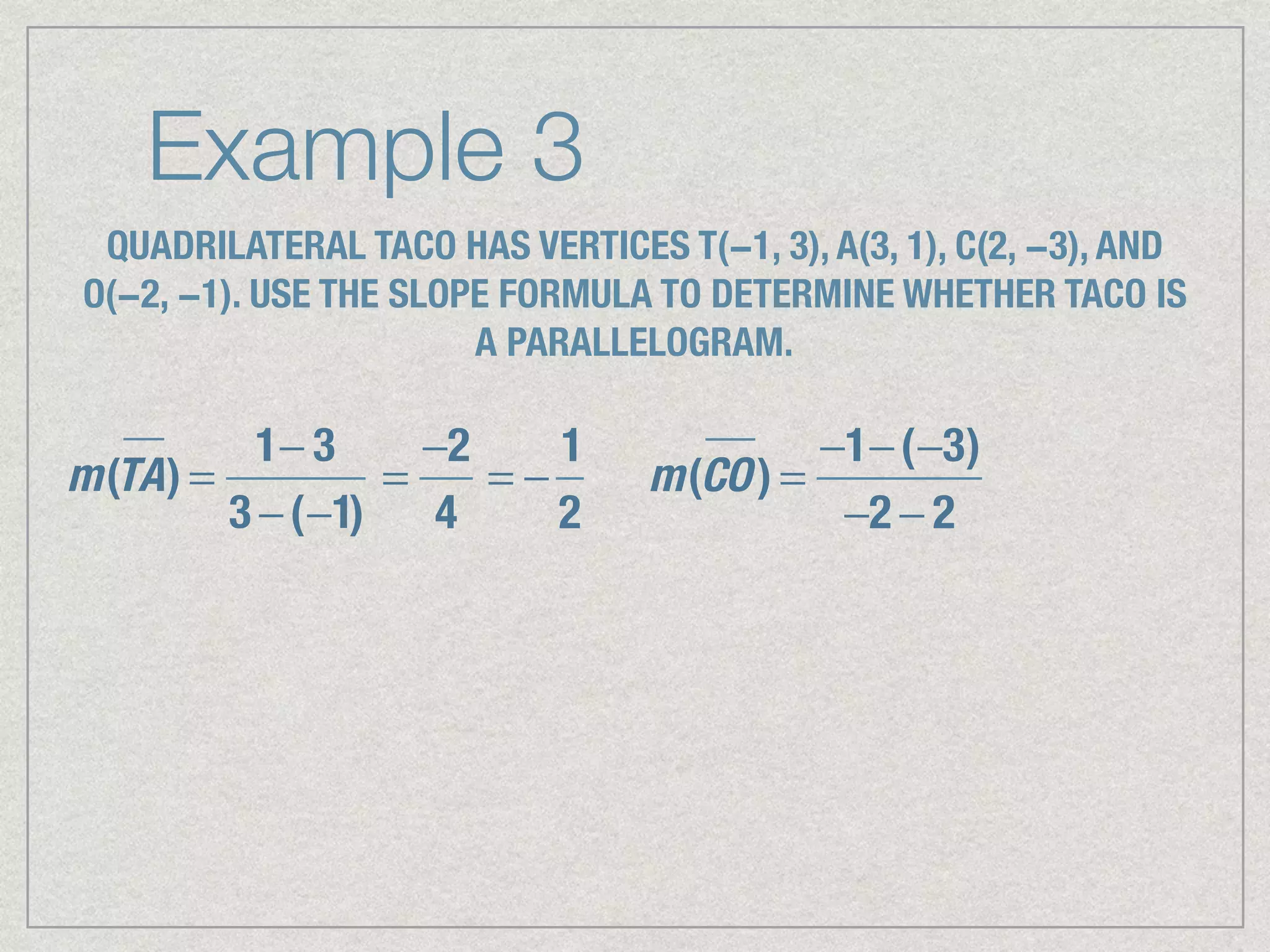

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2

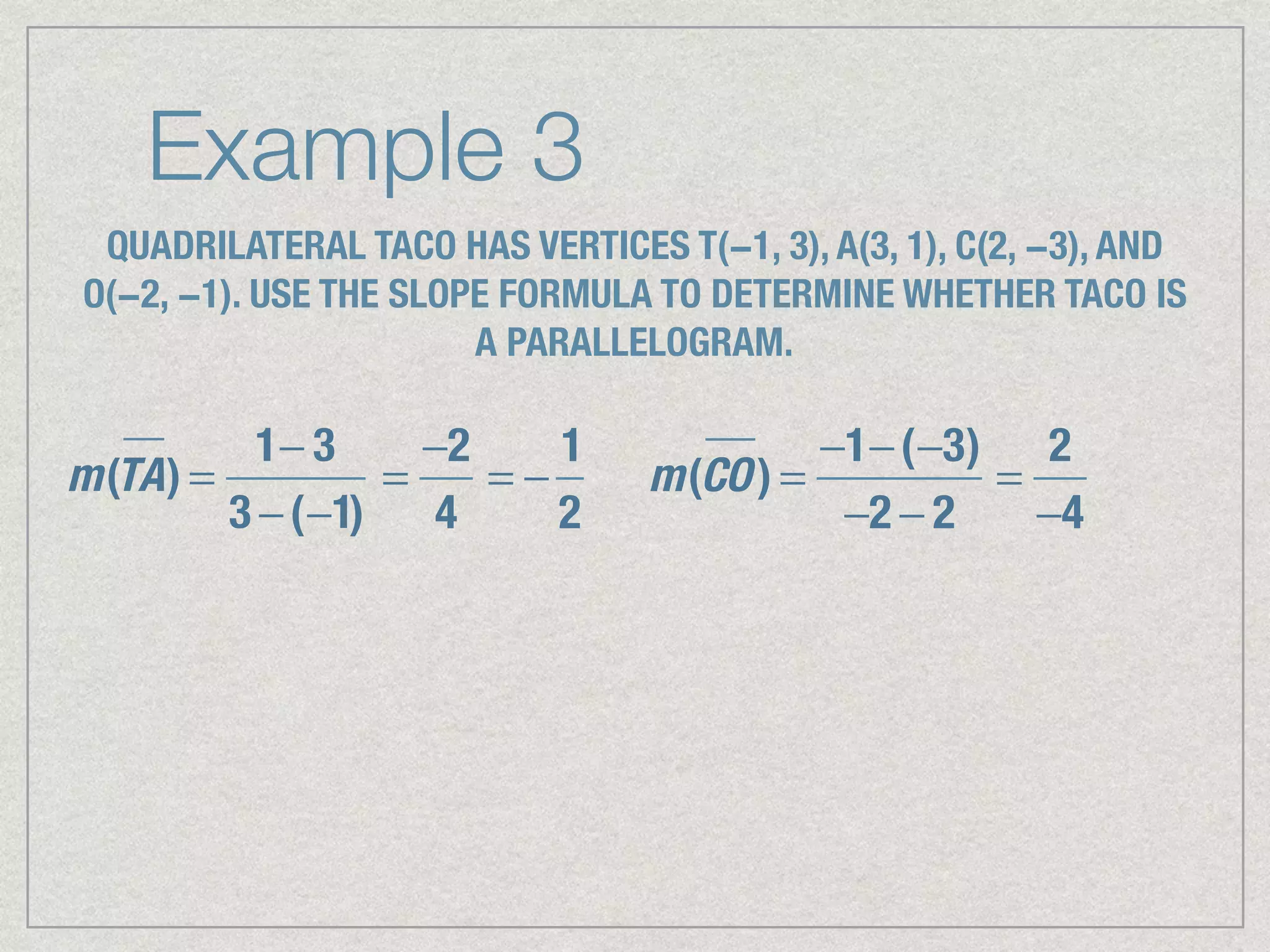

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4

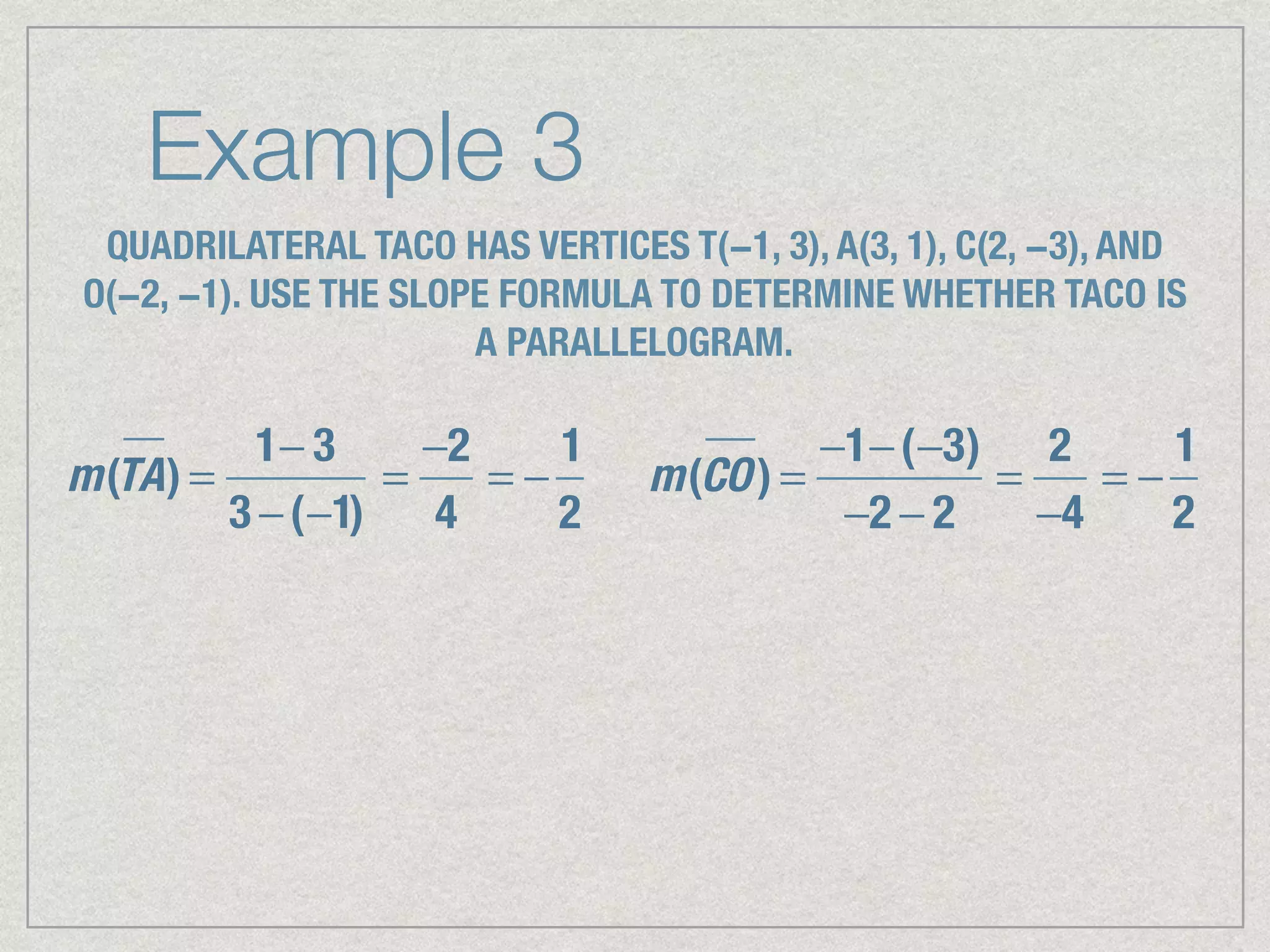

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2

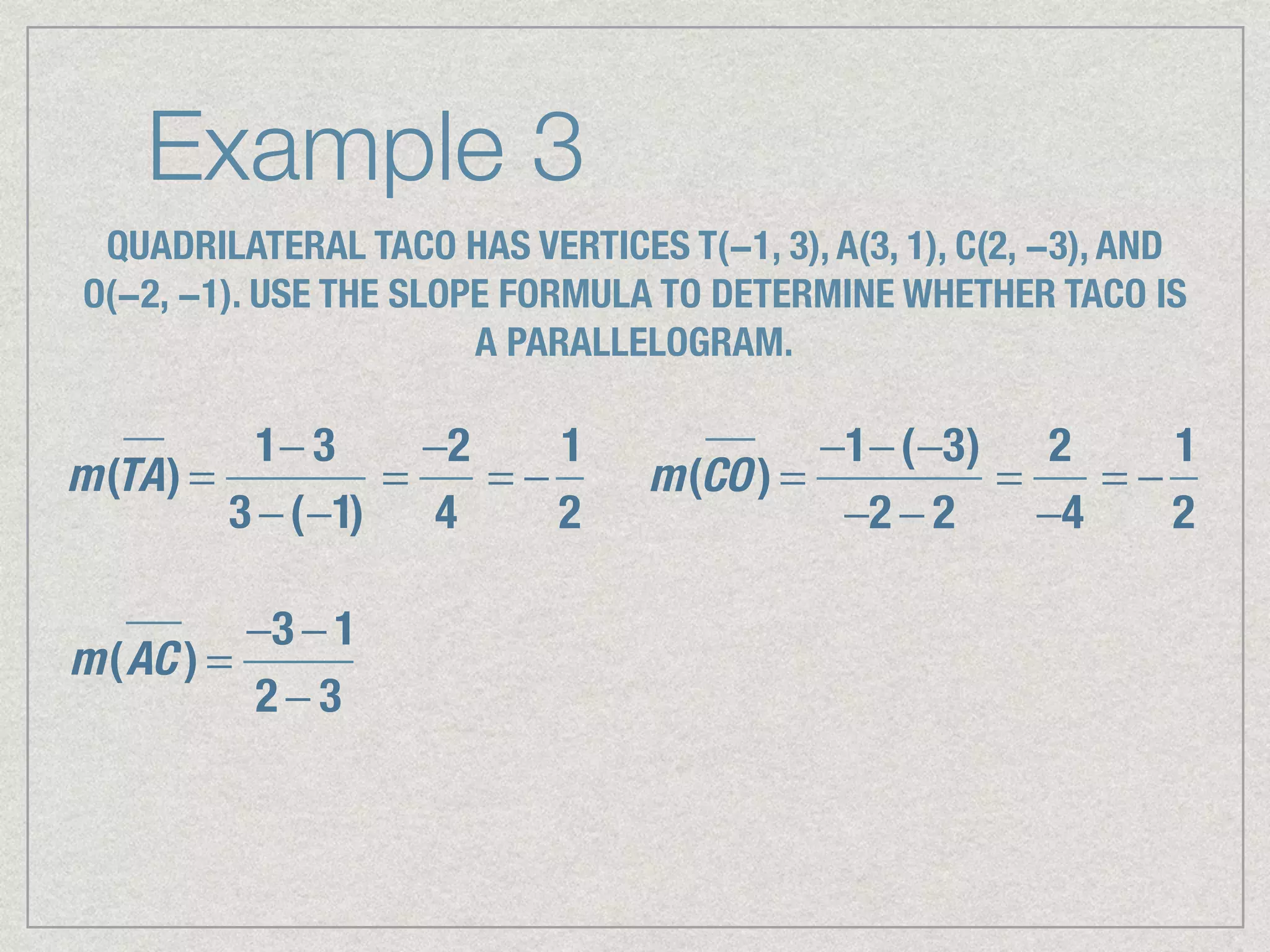

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
= 4
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
= 4 m(TO) =
−1− 3
−2 −(−1)
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
= 4 m(TO) =
−1− 3
−2 −(−1)
=
−4
−1

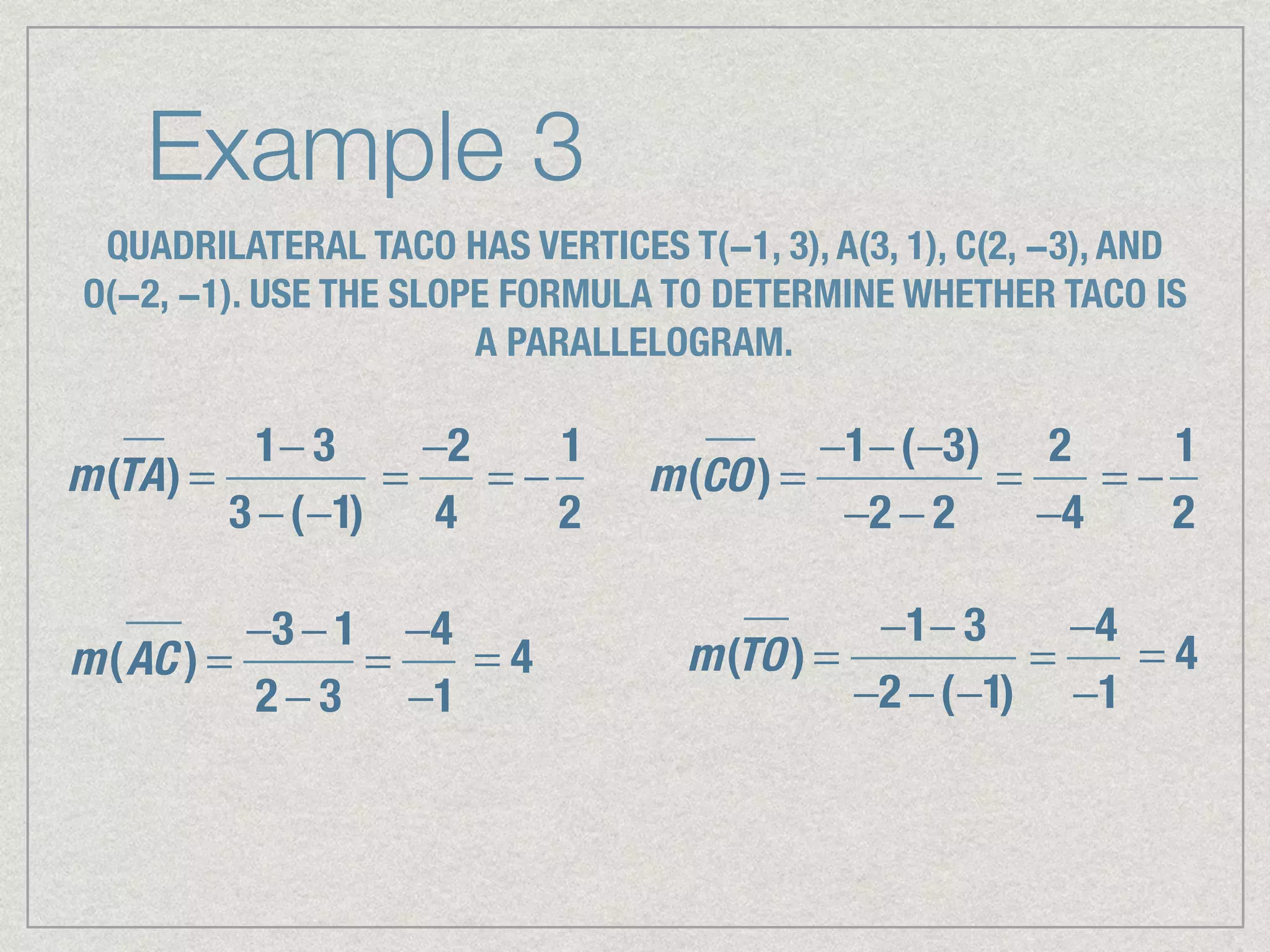

Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
= 4 m(TO) =
−1− 3
−2 −(−1)
=
−4
−1
= 4
Example 3
QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND
O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS
A PARALLELOGRAM.
m(TA) =
1− 3
3 −(−1)
=
−2
4
= −
1
2
m(CO) =
−1−(−3)
−2 − 2
=
2
−4
= −
1
2
m(AC ) =
−3 − 1
2 − 3
=
−4
−1
= 4 m(TO) =
−1− 3
−2 −(−1)
=
−4
−1
= 4
SINCE EACH SET OF OPPOSITE SIDES HAVE THE SAME SLOPE, THEY ARE
PARALLEL. WITH EACH SET OF OPPOSITE SIDES BEING PARALLEL, TACO IS A
PARALLELOGRAM

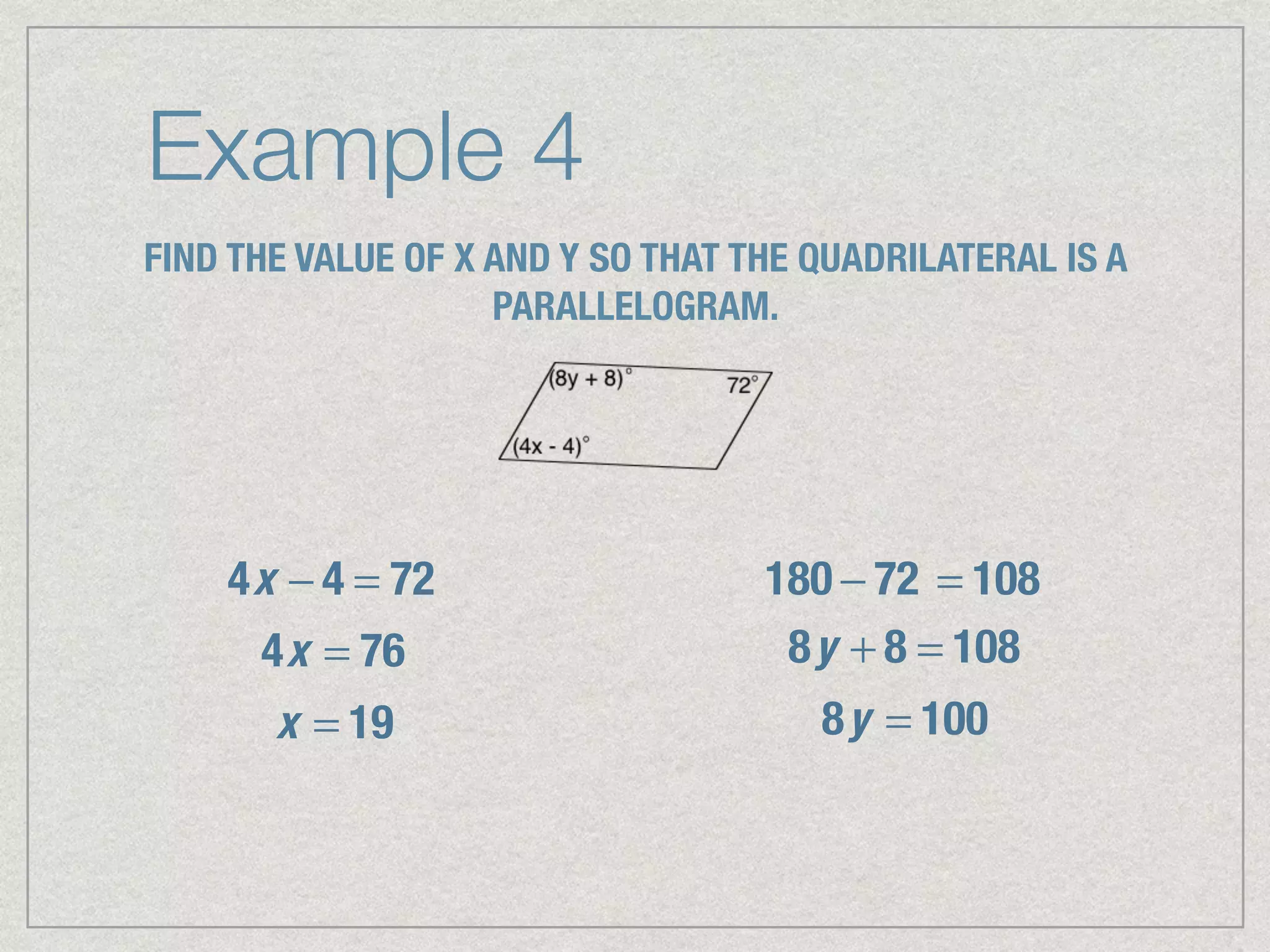

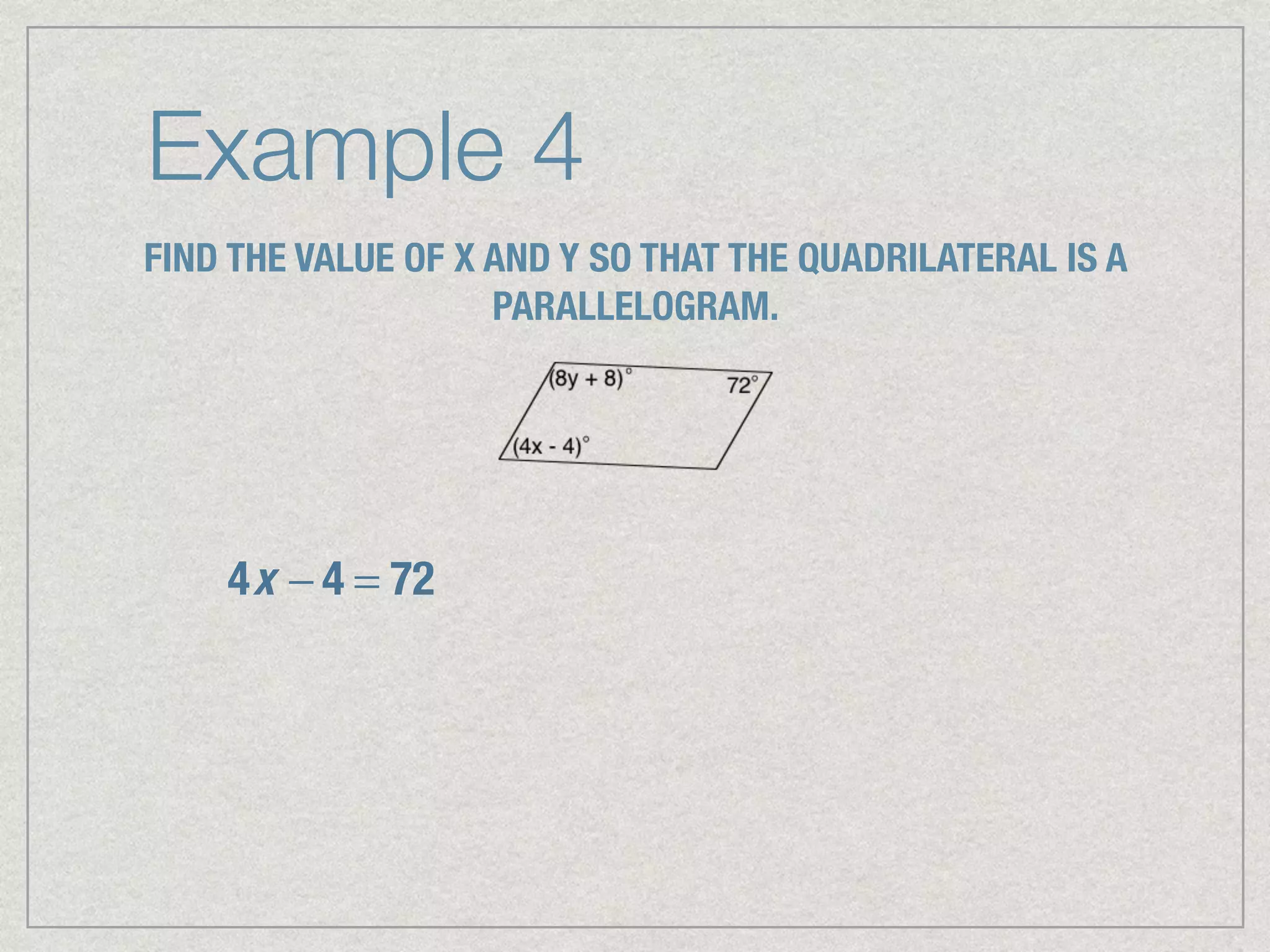

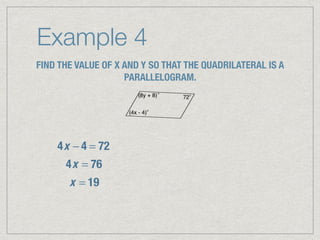

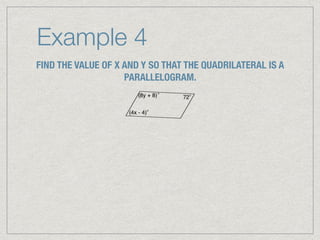

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.

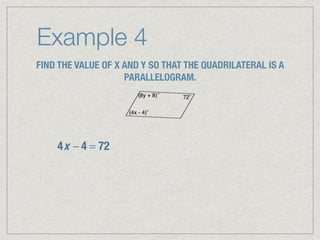

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76

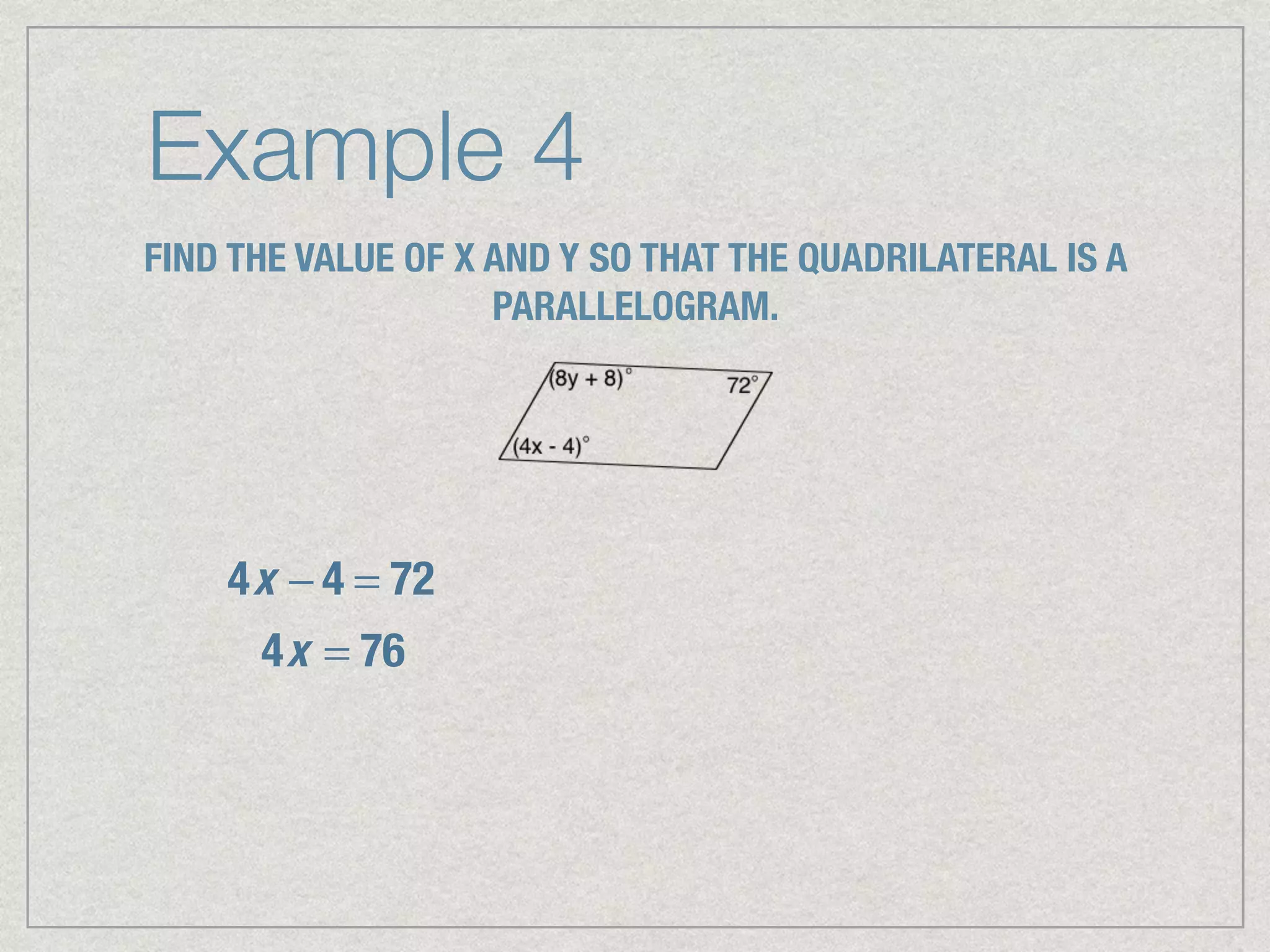

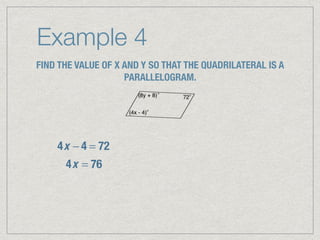

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
180 − 72

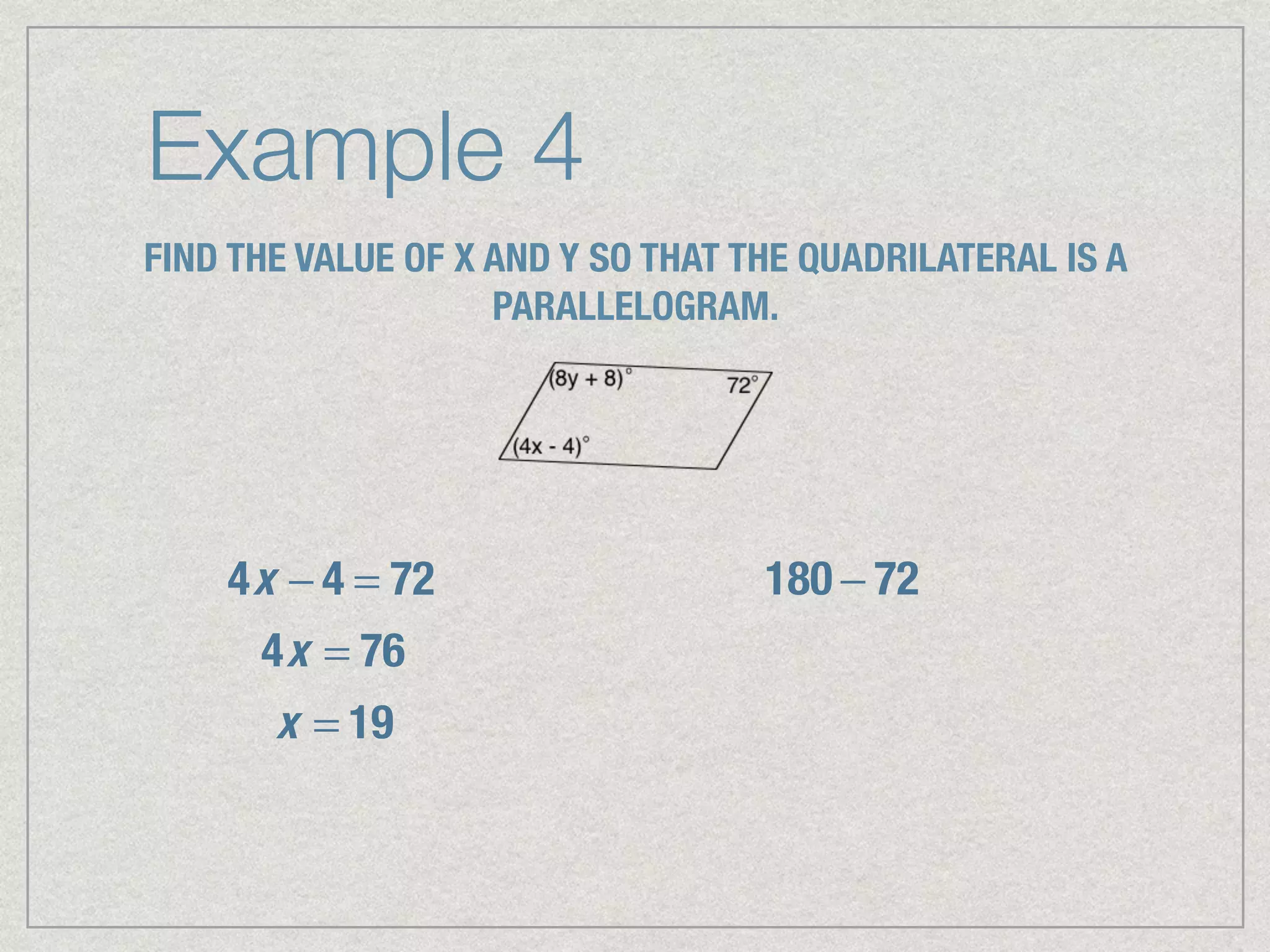

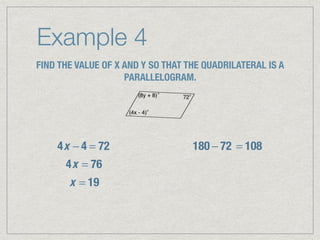

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
180 − 72 = 108
Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
180 − 72 = 108
8y + 8 = 108

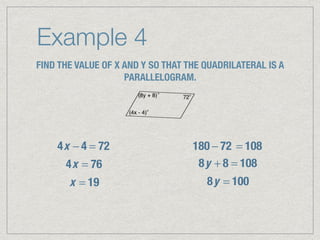

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
180 − 72 = 108
8y + 8 = 108
8y = 100

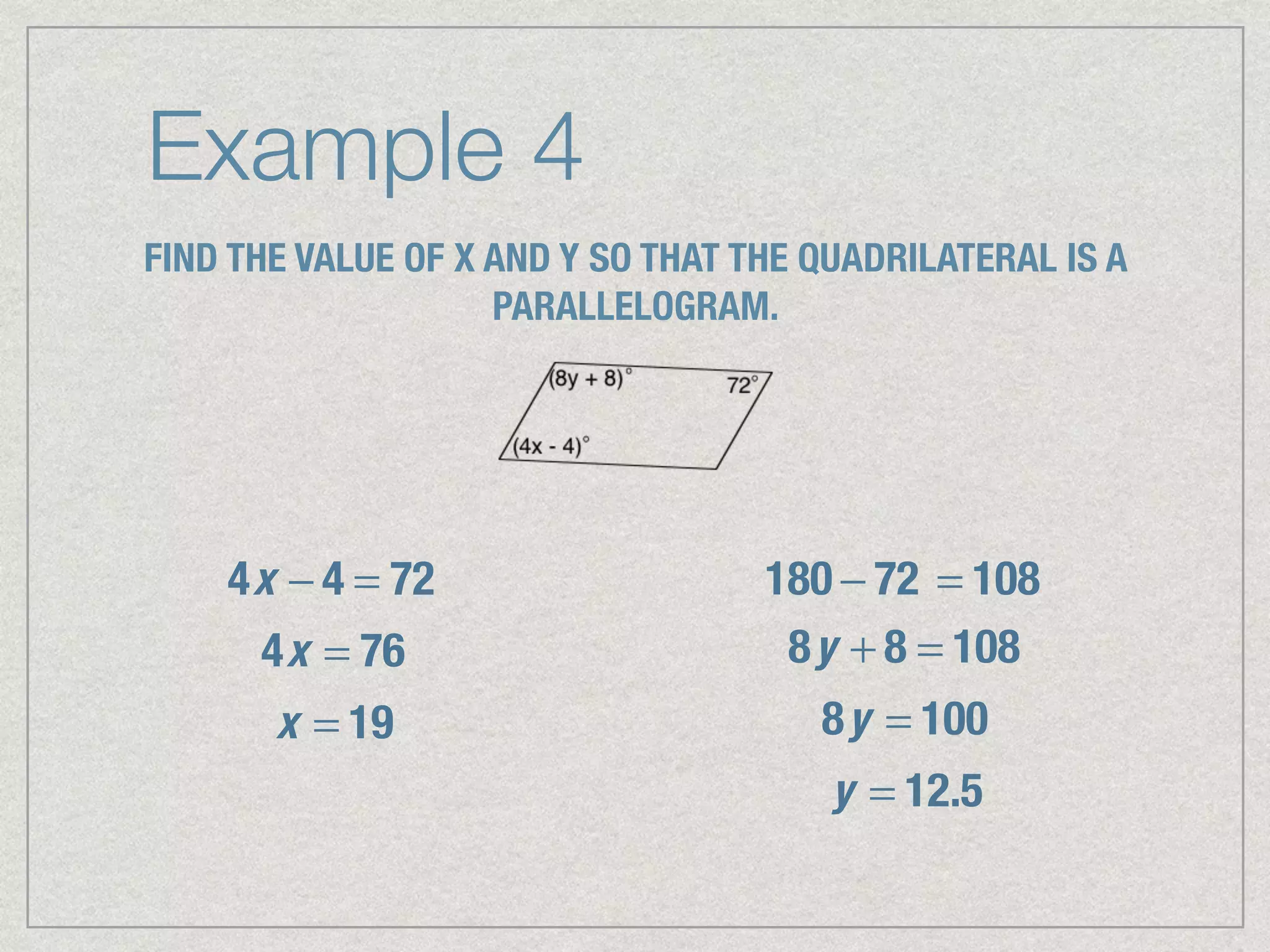

Example 4
FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A
PARALLELOGRAM.
4x − 4 = 72
4x = 76
x = 19
180 − 72 = 108
8y + 8 = 108
8y = 100
y = 12.5

More Related Content

Similar to Geometry Section 6-3

Geosection6 3-120411224025-phpapp02
Geosection6 3-120411224025-phpapp02Geosection6 3-120411224025-phpapp02
Geosection6 3-120411224025-phpapp02
Cleophas Rwemera

Section 11-3 Algebra 2
Section 11-3 Algebra 2Section 11-3 Algebra 2
Section 11-3 Algebra 2
Jimbo Lamb

Geometry unit 6.2.2
Geometry unit 6.2.2Geometry unit 6.2.2
Geometry unit 6.2.2
Mark Ryder

Geometry Section 6-5
Geometry Section 6-5Geometry Section 6-5
Geometry Section 6-5
Jimbo Lamb

Solving Problems Involving Radicals
Solving Problems Involving RadicalsSolving Problems Involving Radicals
Solving Problems Involving Radicals
Cipriano De Leon

Geometry Section 6-6
Geometry Section 6-6Geometry Section 6-6
Geometry Section 6-6
Jimbo Lamb

Gch6 l3
Gch6 l3Gch6 l3
Taylor series and maclaurin with exercices
Taylor series and maclaurin with exercicesTaylor series and maclaurin with exercices
Taylor series and maclaurin with exercicesHernanFula

Geometry Section 12-6
Geometry Section 12-6Geometry Section 12-6
Geometry Section 12-6
Jimbo Lamb

6 3 Proving Parallelograms
6 3 Proving Parallelograms6 3 Proving Parallelograms
6 3 Proving Parallelograms
lmrogers03

Geometry Section 4-3
Geometry Section 4-3Geometry Section 4-3
Geometry Section 4-3
Jimbo Lamb

27 triple integrals in spherical and cylindrical coordinates
27 triple integrals in spherical and cylindrical coordinates27 triple integrals in spherical and cylindrical coordinates
27 triple integrals in spherical and cylindrical coordinatesmath267

Geometry Section 11-4
Geometry Section 11-4Geometry Section 11-4
Geometry Section 11-4
Jimbo Lamb

Geometric Sequence & Series.pptx
Geometric Sequence & Series.pptxGeometric Sequence & Series.pptx
Geometric Sequence & Series.pptx
RegieNaungayan1

Conic Section: Circles (Pre-Calculus).pdf
Conic Section: Circles (Pre-Calculus).pdfConic Section: Circles (Pre-Calculus).pdf
Conic Section: Circles (Pre-Calculus).pdf
LyndrianShalomBaclay

Geometry Section 4-4 1112
Geometry Section 4-4 1112Geometry Section 4-4 1112
Geometry Section 4-4 1112
Jimbo Lamb

Ml geometry 8 5 proving triangles are similar
Ml geometry 8 5 proving triangles are similarMl geometry 8 5 proving triangles are similar
Ml geometry 8 5 proving triangles are similarAnnisa Fathia

Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anova
Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anovaSolution to the practice test ch 10 correlation reg ch 11 gof ch12 anova
Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anova
Long Beach City College

Geometry Section 4-6
Geometry Section 4-6Geometry Section 4-6
Geometry Section 4-6
Jimbo Lamb


Similar to Geometry Section 6-3 (20)

Geosection6 3-120411224025-phpapp02
Geosection6 3-120411224025-phpapp02Geosection6 3-120411224025-phpapp02
Geosection6 3-120411224025-phpapp02

Section 11-3 Algebra 2
Section 11-3 Algebra 2Section 11-3 Algebra 2
Section 11-3 Algebra 2

Geometry unit 6.2.2
Geometry unit 6.2.2Geometry unit 6.2.2
Geometry unit 6.2.2

Geometry Section 6-5
Geometry Section 6-5Geometry Section 6-5
Geometry Section 6-5

Solving Problems Involving Radicals
Solving Problems Involving RadicalsSolving Problems Involving Radicals
Solving Problems Involving Radicals

Geometry Section 6-6
Geometry Section 6-6Geometry Section 6-6
Geometry Section 6-6

1109 ch 11 day 9
1109 ch 11 day 91109 ch 11 day 9
1109 ch 11 day 9

Gch6 l3
Gch6 l3Gch6 l3
Gch6 l3

Taylor series and maclaurin with exercices
Taylor series and maclaurin with exercicesTaylor series and maclaurin with exercices
Taylor series and maclaurin with exercices

Geometry Section 12-6
Geometry Section 12-6Geometry Section 12-6
Geometry Section 12-6

6 3 Proving Parallelograms
6 3 Proving Parallelograms6 3 Proving Parallelograms
6 3 Proving Parallelograms

Geometry Section 4-3
Geometry Section 4-3Geometry Section 4-3
Geometry Section 4-3

27 triple integrals in spherical and cylindrical coordinates
27 triple integrals in spherical and cylindrical coordinates27 triple integrals in spherical and cylindrical coordinates
27 triple integrals in spherical and cylindrical coordinates

Geometry Section 11-4
Geometry Section 11-4Geometry Section 11-4
Geometry Section 11-4

Geometric Sequence & Series.pptx
Geometric Sequence & Series.pptxGeometric Sequence & Series.pptx
Geometric Sequence & Series.pptx

Conic Section: Circles (Pre-Calculus).pdf
Conic Section: Circles (Pre-Calculus).pdfConic Section: Circles (Pre-Calculus).pdf
Conic Section: Circles (Pre-Calculus).pdf

Geometry Section 4-4 1112
Geometry Section 4-4 1112Geometry Section 4-4 1112
Geometry Section 4-4 1112

Ml geometry 8 5 proving triangles are similar
Ml geometry 8 5 proving triangles are similarMl geometry 8 5 proving triangles are similar
Ml geometry 8 5 proving triangles are similar

Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anova
Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anovaSolution to the practice test ch 10 correlation reg ch 11 gof ch12 anova
Solution to the practice test ch 10 correlation reg ch 11 gof ch12 anova

Geometry Section 4-6
Geometry Section 4-6Geometry Section 4-6
Geometry Section 4-6


More from Jimbo Lamb

Geometry Section 1-5
Geometry Section 1-5Geometry Section 1-5
Geometry Section 1-5
Jimbo Lamb

Geometry Section 1-4
Geometry Section 1-4Geometry Section 1-4
Geometry Section 1-4
Jimbo Lamb

Geometry Section 1-3
Geometry Section 1-3Geometry Section 1-3
Geometry Section 1-3
Jimbo Lamb

Geometry Section 1-2
Geometry Section 1-2Geometry Section 1-2
Geometry Section 1-2
Jimbo Lamb

Geometry Section 1-2
Geometry Section 1-2Geometry Section 1-2
Geometry Section 1-2
Jimbo Lamb

Geometry Section 1-1
Geometry Section 1-1Geometry Section 1-1
Geometry Section 1-1
Jimbo Lamb

Algebra 2 Section 5-3
Algebra 2 Section 5-3Algebra 2 Section 5-3
Algebra 2 Section 5-3
Jimbo Lamb

Algebra 2 Section 5-2
Algebra 2 Section 5-2Algebra 2 Section 5-2
Algebra 2 Section 5-2
Jimbo Lamb

Algebra 2 Section 5-1
Algebra 2 Section 5-1Algebra 2 Section 5-1
Algebra 2 Section 5-1
Jimbo Lamb

Algebra 2 Section 4-9
Algebra 2 Section 4-9Algebra 2 Section 4-9
Algebra 2 Section 4-9
Jimbo Lamb

Algebra 2 Section 4-8
Algebra 2 Section 4-8Algebra 2 Section 4-8
Algebra 2 Section 4-8
Jimbo Lamb

Algebra 2 Section 4-6
Algebra 2 Section 4-6Algebra 2 Section 4-6
Algebra 2 Section 4-6
Jimbo Lamb

Geometry Section 6-4
Geometry Section 6-4Geometry Section 6-4
Geometry Section 6-4
Jimbo Lamb

Geometry Section 6-2
Geometry Section 6-2Geometry Section 6-2
Geometry Section 6-2
Jimbo Lamb

Geometry Section 6-1
Geometry Section 6-1Geometry Section 6-1
Geometry Section 6-1
Jimbo Lamb

Algebra 2 Section 4-5
Algebra 2 Section 4-5Algebra 2 Section 4-5
Algebra 2 Section 4-5
Jimbo Lamb

Algebra 2 Section 4-4
Algebra 2 Section 4-4Algebra 2 Section 4-4
Algebra 2 Section 4-4
Jimbo Lamb

Algebra 2 Section 4-2
Algebra 2 Section 4-2Algebra 2 Section 4-2
Algebra 2 Section 4-2
Jimbo Lamb

Algebra 2 Section 4-3
Algebra 2 Section 4-3Algebra 2 Section 4-3
Algebra 2 Section 4-3
Jimbo Lamb

Geometry Section 4-5
Geometry Section 4-5Geometry Section 4-5
Geometry Section 4-5
Jimbo Lamb


More from Jimbo Lamb (20)

Geometry Section 1-5
Geometry Section 1-5Geometry Section 1-5
Geometry Section 1-5

Geometry Section 1-4
Geometry Section 1-4Geometry Section 1-4
Geometry Section 1-4

Geometry Section 1-3
Geometry Section 1-3Geometry Section 1-3
Geometry Section 1-3

Geometry Section 1-2
Geometry Section 1-2Geometry Section 1-2
Geometry Section 1-2

Geometry Section 1-2
Geometry Section 1-2Geometry Section 1-2
Geometry Section 1-2

Geometry Section 1-1
Geometry Section 1-1Geometry Section 1-1
Geometry Section 1-1

Algebra 2 Section 5-3
Algebra 2 Section 5-3Algebra 2 Section 5-3
Algebra 2 Section 5-3

Algebra 2 Section 5-2
Algebra 2 Section 5-2Algebra 2 Section 5-2
Algebra 2 Section 5-2

Algebra 2 Section 5-1
Algebra 2 Section 5-1Algebra 2 Section 5-1
Algebra 2 Section 5-1

Algebra 2 Section 4-9
Algebra 2 Section 4-9Algebra 2 Section 4-9
Algebra 2 Section 4-9

Algebra 2 Section 4-8
Algebra 2 Section 4-8Algebra 2 Section 4-8
Algebra 2 Section 4-8

Algebra 2 Section 4-6
Algebra 2 Section 4-6Algebra 2 Section 4-6
Algebra 2 Section 4-6

Geometry Section 6-4
Geometry Section 6-4Geometry Section 6-4
Geometry Section 6-4

Geometry Section 6-2
Geometry Section 6-2Geometry Section 6-2
Geometry Section 6-2

Geometry Section 6-1
Geometry Section 6-1Geometry Section 6-1
Geometry Section 6-1

Algebra 2 Section 4-5
Algebra 2 Section 4-5Algebra 2 Section 4-5
Algebra 2 Section 4-5

Algebra 2 Section 4-4
Algebra 2 Section 4-4Algebra 2 Section 4-4
Algebra 2 Section 4-4

Algebra 2 Section 4-2
Algebra 2 Section 4-2Algebra 2 Section 4-2
Algebra 2 Section 4-2

Algebra 2 Section 4-3
Algebra 2 Section 4-3Algebra 2 Section 4-3
Algebra 2 Section 4-3

Geometry Section 4-5
Geometry Section 4-5Geometry Section 4-5
Geometry Section 4-5


Recently uploaded

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.
Atul Kumar Singh

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf
kaushalkr1407

Synthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptxSynthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptx
Pavel ( NSTU)

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
EugeneSaldivar

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research
Vikramjit Singh

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx
Jheel Barad

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf
Thiyagu K

How to Break the cycle of negative Thoughts
How to Break the cycle of negative ThoughtsHow to Break the cycle of negative Thoughts
How to Break the cycle of negative Thoughts
Col Mukteshwar Prasad

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips
GeoBlogs

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx
Jisc

CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCECLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
BhavyaRajput3

Sectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdfSectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdf
Vivekanand Anglo Vedic Academy

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx
bennyroshan06

PART A. Introduction to Costumer Service
PART A. Introduction to Costumer ServicePART A. Introduction to Costumer Service
PART A. Introduction to Costumer Service
PedroFerreira53928

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx
RaedMohamed3

ESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdfESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdf
Fundacja Rozwoju Społeczeństwa Przedsiębiorczego

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason
Steve Thomason

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf
Tamralipta Mahavidyalaya

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17
Celine George


Recently uploaded (20)

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf

Synthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptxSynthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptx

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf

How to Break the cycle of negative Thoughts
How to Break the cycle of negative ThoughtsHow to Break the cycle of negative Thoughts
How to Break the cycle of negative Thoughts

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx

CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCECLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE

Sectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdfSectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdf

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx

PART A. Introduction to Costumer Service
PART A. Introduction to Costumer ServicePART A. Introduction to Costumer Service
PART A. Introduction to Costumer Service

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx

ESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdfESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdf

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17


Geometry Section 6-3

  • 1. Section 6-3 Tests for Parallelograms
  • 2. Essential Questions How do you recognize the conditions that ensure a quadrilateral is a parallelogram? How do you prove that a set of points forms a parallelogram in the coordinate plane?
  • 3. Theorems 6.9 - OPPOSITE SIDES: 6.10 - OPPOSITE ANGLES: 6.11 - DIAGONALS: 6.12 - PARALLEL CONGRUENT SET OF SIDES:
  • 4. Theorems 6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.10 - OPPOSITE ANGLES: 6.11 - DIAGONALS: 6.12 - PARALLEL CONGRUENT SET OF SIDES:
  • 5. Theorems 6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.11 - DIAGONALS: 6.12 - PARALLEL CONGRUENT SET OF SIDES:
  • 6. Theorems 6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.11 - DIAGONALS: IF THE DIAGONALS OF A QUADRILATERAL BISECT EACH OTHER, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.12 - PARALLEL CONGRUENT SET OF SIDES:
  • 7. Theorems 6.9 - OPPOSITE SIDES: IF BOTH PAIRS OF OPPOSITE SIDES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.10 - OPPOSITE ANGLES: IF BOTH PAIRS OF OPPOSITE ANGLES OF A QUADRILATERAL ARE CONGRUENT, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.11 - DIAGONALS: IF THE DIAGONALS OF A QUADRILATERAL BISECT EACH OTHER, THEN THE QUADRILATERAL IS A PARALLELOGRAM 6.12 - PARALLEL CONGRUENT SET OF SIDES: IF ONE PAIR OF OPPOSITES SIDES OF A QUADRILATERAL IS BOTH CONGRUENT AND PARALLEL, THEN THE QUADRILATERAL IS A PARALLELOGRAM
  • 8. Example 1 DETERMINE WHETHER THE QUADRILATERAL IS A PARALLELOGRAM. JUSTIFY YOUR ANSWER.
  • 9. Example 1 DETERMINE WHETHER THE QUADRILATERAL IS A PARALLELOGRAM. JUSTIFY YOUR ANSWER. BOTH PAIRS OF OPPOSITE SIDES HAVE THE SAME MEASURE, SO EACH OPPOSITE PAIR IS CONGRUENT, THUS MAKING IT A PARALLELOGRAM.
  • 10. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
  • 11. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2)
  • 12. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2) 4x − 1= 3x + 6
  • 13. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2) 4x − 1= 3x + 6 x = 7
  • 14. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2) 4x − 1= 3x + 6 x = 7 3(y + 1) = 4y − 2
  • 15. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2) 4x − 1= 3x + 6 x = 7 3(y + 1) = 4y − 2 3y + 3 = 4y − 2
  • 16. Example 2 FIND X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 1= 3(x + 2) 4x − 1= 3x + 6 x = 7 3(y + 1) = 4y − 2 3y + 3 = 4y − 2 5 = y
  • 17. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM.
  • 18. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1)
  • 19. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4
  • 20. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2
  • 21. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2
  • 22. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4
  • 23. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2
  • 24. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3
  • 25. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1
  • 26. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1 = 4
  • 27. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1 = 4 m(TO) = −1− 3 −2 −(−1)
  • 28. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1 = 4 m(TO) = −1− 3 −2 −(−1) = −4 −1
  • 29. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1 = 4 m(TO) = −1− 3 −2 −(−1) = −4 −1 = 4
  • 30. Example 3 QUADRILATERAL TACO HAS VERTICES T(−1, 3), A(3, 1), C(2, −3), AND O(−2, −1). USE THE SLOPE FORMULA TO DETERMINE WHETHER TACO IS A PARALLELOGRAM. m(TA) = 1− 3 3 −(−1) = −2 4 = − 1 2 m(CO) = −1−(−3) −2 − 2 = 2 −4 = − 1 2 m(AC ) = −3 − 1 2 − 3 = −4 −1 = 4 m(TO) = −1− 3 −2 −(−1) = −4 −1 = 4 SINCE EACH SET OF OPPOSITE SIDES HAVE THE SAME SLOPE, THEY ARE PARALLEL. WITH EACH SET OF OPPOSITE SIDES BEING PARALLEL, TACO IS A PARALLELOGRAM
  • 31. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM.
  • 32. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72
  • 33. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76
  • 34. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19
  • 35. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19 180 − 72
  • 36. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19 180 − 72 = 108
  • 37. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19 180 − 72 = 108 8y + 8 = 108
  • 38. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19 180 − 72 = 108 8y + 8 = 108 8y = 100
  • 39. Example 4 FIND THE VALUE OF X AND Y SO THAT THE QUADRILATERAL IS A PARALLELOGRAM. 4x − 4 = 72 4x = 76 x = 19 180 − 72 = 108 8y + 8 = 108 8y = 100 y = 12.5
