Frequency spectrum of periodic signal..
1. Name :- Smit Shah -140410109096
S.Y electrical 2 Sem 4
Subject:-SS
Topic :- Frequency spectrum of periodic
signal..
2. Representation of periodic signals:
Frequency spectrum of periodic
signal..
Spectrum : The entire range over which some
measurable property of a physical system can vary,
such as a frequency of sound , the wavelength etc. Its
also called as a graphic or photographic representation
of such measurable range..

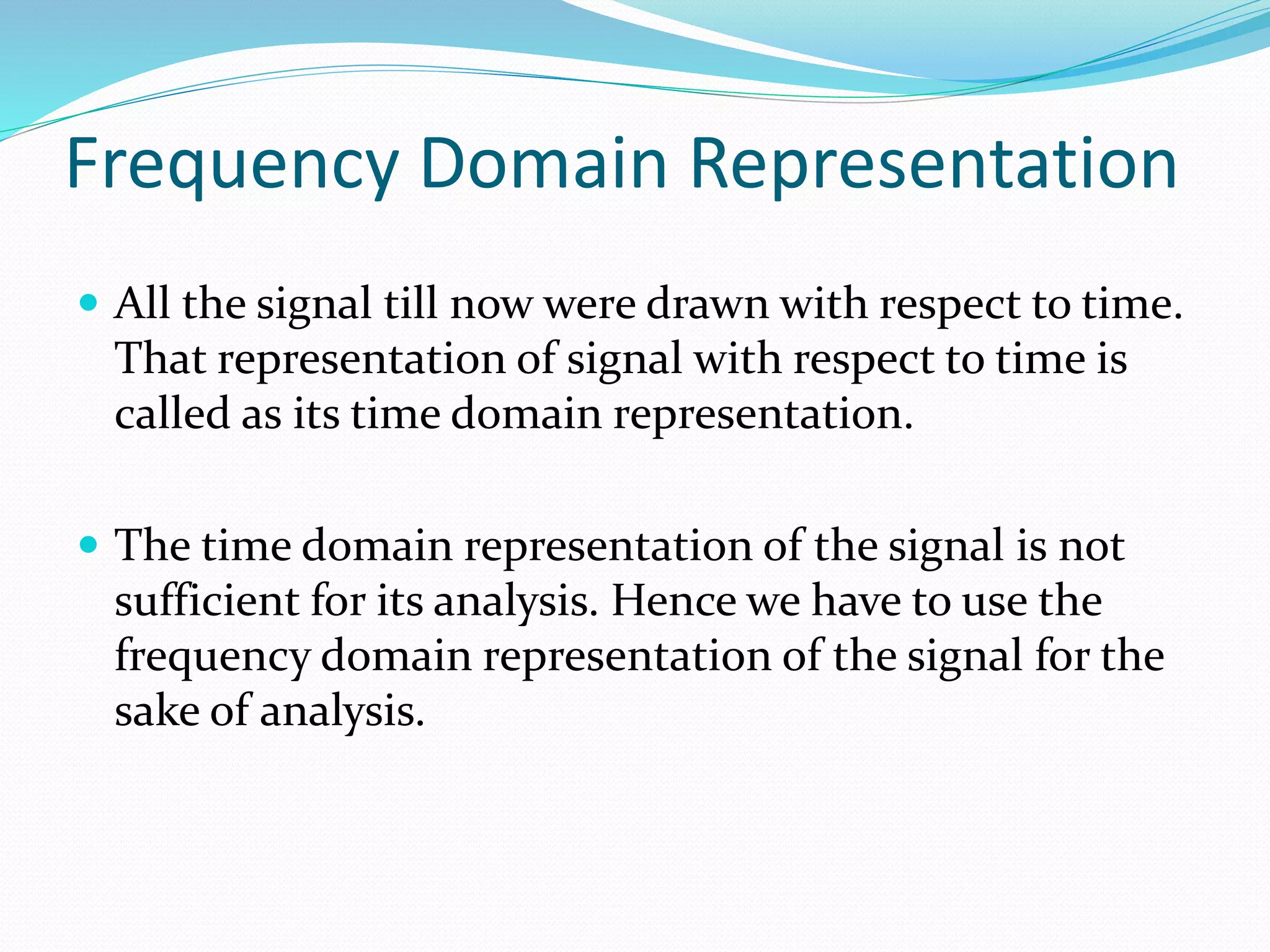

3. Frequency Domain Representation
All the signal till now were drawn with respect to time.
That representation of signal with respect to time is
called as its time domain representation.
The time domain representation of the signal is not
sufficient for its analysis. Hence we have to use the
frequency domain representation of the signal for the
sake of analysis.
4. In the frequency domain representation , the variable
plotted on the X-axis is frequency “f” rather than “t”.
The signal represented in the frequency domain is
called as the line spectrum. The line spectrum consists
of two graphs mainly.

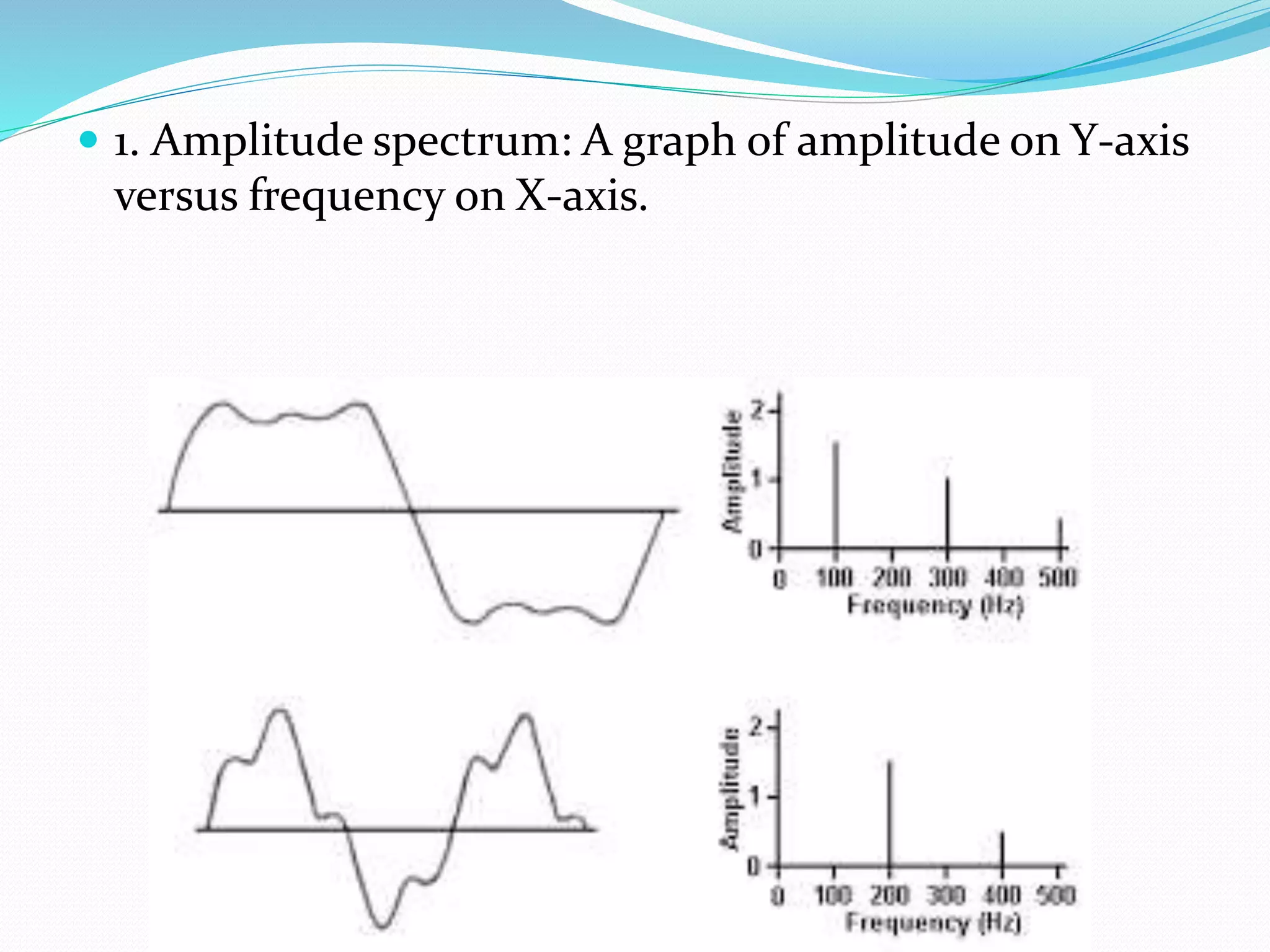

5. 1. Amplitude spectrum: A graph of amplitude on Y-axis
versus frequency on X-axis.
6. 2. Phase Spectrum : A graph of phase on Y-axis versus
frequency on X-axis.
7. The signal x(t) and its line spectrum is show in above
fig.
The graph of Instantaneous signal voltage plotted on
y-axis versus time plotted on X-axis is called as time
domain representation.
The time domain representation gives us the following
information:

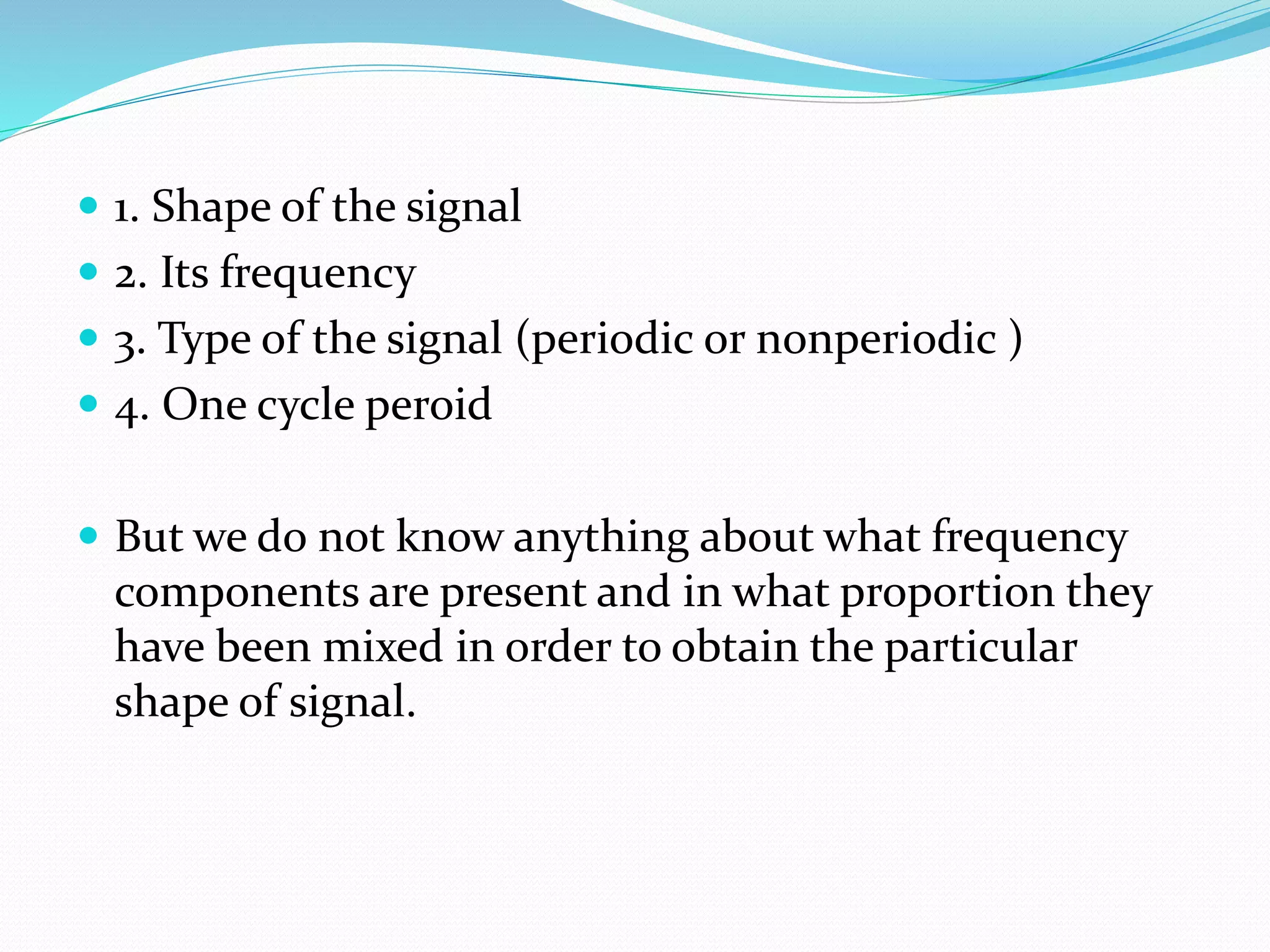

8. 1. Shape of the signal
2. Its frequency
3. Type of the signal (periodic or nonperiodic )
4. One cycle peroid
But we do not know anything about what frequency
components are present and in what proportion they
have been mixed in order to obtain the particular
shape of signal.
9. All this information can be obtained from the line
spectrum of a signal.
Line spectrum is the representation of the same signal
x(t), now in the frequency domain.
It can be obtained by using either Fourier series or
Fourier Transform. It consists of the amplitude and
phase spectrum of the signal.
10. The line spectrum indicates the amplitude and phase
of various frequency components present in the given
signal. The line spectrum enables us to analyze and
synthesize a signal….

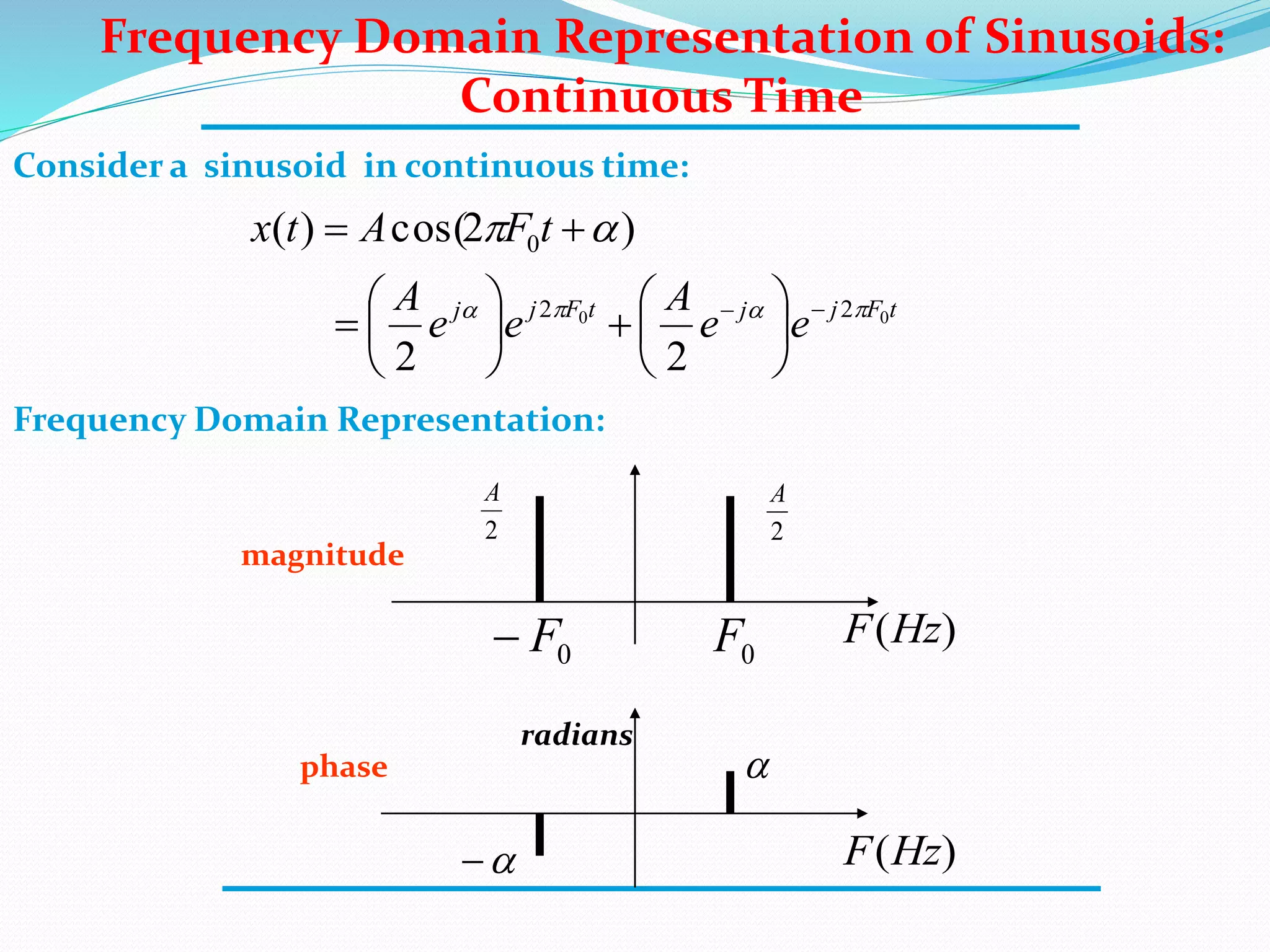

11. Frequency Domain Representation of Sinusoids:
Continuous Time
Consider a sinusoid in continuous time:
tFjjtFjj
ee
A
ee
A
tFAtx
00 22
0
22
)2cos()(
Frequency Domain Representation:
0F
2
A
0F
2
A
magnitude
phase
radians
)(HzF
)(HzF
12. Example
Consider a sinusoid in continuous time:
tjjtjj
eeee
ttx
200015.0200015.0
55
)15.02000cos(10)(
Represent it graphically as:
000,1
5
15.0
magnitude
phase
15.0
radians
5
000,1 )(HzF
)(HzF
13. Frequency Domain Representation of Sinusoids:
Discrete Time
Same for a sinusoid in discrete time:
njjnjj
ee
A
ee
A
nAnx
00
22
)cos(][ 0
2
A
magnitude
phase
0
2
A
0 )(rad
)(rad
Frequency Domain Representation:
14. Example
Consider a sinusoid in discrete time:
njjnjj
eeee
nnx
45.035.045.035.0
44
)35.045.0cos(8][
Represent it graphically as:
45.0
4
35.0
magnitude
phase
35.0
radians
4
45.0 )(rad
)(rad
15. So as we show in above example for real periodic signal
the amplitude spectrum is even symmetric & phase
spectrum is odd symmetric…
