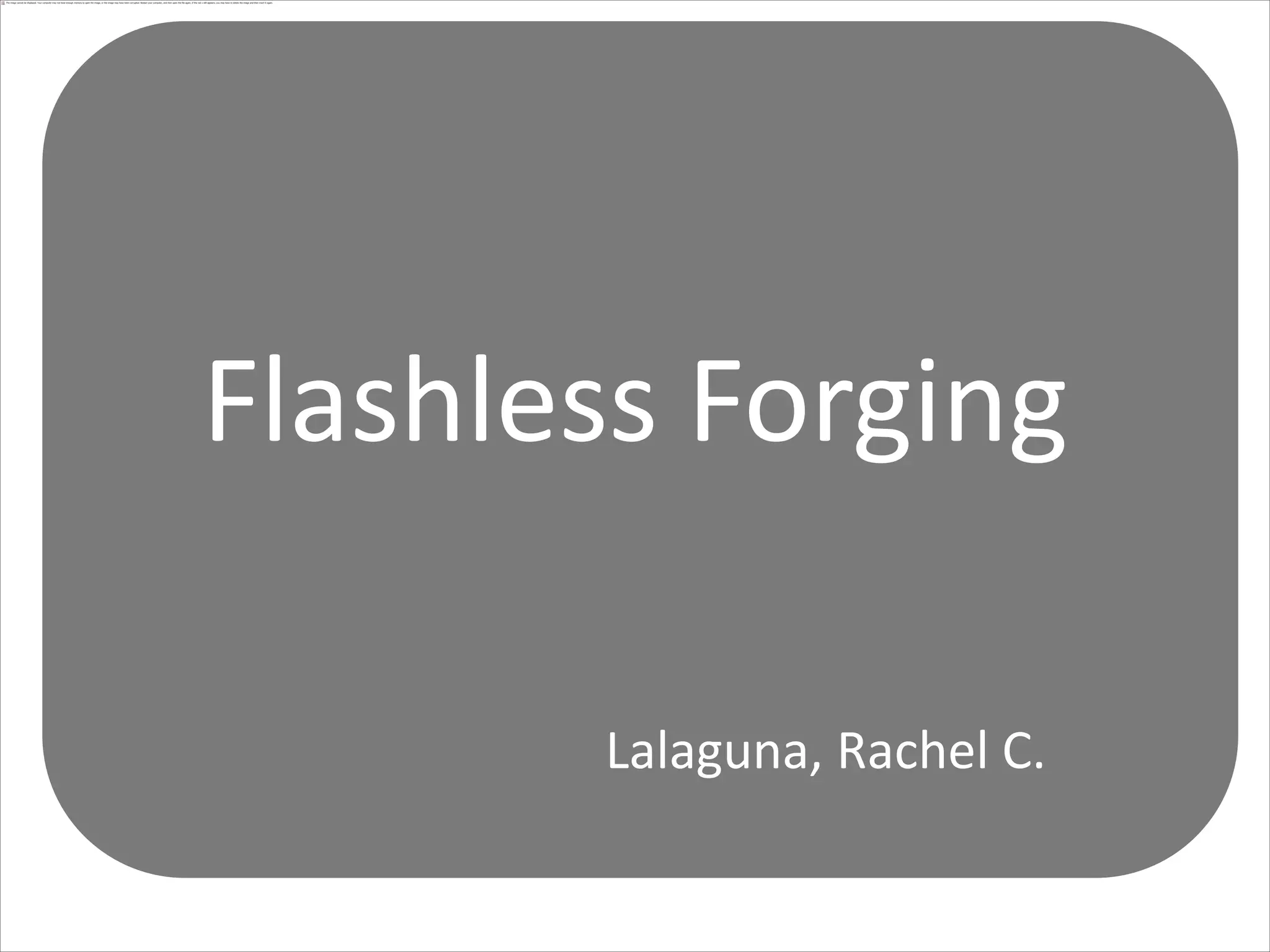

Flashless Forging
•Download as PPTX, PDF•
7 likes•9,656 views
Flashless forging is a closed die forging process where metal is deformed in a die cavity with little to no excess flash. It is conducted at an elevated temperature between cold and hot forging. The preheated workpiece is compressed in the die until deformation occurs, producing a near-net or net-shaped part. Flashless forging requires tight process control of work volume and die cavity size to ensure proper filling. It is well-suited for producing simple, symmetrical parts and precision forgings from materials like aluminum.
