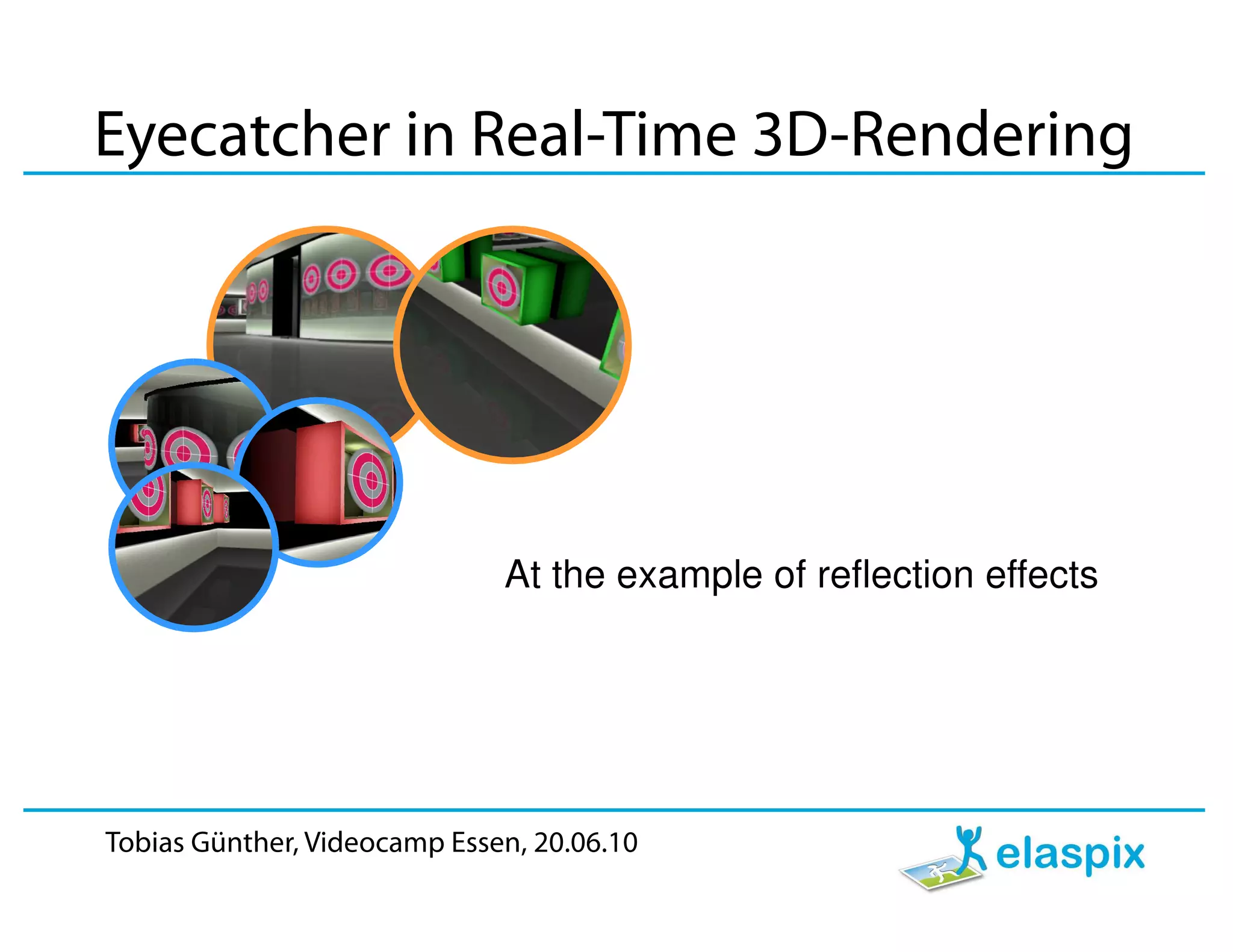

1. Eyecatcher in Real-Time 3D-Rendering
At the example of reflection effects
Tobias Günther, Videocamp Essen, 20.06.10

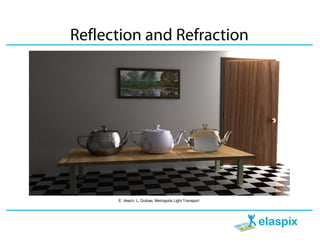

2. Reflection and Refraction
E. Veach, L. Guibas, Metropolis Light Transport

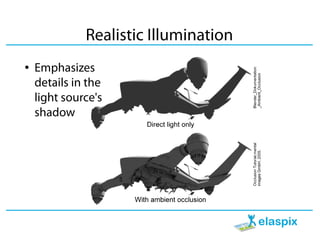

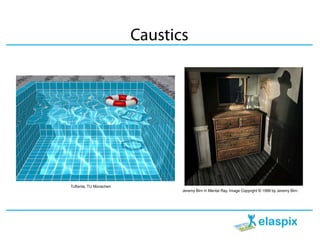

4. Caustics
Tuffenta, TU Münschen
Jeremy Birn in Mental Ray, Image Copyright © 1999 by Jeremy Birn.

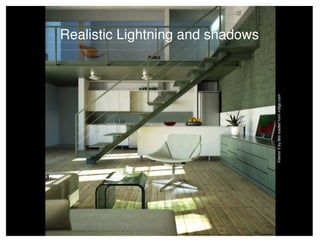

5. Realistic Lightning and shadows
Interior 5 by bbb loaded from indigo.com

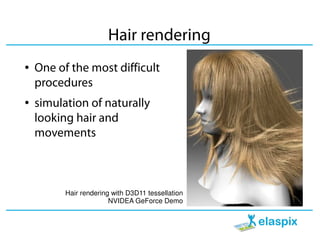

6. Hair rendering
● One of the most difficult
procedures
● simulation of naturally
looking hair and
movements
Hair rendering with D3D11 tessellation
NVIDEA GeForce Demo

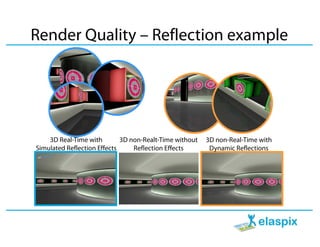

7. Render Quality – Reflection example
3D Real-Time with 3D non-Realt-Time without 3D non-Real-Time with
Simulated Reflection Effects Reflection Effects Dynamic Reflections

8. Comparison Reflection rendering
● GPU Realtime Rendering simulated reflections
● JavaME+OpenGL (scanline rendering)
● CPU-Rendering without reflections
CPU Rendering
● Blender (scanline rendering) Baked Textures
0.3 Frames/s
Speed*: CPU=1/100 GPU
● CPU-Rendering with
dynamic reflections GPU Rendering
Baked Textures
30 Frames/s
● Blender
(raytracing & scanline
CPU Rendering
rendering) Raytracing
0.15 Frames/s
* Intel Core 2 Duo CPU 1 Ghz 512 MB RAM Mobile Intel
965 Graphics Chip 384 MB RAM, OpenGL 1.5

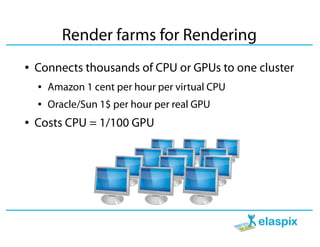

9. Render farms for Rendering
● Connects thousands of CPU or GPUs to one cluster
● Amazon 1 cent per hour per virtual CPU
● Oracle/Sun 1$ per hour per real GPU
● Costs CPU = 1/100 GPU

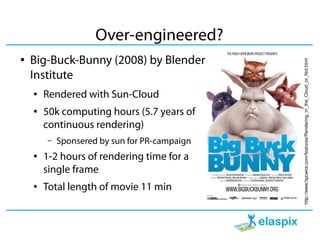

10. Over-engineered?
● Big-Buck-Bunny (2008) by Blender
http://www.hpcwire.com/features/Rendering_in_the_Cloud_or_Not.html
Institute
● Rendered with Sun-Cloud
● 50k computing hours (5.7 years of
continuous rendering)
– Sponsered by sun for PR-campaign
● 1-2 hours of rendering time for a
single frame
● Total length of movie 11 min

11. Cloud rendering is a success story
http://www.tomshardware.com/reviews/render-farm-node,2340.html
● 40 million hours for Monsters vs. Aliens
● 30 million hours for Madagascar Escape
2 Africa
● 6.6 million hours for Revenge of the Sith
● 72 hours per single frame for
Transformers 2

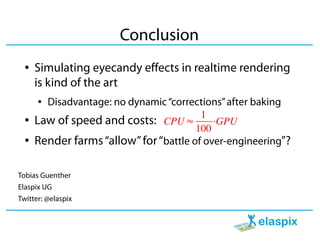

12. Conclusion
● Simulating eyecandy effects in realtime rendering
is kind of the art
● Disadvantage: no dynamic “corrections” after baking
● Law of speed and costs: CPU ≈ 1 ⋅GPU
100
● Render farms “allow” for “battle of over-engineering”?
Tobias Guenther
Elaspix UG
