"Redefining Mobile Graphics Stack" is a talk delivered by Ariya Hidayat for Bossa Conference '10 in Manaus, Brazil

1. Redefining Mobile
Graphics Stack
Ariya Hidayat

2. whoami

3. ariya hidayat
10+ years activity in FOSS
was with Nokia, Qt
now with Qualcomm Innovation Center

4. goals
Share ideas!
Provoke brainstroming!

5. share the love
gitorious.org/qt-labs/graphics-dojo
gitorious.org/ofi-labs/x2

6. hot devices

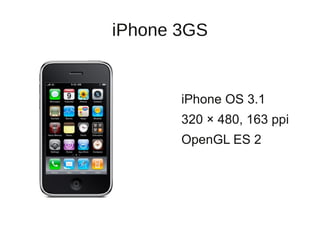

7. iPhone 3GS
iPhone OS 3.1
320 × 480, 163 ppi
OpenGL ES 2

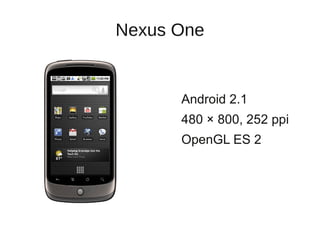

8. Nexus One
Android 2.1
480 × 800, 252 ppi
OpenGL ES 2

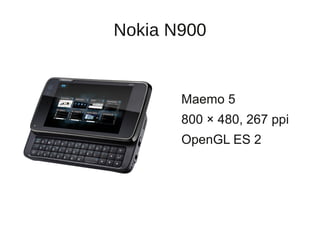

9. Nokia N900
Maemo 5
800 × 480, 267 ppi
OpenGL ES 2

10. pixel control

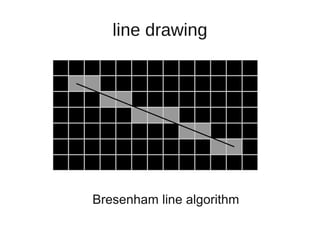

11. line drawing
Bresenham line algorithm

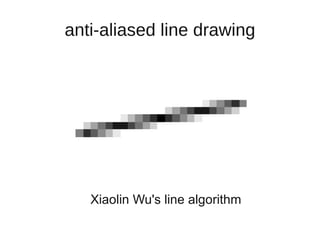

12. anti-aliased line drawing
Xiaolin Wu's line algorithm

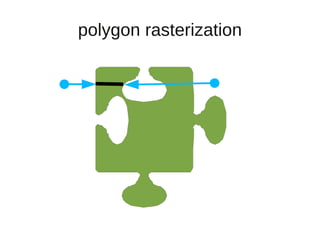

13. polygon rasterization

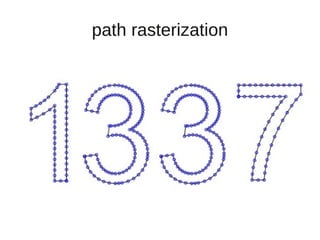

14. path rasterization

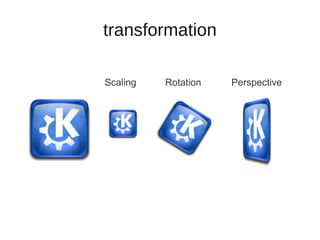

15. transformation
Scaling Rotation Perspective

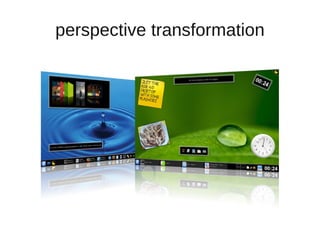

16. perspective transformation

17. optimizations

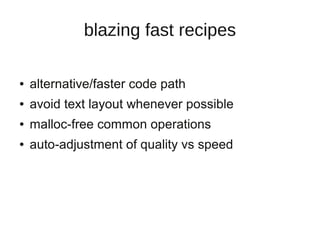

18. blazing fast recipes
● alternative/faster code path
● avoid text layout whenever possible
● malloc-free common operations
● auto-adjustment of quality vs speed

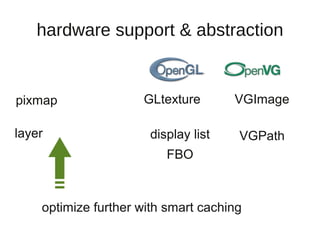

19. hardware support & abstraction
pixmap GLtexture VGImage
layer display list VGPath
FBO
optimize further with smart caching

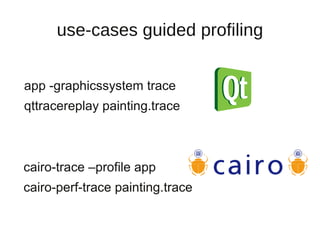

20. use-cases guided profiling
app -graphicssystem trace
qttracereplay painting.trace
cairo-trace –profile app
cairo-perf-trace painting.trace

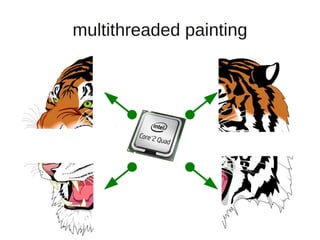

21. multithreaded painting

22. multithreaded painting

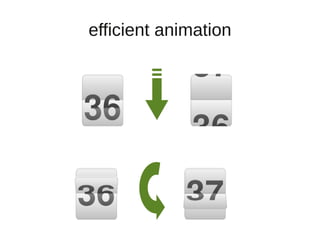

23. efficient animation

24. goodies

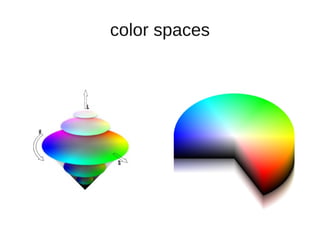

25. color spaces

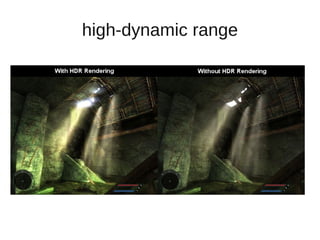

26. high-dynamic range

27. Dean S. Pemberton
Old St Paul’s

28. special effects

29. lighting & shadow

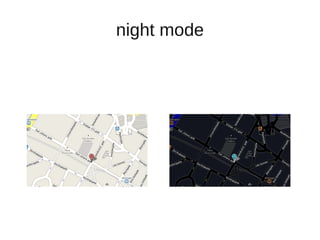

30. night mode

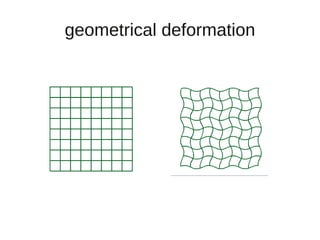

31. geometrical deformation

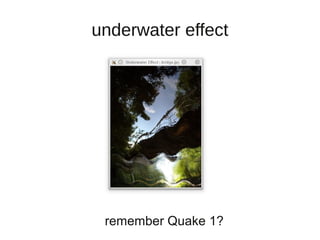

32. underwater effect
remember Quake 1?

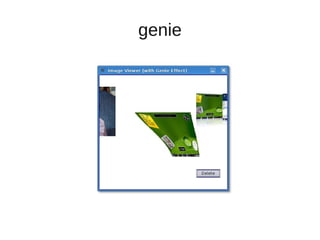

33. genie

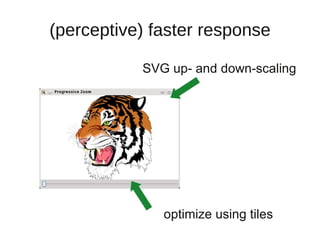

34. (perceptive) faster response
SVG up- and down-scaling
optimize using tiles

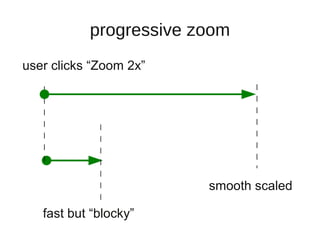

35. progressive zoom
user clicks “Zoom 2x”
smooth scaled
fast but “blocky”

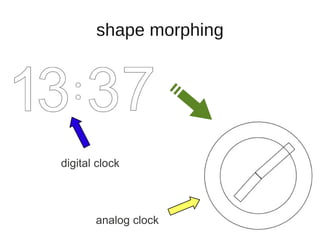

36. shape morphing
digital clock
analog clock

37. physics

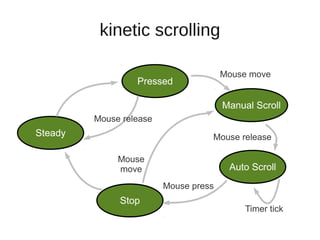

38. kinetic scrolling
Mouse move
Pressed
Manual Scroll
Mouse release
Steady Mouse release
Mouse
move Auto Scroll
Mouse press
Stop
Timer tick

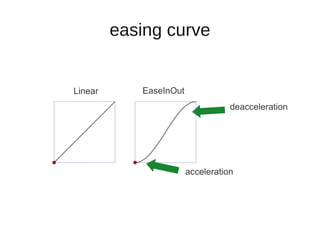

39. easing curve
Linear EaseInOut
deacceleration
acceleration

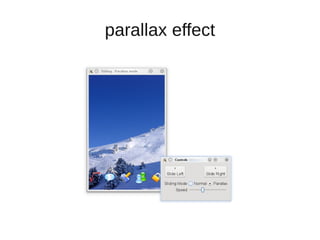

40. parallax effect

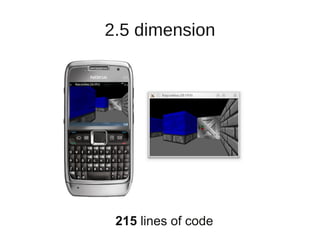

41. 2.5 dimension
215 lines of code

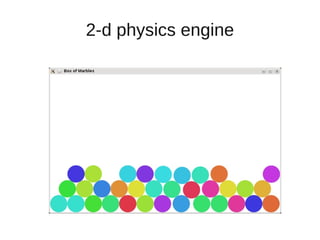

42. 2-d physics engine

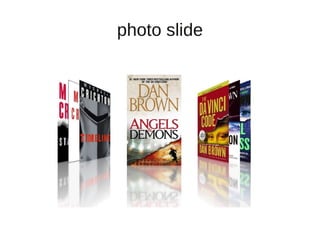

43. photo slide

44. network ubiquity

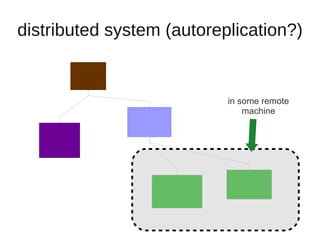

45. distributed system (autoreplication?)
in some remote
machine

46. assistive technology

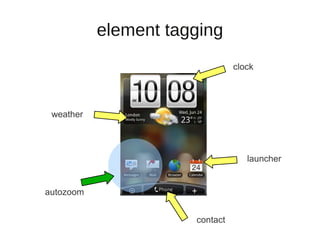

47. element tagging
clock
weather
launcher
autozoom
contact

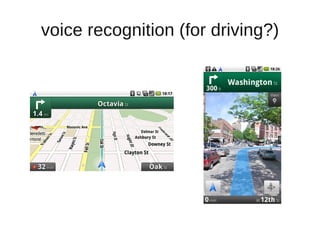

48. voice recognition (for driving?)

49. spread the love

50. gitorious.org/ofi-labs/x2

51. muito obrigado!
