Verification of Graphics ASICs (Part II)

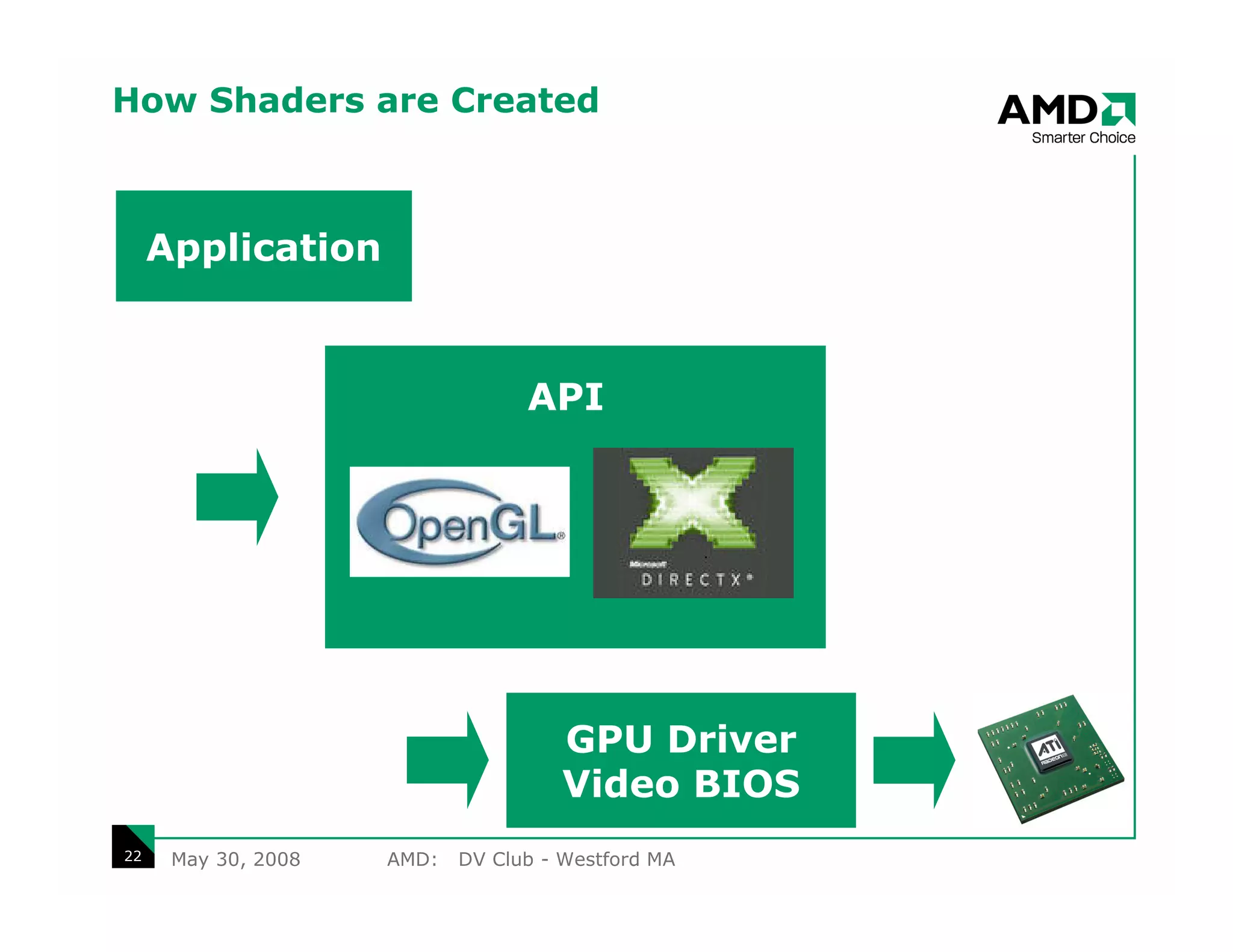

1. How Shaders are Created
Application
API
GPU Driver
Video BIOS
22 May 30, 2008 AMD: DV Club - Westford MA
2. Images
23 May 30, 2008 AMD: DV Club - Westford MA

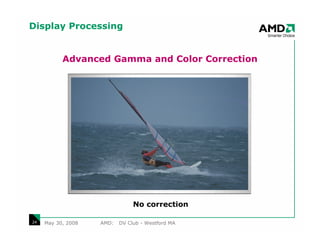

3. Display Processing
Advanced Gamma and Color Correction
No correction
24 May 30, 2008 AMD: DV Club - Westford MA

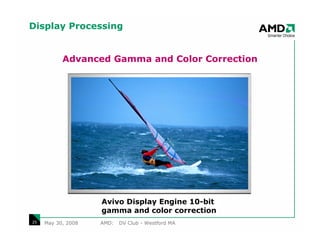

4. Display Processing
Advanced Gamma and Color Correction
Avivo Display Engine 10-bit
No correction
gamma and color correction
25 May 30, 2008 AMD: DV Club - Westford MA
5. “Call of Juarez” using DirectX 9
26 May 30, 2008 AMD: DV Club - Westford MA

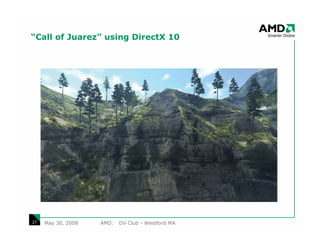

6. “Call of Juarez” using DirectX 10
27 May 30, 2008 AMD: DV Club - Westford MA
8. Graphics Verification Challenges
Large complex ASICs:
Approaching 1B xtrs; >50 different clocks; > 600 MHZ; >100 top level tiles
Parallel SIMDs, Multiple pipelines; hundreds of threads in flight; >300 ALUs
High BW memory/cache interface; PCI Express; Display Ports
3rd party compliance: DirectX and OpenGL Graphic APIs and Apps
Firmware critical to ASIC function
ASIC validation utilizes firmware release as part of tape out
Firmware debug requires significant amounts of time
Full frames processing requires days/weeks of RTL simulation
Market window small – consumer market is harsh!
Schedule is KING
Need incremental development; hierarchy and reuse prior
Respins are costly; time to market is critical
Christmas, Dads/Grads, or bust!
29 May 30, 2008 AMD: DV Club - Westford MA

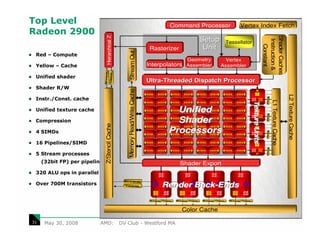

10. Top Level Command Processor Vertex Index Fetch
Radeon 2900
Hierarchical Z
Shader Caches
Shader Caches
Setup
Instruction &
Tessellator
Constant
Constant
Rasterizer Unit
Stream Out
Red – Compute
Geometry Vertex
Yellow – Cache Interpolators Assembler Assembler
Unified shader
Ultra-Threaded Dispatch Processor
Shader R/W
Memory Read/Write Cache
L2 Texture Cache
Instr./Const. cache
L1 Texture Cache
Texture Units
Texture Units
Texture Units
Texture Units
Unified texture cache Unified
Compression Shader
Z/Stencil Cache
4 SIMDs Processors
16 Pipelines/SIMD
5 Stream processes
(32bit FP) per pipeline Shader Export
320 ALU ops in parallel
Over 700M transistors Render Back-Ends
Color Cache
31 May 30, 2008 AMD: DV Club - Westford MA

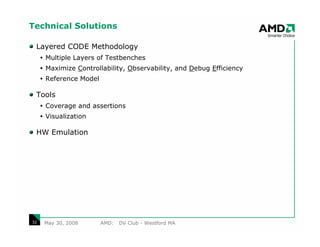

11. Technical Solutions
Layered CODE Methodology
Multiple Layers of Testbenches
Maximize Controllability, Observability, and Debug Efficiency
Reference Model
Tools
Coverage and assertions
Visualization
HW Emulation
32 May 30, 2008 AMD: DV Club - Westford MA

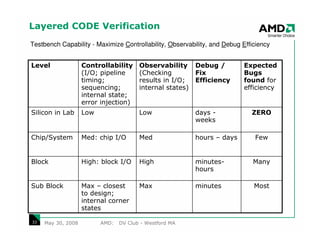

12. Layered CODE Verification
Testbench Capability - Maximize Controllability, Observability, and Debug Efficiency
Level Controllability Observability Debug / Expected
(I/O; pipeline (Checking Fix Bugs
timing; results in I/O; Efficiency found for
sequencing; internal states) efficiency
internal state;
error injection)
Silicon in Lab Low Low days - ZERO
weeks
Chip/System Med: chip I/O Med hours – days Few
Block High: block I/O High minutes- Many
hours
Sub Block Max – closest Max minutes Most
to design;
internal corner
states
33 May 30, 2008 AMD: DV Club - Westford MA

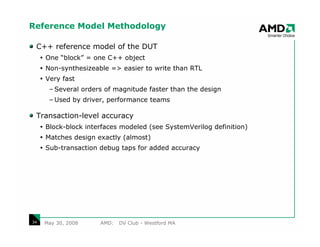

13. Reference Model Methodology
C++ reference model of the DUT
One “block” = one C++ object
Non-synthesizeable => easier to write than RTL
Very fast
– Several orders of magnitude faster than the design
– Used by driver, performance teams
Transaction-level accuracy
Block-block interfaces modeled (see SystemVerilog definition)
Matches design exactly (almost)
Sub-transaction debug taps for added accuracy
34 May 30, 2008 AMD: DV Club - Westford MA

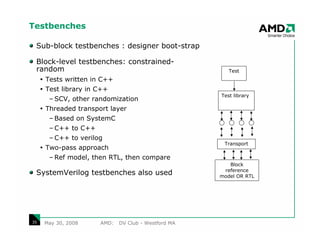

14. Testbenches
Sub-block testbenches : designer boot-strap
Block-level testbenches: constrained-
random Test
Tests written in C++
Test library in C++
Test library
– SCV, other randomization
Threaded transport layer
– Based on SystemC
– C++ to C++
– C++ to verilog
Transport
Two-pass approach
– Ref model, then RTL, then compare
Block
reference
SystemVerilog testbenches also used model OR RTL
35 May 30, 2008 AMD: DV Club - Westford MA

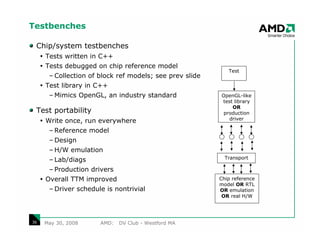

15. Testbenches
Chip/system testbenches
Tests written in C++
Tests debugged on chip reference model
Test
– Collection of block ref models; see prev slide
Test library in C++
– Mimics OpenGL, an industry standard OpenGL-like
test library
OR
Test portability production
Write once, run everywhere driver
– Reference model
– Design
– H/W emulation
– Lab/diags Transport
– Production drivers
Overall TTM improved Chip reference
model OR RTL
– Driver schedule is nontrivial OR emulation
OR real H/W
36 May 30, 2008 AMD: DV Club - Westford MA

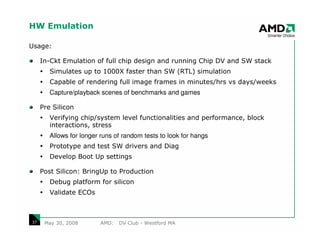

16. HW Emulation
Usage:
In-Ckt Emulation of full chip design and running Chip DV and SW stack
Simulates up to 1000X faster than SW (RTL) simulation
Capable of rendering full image frames in minutes/hrs vs days/weeks
Capture/playback scenes of benchmarks and games
Pre Silicon
Verifying chip/system level functionalities and performance, block
interactions, stress
Allows for longer runs of random tests to look for hangs
Prototype and test SW drivers and Diag
Develop Boot Up settings
Post Silicon: BringUp to Production
Debug platform for silicon
Validate ECOs
37 May 30, 2008 AMD: DV Club - Westford MA

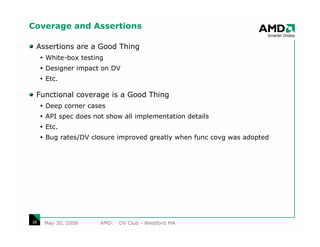

17. Coverage and Assertions
Assertions are a Good Thing
White-box testing
Designer impact on DV
Etc.
Functional coverage is a Good Thing
Deep corner cases
API spec does not show all implementation details
Etc.
Bug rates/DV closure improved greatly when func covg was adopted
38 May 30, 2008 AMD: DV Club - Westford MA
18. Visualization
It is graphics, after all
Nice to see pretty pictures
for what you are drawing
Two overlapping textured
triangles, with depth
39 May 30, 2008 AMD: DV Club - Westford MA

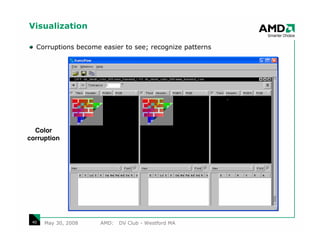

19. Visualization
Corruptions become easier to see; recognize patterns
Color
corruption
40 May 30, 2008 AMD: DV Club - Westford MA

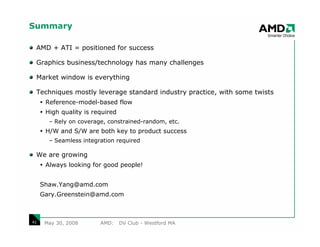

20. Summary
AMD + ATI = positioned for success
Graphics business/technology has many challenges
Market window is everything
Techniques mostly leverage standard industry practice, with some twists
Reference-model-based flow
High quality is required
– Rely on coverage, constrained-random, etc.
H/W and S/W are both key to product success
– Seamless integration required
We are growing
Always looking for good people!
Shaw.Yang@amd.com
Gary.Greenstein@amd.com
41 May 30, 2008 AMD: DV Club - Westford MA
