1. Unit-1v
AC Potentiometers
 Md Irshad Ahmad
 Irshad.ahmad@jit.edu.in
 Electrical Engineering Department
 Subject: : Electrical measurements & Measuring instruments (NEE –302)

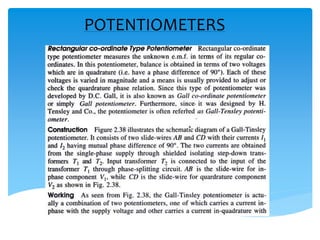

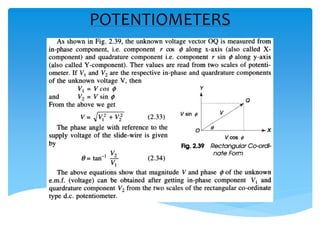

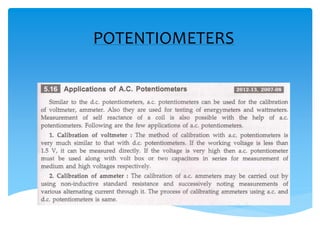

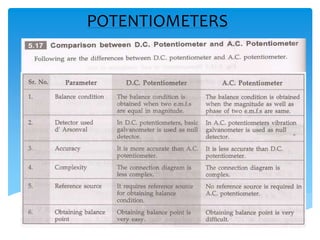

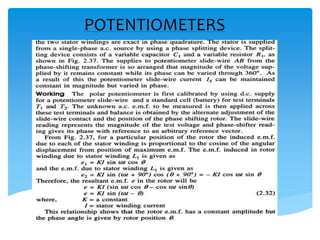

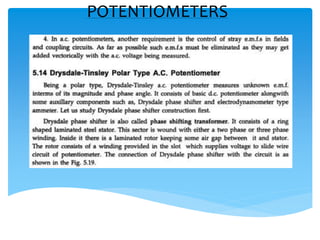

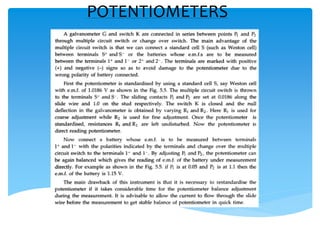

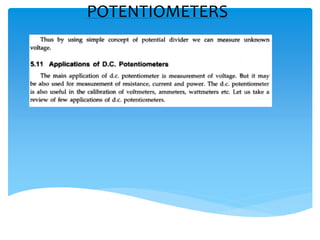

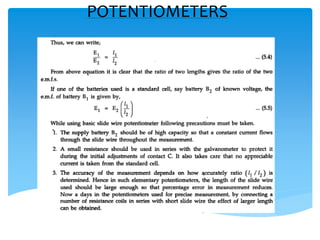

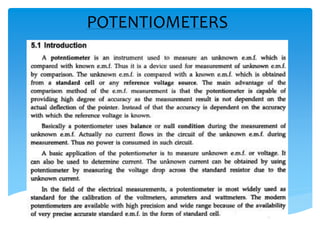

2. POTENTIOMETERS

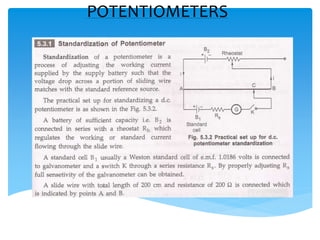

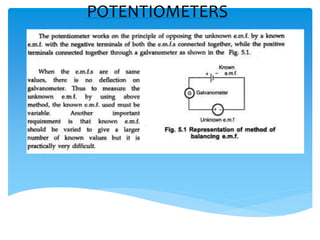

3. POTENTIOMETERS

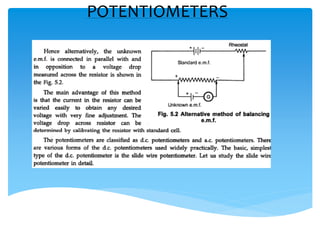

4. POTENTIOMETERS

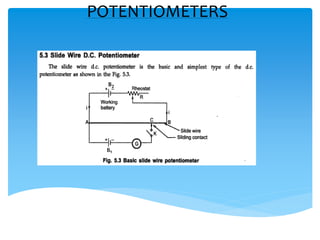

5. POTENTIOMETERS

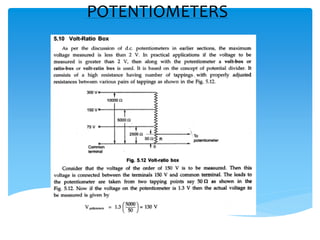

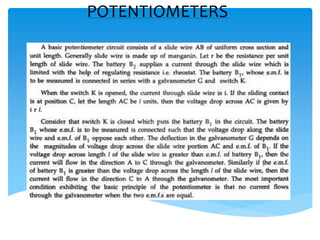

6. POTENTIOMETERS

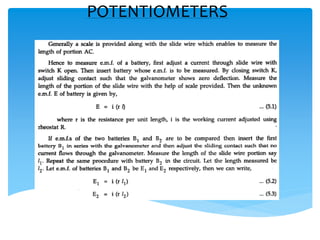

7. POTENTIOMETERS

8. POTENTIOMETERS

9. POTENTIOMETERS

10. POTENTIOMETERS

11. POTENTIOMETERS

12. POTENTIOMETERS

13. POTENTIOMETERS

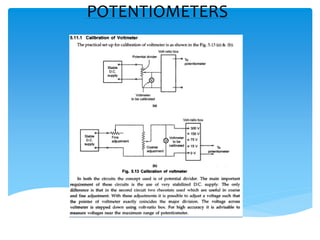

14. POTENTIOMETERS

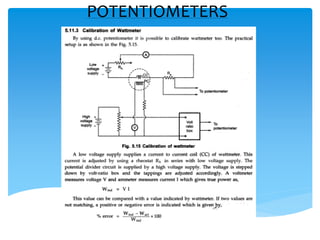

15. POTENTIOMETERS

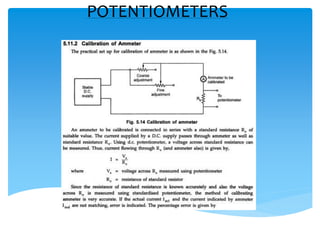

16. POTENTIOMETERS

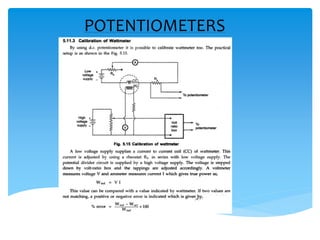

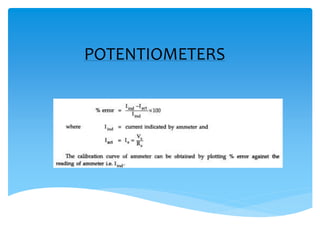

17. POTENTIOMETERS

18. POTENTIOMETERS

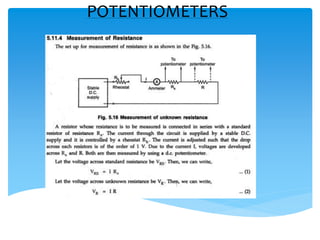

19. POTENTIOMETERS

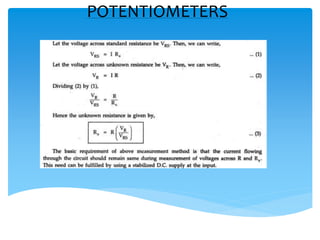

20. POTENTIOMETERS

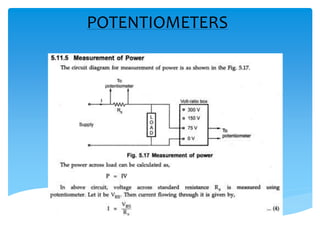

21. POTENTIOMETERS

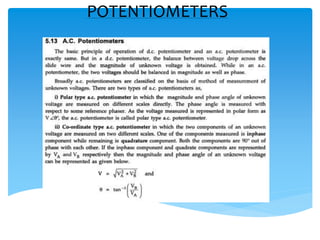

22. POTENTIOMETERS

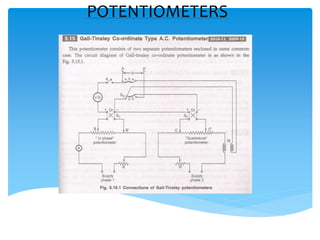

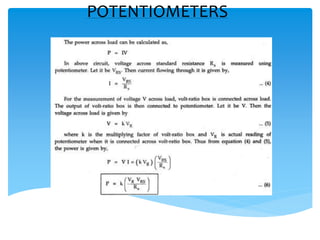

23. POTENTIOMETERS

24. POTENTIOMETERS

25. POTENTIOMETERS

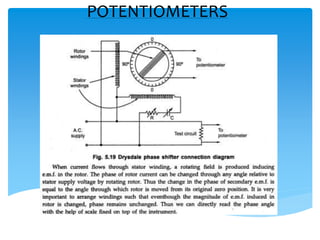

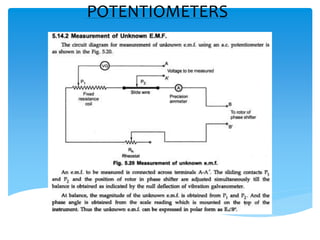

26. POTENTIOMETERS

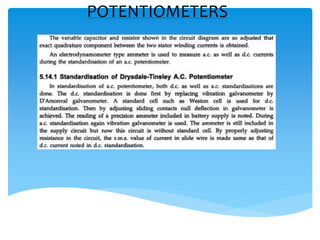

27. POTENTIOMETERS

28. POTENTIOMETERS

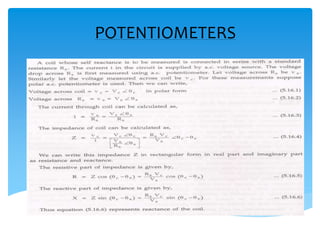

29. POTENTIOMETERS

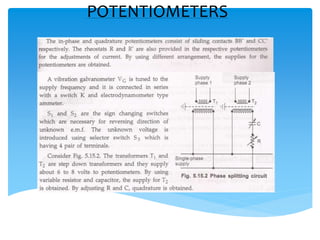

30. POTENTIOMETERS

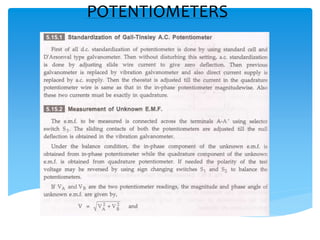

31. POTENTIOMETERS

32. POTENTIOMETERS

33. POTENTIOMETERS

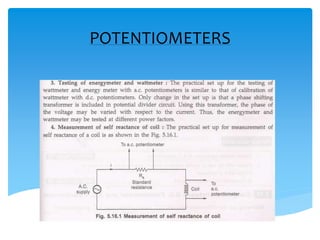

34. POTENTIOMETERS

35. POTENTIOMETERS

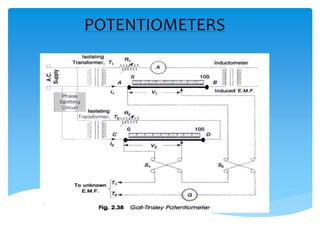

36. POTENTIOMETERS

37. POTENTIOMETERS

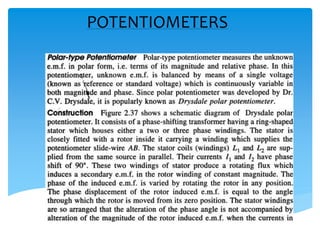

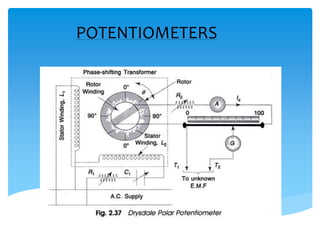

38. POTENTIOMETERS

39. POTENTIOMETERS

40. POTENTIOMETERS

41. POTENTIOMETERS

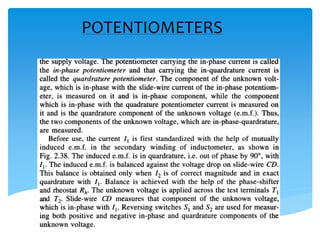

42. POTENTIOMETERS

43. POTENTIOMETERS

44. POTENTIOMETERS

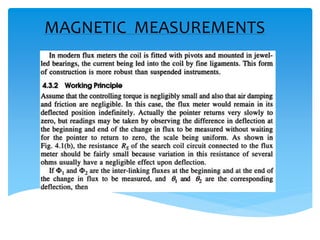

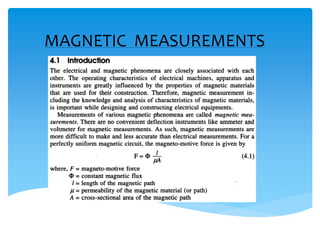

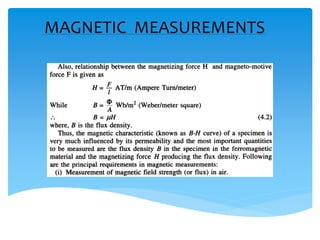

45. MAGNETIC MEASUREMENTS

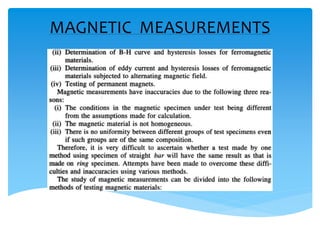

46. MAGNETIC MEASUREMENTS

47. MAGNETIC MEASUREMENTS

48. MAGNETIC MEASUREMENTS

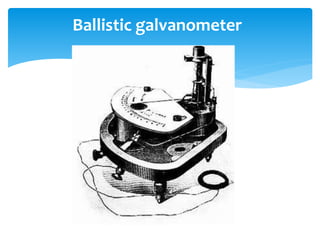

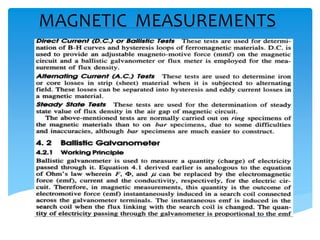

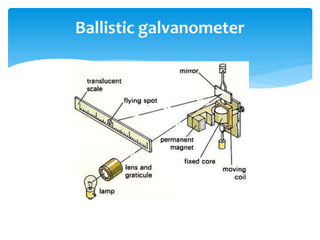

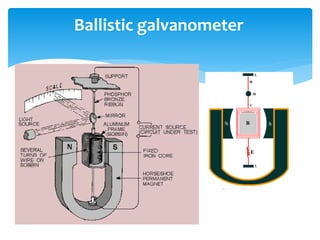

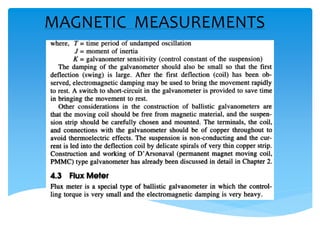

49. Ballistic galvanometer

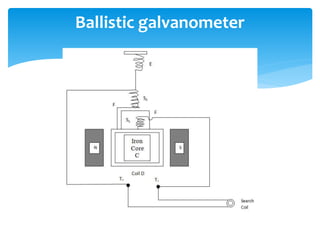

50. Ballistic galvanometer

51. Ballistic galvanometer

52. Ballistic galvanometer

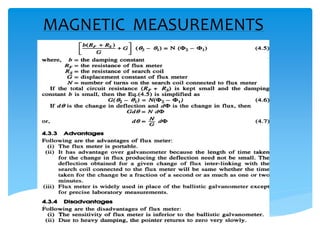

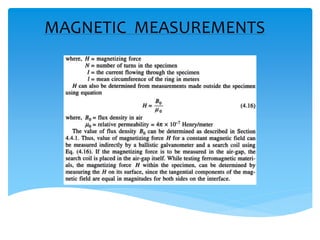

53. MAGNETIC MEASUREMENTS

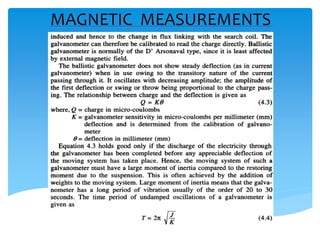

54. MAGNETIC MEASUREMENTS

55. MAGNETIC MEASUREMENTS

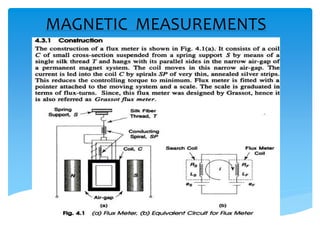

56. MAGNETIC MEASUREMENTS

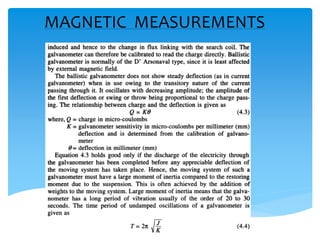

57. MAGNETIC MEASUREMENTS

58. MAGNETIC MEASUREMENTS

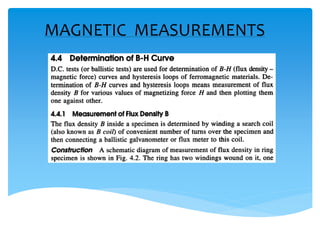

59. MAGNETIC MEASUREMENTS

60. MAGNETIC MEASUREMENTS

61. MAGNETIC MEASUREMENTS

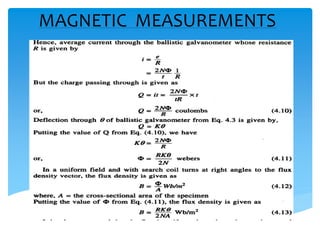

62. MAGNETIC MEASUREMENTS

63. MAGNETIC MEASUREMENTS

64. MAGNETIC MEASUREMENTS

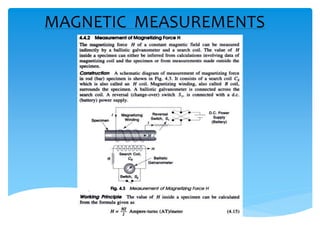

65. MAGNETIC MEASUREMENTS

66. MAGNETIC MEASUREMENTS

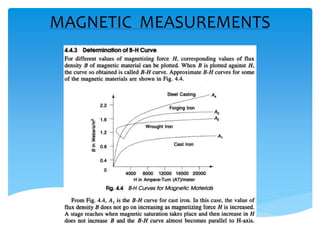

67. MAGNETIC MEASUREMENTS

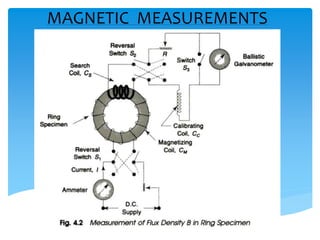

68. MAGNETIC MEASUREMENTS

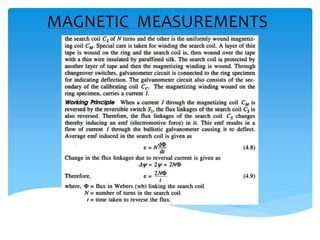

69. MAGNETIC MEASUREMENTS

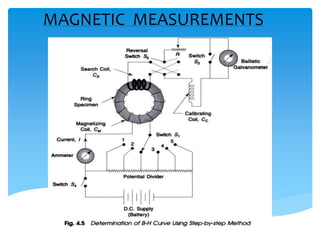

70. MAGNETIC MEASUREMENTS

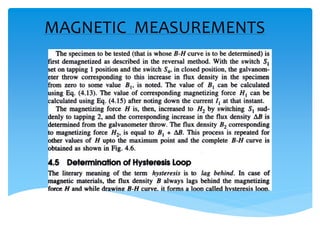

71. MAGNETIC MEASUREMENTS

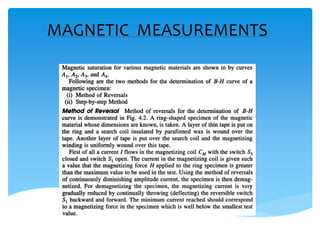

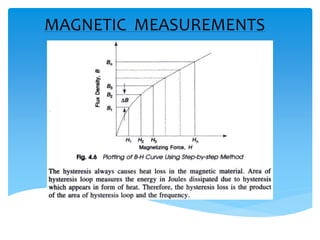

72. MAGNETIC MEASUREMENTS

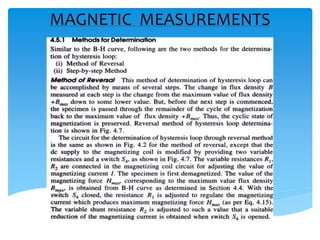

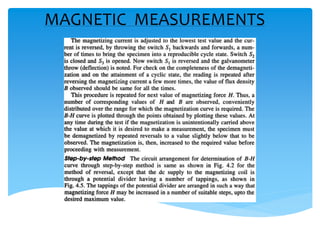

73. MAGNETIC MEASUREMENTS

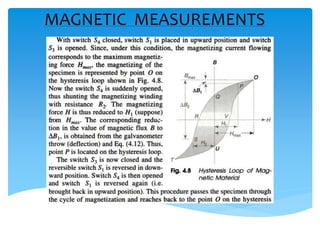

74. MAGNETIC MEASUREMENTS

75. MAGNETIC MEASUREMENTS

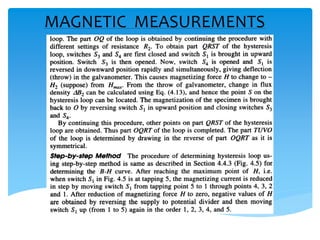

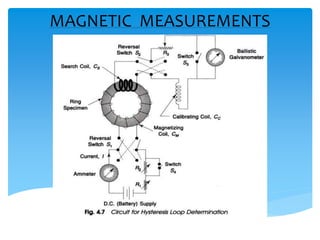

76. MAGNETIC MEASUREMENTS

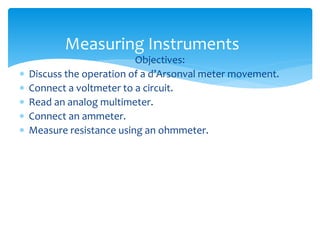

77. Measuring Instruments
Objectives:
 Discuss the operation of a d’Arsonval meter movement.
 Connect a voltmeter to a circuit.
 Read an analog multimeter.
 Connect an ammeter.
 Measure resistance using an ohmmeter.

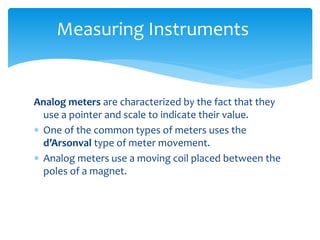

78. Measuring Instruments
Analog meters are characterized by the fact that they
use a pointer and scale to indicate their value.
 One of the common types of meters uses the
d’Arsonval type of meter movement.
 Analog meters use a moving coil placed between the
poles of a magnet.

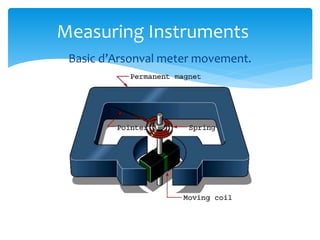

79. Basic d’Arsonval meter movement.
Measuring Instruments

80. Basic d’Arsonval meter movement with rectifier to
change AC voltage to DC voltage.
Measuring Instruments

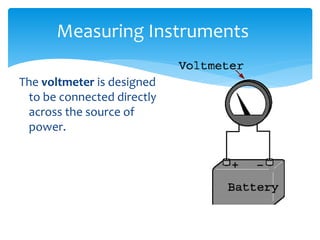

81. The voltmeter is designed
to be connected directly
across the source of
power.
Measuring Instruments

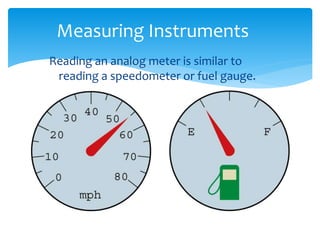

82. Reading an analog meter is similar to
reading a speedometer or fuel gauge.
Measuring Instruments

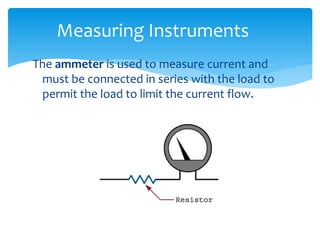

83. The ammeter is used to measure current and
must be connected in series with the load to
permit the load to limit the current flow.
Measuring Instruments

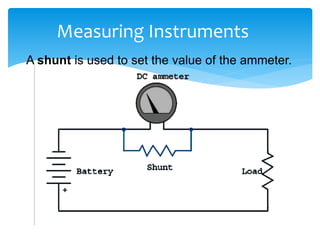

84. Measuring Instruments
A shunt is used to set the value of the ammeter.

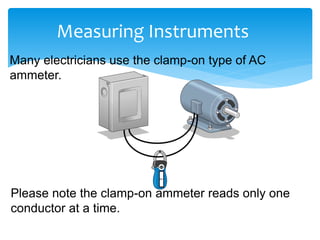

85. Measuring Instruments
Many electricians use the clamp-on type of AC
ammeter.
Please note the clamp-on ammeter reads only one
conductor at a time.

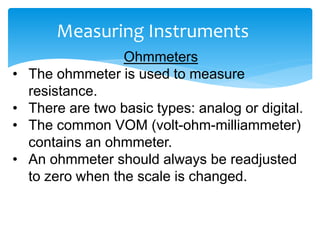

86. Measuring Instruments
Ohmmeters
• The ohmmeter is used to measure
resistance.
• There are two basic types: analog or digital.
• The common VOM (volt-ohm-milliammeter)
contains an ohmmeter.
• An ohmmeter should always be readjusted
to zero when the scale is changed.

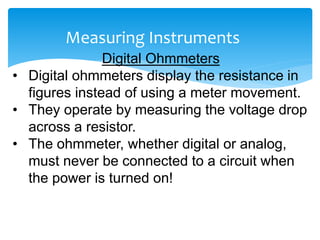

87. Measuring Instruments
Digital Ohmmeters
• Digital ohmmeters display the resistance in
figures instead of using a meter movement.
• They operate by measuring the voltage drop
across a resistor.
• The ohmmeter, whether digital or analog,
must never be connected to a circuit when
the power is turned on!

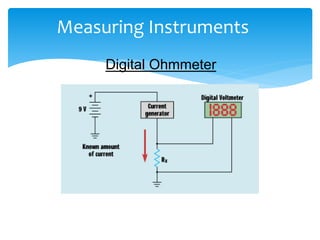

88. Measuring Instruments
Digital Ohmmeter

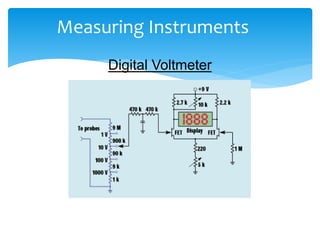

89. Measuring Instruments
Digital Voltmeter

90. Measuring Instruments

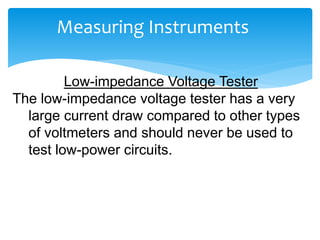

Low-impedance Voltage Tester
The low-impedance voltage tester has a very
large current draw compared to other types
of voltmeters and should never be used to
test low-power circuits.

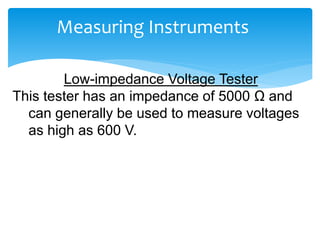

91. Measuring Instruments
Low-impedance Voltage Tester
This tester has an impedance of 5000 Ω and
can generally be used to measure voltages
as high as 600 V.

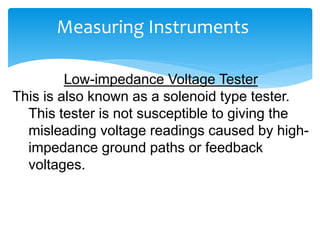

92. Measuring Instruments
Low-impedance Voltage Tester
This is also known as a solenoid type tester.
This tester is not susceptible to giving the
misleading voltage readings caused by high-
impedance ground paths or feedback
voltages.

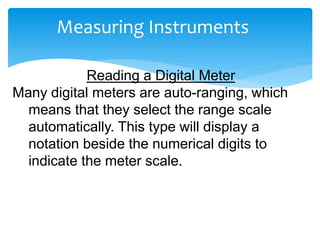

93. Measuring Instruments
Reading a Digital Meter
Many digital meters are auto-ranging, which
means that they select the range scale
automatically. This type will display a
notation beside the numerical digits to
indicate the meter scale.

94. Measuring Instruments
Review:
1. The d’Arsonval movement is one of the
common types of meters.
2. The d’Arsonval movement operates only on
DC currents or rectified AC current.
3. Voltmeters have a high resistance and are
designed to be connected directly across
the power line.

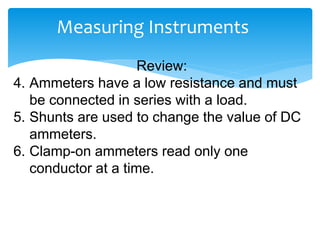

95. Measuring Instruments
Review:
4. Ammeters have a low resistance and must
be connected in series with a load.
5. Shunts are used to change the value of DC
ammeters.
6. Clamp-on ammeters read only one
conductor at a time.

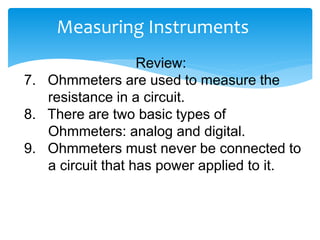

96. Measuring Instruments
Review:
7. Ohmmeters are used to measure the
resistance in a circuit.
8. There are two basic types of
Ohmmeters: analog and digital.
9. Ohmmeters must never be connected to
a circuit that has power applied to it.

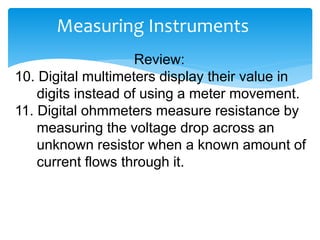

97. Measuring Instruments
Review:
10. Digital multimeters display their value in
digits instead of using a meter movement.
11. Digital ohmmeters measure resistance by
measuring the voltage drop across an
unknown resistor when a known amount of
current flows through it.
