Reactive power compensation is used to improve the performance of AC power systems. There are various methods of reactive power compensation including shunt compensation, series compensation, static VAR compensators, and static synchronous compensators. Shunt compensation devices such as capacitors and reactors are connected in parallel to transmission lines to regulate voltage. Series compensation uses capacitors connected in series to transmission lines to increase power transfer capability. Static VAR compensators and static synchronous compensators use thyristor-based voltage sourced converters to dynamically inject or absorb reactive power and control voltage. Reactive power compensation provides benefits such as improved power factor, voltage regulation, reduced losses, and increased power transfer capacity.

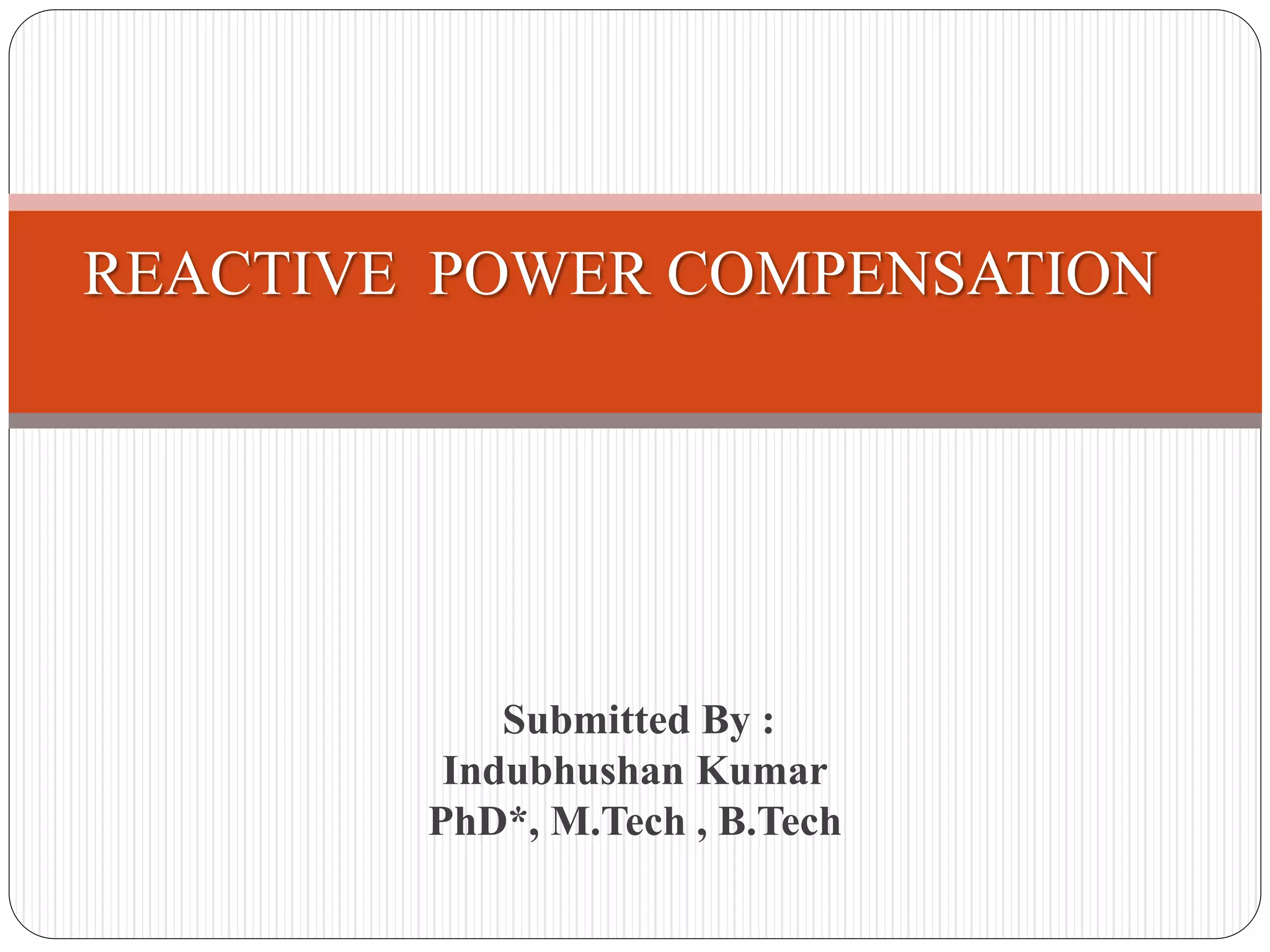

1. REACTIVE POWER COMPENSATION
Submitted By :
Indubhushan Kumar
PhD*, M.Tech , B.Tech

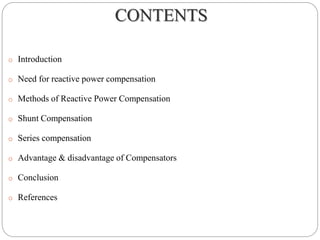

2. CONTENTS
o Introduction
o Need for reactive power compensation
o Methods of Reactive Power Compensation
o Shunt Compensation
o Series compensation
o Advantage & disadvantage of Compensators
o Conclusion
o References

3. Introduction
 Reactive power (VAR) compensation is defined as the management of reactive
power to improve the performance of ac systems.
 There are two aspects:-
(a) Load Compensation : The main objectives are to
increase the power factor of the system
to balance the real power drawn from the system
compensate voltage regulation
to eliminate current harmonics.
(b) Line compensation – The main purpose is to decrease the voltage fluctuation at a
given terminal of transmission line.
Therefore the VAR compensation improves the stability of ac system by increasing
the maximum active power that can be transmitted.

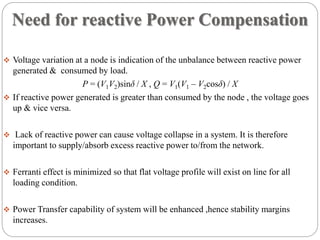

4. Need for reactive Power Compensation
 Voltage variation at a node is indication of the unbalance between reactive power
generated & consumed by load.
P = (V1V2)sinδ / X , Q = V1(V1 – V2cosδ) / X
 If reactive power generated is greater than consumed by the node , the voltage goes
up & vice versa.
 Lack of reactive power can cause voltage collapse in a system. It is therefore
important to supply/absorb excess reactive power to/from the network.
 Ferranti effect is minimized so that flat voltage profile will exist on line for all
loading condition.
 Power Transfer capability of system will be enhanced ,hence stability margins
increases.

5. Methods of Reactive Power Compensation
 Shunt compensation
 Series compensation
 Synchronous condensers
 Static VAR compensators
 Static compensator

6. Shunt Compensation
 A device that is connected in parallel with a transmission line is called a shunt
compensator
 A shunt compensator is always connected at the end point and /usally in the middle
of the transmission line.
 It can be provided by either by shunt reactor or a shunt capacitor.
 Shunt-connected reactors are used to reduce the line over-voltages by consuming the
reactive power, while shunt-connected capacitors are used to maintain the voltage
levels by compensating the reactive power to transmission line.
 In an SMIB power system it improves
voltage profile
power-angle characteristics
improved power factor
load stabilisation

7. Transmission Line With Shunt Compensation

8. Series Compensation
 When a device is connected in series with the transmission line it is called a series
compensator.
 A series compensator can be connected anywhere in the line.
 There are two modes of operation – capacitive mode of operation and inductive
mode of operation.
 Main idea of series compensation is to cancel to cancel part of series inductive
reactance of the line by use of series capacitors which results in :
o increase in maximum transferrable power
o Increase in virtual impedance loading
o Reduction in transmission angle for certain amount of power transfer
 From practical point of view , it is not desirable to exceed series compensation
beyond 80 % .

9. Transmission Line With Series Compensation

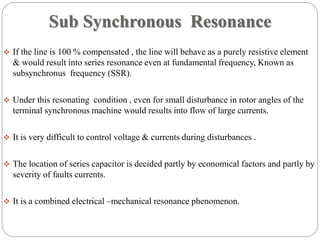

10. Sub Synchronous Resonance
 If the line is 100 % compensated , the line will behave as a purely resistive element
& would result into series resonance even at fundamental frequency, Known as
subsynchronus frequency (SSR).
 Under this resonating condition , even for small disturbance in rotor angles of the
terminal synchronous machine would results into flow of large currents.
 It is very difficult to control voltage & currents during disturbances .
 The location of series capacitor is decided partly by economical factors and partly by
severity of faults currents.
 It is a combined electrical –mechanical resonance phenomenon.

11. Contd…

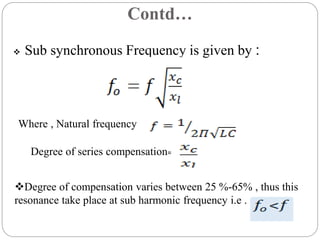

 Sub synchronous Frequency is given by :
Where , Natural frequency
Degree of series compensation=
Degree of compensation varies between 25 %-65% , thus this
resonance take place at sub harmonic frequency i.e .

12. Thyristor Controlled Series Compensator
 Like the SVC, a thyristor controlled series compensator ( TCSC ) is a thyristor based
series compensator that connects a thyristor controlled reactor ( TCR ) in parallel
with a fixed capacitor.
 By varying the firing angle of the anti-parallel thyristors that are connected in series
with a reactor in the TCR, the fundamental frequency inductive reactance of the TCR
can be changed.
 This effects a change in the reactance of the TCSC .
 it can be controlled to produce either inductive or capacitive reactance.

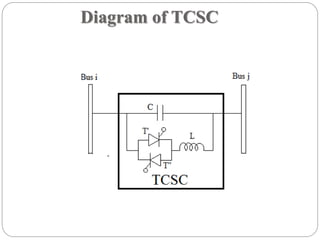

13. Diagram of TCSC

14. Advantage Of Series Compensation
 Series capacitors are self regulating & a control system is not required.
 For same performance , series capacitor are often less costly than SVCs &
losses are very low.
 For voltage stability , series capacitors lower the critical or voltage.
 Series capacitors posses adequate time overload capability.
 Series capacitor & switched series capacitors can be used to control loading of
lines to minimize active & reactive power losses.

15. Disadvantage Of Series Compensation
 Series capacitors are line connected & compensation is removed for outage .
 During heavy loading, the voltage on one side of the series capacitor may be out of
range.
 Shunt reactors may be needed for lighted load compensation.
 Subsynchronous resonance may be call for expensive counter measures.

16. Static VAR Compensators
 The Static Var Compensator (SVC) is a shunt device using power electronics to
control power flow and improve transient stability on power grids .
 The SVC regulates voltage at its terminals by controlling the amount of reactive
power injected into or absorbed from the power system.
 When system voltage is low, the SVC generates reactive power (SVC capacitive).
When system voltage is high, it absorbs reactive power (SVC inductive).
 The variation of reactive power is performed by switching three-phase capacitor
banks and inductor banks connected on the secondary side of a coupling
transformer.
 Each capacitor bank is switched on and off by three thyristor switches (Thyristor
Switched Capacitor or TSC).

17. Contd....
 Reactors are either switched on-off (Thyristor Switched Reactor or TSR) or
phase-controlled (Thyristor Controlled Reactor or TCR).
 It is the first generation shunt compensator.
 An SVC is constructed using the thyristor technology and therefore does not
have gate turn off capability.
 The SVC is an automated impedance matching device, designed to bring the
system closer to unity power factor.
 Under inductive (lagging) conditions, the capacitor banks are automatically
switched in, thus providing a higher system voltage.

18. Fig : Configuration of various SVC

19. Thyristors Switched Reactor

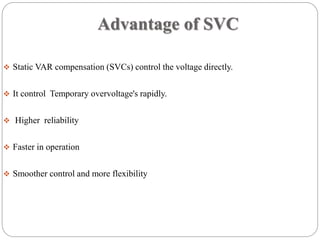

20. Advantage of SVC
 Static VAR compensation (SVCs) control the voltage directly.
 It control Temporary overvoltage's rapidly.
 Higher reliability
 Faster in operation
 Smoother control and more flexibility

21. Static Synchronous Compensator
 The Static Synchronous Compensator (STATCOM) is a shunt device using
power electronics to control power flow and improve transient stability on
power grids.
 The STATCOM regulates voltage at its terminal by controlling the amount of
reactive power injected into or absorbed from the power system.
 When system voltage is low, the STATCOM generates reactive power
(STATCOM capacitive).
 When system voltage is high, it absorbs reactive power (STATCOM inductive).
 The variation of reactive power is performed by means of a Voltage-Sourced
Converter (VSC) connected on the secondary side of a coupling transformer.

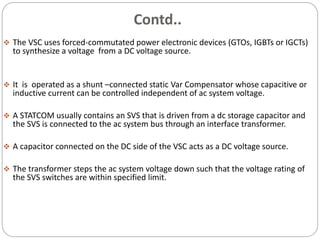

22. Contd..
 The VSC uses forced-commutated power electronic devices (GTOs, IGBTs or IGCTs)
to synthesize a voltage from a DC voltage source.
 It is operated as a shunt –connected static Var Compensator whose capacitive or
inductive current can be controlled independent of ac system voltage.
 A STATCOM usually contains an SVS that is driven from a dc storage capacitor and
the SVS is connected to the ac system bus through an interface transformer.
 A capacitor connected on the DC side of the VSC acts as a DC voltage source.
 The transformer steps the ac system voltage down such that the voltage rating of
the SVS switches are within specified limit.

23. Structure Of STATCOM
Basically, the STATCOM system is comprised of Power converters, Set of
coupling reactors or a step up transformer, Controller.

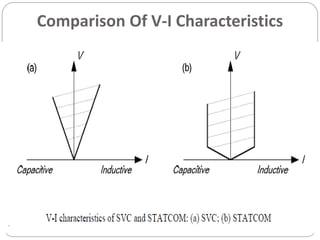

24. Comparison Of V-I Characteristics

25. Advantages of STATCOM
 Reactive components used in the STATCOM are much smaller than those in the
SVC.
 The characteristics of STATCOM are superior.
 The output current of STATCOM can be controlled up to the rated maximum
capacitive or inductive range.
 Reduction of the capacity of semiconductor power converter and capacitor bank to
one half of those for the conventional SVC.
 Better transient response of the order of quarter cycle.
 Reduction of harmonic filter capacity.
 Reduction of size of high value air-cored reactor.
 Reduction of equipment volume and foot-print.

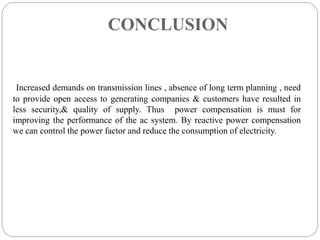

26. CONCLUSION
Increased demands on transmission lines , absence of long term planning , need
to provide open access to generating companies & customers have resulted in
less security,& quality of supply. Thus power compensation is must for
improving the performance of the ac system. By reactive power compensation
we can control the power factor and reduce the consumption of electricity.
