Effective Data Retrieval In XML Using TreeMatch Algorithm
Arockia Panimalar.S1, Divya Bharathi.G2, Mohanapriya.K3, Rubasri.K4
1 Assistant Professor, Department of BCA & M.Sc SS, Sri Krishna Arts and Science College, Tamilnadu, India
2,3,4 III BCA, Department of BCA & M.Sc SS, Sri Krishna Arts and Science College, Tamilnadu, India
---------------------------------------------------------------------***---------------------------------------------------------------------
Abstract - XML has moved toward becoming industry
standard for exchanging and storing data over the internet
using XML language such as Xpath. As endeavours are
producing a lot of data in XML format, there is a requirement
for processing XML tree pattern queries. There are lots of tree
matching algorithms based on tree shaped patterns are
executed to provide fast data retrieval and storing data
efficiently. XML tree matching algorithm previously defined
having a few issues like suboptimality. When it works with
Xpath or Xquery technology with XML it has issues like
wildcard, negation and sibling. In this paper we will conquer
such issues and result will enhances while searching data in
xml tree.
Key Words:TreeMatch algorithm; Wildcard; XPath
Negation; Sibling; Suboptimality
1. INTRODUCTION
A Markup Language can be used to add text with meaning.
The Standard Generalized Markup Language (SGML) was
adopted by the ISO in1986. Contrary to what the name
suggests, the SGML itself is not a markup language, but
rather, a specification for defining markup languages. The
best known application of SGML is the Hypertext Markup
Language, which is used to add the texts in a such a way that
web browsers understand. The finite number of tagsused in
HTML soon became an issuebecauseusersgive morecontrol
over web page. Therefore, HTML was extended to include
additional tagsandreference competitionbetweenMicrosoft
and Netscape fragmented the HTML standard. Hence, a
SMGL webpage markup language was considered for
complex and therefore unsuitable for specifying the new
webpage markup language. To overcome this problem, the
eXtensible Markup Language was introduced. XML is a
specification language for defining markup languages.
However, contrary to SGML, XML is human readable.
Therefore, the developmentofapplicationsthatprocessXML
data is easier. One of the first applications of XML was
XHTML. However, XML generated wider interest because it
provides a special format in which any type of data could be
stored and a common format in which heterogeneous
systems could communicate. For these reasons, XML is
generally accepted as the de-facto standard for information
interchange. XML data is semi-structured, which meansthat
each datum in an XML database has its individual structure
attached. This is in contrast to structured such as relational
databases, where a generic structure must be designed first,
and all of the data that one wishes to store, must conform to
this structure. Making changes to this generic structure, for
example to insert data that has an unsuitable structure, is
often a time consuming task, and it can make applications
that are dependent on the data function incorrectly.
In a XML database [15], heterogeneous data can be inserted
seamlessly because each datum has its individual structure
attached, and therefore does not have to conform to a global
schema. This storage edibility has resulted in systems
generating large quantitiesofXMLdata [15].However,asthe
size of XML repositories grew, thetree-centricnatureofXML
data [10] resulted in significant in terms of query execution
especially when compared to more structured database
solutions.
The Sensor Web is another domain that is beginning to
generate large quantities of data in XML format [10]. For
example, in the domain of health and human performance,
XML data is generated from sensors such as heart rate
monitors worn by players in team sports [11].TheXMLData
Model is not a data model, but rather a specification for
defining markup languages. However, in order to perform
queries across XML data it is necessary to formally specify
the individual properties of an XML document. For W3C
recommend the XQuery and XPath Data Model (XDM) [12].
The work presented in this paper requiresanunderstanding
of four fundamental node types, which are specified in the
XDM. An XML document contains a single root node called
the document node in Figure 1.
Fig 1: XML Document shows XDM Properties

The document node contains an opening tag and a closing
tag and all other nodes in an XML document will occur
between these tags. The children of a document node must
be element or text nodes[14]. Other node types are
permitted as children, for example comment nodes. A text
node encapsulates XML character content. Similar to
document nodes, elementnodeshaveanopeningandclosing
tag. Notwithstanding, there can be any number of element
nodes in a XML record, while there is a solitary document
node Likewise, like a document node, an element node can
have element and text nodes as its children. Unlike a
document node, an element node could have at least one
related attribute nodes. Attribute nodes show up inside a
element node's opening tag. An attribute node has a string-
value, which is the standardized value of the attribute[6][7].

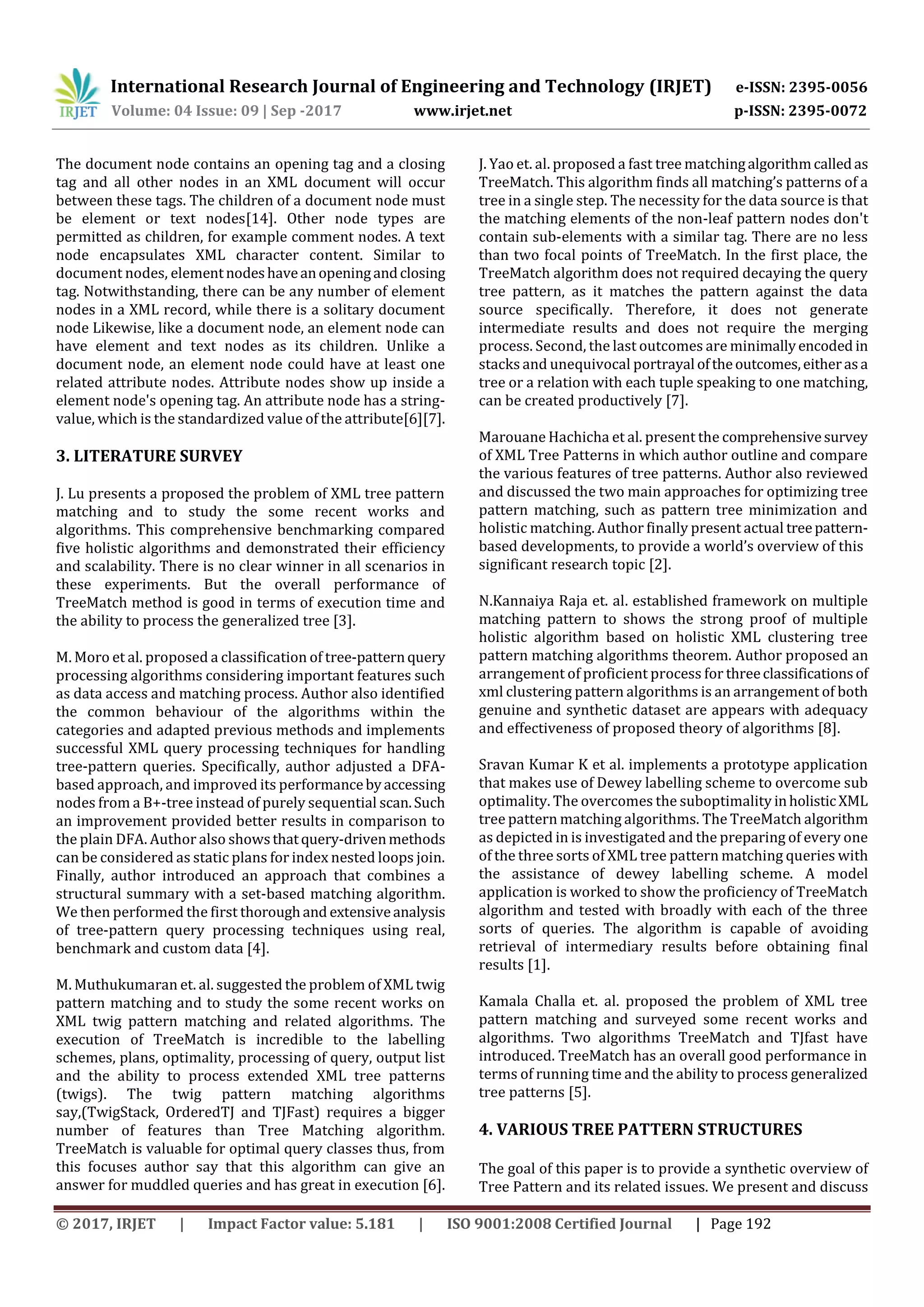

3. LITERATURE SURVEY
J. Lu presents a proposed the problem of XML tree pattern
matching and to study the some recent works and
algorithms. This comprehensive benchmarking compared
five holistic algorithms and demonstrated their efficiency
and scalability. There is no clear winner in all scenarios in
these experiments. But the overall performance of
TreeMatch method is good in terms of execution time and
the ability to process the generalized tree [3].
M. Moro et al. proposed a classification of tree-patternquery
processing algorithms considering important features such
as data access and matching process. Author also identified
the common behaviour of the algorithms within the
categories and adapted previous methods and implements
successful XML query processing techniques for handling
tree-pattern queries. Specifically, author adjusted a DFA-
based approach, and improved its performancebyaccessing
nodes from a B+-tree instead of purely sequential scan.Such
an improvement provided better results in comparison to
the plain DFA. Author also showsthatquery-drivenmethods
can be considered as static plans for index nested loops join.
Finally, author introduced an approach that combines a
structural summary with a set-based matching algorithm.
We then performed the first thoroughand extensiveanalysis
of tree-pattern query processing techniques using real,
benchmark and custom data [4].
M. Muthukumaran et. al. suggested the problem of XML twig
pattern matching and to study the some recent works on
XML twig pattern matching and related algorithms. The
execution of TreeMatch is incredible to the labelling
schemes, plans, optimality, processing of query, output list
and the ability to process extended XML tree patterns
(twigs). The twig pattern matching algorithms
say,(TwigStack, OrderedTJ and TJFast) requires a bigger
number of features than Tree Matching algorithm.
TreeMatch is valuable for optimal query classes thus, from
this focuses author say that this algorithm can give an
answer for muddled queries and has great in execution [6].
J. Yao et. al. proposed a fast tree matchingalgorithmcalledas
TreeMatch. This algorithm finds all matching’s patterns of a
tree in a single step. The necessity for the data source is that
the matching elements of the non-leaf pattern nodes don't
contain sub-elements with a similar tag. There are no less
than two focal points of TreeMatch. In the first place, the
TreeMatch algorithm does not required decaying the query
tree pattern, as it matches the pattern against the data
source specifically. Therefore, it does not generate
intermediate results and does not require the merging
process. Second, the last outcomes are minimallyencoded in
stacks and unequivocal portrayal oftheoutcomes,eitherasa
tree or a relation with each tuple speaking to one matching,
can be created productively [7].
Marouane Hachicha et al. present the comprehensivesurvey
of XML Tree Patterns in which author outline and compare
the various features of tree patterns. Author also reviewed
and discussed the two main approaches for optimizing tree
pattern matching, such as pattern tree minimization and
holistic matching. Author finally present actual treepattern-
based developments, to provide a world’s overview of this
significant research topic [2].
N.Kannaiya Raja et. al. established framework on multiple
matching pattern to shows the strong proof of multiple
holistic algorithm based on holistic XML clustering tree
pattern matching algorithms theorem. Author proposed an
arrangement of proficient process for threeclassificationsof
xml clustering pattern algorithms is an arrangement of both
genuine and synthetic dataset are appears with adequacy
and effectiveness of proposed theory of algorithms [8].
Sravan Kumar K et al. implements a prototype application
that makes use of Dewey labelling scheme to overcome sub
optimality. The overcomes the suboptimality inholisticXML
tree pattern matching algorithms. The TreeMatch algorithm
as depicted in is investigated and the preparing of every one
of the three sorts of XML tree pattern matching queries with
the assistance of dewey labelling scheme. A model
application is worked to show the proficiency of TreeMatch
algorithm and tested with broadly with each of the three
sorts of queries. The algorithm is capable of avoiding
retrieval of intermediary results before obtaining final
results [1].
Kamala Challa et. al. proposed the problem of XML tree
pattern matching and surveyed some recent works and
algorithms. Two algorithms TreeMatch and TJfast have
introduced. TreeMatch has an overall good performance in
terms of running time and the ability to process generalized
tree patterns [5].

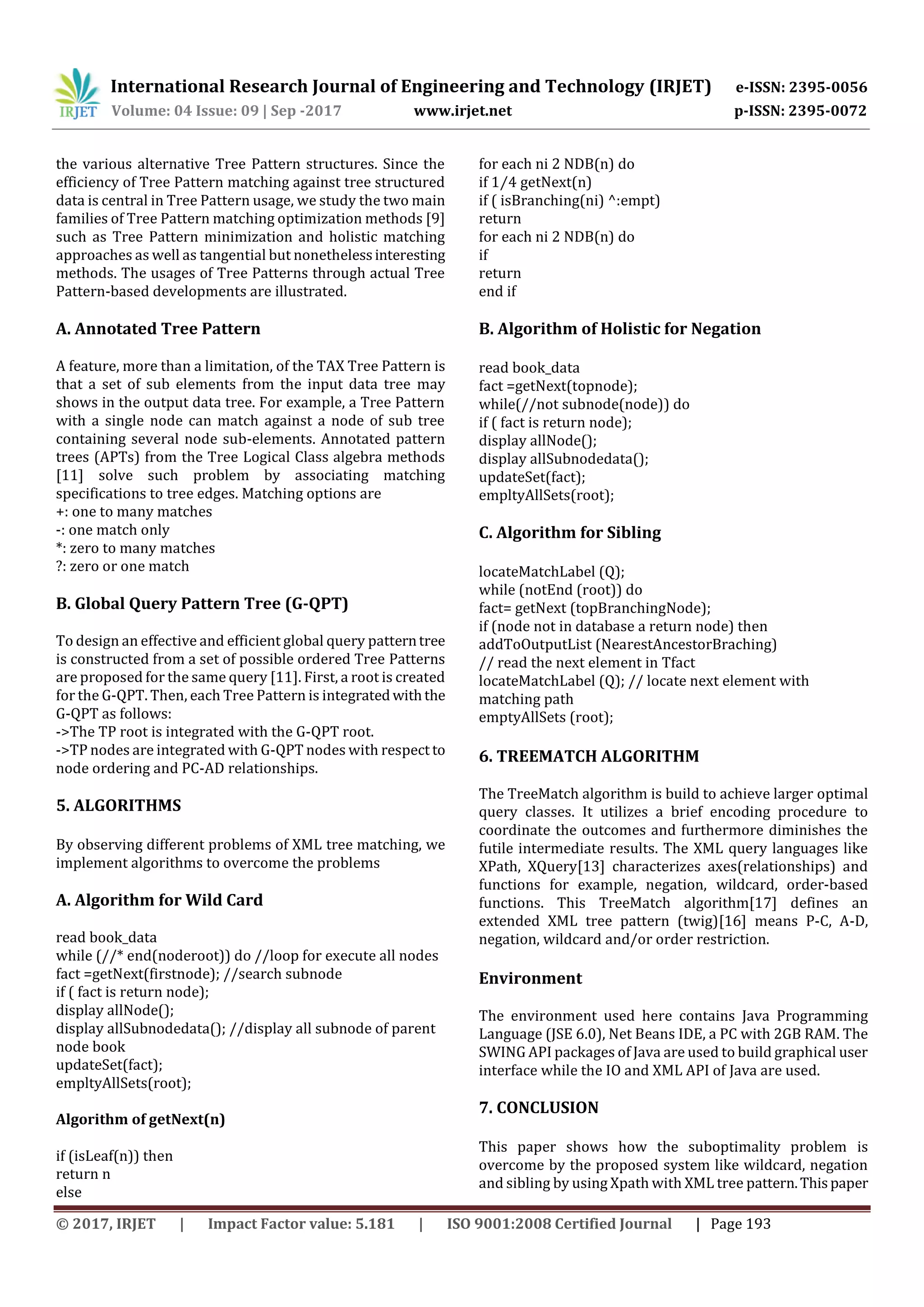

4. VARIOUS TREE PATTERN STRUCTURES
The goal of this paper is to provide a synthetic overview of
Tree Pattern and its related issues. We present and discuss

the various alternative Tree Pattern structures. Since the
efficiency of Tree Pattern matching against tree structured
data is central in Tree Pattern usage, we study the two main
families of Tree Pattern matching optimization methods [9]
such as Tree Pattern minimization and holistic matching
approaches as well as tangential but nonethelessinteresting
methods. The usages of Tree Patterns through actual Tree
Pattern-based developments are illustrated.
A. Annotated Tree Pattern
A feature, more than a limitation, of the TAX Tree Pattern is
that a set of sub elements from the input data tree may
shows in the output data tree. For example, a Tree Pattern
with a single node can match against a node of sub tree
containing several node sub-elements. Annotated pattern
trees (APTs) from the Tree Logical Class algebra methods
[11] solve such problem by associating matching
specifications to tree edges. Matching options are
+: one to many matches
-: one match only
*: zero to many matches
?: zero or one match
B. Global Query Pattern Tree (G-QPT)
To design an effective and efficient global query patterntree
is constructed from a set of possible ordered Tree Patterns
are proposed for the same query [11]. First, a root is created
for the G-QPT. Then, each Tree Pattern is integratedwiththe
G-QPT as follows:
->The TP root is integrated with the G-QPT root.
->TP nodes are integrated with G-QPT nodes with respect to
node ordering and PC-AD relationships.
5. ALGORITHMS
By observing different problems of XML tree matching, we
implement algorithms to overcome the problems
A. Algorithm for Wild Card
read book_data
while (//* end(noderoot)) do //loop for execute all nodes
fact =getNext(firstnode); //search subnode
if ( fact is return node);
display allNode();
display allSubnodedata(); //display all subnode of parent
node book
updateSet(fact);
empltyAllSets(root);
Algorithm of getNext(n)
if (isLeaf(n)) then
return n
else
for each ni 2 NDB(n) do
if 1⁄4 getNext(n)
if ( isBranching(ni) ^:empt)
return
for each ni 2 NDB(n) do
if
return
end if
B. Algorithm of Holistic for Negation
read book_data
fact =getNext(topnode);
while(//not subnode(node)) do
if ( fact is return node);
display allNode();
display allSubnodedata();
updateSet(fact);
empltyAllSets(root);
C. Algorithm for Sibling
locateMatchLabel (Q);
while (notEnd (root)) do
fact= getNext (topBranchingNode);
if (node not in database a return node) then
addToOutputList (NearestAncestorBraching)
// read the next element in Tfact
locateMatchLabel (Q); // locate next element with
matching path
emptyAllSets (root);
6. TREEMATCH ALGORITHM
The TreeMatch algorithm is build to achieve larger optimal
query classes. It utilizes a brief encoding procedure to
coordinate the outcomes and furthermore diminishes the
futile intermediate results. The XML query languages like
XPath, XQuery[13] characterizes axes(relationships) and
functions for example, negation, wildcard, order-based
functions. This TreeMatch algorithm[17] defines an
extended XML tree pattern (twig)[16] means P-C, A-D,
negation, wildcard and/or order restriction.
Environment
The environment used here contains Java Programming
Language (JSE 6.0), Net Beans IDE, a PC with 2GB RAM. The
SWING API packages of Java are used to build graphical user
interface while the IO and XML API of Java are used.
7. CONCLUSION
This paper shows how the suboptimality problem is
overcome by the proposed system like wildcard, negation
and sibling by using Xpath with XML tree pattern.Thispaper

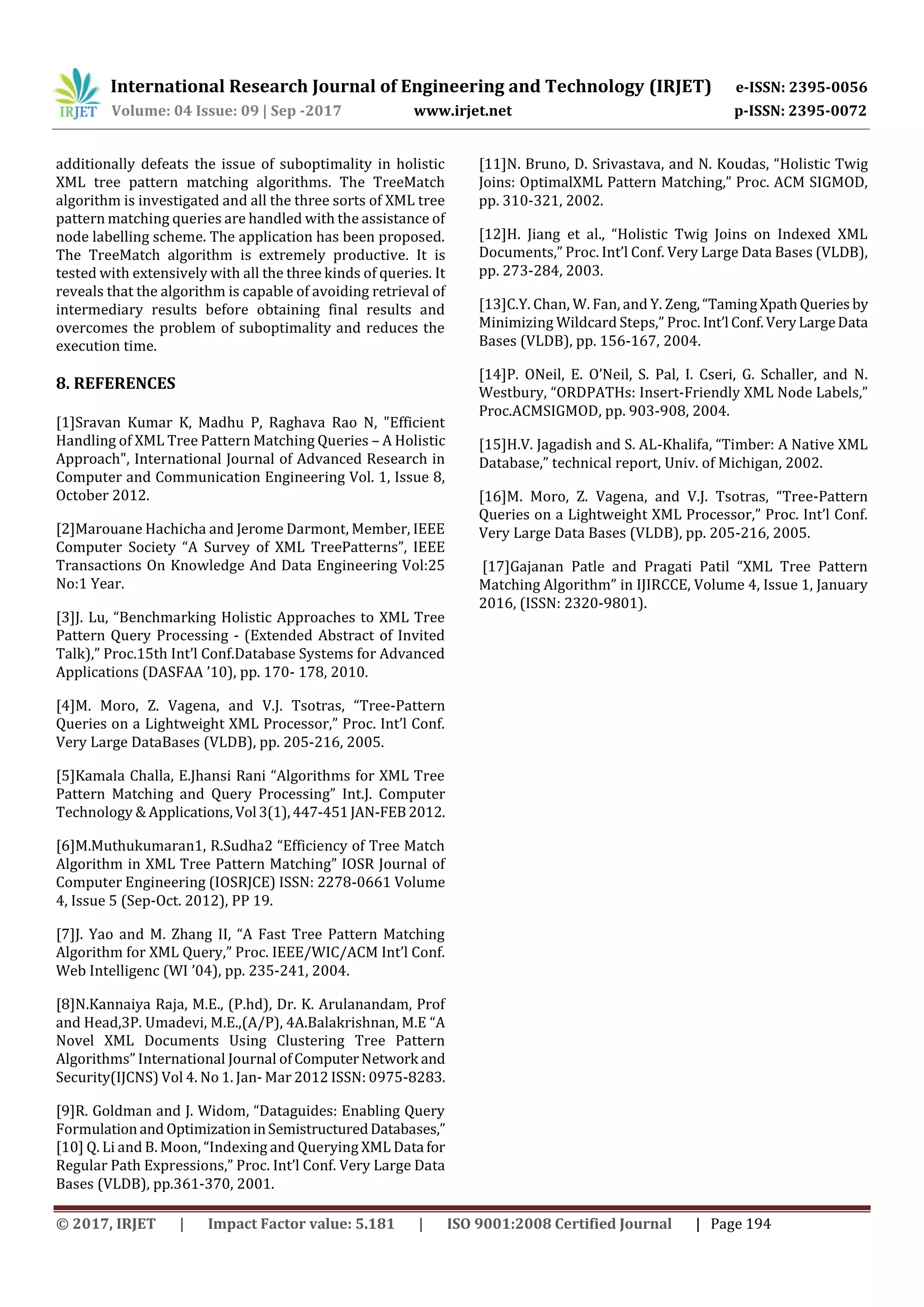

additionally defeats the issue of suboptimality in holistic
XML tree pattern matching algorithms. The TreeMatch
algorithm is investigated and all the three sorts of XML tree
pattern matching queries are handled with the assistance of
node labelling scheme. The application has been proposed.
The TreeMatch algorithm is extremely productive. It is
tested with extensively with all the three kinds of queries. It
reveals that the algorithm is capable of avoiding retrieval of
intermediary results before obtaining final results and
overcomes the problem of suboptimality and reduces the
execution time.
8. REFERENCES
[1]Sravan Kumar K, Madhu P, Raghava Rao N, "Efficient
Handling of XML Tree Pattern Matching Queries – A Holistic
Approach", International Journal of Advanced Research in
Computer and Communication Engineering Vol. 1, Issue 8,
October 2012.
[2]Marouane Hachicha and Jerome Darmont, Member, IEEE
Computer Society “A Survey of XML TreePatterns”, IEEE
Transactions On Knowledge And Data Engineering Vol:25
No:1 Year.
[3]J. Lu, “Benchmarking Holistic Approaches to XML Tree
Pattern Query Processing - (Extended Abstract of Invited
Talk),” Proc.15th Int’l Conf.Database Systems for Advanced
Applications (DASFAA ’10), pp. 170- 178, 2010.
[4]M. Moro, Z. Vagena, and V.J. Tsotras, “Tree-Pattern
Queries on a Lightweight XML Processor,” Proc. Int’l Conf.
Very Large DataBases (VLDB), pp. 205-216, 2005.
[5]Kamala Challa, E.Jhansi Rani “Algorithms for XML Tree
Pattern Matching and Query Processing” Int.J. Computer
Technology & Applications, Vol 3(1),447-451JAN-FEB2012.
[6]M.Muthukumaran1, R.Sudha2 “Efficiency of Tree Match
Algorithm in XML Tree Pattern Matching” IOSR Journal of
Computer Engineering (IOSRJCE) ISSN: 2278-0661 Volume
4, Issue 5 (Sep-Oct. 2012), PP 19.
[7]J. Yao and M. Zhang II, “A Fast Tree Pattern Matching
Algorithm for XML Query,” Proc. IEEE/WIC/ACM Int’l Conf.
Web Intelligenc (WI ’04), pp. 235-241, 2004.
[8]N.Kannaiya Raja, M.E., (P.hd), Dr. K. Arulanandam, Prof
and Head,3P. Umadevi, M.E.,(A/P), 4A.Balakrishnan, M.E “A
Novel XML Documents Using Clustering Tree Pattern
Algorithms” International Journal ofComputerNetwork and
Security(IJCNS) Vol 4. No 1. Jan- Mar 2012 ISSN: 0975-8283.
[9]R. Goldman and J. Widom, “Dataguides: Enabling Query
Formulationand OptimizationinSemistructuredDatabases,”
[10] Q. Li and B. Moon, “Indexing and Querying XML Data for
Regular Path Expressions,” Proc. Int’l Conf. Very Large Data
Bases (VLDB), pp.361-370, 2001.
[11]N. Bruno, D. Srivastava, and N. Koudas, “Holistic Twig
Joins: OptimalXML Pattern Matching,” Proc. ACM SIGMOD,
pp. 310-321, 2002.
[12]H. Jiang et al., “Holistic Twig Joins on Indexed XML
Documents,” Proc. Int’l Conf. Very Large Data Bases (VLDB),
pp. 273-284, 2003.
[13]C.Y. Chan, W. Fan, and Y. Zeng,“TamingXpathQueries by
Minimizing Wildcard Steps,” Proc. Int’l Conf.VeryLargeData
Bases (VLDB), pp. 156-167, 2004.
[14]P. ONeil, E. O’Neil, S. Pal, I. Cseri, G. Schaller, and N.
Westbury, “ORDPATHs: Insert-Friendly XML Node Labels,”
Proc.ACMSIGMOD, pp. 903-908, 2004.
[15]H.V. Jagadish and S. AL-Khalifa, “Timber: A Native XML
Database,” technical report, Univ. of Michigan, 2002.
[16]M. Moro, Z. Vagena, and V.J. Tsotras, “Tree-Pattern
Queries on a Lightweight XML Processor,” Proc. Int’l Conf.
Very Large Data Bases (VLDB), pp. 205-216, 2005.
[17]Gajanan Patle and Pragati Patil “XML Tree Pattern
Matching Algorithm” in IJIRCCE, Volume 4, Issue 1, January
2016, (ISSN: 2320-9801).

Effective Data Retrieval in XML using TreeMatch Algorithm

Recommended

Recommended

More Related Content

What's hot

What's hot (18)

Similar to Effective Data Retrieval in XML using TreeMatch Algorithm

Similar to Effective Data Retrieval in XML using TreeMatch Algorithm (20)

More from IRJET Journal

More from IRJET Journal (20)

Recently uploaded

Recently uploaded (20)

Effective Data Retrieval in XML using TreeMatch Algorithm
