The document outlines a project aimed at developing an efficient electronic toll management system and intelligent notification system to enhance customer convenience and traffic management. The e-toll system eliminates the need for physical money, reduces waiting times at toll plazas, and improves government oversight, while the intelligent notification system provides real-time updates for drivers. Overall, the project seeks to address issues like traffic congestion, accidents, and corruption in toll collection.

1. Project mentor: ANAS M.M
College: MUTHOOT INSTITUTE OF
TECHNOLOGY AND SCIENCE
Team Members:
SRUTHY CHANDRAN
SAITHYA SIVADAS
ABIDH K MUHAMMED

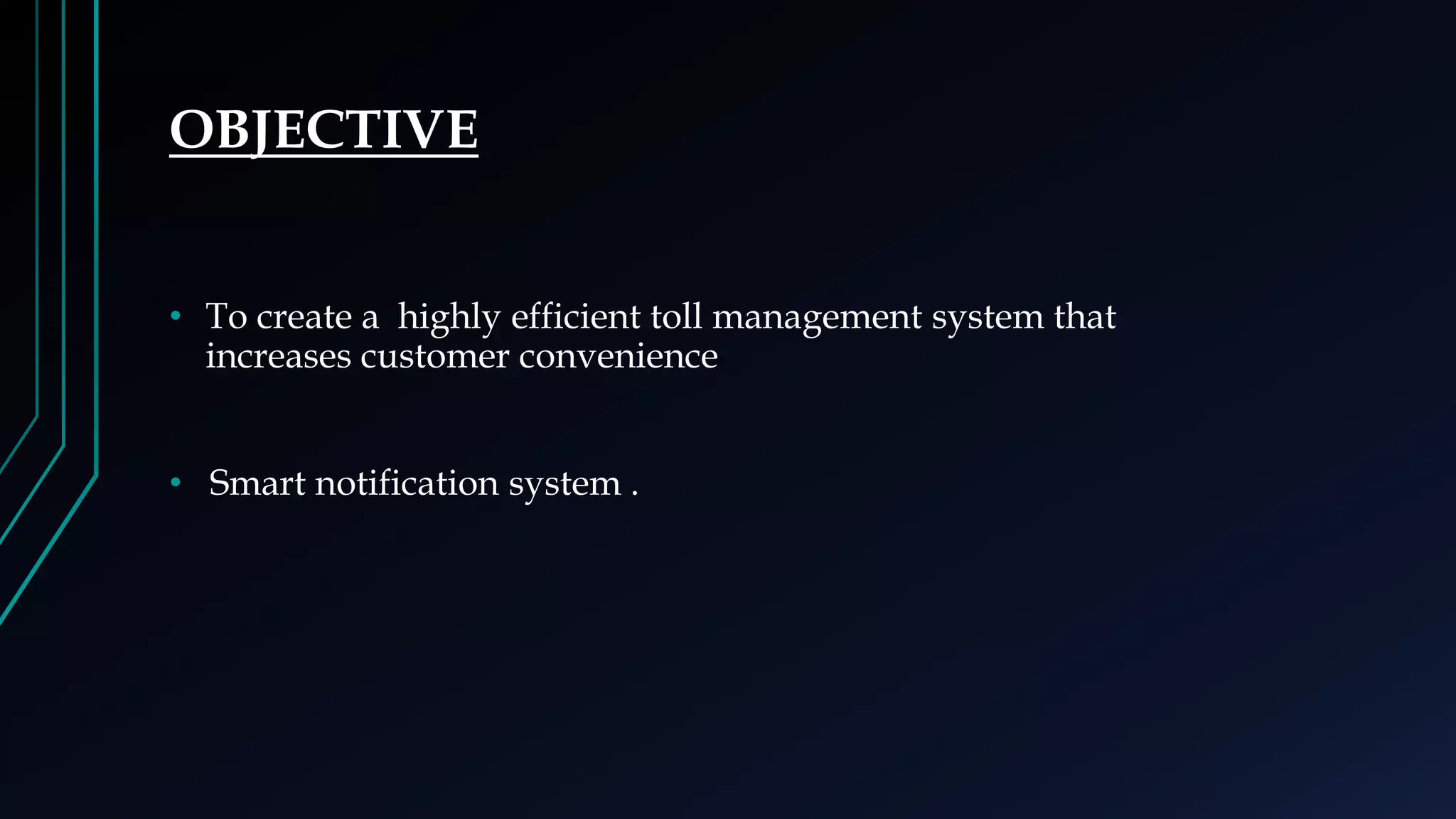

2. OBJECTIVE
• To create a highly efficient toll management system that
increases customer convenience
• Smart notification system .

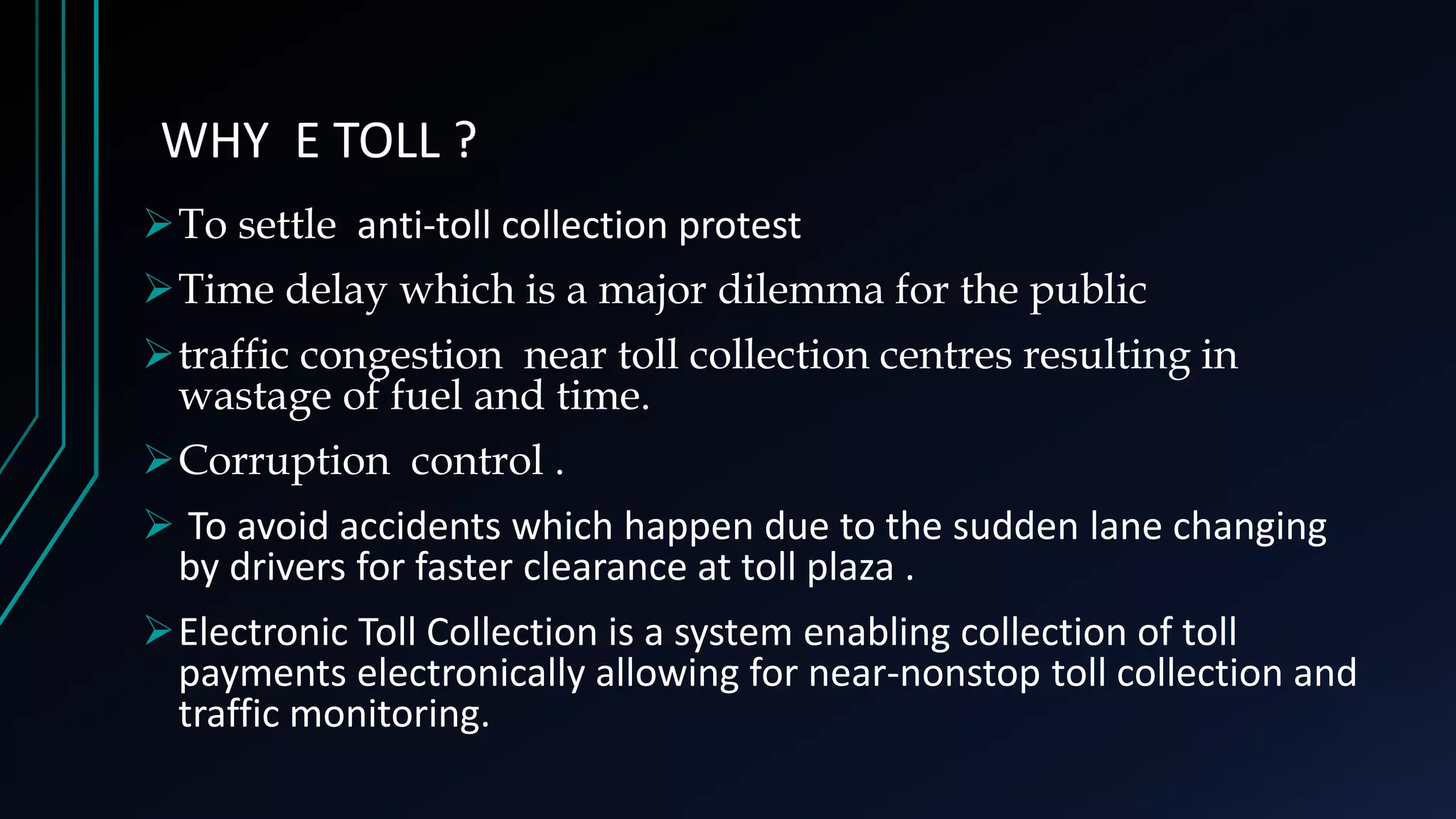

3. To settle anti-toll collection protest
Time delay which is a major dilemma for the public
traffic congestion near toll collection centres resulting in
wastage of fuel and time.
Corruption control .
 To avoid accidents which happen due to the sudden lane changing
by drivers for faster clearance at toll plaza .
Electronic Toll Collection is a system enabling collection of toll
payments electronically allowing for near-nonstop toll collection and
traffic monitoring.
WHY E TOLL ?

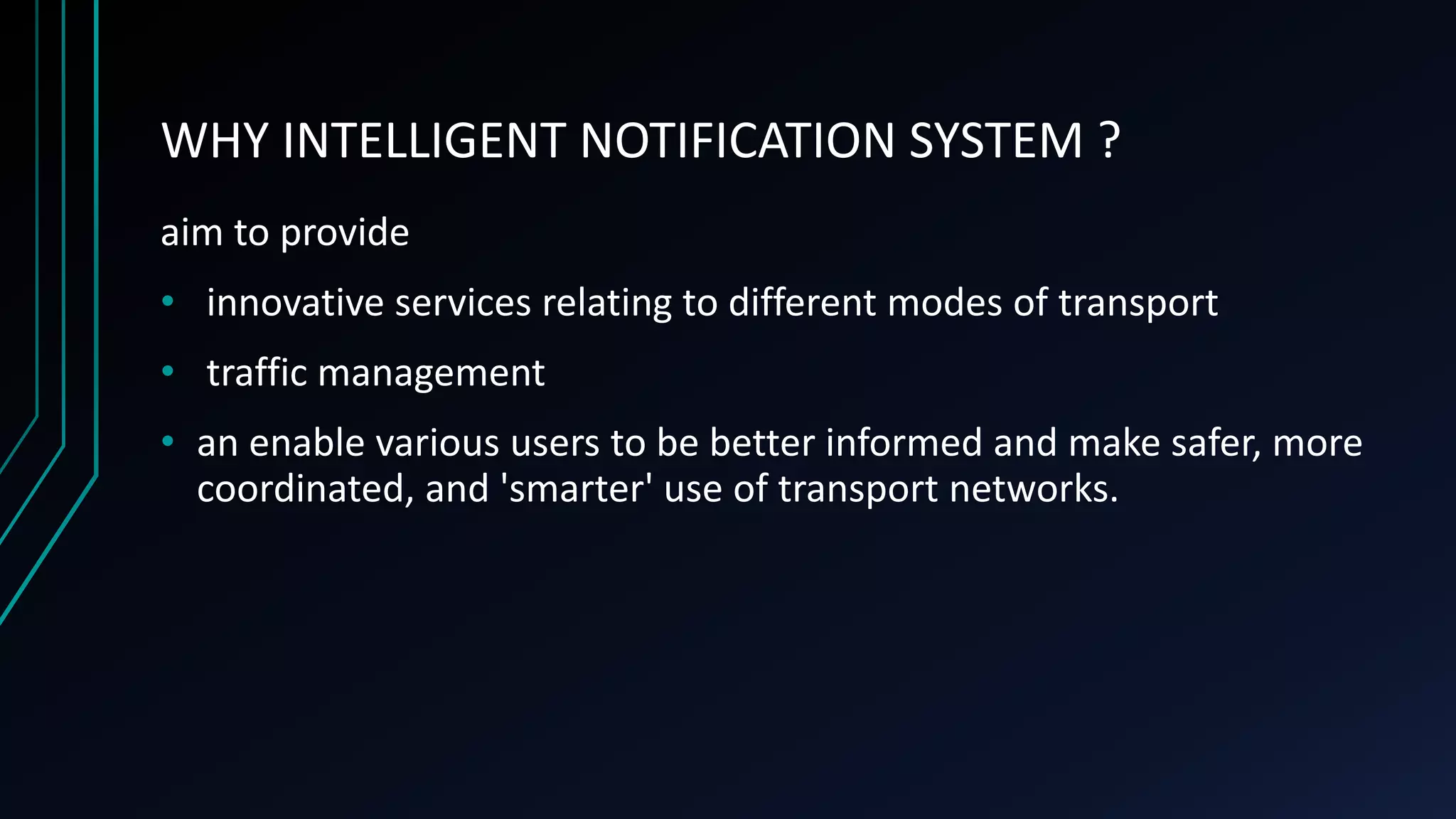

4. WHY INTELLIGENT NOTIFICATION SYSTEM ?
aim to provide
• innovative services relating to different modes of transport
• traffic management
• an enable various users to be better informed and make safer, more
coordinated, and 'smarter' use of transport networks.

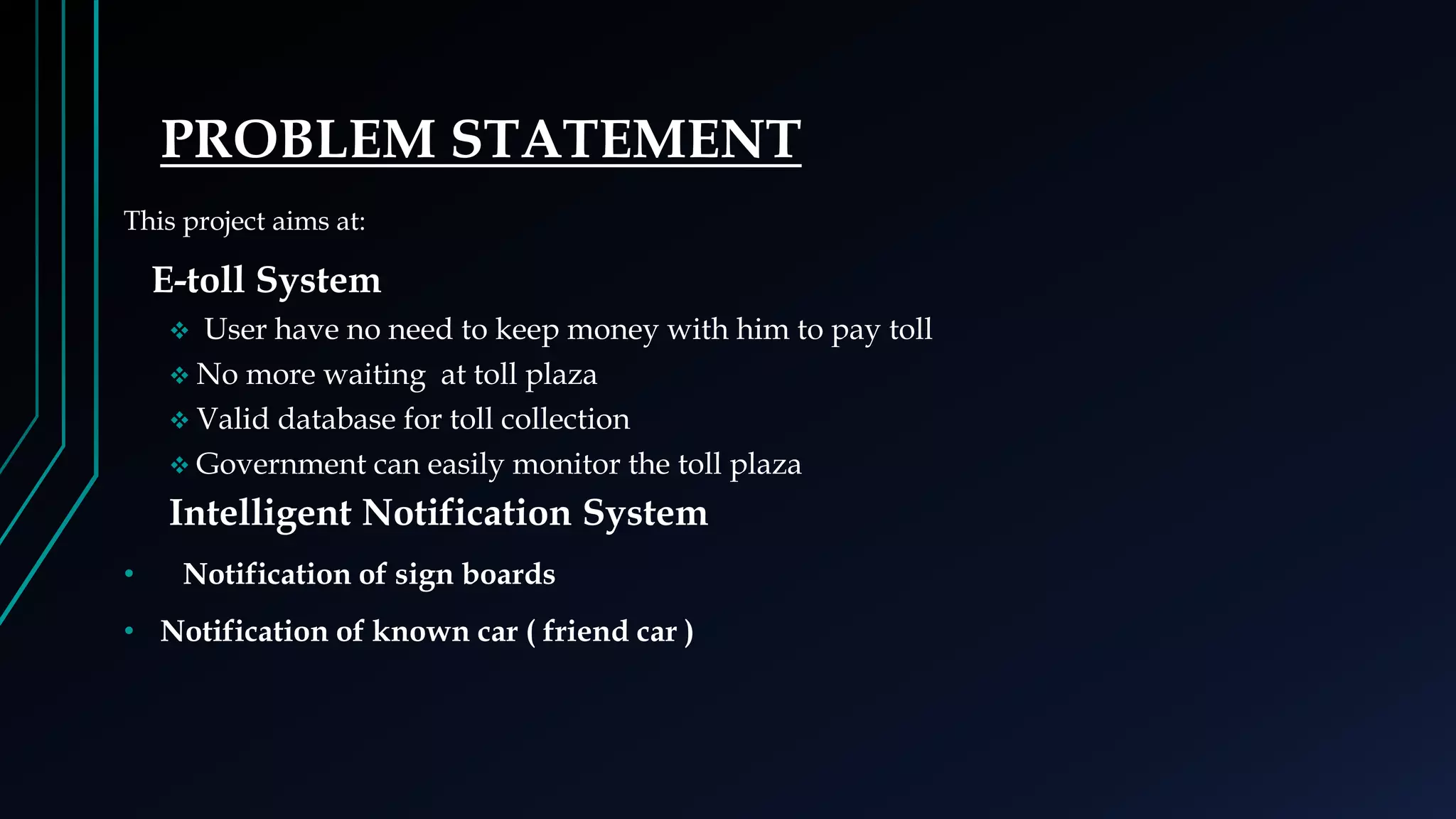

5. PROBLEM STATEMENT
This project aims at:
E-toll System
 User have no need to keep money with him to pay toll
 No more waiting at toll plaza
 Valid database for toll collection
 Government can easily monitor the toll plaza
Intelligent Notification System
• Notification of sign boards

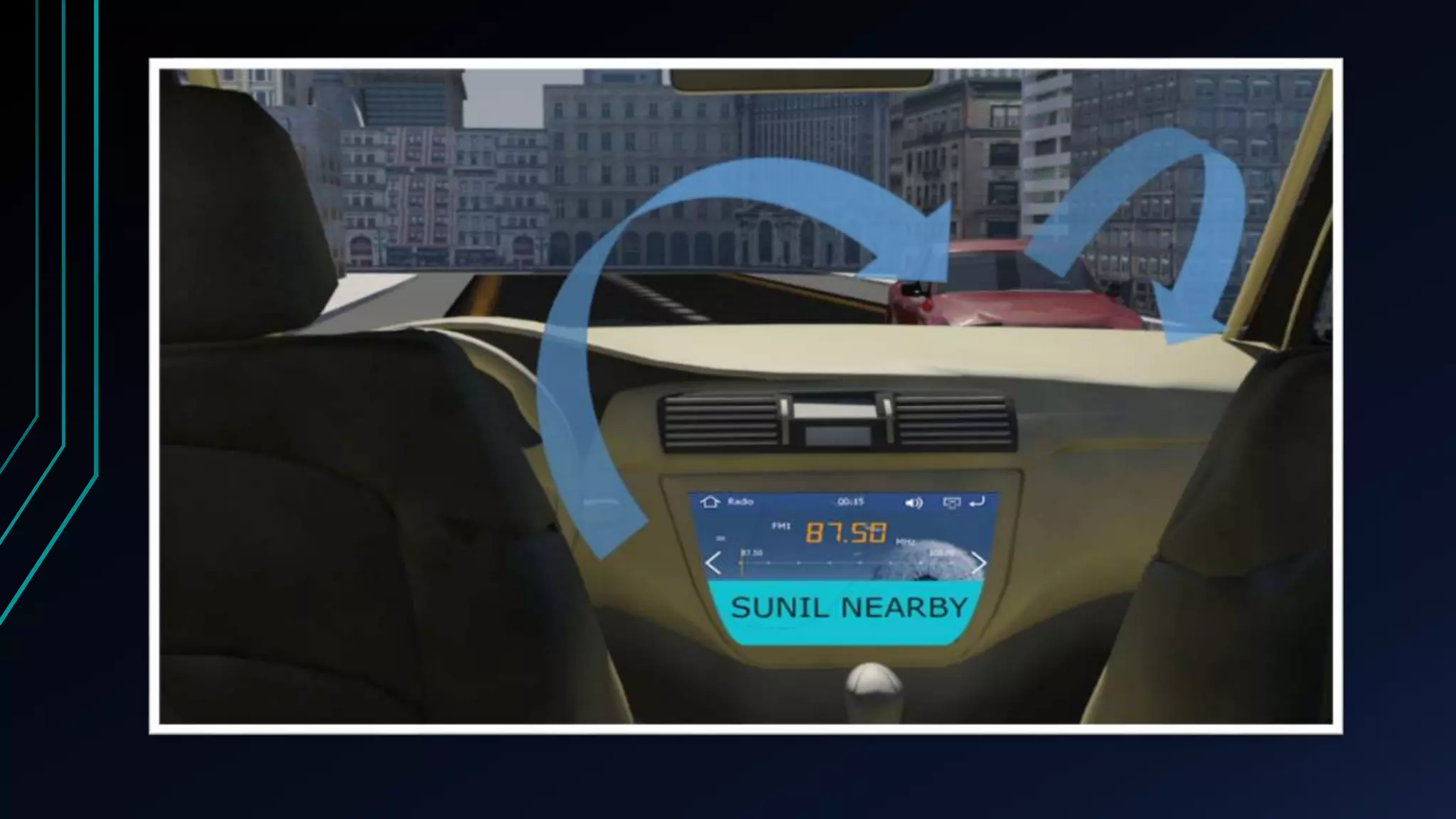

• Notification of known car ( friend car )

6. STRUCTURAL AND
FUNCTIONAL DETAILS

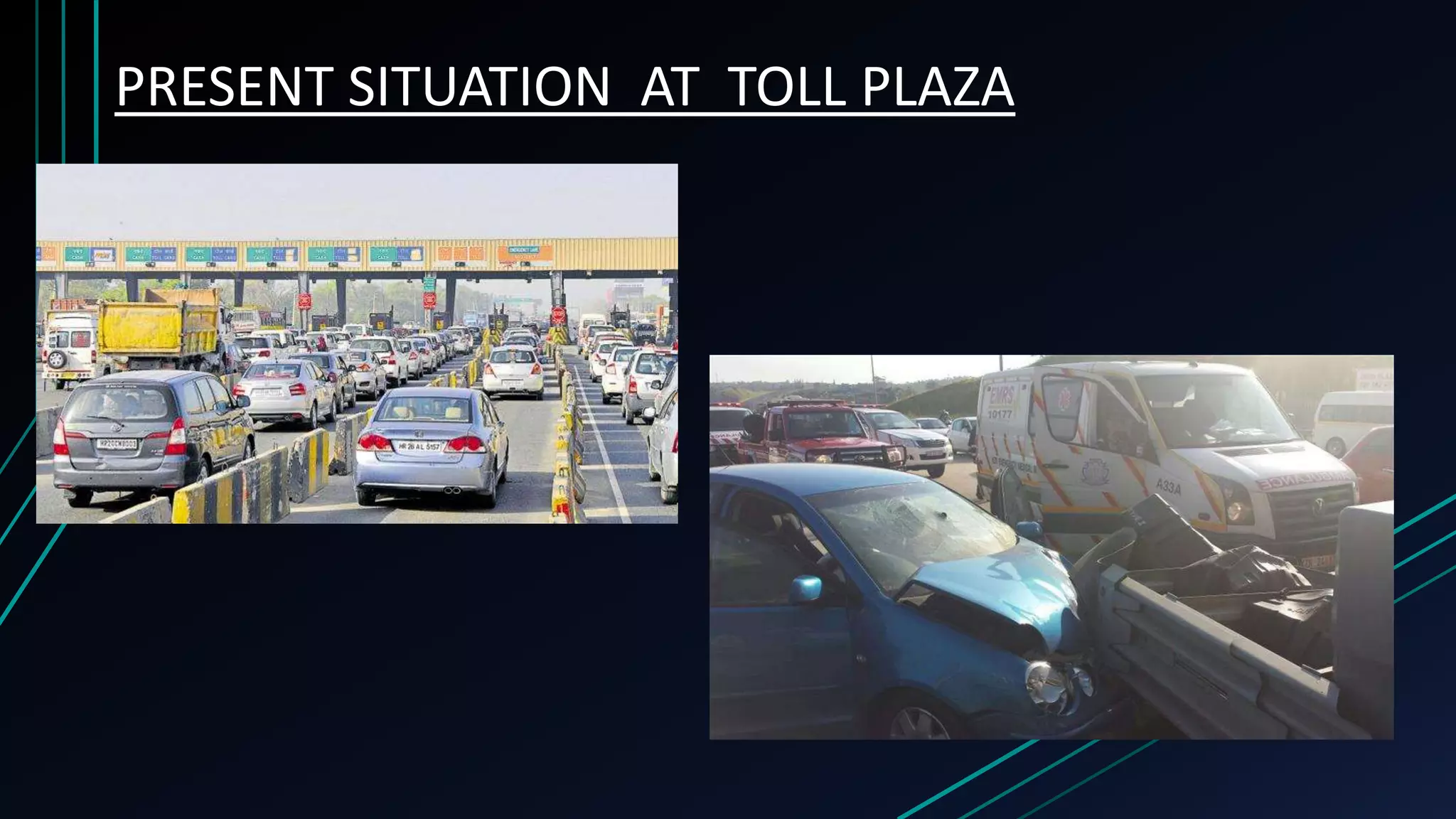

7. PRESENT SITUATION AT TOLL PLAZA

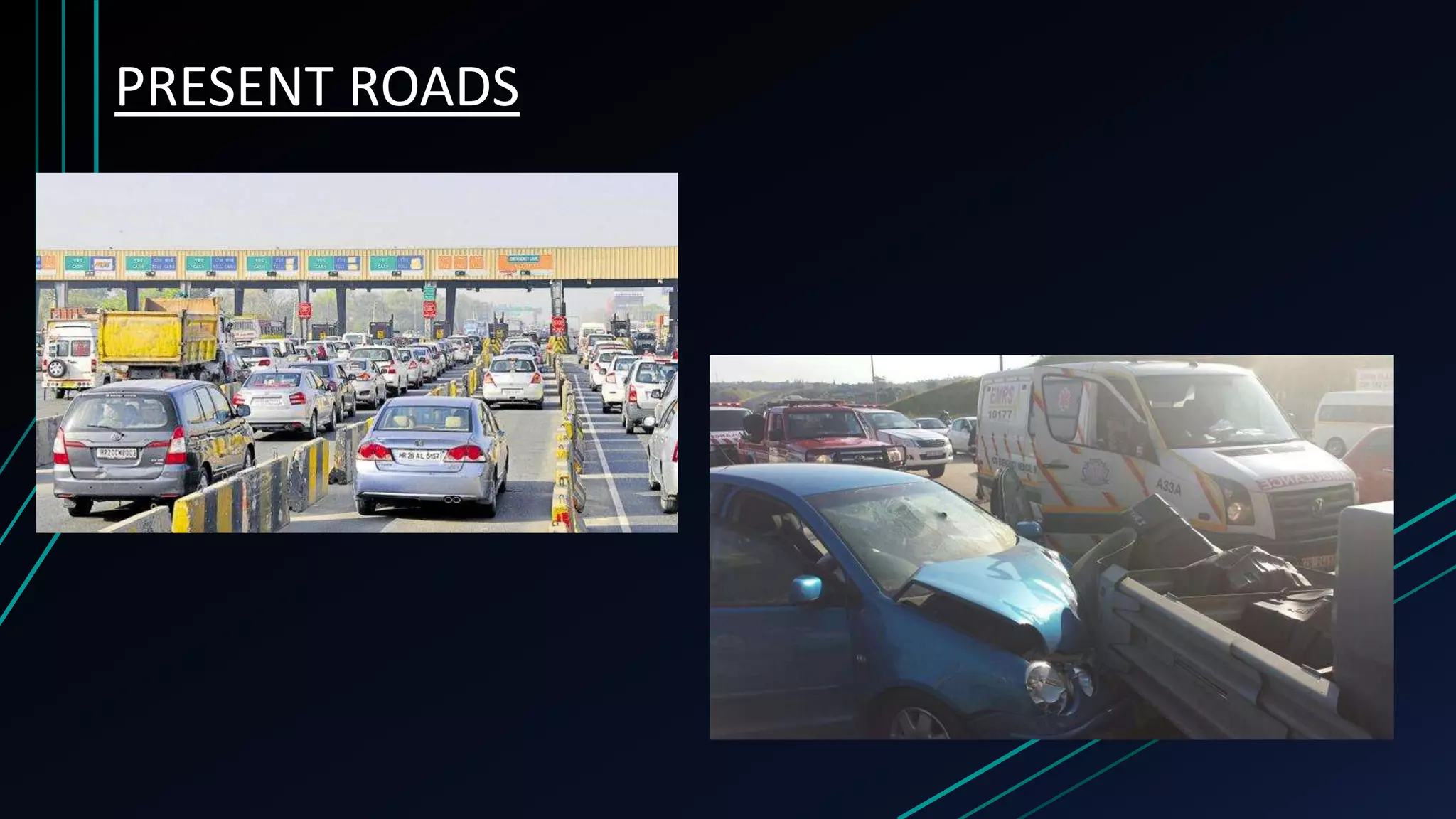

8. PRESENT ROADS

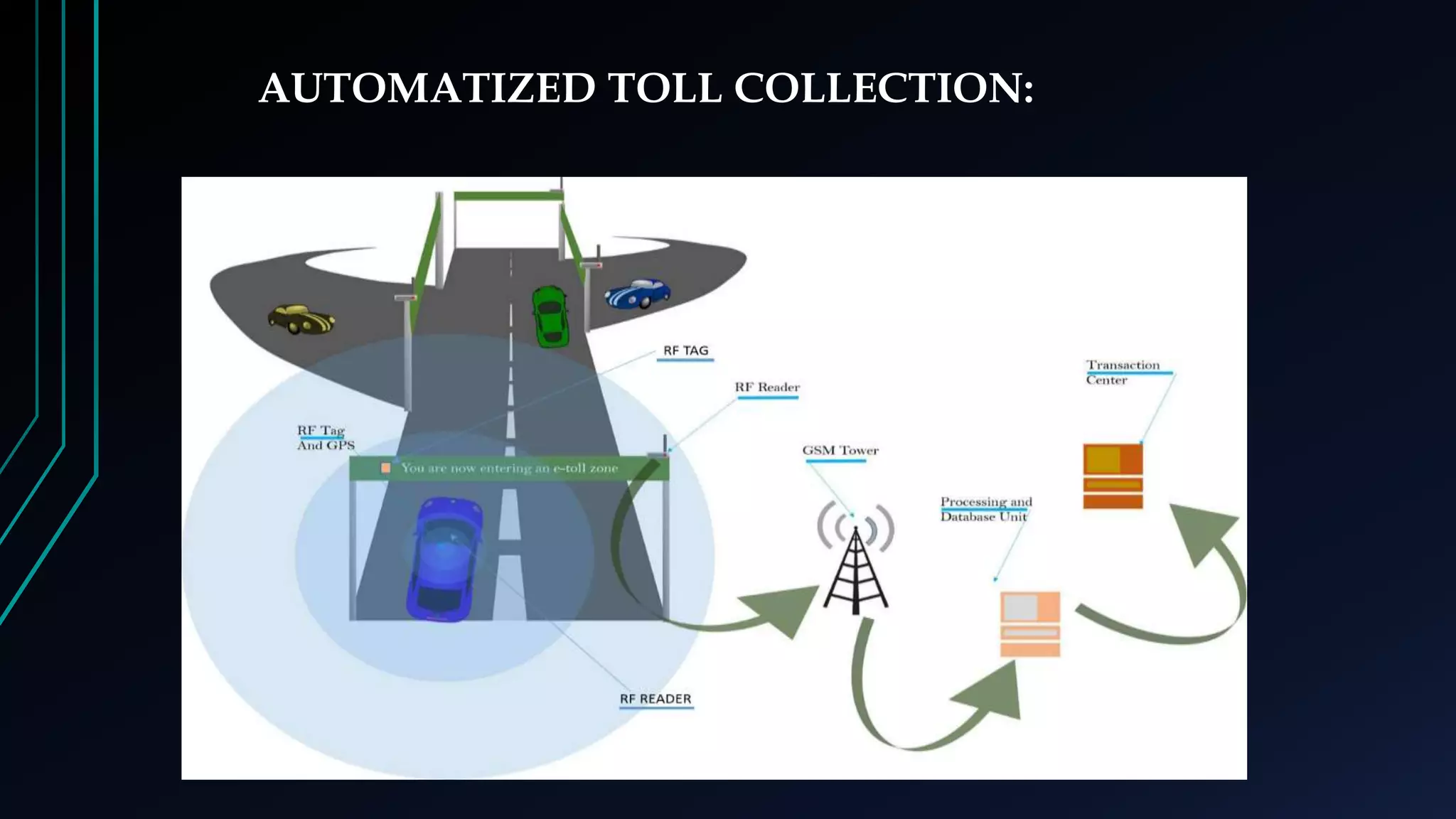

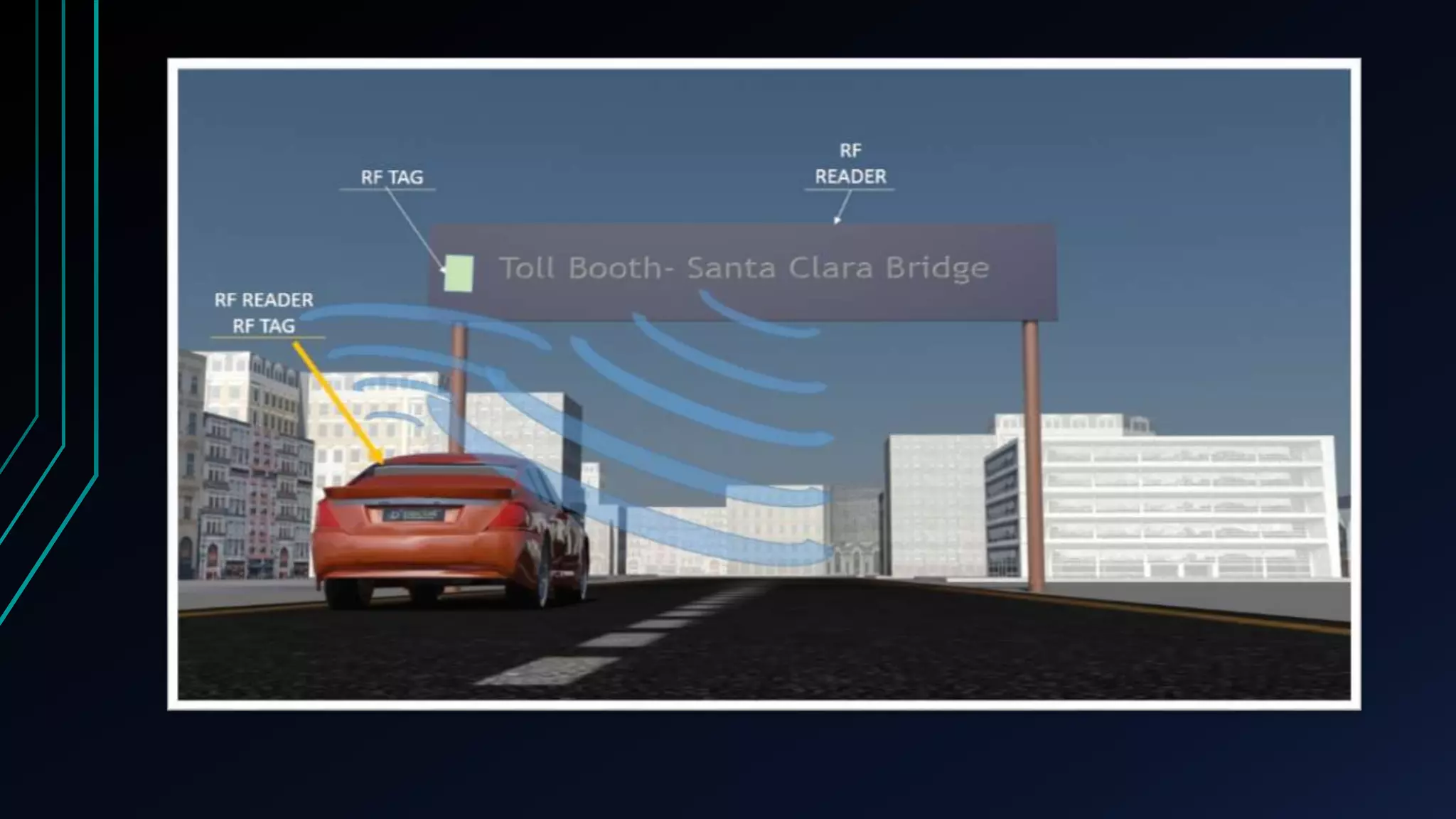

9. AUTOMATIZED TOLL COLLECTION:

11. SYSTEM AND HARDWARE DIAGRAM FOR E-TOLL

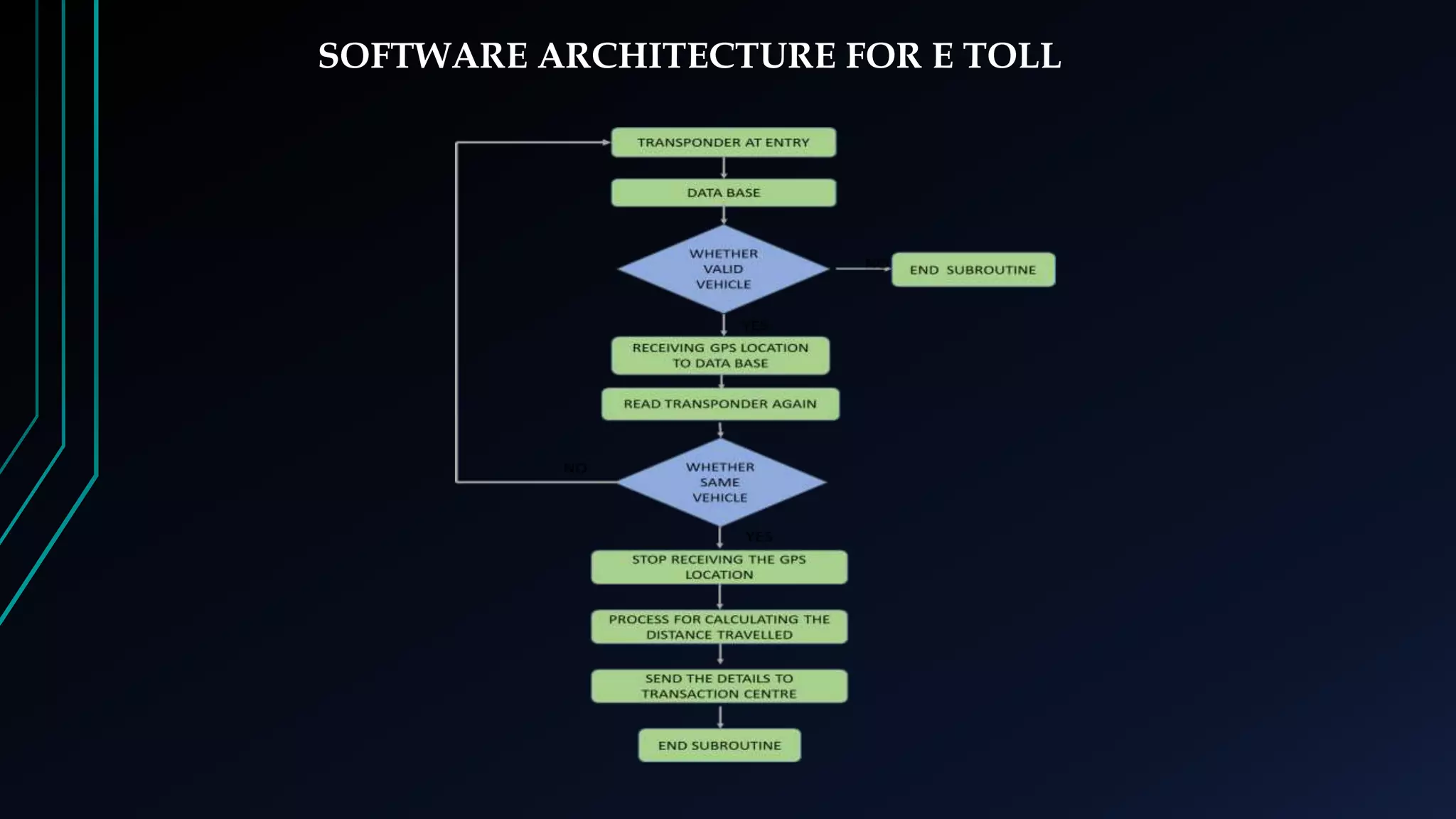

12. SOFTWARE ARCHITECTURE FOR E TOLL

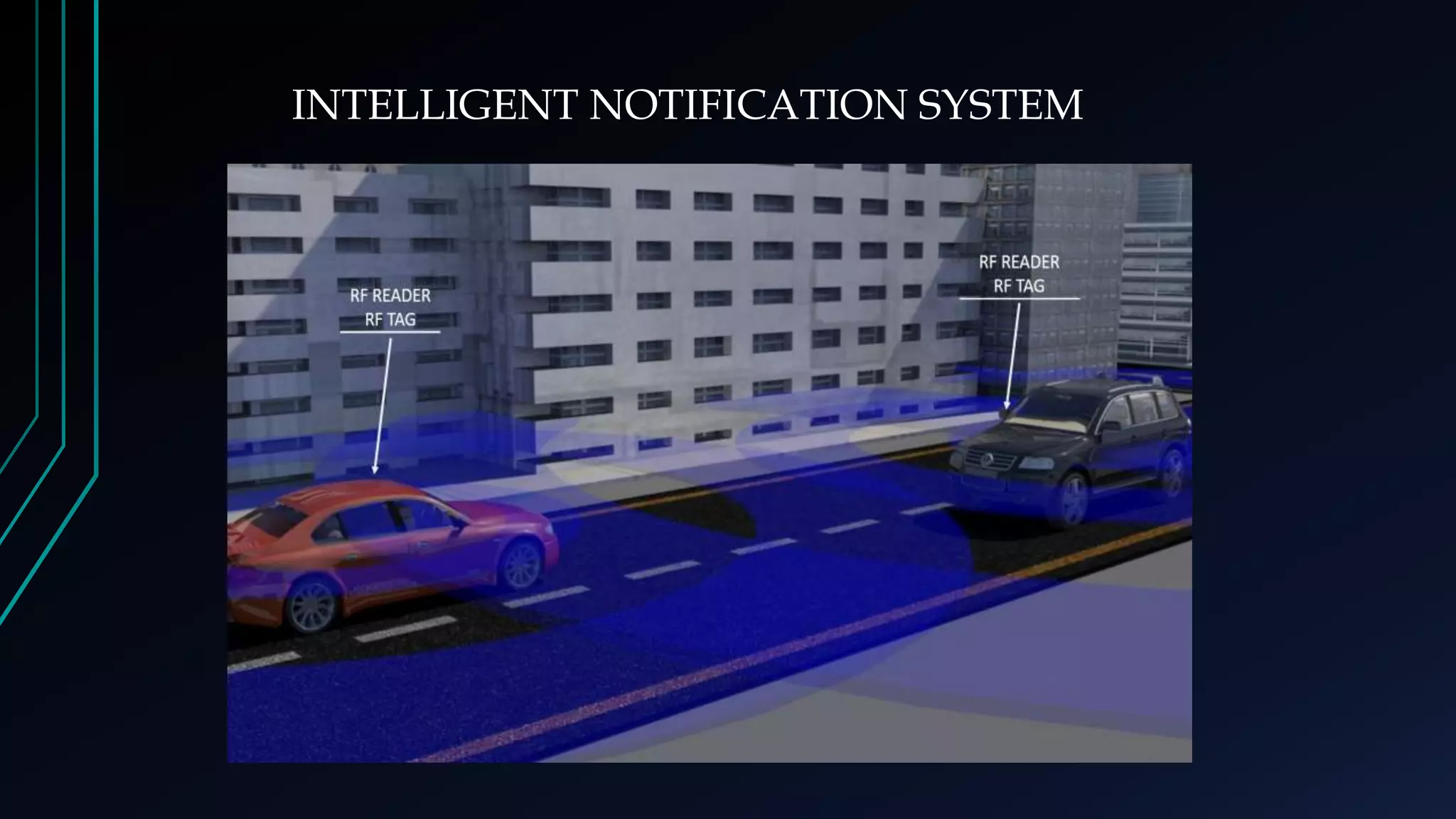

13. INTELLIGENT NOTIFICATION SYSTEM

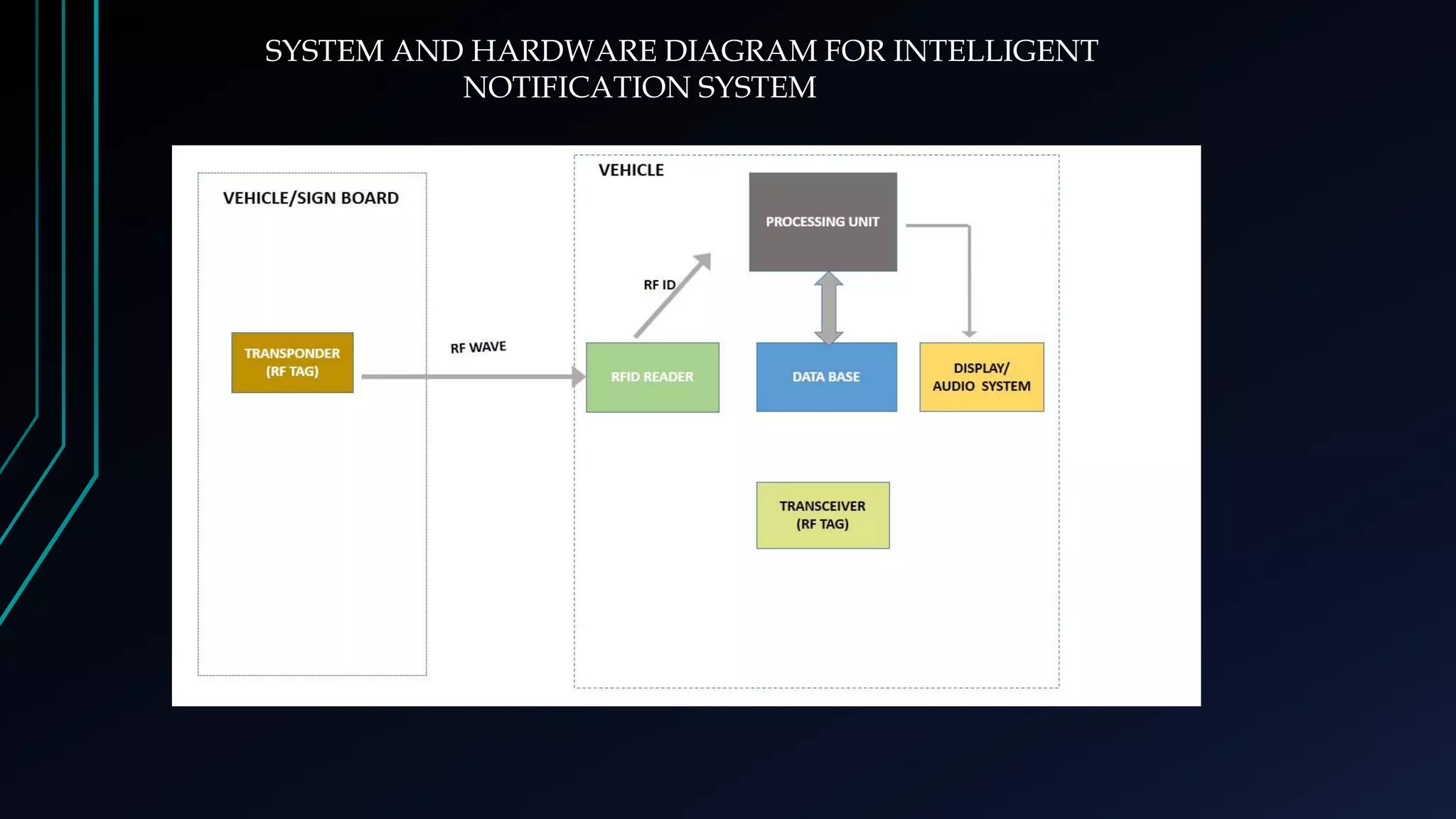

17. SYSTEM AND HARDWARE DIAGRAM FOR INTELLIGENT
NOTIFICATION SYSTEM

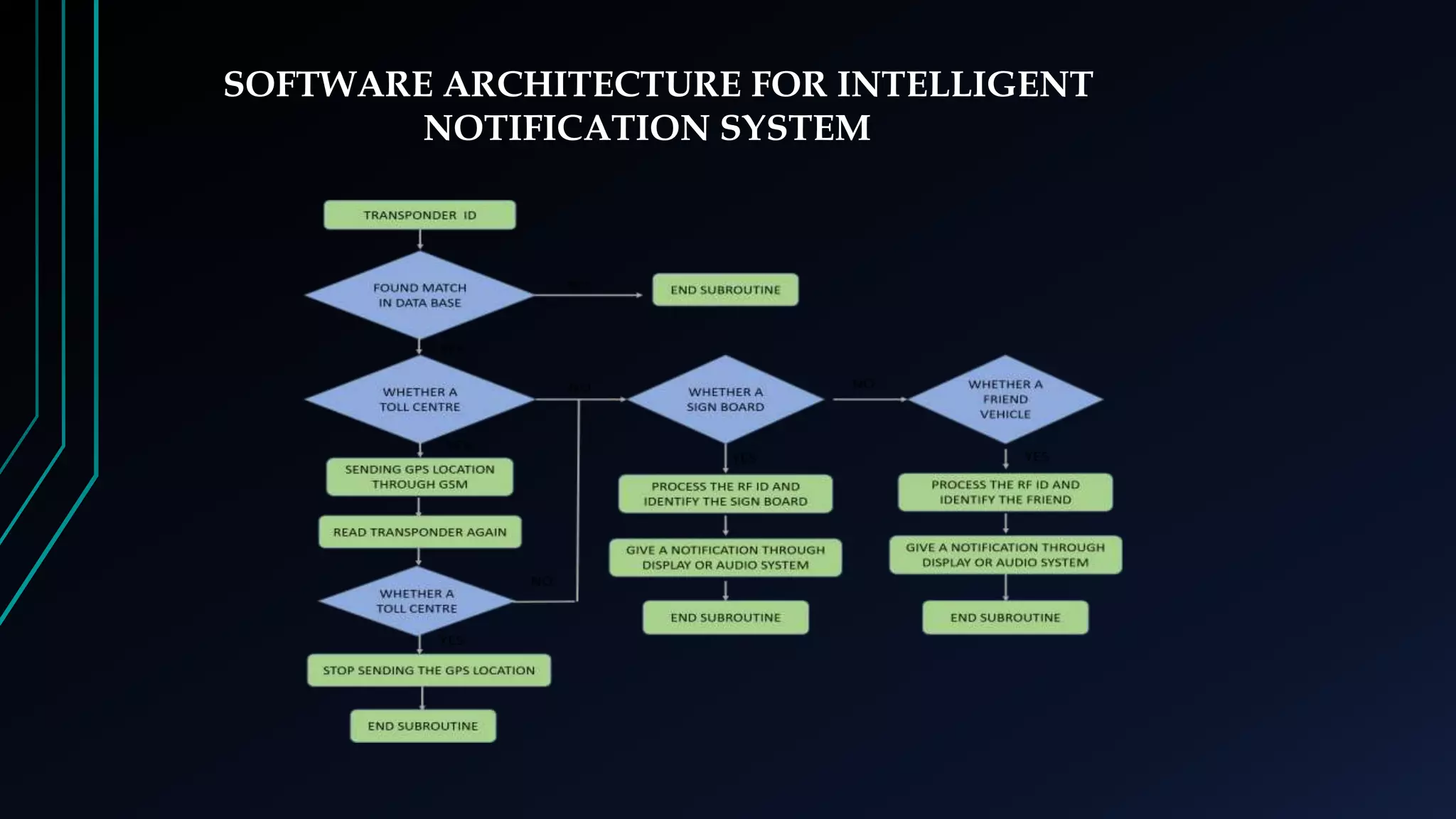

18. SOFTWARE ARCHITECTURE FOR INTELLIGENT
NOTIFICATION SYSTEM

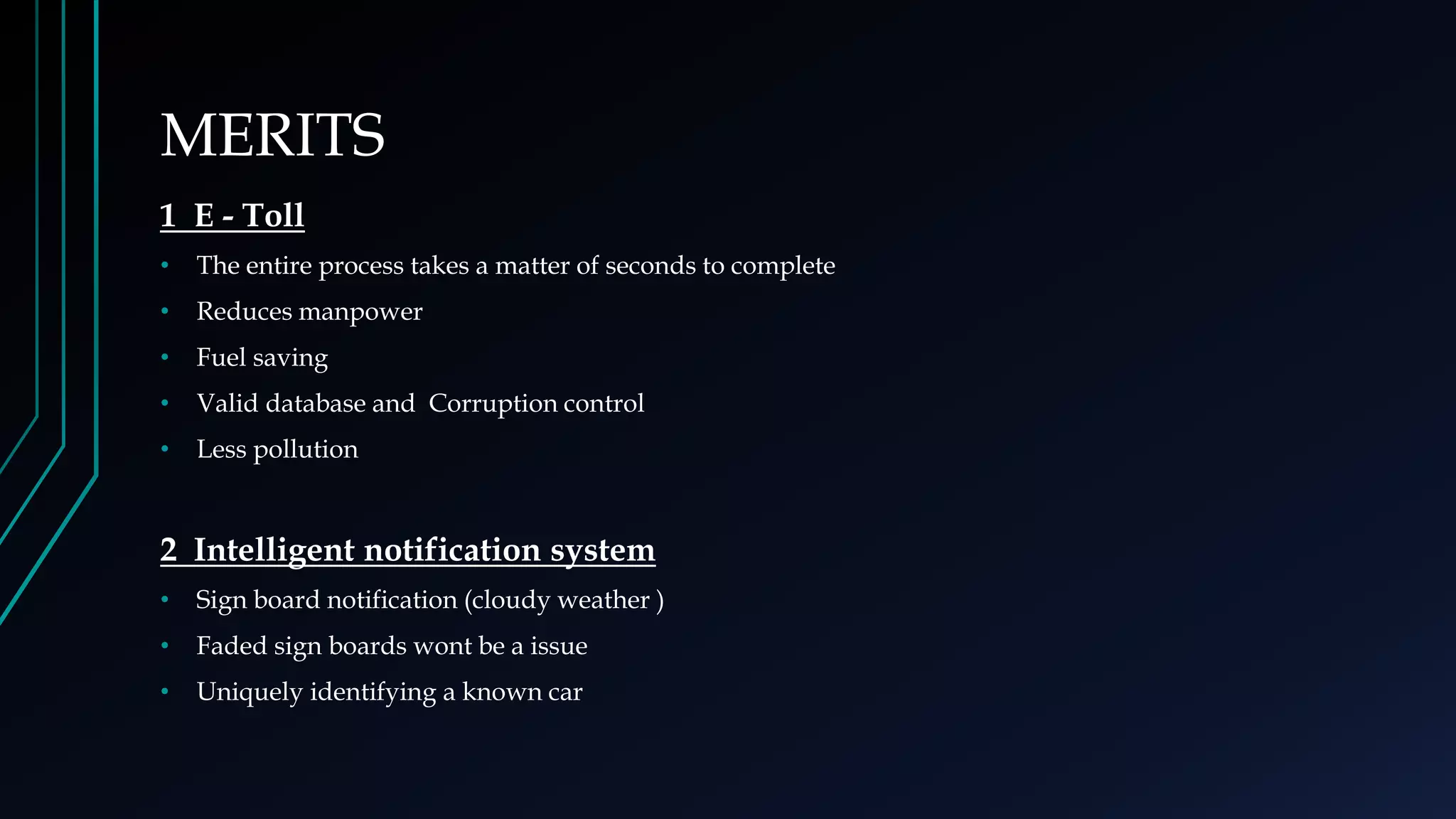

19. MERITS
1 E - Toll
• The entire process takes a matter of seconds to complete
• Reduces manpower
• Fuel saving
• Valid database and Corruption control
• Less pollution
2 Intelligent notification system
• Sign board notification (cloudy weather )
• Faded sign boards wont be a issue
• Uniquely identifying a known car

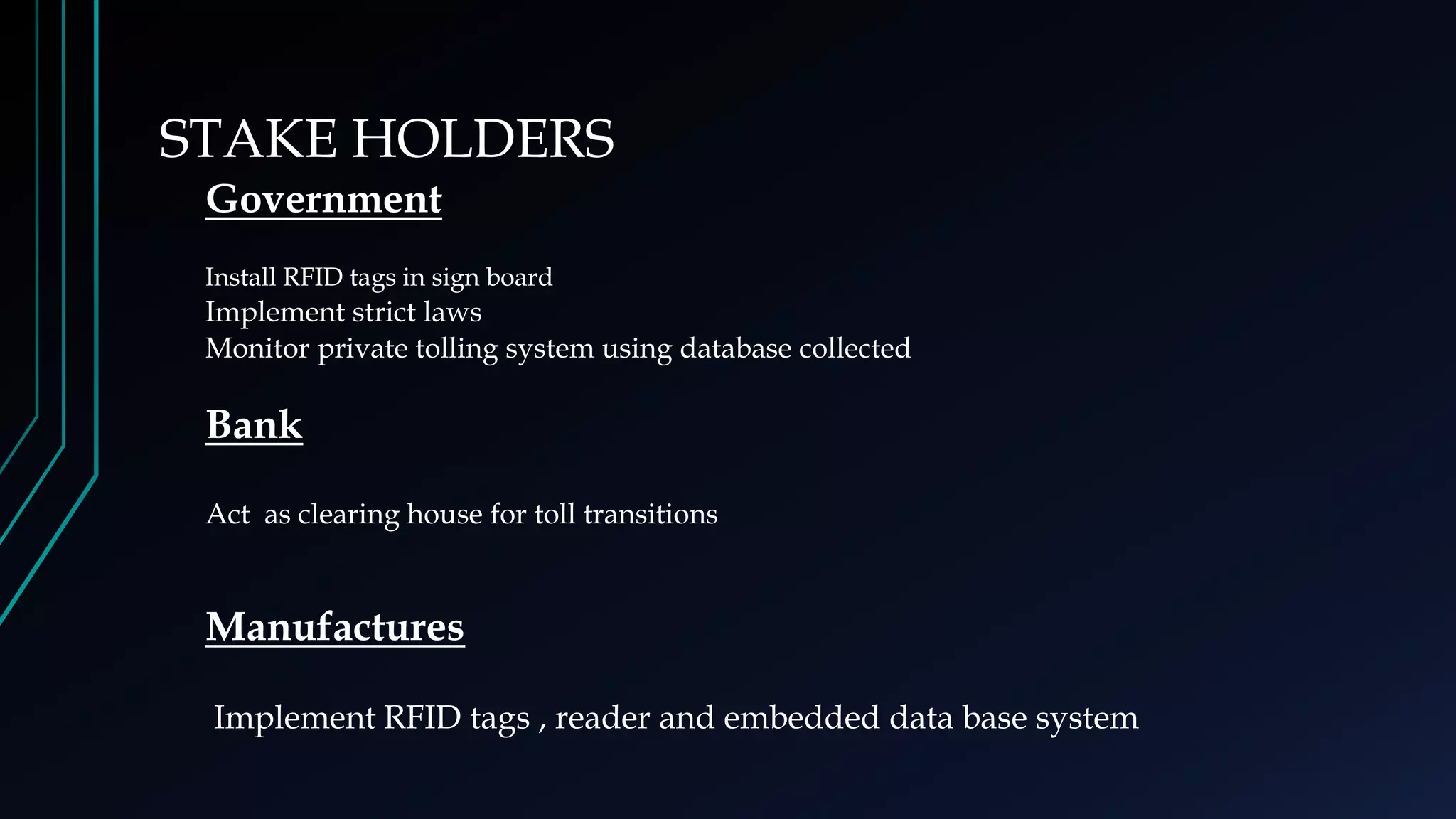

20. STAKE HOLDERS
Government
Install RFID tags in sign board
Implement strict laws
Monitor private tolling system using database collected
Bank
Act as clearing house for toll transitions
Manufactures
Implement RFID tags , reader and embedded data base system

21. Thank you
